Product Type	Food Processor
Brand	DCG
Model	FL1530
Power	800 W
Voltage	220-240 V, 50/60 Hz
Bowl Capacity	1.5 L
Speed Settings	2 variable speeds + pulse
Blade Material	Stainless Steel
Bowl Material	Plastic (BPA-free)
Safety Features	Locking lid, non-slip feet, overload protection
Dishwasher Safe Parts	Yes (bowl and accessories)
Dimensions (H x W x D)	30 x 25 x 25 cm
Weight	4.2 kg
Cord Length	1.2 m
Color	White/Black
Functions	Chopping, mixing, blending, pureeing, grating, slicing
Included Accessories	S-blade, grating disc, slicing disc, spatula
Maintenance	Wipe body with damp cloth; wash accessories in warm soapy water
Overload Protection	Yes, automatic shut-off
Spare Parts Availability	From DCG customer service
Warranty	2 years

Frequently Asked Questions - FL1530 DCG

How do I clean the DCG FL1530 food processor?

Unplug the unit. Wipe the motor base with a damp cloth. Remove the bowl, lid, and accessories and wash them in warm soapy water or place them on the top rack of the dishwasher. Dry thoroughly before reassembling.

Can I knead dough in this food processor?

Yes, the DCG FL1530 can handle dough up to 500g of flour. Use the S-blade and pulse or low speed. Do not exceed the maximum capacity to avoid motor strain.

What is the maximum capacity of the bowl?

The bowl has a 1.5 L capacity. For liquids, do not exceed the 1 L mark to prevent splashing. For solids, fill no more than two-thirds full.

Are the parts dishwasher safe?

Yes, the bowl, lid, and all accessories are dishwasher safe (top rack recommended). However, the motor base should never be immersed in water.

What is the warranty for the DCG FL1530?

DCG offers a 2-year warranty against manufacturing defects. Keep your proof of purchase. The warranty covers non-consumable parts and labor.

Is the bowl BPA-free?

Yes, the bowl is made from BPA-free plastic, ensuring safe food contact.

Can I crush ice with this food processor?

Yes, you can crush ice using the pulse function. Place ice cubes in the bowl, cover, and pulse a few times until desired consistency. Do not run continuously.

How do I use the pulse function?

The pulse function provides short bursts of power for precise control. Press and hold the Pulse button for a few seconds at a time. Release to stop. Use for chopping or mixing delicate ingredients.

Why does the food processor stop during operation?

This may be due to overload protection. The motor will shut off if too much load is detected. Unplug, reduce the load, and let it cool for a few minutes before restarting. Ensure the lid is properly locked.

Where can I get replacement parts for the FL1530?

Contact DCG customer service via their website or phone. You can order spare parts such as the bowl, lid, blades, and discs. Provide your model number FL1530.

USER MANUAL FL1530 DCG

Modern kitchen stand mixer with floral patterned cover and DCG logo, no visible text or symbols on the device itself.

PER LA VOSTRA SICUREZZA E PER UN CORRETTO USO DELL'APPARECCHIO LEGGERE ATTENTAMENTE E CONSERVARE QUESTO MANUALE

220-240V\~ 50/60Hz 1500W

IMPASTATRICE PLANETARIA

Pure diagram of a U-shaped tube with internal components and decorative symbols (no text or labels)

Pure diagram of a paperclip with decorative icons above and below (no text or symbols)

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Four different types of hair filter devices shown in wireframe and grayscale views (no text or labels)

Panna montata

THIS INSTRUCTION OF USE

220-240V\~ 50/60Hz 1500W

STAND MIXER

This heavy duty Stand Mixer has the power, capacity, precision and planetary mixing action ensure efficient mixing and beating, not only can knead even the toughest whole grain bread, also has a sufficient wide range usage. Different speed is engineered for whipping custards, cream, meringues and so on.

What is more, this mixer with a completely functions, which will enlarge your food preparation range and make all convenient and ready in a short time.

In words, with this heavy duty stand mixer you could incorporate maximum air and prepare the meals, snack, and dessert wonderful and enjoyable.

GENERAL SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference.

• This appliance is for household use only.
- Never dip machine into any liquid and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
- Always disconnect the product from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Avoid children or other people who do not know the operation of this machine to use it, unless they are under proper instruction. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- If the supply cord is damaged, it must be replaced by the manufacture of its service agent or a similar qualified person in order to avoid a hazard.
- Keep your finger away from moving parts and fitted tools. Never put your fingers etc in hinge mechanism.
- Use only original spare parts.
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
- Do not interfere with any safety switches.
- Do not insert anything into the rotating hooks while the machine is working.
- Place the machine on a smooth, flat and stable working surface.
• Take care when rise up the arm of this appliance in case any strikes.
- Be careful if hot liquid is poured into machine as it can be ejected out of the appliance due to a sudden steaming
• This appliance is intended to be used in household only.

BEFORE CONNECTING TO POWER

• Before connecting to the power, please check whether the type of supply and the mains voltage match with the details given on the rating label on the appliance.
  • Using for the first time, rip off all wrapping paper and plastic bags. Clean the fittings.

CONTROL PANEL

Pure diagram of a U-shaped object with internal components and decorative symbols (no text or labels)

This machine has "0", "Manual Speed setting" controls.

- "0" position (Off / Reset function)

When selector bar slides into Ⓞ as below, the uint will stop working.

Pure diagram of a paperclip with no text, numbers, or symbols

Important that: Slide the selector bar back to “⑧then choose the speed. this machine will only work when the selector bar is started from “0” position.

- "Manual Speed setting" position (Stepless Speed)

Slide the selector bar into .... ⚫ ⋯ ⏻ ⏱ Ⓤ as below, machine will start from min to max.

Different icons means the max speed position for different accessoires

[DEYD]	HookMAXspeed position	for heavy duty:such as cake dough, pizza dough
	BeaterMAXspeed position	for middle duty:such as watery flour with butter mixture
[ywwz]	MixerMAXspeed position	for thick mixture:such as chocolate cream with sugar
	WhiskMAXspeed position	for light duty:such as egg white, frozen milk into cream

HOW TO USE

Important:

Before operations, must be sure on below issue:

1. Cannot work more capacity and time than manual requested.
   If not, product is possible damaged or not function.

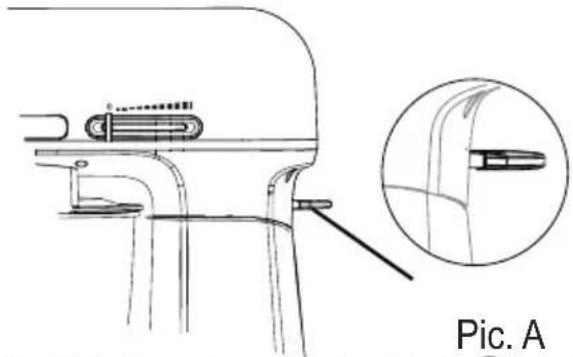

2. When top part of machine locked into base, the arm up bar is back its original position as pic. A

Technical line drawing of a mechanical component with an inset magnified detail (no text or symbols)

1. Slide the selector bar back to " then choose the speed.

this machine will only work when the selector bar is started from "0" position.

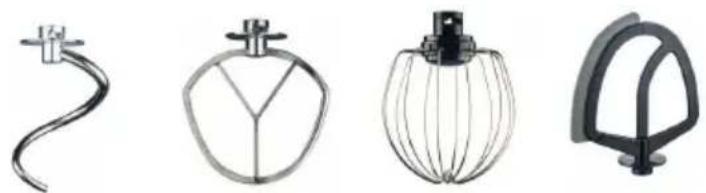

Accessories:

WHISK, BEATER, HOOK, FLEX EDGE BEATER

Four different types of industrial filter or valve components, shown in line drawings without any text or symbols.

ACCESSORY USE TO MIX RECIPE SPPED / TIME
Hook		Mixing and kneading yeast dough	Breads Rolls Pizza dough Buns	480g flour 280g water 3g yeast 14g margarine 14g sugar 7g salt	30 seconds on the 2nd dot speed for slow start, then 4-6 min. in the hook icon position as its max speed
Whisk		Mixtures that need air incorporated	Eggs, Egg whites, Cream, Sponge cakes, Mayonnaise	200g cream	3-5 min at whisk icon position as its max speed
Stirrer beater / Flex Edge Beater		Normal mixtures	Cakes, Creamed frostings, Candies, Cookies, Biscuits,	150g margarine 150g sugar 150g flour 3 eggs 3g yeast	10 Seconds on the 2nd dot speed for slow start, then mixing 3-6 min. at the beaters icon position as its max speed

• For Hook, cannot process more than 800g mixture per time.
  (suggest flour: water = 1: 0.6\~0.7)
  • For whisk, cannot process less than 3 egg white or more than 5 eggs white or 1/5 bowl capacity per time.
• For Stirrer beater / Flex Edge Beater, cannot process more than 1/4 bowl capacity per time.

Before assemble the accessories,

• Make sure power cord is not plug in.

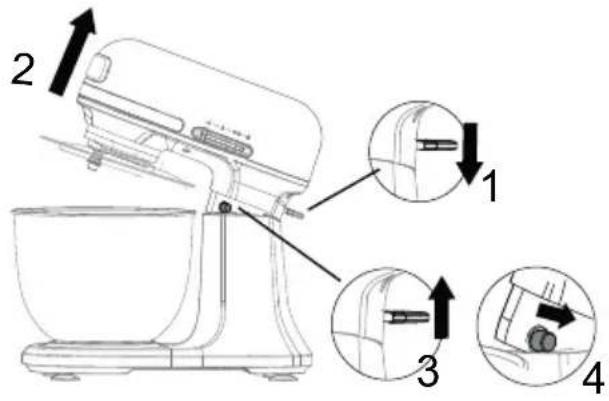

- Press down the arm up bar (Step 1), in the same time use another hand lifts up the top part of machine. (Step 2).
- Release arm up bar (Step 3) so that the pin comes out and held on by housing (Step 4).
• Assembly the bowl lid into top part.

then, Choose and insert the accessory into the pin of top part (Step 5), Turn accessory to lock into the pin. (step 6).

After ingredients added into the bowl,

Use one hand to lift up top part (step 7) and in the same time press down the arm up bar (step 8) so that the pin is backward (step 9), then release down top part slowly.

Must be careful that, when the top part down into housing, it will be a strong force, finger cannot place in there in case accident.

TIPS for FLEX EDGE BEATER

• Its flex edge could be very useful to clean up mixture, which stick on the bowl, and these mixture will be pushed into bowl for processing again.
• It is also could be used by hand to clean up the mixture on the bowl only after plug off.
• Cannot use it for harden or blocked mixture.

BASE RECIPES TIPS:

Whipped Cream

• 220ml cold heavy whipping cream
• 40g (2 tbsp) sugar, honey, or maple syrup
• 2.5 g (½ tsp) vanilla or other flavorings

Illustration of a hand holding a circular object with arrows indicating motion (no text or symbols)

Cool mixer bowl and whisks in the freezer for at least 20 minutes.

Place all Ingredients into the bowl.

Keep whisking until stiff peaks form.

Processing time/ Speed:: about 2 min with max speeds

Basic Sponge Cake

• 4 eggs (room temperature)
- 225 g caster sugar
• 225 g self-raising flour
• 10 g (2 tsp) baking powder
- 225 g baking spread, margarine or soft butter at room temperature.

Mix eggs, caster sugar, baking powder and baking spread together.

Min. Speed: 1 min.

Add the flour into the mixture and beat it until the flour is fully incorporated.

Min. Speed: 1 min. then 2 min into hook max speed

Basic Pizza Dough

• 200 ml lukewarm water
- 14 g yeast
- 5 g (1 tsp) salt
• 300 g flour
- Splash of extra virgin olive oil

Place all Ingredients into the bowl and knead them at low speed together.

Min. Speed: 1 min.

Keep kneading until the flour is fully incorporated.

2-3 min into hook max speed

CLEANING

1. Before cleaning remove the power cord from the socket.
2. Never immerse the housing with motor in water!
3. Do not use any sharp or abrasive detergents.
4. Only a damp rinsing cloth should be used to clean the outside of the housing.
5. Components that have come into contact with food can be cleaned in soapy water.
6. Allow the parts to dry thoroughly before reassembling the device.

TROUBLESHOOTING

PROBLEM EASY SOLUTION
Unit does not work * There is a safety setting on: arm up bar / operation from “0” speed;Make sure all of them are securely locked into position.* If the motor still will not start, check the power cord and power outlet.
Motor slows down when mixing dough	Amount of dough may exceed maximum capacity.Remove half and process in two batches.
Dough is too dry * Running machine and add water through feed cube, 1 tablespoon at a time until dough cleans the inside of the processing bowl.
Dough is too wet * Running machine and add flour through feed cube, 1 tablespoon at a time until dough cleans the inside of the processing bowl.
Vibrates/moves during processing	* Clean and dry the rubber feet at the bottom of the unit.* Also make sure that the maximum load capacity is not being exceeded.
