USER MANUAL BBCSZ150GL BAUMATIC

User manual for your Baumatic 150L Single Zone Beverage Centre

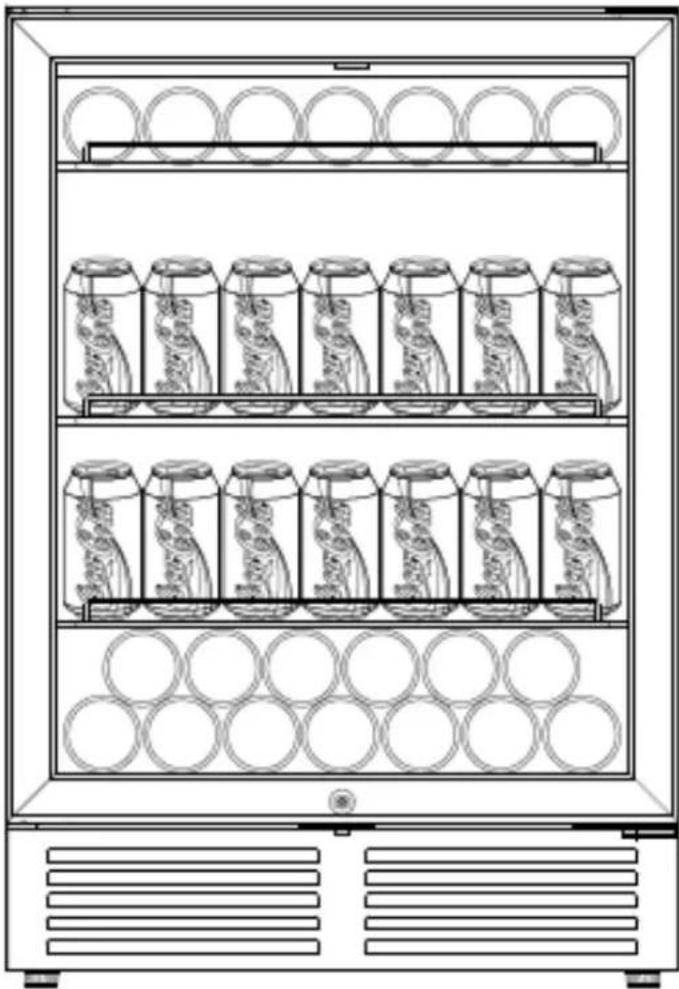

BBCSZ150GL/BBCSZ150SS SINGLE ZONE BEVERAGE CENTRE

Line drawing of a refrigerator with multiple beverage cans arranged in rows (no text or symbols)

Baumatic

NOTE: This user manual contains important information including safety & installation points which will enable you to get the most out of your Baumatic appliance. Please keep it in a safe place so that it is readily available for future reference.

Thank you for purchasing a Baumatic Beverage Centre.

Your appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the factory, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions.

Contents

Environmental note 3

Important safety information 4 - 5

Structure drawing 6

Installation 7 - 10

Accessory installation before operating 11

Using your Baumatic Appliance 12 - 13

Care and maintenance 14 - 15

Troubleshooting 16

Warranty Registration Card 17

NOTE: The appliance is intended for household use only. The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

Environmental note

Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance.

This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol

on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

• The packaging materials that Baumatic uses are environmentally friendly and can be recycled.
• Please discard all packaging material with due regard for the environment.

Important safety information

Illustration of an owl reading a book (no text or symbols present)

Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact Baumatic Service Care.

IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person.

Use of the appliance

- Your appliance is only designed to be used in the home. It is suitable for storing and chilling wine NO food stuffs must be stored in the appliance. If it is used for any other purpose or it is not used correctly, then Baumatic will accept no liability for any damage that is caused.

Simple black-and-white icon of a house with windows and trees, no text or symbols present.

- Altering the specification of the appliance must not be attempted for reasons of safety.

Before using your appliance

- Check the appliance for any signs of transport damage. If you notice any damage, then you should not connect your appliance to your mains supply and should contact your retailer.

Refrigerant

- Your appliance contains R600a refrigerant, which is a natural gas that does not contain CFCs that can damage the environment. However it is a flammable substance, therefore care should be taken:

• During the transportation and installation of the appliance, make sure that the refrigeration pipework does not get damaged.
• If it does become damaged then sources of ignition and open flames should be avoided. Also the room that the appliance is situated in should be thoroughly

ventilated.

- Do not place any objects on top of the appliance, as this may damage the table top.

Child safety

○ Packaging material should be kept away from children.

○ Children should not be allowed to touch the controls or play with the appliance.

General safety

- Do not pull on the power supply cable to remove the plug from your mains supply socket.

- Do not pull out or insert the plug with wet hands.

Do not attempt to use your appliance outdoors of any place where it is likely to come into contact with the elements.

Illustration of a cloud with raindrops falling (no text or symbols)

Before cleaning the appliance or performing maintenance work, ensure that the appliance has been disconnected from your mains supply.

- Never allow the back coils of the appliance to come into contact with the wall surface.

- Always ensure that the location where you are installing your appliance is free of stored items such as papers and other flammable materials.

- Never block the ventilation openings of the appliance, either on the inside or its exterior.

- It is vital to keep your appliance well ventilated, so that there is proper air flow between the bottom of the unit and the plinth/kick plate which it is sitting on.

Black and white abstract circular pattern with radial segments (no text or symbols)

Do not place electrical devices inside of the appliance, such as mixers or ice cream makers.

Service

You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact Baumatic Service Care.

Illustration of five different tools: pliers, wrench, screwdriver, and flatener (no text or symbols)

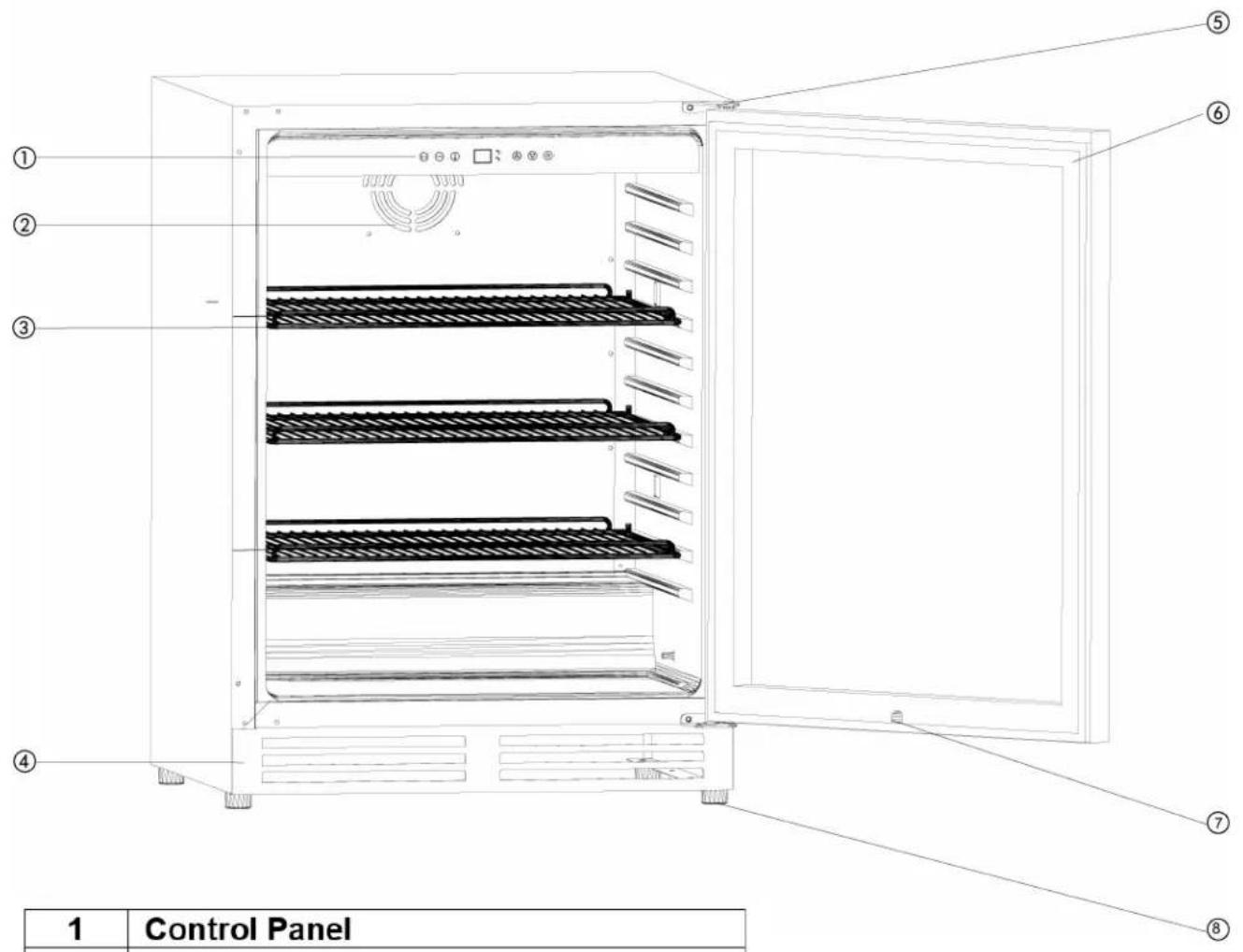

Structure drawing

The following pictures only show the structure of the appliance as well as the installation drawing. The dimension and shelf quantity may differ among the models of the same series.

1	Control Panel
2	Interior Fan
3	Beverage Shelves (Total 3)
4	Front Grille
5	Top Hinge
6	Glass Door with Stainless Steel Frame
7	Security Lock(Not Shown – Front of Door)
8	Leveling Leg

Installation

IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the

inside of the wine cabinet.

The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric system.

Electrical connection

YOUR BEVERAGE CENTRE IS INTENDED FOR FITTED AND PERMANENT INSTALLATION.

"We recommend that the appliance is connected by a qualified electrician, who is registered on the E.W.R.B. web site and who will comply with the AS/NZS 3000 Wiring Regulations and local regulations."

Your beverage centre comes supplied with a 10 amp moulded lead with an AS/NZS 3112 approved plug.

The wiring in the mains lead is coloured as follows:

○ Brown Live
- Blue Neutral
- Green and yellow Earth

As the colours of the wires in the appliance's mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows:

• The brown wire must be connected to the terminal marked "L" (live), or coloured red.
• The blue wire must be connected to the terminal marked "N" (neutral), or coloured black.
• The green and yellow wire must be connected to the terminal marked "E" (earth), or by the earth symbol, or coloured green and yellow.

When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath."

Positioning

○ Positioning the appliance requires two people in order to avoid injuries or damage to the appliance.

- Your appliance should not be located in direct sunlight or exposed to continuous heat or extremes of temperature (e.g. next to a radiator or boiler). If this is not feasible, then you should install an insulation plate between the appliance and the adjacent heat source.

- You should check whether there is an electrical socket available, which will be accessible after your appliance is installed.

- Place the appliance flatly and firmly on a solid base. The appliance is fitted with adjustable feet on the front side, which should be used to level the appliance.

- Be sure to leave enough space for the opening of the door, to avoid damage to the appliance or personal injury.

○ IMPORTANT: The vent at the base of the appliance is for ventilation. Nothing should be placed in front of this vent; otherwise your appliance may not operate properly.

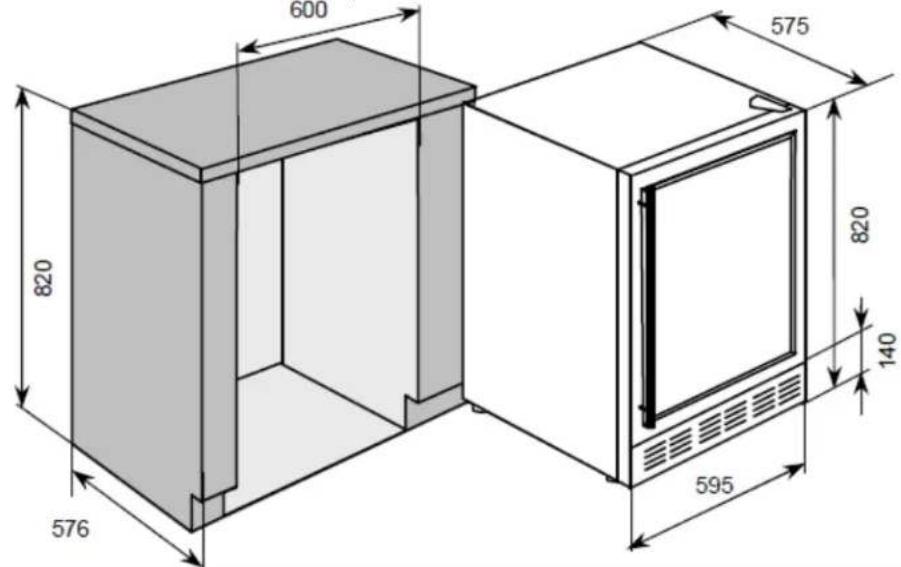

595mm Width Installation Drawing (mm)

- Your beverage centre can be used as a built in unit. The clearances shown in the above drawing should be followed for both types of installation.

- In particular the depth dimension must be observed.

Reverse the door swing

This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow these instructions.

Note: All parts removed must be saved to reinstall the door.

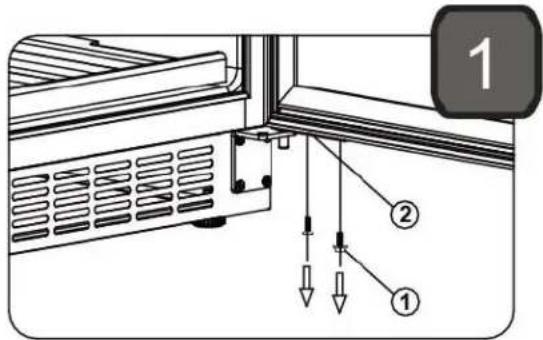

1. Open the glass door⑤ and remove the two screws① holding the lower hinge② to the glass door. Be careful to hold the glass door firmly after removing the screws.

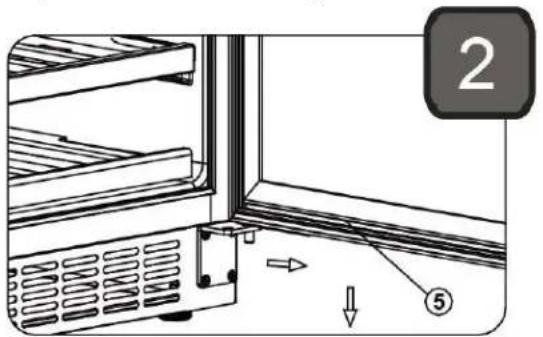

1. Pull down to remove the glass door from the right upper hinge and place the door on a padded surface to prevent scratching it.

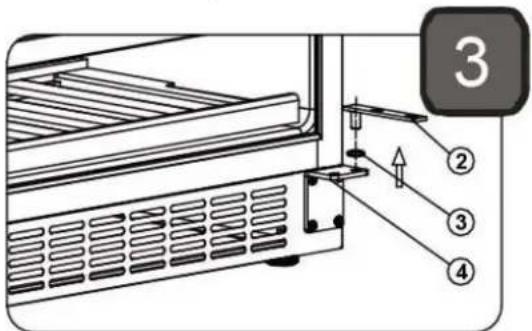

1. Remove the lower door hinge supporter and bush③.

1. Remove the upper hinge pivot from the right side then install and tighten it into the left position.

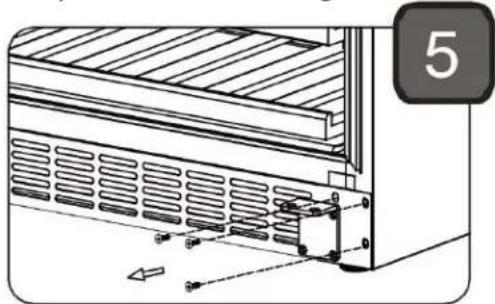

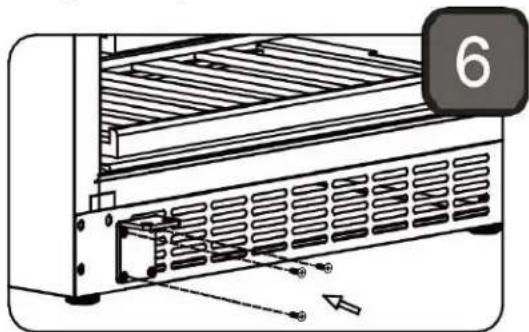

2. Remove the lower door hinge from the right side. Remove three screws that are used to fix the bottom grille with the cabinet then install the three screws at the designated position on the right side.

Technical line drawing of a server rack with ventilation grilles and mounting bracket (no text or symbols)

1. Install the lower door hinge to the designated position on the left side.

Diagram of a computer tower with ventilation slots and a numbered label (6), showing no text or symbols beyond the number.

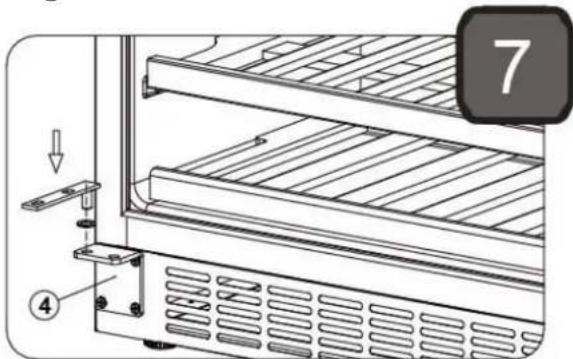

1. Install the lower hinge supporter together with the bush to the designated position.

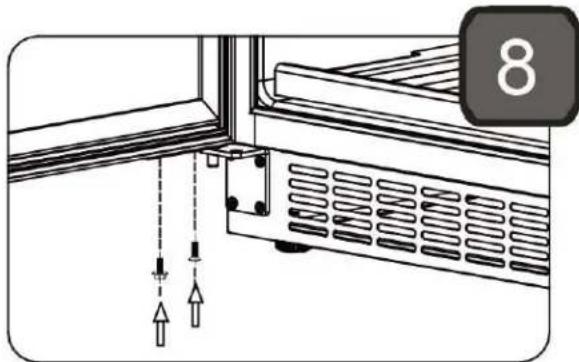

1. Guide the glass door to the designated position making sure that the door shaft enters the door hole at the left upper corner of the glass door. Install the two screws that are used to connect the left lower hinge with the glass door and tighten them before the door is leveled.

Diagram of a refrigerator interior with ventilation grilles and a numbered label (8) in the corner, showing no text or symbols beyond the number.

Accessory installation before operating

UNPACKING AND CLEANING THE BEVERAGE CENTRE

• Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic's installation instructions.
• Let the appliance stand upright for approximately 2 hours before connecting it to the mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle.
• The outside of the appliance and the removable accessories contained within it, should be cleaned with a solution of liquid detergent and water.
• The interior of the appliance should be cleaned with a solution of sodium bicarbonate dissolved in lukewarm water. The interior and accessories should be thoroughly dried, after the cleaning process has been completed.
• There can be an odour when you first switch on the appliance. It will lessen as the appliance starts to cool.

LOCK THE DOOR

• Your appliance has a lock for the door and a key should be attached inside the packing of this User Manual.
• Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock it, please follow the reversed operation. Please save the key well.

Using your Baumatic appliance

During first use

IMPORTANT: When you use the appliance for the first time or restart the appliance after it has been turned off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED display. This is normal and it is due to the length of activation time. Once the wine cabinet has been running for a few hours everything will be back to normal.

• When the appliance is plugged in to a power outlet, it powers on automatically.
• Touch the power mark ⏻ to turn off (or turn on) the appliance.

Warning:

If the unit is switched off or unplugged, you must allow at least 5 Minutes before restarting the appliance or reconnecting it to your mains supply in order to avoid breaking the compressor.

SETTING THE TEMPERATURE

It is recommended you install the beverage centre in a place where the ambient temperature is between 19^ C- 24^ C ( 66^ F- 75^ F). If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected.

• Press the temperature selection button ⏻ the LED display will flash.
• Use the temperature plus button ⚠️ and minus button ⚡️ to adjust the temperature to the required temperature for your wine. Each press of the temperature selection button will increase, or decrease, the set temperature in increments of 1°C / 1°F.

INTERIOR LIGHTING ON/OFF CONTROL

- Touch the light button 📋 to switch the interior lighting on and off.

CHANGING BETWEEN FAHRENHEIT & CELSIUS

- You can select ^ F ^PC , you can interchange the Celsius (°C) or Fahrenheit (°F).

CARE & MAINTENANCE

WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO CLEAN IT.

- Do not clean the appliance by pouring water onto it or spraying water over it.

• The interior of the appliance should be cleaned periodically, using about 2 tablespoons of baking soda to a quart (approx. 1 litre) of warm water.
• Clean the accessories separately with soap and water. Do not clean them in a dishwasher. Dry wooden shelves before placing back into the wine cooler.
• Do not use abrasive products, detergents or soaps.
  ○ Wiring excess water our of the sponge or soft cloth when cleaning area of the controls, or any electrical parts.
• Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel with steel particles and rusting may occur.

POWER FAILURE

• Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimise the number of times the door is opened.
• If the power is going to be off for a longer period of time, you need to take the proper steps to protect the contents.

IMPORTANT: If the appliance is unplugged, the power is lost or turned off you must wait 5 minutes before restarting the appliance. If you attempt to restart before this time delay, the appliance will not turn on.

VACATION TIME

Short holidays: Leave the appliance in operation for holidays of less than 3 weeks.

Long absences: If the appliance will not be used for several months, remove all items, turn off the appliance and unplug the electricity cable. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly by blocking it open if necessary.

MOVING YOUR APPLIANCE

If you need to move your appliance to another location you should follow the steps outlined below.

• Remove all items from the appliance.
  Securely tape down all loose items such as the shelves inside of the appliance.
• Turn the adjustable foot up to the base to avoid damage.
• Tape the door closed.
• Ensure the appliance stays secure in the upright position during transportation. Also protect the outside of the appliance with a blanket or similar item.

ENERGY SAVING TIPS

• The appliance should be located away from heat producing appliances, and away from direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover air vents.
• Only open the door when necessary. Avoid leaving the door open for long periods or opening/closing the door frequently.

Troubleshooting

IMPORTANT: If your beverage centre appears not to be operating properly, before contacting Baumatic Service Care, please refer to the checklist below.

PROBLEM	POSSIBLE CAUSE / MEASURE
Appliance does not operate.	Not plugged in.The appliance is turned off.The circuit breaker has tripped or the fuse has blown.
Appliance is not cold enough.	Check the temperature control setting.The door is opened too frequently.The door is not closed completely.The door gasket does not seal properly.
Turn-on and turn-off frequently.	The room temperature is hotter than normal.A large amount of contents has been added to the Appliance.The door is opened too frequently.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The lighting does not work.	Not plugged in.The circuit breaker has tripped or the fuse has blown.The lighting is turned off.
Too much vibration.	Check to assure that the appliance is level.
The appliance seems to make too much noise	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant.Contraction and expansion of the inside walls may cause popping and crackling noises.The appliance is not level.
The door will not close properly.	The door is misaligned.The appliance is not level.The gasket is dirty.The shelves are out of position.
Display flashes Error message E1 .	Temperature sensor failure.
Display flashes Error message E2 .	Defrost sensor (Coil Sensor) failure.

IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Customer Care Department.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

The appliance must be accessible for the engineer to perform any necessary repair. If your appliance is installed in such a way that an engineer is concerned that damage will be caused to the appliance or your kitchen, then they will not complete a repair.

This includes situations where appliances have been tiled in, sealed in with sealant, have wooden obstructions placed in front of the appliance - like plinths, or any installation other than the one specified by Baumatic has been completed.

Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

IMPORTANT: Baumatic operates a policy of continuous improvement and reserves the right to adjust and modify its products without prior notification.

Congratulations on your new appliance purchase! To help care for your investment, be sure to register your appliance online. Registration will help you if you need to arrange service in the future, and serves as a record of your purchase – including critical information like model number and serial number – that you can refer to at any time. Simply visit the below website, or ask your retailer for help:

www.applico.co.nz/register

WARRANTY:

These products are covered by a warranty for a period of 24 months from the date of purchase, subject to the following conditions*. The Warranty covers rectification free of charge of any fault arising from defective materials or components, or faulty workmanship or assembly.

* The conditions above mentioned are:

1. that the purchaser carefully follows all instructions packed with the product;

2. that the purchaser and/or installer carefully follows the installation instructions provided and complies with electrical wiring regulations, gas and or plumbing codes;

3. that the purchaser carefully follows instructions provided in the owner's handbook relating to the proper use and care of the product and does not use the product for any purpose other than the domestic use for which it has been designed;

4. all appliances being used in a non-residential commercial situation are covered by a 3 month warranty from the original date of purchase;

5. that the product was purchased and installed in New Zealand;

6. that this warranty does not extend to:

a) optional glass lids for hobs apart from claims which relate to mechanical or physical damage thereof at the date of purchase;
b) 'consumable' parts such as light bulbs or filters;
c) damage to ceramic glass caused by liquid or solid spill-overs, lack of maintenance, or impact;

d) damage to surface coatings caused by cleaning or maintenance using products not recommended by the owner's handbook;
e) defects caused by normal wear and tear, accident, negligence, alteration, misuse or incorrect installations;
f) a product dismantled, repaired or serviced by any serviceman other than an authorised service agent;
g) a product not in possession of the original purchaser;
h) damage caused by power outages or surges
i) damage caused by pests (eg. rats, cockroaches etc.)
7. that if the product is a freestanding microwave oven or small appliance it must be returned to the dealer/retailer for servicing. These products, unless stated otherwise have a 12 month warranty from original date of purchase with 24 months on the microwave magnetron; Waste disposers have a 12 month warranty.
8. The provision of service under this Warranty is limited by a 25km boundary from the retailer where the product was purchased. Such travelling outside of these limits will incur commercial cost to be paid by you, regulated by the number of kilometres travelled beyond the 25km limit (50km return trip).

Nothing herein contained shall be construed in any way as excluding or limiting your rights under the Consumer Guarantees Acts 1993.

For service please visit www.applico.co.nz/service or contact the dealer/retailer from whom you purchased the product. If you are unable to establish the date of purchase, or the fault is not covered by this Warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

Registration of this warranty constitutes acceptance of the terms and conditions of this Warranty.

Distributed by Applico Ltd

www.applico.co.nz

After registering your appliance online, we recommend you fill out the below information for your reference and keep this warranty card in a safe place.

PRODUCT:
RETAILER:
DATE OF PURCHASE:
INVOICE NO:
MODEL NO:

SERIAL NO*: ....

WEBSITE USERNAME: ....

WEBSITE PASSWORD: ....

REGISTRATION WEBSITE DETAILS FOR

www.applico.co.nz/register
