BF207SLM - Refrigerator BAUMATIC - Free user manual and instructions

Product Type	Built-in refrigerator
Total Capacity	207 liters
Fridge Capacity	180 liters
Freezer Capacity	27 liters
Energy Class	A+
Annual Energy Consumption	200 kWh
Noise Level	40 dB
Climate Class	N-ST
Dimensions (H x W x D)	87 x 54 x 55 cm
Weight	32 kg
Power Supply	220-240 V ~ 50 Hz
Refrigerant	R600a
Defrost System	Automatic (fridge), manual (freezer)
Adjustable Thermostat	Yes
Reversible Door	Yes
Shelves Material	Glass
Number of Shelves	4
Egg Tray	Yes
Bottle Rack	Yes
Interior Light	LED

Frequently Asked Questions - BF207SLM BAUMATIC

How do I adjust the temperature in my Baumatic BF207SLM fridge?

Use the thermostat dial inside the fridge compartment. Turn it to a higher number for colder temperature, typically recommended setting is 3-4 for normal operation.

Why is my fridge not cooling properly?

Check if the appliance is level, the door closes properly, and the vents are not blocked. Ensure the thermostat is set correctly. If the problem persists, contact a technician.

How do I defrost the freezer compartment?

The freezer requires manual defrosting. Switch off the appliance, remove food, and leave the door open until ice melts. Do not use sharp tools to remove ice.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions on hinge and handle relocation.

What type of light bulb does the fridge use?

The BF207SLM uses an interior LED light. Replacement should only be done by a qualified professional.

How do I clean the refrigerator?

Unplug the appliance. Remove shelves and drawers, wash with warm water and mild detergent. Wipe interior with a damp cloth and dry thoroughly. Avoid abrasive cleaners.

Is the fridge noisy? What is normal?

Normal operation sounds include a faint hum from the compressor and occasional gurgling from refrigerant. If you hear loud banging or rattling, check if the appliance is level.

What do I do if the door alarm keeps beeping?

Ensure the door is fully closed. If the alarm persists, there might be a door switch issue. Check for obstructions or contact service.

How long can I keep food in case of a power failure?

Keep the doors closed. Food stays safe for about 4 hours in the fridge and 24 hours in the freezer if full. Use a cooler with ice for longer outages.

What is the recommended temperature setting for the fridge?

For optimal food preservation, set the thermostat between 2 and 4, which maintains an internal temperature of about 4°C (39°F).

USER MANUAL BF207SLM BAUMATIC

Simple line drawing of a fish with fins and tail, no text or symbols present

USER MANUAL FOR YOUR BAUMATIC

BF207BLM/ SLM Fridge/ freezer

Two modern stainless steel refrigerators side by side, one front and one back, with no visible text or symbols.

NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.

DD 01/02/12

Contents

E

n

v

i

r

o

n

m

e

n

t

a

l

I

m

portant

s

afety

i

information

5-6

Specifications of your dimensions of appliance					fridge		freezer
D	e	s	c	r	i	p	t	i	o	n	o f
Description of the product features					8 - 9

Using your Baumatic fridge freezer 9 -11
B	e	f	o	r	e	s	w	i	t	c	h
D	u	r	i	n	g	f	i	r	s	t	u
Turning on the appliance and setting the thermostat 10-11

Arranging and storing food in the fridge section 11-12

The * * * freezer compartment										12-14
Freezing		fresh		food						13
Tips		on		freezing						13-14
M	a	k	i	n	g	i	c	e	c	u	b

Saving energy when using your fridge-freezer 14-15

Cleaning	and	maintenance		15-18
Defrosting	the	refrigerator	compartment	16
Defrosting the	*	freezer	compartment	17-18
Replacing	the	light	bulb	18

l

n

s

t

a

l

l

a

t

i

o

n

E

l

e

c

t

r

i

c

a

l

c

o

n

P

o

s

i

t

i

o

n

i

n

g

T

r

o

u

b

l

e

s

h

o

o

t

i

n

Baumatic consumables 23

T

e

c

h

n

i

c

a

l

d

a

t

a

C

o

n

t

a

c

t

d

e

t

a

i

l

Environmental note

Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance.

This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol

on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin crossed with no text or labels

• The packaging materials that Baumatic uses are environmentally friendly and can be recycled.
• Please discard all packaging material with due regard for the environment.

Important safety information

Illustration of an owl reading a book (no text or symbols present)

Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Customer Care Department.

IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person.

Use of the appliance

- Your appliance is only designed to be used in the home. It is suitable for storing food that needs to be chilled and refrigerated. If it is used for any other purpose or it is not used correctly, then Baumatic Ltd. will accept no liability for any damage that is caused.

○ Altering the specification of the appliance must not be attempted for reasons of safety.

Before using your appliance

- Check the appliance for any signs of transport damage. If you notice any damage, then you should not connect your appliance to your mains supply and should contact your retailer.

Refrigerant

- Your appliance contains R600a refrigerant, which is a natural gas that does not contain CFCs that can damage the environment. However it is a flammable substance, therefore care should be taken:

• During the transportation and installation of the appliance, make sure that the refrigeration pipework does not get damaged.
• If it does become damaged then sources of ignition and open flames should be avoided. Also the room that the appliance is situated in should be thoroughly ventilated.

- Do not place any objects on top of the appliance, as this may damage the table top.

Simple line drawing of a bottle with a cup and sad face, no text or symbols present

Child safety

o Packaging material should be kept away from children.

○ Children should not be allowed to touch the controls or play with the appliance.

General safety

- Do not pull on the power supply cable to remove the plug from your mains supply socket.

o Do not pull out or insert the plug with wet hands.

- Do not attempt to use your appliance outdoors or any place where it is likely to come into contact with the elements.

Before cleaning the appliance or performing maintenance work, ensure that the appliance has been disconnected from your mains supply.

o Never allow the back coils of the appliance to come into contact with the wall surface.

○ Always ensure that the location where you are installing your appliance is free of stored items such as papers and other flammable materials.

o Never block the ventilation openings of the appliance, either on the inside or its exterior.

- It is vital to keep your appliance well ventilated, so that there is proper air flow between the bottom of the unit and the plinth/kick plate which it is sitting on.

- Do not place electrical devices inside of the appliance, such as mixers or ice cream makers.

Illustration of a cloud with raindrops falling (no text or symbols)

Abstract black and white geometric pattern resembling a camera aperture or stylized sunburst (no text or symbols)

Service

You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact the Baumatic Service Department.

Illustration of five different tools: pliers, screwdriver, wrench, and screwdriver (no text or symbols)

Specifications of your fridge freezer

• Total gross / net capacity: 216 / 207 litres
  ○ Gross capacity fridge / freezer: 144 / 72 litres
• Net capacity fridge / freezer: 141 / 66 litres
  ○ Automatic defrost (fridge section only)
• Adjustable thermostat
• 2 General door shelves
• 1 Bottle shelf
• 2 Adjustable safety glass shelves
• 2 Salad crispers
• 1 Salad crisper shelf
• 3 Freezer drawers
  ○ Adjustable feet

Dimensions of appliance

Height: 1513 mm

Width: 550 mm

Depth: 580 mm

Energy efficiency class

Energy class: A+

* Please refer to the installation instructions for more specific information on the size of aperture that you will require.

IMPORTANT: When you install your appliance it is important to bear in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should check the rating plate. The rating plate is located on the front left edge of the inside of the fridge section. You will need to open the door of your appliance to be able to find it. The rating plate will indicate the ambient temperature range that your appliance will function correctly within.

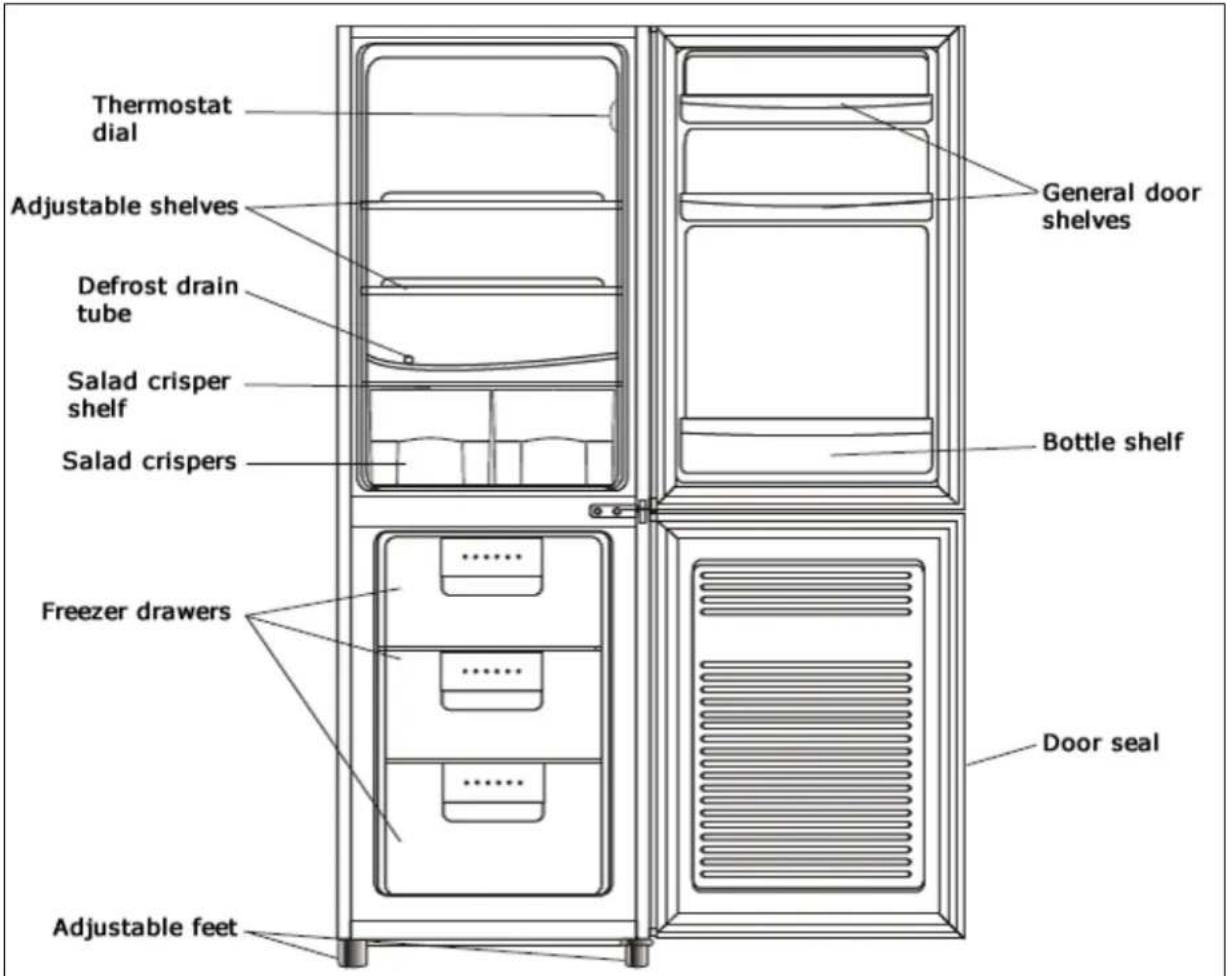

Description of the appliance

Description of the product features

1) Shelves

- The shelves may be placed in any of the guide slots within the interior of the appliance. They are protected from sliding out.

To remove a shelf: Take off all of the items that are stored on the shelf that you want to remove. Then lift the front of the shelf and carefully pull it out of the grooves.

2) Defrost water outlet

- The interior of the refrigerator is cooled by the cooling plate that is on the rear wall. Beneath this there is a channel and an outlet for the defrost water.

- It is important that this channel never becomes clogged, see "Defrosting the refrigerator compartment" for a detailed explanation of how to keep the channel clear.

3) Crisper drawer and cover

• The crisper drawer is in the bottom of your refrigerator and there is a cover that goes over it.
• The cover helps to prevent fruit and vegetables from drying out prematurely.

4) Upper door shelves

- The door liner holds various shelves, which are suitable for storing eggs, cheese, butter and yogurt. As well as smaller packages, tubes, cans etc.

5) Bottle shelf

• The lower shelf should be used for storing reasonably sized bottles.
  ○ IMPORTANT: IT IS IMPORTANT THAT NONE OF THE SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.

6) Freezer compartment

- A * * freezer section, with a net capacity of 66 litres.

Using your Baumatic fridge freezer

Before switching on

• Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic's installation instructions.
• After delivery, wait for eight hours before connecting the appliance to your mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle.
• The outside of the appliance and the removable accessories contained within it, should be cleaned with a solution of liquid detergent and water.
• The interior of the appliance should be cleaned with a solution of sodium bicarbonate dissolved in lukewarm water. The interior and accessories should be thoroughly dried, after the cleaning process has been completed.
• There can be an odour when you first switch on the appliance. It will lessen as the appliance starts to cool.

Cartoon illustration of a smiling computer with glasses and thumbs up, next to a mortar and pestle (no text or symbols)

During first use

• When you first switch on the appliance, the compressor will run continuously for approximately 24 hours or until the fridge freezer reaches a cool enough temperature.
  During this period of time, you should try not to open the door frequently or place a large amount of food within the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting the appliance on the thermostat or reconnecting it to your mains supply.

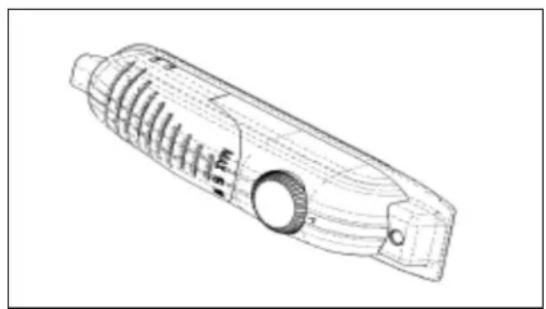

Turning on the appliance and setting the thermostat

Technical line drawing of a mechanical component with threaded body and circular opening (no text or symbols)

You switch on your appliance by connecting it to your mains supply and setting the thermostat. The thermostat is located on the upper right hand side of the inside of the cabinet, next to the interior light.

• The thermostat automatically regulates the temperature inside the fridge freezer, depending on what number you have turned the thermostat control knob to.
• Position <0> means that the appliance will not cool. However the light will still function.
• Position <1> will give you a higher temperature inside the fridge freezer.
  ○ Position <7> will give you a lower temperature inside the fridge freezer.
• Ideally the thermostat should be set to a position between <3> and <4> .
• The fridge section can maintain a temperature of between 4 – 6 degrees centigrade.
• The freezer section can cool down to -18^ and lower.

• IMPORTANT: The ambient temperature of the room, the temperature of food and the amount of food that has been placed in the fridge freezer and how often the door is opened, will all affect the temperature being maintained by the appliance.
  On the maximum setting (position <7>), your fridge freezer will work harder to maintain a lower temperature and will increase the energy usage. There is no need to run your appliance on setting 7 for prolonged periods. Unless you are freezing fresh food, you should have the thermostat knob set to between <3> and <4>.
• IMPORTANT: Do not run the thermostat above position 5, otherwise the defrost drainage hole will freeze.

Arranging and storing food in the fridge section

o Warm food or evaporating liquids should not be stored in your refrigerator, as this will increase the humidity inside of the appliance.
- All foods should be wrapped or covered, this is particularly important if the food has a strong flavour. You should use polythene bags or sheets, aluminium foil, wax paper. Liquids should be stored in covered containers or bottles.
To maximise the space inside of the fridge section, any excessive packaging on the food should be removed.
- Quickly perishable food should be stored at the back of the refrigerator, which is the coldest part of the appliance.
- No food items should be allowed to come into contact with the back wall of the refrigerator.
○ Make sure that you arrange food in such a way that the door can close completely. Particular attention should be given to bottles that may protrude when placed on shelves inside the main section of the refrigerator.
- Some organic solutions, such as the oils in lemon/orange peel and acid in butter, can cause damage to the plastic parts contained inside of the refrigerator.
- Do not open the refrigerator door too often or leave the door open for long periods of time, as this will increase the temperature inside of the appliance and will increase the energy usage.

o Meat should be wrapped in polythene bags and then placed on the glass shelf above the salad drawers.
(Meat should only be stored in this manner for one or two days at the most).
- Cold dishes/ cooked food should be covered and can be placed on any shelf.
- Fruit and vegetables should be cleaned thoroughly and placed in the salad drawer.
- Cheese and butter should be placed in airtight containers, or they can be wrapped in aluminium foil or polythene bags. As much air as possible should be removed from the bags.
- Milk bottles should have a cap on them and be stored on the bottle shelf that sits in the door.
- Garlic, potatoes, onions and bananas should only be stored in a refrigerator IF they are kept in airtight containers.

The freezer compartment

The freezer compartment is suitable for storing and freezing food.

• The freezer compartment temperature must have already reached -18 degrees centigrade (or lower) before you attempt to store food that is already frozen or freezing fresh food.
• The freezer compartment is only able to freeze a certain quantity of food at one time. You should not attempt to freeze more than 3 kilograms of fresh food within a 24 hour period.
• Preferably the top drawer should be used when freezing fresh food. Once the food is frozen, you can then transfer the food to the lower drawers.
  ○ Warm food should be allowed to cool down before you attempt to freeze it. If you place warm food in the freezer compartment, then the increased humidity will cause quicker ice formation and increase the amount of power that the appliance uses.
• The guidance of the food manufacturer should be followed, in regard to the maximum storage time.
• Thawed foods must not be frozen for a second time.

Freezing fresh food

Illustration of a person heating a thermometer with steam rising (no text or symbols)

To freeze the maximum quantity of fresh food specified above, you should turn the thermostat to position <7>, 24 hours prior to attempting freezing.

- For smaller quantities of fresh food, you should turn the thermostat to position <7>, approximately 6 hours prior to attempting freezing.

Fresh food should be packed into airtight containers or packaging. This will help to make sure that the food doesn't dry out or lose its flavour. It will also ensure that flavour does not transfer from other foods.

Illustration of stacked books and a lamp (no text or symbols)

Illustration of a fish-shaped object with fruits and leaves, no text or symbols present

- The food should be placed on the freezer compartment's base. Do not allow fresh food to touch items that are already frozen.

○ After 24 hours you should check that the fresh food is satisfactorily frozen. If it is then the thermostat should be turned

down to its normal setting (between <3> and <4>).

Tips on freezing

- Freezer bags, polythene wraps, aluminium foil (extra thick) and special cans for frozen foods are suitable packaging for storing frozen goods in.

○ Tape, rubber bands or plastic clips are suitable for sealing bags and wrappings.

Before sealing a suitable bag, you should compress the air out of it, as this will help the food to freeze more easily.

Simple line drawing of a cylindrical object with a leaf-like extension, resembling a stylized carrot or cereal (no text or symbols)

- Flat packages freeze more easily.

Illustration of a bottle with cap and label (no readable text or symbols)

○ If you are freezing liquid, then do not fill the container to the brim. Liquids will expand when being frozen.

Do not place bottles (glass or tin) containing liquids (especially sparkling liquids) into the freezer as they could

cause the bottle to burst during freezing.

Making ice cubes

o Fill the ice cube tray with water and place it in the freezer compartment.
○ After the water is completely frozen and turned to ice, you can twist the ice cube tray (as shown in the drawing below) to dispense the ice.

Illustration showing three steps of a robotic arm: moving a tray with a tool, rotating the tray, and removing a tool (no text or symbols present)

Saving energy when using your fridge-freezer

Installing:

○ Install the appliance in a cool position. If it is placed in direct sunlight or next to an oven or other heat source, the energy consumption can increase substantially.
- Ensure the appliance is installed with the correct ventilation requirements. Restricting ventilation can increase the energy consumption by 15%.

Cleaning and Maintenance:

○ Occasionally clean the condenser coils (if present) at the back of the appliance to maintain a high performance level.
- Defrost the freezer compartment regularly. A build up of thick ice decreases the efficiency of the appliance. You should defrost whenever the frost reaches 5 mm thickness.
- Clean the door gasket with warm water or a neutral detergent that leaves no residue. A tight-sealing door gasket is critical to the efficiency of your appliance.

Usage:

- Do not open the door repeatedly or more frequently than you have to.

• Do not set the thermostat too low. A change of just one degree can effect the energy consumption by 5%. Use a thermometer to check the temperature.
• The freezer compartment should operate at -15 to -18 degrees Celsius. The refrigerator should operate at around 3 to 4 degrees Celsius.
• Allow food to sufficiently cool before putting it in the appliance (but don't let it sit at room temperature for too long).
• In the freezer compartment, food packages should be scattered and never grouped or stacked together until they are completely frozen.
  ○ If you are going away for a long period of time, turn off the appliance, empty and clean it and leave the door ajar.
• If you have a second appliance that is not used, make sure that it is stored with the power off and the door left ajar until it is actually required.

Disposing:

If you're going to throw out your old fridge, see if there's a chlorofluorocarbons (CFCs) recycler in your area. The government department which looks after the environment in your area may be able to help you.

Cleaning and maintenance

WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO CLEAN IT.

- Do not clean the appliance by pouring water onto it or spraying water over it.

Cartoon illustration of a hand holding a bird near a window with a magnifying glass (no text or symbols)

- The refrigerator and freezer compartment should be cleaned periodically, using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water. Do not clean them in a dishwasher.

o Do not use abrasive products, detergents or soaps.

○ After washing the appliance, wipe over the area that you have cleaned with a damp cloth and then dry it thoroughly.

- When cleaning is complete, dry your hands and then reconnect the plug to your mains supply.

Defrosting the refrigerator compartment

Technical line drawing of a structural component with an inset showing a magnified detail of a component (no text or symbols)

- Defrosting occurs automatically in the refrigerator section during operation. The defrost water is collected by the evaporating tray and evaporates automatically.

The evaporating tray and defrost water drain hole should be cleaned periodically with the defrost drain plug. This will prevent water from collecting in the bottom of the refrigerator, instead of flowing down the defrost drainage channel and drain hole.

- You can also pour a small amount of water down the drain hole to clean inside of it.

- You should be careful to make sure that food packages do not touch the rear wall of the appliance, as this can interrupt the automatic defrosting process and deflect water into the base of your refrigerator.

Defrosting the freezer compartment

The frost in the freezer compartment should be removed periodically. You can use a plastic scraper to keep down the amount of frost that builds.

IMPORTANT: The freezer compartment should be defrosted at least twice a year. The number of times that you need to defrost it, will depend on the setting of your thermostat and how much food you freeze and store in the compartment.

• The day before you defrost, turn the thermostat dial to position <7>, this will make sure that the food contained in the compartment is frozen properly.
• Whilst defrosting the appliance, the food should be removed from the compartment and wrapped in several layers of paper and stored in a cool place. The foods rise in temperature will shorten its storage life and therefore the food should be used within a relatively short period of time.

- DO NOT PLACE FOOD BACK IN THE FREEZER COMPARTMENT THAT HAS STARTED TO THAW.

- Set the thermostat knob to position <0> and disconnect the appliance from your mains supply.

- Remove the drawers from the freezer section and leave the door to the freezer compartment open. You can place a bowl of warm water inside the freezer compartment to speed up the defrost process.

- You can use a sponge to mop up the defrost water that will run into the bottom of the freezer section.

- IMPORTANT: You should place some old towels on the flooring that is immediately in front of the appliance. In case any defrost water comes out of the freezer section and onto the floor.

Once all the ice that has built up has melted, then the inside of the freezer compartment should be dried thoroughly. Failure to do this will result in immediate ice build when the appliance is turned back on.

With dry hands, reconnect your appliance to your mains supply. Set the thermostat knob to position <7> for a 24 hour period, before returning it to the normal setting of between <3> and <4>.

- You should not attempt to freeze fresh food inside the freezer compartment until this 24 hour time period has elapsed.

Do not defrost the appliance with other electrical devices (e.g. hair dryer). Do not use sharp metal objects to remove the ice on the freezer, as this could cause damage to the refrigerant system.

Replacing the light bulb

WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO REPLACE THE LIGHT BULB.

Technical line drawing of a car body panel showing internal components (no text or symbols)

- There is an interior light next to the thermostat dial.

o Press the hooks on the sides of the light cover and slide the cover off.

○ Change the present light bulb with a new one. The replacement bulb should not have a greater rating than 10 W.

○ Replace the light cover and after waiting five minutes, reconnect your plug to your mains supply.

Installation

IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the f the refrigerator.

The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric system.

Electrical connection

YOUR FRIDGE FREEZER IS INTENDED FOR FITTED AND PERMANENT INSTALLATION.

We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations.

• Your refrigerator comes supplied with a 13 amp plug fitted. If in future you need to change the fuse in this plug, then a 13 amp ASTA approved (BS 1362) fuse must be used.
• The wiring in the mains lead is coloured as follows:

Brown

Live

Blue

Neutral

Green and yellow

Earth

- As the colours of the wires in the appliance's mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows:

The brown wire must be connected to the terminal marked "L" (live), or coloured red.

The blue wire must be connected to the terminal marked "N" (neutral), or coloured black.

The green and yellow wire must be connected to the terminal marked "E" (earth), or by the earth symbol, or coloured green and yellow.

- When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath.

Positioning

- It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. Your appliance may not function correctly if the ambient temperature falls outside of the following ranges.

Climate classification	Appropriate ambient temperature
SN +10 to +32 degrees centigrade
N +16 to +32 degrees centigrade
ST +18 to +38 degrees centigrade
T +18 to +43 degrees centigrade

• Positioning the appliance requires two people in order to avoid injuries or damage to the appliance.
• Your appliance should not be located in direct sunlight or exposed to continuous heat or extremes of temperature (e.g. next to a radiator or boiler). If this is not feasible, then you should install an insulation plate between the appliance and the adjacent heat source.
• You should check whether there is an electrical socket available, which will be accessible after your appliance is installed.
• Place the appliance flatly and firmly on a solid base. The appliance is fitted with adjustable feet on the front side, which can be used to level the appliance.
• Anything positioned above the appliance must be at least 15 cm away to allow sufficient cooling of the condenser. You must allow a 5 cm gap to the rear and either side of the appliance.
• If you are placing another cooling appliance next door to this product, then there must be a gap of at least 2cm between the appliances. This will help to prevent condensation from forming.
• Be sure to leave enough space for the opening of the door, to avoid damage to the appliance or personal injury.

Troubleshooting

IMPORTANT: If your fridge freezer appears not to be operating properly, before contacting the Baumatic Service Department, please refer to the checklist below.

My fridge freezer does not appear to be working/ there is no power to my appliance.

• Check that the plug is fully inserted into the power socket.
• Check that there is power to your mains supply (e.g. that there hasn't been a power cut or that the fuse hasn't blown).
• Check that the thermostat inside the appliance has not been turned to the off position.
• Check that your mains supply voltage, corresponds to the voltage stated on the rating plate of your appliance.

My fridge freezer appears to be performing poorly

• Check that the appliance isn't overloaded and that food hasn't been packed too tightly into it.
• The thermostat setting is too low; you should turn the thermostat up higher.
• Ensure that the door is closing properly and that the door has not been opened for a prolonged period in error.
  o Ensure that there is adequate ventilation for your appliance.

My fridge freezer is noisy

• The refrigerant gas that circulates the pipework of the appliance may make a slight noise, even if the compressor is not running.
• If the noise worsens or the appliance gets louder than normal; check that it is leveled off correctly, that nothing is touching the rear of the fridge freezer and that nothing placed inside the appliance is rattling.

I ce has formed on the inner back wall of my fridge

- Check that food has not been pushed too far back inside the appliance, so that it is in contact with the inner back wall.

There is water in the base of the fridge or leaking out of my fridge.

- Follow the “Defrosting the refrigerator compartment” section on page 17.

IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Baumatic Service Department on telephone number [phone].

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

The appliance must be accessible for the engineer to perform any necessary repair. If your appliance is installed in such a way that an engineer is concerned that damage will be caused to the appliance or your kitchen, then he will not complete a repair.

This includes situations where appliances have been tiled in, sealed in with sealant, have wooden obstructions placed in front of the appliance, like plinths. Or any installation other than the one specified by Baumatic Ltd. has been completed.

Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

Baumatic Consumables

• BC001 Degreaser for Dishwashers (200 g)
• BC002 Descaler for Washing Machines and Dishwashers (200 g)
• BC003 Ceramic Hob Cleaner (250 ml)
• BC004 Oven Cleaner (250 ml)
• BC005 Stainless Steel Cleaner and Protector (250 ml)
• BC007 E-Cloth – General Purpose Cloth
• BC008 Microwave Cover

To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk

Technical Data

Manufacturer	BAUMATIC	LTD
Model Number BF207BLM/SLM
Product Category 7 – Refrigerator-Freezer
Energy Efficiency Class (1) A+
Annual Energy Consumption (2) 226 kWh
Storage Volume of Fridge Compartment	141 litres
Storage Volume of Freezer Compartment	66 litres
Star Rating 4
Frost Free Compartments Fridge
Temperature Rise Time 16 hours
Freezing Capacity 3kg/24hr
Climate Class (3) N
Noise Level 39 dB
Installation Type Freestanding

(1) On a scale from A_+++ (highest efficiency) to G (lowest efficiency).
(2) Annual energy consumption based on standard test results for 24 hours. The actual energy consumption will depend on how the appliance is used and where it is located.
(3) This appliance is intended to be used at an ambient temperature between “16°C” (lowest temperature) and “32°C” (highest temperature).

Baumatic®

United Kingdom

Baumatic Ltd.,

Baumatic Buildings,

6 Bennet Road,

Reading, Berkshire

RG2 0QX

United Kingdom

Sales Telephone

[phone]

Sales Fax

[phone]

Customer Care Telephone

[phone]

Customer Care Fax

[phone]

Spares Telephone

[phone]

Advice Line Telephone

[phone]

E-mail:

[e-mail]

[e-mail]

[e-mail]

[e-mail]

Website:

www.baumatic.co.uk

Facebook:

www.facebook.com/baumatic.uk

Republic of Ireland

Service Telephone

1-890 812 724

Spares Telephone

091 756 771

Czech Republic

Baumatic CR s.r.o.

Lípova 665

460 01 Liberec 4

Czech Republic

[phone]

www.baumatic.cz

Slovakia

Baumatic Slovakia, s.r.o.

Galvániho 7/D

Slovakia

[phone]

Germany

Baumatic GmbH

Bachstr.10-12

D-32257 Bünde

Deutschland

[phone]

www.baumatic.de

Italy

Baumatic Italia S.R.L.

Via Galvani N.3

35011 Campodarsego (PD)

[phone]

www.baumatic.it

Holland

Baumatic Benelux B.V.

Dukdalfweg 15d

1332 BH ALMERE

Nederland

[phone]

www.baumatic.nl
