Ursus 10W - Tablet DEXP - Free user manual and instructions

Product Type	Tablet
Brand	DEXP
Model	Ursus 10W
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Operating System	Android (unspecified version)
Processor	Quad-core (est.)
RAM	2 GB (est.)
Internal Storage	32 GB (est.)
Battery Capacity	6000 mAh (est.)
Dimensions (W x D x H)	240 x 170 x 9 mm (est.)
Weight	500 g (est.)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth
Ports	Micro USB, 3.5 mm audio, microSD slot
Cameras	Front and rear (specs not specified)
Power Supply	5V 2A charger (est.)
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Do not expose to extreme temperatures; keep away from water
Spare Parts & Repairability	Contact DEXP service center for replacements
General Information	User manual available in PDF; supports multiple languages

Frequently Asked Questions - Ursus 10W DEXP

How do I charge the tablet?

Connect the provided charger to the Micro USB port and plug it into a wall outlet. The battery indicator will show charging status.

Can I expand the storage?

Yes, you can insert a microSD card into the dedicated slot to expand storage up to 128 GB (est.).

What should I do if the screen is unresponsive?

Try a forced restart by pressing and holding the power button for 10-15 seconds. If the problem persists, consult the manual.

How to connect to Wi-Fi?

Go to Settings > Wi-Fi, enable it, select your network, and enter the password.

Does the tablet support Bluetooth?

Yes, it supports Bluetooth for connecting headphones, speakers, and other devices.

How do I perform a factory reset?

Go to Settings > Backup & Reset > Factory Data Reset. Note: This erases all data.

What is the battery life?

Battery life varies with usage, but typically lasts up to 6-8 hours of mixed use.

Can I use a stylus?

The tablet does not have a dedicated stylus layer, but a capacitive stylus should work for basic touch.

How to clean the tablet?

Use a soft, lint-free cloth slightly dampened with water. Do not use harsh chemicals or submerge.

Where can I find the user manual?

The manual is available for free download in PDF format from the DEXP support website or this page.

USER MANUAL Ursus 10W DEXP

Exterior view of a modern office building (no signage)

Illustration of a hand interacting with a tablet displaying multiple app icons (no text or symbols visible)

Hand interacting with a tablet displaying a grid of app icons (no readable text or symbols)

Illustration of a hand interacting with a tablet displaying colorful app icons (no text or symbols)

Увеличение

Проведите в стороны

Colorful abstract swirl pattern with no text or symbols

Close-up of purple flowers with green leaves, no visible text or symbols

We would like to thank you for choosing a DEXP product. It is our pleasure to offer you the solutions engineered and produced to match the high quality, functionality and design standards. Please, read this user manual carefully before starting to use your new device, for it contains important information concerning your personal safety, and hints on correct usage and taking care of the device. You are encouraged to keep this user manual for further reference, should the need arise.

Safety precautions

Battery care tips

1. Use only the bundled charger.

The charging / discharging ability of a battery is determined by its built-in controller. Using forced express charging mode is not recommended.

Li-Ion batteries do not have the so-called "memory effect". You can start charging/discharging the battery regardless of its current charge level. Most devices have a charge/discharge limitation – controller may not let the battery charge if it possesses a certain charge level (e.g. 90%). Also it will not let it get totally discharged, preventing elements from breaking down.

Even if functioning of the device (laptop, tablet PC, smartphone, so on) is carried out by the mains – a Li-Ion battery should go through a full charge/discharge cycle (until the “low battery” message appears) at least every month. A battery should not get fully discharged very often. Li-Ion batteries degrade fast enough, when stored with no charge in them, even separately from the device or with the device switched off.

Self-discharge of a battery makes up to 5% per month. Li-Ion batteries are short-lived by structure. It is recommended that the charge of a battery is kept at about 40-50% when the device is not used. If a battery is left discharged for 2 weeks or more, an irreversible process of losing capacity in the battery cells takes place, resulting in a failure of the battery itself.

2. Respect the temperature limits.

Batteries should be stored charged, with temperature from +15°C to +35°C, and at normal humidity. Batteries are not likely to tolerate long-term operation at very high (above 40) and very low (below -10) environment temperature. Do not expose battery to direct sunlight or keep it close to any intense heat sources.

3. Do not disassemble, burn, or use damaged batteries.

In any case it is unacceptable to disassemble batteries and charge their elements. If necessary, contact an authorized service center. Puncturing or creasing of batteries can lead to an internal short circuit, followed by fire and explosion. Melting of lithium from heat can also lead to an explosion. If depressurization occurs, water may get inside the element, or the atmospheric moisture may condense, which may lead to a reaction, causing hydrogen to excrete and ignite.

Usually devices have a battery charge meter, which will show you the current charge level at any

time. If it indicates a fault for about 5 minutes, being plugged into a power supply, this means the battery is defective. Immediately unplug the charger from the supply and extract the battery (if extractable). Be careful: hazardous emissions may be released.

If the battery is nonremovable (is an integral part of the device), it is necessary to contact an authorized service center at once.

ATTENTION: Battery performance depends on network configuration (Wi-Fi, 3G, LTE) and many other factors (load on the CPU, hard drive, LCD brightness, etc.); Actual performance may not match the specified. The battery has a limited number of charge cycles and may eventually require replacement (For terms of limited warranty on the battery, refer to the warranty card).

1. This product is suitable for use in non-tropical areas, at altitudes below 2.000 meters, which is

indicated by the following mark:

1. Prevent the device from falling on the ground or any strong physical impact.

2. Do not use it for a long time in a too humid or dusty environment, or at excessively hot temperature (<35°C).

Do not expose the device to direct sunlight.

1. Avoid using the device in the strong magnetic and static environment as much as possible.

2. Once the device has happened to have direct contact with water or any liquid, turn it off immediately and do not use it until it dries out. If any flaws are found in the device afterwards, consult an authorized service center right away.

3. Do not clean the device with any detergent or other liquid to avoid causing damage by corrosion. It is acceptable to use a dry soft cloth or tissue paper.

4. Some software found in the Internet may be malicious, and cause harm to your device. In case of damaging the device due to installation of such apps, or any other incorrect usage, the warranty is considered nullified.

5. Please back up your personal data periodically to avoid loss in case of emergency.

6. Please do not disassemble the device by yourself, in this case the warranty will be considered nullified.

7. This product supports the overwhelming majority of mainstream brands of 3G dongle network cards. Still, some of them may be incompatible with the device for a variety of reasons. It is suggested, that you test the dongle with the device directly to make sure it works prior to buying it.

8. The device firmware shall have updates coming out from time to time. You will receive

notifications each time, and be able to perform the updates directly from the device, provided it is connected to a high-speed Internet access point.

1. Replacement with incorrect type of batteries may cause explosion. Make sure the service personnel use original batteries for replacement.

Device scheme

1. Sound-/sound+: Lower/raise volume.
2. Front camera: Take photos and videos.
3. Windows key: Return to the Start screen.
4. Movable base keyboard interface: This interface is magnetic, which is convenient for alignment and firmly linking the device with the keyboard.
5. Back camera: Take photos and videos of a better quality.
6. Loudspeaker: Lets you hear all the sounds.
7. Charging indicator: Active during charging.
8. Power button: Open or close the touch screen panel. You can also let the computer enter sleep mode or wake it up.
9. Earphone and microphone jack: A standard 3.5 mm jack.
10. Mini HDMI port: High-Definition Multimedia Interface (connect the device to a TV or monitor).
11. MicroSD card slot.
12. Micro USB Interface: Can read files from USB drives or be used to connect a USB dongle.
13. Microphone.
14. Power DC Interface: For charging your device.
15. SIM Card Slot.

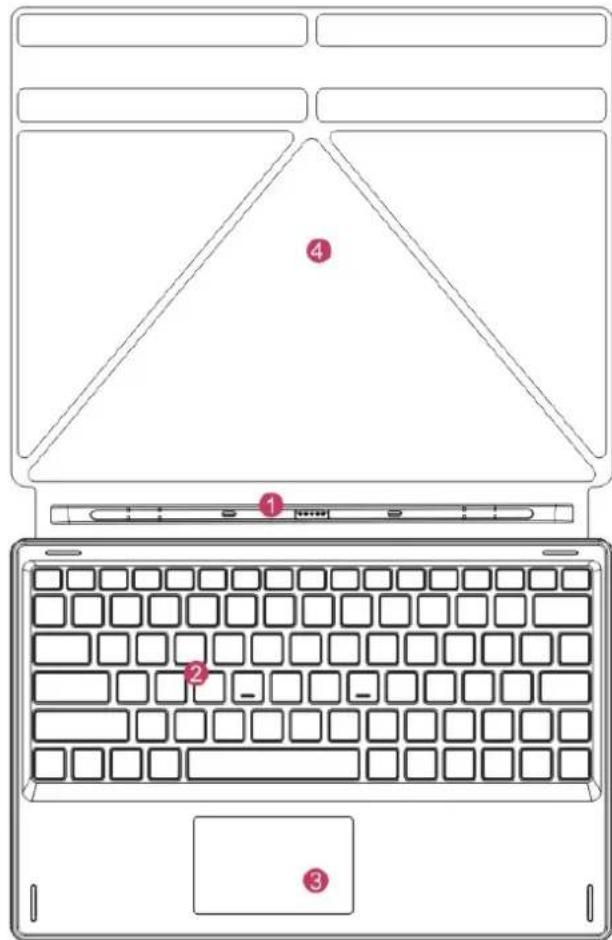

1. Movable base keyboard interface:

This interface is magnetic, which is convenient for alignment and firmly linking the device with the keyboard.

1. Keyboard: Comfortable full-size QWERTY keyboard.

2. Touchpad: Used to control the cursor (same function as a mouse).

3. Base: Folding base for the device.

Exterior view of a modern office building (no signage)

The device on the base

Desktop

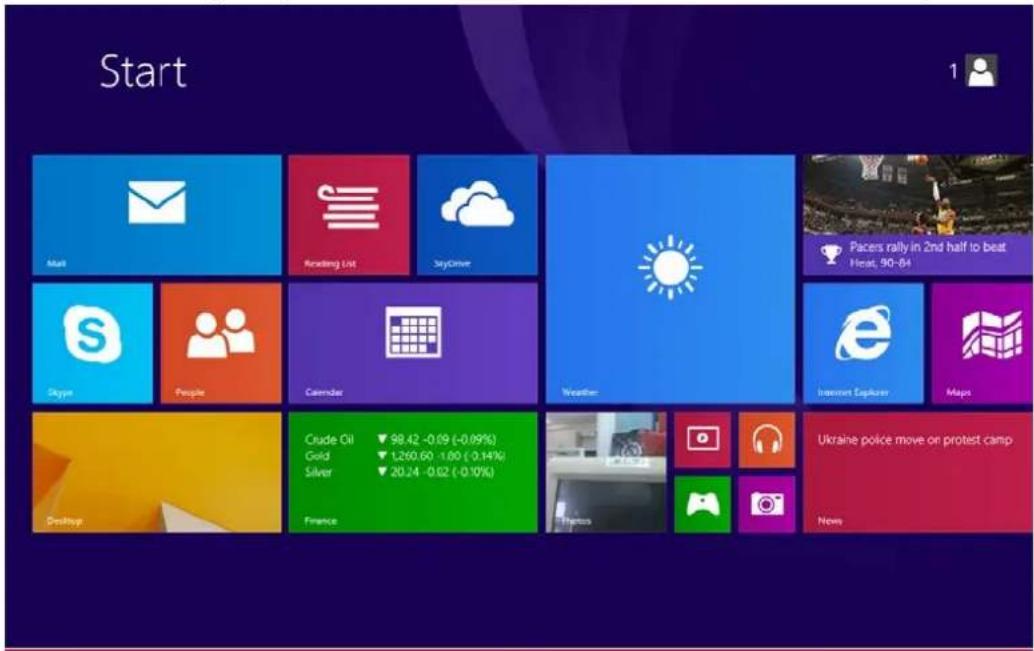

1. Windows 8.1 Start screen: On the start screen you can see many apps. They are shown as magnets of a kind. Click on any of them to open it.

You will need to log in to your Microsoft account to use all the device functions fully.

2. Additional application menus

Slide to the right

Hand interacting with a tablet displaying a grid of app icons (no readable text or symbols)

Slide to the left

Hand interacting with a touchscreen device displaying various app icons (no text or symbols visible)

• Slide to the right from the left side of the screen to see the apps currently running.
• Slide to the left from the right side of the screen to open the Charm menu.

Zoom out Zoom in

Illustration of a hand interacting with a tablet displaying a grid of app icons (no text or symbols visible)

Illustration of a hand interacting with a tablet displaying a virtual app interface (no text or symbols visible)

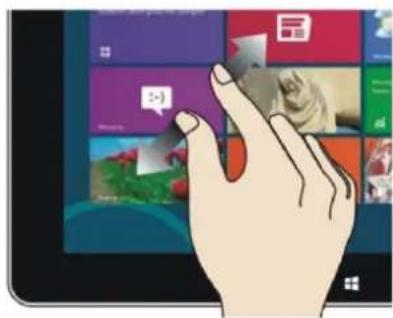

• On the touch screen, draw the two fingers close to each other to zoom out.
  • On the touch screen, separate the two fingers from each other to zoom in.

Slide down

Slide sideways

• On the start screen, slide down from the top of the screen to view all the installed apps.
• On the start screen, move the finger sideways to drag the picture in the corresponding direction.

Slide up

On the start screen, slide upward from the bottom of the screen to see the additional actions panel.

3. Installed apps

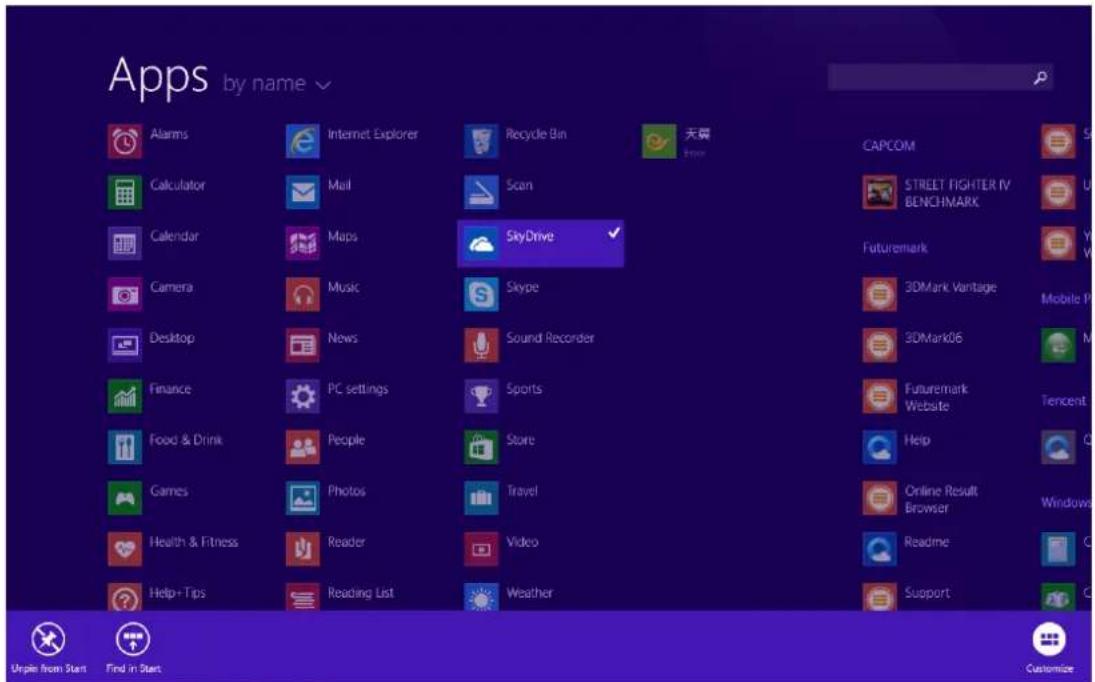

Besides the apps already fixed on the start screen, you can also launch other apps from the "Apps" screen.

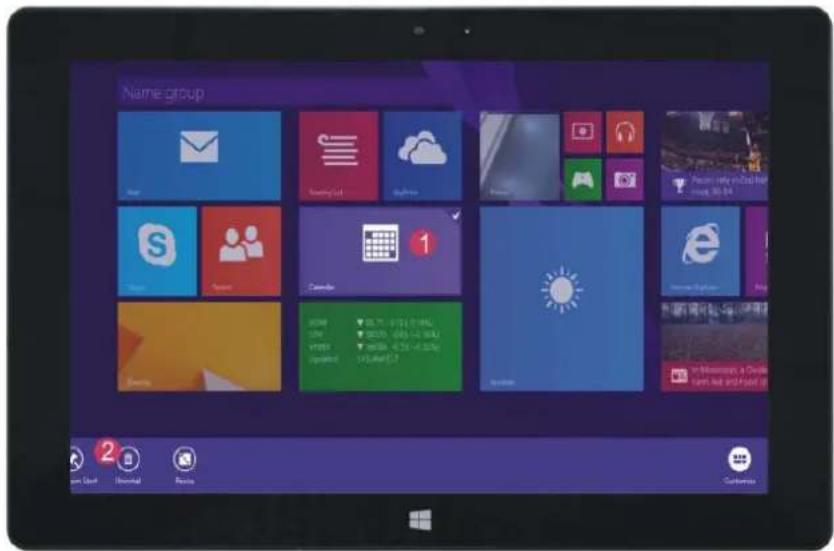

If you want to fix more apps on the start interface, see the figure below (1). Slightly touch and hold the application program magnet for about one second, then let go, and select (2) to fix to the start screen.

Conversely, if you want to cancel or delete a certain app on the start screen, slightly touch and

hold the app magnet for about one second, then let it go and then select the action on the appeared panel (2), such as fixation and deletion, and it will be completed.

4. Charm menu

Slide it to the left from the right side of the screen to start Charm menu column, including: Search, Share, Start, Devices and Settings.

Lets you search the files and apps in the device.

Lets you share the apps through social networks or e-mail.

Return to the start screen. From there, you can also use this function to return to the most recently opened app.

Lets you read, write and share files, connect external screen or printer, etc. to the device.

Lets you adjust the general settings of the device.

5. Dual-screen apps

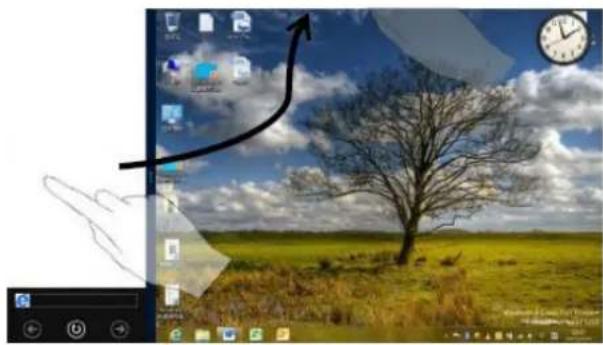

Slide your finger as shown on the picture below (Fig. 1), then hold it. Let go when you see the second screens appear.

Press the partition button between the two screens and drag right or left to adjust the display proportions (Fig.2).

Computer desktop with open screen, globe, and landscape photo showing a bare tree in a field under cloudy sky (no text or symbols)

(Figure 1)

(Figure 2)

Basic operations

1. Press the buttons circled on the picture below, to make the device enter sleep mode, restart, or switch it off.

2. Privacy protection

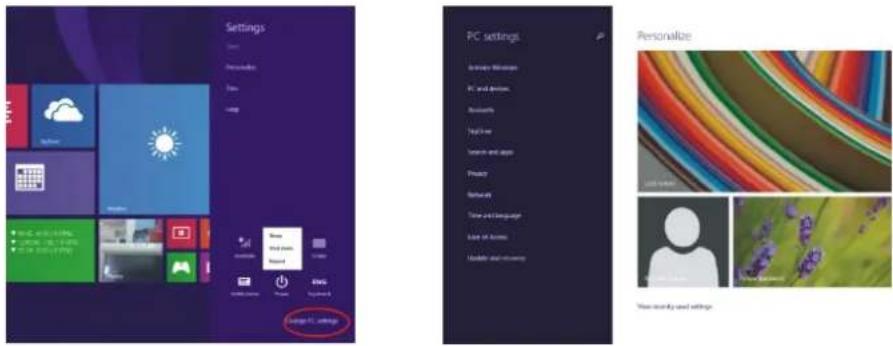

Select "Settings" in the Charm menu, then "Change PC Settings". Select "Accounts" on the left panel, and after that press the "Create a new account" button. After having filled in the Windows Live ID blank with your personal data, enter the user name and password you have created. You will be logged in to your account at once.

Additional information

Manufacturer: Topjoy International Development Group Ltd.

Room 701-D BAK Technology Building, No. 9 Keyan Road, Hi-tech industrial Park, Nanshan District, Shenzhen, China.

Importer: Agat, LLC.

690068, Primorsky region, Vladivostok, 100 let Vladivostoku Ave., 155, block 3.

The product has a certificate of conformity issued by the State certification bodies.

All the specifications and product information are subject to change without notifying users.

Actual interface of the device may differ from shown in this user manual.

www.dexp.club
