USER MANUAL Smart Beam Sagitter

Order code: SG SMTBEAM

MANUALE UTENTE USER MANUAL

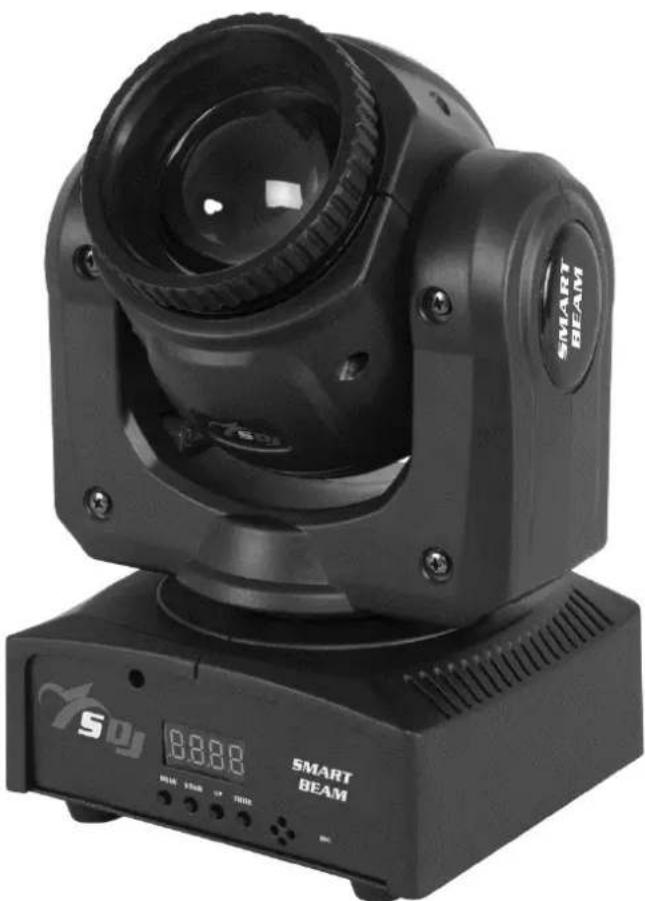

Black SMART BEAM optical mount with display and control buttons (no readable text beyond branding)

INDICE:

Top-down view of three camera modules mounted on a grid-patterned floor, no text or symbols visible

Two identical black industrial lighting fixtures with circuitry and wiring, mounted on parallel lines (no text or symbols visible)

Thank You for choosing one of Our products!

Please refer to the instructions and warnings contained in this user manual, please retain it for future reference.

This manual contains information about the installation and use of the device.

The information contained in this publication has been carefully prepared and checked. However it is not assumed any responsibility for any inaccuracies. All rights are reserved and this document can not be copied, photocopied, reproduced in whole or in part without previous written permission of PROEL. PROEL reserves the right to make, without notice, any aesthetical, functional or design changes or modifications in everyone of its products. PROEL doesn't assume any responsibility for the use or application of the products here described.

The crossed bin symbol, shown on the product or on accompanying documents, indicates that the product should not be disposed with other household waste at the end of the lifecycle. To avoid any damage to the environment, the user is encouraged to separate this product from other kinds of wastes and recycle it. responsibly to promote the sustainable reuse of material resources. Home users are encouraged to contact the retailer where they purchased this product or their local government office for details on separate collection and recycling this type of product. Business users are encouraged to contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste.

The lightning symbol with arrow in an equilateral triangle intends to alert the user to the presence of not insulated "dangerous voltages" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point symbol within an equilateral triangle intends to alert the user to the presence of important instructions for use and maintenance on the accompanying documents of the product.

The "F" inside an equilateral reversed triangle means that the product is suitable for mounting on normally flammable surfaces.

The product to which this manual refers comply with the European Directives pursuant to the safety of electrical equipment supplied at low voltage (LVD) and to the Electromagnetic Compatibility (EMC)

2. - SAFETY INSTRUCTIONS

Caution! This product is not suitable for household illumination.

Please read this manual before installing and applying power to the equipment, follow the safety precautions listed below and observe all warnings in this manual and printed on. Please contact a PROEL distributor for assistance with any questions about how to activate the equipment safely. Contact a qualified technician for any maintenance work not described in this manual.

Do not modify the fixture or install accessories and upgrade kits that are not the Proel original ones.

People involved in the installation and maintenance of the device must:

- Be qualified

- Follow the instructions of this manual in the theaters, in the halls, in the places where the events take place, etc.

CHECKS BEFORE INSTALLATION

Make sure all the parts for fixing the product are in good condition.

Make sure that the anchor point is stable before positioning the product.

The safety cable must be properly attached to the device and fixed to the supporting structure so that, in case of failure of the primary supporting system, it has the lowest possible fall of the device.

If the safety cable wear, must be replaced with an original spare.

MINIMUM DISTANCE OF ILLUMINATED OBJECTS

The projector must be positioned so that the objects hit by the beam of light are at least 2 meters from the lens of the projector.

MINIMUM DISTANCE FROM FLAMMABLE MATERIALS

The product must be positioned so that any flammable material is at least 0.50 meters from any point of the surface of the device. Never place filters or other materials over the lens or on the optical axis.

MOUNTING SURFACES

The device is suitable for mounting on normally flammable surfaces.

REFERENCE TEMPERATURE

The ambient temperature range of use of the device varies between +5 °C (min) and +40 °C (max), outside of that range the device should not be used.

The maximum temperature of the housing Tb = 80 °C must never be exceeded. Do not block the exhaust fans, ensuring a minimum clearance of 0.5 meters around the ventilation holes.

IP20 PROTECTION RATING

The device is protected against the penetration of solid bodies larger than 12 mm (0,47") in diameter (first digit 2), but not against dripping water, rain, splashes or jets of water (second digit 0). Use only in dry areas. Inside use only. Do not expose the equipment to rain or moisture.

PROTECTION AGAIN ELECTRIC SHOCK

The device must be connected to a power supply system with efficient earthing. Moreover, it is recommended to protect power supply lines of the product from indirect contact and / or shorting to earth by using appropriately sized anti electrical shock switch.

CONNECTION TO THE MAINS

The electrical connection must be carried out by a qualified electrician.

Ensure that the mains frequency and voltage correspond to those for which the equipment is designed, as shown in the electrical data label. This label also shows the power consumption that is necessary to refer to evaluate the maximum number of devices to be connected to the electricity line, in order to avoid power overloading.

If the external power cord of this light is damaged, it must be replaced with a special cord exclusively available from Your PROEL dealer.

Never operate the equipment with lenses and / or covers missing or damaged.

In case of non-use, it is recommended to unplug the projector from the mains.

MAINTENANCE

Before starting any maintenance or cleaning the product, disconnect the power from the mains and disconnect the power cable from the device. After switching off, do not remove any part of the device for at least 35 minutes to avoid the risk of burns. The lenses, if damaged, must be replaced with original spare parts.

WARNING

CAUTION. Do not look directly at the light source. Do not look at the beam with lenses, glasses, mirrors or similar optical instruments that could change the convergence of light, causing serious damage to people and / or things.

WARNING! DANGER FOR THE EYES!Do not look directly at the light source

3. - OPENING AND CONTROL

Carefully open the package, check the content and make sure that all the parts are present and are in good condition. In cases where some parts are not present or are damaged, immediately contact Your supplier and retain the packaging for verification.

WARNING!If the product has been exposed to drastic temperature changes, let the unit turned off until it reaches room temperature because the presence of condensation can damage the product if it is turned on.

Verify that the box contains the following items:

N° 1 SG SMTBEAM

N° 1 Bracket

N° 1 Power cord

N° 1 User Manual

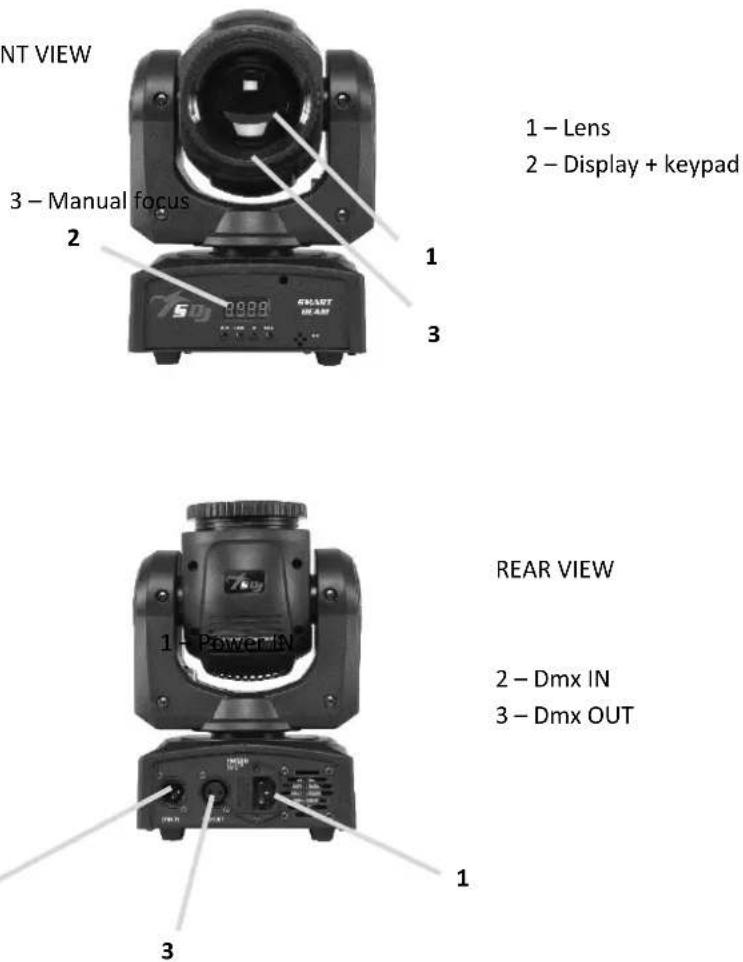

FRONT VIEW

1 - Lens
2 - Display + keypad
1 - Lens
2 - Display + keypad

2

Close-up of a black mechanical optical device with labeled ports and a 'PowerMN' label (no readable text beyond labels)

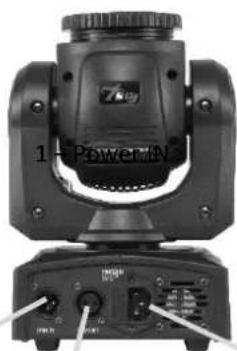

REAR VIEW

2 - Dmx IN
3 - Dmx OUT

4. - INSTALLATION AND SWITCH ON

4.1 - PRODUCT INSTALLATION

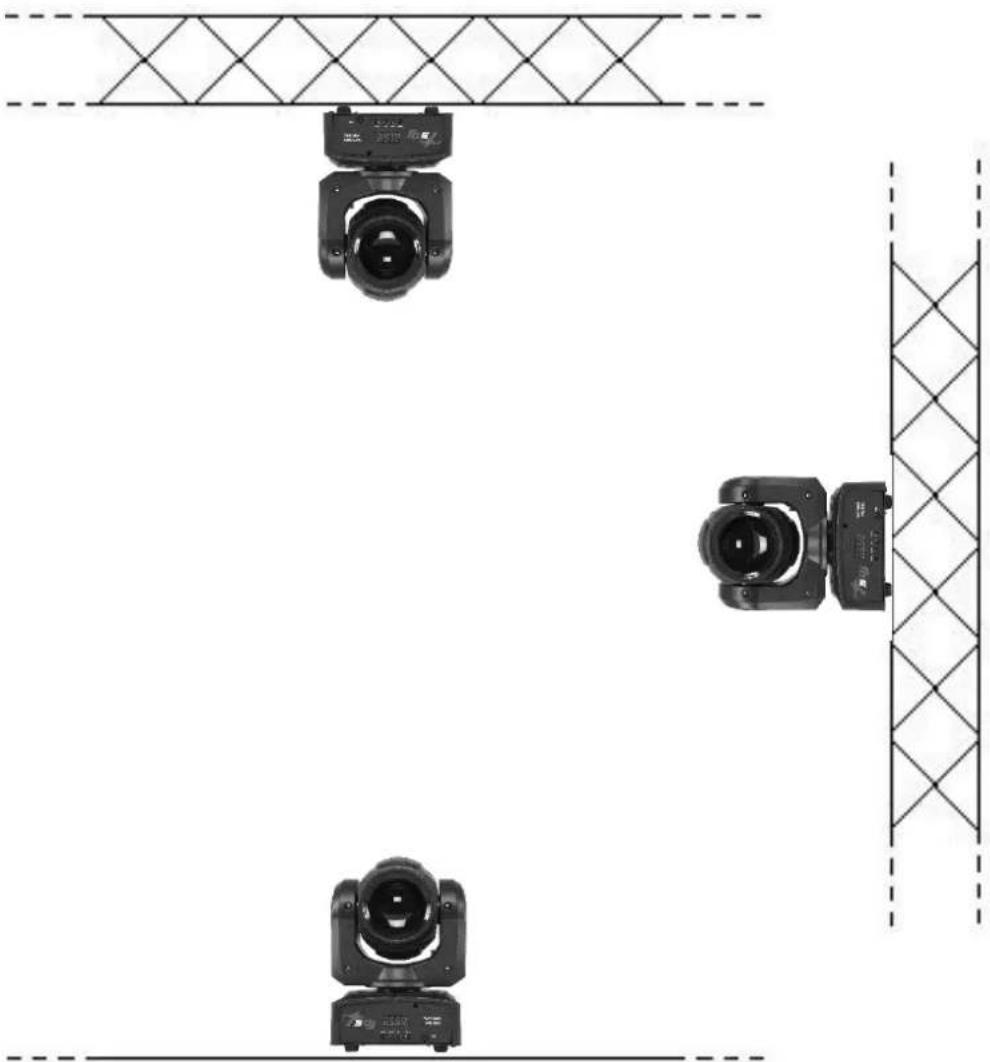

- Do not shake the device. Avoid the use of too much force during installation or unit fixing. - The unit can be installed on the floor resting on the rubber feet, on the wall, ceiling or on a truss.

Top-down view of three black camera modules mounted on a grid-patterned floor, with no visible text or symbols.

WARNING! IT'S REQUIREDthe mounting of the safety rope (PLH232 – PLH248) sold separately) in the case where the product is hung on a wall, ceiling or on a truss. Except when the device is placed in the floor, the safety cable is always required.

4.2 - CONNECTION TO THE MAINS

Two identical black camera headsets with circuitry and wiring, suspended by wires (no text or symbols visible)

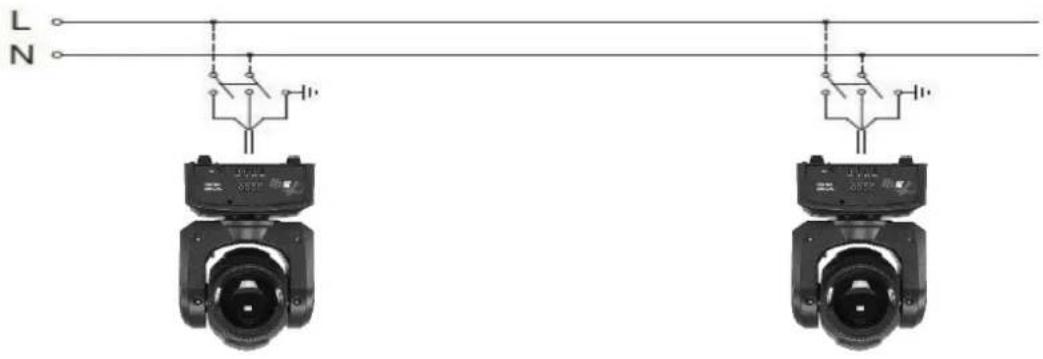

The device must be connected to a power supply system with a proper earth system. Moreover, it is recommended to protect power supply lines of the products from indirect contact and / or shorting to earth by using appropriately sized anti electrical shock switch.

The electrical connection must be carried out by a qualified electrician. Ensure that the mains frequency and voltage correspond to those for which the device is designed, as shown in the electrical data label.

4.3 - CONNECTION TO THE DMX CHAIN

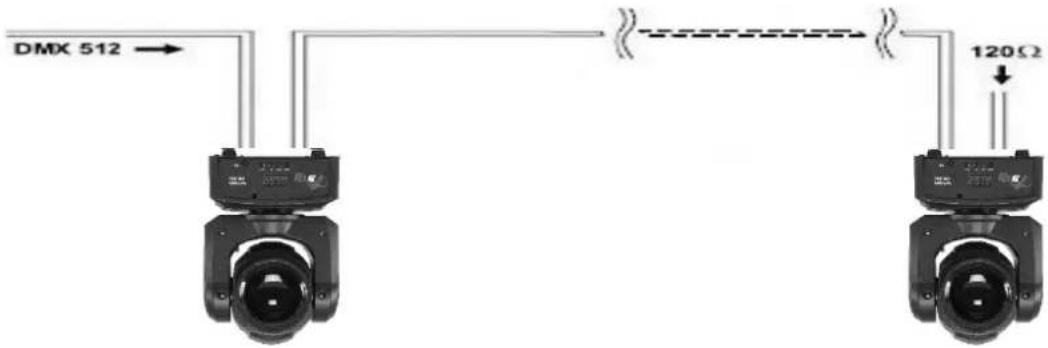

Use a cable conforming to specifications EIA RS-485: pole twisted, shielded, 120Ohm characteristic impedance and low capacity (SAGITTER SG DMX3 – SG DMX5).

Do not use microphone cable or other cable with different characteristics than those specified. Terminations must be made with male / female XLR 3-pin connectors. You must enter on the last device a terminal plug with a 120Ohm resistance (min1 / 4 W) between terminals 2 and 3. IMPORTANT: The cables must not come into contact with each other or with the metal housing of the connectors. The housing itself must be connected to the shield braid and to pin 1 of the connectors.

5. - SETUP

5.1-MENU

Addr	001 - 512	DMX address setting
Chnd	9Ch / 11Ch	Channel mode
SLnd	MAST	Master mode
	SL 1	Slave mode 1 (slave same as master)
	SL 2	Slave mode 2 (slave same as master, but pan/tilt inverted)
ID	00 - 15	ID address
SHnd	SH-0 / SH-1 / SH-2 / SH-3	4 different built-in shows
Soud	On / oFF	Sound mode
SEns	00 - 99	Microphone sensitivity
bLnd	bLAc	Without DMX the projector goes in zero position
	Auto	Without DMX the projector goes in Auto mode
	Soun	Without DMX the projector goes in Sound mode
	Hold	Without DMX the projector remains in last position
LED	On / Off	On = display always onOff = display off after 5 seconds
diSP	yes / no	Yes = display in right positionNo = display in inverted position
rPAn	no / yes	No = pan not invertedYes = pan inverted
rtIL	no / yes	No = tilt not invertedYes = tilt inverted
rSEt	yes / on	Reset

5.2 - MASTER/SLAVE MODE

In this mode, more units can be linked together as a single chain and work in a synchronized way.

• Use a DMX cable to link together all the units from the connector DMX OUT to DMX IN.
• Define the first unit of the chain as MASTER, all other units must be set in SLAVE1 mode (SL1) or SLAVE2 (SL2).
• Operate the Master unit in Automatic mode (Auto) or Sound (Soun) to operate the entire system. The entire chain of Slave unit will act as the Master unit.

5.3 - DMX MODE

9 channels mode

Channel	Function	Values	Description
1	Pan	000 - 255	Pan: 0° - 540°
2	Tilt	000 - 255	Tilt: 0° - 220°
3	Pan / Tilt speed	000 - 255	Pan / Tilt speed
4	Master dimmer	000 - 255	Master dimmer
5	Strobe	000 - 009	Open
		010 - 249	Strobe from slow to fast
		250 - 255	Open
6	Color wheel	000 - 009	Open
		010 - 019	CTO
		020 - 029	Magenta
		030 - 039	Cyan
		040 - 049	Orange
		050 - 059	Green
		060 - 069	Pink
		070 - 079	Light orange
		080 - 089	Deep green
		090 - 099	Blue
		100 - 109	Yellow
		110 - 119	Red
		120 - 255	Color rainbow from slow to fast
7	Gobo wheel	000 - 009	Open
		010 - 019	Gobo 1
		020 - 029	Gobo 2
		030 - 039	Gobo 3
		040 - 049	Gobo 4
		050 - 059	Gobo 5
		060 - 069	Gobo 6
		070 - 079	Gobo 7
		080 - 089	Gobo 8
		090 - 099	Gobo 9
		100 - 109	Gobo 10
		110 - 119	Gobo 11
		120 - 255	Gobo rainbow from slow to fast
8	Auto / Sound	000 - 059	No functions
		060 - 159	Auto mode
		160 - 255	Sound mode
9	Pan / Tilt macro Reset	000 - 020	No functions
		021 - 100	Pan macro
		101 - 200	Tilt macro
9		201 - 249	Pan / Tilt macro
		250 - 255	Reset

11 channels mode

Channel	Function	Values	Description
1	Pan	000 - 255	Pan: 0° - 540°
2	Pan fine	000 - 255	Pan fine
3	Tilt	000 - 255	Tilt: 0° - 220°
4	Tilt fine	000 - 255	Tilt fine
5	Pan / Tilt speed	000 - 255	Pan / Tilt speed
6	Master dimmer	000 - 255	Master dimmer
7	Strobe	000 - 009	Open
		010 - 249	Strobe from slow to fast
		250 - 255	Open
8	Color wheel	000 - 009	Open
		010 - 019	CTO
		020 - 029	Magenta
		030 - 039	Cyan
		040 - 049	Orange
		050 - 059	Green
		060 - 069	Pink
		070 - 079	Light orange
		080 - 089	Deep green
		090 - 099	Blue
		100 - 109	Yellow
		110 - 119	Red
		120 - 255	Color rainbow from slow to fast
9	Gobo wheel	000 - 009	Open
		010 - 019	Gobo 1
		020 - 029	Gobo 2
		030 - 039	Gobo 3
		040 - 049	Gobo 4
		050 - 059	Gobo 5
		060 - 069	Gobo 6
		070 - 079	Gobo 7
		080 - 089	Gobo 8
		090 - 099	Gobo 9
		100 - 109	Gobo 10
		110 - 119	Gobo 11
		120 - 255	Gobo rainbow from slow to fast
10	Auto / Sound	000 - 059	No functions
		060 - 159	Auto mode
		160 - 255	Sound mode
11	Pan / Tilt macro Reset	000 - 020	No functions
		021 - 100	Pan macro
		101 - 200	Tilt macro
		201 - 249	Pan / Tilt macro
		250 - 255	Reset

6. - MAINTENANCE

To ensure optimal performance, the unit must be frequently cleaned. Unplug the device from the mains and let it cool for at least 35 minutes to avoid the risk of burns. Use a vacuum cleaner or an air compressor and a soft brush or a lens cloth to remove the dust deposited. The lenses, like any other damaged part, must be replaced with original spare parts.

7. - TECHNICAL SPECIFICATIONS

• Power Supply: 100-240V, 50/60HZ
- LED: 1x40W White
- PAN Angle: 540^
- TILT Angle: 210^
• Power consumption: 50W
• Operation Mode: Auto, Sound, Master/slave, DMX512
• Electronic Dimming 0-100%
• DMX 9 - 11 Channels
• Digital display for address and function setting

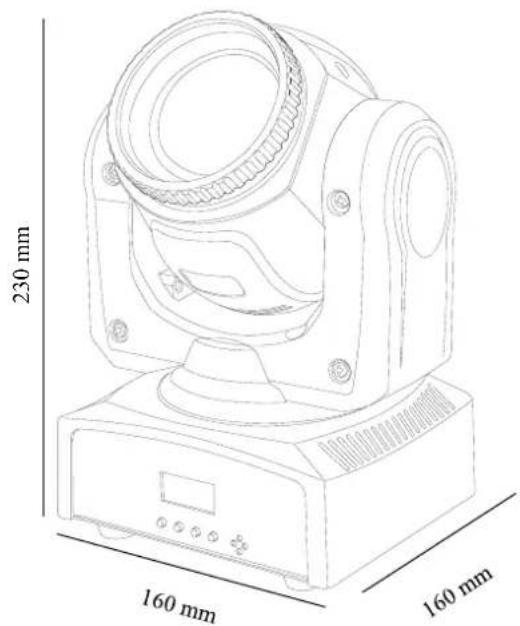

• Dimensions (L x H x D): mm. 160x230x160
• Weight: kg 2,4
