Product Type	Stand Fan
Model	EVO-16S
Brand	Evolar
Rated Voltage	220V
Rated Frequency	50Hz
Input Power	40W
Number of Speed Settings	4 (Off, Low, Medium, High)
Oscillation	Yes, via push button
Tilt Adjustment	Yes, via knob
Height Adjustment	Yes, telescopic pillar with locking ring
Blade Material	Plastic
Grille Material	Metal / Plastic
Overheat Protection	Built-in thermostat with auto cut-off
Base Type	Circular with screw nuts
Cleaning Method	Wipe with soft damp cloth; vacuum motor vents; do not immerse
Safety Features	Finger guard grille; automatic shut-off on overheating; disconnection before cleaning
Assembling Required	Yes, includes base, pillar, fan body, blades, and guard assembly
Country of Origin	Not specified
Warranty	Refer to manufacturer

Frequently Asked Questions - EVO-16S Evolar

How do I assemble the Evolar EVO-16S fan?

Assemble the base and pillar first: insert the steel tube into the pillar, adjust height, and secure with the height adjuster. Then attach the pillar to the base using the provided screw nuts. Next, mount the fan body onto the pillar using the fixing knob. Finally, attach the blade by removing the spinner and plastic nut, sliding the blade onto the shaft, and tightening. Secure the front guard with safety clips.

How many speed settings does the fan have?

The fan has four speed positions: 0 (off), 1 (low), 2 (medium), and 3 (high). Use the speed switch to select the desired speed.

How do I activate the oscillation function?

Press the oscillation button located on top of the motor housing to start the oscillating function. Press it again to stop oscillation at a desired position.

Can I adjust the tilt of the fan head?

Yes, loosen the tilt knob, adjust the fan head to the desired angle, then tighten the knob to lock it in place.

What is the overheat protection feature?

The fan has a built-in thermostat. If the motor temperature exceeds the limit due to blockage or other issues, the fuse will cut off power automatically to prevent damage.

How should I clean the fan?

Always unplug the fan before cleaning. Use a soft damp cloth to wipe the outer surfaces. Vacuum the motor vents to remove dust. Do not use abrasive cleaners or allow water into the motor housing.

What should I do if the fan does not turn on?

Check that the power cord is plugged into a working outlet. Verify the fan is set to a speed other than 0 (off). If the overheat protection has activated, allow the motor to cool down before resetting (unplug and plug back in). If the problem persists, consult a professional.

Can I replace parts on the fan myself?

No, do not attempt to replace parts yourself. If any part is damaged, contact the supplier or an authorized repair service. The manual states never replace parts on the fan.

How do I adjust the height of the fan?

Loosen the height adjuster (turn counterclockwise), pull the steel tube to the desired height, then tighten the adjuster clockwise to secure the tube in place.

Is the fan safe to use around children?

The fan includes a safety grille to prevent finger insertion. However, always supervise children and do not allow them to insert objects through the grille. Ensure the fan is placed on a stable surface.

USER MANUAL EVO-16S Evolar

Modern office desk fan with a circular head and three legs, mounted on a stand (no text or symbols visible)

Specificatie:

Nominale spanning: 220V

Frequente: 50Hz

Two circular diagrams with grid patterns, one larger and one smaller, labeled 'FIGURES3' (no text or symbols on diagrams)

GEBRUIKSAANWIJZING

VENTILATORREGELING (AAN/UIT & SNELHEID)

ZWENKFUNCITE

KANTELBEDIENING

ONDERHOUD INSTRUCTIES

Modern office desk fan with adjustable armrest and stand (no text or symbols visible)

Manual stand fan:

Installation and operation Manual

Evolar EVO-16S

User Manual stand fan Evolar EVO-16S

(Before use read and save these instructions carefully)

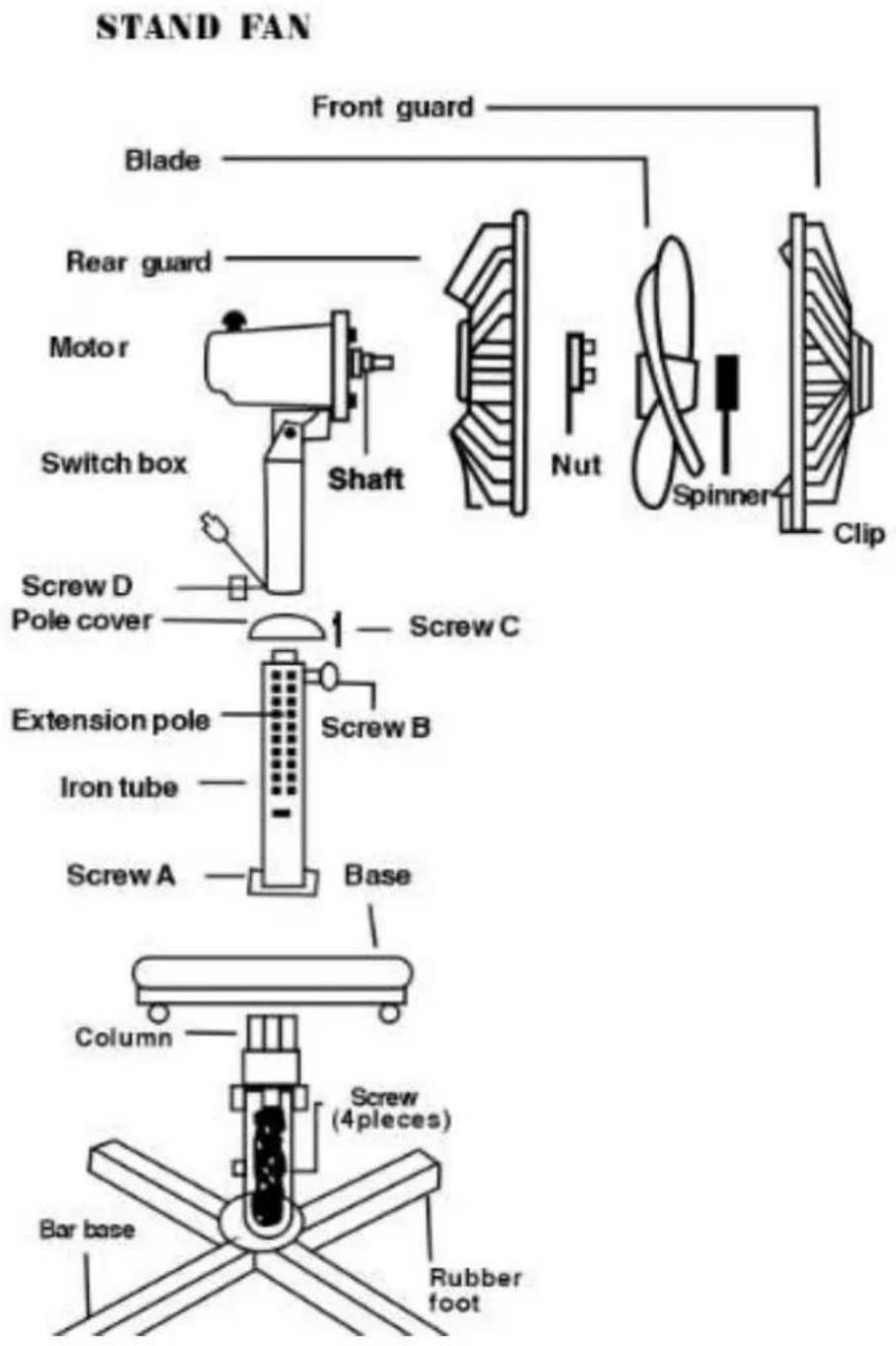

Assemble diagram:

SPECIFICATION:

Rated voltage: 220V

Rated frequency: 50Hz

Input power: 40W

Rules for safe operation:

1. Before use read these installation and operation manual carefully
2. Please match the power with the rated voltage and frequency of the fan.
3. Don't insert fingers, pencils or any other objects through the grille when the fan is running.
4. Disconnect always the power when you move the fan.
5. Unplug the power plug before cleaning the fan.

OVER-HEAT PROTECTION FUNCTION:

A thermostat is built in the motor of the fan. The fuse will be automatically cut out when the motor temperature exceeds the limit caused by any accidents. The plastic pieces will be well protected for burning out and distortion.

ASSEMBLY INSTRUCTIONS

BASE AND PILLAR ASSEMBLY:

1. Take out the base and pillar part from the carton.
2. Revolve the height adjuster anti-clock wise out, draw the steel tube out of the pillar. Then revolve the height adjuster clock wise to fasten the tube.
3. Locate the pillar proper into the base, take the screw nuts from the plastic bag and fit it in to the pillar form the bottom of the base and fasten it.
4. Adjust the height to the required height of the wind sending.

FAN BODY AND COLLUM ASSEMBLY:

Unscrew the fixing knob on the back of the bottom of the fan body, empty the hole in the bottom of the fan body, put the extension column into the hole of the fan body and tighten the fixing knob.

BLADE AND GRILLES ASSEMBLY:

1. Remove the spinner and the plastic nut from the front side of the motor shaft. Then tighten the plastic nut. (FIGURE 1)

1. Remove the PVC sleeve on the shaft. Insert the ventilation blade into the shaft. Make sure the stopper pin is clipped in to the groove of the blade. Screw the spinner counter clockwise tot tighten the blades. (FIGURE 2)

1. Hold the front guard to make sure that the trademark is level and that the front guard are centred over the rear guard. Then push all the safety clips into their places. (FIGURE 3)

Two circular objects: a meshed circular structure and a coin with a hole, both without any visible text or symbols.

OPERATION INSTRUCTIONS

FAN SPEED CONTROLL (ON/OFF & SPEED)

Use the speed switches to switch the fan on and off. Press the switch to turn on the required speed. The fan has four speed positions: 0 = off, 1 = low, 2 = medium, 3 = high (FIGURE 4)

OSCILLATION CONTROL

To make the fan move (oscillation function) press the oscillation button. This button is located at the top of the motor housing. To move the air flow, press the oscillation button. You can click the oscillation button to move the fan to the required position. (FIGURE 5)

TILT CONTROL

Unscrew the till knob, adjust the fan head to the desired angle by holding the fan head, then tighten the knob (FIGURE 6)

MAINTENANCE INSTRUCTIONS

The fan requires little maintenance. Do not attempt to repair the fan yourself. If the fan is damaged or damaged, contact the supplier or go to an authorized repair company.

MAINTENANCE:

1. Disconnect the fan from the power supply before cleaning, assembling or disassembling the fan
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor housing room dust and dirt free. You can use a vacuum cleaner to clean these vents. Always remove the plug from the power socket before cleaning the fan. Don't dissemble the fan to remove the dust.
3. Wipe the outer ports with a soft cloth soaking. Do not use abrasive detergent or solvents to avoid scratching the surface.
4. Do not allow water or any other liquid in to the motor housing or interior parts.
5. If the power cord is damaged, the fan can not be used at all times. Request a specialist to repair the fan.
6. Never replace parts on the fan.

SUPPORT

All available information and parts can be found on www.evolar.nl
