Product Type	Barcode Scanner
Model	D800
Brand	Socket Mobile
Dimensions	Approximately 170 x 70 x 100 mm
Weight	Approximately 200 g
Power Source	Rechargeable lithium-ion battery via USB
Battery Life	Up to 8 hours of continuous scanning
Connectivity	Bluetooth 5.0
Scan Engine	2D imager
Barcode Symbologies	1D and 2D codes including QR, Data Matrix, PDF417, and all common linear barcodes
Scan Range	Up to 50 cm for typical 1D barcodes
Depth of Field	Near contact to 50 cm
Interface	Bluetooth HID or SPP
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Drop Resistance	1.5 m to concrete
Ingress Protection	IP54
Maintenance	Clean with a soft, dry cloth; avoid liquids
Safety	Conforms to FCC, CE, and RoHS standards
Spare Parts & Repairability	Replaceable battery; serviceable by authorized technicians
Documentation	User manual available in PDF (38 pages)

Frequently Asked Questions - D800 Socket Mobile

How do I pair the Socket Mobile D800 with my device?

Ensure the scanner is charged. Turn on the scanner by pressing the power button. On your device, enable Bluetooth and search for devices. Select 'Socket Mobile D800' from the list. The scanner will beep when paired. Refer to the manual for detailed pairing instructions.

What is the battery life of the D800?

The D800 has a rechargeable lithium-ion battery that provides up to 8 hours of continuous scanning. Charging time is approximately 2 hours via USB.

Can the D800 scan barcodes from a smartphone screen?

Yes, the D800 is a 2D imager and can read electronic displays such as smartphone screens and computer monitors. It works well with digital barcodes.

What barcode symbologies does the D800 support?

The D800 supports all common 1D barcodes (UPC, EAN, Code 128, etc.) and 2D codes including QR Code, Data Matrix, PDF417, and Aztec.

How do I reset the D800 to factory settings?

To reset, press and hold the power button for 10 seconds until you hear a long beep. Alternatively, scan the factory reset barcode provided in the user manual.

Is the D800 compatible with iOS and Android?

Yes, the D800 works with iOS (via Bluetooth HID) and Android (via Bluetooth HID or SPP). It also works with Windows and macOS as a Bluetooth keyboard.

What is the scanning range of the D800?

The D800 can scan barcodes from contact up to 50 cm (20 inches) away depending on the barcode size and density.

How do I clean the D800 scanner?

Use a soft, lint-free cloth slightly dampened with water or a mild detergent. Do not use abrasive cleaners or immerse the scanner in liquids. Dry thoroughly before use.

Can I replace the battery on the D800?

Yes, the battery is replaceable. Contact Socket Mobile support or an authorized service center to obtain a replacement battery.

Where can I download the user manual for the D800?

The manual can be downloaded from the Socket Mobile website or from notice-facile.com in PDF format (38 pages).

USER MANUAL D800 Socket Mobile

D800, D840, & D860 DURASCAN® 800 SERIES USERGUIDE

TABLE OF CONTENTS

Package Contents 3

Optional Charging Accessories 3

Product Information 4

Charge the Battery 5

Scanning Barcodes 6

Bluetooth Connection Modes 7-8

How to setup your scanner:

Download our Companion App 9

Can't use Companion App?

How to setup your scanner in Basic Mode

Basic Mode 10

How to setup your scanner in Application Mode

Apple ^® 11

Android 12

Windows 13

Bluetooth Unpairing 14

Factory Reset 15

Restore Method 16

Status Indicators 17-19

Quick Programming 20-25

Helpful Resources 26

Battery Warning, Safety, Compliance, Warranty 27-38

PACKAGE CONTENTS

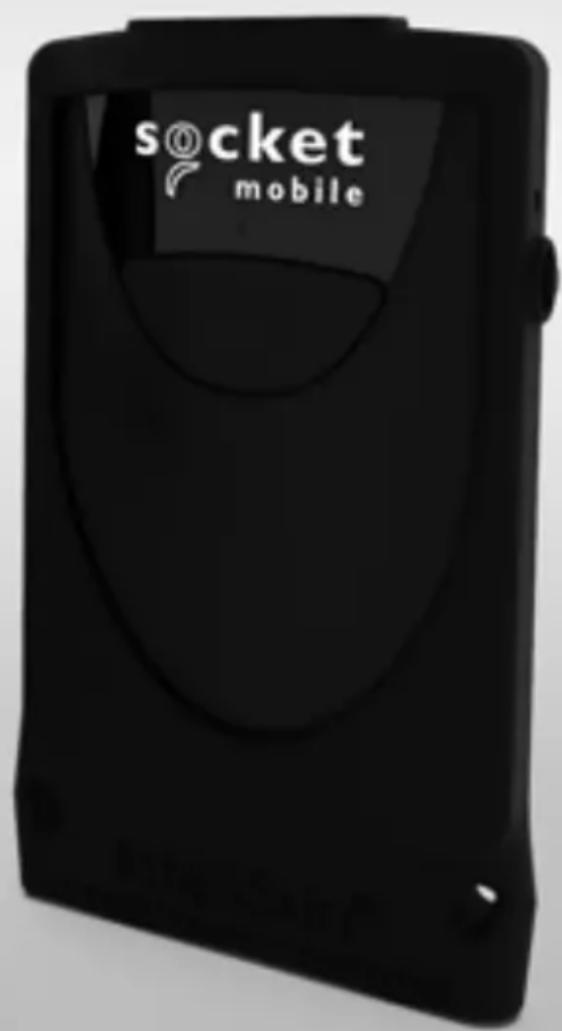

DuraScan® 800 Series

Line drawing of a mechanical component with a dome and slot (no text or symbols)

DuraCase Charging Dock (Available with bundle)

Insert Card

OPTIONAL CHARGING ACCESSORIES

Technical line drawing of a mechanical component with no visible text or symbols

DuraCase Charging Adapter

Line drawing of a pocket watch with a handle and spout (no text or symbols)

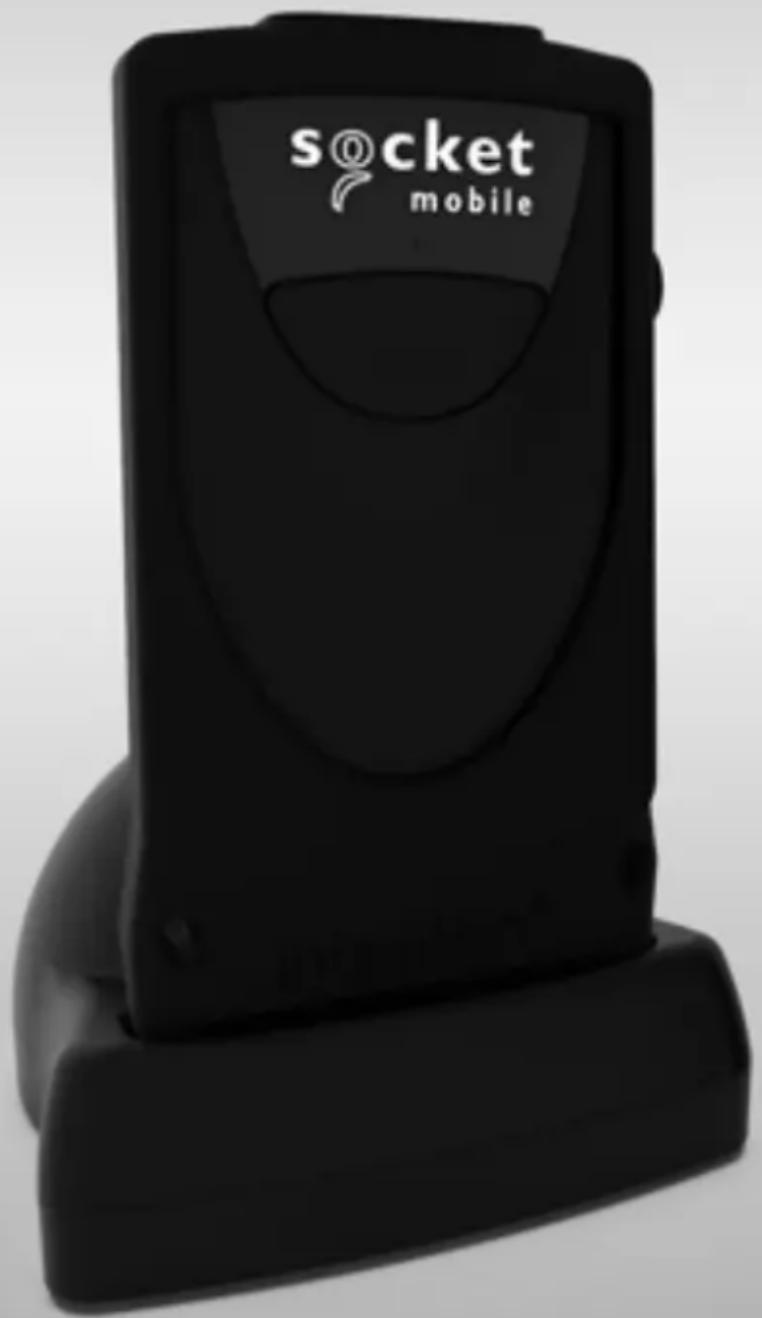

DuraCase Charging Dock

Line drawing of a rectangular container with six circular indentations on top, labeled 'socket' and 'with' (no other text or symbols)

DuraCase 6 Multi-Bay Charger

Thank you for choosing Socket Mobile! Let's get started!

© 2022 Socket Mobile, Inc. All rights reserved. Socket ^ , the Socket Mobile logo, SocketScan ^ , DuraSled ^ , Socket Mobile DuraCase ^TM Battery Friendly ^ are registered trademarks or trademarks of Socket Mobile, Inc. Microsoft ^ is a registered trademark of Microsoft Corporation in the United States and other countries. Apple ^ , iPad ^ , iPad Air ^ , iPad mini ^ , iPad Pro ^ , iPhone ^ , iPod touch ^ , Objective-C ^ , Swift ^TM , and Xcode ^ are registered trademarks of Apple, Inc., registered in the U.S. and other countries. The Bluetooth ^ Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners.

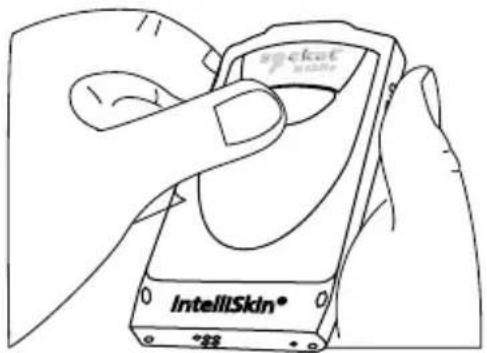

Socket Mobile's barcodes scanners can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth.

Warning: DO NOT IMMERSE IN WATER (scanner's mechanics could be damaged)

DO NOT USE BLEACH FOR CLEANING (scanner's material property may be affected)

*Also used to display the on-screen keyboard in Basic Mode (iOS only).

CHARGE THE BATTERY

1. Insert scanner into Charging Dock, 6 Bay Charger or Charging Adapter. • Bundles available for Charging Dock and 6 Bay Charger.
2. Insert USB or plug into wall port.
3. The scanner will beep twice indicating adequate power is being supplied to the unit.

8 Hours

Side LED status

• Red = Charging
• Green = Fully charged

Technical line drawing of a mechanical component with no visible text or symbols

DuraCase Charging Adapter

Line drawing of a mechanical component with a dome and base (no text or symbols)

DuraCase Charging Dock

Line drawing of a rectangular object with multiple circular indentations on top, labeled 'socket' and 'm/s' (no other text or symbols)

6 Bay Charger
Due to varying countries' outlets, the 6 Bay Charger power cords differ per region.

Note: The scanner comes with a pre-installed rechargeable Lithium Ion battery, the initial full charging of the battery can take up to 8 hours.

Power On

Press and hold down the small power button on the side until the scanner beeps twice (low-high tone).

SCANNING BARCODES

After connecting the scanner to your device, open an application.

Place the cursor where you want to enter the scanned data.

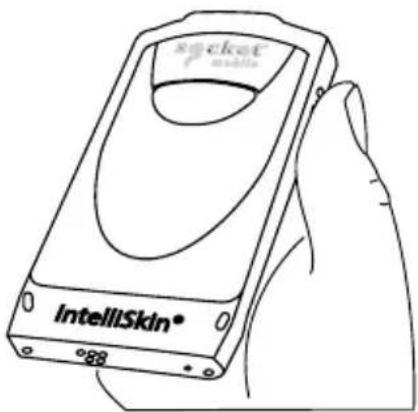

1. Hold the scanner a few inches from the barcode.

2. Aim, press and hold the scan button.

By default, the scanner will beep, vibrate, and the side LED will flash green to confirm successful scan.

Line drawing of a hand holding a pen, with an orange bar above it (no text or symbols)

DuraScan D800 \~4" to 8" scanning distance

Line drawing of a hand holding a pen, with a red rectangular object in the background (no text or symbols)

DuraScan D840 \~6" to 12" scanning distance

Line drawing of a hand holding a pen, with a red rectangular object in the background (no text or symbols)

DuraScan D860 \~2" to 30" scanning distance

Connect your barcode reader using one of the following Bluetooth connection modes:

Bluetooth Connection Profiles

Bluetooth Mode Description
iOS Application Mode* (Default)Use this mode with an Apple app designed for Socket Mobile barcode readers.	1. Use with an App developed for iOS devices2. Software installation is required3. Mode to use for iOS applications that support Socket Mobile readers
Android/Windows Application ModeUse this mode with an Android app designed for Socket Mobile barcode readers.	1. Software installation is required2. More efficient and reliable data communications for barcodes containing lots of data3. Mode recommended for applications supporting Socket Mobile readers
Basic Keyboard ModeConfigures the barcode reader to Human Interface Device (HID).	NO software installation neededConnects to most devicesGood for barcodes containing small amounts of dataBarcode reader interacts with host device like a keyboard

*By default, the barcode reader is set to iOS Application Mode

Operating System Connection Options

Operating Systems (OS)	Devices	Bluetooth HID Support	Bluetooth SPP Support	Bluetooth Apple Serial Specific (MFi Mode)
Android	Android 4.0.3 & later	Yes Yes N/A
Apple iOS	iPod, iPhone, & iPad	Yes N/A Yes
Windows PC	Windows 8, 10, 11	Yes Yes N/A
Mac OS	Mac OS X 10.4 to 10.X Mac Books, Mac Mini, & iMac	Yes N/A N/A

Note: To switch from one mode to the other you must remove the pairing information from both devices - host computer and the scanner. (see unpairing procedure on page 15)

The scanner will unpair and automatically power off. The next time you power on the scanner, it will be discoverable.

Select the appropriate mode and pair with the second host device.

Socket Mobile Companion helps you configure Socket Mobile barcode readers from the convenience of a mobile device.

Register a device and extend your warranty by 90 days

• Add multiple devices
  • Purchase accessories (limited availability)
• Browse app partners

The Companion app enables you to configure the reader into the faster and more accurate App Mode, so it can be controlled by other apps, such as Shopify and Square, to name a couple of the 1000+ apps available.

The Socket Mobile Companion app is designed to ensure you get the maximum utility benefits from your Socket Mobile devices.

Scan this QR code with your mobile device to download our new app!

Scan this QR code with your mobile device to download our new app!

Watch How To videos: https://vimeo.com/504468784

Made for iPod iPhone iPad

connect Device in Basic Mode

In this mode the scanner functions and communicates similar to a keyboard. Therefore, the scanner will work with Notes, and any other application that supports an active cursor.

1. Power on the scanner. Make sure the scanner is discoverable (unpaired and Bluetooth LED blinking).
2. Go to Settings > Bluetooth.
3. Make sure the Bluetooth is "On" and scan for devices.
4. In the list of found devices, tap S8xx [xxxxxx] to Pair.
5. The scanner will connect to the host device.
6. The scanner will beep once after it has connected.

*If you have trouble connecting or pairing with host device, turn host device's Bluetooth off/on, and/or perform factory reset on the scanner (see page 16).

Now you are ready to scan barcodes!

Connect Apple iOS Device in App Mode

Please check with your scanner application vendor or visit www.socketmobile.com/appstore to confirm your scanner-enabled application supports the scanner.

If you are using the scanner with an Apple iOS device and a scanner-enabled Application that does not provide instructions how to connect your scanner, please use the following steps.

1. Power on the scanner. Make sure the scanner is discoverable (unpaired). The Blue light should be blinking fast.
2. Scan the barcode to change the profile to App Mode (MFI-SPP).

Use with iPad, iPod touch, and iPhones.

1. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin.
2. Tap Socket D8xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to "Connected" and the LED will stop blinking and turn solid blue.

Note: The characters in brackets are the last 6 characters of the Bluetooth Address.

1. Launch your scanner-enabled Application. The scanner will beep once indicating that it is connected to the appropriate application.

Now you are ready to scan barcodes!

connect Android Device or Windows (option 1) in App Mode

1. Power on the scanner. Make sure the scanner is discoverable (unpaired). The Blue light should be blinking fast.

2. Scan the barcode to change the profile to App Mode (SPP).

1. Turn on Bluetooth on your device. Go to Settings > Bluetooth. A Bluetooth devices search will begin.

2. Tap Socket S8xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to "Connected" and the LED will stop blinking and turn solid blue.

Note: The characters in brackets are the last 6 characters of the Bluetooth Address.

1. Launch your scanner-enabled Application. The scanner will beep once indicating that it is connected to the appropriate application.

Now you are ready to scan barcodes!

Connect Windows (option 2) in App Mode

Note: Make sure you have administrative privileges.

1. Download the latest Socket Mobile CaptureSDK software from Socket Mobile's support web page.
2. Follow the on-screen instructions to install the software.
3. In the CaptureSDK Settings, select an incoming Bluetooth serial COM port.

Note: If there is none, please click Ports to create at least one new incoming COM port in Bluetooth settings.

1. Power on the scanner. Make sure the scanner is discoverable to be connected to Bluetooth (unpaired and Bluetooth LED blinking).
2. Launch CaptureSDK and click on the CaptureSDK icon in the task tray. In the pop-up menu, click Socket EZ Pair.
3. Scan the barcode that appears on the screen.
4. Open the Bluetooth settings, add and pair the scanner manually. (If prompted for a passkey, enter 0000)
5. Open SocketScan. From EZ pair, select the pre-paired Bluetooth option. Click on the scanner to pair.

Note: The characters in brackets are the last 6 characters of the Bluetooth Address.

Now you are ready to scan barcodes!

Note: This procedure will put the scanner in discoverable mode.

Step 1: Unpairing the scanner: Delete the Bluetooth Pairing

If the scanner is paired with a device, unpair it before trying to connect to a different device.

a. Power on the scanner. b. Press the scan button then power button and hold both until you hear 3 beeps.

The scanner will unpair and automatically power off. The next time you power on the scanner, it will be discoverable.

Step 2: Remove or forget the scanner from the Bluetooth list on the host device.

Important: Both steps above must be done to complete the unpairing.

Factory Reset will restore the scanner to factory default settings.

Scan this barcode to reset your scanner:

If your scanner cannot scan the factory reset barcode, then follow the button sequence:

1. Power ON the scanner.

1. Press and hold the scan button ^1 , then quickly press and release the power button ^2 , while continuing to hold the scan button.

1. Release the scan button after the scanner beeps once (after 15 seconds). You will hear 5 more beeps then the scanner will power OFF.

Note: If you follow this sequence, but release the scan button too early (before 15 seconds and the beep) the Factory Reset will have failed.

Watch How To video: https://vimeo.com/504468657

NOTE: If your scanner remains in an unresponsive state after following the Factory Reset, use the Restore Method as a last resort.

The Restore Method should be the last attempt used to revive an unresponsive scanner. It will reinitialize the core hardware.

1. Make sure your scanner is OFF.
2. Press and hold the power button until the LED light goes on and off (about 15 seconds)

Watch How To video: https://vimeo.com/504468686

STATUS INDICATORS

Top LED Bluetooth	LED Activity Meaning
	Quick Blinking Blue (2 blinks every second)	Discoverable - waiting for a host Bluetooth connection.
	Slow Blinking Blue (1 blink every second)	Scanner is attempting to connect to the last known host device. After 1 minute of blinking, scanner will stop searching.
	Solid Blue Scanner connected
Side LED LED	Activity Meaning
	Blink Green Once Good Scan/Read
Side LED Battery Status	LED Activity Meaning
Connected to power	Solid Red (while charging)	Charging the battery
	Solid Green (while charging)	Battery is full
Not connected to power	No Light	Battery capacity above 20%
	Blinking Red	Battery capacity below 20%
Beep Pattern Sound Meaning
Low-High Tone Power On
High-Low Tone Power Off
High-High Tone	Power Supply detected and scanner started charging
1 Low Beep	Scanner has toggled on-screen keyboard or keyboard toggle feature is enabled (iOS devices only)
1 Beep	Scanner connected to device and is ready to scan barcodes
1 Beep Data successfully scanned
2 Beeps (same tone) Scanner	disconnected
1 Long Beep Scanner gave up	searching for a host
3 Beeps (escalating tone)	Scanner has been reconfigured (the command barcode was scanned successfully)
3 Beeps (escalating tone followed by long tone)	The command barcode did NOT work! (Verify if the command barcode used is valid for your scanner and try again)
Vibrate Meaning
Vibrate Data successfully scanned

Command Barcodes are available on pages 37-42 to modify the LED, beep, and vibrate settings.

If you are using a scanner-enabled application, typically the application provides settings for LED, beep, and vibrate settings.

Configuration Settings

Time after powering on Scanner	Bluetooth mode
0-5 minutes Discoverable	and connectable
5 minutes If connection is not made, scanner powers off
2 hours	If your scanner is connected but not used it will power off in 2 hours. When scan button is pressed the timer is reset.

Scan command barcode(s) to quickly configure the Scanner.

Make sure the scanner is not connected to a device before scanning a command barcode! See unpairing instructions.

For a complete set of command barcodes, download the Command Barcodes Sheet: https://socketmobile.com/support/download

Charging Stand Modes
Auto ModeScan the barcode to configure your scanner to automatically detect barcodes without pressing the scan buton.*Only works when in Charging Stand.	#FNB 41FBA50003#
Mobile Mode - Normal (default)*Scanning this bar code will enable the scanner to enter mobile mode. It will always be in manual trigger mode even when placed in the stand or cradle.*Scanner Factory Reset returns to Mobile Mode.	#FNB 41FBA50000#

Important! Make sure the scanner is not connected to a host computer or device before scanning a command barcode!

Bluetooth Connection Modes
Basic Mode (HID) (default) Configures the Scanner to Human Interface Device (HID) mode as a Keyboard class device	#FNB00F40001#
App Mode (MFi-SPP) for Apple iOS devices Configures scanner to work with an application.	#FNB00F40002#
App Mode (SPP) for Windows or Android 8.0 and later (Auto Connect - Scan the barcode and pair the scanner with your device.)	#FNB00F40003#
App Mode (SPP) for Windows or Android version 7.0 and lower Configures scanner to Serial Port Profile.	#FNB00F40000#

Always Active Mode

For busy days on the job, try using the Active Mode to keep you moving faster. Avoid the hassle of turning the scanner on again and reconnecting to your host device.

Scan one of the barcodes below and reconfigure the scanner to remain on longer.

Note: Turn off the host device's Bluetooth prior to scanning one of the alternate timer barcodes. Then turn the Bluetooth back on.

Power cycle the scanner (turn off/on).

Bluetooth Connection Modes
Scanner Always On* Configures the scanner to never power off.	#FNB012100000000#
Continuous Power for 8 hours* Scan Barcode to configure the scanner to remain on for 8 hours.	#FNB012101E001E0#
Continuous Power for 4 hours* Scan Barcode to configure the scanner to remain on for 4 hours.	#FNB012100F000F0#

*These settings drain the battery faster. It is assumed you will charge the scanner within a 24-hour period or overnight. If you don't, the scanner's battery will drain completely.

Return Scanner to Default Setting

Turns the scanner off when it is not in use – 3 to 5 minutes after being disconnected from host device.

FNB012100780005

Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode!

Beep Settings
Beep after scanner Decodes Data ON (default)Enables scanner to beep to indicate successful scans.	#FNB0119E000100030078004B#
Beep after scanner Decodes Data OFFDisables scanner from beeping to indicate successful scans.	#FNB01190E000100000078004B#

QUICK PROGRAMMING

Vibrate Settings
Vibrate ON (default)Enables scanner to vibrate to indicate successful scans.
Vibrate OFFDisables scanner from vibrating to indicate successful scans.

Factory Default
Factory ResetRevert all settings tofactory defaults. The scanner willpower off after scanning thisbarcode.

For more command codes go to: https://socketmobile.com/support/download

Product Specifications:

D800

D840

D860

Technical Support & Product Registration:

support.socketmobile.com

Phone: [phone] [phone] (worldwide)

Warranty Checker:

socketmobile.com/support/warranty-checker

Socket Mobile Developer Program:

Learn more at: socketmobile.com/developers

The User's Guide (full installation and usage instructions) and Command Barcodes (Advanced Scanner Configurations) can be download at: socketmobile.com/support/downloads

WARNING: Failure to follow these safety instructions could result in fire or other injury or damage to the barcode scanners or other property.

Carrying and Handling the scanners: The Socket Mobile barcode scanner contains sensitive components. Do not disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into this unit.

Do not attempt to disassemble the product. Should your unit need service, contact Socket Mobile technical support at https://support.socketmobile.com/

Changes or modifications of this product, not expressly approved by Socket Mobile may void the user's authority to use the equipment.

Do not charge the scanner using an AC adapter when operating the unit outdoors, or in the rain.

Operating Temperature - this product is designed for a maximum ambient temperature of 50° degrees C or 122° degrees F.

Pacemaker Disclaimer: We do not have specific information on the effect(s) of vibration or devices with Bluetooth wireless technology on pacemakers. Socket Mobile cannot provide any specific guidance. Individuals who are concerned with using the barcode scanner should immediately turn the device off.

FCC ID: LUBMA41

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device meets the FCC requirements for RF exposure in public or uncontrolled environments. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation

IC ID: 2529A-MA41S8

Industrie Canada

Industry Canada

This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CE Marking & European Union Compliance

CE

Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows:

CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES

Low Voltage Directives: 2014/35/EU

RED Directive: 2014/53/EU

EMC Directive: 2014/30/EU

RoHS Directive: 2011/65/EC

WEEE Directive: 2012/19/EC

Supplementary Information:

Safety: EN 60950-1: 2006/A11:2009, A12:2011, A1:2010, A2:2013

ETSI EN 300 328

ETSI EN 301 489

Telec Marking Compliance

R201-125799

R 211-131101

Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.

This device contains a rechargeable Lithium Ion battery.

Stop charging scanners if charging isn't completed within the normal specified time (approx. 8 hours).

Stop charging the battery if the scanner case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.

Stop using the scanner if the enclosure is cracked, swollen or shows any other signs of mis-use. Discontinue immediately and email [e-mail].

Your device contains a rechargeable Lithium Ion battery, which may present a risk of fire or chemical burn if mistreated.

Do not charge in hot temperatures over 60 degrees C or 140 degrees F.

• Never throw the battery into a fire, as that could cause the battery to explode.
• Never short circuit the battery by bringing the terminals in contact with another metal object. This could cause personal injury, or fire, and could also damage the battery.

• Never dispose of used batteries with other ordinary solid wastes. Batteries contain toxic substances.

• Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries.

• Never expose this product or the battery to any liquids.
• Do not shock the battery by dropping it or throwing it.

If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and email [e-mail].

Product Disposal

Your device should not be placed in municipal waste. Please check local regulations for disposal of electronic products.

CAUTION:

Risk of explosion if battery is replaced by incorrect type.

Only use Lithium Ion rechargeable batteries provided by the manufacturer.

Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM.

LED DEVICE:

The DuraScan D800, D840, and D860 contain a LED-type scan engine.

For the LED version of this engine, the following applies:

• Complies with EN/IEC 62471 (Exempt Group)
- LED output is in the 630-670nm range (visible red).
- LED devices are not considered to be hazardous when used for their intended purpose.

The following statement is required to comply with US and international regulations:

Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous LED light exposure.

CE MARKING AND EUROPEAN UNION COMPLIANCE

Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC.

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.

RoHS STATEMENT OF COMPLIANCE

This product is compliant to Directive 2011/95/EC.

NON-MODIFICATION STATEMENT

Changes or modifications not expressly approved by the party responsible for compliance.

CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES

Low Voltage Directives: 2014/35/EU

RED Directive: 2014/53/EU

EMC Directive: 2014/30/EU

RoHS Directive: 2011/65/EC

WEEE Directive: 2012/19/EC

Supplementary Information:

Safety: EN 60950-1: 2006/A11:2009, A12:2011, A1:2010, A2:2013

ETSI EN 300 328

ETSI EN 301 489

Socket Mobile Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.

Warranty benefits are in addition to rights provided under local consumer laws. You may be required to furnish proof of purchase details when making a claim under this warranty.

Consumables such as batteries, removable cables, cases, straps, and chargers: 90 day coverage only

For more warranty information, please visit: https://www.socketmobile.com/support/downloads/product-support

Blue circular icon with white hands holding a pen, labeled 'SocketCare' below (no additional text or symbols)

SocketCare Extended Warranty Coverage

Purchase SocketCare within 60 days from the date of purchase of the reader.

Product Warranty: The barcode reader's warranty period is one year from the date of purchase. Consumables such as batteries and charging cables have a limited warranty of 90 days. Extend your reader's standard one-year limited warranty coverage up to five years from the date of purchase.

Additional service features are available to further enhance your warranty coverage:

• Warranty period extension only
  • Express Replacement Service
  • One-Time Accidental Coverage
• Premium Service

For detailed information visit: socketmobile.com/support/socketcare
