Dear Customer
Thank you for buying our hood. Please read these instructions carefully for its optimum installation, use and maintenance.
Notes: The figures mentioned in this manual are in the first pages.
This Hood is designed for fitting in a cabinet or on some other support.
Warning: consult local regulations regarding fumes outlets. Do not connect the hood to a fume, ventilation or hot air duct. Confirm that room ventilation is appropriate with the local authorities. Make sure the maximum air extraction flow rate for the appliances in the room does not exceed 4 Pa (0.04 mbar). The room must have adequate ventilation if an extractor hood is used simultaneously with appliances that run on gas or other fuels. The evacuated air must be extracted through ducts that are used for evacuating fumes from appliances that run on gas or other fuels. Regulations regarding air extraction must be complied with.
This product is intended for HOUSEHOLD USE only.
Use a venting hose with a min. diameter of 120mm to evacuate fumes outside.
The above restrictions do not apply to hoods with no fumes outlet to outside (recirculation system with activated charcoal filter).
Install the hood in line with the instructions on the template.
For gas cooking appliances only: the minimum distance to the hood must be at least 65 cm.
Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
EN
INSTALLATION
The cooker hood is supplied with :
3 Spacer (F, H)
4 Screws C
2 Bulbs
To fixing the Hood, use the 4 Screws (C) 6mm supplied with the hood.
Close the space that remains between the hood and the wall, adjusting the spacer (F).
Before completing any connection, make sure the house voltage corresponds with the voltage indicate on the data label.
Connecting the hood to the grid
Warning: before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.
If the extractor hood has a plug, connect it to a power socket in line with applicable regulations, located in an accessible area.
If the hood does not have a plug, connect it directly to the electrical grid protected by a separator device accessible for disconnection, in line with local regulations.
The connection to the electrical mains must be made as follows:
BLUE....."N" NEUTRAL
BROWN....."L" LIVE
GREEN AND YELLOW......(simbolo tierra) EARTH
If the terminals of the plug are unmarked or if you are in any doubt, consult a qualified electrician.
If it is not supplied fit a plug normalized in the cord for the load showed on the rating plate.
Use of the hood - Safety
Warning: the hood may stop working during an electrostatic discharge (e.g. lighting). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
To avoid the risk of fire, clean the metal filter regularly, permanently control pans containing hot oil and do not flame food underneath the hood.
Do not use the hood if it shows signs of damage or imperfection. Contact an official distributor or Customer Service.
Accessible parts may heat up when using cooking appliances.

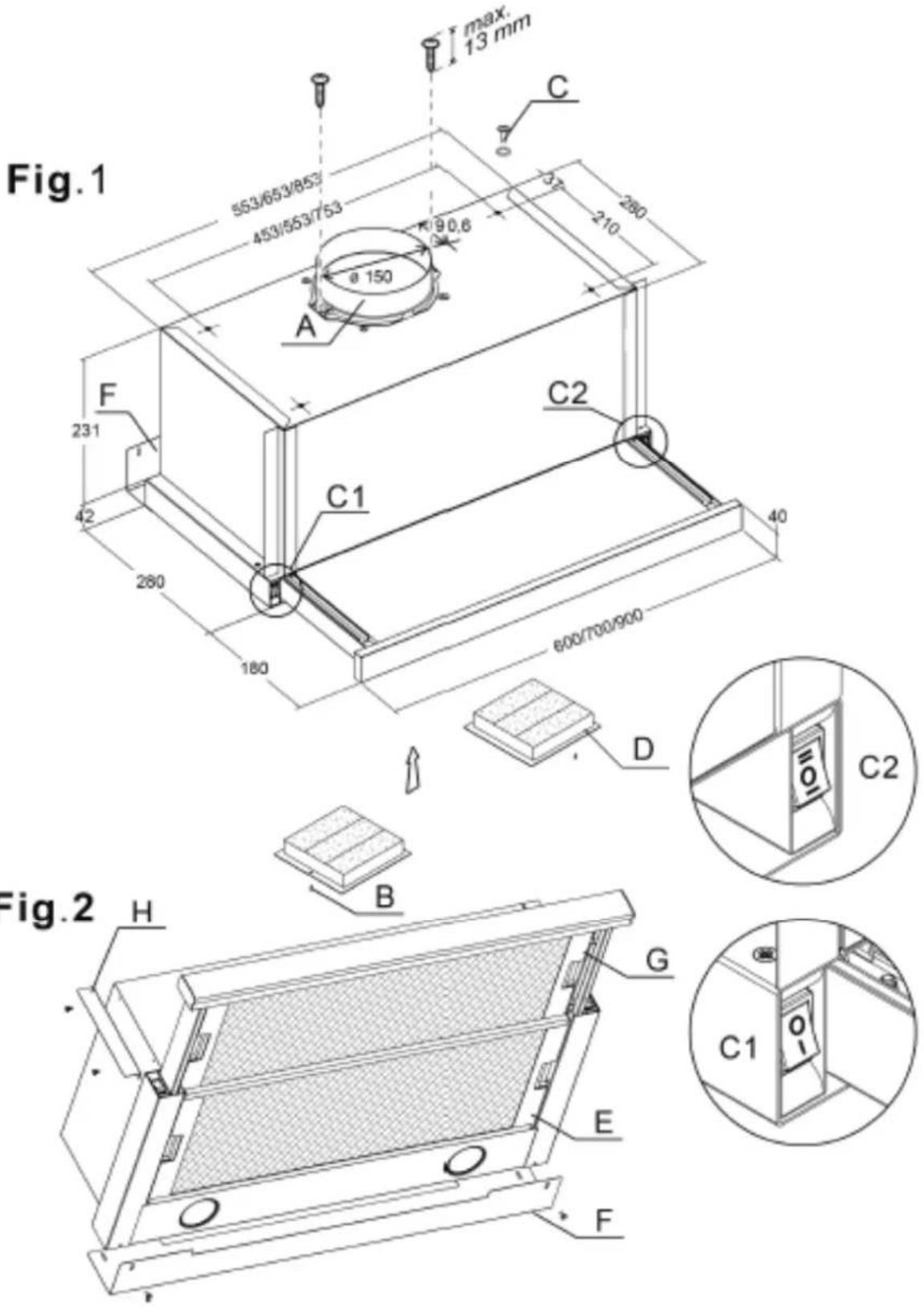

Air Intake Speed (Fig 2)
The front panel has to be pulled its maximum extension so as to optimize the extraction capacity.
The three setting switch (C-2) has the following functions:
0 - Stop / Off
1 - Low Speed
2 - High Speed
Switch on the Lamps (C-1 Fig 2)
Pull out the grill (G) more than 50mm
SUCTION VERSION
If the hood is to be installed as a suction hood, connect the plastic outlet piece (A) supplied with the hood (150mm diameter pipe for better performance and lower noise levels.
FILTERING VERSION (INTERNAL RE-CYCLING)
When there is no exhaust duct for venting out-door, you can use a carbon filter (D). The air is depurate by the filter and put again in the surrounding.
The air is released in the room through a connecting pipe, which goes through the hanging cupboard and is connected to the connecting ring supplied (A) Fig 1.
To use the appliance in this version, proceed as follows:
- Open the grids (E)
- To proceed to change the charcoal filter (D), the screw (B) has to be removed.
- Reinstall the grids.
Hood Maintenance
Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact an official distributor or Customer Service.
Exterior Cleaning : Use non-corrosive, liquid detergent and avoid the use of abrasive cleaning products.
Grease Filters Cleaning : To avoid fires, clean thoroughly once a month. To do so, remove the filters and wash with hot water and detergent. If using a dishwasher, position the filters vertically to prevent solid remains from depositing on them.
Activated charcoal filters : Replace every 2 months.
Important: increase the filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.

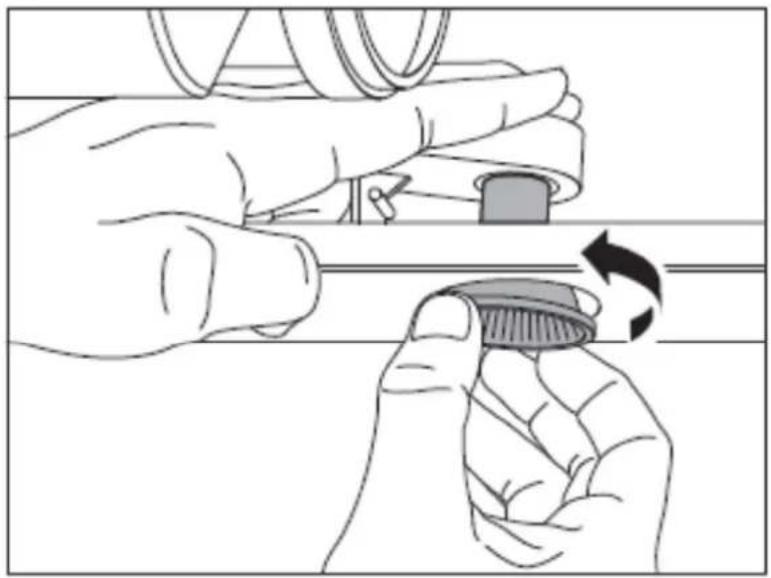

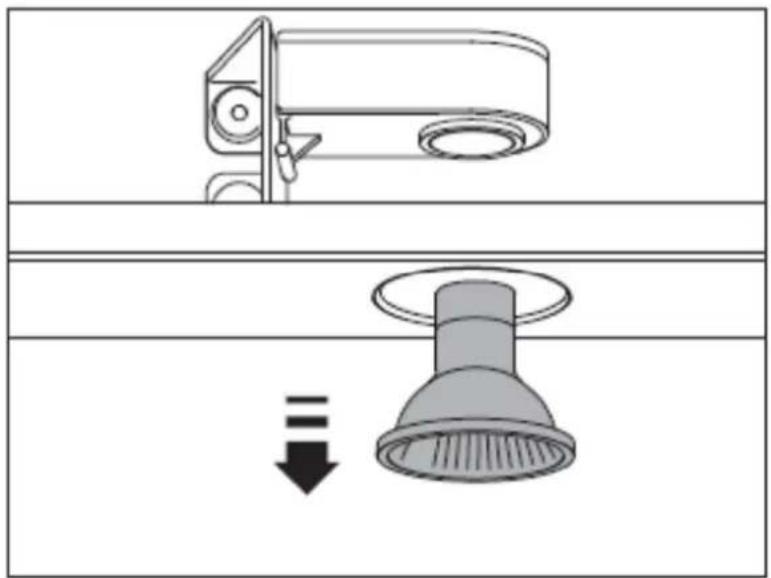

Bulb Replacement (Look for the symbol ⚙ in the figures)
Warning: do not handle the bulbs until the electricity supply has been switched off and they have cooled.
Important: use new bulbs according to that indicated on the hood nameplate.
Legal Information
The manufacturer:
- Declares that this product meets all basic requirements regarding low-voltage electrical equipment established in Directive 2014/35/EU of 29 March 2014 and electro-magnetic compatibility established in Directive 2014/30/EU of 29 March 2014.
- Is not responsible for any failure to observe the instructions given in this manual and current safety regulations for the correct use of the equipment.
- Reserves the right to make any modifications to the equipment or this manual without prior notice.
Contact our official distributor or Customer Service should you require technical assistance or additional information on our products.
