USER MANUAL Avatar ATU-600.4 Deaf Bonce

FOUR-CHANNEL AMPLIFIER CLASS AB

http://avatar.audio

CONTENTS

1. Introduction
2. Safety instructions
3. Typical installation sequence
4. Connection methods
5. Wiring diagrams
6. Selection of the diameter of power cables and speaker cables
7. Specifications
8. Possible faults and their solutions
9. Box contents
10. Warranty and maintenance info
11. Information on disposal of the electrical and electronic equipment (for the European countries with separate waste collection)

1. INTRODUCTION

Thank you for purchasing this Avatar product! Avatar is committed to the creation of extremely high-profile systems with no loss of quality.

To ensure proper use, please carefully read through this manual before using this product. It is especially important that you read and observe caution's in this manual. Please keep the manual in a safe and accessible place for future reference.

2. SAFETY INSTRUCTIONS

1. Make sure that your vehicle has a 12V DC electrical system with negative grounding. Before installing the amplifier in cars, trucks or buses, check the battery voltage.

2. Check the state of on-board power supply of your vehicle, the battery and the alternator. When the engine is running, depending on the ambient temperature, the voltage to be outputted by the alternator must be within the range of 14 to 14.7 V. Open circuit voltage (OCV) of the battery must be within the range of 12.5 to 13 V. Make sure that the rated current of the alternator and the battery capacity is enough to provide increased consumption.

For example, for the power of the amplifier 1000 W, the rated current of the alternator is required at the rate of 1000 W / 13 V = 77 amperes. A more powerful amplifier requires a more powerful alternator as well as an additional battery.

1. Do not place the amplifier in the engine compartment and also in the places exposed to water, moisture, dust or dirt.

2. Never stretch the cables outside of the car and near the moving parts of the car. This can lead to destruction of the insulating layer, short circuit and fire.

3. The amplifier should be installed in areas of the car where the temperature varies from 0 °C (32 °F) to 55 °C (131 °F). The amplifier should be in a place with a good air circulation. The horizontal position of the amplifier is the best way to install.

4. During the operation the amplifier may be heated up to 80^ C ( 176^ F). Before you touch it, make sure it is not overheated that may be dangerous.

5. To improve the cooling of the amplifier, it is recommended to clean periodically the heatsink from dust. When cleaning the heatsink strong solvents should not be used as they may damage the amplifier. Do not use compressed air, because solids can penetrate inside the amplifier. Cleanings best done with wet towels or cloth.

6. Make sure that the location of the amplifier does not violate the proper operation of mechanical and electrical devices of the vehicle.

7. Make sure that during the installation and connection of the battery, the power cables are not shorted.

8. When performing plumbing, drilling or cutting works with the car, make sure that there is no wiring, brake lines, fuel pipe or other structural elements under the place of work. Follow the safety rules! Use protective glasses and gloves.

9. To protect the wires use rubber gaskets if the wire passes through a hole in the plate, or other similar materials if it lies close to the parts exposed to heat.

10. Make sure that all the cables are fixed over the entire length. Also make sure that their outer protective shell is non-combustible. Use a clamping screw to secure the positive and negative cables next to the appropriate terminals of the amplifier.

11. Select a diameter of the power cable in accordance with the power of the amplifier and the recommendations provided here. Power cables are extremely important since they directly affect the system damping factor and sound quality. The cables to the battery must be in the copper crimp terminals pressed with the help of a hydraulic press, and well fixed to the battery terminals.

12. To avoid accidental damage, keep the amplifier in its original packaging prior to installation.

13. Use high-quality copper speaker and power cables.

CAUTION!!! High sound pressure can damage your health!

Please use the common sense when controlling volume!

3. TYPICAL INSTALLATION SEQUENCE

1. Before installing the amplifier disconnect the battery from the electrical system.

2. To connect the amplifier it is necessary to stretch the power cable from the location of the battery to the place of installation of the amplifier. Select the power cable with the appropriate regulations in AWG (see Table: Selection of the diameter of the power cables)

3. Connect the power supply with the correct polarity. Connect all (+) terminals of the amplifier to the cable from the positive terminal of the battery and the (-) terminals of the amplifier – to the cables running from the negative terminal of the battery.

4. Place the fuse holder for each positive cable within 40 cm from the positive terminal of the battery and connect one end of the power cable to the holder after connecting the other end to the amplifier. Do not install the fuse.

5. Route all signal cables next to each other and separately from the power cables.

6. Connect the wires of RCA input. The input signal power must be between 0.2 V and 6 V.

7. To connect the power wire supply is necessary to use special power cables.

8. Fasten the amplifier properly when installing it in the vehicle. If the component is disconnected during driving, it may cause serious damage to the passengers of the car or another vehicle. It is not recommended to screw the amplifier directly to the metal it can lead to distortions at the signal outputs.

9. After installation is complete, check the wiring of the system and make sure that all connections have been made correctly. Before installing the fuses, disconnect the positive lead from the battery and then install the fuse in the fuse holder. Using the light bulb 12 V 21 W, connect the positive lead to one contact of the bulb and the other contact of the bulb to the positive terminal of the battery.

When properly connected, the bulb must briefly light up and go out. Now you may connect the positive lead to the (+) battery. If the light does not go out, then something is wrong. This will prevent damage to the amplifier in case of reverse polarity and unwanted sparks when connecting. Install the rest of the fuses.

1. To activate the amplifier, it is necessary to apply the positive potential of 12 volts to the control input of the amplifier (REM) through a switch or a corresponding control output (REMOTE OUT) with the head unit (HU).

2. LED indicator on the front panel lights up in blue, indicating that the device is turned on. LED indicator lights up in red when the outputs are overloaded, if the temperature protection is activated, if there is a short circuit in the system cables to the heatsink and if the amplifier is faulty.

3. The sound level is calibrated by adjusting the volume of the source up to 3/4 of its maximum level. Then, adjust the sensitivity level of the amplifier up until you hear distortions.

4. CO NNE CTI ON ME THO DS

In any case do not expose the amplifier to the loads lower than specified by the manufacturer. Use these schematics to calculate the load impedance of different connection types.

The minimum permissible load impedance at the output of the amplifier is 2 ohm. Use these formulas to calculate the load impedance of various types of connections.

SPEAKERS WIRING DIAGRAMS

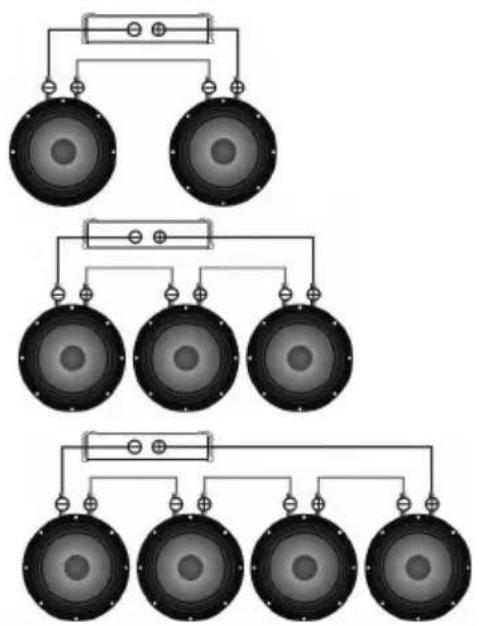

Serial connection of the speakers

Voice coils	Total impedance
4 Ohm	8 Ohm
8 Ohm	16 Ohm

Voice coils	Total impedance
4 Ohm	12 Ohm
8 Ohm	24 Ohm

Voice coils	Total impedance
4 Ohm	16 Ohm
8 Ohm	32 Ohm

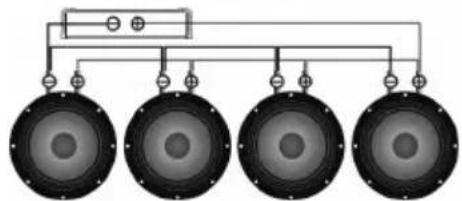

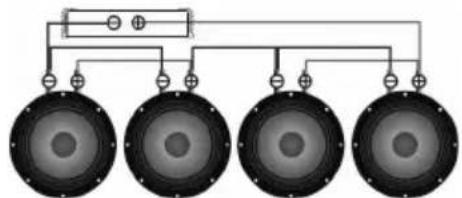

Parallel connection of the speakers

Pure diagram of two speakers with connecting lines, no text or symbols present

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
4 Ohm	2 Ohm
8 Ohm	4 Ohm

Voice coils	Total impedance
4 Ohm	1.33 Ohm
8 Ohm	2.66 Ohm

Voice coils	Total impedance
4 Ohm	1 Ohm
8 Ohm	2 Ohm

Mixed connection of the speakers

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
4 Ohm	4 Ohm
8 Ohm	8 Ohm

CAUTION!!! High sound pressure can damage your health! Please use the common sense when controlling volume!

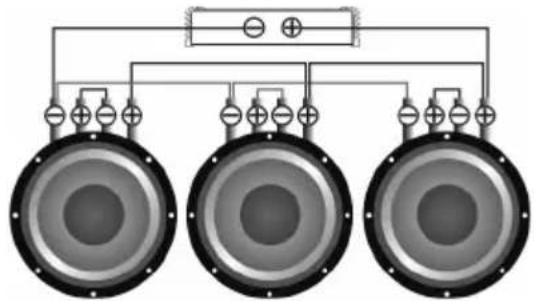

SUBWOOFERS WIRING DIAGRAMS

EN

Serial connection

Total impedance = ΩSub 1 + ΩSub 2 + ΩSub 3 ...

Parallel connection

Tot al im ped anc e = 1 S ub 11 + 1S ub 12 + ·s S ub 3

SCHEMES OF ENABLING THE LOAD OF THE SUBWOOFER

Voice coils 2 + 2, 4 + 4 Oh m

The subwoofer has voice coil D2 or D4.

Two identical speaker speakers labeled 2+2 and 4+4, shown side by side without any text or symbols on the speaker bodies.

One subwoofer, coils in series.

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	4 Ohm
4+4 Ohm	8 Ohm

One subwoofer, coils in parallel

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	1 Ohm
4+4 Ohm	2 Ohm

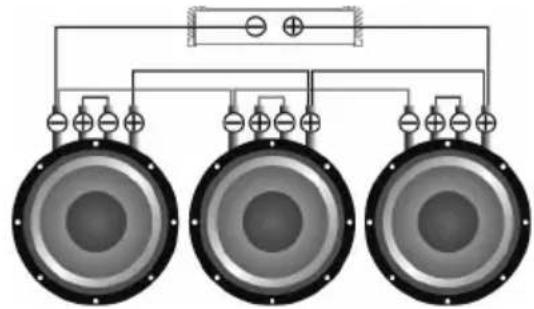

Subwoofers in series, coils in parallel

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	2 Ohm
4+4 Ohm	4 Ohm

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	3 Ohm
4+4 Ohm	6 Ohm

Voice coils	Total impedance
2+2 Ohm	4 Ohm
4+4 Ohm	8 Ohm

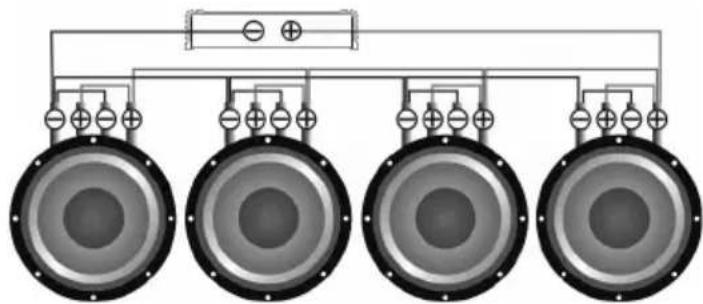

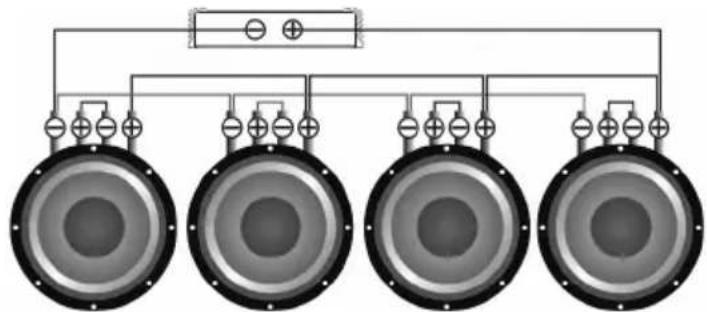

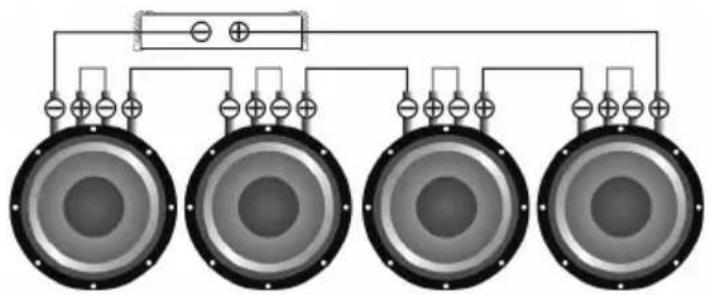

Subwoofers in series, coils in series

Diagram of two speakers with power connections and a circuit breaker (no text or labels)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	8 Ohm
4+4 Ohm	16 Ohm

Voice coils	Total impedance
2+2 Ohm	12 Ohm
4+4 Ohm	24 Ohm

Voice coils	Total impedance
2+2 Ohm	16 Ohm
4+4 Ohm	32 Ohm

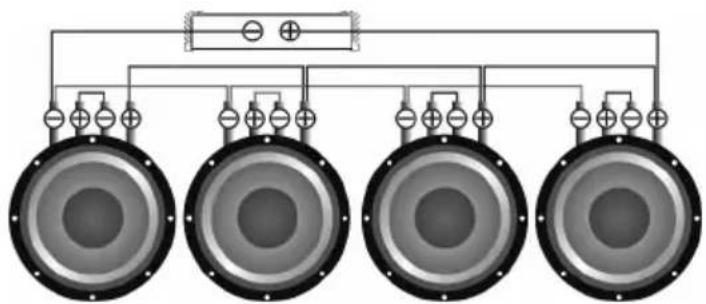

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	2 Ohm
4+4 Ohm	4 Ohm

Voice coils	Total impedance
2+2 Ohm	1,33 Ohm
4+4 Ohm	2,66 Ohm

Voice coils	Total impedance
2+2 Ohm	1 Ohm
4+4 Ohm	2 Ohm

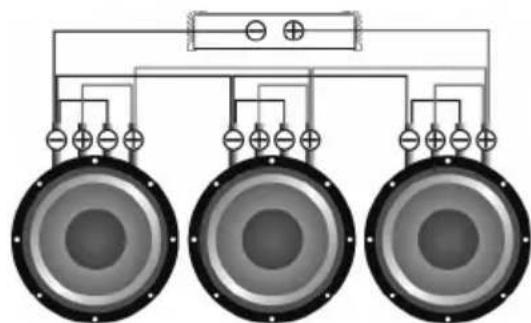

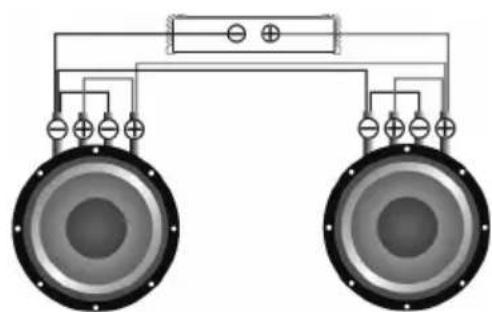

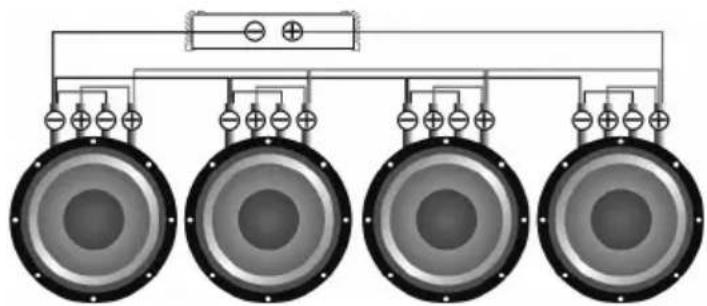

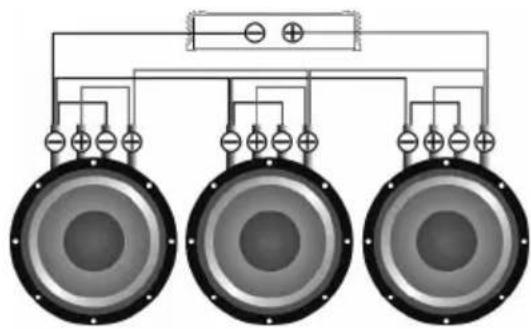

Subwoofers in parallel, coils in parallel

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	0,5 Ohm
4+4 Ohm	1 Ohm

Voice coils	Total impedance
2+2 Ohm	0,33 Ohm
4+4 Ohm	0,66 Ohm

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	0, 5 Ohm2
4+4 Ohm	0,5 Ohm

CAUTION!!! High sound pressure can damage your health! Please use the common sense when controlling volume!

5. WIRING DIAGRAMS

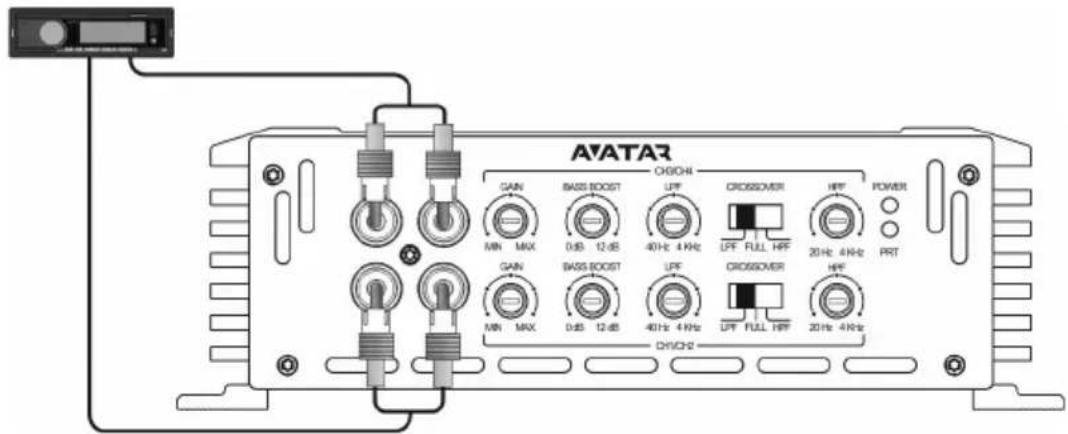

Connect the head unit (HU) to low-level inputs of the amplifier using RCA cable.

AVATAR GAIN BASS BOOST UPF CROSSOVER HFP POWER MIN MAX 0 dB 12 dB 40 Hz 4 kHz LFF FULL HFP 20 Hz 4 kHz PRT GAIN BASS BOOST UPF CROSSOVER HFP MIN MAX 0 dB 12 dB 40 Hz 4 kHz LFF FULL HFP 20 Hz 4 kHz DINCH2

Connect the speaker cables from the plus and minus terminals of the speakers to the respective outputs of the amplifier terminal marked with SPEAKER, as shown at the diagram. To connect the power wire supply it is necessary to use special power cables. The fuse is placed in the holder and fixed in the cable cut. One end of the cable is connected to the positive terminal of the battery, the second one – to the amplifier terminals marked with +12V. Be sure to use a fuse with the parameters sufficient for use in the system.

The length and diameter of the grounding cable must conform to the length and diameter of the cable + 12V. Connect one end to the negative terminal of the battery and the other end of the grounding cable to the terminals marked with GND.

Caution!!! The minimum permissible load impedance for single channel connection is 2 ohm. For models ATU-600.4, ATU-1000.4 the operating voltage is 10-15 V.

BATTERY not more than 40 cm FUSE HOLDER GND REM +12V POWER INPUT AVATAR BRIDGE CH4 CH3 CH2 CH1 2-8 Ohm

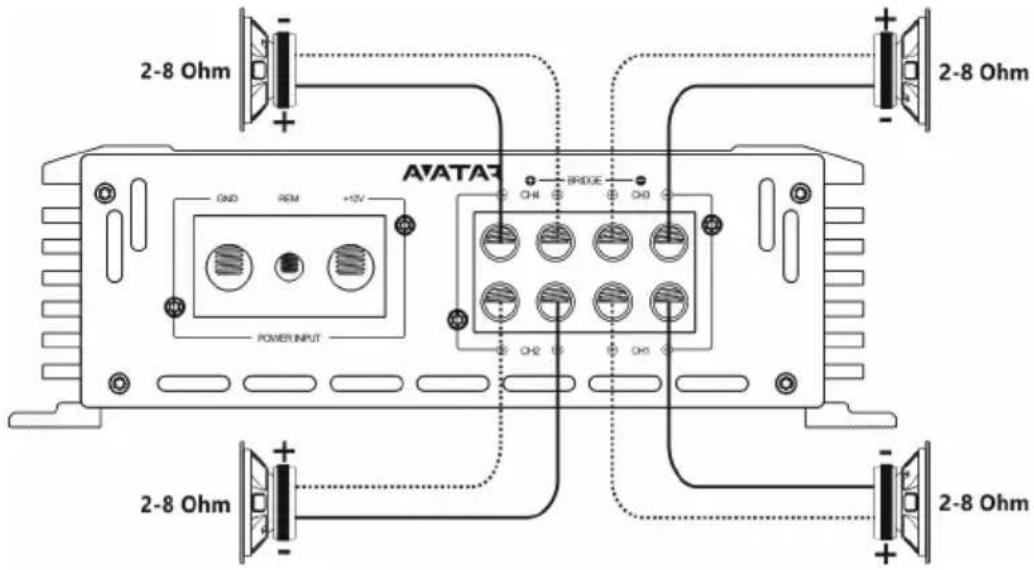

Speakers wiring

Step 1. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the speaker.

Step 2. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the speaker.

2-8 Ohm 2-8 Ohm AVATA3 OND REM +1V POWER INPUT CH4 BRIDGE CH0 CH2 CH3 2-8 Ohm 2-8 Ohm

Standard wiring diagram of four-channel amplifier to two speakers and one subwoofer

Speakers and subwoofer wiring

Step 1. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the speaker.
Step 2. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the speaker.
Step 3. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the subwoofer.
Step 4. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the subwoofer.

Minimum permissible load impedance in a bridged mode - 4 Ohms

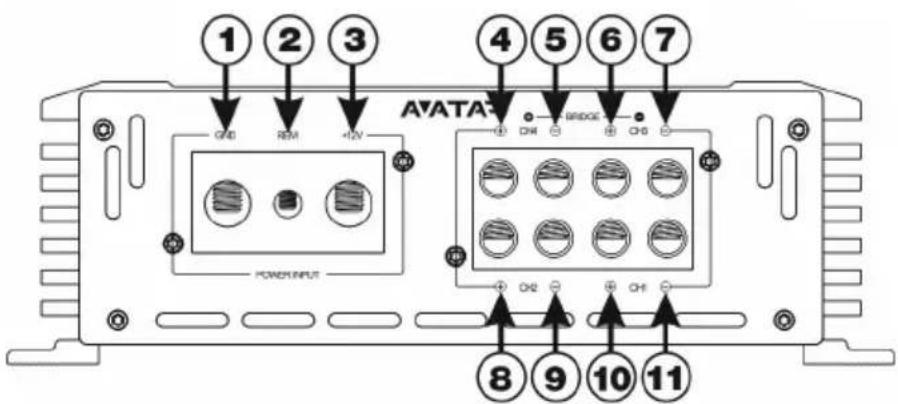

1 2 3 4 5 6 7 AVATA- BRIDGE CHI CHI CHI 8 9 10 11 GND REM +DV POWERINPUT

1. GND - grounding supply terminal
2. REM - connector of remote activation of the amplifier
3. +12V - power supply terminal (+12V)
4. CH4 SPEAKER OUTPUT "+" - speaker positive terminal connections
5. CH4 SPEAKER OUTPUT "-" - speaker negative terminal connections
6. CH3 SPEAKER OUTPUT "+" - speaker positive terminal connections
7. CH3 SPEAKER OUTPUT "-" - speaker negative terminal connections
8. CH2 SPEAKER OUTPUT "+" - speaker positive terminal connections
9. CH2 SPEAKER OUTPUT "-" - speaker negative terminal connections
10. CH1 SPEAKER OUTPUT "+" - speaker positive terminal connections
11. CH1 SPEAKER OUTPUT "-" - speaker negative terminal connections

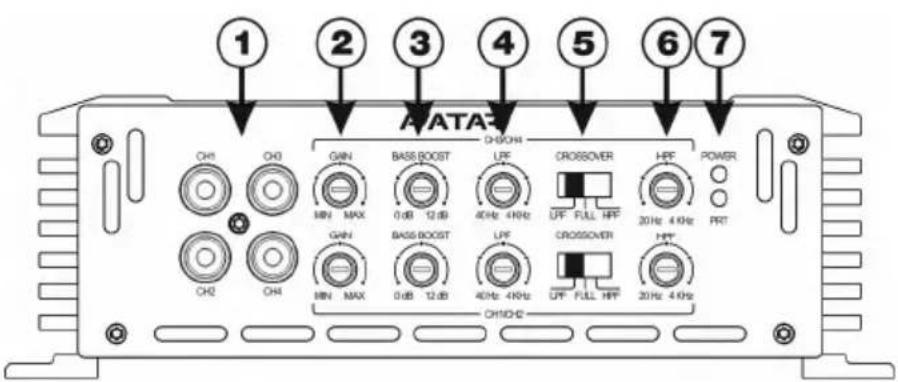

1 2 3 4 5 6 7 CH1 CH2 GAIN MAX BASS BOOST 0 dB 12 dB LPF 40Hz 4kHz CROSSOVER UFF FULL HPF 30Hz 4kHz POWER PRT GAIN MAX BASS BOOST 0 dB 12 dB LPF 40Hz 4kHz CROSSOVER UFF FULL HPF 30Hz 4kHz CH2 CH3 OATH2

1. CH1/CH2/CH3/CH4 – signal input, RCA jacks
2. GAIN - input signal level adjustment (0.2 V - 6 V)
3. BASS BOOST – Bass level adjustment 0 - 12 dB at 45 Hz
4. LPF - low pass filter 40 Hz - 4000 Hz (12 dB/Oct)
5. HPF/LPF/FULL - selection of built-in filters operating mode (HPF, LPF, FULL)
6. HPF - High pass filter 20 Hz - 4000 Hz (12 dB/Oct)
7. POWER - LED for operation (blue), PROTECT - LED for operation (red)

6. SELECTION OF THE DIAMETER OF POWER CABLES AND SPEAKER CABLES

EN

Selection of the diameter of the power cables Selection

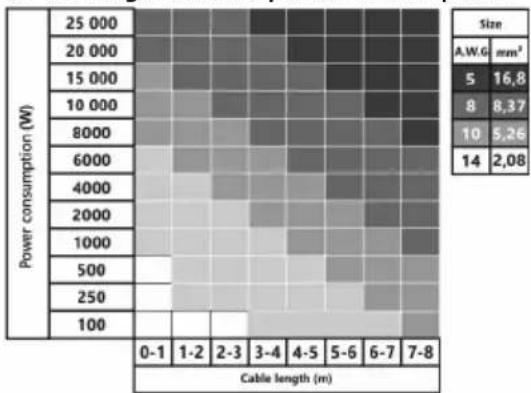

Use the table below to select the desired diameter based on the length and the current consumption.

of the diameter of the speaker cables

Use the table below to select the desired diameter based on the length and the power consumption.

1. SPECIFICATIONS

Model	ATU-600.4	ATU-1000.4
Class AB		AB
Power RMS 4 Ohm*	80 W x 4	150 W x 4
Power RMS 2 Ohm*	150 W x 4	250 W x 4
Power RMS 4 Ohm bridged mode*	300 W x 2	500 W x 2
Low pass filter	40 Hz - 4000 Hz	40 Hz - 4000 Hz
High pass filter 20 Hz - 4000 Hz		20 Hz - 4000 Hz
	12 dB/OctCrossover	12 dB/Oct
	0 - 12 dBBass level adjustment (450Hz)	2 dB
Frequency response	20 Hz - 20 kHz	20 Hz - 20 kHz
Input sensitivity	0.2 V - 6 V	0.2 V - 6 V
Damping factor	≥ 90	≥ 90
Working voltage	10 V - 15 V	10 V - 15 V
Minimum permissible load on the channel	2 Ohm	2 Ohm
Minimum permissible load impedance in a bridged connection	4 Ohm	4 Ohm
Recommended fuse 30 A x 2 40 A x 2
Size (WxLxH mm)	328 x 185 x 59	430 x 185 x 59
Size (WxLxH inch)	12,91 x 7,28 x 2,32	16,93 x 7,28 x 2,32

*RMS Power at 14.4 V, THD 1%

8. POSSIBLE FAULTS AND THEIR SOLUTIONS

EN

Avatar amplifiers are high-quality and technically perfect products. The problems often arise due to improper use, faulty connection of components or lack of power supply of the on-board network.

1) The amplifier does not turn on.

Problem solution: Check all the contacts and the presence of 10-15 V at the amplifier terminals. Check whether the control input of the amplifier "REM" receives the positive potential of 12 V.

2) Power turns on, but goes into protection (security indicator lights up)

Problem solution: Check if there is a short circuit (fault) on the amplifier output which is connected to the speakers or subwoofers. Make sure that commutation of the voice coils of the subwoofer is correct. The rated impedance of the voice coils should not be lower than the permissible rated load impedance of the amplifier. Check the supply voltage of the amplifier. It must be within the range of 10-15 V.

3) The amplifier turns on but at a high volume it goes to protection. Problem solution: The amplifier may lack power. Make sure that the rated current of the alternator and the battery capacity is enough to power this amplifier.

Check the amplifier for overheating. Check the load impedance.

4) The amplifier is turned on, but there is no sound from the speakers or subwoofer.

Problem solution: Check the connection of the amplifier, the integrity of the interconnecting cable, HU, the speaker or the subwoofer.

9. BOX CONTENT

1. Amplifier - 1 pcs.
2. Owner's Manual - 1 pcs.
3. Warranty card - 1 pcs.
4. Mounting Kit - 1 pcs.
5. Fuse - 2 pcs.

10. WARRANTY AND MAINTENANCE INFO

Avatar products are warranted against defects concerning materials and their manufacturing under normal functioning conditions.

While the product is under warranty, defective parts will be repaired or replaced at the manufacturer's discretion. The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in, complete with the original packaging. If the product is no longer under warranty, it will be repaired at the current costs.

Our company does not undertake any liability for damages due to transportation. Our company does not take any responsibility for: costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses or damages suffered by the customer. Warranty according to laws in force. For more information visit our website and carefully read warranty card. The manufacturer reserves the right to change design and specification without prior notice.

11. INFORMATION ON DISPOSAL OF THE ELECTRICAL AND ELECTRONIC EQUIPMENT (FOR THE EUROPEAN COUNTRIES WITH SEPARATE WASTE COLLECTION).

Items marked "crisscrossed wheeled bin" are not allowed to be disposed of together with usual household waste. These electrical and electronic products should be disposed of in special reception centers, equipped for recycling such products and components. For information about the location of the nearest disposal / recycling spot and the rules of delivery of waste please contact your local municipal office. Recycling and proper disposal helps to protect the environment and prevent harmful effects on health.

СОДЕРЖАНИЕ

Diagram of four speakers with power connections, no text or symbols present

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram of four identical speaker amplifiers connected to a power supply box (no text or labels)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

2-8 OM AT&T MIN. 4 OM
