Product Type	Monoblock Class D Amplifier
Brand	Deaf Bonce
Model	Machete MA-2100.1D
Power Output (RMS)	2100W x 1 @ 1 ohm
Power Output (RMS)	1050W x 1 @ 2 ohms
Power Output (RMS)	525W x 1 @ 4 ohms
Frequency Response	10 Hz - 250 Hz
Input Sensitivity	0.2V - 6V
Signal-to-Noise Ratio	> 100 dB
Low Pass Filter	Variable 40 Hz - 250 Hz
Subsonic Filter	Fixed 25 Hz
Bass Boost	0-12 dB @ 45 Hz
Dimensions (H x W x D)	2.1 x 7.1 x 14.2 inches (53 x 180 x 360 mm)
Weight	6.6 lbs (3.0 kg)
Power Supply Voltage	10-16V DC (vehicle electrical system)
Fuse Rating	2 x 40A ATC blade fuses
Protection Circuits	Thermal, short circuit, overvoltage, undervoltage
Input Connectors	RCA line inputs
Speaker Output Connectors	Dual binding posts (1 ohm stable)
Remote Turn-On	Yes (12V remote wire)
Cooling	Heat sink with fan
Maintenance	Keep clean and dry; check connections periodically
Spare Parts and Repairability	Contact authorized service center; fuses are user-replaceable

Frequently Asked Questions - Machete MA-2100.1D Deaf Bonce

What is the power output of the Deaf Bonce Machete MA-2100.1D?

The amplifier delivers up to 2100W RMS at 1 ohm, 1050W RMS at 2 ohms, and 525W RMS at 4 ohms.

What impedance can the amplifier handle?

It is 1 ohm stable and designed for subwoofer loads as low as 1 ohm.

What type of amplifier is the MA-2100.1D?

It is a monoblock Class D amplifier, optimized for high efficiency and low distortion.

How do I adjust the low-pass filter?

Use the variable low-pass filter knob (40 Hz - 250 Hz) to select the crossover frequency for your subwoofer.

What is the recommended fuse rating?

The amplifier requires two 40A ATC blade fuses. Never replace with a higher rating.

Can I bridge channels with this amplifier?

No, this is a monoblock amplifier with a single channel. It is intended for one subwoofer or a parallel/series combination.

What is the dimension and weight of the MA-2100.1D?

It measures 2.1 x 7.1 x 14.2 inches and weighs approximately 6.6 lbs.

Does it have a remote turn-on feature?

Yes, connect the remote wire to a 12V switched source to turn the amplifier on/off with your head unit.

What protection features are included?

The amplifier includes thermal, short circuit, overvoltage, and undervoltage protection to prevent damage.

How do I clean and maintain the amplifier?

Keep the exterior clean with a dry cloth. Ensure the cooling fan and heat sink are free from dust. Check wire connections periodically for tightness.

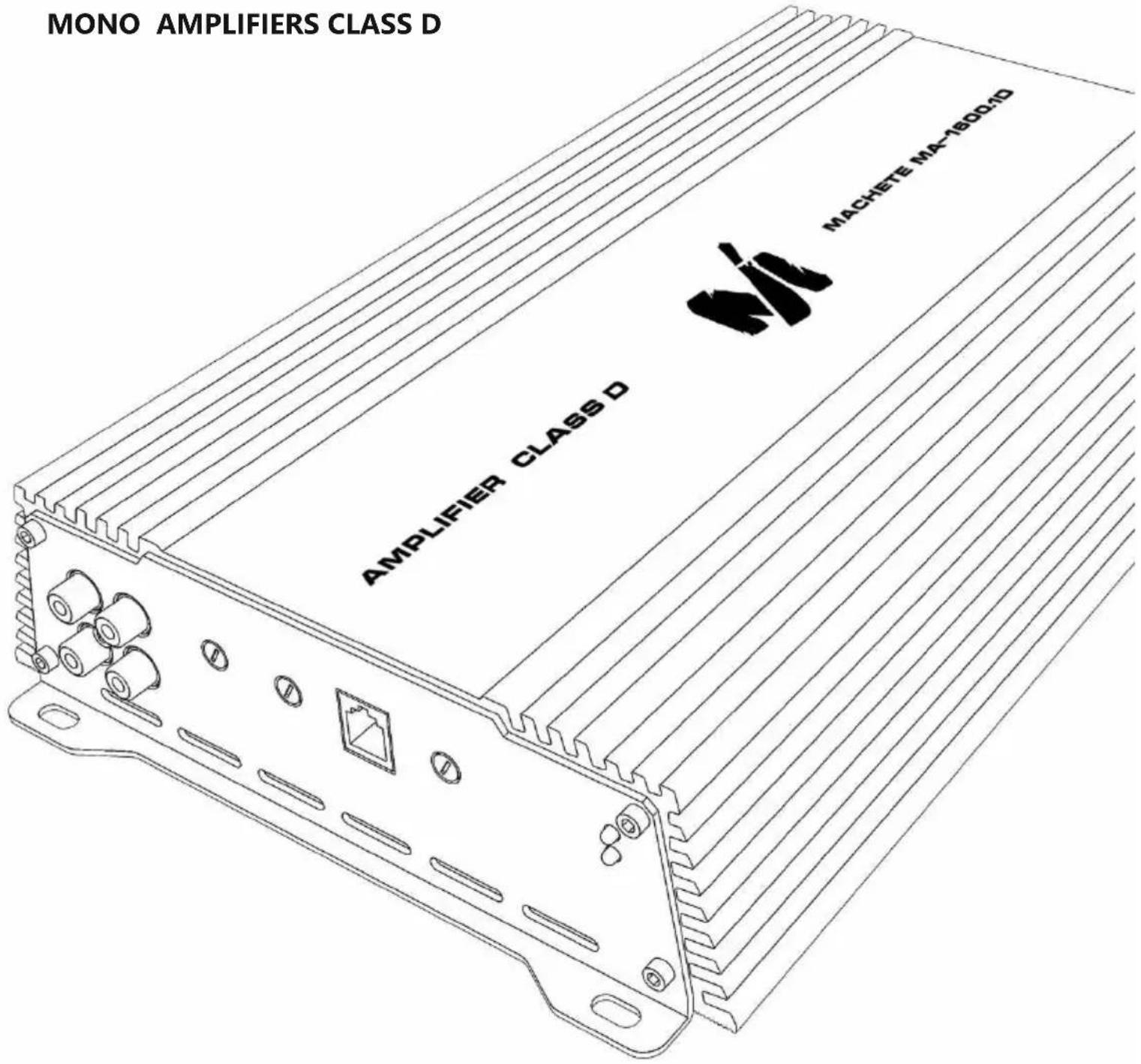

USER MANUAL Machete MA-2100.1D Deaf Bonce

MONO AMPLIFIERS CLASS D

MONO AMPLIFIERS CLASS D MACHETE MA-1800:1D AMPLIFIER CLASS D

MA-900.1D MA-1600.1D

MA-2100.1D

CLASS D

CONTENTS

EN

1. Introduction
2. Safety instructions
3. Typical installation sequence
4. Selection of the diameter of power cables and speaker cables
5. Wiring diagrams
6. Connection methods
7. Specifications
8. Possible faults and their solutions
9. Box contents
10. Warranty and maintenance info
11. Information on disposal of the electrical and electronic equipment (for the European countries with separate waste collection)

1. INTRODUCTION

Thank you for purchasing this Deaf Bonce product of Machete series! Our company is committed to the creation of extremely loud sound systems with no loss of quality.

To ensure proper use, please carefully read through this manual before using this product. It is especially important that you read and observe caution's in this manual. Please keep the manual in a safe and accessible place for future reference.

2. SAFETY INSTRUCTIONS

1. Make sure that your vehicle has a 12V DC electrical system with negative grounding. Before installing the amplifier in cars, trucks or buses, check the battery voltage.

2. Check the state of on-board power supply of your vehicle, the battery and the alternator. When the engine is running, depending on the ambient temperature, the voltage to be outputted by the alternator must be within the range of 14 to 14.7 V. Open circuit voltage (OCV) of the battery must be within the range of 12.5 to 13 V. Make sure that the rated current of the alternator and the battery capacity is enough to provide increased consumption.

For example, for the power of the amplifier 1000 W, the rated current of the alternator is required at the rate of 1000 W / 13 V = 77 amperes. A more powerful amplifier requires a more powerful alternator as well as an additional battery.

1. Do not place the amplifier in the engine compartment and also in the places exposed to water, moisture, dust or dirt.

2. Never stretch the cables outside of the car and near the moving parts of the car. This can lead to destruction of the insulating layer, short circuit and fire.

3. The amplifier should be installed in areas of the car where the temperature varies from 0 °C (32 °F) to 55 °C (131 °F). The amplifier should be in a place with a good air circulation. The horizontal position of the amplifier is the best way to install.

4. During the operation the amplifier may be heated up to 80 °C (176 °F). Before you touch it, make sure it is not overheated that may be dangerous.

5. To improve the cooling of the amplifier, it is recommended to clean periodically the heatsink from dust. When cleaning the heatsink strong solvents should not be used as they may damage the amplifier. Do not use compressed air, because solids can penetrate inside the amplifier. Cleanings best done with wet towels or cloth.

6. Make sure that the location of the amplifier does not violate the proper operation of mechanical and electrical devices of the vehicle.

7. Make sure that during the installation and connection of the battery, the power cables are not shorted.

8. When performing plumbing, drilling or cutting works with the car, make sure that there is no wiring, brake lines, fuel pipe or other structural elements under the place of work. Follow the safety rules! Use protective glasses and gloves.

9. To protect the wires use rubber gaskets if the wire passes through a hole in the plate, or other similar materials if it lies close to the parts exposed to heat.

10. Make sure that all the cables are fixed over the entire length. Also make sure that their outer protective shell is non-combustible. Use a clamping screw to secure the positive and negative cables next to the appropriate terminals of the amplifier.

11. Select a diameter of the power cable in accordance with the power of the amplifier and the recommendations provided here. Power cables are extremely important since they directly affect the system damping factor and sound quality. The cables to the battery must be in the copper crimp terminals pressed with the help of a hydraulic press, and well fixed to the battery terminals.

12. To avoid accidental damage, keep the amplifier in its original packaging prior to installation.

13. Use high-quality copper speaker and power cables.

CAUTION!!! High sound pressure can damage your health! Please use the common sense when controlling volume!

3. TYPICAL INSTALLATION SEQUENCE

1. Before installing the amplifier disconnect the battery from the electrical system.

2. To connect the amplifier it is necessary to stretch the power cable from the location of the battery to the place of installation of the amplifier. Select the power cable with the appropriate regulations in AWG (see Table: Selection of the diameter of the power cables)

3. Connect the power supply with the correct polarity. Connect all (+) terminals of the amplifier to the cables stretching from the positive terminal of the battery and all (-) terminals of the amplifier – to the cables stretching from the negative terminal of the battery.

4. Place the fuse holder for each positive cable within 40~cm from the positive terminal of the battery and connect one end of the power cable to the holder after connecting the other end to the amplifier. Do not install the fuse(s).

5. Route all signal cables next to each other and separately from the power cables.

6. Connect the wires of RCA input. The input signal power must be between 0.2 V and 6 V.

7. To connect the power wire supply is necessary to use special power cables.

8. Fasten the amplifier properly when installing it in the vehicle. If the component is disconnected during driving, it may cause serious damage to the passengers of the vehicle or another vehicle. It is not recommended to screw the amplifier directly to the metal it can lead to distorsions at the signal outputs.

9. After installation is complete, check the wiring of the system and make sure that all connections have been made correctly. Before installing the fuses, disconnect the positive lead from the battery and then install the fuse in the fuse holder. Using the light bulb 12 V 21 W, connect the positive lead to one contact of the bulb and the other contact of the bulb to the positive terminal of the battery.

When properly connected, the bulb must briefly light up and go out. Now you may connect the positive lead to the (+) of the battery. If the light does not go out, then something is wrong. This will prevent damage to the amplifier in case of reverse polarity and unwanted sparks when connecting. Install the rest of the fuses.

1. To activate the amplifier, it is necessary to apply the positive potential of 12 volts to the control input of the amplifier (REM) through a switch or a corresponding control output (REMOTE) with the head unit (HU).

2. LED indicator on front of the amplifier turns blue to indicate that the amplifier is turned on. If the indicator does not light up see chapter "Possible faults and their solutions" for more information.

3. The sound level is calibrated by adjusting the volume of the source up to 3/4 of its maximum level. Then, adjust the sensitivity level of the amplifier up until you hear distortions.

4. SELECTION OF THE DIAMETER OF POWER CABLES AND SPEAKER CABLES

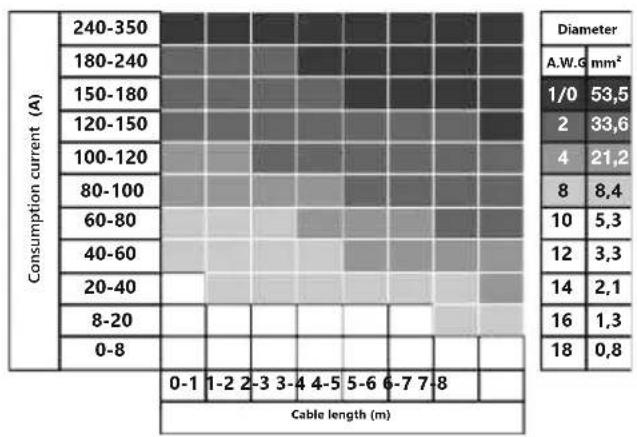

Selection of the diameter of the power cables

Use the table below to select the desired diameter based on the length and the current consumption.

Selection of the diameter of the speaker cables

Use the table below to select the desired diameter based on the length and the power consumption.

5. WIRING DIAGRAMS

Connect the speaker cables from the positive and negative terminals of the speakers to the respective outputs of the amplifier terminal marked with SPEAKER, as shown at the diagram. To connect the power wire supply it is necessary to use special power cables. The fuse is placed in the holder and fixed in the cable cut. One end of the cable is connected to the positive terminal of the battery, the second one – to the amplifier terminals marked with +12V. Be sure to use a fuse with the parameters sufficient for use in the system. The length and diameter of the grounding cable must conform to the length and diameter of the cable +12V. Connect one end to the negative terminal of the battery and the other end of the grounding cable to the terminals marked with GND. Connect the head unit (HU) to low-level inputs of the amplifier using RCA cable.

MA-900.1D, MA-1 60 0.1D, MA-21 0 0.1D

Standard wiring diagram of mono amplifier to one subwoofer and battery.

Step 1. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the subwoofer.

Step 2. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the subwoofer.

Step 3. Connect one end of the power cable from (+) terminal of the battery and the second end to the amplifier terminal marked with +12V. Do not forget to protect positive power cable with appropriate fuse.

Step 4. Connect one end of the power cable from (-) terminal of the battery and the second end of the grounding cable to the terminals marked with GND.

Step 5. Connect one end of the cable to the Remote output terminal at the HU and the second end to the amplifier terminal marked with REM.

Battery not more than 40 cm Fuse Holder POWER GND REM +12V SPEAKER 1-4 Ohm

Caution!!! The minimum permissible connection load impedance is 1 Ohm. For models MA-900.1D, MA-1600.1D, MA-2100.1D the operating voltage is 9-15 V.

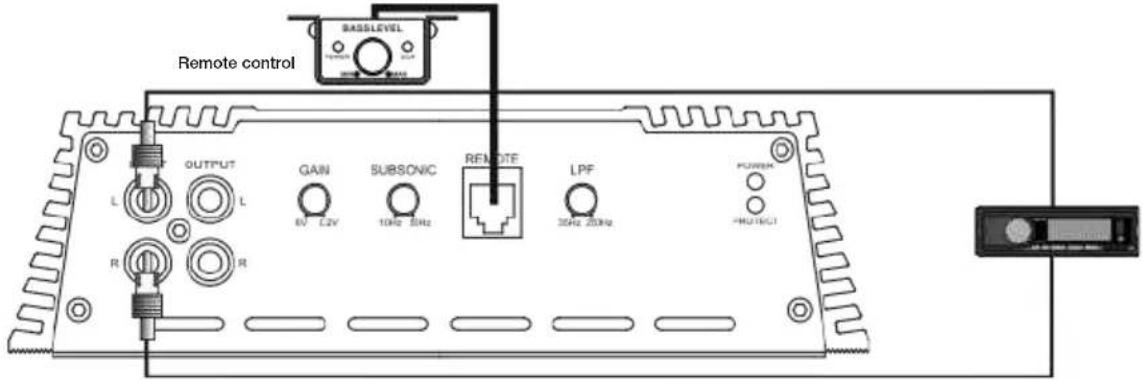

Standard wiring diagram of mono amplifier to Head Unit.

Step 1. Connect one end of the RCA cable to the RCA output terminals at the HU and the second end to the amplifier RCA inputs terminals marked with INPUT.
Step 2. Connect remote controller to corresponding OUTPUT of the amplifier marked with REMOTE.

Remote control BASSLEVEL OUTPUT GAIN SUBSONIC REMOTE LPF POWER OUTPUT L L 6V 12V 10Hz 5Hz 35Hz 20Hz PROFESSION

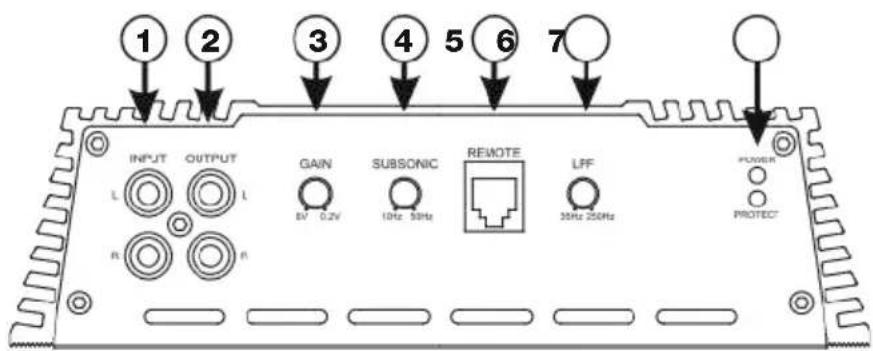

Application of connectors and controls

MA-900.1D, MA-1600.1D, MA-2100.1D

1 2 3 4 5 6 7 INPUT OUTPUT GAIN SUBSONIC REMOTE LFF POWER L 0.2V 10Hz 50Hz 30Hz 250Hz PROTECT

1. INPUT - signal input RCA jacks
2. OUTPUT – signal output RCA jacks
3. GAIN - input signal level adjustment 0.2 V - 6 V
4. SUBSONIC - subsonic frequency filter 10 Hz - 50 Hz (12 dB/Oct)
5. REMOTE - input for connection of the bass remote control
6. LPF - low pass filter 35 Hz - 250 Hz (12 dB/Oct)
7. POWER - LED for operation (blue) / PROTECT - LED for protection (red)

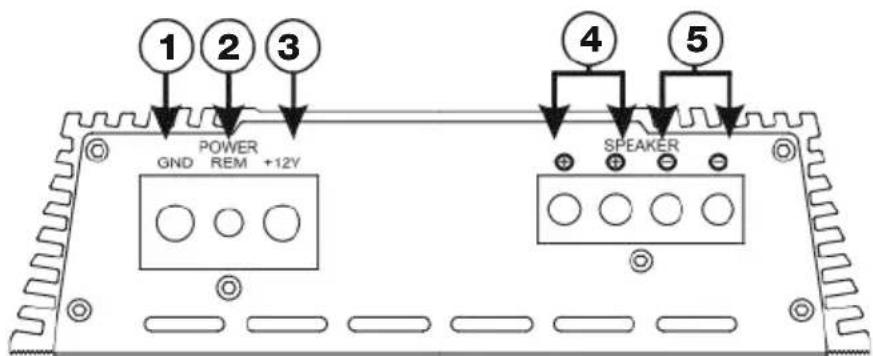

1 2 3 POWER GND REM +12V SPEAKER 4 5

1. GND – grounding supply terminal «-»
2. REM - connector of remote activation of the amplifier
3. +12V - power supply terminal (+12V)
4. SPEAKER "+" - speaker positive terminal connections

5. SPEAKER "-" - speaker negative terminal connections

6. POWER - power LED (blue)

7. Input signal controller
8. CLIP - clip LED (red)

BASS LEVEL POWER MIN CLIP MAX ① ② ③

6. C O N N E C T I O N M E T H O D S

SUBWOOFERS WIRING DIAGRAMS

The minimum permissible load impedance at the output of the amplifier is 1 ohm. Use these formulas to calculate the load impedance of various types of connections.

Series connection

Total impedance = ΩSub 1 + ΩSub 2 + ΩSub 3 ...

Parallel connection

Tot al im ped anc e= 1 Su b 11 + 1Su b 12 + ·s 1Su b 3

SCHEMES OF ENABLING THE LOAD OF THE SUBWOOFER

In any case do not expose the amplifier to the loads lower than specified by the manufacturer. Use these schematics to calculate load impedance of different connection types.

Voice coils 1+1,2+2,4+4 Ohm

The subwoofer has voice coil D1, D2 or D4.

2+21+1 4+4

One subwoofer, coils in series

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	2 Ohm
2+2 Ohm	4 Ohm
4+4 Ohm	8 Ohm

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	0,5 Ohm
2+2 Ohm	1 Ohm
4+4 Ohm	2 Ohm

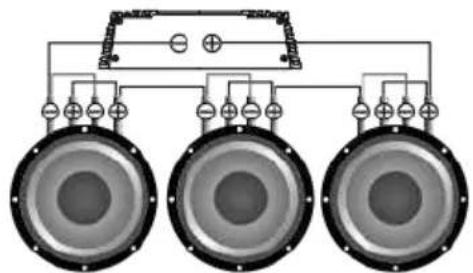

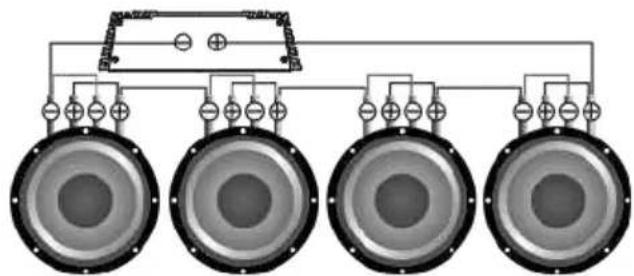

Subwoofers in series, coils in parallel

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	1 Ohm
2+2 Ohm	2 Ohm
4+4 Ohm	4 Ohm

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	1,5 Ohm
2+2 Ohm	3 Ohm
4+4 Ohm	6 Ohm

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	2 Ohm
2+2 Ohm	4 Ohm
4+4 Ohm	8 Ohm

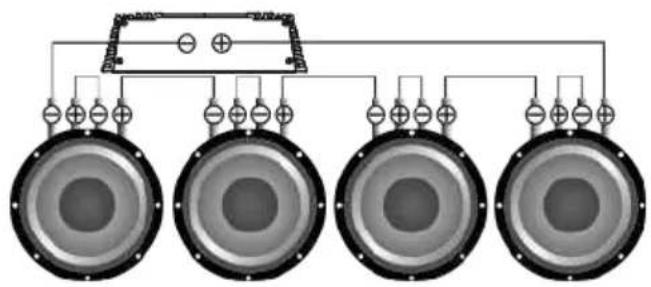

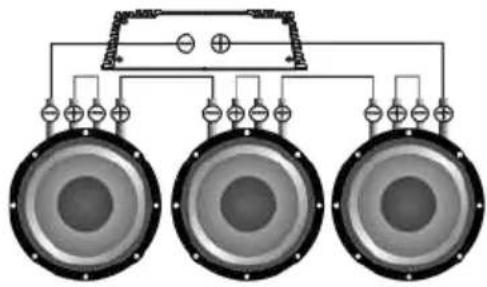

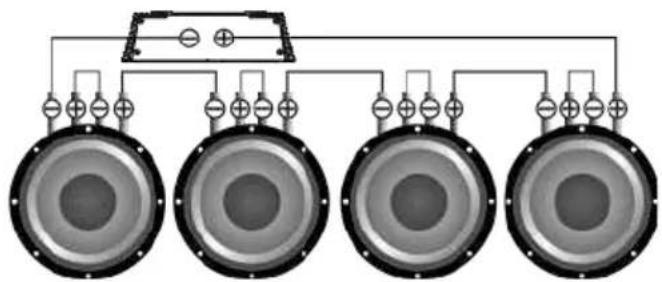

Subwoofers in series, coils in series

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	4 Ohm
2+2 Ohm	8 Ohm
4+4 Ohm	16 Ohm

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	6 Ohm
2+2 Ohm	12 Ohm
4+4 Ohm	24 Ohm

Voice coils	Total impedance
1+1 Ohm	8 Ohm
2+2 Ohm	16 Ohm
4+4 Ohm	32 Ohm

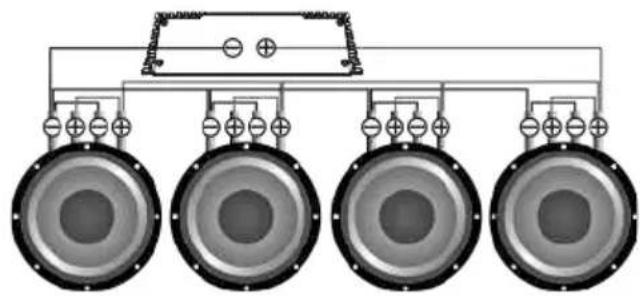

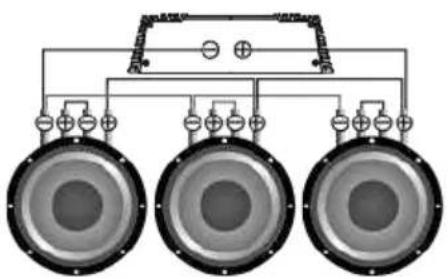

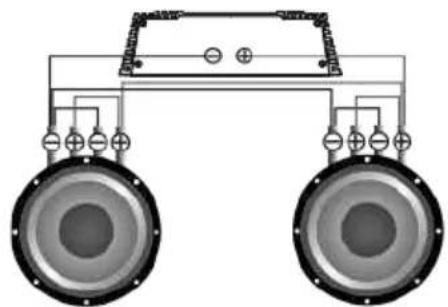

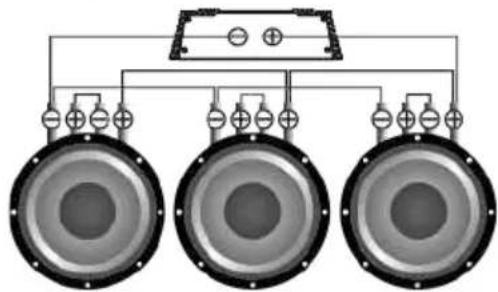

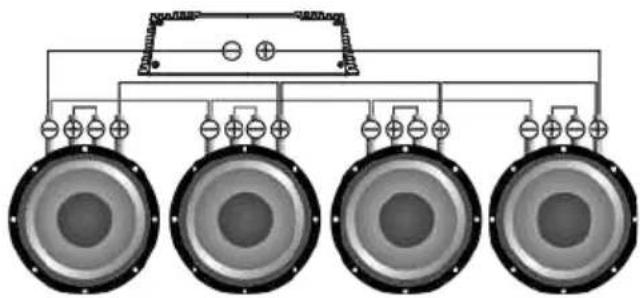

Subwoofers in parallel, coils in series

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	1 Ohm
2+2 Ohm	2 Ohm
4+4 Ohm	4 Ohm

Voice coils	Total impedance
1+1 Ohm	0,66 Ohm
2+2 Ohm	1,33 Ohm
4+4 Ohm	2,66 Ohm

Voice coils	Total impedance
1+1 Ohm	0,5 Ohm
2+2 Ohm	1 Ohm
4+4 Ohm	2 Ohm

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
1+1 Ohm	0,25 Ohm
2+2 Ohm	0,5 Ohm
4+4 Ohm	1 Ohm

Voice coils	Total impedance
1+1 Ohm	0,16 Ohm
2+2 Ohm	0,33 Ohm
4+4 Ohm	0,66 Ohm

Voice coils	Total impedance
1+1 Ohm	0,125 Ohm
2+2 Ohm	0, 5 Ohm2
4+4 Ohm	0,5 Ohm

CAUTION!!! High sound pressure can damage your health!

Please use the common sense when controlling volume!

1. SPECIFICATIONS
   EN

Model	MA-900.1D	MA-1600.1D	MA-2100.1D
Power RMS 4 Ohm*	350 W x 1	620 W x 1	810 W x 1
Power RMS 2 Ohm*	570 x 1W	1040 x 1W	1530 x 1W
Power RMS 1 Ohm*	900 W x 1	1600 W x 1	2100 W x 1
Low pass filter	35 - 250 Hz	35 - 250 Hz	35 - 250 Hz
Subsonic filter	10 - 50 Hz	10 - 50 Hz	10 - 50 Hz
Crossover	12 dB / Oct	12 dB / Oct	12 dB / Oct
Frequency response	10 - 250 Hz	10 - 250 Hz	10 - 250 Hz
Input sensitivity	0.2 - 6 V	0.2 - 6 V	0.2 - 6 V
Signal to noise ratio	>85 dB	>85 dB	>85 dB
Damping factor	>200	>200	>200
Input terminal connection	4 AWG (21.2 mm2)	4 AWG (21.2 mm2)	0 AWG (53.5 mm2)
Output terminal connection	8 AWG (8.37 mm2)	8 AWG (8.37 mm2)	8 AWG (8.37 mm2)
Working voltage	9 - 15 V	9 - 15 V	9 - 15 V
The minimum permissible load impedance	1 Ohm	1 Ohm	1 Ohm
Size (WxLxH mm)	227.2 x 193 x 53.3	327.2 x 193 x 53.3	477.2 x 193 x 53.3
Size (WxLxH inch)*RMS Power at 14.4 V, THD 1%	8.94 x 7.59 x 2.09	12.88 x 7.59 x 2.09	18.78 x 7.59 x 2.09

8. POSSIBLE FAULTS AND THEIR SOLUTIONS

Deaf Bonce amplifiers are high-quality and technically perfect products. The problems often arise due to improper use, faulty connection of components or lack of power supply of the on-board network.

1) The amplifier does not turn on.

Problem solution: Check all the contacts and the presence of 9-15 V at the amplifier terminals. Check whether the control input of the amplifier "REM" receives the positive potential of 12 V.

2) Power turns on, but goes into protection (security indicator lights up)

Problem solution: Check if there is a short circuit (fault) on the amplifier output which is connected to the subwoofers. Make sure that commutation of the voice coils of the subwoofer is correct. The rated impedance of the voice coils should not be lower than the permissible rated load impedance of the amplifier. Check the supply voltage of the amplifier. It must be within the range of 9-15 V.

3) The amplifier turns on but at a high volume it goes to protection. Problem solution: The amplifier may lack power. Make sure that the rated current of the alternator and the battery capacity is enough to power this amplifier.

Check the amplifier for overheating. Check the load impedance.

4) The amplifier is turned on, but there is no sound from the subwoofer.

Problem solution: Check the connection of the amplifier, the integrity of the interconnecting cable, HU or the subwoofer.

9. BOX contents

1. Amplifier - 1 pc.
2. Owner's Manual - 1 pc.
3. Warranty card - 1 pc.
4. Mounting Kit - 1 pc.
5. Remote control - 1 pc.

10. WARRANTY AND MAINTENANCE INFO

EN

Deaf Bonce products are warranted against defects concerning materials and their manufacturing under normal functioning conditions.

While the product is under warranty, defective parts will be repaired or replaced at the manufacturer's discretion. The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in, complete with the original packaging. If the product is no longer under warranty, it will be repaired at the current costs.

Our company does not undertake any liability for damages due to transportation. Our company does not take any responsibility for: costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses or damages suffered by the customer. Warranty according to laws in force. For more information visit our website and carefully read warranty card. The manufacturer reserves the right to change design and specification without prior notice.

11. INFORMATION ON DISPOSAL OF THE ELECTRICAL AND ELECTRONIC EQUIPMENT (FOR THE EUROPEAN COUNTRIES WITH SEPARATE WASTE COLLECTION)

Items marked "crisscrossed wheeled bin" are not allowed to be disposed of together with usual household waste. These electrical and electronic products should be disposed of in special reception centers, equipped for recycling such products and components. For information about the location of the nearest disposal / recycling spot and the rules of delivery of waste please contact your local municipal office. Recycling and proper disposal helps to protect the environment and prevent harmful effects on health.

Manufacturer: Ningbo Sound Solution I&E Trading Co., Ltd Made in China

QR code image containing encoded data, no visible human-readable text

СОДЕРЖАНИЕ

RU

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram of four speakers with power connections and a top panel, no text or symbols present

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram of three speakers with power connections, no text or symbols present

Diagram of four speakers arranged in a row with a top panel, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram of a multi-tiered speaker system with multiple speakers and connections (no text or labels)

Manufacturer: Ningbo Sound Solution I&E Trading Co., Ltd

Made in China

QR code image containing encoded data, no visible human-readable text

CE
