Product Type	Circular Saw
Brand	Truper
Model	SICI-7-1/4A3
Blade Diameter	7-1/4" (184 mm)
Power	2 HP (1491 W)
No-Load Speed	5500 RPM
Voltage	127 V~
Frequency	60 Hz
Current	12 A
Duty Cycle	30 min work / 15 min idle, max 3 hours per day
Insulation Class	Class II (Double insulation)
IP Rating	IP20
Max Cutting Depth at 90°	2.5" (63.5 mm)
Bevel Capacity	0° to 45°
Arbor Size	5/16" x 20 UN
Power Cord Grip Type	Type Y
Conductor Size	16 AWG x 2C, rated 221 °F
Motor Thermal Insulation	Class E
Safety Features	Retractable blade guard, safety switch lock, double insulation
Adjustments	Cutting depth, bevel angle, parallel guide
Recommended Materials	Hard/soft wood, plywood, chipboard, Resopal

Frequently Asked Questions - SICI-7-1/4A3 Truper

How do I adjust the cutting depth on the Truper SICI-7-1/4A3 circular saw?

Loosen the cutting depth adjusting knob. Raise or lower the housing to the desired depth (max 2.5"). Use the depth guide as reference. Tighten the knob to secure. Always ensure the blade extends no more than one tooth below the workpiece to reduce risk of kickback.

How do I change the blade safely?

Unplug the saw. Set the cutting depth to minimum. Open the retractable guard fully (A). Insert inner flange (B) on the shaft, then the blade (C) ensuring the arrow matches the guard arrow. Add outer flange (D) and bolt (E). Press the shaft lock button (G) and tighten with hex key (F). Reverse steps to remove.

What types of materials can this saw cut?

This circular saw is designed for cutting wood (hard/soft), plywood, chipboard, and Resopal-coated materials. Do not use for cutting metal, masonry, cement, or bricks as it may cause damage or injury.

What safety precautions should I take?

Always wear eye protection and a dust mask. Keep hands away from the blade. Use both hands on the handles. Ensure the blade guard works freely. Disconnect power before adjustments. Use proper extension cords. Never operate in wet conditions or near flammable materials.

How do I clean and maintain the saw?

Disconnect power before cleaning. Use a clean cloth or compressed air to remove dust and debris. Do not use solvents on plastic parts. Regularly clean the inside of guards and blade shaft with kerosene or compressed air. Replace carbon brushes when worn (below 0.19").

What extension cord gauge should I use?

For lengths up to 49.2 ft, use 16 AWG for 10-13 A (this saw draws 12 A). For longer lengths, use 14 AWG. Always use a grounded extension cord rated for outdoor use if operating outdoors.

How do I adjust the bevel angle?

Loosen the bevel adjustment knobs on the base. Tilt the housing to the desired angle (0° to 45°). Tighten the knobs securely. The saw can make bevel cuts for crown molding or angled joins.

My blade binds or stalls during cuts. What should I do?

Release the switch immediately and keep the saw in the cut until the blade stops. Check for dull or damaged blades. Ensure the material is supported near the cut line. Remove nails from wood. Avoid warped or damp wood. Use a slower feed rate.

How do I replace the carbon brushes?

Unplug the saw. Remove worn brushes (burnt, broken, or < 0.19"). Clean brush holders with compressed air. Insert new original Truper brushes (same size). Run the saw without load for a few minutes to seat them. Always replace both brushes at the same time.

What is the warranty coverage?

The Truper SICI-7-1/4A3 has a 2-year warranty against manufacturing defects. It is valid if used according to instructions and not altered/repaired by unauthorized personnel. Contact an authorized service center with proof of purchase. Or call 01-800-690-6990.

USER MANUAL SICI-7-1/4A3 Truper

SICI-7-1/4A3

Power Requirements 3

General power tool safety warnings 4

Safety warnings for circular saws. 5

Parts 7

Assembly 8

Start Up 8

Maintenance 10

Authorized Service Centers 11

Warranty Policy 12

CAUTION

To gain the best performance of the tool, prolong the duty life, make the Warranty valid if necessary, and to avoid hazards of fatal injuries please read and understand this manual before using the tool.

Keep this manual for future references.

The illustrations in this manual are for reference only. They might be different from the real tool.

SICI-7-1/4A3

Code	11004
Description	Circular saw
Disc	7-1/4"
Voltage	127 V~
Frequency	60 Hz
Current	12 A
Power	2 Hp
Speed	5 500 RPM	Thread size 5/16 X 20 UN
Duty cycle	30 minutes work per 15 minutes idle.Maximum 3 hours per day.
Conductors	16 AWG x 2C with insulating temperature of 221 °F
Insulating	Class II	IP Grade IP20

Power Cord Grips used in this product: Type Y.

Tool Build Quality: Double insulation.

Thermal insulation on motor winding: Class E.

WARNING Avoid the risk of electric shock or severe injury. When the power cable gets damaged

it should only be replaced by the manufacturer or at a TRUPER® Authorized Service Center.

The build quality of the electric insulation is altered if spills or liquid gets into the tool while in use.

Do not expose to rain, liquids and/or dampness.

WARNING Before gaining access to the terminals all power sources should be disconnected.

Power Requirements

WARNING Tools with double insulation and reinforced insulation are equipped with a polarized plug (one prong is wider than the other). This plug will only fit in the right way into a polarized outlet. If the plug cannot be introduced into the outlet, reverse the plug. If it still doesn't fit, call a qualified electrician to install for you a polarized outlet. Do not alter the plug in any way. Both insulation types eliminate the need of both a grounded third power cord with three prongs or a grounded power connection.

WARNING When using an extension cable, verify the gauge is enough for the power that your product needs. A lower gauge cable will cause voltage drop in the line, resulting in power loss and overheating. The following table shows the right size to use depending on cable's length and the ampere capability shown in the tool's nameplate. When in doubt use the next higher gauge.

Ampere Capacity	Number of Conductors	Extension gauge
		from 5.9' to 49.2'	higher than 49.2'
from 0 A and up to 10 A		18 AWG(*)	16 AWG
from 10 A and up to 13 A	3 (one grounded)	16 AWG	14 AWG
from 13 A and up to 15 A		14 AWG	12 AWG
from 15 A and up to 20 A		8 AWG	6 AWG

* It is safe to use only if the extensions have a built-in artifact for over current protection.
AWG = American Wire Gauge. Reference: NMX-J-195-ANCE

WARNING When operating power tools outdoors, use a volteck grounded extension cable labeled "For Outdoors Use". These extensions are specially designed for operating outdoors and reduce the risk of electric shock.

WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.

Work area

Keep your work area clean, and well lit.

Cluttered and dark areas may cause accidents.

Never use the tool in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Sparks generated by power tools may ignite the flammable material.

Keep children and bystanders at a safe distance while operating the tool.

Distractions may cause loosing control.

Electrical Safety

The tool plug must match the power outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded power tools.

Modified plugs and different power outlets increase the risk of electric shock.

Avoid body contact with grounded surfaces, such as pipes, radiators, electric ranges and refrigerators.

The risk of electric shock increases if your body is grounded.

Do not expose the tool to rain or wet conditions.

Water entering into the tool increases the risk of electric shock.

Do not force the cord. Never use the cord to carry, lift or unplug the tool. Keep the cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

When operating a tool outdoors, use an extension cord suitable for outdoor use.

Using an adequate outdoor extension cord reduces the risk of electric shock.

If operating the tool in a damp location cannot be avoided, use a ground fault circuit interrupter (GFCI) protected supply.

Using a GFCI reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of distraction while operating the tool may result in personal injury.

Use personal protective equipment. Always wear eye protection.

Protective equipment such as safety glasses, anti-dust mask, non-skid shoes, hard hats and hearing protection used in the right conditions significantly reduce personal injury.

Prevent unintentional starting up. Ensure the switch is in the "OFF" position before connecting into the power source and / or battery as well as when carrying the tool.

Transporting power tools with the finger on the switch or connecting power tools with the switch in the "ON" position may cause accidents.

Remove any wrench or vice before turning the power tool on.

Wrenches or vices left attached to rotating parts of the tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times.

This enables a better control on the tool during unexpected situations.

Dress properly. Do not wear loose clothing or jewelry. Keep hair, clothes and gloves away from the moving parts.

Loose clothes or long hair may get caught in moving parts.

If you have dust extraction and recollection devices connected onto the tool, inspect their connections and use them correctly.

Using these devices reduce dust-related risks.

Power Tools Use and Care

Do not force the tool. Use the adequate tool for your application.

The correct tool delivers a better and safer job at the rate for which it was designed.

Do not use the tool if the switch is not working properly.

Any power tool that cannot be turned ON or OFF is dangerous and should be repaired before operating.

Disconnect the tool from the power source and / or battery before making any adjustments, changing accessories or storing.

These measures reduce the risk of accidentally starting the tool.

Store tools out of the reach of children. Do not allow persons that are not familiar with the tool or its instructions to operate the tool.

Power tools are dangerous in the hands of untrained users.

Service the tool. Check the mobile parts are not misaligned or stuck. There should not be broken parts or other conditions that may affect its operation. Repair any damage before using the tool.

Most accidents are caused due to poor maintenance to the tools.

Keep the cutting accessories sharp and clean.

Cutting accessories in good working conditions are less likely to bind and are easier to control.

Use the tool, components and accessories in accordance with these instructions and the projected way to use it for the type of tool when in adequate working conditions.

Using the tool for applications different from those it was designed for, could result in a hazardous situation.

Service

Repair the tool in a TRUPER Authorized Service Center using only identical spare parts.

This will ensure that the safety of the power tool is maintained.

Safety warnings for circular saws

Kickback

Kickback is the sudden and strong movement the tool experiences outwards from the work piece that can lead the operator to lose control or even cause him injuries. Usually this happens when the cutting disc is stuck into the piece or due to an inefficient operation. To avoid kickback the following caution measures should be used:

• Use perfectly maintained cutting discs. Double-check discs are properly mounted. Badly mounted, bent, damaged discs or with worn or dull teeth have a tendency to get stuck into the material causing kickback.
• When operating the tool, hold it firmly setting one hand on the handle and the other hand on the auxiliary handle. Always use both hands. Keep good balance and footing to be able to resist the force of possible kickback.
• To make cuts align the disc with the cut axle and wait for the disc to reach its highest speed before starting to cut. Do not try to cut setting the disc teeth on top of the work piece. It could cause kickback.
• To restart working inside the cut, center the disc into the cut and double-check the discs are not buried into the material.
• If while operating the tool you notice the disc is bending or the cut is interrupted, release the switch and hold the tool inside the work piece until the disc comes to a complete stop. Do not try to remove the disc while still moving. This could cause kickback.
• To minimize the risk of having the disc stuck and cause kickback, before cutting a wood piece remove all the nails. Damp, warped wood or chipboard needs special attention during the cut. When using large wood planks use supports close to both sides of the cutting line to avoid the plank to warp, close the cut and trap the disc. Wood resin and gum hardened on the disc make the saw run slow. Use resin and gum remover, hot water or kerosene to remove buildup. DO NOT use gasoline.
• Use extreme care when making a pocket cut on wall or blind spots. The disc may get into contact with hidden objects and cause kickback.
• While operating the tool, do not set your hand or body aligned with the cut axis, because if kickback sets there is a severe injury hazard.

- Before starting a cut, the levers to adjust cutting depth and bevel should be tight and secured. If they move during the cut, they may cause the disc to bend and cause kickback. Setting excessive cutting depth increases the load on the unit and the disc might bend inside the cut. It also increases the possibility that the cut closes and increases the available area on top of the cutting disc.

General measures

DANGER • Move away your hands from the cutting area and the cutting disc. To prevent from accidental injury and loosing control, firmly hold the tool with both hands by the handle and the auxiliary handle.
WARNING • The accidental contact with a rotating cutting disc may cause severe personal injury.
DANGER • NEVER hold the work piece to cut with your hands or on top of your leg. Hold the work piece adequately to avoid your body making contact with the cutting disc, and to prevent the disc from bending or loosing control of the tool or the work piece.
DANGER • Do not try to remove debris material when the disc is running.
WARNING • Remember that the guards do not protect you from the moving disc below the work piece. Therefore never squat or try to put your hand below the work piece when the machine is running.
CAUTION • Double-check retractable guard and the spring are working properly before each time you use the tool. If the guard is not moving freely or is not closing instantly, service the machine.
WARNING • Do not bring the disc near your body when carrying the tool. If it accidentally starts the retractable guard may open and make contact with your clothes.
CAUTION • Operating the tools holding it by the insulated parts prevents the user from getting and electrical discharge if the disc makes contact with hidden cabling.
- ALWAYS keep the electric supply cord away from the cutting area. The electric supply cord SHALL NEVER hang on top of the work piece when making the cut.
- Wear always safety glasses with side protection. If dust is produced wear also a dust mask.

Retractable guard

Before each use double-check if the retractable guard and the spring are working correctly. If the guard is not moving freely or not closing instantaneously service them before further operation with the tool.

The retractable guard could work slowly because of damaged parts, gummy deposits or debris accumulation. To prevent from this possibility clean regularly the insides of both guards and the disc axis. Use kerosene or compressed air. Before cleaning disconnect the machine and remove the cutting discs.

The retractable guard can be opened manually. Make this only when changing discs and when making cuts such as cut marking or combined cut. Using the guard lever open the retractable guard. As soon as the disc gets into the material, release the lever. For any other type of cuts the guard should operate automatically. Never leave the retractable guard in the open position.

The retractable guard might bend due to a stroke or if it falls. Before operating the tool, verify it moves freely in every angle and cutting depths. The guard should not touch the cutting disc or any other part of the tool.

WARNING Verify the retractable guard covers the disc before setting the saw on a bench or on the floor. A disc rotating due to inertia could cause the saw to move backwards cutting whatever objects in its way. Verify the disc stops moving after turning off the tool.

WARNING Remember that the guards do not protect you from the moving disc below the work piece. Never squat or put your hand below the work piece when the tool is running..

Toxic materials

Dust coming from some materials have chemical substances known to cause cancer, birth and reproductive defects. Some of these chemical substances are:

• Lead in lead-based paint.
  • Crystal Silica in bricks, cement and other masonry products.
• Arsenic and Chromium in wood treated with chemical substances.
• Asbestos.

The risk involved due to exposure to these substances varies with the frequency this type of job is made. To reduce being exposed to the chemicals work in well-ventilated areas, use the adequate safety equipment, such as dust-mask specifically designed to filter microscopic particles.

Cutting disc assembly

WARNING g discs' size specified for this tool are 7-1/4" Never use a cutting disc of different type or size. Otherwise it can cause severe personal injury or damage the tool permanently and making the warranty void.

Never use damaged or incorrect washers or bolts for discs. To get excellent and safe operation the washers and bolts included are specially designed for this model of tool.

Use cutting discs with an arbor hole of the right size and shape. Otherwise the disc may start rotating eccentrically causing loss of control.

1. Unplug the tool and adjust the cutting depth to the lowest setting. (See page 9).
2. Open the retractile guard all the way (A) and keep it in that position.
3. . Insert the inner flange (B) in the axis.
4. Fix the cutting disc (C). Double-check the printed arrow in the disc matches the direction of the arrow embossed in the tool's guard.
5. . Insert the outer flange (D) in the axis.
6. Fix the bolt (E) into the axis and tighten with the hex key (F) and press the axis security button (G).
7. To remove discs reverse the steps.

When the cutting discs wear out, replace them immediately

Start Up

The circular saw is a multi-use tool to cut hard or soft wood, plywood, Resopal covered materials, etc.

CAUTION This tool is not designed to cut metal material, masonry, cement or bricks.

Turning On

• Connect the plug to the outlet.
• To unblock the switch (H) keep the switch lock (G) pressed down.
  The switch lock prevents from accidental start up.
• Press the switch (H) to start the disc rotation.
  • To stop the disc release the switch (H).

Cutting depth adjustment

1. Loosen the cutting depth adjusting knob.
2. Having the base fixed, raise the housing until the disc sticks out to the desired depth from the base. Use the depth guide as reference.
3. Tighten the cutting depth adjusting knob to prevent the housing from moving during the cut.
4. Cutting depth can go up to 2.5"

CAUTION • The cutting depth should match the work piece thickness or stick out from the piece the size of one disc tooth at the most, to prevent causing an accident.

Cutting angle adjustment

• Loosen the cutting angle adjustment knobs.
• Fix the base. Turn the housing until the disc sits on the desired angle.
• Tighten the angle adjustment knob to prevent the housing to move during the cut.
  • The tool can make cuts from 0° to 45°

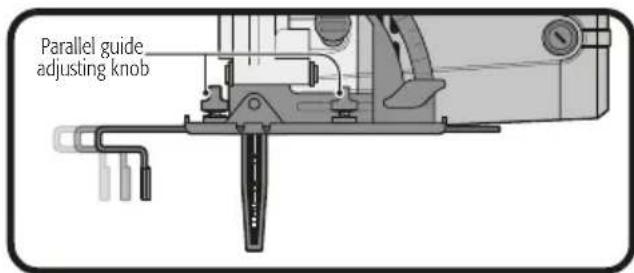

Parallel guide adjustment

Use the parallel guide to fix the work piece while cutting. To adjust widths loosen the knob and slide the parallel guide into the desired position.

Keep in mind to disconnect the tool before cleaning or servicing.

Every component in the tool is an important part of the insulating system and should only be serviced in a

TRUPER Authorized Service Center.

When sending the tool to a TRUPER Authorized Service Center, ALWAYS ask for original spare parts.

When cleaning the plastic parts of the tool, refrain from using solvents. Most plastic materials are susceptible to damage when commercial type solvents are applied.

Use a clean cloth or pressurized air to clean dirt, coal or dust.

WARNING NEVER expose the tool to oil, brake fluid, petroleum based products, penetrating oils, etc. They are made of chemical substances that may damage or destroy plastics.

WARNING When using pressurized air to blow off particles ALWAYS wear protective glasses with side protectors or a facemask. If too much dust is present use a dust-mask.

It is not advisable to use this tool for prolonged jobs with fiberglass, drywall or plaster. Their particles are highly abrasive for any power tool components. When using a tool in any of those materials, a very important measure is to frequently clean with compressed air to increase the useful life of the machine.

Carbon brush replacement

• Replace worn (burnt, broken or smaller than 0.19" long) carbon brushes. Use new carbons.
• When changing carbons always change both carbons at the same time.
• Remove worn carbons from the housing. Clean dust with compressed air.
• Set the new carbons in a reverse order. Carbon should easily fall into the carbon housing.
  • After setting up new carbon brushes let the machine to run a couple of minutes with no load. This way the carbon brushes will adjust better.
• Use only original ☒ TRUPER spare carbon brushes, designed specifically with the right strength and electric resistance for each type of motor. Carbon brushes with different specifications may damage the motor.

In the event of any problem contacting a Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 01(800) 690-6990 or 01 [phone] to get information about the nearest TRUPER Authorized Service Center.

AGUASCALIENTES	DE TODO PARA LA CONSTRUCCIÓNGRAL. BARRAGÁN #1201, COL. GREMIAL, C.P. 20030, AGUASCALIENTES, AGS. TEL.: [phone]
BAJACALIFORNIA	SUCURSAL TIJUANAAV. LA ENCANTADA, LOTE #5, PARQUE INDUSTRIAL EL FLORIDO II, C.P 22244, TIJUANA, B.C.TEL.: [phone]
BAJACALIFORNIA SUR	FIX FERRETERÍASFELIPE ÁNGELES ESQ. RUIZ CORTÍNEZ S/N, COL. PUEBLO NUEVO, C.P. 23670, CD. CONSTITUCIÓN, B.C.S.TEL.: [phone]
CAMPECHE	TORNILLERÍA Y FERRETERÍA AAAAV. ÁLVARO OBREGÓN #324, COL. ESPERANZA C.P. 24080 CAMPECHE, CAMP. TEL.: [phone]
CHIAPAS	FIX FERRETERÍASAV. CENTRAL SUR #27, COL. CENTRO, C.P. 30700, TAPACHULA, CHIS. TEL.: [phone]
CHIHUAHUA	SUCURSAL CHIHUAHUAAV. SILVESTRE TERRAZAS #128-11, PARQUE INDUSTRIAL BAFAR, CARRETERA MÉXICO CUAUHTÉMOC, C.P. 31415, CHIHUAHUA, CHIH. TEL. [phone]
MEXICOCITY	FIX FERRETERÍASEL MONSTRUO DE CORREGIDORA, CORREGIDORA # 22, COL. CENTRO, C.P. 06060, CUAUHTÉMOC, CDMX.TEL: [phone]
COAHUILA	SUCURSAL TORREÓNCALLE METAL MECÁNICA #280, PARQUE INDUSTRIAL ORIENTE, C.P. 27278, TORREÓN, COAH.TEL.: [phone]
COLIMA	BOMBAS Y MOTORES BYMTESA DE MANZANILLOBLVD. MIGUEL DE LA MADRID #190, COL. 16 DE SEPTIEMBRE, C.P. 28239, MANZANILLO, COL.TEL.: [phone]
DURANGO	TORNILLOS ÁGUILA, S.A. DE C.V.MAZURIO #200, COL. LUIS ECHEVERRÍA, DURANGO, DGO.TEL.: [phone]
ESTADO DEMÉXICO	SUCURSAL CENTRO JILOTEPECAV. PARQUE INDUSTRIAL #1-A, JILOTEPEC, C.P. 54240, JILOTEPEC, EDO. DE MÉX.TEL: [phone] EXT. 5728 Y 5102
GUANAJUATO	CÍA. FERRETERA NUEVO MUNDO S.A. DE C.V.AV. MÉXICO - JAPÓN #225, CD. INDUSTRIAL, C.P. 38010, CELAYA, GTO. TEL.: [phone] / 79 / 80 / 88
GUERRERO	CENTRO DE SERVICIO ECLIPSE CALLE PRINCIPAL MZ.1 LT. 1, COL. SANTA FE, C.P. 39010, CHILPANCINGO, GRO. TEL.: [phone]
HIDALGO	FERREPRECIOS S.A. DE C.V.LIBERTAD ORIENTE #304 LOCAL 30, INTERIOR DE PASAJE ROBLEDO, COL. CENTRO, C.P. 43600, TULANCINGO, HGO. TEL.: [phone]
JALISCO	SUCURSAL GUADALAJARAAV. ADOLFO B. HORN # 6800, COL: SANTA CRUZ DEL VALLE, C.P.: 45655, TLAJOMULCO DE ZUÑIGA, JAL.TEL.: [phone] AL 90
MICHOACÁN	FIX FERRETERÍASAV. PASEO DE LA REPÚBLICA #3140-A, COL. EX-HACIENDA DE LA HUERTA, C.P. 58050, MORELIA, MICH. TEL.: [phone]
MORELOS	FIX FERRETERÍASCAPITÁN ANZURES #95, ESQ. JOSÉ PERDIZ, COL. CENTRO, C.P. 62740, CUAUTLA, MOR.TEL.: [phone]
NAYARIT	HERRAMIENTAS DE TEPICMAZATLAN #117, COL. CENTRO, C.P. 63000, TEPIC, NAY.TEL.: [phone]

NUEVO LEÓN	SUCURSAL MONTERREYAV. STIVA #275, PARQUE INDUSTRIAL STIVA BARRAGAN,SAN NICOLAS DE LOS GARZA ,C.P. 66420, MONTERREY,N.L. TEL.: [phone]
OAXACA	FIX FERRETERÍASAV. 20 DE NOVIEMBRE #910, COL. CENTRO, C.P. 68300,TUXTEPEC, OAX. TEL.: [phone]
PUEBLA	SUCURSAL PUEBLAAV PERIFÉRICO #2-A, SAN LORENZO ALMECATLA,C.P. 72710, CUAUTLACINGO, PUE.TEL.: [phone] / 84 / 85 / 86
QUERÉTARO	ARU HERRAMIENTAS S.A DE C.V.AV. PUERTO DE VERACRUZ #110, COL. RANCHO DEENMEDIO, C.P. 76842, SAN JUAN DEL RÍO, QRO.TEL.: [phone]
JINTANA ROO	FIX FERRETERÍASCARRETERA FEDERAL MZ. 46 LT. 3 LOCAL 2, COL. EJIDAL,C.P. 77710 PLAYA DEL CARMEN, Q.R.TEL. [phone]
SAN LUISPOTOSÍ	FIX FERRETERÍASAV. UNIVERSIDAD #1850, COL. EL PASEO, C.P. 78320,SAN LUIS POTOSÍ, S.L.P. TEL.: [phone]
SINALOA	SUCURSAL CULIACÁNAV. JESÚS KUMATE SUR #4301, COL. HACIENDA DE LAMORA, C.P. 80143, CULIACÁN, SIN.TEL.: [phone]
SONORA	FIX FERRETERÍASCALLE 5 DE FEBRERO #517, SUR LT. 25 MZ. 10, COL.CENTRO, C.P. 85000, CD. OBREGÓN, SON.TEL.: [phone]
TABASCO	SUCURSAL VILLAHERMOSACALLE HELIO LOTES 1, 2 Y 3 MZ. #1, COL. INDUSTRIAL,2A ETAPA, C.P. 86010, VILLAHERMOSA, TAB.TEL.: [phone]
TAMAULIPAS	VM ORINGS Y REFACCIONESCALLE ROSITA #527 ENTRE 20 DE NOVIEMBRE Y GRAL.RODRÍGUEZ, FRACC. REYNOSA, C.P. 88780, REYNOSA,TAMS. TEL.: [phone]
TLAXCALA	SERVICIOS Y HERRAMIENTAS INDUSTRIALESPABLO SIDAR #132, COL . BARRIO DE SAN BARTOLOMÉ,C.P. 90970, SAN PABLO DEL MONTE, TLAX.TEL.: [phone]
VERACRUZ	LA CASA DISTRIBUIDORA TRUPERBLVD. PRIMAVERA. ESQ. HORTENSIA S/N, COL.PRIMAVERA C.P. 93308, POZA RICA, VER.TEL.: [phone]
YUCATÁN	SUCURSAL MÉRIDACALLE 33 #600 Y 602, LOCALIDAD ITZINCAB Y MULSAY,MPIO. UMÁN, C.P. 97390, MÉRIDA, YUC.TEL.: [phone]

Model Code Brand

SICI-7-1/4A3 11004

TRUPER

This product, its parts and components have a two years warranty against defects in its manufacture, operation and workmanship, except when: the product has been used in conditions other than those recommended, or has not been operated according to the instructions, or has been altered or repaired by personnel not authorized by TRUPER. In order to make the warranty valid or to purchase components and spare parts, you must present the product and its proof of purchase at Av. San Isidro #110, Col. Industrial San Antonio, ALC. Azcapotzalco, C.P. 02760, CDMX, Mex. or at the store where you bought it, or at a TRUPER service center listed in the attached warranty policy and/or at www.truper.com. Transportation costs resulting from compliance of this warranty will be covered by TRUPER. For questions or comments, call 01-800-690-6990.

Imported by: Truper, S.A. de C.V., Parque Industrial #1, Jilotepec, Edo. de México, México. C.P. 54240, Made in China

Stamp of the business:

2 YEARS

Delivery date:
