Operating Instructions Rechargeable Shaver Model No. ES‑LV65

GB D F I NL E Operating Instructions

Rechargeable Shaver Model No. ES-LV65

PAN EUROPEAN GUARANTEE Personal Care Products

GB D F E NL I Operating Instructions

(Household) Rechargeable Shaver Model No. ES‑LV65

Parts identification12

For environmental protection and recycling of materials19

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

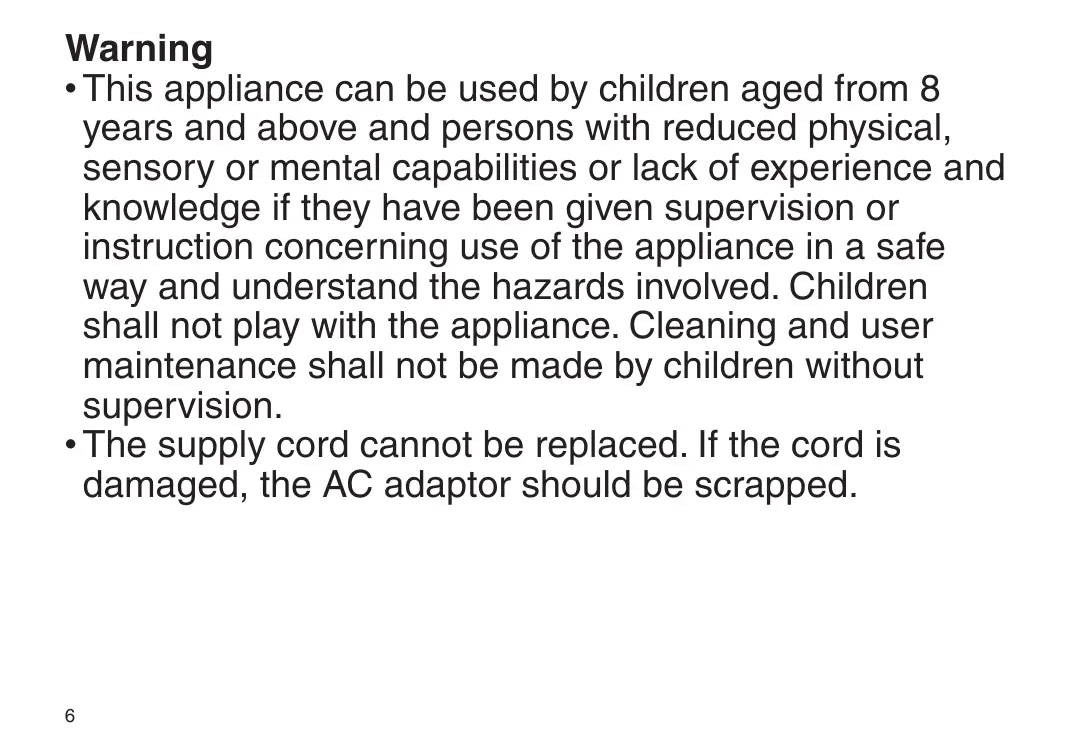

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

GB D F I TR RO H SK CZ PL FIN S N P

• Do not use anything other than the supplied AC adaptor.

• This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER Denotes a potential hazard that will result in serious injury or death.

WARNING Denotes a potential hazard that could result in serious injury or death.

CAUTION Denotes a hazard that could result in minor injury.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed. This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING Always unplug the AC adaptor from a household outlet when cleaning.

- Failure to do so may cause electric shock or injury. Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the power plug. - Failure to do so may cause fire or electric shock. Regularly clean the power plug and the appliance plug to prevent dust from accumulating. - Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the adaptor and wipe with a dry cloth. Immediately stop using and remove the adaptor if there is an abnormality or failure. - Using it in such conditions may cause fire, electric shock, or injury. <Abnormality or failure cases> ••The main unit, adaptor or cord is deformed or abnormally hot. ••The main unit, adaptor or cord smells of burning. ••There is abnormal sound during use or charging of the main unit, adaptor or cord. - Immediately request inspection or repair at an authorized service centre.

Do not immerse the AC adaptor in water or wash with water.

- Doing so may cause electric shock or fire due to a short circuit.

GB D F I NL E DK P N S Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

- Doing so may cause electric shock or fire due to a short circuit.

FIN Do not connect or disconnect the adaptor to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not store within reach of children or infants. Do not let them use it.

- Putting the inner blades and/or the cleaning brush in the mouth or drinking the oil may cause accidents and injury.

Do not damage, modify, or forcibly bend, pull, or twist the cord.

Also, do not place anything heavy on or pinch the cord. - Doing so may cause electric shock or fire due to a short circuit.

PL This shaver has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

- Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change etc).

CZ If oil is consumed accidentally, do not induce vomiting, drink a large amount of water and contact a physician.

If oil comes into contact with eyes, wash immediately and thoroughly with running water and contact a physician. - Failure to follow these instructions may result in physical problems.

Do not use anything other than the supplied AC adaptor. Also, do not charge any other product with the supplied AC adaptor.

- Doing so may cause burn or fire due to a short circuit.

SK If you experience skin irritation anywhere on the body, stop using immediately and contact a physician.

- Failure to follow this instruction may result in physical injury or injury to the skin.

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

RO H Never use the AC adaptor in the bathroom or shower room.

- Doing so may cause electric shock or fire due to a short circuit.

TR WARNING WARNING Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

CAUTION Disconnect the adaptor from the household outlet when not charging.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration. Check the system outer foil for cracks or deformations before use. - Failure to do so may cause injury to the skin. Be sure to place the shaver in its protective cap when carrying around or storing. - Failure to do so may cause injury to skin or reduce the life of the system outer foil. Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord. - Failure to do so may cause electric shock or injury. Do not allow pins or trash to adhere to the power plug or the appliance plug. - Doing so may cause electric shock or fire due to a short circuit.

Do not use excessive pressure to apply the system outer foil to your lip or other part of your face. Do not apply the system outer foil directly to blemishes or injured skin.

- Doing so may cause injury to the skin. Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use. - Doing so may cause injury to skin or reduce the life of the system outer foil. Do not touch the blade section (metallic section) of the inner blade. - Doing so may cause injury to your hands. Do not use this product for hair on head or any other part of the body. - Doing so may cause injury to skin or reduce the life of the system outer foil. Do not share your shaver with your family or other people. - Doing so may result in infection or inflammation. Do not drop or subject to shock. - Doing so may cause injury. Do not wrap the cord around the adaptor when storing. - Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

GB D F I NL E DK P N S FIN PL CZ SK

••Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.

••Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged. ••If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time. ••Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water. Do not use thinner, benzine, alcohol or other chemicals. ••Store the shaver in a place with low humidity after use. ••Do not store the shaver where it will be exposed to direct sunlight or other heat sources.

H WARNING After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

RO DANGER The rechargeable battery is exclusively for use with this shaver. Do not use the battery with other products.

Do not charge the battery after it has been removed from the product. ••Do not throw into fire or apply heat. ••Do not hit, disassemble, modify, or puncture with a nail. ••Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects. ••Do not carry or store the battery together with metallic jewelry such as necklaces and hairpins. ••Do not charge, use, or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat. ••Never peel off the tube. - Doing so may cause overheating, ignition, or explosion.

If the battery fluid leaks out, take the following procedures. Do not touch the battery with your bare hands.

- The battery fluid may cause blindness if it comes in contact with your eyes. Do not rub your eyes. Wash immediately with clean water and consult a physician. - The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes. Wash it off thoroughly with clean water and consult a physician.

► of the rechargeable battery

Parts identification

A Main body 1 Protective cap 2 System outer foil 3 Foil frame 4 Foil frame release buttons 5 Finger rest 6 Power switch 7 Lock ring 8 Lamp display a. Used time lamp b. Battery capacity lamp c. Shaving sensor lamp ( ) d. Clean lamp e. Foil/blade check lamp f. Charge status lamp ( ) 9 Appliance socket  Outer foil section

 System outer foil release buttons  Inner blades  Trimmer  Trimmer handle B AC adaptor (RE7‑59) (The shape of the AC adaptor differs depending on the area.)  Adaptor  Power plug  Cord  Appliance plug Accessories C Travel case D Cleaning brush  Oil  Operating Instructions  Guarantee Card

Use the lock ring [A7] to lock or unlock the power switch [A6]. Rotate the lock ring until it clicks. Rotate the lock ring to “ ” to unlock the power switch: Used when shaving, washing the shaver, lubricating the shaver. Rotate the lock ring to “ ” to lock the power switch: Used when carrying the shaver.

the appliance plug [B]

1 Insert into the shaver. ••Turn the shaver off before inserting.

in the adaptor [B] into a

2 Plug household outlet.

••Check that the charge status lamp ( ) glows. ••Charging is completed after approx. 1 hour. The charging time may decrease depending on the charging capacity. ••Wipe off any water droplets on the appliance socket. ••Check that the outer foil is not deformed or damaged when you are attaching the shaver. While charging After charging is completed

The charge status lamp ( ) glows.

The number of the battery capacity lamp will increase as charging progresses.

The battery capacity lamp and the charge status lamp will light up and then turn off after 5 seconds.

the adaptor after charging is

3 Disconnect completed.

GB D F I NL E DK P N S

••Each time you press the power switch, the shaving mode changes from “Shaving sensor mode” “Normal mode” “OFF”.

Shaving Shaving sensor Normal mode OFF mode mode Beard thickness is automatically The power sensed and the level is — power is constantly Description automatically maintained adjusted when while shaving. shaving.

) will blink twice every second.

Rotate the lock ring [A] to unlock the power

1 switch [A]. (See page 12.) Press the power switch to select the desired 2 shaving mode.

The shaving sensor lamp turns off.

The shaving sensor lamp turns off.

You cannot operate the shaver while charging.

••Charging the battery for more than 1 hour will not affect battery performance.

The shaving sensor lamp blinks.

RO The charge status lamp (

••After charging is completed, turning the power switch ON with the shaver plugged in will cause the battery capacity lamp and the charge status lamp to light up and then turn off after 5 seconds.

This shows that the shaver is fully charged. ••Recommended ambient temperature for charging is 10 – 35 °C. It may take longer to charge or the battery may fail to charge properly in extremely high or low temperatures. Charge the shaver within the recommended ambient temperature range. ••When charging the shaver for the first time or when it has not been in use for more than 6 months, the charge status lamp ( ) may not glow. It will eventually glow if kept connected.

TR Abnormal charging

••The shaving sensor may not respond depending on the thickness of the beard or the type of the shaving gel and shaving foam, but this is normal.

••The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver.

the shaver as illustrated

••Start shaving by applying gentle pressure to your face. Stretch your skin with your free hand and move the shaver back and forth in the direction of your beard. You may gently increase the amount of pressure as your skin becomes accustomed to this shaver. Applying excessive pressure does not provide a closer shave.

► the shaver head You can change the pivot action. FREE You can move the shaver head.

LOCK You can lock the shaver head.

► the trimmer Slide the trimmer handle up to the “ position so that the trimmer stands upright.

Press and hold the lock release button (a) and slide the trimmer handle down to lower the trimmer.

Slide the trimmer handle up. Turn the shaver on and place at a right angle to your skin and move downwards to trim your sideburns. Pre-shave The trimmer can be used for a pre-shave of long beards.

When the battery capacity is low

••You can shave 1 to 2 times after “10%” appears. (This will differ depending on usage.)

••A full charge will supply enough power for approx. 14 shaves of 3 minutes each. (This will differ depending on usage.)

GB D F I NL E DK P N S FIN The lamps will light up and then turn off after 8 seconds.

PL The used time and remaining battery capacity are shown and then turn off after 5 seconds.

••The shown time returns to [0’00”] after 10 minutes.

We recommend that you clean your shaver with the sonic vibration cleaning mode when the faucet symbol appears on the lamp display.

1. Disconnect the cord from the shaver. 4 2. Apply some hand soap and some water to the system outer foil. 3. Rotate the lock ring [A7] to unlock the power switch [A]. 4. Press the power switch for more than 2 seconds to activate the sonic vibration cleaning mode. ••The battery capacity lamps blink in 5 order. ••After about 20 seconds, it will be automatically turned off, or you can turn it off by pressing the power switch. 5. Remove the outer foil section [A] and press the power switch for more than 2 seconds to activate the sonic vibration cleaning mode and clean it with running water. 7 6. Wipe off any drops of water with a dry cloth. 7. Dry the outer foil section and the shaver completely. 8. Attach the outer foil section to the shaver. 9. Lubricate the shaver.

H Reading lamps when using

••If you press the power switch for more than 2 seconds, the sonic vibration cleaning mode is activated. (See this page.)

You cannot shave in this mode. ••Do not place your fingers on the power switch while using the shaver. This may cause the shaver to switch the mode or turn off. Place your fingers on the finger rest while using the shaver. ••We recommend using the shaver in an ambient temperature range of 5 – 35 °C. If used outside this range, the appliance may stop operating.

Replacing the system outer foil and the inner blades

To maintain shaving comfort for a long time, it is recommended that the oil provided with the shaver is used.

1. Switch off the shaver. 2. Apply one drop of oil to each of the outer foils. 3. Raise the trimmer and apply a drop of oil. 4. Switch the shaver on, and run it for approximately five seconds.

Cleaning with the brush

(a), the shaver body (b) and the trimmer (c) using the long brush.

► with the short brush

once every two years

Press the foil frame release buttons [A] and lift the outer foil section [A] upwards.

► the outer foil section 

Clean the inner blades [A] using the short (A) brush by moving it in direction (A).

••Do not move the short brush in direction (B) as it will damage the inner blades and affect their sharpness. (B) ••Do not use the short brush to clean the outer foils.

► the outer foil section

5. Switch off the shaver, and wipe off any excess oil from the outer foils with a soft cloth.

► with the long brush Clean the system outer foil 

appears on the lamp display once a year. (This will differ depending on usage.) We recommend checking the system outer foil and the inner blades when it appears.

Press the power switch for more than 30 seconds to turn off

After turning the foil frame mark ( ) to the front, securely attach the outer foil section [A] to the shaver until it clicks.

► the system outer foil

1. Press the system outer foil release buttons [A] and pull down the system outer foil.

2. Align the foil frame mark ( ) and the system outer foil mark ( ) and securely attach together. ••The system outer foil cannot be reversely attached. ••Always insert the system outer foil to the foil frame when attaching to the shaver.

Operating time is short even after charging.

When the number of operations per charge starts to decrease, the battery is nearing the end of its life.

1. Remove the inner blades [A] one at a time.

••Do not touch the edges (metal parts) of the inner blades to prevent injury to your hand. 2. Insert the inner blades one at a time until they click.

The power switch cannot be pressed.

Unlock the power switch.

You do not get as close a shave as before.

NL E DK P N PL FIN This can be improved by cleaning every time after shaving.

(See page 16.) Replace the system outer foil if it is damaged or deformed. (See page 16.)

This can be improved by cleaning every time after shaving.

S The odor is getting stronger.

Replace the system outer foil and/or inner blades.

Expected life of system outer foil and inner blades: System outer foil: Approximately 1 year Inner blades: Approximately 2 years

CZ System outer foil gets hot.

Clean the system outer foil with the brush.

Clean the inner blades with the brush.

Apply oil after cleaning with water and leaving to dry thoroughly.

The shaver makes a highpitched sound due to the linear motor drive. This does not indicate a problem.

SK Trimmed hairs fly all over.

This can be improved by cleaning every time after shaving.

Confirm that the blades are properly attached.

The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver.

The shaving sensor does not respond.

Depending on the beard thickness, the shaving sensor may not react and the driving sound may not change. This is not abnormal.

The shaving sensor responds even though the shaver is not in contact with the skin.

The shaving sensor may not respond depending on the thickness of the beard or the type of the shaving gel and shaving foam, but this is normal.

Apply oil. The shaving sensor may not respond when there is not enough oil on the blades.

The shaver cannot be charged.

Shaver stopped functioning.

Clean the beard trimmings from the shaver. When the shaver is extremely dirty, remove the foil frame and wash with water. (See page 15.) Replace the system outer foil and/or inner blades. Expected life of system outer foil and inner blades: System outer foil: Approximately 1 year Inner blades: Approximately 2 years The recommended temperature for charging is 10 – 35 °C. If charged at a temperature other than the recommended temperature, the shaver may take longer to charge or may not charge at all. Recommended ambient temperature for operation is 5 – 35 °C. The shaver may stop functioning when out of recommended ambient temperature range. The battery has reached the end of its life.

Replacement parts are available at your dealer or Service Centre. System outer foil and Replacement parts for inner blades System outer foil ES‑LV65 Inner blades

The life of the battery is 3 years if charged approximately once every two weeks. The battery in this shaver is not intended to be replaced by consumers. Have the battery replaced by an authorized service centre.

GB D N P DK E NL I F

S Please visit Panasonic web site http://panasonic.net or contact an authorized service centre (you find its contact address in the pan european guarantee leaflet.) if you need information or if the shaver or the cord gets damaged.

Information for Users on Collection and Disposal of Old

Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

CZ Press the power switch twice while using in the shaving sensor mode.

SK The power will not switch to OFF.

This shaver contains a Lithium‑ion battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

H The driving sound changes while shaving.

For environmental protection and recycling of materials

While the shaving sensor lamp glows, the shaving sensor is operating. The sound changes depending on the beard thickness.

Disposal of the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing the shaver. Please make sure that the battery is disposed of at an officially designated location if there is one. This figure must only be used when disposing the shaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction. ••Remove the shaver from the AC adaptor. ••Press the power switch to turn on the power and then keep the power on until the battery is completely discharged. ••Perform steps 1 to 4 and lift the battery, and then remove it. ••Please take care not to short-circuit the battery. 

See the name plate on the AC adaptor.

(Automatic voltage conversion)

In shaving mode: 63 (dB (A) re 1 pW)

In trimmer mode: 64 (dB (A) re 1 pW)

This product is intended for household use only.

GB D F E NL I GB D F I NL E P DK GB D F I NL E DK P N S FIN PL CZ GB D F I NL E DK P N S FIN PL GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N S Lames internes

FIN GB D F I NL P N RO H GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N Lame interne

S GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N S FIN GB D F I NL E DK WES9170

N Scheerbladensysteem

FIN GB D F I NL E DK P N S FIN PL GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N S FIN PL GB D F I NL E DK P N WES9170

FIN Cuchillas internas

PL GB D F I NL E DK P N RO H GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N S Betjening

FIN GB D F I NL E DK P N S FIN GB D F I NL E DK P WES9170

under barbering: 63 (dB (A) re 1 pW) under trimning: 64 (dB (A) re 1 pW)

GB D F I NL E S TR RO H SK CZ PL FIN GB D F I NL E DK P N S FIN PL GB D F I NL E DK P N S FIN PL CZ SK F I NL E DK P CZ GB D F I NL E DK P N GB D F I NL E DK P N S FIN PL GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N S CZ PL FIN Drift

Sensorlampen for barbering slukkes.

H GB D F I NL E DK P N S FIN D F I NL E DK H Lyden endres under barbering.

D F I NL E DK P N WES9170

FIN Reservedeler for

H Under barbering: 63 (dB (A) re 1 pW)

Under trimming: 64 (dB (A) re 1 pW)

GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N S FIN GB D F I NL E DK Innerblad

FIN GB D F I NL E DK P N S FIN GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N S

FIN GB D F I NL E DK WES9173

N GB D F I NL E DK P N S FIN PL CZ SK F I NL E DK P N S GB D F I NL E DK P N S FIN GB D F I NL E DK WES9170

S GB D F I NL E N RO H GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N FIN S Použití

PL D F I NL E DK P N S GB D F I NL E DK Vnitřní břity

N GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N S Prevádzka

FIN GB D F I NL E DK P N S FIN GB D F I NL E DK Vnútorné čepele

N GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P N S FIN GB D F I NL E DK P N WES9170

FIN GB D F I NL E DK P N S FIN PL GB D F I NL E DK P N S FIN PL CZ SK GB D F I NL E DK P FIN Funcţionare

CZ PL GB D F I NL E DK P N S FIN GB D F I NL E DK P N S WES9170

PL GB D F I NL E DK P N S RO GB D F I NL E DK P N S FIN PL SK CZ D F I NL E DK P N S GB D F I NL E DK P WES9170

FIN F EN, GE, FR, IT, DU, SP, DA, PT, NW, SW, FI, PL, CZ, SK, HU, RO, TK Printed in Japan

ES9700LV651E Y0713-0
