USER MANUAL MIDI Through Box Erica Synths

Erica Synths midi through box is professional quality, no latency one midi In to 8 midi Through splitter in rigid aluminum case. It allows to connect up to 8 instruments to your sequencer or master keyboard and control them simultaneously without undesired delays and interference. Erica Synths midi through box is plug and play, and you must be tempted to turn it on straight away, but before you do so, we strongly recommend to read Safety Instructions below, as well as turn this page around and take a look on the User Manual.

www.ericasynths.lv

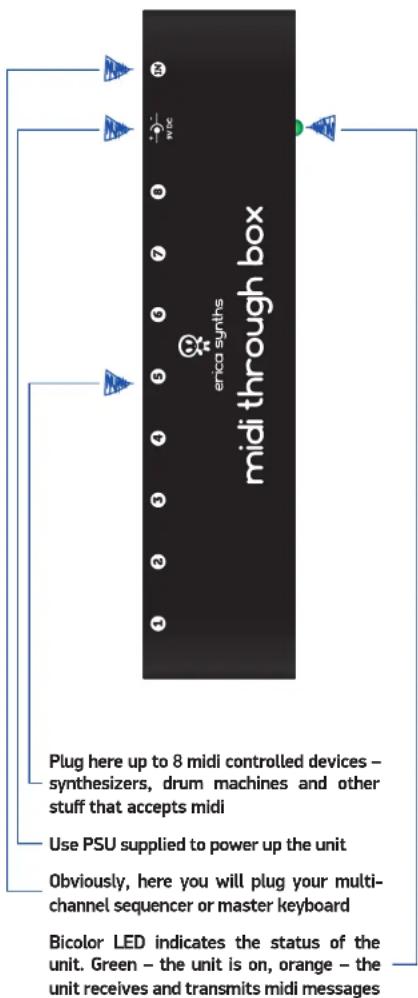

midi through box Plug here up to 8 midi controlled devices – synthesizers, drum machines and other stuff that accepts midi Use PSU supplied to power up the unit Obviously, here you will plug your multi- channel sequencer or master keyboard Bicolor LED indicates the status of the unit. Green – the unit is on, orange – the unit receives and transmits midi messages

TECHNICAL SPECS

Power supply: universal 220V/110V to 9VDC adapter supplied with a device

Latency: 60ns - far below of limits of human perception, even subconscious

Mass: 0,5kg

Dimensions: 220X50X32mm

SAFETY INSTRUCTIONS

Please follow the instructions for use of the Erica Synths midi through box below, 'cause only this will guarantee proper operation of the module and ensure warranty from Erica Synths.

Water is lethal for most of the electric devices, unless they are made waterproof. Erica Synths midi through box is NOT intended for use in a humid or wet environment. No liquids or other conducting substances must get into the module. Should this happen, the midi through box should be disconnected from mains power immediately, dried, examined and cleaned by a qualified technician.

Do not expose the midi through box to temperatures above +50°C or below -20°C.

Although the module has rigid aluminum case, so you technically can stand on it, it's not recommended to place objects heavier than 10 kg on the top of the instrument.

Transport the instrument carefully, never let it drop or fall over. Warranty does not apply to midi through box with visual damages.

Due to solid build and mass of 0,5kg, you can use midi through box for self-defense, but two year warrantee applies only to the instruments that are used for the purpose described in this User manual.

The midi through box has to be shipped in the original packaging only. Any module shipped to us for return, exchange and/or warranty repair has to be in its original packaging. All other deliveries will be rejected and returned to you. Make sure you keep the original packaging and technical documentation. In case of a destroyed warranty seal, any warranty claim will be rejected.

You will find Erica Synths terms of warranty at www.ericasynths.lv. Items for return, exchange and/or warranty repair have to be sent to: Erica Synths, Andrejsalas Str. 4a - T8/C, Riga, Latvia, LV-1045

DISPOSAL

This device complies to the EU guidelines, nevertheless, this device is special waste and disposal in household waste is not recommended.

CREDENTIALS

User manual by Girts Ozolins@Erica Synths. Design by Edgars Rasins. Copying, distribution or any commercial use in any way is prohibited and needs the written permission by Erica Synths. Specifications are subject to change without notice. In case of any questions, feel free to contact us through www.ericasynths.lv or via e-mail [e-mail].
