USER MANUAL Cymbals Erica Synths

Set the master Tune of Cymbals. This affects both Cymbals simultaneously, and essentially controls the sample playback rate

SELECT

Select one of 10 sets of Cymbal samples

CRASH LOOP, RIDE LOOP

These are cymbal "looping" switches. When they are on, after initial hit, a certain portion of the sample starts to loop during envelope generator decay until the VCA closes completely. This creates a feeling of delay applied to the cymbal. Note that looping works the best on long decay.

CRASH DECAY

Adjust Crash Cymbal decay time manually

RIDE DECAY

Adjust Ride Cymbal decay time manually

TUNE CV

This is Tune CV level attenuator

DECAY CV

This is Decay CV level attenuator. It effects both

Cymbals simultaneously

Use the manual trigger buttons to check the Cymbal settings and add some beats during live performance

TUNE CV

This is Tune CV input

ACC

This is the Accent input. +10V CV will set the Cymbals to the maximum volume, and it affects both Cymbals simultaneously. The accent sensitivity is adjustable – please, refer to instructions in this manual

CR TRIG, RD TRIG

These are Trigger inputs. The LEDs indicate incoming triggers

CR D CV, RD D CV

These are Decay CV inputs

CR OUT

This is Crash Cymbal output

RD OUT

This is Ride Cymbal output and the Main output of the module – when nothing is patched in the Crash Cymbal output, it's automatically mixed to the Ride Cymbal output

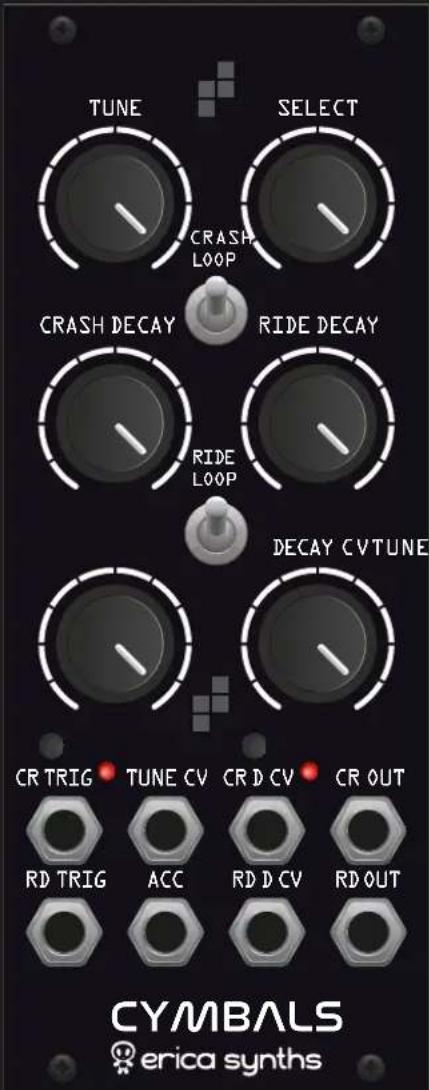

TUNE SELECT CRASH LOOP CRASH DECAY RIDE DECAY RIDE LOOP DECAY CVTUNE CR TRIG TUNE CV CR D CV CR OUT RD TRIG ACC RD D CV RD OUT CYMBOLS erica synths

SAFETY INSTRUCTIONS

Please follow the instructions for use of the Erica Synths module below, 'cause only this will guarantee proper operation of the module and ensure warranty from Erica Synths.

Water is lethal for most of the electric devices, unless they are made waterproof. This Erica Synths module is NOT intended for use in a humid or wet environment. No liquids or other conducting substances must get into the module. Should this happen, the module should be disconnected from mains power immediately, dried, examined and cleaned by a qualified technician.

Do not expose the module to temperatures above +50°C or below -20°C. If you have transported module in extreme low temperatures, leave it in room temperature for an hour before plugging it in.

Transport the instrument carefully, never let it drop or fall over. Warranty does not apply to modules with visual damages.

The module has to be shipped in the original packaging only. Any module shipped to us for return, exchange and/or warranty repair has to be in its original packaging. All other deliveries will be rejected and returned to you. Make sure you keep the original packaging and technical documentation.

This device complies to the EU guidelines and is manufactured RoHS conforming without use of lead, mercury, cadmium and chrome. Nevertheless, this device is special waste and disposal in household waste is not recommended.

You will find Erica Synths terms of warranty at www.ericasynths.lv

Items for return, exchange and/or warranty repair have to be sent to:

Erica Synths

Andrejostas Str. 43

Riga

Latvia

LV-1045

User manual by Girts Ozolins@Erica Synths.

Design by Ineta Briede@Carre Branding

Copying, distribution or any commercial use in any way

is prohibited and needs the written permission by Erica Synths.

Specifications are subject to change without notice

In case of any questions, feel free to contact us through

www.ericasynths.lv or via e-mail [e-mail]

THANK YOU FOR PURCHASING ERICA SYNTHS DRUM MODULE!

Erica Drum Series modules include high-end, unique functionality and superior quality modules, which allow you to design extensive, feature rich modular system for sound design and live performances. Enjoy!

Erica Synths Cymbals is a distinct topology digital/analogue module, where cymbal samples are passed thru AS3330 based VCA and controlled via envelope generators of unique design. The module features 10 sets of custom Crash and Ride cymbal samples with Tune control and individual Decay control. Accent and CV control over Tone and Decay allow you to create lot of variations in the Cymbals track. Extra feature is sample looping – when it's on, a certain part of the sample is looped while the envelope decay is on, thus creating distinct, delay-like effect. Cymbal samples are developed by produced and musician Nero Bellum.

FEATURES

10 sets of custom cymbal samples

Cymbal samples thru analogué VCA and EG

Tune and Decay controls

CV control with an attenuators over Tune and Decay

Sample loop switch for Crash and Ride

Manual triggers

Accent for better expression

SPECS

Audio output level	-5...+5V
CV level (full span)	-5V - +5V
Accent CV level	10V
Tigger level	5V
Trigger time	1ms
Power consumption	95mA @ +12V, 36mA @ -12V
Module width	10HP
Module depth	45mm

DRCYMB2M R105 VD17 R142 C8 VD4 C7 L1 VD3 R21 VD6 R20 C10 L2 C9 C32 R52 VD7 R57 C70 C36 C42 R52 VD10 R48 VD9 R51 C51 R37 R135 XP4 V12 R40 R28 R19 R46 VD15 R62 C29 R23 VD15 L3 XP5 R62 C12 C11 R64 VD23 ZQ4 R78 C28 R77 R57 C44 C48 R71 C70 C39 VD13 C43 C51 R65 C40 C39 R52 R58 V18 C46 R47 R74 V17 VD7 R83 C27 DA13 C80 R54 VD8 R60 VD11 C35 C56 DD2 R49 R68 R67 C31 C38 R60 VD5 C62 L4 C89 R17 C56 R120 C67 C10 DDVD20 C5 R16 VD13 R73 R15 R126 C6 VD14 C6 VD13 C6 VD12 C6 VD11 C6 VD10 C6 VD9 C6 VD8 C6 VD7 C6 VD6 C6 VD5 C6 VD4 C6 VD3 C6 VD2 C6 VD1 C6 VD0 C6 VD9 C6 VD8 C6 VD7 C6 VD6 C6 VD5 C6 VD4 C6 VD3 C6 VD2 C6 VD1 C6 VD0 C6 VD9 C6 VD8 C6 VD7 C6 VD6

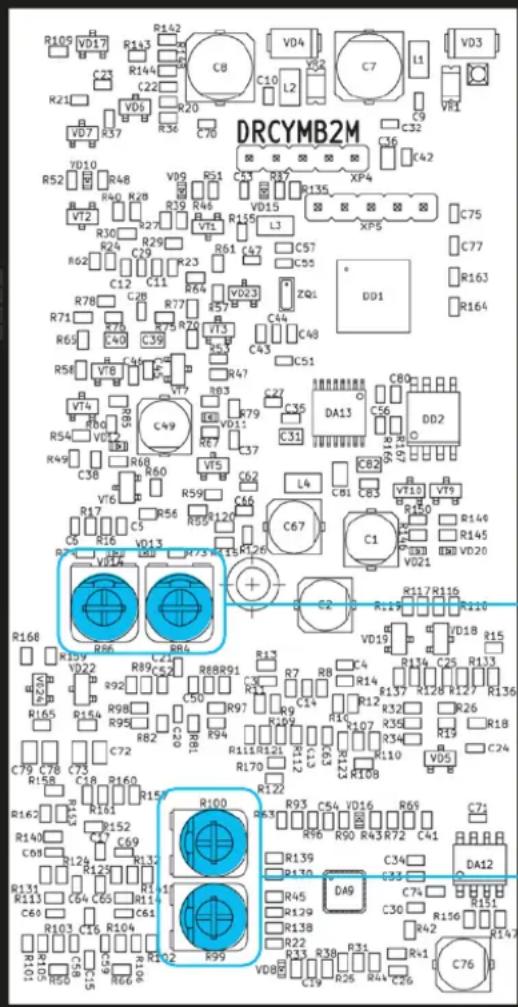

There are 4 trimpots on the back of the module to adjust presets of your module.

These two trimpots adjust accent sensitivity for Crash and Ride Cymbals correspondingly, meaning, what's an impact on incoming accent to the volume of the cymbals. Full CCW setting will provide discrete sensitivity – only +10V on the accent input will increase the volume on the output; full CW setting will allow you to modulate output volume with continuous voltages, LFO for example, and 0 V on the input will almost silence the outputs. If not sure, leave the trimpot in the mid setting.

These two trimpots adjust the VCA shape from sharp, aggressive full CW (logarithmic setting) to smooth and long decays full CCW (linear setting). If not sure, leave the trimpot in the mid setting.
