USER MANUAL Pico VC EG Erica Synths

THIS KNOB SETS ATTACK TIME. THE INCOMING CV IS ADDED TO THE KNOB SETTING.

SELECT BETWEEN LOOPING MODE AND TRIGGERED MODE! IN LOOPING MODE, WHEN CV IS APPLIED TO ATTACK AND/OR DECAY CONTROLS, THE MODULE CAN WORK AS A DRONE GENERATOR

THIS IS THE ATTACK CV INPUT

THIS IS THE TRIGGER/GATE INPUT. IF GATE IS APPLIED, THE MODULE ADVANCES TO THE ASR MODE AUTOMATICALLY

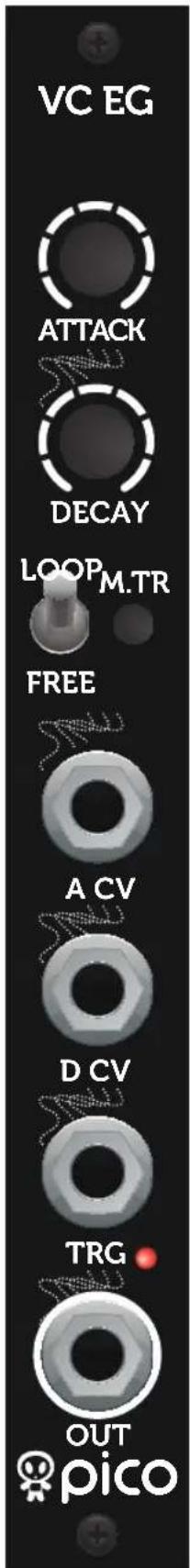

VC EG ATTACK DECAY LOOP M.TR FREE A CV D CV TRG OUT pico

THIS KNOB SETS DECAY TIME. THE INCOMING CV IS ADDED TO THE KNOB SETTING.

THIS IS THE MANUAL TRIGGER BUTTON

THIS IS THE DECAY CV INPUT

THIS IS THE OUTPUT OF THE MODULE. THE LED GIVES VISUAL FEEDBACK ON THE OUTPUT VOLTAGE
