NextFit iX Zip Air+ - Car seat CHICCO - Free user manual and instructions

Product Type	Convertible Car Seat
Brand	Chicco
Model	NextFit iX Zip Air+
Weight	Approx. 25.5 lbs (11.6 kg)
Dimensions	20 x 19 x 26 inches (51 x 48 x 66 cm)
Rear-Facing Weight Limit	5 to 40 lbs (2.3 to 18.1 kg)
Forward-Facing Weight Limit	22 to 65 lbs (10 to 29.5 kg)
Rear-Facing Height Limit	Up to 43 inches (109 cm)
Forward-Facing Height Limit	Up to 52 inches (132 cm)
Harness Type	5-point harness with no-rethread adjustment
Installation Methods	LATCH (up to 40 lbs) or vehicle seat belt
Safety Features	Steel-reinforced frame, EPS energy-absorbing foam, 9-position headrest, anti-rebound bar (rear-facing), SuperCinch LATCH tightener
Comfort Features	Zip Air+ ventilation system, DuoGuard protection, 9-position recline, adjustable headrest
Fabric Care	Machine washable seat pad and harness covers (gentle cycle, cold water, line dry)
Expiration	6 years from date of manufacture
Warranty	Limited 2-year warranty
Country of Origin	Italy (designed), China (manufactured)

Frequently Asked Questions - NextFit iX Zip Air+ CHICCO

What is the weight limit for rear-facing use?

The Chicco NextFit iX Zip Air+ can be used rear-facing for children from 5 to 40 lbs (2.3 to 18.1 kg).

How do I clean the car seat?

The seat pad and harness covers are machine washable. Use gentle cycle with cold water and line dry. Never use bleach or fabric softener. The harness straps should only be spot cleaned with mild soap.

When does the car seat expire?

The expiration date is 6 years from the date of manufacture, which is printed on the seat shell. Do not use after expiration.

Can I install this seat using LATCH in the center position?

LATCH installation in the center position is allowed only if the vehicle manufacturer permits it. Check your vehicle owner's manual. If not, use the seat belt installation method.

How do I adjust the harness height?

The harness adjusts with the headrest – simply pull the handle on the back of the seat to raise or lower the headrest. The harness moves with it, no rethreading required.

Is the seat compatible with my car's seat belt?

The NextFit iX Zip Air+ works with most lap/shoulder belts. For proper installation, ensure the seat belt is locked at the retractor or with the built-in lock-off. Consult the manual for specific steps.

What is the Zip Air+ ventilation system?

The Zip Air+ system uses a zippered mesh panel in the seat pad to improve air circulation, helping keep your child cooler during warm weather.

Can I use the seat on an airplane?

Yes, the seat is FAA-approved for aircraft use when installed forward-facing with the seat belt. It must be in a window seat to avoid blocking aisle access.

What is the anti-rebound bar for?

The anti-rebound bar is used in rear-facing mode to minimize rotation in the event of a crash, providing added stability and safety.

How tight should the harness be?

The harness should be snug enough that you cannot pinch any webbing at the shoulder. Use the SuperCinch LATCH tightener for installation, but for the harness itself, adjust until it fits firmly.

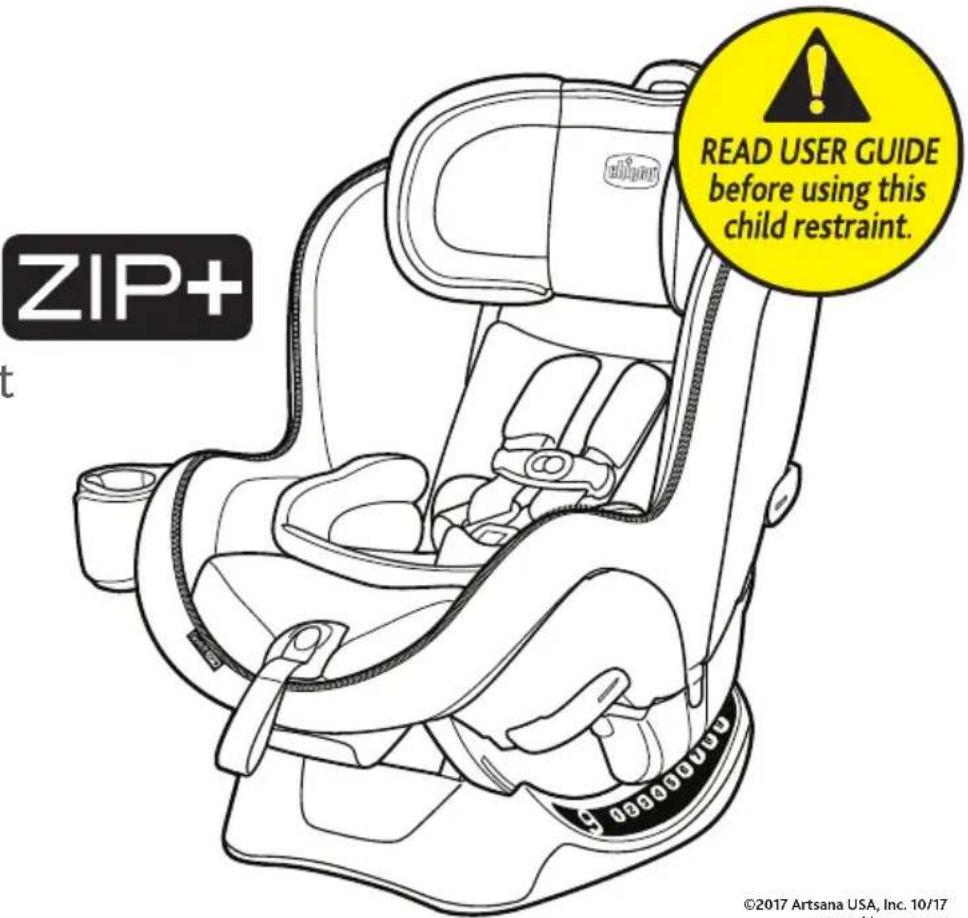

USER MANUAL NextFit iX Zip Air+ CHICCO

For future use, STORE USER GUIDE in compartment at rear of base.

ISO160E_01

©2017 Artsana USA, Inc. 10/17 www.chiccousa.com

If you have any problems with your Chicco Child Restraint, or any questions regarding installation or use, please call:

Chicco Customer Service

1-877-424-4226

Please have Model and Serial Number available when you call. These are located on a label on the bottom of the Child Restraint.

For future reference, fill in the information below. The information can be found on the label on the bottom of the Child Restraint.

Model Number:

Serial Number:

Manufactured In:

TABLE OF CONTENTS

Registration and Recall 2		REAR-FACING INSTALLATION
Child Guidelines		Rear-Facing Setup4
Safe Use Checklist 6		Install Using LATCH	44
Important Warnings 8		Install Using LAP-SHOULDER BELT	50
Best Practices		Install Using LAP BELT ONLY	56
Need Help?		15

CHILD RESTRAINT OVERVIEW

Child Restraint Components			Install Using LATCH	66
LATCH and Tether Components 18			Install Using LAP-SHOULDER BELT	72
LATCH and Tether Storage			Install Using LAP BELT ONLY20	78

Adjusting

Crotch

Strap

Newborn

Positioner

Newborn

Headrest

FORWARD-FACING INSTALLATION

Forward-Facing	Setup
Install Using LATCH	16	66
Install Using LAP-SHOULDER BELT	72
Install Using LAP BELT ONL20	78

SECURING2YOUR CHILD

Seerling	Child	with	Harness
Seere Child Checklist		94

VEHICLE INFORMATION

Vehicle	Seating	Positions	Installation32	on	an	Aircraft
Vehicle	Seat	Belts	Cup	34	Holder
What	is	LATCH?	Cleaning and Maintenance			100
What	is	a Tether?	38

REGISTRATION AND RECALL REGISTRATION AND RECALL

Please complete the Registration Card that came with your Child Restraint and mail it promptly.

Child Restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, e-mail address if available, and the restraint's model number and manufacturing date to:

Artsana USA, Inc.

1826 William Penn Way

Lancaster, PA 17601

or call 1-877-424-4226

or register online at http://www.chiccousa.com/carseatregistration.aspx

For recall information, call the U.S. Government's Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov.

PAGE INTENTIONALLY LEFT BLANK

CHILD GUIDELINES

This Child Restraint is designed for children ages Birth to 6 years old. ONLY use this Child Restraint if the child meets BOTH of the following Weight and Height requirements:

• Weight is between 4 and 65 pounds (2 and 29 kg).
• Height is 49 inches (1245 mm) or less.

The Newborn Positioner and Newborn Headrest is only for infants who weigh between 4 and 11 pounds (2 and 5 kg). See Newborn Positioner on page 28 and Newborn Headrest on page 30.

For premature infants, you must consult the infant's doctor before using this Child Restraint. A premature infant may have difficulty breathing or have other medical problems when placed in a seated position.

CHILD GUIDELINES

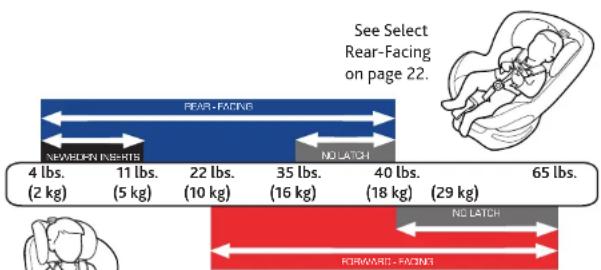

See Select Forward-Facing on page 24.

SAFE USE CHECKLIST

▲ YOUR CHILD'S SAFETY DEPENDS ON YOU! You MUST follow the detailed instructions in this User Guide to ensure the steps below are performed correctly!

☐ Make sure your child meets the age, weight, and height requirements: Refer to the "Child Guidelines" section on page 4.
☐ Choose the proper Child Restraint configuration:

REAR-FACING requirements on page 22

FORWARD-FACING requirements on page 24

☐ Select a safe seating location in your car: Refer to the "Vehicle Seating Positions" section on page 32 and 33.

SAFE USE CHECKLIST

☐ Ensure that the Child Restraint is properly leveled when installed:

REAR-FACING requirements on page 40

FORWARD-FACING requirements on page 62

☐ Check Child Restraint for a snug fit in your car: While holding Child Restraint near belt path used, pull side to side and forward. Belt should remain tight and Child Restraint should not move more than 1" (25 mm) from vehicle seat back or side-to-side.
☐ Secure your child: Refer to the "Securing Your Child" section on page 82.

IMPORTANT WARNINGS

WARNING

DEATH or SERIOUS INJURY CAN OCCUR

FAILURE TO FOLLOW THESE INSTRUCTIONS AND THE PRODUCT LABELS CAN RESULT IN SERIOUS INJURY OR DEATH TO YOUR CHILD.

Take Time to Read This User Guide

• Carefully read and understand all instructions and warnings in this User Guide. Your child's safety depends on you knowing how to setup, install and use this Child Restraint property.
• Before installing this Child Restraint in a vehicle, be sure to also check the vehicle owner's manual for information on proper installation.
• NEVER allow others to use this Child Restraint until they have read and understood all instructions in this User Guide.
• This Child Restraint is not intended for use outside of the vehicle.

Make Sure Child Fits This Child Restraint

• Use only with children who weigh between 4 lbs (2 kg) and 65 lbs (29 kg) and whose height is 49 inches (1245 mm) or less. Determine the right installation setup for your child's age, weight and height.
• ONLY USE the Newborn Positioner and Newborn Headrest in REAR-FACING and only if the child weighs between 4 and 11 lbs (2 and 5 kg).

IMPORTANT WARNINGS

WARNING

DEATH or SERIOUS INJURY CAN OCCUR

Secure Child Properly

- Snugly adjust the harness around your child. A loose harness could cause the child to be ejected in a sudden stop or crash, resulting in serious injury or death.

A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child's flesh or push the child's body into an unnatural position.

- NEVER use clothing or blankets that interfere with fastening or tightening the harness. An unsecured child could be ejected in a sudden stop or crash!

To keep child warm, place a blanket over child and restraint AFTER you have properly secured child in harness.

• ALWAYS check to make sure buckle is securely latched. If buckle separates, child could be killed or seriously injured.
- NEVER leave child unattended. Do not allow children to play in or around the Child Restraint.
- ALWAYS keep child properly secured in harness whenever child is in Child Restraint.

IMPORTANT WARNINGS

WARNING

DEATH or SERIOUS INJURY CAN OCCUR

Install Child Restraint Correctly

• WHEN USING THIS CHILD RESTRAINT REAR-FACING, DO NOT PLACE THIS CHILD RESTRAINT IN VEHICLE SEATING LOCATION WITH A FRONTAL AIR BAG, UNLESS THE AIR BAG CAN BE TURNED OFF. If the airbag inflates, it can cause serious injury or death to your child. For vehicles with side air bags, refer to your vehicle owner's manual for information on your child restraint installation.
• ALWAYS install this Child Restraint in a back seat if possible.

According to accident statistics, children are safer when properly restrained in the rear seating positions rather than in the front seat.

• NEVER install in rear-facing, side facing or on the back of a folded down vehicle seat.
• ALWAYS secure this Child Restraint with the vehicle's child restraint anchorage system (LATCH) if available OR the vehicle seat belt. Refer to Page 5 for proper use/child weight limits when installing with LATCH.
• DO NOT use the lower anchors of the child restraint anchorage system (LATCH system) to attach this Child Restraint REAR-FACING when restraining a child weighing more than 35 lbs (16 kg) or FORWARD-FACING when restraining a child weighing more than 40 lbs (18 kg).

IMPORTANT WARNINGS

WARNING

DEATH or SERIOUS INJURY CAN OCCUR

Install Child Restraint Correctly

• ALWAYS use the top tether strap on this child restraint when installed FORWARD-FACING, if a tether anchor is available.
• NEVER use Child Restraint in a vehicle seating position where it cannot be secured tightly. A loosely installed child restraint will not protect your child in a crash.
• Never leave Child Restraint unsecured in your vehicle even when it is unoccupied. It could injure other occupants in a sudden stop or crash.
• DO NOT install this child restraint using an inflatable seat belt. The interaction of the inflatable portion of the vehicle's belt with this child restraint can result in serious injury or death. Install using LATCH instead, or move the car seat to a position with a suitable seat belt type.

Ensure Child's Safety When Using Child Restraint

• NEVER leave your child unattended in the vehicle.
• STRANGULATION HAZARD: Your child can strangle in a loose Restraint Harness. Never leave a child in the Child Restraint with straps loose or undone.
• To prevent ejection or breathing difficulties, proper recline is required. When installing the Child Restraint, check the bubble level on the side of the child restraint.

IMPORTANT WARNINGS

WARNING

DEATH or SERIOUS INJURY CAN OCCUR

Check Condition of Restraint

• DO NOT use if the Harness or LATCH straps are cut, frayed or damaged.
• DO NOT use this Child Restraint if it is more than 8 years old. Check manufacturer's label on underside of Child Restraint for the "Do Not Use After" date.
• DO NOT use any accessories, pads or products not included with this Child Restraint, unless approved by Chicco USA. Doing so will void the warranty of this Child Restraint.
• You MUST replace this Child Restraint if it has been involved in a crash, even if you cannot see visible damage. A damaged Child Restraint may not protect your child in a future crash.
• Do not modify your Child Restraint.
• NEVER remove harness from Child Restraint without the proper removal and installation instructions available from Chicco USA. Contact us by visiting the Chicco website at www.chiccousa.com or call 1-877-424-4226.
• Do not use Child Restraint if any component is damaged, broken, or missing parts. Call 1-877-424-4226 to find out if the damaged part or parts can be replaced.

IMPORTANT WARNINGS

PAGE INTENTIONALLY LEFT BLANK

BEST PRACTICES

• Ensure all vehicle occupants are properly restrained before traveling. Unrestrained occupants can be thrown around and may be seriously injured or seriously injure other occupants in a sharp turn, sudden stop or crash.
• Do not leave loose objects, such as books, bags, etc., in the back of the vehicle. In the event of a sharp turn, sudden stop, or crash, loose objects can be thrown around and possibly cause serious injury to vehicle occupants.
• Cover the Child Restraint when the vehicle is parked in sunlight. Parts of a Child Restraint can become very hot if left in the sun. Contact with these parts can burn a child's skin. Always check the surface of any metal or plastic parts before putting your child in the Child Restraint.
• To avoid strangulation, Do not allow children to play with vehicle seat belts. If possible, move unused belts out of reach.
• Do not use anything to raise the Child Restraint off the vehicle seat. In a sharp turn, sudden stop, or crash, the Child Restraint could slide and potentially cause serious injury.
• Never use a second-hand Child Restraint with an unknown history.
• Never use any accessories that are not included with this child restraint, unless specifically approved by Chicco. For more information, go to www.chiccousa.com/accessories.

NEED HELP?

Need Help Securing Your Child Restraint?

The following sources are available to help ensure your Child Restraint is properly installed:

• Contact Chicco, USA by visiting our website at www.chiccousa.com or calling our Customer Service 1-877-424-4226. Please have Model and Serial Number available when you call. These are located on a label on the bottom of the Child Restraint.

- Refer to your vehicle manual for Child Restraint installation tips.

- Contact a certified Child Passenger Safety Technician in your area by visiting safercar.gov and select "Find Local Child Seat Help" or call 1-866-SEAT CHECK (1-866-732-8243).

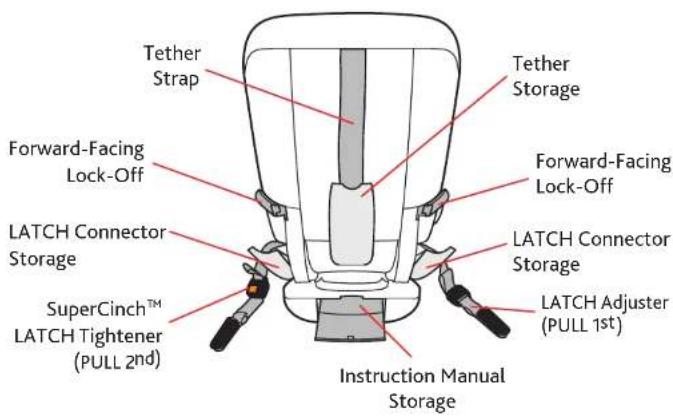

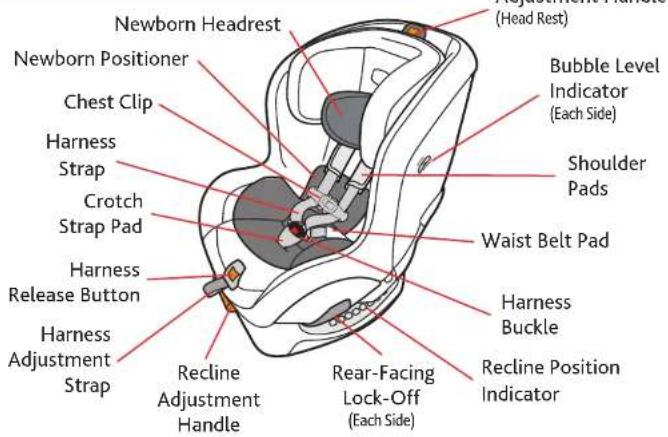

CHILD RESTRAINT COMPONENTS CH

LATCH AND TETHER COMPONENTS LA

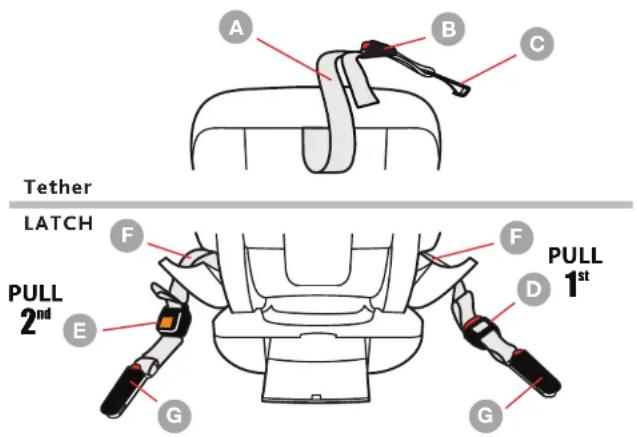

TETHER:

Tether Strap

Tether Strap Adjuster

Tether Hook

LATCH:

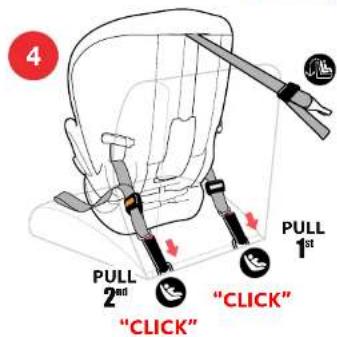

LATCH Adjuster (PULL 1 ^st )

SuperCinch LATCH Tightener (PULL 2nd)

LATCH Strap

LATCH Connectors

LATCH AND TETHER STORAGE LAT

▲ Always make sure LATCH Components are properly stored in the compartments when not in use.

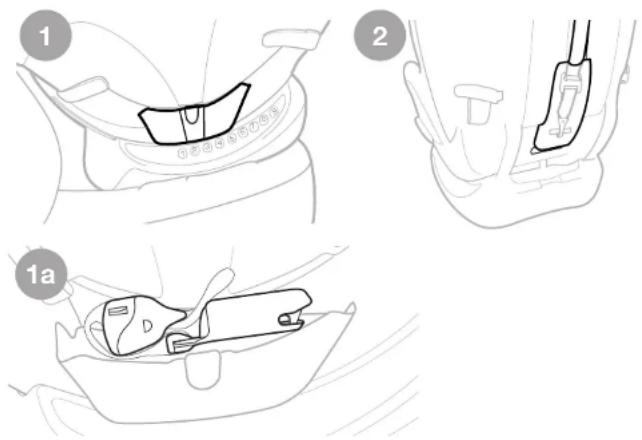

LATCH STORAGE:

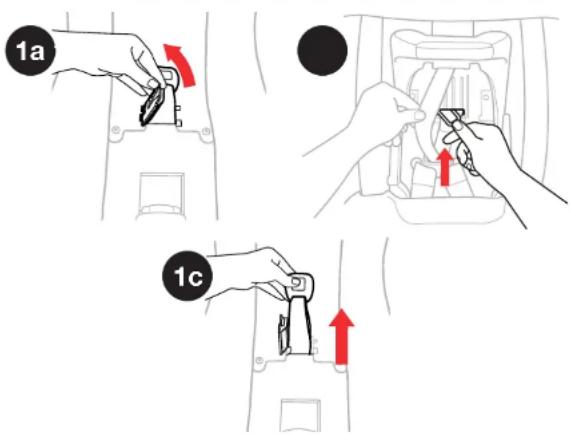

1 Store each LATCH strap in the compartments located on either side of the Child Restraint base when not in use. Make sure LATCH Connector Storage compartments are properly closed.

Fold SuperCinch™ LATCH Tightener (Pull 2nd) strap as shown (1a).

2 TETHER STORAGE:

Store Tether in the compartment in the back of Child Restraint when not in use. Hook on bar and pull strap tight. Make sure compartment door is properly closed.

SELECT REAR-FACING POSITION

▲ WARNING! REAR-FACING use of this Child Restraint is ONLY for children who meet ALL of the requirements shown here. If the child is not within these requirements because they are too small, select a different child seat (such as an infant car seat). If the child is not within these requirements because the child is too large, review the FORWARD-FACING guidelines on page 24.

• Chicco and the American Academy of Pediatrics recommend all children ride REAR-FACING until age 2 or they reach the weight/ height limits of this seat.
• NEVER turn this Child Restraint FORWARD-FACING with an infant less than one year of age.

SELECT REAR-FACING POSITION

REAR-FACING:

4 - 40 lbs (2 - 18 kg)

Use REAR-FACING with children:

• Who weigh between 4 and 40 lbs (2–18 kg).

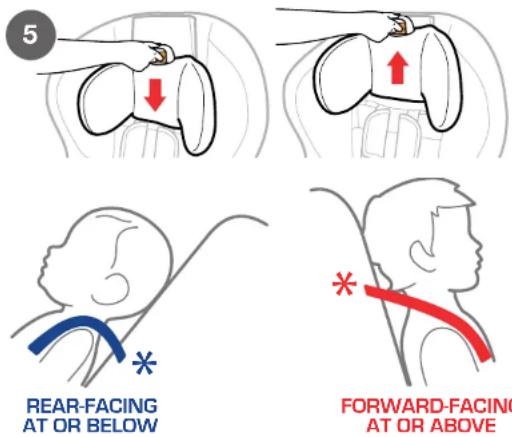

- When Harness Straps can be positioned at or below the child's shoulders*.

See Harness Height

Adjustment on page 86.

Line drawing of a person in a car seatbelt (no text or symbols)

SELECT FORWARD-FACING POSITION SELECT

▲ WARNING! FORWARD-FACING use of this Child Restraint is ONLY for children who meet ALL of the requirements shown here. If the child is not within these requirements because they are too large, select a different child seat. If the child is not within these requirements because the child is too small, review the REAR-FACING guidelines on page 22.

- Chicco and the American Academy of Pediatrics recommend that children ride REAR-FACING for as long as possible. For the best protection, keep the child rear-facing until the child no longer meets the requirements for REAR-FACING.

TION

FORWARD-FACING: 22 - 65 lbs (10 - 29 kg)

Use FORWARD-FACING with children:

• Who are at least one year old.
• Who weigh between 22 and 65 lbs (10 – 29 kg).
• Who are 49" (1245 mm) tall or less OR when the top of the ears are below the top of the Head Rest.
- When Harness Straps can be positioned at or above the child's shoulders*.

See Harness Height Adjustment on page 86.

Line drawing of a person sitting in a car seat (no text or symbols)

ADJUSTING CROTCH STRAP ADJU

Adjust Crotch Strap if strap is underneath child.

1 Unbuckle Harness Straps. Remove Crotch Strap Pad (Refer to page 100). Unzip the seat padding halfway (a). Pull seat pad to the side to access the Crotch Strap compartment (b).
2 Slide the button on the Crotch Strap lock while pulling up on the Crotch Strap to open the compartment (a, b). Then pull the Crotch Strap forward or backward into desired position.
3 Close the compartment by pushing down on the door until it locks back into place. Check to make sure compartment is locked by pulling up on the Crotch Strap. Re-attach the seat pad.

NEWBORN POSITIONER

⚠ WARNING - ONLY use the Newborn Positioner if the child's weighs between 4 and 11 lbs (2 and 5 kg).

To ensure a better fit for smaller infants the Newborn Positioner may be needed. Do NOT use any other infant insert or pillows. Only use the one provided by Chicco for this Child Restraint.

Remove Crotch Stap Pad before installing Newborn Positioner. Refer to page 100.

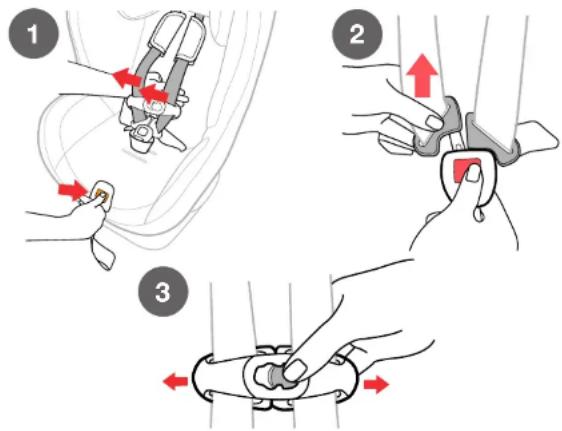

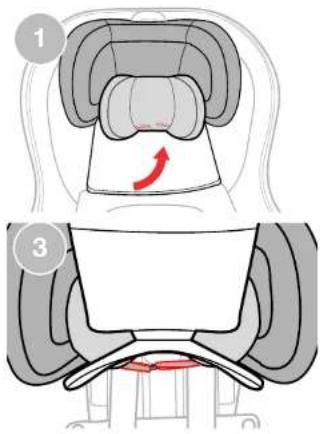

1 Pull Harness Buckle through slot in the bottom of Newborn Positioner.
2 Pull both Harness Straps over the side panels of Newborn Positioner.
3 Push Newborn Positioner firmly into Child Restraint(a) to make sure it is properly positioned (b).

Illustration of a hand pressing down on a car seatbelt component (no text or symbols)

NEWBORN POSITIONER

Illustration of a hand holding a medical device with a red arrow indicating rotation (no text or symbols)

Line drawing of a baby seat with a bandage and seatbelt, no text or symbols present

NEWBORN HEADREST

⚠ WARNING - ONLY use the Newborn Headrest if the child's weighs between 4 and 11 lbs (2 and 5 kg).

To ensure a better fit for smaller infants the Newborn Headrest may be needed. Do NOT use any other infant insert or pillows. Only use the one provided by Chicco for this Child Restraint.

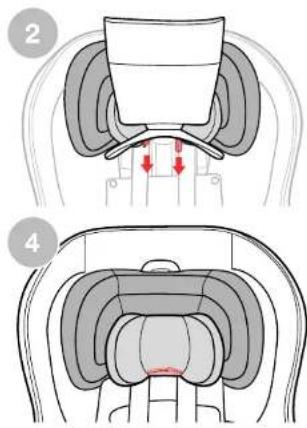

1 Place the Newborn Headrest on the Head Rest and fold the backrest fabric up over the Newborn Headrest.
2 Pull the elastic Straps down on either side of the fabric attaching the backrest pad to the headrest pad, as shown.
3 Connect the elastic Hook to the Strap.
4 Replace the backrest pad and harness straps.

NEWBORN HEADREST

VEHICLE SEATING POSITIONS VEHIC

▲ WARNING! WHEN USING THIS CHILD RESTRAINT REAR-FACING, DO NOT PLACE THIS CHILD RESTRAINT IN A VEHICLE SEATING LOCATION WITH A FRONTAL AIR BAG, UNLESS THE AIR BAG CAN BE TURNED OFF.

The back seat is the safest place for children 12 and under. See your vehicle owner's manual for Child Restraint installation and instructions.

Some vehicles have no seating positions which are compatible with this Child Restraint. If in doubt, contact the vehicle manufacturer for assistance. Only forward-facing vehicle seats can be used with this Child Restraint.

Make sure no more than 3 inches of the Child Restraint base is past the edge of the vehicle seat.

Do not use on a folded down vehicle seat back.

VEHICLE SEAT BELTS

The information in this section only applies to installation with vehicle seat belts.

For simplest installation use LATCH - Refer to page 36 for details.

Vehicle seat belts differ from vehicle to vehicle. Refer to your vehicle owner's manual for specific information about seat belts and their use with Child Restraints.

Shoulder belt with switchable retractor:

Putting the shoulder belt in the locked/switched mode as the last step is optional. The shoulder belt Lock-Off replaces the need for the locked/switched mode. When the Child Restraint is rear-facing using the locked/switched mode may cause Child Restraint to tilt.

VEHICLE SEAT BELTS

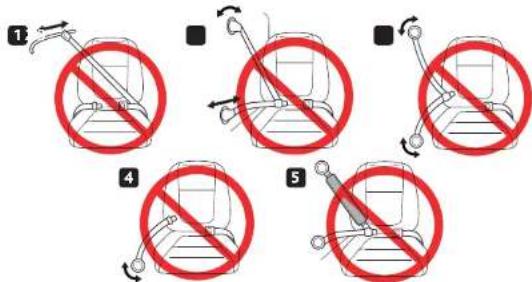

The following types of vehicle belts MUST NOT be used to install this Child Restraint. If any of the belt types listed below are in the chosen seating position, choose another vehicle seating position or use LATCH if available.

1. Motorized (automatic) vehicle belts.
2. Door mounted vehicle belts.
3. Lap-shoulder Belts with 2 retractors (unless Lap Belt has a "Lock Mode").

WHAT IS LATCH? WH

▲ WARNING: This Child Restraint is designed to be used with lower LATCH anchors at the standard spacing (11 inches) ONLY! Refer to vehicle owner's manual for information about LATCH and Child Restraint installation positions.

LATCH = Lower Anchors and Tethers for CHildren

United States Motor Vehicle Safety Standards have defined a system for installing Child Restraints in vehicles called LATCH. LATCH may ONLY be used IN PLACE OF vehicle belt if the vehicle is equipped with LATCH anchor points. DO NOT use both the seat belt and LATCH at the same time. Please refer to the vehicle owner's manual for designated LATCH locations in vehicles.

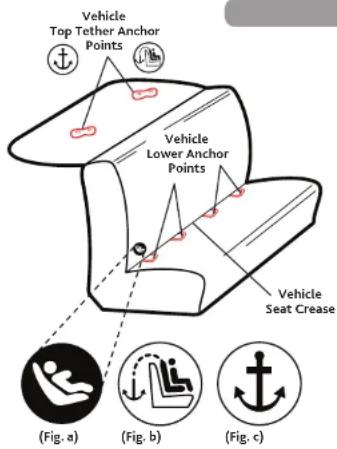

LATCH in the vehicle consists of a top tether anchor point and two lower anchor points. Some vehicles owner's manual use the term "ISOFIX". LATCH can also be used in vehicle seating positions equipped with ISOFIX.

If the vehicle is equipped with LATCH, the vehicle lower anchor points may be visible at the seat crease. If not visible, the seating position may be marked with a symbol (fig. a) or a colored dot. Check the vehicle owner's manual for vehicle top tether anchor locations. They may be identified using one of the anchor symbols (fig. b or fig. c).

WHAT IS A TETHER? W

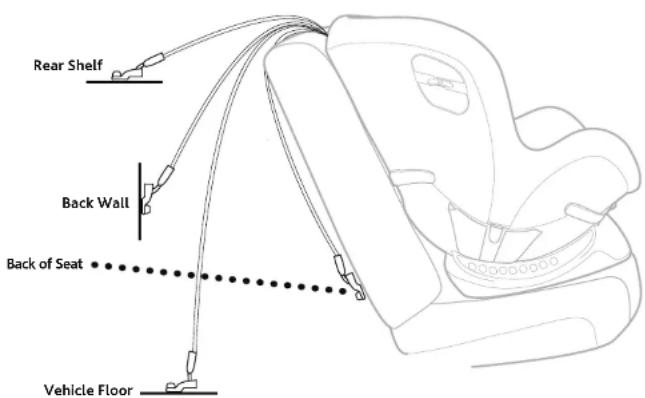

Tether anchor locations vary from vehicle to vehicle. Check your vehicle owner's manual and look for the tether anchor symbol as shown. A tether reduces movement of a forward facing child restraint in a crash and helps to achieve a tight installation.

Vehicle tether anchors can be found in many different locations. Some of the typical locations are shown here. Refer to your vehicle owner's manual for exact locations, anchor identification, and requirements.

REAR-FACING SETUP REAR-FACING

▲ Infants may have difficulty breathing when in a sitting position. Make sure the seat is reclined properly so that your child's head does not fall forward. Failure to properly recline the Child Restraint could increase the child's risk of serious injury or death.

1 See page 32 for "Vehicle Seating Positions" before installing. Make sure the vehicle is on a level surface, if possible.

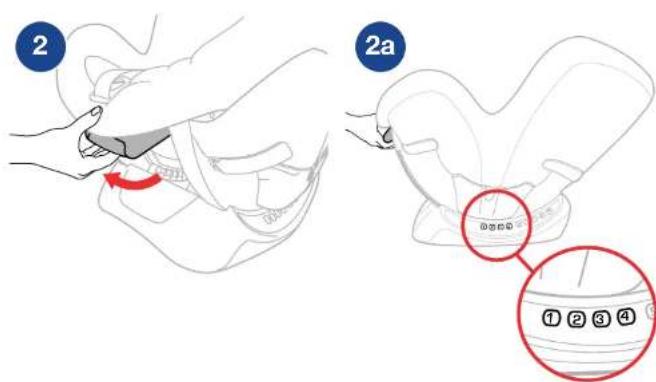

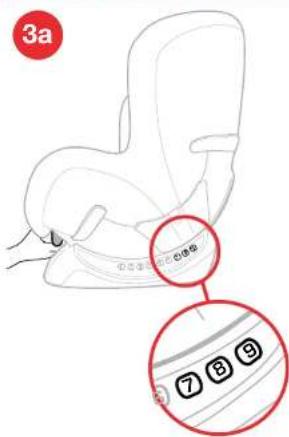

2 Squeeze the Recline Adjustment Handle on front of Child Restraint and pull forward to adjust to a reclined position as shown (a).

Do not use Tether in REAR-FACING mode. Tether must be properly stored - See "Tether Storage" page 20.

REAR-FACING SETUP REAR-FACING

3 Place Child Restraint rear-facing on selected vehicle seat. Make sure it is not blocking the vehicle belt buckle.

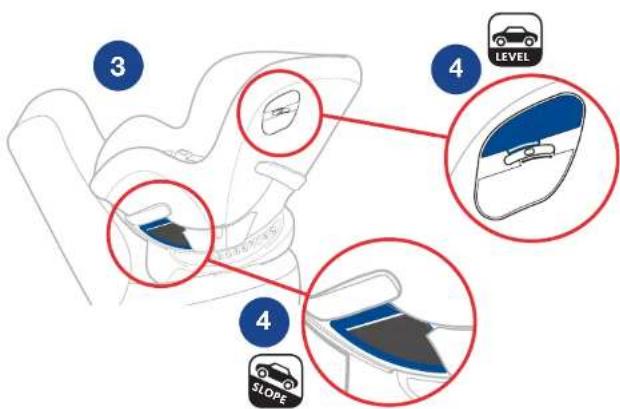

4 Installation on a Level Surface: Locate the Bubble Level Indicator and re-adjust the seat recline to any position that the Bubble falls between the lines for REAR-FACING installation.

Installation on a Slope: Locate the level line on the blue label the rear-facing belt path. Adjust the seat recline so that the line is level with the ground.

Installation Options:

• LATCH installation continued on page 44.
• Lap-Shoulder Belt installation continued on page 50.
• Lap Belt Only installation continued on page 56.

INSTALL USING LATCH

Do not use the lower anchors of the child restraint anchorage system (LATCH system) to attach this Child Restraint when restraining a child weighing more than 35 lbs (16 kg) with the internal harness of the child restraint.
When installing with LATCH, the unused seat belt should not be buckled behind the Child Restraint System as this will engage the inflatable portion of the belt.

1 Locate the LATCH Connector Storage compartments. Remove LATCH straps. Make sure SuperCinch™ LATCH Tightener strap (Pull 2nd) and LATCH Adjuster strap (Pull 1st) are loosened to their full length.

INSTALL USING LATCH

INSTALL USING LATCH

2 Grab both ends of LATCH straps. Slide LATCH strap to blue REAR-FACING opening on both sides. Note: Both LATCH Connector Storage compartments must be open and both LATCH straps must be loosened to their full length in order to slide LATCH straps into position.
3 Close both LATCH Connector Storage compartments.

When not accessing the LATCH or changing the belt path ALWAYS keep LATCH Connector Storage compartments closed.

INSTALL USING LATCH

Diagram of a car seatbelt buckle with a belt buckle and seatbelt (no text or symbols)

INSTALL USING LATCH INST

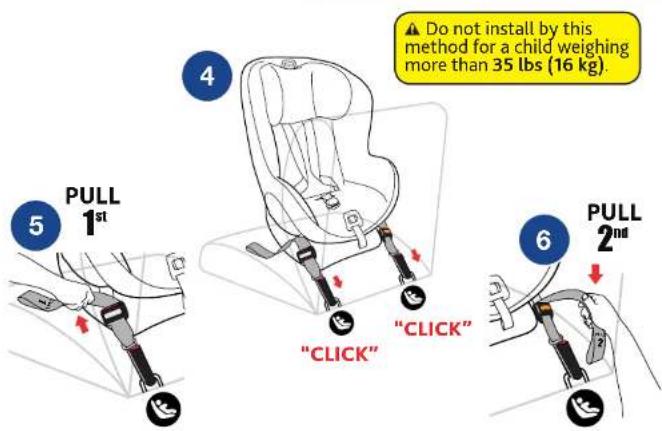

4 Locate the LATCH anchor bars in your vehicle. Attach both LATCH Connectors to the vehicle LATCH anchor bars.
5 Pull up on the end of the LATCH Adjuster strap (Pull 1st) until strap is tight.
6 Pull on the SuperCinch™ LATCH Tightener strap (Pull 2nd) to secure the Child Restraint.

CHECK YOUR WORK

√ Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side to side and forward. Child Restraint should not move more than 1" (25 mm) from vehicle seat back or side-to-side.
√ Make sure Child Restraint is level for REAR-FACING use. Make sure infant's head does not fall forward. If necessary, loosen the Latch Strap, re-adjust recline and repeat installation steps to make sure Child Restraint is installed properly.
√ Check installation before every use!

INSTALL USING LAP-SHOULDER BELT

1 Route vehicle lap-shoulder belt through the blue REAR-FACING seat belt path on the side of Child Restraint.

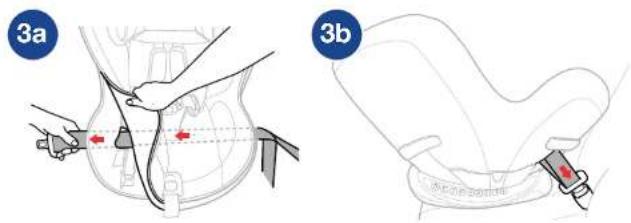

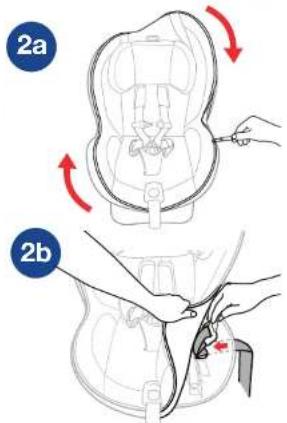

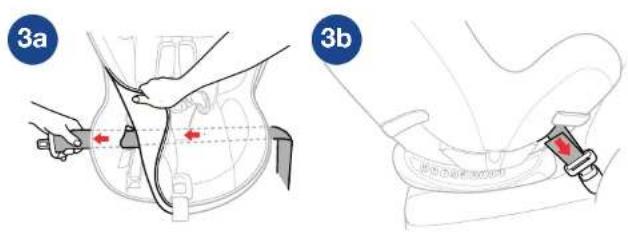

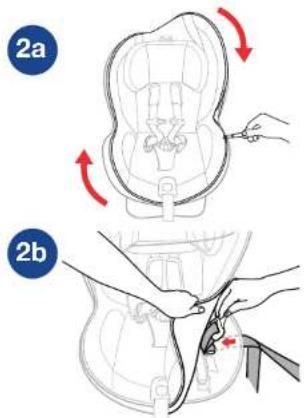

2 Unzip seat pad (a). Pull seat pad to the side and route the vehicle lap-shoulder belt through the blue REAR-FACING seat belt path on the side of Child Restraint (b).

INSTALL USING LAP-SHOULDER BELT

INSTALL USING LAP-SHOULDER BELT INST

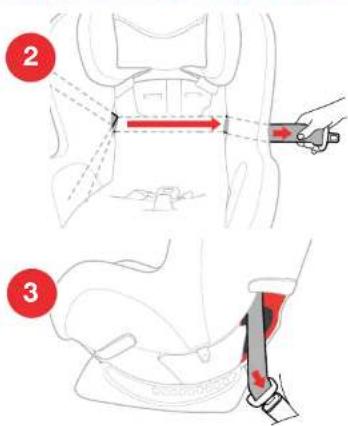

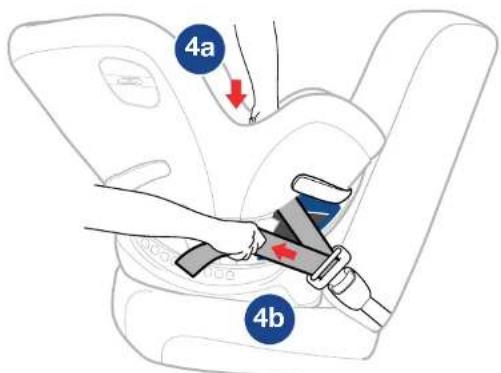

3 Route the vehicle belt UNDER the seat pad and behind the Crotch Strap, when Crotch Strap is located in forward position (a).

Pull vehicle belt down through the blue REAR-FACING seat belt path on opposite side of Child Restraint. Buckle the vehicle belt (b). Then re-attach the zippered seat pad.

INSTALL USING LAP-SHOULDER BELT INST

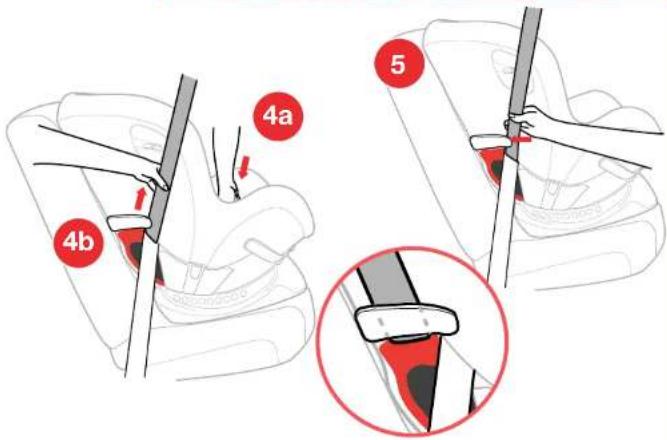

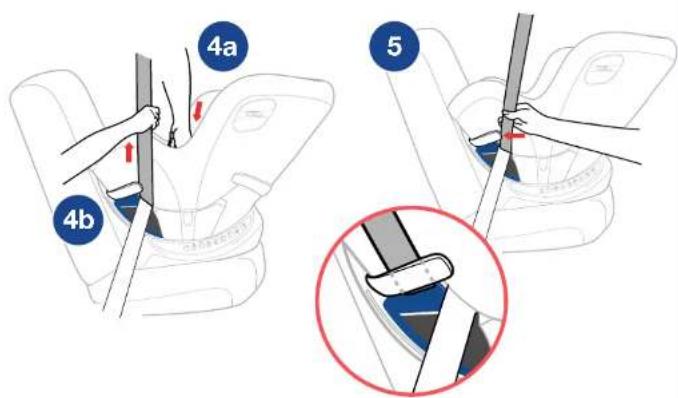

4 While pushing down on the Child Restraint (a) pull the vehicle shoulder belt (b) to tighten vehicle lap belt.
5 While still pulling the shoulder belt tight, slide the vehicle shoulder belt into the Lock-Off. Always use the Lock-Off on the opposite side of the vehicle belt buckle.

CHECK YOUR WORK

√ Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side to side and forward. Vehicle belt should remain tight and Child Restraint should not move more than 1" (25 mm) from vehicle seat back or side-to-side.
√ Make sure Child Restraint is level for REAR-FACING use. Make sure infant's head does not fall forward. If necessary, loosen the vehicle belt, re-adjust recline and repeat installation steps to make sure Child Restraint is installed properly.
√ Check installation before every use!

INSTALL USING LAP BELT ONLY

1 Route vehicle lap belt through the blue REAR-FACING seat belt path on the side of Child Restraint.
2 Unzip seat pad (a). Pull seat pad to the side and route the vehicle lap belt through the blue REAR-FACING seat belt path on the side of Child Restraint (b).

INSTALL USING LAP BELT ONLY

INSTALL USING LAP BELT ONLY INS

3 Route the vehicle belt UNDER the seat pad and behind the Crotch Strap, when Crotch Strap is located in forward position (a).

Pull vehicle belt down through the blue REAR-FACING seat belt path on opposite side of Child Restraint. Buckle the vehicle belt (b). Then re-attach the zippered seat pad.

INSTALL USING LAP BELT ONLY INS

4 While pushing down on the Child Restraint (a) pull the loose end of the vehicle lap belt (b) to tighten belt.

CHECK YOUR WORK

√ Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side to side and forward. Vehicle belt should remain tight and Child Restraint should not move more than 1" (25 mm) from vehicle seat back or side-to-side.
√ Make sure Child Restraint is level for REAR-FACING use. Make sure infant's head does not fall forward. If necessary, loosen the vehicle belt, re-adjust recline and repeat installation steps to make sure Child Restraint is installed properly.
√ Check installation before every use!

FORWARD-FACING SETUP

1 IF TETHER ANCHOR IS AVAILABLE IN YOUR VEHICLE - Before placing the Child Restraint in the vehicle, remove Tether from the tether compartment. If a tether anchor is not available, the Tether should be stored properly.
2 See page 32 for "Vehicle Seating Positions" before installing. Make sure the vehicle is on a level surface, if possible.

3 Squeeze the Recline Adjustment Handle on front of Child Restraint and push back to adjust to an upright position as shown (a).

FORWARD-FACING SETUP

Illustration of a hand pressing down on a car seatbelt, showing the grip and seat area (no text or symbols)

FORWARD-FACING SETUP

4 Place Child Restraint facing forward on selected vehicle seat. Make sure it is not blocking the vehicle belt buckle. Lay Tether Strap over the back of the vehicle seat.

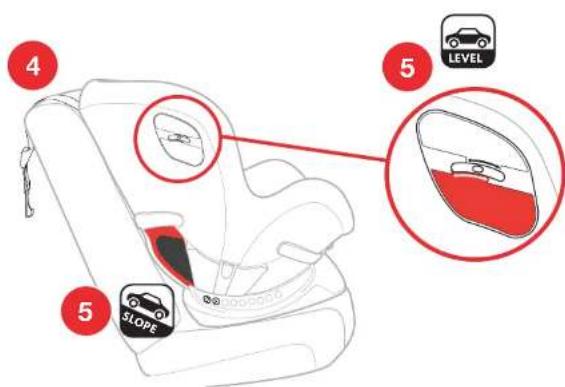

5 Installation on a Level Surface: Locate the Bubble Level Indicator and re-adjust the seat recline to any position that the Bubble falls between the lines for FORWARD-FACING installation.

Installation on a Slope: If vehicle is on a slope adjust the seat to position 8 or 9 ONLY.

Installation Options:

• LATCH installation continued on page 66.
• Lap-Shoulder Belt installation continued on page 72.
• Lap Belt Only installation continued on page 78.

FORWARD-FACING SETUP

INSTALL USING LATCH

Do not use the lower anchors of the child restraint anchorage system (LATCH system) to attach this Child Restraint when restraining a child weighing more than 40 lbs (18 kg) with the internal harness of the child restraint.
When installing with LATCH, the unused seat belt should not be buckled behind the Child Restraint System as this will engage the inflatable portion of the belt.

1 Locate LATCH Connector Storage compartments. Remove LATCH straps. Make sure SuperCinch™ LATCH Tightener strap (Pull 2nd) and LATCH Adjuster strap (Pull 1st) are loosened to their full length.
2 Grab both ends of LATCH straps. Slide LATCH strap to red FORWARD-FACING opening on both sides. Note: Both LATCH Connector Storage compartments must be open and both LATCH straps must be loosened to their full length in order to slide LATCH straps into position.
3 Close both LATCH Connector Storage compartments.

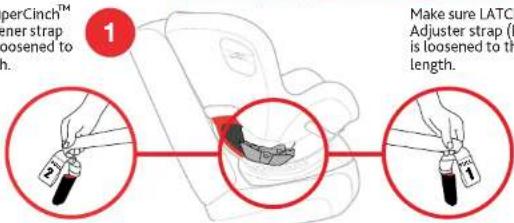

Make sure SuperCinch™ LATCH Tightener strap (Pull 2nd) is loosened to the full length.

INSTALL USING LATCH

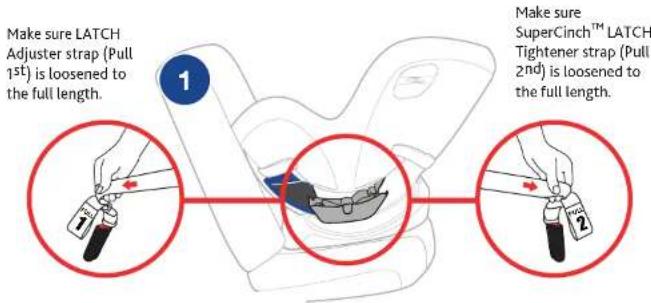

Make sure LATCH Adjuster strap (Pull 1 ^st ) is loosened to the full length.

INSTALL USING LATCH

When not accessing the LATCH or changing the belt path ALWAYS keep LATCH Connector Storage compartments closed.

4 Locate the LATCH anchor bars in your vehicle. Attach both LATCH Connectors to the vehicle LATCH anchor bars.
5 Pull up on the end of the LATCH Adjuster strap (Pull Pt) until strap is tight.
6 Pull on the SuperCinch™ LATCH Tightener strap (Pull 2nd) to secure Child Restraint.

Do not install by this method for a child weighing more than 40 lbs (18 kg).

INSTALL USING LATCH

INSTALL USING LATCH

7 Locate Tether anchor in your vehicle. Attach Tether Hook. Pull Tether Adjuster strap to tighten.

CHECK YOUR WORK

√ Hold Child Restraint at each side near FORWARD-FACING vehicle belt path. Pull side to side and forward. Child Restraint should not move more than 1" (25 mm) from vehicle seat back or side-to-side.
√ Make sure Bubble is between lines on label for FORWARD-FACING use. If necessary, loosen the LATCH and Tether Straps, re-adjust recline and repeat installation steps to make sure Child Restraint is installed properly.
√ Check installation before every use!

INSTALL USING LATCH

INSTALL USING LAP-SHOULDER BELT

1 Route vehicle lap-shoulder belt through the red FORWARD-FACING seat belt path on the side of Child Restraint. Lift the padding on the back of the seat and pull the vehicle belt through the opening on the side of Child Restraint.
2 Pass the vehicle belt along the back of the Child Restraint as shown.
3 Pull the vehicle belt down through the red FORWARD-FACING seat belt path on the opposite side of Child Restraint. Buckle the vehicle belt. Replace the seat back padding.

INSTALL USING LAP-SHOULDER BELT

INSTALL USING LAP-SHOULDER BELT

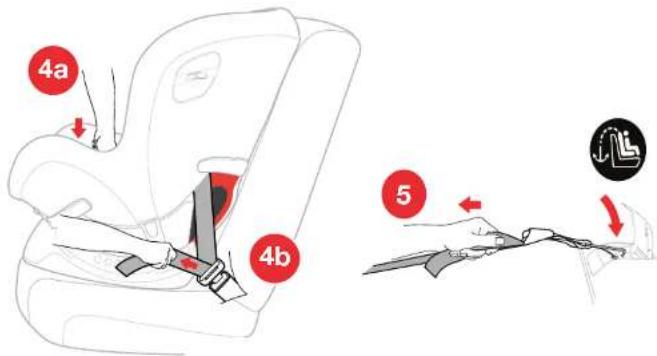

4 While pushing down on the Child Restraint (a) pull the vehicle shoulder belt (b) to tighten vehicle lap belt.
5 While still pulling the shoulder belt tight, slide the vehicle shoulder belt into the Lock-Off. Always use the Lock-Off on the opposite side of the vehicle belt buckle.

INSTALL USING LAP-SHOULDER BELT

INSTALL USING LAP-SHOULDER BELT

Locate Tether anchor in your vehicle. Attach Tether Hook. Pull Tether Adjuster strap to tighten.

CHECK YOUR WORK

√ Hold Child Restraint at each side near FORWARD-FACING vehicle belt path. Pull side to side and forward. Vehicle belt should remain tight and Child Restraint should not move more than 1" (25 mm) from vehicle seat back or side-to-side.
√ Make sure Bubble is between lines on label for FORWARD-FACING use. If necessary, loosen the vehicle belt and Tether, re-adjust recline and repeat installation steps to make sure Child Restraint is installed properly.
√ Check installation before every use!

INSTALL USING LAP-SHOULDER BELT

INSTALL USING LAP BELT ONLY

1 Route vehicle lap belt through the red FORWARD-FACING seat belt path on the side of Child Restraint. Lift the padding on the back of the seat and pull the vehicle belt through the opening on the side of the Child Restraint.
2 Pass the vehicle belt along the back of the Child Restraint as shown.
3 Pull the vehicle belt down through the red FORWARD-FACING seat belt path on the opposite side of Child Restraint. Buckle the vehicle belt. Replace the seat back padding.

INSTALL USING LAP BELT ONLY

INSTALL USING LAP BELT ONLY

4 While pushing down on the Child Restraint (a) pull the loose end of the vehicle lap belt (b) to tighten.
5 Locate Tether anchor in your vehicle. Attach Tether Hook. Pull Tether Adjuster strap to tighten.

CHECK YOUR WORK

√ Hold Child Restraint at each side near FORWARD-FACING vehicle belt path. Pull side to side and forward. Vehicle belt should remain tight and Child Restraint should not move more than 1" (25 mm) from vehicle seat back or side-to-side.
√ Make sure Bubble is between lines on label for FORWARD-FACING use. If necessary, loosen the vehicle belt and Tether, re-adjust recline and repeat installation steps to make sure Child Restraint is installed properly.
√ Check installation before every use!

INSTALL USING LAP BELT ONLY

SECURING CHILD WITH HARNESS SECURING

For a better fit in the Child Restraint with smaller infants, the Newborn Positioner and Newborn Headrest provided may be needed. See page 28 and 30 for more details. Additionally, waist belt pads, crotch strap pads, and shoulder pads may need to be removed.

If Crotch Strap is under child, the crotch strap will need to be re-positioned, refer to page 26 "Adjusting Crotch Strap".

1 Loosen Harness by pressing Harness Release Button on the front of the Child Restraint and pulling forward on both of the Harness Straps.
2 Unbuckle Harness by pressing the button on Harness Buckle and pulling out both Buckle Tongues.
3 Open Chest Clip by squeezing the button in the middle of the clip and pulling apart.

WITH HARNESS

SECURING CHILD WITH HARNESS SECURING

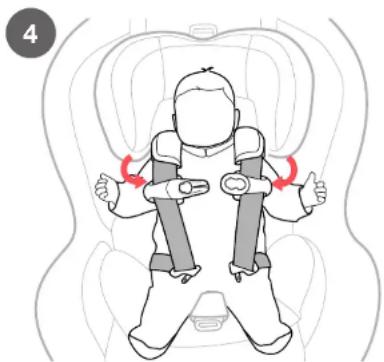

4 Place child in Child Restraint with child's back flat against the back of the seat. Pull Harness Straps over the child's shoulders and around the child's waist. Make sure there are no twists in Harness Strap.

If the child is wearing cold weather clothing, give extra attention to adjusting the Harness - Make sure the Harness Straps lie flat on the child's shoulders, are adjusted snugly so that the clothing is compressed and the child cannot lean forward, and the Chest Clip is at armpit level. Clothing that interferes with the proper placement or adjustment of the Harness system should never be used.

WITH HARNESS

Line drawing of a person in a car seat with hands and arrows indicating movement or pressure points (no text or symbols)

SECURING CHILD WITH HARNESS SECURING

5 Adjust Harness Strap height position up or down by squeezing Adjustment Handle on top of Head Rest. Make sure Head Rest locks into position before tightening Harness.

REAR-FACING POSITION - Position the Harness Straps at or below the child's shoulders.

FORWARD-FACING POSITION - Position the Harness Straps at or above the child's shoulders.

If using lowest Head Rest/Harness Position, make sure the seat back padding panel is folded under.

WITH HARNESS

SECURING CHILD WITH HARNESS SECURING

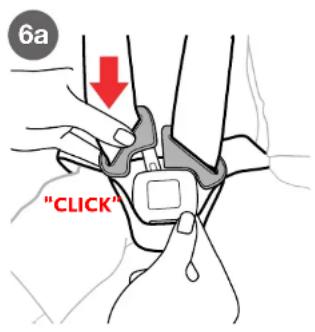

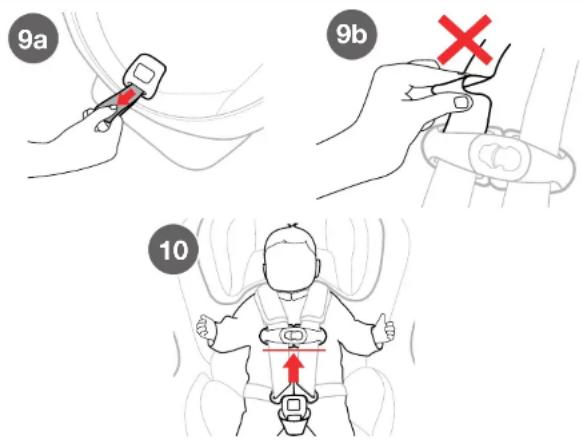

6 Insert each Buckle Tongue into Harness Buckle; listen for a click (a). Pull up firmly on both Buckle Tongues to make sure that they are securely latched (b).

WITH HARNESS

Illustration of a hand holding a small object with a red arrow indicating upward motion (no text or symbols present)

SECURING CHILD WITH HARNESS SECURING

7 Fasten Chest Clip by snapping both sides together; listen for a click.

Harness straps must fit snugly and lay flat on the center of your child's shoulders.

8 Push Chest Clip and Shoulder Pads down away from the child's neck and towards the Harness Buckle. Pull up on both shoulder straps to remove all slack from below.

WITH HARNESS

SECURING CHILD WITH HARNESS SECURING

9 Tighten the harness by pulling slowly on Harness Adjustment Strap until the harness is snug on child (a). If you can pinch a fold in the strap at the child's shoulders, harness is too loose (b). If the harness is too loose pull the Harness Adjustment strap more.

10 Move the Shoulder Pads up to the child's shoulders. Slide Chest Clip up to center of child's chest, level with the armpits.

⚠ WARNING - If harness is not snug around your child, child could be ejected in a sudden stop or crash resulting in serious injury or death.

WITH HARNESS

SECURING CHILD CHECKLIST SECURING CHI

√ Harness Straps must be snug. If you can pinch a fold in the strap, the harness is too loose. A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child's flesh or push the child's body into an unnatural position.

√ To ensure a better fit for smaller infants, the Newborn Positioner and Newborn Headrest may be needed. Never place extra padding under or behind the child. Only use the Newborn Positioner and Newborn Headrest provided.
√ Straps must lay flat, free of twists and centered on top of the child's shoulders.
√ Check the height of the Harness Straps: Position the Harness Straps at or below the child's shoulders for REAR-FACING and at or above the child's shoulders for FORWARD-FACING.

REAR-FACING

FORWARD-FACING

ECKLIST

√ Check the position of Chest Clip: Chest Clip should be centered on the child's chest, level with the armpits.
√ Never secure child in Child Restraint with child dressed in bulky garments or heavy clothing. Heavy clothing can prevent harness from being properly tightened around child.
√ Never secure child in Child Restraint with child wrapped in a blanket. To keep child warm, place a blanket over child AFTER you have properly secured and tightened harness around child.

NO Bulky Clothing

⚠ WARNING - If harness is not snug around your child, child could be ejected in a sudden stop or crash resulting in serious injury or death.

INSTALLATION ON AN AIRCRAFT

When traveling by airplane with your child, Chicco recommends taking the Child Restraint on the airplane with you so that you can use it with your child. Not only will it protect your child during take-off, landing, and turbulence, but also allow your child to be more comfortable.

• This Child Restraint is certified for use on aircraft. Contact the airline prior to travel to discuss their Child Restraint policy.
• Install Child Restraint on an aircraft the same way it is installed in a vehicle when using a vehicle lap belt. Reference Rear-Facing on page 56 or Forward-Facing on page 78.

PAGE INTENTIONALLY LEFT BLANK

CUP HOLDER CUP

▲ WARNING - PLASTIC CONTAINERS ONLY - No glass or metal containers. Only use cups with less than 12 oz. capacity. Never place sharp or pointed objects in Cup Holder. In a crash these objects could hit you or your child and cause serious injuries.

1 Slide Cup Holder into either side of Child Restraint where indicated by the Cup Holder icon.

Line drawing of a hand holding a tool with a red arrow indicating direction (no text or symbols)

CLEANING AND MAINTENANCE

REMOVING SHOULDER PADS:

1 Unhook the hook and loop and remove Shoulder Pads as shown.

INSTALL SHOULDER PADS:

2 Re-attach Shoulder Pads by folding the hook and loop Tab over the Harness Strap (a). Secure both hook and loop Tabs together (b). Make sure they are oriented as shown (c).

REMOVING CROTCH STRAP PAD:

3 Locate the Tab on the Crotch Strap Pad and push it through the Harness Buckle (a). Pull the Tab out through the front of the Harness Buckle (b) and remove the Crotch Strap Pad (c).

CLEANING AND MAINTENANCE

12

CLEANING AND MAINTENANCE

REMOVING WAIST BELT PADS:

4 Unbuckle the Harness. Unhook the hook and loop on both of the Waist Belt Pads.
5 Unsnap Seat Bottom Panel and pull forward (b).
6 Remove the Waist Belt Pads.

CLEANING AND MAINTENANCE

CLEANING AND MAINTENANCE

REMOVING SOFTGOODS:

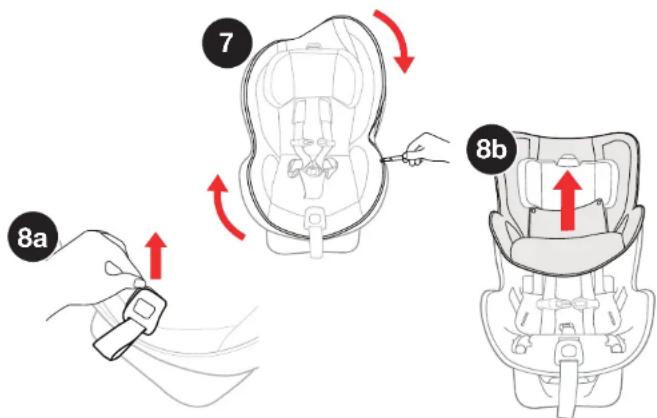

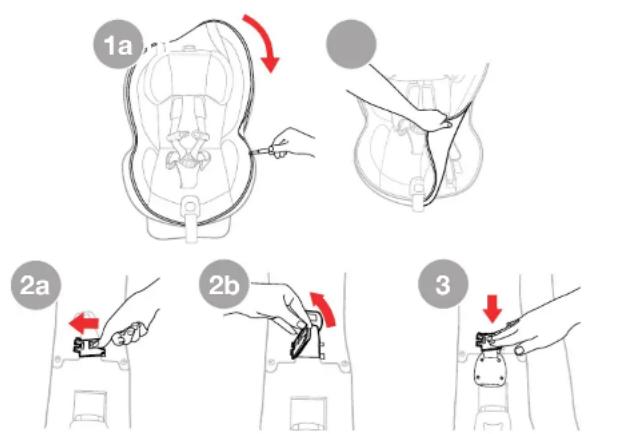

7 Locate the Zipper Tab at the top of the Child Restraint and unzip all the way around.
8 Pull Seat Pad away from the Harness Release button (a). Carefully pull the Seat Pad away from the Child Restraint (b).

INSTALL SOFTGOODS:

9 Reverse the removing instructions above to reinstall.

▲ NEVER use Child Restraint without the Seat Pad.

CLEANING AND MAINTENANCE

CLEANING AND MAINTENANCE

REMOVING CROTCH STRAP:

1 Fully recline the seat (position 1). Slide the button on the Crotch Strap lock while pulling up on the Crotch Strap to open the compartment (a). Turn metal bar slightly on underside of seat and get corner to go through slot (b). Push metal bar through slot while pulling crotch belt out (c).

▲ NEVER use Child Restraint without the Crotch Strap installed.

INSTALL CROTCH STRAP:

2 Reverse the removing instructions above to reinstall.

▲ DO NOT USE Child Restraint if any part of the harness is damaged. For proper removal and installation of the harness straps visit the Chicco website at www.chiccousa.com or call 1-877-424-4226.

CLEANING AND MAINTENANCE

CLEANING AND MAINTENANCE

▲ DO NOT USE BLEACH, solvents or household cleaners as they may weaken plastics and straps.

▲ DO NOT USE SOAPS OR LUBRICANTS on Harness Adjuster Strap, Buckle, and LATCH hardware. It may cause them to malfunction.

• Fabrics may be spot-cleaned:

Hand wash using mild soap and water, or machine washed in cold water on delicate cycle using mild detergent. Hang to dry. See page 100 for removal instructions.

▲ NEVER use Child Restraint without the seat pad.

- Cleaning Shoulder Pads:

Hand wash using mild soap and water. Hang to dry.

- Cleaning Plastics:

Sponge clean using warm water and mild soap. Towel dry.

For softgood removal instructions visit the Chicco website at www.chiccousa.com or call 1-877-424-4226.

CLEANING AND MAINTENANCE

- Cleaning Cup Holder:

Cup Holder is dishwasher safe on top rack only.

- Cleaning Harness:

Sponge clean using warm water and mild soap. Air dry. Do NOT machine wash.

▲ DO NOT USE Child Restraint if any part of the harness is damaged. For proper removal and installation of the harness straps visit the Chicco website at www.chiccousa.com or call 1-877-424-4226.

- Cleaning LATCH and Adjuster Strap:

LATCH Straps cannot be replaced. Sponge clean using warm water only. Air dry.

• Cleaning Buckle and LATCH Hardware:

Sponge clean, using warm water only. If debris is in buckle, remove and rinse in warm cup of water only. Air dry. See page 106 for removal instructions.

Do NOT remove LATCH or Adjuster Straps. For additional information visit the Chicco website at www.chiccousa.com or call 1-877-424-4226.
