Product Type	Fan Heater with Fireplace Display
Brand	Gorenje
Model	HF2000L (also HF2000L fire)
Dimensions (H x W x D)	830 mm x 260 mm x 260 mm
Weight	Approximately 5 kg
Power Supply	220-240 V ~ 50/60 Hz
Rated Power (Nominal)	2000 W
Minimum Heat Output	1300 W
Maximum Continuous Heat Output	2000 W
Noise Level	≤ 50 dB
Heating Element	PTC Ceramic
Temperature Range	15°C to 35°C
Timer	1 to 24 hours
Fan Types	DC fan (low noise, high efficiency)
Modes	Low/High Power, ECO mode, Swing, Fireplace Display
Remote Control	Infrared, with CR2032 battery
Display	LED with auto-dim after 1 minute
Safety Features	Tip-over switch, double overheat protection (thermistor + temperature fuse), overheat sensor (EE display if >60°C)
Installation	Free-standing, not for recessed installation
Cleaning	Wipe with soft cloth and mild detergent (water <50°C); do not use gasoline or thinner
Repairability	No user-serviceable parts; contact authorized service center
Standby Power Consumption	0.000 kW (as per energy label)

Frequently Asked Questions - HF2000L GORENJE

How do I install the base on the heater?

Place the heater on a desktop with the bottom exposed. Connect the base to the heater by aligning and pressing until it clicks into place.

How do I turn on the heater?

First, press the power switch on the back of the device to turn it on. Then, press the power button on the control panel or remote to start heating. The display will count down from 10 to 0 before the heater turns off when shutting down.

How do I set the timer?

In working condition, press the timer +/- buttons. The LED will show 'H' for hour. Press +/- to set the time from 0 to 24 hours. After 5 seconds of no operation, the setting is saved. The timer counts down and the unit turns off when it reaches 0.

What does the ECO mode do?

ECO mode sets a default temperature of 22°C. If the room temperature is below 18°C, the heater runs at high power; between 18°C and 22°C, it runs at low power; above 22°C, the heating element turns off. The fan continues until 10 seconds after heating stops.

How do I replace the remote control battery?

Remove the battery panel at the back of the remote. Insert a CR2032 battery, observing polarity. Slide the panel back into place. Dispose of old batteries properly.

What does the 'EE' error code mean?

The 'EE' code indicates that the internal temperature sensor has detected a temperature above 60°C. The heater will stop heating and you cannot set the temperature until it cools down. This is a safety protection.

Can I use the heater in a bathroom?

No, the manual states: Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. It is not suitable for damp or wet locations.

How do I clean the heater?

Always unplug the heater and let it cool completely before cleaning. Use a soft cloth slightly dampened with water (below 50°C) and mild neutral detergent. Wipe the surface gently. Do not use gasoline, thinner, or abrasive chemicals.

The heater turns off automatically when knocked over?

Yes, the heater has a tip-over switch inside. If the machine falls down, it will automatically disconnect power for safety.

What is the fireplace display?

The fireplace display is a LED flame effect that simulates a real fire. It can be turned on/off using the fireplace button on the control panel or remote. The display also has a swing function for a more realistic look.

USER MANUAL HF2000L GORENJE

Black cylindrical electronic device with a red flame symbol on its side, no visible text or labels.

HF2000L fire

INSTRUCTIONS FOR USE

NAVODILA ZA UPORABO

UPUTSTVO ZA UPOTREBU

UPUTSTVO ZA UPOTREBU

This product is only suitable for well insulated spaces or occasional use.

SAFETY WARNING AND NOTICE

In order to use the product more conveniently and avoid any danger caused by wrong operation, please pay close attention to the warnings and instructions in this manual.

1. This appliance can only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children of less than 3 years should be kept away unless continuously supervised.

3. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

4. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. WARNING: In order to avoid overheating, do not cover the heater.

7. The heater must not be located immediately below a socket outlet.

8. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

9. The fan heater can only be used under supervision.

10. The air input/output must never be covered. Keep a distance of at least 1 m in front and 50 cm behind the fan.

11. With any indication of malfunction, contact service center repairs. Do not attempt to disassemble the product or replace faulty parts with unauthorized components because it will damage the unit.

12. Disassemble and transformation without authorized will affect the safety of the product.

13. Please don't touch the plug by wet hands, it may lead to electric shock.

14. Please don't put the wood or metal stick into the air inlet or outlet. it may lead to electric shock, or product damage.

15. Do not use pesticide or other flammable spray around the product, as it will damage the device.

16. Please don't have the wind blow to the children directly for a long time, it may influence the children's health.

17. Please do not pull out the power plug by pulling the power cord, it may cause the power cord damage or electric shock.

18. Make sure there is no abnormal items in the wire, and the plug is absolutely plug in, otherwise it will cause creepage.

19. If there is abnormal smell or noise when uses the product, please stop using and pull out the power cord immediately.

20. Do not operate the appliance with a damaged cord or plug. Send the heater to a suitably qualified or appointed service agent for inspection and repair.

21. Please don't put heavy unit onto the power cord or fold the power cord, it may lead to electric shock.

22. If not use the device for a long period, please disconnect the plug.

23. Should avoid using the device, if there is any child or animal or disable people or people who is lack of self-control.

24. Using the power outlet that meets the inspection requirements and the carrying capacity of the socket is no less than 10A/230V.

25. Ensure the power supply voltage is consistent with the specified voltage in the machine (220-240VAC).

26. Make sure the service voltage when relocation.

27. Do not use the device directly below a power outlet.

28. When using the heater, keep combustible materials or explosive objective, away from heater.

29. In order to avoid overheating, do not cover the heater.

30. Never place any objects in the device.

PRODUCT FEATURES

1. PTC ceramic heating element, change the power automatically according to the variation of the ambient temperature. No oxidation characteristics bring the product longer service life.

2. High or low power optional.

3. Set timer on a range from 1H to 24H.

4. With temperature setting from 15^ C to 35^ C.

5. Using DC fan, which made the device with high thermal efficiency and low noise

6. Tip-over safety protection, double over-heating protection (Thermistor, temperature fuse), use more safely.

7. Convenient operation with infrared remote control function.

8. With swing function.

9. LED will turn dark automatically after 1 minute without operation, to save energy and power.

10. Fireplace display.

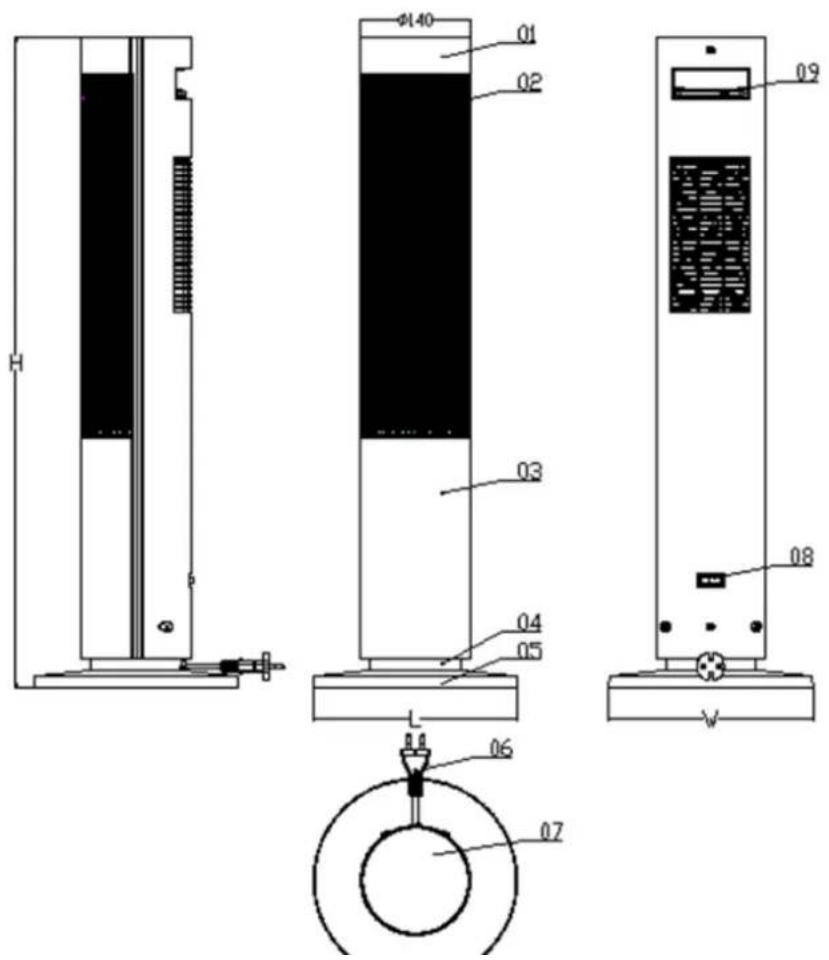

COMPONENTS DESCRIPTION

- Product structure

1. Front cover

2. Wind outlet

3. Fireplace display window

4. Swing holder

5. Base

6. Power cord

7. Control panel

8. Power switch

9. Remote control

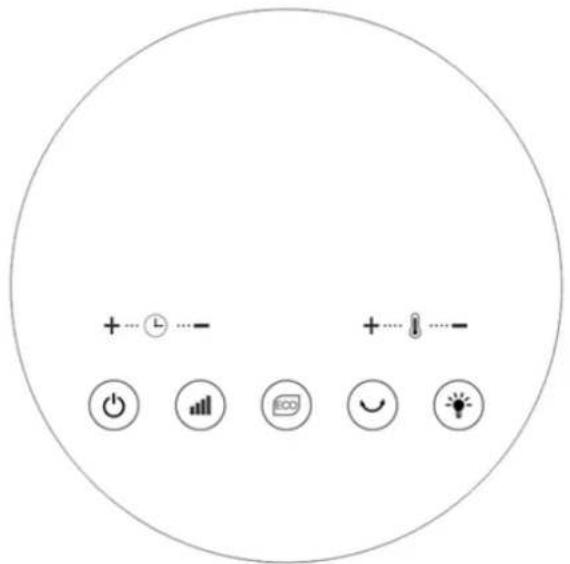

- Control panel - Display panel

• Remote control operation panel


PRODUCT OPERATION INTRODUCTION

- Installation method

1. Take the devices out of the bubble bag, including the following three parts; heater, base, remote controller.
2. Put the heater on a desktop, with the bottom reaching out. Connect the base with the heater.
3. Press Power switch which is in the back of the device to turn on.

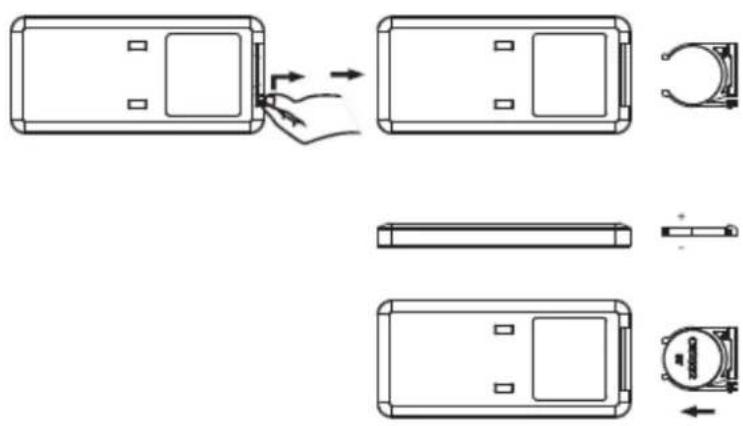

- Remote control operation panel

1. Pull out the battery panel at the back side of remote control.
2. Pay attention to the battery polarity, and insert the battery(CR2032) to the tray of the panel.
3. Push the battery panel into the remote control.
4. The batteries contain materials, which are hazardous to the environment; they must be removed from the appliance before it is scrapped and that they are disposed of safely.

• The function of buttons

As long as the heater is in working condition, the fan is in working state. If the heater stops working, then fan will stop working after 10s.

working, then fan will stop working after 10s.

1. After connecting to power supply and switching on the power, you will hear a "BiBi" sound, the heater enters to Standby Mode. The power indicator Led_ lights up.

2. Under standby model, press key to turn on/off the heater, the display panel will countdown the heater (from 10 to 0 second) after turning off the machine.

3. The default setting after turn on shows as below:

a. heater: low power, Led lights up.
b. swing: off, Led_lights off.
c. timer: 0h, Led_lights off.
d. fan: turned on.
e. temperature setting: the default temperature setting is 25°C.
f. fireplace display: turned on, Led lights up.
g. ECO: turned off, Led_fights off.

1. In working condition, press to shift the power between low level and high level.

a. Low power: Led lights up.
b. High power: Led lights up.

1. In working condition, press key to enter into the ECO mode, Led_ lights up, press it again to quit this mode.

a. ECO mode: the default temperature setting is 22^ C, when the room temperature is lower than 18^ C, the machine works with high power; when the room temperature is between 18^ C and 22^ C, the machine works with low power. When the room temperature is above 22^ C, the heating element will be turned off.
b. when the ECO function is operating, the button is not active.
c. when the room temperature is above 22^ C, the heater and swing function will also be turned off.

1. In working condition, press button to turn on/off the swing function, Led_ will light up/off accordingly.

2. In working condition, press or button to set the timer.

a. timer: press +--- or Ⓛ---key, and Led_h will display, press +/- key to set the timer (within a range of 0-24 hours), the time will increase or decrease 1h for every press.
b. After entering into timer by pressing +… or Ⓤ… = button, the time you set before will not be changed. But you can reset the time by pressing +/-key, no operation to the keys after 5 seconds and the time that you have reset will be effective at once.
c. If there is no operation to the keys after 5 seconds or press other keys except +/- .the display panel will shift to show the setting temperature immediately.
d. When time was set except "0", it will decrease 1h per time, if the timer turns to value 0, then the device will turn off at once, and enter into standby mode.
e. If the timer set as "0", it means that no timer is set.

1. In working condition, press or button to set the temperature.

a. Temperature setting function: press +··· or 8···—key, and Led_SET°C will display, press +/- key to set the temperature, The range of the temperature is from 15°C to 35°C, the temperature will increase or decrease 1°C for every press.
b. After entering into temperature setting by pressing +… or 8 …—button, the temperature you set before will not be changed. You can reset the temperature by pressing +/-key, no operation to the keys after 5 seconds and the temperature that you have reset will be effective at once.

1. When both the time and temperature are set, the LED display shows the setting temperature and timer display interactively for each 30 seconds. When the time is not set, it only shows the setting temperature.

2. When turn on the heater or under standby mode, press 📋 button to turn on/off the fireplace function, the LED will light up/off accordingly.

a. turn on fireplace function : fireplace motor works, Led_lights up,
b. turn off fireplace function : fireplace motor stops to work, Led_ lights off。

1. Memory function in standby mode:

a. When the heater is turned on except the first time, and under the standby mode, press key, and the unit will memorize the previous settings(except timer setting) of last using and work accordingly.

1. After working for 1 minute, the brightness of the LED display will reduce to 1/3 of the normal brightness, in order to avoid the problem of LED display dazzling at night. It will resume to the normal brightness after operation.

2. There is a tip-over switch inside the heater, it will disconnect the heater automatically if the machine falls down on the ground.

3. Remarks:

a. when the heater sensor is activated (temperature is above 60°), the LED will display "EE", and can not set the temperature at the moment.
b. When the environment temperature lower than -10°C, the LED will display "LO"

c. When the environment temperature higher than 40^ C, the LED will display "HI"

MAINTENANCE AND CLEANING

• Please must turn off the power and pull out the plug before cleaning, otherwise, it's possible to cause electric shock.
• Before maintaining, please pull out the plug, and make sure the heater has become cool.
• Please use soft cloth to wipe the dust on the heater's surface; If the surface is very dirty, use a soft cloth to wipe it with the water lower than 50°C mixed with neutral detergent.
• Don't use the gasoline, thinner or other chemicals that can damage the surface.
• Before storing this heater, let it cool down and place in a dry and ventilated area.
• Warning: any other servicing should be performed by an authorized service representative

TECHNICAL PARAMETERS

Model NO.	HF2000L fire
Voltage	220-240V~
Frequency	50-60Hz
Power	2000 W
Noise level.	≤50 dB
Dimensions	260mm*260mm*830mm
Standard	IEC/EN60335-1; IEC/EN60335-2-30

ENVIRONMENTAL PROTECTION

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Table 2
Information requirements for electric local space heaters

Model identifier(s):HF2000L fire
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2.0	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	1.3	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	2.0	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption	---	---	---	fan assisted heat output	No
At nominal heat output	elmax	1.947	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	1.280	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	0.000	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control with electronic room temperature control	No
				with electronic room temperature control	Yes
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Gorenje d.d., Partizanska 12, 3320 Velenje
