Product Type	Riding Lawn Mower (Mini Rider)
Brand	Rover
Model	Mini Rider Manual
Engine Type	4-Stroke Gasoline Engine
Starting System	Electric Start and Manual Recoil
Cutting Width	80 cm (31.5 inches)
Cutting Height Adjustment	6 positions, 25-75 mm (1-3 inches)
Drive System	Hydrostatic Transmission
Turning Radius	Zero Turn
Fuel Tank Capacity	5 liters (1.32 gallons)
Weight	180 kg (397 lbs)
Dimensions (L x W x H)	1800 x 900 x 1050 mm (71 x 35 x 41 inches)
Safety Features	Operator Presence Control (OPC), Blade Brake Clutch, Seat Switch
Cutting Deck Material	Stamped Steel
Mowing Mode	Mulching, Side Discharge, Rear Bagger (optional)
Speed Range	0-8 km/h (0-5 mph) forward, 0-4 km/h (0-2.5 mph) reverse
Battery	12V, 20Ah Lead Acid
Lubrication System	Oil Sump with Dipstick
Air Filter	Dual Stage Foam and Paper
Spark Plug	Champion RC12YC (or equivalent)
Maintenance Interval	Oil change every 50 hours, air filter cleaning every 25 hours

Frequently Asked Questions - Mini Rider Manual Rover

What type of oil does the Rover Mini Rider require?

The recommended oil is SAE 30 for temperatures above 0°C (32°F) and SAE 5W-30 for colder conditions. Always check the dipstick level and use high-detergent oil rated for 4-stroke engines.

How do I adjust the cutting height on the Mini Rider?

Use the lever on the right side of the seat to select one of six positions. Move the lever forward to lower the deck and backward to raise it. The height range is 25-75 mm (1-3 inches). Ensure the engine is off before adjusting.

What safety features are included?

The Mini Rider includes an Operator Presence Control (OPC) that stops the engine if the operator leaves the seat, a Blade Brake Clutch that stops the blades without stopping the engine, and a seat switch that prevents starting when the operator is not seated.

How often should I sharpen the blades?

Sharpen the blades after every 25 hours of use or when you notice uneven cutting. Remove the blades, file the cutting edge at a 30-degree angle, and balance them before reinstalling. Dull blades tear grass, leading to disease.

What is the fuel recommendation?

Use regular unleaded gasoline with a minimum octane rating of 87 (RON 91). Do not use ethanol blends above 10% (E10). Store fuel in a clean, approved container and avoid mixing with oil.

How do I troubleshoot starting problems?

First, ensure the fuel valve is open, the spark plug wire is connected, and the battery is charged. Check the safety switches (seat, PTO, brake). For electric start, listen for a click - if absent, check the solenoid. For recoil start, ensure the engine is not flooded by waiting 15 minutes.

Can I mulch leaves with the Mini Rider?

Yes, the deck is designed for mulching. Install the mulching plug (included) and keep the blades sharp. Mulching reduces waste and returns nutrients to the lawn. Avoid mowing when the grass is wet for best results.

What is the recommended tire pressure?

Front tires should be inflated to 1.2 bar (17 psi) and rear tires to 0.7 bar (10 psi). Incorrect pressure affects cutting performance and traction. Check with a low-pressure gauge regularly.

How do I store the mower for winter?

Drain the fuel tank or add a stabilizer. Change the oil, remove the battery and store it on a trickle charger. Clean the deck and apply a light oil coating to prevent rust. Store in a dry, covered area. Disconnect the spark plug for safety.

What is the warranty period for the Rover Mini Rider?

Rover offers a 2-year limited warranty for residential use and 1 year for commercial use. The warranty covers defects in materials and workmanship but does not cover normal wear items like blades, belts, and filters. Keep your proof of purchase.

USER MANUAL Mini Rider Manual Rover

Important Safe Operation Practices .... 2

Assembly & Set-Up 7

Controls & Operation....10

Product Care....14

Parts/Warranty......See Separate Supplement

WARNING

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUALBEFORE ATTEMPTING TO OPERATE THIS MACHINE.

FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

NOTE: This Operator's Manual covers several models. Features may vary by model. Not all features in this manual are applicable to all models and the model depicted may differ from yours.

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol. HEED ITS WARNING!

WARNING

California Proposition 65

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm. Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

DANGER

This machine was built to be operated according to the safe operation practices in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

General Operation

1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.
2. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.
3. Never allow children under 14 years of age to operate this machine. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the machine and should be trained and supervised by an adult.
4. Never allow adults to operate this machine without proper instruction.
5. To help avoid blade contact or a thrown object injury, keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.
6. Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones, toys, and other foreign objects which could be picked up and thrown by the blade(s). Thrown objects can cause serious personal injury.
7. Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator.
8. Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

9. Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Loose fitting clothes and jewelry can be caught in movable parts. Never operate this machine in bare feet or sandals.

10. Be aware of the mower and attachment discharge direction and do not point it at anyone. Do not operate the mower without the discharge cover or entire grass catcher in its proper place.

11. Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet.
12. A missing or damaged discharge cover can cause blade contact or thrown object injuries.
13. Stop the blade(s) when crossing gravel drives, walks, or roads and while not cutting grass.
14. Watch for traffic when operating near or crossing roadways. This machine is not intended for use on any public roadway.
15. Do not operate the machine while under the influence of alcohol or drugs.
16. Mow only in daylight or good artificial light.
17. Never carry passengers.
18. Disengage blade(s) before shifting into reverse. Back up slowly. Always look down and behind before and while backing to avoid a back-over accident.
19. Slow down before turning. Operate the machine smoothly. Avoid erratic operation and excessive speed.
20. Disengage blade(s), set parking brake, stop engine and wait until the blade(s) come to a complete stop before removing grass catcher, emptying grass, unclogging chute, removing any grass or debris, or making any adjustments.
21. Never leave a running machine unattended. Always turn off blade(s), place transmission in neutral, set parking brake, stop engine and remove key before dismounting.

22. Use extra care when loading or unloading the machine into a trailer or truck. This machine should not be driven up or down ramp(s), because the machine could tip over, causing serious personal injury. The machine must be pushed manually on ramp(s) to load or unload properly.

23. Muffler and engine become hot and can cause a burn. Do not touch.

24. Check overhead clearances carefully before driving under low hanging tree branches, wires, door openings etc., where the operator may be struck or pulled from the machine, which could result in serious injury.
25. Disengage all attachment clutches, depress the brake pedal completely and shift into neutral before attempting to start engine.
26. Your machine is designed to cut normal residential grass of a height no more than 10". Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the mower deck presenting a potential fire hazard.
27. Use only accessories and attachments approved for this machine by the machine manufacturer. Read, understand and follow all instructions provided with the approved accessory or attachment.
28. Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.
29. If situations occur which are not covered in this manual, use care and good judgment. Contact your customer service representative for assistance.

Slope Operation

Slopes are a major factor related to loss of control and tip-over accidents which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

For your safety, use the slope gauge included as part of this manual to measure slopes before operating this machine on a sloped or hilly area. If the slope is greater than 12 degrees as shown on the slope gauge, do not operate this machine on that area or serious injury could result.

Do:

1. Mow up and down slopes, not across. Exercise extreme caution when changing direction on slopes.
2. Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.
3. Use slow speed. Choose a low enough speed setting so that you will not have to stop or shift while on the slope. Tires may lose traction on slopes even though the brakes are functioning properly. Always keep machine in gear when going down slopes to take advantage of engine braking action.
4. Follow the manufacturer's recommendations for wheel weights or counterweights to improve stability.
5. Use extra care with grass catchers or other attachments. These can change the stability of the machine.
6. Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction. Rapid engagement or braking could cause the front of the machine to lift and rapidly flip over backwards which could cause serious injury.
7. Avoid starting or stopping on a slope. If tires lose traction, disengage the blade(s) and proceed slowly straight down the slope.

Do Not:

1. Do not turn on slopes unless necessary; then, turn slowly and gradually downhill, if possible.
2. Do not mow near drop-offs, ditches or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff, ditch, or if an edge caves in.
3. Do not try to stabilize the machine by putting your foot on the ground.
4. Do not use a grass catcher on steep slopes.
5. Do not mow on wet grass. Reduced traction could cause sliding.
6. Do not shift to neutral and coast downhill. Over-speeding may cause the operator to lose control of the machine resulting in serious injury or death.
7. Do not tow heavy pull behind attachments (e.g. loaded dump cart, lawn roller, etc.) on slopes greater than 5 degrees. When going down hill, the extra weight tends to push the tractor and may cause you to loose control (e.g. tractor may speed up, braking and steering ability are reduced, attachment may jack-knife and cause tractor to overturn).

Children

1. Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them.

a. Keep children out of the mowing area and in watchful care of a responsible adult other than the operator.

b. Be alert and turn machine off if a child enters the area.
c. Before and while backing, look behind and down for small children.
d. Never carry children, even with the blade(s) shut off. They may fall off and be seriously injured or interfere with safe machine operation.
e. Use extreme care when approaching blind corners, doorways, shrubs, trees or other objects that may block your vision of a child who may run into the path of the machine.
f. To avoid back-over accidents, always disengage the cutting blade(s) before shifting into Reverse. If equipped, the "Reverse Caution Mode" should not be used when children or others are around.
g. Keep children away from hot or running engines. They can suffer burns from a hot muffler.
h. Remove key when machine is unattended to prevent unauthorized operation.

1. Never allow children under 14 years of age to operate this machine. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the machine and should be trained and supervised by an adult.

Towing

1. Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point.
2. Follow the manufacturers recommendation for weight limits for towed equipment and towing on slopes.
3. Never allow children or others in or on towed equipment.
4. On slopes, the weight of the towed equipment may cause loss of traction and loss of control.
5. Always use extra caution when towing with a machine capable of making tight turns (e.g. "zero-turn" ride-on mower). Make wide turns to avoid jack-knifing.
6. Travel slowly and allow extra distance to stop.
7. Do not shift to neutral and coast downhill.

Service

Safe Handling of Gasoline:

1. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.

a. Use only an approved gasoline container.

b. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.
c. When practical, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.
d. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.
e. Extinguish all cigarettes, cigars, pipes and other sources of ignition.
f. Never fuel machine indoors.
g. Never remove gas cap or add fuel while the engine is hot or running. Allow engine to cool at least two minutes before refueling.
h. Never over fill fuel tank. Fill tank to no more than 12 inch below bottom of filler neck to allow space for fuel expansion.
i. Replace gasoline cap and tighten securely.
j. If gasoline is spilled, wipe it off the engine and equipment. Move machine to another area. Wait 5 minutes before starting the engine.
k. To reduce fire hazards, keep machine free of grass, leaves, or other debris build-up. Clean up oil or fuel spillage and remove any fuel soaked debris.
I. Never store the machine or fuel container inside where there is an open flame, spark or pilot light as on a water heater, space heater, furnace, clothes dryer or other gas appliances.
m. Allow a machine to cool at least five minutes before storing.

General Service

1. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless, and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the blade(s) and all moving parts have stopped. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.
3. Periodically check to make sure the blades come to complete stop within approximately (5) five seconds after operating the blade disengagement control. If the blades do not stop within the this time frame, your machine should be serviced professionally by an authorized MTD Service Dealer.

4. Check brake operation frequently as it is subjected to wear during normal operation. Adjust and service as required.

5. Check the blade(s) and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade(s) for damage (e.g., excessive wear, bent, cracked). Replace the blade(s) with the original equipment manufacturer's (O.E.M.) blade(s) only, listed in this manual. "Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!"

6. Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
7. Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
8. Never tamper with the safety interlock system or other safety devices. Check their proper operation regularly.
9. After striking a foreign object, stop the engine, disconnect the spark plug wire(s) and ground against the engine. Thoroughly inspect the machine for any damage. Repair the damage before starting and operating.
10. Never attempt to make adjustments or repairs to the machine while the engine is running.

11. Grass catcher components and the discharge cover are subject to wear and damage which could expose moving parts or allow objects to be thrown. For safety protection, frequently check components and replace immediately with original equipment manufacturer's (O.E.M.) parts only, listed in this manual. "Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!"

12. Do not change the engine governor settings or over-speed the engine. The governor controls the maximum safe operating speed of the engine.

13. Maintain or replace safety and instruction labels, as necessary.

14. Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

15. According to the Consumer Products Safety Commission (CPSC) and the U.S. Environmental Protection Agency (EPA), this product has an Average Useful Life of seven (7) years, or 270 hours of operation. At the end of the Average Useful Life have the machine inspected annually by an authorized service dealer to ensure that all mechanical and safety systems are working properly and not worn excessively. Failure to do so can result in accidents, injuries or death.

Do not modify engine

To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor.

Notice Regarding Emissions

Engines which are certified to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) are certified to operate on regular unleaded gasoline, and may include the following emission control systems: Engine Modification (EM), Oxidizing Catalyst (OC), Secondary Air Injection (SAI) and Three Way Catalyst (TWC) if so equipped.

When required, models are equipped with low permeation fuel lines and fuel tanks for evaporative emission control. California models may also include a carbon canister. Please contact Customer Support for information regarding the evaporative emission control configuration for your model.

Spark Arrestor

WARNING

This machine is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrestor meeting applicable local or state laws (if any).

If a spark arrestor is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrestor for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

Safety Symbols

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

SymbolDescription
	READ THE OPERATOR'S MANUAL(S)Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate.
	DANGER—ROTATING BLADESNever carry passengers. Never carry children, even with the blades OFF.
	DANGER—ROTATING BLADESTo avoid a back-over accident, keep children away from the machine while it is in operation. Mowing in reverse is not recommended.
	WARNING—ROTATING BLADESDo not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet. Be sure blades and engine are stopped before placing hands or feet near blades.
	DANGER—ROTATING BLADESAlways look down and behind before and while backing to avoid a back-over accident.
	DANGER— BYSTANDERSKeep bystanders, helpers, children and pets at least 75 feet from the machine while it is in operation.
	WARNING— THROWN OBJECTSThis machine may pick up and throw and objects which can cause serious personal injury.
	WARNING— THROWN OBJECTSThis machine may pick up and throw and objects which can cause serious personal injury.
	WARNING— SLOPE OPERATIONGo up and down slopes, not across.
	WARNING— SLOPE OPERATIONUse extra caution on slopes. Do not mow slopes greater than 12°. If machine stops going uphill, stop blades back down slowly.
	DANGER— SLOPE OPERATIONDo not operate this machine where it could tip or slip. Avoid sudden turns. Use low speed.
	DANGER— GUARDS, SHIELDS, SWITCHES, ETC.Keep safety devices (Guards, Shields, Switches, Etc.) in place and working.
	WARNING— MACHINE IS HOTAllow the engine to cool at least two minutes before refueling or storing.
	WARNING— THIS EQUIPMENT MAY CREATE SPARKSOperation of this equipment may create sparks that can start fires around dry vegetation. Do not drive through piles of dry leaves or tall dry grass (Max. 10"). Keep the machine free of debris.
	WARNING— HOT SURFACEEngine parts, especially the muffler, become extremely hot during operation. Allow engine and muffler to cool before touching.
	DANGER — ROTATING BLADESTo reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover or grass catcher is in its proper place. If damaged, replace immediately.
	WARNING— THIS EQUIPMENT MAY CREATE SPARKSOperation Of This Equipment May Create Sparks That Can Start Fires Around Dry Vegetation. A Spark Arrestor May Be Required. The Operator Should Contact Local Fire Agencies For Laws Or Regulations Relating To Fire Prevention Requirements.
	WARNING— CARBON MONOXIDENever run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.
	DANGER— ROTATING BLADESDo not step on the cutting deck.

▲ WARNING

Your Responsibility — Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.SAVE THESE INSTRUCTIONS!

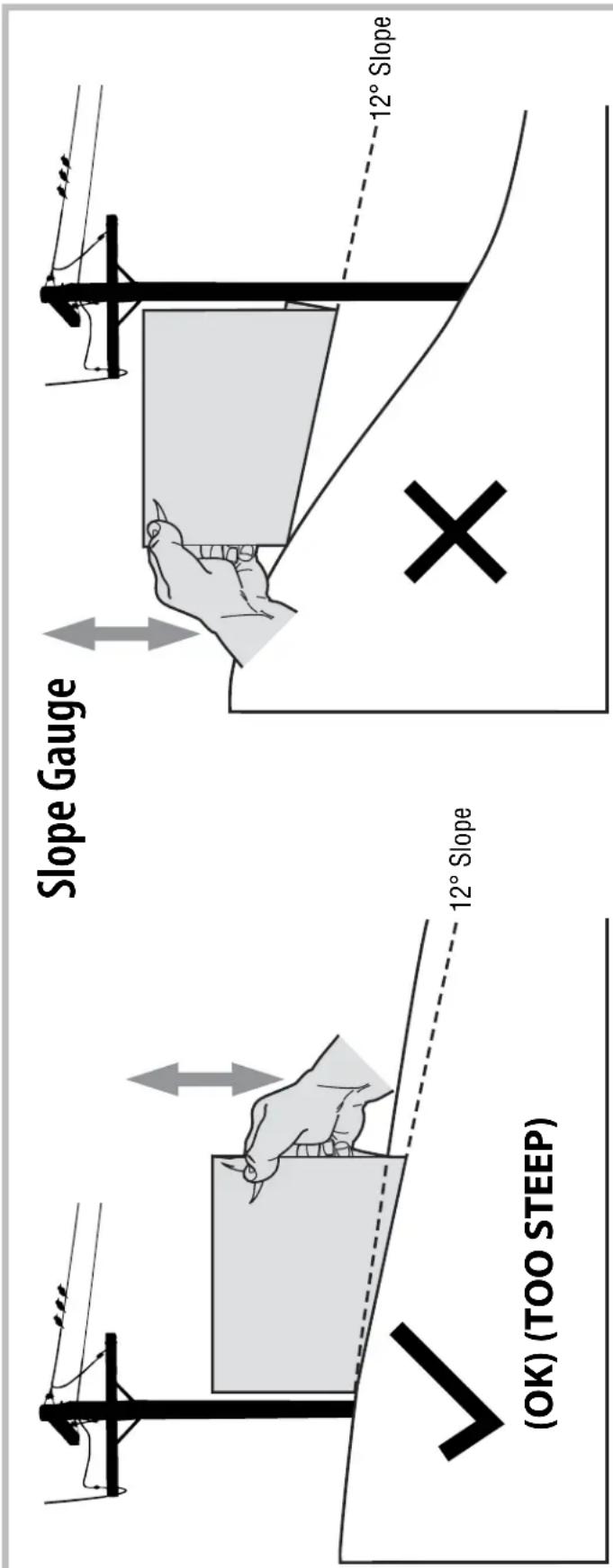

Figure 2 Figure 1

12° dashed line

USE THIS SLOPE GAUGE TO DETERMINE

IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!

To check the slope, proceed as follows:

1. Remove this page and fold along the dashed line.

2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.)

3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2).

4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2).

5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2 above).

WARNING! Slopes are a major factor related to tip-over and roll-over accidents which can result in severe injury or death.

Do not operate machine on slopes in excess of 15 degrees. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on

it, do not mow it. Always mow up and down slopes, never across the face of slopes.

Assembly & Set-Up

Thank You

Thank you for purchasing this product. It was carefully engineered to provide excellent performance when properly operated and maintained.

Please read this entire manual prior to operating the equipment. It instructs you how to safely and easily set up, operate and maintain your machine. Please be sure that you, and any other persons who will operate the machine, carefully follow the recommended safety practices at all times. Failure to do so could result in personal injury or property damage.

All information in this manual is relative to the most recent product information available at the time. Review this manual frequently to familiarize yourself with the machine, its features and operation. Please be aware that this Operator's Manual may cover a range of product specifications for various models. Characteristics and features discussed and/or illustrated in this manual may not be applicable to all models. We reserve the right to change product specifications, designs and equipment without notice and without incurring obligation.

If applicable, the power testing information used to establish the power rating of the engine equipped on this machine can be found at www.opei.org or the engine manufacturer's web site.

If you have any problems or questions concerning the machine, phone your local authorized service dealer or contact us directly. We want to ensure your complete satisfaction at all times.

Throughout this manual, all references to right and left side of the machine are observed from the operating position.

Contents of Crate

• Riding Mower (1)	• Operator's Manual (1)	• Engine Operator's Manual (1)
• Steering Wheel/Shaft Assembly (1) • Rear Hitch Plate (1) • Seat Assembly (1)
• Rear Engine Cover (1) † • Oil Drain Sleeve (1) • Oil Siphon (1) †
• Steering Pedestal Cap (1) • Discharge Chute Assembly (1) • Mulch Plug (1) †
• Front Bumper (1) †	• Hardware Pack (1)	• Product Registration Card (1)

† — If Equipped
Note: This Operator's Manual covers several models. Riding mower features may vary by model. Not all features in this manual are applicable to all riding mower models and the riding mower depicted may differ from yours.
Note: All references in this manual to the left or right side and front or back of the riding mower are from the operating position only. Exceptions, if any, will be specified.
Note: Some components may come already assembled. If they are already assembled, skip ahead to the next step.

Contents of Hardware Pack

Before beginning installation, remove all the contents from the crate and all the hardware from the pack to make sure everything is present. Hardware is listed below.

• Hitch Plate
• Seat Mounting Bracket (w/ two shoulder bolts & lock nuts installed)

Recommended Tools for Assembly

• 38 " wrench and/or socket
• 1/2" wrench and/or socket
• 7/16'' wrench and/or socket
• 916 " wrench and/or socket
  • Phillips screw driver
• 1/4'' drive ratchet

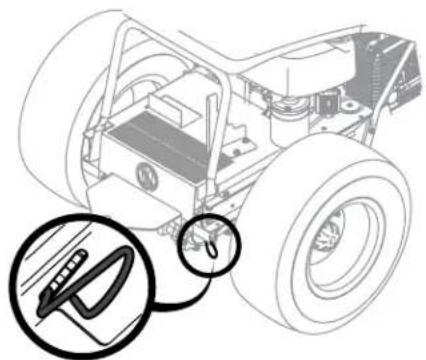

Manually Moving the Tractor

On 6-Speed units, shift the shift lever into NEUTRAL. On Hydro units, use the transmission bypass rod and proceed with Step 1.

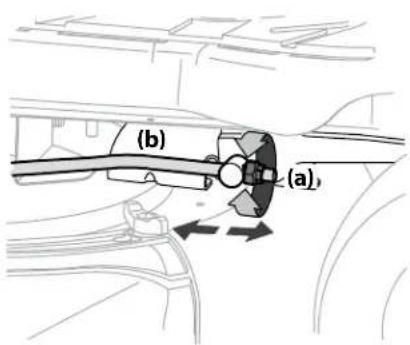

1. Engage the transmission bypass rod to move the tractor manually without starting it. The transmission bypass rod is located on the inside of the right tire near the rear of the tractor. Engage the bypass rod by pulling out and down. See Figure 2-1.

Technical line drawing of a wheeled vehicle chassis with a close-up inset showing a cable being inserted (no text or symbols)

Figure 2-1

Note: If the tractor will not move or does not move freely when pushing check if the bypass lever is fully open or the brake is engaged.

Note: The transmission will NOT engage when the hydrostatic bypass rod is pulled out. Return the rod to its normal position prior to operating the tractor. If the tractor will not move when pushing on the forward/reverse pedals, or moves slowly, check to see of the bypass valve is on.

CAUTION

Never tow your tractor. Towing the tractor with the rear wheels on the ground may cause severe damage to the transmission.

1. Disengage the bypass rod by lifting up and allowing the rod to move back in after moving the tractor. See Figure 2-1.

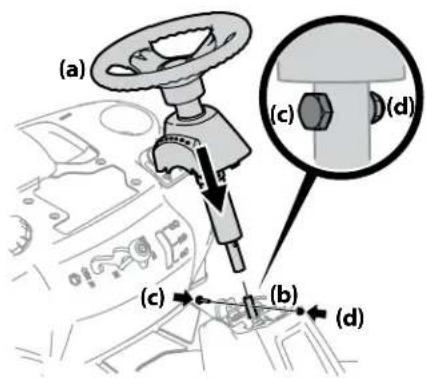

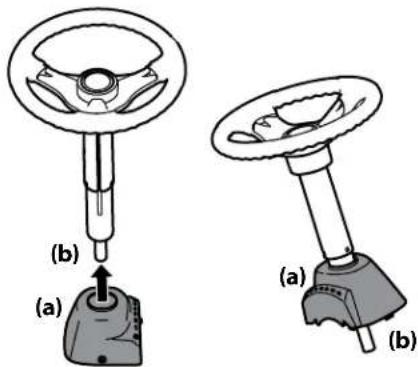

Installing the Steering Wheel Assembly

If the steering wheel assembly for your riding mower did not come already installed, follow the steps below:
3. Slide the pedestal cap (a) onto the steering shaft (b) so that when the steering shaft (b) is installed on the riding mower, the pedestal cap (a) will be upright as shown in Figure 2-2.

Two technical diagrams showing mechanical components with labeled parts (a) and (b), no text or symbols present.

Figure 2-2

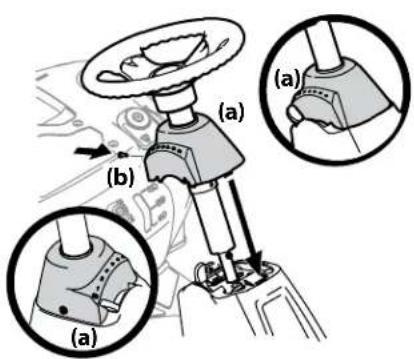

1. Remove the shoulder bolt and lock nut from the steering shaft and retain for later steps.

2. With the steering wheel assembly upright and positioned over the lower steering shaft on the riding mower, align the steering wheel so that with the riding mower wheels straight, the large opening on the steering wheel is facing forward.

3. Lower the steering wheel assembly (a) onto the lower steering shaft (b) and secure with the shoulder bolt (c) and lock nut (d) previously removed. See Figure 2-3.

1. Tighten the shoulder bolt and lock nut using a 116 " wrench or socket and 116 " wrench or socket.
2. Remove the pedestal cap mount screw factory installed and located on the riding mower's steering console. Retain the screw for later instructions.
3. Slide the pedestal cap (a) down onto the riding mower and slightly rotate to the right to clip into place. Secure the pedestal cap (a) with the screw (b) previously removed. See Figure 2-4.

Figure 2-4

Attaching the Seat

If the seat for your riding mower was not attached at the factory, follow the applicable instructions below to attach it.

1. Remove the shoulder bolts (a) and lock nuts (b) from the seat mounting bracket (c) included in your hardware pack. See Figure 2-5.

Figure 2-5

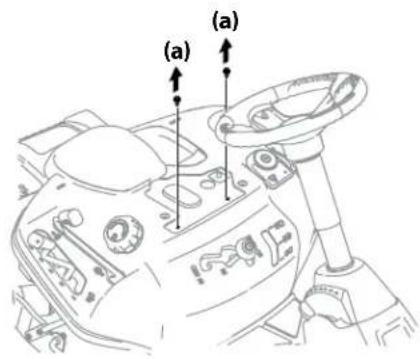

1. Remove the two self-tapping bolts (a) factory installed on the riding mower. See Figure 2-6.

Figure 2-6

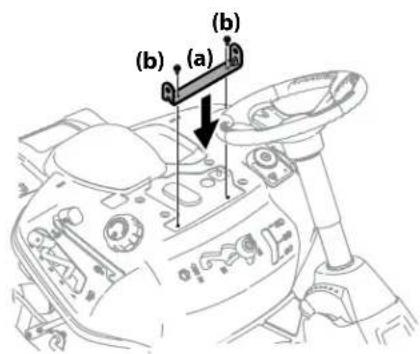

1. Align the seat bracket (a) in place over the holes from where the self-tapping bolts (b) were removed, as shown in Figure 2-7.

Figure 2-7

1. Using a 14 " drive ratchet with a 38 " socket, secure the seat bracket (a) with the self-tapping bolts (b) removed in step 2. See Figure 2-7.

CAUTION

Do not use any type of power tool (e.g. impact gun or electric drill with nut driver attached) when tightening the self-tapping bolts to attach the seat bracket.

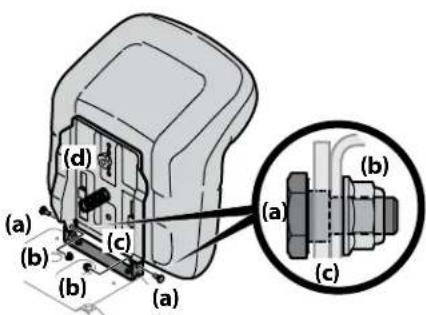

1. Position the seat assembly over the seat mounting bracket, aligning the holes provided.
2. Install the two shoulder bolts (a) and lock nuts (b) removed from the seat mounting bracket (c) in Step 1. See Figure 2-8.

Note: Make sure that the bolt's shoulder is completely recessed into the seat bracket when securing the lock nut.

1. To adjust the position of the seat, remove the adjustment knob (d) on the bottom of the seat. Slide the seat forward or backward as desired. Retighten the adjustment bolt (d). Refer to Figure 2-8.

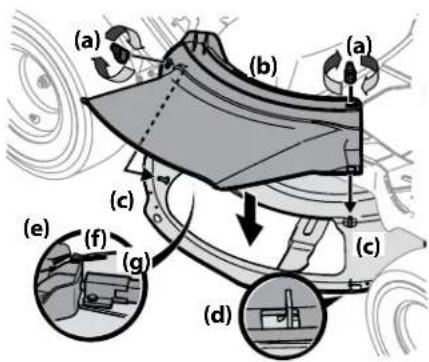

Installing the Deck Chute

WARNING

Never operate this riding mower without either the mulch plug or deck chute installed.

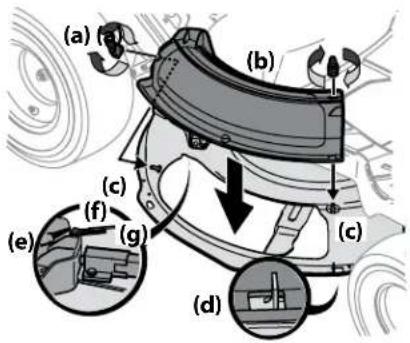

1. Remove the wing knobs (a) installed on the mowing deck and retain for later installation. See Figure 2-9.

1. Install the deck chute (b) into the deck discharge opening on the deck. The rear of the chute (b) should be under the tab (f) on the rear deck bracket (g). The studs (c) on the deck surface will fit through the holes on the upper portion of the deck chute (b). The small tab (d) on the deck lip area will fit through the square cutout on the lower portion of the deck chute (b). See Figure 2-9.

Note: Make certain that the upper-rear portion of deck chute (b) is depressing the safety switch (e) located on the deck surface and under the tab (f) on the rear deck bracket (g). The engine will not start without the deck chute (b) properly in place.

1. Secure the deck chute (b) by tightening the wing knobs (a) removed in step 1. See Figure 2-9.

Installing the Mulch Plug (If equipped)

WARNING

Never operate this riding mower without either the mulch plug or deck chute installed.

1. Remove the wing knobs (a) installed on the mowing deck and retain for later installation. See Figure 2-10.

1. Install the mulch plug (b) into the deck discharge opening on the deck. The rear of the mulch plug (b) should be under the tab (f) on the rear deck bracket (g). The studs (c) on the deck surface will fit through the holes on the upper portion of the mulch plug (b). The small tab (d) on the deck lip area will fit through the square cutout on the lower portion of the mulch plug (b). See Figure 2-10.

Note: Make certain that the upper-rear portion of mulch plug (b) is depressing the safety switch (e) located on the deck surface and under the tab (f) on the rear deck bracket (g). The engine will not start without the mulch plug (b) properly in place.

1. Secure the mulch plug (b) by tightening the wing knobs (a) removed in step 1.

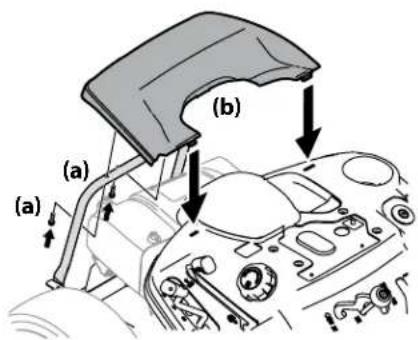

Install the Rear Engine Cover (If equipped)

1. Remove the two factory installed hex screws (a) located on the rear engine cover (b). Retain the hex screws (a) for later instructions. See Figure 2-11.

Figure 2-11

1. Install the rear engine cover (b) by positioning it in place as shown in Figure 2-11 Tip the rear engine cover (b) forward to fit it into the slots provided, then rotate it backwards to align the mounting holes.
2. Secure the rear engine cover (b) with the two hex screws (a) removed in Step 1. Do not over-tighten.

Installing the Hitch Plate

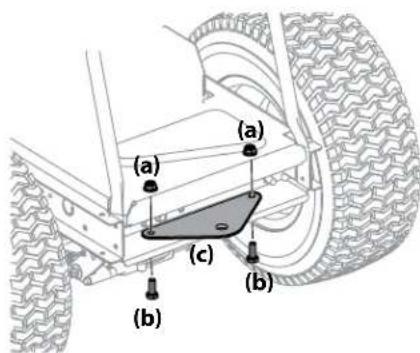

1. Remove the factory installed bolts (a) and hex nuts (b) located on the rear of the riding mower. See Figure 2-12.

Figure 2-12

1. Position the hitch plate (c), packed with the loose parts, with the flat side up as shown in Figure 2-12. Secure using the two bolts (a) and hex nuts (b) removed in step 1.

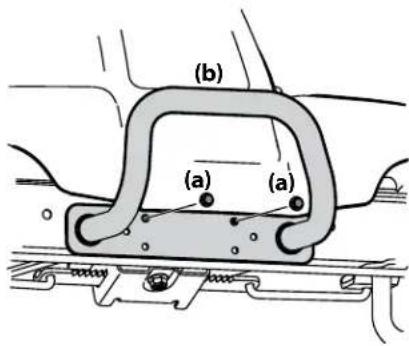

Installing the Bumper (If equipped)

1. Remove the two screws (a) as shown in Figure 2-13.

Figure 2-13

1. Position the bumper (b) over the mounting holes and secure using the screws (a) removed in Step 1. See Figure 2-13.

Connecting the Battery Cables

WARNING

California Proposition 65 Warning: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling

CAUTION

When attaching battery cables, always connect the POSITIVE (Red) wire to its terminal first, followed by the NEGATIVE (Black) wire.

For shipping reasons, both battery cables on your equipment may have been left disconnected from the terminals at the factory. To connect the battery cables, proceed as follows:

Note: The positive battery terminal is marked POS. (+). The negative battery terminal is marked NEG. (-).

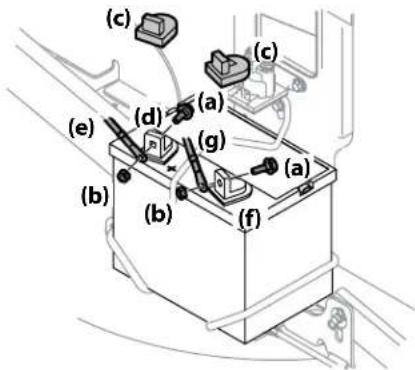

1. Remove the factory installed hex bolts (a) and sems nuts (b) located on the end of the wiring harness. Retain the hardware for later instructions. See Figure 2-14.

1. Remove the plastic cover (c), if present, from the positive battery terminal (d) and attach the red cable (e) to the positive battery terminal (b) with one of the hex bolts (a) and sems nuts (b), removed in step 1. Use a 716 " wrench and socket. See Figure 2-14.
2. Remove the plastic cover (c), if present, from the negative battery terminal (f) and attach the black cable (g) to the negative battery terminal (f) with the remaining hex bolt (a) and sems nut (b). See Figure 2-14.
3. Position the red rubber boot over the positive battery terminal (d) to help protect it from corrosion.

Note: If the battery is put into service after the date shown on top/side of battery, charge the battery as instructed in the Product Care section prior to operating the riding mower.

Tire Pressure

WARNING

Equal tire pressure should be maintained at all times. Never exceed the maximum inflation pressure shown on the sidewall of the tire.

The recommended operating tire pressure is:

• Approximately 10 psi for the rear tires
• Approximately 14 psi for the front tires

Important: Refer to the tire sidewall for exact tire manufacturer's recommended or maximum psi. Do not overinflate. Uneven tire pressure could cause the cutting deck to mow unevenly.

Gas & Oil Fill-up

The gasoline tank is located under the left side of the seat on 30" deck models and on the engine on 24" deck models. Do not overfill.

WARNING

Use extreme care when handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Never fuel machine indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes, and other sources of ignition.

Important: Your riding mower is shipped with motor oil in the engine. However, you MUST check the oil level before operating. Be careful not to overfill.

Service and check the engine oil as instructed in the Engine Operator's Manual packed with your riding mower. Read the instructions carefully.

Important: It is important to NOT top off your fuel tank when filling with fuel. Leave an expansion area available inside the fuel tank to allow for the fuel to expand and for proper ventilation. Otherwise the unit may not run properly. Fill the tank on 30" deck models in accordance with Figure 2-15 for 24" deck models refer to the Engine Operator's Manual.

Simple line drawing of a mechanical component or housing with a base and top component (no text or symbols)

Figure 2-15

Notes

Controls & Operation

3

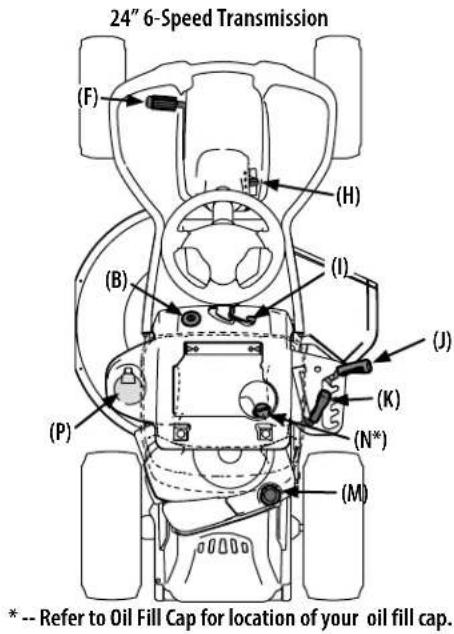

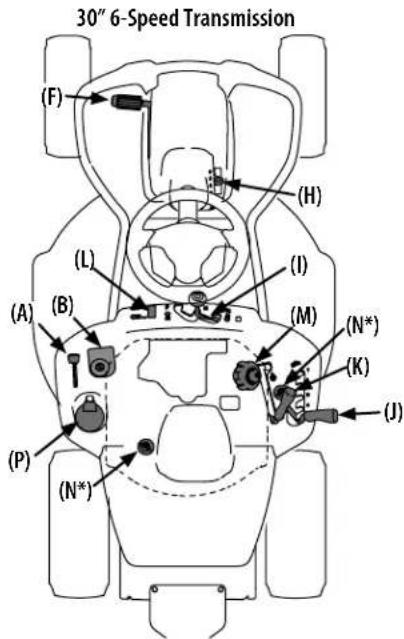

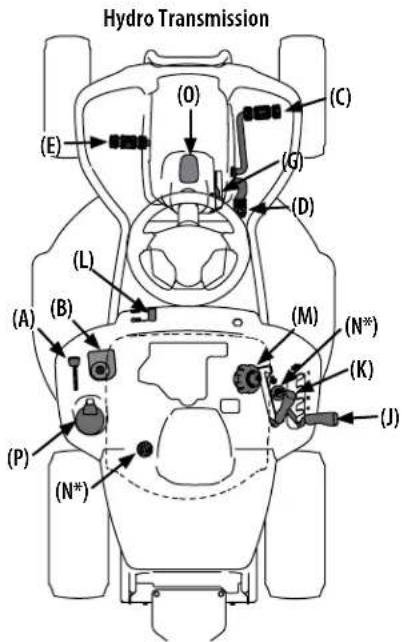

Figure 3-1

Note: This Operator's Manual covers several models. Riding mower features may vary by model. Not all features in this manual are applicable to all riding mower models and the riding mower depicted may differ from yours.

Note: References to LEFT, RIGHT, FRONT, and REAR indicate that position on the riding mower when facing forward while seated in the operator's seat.

Throttle/Choke Control or Throttle Control Lever (If equipped) (A)

Throttle/Choke Control Lever (If equipped)

The throttle/choke control lever is located on the left side of the riding mower's dash panel. This lever controls the speed of the engine and, when pushed all the way forward, past the detent position closes the choke for cold starting. When set in a given position, the throttle will maintain a uniform engine speed.

Note: When operating the riding mower with the cutting deck engaged, be certain that the throttle/choke control is always in the FAST position.

Throttle Control (If equipped)

The throttle control is located on the left side of the riding mower's dash panel. When set in a given position, a uniform engine speed will be maintained.

Push the throttle control handle forward to increase the engine speed. The riding mower is designed to operate with the throttle control in the FAST position (full throttle) when the mower deck is engaged.

Pull the throttle control handle rearward to decrease the engine speed.

Ignition Module (B)

WARNING

Never leave a running machine unattended. Always disengage PTO, set parking brake, stop engine and remove key to prevent unintended starting.

The ignition module is located on the left fender of the riding mower seated in the operator's position, adjacent to the throttle/choke control or throttle control.

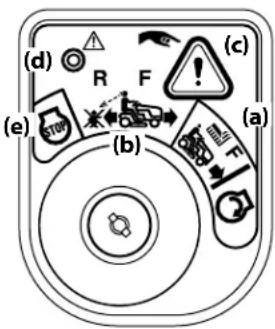

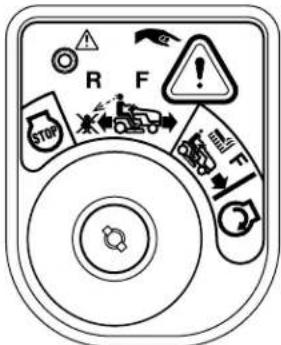

Ignition Module w/ Reverse Caution Mode (If equipped)

To start the engine, insert the key into the ignition switch and turn clockwise to the START position. Release the key into the NORMAL MOWING MODE position once the engine has fired.

To stop the engine, turn the ignition key counterclockwise to the STOP STOP position.

CAUTION

Prior to operating the riding mower, refer to both Safety Interlock Switches and Starting The Engine in the Operation section of this manual for detailed instructions regarding the Ignition Switch Module and operating the riding mower in REVERSE CAUTION MODE

Ignition Module (If equipped)

The ignition switch has three positions:

STOP 🙏 — The engine and electrical system is turned off.

RUN — The riding mower electrical system is energized.

START 🔒 — The starter motor will turn over the engine. Release the key immediately when the engine starts

Note: To prevent accidental starting and/or battery discharge, remove the key from the ignition switch when the riding mower is not in use.

Forward Drive Pedal (Hydro riding mowers) (C)

The forward drive pedal is located on the right side of the machine, along the running board. Press the forward drive pedal forward to cause the riding mower to travel forward. Ground speed is also controlled with the forward drive pedal. The further forward the pedal is pivoted, the faster the riding mower will travel. The pedal will return to its original/neutral position when it's not pressed.

Reverse Drive Pedal (Hydro riding mowers) (D)

The reverse drive pedal is located on the right side of the riding mower along the running board. Ground speed is also controlled with the reverse drive pedal. The further downward the pedal is pivoted, the faster the riding mower will travel. The pedal will return to its original/neutral position when it's not pressed.

Brake Pedal (Hydro riding mowers) (E)

The brake pedal is located on the left side of the riding mower, along the running board. Depress the pedal all the way down to engage the disc brake and bring the riding mower to a complete stop.

Note: The brake pedal must be completely depressed to start the engine. Refer to Safety Interlock Switches for more information.

Clutch-Brake Pedal (6-speed riding mowers) (F)

The clutch-brake pedal is located on the left side of the lawn riding mower, along the running board. Depress the clutch-brake pedal part way down when slowing the riding mower by changing speeds (refer to Speed Control Lever). Depress the pedal all the way down to engage the disc brake and bring the riding mower to a complete stop.

Note: The clutch-brake pedal must be completely depressed to start the engine. Refer to Safety Interlock Switches section.

Parking Brake Lever (Hydro riding mower) (G)

To set the parking brake, fully depress the brake pedal. Move the parking brake lever all the way down and into the parking brake position. Release the brake pedal to allow the parking brake to engage.

To release the parking brake, depress the brake pedal and move the parking brake lever out of the parking brake position. Release the brake pedal.

Note: The parking brake must be set if the operator leaves the seat with the engine running or the engine will automatically shut OFF.

Parking Brake/Speed Control Lever (6-speed riding mower) (H)

To set the parking brake, fully depress the clutch-brake pedal. Move the parking brake/speed control lever all the way down and into the parking brake position. Release the clutch-brake pedal to allow the parking brake to engage.

To release the parking brake, depress the clutch-brake pedal and move the parking brake/speed control lever out of the parking brake position into the desired position. Release the clutch-brake pedal.

Note: The parking brake must be set if the operator leaves the seat with the engine running or the engine will automatically shut OFF.

The speed control lever allows you to regulate the ground speed of the riding mower.

To use, depress the clutch-brake pedal and move the parking brake/speed control lever out of the parking brake notch and forward to increase the riding mower's ground speed. When a desired speed has been reached, release the parking brake/speed control lever into an appropriate notch to maintain that speed.

To slow the riding mower's ground speed, depress the clutch-brake pedal and move the parking brake/speed control lever rearward and release it into a notch.

Shift Lever (6-speed riding mowers) (I)

The shift lever is located on the control panel just below the seat, in the center of the riding mower. It has three positions: FORWARD, NEUTRAL and REVERSE. The brake pedal must be completely depressed and the riding mower must not be in motion when moving the shift lever.

Deck Lift Lever (J)

Found on your riding mower's right fender, the deck lift lever is used to change the height of the cutting deck. To use, move the lever to the left, then place in the notch best suited for your application.

PTO Lever (K)

Found on the riding mower's right fender, the PTO lever is used to engage power to the cutting deck. To operate, move the lever all the way forward. Moving the lever all the way rearward into the OFF position disengages power to the cutting deck.

Note: The PTO lever must be in the disengaged (OFF) position when starting the engine.

Fuel Lever Indicator (If equipped) (L)

The fuel lever indicator is located below the seat on the left hand side from the operator's position in the controls panel. Use this window to identify the riding mower's fuel needs. See Figure 4-3.

Fuel Fill Cap (M)

The fuel fill cap is located below the right side of the seat on 30" deck models and on the engine to the rear of the riding mower on 24" deck models. Refer to the Assembly & Set-up section in this manual for instructions for 30" deck models and the Engine Operator's Manual for 24" deck models for fuel filling instructions.

Oil Fill Cap (N)

The oil fill cap is located under the left side of the seat on models equipped with Briggs & Stratton engines, the oil fill cap is located under the right fender on all other models. Refer to the Engine Operator's Manual for instructions on checking and adding oil to this riding mower.

Headlight (If equipped) (0)

The headlight is ON whenever the key is rotated out of the STOP position. The headlight turns OFF when the ignition key is moved to the STOP position.

Cup Holder (P)

The cup holder is located to the left of the operator's seat.

Transmission Bypass Rod (Not Shown)

The transmission bypass rod is located inside the right tire on the lower right section of the frame.

When engaged, the rod opens a bypass within the hydrostatic transmissions, which allows the riding mower to be pushed short distances by hand. Refer to the Assembly & Set-Up section for instructions on using the bypass feature.

Operation

WARNING

Avoid Serious Injury or Death

• Know location and function of all controls.
• Remove objects which could be thrown by the blades.
• Go up and down slopes, not across.
• Use extra caution on slopes. Do not mow slopes greater than 12 degrees. Avoid sudden turns. Use low speed.
• Do not operate machine where it could tip or slip.
• If machine stops going uphill, stop blades and back down slowly.
• Before leaving operator's position, disengage blades, engage parking brake, shut off and remove key.
• Be sure blades and engine are stopped before placing hands or feet near blades.
• Keep safety devices (guards, shields, switches, etc.) in place and working.
• Keep bystanders away.
• Allow machine to cool before fueling or storing.
• Keep machine free of debris.

Read Operator's Manual

Safety Interlock Switches

This riding mower is equipped with a safety interlock system for the protection of the operator. If the interlock system should ever malfunction, do not operate the riding mower. Contact an authorized service dealer.

• The safety interlock system prevents the engine from cranking or starting unless the parking brake is engaged, and the PTO lever is in the disengaged (OFF) position.
• The engine will automatically shut OFF if the operator leaves the seat before engaging the parking brake.
• The engine will automatically shut OFF if the operator leaves the riding mower's seat with the PTO lever in the engaged (ON) position, regardless of whether the parking brake is engaged.
• With the ignition key in the NORMAL MOWING MODE/RUN position, the PTO will automatically shut OFF if the PTO lever is moved into the engaged (ON) position with the shift lever in position for reverse travel.
• The engine will automatically shut OFF if the mulch plug, deck chute or bagger chute is removed, regardless of whether the parking brake is engaged or the PTO lever is in the disengaged (OFF) position.

WARNING

Do not operate the riding mower if the safety interlock system is malfunctioning. This system was designed for your safety and protection.

Engaging the Parking Brake

To engage the parking brake:

1. Fully depress the clutch-brake or brake pedal and hold it down with your foot.
2. Move the parking brake lever down into the parking brake position.
3. Release the clutch-brake or brake pedal to allow the parking brake to engage.

To release the parking brake:
1. Depress the clutch-brake or brake pedal and move the parking brake lever out of the parking brake position.

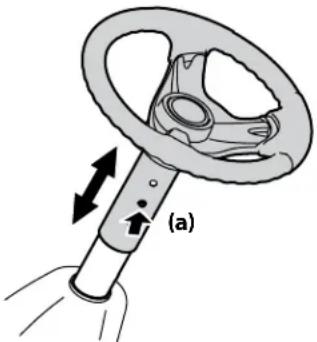

Steering Wheel Height Adjustment (If equipped)

To adjust the height of the steering wheel:

1. Sit in the operator's seat and place your hands on the steering wheel.
2. Push the button (a) on the steering column and raise or lower the steering wheel to the desired position. See Figure 3-2.

Figure 3-2

Note: Once the desired position is achieved, lift up and down on the steering wheel to make sure it locks into place and the button (a) on the steering column releases into a locked position. Do not operate this riding mower unless the steering column is in a locked position.

Setting the Cutting Height

Select the height position of the cutting deck by placing the deck lift lever in any of the different cutting height notches on the right side of the fender.

WARNING

Keep hands and feet away from the discharge opening of the cutting deck.

Refer to Leveling the Deck in the Maintenance & Adjustments section of this manual for more detailed instructions regarding deck adjustment.

Starting the Engine

WARNING

Do not operate the riding mower if the interlock system is malfunctioning. This system was designed for your safety and protection.

Note: Refer to the Assembly & Set-Up section of this manual for gasoline and oil fill-up instructions.

1. Insert the key into the ignition module.
2. Place the PTO lever in the disengaged (OFF) position.
3. Engage the riding mower's parking brake.

4. Activate the choke control (if equipped) by moving the throttle/choke control lever (if equipped) all the way forward into the choke position.

5. Turn the key clockwise to the START position. After the engine starts, release the key. It will return to the NORMAL MOWING MODE/RUN position.

CAUTION

Do NOT hold the key in the START position for longer than ten seconds at a time. Doing so may cause damage to your engine's electric starter.

1. After the engine starts, deactivate the choke (if equipped) by placing the throttle/choke control (if equipped) into the FAST position.

Note: Do NOT operate this riding mower with the choke control activated. Doing so will result in a "rich" fuel mixture and can cause the engine to run poorly.

Stopping the Engine

WARNING

If you strike a foreign object, stop the engine, disconnect the spark plug wire and ground against the engine. Thoroughly inspect the machine for any damage. Repair the damage before restarting and operating.

1. If the blade is engaged, place the PTO lever in the disengaged (OFF) position.
2. Place the throttle/choke control (if equipped) or throttle control (if equipped) near the SLOW position.
3. Turn the key counter-clockwise to the STOP position.
4. Remove the key from the ignition module to prevent unintended starting.

Driving the Riding Mower

WARNING

Avoid sudden starts, excessive speed and sudden stops.

WARNING

Do not leave the seat of the riding mower without first placing the PTO (Blade Engage) lever in the disengaged (OFF) position, depressing the clutch-brake pedal and engaging the parking brake. If leaving the riding mower unattended, also turn the ignition key OFF and remove the key.

WARNING

Always look down and behind before and while backing up to avoid a back-over accident.

1. Move the throttle/choke control (if equipped) or throttle control (if equipped) into the FAST position.
2. Place the shift lever in either the FORWARD or REVERSE position on 6-speed riding mowers. On hydro riding mowers, slowly engage the forward drive pedal to travel FORWARD until the desired speed is reached. To travel in REVERSE, slowly engage the reverse drive pedal until the desired speed is reached.
3. Depress the clutch-brake pedal and move the speed control lever out of the parking brake position and into the desired speed setting on 6-speed riding mowers. On hydro riding mowers depress the brake pedal and move the parking brake lever out of the parking brake position.
4. Release clutch-brake pedal slowly to put the riding mower in motion on 6-speed riding mowers. On hydro riding mowers slowly depress the forward or reverse drive pedal until the desired speed is reached.
5. The riding mower is brought to a stop by depressing the clutch-brake pedal or brake pedal.
   Important: Do NOT use the shift lever (if equipped) to change the direction of travel when the riding mower is in motion. Always use the clutch-brake pedal (if equipped) to bring the riding mower to a complete stop before shifting.

Important: First-time operators should use speed positions 1 or 2 on the shift lever (if equipped). Become completely familiar with the riding mower's operation and controls before operating the riding mower at higher speeds.

Note: When operating the riding mower initially, there will be little difference between the highest two speeds on the shift lever (if equipped) until after the belts have seated themselves into the pulleys during the break-in period.

WARNING

Before leaving the operator's position for any reason, disengage the blade, place the shift lever(if equipped) in neutral, engage the parking brake, shut engine OFF and remove the key.

Important: When stopping the riding mower for any reason while on a grass surface, always:

• Place the shift lever into neutral.
• Engage the parking brake.
• Shut the engine OFF and remove the key. Doing so will minimize the possibility of having your lawn "browned" by hot exhaust from your riding mower's running engine.

If 6-speed riding mower stalls with speed control lever (if equipped) in high speed, or if riding mower will not operate with speed control lever (if equipped) in a low speed position, proceed as follows:

• Place shift lever (if equipped) in NEUTRAL.
• Restart engine.
• Place speed control lever (if equipped) in highest speed position.
• Release clutch-brake pedal (if equipped) fully.
• Depress clutch-brake pedal (if equipped).
• Place speed control lever (if equipped) in desired position.
• Place shift lever (if equipped) in either FORWARD or REVERSE, and follow normal operating procedures.

Reverse Caution Mode (If equipped)

The REVERSE CAUTION MODE position of the ignition module allows the tractor to be operated in reverse with the blades (PTO) engaged.

Note: Mowing in reverse is not recommended.

WARNING

Use extreme caution while operating the tractor in the REVERSE CAUTION MODE. Always look down and behind before and while backing. Do not operate the tractor when children or others are around. Stop the tractor immediately if someone enters the area.

To use the REVERSE CAUTION MODE

Note: The operator MUST be seated in the tractor seat.

1. Start the engine as previously instructed.

2. Turn the key from the NORMAL MOWING (a) position to the REVERSE CAUTION MODE (b) position of the ignition module. See Figure 3-1.

1. Press the REVERSE PUSH BUTTON ⚠(c) at the top, right corner of the ignition module. The red indicator light (d) at the top, left corner of the ignition module will be ON while activated. See Figure 3-1.
2. Once activated (indicator light ON), the tractor can be driven in reverse with the cutting blades (PTO) engaged.
3. Always look down and behind before and while backing to make sure no children are around. After resuming forward motion, return key to the NORMAL MOWING position.

The REVERSE CAUTION MODE (b) will remain activated until:

a. The key is placed in either the NORMAL MOWING position or STOP (e) position or

b. The operator leaves the seat.

Driving on Slopes

Refer to the SLOPE GAUGE in the Important Safe Operation Practices section to help determine slopes where you may operate the riding mower safely.

WARNING

Do not mow on inclines with a slope in excess of 12 degrees (a rise of approximately 2 feet for every 10 feet). The riding mower could overturn and cause serious injury.

• Mow up and down slopes, NEVER across.
  • Exercise extreme caution when changing direction on slopes.
• Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.
• Avoid turns when driving on a slope. If a turn must be made, turn down the slope. Turning up a slope greatly increases the chance of a roll over.
• Avoid stopping when driving up a slope. If it is necessary to stop while driving up a slope, start up smoothly and carefully to reduce the possibility of flipping the riding mower over backward.

Engaging the PTO

Engaging the PTO transfers power to the cutting deck. To engage the blade, proceed as follows:

1. Move the throttle/choke control (if equipped) or throttle control (if equipped) into the FAST position.
2. Grasp the PTO lever and pivot it all the way forward into the engaged (ON) position.

Note: Keep the throttle/choke control (if equipped) or throttle control (if equipped) in the FAST (rabbit) position for the most efficient use of the cutting deck.

Important: The PTO (Blade Engage) lever must be in the disengaged (OFF) position when starting the engine, when traveling in reverse, and if the operator leaves the seat. Refer to Safety Interlock Switches section of this manual.

Mulching (If equipped)

Mulching is a process of recirculating grass clippings repeatedly beneath the cutting deck. The ultra-fine clippings are then forced back into the lawn where they act as a natural fertilizer. Refer to the Assembly & Set-up section of this manual for instructions on how to install the mulch kit (if equipped).

Using the Deck Lift Lever

To raise the cutting deck, move the deck lift lever to the left, then place it in the notch best suited for your application. Refer to Setting the Cutting Height in this section.

Mowing

WARNING

To help avoid blade contact or a thrown object injury, keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.

WARNING

Plan your mowing pattern to avoid discharge of materials toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator.

The following information will be helpful when using the cutting deck with your riding mower:

• Do not mow at high ground speed, especially if a mulch kit or grass collector is installed.
• For best results it is recommended that the first two laps be cut with the discharge thrown towards the center. After the first two laps, reverse the direction to throw the discharge to the outside for the balance of cutting. This will give a better appearance to the lawn.
• Do not cut the grass too short. Short grass invites weed growth and yellows quickly in dry weather.
• Mowing should always be done with the engine at full throttle.
  • Under heavier conditions it may be necessary to go back over the cut area a second time to get a clean cut.
• Do NOT attempt to mow heavy brush and weeds and extremely tall grass. Your riding mower is designed to mow lawns, NOT clear brush.
• Keep the blade sharp and replace the blade when worn. Refer to Cutting Blade in the Service section of this manual for proper blade sharpening instructions.

Product Care

Maintenance Schedule

	Before Each use	Every 10 Hours	Every 25 Hours	Every 50 Hours	Every 100 Hours	Prior to Storing
Check Engine Oil Level	√	√
Check Air Filter for Dirty, Loose or Damaged Parts	√
Clean & Re-oil Air Filter's Foam Pre-cleaner (if Equipped)			√
Replace Air Filter Element					√
Change Engine Oil & Replace Oil Filter (if Equipped)				√
Clean Battery Terminals		√				√
Lube Front Axles & Rims			√			√
Clean Engine Cooling Fins			√			√
Check Spark Plug Condition & Gap					√	√
Replace Fuel Filter					√

Important: It is important to consult the specific Engine Operator's Manual included with this machine for detailed engine maintenance procedures and intervals.

Note: This Operator's Manual covers several models. Riding mower features may vary by model. Not all features in this manual are applicable to all riding mower models and the riding mower depicted may differ from yours.

Troubleshooting

Excessive Vibration

1. Cutting blade loose.
2. Tighten cutting blade and deck spindle.
3. Cutting blade damaged, unbalanced or bent.
4. Replace the cutting blade.

Uneven Cut

1. Deck not properly leveled.

- Perform side-to-side deck adjustment.

1. Cutting blade dull or damaged.
   • Sharpen or replace cutting blade.
2. Uneven tire pressure.
3. Check and correct tire pressure in all four tires.

Engine fails to start

1. PTO/Blade engaged.
2. Place blade engage lever in disengaged (OFF) position.
3. Blown fuse.
4. Replace fuse(s)
5. Parking brake not engaged.

6. Engage parking brake.

7. Deck chute or mulch plug not properly installed.

- Check the installation of the deck chute or mulch plug.

1. See Engine Operator's Manual.

Mower will not mulch grass.

1. Engine speed too low.
2. Place throttle in FAST (rabbit) position.
3. Wet grass.
4. Do not mulch when grass is wet.
5. Excessively high grass.
6. Mow once at a high cutting height, then mow again at desired height or make a narrower cutting swath.
7. Dull blade.
8. Sharpen or replace blade.

Maintenance

WARNING

Before performing any maintenance or repairs, disengage PTO, move shift lever (if equipped) into neutral position, set parking brake, stop engine and remove key to prevent unintended starting.

Engine

Note: On some models, it may be necessary to remove bagger (if equipped) components to access the oil fill and/or drain.

Refer to the Engine Operator's Manual for engine maintenance instructions.

Check engine oil level before each use as instructed in the Engine Operator's Manual packed with your riding mower. Follow the instructions carefully.

Changing Engine Oil

Note: An oil siphon is needed to drain the oil from the crankcase on the 24" Deck model. See the Parts/Warranty supplement for information on purchasing an oil siphon kit (part no. 490-850-0008). Refer to the Engine Operator's Manual included with this riding mower for complete engine maintenance instructions.

For draining oil from the engine's crankcase, proceed as follows:

1. Run the engine for a few minutes to allow the oil in the crankcase to warm up. Warm oil will flow more freely and carry away more of the engine sediment which may have settled at the bottom of the crankcase. Use care to avoid burns from hot oil.
2. Locate the oil drain valve on the side of the engine and the oil fill cap on the topside of the engine.
3. Unscrew the oil fill cap and remove the dipstick from the oil fill tube.

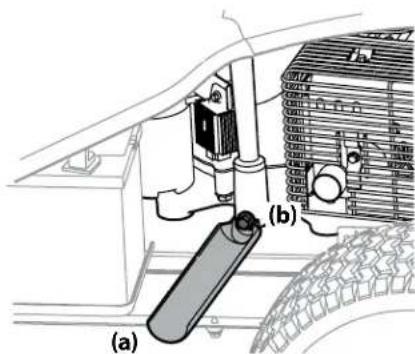

4. Snap the small end of oil drain sleeve (a) onto the space provided around the oil drain plug (b). See Figure 4-1.

Figure 4-1

1. Remove the oil drain plug and drain the oil into a suitable container with a capacity of no less than 64 oz.
2. Tip the riding mower slightly in the direction of the suitable container to aid in fully draining all of the oil from the engine.

WARNING

Before tipping engine or equipment to drain oil, drain fuel from tank by running engine until fuel tank is empty.

1. Replace the oil drain plug and tighten. Be careful not to overtighten the oil drain plug.
2. Refill the engine with new oil as instructed in the Engine Operator's Manual packed with your riding mower.

Note: Refer to the Engine Operator's Manual packed with your riding mower for information regarding the quantity and proper viscosity of motor oil.

Lubrication

WARNING

Before lubricating, repairing, or inspecting, always disengage PTO, move shift lever into neutral position, set parking brake, stop engine and remove key to prevent unintended starting.

Engine

Lubricate the engine with motor oil as instructed in the Engine Operator's Manual packed with your riding mower.

Pivot Points & Linkage

Lubricate all the pivot points on the drive system, parking brake and lift linkage at least once a season with light oil.

Rear Wheels

The rear wheels should be removed from the axles once a season. Lubricate the axles and the rims well with an all-purpose grease before re-installing them.

Front Axles

Each end of the riding mower's front pivot bar may be equipped with a grease fitting. Lubricate with a grease gun after every 25 hours of riding mower operation.

Steering Rack & Pinion

Once per season, or every 25 hours of operation, it will be necessary to lubricate the steering rack and pinion gear (a) located under the front of the riding mower. Using standard automotive grease, apply grease to the front side and rear side of the steering rack and pinion gear (a), as indicated in Figure 4-2.

Figure 4-2

Cleaning the Tractor

If the engine has been running, allow it to cool for at least half an hour before cleaning. Periodically remove dirt build-up from engine. Clean cooling fins every 25 hours. Clean with a brush or compressed air.

Important: Do not spray engine with water to clean because water could contaminate fuel. Using a garden hose or pressure washing equipment can also force water into the air cleaner or muffler opening. Water in the air cleaner will soak the paper element, and water that passes through the element or muffler can enter the cylinder, causing damage.

Any fuel or oil spilled on the machine should be wiped off promptly. Do NOT allow debris to accumulate around the cooling fins of the engine or on any other part of the machine.

Important: The use of a pressure washer to clean your riding mower is NOT recommended. It may cause damage to electrical components, spindles, pulleys, bearings or the engine.

WARNING

Accumulation of debris around muffler could cause a fire. Inspect and clean before every use.

Muffler

WARNING

Temperature of muffler and nearby engine areas may exceed 150^ F ( 65^ C). Avoid contact with these areas.

Inspect muffler periodically, and replace if necessary. Replacement parts for the muffler must be the same and installed in the same position as the original parts.

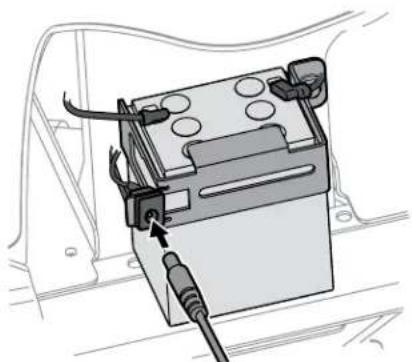

Battery

Clean the battery by removing it from the riding mower and washing with a baking soda and water solution. If necessary, scrape the battery terminals with a wire brush to remove deposits. Coat terminals and exposed wiring with grease or petroleum jelly to prevent corrosion.

The battery is sealed and is maintenance-free. Acid levels cannot be checked.

• Always keep the battery cables and terminals clean and free of corrosive build-up.
• After cleaning the battery and terminals, apply a light coat of petroleum jelly or grease to both terminals.
• Always keep the rubber boot positioned over the positive terminal to prevent shorting.

Important: If removing the battery for any reason, disconnect the NEGATIVE (Black) wire from its terminal first, followed by the POSITIVE (Red) wire. When re-installing the battery, always connect the POSITIVE (Red) wire its terminal first, followed by the NEGATIVE (Black) wire. Be certain that the wires are connected to the correct terminals; reversing them could change the polarity and result in damage to your engine's alternating system.

Deck Wash System (If equipped)

Your riding mower's deck is equipped with a water port on its surface as part of its deck wash system.

Use the deck wash system to rinse grass clippings from the deck's underside and prevent the buildup of corrosive chemicals. Complete the following steps AFTER EACH MOWING:

1. Drive the riding mower to a level, clear spot on your lawn, near enough for your garden hose to reach.

CAUTION

Make certain the riding mower's discharge chute is directed AWAY from your house, garage, parked cars, etc.

1. Disengage the PTO (Blade Engage), set the parking brake and stop the engine.
2. Thread the hose coupler (a) (packaged with the Operator's Manual) onto the end of your garden hose (b). See Figure 4-3.

Figure 4-3

1. Attach the hose coupler (a) to the water port (b) on your deck's surface. See Figure 4-3.
2. Turn the water ON.
3. While sitting in the operator's position on the riding mower, start the engine and place the throttle lever in the FAST (rabbit) position.
4. Move the riding mower's PTO into the ON position.
5. Remain in the operator's position with the cutting deck engaged for a minimum of two minutes, allowing the underside of the cutting deck to thoroughly rinse.
6. Move the riding mower's PTO into the OFF position.
7. Turn the ignition key to the STOP position to turn the riding mower's engine OFF.
8. Turn the water OFF and detach the hose coupler (a) from the water port (c) on your deck's surface. See Figure 4-3.
9. After cleaning your deck with the deck wash system, return to the operator's position and engage the PTO. Keep the cutting deck running for a minimum of two minutes, allowing the underside of the cutting deck to thoroughly dry.

Adjustments

WARNING

Never attempt to make any adjustments while the engine is running, except where specified in the Operator's Manual.

Seat

Refer to the Set-Up & Assembly section of this manual for seat adjustment instructions.

Parking Brake

WARNING

Never attempt to adjust the brakes while the engine is running. Always disengage PTO, move shift lever into neutral position, stop engine and remove key to prevent unintended starting.

If the riding mower does not come to a complete stop when the brake pedal is completely depressed, or if the riding mower's rear wheels can roll with the parking brake applied, the brake is in need of adjustment. See an authorized service dealer to have your brakes properly adjusted.

Deck

Note: Check the riding mower's tire pressure before performing any deck leveling adjustments. Refer to Tires, in the Assembly & Set-Up section for more information regarding tire pressure.

Front-to-Rear Levelling

It is possible to adjust the pitch of the cutting deck. The front of the deck should be between 0" (level) and 1/4" lower than the rear of the deck. Adjust if necessary as follows:

1. With the riding mower parked on a firm, level surface, place the deck lift lever in the middle position and rotate the blade so that it is aligned with the front and rear of the riding mower.
2. Measure the distance from the front of the blade tip to the ground and the rear of the blade tip to the ground. The first measurement taken should be between 0" (level) and 1/4" less than the second measurement. Determine the approximate distance necessary for proper adjustment and proceed, if necessary, to the next step.
3. Locate the flange lock nut (a) on the front end of the PTO lift rod (b). See Figure 4-4.

Figure 4-4

• Tighten the flange lock nut (a) to raise the front of the deck.
• Loosen the flange lock nut (a) to lower the front of the deck.

Tires

Refer to the Assembly & Set-Up section for more information regarding tire pressure.

Off Season Storage

WARNING

Never store riding mower with fuel in tank indoors or in poorly ventilated areas where fuel fumes may reach an open flame, spark, or pilot light as on a furnace, water heater, clothes dryer, or gas appliance.

Engine

Important: Fuel left in the fuel tank during warm weather deteriorates and will cause serious starting problems.

To prevent gum deposits from forming inside the engine's carburetor and causing possible malfunction of the engine, the fuel system must be either completely emptied, or the gasoline must be treated with a stabilizer to prevent deterioration.

1. If using a fuel stabilizer:

2. Read the product manufacturer's instructions and recommendations.

3. Add to clean, fresh gasoline the correct amount of stabilizer for the capacity of the fuel system.

4. Fill the fuel tank with treated fuel and run the engine for 2-3 minutes to get stabilized fuel into the carburetor.

5. If emptying the fuel system:

WARNING

Gasoline is extremely flammable and can be explosive under certain conditions. Drain gasoline before storing the equipment for extended periods. Drain fuel only into an approved container outdoors, away from an open flame. Allow engine to cool. Extinguish cigarettes, cigars, pipes, and other sources of ignition prior to draining fuel. Store gasoline in an approved container in safe location.

• Do not drain fuel when the engine is hot. Allow the engine adequate time to cool. Drain fuel into an approved container outdoors, away from open flame.
• Drain any large volume of fuel from the tank by disconnecting the fuel line from the in-line fuel filter near the engine. See the complete instructions for Draining the Fuel in this section.
• Reconnect the fuel line and run the engine until it starts to falter, then use the choke to keep the engine running until all fuel in the carburetor has been exhausted.
• Disconnect the fuel line and drain any remaining gasoline from the system.

WARNING

Gasoline is a toxic substance. Dispose of gasoline properly. Contact your local authorities for approved disposal methods.

- Remove the spark plug and pour one ounce of engine oil through the spark plug hole into the cylinder. Crank the engine several times to distribute the oil. Replace the spark plug.

Draining the Fuel

1. Locate the fuel filter, it may be attached to the engine with a tie strap.

2. Cut the tie strap, if present, then pinch the in-line clamp on the fuel filter with a pair of pliers, slide the clamp up the fuel line.

3. Pull the fuel line free from the filter and place the open end of the line into an approved container to drain the fuel.

Preparing the Riding Mower

1. Clean and lubricate riding mower thoroughly as described in the Lubrication section.
2. Do not use a pressure washer or garden hose to clean your riding mower.
3. Store riding mower in a dry, clean area. Do not store next to corrosive materials, such as fertilizer.

Service

Cutting Deck Removal

To remove the cutting deck, proceed as follows:
1. Place the PTO lever in the disengaged (OFF) position and engage the parking brake. 2. Lower the deck by moving the deck lift lever into the bottom notch on the right fender.

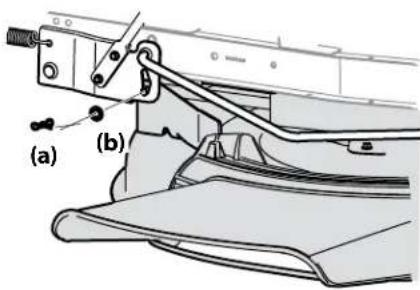

3. Remove the bow-tie cotter pin (a) and flat washer (b) from the deck lift assembly, and retain for reinstallation later. See Figure 4-5.

Figure 4-5

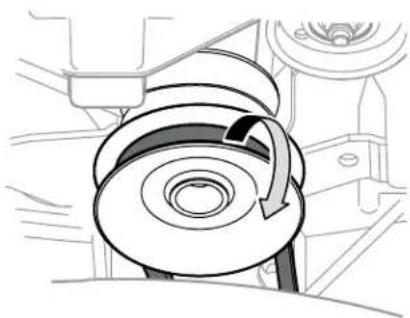

1. Remove the belt from around the tractor's PTO pulley. See Figure 4-6.

Technical line drawing of a mechanical component with a circular dial and arrow indicating rotation (no text or symbols)

Figure 4-6

1. Remove the remaining bow-tie cotter pins (a) securing the deck to the riding mower, as shown in Figure 4-7.

Figure 4-7

Note: When reassembling, the bow-tie clips (a) should be re-installed from the top down.

1. Unplug the wire pigtail from the deck switch.
2. Move the deck lift lever into the top notch on the right fender to raise the deck lift arms up and out of the way.

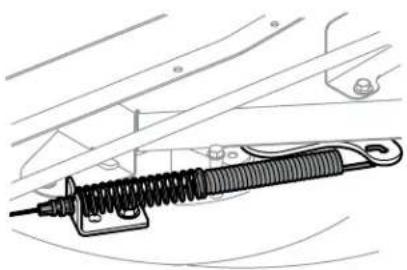

3. Carefully remove the PTO cable from the rear of the cutting deck. Remove the spring from the deck idler bracket. See Figure 4-8.

Technical line drawing of a mechanical clamp or spring assembly with no visible text or symbols

Figure 4-8

1. Gently slide the cutting deck (from the left side) out from underneath the tractor.

Changing the Deck Belt

Note: It is possible to change the deck belt with the cutting deck still installed on the tractor; however it is much easier to remove the deck first, change the deck belt, then reinstall the cutting deck.

To change the cutting deck belt, proceed as follows:

1. It is easiest to change the deck belt by first removing the cutting deck as instructed earlier in this section first. Skip this step if deciding to change the deck belt with the mowing deck still installed on the riding mower. Otherwise, remove the cutting deck now.
2. If changing the deck belt with the cutting deck still installed on the riding mower, lower the deck to the lowest mowing position.

3. Remove the deck belt from around the riding mower's PTO drive pulley as shown in Figure 4-6. Simply roll one side of the belt OFF of the pulley and then work it OFF the pulley by continuing around the pulley until the belt is OFF of the pulley.

4. Pull the belt towards the front of the riding mower, pulling it through and out of the belt keeper rod.

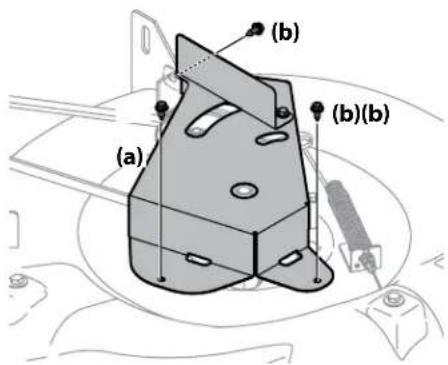

5. Remove the deck belt cover (a) by removing the three hex bolts (b) that secure it. See Figure 4-9 for 30" decks and Figure 4-10 for 24" decks.

Figure 4-9

Figure 4-10

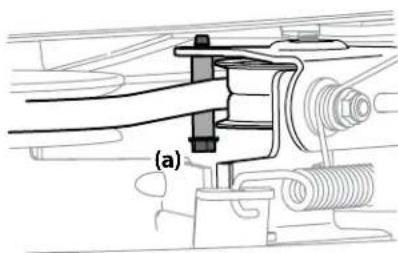

1. Remove the belt keeper (30" decks only) by removing the hex bolt (a) that secures it. See Figure 4-11.

Mechanical assembly diagram showing a hand holding a clamping tool over a vehicle chassis (no text or symbols visible)

Figure 4-11

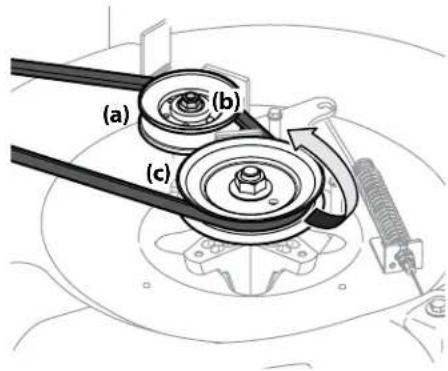

1. Loosen the idler pulley (24" decks only) (a) by loosening the flange lock nut (b) that secures it, enough to allow clearance for the belt to move past it and off. Remove the belt by working it off of the deck drive pulley (c) and idler pulley (a). See Figure 4-12.

Figure 4-12

1. Change the belt then reinstall the all the components removed in the reverse order.
2. Feed the deck belt through the belt keeper rod and work it around and onto the PTO drive pulley as shown in Figure 4-6.

Battery

WARNING

California PROPOSITION 65: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

CAUTION

If removing the battery for cleaning, disconnect the NEGATIVE (Black) wire from it's terminal first, followed by the POSITIVE (Red) wire. When re-installing the battery, always connect the POSITIVE (Red) wire its terminal first, followed by the NEGATIVE (Black) wire. Be certain that the wires are connected to the correct terminals; reversing them could result in serious damage to your engine's alternating system.

Battery Failures

Some common causes for battery failure are:

• Incorrect initial activation
  • Overcharging
• Freezing
• Undercharging
• Corroded connections

These failures are NOT covered by your tractor's warranty.

Jump Starting

WARNING

Never jump start a damaged or frozen battery. Be certain the vehicles do not touch, and ignitions are off. Do not allow cable clamps to touch.

1. Connect positive (+) cable to positive post (+) of your tractor's discharged battery.
2. Connect the other end of the cable to the (positive +) post of the jumper battery.

3. Connect the second cable (negative -) to the other post of the jumper battery.

4. Make the final connection on the engine block of the tractor, away from the battery. Attach to a unpainted part to assure a good connection.

CAUTION

If the jumper battery is installed on a vehicle (i.e. car, truck), do NOT start the vehicle's engine when jump starting your tractor.

1. Start the tractor as instructed in the Operation section of this manual.
2. Set the tractor's parking brake before removing the jumper cables, in reverse order of connection.

Charging

WARNING

Batteries give off an explosive gas while charging. Charge the battery in a well ventilated area and keep away from an open flame or pilot light as on a water heater, space heater, furnace, clothes dryer or other gas appliances.

CAUTION

When charging your tractor's battery, use only a charger designed for 12V lead-acid batteries. Read your battery charger's Owner's Manual prior to charging your tractor's battery. Always follow its instructions and heed its warnings.

If your tractor has not been put into use for an extended period of time, charge the battery as follows:

1. For 30" deck models:

a. Set your battery charger to deliver a max of 10A.
b. If your battery charger is automatic, charge the battery until the charger indicates that charging is complete. If the charger is not automatic, charge for no fewer than eight hours.

1. For 24" deck models

a. A separately available charging unit is available for this tractor. Instructions for using this feature will accompany the battery charging accessory. The charging unit will plug in right next to the battery as shown in Figure 4-13. To order the battery charger, see the Parts/Warranty supplement sheet.

Diagram of an automotive battery pack with a cable inserted, showing internal components and wiring (no text or labels)

Figure 4-13

Fuse

One 15A fuse is installed in your tractor's wiring harness located just above the battery, under the left fender, to protect the tractor's electrical system from damage caused by excessive amperage.

If the electrical system does not function, or your tractor's engine will not crank, first check to be certain that the fuse has not blown. It can be found at the rear of the riding mower, underneath the fender located by the battery.

CAUTION

Always use a replacement fuse with the same amperage capacity as the blown fuse.

Blade

WARNING

Shut the engine off and remove ignition key before removing the cutting blade(s) for sharpening or replacement. Protect your hands by using heavy gloves when grasping the blade.

WARNING

Periodically inspect the blade and/or spindle for cracks or damage, especially after you've struck a foreign object. Do not operate the machine until damaged components are replaced.

CAUTION

If the cutting edge of the blade has previously been sharpened, or if any metal separation is present, replace the blades with new ones.

The blade may be removed as follows.

Note: It may be easier to change the blade by first removing the deck from beneath the tractor, (refer to Cutting Deck Removal earlier in this section) then gently flip the deck over to expose its underside. It is possible to change the blade, however, with the deck still attached to the tractor. If attempting to change the blade with the deck still installed on the tractor, first move the deck lift lever to its highest cutting position.

1. Remove the mulch plug, deck chute or bagging chute, if equipped, exposing the deck chute opening.

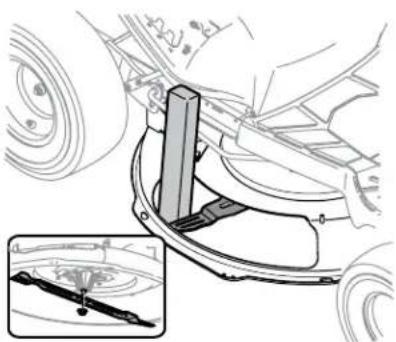

2. Using a block of wood or 2 x 4, insert it into the deck opening and rotate the blade around until it wedges the wood between the deck opening and the cutting blade, as shown in Figure 4-14.

Mechanical assembly diagram showing a lever mechanism and a close-up of a tool (no text or symbols visible)

Figure 4-14

1. Remove the hex flange nut that secures the blade to the spindle assembly. See the Inset of Figure 4-14.

Note: The deck spindle has a normal thread. To loosen, rotate the flange lock nut counter-clockwise.

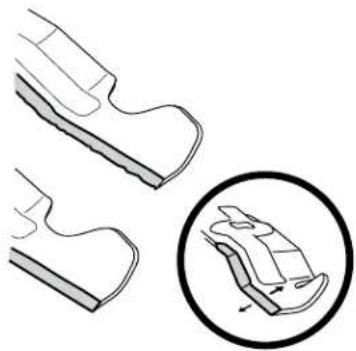

1. To properly sharpen the cutting blades, remove equal amounts of metal from both ends of the blades along the cutting edges, parallel to the trailing edge, at a 25^ - to 30^ angle. Always grind each cutting blade edge equally to maintain proper blade balance. See Figure 4-15.

Diagram showing two shoe foot profiles with a magnified inset of the lower side of the foot (no text or symbols)

Figure 4-15

WARNING

A poorly balanced blade will cause excessive vibration, may damage the tractor and/or result in personal injury.

1. Test the blade's balance using a blade balancer. Grind metal from the heavy side until it balances evenly.

Note: When replacing the blade, be sure to install the blade with the side of the blade marked "Bottom" (or with a part number stamped in it) facing the ground when the mower is in the operating position.

CAUTION

Use a torque wrench to tighten the blade spindle hex flange nut to between 70 ft-lbs and 90 ft-lbs.

Changing the Transmission Drive Belt

Note: Several components must be removed and special tools (i.e. air/impact wrench) in order to change the tractor's drive belt. See an authorized service dealer to have your drive belt replaced or phone Customer Support to find a dealer near you. See page 2 for details.

Notes

MANUAL DEL OPERADOR

Tractor cortacésped

Índice

Technical line drawing of a vehicle chassis with a close-up inset showing a tool interacting with the wheel (no text or symbols present)

Figura 2-1

Diagram of a mechanical device with a knob and base, labeled (a) and (b), showing no text or symbols beyond labels.

Diagram of a mechanical device with labeled parts (a) and (b), showing a knob and base structure without any text or symbols.

Figura 2-2

Figura 2-4

Figura 2-5

Figura 2-11

Figura 2-12

Figura 2-13

Simple line drawing of a mechanical component or housing with a base and top part (no text or symbols)

Figura 2-15

Notas

Figura 4-3

Technical line drawing of a mechanical component with a circular component and directional arrow (no text or symbols)

Figura 4-6

Technical line drawing of a mechanical spring assembly with attached components (no text or symbols)

Figura 4-8

Mechanical assembly diagram showing a hand adjusting a component with bolts and springs (no text or symbols)

Figura 4-11

Figura 4-12

Diagram of an automotive battery pack with a cable inserted, showing wiring and mounting points (no text or labels)

Figura 4-13

Fusible

Mechanical assembly diagram showing a lever mechanism and a close-up of a component detail (no text or symbols visible)

Figura 4-14

Diagram showing foot and seat components with a magnified inset highlighting the seat area (no text or labels)

Figura 4-15

ADVERTENCIA
