Operating Instructions

Air-to-Water Heatpump

Model No.

Indoor Unit

Outdoor Unit

WH-SXF09D3E8

WH-UX09DE8

WH-SXF12D9E8

WH-UX12DE8

(WH-SXF09D3E8-1)

(WH-UX09DE8-1)

(WH-SXF12D9E8-1)

(WH-UX12DE8-1)

ENGLISH

2\~9

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

Before operating the unit, make sure the installation has been carried out correctly by authorized dealer correctly and precisely following the installation instructions given.

FRANÇAIS

10\~17

Thank you for purchasing Panasonic Product

TABLE OF CONTENTS

SAFETY PRECAUTIONS

2\~3

CONTROL PANEL

4\~7

INDOOR UNIT

8

TROUBLESHOOTING

9

INFORMATION

74\~76

NOTE

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subjected to change without notice for future improvement.

OPERATION CONDITION

Water outlet Temperature (°C)		Indoor
HEATING	Max.	55
	Min.	25

Ambient Temperature (°C)		Outdoor
HEATING	Max.	35
	Min.	-20

NOTICE : When the outdoor temperature is out of the above temperature range, the heating capacity will drop significantly and outdoor unit might stop for protection control. The unit will restart automatically after a short time when the outdoor temperature is back in the limits.

SAFETY PRECAUTIONS

• Panasonic Air-to-Water Heatpump is a split system consisting only of an indoor unit and an outdoor unit. This system designed for combination with Panasonic Tank Unit. In case of non-Panasonic Tank Unit is being used with Panasonic Air-to-Water Heatpump System, Panasonic cannot guarantee neither good operation nor reliability of the system.
• This manual describes how to operate the Heatpump system between indoor and outdoor units only.
• Other operation such as water tank, radiator, external thermo controller and underfloor system, please refer to respective manufacturer operation manuals.

To prevent personal injury, injury to others, or property damage, please comply with the following.

Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote an action that is COMPULSORY.

WARNING

INDOOR UNIT AND OUTDOOR UNIT

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Please consult authorized dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire. Confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the specified type may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire.

Do not insert your fingers or other objects into the indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

WARNING
INDOOR UNIT AND OUTDOOR UNIT
	Do not sit or step on the unit, you may fall down accidentally.
	Do not install the indoor unit at outdoor. This is designed for indoor installation only.
POWER SUPPLY
	Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.
	To prevent overheating, fire or electric shock:Do not share the same power outlet with other equipment.Do not operate with wet hands.Do not over bend the power supply cord.
	If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
	This unit is equipped with Residue Current Circuit Breaker (RCCB). It is strongly recommended to check the operation of the RCCB after installation and periodically after servicing or maintenance by authorized dealer to ensure it is in good working order. Otherwise, it may cause electrical shock or fire in case of malfunction.
	It is strongly recommended to install Residual Current Device (RCD) on-site to prevent electric shock or fire.
	Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker.(Risk of smoke/fire/electric shock)Examples of abnormality/failureThe RCCB switches off by itself.Burning smell, abnormal noise or vibration sound is observed when the unit is in use.Hot water keeps on coming off the unit.Contact your local dealer immediately for maintenance/repair.
	It is recommended to wear gloves during servicing or maintenance in order to avoid hazard.
	This equipment must be earthed to prevent electrical shock or fire.
	Prevent electric shock by switching off the power supply when:- Before cleaning or servicing.- Extended non-use.
	This appliance is for multiple uses. All power supply circuits must be turn off before access to any of the terminals in the indoor unit, to avoid electrical shock, burn or fatal injury.

CAUTION

CAUTION
INDOOR UNIT AND OUTDOOR UNIT
	Do not wash the indoor unit with water, benzene, thinner or scouring powder.
	Do not install the unit close to any combustible equipment or at bathroom. Otherwise, it may cause electric shock or fire.
	Do not touch the water discharge pipe at the indoor unit during operation.
	Do not place anything on top or beneath of the unit.
	Do not touch the sharp aluminium fin, sharp parts may cause injury.
	Do not use the system during sterilization to prevent scalding or overheat during shower.
	Ensure drainage pipe is connected properly. Otherwise, leakage may occur.
	After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down.
	The sterilization function field settings must be configured by the authorized dealer according to local laws and regulation.
CONTROL PANEL
	Do not let the control panel get wet. Otherwise, it may cause electric shock or fire.
	Do not press the buttons on the control panel with hard, pointed objects. Otherwise, it may damage the unit.
	Do not wash the control panel with water, benzene, thinner or scouring powder.
	Do not inspect or service the control panel by yourself. Please consult authorized dealer. Otherwise, it may cause injury if mishandling.

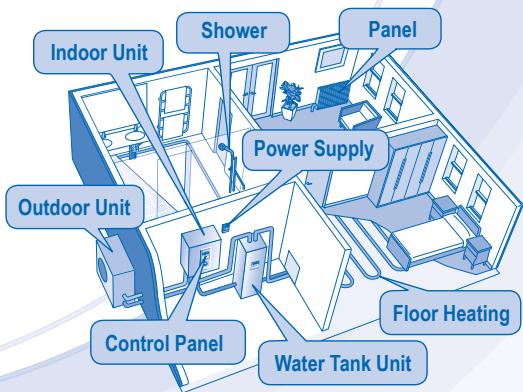

Indoor Unit Shower Panel Power Supply Outdoor Unit Control Panel Floor Heating Water Tank Unit

CONTROL PANEL

• Some functions describe in this manual may not be applicable to your unit.
• Consult your nearest authorized dealer for further information.

- For normal operation, the ERROR RESET, FORCE and SERVICE buttons are not in use.

8881-888 888-888

Open cover for buttons selections.


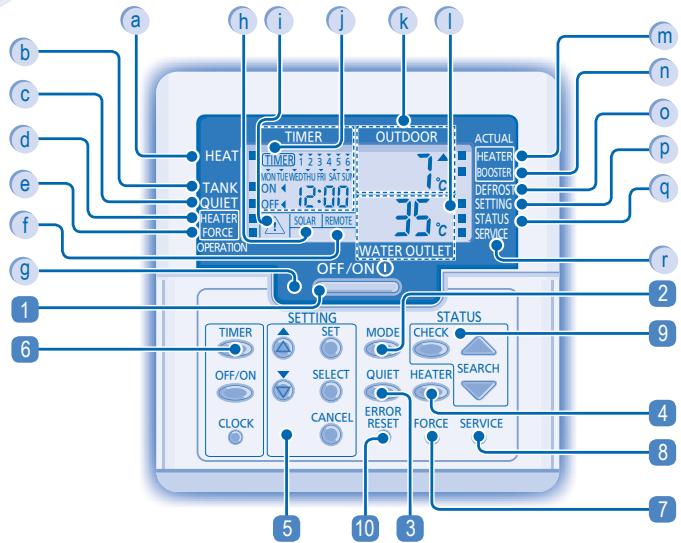

CONTROL PANEL'S DISPLAY

a Heat Mode OFF/ON Indicator
b Tank Mode Indicator
c Quiet Mode Indicator
d Backup Heater Enabled/Disabled Indicator
e Force Heater Request OFF/ON Indicator
f External Thermo Controller Connected Display
g Operation LED
h Solar Display
i Caution (Tank Temperature above 60°C) Indicator

j Timer/Clock Setting Display
k Outdoor Ambient Temperature Display
I Water Outlet Temperature Display
m Backup Heater Actual (OFF/ON) Indicator
n Booster Heater Actual (OFF/ON) Indicator
o System Defrost Operation OFF/ON Indicator
p System Setting Mode OFF/ON Indicator
q System Status Check Mode OFF/ON Indicator
r System Service Mode OFF/ON Indicator

CONTROL PANEL'S BUTTON

1 OFF/ON Button
2 Operation Mode Button
3 Quiet Operation Button
4 Indoor Unit Backup Heater Enabling Button
5 System Setting Mode Buttons

6 Timer Setting Group Buttons
7 Force Heater Mode Button
8 System Service Mode Button
9 System Status Check Button
10 Error Reset Button

CONTROL PANEL PREPARATION

Setting Current Day and Time

Notes:

• The current day and time need to be set when:
• The power is turned on for the first time.
• After a long time has elapsed since the power was last turned on.
• The current time that has been set will be the standard time for all the Timer operations.

SETTING UP THE SPECIAL FUNCTIONS

• After initial installation, you can manually adjust the settings. The initial setting remains active until the user changes it.
- The control panel can be used for multiple installations. Some functions may not be applicable to your unit.
- Ensure the operation LED is in OFF condition before setting.

1. Press SET and CHECK simultaneously for 5 seconds to enter special setting mode. "SETTING" and "STATUS" indicator is ON.
2. Press ▲ or ▼ to browse functions.
3. Press SELECT to enter function.
4. Press ⬆ or ⬇ to enable YES or disable NO function, or set other options.
5. Press SET to confirm.

Set Control Panel's Display Description

1	ro oī	con	External Thermo Controller (YES / NO)To set external thermo controller connection.
2	HEATER	CAP	Indoor Backup Heater Capacity Selection (3kW / 6kW / 9kW)To reduce the heater power whenever unnecessary. Options vary depending on model.
3	Ant	FrE	Water System Freeze Prevention Function (YES / NO)To activate or deactivate water system freeze prevention function when unit is OFF.
4	TANK	con	Tank Connection (YES / NO)To set tank connection.Note: If select “Tank connection” is “NO”, Set 5 ~ 14 are skipped.
5	SOLAR	Pry	Solar Priority (YES / NO)To choose the solar use for water tank heat up.
6	HEAT	Pry	Heating Priority (YES / NO)To choose the room heating as priority during HEAT + TANK mode.Note: If select “Heating priority” is “YES”, Set 7 ~ 8 are skipped.
7	HEAT	int	Heating operation Interval SetTo set timer for Heat mode during HEAT + TANK mode (0.5hour ~ 10 hours).
8	TANK	int	Tank Heat-up Interval SetTo set timer for Tank during HEAT + TANK mode (5minutes ~ 1hour 35minutes).
9	BOOSTER	htr	Booster Heater Function (YES / NO)To activate or deactivate tank booster heater function.Note: If select “Booster heater function” is “NO”, Set 10 is skipped.
10	BOOSTER	dly	Booster Heater Delay Timer SetTo set delay timer for booster heater to ON if water tank temperature is not reached (20minutes ~ 1hour 35minutes).

- Do not use the system during sterilization to prevent scalding or overheat during shower.

- The sterilization function field settings must be configured by the authorized dealer according to local laws and regulation.

11	Strl	Fun	Sterilization (YES / NO)To set sterilization, if required.Note: If select “Sterilization” is “NO”, set 12 ~ 14 are skipped.
12	Str		Sterilization Day & Time SetTo set timer for sterilization (only once a week, will operate even in standby condition).
13	Strl	bo	Sterilization Temperature SetTo set temperature for sterilization function ( 40^ 75^ ).
14	Str	oPr	Sterilization Continue TimeTo set timer to maintain heating temperature in order to complete the sterilization function (5minutes ~ 1hour).

TO TURN ON OR OFF THE UNIT

- When unit is ON, operation LED is lit and the actual temperature for water outlet and outdoor ambient are shown on the control panel display.

• To turn ON or OFF the panel/floor heating operation.
• In this mode, the outdoor unit will provide heating capacity to the indoor unit.

- HEAT + TANK MODE

• In this mode, the outdoor unit will provide heating capacity to the sanitary tank and indoor unit.
• This operation is not used when the sanitary water tank is not installed.

- TANK MODE

• To turn ON or OFF the sanitary tank operation.
• In this mode, the outdoor unit will provide heating capacity to the sanitary tank.

TO ENJOY QUIET ENVIRONMENT

- This operation reduces outdoor unit noise. In this condition, it may cause decrease in heating capacity.

TO ENABLE THE BACKUP HEATER

• The backup heater provides extra heating capacity during cold outdoor temperature and only can operate at heat mode operation for indoor unit when he was enabled by pushing this button.
• The backup heater will automatically turn ON when the setting conditions is fulfilled.
• To disabled the Heater operation manually, press the respective button again.

SYSTEM STATUS CHECK MODE

1. Press CHECK for 5 seconds to enter STATUS mode.
2. Press ▲ or ▼ to check the Water Inlet

Temperature, Tank Temperature, Compressor Running Frequency or Error History.

CANCEL

• Press to exit STATUS mode.
• Once STATUS mode is entered, "STATUS" indicator is ON.

• STATUS mode cannot be activated when the "SETTING" indicator is ON.

• It is strongly recommended to contact the nearest authorized dealer to change the water temperature range.

• Using the control panel could set the temperature range for water outlet temperature and outdoor ambient temperature.

SYSTEM SETTING MODE

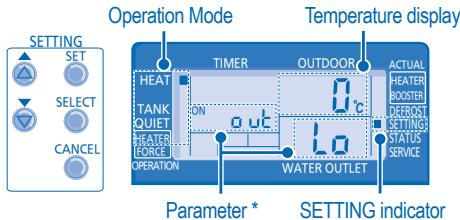

OPERATION MODE Temperature display SETTING SET SELECT CANCEL TIME OUTDOOR ACTUAL HEATER BOOSTER DEECTION SETTINGS STATUS SERVICE HEAT TANK QUIET ON OUT LO WATER OUTLET OPERATION Parameter * SETTING indicator

1. Press SET for 5 seconds to enter "SETTING" mode. "SETTING" indicator is ON.

2. Press ▲ or ◇ to choose a parameter.

3. After selecting the desired parameter, press Ⓞ to enter the parameter.

4. Press ▲ or ▼ to set the desired temperature.

5. Press SET again to confirm the setting.

- Repeat steps 2 to 5 to set other parameters.

Operation Mode Parameter * Description

HEAT	out Lo	Low outdoor ambient set temperature (-15°C ~ 15°C).
HEAT	out Hi	High outdoor ambient set temperature (-15°C ~ 15°C).
HEAT	H20 Lo	Water outlet set temperature at low outdoor ambient temperature (25°C ~ 55°C).
HEAT	H20 Hi	Water outlet set temperature at high outdoor ambient temperature (25°C ~ 55°C).

HEAT	OFF	Set temperature for turning OFF heating operation ( 5^ 35^ ).
HEATER	OUT ON	Outdoor ambient set temperature for turning ON heater operation ( -15^ 20^ ).
TANK	SET	Sanitary tank set temperature ( 40^ 75^ ).

WATER TEMPERATURE THERMO SHIFT SETTING

1. Press SET within 5 seconds.

- Repeat steps 3 to 5 to set the desired shift temperature (-5°C \~ 5°C).

Notes:

• Press 📋 or wait 30 seconds to exit "SETTING" mode.
• The setting temperature will be stored in the system once confirm.
• "SETTING" mode cannot be activated when the "SERVICE" and "STATUS" indicator is ON.

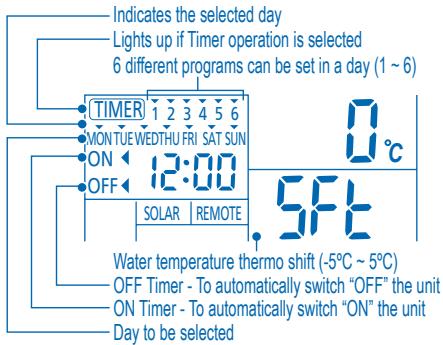

Indicates the selected day Lights up if Timer operation is selected 6 different programs can be set in a day (1 ~ 6) TIMER 1 2 3 4 5 6 MON TUEWEDTHU FRI SAT SUN ON 12:00 OFF 12:00 SOLAR REMOTE Water temperature thermo shift (-5°C ~ 5°C) OFF Timer - To automatically switch "OFF" the unit ON Timer - To automatically switch "ON" the unit Day to be selected

Function	Step
Enter timer mode	Timer.
Set day & time	Pressorto select your desired day.PressSELECTto confirm.“1” will be blinking, pressSELECTto set program 1.PressOFF/ONto select ON or OFF timer.Pressorto select your desired time.You can setMODE, QUIET, HEATERand desired shift temperaturewith timer.PressSETto confirm program 1. The selected day will be highlighted withAfter 2 seconds, the display will move to the next program.Repeat steps 4 to 7 to set programs 2 to 6.During timer setup, if no button is pressed within 30 seconds, or if thebutton is pressed the setting at that moment is confirmed and timer setup is ended.
Add/Modify timer	Repeat the steps above.
Disable timer	Timer, then pressCANCEL.
Enable timer	Timer, then pressSET.
Check timer	Timer.2. Pressoruntil your desired day is shown, pressSELECTto confirm your selection.3. Pressorto check the set programs.
Cancel timer	Timer.2. Pressoruntil your desired day is shown, pressSELECTto confirm your selection.3. Pressto enter program setting.Pressoruntil your desired program is shown.PressCANCELto cancel the program.

Notes:

- You can set the Timer for each day of the week (Monday to Sunday) with 6 programs per day.

- When the unit is switched on by the ON TIMER, it will use the previously set temperature to control the water outlet temperature.

- Same timer program cannot be set in the same day.

- You may also select collective days with same timer setting.

- Promotes energy saving by allowing you to set up to 6 programs in any given day.

- Switch off the power supply before cleaning.

CLEANING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.
• Use only soap (≈ pH7) or neutral household detergent.
• Do not use water hotter than 40^ .

HINT

- To ensure optimal performance of the unit, cleaning maintenance has to be carried out at regular intervals. Please consult authorized dealer.

Illustration of a Panasonic industrial control unit with a digital display and control knob (no text or symbols on the device itself)

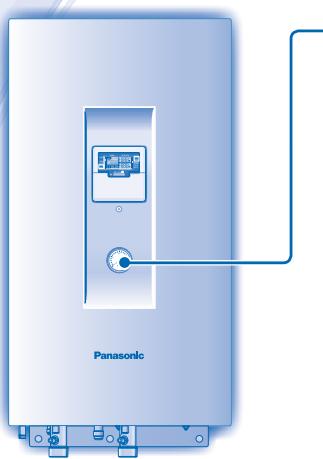

WATER PRESSURE GAUGE

Blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and mounting flanges (no text or symbols beyond measurement indicators)

• Do not press or hit the glass cover with hard, pointed objects. This may damage the unit.
• Ensure that the water pressure is between 0.05 to 0.3 MPa (0.1 MPa = 1 bar).
• In case the water pressure is out of the above range, please consult authorized dealer.

INDOOR UNIT & CONTROL PANEL

• Do not splash water directly.
• Wipe the unit gently with a soft, dry cloth.

EXTERNAL FILTER

- Please clean the external filter at least once a year. Fail to do so might cause filter clogged, consequent system breakdown. Please consult authorized dealer.

OUTDOOR UNIT

• Do not obstruct the air inlet and air outlet vents, it may cause low performance or breakdown. Please remove obstacles to assure the ventilation.
• During winter, please clean and remove the snow near outdoor unit so that the snow does not cover the air inlet and air outlet vents.

INSPECTION

• In order to ensure optimal performance of the unit, seasonal inspections on the unit, external filter and field wiring have to be carried out at regular intervals. This maintenance should be carried out by authorized dealer.
• Clear any obstruction at the air inlet and air outlet vents of outdoor unit.

FOR EXTENDED NON-USE

- Turn off the power supply.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the control panel.
• Water leaks from Indoor unit.
- Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.

The following symptoms do not indicate malfunction.

SYMPTOM	CAUSE
Flowing sound during operation.	Refrigerant flow inside the unit.
Operation is delayed a few minutes after restarting.	The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam.	Condensation or evaporation occurs on pipes.
Outdoor unit emits steam during heating mode.	This is due to defrost operation happens at the heat exchanger.
Outdoor unit does not operate.	When the outdoor temperature is out of the operation condition range, the heatpump system enter protection control.
Air-to-Water Heatpump system operation will turn off.	The heatpump system enter protection control. Compressor stops by water inlet temperature lower than 18°C; and backup heater power turn on by water inlet temperature lower than 23°C.
System difficult to heat-up.	When heating is operated by indoor unit together with floor heating or panel heater simultaneously, there may be case where warm water temperature is getting lower and cause floor heating or panel heater heat-up is weaken.When outdoor air temperature is low, it may be difficult to get warm.Is the snow pile blocking the discharge outlet or intake inlet of outdoor unit.When water outlet set temperature is low, it may be difficult to get warm.
System cannot get warm instantly.	Due to the nature of the heatpump system, it may take some time to heat-up the water if the unit is operated from cold-start.
Backup heater turn ON automatically when it is not enabled.	The turn ON of backup heater is a protection to the indoor unit's heat exchanger.
Operation starts automatically even without ON Timer.	The sterilization timer has been set.

Check the following before calling for servicing.

SYMPTOM	CHECK
Heating operation is not working efficiently.	Set the temperature correctly.Is the panel heater valve closed.Clear any obstruction at the air inlet and air outlet vents of outdoor unit.
Noisy during operation.	Check if the unit has been installed at an incline or the cover is not closed properly.
The unit does not work.	Check if the circuit breaker is tripped.
Operation LED is no lit or control panel display is blank.	Is the power supply off or power failure.

The operation LED blinks and error code appear on control panel display.

TIMER TIMER 1 2 3 4 5 6 MON TUE WEDTHU FRI SAT SUN ON H 76 OFF

TIMER TIMER 1 2 3 4 5 6 MON TUE WEDTHU FRI SAT SUN ON ← H 15 OFF ←

Force Heater Mode Button

FORCE

In case of a failure of the Air-to-Water Heatpump system, the backup heater can be used to heat up the heating water. Press FORCE to switch on the backup heater.Press OFF/ON to stop the force heater operation.During Force Heater mode, all other operations are not allowed.

8881-888 888-888

Illustration of a Panasonic industrial control unit with a central device and connected tubing (no text or symbols on the device itself)

JAUGE DE PRESSION D'EAU

Close-up of a blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and mounting flanges (no text or symbols beyond measurement labels)

8881-888 888-888

Illustration of a Panasonic industrial control unit with no visible text or symbols on the device itself

Front view of a blue pressure gauge with needle pointing at 0.3 MPa (no text or symbols beyond measurement markings)

8881-888 888-888

m = 311

m = 311

[Non-Text]

1. Bestätigen C

s Lin

ng

mit

-

•

SEL

CT

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

||

[Non-Text]

[Non-Text]

[Non-Text]

1. Drücken Sie

, u

n de

n E

nso

cha

t-b

ZW

de

n A

.us

sch

alt-

Tim

er

aus

ZU

väh

len

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

-

广力云智慧零售收银系统

[Non-Text]

[Non-Text]

1. Drücken Sie

bzw.

[Non-Text]

un

die

e qe

wi

ns

chte

U

nrz

eit

einz

us

elle

en.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

m = 311

m = 311

[Non-Text]

[Non-Text]

1. Drücken Sie

3LT

um

Proq

am

m 1

ZU

be

stä

tige

n.

De

au

sqe

ewà

hlt

e W

oc

en

aq

wir

du

arch

da

s S

vml

ool

7

[Non-Text]

11

[Non-Text]

m = 311

m = 311

m = 311

Hinweise:

Illustration of a Panasonic industrial device with a control panel and mounting base (no text or symbols on the device itself)

MANOMETER FÜR WASSERDRUCK

Blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and adjustment knobs (no text or symbols beyond measurement indicators)

UNITÀ INTERNA E UNITÀ ESTERNA

8881-888 888-888

Illustration of a Panasonic industrial control unit with a digital display and control knob (no text or symbols on the device itself)

MANOMETRO DI PRESSIONE DELL'ACQUA.

Front view of a blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and adjustment knobs (no text or symbols beyond measurement labels)

8881-888 888-888

Illustration of a Panasonic industrial control unit with a digital display and control knob (no text or symbols on the device itself)

WATERDRUKMETER

Front view of a pressure gauge with needle pointing to 0.3 MPa (no text or symbols beyond scale markings)

BINNEN-UNIT & CONTROLEPANEEL

8881-888 888-888

Illustration of a Panasonic industrial control panel with a central display and terminal blocks (no text or symbols on the panel itself)

MANÓMETRO DA ÁGUA

Blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and mounting flanges (no text or symbols beyond measurement indicators)

Illustration of a Panasonic industrial control unit with a digital display and control knob (no text or symbols on the device itself)

ΕΥΡΟΣ ΠΙΕΣΗΣ ΝΕΡΟΥ

Blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and adjustment knobs (no text or symbols beyond measurement indicators)

8881-888 888-888

VOLBA PROVOZNÍHO REŽIMU

- REŽIM HEAT (TOPENÍ)

ČINNOST ZÁLOŽNÍHO TOPENÍ

REŽIM PROVĚRKY STAVU SYSTÉMU

Illustration of a Panasonic industrial control unit with gauges and cooling fans (no text or symbols on the device itself)

UKAZATEL TLAKU VODY

Blue industrial pressure gauge with scale markings (0.1, 0.2, 0.3, 0.4 MPa) and mounting flanges (no text or symbols beyond measurement indicators)

Information for Users on Collection and Disposal of Old Equipment

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Authorized representative in EU

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany
