Product Type	Window Air Conditioner
Brand	Friedrich
Model	Chill Premier CCF08A10A
Cooling Capacity (BTU)	8,000
Energy Efficiency Ratio (EER)	11.0
Voltage / Frequency	115 V / 60 Hz
Amperage	7.5 A
Plug Type	NEMA 5-15P (3-prong)
Dimensions (W x H x D)	19.5 in x 13.5 in x 18.5 in
Weight	60 lbs
Modes	Cool, Fan, Dehumidify
Fan Speeds	2 (Low, High)
Thermostat	Electronic (digital display)
Remote Control	Included
Programmable Timer	24-hour
Sleep Mode	Yes
Auto Restart	Yes
Filter Type	Washable foam
Filter Cleaning	Every 30 days
Refrigerant	R410A
Safety Features	Overload protection, anti-slip bracket
Warranty	1 year limited

Frequently Asked Questions - Chill Premier CCF08A10A Friedrich

How do I install the Friedrich Chill Premier CCF08A10A air conditioner?

Installation requires a window opening at least 23 inches wide and 14 inches high. Secure the included mounting bracket to the window sill, then slide the unit into place. Ensure the unit is level and the seal is tight to prevent air leaks. For complete steps, refer to the installation manual.

How do I clean or replace the air filter?

The filter should be cleaned every 30 days. Remove the front grille, pull out the filter, and vacuum or wash with mild detergent. Let it dry completely before reinstalling. Replacement filters can be ordered from Friedrich.

Why is my air conditioner not cooling?

Check that the thermostat is set to 'Cool' and the temperature is below room temperature. Ensure the filter is clean, the unit is not obstructed, and the window is properly sealed. If it still doesn't cool, the unit may need servicing.

What does the error code E1 mean?

Error code E1 typically indicates a sensor malfunction. Turn off the unit, unplug it for 5 minutes, then restart. If the code persists, contact Friedrich support.

Can I use an extension cord with this air conditioner?

No, extension cords are not recommended. Plug the unit directly into a properly grounded 115V outlet. Using an extension cord can cause voltage drop and fire hazard.

How do I use the remote control?

Insert two AAA batteries (not included) into the remote. Point it at the unit and press the power button. Use the mode button to cycle between Cool, Fan, and Dehumidify. Adjust temperature and fan speed with the respective buttons.

What is the recommended room size for this air conditioner?

The 8,000 BTU unit is suitable for rooms up to 350 square feet, depending on insulation and sunlight.

How do I set the timer?

Press the Timer button on the remote or control panel. Use the +/- buttons to set the desired number of hours for the unit to turn on or off automatically. The display will show the timer setting.

Why does the unit keep turning on and off?

This could be due to the compressor cycling off when the set temperature is reached. If it cycles too frequently, check for dirty filter, incorrect thermostat setting, or an oversized unit for the room. Also ensure the unit is level.

Where can I find replacement parts or accessories?

Replacement filters, remote controls, and other accessories are available on the Friedrich website or through authorized dealers. Use the model number CCF08A10A to find compatible parts.

USER MANUAL Chill Premier CCF08A10A Friedrich

Quietmaster® technology

Control with App

Save big on energy

Voice command compatible

Quietmaster® technology

Quiet, it's in the details

Smart, effortless control

Integrated Wi-Fi allows you to control Chill Premier with the Friedrich Go™ app on your smartphone. Also compatible with Amazon Alexa.

Save big on energy

Manage energy use with ease

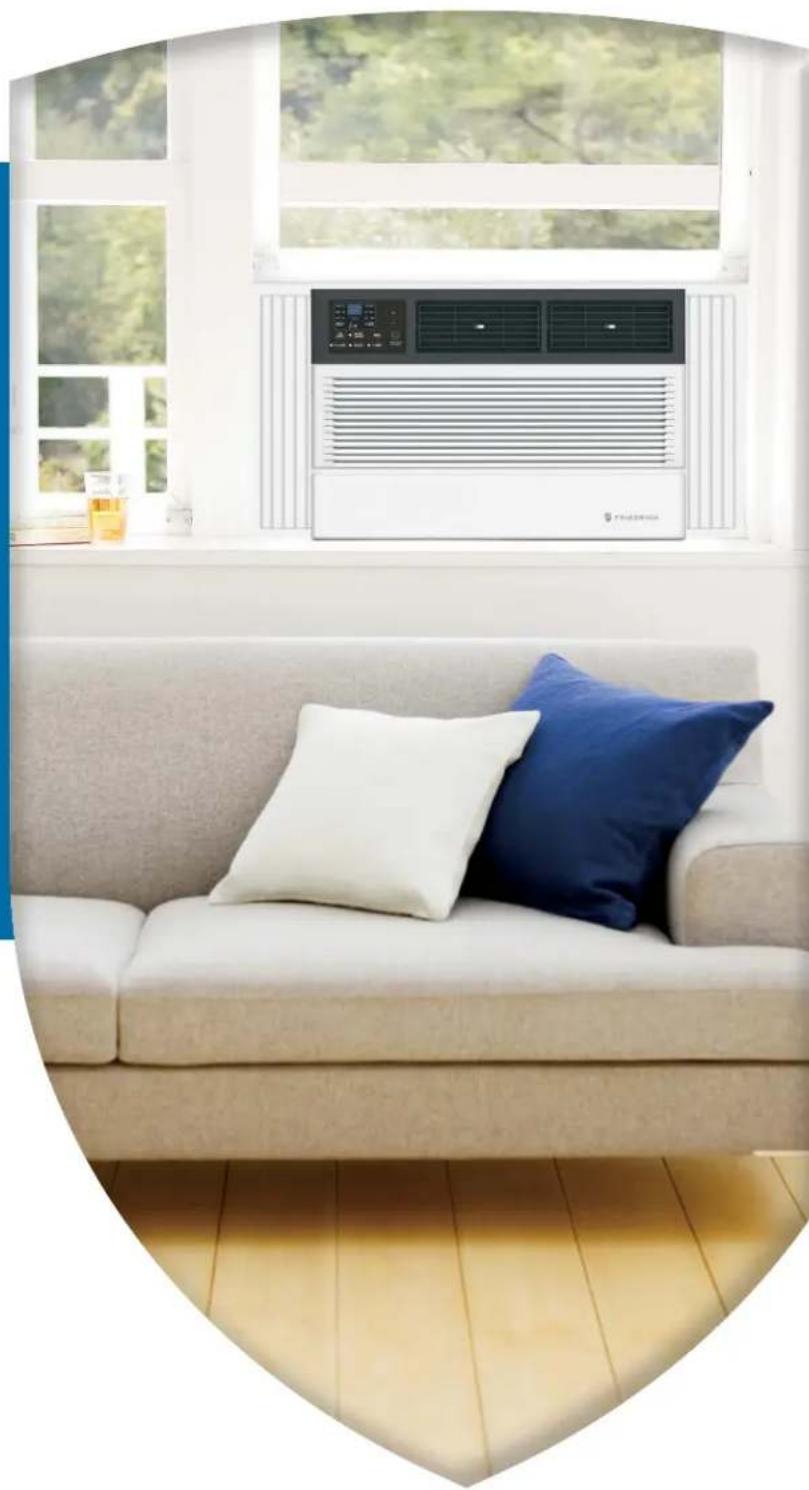

Interior view of a modern living room with a beige sofa, white and blue cushions, and an air conditioner unit (no visible text or symbols)

FRIEDRICH

1883

THE EXPERTS IN ROOM AIR CONDITIONING

HOME OR AWAY, YOU'RE IN CONTROL WITH THE FRIEDRICH GO™ APP.

Integrated Wi-Fi control from your smartphone. Also compatible with Amazon Alexa.

Connect in minutes

It's easy with our simplified set up process

Easily set your home, away, and night time preferences

Create a custom cooling schedule that fits your lifestyle

You're in control anytime, anywhere

Power your unit on and off, change temperature, system mode, and adjust fan speeds no matter where you are

Woman in business attire using a smartphone and coffee cup (no visible text or symbols)

Why Friedrich Go™?

By maintaining even temperatures with centralized controls, you reduce wasted energy and lower utility and maintenance costs while extending the life of your equipment.

Front view of a Siemens air conditioner unit with ventilation grilles and control panel (no visible text or symbols)

CCF05A10A, CCF06A10A, CCF08A10A, CCF10A10A and CCF12A10A

QuietMaster® technology

Building the quietest air conditioners begins with the design process and continues through the selection of superior components and materials.

It is shaped by skilled manufacturing and refined through on-going product testing in our engineering lab.

The result is a noticeably quieter cooling and heating experience, as much as 25% quieter than competitor's products.

Person working at a computer workstation in an industrial setting (no visible text or symbols)

Blue circular logo with a white stylized 'Q' design (no text or symbols)

CHILL PREMIER FEATURES

Control Features

• Built-in Wi-Fi control on the go with the Friedrich GO App
- Smart home / voice command device compatibility (Amazon Alexa)
- 24-hour timer
- Remote Control

Quietmaster Technology

• Heavy duty insulation on inner wall for sound absorption
• Stiffened sheet metal casing to block external noise
• Wide air discharge vents optimize airflow and minimize front panel noise
  • Counterweights dampen vibration and decrease sound

Comfort & Convenience

• 3 cooling and fan-only speeds, plus auto fan
- Unique sleep setting
- Auto restart saves settings if power is interrupted
- 8-way air flow control
- Washable, antimicrobial air filter

Installation Features

• NEW one-piece frame (fixed chassis) for simplified and fast installation
• Includes standard installation hardware
• Expandable side curtains

Earth Friendly

• ENERGY STAR® qualified models
- Money Saver® setting saves money by operating the fan only when cooling

SPECIFICATIONS
★ENERGY STAR ^® models

Model UPC	Cooling Btu	Volts Rated	Cooling Amps	Cooling Watts EER CEER	Estimated Yearly Energy Cost	Moisture Removal-Pints/HR Refrigerant CFM	Wt. Net/Ship Lbs.
Chill *Premier (Cool Only)
CCF05A10A 5200 115 4.3 4	59	11.0	11.0	41 1.0 R410A 141 44/51
CCF06A10A 6000 115 4.3 4	92	12.2	12.1	45 0.9 R410A 141 44/51
CCF08A10A 8000 115 5.8 6	61	12.1	12.0	60 1.0 R410A 206 51/57
CCF10A10A	10000		115	7.3 826 12.1 12.0	75 1.2 R410A 282 64/73
CCF12A10A	12000		115	8.6 992 12.1 12.0	$90 1.5 R410A 270 73/82

INSTALLATION

Model	Window Width Inches							Carton Dimensions Inches
	Height Inches	Width Inches	Depth Inches	Minimum Extension Into Room Inches	Minimum Extension Outside Inches	Minimum*	Maximum	Height	Width	Depth
CCF05A10A, CCF06A10A	13^1/3	18^4/_7	15^15/_19	—	—	20^1/_8	36	14^7/_8	21^1/_2	19^1/_2
CCF08A10A	13^1/3	18^4/_7	17^14/_25	—	—	20^1/_8	36	14^7/_8	21^1/_2	17^7/_8
CCF10A10A	13^1/3	19^4/_5	17^14/_25	—	—	21^5/_8	36	23^2/_3	21^1/_2	17^1/_3
CCF12A10A	14^3/_5	19^4/_5	21^1/_2	—	—	21^5/_8	36	23^2/_3	21^6/_7	23^2/_3

All Chill Premier models are designed for window installation only.
* Minimum widths achieved using one side curtain assembly as opposed to both in a standard installation.

Model	Circuit Rating Breaker or T-D Fuse	Plug Face (NEMA#)	Power Cord Length [ft.]	Wall Outlet Appearance
ALL MODELS	125V-15A	5-15P	6

COOLING SIZING GUIDE

AREA TO BE CONDITIONED IN SQ. FT.	APPROXIMATE COOLING BTU REQUIRED
100 - 150	5000
150 - 250	6000
250 - 300	7000
300 - 350	8000
350 - 400	9000
400 - 450	10000
450 - 550	12000

Guide based on normal room insulation, average number of sun exposed windows and two person occupancy.

1. If heavily shaded, reduce cooling Btus required by 10%
2. If very sunny, increase cooling Btus required by 10%
3. Add 500 Btus per person over 2 people
4. Add 4,000 Btus if the area is a kitchen
