USER MANUAL UCT10A30A Friedrich
Quietmaster® technology
Quiet, it's in the details
Smart, effortless control
Integrated Wi-Fi allows you to control
Uni-Fit with the Friedrich Go™ app on your
smartphone. Also compatible with
Amazon Alexa.
Save big on energy
Manage energy use with ease
Universal fit
Fits 24 1/2, 26 and 27 inch sleeves
FRIEDRICH
1883
HOME OR AWAY, YOU'RE IN CONTROL WITH THE FRIEDRICH GO™ APP.
Integrated Wi-Fi control from your smartphone. Also compatible with Amazon Alexa.
Connect in minutes
It's easy with our simplified set up process
Easily set your home, away, and night time preferences
Create a custom cooling and heating schedule that fits your lifestyle
You're in control anytime, anywhere
Power your unit on and off, change temperature, system mode, and adjust fan speeds no matter where you are
By maintaining even temperatures with centralized controls, you reduce wasted energy and lower utility and maintenance costs while extending the life of your equipment.
Control Features
• Built-in Wi-Fi control on the go with the Friedrich Go App
• Smart home / voice command device compatibility (Amazon Alexa)
- 24-hour timer
- Remote Control
Quietmaster Technology
- Solid steel inner wall
- Advanced airflow design
• High density insulation and foam for sound absorption - Aesthetically engineered to block indoor noise
• Counterweights for vibration dampening
Installation Features
• Universal fit decorative trim ring
- Chassis designed to fit 24 12 to 27" sleeves
Comfort & Convenience
• 3 cooling and fan-only speeds
- Unique sleep setting
• Auto restart if power is interrupted
- 8-way air flow control
- Washable, antimicrobial air filter
Earth Friendly
• ENERGY STAR ^® qualified models
- Money Saver ^® setting saves money by operating the fan only when cooling
UNI-FIT® USC SLEEVE EXTERIOR GRILLES


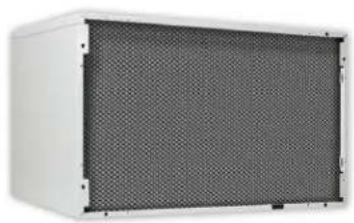

Exterior view of a white rectangular industrial or storage unit with a meshed panel (no visible text or symbols)STANDARD GRILLE
Ships with USC sleeve. Expanded aluminum grille designed for use with USC sleeve.
Ships with US/UE chassis. Black plastic for use on existing sleeves without any grille.
Optional extruded brushed aluminum grille.
IMPORTANT:
When installing into an existing sleeve, consult Installation Section of your Installation/Operation Manual to determine whether or not the grille needs to be replaced and/or a baffle adapter (included with chassis) should be used.
USC wall sleeve ships with weather panels and grille.
Sleeve is shown at right with standard painted steel inner panel, painted steel outer panel and standard grille
Inner weather panel
USC sleeve
Outer weather panel
Standard grille
Universal fit for easy replacement in existing 24 ^1/2 ", 26" or 27" sleeves
| Sleeve Dimensions | Friedrich USC Sleeve Amana | Carrier (51S Series) | Fedders/Emerson/Friedrich WSE | Emerson/Fedders | GE/Hotpoint Whirlpool | White-Westinghouse/Frigidaire/ Carrier (52F Series) | ||
| Height (inches) | 15^1/_2"15 | ^5/_8"16 | 7/8"16 | ^3/_4"15 | ^3/_4"15 | ^5/_8"16 | ^1/_2"15 | ^1/_4" |
| Width (inches) | 25^7/_8"26"25 | ^3/_4"27"26 | ^3/_4"26"25 | ^7/_8"25 | ^1/_2" | |||
| Depth linches) | 16^3/_4"16 | ^7/_8"18 | ^5/_8"16 | ^3/_4" or 19^3/_4"15"16 | ^7/_8"17 | ^1/_8" or 23"16" , 17 | ^1/_2" or 22" | |
NOTE: Chassis requires USC sleeve for new installations (sold and shipped separately)
IMPORTANT:

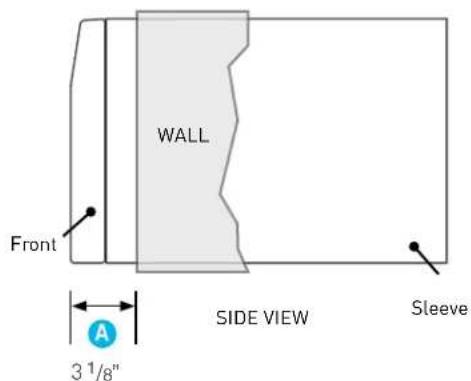

US and UE chassis w/ front fully installed into USC sleeve extends into the room as shown at right A.
Extension into room
| UNI-FIT® | ||||||||||||||
| Cool Only | ||||||||||||||
| UCT08A10A | 8000 | — | 115 | 6.9 | 755 | — | — | 10.7 | 10.6 | 69 | 0.8 | R410A | 265 | 64 |
| UCT10A10A | 10000 | — | 115 | 8.3 | 940 | — | — | 10.7 | 10.6 | 85 | 1.25 | R410A | 247 | 74 |
| UCT10A30A | 10000 | — | 230 | 4.5 | 940 | — | — | 10.7 | 10.6 | 85 | 1.25 | R410A | 265 | 74 |
| UCT12A10A | 12000 | — | 115 | 10.1 | 1130 | — | — | 10.6 | 10.5 | 102 | 1.7 | R410A | 276 | 75 |
| UCT12A30A | 12000 | — | 230 | 5.4 | 1130 | — | — | 10.6 | 10.5 | 102 | 1.7 | R410A | 265 | 75 |
| UCT14A30A | 14000 | — | 230 | 7.2 | 1490 | — | — | 9.4 | 9.3 | 135 | 2.15 | R410A | 265 | 76 |
| Cool with Electric Heat | ||||||||||||||
| UET08A11A | 8000 | 4200 | 115 | 7.2 | 810 | 12.5 | 1320 | 9.7 | 9.6 | 74 | 0.75 | R410A | 265 | 66 |
| UET10A33A | 10000 | 10600 | 230 | 4.9 | 1030 | 15 | 3500 | 9.7 | 9.6 | 93 | 1.2 | R410A | 276 | 75 |
| UET12A33A | 12000 | 10600 | 230 | 5.9 | 1230 | 15 | 3500 | 9.7 | 9.6 | 111 | 1.65 | R410A | 276 | 76 |
| UET14A33A | 14000 | 10600 | 230 | 7.2 | 1490 | 15 | 3500 | 9.4 | 9.3 | 135 | 2.15 | R410A | 265 | 77 |
SLEEVE/CHASSIS DIMENSIONS
| Model | Height | Width | Depth | Depth with Front | Minimum Extension Into Room | Minimum Extension Outside | Thru-the-wall Finished Hole | ||
| Height | Width | Max. Depth | |||||||
| Uni-Fit® | |||||||||
| USC Sleeve | 15^1/_2" | 25^7/_8" | 16^3/_4" | 20^1/_2" | - | 1/_2" 15 | 3/_4" | 26^1/_8" | 16^1/_4" |
| US, UE Chassis | 14^1/_2" | 24^4/_19" | - | 20^7/_25" | 3^3/_4" | -- | - | - | |
PLUG FACE/CIRCUIT RATING
| Uni-Fit ^ Model Number | Circuit Rating Breaker or T-D Fuse | Plug Face (NEMA#) | Power Cord Length (ft.) | Wall Outlet Appearance |
| UCT08A10A, UCT10A10A, UCT12A10A, UET08A10A | 125V - 15A | 5 - 15P 6 | ||
| UCT10A30A, UCT12A30A | 250V - 15A | 6 - 15P | 6 | |
| UCT14A30A, UET12A33A, UET14A33A | 250V - 20A | 6 - 20P | 4.75 |
Power cords are located on front right of Uni-Fit models.
CARTON DIMENSIONS
| Model | Carton DimensionsInches | ||
| Height | Width | Depth | |
| Uni-Fit® | |||
| USC Sleeve | 17^7/_8" | 28" | 19^1/_4" |
| US, UE Chassis | 16^3/_8" 27 | 3/4" | 26^4/_7" |
HEAT
Uni-Fit Electric Heat models utilize an electric heat strip to provide warm air quickly. They can be used for primary heating in moderate climates and as supplemental heating in colder climates. They are ideal for rooms that are always 'too cold in winter'.
Your Friedrich dealer or distributor can assist you in selecting the right unit for your particular climate and application.
As an Energy Star ^® partner, Friedrich Air Conditioning Co. has determined that the selected Energy Star ^® models meet the
Energy Star ^® guidelines for energy efficiency.
EER is the unit's Energy Efficiency Ratio; CEER is the unit's Combined Energy Efficiency Ratio.
Due to continuing research in new energy-saving technology, specifications are subject to change without notice.
Your energy costs will depend on your utility rates and use. The estimated energy cost is based on a electricity cost of \$.12 per kWh.
For more information, visit - www.ftc.gov/energy.
FRIEDRICH
Friedrich Air Conditioning Co. | 10001 Reunion Place, Suite 500 | San Antonio, TX 78216 | 877.599.5665 | www.friedrich.com
BRO_UF_2019_Rev.2 (3-19-19) Printed in USA
