| Product Type | Portable Air Conditioner |
| Model | PDH12K3SE |
| Brand | Friedrich |
| Cooling Capacity (BTU) | 12,000 BTU |
| Dehumidification Capacity | Up to 2.5 pints/hour |
| Power Supply | 115 V, 60 Hz |
| Current Draw | 10.5 A |
| Dimensions (W x D x H) | 18.5 in x 15.5 in x 31.5 in |
| Weight | 75 lbs |
| Refrigerant | R410A |
| Noise Level | 54 dB (low), 57 dB (high) |
| Timer | 24-hour on/off timer |
| Remote Control | Yes |
| Casters | 4 swivel casters |
| Window Kit Included | Yes |
| Filter Type | Washable mesh filter |
| Energy Efficiency Ratio (EER) | 10.0 |
| Fan Speeds | 3 (low, medium, high) |
| Mode Options | Cool, Fan, Dehumidify, Auto |
| Dehumidifier Drainage | Continuous drain option |
| Installation Type | Through window / sliding door kit |
| Certifications | ETL, Energy Star |
Frequently Asked Questions - PDH12K3SE Friedrich
What is the BTU rating of the Friedrich PDH12K3SE?
The Friedrich PDH12K3SE has a cooling capacity of 12,000 BTU, suitable for rooms up to about 550 sq ft.
Does this unit have a dehumidifier function?
Yes, it includes a dehumidifier mode that can remove up to 2.5 pints of moisture per hour.
How do I install the portable air conditioner?
Installation uses the included window kit. Follow the manual: attach the hose adapter to the window slider, secure the window panel, and plug the unit in.
How often should I clean the filter?
Clean the washable mesh filter every two weeks under normal use. More frequently in dusty environments. Simply rinse with water and let dry.
Can I use a regular extension cord?
No. Use a dedicated 115V outlet with a 15-amp circuit. Avoid extension cords to prevent fire hazard.
What does the 'Auto' mode do?
In Auto mode, the unit selects the appropriate operation (cool, fan, or dehumidify) based on the room temperature compared to the set temperature.
How do I drain the water continuously?
Connect a hose (not included) to the continuous drain port at the back of the unit. Route it to a floor drain or bucket.
Why is my unit not cooling as expected?
Check if the air filter is dirty, the window kit is sealed properly, or the room is too large. Also ensure the exhaust hose is not kinked.
Is the remote control included?
Yes, the unit comes with a remote control that allows you to adjust temperature, fan speed, and modes from a distance.
What is the noise level of this air conditioner?
The noise level is approximately 54-57 dB, similar to a quiet conversation or background music.
User questions about PDH12K3SE Friedrich
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Air-conditioner in PDF format for free! Find your manual PDH12K3SE - Friedrich and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PDH12K3SE by Friedrich.
USER MANUAL PDH12K3SE Friedrich
Parts Manual - R410A Models
Packaged Terminal Air Conditioners
Packaged Terminal Heat Pumps
PTAC PARTS E (1-2010)
Table of Contents
Unit Identification 2
PTAC System Components 3
PTAC System Components (Cont'd) 4
Control Panel 5
Front Cover 6
Parts List 7-8

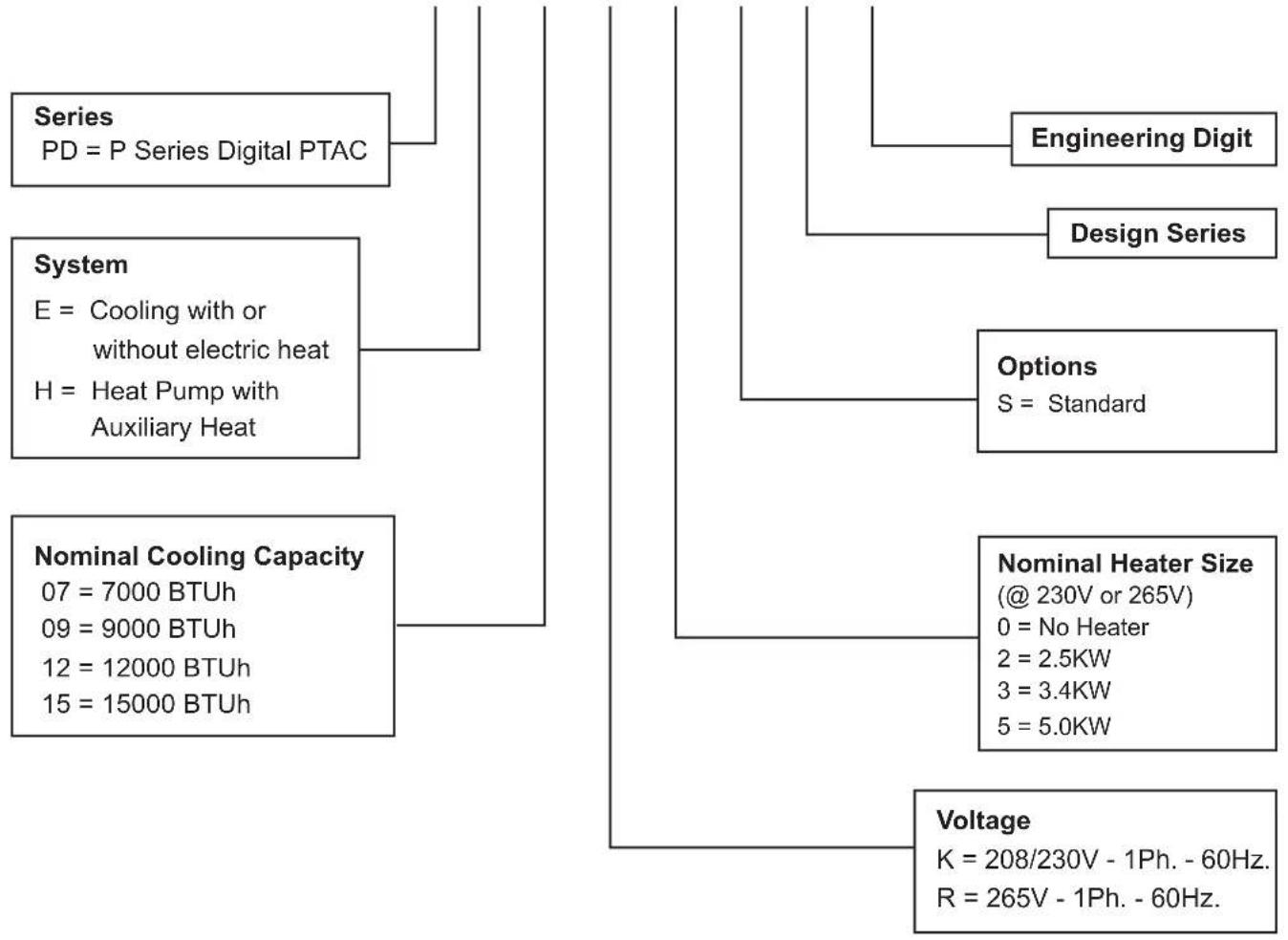

UNIT IDENTIFICATION
Model Number Code
PD H 07 K 3 S E A
PTAC Serial Number Identification Guide
| SERIAL NUMBER | A K A M 00001 | ||
| YEAR MANUFACTURED PRODUCTION RUN NUMBER | |||
| LJ = 2009 AE = 2015 | |||
| AK = 2010 AF = 2016 | |||
| AA = 2011 AG = 2017 | |||
| AB = 2012 AH = 2018 | |||
| AC = 2013 AJ = 2019 | |||
| AD = 2014 | |||
| MONTH MANUFACTURED | |||
| A = Jan D = Apr G = Jul K = Oct | |||
| B = Feb E = May H = Aug L = Nov | |||
| C = Mar F = Jun J = Sep M = Dec | |||

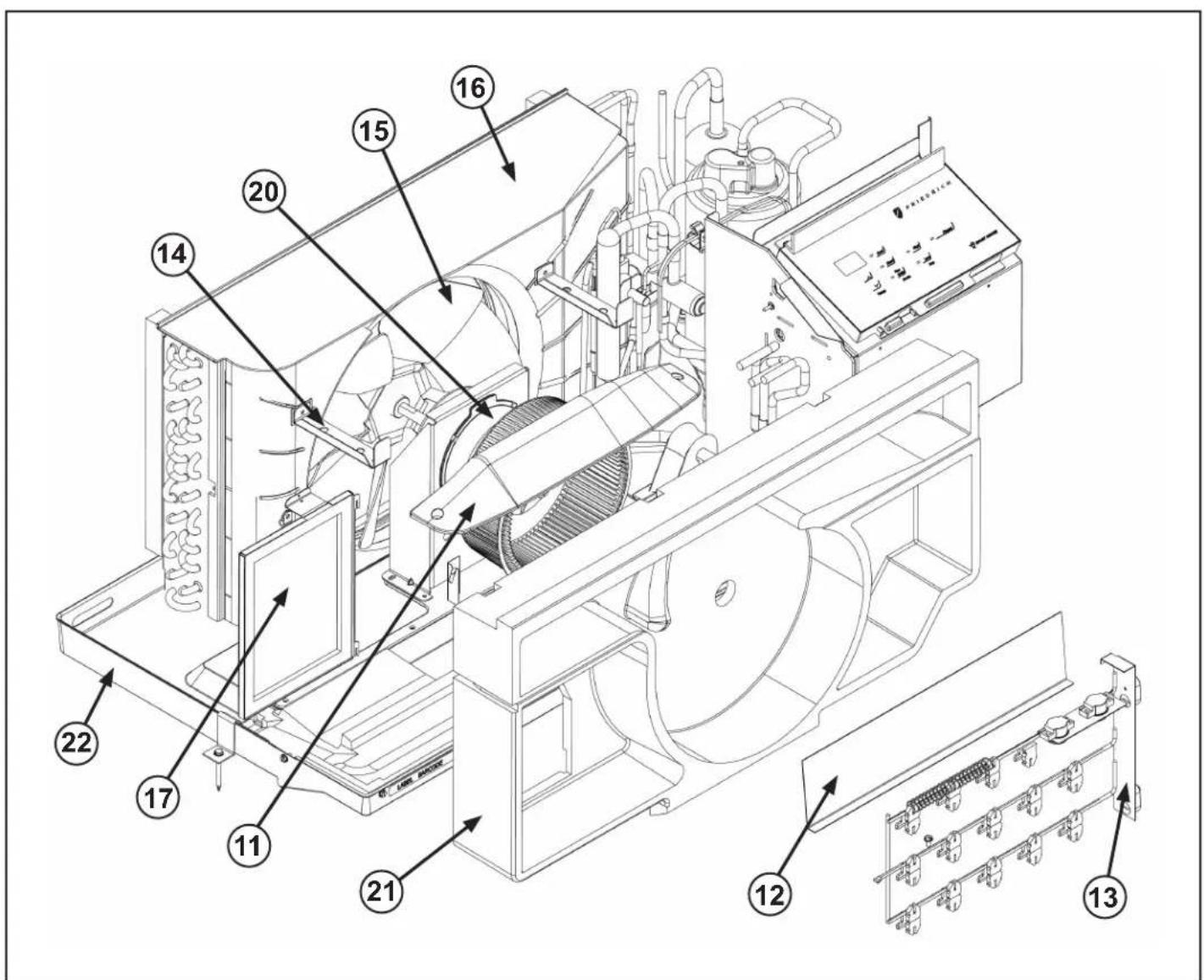

PTAC SYSTEM COMPONENTS
Note: Electronic control kit includes: Electronic control board, dual thermister, single thermister, thermister holder (2), escutcheons (Heat/Cool, Cool Only, Remote Thermostat, 3 total) and installation instructions.

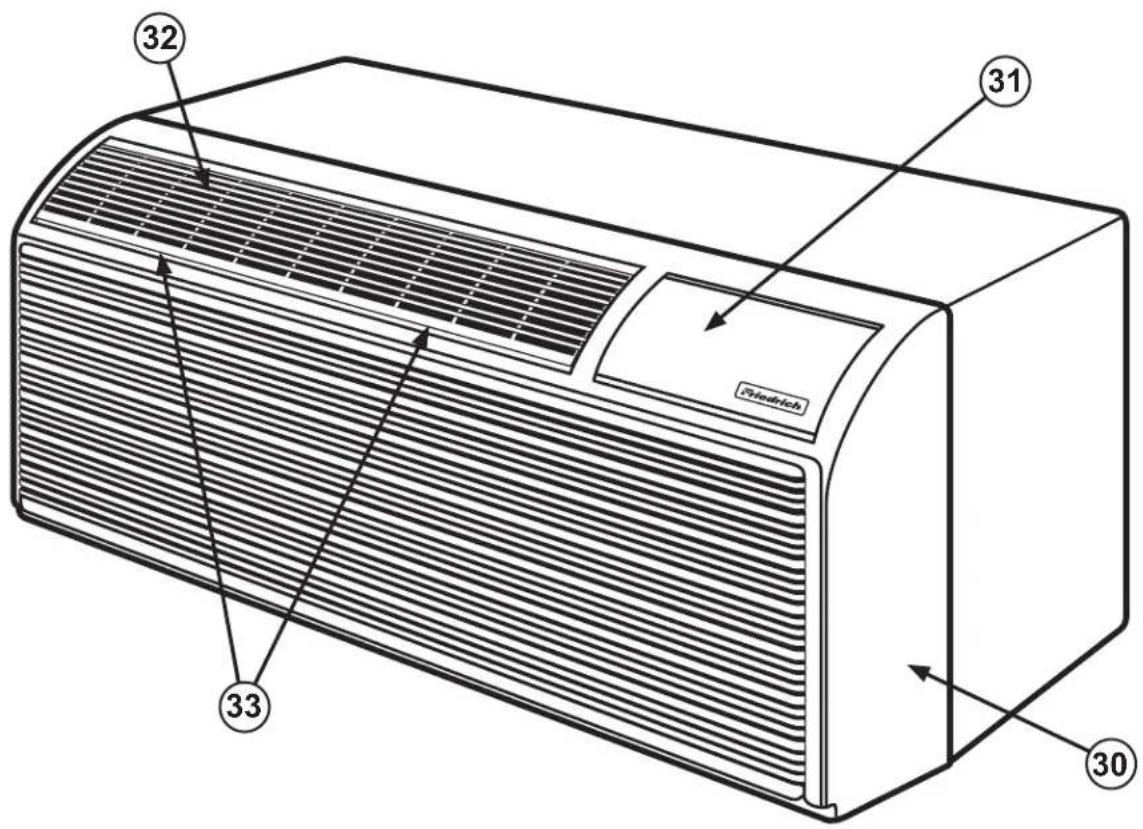

PTAC FRONT COVER
| 7,000 BTU/H | 9,000 BTU/H | 12,000 BTU/H | 15,000 BTU/H | 7,000 BTU/H | 9,000 BTU/H | 12,000 BTU/H | 15,000 BTU/H | ||||||||||||||||||||||||||||||||||||||
| PDE07KSE-A | PDE07KSE-A | PDE07RSE-A | PDE07RSE-A | PDE09KSE-A | PDE09KSE-A | PDE09RSE-A | PDE09RSE-A | PDE12KSE-A | PDE12KSE-A | PDE12KSE-A | PDE12RSE-A | PDE12RSE-A | PDE12RSE-A | PDE15KSE-A | PDE15KSE-A | PDE15KSE-A | PDE15RSE-A | PDE15RSE-A | PDH07KSE-A | PDH07KSE-A | PDH07RSE-A | PDH09KSE-A | PDH09KSE-A | PDH09RSE-A | PDH09RSE-A | PDH12KSE-A | PDH12KSE-A | PDH12KSE-A | PDH12RSE-A | PDH12RSE-A | PDH12RSE-A | PDH15KSE-A | PDH15KSE-A | PDH15RSE-A | PDH15RSE-A | ||||||||||
| NS | 25059450 | EVA-PORATOR COIL 1 1 1 1 1 1 1 1 1 1 1 1 | 1 1 | 1 | |||||||||||||||||||||||||||||||||||||||||
| NS | 25065051 | EVA-PORATOR COIL 1 1 1 1 1 1 1 1 1 1 1 | 1 1 | ||||||||||||||||||||||||||||||||||||||||||
| NS | 25065551 | EVA-PORATOR COIL 1 1 1 1 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 1 | 25014860 | CONDENSER COIL 1 1 1 1 1 1 1 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 1 | 25090701 | CONDENSER COIL 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 1 | 25090802 | CONDENSER COIL 1 1 1 1 1 1 1 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 1 | 25091200 | CONDENSER COIL 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 1 | 25090803 | CONDENSER COIL 1 1 1 1 1 1 1 1 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 2 | 25024933 | COMPRESSOR KIT 265 | 1 1 | 1 | |||||||||||||||||||||||||||||||||||||||||
| 2 | 25024934 | COMPRESSOR KIT 265 | 1 1 | 1 1 | |||||||||||||||||||||||||||||||||||||||||
| 2 | 25024935 | COMPRESSOR KIT 230 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 2 | 25024936 | COMPRESSOR KIT 230 | 1 1 | 1 1 | |||||||||||||||||||||||||||||||||||||||||
| 2 | 25024937 | COMPRESSOR KIT 230 | 1 1 | 1 1 1 1 | |||||||||||||||||||||||||||||||||||||||||
| 2 | 25024938 | COMPRESSOR KIT 265 | 1 1 1 1 | ||||||||||||||||||||||||||||||||||||||||||
| 2 | 25024939 | COMPRESSOR KIT 265 | 1 1 1 1 | ||||||||||||||||||||||||||||||||||||||||||
| 2 | 25024940 | COMPRESSOR KIT 265 | 1 1 1 1 | ||||||||||||||||||||||||||||||||||||||||||
| 2 | 25024941 | COMPRESSOR KIT 230 | 1 1 | 1 1 | |||||||||||||||||||||||||||||||||||||||||
| 3 | 03760513 | CAP TUBE A/C, ELECTRIC ONLY | 1 1 | 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | |||
| 3 | 03760548 | CAP TUBE A/C, ELECTRIC ONLY | 1 1 | ||||||||||||||||||||||||||||||||||||||||||
| 3 | 03760543 | CAP TUBE A/C, ELECTRIC ONLY 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 3 | 03760473 | CAP TUBE A/C, ELECTRIC ONLY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||
| 3 | 03760520 | CAP TUBE A/C, ELECTRIC ONLY | 1 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||||
| 3 | 03760547 | CAP TUBE A/C, ELECTRIC ONLY | 1 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||||
| 3 | 03760482 | CAP TUBE, COOL, HEAT PUMP | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 2 | 1 1 | 1 1 | 1 1 | |||||||||||||||
| 3 | 01390212 | CAP TUBE, COOL, HEAT PUMP | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | ||||||||||||||||||||||||||
| 3 | 01389915 | CAP TUBE, HEAT, HEAT PUMP | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | |||||||||||||||||||||||||
| 3 | 03760559 | CAP TUBE, HEAT, HEAT PUMP | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | ||||||||||||||||||||||||||
| 4 | 25076001 | CHECK VALVE | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 2 | 1 1 | ||||||||||||||||||||
| 4 | 25076002 | CHECK VALVE | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 2 | 1 2 | ||||||||||||||||||||||
| 4 | 25076003 | CHECK VALVE | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 2 | 1 2 | 1 2 | 1 2 | |||||||||||||||||||||||
| 4 | 25076004 | CHECK VALVE | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 2 | 1 2 | 1 2 | 1 2 | 1 2 | |||||||||||||||||||||||
| 5 | 25022022 | REV. VALVE ASSEMBLY | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 2 | 1 2 | 1 2 | 1 2 | 1 3 | |||||||||||||||||||||||
| 6 | 25063605 | SOLENOID COIL 230 VOLT | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 2 | 1 2 | 1 2 | 1 2 | 1 2 | 1 2 | |||||||||||||||||||||||
| 6 | 25063705 | SOLENOID COIL 265 VOLT | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 2 | 1 2 | 1 2 | 1 2 | 1 2 | 1 2 | 1 2 | |||||||||||||||||||||||
| 7 | 60179903 | BELLOWS CONDENSATE VALVE | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 1 | 1 2 | 1 2 | 1 2 | 1 2 | 1 2 | 1 3 | |||||||||||||||||||||||
| 8 | 25014502 | DRAINPAN | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 9 | 91400400 | STUD COMPR MTG | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||
| 10 | 61028900 | COMPRESSOR GROMMET | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||
| 11 | 25067500 | AIR DEFLECTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 12 | 25016011 | DECK | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 13 | 25077700 | HEATER 2.5KW @ 230V | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||||||||||||||||
| 13 | 25077701 | HEATER 3.4KW @ 230V | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||||||||||||||||||
| 13 | 25077702 HEATER 5.0KW @ 230V | 1 | 1 | 1.1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | ||||||||||||||||||||||
| 13 | 25077703 | HEATER 2.5KW @ 265V | 1 | 1 | 1 | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |||||||||||||||||
| 13 | 25077704 | HEATER 3.4KW @ 265V | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | |||||||||
| 13 | 25077705 | HEATER 5.0KW @ 265V | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | ||||||||||||||||||||
| 14 | 25036400 | SUPPORT BRACE (CONDENSER) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| 15 | 60542006 | CONDENSER SLINGER FAN BLADE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 16 | 25036801 | SHROUD (CONDENSER FAN) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| REF. NO. | PART NO. | DESCRIPTION | COOLING WITH ELECTRIC HEAT | HEAT PUMP + COOLING WITH ELECTRIC HEAT | ||||||||||||||||||||||||||||||||||||||||
| 7,000 BTU/H | 9,000 BTU/H | 12,000 BTU/H | 15,000 BTU/H | 7,000 BTU/H | 9,000 BTU/H | 12,000 BTU/H | 15,000 BTU/H | |||||||||||||||||||||||||||||||||||||
| PDE07K2SE-A | PDE07K3SE-A | PDE07R2SE-A | PDE07R3SE-A | PDE09K0SE-A | PDE09K2SE-A | PDE09K3SE-A | PDE09R2SE-A | PDE09R3SE-A | PDE12K0SE-A | PDE12K2SE-A | PDE12K3SE-A | PDE12K5SE-A | PDE12R2SE-A | PDE12R3SE-A | PDE12R5SE-A | PDE15K0SE-A | PDE15K3SE-A | PDE15K5SE-A | PDE15R3SE-A | PDE15R5SE-A | PDH07K2SE-A | PDH07K3SE-A | PDH07R2SE-A | PDH07R3SE-A | PDH09K2SE-A | PDH09K3SE-A | PDH09R2SE-A | PDH09R3SE-A | PDH12K2SE-A | PDH12K3SE-A | PDH12K5SE-A | PDH12R2SE-A | PDH12R3SE-A | PDH12R5SE-A | PDH15K3SE-A | PDH15K5SE-A | PDH15R3SE-A | PDH15R5SE-A | ||||||
| 19 | 25014615 MOTOR, 230 VOLT 1 1 1 1 1 1 1 1 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 19 | 25014616 MOTOR, 265 VOLT 1 1 1 1 1 1 1 1 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 19 | 25014685 MOTOR, 230 VOLT 1 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 20 | 25069000 BLOWER WHEEL 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 20 | 25069100 BLOWER WHEEL 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| 21 | 25014306 | SCROLL | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 22 | 25037301 | BASEPAN, PAINTED | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | 60500312 | SUPPLY CORD 30A (5.0KW @ 230 VOLT) | 1 | 1 | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||||
| 23 | 60500385 | SUPPLY CORD 15A (2.5KW @ 230 VOLT) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||||||||||||||||||||||
| 23 | 60500386 | SUPPLY CORD 20A (3.4KW @ 230 VOLT) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||||||||||||||||||||||
| 24 | 25080050 | ELECTRONIC CONTROL KIT | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | 61925001 | THERMISTOR HOLDER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 26 | 25080201 | HEAT/COOL ESCUTCHEON | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 27 | 25080301 | COOL ONLY ESCUTCHEON | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||||||
| 28 | 25080401 | REMOTE THERMOSTAT ESCUTCHEON | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 29 | 20086915 | STRAIN RELIEF 30A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||
| 29 | 25069600 | STRAIN RELIEF 15-20A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||||||||||||||||||||
| 29 | 25077800 | STRAIN RELIEF 30A | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||||||
| 30 | 25037905 | FRONT COVER COMPLETE (W DOOR & FILTERS) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 31 | 25031904 | ASY CNTRL DOOR - FR-WHITE-2005 LOGO | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 32 | 25025903 | GRILLE DISCHARGE - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 33 | 25037804 | FILTER | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| NS | 21058444 | FUSE HOLDER, 15A (2.5 kW) | 1 | 1 | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||||
| NS | 21058446 | FUSE HOLDER, 20A (3.4 kW) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||
| NS | 21058447 | FUSE HOLDER, 30A (5.0 kW) | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||||||
| NS | 21058448 | FUSE, TIME DELAY 15A (2.5 kW) | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||||||||||||||||||||||||
| NS | 21058449 | FUSE, TIME DELAY 20A (3.4 kW) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||
| NS | 21058451 | FUSE, TIME DELAY 30A (5.0 kW) | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||||||
| NS | 25015900 | FRESH AIR DOOR LATCH | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| NS | 25037000 | FRESH AIR DOOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| NS | 25045100 | FRESH AIR DOOR CABLE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| NS | 25060500 | SPEED NUT (U-TYPE) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| NS | 25060604 | THUMB SCREW | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||
| NS | 25075801 | DISCHARGE SCREEN | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| NS | 60217902 | SEAL MOTOR TO WALL | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| NS 61080539 CAPCTR 25/5 MF 370V (230 VOLT) | ||||||||||||||||||||||||||||||||||||||||||||
| NS 61080541 CAPCTR 20/5 MF 370V (230 VOLT) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||||
| NS 61080543 CAPCTR 15/5 MF 370V (230 VOLT) | 1 1 | |||||||||||||||||||||||||||||||||||||||||||
| NS 61080549 CAPCTR 45/5 MF 370V (230 VOLT) | ||||||||||||||||||||||||||||||||||||||||||||
| NS 61080583 CAPCTR 35/5 MF 440V (265 VOLT) | ||||||||||||||||||||||||||||||||||||||||||||
| NS 61080584 CAPCTR 25/5 MF 450V (265 VOLT) | ||||||||||||||||||||||||||||||||||||||||||||
| NS 61764541 OVERLOAD (12K-265V) | ||||||||||||||||||||||||||||||||||||||||||||
| NS 61764569 OVERLOAD (12K-230V) | ||||||||||||||||||||||||||||||||||||||||||||
| NS 61764571 OVERLOAD (9K-265V) | ||||||||||||||||||||||||||||||||||||||||||||
| NS 61764572 OVERLOAD (7K-265V) | 1 1 | |||||||||||||||||||||||||||||||||||||||||||
TECHNICAL SUPPORT CONTACT INFORMATION
FRIEDRICH
FRIEDRICH AIR CONDITIONING CO.
Post Office Box 1540 · San Antonio, Texas 78295-1540
4200 N. Pan Am Expressway · San Antonio, Texas 78218-5212
(210) 357-4400 · 1-800-541-6645 · FAX (210) 357-4490
www.friedrich.com
Printed in the U.S.A.
