Product Type	Video Projector
Brand	Epson
Model	Pro L1200UNL
Display Technology	3LCD
Light Source	Laser
Brightness (Lumens)	12,000
Native Resolution	WUXGA (1920 x 1200)
Contrast Ratio	2,500,000:1
Lens Shift	Vertical & Horizontal
Lamp Life (Laser)	20,000 hours (typical)
Input Ports	HDMI, DVI-D, SDI, VGA, USB, LAN
Dimensions (W x D x H)	545 x 436 x 164 mm
Weight	16.8 kg
Power Consumption	800 W (typical)
Noise Level	35 dB (ECO mode)
Cleaning	Clean air filter every 500 hours; clean lens with soft cloth
Safety	Overheat protection, auto shut-off, laser safety class 1
Spare Parts	Air filter, laser unit (long-life), remote control
Warranty	3 years limited

Frequently Asked Questions - Pro L1200UNL EPSON

How do I turn on the Epson Pro L1200UNL projector?

Press the Power button on the projector or remote control. Wait for the lamp to warm up (green LED).

What is the recommended projection distance for a 100-inch screen?

With the standard lens, about 3.2 to 4.8 meters depending on zoom. Consult the lens throw chart in the manual.

How can I clean the air filter?

Turn off the projector and unplug. Remove the filter cover, take out the filter, and clean with a vacuum cleaner. Do not wash with water. Replace every 1000 hours.

Does the projector support 4K input?

Yes, it accepts 4K@60Hz via HDMI and scales it to WUXGA. Native resolution is WUXGA.

What are the dimensions of the projector?

Approximately 545 x 436 x 164 mm (W x D x H) without lens.

How do I adjust the lens shift?

Use the lens shift dials on the projector for vertical and horizontal adjustments. Maximum shift: ±60% vertical, ±18% horizontal.

What is the expected lamp life?

The laser light source lasts up to 20,000 hours in normal mode, and up to 30,000 hours in ECO mode.

Can I connect multiple sources simultaneously?

Yes, it has multiple inputs (HDMI, DVI, SDI, VGA, USB). Use the Source button to switch between them.

Is the projector suitable for outdoor use?

Designed for indoor use only. Keep away from moisture and direct sunlight. Ensure proper ventilation.

How do I replace the remote control battery?

Slide the battery cover open, remove old battery, and insert a new CR2025 lithium coin cell with positive side up. Close the cover.

USER MANUAL Pro L1200UNL EPSON

EasyMPMultiPCProjection OperationGuidev2.00

Contents

Introduction to EasyMP Multi PC Projection.... 7

EasyMP Multi PC Projection Features 7

Connection to Various Devices....7

Four-Panel Display 8

Change Presenters and Projection Position 9

Moderator Function 10

Thumbnail Display Function 12

Setting Up the Software for the First Time 13

Installing the Software 13

EasyMPMultiPCProjectionSystemRequirements....13

EasyMP Multi PC Projection Editions 15

Installing EasyMP Multi PC Projection (Windows).... 15

Installing EasyMP Multi PC Projection (OS X) 16

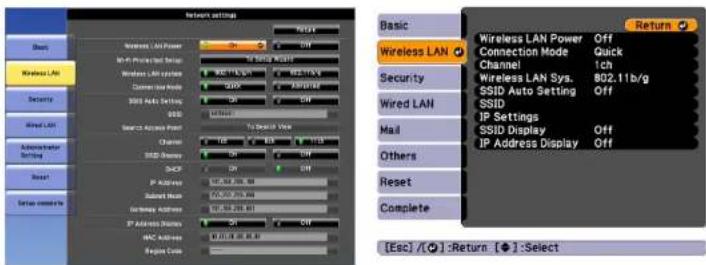

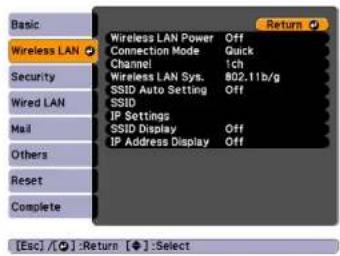

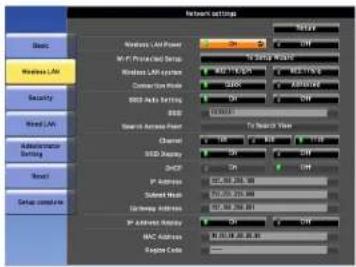

Selecting Projector Network Settings 16

ConnectionMethodsforVariousNetworkEnvironments....17

RecommendedWirelessEnvironmentforMultiPCProjection....19

SettingUpaProjectortoConnectinQuickConnectionMode....19

SettingUpaProjectortoConnectinAdvancedConnectionMode(Wireless)....20

SettingUpaProjectortoConnectinAdvancedConnectionMode(Wired)....22

Connecting to the Projector and Projecting Images 24

Connection Methods 24

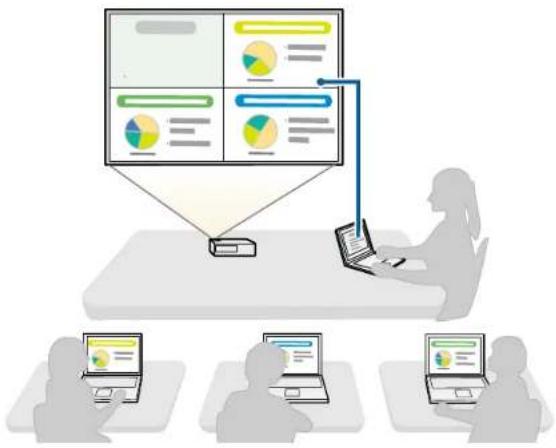

Connection Methods for Various Meeting Styles 24

ConnectingtheProjectorandaComputerDirectlyUsingWirelessCommunication....26

ConnectingtotheProjectorfromtheSoftwareoveraNetworkSystem....32

Selecting the Projector Search Method 36

Search Methods 37

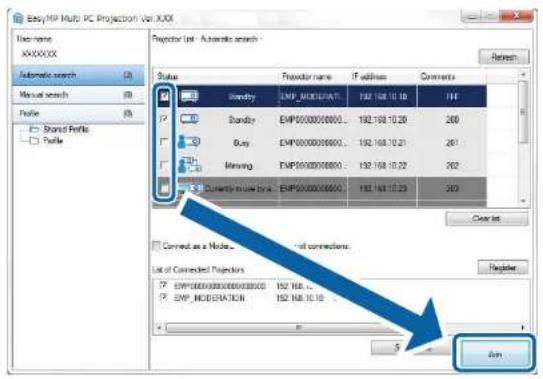

Searching for Network Projectors Automatically 37

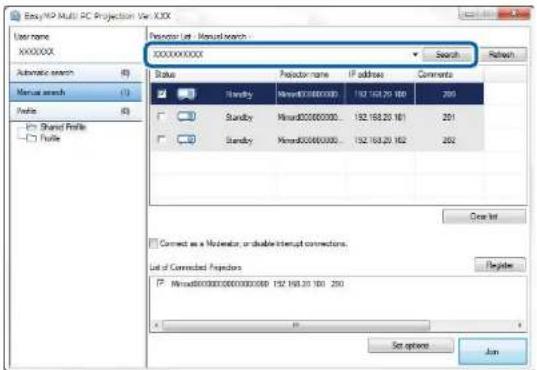

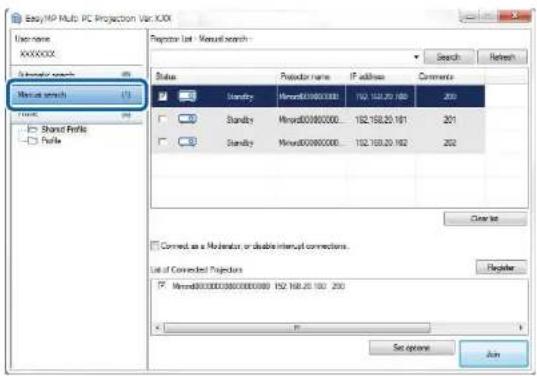

SearchingforNetworkProjectorsbySpecifyinganIPAddressorProjectorName....38

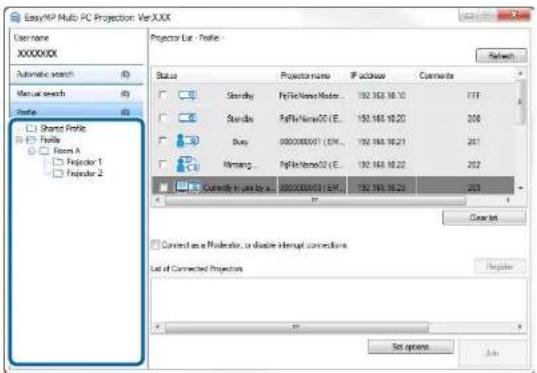

Searching for Network Projectors Using a Profile 40

Profiles for Search 40

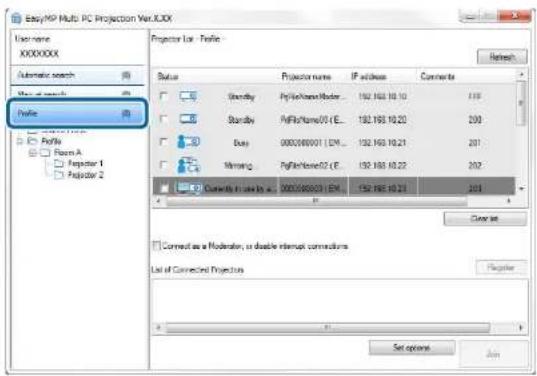

Performing a Profile Search.... 40

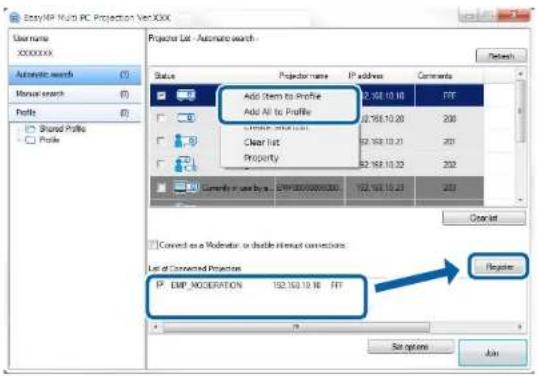

Registering a Profile.... 42

Exporting a Profile.... 44

Importing a Profile 44

Sharing a Profile over a Network 45

Controlling the Projected Display 46

Screen Types for Projection Control 46

Operating the Projected Display Status 48

Changing the Number of Projected Panels.... 48

Changing the Presenter....50

Changing the Projection Position.... 52

Disconnecting....53

Using Additional Functions.... 56

Searching for Network Projectors Using a Shortcut 56

Creating a Shortcut.... 56

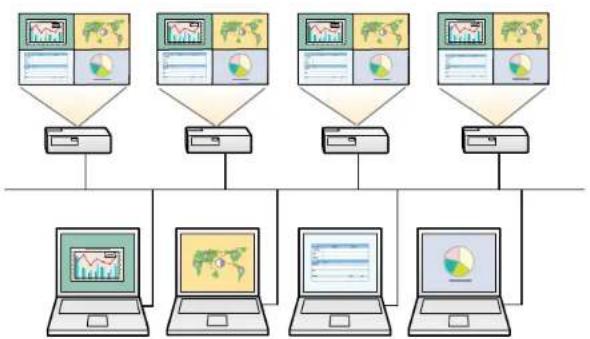

Connecting to Multiple Projectors (Mirroring) 57

Outputting Audio from the Projector 58

Projecting Your Screen 59

Changing the Moderator....60

Selecting the Participant's Screen to Project Using Thumbnails 62

Hiding the Projection Control Screen 64

Prohibiting Participant Operations....65

Controlling the Connection Bandwidth 65

Bandwidth Control Restrictions 67

Solving Problems 68

Solving Network Connection Problems 68

SolutionsWhenYouCannotConnectUsingQuickConnectionMode....68

SolutionsWhenYouCannotConnectProjectorsUsingAdvancedConnectionMode(Wireless).69

SolutionsWhenYouCannotConnectProjectorsUsingAdvancedConnectionMode(Wired).....72

Solving Problems During Projection 73

Solutions When the Screen is Not Projected Properly.... 74

Solutions When Audio is Not Played Properly 74

SolutionsWhentheModeratorFunctionDoesNotWork....75

Error Messages List 75

ErrorMessageWhenStartingupEasyMPMultiPCProjection....76

ErrorMessageWhenSearchingforandSelectingProjectors....78

Error Messages When Projecting 79

Error Messages When Operating a Profile 79

ErrorMessageWhenUsingtheModeratorFunction....80

Event ID List 81

Screen Summary 83

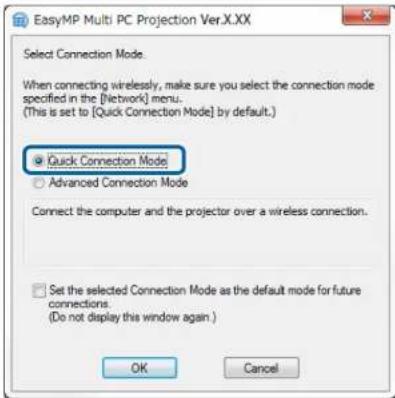

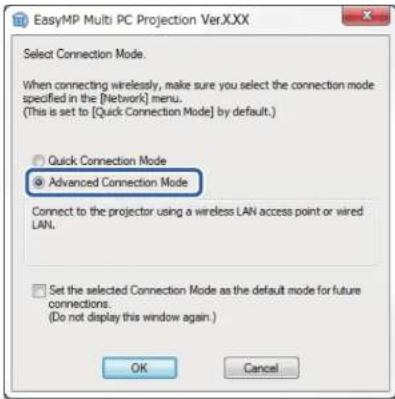

Select Connection Mode Screen 83

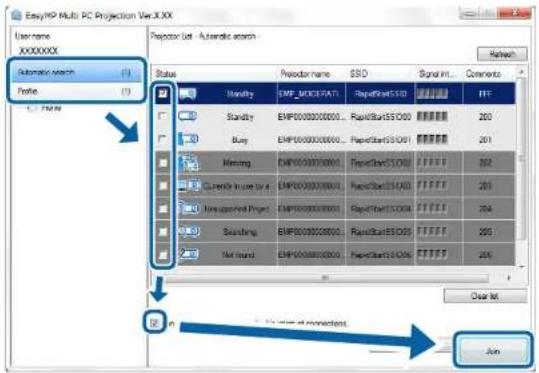

Search Screen 84

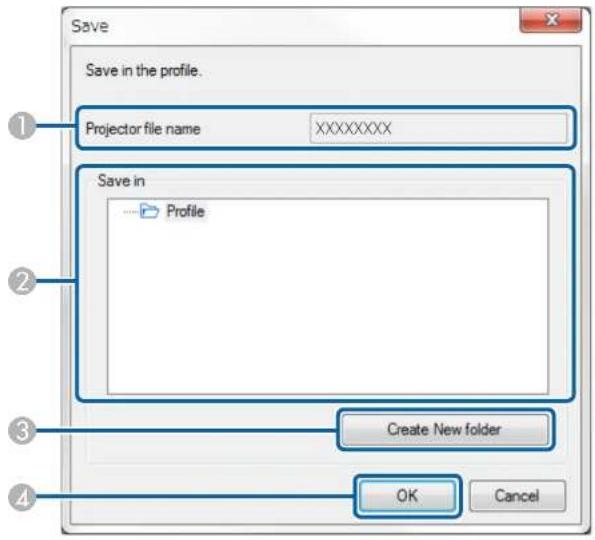

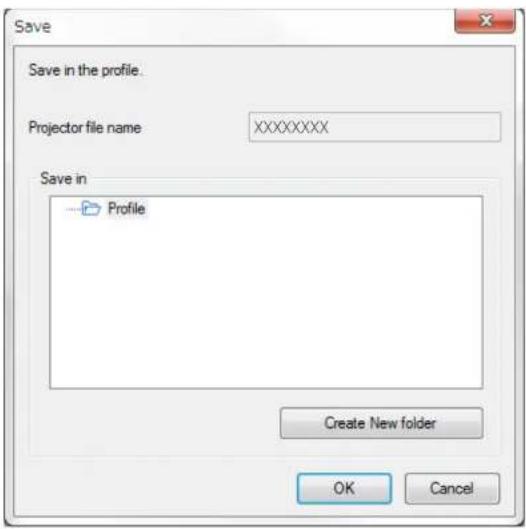

Save Screen....88

Set options 89

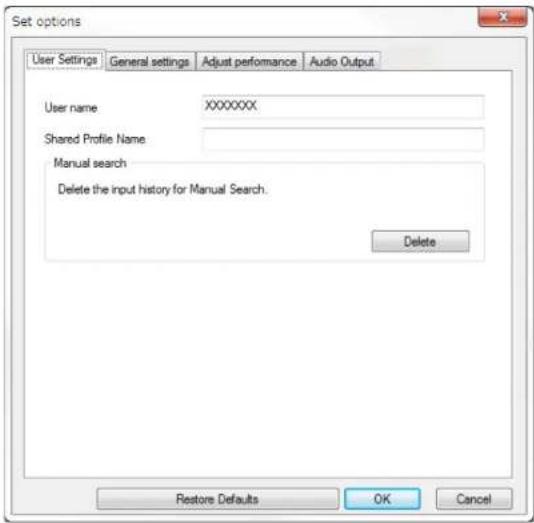

Set options - User Settings 90

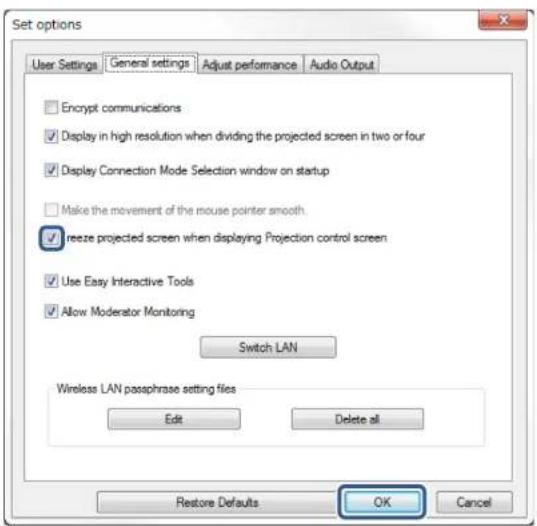

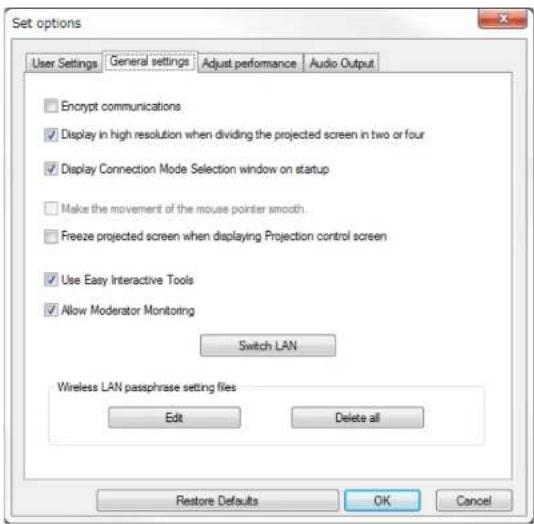

Set options - General settings 91

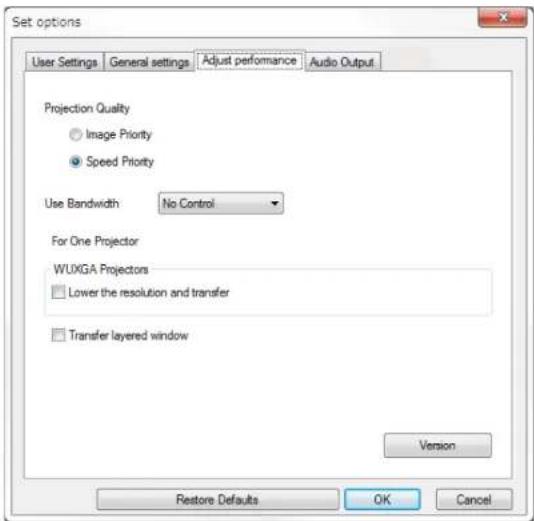

Set options - Adjust performance 94

Set options - Audio Output.... 96

Toolbar 97

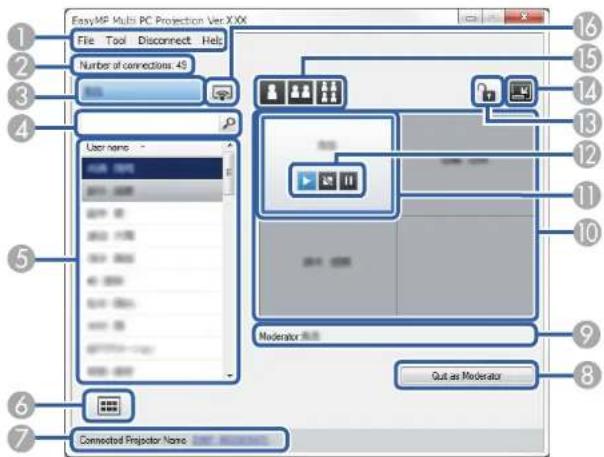

Projection Control Screen 99

Thumbnail Screen 103

Appendix.... 106

Updating and Uninstalling the Software 106

Getting the Latest Version of the Application 106

UninstallingEasyMPMultiPCProjection(WindowsVista/Windows7/Windows10)....106

UninstallingEasyMPMultiPCProjection(Windows8.x)....107

Uninstalling EasyMP Multi PC Projection (OS X).... 107

Supported Resolutions and Colors.... 107

Supported Resolutions 108

Display Color 108

Limitations 109

Connection Limitations 109

LimitationswhenProjectingfromWindowsPhotoGalleryorWindowsLivePhotoGallery......110

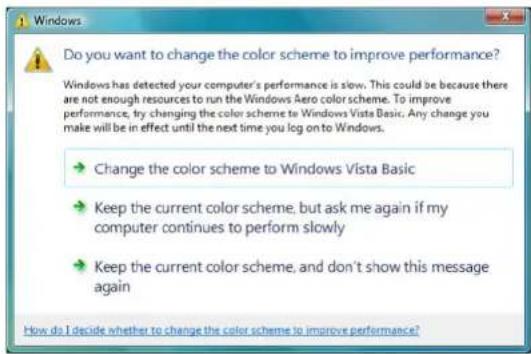

Limitations in Windows Aero.... 110

LimitationswhenProjectingfromWindowsMediaCenter....111

Notices 111

Copyright Notice 111

About Notations 112

General Notice.... 112

Copyright Attribution 113

IntroductiontoEasyMPMultiPCProjection

SeetheinformationheretolearnmoreaboutEasyMPMultiPCProjectionsoftware.

EasyMPMultiPCProjectionFeatures

EasyMPMultiPCProjectionFeatures

EasyMPMultiPCProjectionissoftwarethatallowsyoutoholdinteractivemeetingsorlessonsby projectingimagesfromnetworkprojectors.Youcanusevarietyofdisplayoptionsforyour environment.

ConnectiontoVariousDevices

Four-PanelDisplay

ChangePresentersandProjectionPosition

ModeratorFunction

ThumbnailDisplayFunction

Parenttopic: Introduction to Easy MPMultiPCProjection

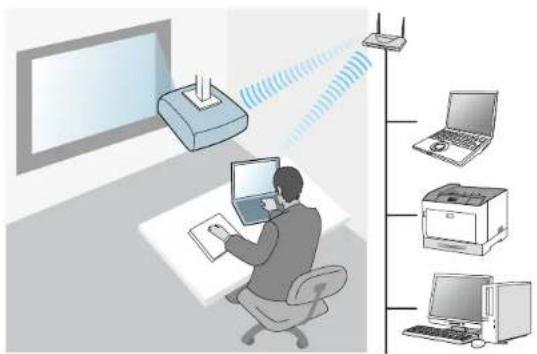

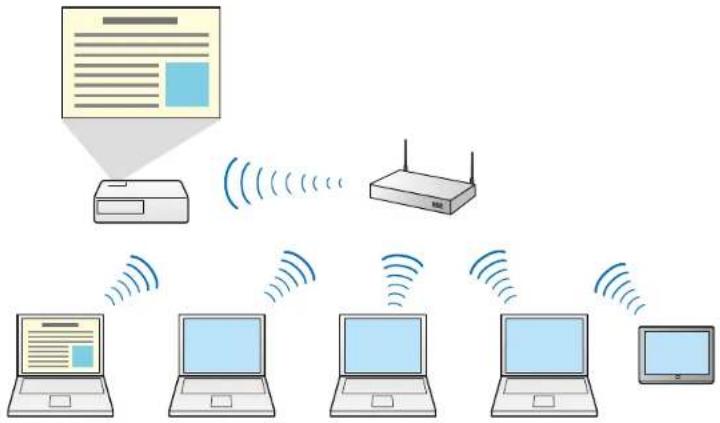

ConnectiontoVariousDevices

When you install EasyMPMultiPCProjection on an networked computer and use it to connect the projector, upto 50 other devices on thenetwork can project images from the projector. (Uptofour devices can project a tonetime.) The 50 devices can be a combination of computers running EasyMP MultiPCProjection and wireless devices, such as smartphones and tablets, running Epsoni Projection.

Youcanalsoholdremotemeetingsoveranetworkbysimultaneouslyprojectingthesameimageonup tofourprojectorsonthenetwork.

Parenttopic: EasyMPMultiPCProjectionFeatures

Relatedtasks

ConnectingtoMultipleProjectors(Mirroring)

Relatedtopics

ConnectionMethods

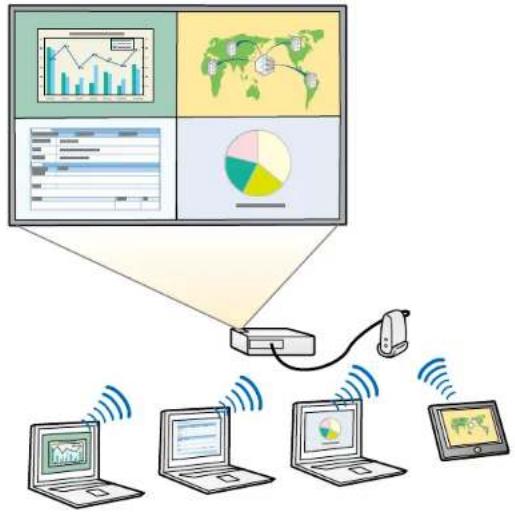

Four-PanelDisplay

Youcansimultaneouslydisplayuptofourscreensinseparateprojectedpanels,whichisusefulinboth businessandeducationalenvironments.

Forexample,youcancompareandanalyzedatawhilesimultaneouslyprojectingscreensfrommultiple devices.Inaneducationalenvironment,youcanprojectlessonmaterialononepartofthescreenand studentanswersonanothertoenhancethelearningexperience.

Parenttopic: EasyMPMultiPCProjectionFeatures

Relatedtasks

ChangingtheNumberofProjectedPanels

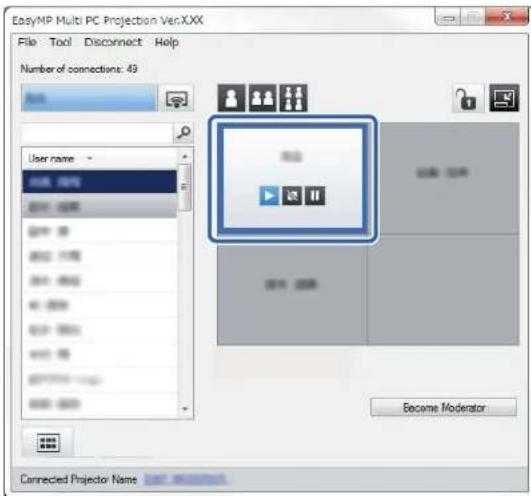

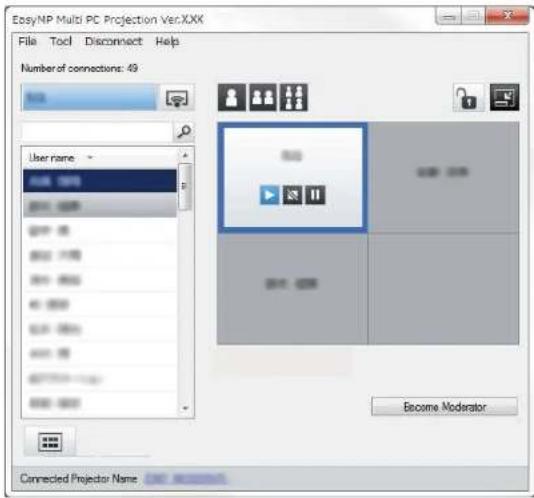

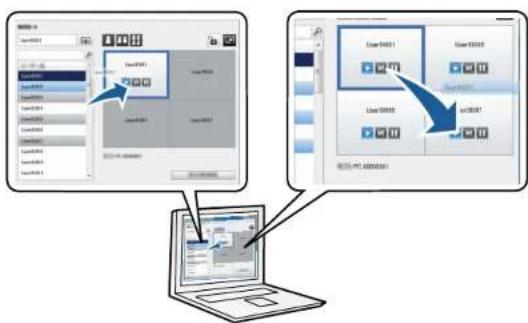

ChangePresentersandProjectionPosition

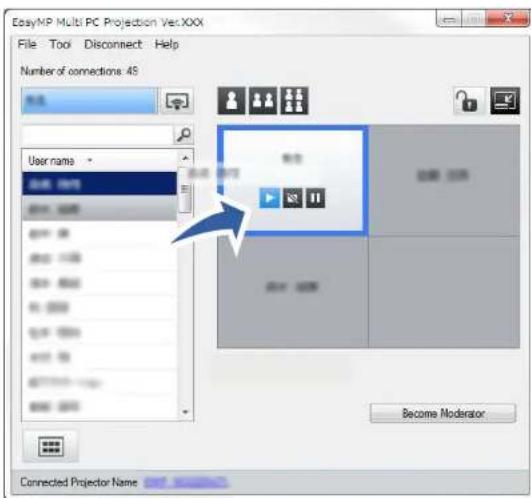

UsingEasyMPMultiPCProjection,youcaneasilychangethescreenbeingprojectedandtheprojection positionbysimplydragginganddroppingusernamesinpanelsontheprojectioncontrolscreen.

Youcansharetheprojectorwithotherusersonthesamenetworkwithouthavingtochangecable connections,allowinguserstotaketurnsgivingpresentations.

Note: The projection control screen is available only on the Standard Edition of the software.

Parenttopic: EasyMPMultiPCProjectionFeatures

Relatedtasks

ChangingthePresenter

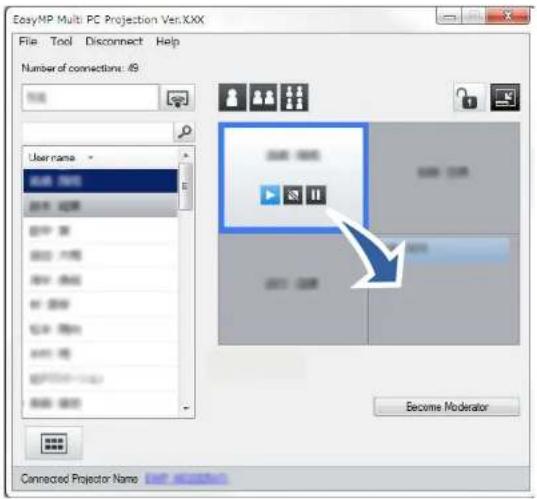

ChangingtheProjectionPosition

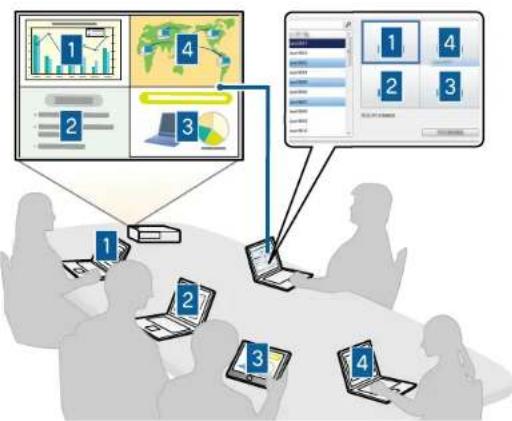

ModeratorFunction

When using themoderator function, only one person plays a role of moderator who can control the projected display. This function is suitable for meetings in which one user is the moderator and the other users are participants, and the moderator must control the projected display.

Thiscanalsobeusefulinaclassroomenvironmentwherethemoderatormustcontrolthelessonwithout interruption.

Note: This function is available only for supported models.

Parenttopic: EasyMPMultiPCProjectionFeatures

Relatedtasks

ChangingtheModerator

Relatedtopics

ConnectionMethods

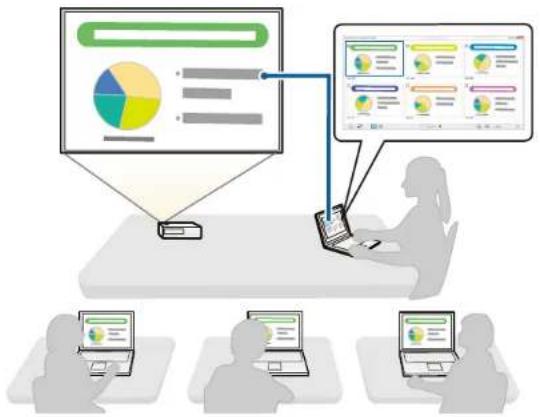

ThumbnailDisplayFunction

Thumbnailildisplayfunctionallowsthemoderatortocheckparticipants'screensasthumbnails. This featureissuitableforenvironmentswherethemoderatorwantstoprovidequestionsfortheparticipants toanswer,andthenselectwhichanswersorideastoprojectinresponse.

Note: This function is available only for supported models.

Parenttopic: EasyMPMultiPCProjectionFeatures

Relatedtasks

SelectingtheParticipant'sScreentoProjectUsingThumbnails

SettingUptheSoftwarefortheFirstTime

Followtheseinstructionsbeforeconnectingacomputertotheprojectoroveranetwork.

InstallingtheSoftware

SelectingProjectorNetworkSettings

InstallingtheSoftware

InstallEasyMPMultiPCProjectionfromtheEPSONProjectorSoftwareCD-ROMsuppliedwithyourprojector(ifavailable)orbydownloadingitfromtheEpsonWebsite.

Note:

- Ifthelanguageselectedfortheinstallationdiffersfromthelanguageoftheoperatingsystembeing used,thescreensmaynotbedisplayedcorrectly.

- IfapreviousversionofEasyMPMultiPCProjectionisalreadyinstalledonyourcomputer, uninstallit firstandtheninstallEasyMPMultiPCProjection.

EasyMPMultiPCProjectionSystemRequirements

EasyMPMultiPCProjectionEditions

InstallingEasyMPMultiPCProjection(Windows)

InstallingEasyMPMultiPCProjection(OSX)

Parenttopic: SettingUptheSoftwarefortheFirstTime

Relatedtasks

GettingtheLatestVersionoftheApplication

EasyMPMultiPCProjectionSystemRequirements

YourcomputermustmeetthefollowingsystemrequirementstousetheEasyMPMultiPCProjection software.

RequirementWindows	Mac
OperatingsystemWindows	Vista	OS X
	•Ultimate(32-bit)	•10.7.x(32-and64-bit)
	•Enterprise(32-bit)	•10.8.x(64-bit)
	•Business(32-bit)	•10.9.x(64-bit)
	•HomePremium(32-bit)	•10.10.x(64-bit)
	•HomeBasic(32-bit)	•10.11.x(64-bit)
	Windows7
	•Ultimate(32-and64-bit)
	•Enterprise(32-and64-bit)
	•Professional(32-and64-bit)
	•HomePremium(32-and64-bit)
	•HomeBasic(32-bit)
	•Starter(32-bit)
	Windows8
	•Windows8(32-and64-bit)
	•Windows8Pro(32-and64-bit)
	•Windows8Enterprise(32-and64-bit)
	Windows8.1
	•Windows8.1(32-and64-bit)
	•Windows8.1Pro(32-and64-bit)
	•Windows8.1Enterprise(32-and64-bit)
	Windows10
	•Windows10Home(32-and64-bit)
	•Windows10Pro(32-and64-bit)
	•Windows10Enterprise(32-and64-bit)
CPUIntelCore2Duorfaster	(IntelCorei3orfasterrecommended)	IntelCore2Duorfaster(IntelCorei5orfaster recommended)
Memory2GBormore	(4GBormorecommended)
Harddiskspace50MBormore
DisplayResolutionbetween800×600(SVGA)and1920×1200(WUXGA)16-bitcolororgreater(approximately32,000displaycolors)

Note:

• OperationisnotguaranteedforWindowsVistawithoutanyservicepacksinstalled,orWindowsVistaServicePack1.
  •OperationisnotguaranteedforWindows7withoutanyservicepacksinstalled.

Parenttopic:InstallingtheSoftware

EasyMPMultiPCProjectionEditions

Youcanchoosethesoftwareeditiontoinstallthatsuitsyourroleintheprojectionenvironment.

-StandardEdition

YoucanuseallfunctionsofEasyMPMultiPCProjection.

Youcancontrol the projected image and also function as a moderator.

•ParticipantEdition

Youcanconnecttotheprojectoronlyasaparticipantofthemoderatorfunctionandcannotcontrolthe projectedimages.

Parenttopic:InstallingtheSoftware

InstallingEasyMPMultiPCProjection(Windows)

InstallEasyMPMultiPCProjectiononyourcomputer.

Note: Youneedadministratorauthoritytoinstallthesoftware.

1. Turnonyourcomputer.

2. Makesureallrunningapplicationsareclosed.
   3.Dooneofthefollowing:

3. InserttheEPSONProjectorSoftwareCD-ROMintothecomputer(ifavailable)andcontinuewith thesesteps.

4. If you downloaded the software from the Epson Website, follow the screen instruction to install the software.

Theinstallerstartsautomatically.

1. If the installer does not start automatically, open the CD-ROM drive from My Computer (or Computer), and then double-click EMP_MPPInst.exe.
   5.Followtheon-screeninstructionstoinstall.

Parenttopic: InstallingtheSoftware

InstallingEasyMPMultiPCProjection(OSX)

InstallEasyMPMultiPCProjectiononyourcomputer.

1. Turnonyourcomputer.

2. Makesureallrunningapplicationsareclosed.
   3.Dooneofthefollowing:

3. InserttheEPSONProjectorSoftwareCD-ROMintothecomputer(ifavailable)andcontinuewith thesesteps.

4. If you downloaded the software from the Epson Website, follow the screen instruction to install the software.

5. Double-click the EMP_MPP installer.mpkgicon in the EPSON window.

Installationstarts.

5.Followtheon-screeninstructionstoinstall.

Parenttopic: InstallingtheSoftware

SelectingProjectorNetworkSettings

Followtheseinstructionstoselectaconnectionmethodbetweenacomputerandtheprojector,andthen setuptheprojector.

ConnectionMethodsforVariousNetworkEnvironments

RecommendedWirelessEnvironmentforMultiPCProjection

SettingUpaProjectortoConnectinQuickConnectionMode

SettingUpaProjectortoConnectinAdvancedConnectionMode(Wireless)

SettingUpaProjectortoConnectinAdvancedConnectionMode(Wired)

Parenttopic: SettingUptheSoftwarefortheFirstTime

ConnectionMethodsforVariousNetworkEnvironments

You can choose a connection modetousity our network environment.

Checkhowtheprojectorisconnectedtothenetworksystem(wirelessorwired)andthecommunication pathfromthecomputertotheprojector.

Depending on your projector, some connection methods may not be available. See your projector User's Guideformoredetails.

•Toconnecttheprojectortothecomputerdirectlyusingwirelesscommunication:UseQuick ConnectionMode.

Illustration of a person using a laptop at a desk with a monitor and antenna (no text or symbols visible)

•Toconnecttheprojectortothecomputerusingawirelessnetworksystem:UseAdvanced ConnectionMode.

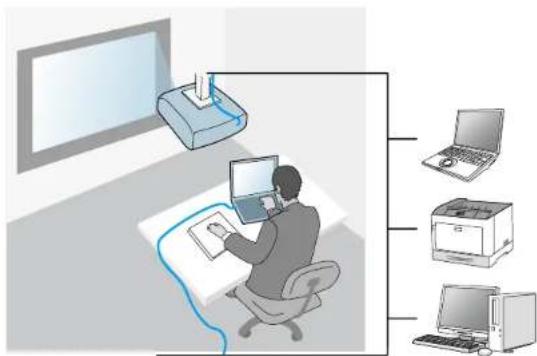

- To connect the projector to the computer using a wired network system: Use Advanced Connection Mode.

Parenttopic: SelectingProjectorNetworkSettings

RecommendedWirelessEnvironmentforMultiPCProjection

When you connect multiple device to a projector using the Quick connection mode, were recommend limiting the number of device to six or less maintain the projection performance. Then number of devices that can connect to a projector at the same time differs depending on the wireless communication environment.

When you connect a project to wireless LAN and connect multiple devices wirelessly using the Advanced connection mode, not the following recommendations.

- Setup multiple access points so that one of the access points can connect up to 10 or 20 devices. See the access point manual form more information on the maximum number of devices that can be connected.

- When you use multiple access points, assign different channel to each access point, and use different access points for the projector connection and the computer connection.

- UseawirelessLANcontroller, if possible, toenhancetheconnectionstability.

- Useanaccesspointthatsupports802.11n.

Contact your network administrator for help pin setting up the wireless environment.

Note: If your projector supports a wired LAN connection, we recommend using a wired LAN connection when you connect multiple devices to the projector.

Parenttopic: SelectingProjectorNetworkSettings

SettingUpaProjectortoConnectinQuickConnectionMode

Toconnectacomputerdirectlytotheprojectorusingwirelesscommunication,youneedtoselect networksettingsonthecomputerandtheprojector.

1. SelectthenecessarysettingstoconnectyourcomputertoawirelessLAN.Seethedocumentation suppliedwithyourcomputerformoredetails.

2. Install the wireless LAN unit in the projector, if necessary. See your projector User's Guide for instructions.

3. Turnon the projector.

4. Press the Menu button on the remote control or the control panel, select the Network menu, and select NetworkConfiguration.

5. SelectWirelessLAN.

Ascreenlikeoneofthefollowingisdisplayed.

1. TurnonwirelessLANsupport.

Note: The necessary settings vary depending on your projector. See your projector User's Guide for instructions.

1. SelectQuickforConnectionMode.

2. Select other options as necessary for your network. See your projector User's Guide for instructions.

3. Selectsecuritysettings on the Security menu as necessary for your network. Check with your network administrator form more information on making the correct settings.
4. When you have finished making settings, select Setup Complete or Complete and follow the on-screen instruction to save your settings and exit themenus.

Parenttopic: SelectingProjectorNetworkSettings

Relatedtasks

ConnectingtheProjectorandaComputerDirectlyUsingWirelessCommunication

SettingUpaProjectortoConnectinAdvancedConnectionMode(Wireless)

ToconnectacomputertotheprojectoroverawirelessLAN,youneedtoselectnetworksettingsonthe computerandtheprojector.

1. Contact your network administrator and writedown the settings for the access point, such as the SSID and security settings.

2. Connect the computer to the network.

Note: Tosetupanetworkconnection, if necessary, seethedocumentations supplied with your computerornetworkadapter.

1. Install the wireless LAN unit in the projector, if necessary. See your projector User's Guide for instructions.

2. Turnon the projector.

3. Press the Menu button on the remote control or the control panel, select the Network menu, and thenselectNetworkConfiguration.

6.SelectWirelessLAN.

Ascreenlikeoneofthefollowingisdisplayed.

1. Turnonwireless LAN support.

Note: The necessary settings vary depending on your projector. See your projector User's Guide for instructions.

1. SelectAdvancedforConnectionMode.

2. Select other options as necessary for your network. See your projector User's Guide for instructions.

3. Select security settings on the Security menu as necessary for your network. Check with your network administrator form more information on making the correct settings.

4. When you have finished making settings, select Setup Complete or Complete, and follow the on-screen instruction to save your settings and exit themenus.

Parenttopic: SelectingProjectorNetworkSettings

Relatedtasks

ConnectingtotheProjectorfromtheSoftwareoveraNetworkSystem

SettingUpaProjectortoConnectinAdvancedConnectionMode(Wired)

ToconnectacomputertotheprojectorusingawiredLAN,youneedtoselectnetworksettingsonthe computerandtheprojector.

1. Contact your network administrator and check that DHCP is available under the current network environment.

Note: If DHCP is not available, write down the following values that are available for your projector.

• IPAddress
• SubnetMask

• GatewayAddress

• Connect the computer to the network.

Note: Tosetupanetworkconnection, if necessary, seethedocumentations supplied with your computerornetworkadapter.

1. ConnectaLANcabletotheprojector.
2. Turnontheprojector.
3. Press the Menu button on the remote control or the control panel, select the Network menu, and select NetworkConfiguration.
4. SelectWiredLAN.

Ascreenlikeoneofthefollowingisdisplayed.

1. SelectIPsettingsasnecessary.

•DHCPisavailable:SetDHCPtoOn.
- DHCP is not available: Set DHCP to Off and enter the projector's IP Address, Subnet Mask, and GatewayAddressvaluesasnecessary.

1. When you have finished making settings, select Setup Complete or Complete, and follow the on-screen instruction to save your settings and exit themenus.

Parenttopic: SelectingProjectorNetworkSettings

Relatedtasks

ConnectingtotheProjectorfromtheSoftwareoveraNetworkSystem

ConnectingtotheProjectorandProjectingImages

Followtheseinstructionstoconnectthecomputerandtheprojectoroveranetwork,andtoproject imagesfromyourcomputer'sscreenusingtheprojector.

Makesureyouhavealreadysetupthesoftwareandselectedaconconnectionmodefortheprojector.

ConnectionMethods

SelectingtheProjectorSearchMethod

ControllingtheProjectedDisplay

Disconnecting

Relatedtopics

InstallingtheSoftware

SelectingProjectorNetworkSettings

ConnectionMethods

Youcanselectasuitablemethodtoconnectthecomputerandtheprojectoroveranetworkdepending onyourmeetingstyle.

ConnectionMethodsforVariousMeetingStyles

ConnectingtheProjectorandaComputerDirectlyUsingWirelessCommunication

ConnectingtotheProjectorfromtheSoftwareoveraNetworkSystem

Parenttopic: ConnectingtotheProjectorandProjectingImages

ConnectionMethodsforVariousMeetingStyles

You can choose a connection method to suit the style of your meeting.

Decidehowyouwanttoholdyourmeeting. Depending on the connection method you selected, the connection procedure differs.

Note: Depending on your projector, some connection methods may not be available. See your projector User's Guideformoredetails.

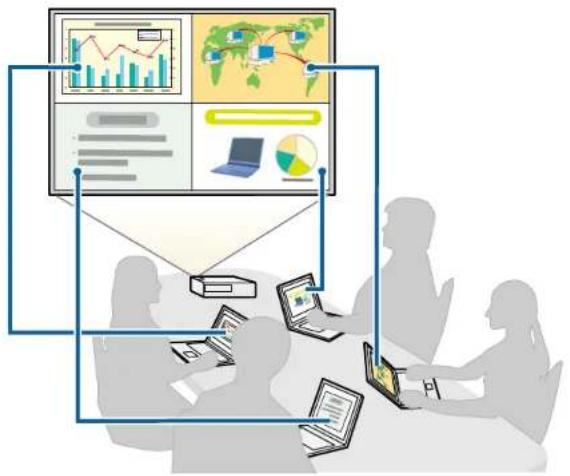

- Alluserscancontroltheprojecteddisplayandbecomepresenters.(Holdingdiscussionsandinteractingwithotherusersinabusinessenvironment.)

Illustration of a business meeting with laptops and data visualizations (no text or symbols)

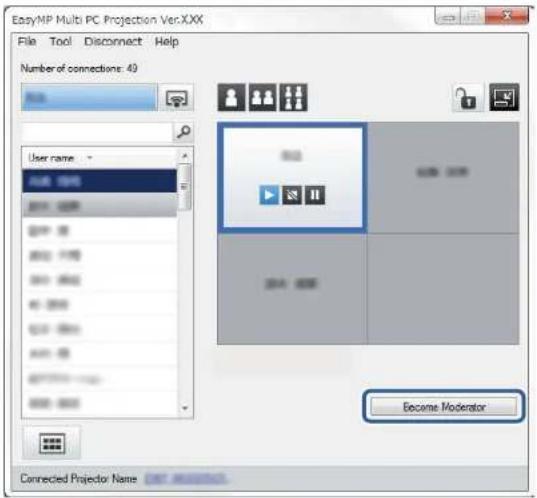

- Onlyoneuseristhemoderatorandhasfullcontroloverthemeetingusingthemoderatorfunction. (Holdingaclassorlessonusingtheparticipants'computerscreensinaneducationalenvironment.)

Illustration of a person using a laptop with a large screen displaying charts and data visualizations, surrounded by three laptops (no text or symbols present)

Note: To start a meeting using the moderator function, one user must connect to the projector as the moderator and the other users must connect to the projector as participants.

Parenttopic:ConnectionMethods

Relatedtasks

ChangingtheModerator

ConnectingtotheProjectorfromtheSoftwareoveraNetworkSystem

ConnectingtheProjectorandaComputerDirectlyUsingWirelessCommunication

When your projector is setup as indicated below, you can connect the projector and a computer directly using wireless communication to project the computer's screen.

- ThewirelessLANunitisinstalledintheprojectorotheprojectorhasbuilt-inwirelessLANmodules.

• The projector's connection methodissettoQuick.

Note:

• WhenyouusetheParticipantEditionofthesoftware,youmustconnecttheprojectoranda computeroveranetworksystem.
• When you connect the projector and a computer directly using wireless communication, the connection between the computer and an access point is disconnected.

• Makesureyouturnonyourcomputer'swirelesscommunicationfunction.

• Press the LAN button or Source Search button on the remote control to switch the input source to LAN.

The LAN stand by screen is projected.

2.StartEasyMPMultiPCProjection.

• Windows Vista and Windows 7: Click Start, select Programs (or All Programs), EPSON Projector, EasyMP Multi PC Projection, and then click EasyMP Multi PC Projection Ver.X.XX.
• Windows 8 and Windows 8.1: Navigate to the Apps screen and select EasyMP Multi PC ProjectionVer.X.XX.
• Windows 10: Select Start, select All apps, select EPSON Projector, and then select EasyMP MultiPCProjection.
• OS X: Double-click EasyMP Multi PC Projection from the Applications folder.

Note: You can also create a shortcut and use it to start Easy MP MultiPC Projection and to automatically search for saved projectors.

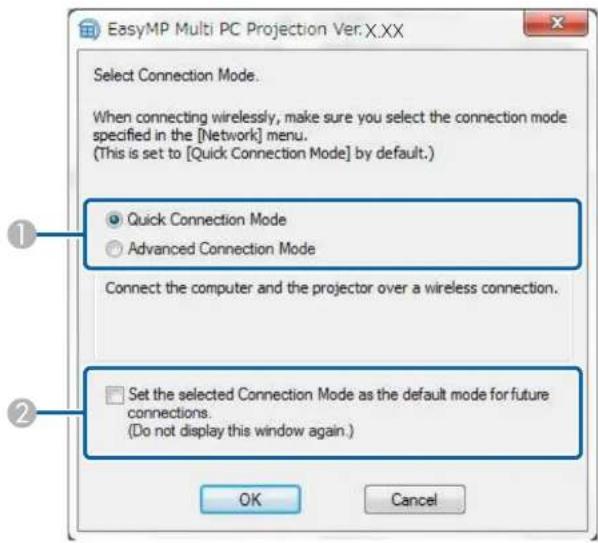

3. Select Quick Connection Mode, and then click OK.

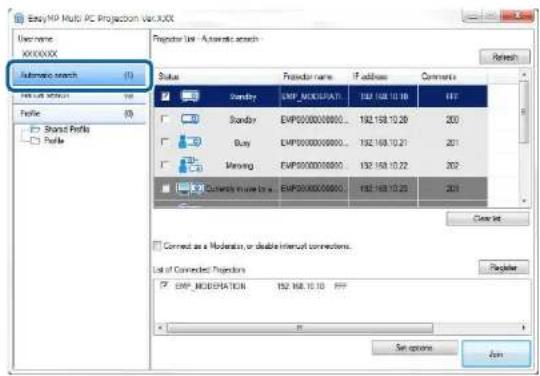

4. Searchfortheprojectorusingoneofthefollowingmethods.

•AutomaticSearch: Searchesfortheprojectorautomatically.

•Profile: Searchesfortheprojectorbasedonapreviouslysavedprofile.

Theprojectorsearchresultsaredisplayed.

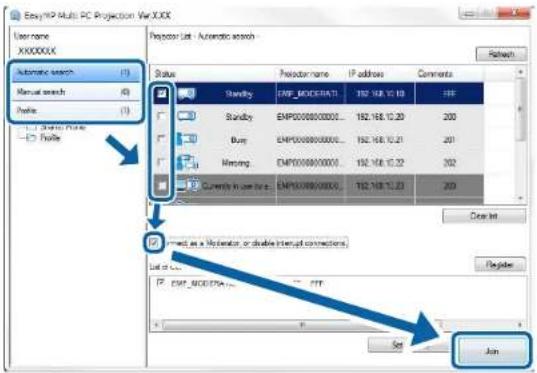

5. Select the projector you want to connect to from the Projector List, and then select one of the following options.

- Youwantalluserstobeabletobecomeparticipantsinthemoderatorfunction:Makesure Connect as a Moderator, or disable interrupt connections is not selected, and then click Join.

- Youarethemoderatoruserandyoudonotwantotheruserstobeabletointerruptthemoderator presentation:SelectConnectasaModerator,ordisableinterruptconnections,andthenclick Join.

Note:

- Themoderatorfunctionisavailableonlyforsupportedmodelsandisavailableonlyonthe StandardEditionofthesoftware.

- Whenoneuserconnectsasamoderator, themoderatorfunctionturnson.

When the Projector Keyword is set to On or the Moderator Password is set in the projector settings, the keywordentryscreenis displayed.

1. Check the Projector Keyword displayed on the LAN stand by screen. Enter the keyword, and then click OK.

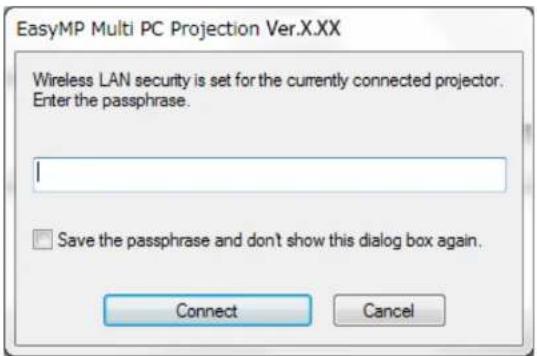

2. Whenthefollowingdialogboxisdisplayed, enter the pass phrases set on the projector, and then click Connect.

Note: If you select Save the passphrase and don't show this dialog box again, the projector's SSIDandpassphrasearesavedonthecomputerandthisdialogboxisnotdisplayedthenexttime youconnect.Youdonothavetoenterthepassphraseagain.

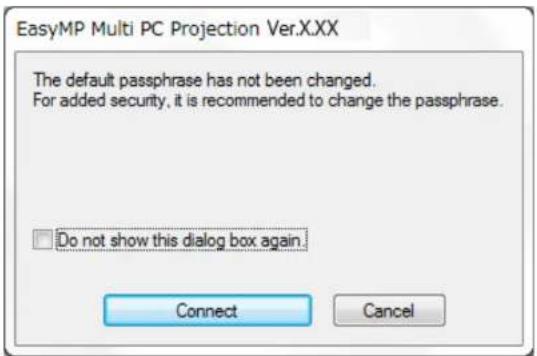

If the projector's passphrase has not been changed from the default, the following dialog box is displayed. Changethe passphrase from the projector's Network menu.

When a connection is established, the computers screen is projected and the following toolbar is displayed on the computers screen.

Thecomputerscreenfortheuserwhoconnectsfirstisprojectedinfullscreenmode.Userswhoconnectlatercanprojecttheirownscreenbyclickingthebuttononthetoolbarorcancontroltheprojecteddisplayfromtheprojectioncontrolscreenbyclickingthebuttononthetoolbar.

Note:

- Whenaconnectionisestablished, the inputsourcefortheprojectorautomaticallyswitchestothetheLAN sourceifnoothersignalisbeinginput. If the inputsourcedoesnotautomaticallyswitchtothetheLAN source, press the LAN button or Source Search button on the remote control.

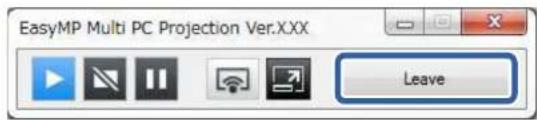

- Thedisplayedtoolbarvariesdependingontheconnectionmethodandtheeditionofthesoftware.

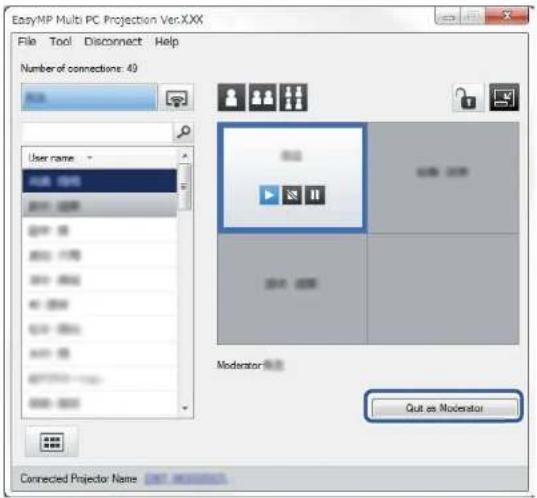

- When using the moderator function, only the moderator can control the projected display.

Parenttopic:ConnectionMethods

Relatedtasks

SettingUpaProjectortoConnectinQuickConnectionMode

Disconnecting

Relatedtopics

SelectingtheProjectorSearchMethod

ControllingtheProjectedDisplay

SearchingforNetworkProjectorsUsingaShortcut

ConnectingtotheProjectorfromtheSoftwareoveraNetworkSystem

When your projector is setup as indicated below, you can connect the projector and a computer over a network by using Easy MP Multi PC Projection.

- ThewirelessLANunitisinstalledifaprojectordoesnothavebuilt-inwirelessLANmodules(wirelessnetworksonly).

- ALANcableisconnectedtotheprojector(wirednetworksonly).

• The projector's connection methodissetto Advanced.

Note: Makesureyoualsoconnectedacomputertothenetwork.

1. Press the LAN button or Source Search button on the remote control to switch the input source to LAN.

The LAN stand by screen is projected.

2.StartEasyMPMultiPCProjection.

• Windows Vista and Windows 7: Click Start, select Programs (or All Programs), EPSON Projector, EasyMP Multi PC Projection, and then click EasyMP Multi PC Projection Ver.X.XX.
• Windows 8 and Windows 8.1: Navigate to the Apps screen and select EasyMP Multi PC ProjectionVer.X.XX.
• Windows 10: Select Start, select All apps, select EPSON Projector, and then select EasyMP MultiPCProjection.
• OS X: Double-click EasyMP Multi PC Projection from the Applications folder.

Note: You can also create a shortcut and use it to start Easy MP MultiPC Projection and to automatically search for saved projectors.

3. Select Advanced Connection Mode, and then click OK.

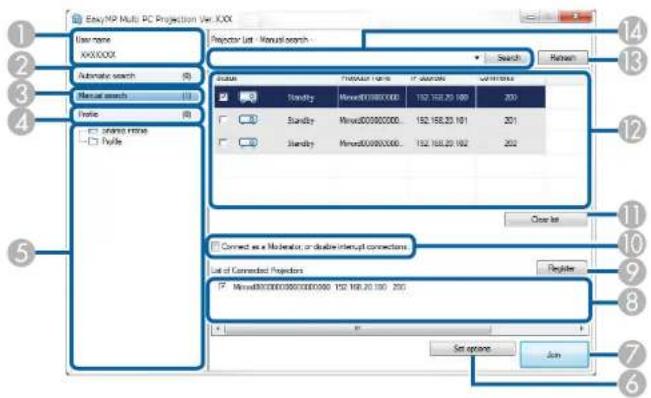

4. Searchfortheprojectorusingoneofthefollowingmethods.

•Automaticsearch: Searchesfortheprojectorautomatically.
- Manualsearch: SearchesfortheprojectorbasedonaspecifiedIPaddressorprojectorname.
•Profile: Searchesfortheprojectorbasedonapreviouslysavedprofile.

Theprojectorsearchresultsaredisplayed.

5. Select the projector you want to connect to from the Projector List, and then select one of the following options.

- Youwantalluserstobeabletobecomeparticipantsinthemoderatorfunction:Makesure Connect as a Moderator, or disable interrupt connections is not selected, and then click Join.

- Youarethemoderatoruserandyoudonotwantotheruserstobeabletointerruptthemoderator presentation:SelectConnectasaModerator,ordisableinterruptconnections,andthenclick Join.

Note:

• Themoderatorfunctionisavailableonlyforsupportedmodelsandisavailableonlyonthe StandardEditionofthesoftware.
• Whenoneuserconnectsasamoderator, themoderatorfunctionturnson.

When the Projector Keyword is set to On or the Moderator Password is set in the projector settings, the keyword entryscreen is displayed.

1. ChecktheProjectorKeyworddisplayedontheLANstandbyscreen, enterthekeyword, and then click OK as necessary.

When a connection is established, the computers screen is projected and the following toolbar is displayed on the computers screen.

Thecomputerscreenfortheuserwhoconnectsfirstisprojectedinfullscreenmode.Userswhoconnect

latercanprojecttheirownscreenbyclickingthebuttononthetoolbarorcancontroltheprojected

displayfromtheprojectioncontrolscreenbyclickingthebuttonanthetoolbar.

Note:

- When a connection is established, the input source for the projector automatically switch the LAN source if no others signal is being input. If the input sourced does not automatically switch to the LAN source, press the LAN button or Source Search button on the remote control.

- Thedisplayedtoolbarvariesdependingontheconnectionmethodandtheeditionofthesoftware.

- When using the moderator function, only the moderator can control the projected display.

Parenttopic: ConnectionMethods

Relatedtasks

SettingUpaProjectortoConnectinAdvancedConnectionMode(Wireless)

SettingUpaProjectortoConnectinAdvancedConnectionMode(Wired)

Disconnecting

Relatedtopics

SelectingtheProjectorSearchMethod

ControllingtheProjectedDisplay

SearchingforNetworkProjectorsUsingaShortcut

SelectingtheProjectorSearchMethod

Youcanselectasuitablemethodtosearchforaprojectordependingonthestatusorlocationoftheprojectoryuwanttoconnectto.

SearchMethods

SearchingforNetworkProjectorsAutomatically

SearchingforNetworkProjectorsbySpecifyinganIPAddressorProjectorName

SearchingforNetworkProjectorsUsingaProfile

Parenttopic: ConnectingtotheProjectorandProjectingImages

SearchMethods

Youcanuseoneofthefollowingmethodstosearchfortheprojectoryouwanttoconnectto.Choosethe bestmethoddependingonyourenvironment.

•SearchingforNetworkProjectorsAutomatically

Youcanautomaticallysearchforavailableprojectorsonthenetwork.

Searchresultsdifferdependingontheconnectionmodeyouuse.

- QuickConnectionMode:DisplaytheSSIDforavailableprojectors.

- AdvancedConnectionMode: Displaysavailableprojectorsonthenetwork.Searchesare performedonlyonthesamesubnet.Projectorsondifferentsubnetsarenotdisplayedinthesearch results.

- SearchingforNetworkProjectorsbySpecifyinganIPAddressorProjectorName

If the projectoryouwanttoconnecttoisnotfoundautomatically, you can search forth target projector by specifying the Paddress or a projector name. Byspecifying the Paddress, you can also search for the projector at remote locations on different subnet.

- SearchingforNetworkProjectorsUsingaProfile

Youcansavenetworkprojectorinformationasaprofile,andthenspecifytheprofiletosearchforthe sameprojectorinsteadofprovidingprojectordetailseachtimeyousearch.Bycreatingagroupof profilesforeachplacewhereaprojectorissetupandmanagingthemwithfolders,thetargetprojector canbefoundquickly.

Parenttopic: Selecting the Projector Search Method

SearchingforNetworkProjectorsAutomatically

Youcanautomaticallysearchforavailableprojectorsonthenetwork,andthenprojectimagesbysimply selectingtheprojector.

ClickAutomaticsearchonthesearchscreen.

Thesearchresultsaredisplayed.

WhenyouclickRefresh, the latest information is displayed.

If you cannot find any projectors, try one of the other search methods.

Parenttopic: Selecting the ProjectorSearchMethod

Relatedconcepts

SearchMethods

Relatedtasks

SearchingforNetworkProjectorsbySpecifyinganIPAddressorProjectorName

Relatedtopics

SearchingforNetworkProjectorsUsingaProfile

SearchingforNetworkProjectorsbySpecifyinganIPAddressorProjectorName

If the projectoryouwanttoconnecttoisnotfoundautomatically, you can search forth the target projector by specifying the Paddressortheprojectorname.

Note: ManualSearchisavailableonlyinAdvancedConnectionMode.

1. Click Manualsearchonthesearchscreen.

2.EnterthelPaddressortheprojectornamefortheprojectoryouwanttoconnectto,andthenclick Search.

Thesearchresultsaredisplayed.

Parenttopic: Selecting the Projector Search Method

SearchingforNetworkProjectorsUsingaProfile

Youcansavenetworkprojectorinformationasaprofile,andthensearchforthesameprojectorusing theprofileinsteadofspecifyingtheprojectordetailseachtime.

ProfilesforSearch

PerformingaProfileSearch

RegisteringaProfile

ExportingaProfile

ImportingaProfile

SharingaProfileoveraNetwork

Parenttopic: Selecting the Projector Search Method

ProfilesforSearch

Youcansaveinformationforanetworkprojectorasaprofile.Aprofileisafilecontainingallofthe projector'sinformation,suchastheprojectorname,IPaddress,andSSID.Byusingaprofile,youcan easilysearchforsavedprojectorsinsteadofprovidingprojectordetails.

Youcanexporttheregisteredprofiletocreateabackup, and thenimportitlocallytoeasilysearchfor projectorsonanothercomputer. Youcanalsosharetheexportedprofileoveranetwork, allowingother userstoeasilysearchforprojectors.

Parenttopic: SearchingforNetworkProjectorsUsingaProfile

PerformingaProfileSearch

Youcanspecifytheprofiletosearchforthesavedprojectorinsteadofprovidingprojectordetailseach timeyousearch.

1. ClickProfileonthesearchscreen.

2. Double-click the folder or the projector icon for the profile you want to use from the list.

Thesearchresultsaredisplayed.

Parenttopic: SearchingforNetworkProjectorsUsingaProfile

Relatedtasks

RegisteringaProfile

RegisteringaProfile

Aftersearchingforaprojector,youcansavetheprojectordetailsasaprofileusingamemorablename thatyoucansearchforeasilylater.

Note: You cannot register a profile under the Shared Profile folder on the search screen.

1. While the projectors are displayed on these search screen, perform one of the following operations.

2. Register projectors displayed in the List of Connected Projectors: Click Register.

3. Register a specific projector: Right-click the projector you want to register in the Projector List, and then click AddItemtoProfile.
4. Register all projectors found by the search: Right-click one of the projectors in the Projector List, and then click AddAlltoProfile.

TheSavescreenisdisplayed.

1. Enter the Projector file name, and select the folder where you want to save the profile, and then clickOK.

Theprofileisregisteredandtheprojectorinformationissavedintheprofile.

Note:

•Thefolderstructurecanbesixfoldersdeep.

- ClickCreateNewfolderifyouwanttocreateanewfolder.

- To register a specific projector, you can drag and drop the projector from the Projector List to the folderunderProfile.

- Youcandraganddropprofilesandfolderstochangethefolderstructure.

Parenttopic: SearchingforNetworkProjectorsUsingaProfile

ExportingaProfile

Youcanexportaprofileandshareitwithotherusersallowingthemtoeasilysearchforprojectorsand joinameeting.

Note: You cannot export the profiles under the Shared Profile folder on the search screen.

1. On the search screen, right-click the folder containing the profile you want to share under Profile, and thenclickExport.
   TheSaveAsscreenisdisplayed.
2. Selectwhereyouwanttosavetheprofile(.mplist), andthenclickSave.
   Theprofileisexported.

Parenttopic: SearchingforNetworkProjectorsUsingaProfile

Relatedtasks

RegisteringaProfile

ImportingaProfile

SharingaProfileoveraNetwork

ImportingaProfile

Youcanlocallyimportanexportedprofileanduseittoeasilysearchforprojectorsandjoinameeting.

Note:

- Youcanalsoimportaprofile(.plist)exportedusingEasyMPNetworkProjection.

- You cannot import profiles under the Shared Profile folder on these search screen.

- You cannot import profiles created in a different connection mode.

1. On the search screen, right-click the folder to which you want to import the profile under Profile, and thenclickImport.

TheOpenscreenisdisplayed.

1. Selecttheprofile(.mplist), andthenclickOpen.

Theprofileisimportedlocally.

Parenttopic: SearchingforNetworkProjectorsUsingaProfile

Relatedtasks

ExportingaProfile

SharingaProfileoveraNetwork

Youcanshareanexportedprofilewithotherusersoveranetworksothatanychangedprojector informationiseasilyupdated. ThesharedprofileisreadandupdatedautomaticallywhenEasyMPMulti PCProjectionisstarted.

1. Placetheprofile(.mplist)inasharednetworklocationsuchasaserver.

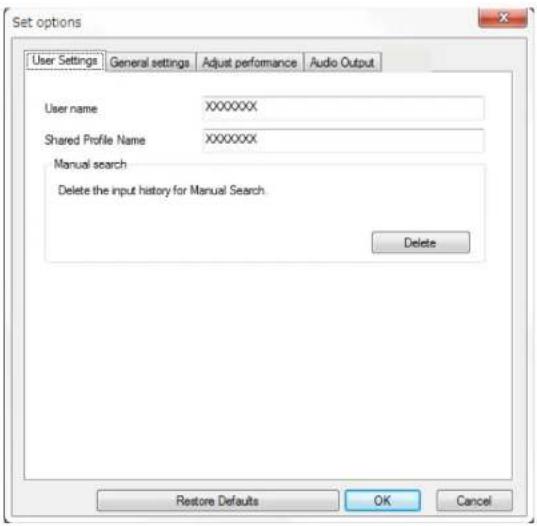

   2.ClickSetoptionsonthesearchscreen.

TheSetoptionsscreenisdisplayed.

1. ClicktheUserSettingstab.

2. Enter the network location or URL to the shared profile (including the name of the profile) in Shared ProfileName.

-Forafileserver(Windowsonly):\xxxxx\xxxxx.mplist
•Forawebserver:http://xxxxx/xxxxx.mplist

5.ClickOK.

ThesharedprofileisreadandtheSetoptionsscreencloses.

Note: ThesharedprofileisreadonlyandcannotbeeditedinEasyMPMultiPCProjection.

Parenttopic: SearchingforNetworkProjectorsUsingaProfile

Relatedtasks

ExportingaProfile

ControllingtheProjectedDisplay

Followtheseinstructionstousethetoolbarandtheprojectioncontrolscreentocontrolthescreenbeing projected.

ScreenTypesforProjectionControl

OperatingtheProjectedDisplayStatus

ChangingtheNumberofProjectedPanels

ChangingthePresenter

ChangingtheProjectionPosition

Parenttopic: ConnectingtotheProjectorandProjectingImages

ScreenTypesforProjectionControl

Youcanchoosethetypeofscreenyousetocontrolprojectedimagestosuityoursituation.Youcan switchthescreentypebyclickingthebuttononthe toolbarorthebuttonontheprojectioncontrol screen.

Note:

- Thedisplayedtoolbarandtheprojectioncontrolscreenvarydependingontheconnectionmethodand theeditionoryourroleofthissoftware.

• The projection controlscreen is available only on the Standard Edition of the software.
- Use the toolbartodisplayawideimage of the projected display and perform operations on the projected image.

- Use the projection controls screentochangethenumber of projected panels, presenters, or the projection position.

Parenttopic: Controlling the Projected Display

Relatedreferences

Toolbar

ProjectionControlScreen

OperatingtheProjectedDisplayStatus

You can control the projected display while projecting your computers screen by starting, stopping, or pausing the projected image.

Performoneofthefollowingoperationsonthetoolbarortheprojectioncontrolscreen.

•Show:Clickthebutton.

Thecomputerscreenisprojectedasitis.

- Stop: Clickthebutton.

The projected image stops. A black screen is projected while stopped.

- Pause:Clickthebutton.

Theprojectedimagepauses. Thepausedimageisprojected,evenifyoumakechangesonthe computerscreen.

Note:

• These buttons are not available for participants when using the moderator function.
- Themoderatorcanalsocontroltheotherusers'projectionusingtheprojectioncontrolscreenwhen usingthemoderatorfunction.

Parenttopic: Controlling the Projected Display

Relatedreferences

ProjectionControlScreen

ChangingtheNumberofProjectedPanels

Youcandividetheprojecteddisplayintoamaximumoffourpanels. Bychangingthenumberofpanels, youcanprojectscreensfrommultipledevicsatthesametime,orprojectonecomputerscreeninfull screenmode.

Note:

- Thisfunctionisnotavailableforparticipantswhenusingthemoderatorfunction.

- Youcanalsousethebuttontoprojectyourcomputerscreeninfullscreenmode.

1. Clickthebuttonthetoolbar.

Theprojectioncontrolscreenisdisplayed.

1. Click the panel of the user to be projected in the projection area.

1. Perform one of the following operationstochangethenumberofavailablepanelsintheprojection area.

- Projectonepanelinfullscreenmode:Clickthebutton

- Splittheprojectedddisplayintwoandprojectingtheselectedpanelandtheadjacentrightorleft panel:Clickthebutton.

- Splittheprojecteddisplayinfourandprojectingtheallfourpanels:Clickthebutton.

Thenumberofpanelschangesandthebackgroundcolorforpanelsbeingprojectedbecomeswhite.

Note:

• Youcanalsochangethenumberofpanelsbyright-clickingintheprojectionarea.Right-clickthe panel,andthenselectthenumberoftotalpanels.
• Ifthereisnouserinawhitepanel,ablackscreenisprojected.
  • The background color for panels not being projected is gray.

Parenttopic: Controlling the Projected Display

Relatedreferences

ProjectionControlScreen

ChangingthePresenter

Youcanchangethepresenterbydragginganddroppingoneoftheconnectedusernamesinthelist ontoopanelintheprojectionarea.

Note: This function is not available for participants when using the moderator function.

1. Clickthebuttononthetoolbar.

Theprojectioncontrolscreenisdisplayed.

1. Select the usernames in the user list, and the drag and drop the username onto a white panel in the projection area.

Note:

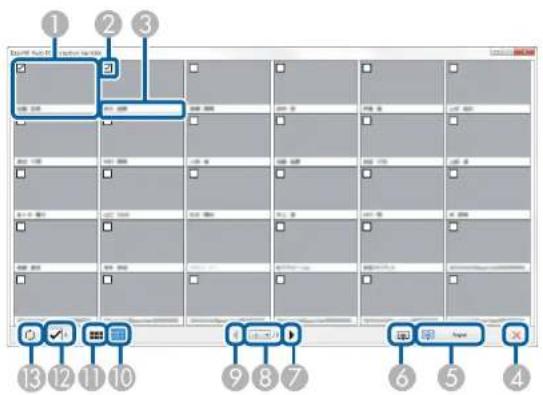

• Themoderatorcanchecktheparticipant'sdevicescreensasthumbnailsandselectwhichuserto project.Clickthebuttononthetoolbarortheprojectioncontrolscreen.
• If you cannot find the user that you want to project in the user list, you can search forth them using the user search box.
• Youcanalsoright-clickausernameintheuserlisttoselecttheprojectionposition.
• If there is nouserinawhitepanel, ablackscreenisprojected.

Theselecteduser'scomputerscreenisprojected.

1. Tofinishprojecting, draganddroptheusernamefromtheprojectionareatotheuserlist.

Note: You can also finish the selected user's projection by right-clicking the panel in the projection area, and then clicking EndProjection.

The backgroundcoloroftheusernameintheuserlistisbluewhiletheirscreenisprojected. The backgroundcoloroftheusernameisgraywhenauserisinthepanelbuttheirscreenisnotbeing projected.

Parenttopic: Controlling the Projected Display

Relatedtasks

ChangingtheProjectionPosition

SelectingtheParticipant'sScreentoProjectUsingThumbnails

ChangingtheProjectionPosition

You can change the projection position by dragging and dropping the username from one position to another in the projection area.

Note: This function is not available for participants when using the moderator function.

1. Clickthebuttononthetoolbar.

The projection controls screen is displayed.

1. Select the user in the projection area, and the drag and drop the username into another position.

The projection position is changed.

Note: When the 📄 or 🌐 button is selected, you can drag and drop the user name in a gray panel to the whitepaneltoswitchtheimagebeingprojected. Ifyoudraganddroptheusernameinawhitepanelto thegraypanel, theimageforthatuserwillnotbeprojected.

Parenttopic: Controlling the Projected Display

Relatedtasks

ChangingtheNumberofProjectedPanels

Disconnecting

Youcandisconnectonecomputeroralldevicesfromtheprojectorwhenyoufinishprojecting.

1. Performoneofthefollowingoperations.

- Disconnectyourcomputerandtheprojectors:ClicktheLeavebuttononthetoolbar.

The connection between your computer and the projectors is ended.

Note:

- Whenyouarethemoderator, the DisconnectAllbuttonisdisplayedonthetoolbarinsteadof thisbutton.

- You can also disconnect by clicking Leave from the Disconnect menu on the projection control screen.

- Themoderatorcandisconnectotherparticipantsbyright-clickingtheselecteduserintheuser list,andthenclickingLeaveontheprojectioncontrolscreenwhenusingthemoderator function.

- Whenthemoderatorleavesthemeeting, themoderatorfunctionturnsoff.

- Disconnectalldevicesfromtheprojectors:Clickthebutton,athetoolbar,andthenclick Disconnect All from the Disconnect menu on the projection control screen.

The connection between all devices and projectors participating in themeeting is ended.

Note: This function is not available for participants when using the moderator function.

Theconfirmationscreenisdisplayed.

2.ClickOK.

Youarereturnedtothesearchscreen.

Parenttopic: ConnectingtotheProjectorandProjectingImages

UsingAdditionalFunctions

FollowtheseinstructionstouseadditionalEasyMPMultiPCProjectionfunctionsthatmaybeuseful duringameeting.

SearchingforNetworkProjectorsUsingaShortcut

ConnectingtoMultipleProjectors(Mirroring)

OutputtingAudiofromtheProjector

ProjectingYourScreen

ChangingtheModerator

SelectingtheParticipant'sScreentoProjectUsingThumbnails

HidingtheProjectionControlScreen

ProhibitingParticipantOperations

ControllingtheConnectionBandwidth

Relatedtopics

ConnectionMethods

SelectingtheProjectorSearchMethod

SearchingforNetworkProjectorsUsingaShortcut

Youcansavenetworkprojectorinformationasashortcut, andthendouble-clickittostartEasyMPMultiPCProjection. Thisallowsyoutoeasilysearchforthesameprojectorsinsteadofspecifyingtheprojectordetailseachtime.

CreatingaShortcut

Parenttopic: Using Additional Functions

CreatingaShortcut

Aftersearchingforaprojector,youcansavetheprojectordetailsasashortcutthatyoucanuselater.A shortcutcontainsalloftheprojectorsinformation,suchastheprojectornameandIPaddress.Creating afoldershortcutsavesinformationformultipleprojectorscontainedinthefolder.

1. On the search screen, right-click the projector or folder from the Profile or Projector List, and then clickCreateShortcut.

TheSaveAsscreenisdisplayed.

1. Selectwhereyouwanttosavetheshortcut(.pme), and thenclickSave.

Theshortcutiscreatedandtheprojectorinformationissavedintheshortcut.

Note:

- Double-clickingashortcut(.pme).youcanstartEasyMPMultiPCProjectioninthesamemodeasyoucreateditsshortcut.

- When you use the Participant Edition of the software, use a shortcut file created in Advanced ConnectionMode.

- You can also select the projector or folder from the Profile or Projector List, and then drag and drop tothelocationwhereyouwanttocreatetheshortcut.

Parenttopic: SearchingforNetworkProjectorsUsingaShortcut

ConnectingtoMultipleProjectors(Mirroring)

Connectingtomultipleprojectorsandprojectingthesameimageisknownasmirroring.Youcanperform mirroringwithuptofourprojectors.

Note:

- MirroringisavailableonlyinAdvancedConnectionMode.

- You cannot perform mirroring with projector that are not compatible with Easy MPMultiPC Projection.

- Forbestresults, were recommend that you connect the project to a wired LAN to perform mirroring.

Onthesearchscreen,selectuptofourprojectorsyouwanttoconnectto,andthenclickJoin.

Aprojectormirroringgroupisformedandthesameimageisprojectedfrommultipleprojectors.

Note:

- When you select one projector from a project or mirror mirroring group, also the projectors in that group are selected.

- Whenotherusersarealreadyconnectedtoaprojectorinamirroringgroup,youcanonlyselect anotherprojectorfromthesamemirroringgroup.Youcannotselectaprojectorthatisnotina mirroringgroup.

Parenttopic: Using Additional Functions

OutputtingAudiofromtheProjector

You can output audio from the projector only when one computer is connected to one projector, and you are projecting in full screen mode.

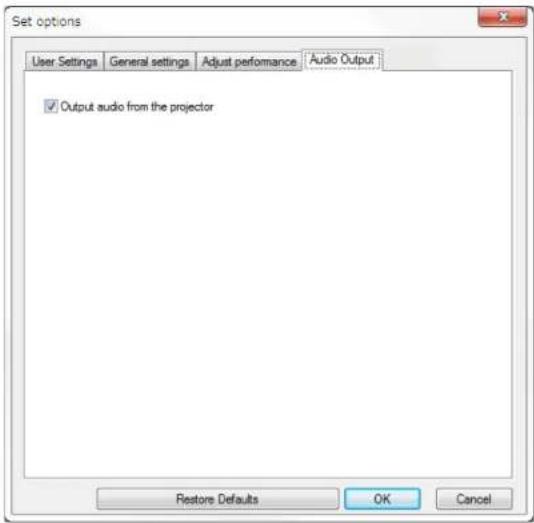

1. ClickSetoptionsonthesearchscreen.

TheSetoptionsscreenisdisplayed.

1. ClicktheAudioOutputtab.

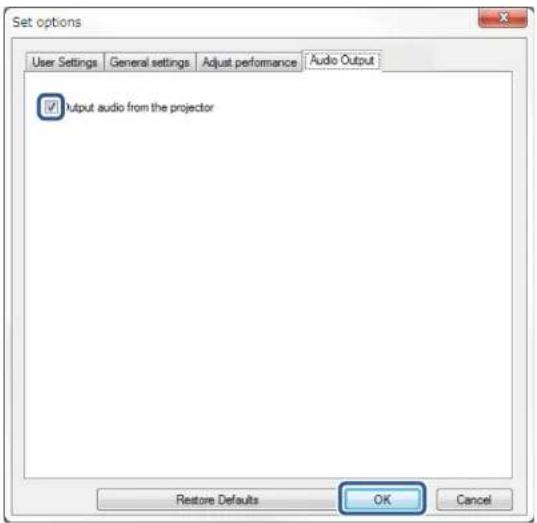

2. SelectOutputaudiofromtheprojector, and then click OK.

Note: When you select 256Kbps or 512Kbps as Use Bandwidth on the Adjust performance tab, you cannot output audio from the projector and cannot select this setting.

TheSetoptionsscreencloses.

Parenttopic: Using Additional Functions

Relatedtasks

ProjectingYourScreen

ControllingtheConnectionBandwidth

ProjectingYourScreen

Youcanprojectthecomputerscreeninfullscreenmodewithoutprojectinganyotherusers'screens.

1. On thesearchscreen, select the projectory you want to connect to, and then click Join.

Thetoolbarisdisplayed.

1. Clickthebutton.

Note:

• Youcanalsousethebuttonontheprojectioncontrolscreen.
• Thisbuttonisnotavailableforparticipantswhenusingthemoderatorfunction.

Yourcomputerscreenisprojectedinfullscreenmode.

Parenttopic: Using Additional Functions

ChangingtheModerator

While using the moderator function, you can change the moderator when another user need to control the projected display.

Note: The moderator function is available only on the Standard Edition of the software.

1. On the search screen, select the projector you want to connect to, select Connect as a Moderator, or disable interrupt connections, and then click Join.

Themoderatorfunctionturnsonandthetoolbarisdisplayed.

1. Clickthebuttononthetoolbar.

The projection controls screen is displayed.

3. ClicktheQuitasModeratorbuttononthemoderator'scomputer.

Theconfirmationscreenisdisplayed.

4.ClickOK.

Themoderatorfunctionturnsoff.

1. Click the Become Moderator button on the projection control screen on a different user's computer.

The confirmationscreenisdisplayed.

6.ClickOK.

Themoderatorfunctionturnsbackonandthenewmoderatorcancontroltheprojecteddisplay.

Parenttopic: Using Additional Functions

Relatedconcepts

ConnectionMethodsforVariousMeetingStyles

SelectingtheParticipant'sScreentoProjectUsingThumbnails

Themoderatorcanchecktheparticipant'sdevicescreensasthumbnailsandselectwhichuserto project.

1. Click the button on the tool bar or the projection controls screen.

Thethumnailsscreenisdisplayed.

1. Selectupto12thumbnailsyouwanttoproject.

Note: When you select more than 5 thumbnails, the thumbnail selections screen appears. After selecting up to 4 thumbnails, you must click the button again.

Theselectedthumbnailsareprojected.Clickthebuttontocloseththumbnailsscreenandreturn tothetoolbarortheprojectioncontrolscreen.

Parenttopic: Using Additional Functions

HidingtheProjectionControlScreen

Youcanhidetheprojectioncontrolscreenfromotheruserswhileprojectingyourcomputerscreen. This allowsyoutochangethenecessarysettingswithoutprojectingtheoperation. Theprojectedimage currentlydisplayedispausedautomaticallywhenyouswitchthetoolbartotheprojectioncontrolscreen. Yourcomputerscreenisprojectedagainwhenyoureturntothetoolbar.

Note: This function is available only for the moderator when using the moderator function.

1. ClickSetoptionsonthesearchscreen.

TheSetoptionsscreenisdisplayed.

1. ClicktheGeneralsettingstab.

2. Select Freeze projected screen when displaying Projection control screen, and then click OK.

The Set options screen closes. The operation on the projector control screen will not be projected next timeyouuseit.

Parenttopic: Using Additional Functions

ProhibitingParticipantOperations

Themoderatorcanlockmouseoperationsonparticipant'sdeviessothattheparticipantcannotchange theimagesbeingprojected.

- Clickthebuttonontheprojectioncontrolscreentolocktheparticipant'smouseoperations.

Thebuttonchangestothebuttonontheprojectioncontrolscreen. Theparticipantsseethe icontoindicatethatmouseoperationsarelocked.

- Clickthebuttonontheprojectioncontrolscreentounlocktheparticipant'smouseoperations.

Thebuttonchangestothebuttonontheprojectioncontrolscreen. The participantscan operatethemouseontheirdevices.

Parenttopic: Using Additional Functions

ControllingtheConnectionBandwidth

You can reduce the sizeof datat transferred to the project to degree decrease the network load. Todo this, you can control the connection bandwidth.

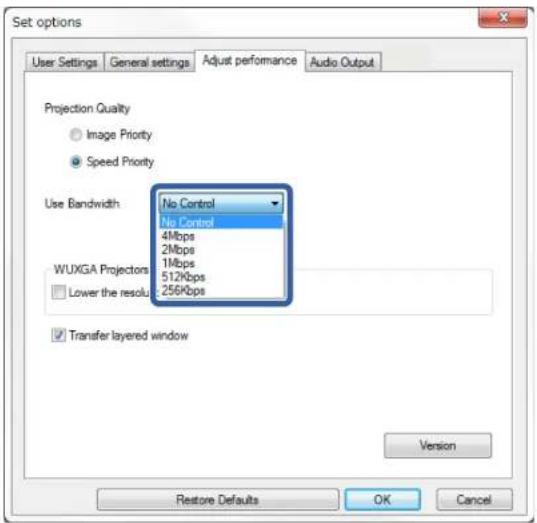

1. ClickSetoptionsonthesearchscreen.
   Setoptionsscreenappears.
2. ClicktheAdjustperformancetab.
3. SelectProjectionQuality.

- Image Priority: Transfers projected image data with a low compression ratio to prioritize image quality.

- SpeedPriority: Compresses projected imagedatatoincreasetransferspeed.

1. SelectthebandwidthyouwanttouseastheUseBandwidthsetting.

When you select an narrower bandwidth, the projected image quality may decline but then network load is reduced.

Note: If you donotneed to output audiowhile controlling bandwidth, makes sure you clear the Output audio from the projector setting on the Audio Output tab. The bandwidth used for audio can then be used for the image transferto improve the image equality.

BandwidthControlRestrictions

Parenttopic: Using Additional Functions

BandwidthControlRestrictions

Notethefollowingbandwidthlimitations.

• Whenyoulimitthebandwidth, theimagequalitymaydeclineduetothecompressionofthe transferreddata.
• When you select 256Kbps or 512Kbps as Use Bandwidth on the Adjust Performance tab, you cannot output audio from the projector. If you want to transfer audio, select the bandwidth to 1 Mbps or more.
• Thebandwidthmaymomentarilyexceedthevalueyouselectedbecauseeachvalueinthelistisan averagevaluemeasuredwithin30seconds.
• Youcanlimitthebandwidthonlyofdatayousend.Youcannotlimitdatathatyoureceive,suchasa thumbnail.

Parenttopic: Controlling the Connection Bandwidth

Relatedtasks

OutputtingAudiofromtheProjector

SolvingProblems

SeethefollowingsectionstocheckforsolutionstoproblemsyoumayhaveusingEasyMPMultiPC Projection.

SolvingNetworkConnectionProblems

SolvingProblemsDuringProjection

ErrorMessageList

EventIDList

SolvingNetworkConnectionProblems

Trythesesolutionsdependingonyournetworkenvironment.

SolutionsWhenYouCannotConnectUsingQuickConnectionMode

SolutionsWhenYouCannotConnectProjectorsUsingAdvancedConnectionMode(Wireless)

SolutionsWhenYouCannotConnectProjectorsUsingAdvancedConnectionMode(Wired)

Parenttopic: Solving Problems

SolutionsWhenYouCannotConnectUsingQuickConnectionMode

When you cannot connect the computer and the projector using Quick Connection Mode, try the followingsolutions.

- Check the status of the external devices used for the network connection or the environment in which thenetwork devices and the projector are located.

- Connect the specified wireless LAN unit to the projector securely. See your projector User's Guide formoredetails.

- Checkforanyobstaclesbetweenthecomputerandprojector,andchangetheirpositiontoimprove communication.Sometimestheindoorenvironmentpreventstheprojectorfrombeingfoundina search.

- Settheradiostrengthforthenetworkdevicestothemaximum.

- Checktheprojector'snetworksettings.

- SettheConnectionModesettingtoQuick.

•TurnonawirelessLAN.

- When you enable these security setting, set the same pass phrase to the computer and the projector.

- Closenetworksettingsontheprojector, and then return to the LAN standbyscreen.

- Checkthecomputer'snetworksettings.

- If the wireless LAN adapter is not installed on your computer, install a wireless LAN card on your computer.

- EnablethewirelessLANsettingorAirPortonyourcomputer.

- Checkthesoftwaresettings.

- Ifauserotherthanthemoderatorhasestablishedaconconnectionandtheprojectedimageremainsasitis,youcaninterruptthecurrentconnectiontoprojectyourscreen.

IfaProjectorKeywordissetfortheprojectorbutyoudonotknowthekeyword,displaytheHome screentochecktheprojectorkeyword.

If your project orders no have a Homescreen, restart the projector and check the keyword displayed on the LAN stand by screen.

- Makesureyoustartthesoftwareintheconnectionmodethatyousetontheprojector.Ifyoucannot selectorchangetheconnectionmode,selectDisplayConnectionModeSelectionwindowon startup on the General settings tab in the Set options screen. The select connection mode screenisdisplayadafterrestartingthesoftware.

Parenttopic: Solving Network Connection Problems

Relatedreferences

Setoptions-Generalsettings

SolutionsWhenYouCannotConnectProjectorsUsingAdvancedConnectionMode (Wireless)

When you cannot connect the computer and the projector using Advanced Connection Mode over a wireless network, try the following solutions. If you cannot resolve the problem, contact your network administrator.

- Check the status of the external devices used for thenetwork connection or the environment in which thenetwork devices and the projector are located.

- Connect the specified wireless LAN unit to the projector securely. See your projector User's Guide formoredetails.

- Checkforanyobstaclesbetweentheaccesspointandthecomputerorprojector,andchangetheir positiontoimprovecommunication.Sometimes,indoorenvironmentspreventtheprojectorfrom beingfoundinasearch.

- Makesurethattheaccesspointandthecomputerorprojectorarenottoofarapart.Movethem closertogetherandtrytoconnectagain.

- If the wireless connection is slow your projected image contains noise, check for interference from other equipment, such as Bluetooth device or microwave. Mov the interfering device farther away are expand your wireless bandwidth.

- Settheradiostrengthforthenetworkdevicestothemaximum.

- SetthelPaddress, the subnetmask, and the gateway address for the access point correctly.

- MakesurethewirelessLANsystemoftheaccesspointsupportstheprojector'swirelessLAN system.

- Checktheprojector'snetworksettings.

- SettheConnectionModesettingtoAdvanced.

- Setthecomputer, theaccesspoint, and theprojectortothesameSSID.

- Set DHCP to Off. When DHCP is set to On, it may take some time to enter LAN standby status if an available DHCP serverisnotfound.

- SettheIPaddress,thesubnetmask,andthegatewayaddressfortheprojectorcorrectly.

•TurnonawirelessLAN.

- SetthewirelessLANsystemtomeetthestandardssupportedbytheaccesspoint.

- When you enable these security setting, set the same pass phrase to the access point, the computer, and the projector.

- Closenetworksettingsontheprojector, and then return to the LAN stand by screen.

- Checkthecomputer'snetworksettings.

- If the wireless LAN adapter is not installed on your computer, install a wireless LAN card on your computer.

- EnablethewirelessLANsettingorAirPortonyourcomputer.

- Connecttotheaccesspointtowhichtheprojectorisconnected.

- Turnoffthefirewall. If you donotwanttoturnitoff, register the firewallasanexception. Makethe necessary setting stoopentheports. The ports used by this software are "3620", "3621", and "3629".

- Checktheaccesspointsettings.

- Setconnectionpermissionattheaccesspointtoallowprojectorstoconnectifanyfunctionsthat blockconnections,suchasMACAddressrestrictionsandportrestrictions,arettotheaccess point.

- Checkthesoftwaresettings.

• Select the network adapter you are using from Switch LAN on the Set options screen. If the computerhas multiple LAN environments, a connection cannot be established unless then network adapter is selected correctly.
• If you cannot find the projector you want to connect to using Automatic search, select Manual search to specify the IP address.

- Ifauserotherthanthemoderatorhasestablishaconconnectionandtheprojectedimageremainsasitis,youcaninterruptthecurrentconnectiontoprojectyourscreen. IfaProjectorKeywordissetfortheprojectorbutyoudonotknowthekeyword,displaytheHome screentochecktheprojectorkeyword.

If your projectordoesnothaveaHomescreen, restart the projector and check the keyword displayed on the LAN stand by screen.

- Makesureyoustartthesoftwareintheconnectionmodethatyousetontheprojector.Ifyoucannot selectorchangetheconnectionmode,selectDisplayConnectionModeSelectionwindowon startup on the General settings tab in the Set options screen. The select connection mode screenisdisplayedafterrestartingthesoftware.

- MakesuretheprojectorsupportstheEasyMPMultiPCProjectionversionbeingused. Install EasyMPMultiPCProjectionfromtheEPSONProjectorSoftwareCD-ROMsuppliedwiththe projector(ifavailable)ordownloaditfromtheEpsonWebsite.

- InstallthelatestversionofEasyMPMultiPCProjectiononallcomputers. Themaximumnumberof computerconnectionsandtheavailabilityofthemoderatorfunctionvariesdependingonthe projectormodel,nomatterwhichversionofEasyMPMultiPCProjectionyouareusing.

- Whenanotheruserisalreadyconnected, youcanonlyconnecttoprojectorsinthesamemirroring groupasthatselectedbytheotheruser.Selectaprojectorfromthesamemirroringgroupasthe userwhoisalreadyconnected, orselectaprojectorthatisinstandbystatus.

Parenttopic: Solving Network Connection Problems

Relatedreferences

Setoptions-Generalsettings

Relatedtasks

SearchingforNetworkProjectorsbySpecifyinganIPAddressorProjectorName

SolutionsWhenYouCannotConnectProjectorsUsingAdvancedConnectionMode (Wired)

When you cannot connect the computer and the projector using Advanced Connection Mode over a wired network, try the following solutions. If you cannot resolv the problem, contact your network administrator.

- Checkthestatusoftheexternaldevicesusedforthenetworkconnectionortheenvironmentinwhich thenetworkdevicesandtheprojectorarelocated.

- Connectthenetworkcablesecurely.

Note:

• Useacommerciallyavailable100BASE-TXor10BASE-TLANcable.
• Topreventmalfunctions, useacategory5orhighershieldedLANcable.

- Checktheprojector'snetworksettings.

• Set DHCP to Off. When DHCP is set to On, it may take some time to enter LAN standby status if an available DHCP server is not found.
• SetthelPaddress, thesubnetmask, and thegatewayaddressfortheprojectorcorrectly.
• Closenetworksettingsontheprojector, and then return to the LAN stand by screen.

- Checkthecomputer'snetworksettings.

- EnableLANsettingsyourcomputer.

Windows Vista: Check Control Panel > System and Maintenance > Device Manager.

Windows 7, Windows 8, Windows 8.1, and Windows 10: Check Control Panel > Hardware and Sound>DeviceManager.

- Turnoffthefirewall.Ifyoudonotwanttoturnitoff,registerthefirewallasanexception.Makethe necessarysettingstoopentheports.Theportsusedbythissoftwareare"3620","3621",and "3629".

- Checkthesoftwaresettings.

• Select the network adapter you are using from Switch LAN on the Set options screen. If the computerhas multiple LAN environments, a connection cannot be established unless thenetwork adapter is selected correctly.

• If you cannot find the projector you want to connect to using Automatic search, select Manual search to specify the IP address.

• Ifauserotherthanthemoderatorhasestablished connection and the projected imageremains as itis, you can interrupt the current connection to project your screen.
  IfaProjectorKeywordissetfortheprojectorbutyoudonotknowthekeyword,displaytheHome screentochecktheprojectorkeyword.
  If your projectordoes nothavea Homescreen, restart the projector and check the keyword displayed on the LAN stand by screen.
  • Makesureyoustartthesoftwareintheconnectionmodethatyousetontheprojector. If you cannot selectorchangetheconnectionmode, selectDisplayConnectionModeSelectionwindowon startup on the General settings tab in the Set options screen. The select connection mode screen is displayed after restartingthesoftware.

• MakesuretheprojectorsupportstheEasyMPMultiPCProjectionversionbeingused.Install EasyMPMultiPCProjectionfromtheEPSONProjectorSoftwareCD-ROMsuppliedwiththe projector(ifavailable)ordownloaditfromtheEpsonWebsite.
• InstallthelatestversionofEasyMPMultiPCProjectiononallcomputers. Themaximumnumberof computerconnectionsandtheavailabilityofthemoderatorfunctionvariesdependingonthe projectormodel,nomatterwhichversionofEasyMPMultiPCProjectionyouareusing.
• Whenanotheruserisalreadyconnected,youcanonlyconnecttoprojectorsinthesamemirroring groupasthatselectedbytheotheruser.Selectaprojectorfromthesamemirroringgroupasthe userwhoisalreadyconnected,orselectaprojectorthatisinstandbystatus.

Parenttopic: Solving Network Connection Problems

Relatedreferences

Setoptions-Generalsettings

Relatedtasks

SearchingforNetworkProjectorsbySpecifyinganIPAddressorProjectorName

SolvingProblemsDuringProjection

Trythesesolutionsdependingonyoursituation.

SolutionsWhentheScreenisNotProjectedProperly

SolutionsWhenAudioisNotPlayedProperly

SolutionsWhentheModeratorFunctionDoesNotWork

Parenttopic: Solving Problems

SolutionsWhentheScreenisNotProjectedProperly

If the screen is not projected or there are problems with the project image and the following solutions.

- If you are using a Microsoft Office application, stop moving the mouse pointer. If you move the mouse pointer continuously, the screen may not be refreshed quickly.

- If the mouse pointer flickers, try the following solutions.

• Select Make the movement of the mouse pointer smooth on the General settings tab on the Setoptionsscreen.
• Clear Transfer layered window on the Adjust performance tab on the Set options screen.

•TheMediaPlayermovieplaybackscreenmaynotbeprojecteddependingonthecomputer.

- Thescreensaverpreviewmaynotbeprojectedproperlydependingonthecomputer.

- Reducethenumberofconnecteddevicesiftheconnectionspeeddeclines.

- ForOSX, when playing back movies, start Easy MP MultiPC Projection first before starting playback. If Easy MP MultiPC Projection is started during movie playback and the displays screen resolution and color numbers are changed, try moving them movie playback window, minimizing it, or resizing it and so on.

- When using a computer that does not meet the software requirements, images and audioform movies may stop.

- Whenanotheruseristhemoderator, you cannot control your projected display. Changethe moderator or project the screen without a moderator.

Parenttopic: Solving Problems During Projection

Relatedreferences

Setoptions-Generalsettings

Setoptions-Adjustperformance

Relatedtasks

ChangingtheModerator

SolutionsWhenAudioisNotPlayedProperly

If there is no audiocoming from the projector, try the following solutions.

- Audiocanonlybetransferredtooneprojector. When multiple projectors are connected to one computer, disconnect other projectors and try again.

- Select Output audio from the projector on the Audio Output tab on the Set options screen.

- Youcanonlyoutputthecomputer'saudiofromtheprojectorwhenprojectingonecomputerscreenin fullscreenmode.

- If the bandwidth is limited on the Adjust Performance tab on the Set options screen, try increasing the connection bandwidth

• If the volume for the computer is set to the minimum while the projector volume is set to the maximum, then is may be mixed. Turnup the computer's volume and turn down the projector's volume.

Parenttopic: Solving Problems During Projection

Relatedreferences

Setoptions-AudioOutput

SolutionsWhentheModeratorFunctionDoesNotWork

If themoderatorfunctiondoesnotworkproperly, try the followingsolutions.

- Make sure you use the Standard Edition of the software. If you use the Participant Edition of the software and need them moderator function, reinstall this software as necessary.

- Make sure your projector supports the moderator function. See the User's Guide supplied with the projectorformoredetails.

- Whenanotheruseristhemoderator, you cannot control your projected display. Changethe moderator.

- Make sure you select Connect as a Moderator, or disable interrupt connections when you connect a projector.

Parenttopic: Solving Problems During Projection

Relatedtasks

ChangingtheModerator

ErrorMessageList

When an error occurs, an error message is displayed on your computer screen. Check for your message and follow the instructions heretoclearthe error.

ErrorMessageWhenStartingupEasyMPMultiPCProjection

ErrorMessageWhenSearchingforandSelectingProjectors

ErrorMessageWhenProjecting

ErrorMessagesWhenOperatingaProfile

ErrorMessageWhenUsingtheModeratorFunction

Parenttopic: Solving Problems

ErrorMessageWhenStartingupEasyMPMultiPCProjection

ErrorMessageRemedy
Thisapplicationisalreadyrunning.TwoinstancesofEasyMPMultiPCProjection havebeenstarted.
Cannotstartthisapplicationbecauseother EPSONProjectorsoftware(QuickWireless Connection)isalreadyrunning.	CloseQuickWirelessConnectionandthenstart EasyMPMultiPCProjection.TocloseQuickWirelessConnection,perform SafelyRemoveHardwarefromtheicononthetaskbartoremovetheQuickWirelessConnection USBKeyfromthecomputer.
Cannotstartthisapplicationbecauseother EPSONProjectorsoftware(USBDisplay)is alreadyrunning.	CloseUSBDisplayandthenstartEasyMPMulti PCProjection.DooneofthefollowingtocloseUSBDisplay:•Windows:DisconnecttheUSBcablefromthe projector.•OS X:Select Disconnect from the USB Display iconmenuonthemenubarorDock,andthen removetheUSBcable.
Cannotstartthisapplicationbecauseother EPSONProjectorsoftware(EasyMPNetwork Projection)isalreadyrunning.	CloseEasyMPNetworkProjectionandthenstart EasyMPMultiPCProjection.
EasyMPMultiPCProjectioninitializationfailed.Restar	EasyMPMultiPCProjection.Ifthe messageisstilldisplayed,uninstallandthen reinstallEasyMPMultiPCProjection.
Cannotopentheshortcutfile.Theshortcutfilemaybecorrupted.StartEasyMP MultiPCProjection,andthentrysearchingforand connectingtotheprojectoragain.
Cannotfindtheprojectorlinkedtotheshortcutfile. Searchagain.	Checkthefollowingitems.•Openashortcutfileintheconnectionmodefor whichyoucreatedtheshortcutfile.•OpenashortcutfileinAdvancedConnectionModeifyousetheParticipantEditionofthe software.
Filesaremissingorinvalid.Failedtostartthe application.Reinstall/removetheapplication.	UninstallandthenreinstallEasyMPMultiPC Projection.
Networkadapterinformationcouldnotbe obtained.	Checkthefollowingitems.•Anetworkadapterisinstalledonthecomputer.•Thedriverforthenetworkadapterbeingusedis installedonthecomputer.•Thenetworkadapterisenabled.Afterchecking,restartthecomputerandthen restartEasyMPMultiPCProjection.Ifyoustillcannotconnect,checkthenetwork settingsonthecomputerandthenetworksettings ontheprojector.
Cannotstartfromtheshortcutwhileprojecting.Stoppro	ectingandthenstartprojectionfromthe shortcut.Youcannotstartprojectionfromthe shortcutwhenyouarealreadyprojectingusing EasyMPMultiPCProjection.
CannotstartfromtheshortcutwhiletheOption screenisdisplayed.ClosetheOptionscreen,and thentryopeningtheshortcutagain.	TheSetoptionsscreenisdisplayed.ClosetheSetoptionsscreen.
TheslideshowwillnotbeginuntilPowerPointis restarted.	ClosePowerPoint,andthenstarttheslideshow again.
CannotbeusedwiththecurrentOSversion.ReinstallEasyMPMultiPCProjection.	ReinstallEasyMPMultiPCProjection.

Parenttopic:ErrorMessagesList

Relatedtasks

UninstallingEasyMPMultiPCProjection(WindowsVista/Windows7/Windows10)

UninstallingEasyMPMultiPCProjection(Windows8.x)

UninstallingEasyMPMultiPCProjection(OSX)

InstallingEasyMPMultiPCProjection(Windows)

InstallingEasyMPMultiPCProjection(OSX)

ErrorMessageWhenSearchingforandSelectingProjectors

ErrorMessageRemedy
Cannotjoin.Themaximumnumberofparticipants hasbeenexceeded.	Themaximumnumberofdevicesarealready connectedtotheprojector.Disconnectusersand projectorsthatarenotprojectingscreens.
Theprojectorkeyworddoesnotmatch.Re-enter theprojectorkeyworddisplayedontheprojector screen.	ChecktheProjectorKeyworddisplayedonthe LANstandbyscreen,andentertheProjector Keyword.
Connectionfailedduetoprojectorkeyword mismatch.
Theselectedprojectorismirroringanother projector.	Whenanotheruserisalreadyconnected,youcan onlyconnecttotheprojectorsinthesame mirroringgroupasthatselectedbytheotheruser.Selectaprojectorfromthesamemirroringgroup, orselectaprojectorthatisinstandbystatus.
Oneormoreprojectorsarenotresponding.Youcannot	connecttomultipleprojectors simultaneously.Checkthenetworksettingsonthe computerandthenetworksettingsonthe projector.
Anetworkerroroccurred.Turnonyourcomputer'swirelessLAN,andthen trysearchingfortheprojectoragain.Ifyoustill cannotconnecttotheprojector,checkthenetwork settingsonthecomputerandthenetworksettings ontheprojector.
Connectiontotheprojectorfailed.Checkiftheprojectoryouwanttoconnecttois alreadyconnectedtoEasyMPNetworkProjection.Youcannotconnecttoaprojectorthatisalready connectedusingEasyMPNetworkProjection.

Parenttopic: ErrorMessagesList

Relatedtasks

UninstallingEasyMPMultiPCProjection(WindowsVista/Windows7/Windows10)

UninstallingEasyMPMultiPCProjection(Windows8.x)

UninstallingEasyMPMultiPCProjection(OSX)

GettingtheLatestVersionoftheApplication

InstallingEasyMPMultiPCProjection(Windows)

InstallingEasyMPMultiPCProjection(OSX)

Relatedtopics

SupportedResolutionsandColors

ErrorMessageWhenProjecting

ErrorMessageRemedy
Theprojectorhasdisconnected.Anerrormayhaveoccurredintheprojector.Checktheprojector'sindicatorlights.
Anetworkerroroccurred.Tryconnectingagain.Ifyoustillcannotconnectto theprojector,checkthenetworksettingsonthe computerandthenetworksettingsonthe projector.

Parenttopic:ErrorMessagesList

ErrorMessageWhenOperatingaProfile

ErrorMessageRemedy
Entermax.32characters.Theenteredtextexceeds32ch	characters.Shorten thenameto32charactersorless.
Enterafoldername.Nofoldernameentered.Enterafoldername.	Thefolderstructureisdeeperthansixfolders. Createthenewfolderhigherupinthefolder structure.
Foldersshouldnotbecreatedmorethan6layers deep.
ThereisalreadyafoldernamedXXXinthisfolder.Afolder	withthesamenamealreadyexists.Enter anotherfoldername.
ThereisalreadyafilenamedXXXinthisfolder.Aprojectorwiththesamenamealreadyexists.Enteranotherprojectorname.
Cannotimport.Formatnotsupportedbythis application.	Checktheprofileyouwanttoimport.Youcannot importaprofilewhenprojectorinformationhasnot beenregistered,orwhentheprofileiscorrupt.
Cannotimportbecausethefolderstructure exceedssixfolders.	Thefolderstructurecannotexceedsixlayers.Import,move,orcopytoafolderhigherupinthe folderstructure.
Cannotmovebecausethefolderstructure exceedssixfolders.
Cannotcopybecausethefolderstructureexceeds sixfolders.
Failedtoopenthefile.Theprofilemaybecorrupted.Tryim	Importingthe profileagain.
Failedtosavethefile.Makesureyouhaveaccessrightsothefolder,andthentryagain.
Cannotimportcertainitemsbecausethe connectionmodesdiffer.	Importaprofileinthconnectionmodeinwhich youcreatedaprofile.

Parenttopic: ErrorMessagesList

Relatedtasks

RegisteringaProfile

ImportingaProfile

ErrorMessageWhenUsingtheModeratorFunction

ErrorMessageRemedy
Cannotswitchtomoderator.Youcannotbecomethemoderatorwhenanotheruseristhemoderator.Askthecurrentmoderatortoquit,andthentryagain.
FailedtoswitchtoModeratorModeMakesureanotheruserisnotthemoderator,andthentryagain.
Themoderatorfunctionisnotavailable.Youhave beenconnectedasaparticipant.	Theprojectoryouareconnectingtodosnot supportthemoderatorfunction.Tobecomethe moderator,changetoaprojectorthatsupportsthe moderatorfunction.

Parenttopic:ErrorMessagesList

Relatedtasks

ChangingtheModerator

EventIDList

When a connection error occurs, an number indicating the type of error is displayed as follows.

EventID:04xx

Checkthenumbersandthenapplythefollowingcountermeasures.Ifyoucannotresolvetheproblem, contact your network administrator, or contact Epson as described in your projector User's Guide.

EventIDCause	useRemedy
0432Failed	ostartupthenetworksoftware.Restarttheprojector.
0435
0434Networ	kcommunicationisunstable.Checkthenetwork	communicationstatus,andreconnectafterwaitingforawhile.
0481
0482
0433Cannot	playtransferredimages.Restartthenetworksoftware.
0484Comm	unicationwasdisconnectedfromthecomputer.
04FEThenet	etworksoftwareendedunexpectedly.Checkthest	statusofnetworkcommunications.Restarttheprojector.
04FFAsyste	merroroccurredintheprojector.Restarttheprojector.
0891Cannot	findanaccesspointwiththesameSSID.	Setthecomputer,theaccesspoint,andtheprojectortothesameSSID.

EventIDCauseRemedy
0892TheWPA/WPA2authenticationtypedoes notmatch.	CheckthatthewirelessLANsecurity settingsarecorrect.
0893TheWEP/TKIP/AESencryptiontypedoes notmatch.
0894Communicationwasdisconnectedbecause theprojectorconnectedtoanunauthorized accesspoint.	Contactyournetworkadministratorformore information.
0898FailedloacquireDHCP.ChecktheDHCPservertoseefifitis operatingcorrectlyandchecktheLANcable toseeifitisconnectedcorrectly.Ifyouare notusingDHCP,setDHCPtoOff.
0899Othercommunicationerrorslfrestartingtheprojectoronthenetwork softwaredoesnotsolvetheproblem, contactEpsonasdescribedinyourprojector User'sGuide.
089ATheEAPauthenticationtypeisnotthe same.	CheckthatthewirelessLANsecurity settingsarecorrect.Also,checkifthe certificateisinstalledcorrectly.
089BEAPserverauthenticationfailed.
089CEAPclientauthenticationfailed.
089DKeyexchangefailed.
0B01Thebuilt-instoragecouldnotbedetected correctly.	PerformDeleteAllInternalData.Whenthe internalstorageisdeletedcorrectly,plugin thepowercordfortheprojectorandturnit on.Ifitisnotdeletedcorrectly,contact EpsonasdescribedinyourprojectorUser's Guide.GotoExtended>WhiteboardSettings>InternalStorage.
0BFFAnerrorhasoccurredintheWhiteboard function.	Restarttheprojector.

Parenttopic: Solving Problems

ScreenSummary

SeethesectionsformoreinformationabouttheEasyMPMultiPCProjectionscreens.

SelectConnectionModeScreen

SearchScreen

SaveScreen

Setoptions

Toolbar

ProjectionControlScreen

ThumbnailScreen

SelectConnectionModeScreen

WhenyoustartEasyMPMultiPCProjection, theselectconnectionmodescreenisdisplayed.

1Selecttheconnectionmode.

2Selecttoalwaysconnectusingtheselectedconnectionmode.

Parenttopic:ScreenSummary

Relatedconcepts

ConnectionMethodsforVariousNetworkEnvironments

SearchScreen

WhenyoustartEasyMPMultiPCProjection, thesearchscreenisdisplayed.

1UsernameDisplaystheusername	displayedintheuserlistontheprojection controlscreen.YoucaneditheusernameontheUserSettingstab ontheSetoptionsscreen.
2AutomaticsearchSearchesfor	projectorsonthenetworktowhichthecomputeris connected.
3Manualsearch(AdvancedConnection Modeonly)	Searchesforprojectorsonthenetworkbyspecifyingtheprojector's IPAddressorprojectorname.

4Profile	Searchesforprojectors	thenetworkbyusingtheprojectorinformationsavedpreviously.
5Profilelist	Displaystheregistered	profiles(projectorinformation).Whenyoudouble-clicktheprofile,theprojectorsregisteredintheprofilearesearchedoronthenetwork.
6Setoptions	DisplaystheSetoptionsscreen.
7Join	Connectstotheselectedprojectors.
8Listof	ConnectedProjectors(AdvancedConnectionModeonly)	DisplaysinformationontheprojectorsselectedfromtheProjectorList.Evenifthesearchmethodischanged,thecontentoftheListofConnectedProjectorsremainsthesame.
9Register	(AdvancedConnectionModeonly)	RegisterstheprojectorsfromtheListofConnectedProjectorstoa profile.
10ConnectasaModerator,ordisableinterruptconnections.		Connectstotheselectedprojectorsasthemoderatorandyoucanpreventanyotherusersfrominterruptingyourconnection(supportedmodelsonly).ThemoderatorfunctionisavailableonlyontheStandardEditionofthesoftware.
11	Clear list	Clears information displayed in the Projector List and the List of ConnectedProjectors.
12ProjectorList	Displaysalistofthe	projectorsfoundonthenetwork.Youcanthenselectprojectorstoconnectto.Thesearchresultsforeachsearchmethod (Automatic search, Manual search, and Profile) aredisplayedinseparatelists.•Status:Seethedescriptionofprojectorstatusiconsinthenext table.•Projectorname:Displaystheprojector'sname.•SSID(QuickConnectionModeonly):Displaystheprojector's SSID.•SignallIntensity(QuickConnectionModeonly):Displaysthe signalintensitywhenaconconnectionismadeinQuickConnection Mode.AstheSignalintensityincreases,sodoesthenumberoflit indicators.•IPaddress(AdvancedConnectionModeonly):Displaysthe projector'sIPaddress.•Comments:Displayscommentsfortheprojector.Youcaneditthe commentbyright-clickingtheprofile,andthenclickingProperty.Youcanenterupto32characters.
13	RefreshUpdatesinformationintheProjectorList.
14	Manualsearchbox(AdvancedConnection Modeonly)	WhenusingManualsearch,entertheprojector'sIPaddressorthe projectorname.ClicktheSearchbuttontosearchforthespecified projector.

ProjectorstatusiconsintheProjectorListaredescribedinthefollowingtable.

Standby	Available.Youcanconnecttotheprojector.
Busy	Available.Althoughothercomputersareconnectedtotheprojector,youcan alsoconnectatthesametime.
Mirroring...	Available.Youcanconnecttoagroupofprojectorsthatareprojectingthe sameimage(mirroring).
Currentlyinusebyanotherapplication	Notavailable.Theprojectorisdisplayingthenetworkconfigurationscreenorisbeingusedbyotherprojectorsoftware.
Searching	Not available. AManual searchorProfilesearch is already being used tosearchfortheprojector.
Notfound.	Not available.ThespecifiedprojectorcouldnotbefoundusingManualsearchorProfilesearch.
UnsupportedProjectors	Not available.TheprojectorisnotcompatiblewithEasyMPMultiPCProjection.
Notacquired	Available.DisplayedwhenaprojectorwithsecuritysettingsenabledisfoundinQuickConnectionMode.

Parenttopic:ScreenSummary

Relatedtasks

SearchingforNetworkProjectorsAutomatically

SearchingforNetworkProjectorsbySpecifyinganIPAddressorProjectorName

Relatedtopics

SearchingforNetworkProjectorsUsingaProfile

SearchingforNetworkProjectorsUsingaShortcut

Setoptions

SaveScreen

When you search for projectors and save information as a profile on the search screen, the Save screen is displayed.

1ProjectfilenameEntertheprojectorfilename.

2SaveinSelectthefolderwhereyouwanttosavetheprofile.

3CreateNewfolderCreatesanewfolder.

4OKRegisterstheprojectorinformationintheprofile.

Parenttopic:ScreenSummary

Relatedtasks

RegisteringaProfile

Setoptions

When you click Set options on the EasyMP Multi PC Projection search screen, the Set options screen is displayed.

Note:

• You can also access Set options from the Tool menu on the projection control screen. When you access Set options from the projection control screen, the User Settings tab is not displayed.
  •Theavailablesettingsvarydependingontheeditionofthesoftware.

Setoptions-UserSettings

Setoptions-Generalsettings

Setoptions-Adjustperformance

Setoptions-AudioOutput

Parenttopic:ScreenSummary

Relatedreferences

SearchScreen

Toolbar

Setoptions-UserSettings

When you click the User Settings tab on the Set options screen, the following screen is displayed.

UsernameEntertheusernamedisplay	playedintheuserlistontheprojection controlscreen.Youcanenterupto32characters.Thissettingis synchronizedwiththesettingonthesearchscreen.
SharedProfileName(AdvancedConnectionMode only)	EnterthenetworklocationorURLofthesharedprofile(includingthe nameoftheprofile)asshownbelow.Forafileserver(Windowsonly):\xxxxx\xxxxx.mplistForawebserver:http://xxxxx/xxxxx.mplist
Delete(AdvancedConnection Modeonly)	DeletestheinputhistoryforManualsearch.
Restore Defaults	Resets all adjustment values for Set options to their default settings,exceptforSwitchLANontheGeneralsettingstab.

Parenttopic:Setoptions

Relatedreferences

SearchScreen

ProjectionControlScreen

Relatedtasks

SearchingforNetworkProjectorsAutomatically

SharingaProfileoveraNetwork

Setoptions-Generalsettings

When you click the General settings tab on the Set options screen, the following screen is displayed.

EncryptcommunicationsSelectt	bencryptandtransmitdata.Evenifdataisintercepted,it cannotbedecrypted.
Displayinhighresolution whendividingtheprojected screenIntwoorfour	AvailableonlyforprojectorswitharesolutionofWUXGA(1920× 1200).Selecttodisplayaldividedscreensinhighresolution.Clearthissettingifdisplayingtheimagetakestoolongoris interrupted.
DisplayConnectionMode Selectionwindowonstartup	SelecttodisplaytheSelectConnectionModescreeneachtimethesoftwarestarts.Clearthischeckboxonceyouavesettledonaregularstartup method.
Makethemovementofthe mousepointersmooth	WindowsVista/Windows7onlySelecttopreventthemousepointerfromflickeringwhenTransfer layeredwindowsselectedontheAdjustperformancetab.(If WindowsAeroisselectedasthethemeforWindowsVistaand Windows7, thissettingturnsoffWindowsAero.)
Freezeprojectedscreenwhen displayingProjectioncontrol screen	Availableonlyforthemoderatorwhenusingthemoderatorfunction.Selecttohidetheoperationsontheprojectioncontrolscreenfrom otheruserswhileprojectingyourcomputerscreen.
UseEasyInteractiveToolsWindow	wsonlySelecttouseEasyInteractiveToolswiththesoftware.ThissettingissynchronizedwithTransferlayeredwindowonthe Adjustperformancetab.
AllowModeratorMonitoringSelecttoallowthemoderatortoviewthecomputerscreenasa thumbnail.
SwitchLANWindowsonly	Usethissettingifyouneedtoswitchthenetworkadapterusedto performasearchwhenacomputerhasmultipleadapters.Bydefault,allofthenetworkadaptersareusedtoperformasearch.
WirelessLANpassphrase settingfiles(Quick ConnectionModeonly)	InQuickConnectionMode,SSIDsandpassphrasesarestoredon thecomputerwhenconnectingtoaprojectorwithsecuritysettings enabled.Youcaneditanddeletethestoredinformation.Edit:Displaythewirelessnetworkmanagementscreenforthe computer.DeletealltheSSIDsandpassphrasesstoredonthe computer.
Restore Defaults	Resets all adjustment values forSet options to their default settings,exceptforSwitchLANontheGeneralsettingstab.

Parenttopic:Setoptions

Relatedtasks

ChangingtheNumberofProjectedPanels

HidingtheProjectionControlScreen

Setoptions-Adjustperformance

When you click the Adjust performance tab on the Set options screen, the following screen is displayed.

ProjectionQualitySetsthepriority	orprojectedimagequalityandtransferspeed.
	•ImagePriority:Transfersprojectedimagedatawithalow compressionratiotoprioritizeimagequality.
	•SpeedPriority:Compressesprojectedimagedatatoincrease transferspeed.
UseBandwidthControlsthebandwidthforthedatatransfer.Whenyouselectanarrowerbandwidth,theprojectedimagequalitymaydeclinebutthe networkloadisreduced.
Lowertheresolutionand transfer	AvailableonlywhentheUseBandwidthissetto1Mbpsormore andwhenyouconnecttotheprojectorwitharesolutionofWUXGA (1920×1200).Selecttoreducethesizeofthedatatobetransferredtotheprojector byloweringtheresolution. Usethisoptiononaslownetworkorifit takestoolongtodisplaytheimageorprojectionisinterrupted.
Transfer layered window	Windows 7 (whenWindows 7 Basicis selected as the theme) onlyWhenusingalayeredwindow,contentssuchasmessages displayedonthecomputerarenotprojectedbytheprojector.Select thistoprojectcontentsfromadifferentlayeredwindow.Ifthemousepointerflickersonthescreen,selectMakethemovementofthemousepointersmoothontheGeneralsettings tab.
VersionDisplaysEasyMPMultiPC	Projectionversioninformation.
Restore Defaults	Resets all adjustment values forSet optionsto their default settings,exceptforSwitchLANontheGeneralsettingstab.

Parenttopic:Setoptions

Relatedtasks

ChangingtheNumberofProjectedPanels

ProjectingYourScreen

ControllingtheConnectionBandwidth

Setoptions-AudioOutput

When you click the Audio Output tab on the Set options screen, the following screen is displayed.

Outputaudiofromthe projector	Selecttooutputthecomputer'saudiofromtheprojector.Clearto outputaudiofromthecomputer.Note:Youcanonlyoutputthecomputer'saudiofromtheprojectorwhen projectingonecomputerscreeninfullscreenmode.When you select 256Kbps or 512Kbps as Use Bandwidth on the AdjustPerformancetab,youcannotoutputaudiofromthe projectorandcannotselectthissetting.
Restore Defaults	Resets all adjustment values for Set options to their default settings,exceptforSwitchLANontheGeneralsettingstab.

Parenttopic:Setoptions

Relatedtasks

OutputtingAudiofromtheProjector

ControllingtheConnectionBandwidth

Toolbar

AfterEasyMPMultiPCProjectionstartsandaconnectionismadewiththeprojector,thetoolbaris displayedonthecomputerscreen.Youcanusethistoolbartocontroltheprojectedimageandto disconnectthenetworkconnection.

Note: The items displayed on the toolbar vary depending on the connection method and the edition or yourroleofthesoftware.

Show	ReleasesStoporPauseandprojectsthecomputerscreenasitis.
Stop	Stopsprojectionwhileconnectedtotheprojector.Ablackscreenis projectedwhilestopped.
Pause	Pausesthecomputerscreencurrentlydisplayed.Theprojected displaydoesnotchange,evenifyoumakechangesonthecomputer screen.
DisplayThumbnails	Displaysthumbnailsoftheparticipant'sdevicescreensforthe moderatortocheck.
ProjectMyScreen	Projectsyourcomputerscreeninfullscreenmode.
LeaveDisconnectstheconnectionbetweenyourcomputerandthe projectors.
DisconnectAIDisconnectsthecon	connectionbetweenalldevicesandprojectors participatinginthemeeting.
SwitchhtoProjectioncontrol screen	Switchestotheprojectioncontrolscreen.

Parenttopic:ScreenSummary

Relatedreferences

ProjectionControlScreen

Relatedtasks

OperatingtheProjectedDisplayStatus

ProjectingYourScreen

Disconnecting

ProjectionControlScreen

When you click the button on the toolbar, the projection controls screen is displayed.

Note:

• The projection controls screen is available only on Standard Edition of the software.

- The items displayed on the projection controls screen vary depending on your role of the software and projector being used.

1File	menuClicktoselectExittoclo	sethesoftware.
	ToolmenuClicktoselectthe	followingitems.•DenyUserOperations:Lockstheparticipant'smouseoperations.•AllowUserOperations:Unlockstheparticipant'smouse operations.•Setoptions:DisplaystheSetoptionsscreen.
	Disconnect menu	Click to selectLeaveorDisconnect All.
	HelpmenuClicktoselectVersioninformation.
2Numberofconnections	Displaysthenumberofusersconnectedtotheprojector.
3Use	informationDisplaysyourna	meandstatus.Displayedinbluewhenyour computerscreenisbeingprojected.Displayingraywhenyouare intheprojectionareabutnotprojecting.
4User	searchbox	Entertheusernameyouwanttosearchfor,andthenclickthe button.Thesearchresultsaredisplayedintheuserlist.Clickthebuttontoreturntotheoriginaluserlist.
5User	listDisplaystheusernamesf	orthecomputersconnectedtothe projectors.Youcanconnectupto50devicesbetweencomputersthat arerunningEasyMPMultiPCProjectionandsmartphonesortablets thatarerunningEpsoniProjection.Whenyoudraganddropausernametoawhitepanelinthe projectionarea,thecomputerscreenisprojected.Thebackgroundfor usersthatarecurrentlybeingprojectedisblueandusersthatarein theprojectionareabutnotcurrentlyprojectingisgray.Evenifauser leftthesession,theirnameremainsintheuserlistandtheirtextcolor isgray.Thedefaultsettingfortheusernameisthecomputername.Youcan changetheusernameontheUserSettingstabontheSetoption screen,orthesearchscreen.
6		Displaysthumbnailsoftheparticipant'sdevicescreensforthe moderatortocheck.
	DisplayThumbnails
7ConnectedProjectorName		Displaysthenameoftheprojectoryouarecurrentlyconnectedto.Whenyouclicktheprojectorname,theprojectorcontrolwebpageisdisplayed.Youcancontrolprojectoroperationsonyourcomputerscreeninthesamewayasusingtheremotecontrol.SeeyourprojectorUser'sGuideformoredetails.
8QuitasModerator/BecomeModerator		ClicktheQuitasModeratorbuttontostopbeingthemoderator,ortheBecomeModeratorbuttontobecomethemoderator.Thedisplayedbuttonvariesdependingontheconnectionmethod.
9ModeratorDisplaysthemoderator		ornamewhenthereisamoderator.
10ProjectionareaWhenthebackg		roundcolorforaneliswhite,thecomputerscreenfortheuserinthatpanelisprojected.Ifthereisnouserinthewhitepanel,ablackscreensisprojected.Bydragginganddroppingtheusername,youcanchangethescreenbeingprojectedandthepositionatwhichthecomputerscreenisprojected.
11TargetpanelMovethetargetpan		elframedinbluebyclickingononeofthepanelsintheprojectionarea.Youcanprojectthecomputerscreenwherethetargetpanelispositionedwhenyouclickoneofthechangeprojectionbuttons.
12ScreencontrolbuttonsIndicates		sthefollowingstatusoftheprojector.Show:ReleasesStoporPauseand projects the computerscreenasitis.Stop:Stopsprojectionwhileconnectedtotheprojector.Ablackscreenisprojectedwhilestopped.Pause:Pausesthecomputerscreencurrentlydisplayed.Theprojecteddisplaydoesnotchange,evenifyoumakechangesonthecomputerscreen.
13	Deny/AllowUserOperations	Locksorunlockstheparticipant'smouseoperations.
14	SwitchtoToolbar	Switchestothetoolbar.
15	Changeprojection buttons	Changesthenumberofpanelsavailableforprojectingcomputer screens.OneScreen:Projectsthescreenfromonedeviceinfull screenmodewithoutdividingtheprojectedddisplay.TwoScreens:Projectsthescreensfromuptotwodevicesat thesametimebydividingtheprojectedddisplayintwo.FourScreens:Projectsthescreensfromuptofourdevicesat thesametimebydividingtheprojectedddisplayinfour.
16	ProjectMyScreen	Projectsyourcomputerscreeninfullscreenmode.

Parenttopic:ScreenSummary

Relatedreferences

SearchScreen

Setoptions-UserSettings

Toolbar

Relatedtasks

Disconnecting

ProjectingYourScreen

ChangingtheModerator

HidingtheProjectionControlScreen

ProhibitingParticipantOperations

Relatedtopics

ControllingtheProjectedDisplay

ThumbnailScreen

When you click the button on a tool bar or a projection controlscreen, the following screen is displayed.

1Thun	mbnailDisplaysaparticipant's	devicescreen.Thethumbnailbeingprojectedissurroundedbyablueframe.
2Thu	mbnailcheckboxSelecttheth	umbnailthatyouwanttoproject.Youcanselectupto12thunnails.
3Username	Displaystheusername	ofeachthumbnail.Youcandisplayupto32characters.
4	×Close	Closesthethumbnailscreen.
5	Project	Projectsthethumbnailyouselected.Whenyouselectmorethan5 thumbnails,thethumbnailselectionscreenappears.Afterselecting upto4thumbnails,youmustclickthebuttonagain.
6	ProjectMyScreen	Projectsthescreenfromyourcomputerinfullscreenmodewithout projectinganyotherusers'screens.
7	Next	Displaysnextpage.
8	Page list Switchestothepageyou wantoview.
9	Previous	Displayspreviouspage.
10	DisplaySmall Thumbnails	Reducesthesizeofeachthumbnailsoyoucanviewmore thumbnailsonthescreen.
11	[84KG]DisplayLarge Thumbnails	Increasesthesizeofeachthumbnailsoyoucanviewmoredetails oneachone.
12	ClearAllDisplaysthenumberofse	Selectedthumbnails.Deselectthecheckbox toclearalltheselections.Ifyouselectthecheckboxagain,the previouslyselectedthumbnailsareselectedagain.
13		Refreshesthethumbnails.
	Refresh

Parenttopic:ScreenSummary

Appendix

SeethesectionstolearnmoreaboutEasyMPMultiPCProjectionsoftware.

UpdatingandUninstallingtheSoftware

SupportedResolutionsandColors

Limitations

Notices

UpdatingandUninstallingtheSoftware

FollowtheseinstructionstoupdateoruninstallEasyMPMultiPCProjection.

GettingtheLatestVersionoftheApplication

UninstallingEasyMPMultiPCProjection(WindowsVista/Windows7/Windows10)

UninstallingEasyMPMultiPCProjection(Windows8.x)

UninstallingEasyMPMultiPCProjection(OSX)

Parenttopic:Appendix

GettingtheLatestVersionoftheApplication

Update to this software and this manual may be available for your product. To check for updates, visit epsilon.com/support (U.S) or epsilon.ca/support (Canada) and select your product.

Parenttopic: Updating and Uninstalling the Software

UninstallingEasyMPMultiPCProjection(WindowsVista/Windows7/Windows10)

FollowtheinstructionsbelowtouninstallEasyMPMultiPCProjection.

Note: Youneed administrator authority touninstall the software.

1. Turnonyourcomputer.

2. Makesureallrunningapplicationsareclosed.

3. ClickStart, and then click ControlPanel.

Note: For Windows 10, right-click Start, and then click Control Panel.

1. Click Uninstallaprogram from the Program category.

2. SelectEasyMPMultiPCProjection, and then click Uninstall/Change.
   6.Followtheon-screeninstructions.

Parenttopic: Updating and Uninstalling the Software

UninstallingEasyMPMultiPCProjection(Windows8.x)

FollowtheinstructionsbelowtouninstallEasyMPMultiPCProjection.

Note: Youneedadministratorauthoritytouninstallthesoftware.

1. Turnonyourcomputer.
2. Makesureallrunningapplicationsareclosed.
3. Navigate to the Apps screen, and then right-click (press and hold) EasyMP Multi PC Projection Ver.X.XX.
4. SelectUninstallfromtheappbar.
5. Followtheon-screen instructions.

Parenttopic: Updating and Uninstalling the Software

UninstallingEasyMPMultiPCProjection(OSX)

ForOSX, followtheinstructionsbelowtouninstallEasyMPMultiPCProjection.

1. Turnonyourcomputer.
2. Makesureallrunningapplicationsareclosed.
3. OpentheApplicationsfolder.
4. Open the EasyMP Multi PC Projection - Tools folder, and then double-click EasyMP Multi PC ProjectionUninstaller.app.
5. Followtheon-screen instructions.

Parenttopic: Updating and Uninstalling the Software

SupportedResolutionsandColors

CheckthesesectionsforthecomputerscreenresolutionsandthenumberofcolorthatEasyMPMultiPCProjectioncanproject.

SupportedResolutions

DisplayColor

Parenttopic:Appendix

SupportedResolutions

The following computerscreen resolutions can be projected. You cannot connect to a computer with a resolution greater than WUXGA.

•SVGA(800×600)

•XGA(1024×768)

•SXGA(1280×960)

•SXGA(1280×1024)

•SXGA+(1400×1050)

•WXGA(1280×768)

•WXGA(1280×800)

•WXGA+(1440×900)

•UXGA(1600×1200)

•WUXGA(1920×1200)

When using a computer screen with a unique aspect ratio, the resolution is increased or decreased depending on the resolution of the computer and the project to avoid impairing image equality.

Dependingontheresolution, the vertical or horizontal margins may be projected in black.

Parenttopic: Supported Resolutions and Colors

DisplayColor

The following number of computers screen colors can be projected.

WindowsOSX
16-bitcolorApprox.32,000colors(16-bit)
32-bitcolorApprox.16.7millioncolors(32-bit)

Parenttopic: Supported Resolutions and Colors

Limitations

CheckthesesectionsforrestrictionsappliedwhenprojectingcomputerimageswhileusingEasyMP MultiPCProjection.

ConnectionLimitations

LimitationswhenProjectingfromWindowsPhotoGalleryorWindowsLivePhotoGallery

LimitationsinWindowsAero

LimitationswhenProjectingfromWindowsMediaCenter

Parenttopic:Appendix

ConnectionLimitations

NotethefollowinglimitationswhenusingEasyMPMultiPCProjection.

- Youcanconnectuptofourprojectorstoonecomputerandprojectsimultaneously.(Multi-screenisnot supported.)

- Youcanconnectupto50devicesbetweencomputersthatarerunningEasyMPMultiPCProjection andsmartphonesortabletsthatarerunningEpsoniProjection.(Ifanyofthecomputersarerunningan olderversionofEasyMPMultiPCProjection,thenumberofcomputersislimitedto16or32,and tabletsthatarerunningEpsoniProjectioncannotjointheconnection.)

- Audiocanonlybetransferredwhenconnectedtooneprojectorandprojectingonecomputerscreenin fullscreenmode.Ifmultipleprojectorsareconnectedoriftheprojecteddisplayisdivided,audio cannotbetransferredduringprojection.

- If the transmissions speed of the wireless LAN is slow, then network may disconnect unexpectedly.

- ApplicationsthatusepartofDirectXfunctionsmaynotbedisplayedcorrectly(Windowsonly).

- Youcannotprojectfull-screenMS-DOSprompts(Windowsonly).

- There are times when the image on the computer screen and the image projected by the projector may not match exactly.

•Moviesarenotplayedassmoothlyastheyareonacomputer.

Parenttopic: Limitations

LimitationswhenProjectingfromWindowsPhotoGalleryorWindowsLivePhoto Gallery

NotethefollowinglimitationswhenlaunchingWindowsPhotoGalleryorWindowsLivePhotoGallery whenusingEasyMPMultiPCProjection.

- SlideshowisplayedbackinsimplemodewhenprojectingfromWindowsPhotoGalleryorWindowsLivePhotoGallery.

Because the toolbar is not displayed, you cannot change the Theme (effects) while playing as slide show, regardless of the Windows Experience Index rating.

Oncesimplemodehasstarted,youcannotchangemodeswhileWindowsPhotoGalleryorWindowsLivePhotoGalleryisrunning,evenifyoucloseEasyMPMultiPCProjection.RestartWindowsPhotoGalleryorWindowsLivePhotoGallery.

- Youcannotplaymovies.

Parenttopic:Limitations

LimitationsinWindowsAero

NotethefollowinglimitationswhenthewindowdesignforyourcomputerisWindowsAero.

- The layered window is projected regardless of the Transfer layered window setting on the Set optionsscreeninEasyMPMultiPCProjection.

- AfewminutesafteryouconnectacomputertotheprojectoroveranetworkwithEasyMPMultiPC Projection,thefollowingmessagemaybedisplayed.

It is recommended that you select Keep the current color scheme, and don't show this message again. This selection is enabled until the computer is restarted.

Parenttopic: Limitations

LimitationswhenProjectingfromWindowsMediaCenter

NotethefollowinglimitationswhenprojectingfromWindowsMediaCenter.

- You cannot project images in full-screen mode using Windows Media Center. Switch to window display modetoproject the images.

• If audiostops during playback when transferring audio from the computer to the projector using EasyMPMultiPCProjection, try restarting the application you are using.

Parenttopic: Limitations

Notices

Checkthesesectionsforimportantnoticesaboutyoursoftware.

CopyrightNotice

AboutNotations

GeneralNotice

CopyrightAttribution

Parenttopic:Appendix

CopyrightNotice

Allrightsreserved. Nopartofthispublicationmaybereproduced,storedinaretrievalsystem,or transmittedinanyformorbyanymeans,electronic,mechanical,photocopying,recording,orotherwise, without the prior written permission of SeikoEpsonCorporation. Nopatentliability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alteration to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.

SeikoEpsonCorporationshallnotbeliableagainstanydamagesorproblemsarisingfromtheuseof anyoptionsoranyconsumableproductsotherthanthosedesignatedasOriginalEpsonProductsor EpsonApprovedProductsbySeikoEpsonCorporation.

Thecontentsofthisguidemaybechangedorupdatedwithoutfurthernotice.

Illustrationsinthisguideandtheactualprojectormaydiffer.

Parenttopic:Notices

AboutNotations

- Microsoft ^ WindowsVista ^ operating system

•Microsoft ^® Windows ^® 7operatingsystem

•Microsoft ^® Windows ^® 8operatingsystem

•Microsoft ^® Windows ^® 8.1operatingsystem

•Microsoft ^® Windows ^® 10operatingsystem

In this guide, the operating systems above are referred to as "Windows Vista", "Windows 7", "Windows 8", "Windows 8.1", and "Windows 10". Furthermore, the collective term Windows may be used to refer to WindowsVista, Windows7, Windows8, Windows8.1, Windows10, and multipleversionsofWindows maybereferredtoas,forexample,WindowsVista/7,withtheWindowsnotationomitted.

•MacOSX10.7.x

•MacOSX10.8.x

•MacOSX10.9.x

•MacOSX10.10.x

•MacOSX10.11.x

Inthisguide, the operating systems above are referred to as "MacOSX10.7.x", "MacOSX10.8.x", "Mac OS X 10.9.x", "Mac OS X 10.10.x" and "Mac OS X 10.11.x". Furthermore, the collective term "OS X" is used to refertothemall.

Parenttopic:Notices

GeneralNotice

IBM,DOS/V,andXGAaretrademarksorregisteredtrademarksofInternationalBusinessMachines Corporation.

Macintosh, Mac, MacOS, and Macaretrademarksof Apple Inc.

Microsoft, Windows, WindowsNT, WindowsVista, PowerPoint, and Windowslogoaretrademarksor registeredtrademarksof Microsoft Corporation in the United States and/or other countries.

Otherproductnamesusedhereinarealsoforidentificationpurposesonlyandmaybetrademarksof theirrespectiveowners.Epsondisclaimsanyandallrightsinthosemarks.

SoftwareCopyright: Thisproductusesfreesoftwareaswellassoftwaretowhichthiscompanyholdsthe rights.

©2016EpsonAmerica,Inc.

Parenttopic:Notices

CopyrightAttribution

3/16

CPD-50915

Parenttopic:Notices
