Product Type	Video projector
Brand	Epson
Model	PowerLite 3500
Display Technology	3LCD
Brightness (White)	3500 lumens
Brightness (Color)	3500 lumens
Native Resolution	WXGA (1280 x 800)
Contrast Ratio	3000:1
Lamp Type	UHE (Ultra High Efficiency)
Lamp Life (Normal mode)	4000 hours
Lamp Life (Eco mode)	5000 hours
Keystone Correction	Vertical: ±30°, Horizontal: ±20°
Lens Shift	Vertical: ±50%
Input Ports	HDMI, VGA, S-Video, Composite, USB, Audio
Dimensions (W x D x H)	317 x 287 x 87 mm
Weight	3.2 kg
Power Consumption	310 W (Normal), 0.3 W (Standby)
Fan Noise	35 dB (Normal), 29 dB (Eco)
Security Features	Kensington lock, password protection
Filter Type	Air filter, cleanable
Warranty	2 years limited
Included Accessories	Power cable, remote control, batteries, user manual

Frequently Asked Questions - PowerLite 3500 EPSON

How do I connect a laptop to the Epson PowerLite 3500?

Use an HDMI or VGA cable. Connect one end to your laptop and the other to the corresponding port on the projector. Then press the Source button on the remote or projector panel to select the correct input.

What is the lamp life of the PowerLite 3500?

The lamp lasts up to 4000 hours in normal mode and 5000 hours in eco mode. Actual lamp life may vary based on usage conditions.

How do I replace the lamp?

Turn off the projector and unplug it. Wait for the lamp to cool. Open the lamp cover on the side, remove the old lamp by loosening the captive screws, and insert the new lamp (model V13H010L24). Tighten screws, close cover, and reset the lamp timer via the menu.

How do I clean the air filter?

Turn off and unplug the projector. Locate the filter cover (usually on the side or bottom), remove the filter, and gently vacuum or wash it with mild soap and water. Let it dry completely before reinstalling.

Why is my image upside down or reversed?

Access the projector menu, go to Installation or Extended settings, and adjust the Projection mode. Options include Front, Rear, Ceiling Front, Ceiling Rear depending on your setup.

What is the throw ratio?

The throw ratio is approximately 1.38–2.05 for a 100-inch screen. For precise distances, refer to the distance chart in the manual.

Can I use a wireless connection?

The PowerLite 3500 does not have built-in wireless. You can use an optional Epson wireless module (sold separately) or connect via an external wireless adapter.

How do I adjust the keystone correction?

Press the Keystone button on the remote or projector. Use the arrow keys to correct vertical and horizontal keystone. Alternatively, use the Quick Corner feature for individual corner adjustment.

What should I do if the projector shows a red warning light?

A red warning light indicates a problem such as overheating, lamp failure, or a clogged filter. Check the status via the INT indicator pattern. Refer to the troubleshooting section in the manual for specific codes.

Is the PowerLite 3500 compatible with 3D content?

No, this model does not support 3D projection. It is designed for standard 2D presentations and videos.

USER MANUAL PowerLite 3500 EPSON

PowerLite Home Cinema 3000/3500/3510/3600e User's Guide....9

Introduction to Your Projector 10

Projector Features.... 10

Product Box Contents.... 11

Additional Components 12

Optional Equipment and Replacement Parts 13

Warranty and Registration Information 14

Notations Used in the Documentation.... 14

Where to Go for Additional Information 14

Projector Part Locations 15

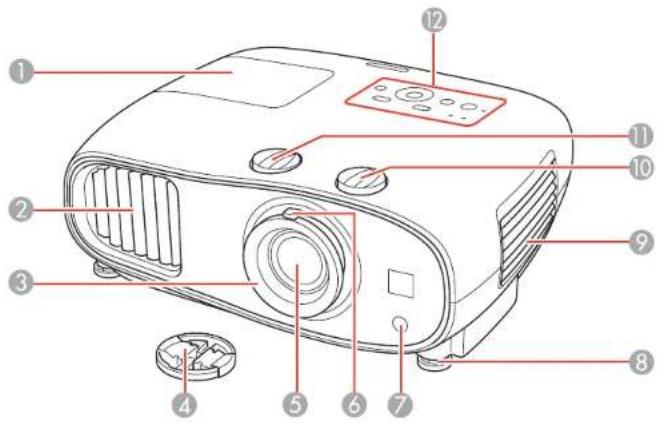

Projector Parts - Front/Top 16

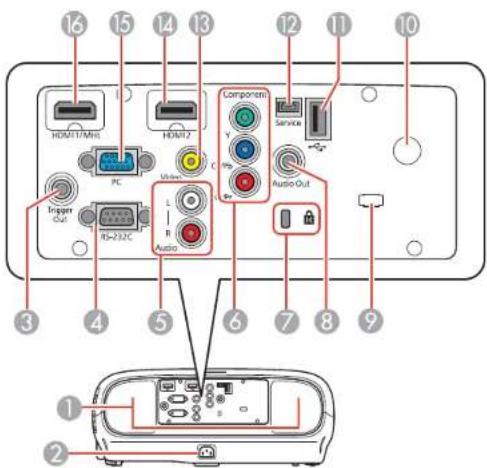

Projector Parts - Rear 17

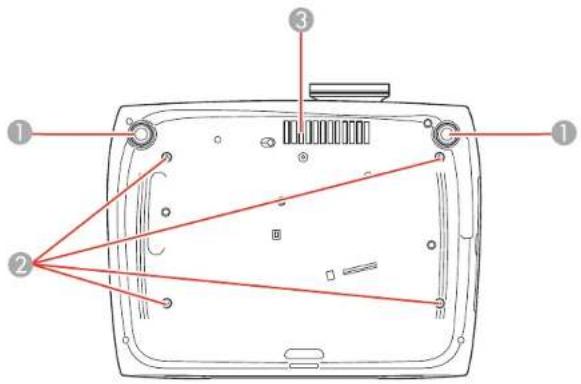

Projector Parts - Base 18

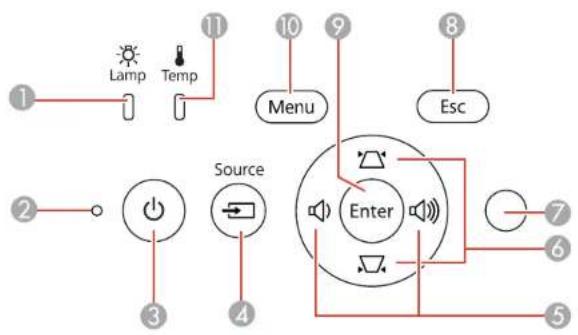

Projector Parts - Control Panel 19

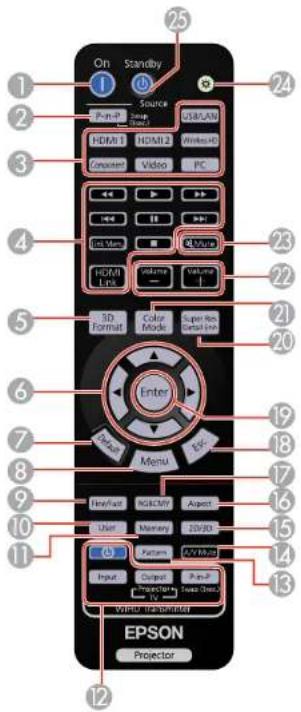

Projector Parts - Remote Control 20

Setting Up the Projector 23

Projector Placement.... 23

Projector Setup and Installation Options 23

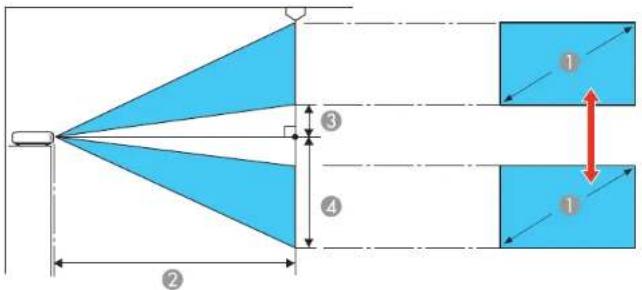

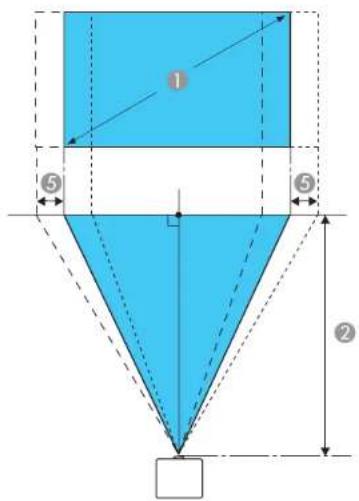

Projection Distance.... 25

Projector Connections 29

Removing and Attaching the Cable Cover 30

Connecting to Video Sources 30

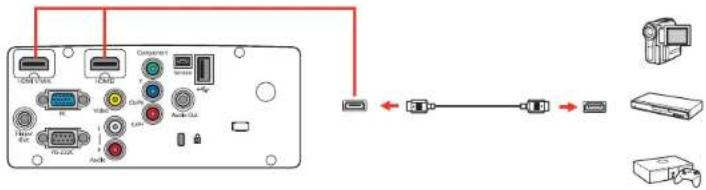

Connecting to an HDMI Video Source 30

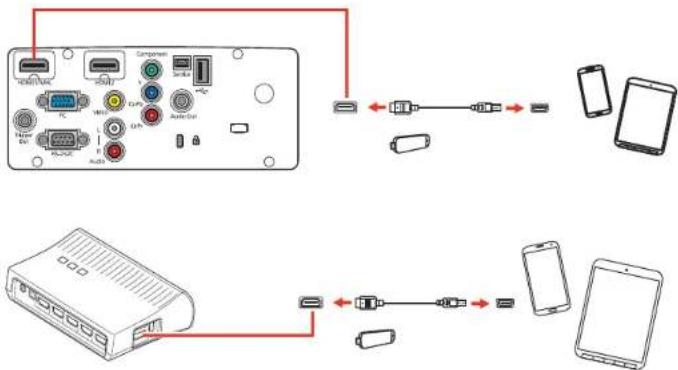

ConnectingtoanMHL-CompatibleDevice....31

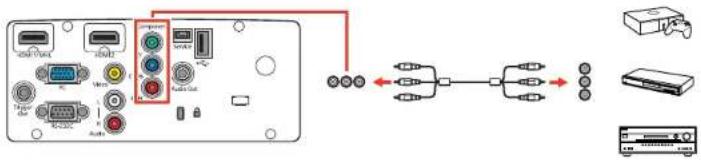

ConnectingtoaComponentVideoSource....32

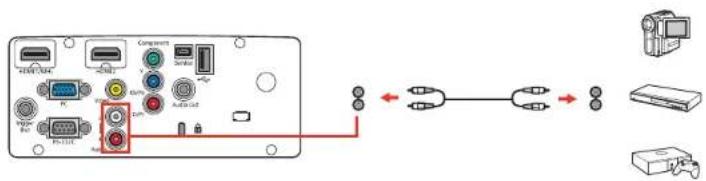

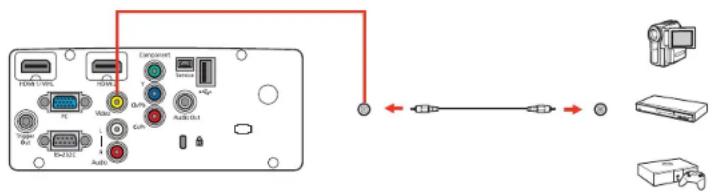

Connecting to a Composite Video Source 33

Connecting to a Video Source for Sound 33

Connecting to Computer Sources.... 34

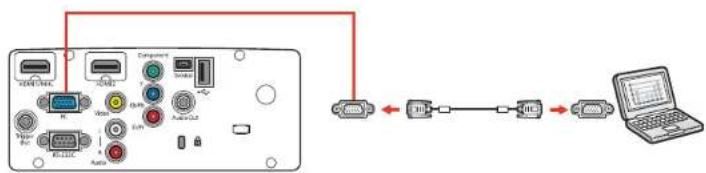

Connecting to a Computer for VGA Video.... 34

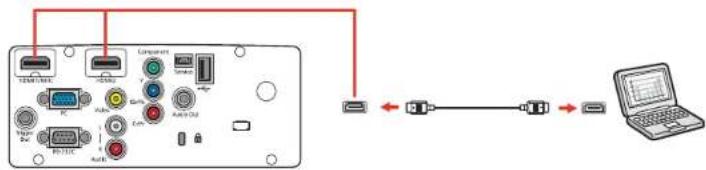

ConnectingtoaComputerforHDMIVideoandAudio 35

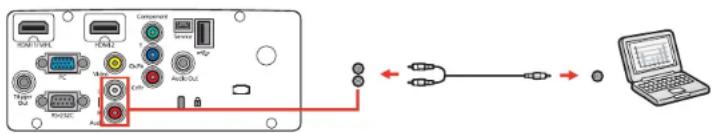

Connecting to a Computer for Sound.... 36

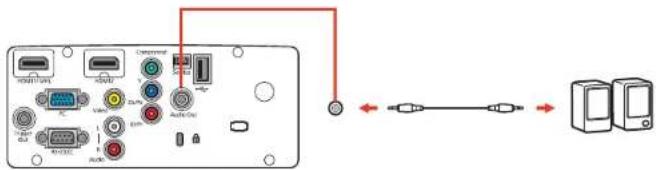

Connecting to External Speakers 36

Connecting to External USB Devices 37

USB Device Projection 37

ConnectingaUSBDeviceorCameratotheProjector....38

Selecting the Connected USB Source 38

DisconnectingaUSBDeviceorCameraFromtheProjector....39

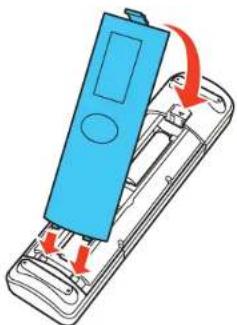

Installing Batteries in the Remote Control 39

Wireless Network Projection 41

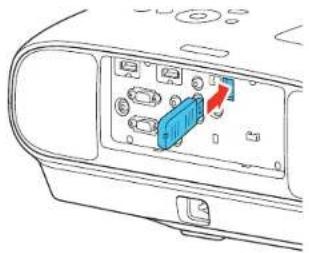

Installing the Wireless LAN Module 41

Selecting Wireless Network Settings Manually 42

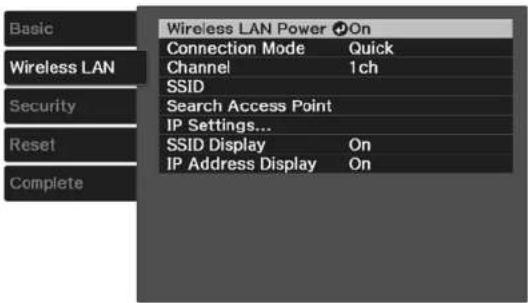

Wireless LAN Menu Settings 44

Selecting Wireless Network Settings in Windows.... 46

Selecting Wireless Network Settings in OS X.... 46

Setting Up Wireless Network Security 46

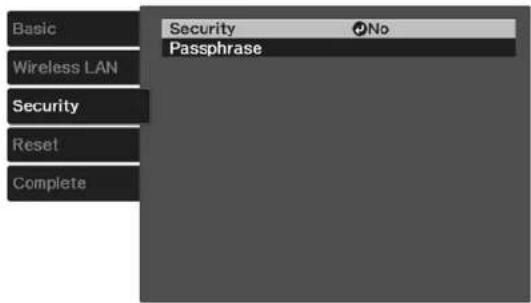

Wireless Security Menu Settings 47

Using Basic Projector Features 48

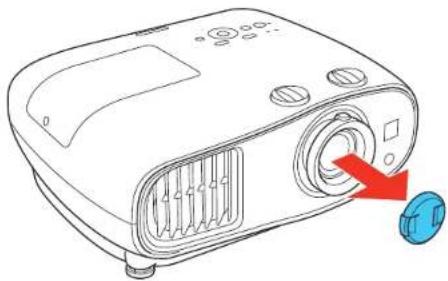

Turning On the Projector 48

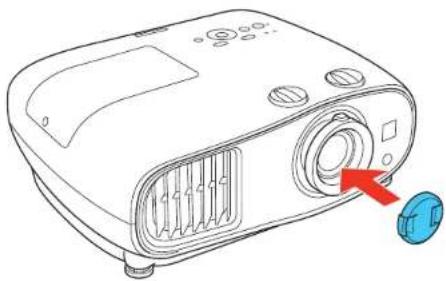

Turning Off the Projector 50

Viewing 3D Images 51

Pairing the 3D Glasses with the Projector....53

Charging the 3D Glasses....53

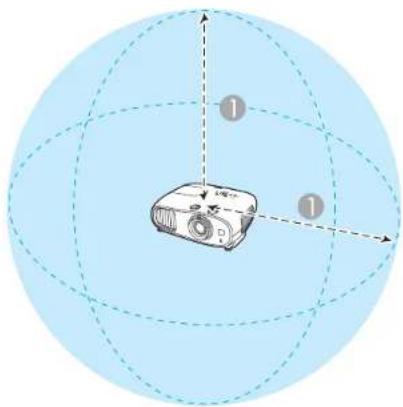

3D Viewing Range 55

Selecting the Language for the Projector Menus.... 55

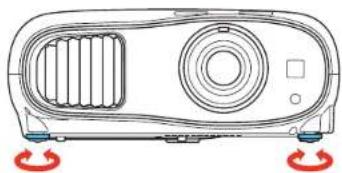

Adjusting the Image Height 56

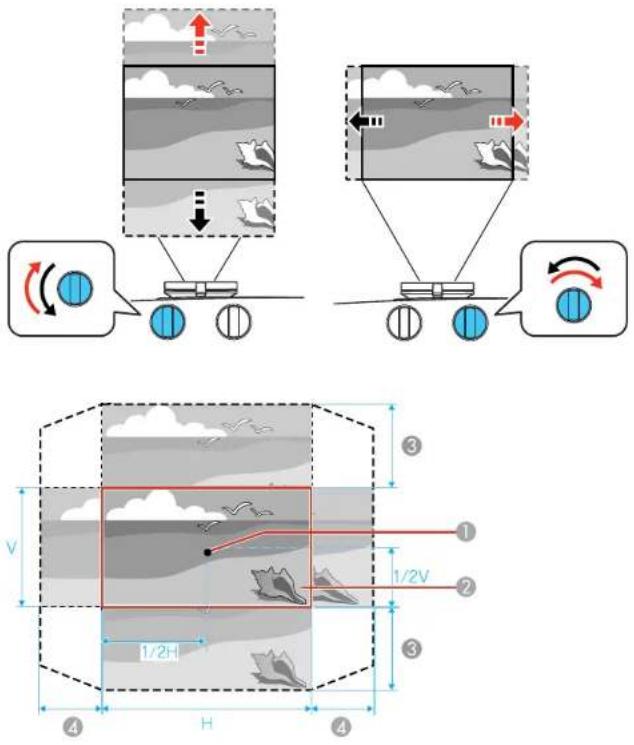

Adjusting the Image Position Using Lens Shift 57

Image Shape 59

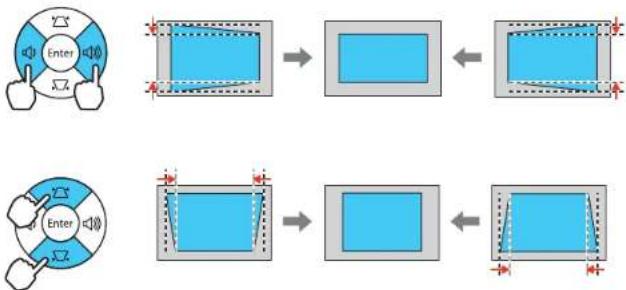

Correcting Image Shape with the Keystone Buttons.... 59

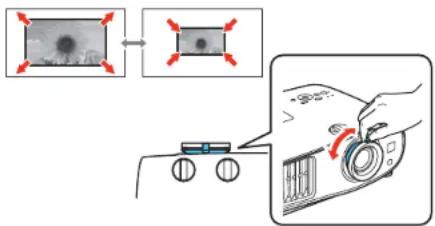

Resizing the Image with the Zoom Ring 61

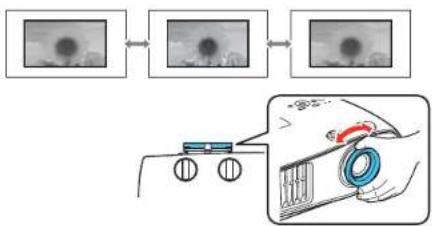

Focusing the Image Using the Focus Ring.... 61

Remote Control Operation 62

Selecting an Image Source 63

Projection Modes 64

Changing the Projection Mode Using the Menus.... 64

Image Aspect Ratio 65

Changing the Image Aspect Ratio 66

Available Image Aspect Ratios 66

Color Mode 67

Changing the Color Mode 67

Available Color Modes.... 68

Turning On Auto Iris 69

Using Picture in Picture 69

Available Picture in Picture Options....70

Controlling the Volume with the Volume Buttons.... 71

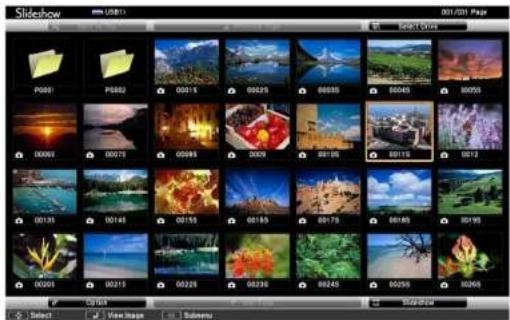

Projecting a Slide Show 71

Supported Slideshow File Types 72

Slideshow Features 72

Starting a Slide Show 72

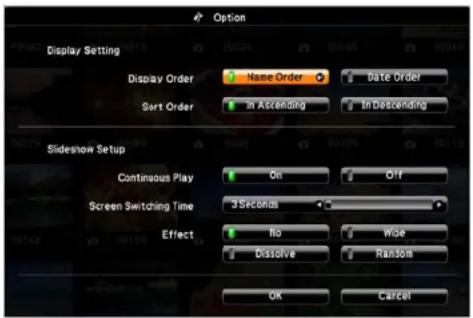

Slideshow Display Options 74

Adjusting Projector Features 76

Shutting Off the Picture and Sound Temporarily 76

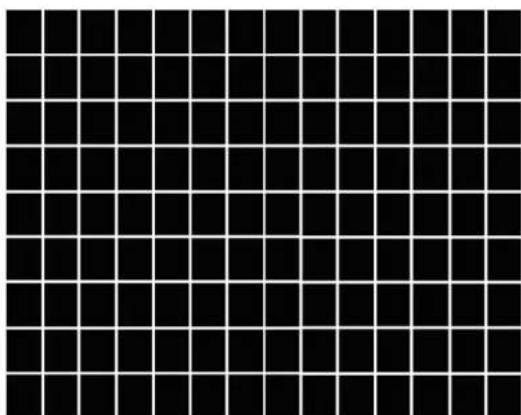

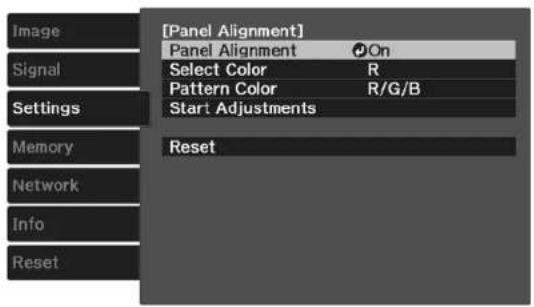

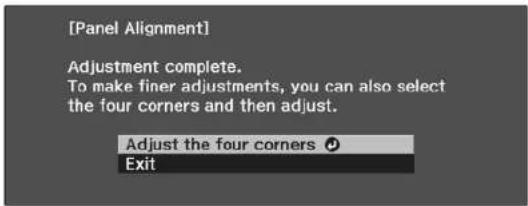

Adjusting the Color Convergence (Panel Alignment) 76

Saving Settings to Memory and Using Saved Settings 80

Projector Security Features.... 81

Locking the Projector's Buttons 82

Unlocking the Projector's Buttons 83

Installing a Security Cable 83

Using WirelessHD 84

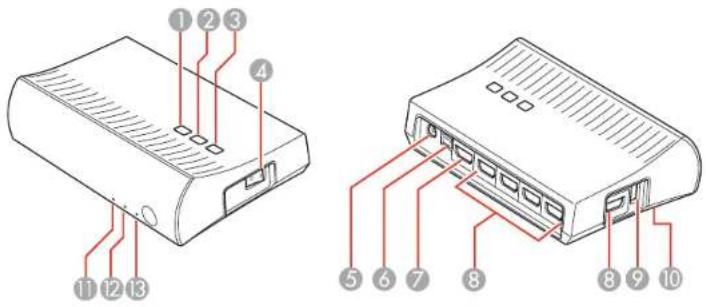

WirelessHD Transmitter Parts 84

WirelessHD Transmitter Placement 85

Connecting the WirelessHD Transmitter 85

Viewing WirelessHD Content 87

Switching WirelessHD Sources 88

Using the WirelessHD Picture in Picture Feature 89

Adjusting the Menu Settings 90

Using the Projector's Menus....90

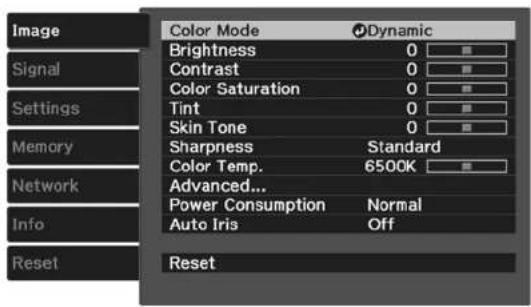

Image Quality Settings - Image Menu 92

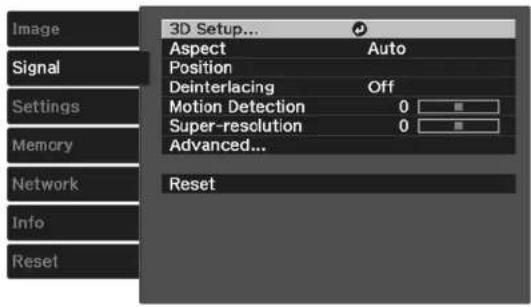

Input Signal Settings - Signal Menu 94

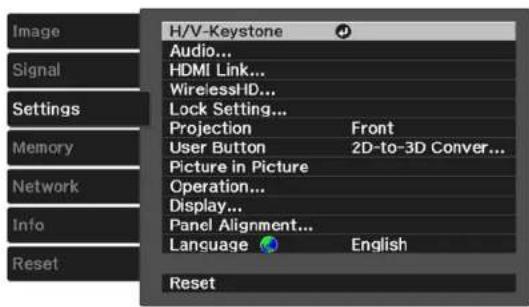

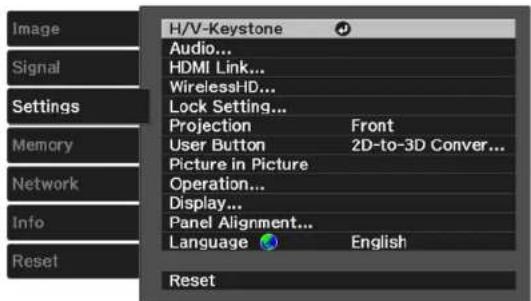

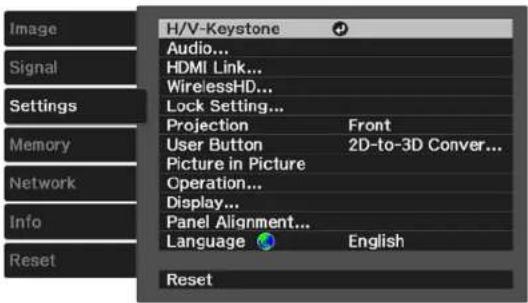

Projector Feature Settings - Settings Menu 98

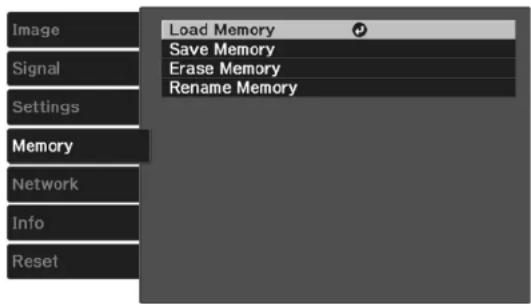

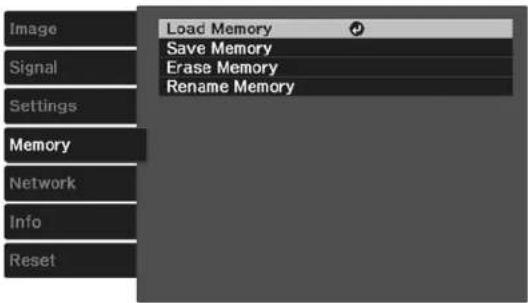

Projector Memory Options - Memory Menu 103

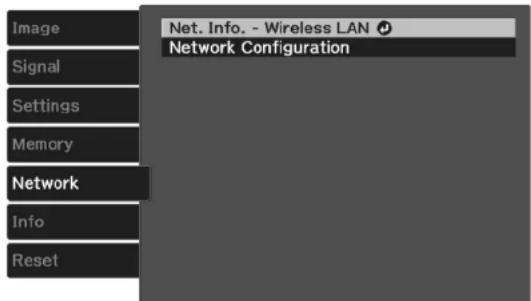

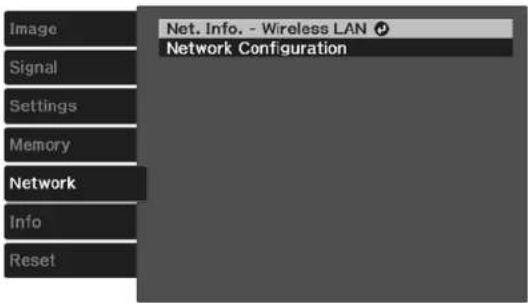

Projector Network Settings - Network Menu.... 104

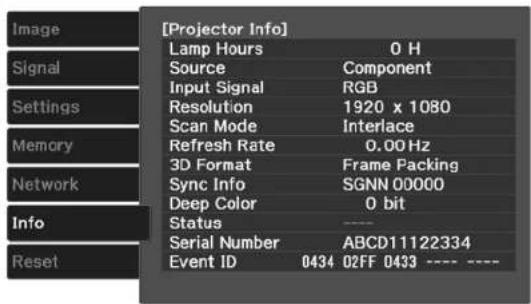

Projector Information Display - Info Menu 106

Event ID Code List.... 108

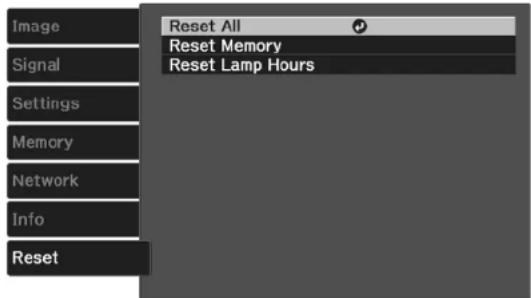

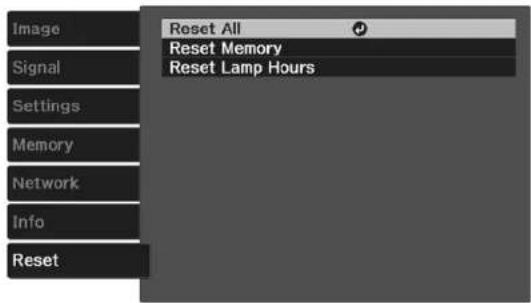

Projector Reset Options - Reset Menu 109

Maintaining and Transporting the Projector 111

Projector Maintenance 111

Cleaning the Lens....111

Cleaning the 3D Glasses....112

Cleaning the Projector Case.... 112

Air Filter and Vent Maintenance 113

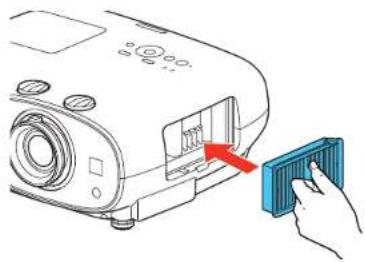

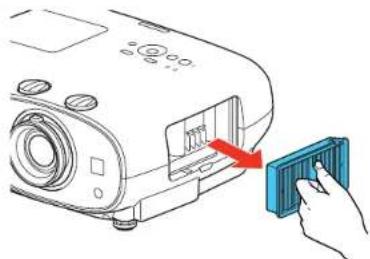

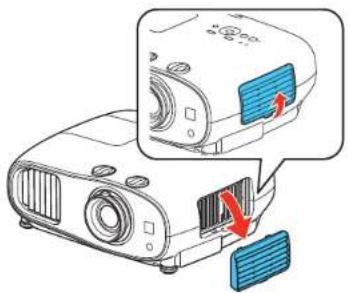

Cleaning the Air Filter.... 113

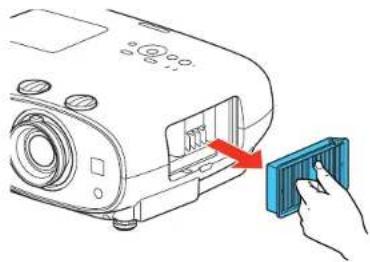

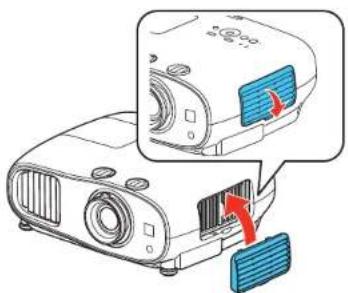

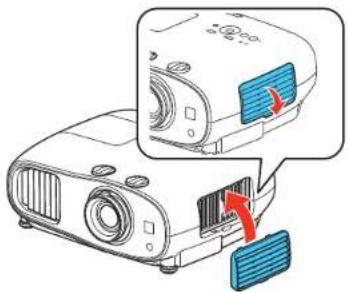

Replacing the Air Filter 116

Projector Lamp Maintenance.... 118

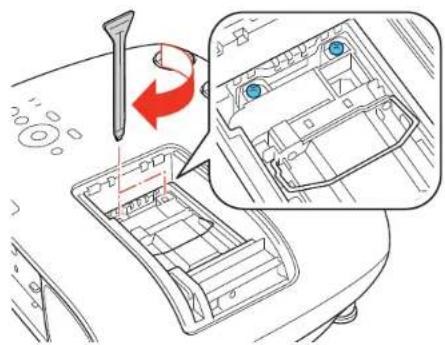

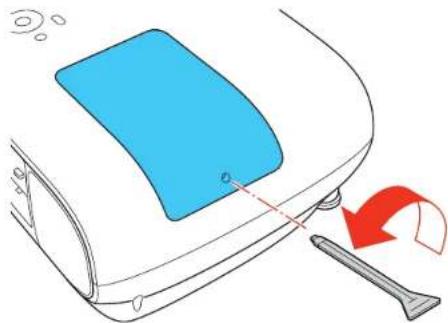

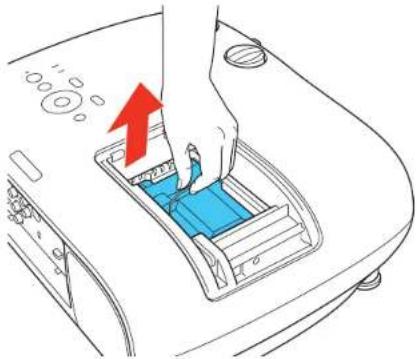

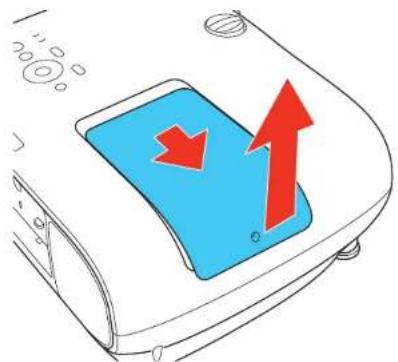

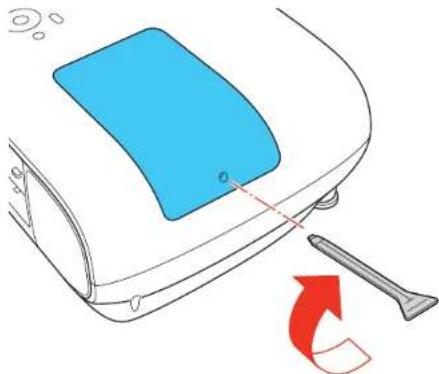

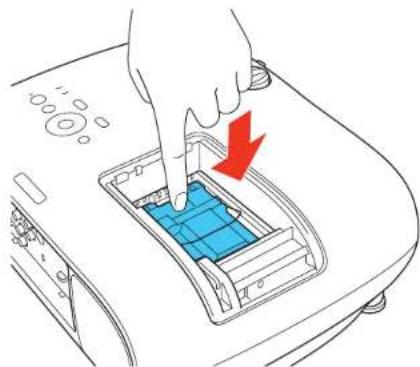

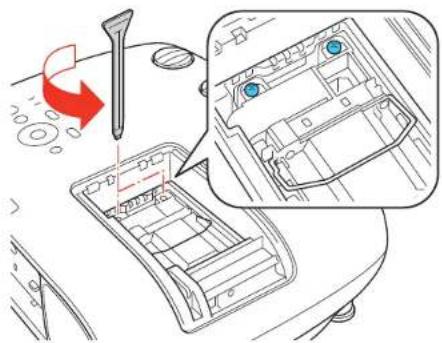

Replacing the Lamp 119

Resetting the Lamp Timer 123

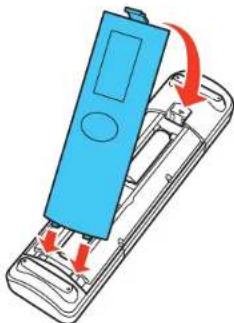

Replacing the Remote Control Batteries 124

Transporting the Projector 126

Solving Problems 128

Projection Problem Tips 128

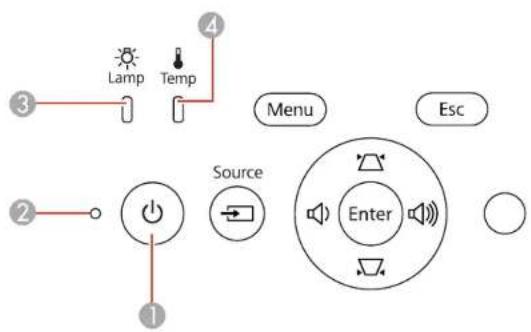

Projector Light Status 129

Solving Image or Sound Problems 131

Solutions When No Image Appears.... 132

Solutions When "No Signal" Message Appears 133

Displaying From a PC Laptop 133

Displaying From a Mac Laptop 133

Solutions When "Not Supported" Message Appears 134

Solutions When Only a Partial Image Appears 134

Solutions When the Image is Not Rectangular 134

Solutions When the Image Contains Noise or Static 135

Solutions When the Image is Fuzzy or Blurry 135

SolutionsWhentheImageBrightnessorColorsareIncorrect....136

SolutionsWhena3DImageDoesNotDisplayCorrectly....137

Solutions When a WirelessHD Source Does Not Display Correctly.... 138

Solutions to Sound Problems 138

Solving Projector or Remote Control Operation Problems 139

Solutions to Projector Power or Shut-Off Problems 139

Solutions to Problems with the Remote Control 140

Where to Get Help.... 141

Technical Specifications 143

General Projector Specifications 143

Projector Lamp Specifications 145

Remote Control Specifications.... 145

Projector Dimension Specifications.... 146

Projector Electrical Specifications 146

Projector Environmental Specifications.... 147

Projector Safety and Approvals Specifications.... 148

Supported Video Display Formats.... 148

Notices 152

Recycling.... 152

Important Safety Information.... 152

Important Safety Instructions.... 153

3D Safety Instructions 156

Restriction of Use 157

FCC Compliance Statement.... 158

Trademarks 158

Open Source Software License 159

Copyright Notice....204

ANoteConcerningResponsibleUseofCopyrightedMaterials....205

Copyright Attribution 205

PowerLiteHomeCinema3000/3500/3510/3600eUser'sGuide

WelcometothePowerLiteHomeCinema3000/3500/3510/3600e User'sGuide.

IntroductiontoYourProjector

Refertothesesectionstolearnmoreaboutyourprojectorandthismanual.

ProjectorFeatures

NotationsUsedintheDocumentation

WheretoGoforAdditionalInformation

ProjectorPartLocations

ProjectorFeatures

ThePowerLiteHomeCinema3000,3500,3510,and3600eprojectorsincludethesespecialfeatures:

Bright, high-resolution projectionsystem

•PowerLiteHomeCinema3000:Upto2300lumensofcolorbrightness(colorlightoutput)and2300lumensofwhitebrightness(whitelightoutput)
PowerLiteHomeCinema3500/3510/3600e:Upto2500lumensofcolorbrightness(colorlightoutput) and2500lumensofwhitebrightness(whitelightoutput)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Colorlight output measured in accordance with IDMS15.4; whitelight output measured in accordance with ISO21118.

•1080pnativeresolution

• Imagesupto300inches(762cm)

Full3Dprojection

•Active3DprojectionwithRFactiveshutterglasses

- Supportsside-by-side, top-and-bottom, andframepacking3D formats

Flexibleconnectivity

- TwoHDMIportsforcomputerorvideodeviceconnection

•OneMHL-compatible(MobileHigh-definitionLink)HDMIportforhigh-qualityaudioandvideofrom tabletsandsmartphones(PowerLiteHomeCinema3500/3510/3600e)

- PhotoslideshowsviaconnectedUSBmemorydevices

•AudioOutportforconnectiontoexternalspeakersorstereosystem(PowerLiteHomeCinema 3500/3510/3600e)

Easy-to-usesetupandoperationfeatures

• Verticalandhorizontallensshiftdialsforflexibleprojectorplacement

- 1.6×opticalzoomratioforimprovedzoomingcapability

Note: The PowerLite Home Cinema 3600e projector is shown in most illustrations in this manual, unless noted otherwise.

ProductBoxContents

AdditionalComponents

OptionalEquipmentandReplacementParts

Warranty and Registration Information

Parenttopic: Introduction to Your Projector

ProductBoxContents

Saveallthepackagingincaseyouneedtoshiptheprojector.Alwaysusetheoriginalpackaging(or equivalent)whenshipping.

Makesureyourprojectorboxincludedalloftheseparts:

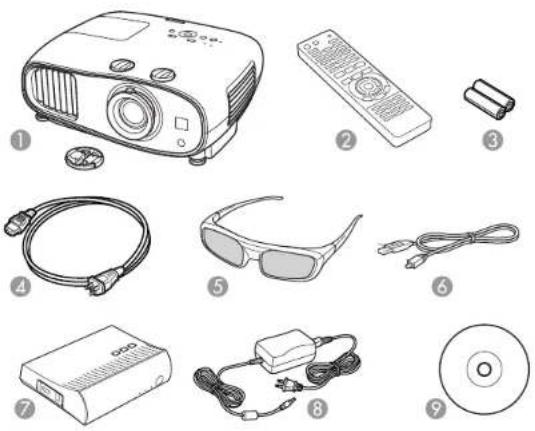

Illustration of various electronic devices and accessories including projector, remote control, and CD/DVD (no text or labels)

1 Projectorwithlenscap

2Remotecontrol

3Remotecontrolbatteries(twoAAalkaline)

4Powercord

53Dglasses(2pairsforPowerLiteHomeCinema3500/3510/3600e)

63Dglasseschargingcable(2cablesforPowerLiteHomeCinema3500/3510/3600e)

7WirelessHDtransmitter(PowerLiteHomeCinema3600e)

8WirelessHDtransmitterACadapter(PowerLiteHomeCinema3600e)

9ProjectordocumentationCD

Parenttopic:ProjectorFeatures

AdditionalComponents

Dependingonhowyouplantousetheprojector,youmayneedtoobtainthefollowingadditional components:

- Toreceiveaccomponentvideosignal,youneedacompatiblecomponentcable.Youcanpurchase onefromEpsonoranauthorizedEpsonreseller.

• ToreceiveanHDMIsignal,youneedacompatibleHDMIcable.YoucanpurchaseonefromEpsonoranauthorizedEpsonreseller.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. ContactAppleforcompatibleadapteroptions.OlderMaccomputers(2009andearlier)maynot supportaudiothroughtheHDMIport.

•ToreceiveanHDMIsignalviaMHL,youneedanMHL-compatibledevice,anMHLcable,oranHDMI cableandanMHLadaptercompatiblewithyourdevice.DeviceswithanintegratedMHLconnector maynotrequireacable(PowerLiteHomeCinema3500/3510/3600e).

•Toreceiveandviewa3Dsignal,youneedacompatibleHDMIcableandactiveshutter3Dglasses (3DglassesnotincludedwithPowerLiteHomeCinema3000).YoucanpurchasethemfromEpsonoranauthorizedEpsonreseller.Ifyourvideosourceisa3DBlu-raydisc,youalsoneedaBlu-rayplayerthatsupports3Dplayback.Seeyourlocalcomputerorelectronicsdealerforpurchaseinformation.

• Toprojectwithaudiofromcertainports,youmayneedacommerciallyavailableaudiocable compatiblewithyourdevice(PowerLiteHomeCinema3500/3510/3600e).Seeyourlocalcomputeror electronicsdealerforpurchaseinformation.
  • To add additional sound, you needs speakers, an audio video receiver or a video source with speaker connections, and the cables necessary to connect to the speakers and the projector. See your local computerorelectronics dealer for purchase information.

Parenttopic:ProjectorFeatures

Relatedreferences

OptionalEquipmentandReplacementParts

OptionalEquipmentandReplacementParts

Youcanpurchasescreens,otheroptionalaccessories,andreplacementpartsfromanEpsonauthorizedreseller.Tofindthenarestreseller,call800-GO-EPSON(800-463-7766).Oryoucanpurchaseonlineatepsonstore.com(U.S.sales)orepson.ca(Canadiansales).

Epsonoffersthefollowingoptionalaccessoriesandreplacementpartsforyourprojector:

OptionorpartPartnumber
GenuineEpsonreplacementlamp(ELPLP85)V13H010L85
Replacementairfilter(ELPAF39)V13H134A39
RF3Dglasses(ELPGS03)V12H548006
3Dglasses(RF)USBchargingadapter(ELPAC01)V12H564C11
WirelessLANmodule(ELPAP07)V12H418P12
ProjectorceilingmountCHF1000
AccoladeDuetultraportableprojectorscreenELPSC80
ES1000ultraportabletabletopprojectionscreenV12H002S4Y
ES3000ultraportableprojectorscreenV12H002S3Y
BelkinProSeriesVGA/SVGAcable,6ftF3H982-06
BelkinProSeriesVGA/SVGAcable,10ftF3H982-10
BelkinProSeriesVGA/SVGAcable,25ftF3H982-25
BelkinPureAVHDMIaudiovideocable,3ftAV22300-03
BelkinPureAVHDMIaudiovideocable,6ftAV22300-06
BelkinPureAVHDMlaudiovideocable,12ftAV22300-12
KensingtonsecuritylockELPSL01
Remotecontrol1631362

In addition to the accessories listed above, 1-year and 2-year extended service plans are available.

Parenttopic:ProjectorFeatures

Warranty and Registration Information

Yourprojectorcomeswithabasicwarrantythatletsyouprojectwithconfidence.Fordetails,seethe warrantybrochurethatcamewithyourprojector.

Inaddition, EpsonoffersfreeExtraCareHomeService. In the unlikely event of an equipment failure, you won't havetowait for your unit to be repaired. Instead, Epson will ship you are replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Home Service brochure for details.

RegistryyourproductonlineusingtheprojectorCDoratthissite:epson.com/webreg

Registeringalsoletsyoureceivespecialupdatesonnewaccessories,products,andservices.

Parenttopic:ProjectorFeatures

NotationsUsedintheDocumentation

Followtheguidelinesinthesenotationsasyoureadyourdocumentation:

- Warningsmustbefollowedcarefullytoavoidbodilyinjury .

- Cautionsmustbeobservedtoavoiddamagetoyourequirement.

- Notes contain important information about your projector.

- Tipscontainadditionalprojectioninformation.

Parenttopic: Introduction to Your Projector

WheretoGoforAdditionallInformation

Needquickhelponusingyourprojector?Here'swheretolookforhelp:

•epson.com/support(U.S)orepson.ca/support(Canada)

ViewFAQs(frequentlyaskedquestions)ande-mailyourquestionstoEpsontechnicalsupport24 hoursaday.

• For detailed instructions on using your projector in a network environment, see the EasyMP Network ProjectionOperationGuide.
• If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLineSupportservicetogethelpfast. Ford details, see "Where to Get Help".

Parenttopic: Introduction to Your Projector

Relatedreferences

WheretoGetHelp

ProjectorPartLocations

Checktheprojectorpartillustrationstolearnaboutthepartsonyourprojector.

ProjectorParts-Front/Top

ProjectorParts-Rear

ProjectorParts-Base

ProjectorParts-ControlPanel

ProjectorParts-RemoteControl

Parenttopic: Introduction to Your Projector

ProjectorParts-Front/Top

1 Lampcover

2Exhaustvent

3Focusing

4Lenscap

5Lens

6Zoomring

7Remotereceiver

8Frontadjustablefoot

9Airfiltercoverandvent

10Vertical lens shiftdial

11Horizontallensshiftdial

12Controlpanel

Parenttopic:ProjectorPartLocations

ProjectorParts-Rear

1Speakers(PowerLiteHomeCinema3500/3510/3600e)

2ACinputport

3Triggeroutport

4RS-232Cport

5Audiports(PowerLiteHomeCinema3500/3510/3600e)

6Componentports

7Securitycableattachmentpoint

8AudioOutport(PowerLiteHomeCinema3500/3510/3600e)

9Cableholder

10Remotereceiver

11USBTypeAport

12Serviceport

13Videoport

14HDMI2port

15PCport

16 HDMI 1/MHL (PowerLite Home Cinema 3500/3510/3600e) or HDMI 1 (PowerLite Home Cinema 3000) port

Parenttopic:ProjectorPartLocations

Relatedtasks

InstallingaSecurityCable

ProjectorParts-Base

1Frontadjustablefeet

2Mountingbracketholes

3Intakevent

Parenttopic:ProjectorPartLocations

ProjectorParts-ControlPanel

1Lamplight

2Statuslight

3Powerbutton/light

4Sourcebutton(cyclesthroughthelistofsources)

5Volumecontrolbuttons, horizontalkeystoneadjustmentbuttons(adjustscreenshape), andarrow buttons

6Verticalkeystoneadjustmentbuttons(adjustscreenshape)andarrowbuttons

7Brightnesssensor

8Escbutton(cancels/exitsfunctions)

9Enterbutton(selectsoptions)

10Menubutton(accessesprojectormenusystem)

11Templight

Parenttopic:ProjectorPartLocations

Relatedreferences

ProjectorLightStatus

ProjectorParts-RemoteControl

1Onbutton(turnsonprojector)

2P-in-Pbutton(controlsthePicture-in-Picturemode)

3Sourcebuttons(selectspecificvideoinputsources)

4HDMILinkbutton(displaysthesettingsmenuforHDMILink)

LinkMenubutton(displaystheimainmenuoftheconnecteddevice)

Controlbuttons(control playback and other features of connected devices that support the HDMI CECorMHL standard)

53DFormatbutton(changesthe3Dformat)

6Arrowbuttons(movethoughon-screenoptions)

7Defaultbutton(returnsselectedsettingtodefaultvalue)

8Menubutton(accessesprojectormenusystem)

9Fine/Fastbutton(improvesimageresponsetimeforhighframeratesources)

10Userbutton(customizablefordifferentfunctions)

11Memorybutton(accessestheMemorymenu)

12WiHDTransmittercontrolbuttons(PowerLiteHomeCinema3600e)

powerbutton(turnstheWirelessHDtransmitteronoroff)

Inputbutton(cyclesthroughimagesourcesconnectedtotheWirelessHDtransmitter)

Outputbutton(cyclesoutputsignalbetween the projector and display device connected to the transmitter's Outputport)

P-In-Pbutton(controlsthePictureinPicturewhenusingtransmitter)

13Patternbutton(displaysatestpattern)

14A/VMutebutton(turnsoffpictureandsound)

152D/3Dbutton(cyclesbetween2Dand3Dmodes;PowerLiteHomeCinema3500/3510/3600e)

16Aspectbutton(selectstheimageaspectratio)

17RGBCMYbutton(adjustshue,saturation,andbrightnessforeachRGBCMYcolor)

18Escbutton(cancels/exitsfunctions)

19Enterbutton(selectsoptions)

20SuperResDetailEnh(reducesblurringaroundtheedgesofimagesandenhancesimage contrast;PowerLiteHomeCinema3500/3510/3600e)

21ColorModebutton(selectsdisplaymodes)

22Volumeup/downbuttons(adjustspeakervolume;PowerLiteHomeCinema3500/3510/3600e)

23Mutebutton(turnsoffsoundonly;PowerLiteHomeCinema3500/3510/3600e)

24Illuminationbutton(temporarilylightstheremotecontrolbuttons)

25Standbybutton(turnsofftheprojector)

Parenttopic:ProjectorPartLocations

SettingUptheProjector

Followtheinstructionsinthesesectionstosetupyourprojectorforuse.

ProjectorPlacement

ProjectorConnections

Installing Batteries in the Remote Control

ProjectorPlacement

Youcanplacetheprojectoronalmostanyflatsurfacetoprojectanimation.

Youcanalsoinstalltheprojectorinaceilingmountifyouwanttouseitinafixedlocation.

Keeptheseconsiderationsinmindasyouselectaprojectorlocation:

- Placetheprojectoronasturdy, levelsurfaceorinstallitusingacompatiblemount.

- Leaveplentyofspacearoundandundertheprojectorforventilation, anddonotplaceitontopofor nexttoanythingthatcouldblockthevents.

- Position the projector within reach of foreground electrical outlet to extension cord.

ProjectorSetupandInstallationOptions

ProjectionDistance

Parenttopic:SettingUptheProjector

ProjectorSetupandInstallationOptions

Youcansetuporinstallyourprojectorinthefollowingways:

Front

Rear

Illustration of people watching a presentation on a large screen (no text or symbols visible)

FrontCeiling

RearCeiling

Whereveryousetuptheprojector, makesuretopositionitsquarelyinfrontofthecenterofthescreen, notatanangle, if possible. If the projector cannot be centered in front of the screen, uselens shift to reposition the image instead of using keystone correction for better image equality.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menusystem.

Parenttopic:ProjectorPlacement

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

ProjectionDistance

The distance at which you place the projector from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Usethetablesheretodetermineapproximatelyhowfartoplacetheprojectorfromthescreenbasedon thesizeoftheprojectedimage.(Conversionfiguresmayhavebeenroundedupordown.)

Vertical lens shift adjustment

Horizontallensshiftadjustment

1Screenorimagesize
2Distancebetweenprojectorandscreen
3Distancefromcenteroflenstobottomoftheprojectedimagewhenthelensisshiftedtothe highestposition
4Distancefromcenteroflenstobottomoftheprojectedimagewhenthelensisshiftedtothe lowestposition
5Distancetheprojectedimagemovesfromthecenterwhenthelensisshiftedtoitsmaximum positionleftorright

16:9AspectRatioImageorScreen

Screenorimagesize(1)Projectiondistance(2)	WidetoTele
40inches(101.6cm)46to75inches	(116to190cm)
60inches(152.4cm)69to113inches	(176to286cm)
80inches(203.2cm)93to150inches	(235to382cm)
100inches(254cm)116to188inches	(295to478cm)
120inches(304.8cm)139to226inches	(354to575cm)
150inches(381cm)174to283inches	(443to719cm)
200inches(508cm)233to378inches	(591to959cm)

ScreenorimagesizeOffset(1)center(3)center(4)	OffsetfromlensOffsetfromlensOffsetfromlenscenter(5)
40inches(101.6cm)2inches(5cm)21.6inches(55cm)8.4inches(21cm)
60inches(152.4cm)2.9inches(7cm)32.4inches(82cm)12.6inches(32cm)
80inches(203.2cm)3.9inches(10cm)43.1inches(110cm)16.7inches(43cm)
100inches(254cm)4.9inches(12cm)53.9inches(137cm)20.9inches(53cm)
120inches(304.8cm)5.9inches(15cm)64.7inches(164cm)25.1inches(64cm)
150inches(381cm)7.4inches(19cm)80.9inches(205cm)31.4inches(80cm)
200inches(508cm)9.8inches(25cm)107.9inches(274cm)41.8inches(106cm)

4:3 AspectRatioImageorScreen

Screenorimagesize(1)Projectiondistance(2)	WidetoTele
40inches(101.6cm)56to92inches	(143to233cm)
60inches(152.4cm)85to138inches	(216to351cm)
80inches(203.2cm)114to184inches	(288to468cm)
100inches(254cm)142to231inches	(361to586cm)
120inches(304.8cm)171to277inches	(434to704cm)
150inches(381cm)214to347inches	(543to717cm)
200inches(508cm)285to463inches	(724to1175cm)

ScreenorimagesizeOffsetfromlensOffsetfrom center(2)center(3)		mlensOffsetfromlenscenter(4)
40inches(101.6cm)2.4inches(6cm)26.4inches(67cm)10.2inches(26cm)
60inches(152.4cm)3.6inches(9cm)39.6inches(101cm)15.4inches(39cm)
80inches(203.2cm)4.8inches(12cm)52.8inches(134cm)20.5inches(52cm)
100inches(254cm)6inches(15cm)66inches(168cm)25.6inches(65cm)
120inches(304.8cm)7.2inches(18cm)79.2inches(201cm)30.7inches(78cm)
150inches(381cm)9inches(23cm)99inches(251cm)38.4inches(98cm)
200inches(508cm)12inches(30cm) 132inches(335cm)51.2inches(130cm)

Parenttopic:ProjectorPlacement

ProjectorConnections

Youcanconnecttheprojectortovarietyofcomputer,video,andaudiosourcestodisplay presentations,movies,orotherimages,withorwithoutsound(audioavailableonlyforPowerLiteHome Cinema3500/3510/3600e).

- Forvideoprojection, connectdevicessuchasDVDplayers, gamingconsoles, streamingdevices, digitalcameras, smartphones, and tablets with compatible video outputports.

Note: To connect a smartphone ortablet, you may need to obtain an adapter that allows youto connect the projector. This allows y outomirroryoursmartphoneortabletscreens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

• Forsound,youcanconnectaudioinputcables,ifnecessary(PowerLiteHomeCinema 3500/3510/3600e).
• Connectanytypeofcomputerthathasastandardvideooutput(monitor)port,orHDMIport.
• Forslideshowswithoutavideosourceorcomputer,youcanconnectUSBdevicessuchasaflashdriveorcamera.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

RemovingandAttachingtheCableCover

ConnectingtoVideoSources

ConnectingtoComputerSources

ConnectingtoExternalSpeakers

ConnectingtoExternalUSBDevices

Parenttopic:SettingUptheProjector

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

RemovingandAttachingtheCableCover

Beforeyoucanconnectequipmenttoyourprojector,youneedtoremovethecablecover(PowerLite HomeCinema3600e).Usecoinsoryourfingernailstoliftupandoutonthegapsatthebottomofthe cablecover,thenremovethecablecover.

Illustration of a device's front panel with two red arrows indicating flow or movement, no text or symbols present.

Toattachthecablecover, insert the topend first, then push the cable cover in.

Parenttopic:ProjectorConnections

ConnectingtoVideoSources

Followtheinstructionsinthesesectionstoconnectvideodevicestotheprojector.

ConnectingtoanHDMIVideoSource

ConnectingtoanMHL-CompatibleDevice

ConnectingtoaComponentVideoSource

ConnectingtoaCompositeVideoSource

ConnectingtoaVideoSourceforSound

Parenttopic:ProjectorConnections

ConnectingtoanHDMIVideoSource

If your videosourcehasan HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image equality.

1. ConnecttheHDMIcabletoyourvideosource'sHDMIoutputport.

2. Connecttheotherendtooneoftheprojector'sHDMIports.

Note: If you connected a game console, it may take a few seconds for your image to appear when you switch to the game console's input source. Toreducethe potential allagin responsetimetogame commands, set your game console's output format to a progressive signal of 480p, 720p, or higher. See your game console documentation for instructions.

You can also select the Fast setting using the Fast/Fine button on the remote control to reduce lag time.

Note: When an audio/video source that meets the HDMI CEC standard is connected to the projector's HDMI port, you can us the projector's remote control to control certain features of the linked device by pressing the HDMI Link button on the remote control and setting HDMI Link to On.

Parenttopic: ConnectingtoVideoSources

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

ConnectingtoanMHL-CompatibleDevice

If you have an MHL-compatible smartphone ortable, you can connect it to the projector or Wireless HD transmitter using either an MHL cable or an HDMI cable with a device compatible MHL adapter (PowerLite Home Cinema 3500/3510/3600e). If you have a device with a built-in MHL connector, plug it directly into the projector's HDMI 1/MHL port or the Wireless HD transmitter's HDMI 5 / MHL (IN) port. (Wireless HD connection available only for the PowerLite Home Cinema 3600e.)

Note: Some connected devices may not chargewhen using an MHL adapter.

1. ConnecttheMHLcableoradaptertoyourdevice'sMicro-USBport.

2. If you are using an MHL adapter, connect it to an MHL-compatible HDMI cable.

3. Connect the other end of the cable to projector's HDMI 1/MHL port or the WirelessHD transmitter's HDMI5/MHL(IN)port.

Parenttopic: ConnectingtoVideoSources

ConnectingtoaComponentVideoSource

If your videosourcehas component videoports, you can connect it to the projector using an optional component videocable. Depending on your component ports, you may need to use an adapter cable along with a component videocable.

1. Connect the component connector to your video source's color-coded component video output ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component videocable.

2. Connect the other end to the projector's color-coded Component video input ports.

Note: If you connected a game console, it may take a few seconds for your image to appear when you switch to the game console's input source. Toreducethe potential allagin responsetimetogame commands, set your game console's output format to a progressive signal of 480p, 720p, or higher. See your game console documentation for instructions.

YoucanalsoselecttheFastImageProcessingsettingtoreducelagtime.

Parenttopic: ConnectingtoVideoSources

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

ConnectingtoaVideoSourceforSound

ConnectingtoaCompositeVideoSource

If your videosource has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with they yellow connect to your video source's yellow video output port.
2. Connecttheotherendtotheprojector'sVideoport.

Parenttopic: ConnectingtoVideoSources

Relatedtasks

ConnectingtoaVideoSourceforSound

ConnectingtoaVideoSourceforSound

Youcanplaysoundthroughtheprojector'sspeakersystemifyourvideosourcehasaudioutputports (PowerLiteHomeCinema3500/3510/3600e). ConnecttheprojectortothevideosourceusinganRCA audiocable.

Note: If you connected your video source to the projector using an HDMI or MHL cable, the audio signal is transferred with the videosignal; you donotneed an additional cable for sound.

1. Connect the audiocable to your videosource's audio-outports.
2. Connect the other end of the cable to the projector's Audi portor ports.

Note: To add additional sound, connect your video source and speakers to an audio video receiver, thenconnectthereceivertotheprojectorusingoneofthereceiver'scompatiblevideooutputs(an HDMIconnectionprovidesthebestimagequality,ifavailable).Youcanalsoconnectspeakersto anyvideosourcethathasitsownspeakerconnections.Youcanalsoconnectexternallypowered speakersorheadphonestotheAudioOutportusinga3.5mmstereominijackcable.

Parenttopic: ConnectingtoVideoSources

ConnectingtoComputerSources

Followtheinstructionsinthesesectionstoconnectacomputertotheprojector.

ConnectingtoaComputerforVGAVideo

ConnectingtoaComputerforHDMIVideoandAudio

ConnectingtoaComputerforSound

Parenttopic:ProjectorConnections

ConnectingtoaComputerforVGAVideo

YoucanconnecttheprojectortoyourcomputerusingaVGAcomputercable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for videooutput,youneedtoobtainanadapterthatallowsyoutoconnecttotheprojector'sVGAvideoport.ContactAppleforcompatibleadapteroptions.

1. If necessary, disconnect your computer's monitorable.
2. Connectthe VGAcomputercabletoyourcomputer'smonitorport.
3. ConnecttheotherendtoaPCportontheprojector.

1. TightenthescrewsontheVGAconnector.

Parenttopic: ConnectingtoComputerSources

Relatedtasks

ConnectingtoaComputerforSound

ConnectingtoaComputerforHDMIVideoandAudio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. ContactAppleforcompatibleadapteroptions.OlderMaccomputers(2009andearlier)maynotsupport audiothroughtheHDMIport.

1. ConnecttheHDMIcabletoyourcomputer'sHDMIoutputport.
2. Connecttheotherendtooneoftheprojector'sHDMIports.

Parenttopic: ConnectingtoComputerSources

ConnectingtoaComputerforSound

If your computer presentation includes sound and you did not connect it using the projector's HDMI port, you can still play sound through the projector's speakers system (PowerLiteHomeCinema 3500/3510/3600e). Connect an optional stereomini-jack adapter cable (with one 3.5mm mini - plug and two RCA plugs).

1. Connect the audiocable to your laptop's headphone or audio-out jack, or your desktop's speaker or audio-out port.
2. Connecttheotherendtotheprojector's Audiports.

Parenttopic: ConnectingtoComputerSources

ConnectingtoExternalSpeakers

Toenhancethesoundfromyourpresentation,youcanconnecttheprojectortoexternalself-powered speakers(PowerLiteHomeCinema3500/3510/3600e).Youcancontrolthevolumeusingtheprojector's remotecontrol.

Youcanalsoconnecttheprojectortoanamplifierwithspeakers.

Note: The projector's built-in speaker system (PowerLite Home Cinema 3500/3510/3600e) is disabled whenyouconnectexternalspeakers.

1. Makesureyourcomputerorvideosourceisconnectedtotheprojectorwithbothaudioandvideo cablesasnecessary.
2. Locatetheappropriatecabletoconnectyoureternalspeakers, suchasastereomini-jack-to-pin-jackcable, oranothertypeofcableoradapter.

3. Connectoneendofthecabletoyoureternalspeakersasnecessary.

4. Connectthestereomini-jackendofthecabletoyourprojector'sAudioOutport.

Parenttopic:ProjectorConnections

ConnectingtoExternalUSBDevices

FollowtheinstructionsinthesesectionstoconnectexternalUSBdevicestotheprojector.

USBDeviceProjection

ConnectingaUSBDeviceorCameratotheProjector

SelectingtheConnectedUSBSource

DisconnectingaUSBDeviceorCameraFromtheProjector

Parenttopic:ProjectorConnections

USBDeviceProjection

Youcanprojectimagesandothercontentwithoutusingacomputerorvideovidebyconnectinganyofthesedevicestoyourprojector:

•USBflashdrive

•Digitalcameraorsmartphone

•USBharddrive

•Multimediastorageviewer

•USBmemorycardreader

Note: Digitalcamerasorsmartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USBMassStorageClass-compliant.

Note: USBharddrivesmustmeettheserequirements:

- USBMassStorageClass-compliant(notallUSBMassStorageClassdevicesaresupported)

• FormattedinFATorFAT32

- Self-poweredbytheirownACpowersupplies(bus-poweredharddrivesarenotrecommended)

- Avoidusingharddriveswithmultiplepartitions

YoucanprojectslideshowsfromimagefilesonaconnectedUSBdeviceormemorycardreader.

Parenttopic: ConnectingtoExternalUSBDevices

Relatedreferences

SupportedSlideshowFileTypes

ConnectingaUSBDeviceorCameratotheProjector

YoucanconnectyourUSBdeviceorcameratotheprojector'sUSBTypeAportanduseittoproject imagesandothercontent.

1. If your USB device camewith a power adapter, plug the device into an electrical outlet.

2. ConnecttheUSBcable(orUSBflashdriveorUSBmemorycardreader)totheprojector'sUSB TypeAportshownhere.

Note: DonotconnectaUSBhuboraUSBcablelongerthan10feet(3m), orthedevicemaynot operatecorrectly.

1. Connect the other end of the cable (if applicable) to your device.

Parenttopic: ConnectingtoExternalUSBDevices

Relatedreferences

SupportedSlideshowFileTypes

SelectingtheConnectedUSBSource

Youcanswitchtheprojector'sdisplaytothesourceyouconnectedtotheUSBTypeAport.

1. MakesuretheconnectedUSBsourceisturnedon, if necessary.

2. PresstheUSB/LANbuttonontheremotecontrol.
   3.PressthebuttonagaintocyclethroughotherUSBsources,ifavailable.

Parenttopic: ConnectingtoExternalUSBDevices

DisconnectingaUSBDeviceorCameraFromtheProjector

When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.

1. If the device has a power button, turn off and un plug the device.
2. Disconnect the USB device or camera from the projector.

Parenttopic: ConnectingtoExternalUSBDevices

Installing Batteries in the Remote Control

TheremotecontrolusesthetwoAAbatteriesthatcamewiththeprojector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, ormixnewandoldbatteries.

1. Openthebatterycover.

Illustration of a blue handheld device with a red arrow indicating rotation (no text or symbols)

1. Insert the batteries with the + and - ends facing as shown.

Diagram of a rectangular device with blue internal components and a red arrow indicating rotation (no text or symbols)

1. Closethebatterycoverandpressitdownuntilitclicksintoplace.

Illustration of a blue handheld device with red arrows indicating internal components (no text or symbols)

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of thereachofchildren; they are choking hazards and are every dangerous if swallowed.

Parenttopic:SettingUptheProjector

WirelessNetworkProjection

Youcansendimagestoyourprojectorthroughawirelessnetwork. Todothis, youmustinstallthe Epson802.11b/g/nwirelessLANmodule, and then setup your projector and computer for wireless projection.

Note: The wireless LAN module is not included with your projector.

Youcanconnecttheprojectortoyourwirelessnetworkbyconfiguringtheconnectionmanuallyusingthe projector'sNetworkmenus.

Afterinstallingthemoduleandsettinguptheprojector,installthenetworksoftware.Youcandownload thelatestsoftwareanddocumentationfromtheEpsonwebsite.

Use the following software and documentation to setup, control, and monitor wireless projection:

- EasyMPNetworkProjectionsoftwaresetsupyourcomputerforwirelessnetworkprojection.Gotoepson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

•ProjectionfromiOSorAndroiddeviceswiththewirelessLANmoduleandfreeEpsoniProjectionapp; visit epson.com/projectorapp (U.S.) or epson.ca/projectorapp (Canada) for more information

InstallingtheWirelessLANModule

SelectingWirelessNetworkSettingsManually

SelectingWirelessNetworkSettingsinWindows

SelectingWirelessNetworkSettingsinOSX

SettingUpWirelessNetworkSecurity

Relatedreferences

OptionalEquipmentandReplacementParts

InstallingtheWirelessLANModule

Tousetheprojectoroverawirelessnetwork, installtheEpson802.11b/g/nwirelessLANmoduleinthe projector.Donotinstallanyothertypeofwirelessmodule.

InsertthewirelessLANmoduleintotheUSBTypeAport.

Diagram of a device rear panel with labeled ports and a blue component, showing no text or symbols beyond the label.

ThelightonthewirelessLANmoduleturnsonwhenthemoduleisinstalledandoperating. Thelight flasheswhenthemoduleiscommunicatingoverthenetwork.

Parenttopic: Wireless Network Projection

Relatedreferences

OptionalEquipmentandReplacementParts

SelectingWirelessNetworkSettingsManually

Before you can project from your wireless network, you must select then network settings for the projector using its menusystem.

1. Turnon the projector.

2.PresstheMenubutton.

1. SelecttheNetworkmenuandpressEnter.

1. SelectNetworkConfigurationandpressEnter.
2. SelecttheBasicmenuandpressEnter.

1. SelecttheProjectorNamesettingandenteranameupto16alphanumericcharacterslongto identifytheprojectoroverthenetwork.

Note: Use the displayed keyboard to enter the name. Press the arrow buttons on the remote control to highlight characters and press Entertoselect them.

7. SelecttheWirelessLANmenuandpressEnter.

1. Select these settings on the Wireless LAN menu as necessary for your network.

Note: Some items may be unavailable if Quick or Advanced connection mode is selected.

1. When you finish selecting settings, select Complete and follow the on-screen instructions to save yoursettingsandexithemenus.

Afteryoucompletethewirelesssettingsforyourprojector.youneedtoselectthewirelessnetworkon yourcomputer.

WirelessLANMenuSettings

Parenttopic: Wireless Network Projection

WirelessLANMenuSettings

SettingOptionsDescription
WirelessLANPowerOnTurnsonwirelessLANsupportOff
ConnectionModeQuickSelectsth	etypeofwirelessAdvanced	connection:Quick:letsyouquicklyconnect toonecomputer,smartphone,or tabletAdvanced:letsyouconnecta wirelessnetworkaccesspoint
Channel1chInQuickconnectionm	ode,6ch11ch	selectsthefrequencyband (channel)usedbythewireless LAN
SSIDUpto32alphanumericSetsthe	SSID(networkname)of characters(spacesnotthewireless recommended)projectorisconnect	ANsystemthengto
SearchAccessPoint—Displaysthe	accesspointstatus;	indicatescurrentlyconnected accesspoints;indicates accesspointswheresecurityis set
IP Settings	DHCP (On or Off)IPAddressSubnetMaskGatewayAddress	Selects DHCP if your network assignsaddressesautomatically, orturnsoffDHCPsoyoucan enterthenetwork's|Paddress, subnetmask,andgateway addressasneeded
SSID Display	OnOff	Selects whether to display the SSIDonthenetworkstandby screen
IP Address Display	OnOff	Selects whether to display the IP addressonthenetworkstandby screen

Parenttopic: Selecting Wireless Network Settings Manually

SelectingWirelessNetworkSettingsinWindows

Beforeconnectingtotheprojector,selectthecorrectwirelessnetworkonyourcomputer.

1. To access your wireless utility software, access the Desktop and double-click then network icon on the Window stask bar.
   2.Dooneofthefollowing:

- If your projector is set upon an existing network (Advanced mode), select thenetworkname (SSID).

- IfyourprojectorisconfiguredforQuickmode,selecttheprojector'sSSID.

3.ClickConnect.

Parenttopic: Wireless Network Projection

SelectingWirelessNetworkSettingsinOSX

Beforeconnectingtotheprojector,selectthecorrectwirelessnetworkinOSX.

1. ClicktheAirPorticononthemenubaratthetopofthescreen.
2. MakesureAirPortisturnedon, thendooneofthefollowing:

- If your projector is set upon an existing network (Advanced mode), select thenetworkname (SSID).

- If your projector is configured for Quickmode, select the projector's SSID.

Parenttopic: Wireless Network Projection

SettingUpWirelessNetworkSecurity

Youcansetupsecurityforyourprojectortouseonthewirelessnetwork.Setuponeofthefollowing securityoptionstomatchthesettingsusedonyournetwork:

•WPA/WPA2-PSKsecurity(Advancedconnectionmode)

•WPA2-PSKsecurity(Quickconnectionmode)

Checkwithyournetworkadministratorforguidanceonenteringthecorrectinformation.

1. PresstheMenubutton.
2. SelecttheNetworkmenuandpressEnter.

3. SelectNetworkConfigurationandpressEnter.

4. SelecttheSecuritymenuandpressEnter.

1. Select these security settings for your network.
2. When you finish selecting settings, select Complete and follow the on-screen instructions to save yoursettingsandexithemenus.

WirelessSecurityMenuSettings

Parenttopic: Wireless Network Projection

WirelessSecurityMenuSettings

SettingstheSecuritymenuletyouselectthetypeofsecurityandsecuritysettingsthatmatchthe networkyouareconnectingtheprojectorto.

SettingOptionsDescription
SecurityWPA2-PSKandWPAtypes	Selectsthetypeofsecurityusedavailableonthewirelessnetwork
PassphraseVariouskeysfrom8to3	2Selectsthepre-sharedkeyusedcharactersonthenetwork;passphrasesarecase-sensitive

Parenttopic:SettingUpWirelessNetworkSecurity

UsingBasicProjectorFeatures

Followtheinstructionsinthesesectionstouseyourprojector'sbasicfeatures.

TurningOntheProjector

TurningOfftheProjector

Viewing3DImages

SelectingtheLanguagefortheProjectorMenus

AdjustingtheImageHeight

AdjustingtheImagePositionUsingLensShift

ImageShape

ResizingthImagewiththeZoomRing

FocusingtheImageUsingtheFocusRing

RemoteControlOperation

SelectinganImageSource

ProjectionModes

ImageAspectRatio

ColorMode

UsingPictureinPicture

ControllingtheVolumewiththeVolumeButtons

ProjectingaSlideShow

TurningOntheProjector

Turnonthecomputerorvideoequipmentyouwanttousebeforeyouturnontheprojectorsoitcan displaytheimagesource.

1. Removetheprojector'slenscover.

Line drawing of a projector with a blue control knob and red arrow indicating action (no text or symbols)

1. Connect the power cord to the projector's power inlet.

Diagram showing a device connected to a power outlet with a blue cable, no text or symbols present

1. Plug the power cord into an electrical outlet.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

Theprojector'spowerlightturnsblue. This indicates that the projector is receiving power.

1. Press the power button on the projector or the On button on the remote control to turn on the projector.

TheStatuslightflashesblueastheprojectorwarmsup.Oncetheprojectoriswarmedup,theStatus lightstopsflashingandturnsblue.

Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is especially dangerous for children.

If you donot see a projected imagerightaway, try the following:

- Turnontheconnectedcomputerorvideodevice.

- InsertaDVDorothervideomediaandpresstheplaybutton,ifnecessary.

- Press the Source button on the projector to detect the video source, or press a source button on the remotecontrol.

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

SelectinganImageSource

TurningOfftheProjector

Before turning off the projector, shutdown any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon modeselected, environmental conditions, and usage. Brightness decreases over time.

Note: When using the A/V Mute feature, the projector lamp is still on. To turn off the lamp, turn off the projector.

1. Dooneofthefollowing:

- Pressthepowerbuttonontheprojector.Whenyouseetheconfirmationscreen,pressthepower buttonagainorpressanyotherbuttontoleavetheprojectoron.

- PresstheStandbybuttonontheremotecontrol.

ThelampandtheStatuslightturnsoff.

1. Totransportorstoretheprojector, makesuretheStatuslightisoff, thenunplugthepowercord.

Diagram showing a device connected to a power outlet with cable, no text or symbols present

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the status light is on or flashing.

1. Replacetheprojector'slenscover.

Line drawing of a projector with a blue circular button and red arrow pointing to the front panel (no text or symbols)

Parenttopic: UsingBasicProjectorFeatures

Viewing3DImages

Youcanview3Dimagesusingyourprojector.Viewing3Dimagesrequiresa3D-compatiblevideo deviceandapairofEpsonRF3Dglasses(notincludedwithPowerLiteHomeCinema3000).

YoucanpurchaseEpsonRF3DglassesfromanEpsonauthorizedreseller. Tofindthenarestreseller, call800-GO-EPSON(800-463-7766). Oryoucanpurchaseonlineatepsonstore.com(U.S.sales) or epson.ca(Canadiansales).

1. Connecta3D-compatiblevideodevicetotheprojectorusingacompatibleHDMlcable.

2. Turnonthevideodevice, thenturnontheprojector.

3. Begin playback from the video device.

Note: Makesureyousetthevideodevicetoplaycontentin3Dmode.

4.Pressthe2D/3Dbuttonontheremotecontroltoactivate3Dmode,ifnecessary.

5.Slidethepowerswitchonthe3DglassestotheOnposition.

1. Putonthe3Dglasses.Ifyoudonotseea3Dimage, pairtheglasseswiththeprojector.

Note: If you change the video source or you are not within range of your projector, the glasses enter standby mode and the indicator light flashes green. Slide the power switch on the glasses to the Off positionandthenbacktotheOnpositiontoresume3Dviewing.

Pairingthe3DGlasseswiththeProjector

Chargingthe3DGlasses

3DViewingRange

Parenttopic: UsingBasicProjectorFeatures

Pairingthe3DGlasseswiththeProjector

Pairtheglasseswiththeprojectortoestablishcommunicationbetweenthemfor3Dviewing.

1. Turnon the projector.
2. SettheimagesourcetoHDMI.
   3.Projecta3Dimage.
   4.Slidethepowerswitchonthe3DglassestotheOnposition.

1. Move the glasses within 10 feet (3 m) of the projector, then hold down the Pairing button on the glasses for at least three seconds.

Thestatuslightontheglassesflashesgreenandred.Ifpairingissuccessful,thelightturnsgreen for10secondsandthenturnsoff.

Parenttopic: Viewing3DImages

Chargingthe3DGlasses

Chargetheglasseswhenthestatuslightontheglassesflashesredtoindicatealowbattery.

1. Connectthesmallerendofthechargingcabletotheportonthebridgeoftheglasses.

Note: Make sure you connect the cable in the correct orientation or you may damage the glasses or cable.

1. Connect the other end of the cable to the USB Type A portion the projector or any other devices such as a computer that has an active USB Type A port.

Note: The projectormustbe turned onto chargethe glasses.

The glasses are fully charged when the status light on the glasses stays green.

Parenttopic: Viewing3DImages

3DViewingRange

Whenyouview3Dimages, makesureyouarepositionedwithintheviewingrangeshownhere.

Diagram of a projector on a sphere with numbered reference points (1) and dashed lines indicating orientation, no text or symbols present.

132ft(10m)
Parenttopic: Viewing3DImages

SelectingtheLanguagefortheProjectorMenus

If you want to view the projector's menus and messages in another language, you can change the Languagesetting.

1. Turnon the projector.
   2.PresstheMenubutton.

2. SelecttheSettingsmenuandpressEnter.

1. Select the Languagesetting and press Enter.
2. Select the language you want to use and press Enter.
3. PressMenuorEsctoexitthemenus.

Parenttopic: UsingBasicProjectorFeatures

AdjustingthelmageHeight

If you are projecting from a table or other flats surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Turnon the projector and display an image.
2. If the image is tilted, rotate the front feet to adjust their height.

Diagram of a projector housing with ventilation slots and mounting feet (no text or labels)

1. Use the vertical and horizontal lens shift dialson the project to adjust the position of the projected image as necessary.

If the projected image is unevenly rectangular, you need to adjust the imageshape.

Parenttopic: UsingBasicProjectorFeatures

Relatedconcepts

ImageShape

Relatedtasks

AdjustingtheImagePositionUsingLensShift

AdjustingtheImagePositionUsingLensShift

If you cannot install the project or directly in front of the screen, you can adjust the position of the projected image using the lens shift feature.

Note: Wait 30 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy.

1. Turnon the projector and display an image.

2. Turnthe vertical and horizontal shift dialson the project to adjust the position of the projected image as necessary.

1 Centeroflens
2Projectedimagewhenlensshiftissetinthecenter
3V×60%

4H×24%

Note: You cannot move the image to both the horizontal and vertical maximum values.

Followtheseguidelineswhenusinglensshifttoadjustyourimages:

- Whenadjustingtheimageheight,positiontheimagelowerthanwhereyouwantittobeandthenmoveitupusingtheverticallensshiftdial.Thiswillhelppreventtheimagefrommovingdownafter adjustment.

- Keepingtheverticalandhorizontallensshiftdialsintheircenterpositionsproducestheclearest picture.

Parenttopic: UsingBasicProjectorFeatures

ImageShape

Youcanprojectanevenlyrectangularimagebyplacingtheprojectordirectlyinfrontofthecenterofthe screenandkeepingitlevel.

CorrectingImageShapewiththeKeystoneButtons

Parenttopic: UsingBasicProjectorFeatures

CorrectingImageShapewiththeKeystoneButtons

Youcanusetheprojector'skeystonecorrectionbuttonstocorrecttheshapeofanimagethatis unevenlyrectangularonthesides.

Note: To use the keystone correction feature, you must first set the lens to the center-top position using the lensshiftdials.

1. Turnon the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Pattern button on theremotecontrol.

1. Pressone of these keystone buttons on the control panel to display the Keystone adjustment screen.

1. Pressakeystonebuttonontheprojector'scontrolpaneltoadjusttheimageshape.

Aftercorrection, your image is slightly smaller.

Note: If the projector is installed out of reach, you can also correct the image shape with the remote controlling the H/V-Keystonesettings in the projectormenus.

Parenttopic:ImageShape

ResizingthelmagewiththeZoomRing

1. Turnontheprojectoranddisplayanimage.Wait30minutesafterturningontheprojectorbefore settingthefocus,zoom,andlensshiftformaximumaccuracy.

Note: You can display a pattern to aid in adjusting the projected image using the Pattern button on theremotecontrol.

1. Toenlargeorreducetheimagesize, rotatetheprojector'szoomring.

Parenttopic: UsingBasicProjectorFeatures

FocusingtheImageUsingtheFocusRing

1. Turnontheprojectoranddisplayanimage.Wait30minutesafterturningontheprojectorbefore settingthefocus,zoom,andlensshiftformaximumaccuracy.

Note: You can display a pattern to aid in adjusting the projected image using the Pattern button on theremotecontrol.

1. Tosharpentheimagefocus, rotatetheprojector's focusring.

Parenttopic: UsingBasicProjectorFeatures

RemoteControlOperation

Theremotecontrolletsyoucontroltheprojectorfromalmostanywhereintheroom.Youcanpointitat thescreen,orthefrontorbackoftheprojector.

Makesurethatyouaimtheremotecontrolattheprojector'sreceiverswithinthedistanceandangles listedhere.

Vertical

132feet(10m)

2 ± 30^

Horizontal

132feet(10m)

2±30°

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or theprojectormaynotrespondtocommands. If you will not use theremote control for alongtime, removethebatteries.

Parenttopic: UsingBasicProjectorFeatures

SelectinganImageSource

If you connected multiple images our cestotheprojector, such as a computer and DVD player, you may want to switch from one images our ceto the other.

1. Makesuretheconnectedimagesourceyouwanttouseisturnedon.

2. For videoimagesources, insert a DVD or other videomedia and press its play button, if necessary.

3.Dooneofthefollowing:

- PresstheSourcebuttonontheprojectoruntilyouseetheimagefromthesourceyouwant.

- Pressthebuttonforthesourceyouwantontheremotecontrol.Ifthereismorethanoneportfor thatsource,pressthebuttonagaintocyclethroughthesources.

1HDMIportsources

2Componentsource

3Compositevideosource

4USBandnetworkportsources

5WirelessHDsources(PowerLiteHomeCinema3600e)

6PCport(VGA)source

Parenttopic: UsingBasicProjectorFeatures

ProjectionModes

Dependingonhowyoupositionedtheprojector,youmayneedtochangetheprojectionmodesoyour imagesprojectcorrectly.

- Front(defaultsetting)letsyouprojectfromatableinfrontofthescreen.

• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.
• Rearflipstheimagehorizontallytoprojectfrombehindattransluentscreen.
• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind atranslucentscreen.

ChangingtheProjectionModeUsingtheMenus

Parenttopic: UsingBasicProjectorFeatures

ChangingtheProjectionModeUsingtheMenus

You can change the projection modetoflipthe image over top-to-bottom and/or left-to-right using the projectormenus.

1. Turnon the projector and display an image.
   2.PresstheMenubutton.
2. SelecttheSettingsmenuandpressEnter.

1. SelecttheProjectionsettingandpressEnter.
2. SelectaprojectionmodeandpressEnter.
3. PressMenuorEsctoexitthemenus.

Parenttopic:ProjectionModes

ImageAspectRatio

Theprojectorcandisplayimagesindifferentwidth-to-heighttratioscalledaspectratios. Normally the inputsignalfromyourvideosourcedeterminestheimage'saspectratio. However, for certain images you can change the aspect ratio of your screen by pressing about on theremote control.

If you always want to use a particular aspect ratio for acertain video inputs from your can select it using the projector's menus.

ChangingtheImageAspectRatio

AvailableImageAspectRatio

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

InputSignalSettings-SignalMenu

ChangingthelmageAspectRatio

Youcanchangetheaspectratioofthedisplayedimagetoresizeit.

Note: For HDMI sources, the input signal determines the image's aspect ratio.

1. Turnon the projector and switch to the images source you want to use.
2. PresstheAspectbuttonontheremotecontrol.

Alistoftheavailableaspectratiosappears.

1. Tocyclethroughtheavailableaspectratiosforyourinputsignal, presstheupordownarrowbutton.
2. PressEntertoselecttheaspectratio.

Parenttopic:ImageAspectRatio

AvailableImageAspectRatio

You can select the following image aspect ratios, depending on the input signal from your images source.

Note: When the projector is in 3D mode, the aspect ratio is automatically set to Normal.

Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect ratio and resolution of your input signal.

AspectratiosettingDescription
AutoAutomaticallysetstheaspectratio	ioaccordingtotheinputsignal.
NormalDisplaysimagesusingthefull	projectionareaandmaintainstheaspectratiooftheimage.
ZoomDisplaysimagesusingthefullw	idthoftheprojectionareaandmaintainstheaspectratiooftheimage.
FullDisplaysimagesusingthefullwidthoftheprojectionarea,butdoes notmaintaintheaspectratio.

Note: The Auto aspect ratio setting is available only for HDMI, component, and WirelessHD image sources.

Parenttopic:ImageAspectRatio

ColorMode

TheprojectoroffersdifferentColorModestoprovideoptimumbrightness,contrast,andcolorfora varietyofviewingenvirnementsandimagetypes.Youcanselectamodedesignedtomatchyourimage andenvironment,orexperimentwiththeavailablemodes.

If you always want to use a particular color mode for certain video inputs, you can select it using the projectormenus.

ChangingtheColorMode

AvailableColorModes

TurningOnAutolris

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

InputSignalSettings-SignalMenu

ChangingtheColorMode

Youcanchangetheprojector'sColorModeusingtheremotecontroltooptimizetheimageforyourviewingenvironment.

1. Turnon the projector and switch to the imagesource you want to use.

2. If you are projecting from a DVD player or other videos source, insert ad disc or other video media and press the play button, if necessary.

3. PresstheColorModebuttonontheremotecontroltochangetheColorMode.

AlistofavailableColorModesappears.

1. TocyclethroughalltheavailableColorModesforyourinputsignal, presstheupordownarrow button.
2. PressEntertoselectaColorMode.

Parenttopic:ColorMode

AvailableColorModes

YoucansettheprojectortousetheseColorModes,dependingontheinputsourceyouareusing:

2DImages

ColorModeDescription
AutoSetsthecolormodeautomatically	basedonthebrightnessoftheroomdetectedbythebrightnesssensor(availableonlywhentheProjectionsettingintheSettingsmenuissettoFront)
DynamicBestforprojectinginabrightroom
LivingRoomBestforprojectinginaroomwithclosedcurtains
CinemaBestformoviesprojectedinadarkroom
NaturalBestforprojectinginadarkroom

3DImages

ColorModeDescription
3DDynamicBestforprojectinginabrightroom
3DCinemaBestformoviesprojectedinadarkroom

Parenttopic:ColorMode

TurningOnAutolris

In certain color modes, you can turn the AutoIrissetting to automatically optimize the image based on the brightness of the content you project.

1. Turnon the projector and switch to the images source you want to use.
   2.PresstheMenubutton.
2. Select theImagemenuandpressEnter.

1. Select the Autolrissetting and choose one of the following:

•HighSpeedtoadjustbrightnessassoonasthescenechanges.
•Normalforstandardbrightnessadjustment.

Note: You can set Auto Iris for each Color Mode that supports the feature.

1. PressMenuorEsctoexitthemenus.

Parenttopic:ColorMode

UsingPictureinPicture

YoucanusethePictureinPicturemodetoviewtwoimagesourcessimultaneously.

Note: You cannot use Picture in Picture while projecting 3D images or when Image Processing is set to FastintheSignalmenu.

1. PresstheP-in-Pbuttonontheremotecontrol.

ThesecondHDMIvideosourceappearsasasub-screeninthecorneroftheimage.

Note: While Picture in Picture mode is active, press the Menu button on the remote control to adjust the size and position of the sub-screen.

1. To swap the main screen and sub-screen video sources, press and hold the P-in-P button for at leastthreeseconds.
2. PresstheP-in-Pbuttonagaintoclosethesub-screenandresumenormalprojection.

AvailablePictureinPictureOptions

Parenttopic: UsingBasicProjectorFeatures

AvailablePictureinPictureOptions

You can adjust the following options by pressing the Menu button on the remote control while Picture in Picturemodeisactive:

SettingDescription
SubscreenSizeAdjuststhesizeofthesub-screen
SubscreenPositionAdjuststhelocationwherethesub-screenisdisplayed
SubscreenSourceSelectswhichsourceappearsinthesub-screen
SwapMain/SubSwitchesthevideos	sourcedisplayedonthemainscreenwiththesourcedisplayedonthesub-screen
ExitPictureinPictureClosesthesub	-screenandresumesnormalprojection

Parenttopic: UsingPictureinPicture

ControllingtheVolumewiththeVolumeButtons

You can use the Volume buttons on the projector or the remote control to adjust the volume as you projectapresentationwithaudio. Thevolumebuttonscontroltheprojector'sinternalspeakersystemor anyexternalspeakersyouconnectedtotheprojector(PowerLiteHomeCinema3500/3510/3600e).

Youmustadjustthevolumeseparatelyforeachconnectedinputsource.

1. Turnon the projector and start apresentation that includes audio.

2. To lower or raise the volume, press the Volume buttons on the remote control or these buttons on the control panel.

Avolumegaugeappearsonthescreen.

1. Tosetthevolumetoaspecificlevelforaninputsource, usetheprojectormenus.

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

ProjectingaSlideShow

You can use your projector's Slideshow feature whenever you connect a USB device that contains compatible image files. This lets you quickly and easily display slideshow, and control it using the projector's remote control.

SupportedSlideshowFileTypes

SlideshowFeatures

StartingaSlideShow

Parenttopic: UsingBasicProjectorFeatures

Relatedconcepts

USBDeviceProjection

Relatedtasks

ConnectingaUSBDeviceorCameratotheProjector

SupportedSlideshowFileTypes

Youcanprojectthesetypesoffilesusingtheprojector'sSlideshowfeature.

Note: For best results, place your files on mediathatis formatted in FAT16/32.

FilecontentsFile	typeDetails(extension)
Image.jpgMakes	urethefileisnot:	•CMYKformat•Progressiveformat•Highlycompressed•Above8192×8192resolution

Parenttopic: ProjectingaSlideShow

SlideshowFeatures

Yourprojector's Slideshowfeatureletsyoudothefollowing:

•Displayindividualimages

• Presentaslideshowofallimagesinafolder

Parenttopic: ProjectingaSlideShow

StartingaSlideShow

AfterconnectingaUSBdevicetotheprojector,youcanswitchtotheUSBinputsourceandstartyour slideshow.

Note: You can change the Slideshow operation options or add special effects by highlighting Option at thebottomofthescreenandpressingEnter.

1. PresstheUSB/LANbuttonontheprojectorremotecontrol.

The Slideshowscreenappears.

1. Dothefollowingasnecessarytolocateyourfiles:

2. If you need to display files inside as subfolder your device, press the arrow button to highlight the folder and press the Enter button.
   • To move back up a folder level on your device, highlight Back to Top and press Enter.
   • To view additional images in a folder, highlight Next page or Previous page and press Enter.

3.Dooneofthefollowingtostartyourslideshow:

• To display an individual image, press the arrow buttons to highlight the image and press Enter. (PresstheEscbuttontoreturntothefilelistscreen.)
• Todisplayaslideshowofalltheimagesinafolder,pressthearowbuttonstohighlghtthe SlideshowoptionatthebottomofthescreenandpressEnter.

Note: If any file names are longer than 8 characters or include unsupported symbols, the file names may be shortened or changed only in the screendisplay.

1. Whileprojecting, usethefollowingcommandstocontrolthedisplayasnecessary:

2. Torotateadisplayedimage, presstheupordownarrowbutton.

3. Tomovetothenextorpreviousimage, presstheleftorrightarrowbutton.

4. Tostopthedisplay, followtheon-screeninstructionsorpresstheEscbutton.

SlideshowDisplayOptions

Parenttopic: ProjectingaSlideShow

Relatedtasks

ConnectingaUSBDeviceorCameratotheProjector

DisconnectingaUSBDeviceorCameraFromtheProjector

SlideshowDisplayOptions

Youcanselectthesedisplayoptionswhenusingtheprojector'sSlideshowfeature.

SettingOptionsDescription
DisplayOrderNameOrder	erDisplaysfilesinnameorder
	DateOrderDisplaysfilesindateorder
SortOrderInAscending	Sortsfilesinfirst-to-lastorder
	InDescendingSortsfilesinlast-to-firstorder
ContinuousPlayOnDis	playsaslideshowcontinuously
	OffDisplaysaslideshowonetimethrough
ScreenSwitchingNoDoesTime	esnotdisplaythenextfileautomatically
	1Secondto60SecondsDisplays	filesfortheselectedtimeandswitchestothenextfileautomatically;highresolutionimagesmayswitchataslightly slowerrate
EffectWipeTransitionsbetweenimageswithawipeeffect
		DissolveTransitionsbetweenimageswithadissolve effect
		RandomTransitionsbetweenimagesusingarandom varietyofeffects

Parenttopic: StartingaSlideShow

AdjustingProjectorFeatures

Followtheinstructionsinthesesectionstouseyourprojector'sfeatureadjustments.

ShuttingOffthePictureandSoundTemporarily

AdjustingtheColorConvergence(PanelAlignment)

SavingSettingstoMemoryandUsingSavedSettings

ProjectorSecurityFeatures

ShuttingOffthePictureandSoundTemporarily

Youcantemporarilyturnofftheprojectedpictureandsoundifyouwanttoredirectyouraudience's attentionduringapresentation.Anysoundorvideoactioncontinuestorun,however,soyoucannot resumeprojectionatthepointthatyoustoppedit.

1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.

1. Toturnthepictureandsoundbackon, press A/VMuteagain.

Note: To mute only the audio, press the Mute button on the remote control.

Parenttopic: Adjusting Projector Features

AdjustingtheColorConvergence(PanelAlignment)

YoucanusethePanelAlignmentfeaturetomanuallyadjustthecolorconvergence(thealignmentofthe red, greenandbluecolors)intheprojectedimage.

Note: Allow your projector to warm up for at least 10 to 15 minutes and make sure the image is in focus before you set the Panel Alignment feature. The projected images should be a minimum of 60 inches (152cm) diagonally and the projections surfaces should not be colored or textured, otherwise the adjustment grid will be difficult to align.

1. Turnon the projector.
   2.PresstheMenubutton.
2. SelecttheSettingsmenuandpressEnter.
3. SelectthePanelAlignmentsettingandpressEnter.

1. SelectthePanelAlignmentsettingandpressEnter.

6.SelectOnandpressEnter.

1. SelecttheSelectColorsettingandchooseoneofthefollowing:

•Rtoadjusttheredcolorconvergence.
•Btoadjustthebluecolorconvergence.

Note: You can only adjust the red or blue color convergence. Green is the standard color panel and cannotbeadjusted.

1. Select the PatternColorsetting and press Enter.

2. Select the pattern you want to use and press Enter.

3. SelectStartAdjustmentsandpressEnter.

Youseethisscreen:

[Panel Alignment]

Adjust the entire LCD panel first.

1. PressEnter.

Youseeascreenlikethis:

Grid pattern with uniform black squares and white borders (no text or symbols)

1. Usethearrowbuttonsontheremotecontroltoadjustthecoloralignmentofthecoloryouselected fortheSelectColorsetting.

Note: Your adjustments affect the gridlines in the entire screen. You can fine-tune your adjustments by continuing with then next steps.

1. When you are finished adjusting the screen, press Enter.

Youseethisscreen:

1. SelectAdjustthefourcornersandpressEnter.
2. Usethearrowbuttonsontheremotecontroltoadjustthecoloralignmentinthecornerofthescreen highlightedbytheorangebox.

Grid of black squares with one highlighted square in the top-left corner (no text or symbols)

16.PresstheEnterbuttontomovetothenextcornerofthescreen.
17. When you are finished adjusting each corner of the screen, press Enter.

Youseethisscreen:

[Panel Alignment]

Adjustment complete.

To make finer adjustments, you can also select any intersection and then adjust.

18.Dooneofthefollowing:

• If your projector's panel alignment is now correct, select Exit and press Enter to return to the PanelAlignmentmenu.
• If your projector needs additional panel alignment, select Select intersection and adjust and press Enter. Use the arrow key son theremote control to highlight the corner of any box on the screent hatism is aligned and press Entertoadjust the color convergence. Repeat this step as necessary.

Parenttopic:AdjustingProjectorFeatures

SavingSettingstoMemoryandUsingSavedSettings

Youcansavecustomizedsettingsforeachofyourvideoinputsandthenselectthesavedsettings wheneveryouwanttousethem.

1. Turnon the projector and display an image.
   2.PresstheMenubutton.

Note: You can also press the Memory button on the remote control to access the Memory menu directly.

3. Youseethisscreen:

4. Selectone of the following options:

• LoadMemory: Overwritesyourcurrentsettingswithsavedsettings
• SaveMemory: Savesyourcurrentsettingstomemory(10memorieswithdifferentnamesare available)

Note: Amemorynamethathasalreadybeenusedisindicatedbyagreenbluemark.Savingover apreviouslysavedmemoryoverwritesthesettingswithyourcurrentsettings.

• EraseMemory: Erasestheselectedmemorysettings
  •RenameMemory: Renamesasavedmemory

5. PressEsctoexit.

Parenttopic:AdjustingProjectorFeatures

Relatedreferences

ProjectorMemoryOptions-MemoryMenu

ProjectorSecurityFeatures

You can secure your project to do a deter the for prevent unintended use by setting up the following security features:

- Buttonlocksecuritytoblockoperationoftheprojectorusingthebuttonsonthecontrolpanel

• Securitycablingtophysicallycabletheprojectorinplace.

LockingtheProjector'sButtons

InstallingaSecurityCable

Parenttopic:AdjustingProjectorFeatures

LockingtheProjector'sButtons

Youcanlockthebuttonsontheprojector'scontrolpaneltopreventanyonefromusingtheprojector.

Note: You can use the remote control to control the projector when the control panel buttons are locked.

1. PresstheMenubutton.
2. SelecttheSettingsmenuandpressEnter.

1. SelecttheLockSettingsettingandpressEnter.
2. SelectoneoftheselocktypesandpressEnter:

- To lock the projector's power button, select Child Lock. To turn the projector on, you must press the power button for longer than three seconds.

Note: ChildLock does not prevent the projector from turning on when the power cord is connected if the Direct Power On Setting is set to On

- Tolockallbuttonsexceptthepowerbutton,selectControlPanelLock. Thelockiconis displayedonthescreenifanycontrolpanelbuttonsarepressedwhilethissettingisenabled.

Youseeaconfirmationprompt.

1. SelectYesandpressEnter.
   6.Restarttheprojectorforthelocksettingstotakeeffect.

UnlockingtheProjector'sButtons

Parenttopic: ProjectorSecurityFeatures

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

UnlockingtheProjector'sButtons

If the projector's buttons have been locked, hold the Enter button on the projector's control panel for sevensecondstounlockthem.

Parenttopic:LockingtheProjector'sButtons

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

InstallingaSecurityCable

YoucanusethesecurityslotonthebackoftheprojectortoattachaKensingtonMicrosaverSecurity system,availablefromEpson.

Parenttopic: ProjectorSecurityFeatures

Relatedreferences

OptionalEquipmentandReplacementParts

ProjectorParts-Rear

UsingWirelessHD

YoucanusetheincludedWirelessHDtransmittertowirelesslystreamHDcontentfromavideodeviceto theprojector(PowerLiteHomeCinema3600e).

WirelessHDTransmitterParts

WirelessHDTransmitterPlacement

ConnectingtheWirelessHDTransmitter

ViewingWirelessHDContent

SwitchingWirelessHDSources

UsingtheWirelessHDPictureinPictureFeature

WirelessHDTransmitterParts

1 ⏻ powerbutton(turnsthetransmitteronoroff)

2Inputbutton(cyclesthroughimagesources)

3 Output button (cycles output signal between the projector and a display device connected to the transmitter's Outputport)

4Powerswitch(turnsthetransmitteronoroff)

5ACadapterport(connectstheACadapter)

6Optical(OUT)port(connectstodeviceswithanopticaldigitalaudioinputport)

7HDMI(OUT)port(connectstodisplaydevicessuchasatelevision)

8HDMinputports(connecttoyourinputdevices;HDMI/MHLportonthesideoftransmitter)

93Dglasseschargingport(connectsaUSBcabletochargethe3Dglasses)

10 Setupbutton(pressfor5secondstoresetthetransmitter'ssettings)

11 ⏻ powerlight(lightsgreenwhentransmitterisoperatingorturnedon;lightsorangewhenthe transmitterisonstandby)

12WiHDlight(lightsorangewhensendingawirelesssignaltotheprojector)

13Linklight(lightsorangewhenconnectedtotheprojector;flashesorangewhensearchingforthe projectororwhenonstandby)

Parenttopic: Using WirelessHD

WirelessHDTransmitterPlacement

KeeptheseconsiderationsinmindasyouselectaWirelessHDtransmitterlocation:

- OrienttheWirelessHDtransmitterwithitslightsfacingthefrontoftheprojector.

- PlacetheWirelessHDtransmitterwithin32feet(10m)oftheprojectorandinthesameroom.

- EnsurethereisaclearpathbetweenheprojectorandtheWirelessHDtransmitter.

- AvoidplacingtheWirelessHDtransmitterinanareawithmanylargeormetalobjects.Donotplacethe WirelessHDtransmitteronametalsurface,asthismayinterferewiththesignal.

Parenttopic: Using Wireless HD

ConnectingtheWirelessHDTransmitter

YoucanconnectuptofiveHDMinputsourcesandoneHDMIoutputsourcetoyourWirelessHD transmitter.

1. PlugtheACadapterintotheACinputportontheWirelessHDtransmitterandintoanelectrical outlet.

1. ConnectHDMcablestoyourvideodevicesandtotheHDMinputportsonthesideandbackofthe WirelessHDtransmitter.

Illustration of a network switch with multiple Ethernet ports and external cables (no text or symbols)

Note: You can connect an MHL-compatible smartphone or tablet to the HDMI 5 / MHL (IN) port on the WirelessHDTransmitter.

1. TousetheWirelessHDtransmitterasapass-throughdevicetoatelevisionorotherdisplay, connect anHDMIcabletothedisplaydeviceandtotheHDMI(OUT)portonthebackofthetransmitter.

Illustration of a wireless router with a blue cable connector and red indicator light (no text or symbols)

Parenttopic: Using Wireless HD

ViewingWirelessHDContent

YoucanprojectcontentwirelesslyfromanydeviceconnectedtotheWirelessHDtransmitter.

1. Turnonthevideoequipmentorcomputeryouconnectedtothetransmitterandwanttoprojectfrom.
2. Pressthepowerswitchonthesideofthetransmittertoturnonthetransmitter.
3. Turnon the projector.
4. PresstheWirelessHDbuttonontheremotecontrol.

TheWiHDlightonthetransmitterlightsupandyourprojectordisplayscontentwirelessly.

Note: If the WirelessHD connection fails, press the Setup button on the bottom of the WirelessHD transmitterandtryagain.

Parenttopic: Using Wireless HD

SwitchingWirelessHDSources

If you have connected multiple HDMI inputs source to your Wireless HD transmitter, you can use the projector remote control to switch between sources.

1. AimtheremotecontrolattheWirelessHDtransmitter.
2. PresstheInputbuttonontheremotecontrolortheWirelessHDtransmitter.

Youseethisscreen:

1. PresstheInputbutton repeatedly to highlight different input sources.

1. When you have highlighted the source you want to switch to, release the input button.

Afterafewseconds, thedisplayswitchestothethighlightedsource.

Parenttopic: Using Wireless HD

UsingtheWirelessHDPictureinPictureFeature

If you have connected multiple video source to the Wireless HD transmitter, you can use the Picture in Picture (P-in-P) feature to wirelessly project images from two separate sources at the same time.

1. PresstheP-in-Pbuttonontheremotecontrol.

2. DothefollowingtocontroltheP-in-Pdisplay:

3. Press the Input button on the remote control or the WirelessHD transmitter to change the video sourcedisplayedinthesub-screen. Keeppressingthebuttontocyclethroughalloftheconnected videodevices.

4. PresstheOutputbuttonontheremotecontrolortheWirelessHDtransmittertochangethe positionofthesub-screen. Thescreenmovescounterclockwisefromcornertocornereachtime youpresstheOutputbutton.

5. Press and hold the P-in-P button on the remote control to switch the sources shown in the main displayandthesub-screen.

6. When you are finished using Picture in Picture, press the P-in-P button on the remote control to resumenormalprojection.

Parenttopic: Using WirelessHD

AdjustingtheMenuSettings

Followtheinstructionsinthesesectionstoaccesstheprojectormenusystemandchangeprojector settings.

UsingtheProjector'sMenus

ImageQualitySettings-ImageMenu

InputSignalSettings-SignalMenu

ProjectorFeatureSettings-SettingsMenu

ProjectorMemoryOptions-MemoryMenu

ProjectorNetworkSettings-NetworkMenu

ProjectorInformationDisplay-InfoMenu

ProjectorResetOptions-ResetMenu

UsingtheProjector'sMenus

Youcanusetheprojector'smenustoadjustthesettingsthatcontrolhowyourprojectorworks. The projectordisplaysthemenusonthescreen.

1. Pressthe Menubutton on the control panel or remote control.

Youseethemenuscreendisplayingthelmagemenusettings.

1. Presstheupordownarrowbuttontomovethroughthemenuslistedontheleft. Thesettingsfor eachmenuaredisplayedontheright.

Note: The available settings depend on the current input source.

1. Tochangesettingsinthedisplayedmenu, pressEnter.
2. Presstheupordownarrowbuttontomovethroughthesettings.
3. Changethesettingsusingthebuttonslistedonthebottomofthemenuscreens.
4. Toreturnallthemenusettingstotheirdefaultvalues, selectReset.
5. When you finish changing settings on an amino, press Esc.
6. PressMenuorEsctoexitthemenus.

Parenttopic:AdjustingtheMenuSettings

ImageQualitySettings-ImageMenu

SettingsonthImagemenuletyouadjustthequalityofyourimagefortheinputsourceyouarecurrently using. Theavailablesettingsdependonthecurrentlyselectedinputsource.

Tochangesettingsforaninputsource,makesurethesourceisconnectedandselectthatsource.

SettingOptionsDescription
ColorModeSeethelistofavailableC	ColorAdjuststhevividnessofimage Modescolorsforvariousimagetypes	andenvironments
BrightnessVaryinglevelsavailable	Lightensordarkenstheoverall	image
ContrastVaryinglevelsavailableAdjuststhedifferencebetween		lightanddarkareasoftheimage
ColorSaturationVaryinglevelsavailableAdjuststhebalanceofgreento		colors
TintVaryinglevelsavailableAdjuststhebalanceofgreento		magentatonesintheimage
SkinToneVaryinglevelsavailableMakesfineadjustmentstothe		colortone;highervaluestintthe imagegreenandlowervalues tinttheimagered
SharpnessVaryinglevelsavailable	Adjuststhesharpnessor	softnessofimagedetails
ColorTemp.(colortemperature)Va	ryinglevelsavailableSetstheoverall	colortone:higher valuestintheimageblueand lowervaluestinttheimagered
AdvancedGammaSelectsthevariousdetailedcolorRGBRGBCMYEpsonSuperWhite*		settingsGamma:adjuststhegamma levelsoftheimageRGB:adjuststheoffsetandgain foreachcolorRGBCMY:adjuststhehue, saturation,andbrightnessfor eachcolorEpsonSuperWhite:reduces over-exposureofwhitesinyour image
PowerConsumptionHighAdjuststhebrightnesslevel,MediumECO		powerusage,andfannoise;selectECOforthelowestlevel
AutolrisOffAdjuststheprojectedluminanceNormalHighSpeed		basedontheimagebrightness whencertainColorModesare selected

* Can only be set when Color Mode is set to Natural, Cinema, or 3D Cinema and receiving an input signal from the HDMI 1 or HDMI 2 ports, or from the WirelessHD transmitter.

Note: The Brightness setting does not affect lamp brightness. To change the lamp brightness mode, usethePowerConsumptionsetting.

Parenttopic:AdjustingtheMenuSettings

Relatedconcepts

ColorMode

InputSignalSettings-SignalMenu

Normally the project or detects and optimizes the input signal settings automatically. If you need to customize these settings, you can use the Signal menu. The available settings depend on the currently selected inputs source.

Tochangesettingsforaninputsource,makesurethesourceisconnectedandselectthatsource.

SettingOptionsDescription
3DSetup3DDisplaySelectsvarious	3Doptions2D-to-3DConversion3DDisplay:enables3Dmode(PowerLiteHomeCinema2D-to-3D3500/3510/3600e)2Dimagesto3D3DFormat3DFormat:selectsthe3D3DDepthDiagonalScreenSize3DBrightnessInverse3DGlasses3DViewingNotice	Conversion:convertsformat3DDepth:setsthedepthforthe3DimageDiagonalScreenSize:setstheactualsizeofthescreentomaximizethe3Defect3DBrightness:adjuststhebrightnessofthe3DimageInverse3DGlasses:reversesthimagesprojectedfortheleftandrighteyes(enableonlyif3Dimagesarenotdisplayingcorrectly)3DViewingNotice:enablestheviewingnoticeddisplayedwhen3Dmodeisactivated
AspectSeethelistofavailableaspect	Setstheaspectratio(width-to-ratiosheightratio)fortheselectedinput	source;notavailableforHDMI sources
TrackingVaryinglevelsavailableAdjustssignaltoeliminate		verticalstripesincomputer images
Sync.VaryinglevelsavailableAdjusttssignaltoeliminate		fuzzinessorflickeringincomputerimages
PositionUp,down,left,right	Adjuststheimagelocationonthe screen
Deinterlacing*OffSetswhethertodo	convertVideoFilm/Auto	interlacedtoprogressivesignals forcertainvideoimagetypesOff:forfast-movingvideoimagesVideo:formostvideoimagesFilm/Auto:formovies,computer graphics,andanimation
MotionDetection1to5Selectshow	theimageis	convertedtoaprogressivesignal (Adjustthissettingifyou experienceproblemswithstill imagequalityorflickeringvideo. Selectalowersettingforstill imagesorahighersettingfor fast-movingvideocontent.)
Super-resolution0to5Adjuststher	resolutionand	contrastofimages
(PowerLiteHomeCinemaDetailEnhancement3500/3510/3600e)0to5:sharpensblurredimages		DetailEnhancement:adjusts imagecontrast
AutoSetupOnAutomaticallyoptim	zesOff	computerimagequalitywhenset toOn
AdvancedNoiseReductionNoise	Reduction: reducesSetupLevelOverscanHDMIVideoRangeImageProcessing	flickeringinanalogimagesin threelevelsSetupLevel: adjuststhelevelat whichdarkareasoftheimage arerenderedblack;leavethis settingat0%formostvideo equipment;checkyourvideo equipmentspecificationstoverify thecorrectsettingOverscan: changesthe projectedimageratiotomakethe edgesvisiblebyaselectable percentageorautomaticallyHDMIVideoRange: setsthe videorangetomatchthesetting ofthedeviceconnectedtothe HDMInputportImageProcessing: adjustshow imagesareprocessed;select Fasttodisplayimagesquickeror Finetodisplayimagesinhigher quality

* You can set Deinterlacing only when receiving an input signal from the Video port or when receiving 480i, 576i or 1080i signals from the Component, HDMI 1, or HDMI 2 ports, or from the WirelessHD transmitter(PowerLiteHomeCinema3600e).

Note: The Reset setting does not reset the Diagonal Screen Size, 3D Viewing Notice, Aspect, and ImageProcessingsettings.

Parenttopic:AdjustingtheMenuSettings

Relatedreferences

AvailableImageAspectRatio

Relatedtasks

Viewing3DImages

ProjectorFeatureSettings-SettingsMenu

Options on the Settings menu let you customize various projector features.

SettingOptionsDescription
H/V-KeystoneV-KeystoneAdjuststheangleoftheH-Keystone		horizontalandverticalsidesin theprojectedimage
AudioVolumeAdjuststheprojector'saudio(PowerLiteHomeCinemaInverseAudio3500/3510/3600e)Volume:adjuststhevolume		outputInverseAudio:invertstheleft andrightaudiooutputchannels;selectOnwhenprojectingfroma ceilingandplayingsoundfrom theprojector'sspeakers
HDMILinkDeviceConnectionsAdjuststheHDMILinkoptionssoHDMILinkAudioOutDevicePowerOnLinkPowerOffLink	youcanusetheprojectorremotetocontrolHDMI-connecteddevicesthatsupporttheCECstandardDeviceConnections:liststhedevicesconnectedtotheHDMI1andHDMI2ports,ortotheWirelessHDtransmitter(PowerLiteHomeCinema3600e)HDMILink:enablesordisablestheHDMILinkfunctionAudioOutDevice:selectswhethertooutputaudiofromtheinternalspeakersoraconnectedaudio/videosystemPowerOnLink:controlswhathappenswhenyouturnontheprojectororlinkeddevice•PJ->DeviceorBidirectional:turnsthelinkeddeviceonwhentheprojectoristurnedon•Device->PJorBidirectional:turnstheprojectoronwhenthelinkeddeviceisturnedonPowerOffLink:controlswhetherlinkeddevicesareturnedoffwhentheprojectoristurnedoff
WirelessHDDeviceConnections(PowerLiteHomeCinema3600e)Wi	Adjustssettingsforusewiththe WirelessHD Reception WiHDMode Reset	WirelessHDtransmitterDeviceConnections:displaysa listofavailableWirelessHD devicesWirelessHD:controlswhether theprojectorreceives WirelessHDsignalsReception:displaysthestrength oftheWirelessHDsignalWiHDMode:adjuststhe WirelessHDsignalstrengthand range•Full:usesthemaximumvideo bandwidthtataltimes•Dynamic:providesextended signalrangewhileadjusting thevideobandwidthinreal time;ifyourWirelessHDsignal isweak,tryselectingthis settingReset:resetstheWirelessHD settingstothedefaultsettings (projectoronly)*
LockSettingChildLockControlspro	jectorbuttonlockingControlPanelLock	tosecuretheprojectorChildLock:locksthepower buttonControlPanelLock:locksall buttonsexceptthepowerbutton
ProjectionFrontSelectsthewaytheprojectorFront/CeilingRearRear/Ceiling		facesthescreensotheimageisorientedcorrectly
UserButton2D-to-3DConversionAssignsamenuoptiontothePowerConsumptionInfo		Userbuttonontheremotecontrolforone-touchaccess
PictureinPictureSeethelistofavailablePictureinAdjuststhesizeandlocationofPictureoptionsthesub-screen,swapssources,andexitsPictureinPicturemode
OperationDirectPowerOnSelectsvariousoperationoptionsSleepModeDirectPowerOn:turnsontheIlluminationTriggerOutHighAltitudeMode		projectorwhenyouplugitinSleepMode:automaticallyplacestheprojectorinstandbymodeafteranintervalofinactivityIllumination:turnsoffthelightsontheprojectorTriggerOut:outputsasignal(12♠VDC)thatcommunicatestheprojector'son/offstatustoanydeviceconnectedtotheTriggerOutportHighAltitudeMode:regulatestheprojector'soperatingtemperatureataltitudesabove4921feet(1500m)
DisplayMessagesSelectsvarious	displayoptions
	DisplayBackgroundMessages: StartupScreen StandbyConfirmation	controlswhether messagesaredisplayedonth screen DisplayBackground:selects thecreencolororlogoto displaywhennosignalis received StartupScreen:controls whetheraspecialscreen appearswhentheprojectorstarts up StandbyConfirmation:displays aconfirmationmessageafter pressingtheStandbybuttonon theremotecontrol
PanelAlignmentPanelAlignment	Correctscolormisalignmentin SelectColor PatternColor StartAdjustments Reset	theprojectedimage PanelAlignment:enables adjustmentsforcolor convergence(thealignmentof theredandbluecolorsinthe projectedimage) SelectColor:specifiesthecolor convergencetocorrect PatternColor:specifiesthe colorpatternusedduringpanel alignment StartAdjustments:startsthe PanelAlignmentfeature Reset:resetsthecorrection values
LanguageVariouslanguagesavailable	Selectsthelanguagefor	projectormenuandmessage displays(notchangedbyReset option)

*Resetstheprojector'ssettingsbutdoesnotresettheWirelessHDtransmittersettings.Toresetthe WirelessHD transmitter, press the Setup button on the base of the transmitter for at least 5 seconds.

Note: The Reset setting does not reset the Inverse Audio, Audio Out Device, Power On Link, Power Off Link, Projection, User Button, High Altitude Mode, and Language settings.

Parenttopic:AdjustingtheMenuSettings

Relatedreferences

AvailablePictureinPictureOptions

Relatedtasks

LockingtheProjector'sButtons

UnlockingtheProjector'sButtons

ProjectorMemoryOptions-MemoryMenu

Yourprojectorcomeswith10memorylocationswhereyoucansavecustomizedsettingstoobtainthe bestpicturequalityforeachofyourvideoinputs.

SettingDescription
LoadMemoryDisplaythelistofcustomizedsettingsentriesthatyouhavecreated;selectanentryandpressEnterontheremotecontrolto loadit
SaveMemorySavesthecurrentprojectorsettingstotheprojector'smemory
EraseMemoryDisplaythelistofcustomizedsettingsentriesthatyouhavecreated;selectanentryandpressEnterontheremotecontrolto eraseit
RenameMemoryDisplaythelistofcustomizedsettingsentriesthatyouhavecreated;selectanentryandpressEnterontheremotecontrolto renameit

Parenttopic:AdjustingtheMenuSettings

ProjectorNetworkSettings-NetworkMenu

SettingstheNetworkmenuletyouviewnetworkinformationandsetuptheprojectorforcontroloveranetwork.

SettingOptionsDescription
Net.Info-WirelessLANConnection	nmodeDisplayswirelessnetworkstatusWirelessLANsystemAntennalevelProjectorNameSSIDDHCPIPAddressSubnetMaskGatewayAddressMACAddressRegionCode	anddetails
NetworkConfigurationAccesses	additionalnetworkConfiguresyournetworksettingsmenus

Parenttopic: Adjusting theMenu Settings

ProjectorInformationDisplay-InfoMenu

YoucandisplayinformationabouttheprojectorandinputsourcesbyviewingtheInfomenu.However, youcannotchangeanysettingsinthemenu.Theinformationdisplayeddependsonthecurrently selectedinputsource.

Note: The lamp usage timer does not register any hours until you have used the lamp for at least 10 hours. Available settings depend on the current input source.

SettingOptionsDescription
ProjectorInfoLampHoursDisplay	sthenumberofhours(H)	thelamphasbeenusedineach PowerConsumptionmode;ifthe informationisdisplayedinyellow, obtainagenuineEpson replacementlampsoon
	SourceDisplaysthenameoftheport	to whichthecurrentinputsourceis connected
	InputSignalDisplaystheinputsigna	ltype settingofthecurrentinputsource
	ResolutionDisplaystheresolution	ofthe currentinputsource
	ScanModeDisplaysthescanmode	(progressiveorinterlaced)
	RefreshRateDisplaystherefreshra	teofthe currentinputsource
	3DFormatDisplaysthe3Dformatof	the currentinputsource
	SyncInfoDisplaysinformationthat	maybe neededbyaservicetechnician
	DeepColorDisplaysDeepColorinfo	mation
	VideoSignalDisplaysthevideosign	alformat ofthecurrentinputsource
	StatusDisplaysinformationabout	projectorproblemsthatmaybe neededbyaservicetechnician
	SerialNumberDisplaystheprojector	'sserial number
	EventIDDisplaystheEventIDnumber	correspondingtoaspecific projectorproblem;seethelistof EventIDcodes
VersionMainDisplaysthefirmware	versionofVideoVideo2	theprojector

EventIDCodeList

Parenttopic:AdjustingtheMenuSettings

Relatedreferences

OptionalEquipmentandReplacementParts

Relatedtasks

ReplacingtheLamp

ResettingtheLampTimer

EventIDCodeList

If the Event ID option on the Info menu displays a code number, check this list of Event ID codes for the solution to the projector problem associated with the code.

EventIDcodeCause	seandsolution
0432TheEasyMP	NetworkProjectionprogramdidnotstart.Turntheprojectoroffand thenonagain.
0435
0434Unstablenet	workcommunication.Checkthenetworkcommunicationstatus,waita fewmoments,andtryconnectingtothenetworkagain.
0481
0482
0485
0433Cannotdisplay	ythetransferredimages.RestarttheEasyMPNetworkProjection program.
0484Communicat	onwithcomputerwasdisconnected.RestarttheEasyMPNetwork Projectionprogram.
0483TheEasyMP	NetworkProjectionprogramquitunexpectedly.Checkthenetwork communicationstatus,thenturntheprojectoroffandthenonagain.
04FE
0479Aprojectorsystemerrorhasoccurred.Turntheprojectoroffandthenonagain.
04FF
0891CannotfindanaccesspointwiththesameSSID.Setyourcomputer,accesspoint,andprojectortothesameSSID.
0892TheWPA/WPA2authenticationtypedoesnotmatch.Makesurethewirelessnetworksecuritysettingsarecorrect.
0894Communicatonwithunauthorizedaccesspointwasdisconnected.Contactyournetworkadministrator.
0898FailedtoacquireDHCPaddress.MakesuretheDHCPserverisoperatingcorrectly.IfyouarenotusingDHCP,turnofftheDHCPsettingintheNetworkmenus.
0899Acommunicationerrorhasoccurred.TryrestartingtheEasyMPNetworkProjectionprogramandrestartingyourprojector.Ifthatdoesnotsolvetheproblem,contactEpsonforhelp.

Parenttopic:ProjectorInformationDisplay-InfoMenu

ProjectorResetOptions-ResetMenu

You can reset most of the projector settings to their default values using the Reset All option on the Resetmenu.

You can reset the projector's lamp usage timer to zero when you replace the lamp using the Reset Lamp Hours option and you can also reset all memory entries using the Reset Memory option.

You cannot reset the following settings using the ResetAlloption:

•Language

•LampHours

- Memorysettings

- AllsettingsintheNetworkmenu

-PanelAlignment

Parenttopic:AdjustingtheMenuSettings

MaintainingandTransportingtheProjector

Followtheinstructionsinthesesectionstomaintainyourprojectorandtransportitfromplacetoplace.

ProjectorMaintenance

TransportingtheProjector

ProjectorMaintenance

Yourprojectorneedslittlemaintenancetokeepworkingatitsbest.

Youmayneedtocleanthelensperiodically, andcleantheairfilterandairventstoppreventtheprojector fromoverheatingduetoblockedventilation.

Theonlypartsyoushouldreplacearethelamp,airfilter,andremotecontrolbatteries.Ifanyotherpart needsreplacing,contactEpsonoranauthorizedEpsonservicer.

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except a specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Warning: Do not try to service this product yourself, except as specifically explained in this manual. Referallotherservicingtoqualifiedservicers.

CleaningtheLens

Cleaningthe3DGlasses

CleaningtheProjectorCase

AirFilterandVentMaintenance

ProjectorLampMaintenance

ReplacingtheRemoteControlBatteries

Parenttopic: Maintaining and Transporting the Projector

Relatedreferences

WheretoGetHelp

CleaningtheLens

Cleantheprojector'slensperiodically,orwheneveryounoticedustorsmudgesonthesurface.

• Toremovedustorsmudges, gentlywipethelenswithlens-cleaningpaper.

- Toremovestubbornsmudges, moistenasoft, lint-freeclothwithlenscleanerandgentlywipethelens. Donotsprayanyliquiddirectlyonthelens.

Warning: Donotusealenscleaner that contains flammable gas. The high heat generated by the projector lamp may cause a fire.

Caution: Do not use glass cleaner or any harsh materials to clean the lens and do not subject the lens toanyimpacts;youmaydamageit.Donotusecannedair,orthegasesmaybearesidue.Avoid touchingthelenswithyourbarehandstopreventfingerprintsonordamagetothelenssurface.

Parenttopic: Projector Maintenance

Cleaningthe3DGlasses

Toremovedust, dirt, smudges, orfingerprints from the glasses, use alint-freecloth.

Note: Unpluganych charging cables from the glasses before cleaning them.

Illustration of a hand holding a tool, no text or symbols present

Caution: Donotusepapertowelsoranyotherabrasivematerialstocleantheglasses.

Parenttopic: Projector Maintenance

CleaningtheProjectorCase

Beforecleaningtheprojectorcase,turnofftheprojectorandunplugthepowercord.

• Toremovedustordirt, useasoft, dry, lint-freecloth.

- Toremovestubborndirt, useasoftclothmoistenedwithwaterandmildsoap. Donotsprayliquid directlyontheprojector.

Caution: Do not use wax, alcohol, benzine, paint thinner, or other chemicals to clean the projector case. Thesecandamagethecase.Donotusecannedair,orthegasesmayleavearesidue.

Parenttopic: Projector Maintenance

AirFilterandVentMaintenance

Regularfiltermaintenanceisimportanttomaintainingyourprojector.YourEpsonprojectorisdesigned withaneasilyaccessible,user-replaceablefiltertoprotectyourprojectorandmakeregularmaintenance simple.Filtermaintenanceintervalswilldependontheenvironment.

Ifregularmaintenanceisnotperformed,yourEpsonprojectorwillnotifyyouwhenthetemperature insidetheprojectorhasreachedahighlevel.Donotwaituntilthiswarningappearstomaintainyour projectorfilterasprolongedexposuretohightemperaturesmayreducethelifeofyourprojectorlamp.

DamageduetothefailuretoproperlymaintaintheprojectororitsfiltermaynotbecoveredbytheprojectorlampLimitedWarranties.

CleaningtheAirFilter ReplacingtheAirFilter

Parenttopic: Projector Maintenance

Relatedreferences ProjectorLightStatus

CleaningtheAirFilter

Youneedtocleantheprojector'sairfilterinthefollowingsituations:

•Thefilterorventsgetdusty.

- Youseeamessagetellingyoutocleanit.

1. Turnoff the projector and unplug the power cord.

2. Liftthetabonthebottomoftheairfiltercoverandpulldowntoremovethecover.

1. Pulltheairfilteroutoftheprojector.

Illustration of a projector with a blue cover and a hand inserting a component (no text or symbols)

1. Tapeachsideoftheairfilter4to5timestoshakeoffanyexcessdust.

Illustration of a hand holding a blue rectangular device with a red arrow indicating rotation (no text or symbols)

Caution: Donotuse excessive force when tapping the air filter, or it may crack and become unusable. Donotinset the air filter in water, or use any detergent or solvent to clean it. Donotuse canned air; the gases may leave a residue, or push dust and debris into the projector's optics or others sensitive areas.

1. Vacuum the front of the air filter (thesidewith the abs) to remove any remaining dust.

Note: If dust is difficult to remove the air filter is damaged, replace the air filter.

1. Placetheairfilterbackintheprojectorasshown.

Illustration of a projector with a blue panel inserted, showing a hand interacting with the screen (no text or symbols present)

1. Attach the air filter cover as shown, and press it gently until it clicks in to place.

Parenttopic: AirFilterandVentMaintenance

Relatedtasks

ReplacingtheAirFilter

ReplacingtheAirFilter

Youneedtoreplacetheairfilterinthefollowingsituations:

• Aftercleaningtheairfilter, youseeamessagetellingyoutocleanorreplaceit

•Theairfilteristornordamaged

Youcanreplacetheairfilterwhiletheprojectorismountedtotheceilingorplacedonatable.

1. Turnoff the projector and unplug the power cord.
2. Liftthetabonthebottomoftheairfiltercoverandpulldowntoremovethecover.

1. Pulltheairfilteroutoftheprojector.

Illustration of a projector with a blue control panel being inserted, showing no text or symbols.

Note: Air filters contain polypropylene. Dispose of used air filters according to local regulations.

1. Placethenewairfilterintheprojectorasshown.

Illustration of a projector with a blue panel inserted, showing a hand interacting with the module (no text or symbols present)

1. Closetheairfiltercover.
2. Attach the air filter cover as shown, and press it gently until it clicks in to place.

Parenttopic: AirFilterandVentMaintenance

ProjectorLampMaintenance

The projector keep a stack of the number of hours the lamp is used and displayed this information in the projector's menusystem.

Replacethelampassoonaspossiblewhenthefollowingoccurs:

• The projected image gets darker or start stodeteriorate
- Amessageappearswhenyouturnontheprojectortellingyoutoreplacethelamp
• The projector's lamplightis flashing orange and its power light is flashing blue

ReplacingtheLamp

ResettingtheLampTimer

Parenttopic: Projector Maintenance

Relatedreferences

OptionalEquipmentandReplacementParts

ProjectorInformationDisplay-InfoMenu

ProjectorLampSpecifications

ReplacingtheLamp

Beforeyoureplacethelamp,lettheprojectorcooldownforatleastonehoursothelampwillnotbehot.

Warning: Letthelampfullycoolbeforereplacingittoavoidinjury.

Youcanreplacethelampwhiletheprojectorismountedtotheceiling,ifnecessary.

1. Turnoff the projector and unplug the power cord.

2. Allow the projector lamptocooldown for at least one hour.

3. Use the crew driver included with the replacement lamptoloosenthescrewsecuring the lamp cover.

Diagram of a car interior showing a blue cushion and a red arrow indicating rotation (no text or symbols)

Warning: If the lamp is broken, glass fragments may be loose inside the lamp chamber. Be careful removing any brokenglassto avoid injury. If the projector is installed on the ceiling, stand to these side of the lamp cover and not underneath; pieces of glass could fall into you or yes from mouth when you open the lamp cover.

4.Slidethelampcoveroutandliftitoff.

1. Loosenthescrewssecuringthelamptotheprojector. Thescrewsdonotcomeallthewayout.

1. Liftupthelamphandleandgentlypullthelampoutoftheprojector.

Hand placing a blue plastic component into a car intake tray, with a red arrow indicating the motion (no text or symbols present)

Note: The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposal or recycling. Donotputin the trash.

1. Gently insert the new lamp into the projector. If it does not fit easily, makes sure it is facing the right way.

Hand placing a blue plastic component into a container with a red arrow indicating downward motion (no text or symbols)

Caution: Donottouchanyglassonthelampassemblytoavoidprematurelampfailure.

1. Pushinthelampfirmly and tightenthescrewstosecureit.

Caution: Donotover-tightenthescrews.

1. Replacethelampcoverandtightenthescrewtosecureit.

Diagram of a car interior showing a blue cushion and a red arrow indicating rotation (no text or symbols)

Note: Besurethelampcoverissecurely installedorthelampwillnotcomeon.

Resetthelamptimertozerotokeeptrackofthenewlamp'susage.

Parenttopic:ProjectorLampMaintenance

Relatedtasks

ResettingtheLampTimer

ResettingtheLampTimer

Youmustresetthelamptimerafterreplacingtheprojector'slamptoclearthelampreplacementmessageandtokeeptrackoflampusagecorrectly.

Note: Do not reset the lamp timer if you have not replaced the lamp to avoid inaccurate lamp usage information.

1. Turnon the projector.

2.PresstheMenubutton.

1. SelecttheResetmenuandpressEnter.

1. SelectResetLampHoursandpressEnter.

Youseeapromptaskingifyouwanttoresetthelamphours.

1. SelectYesandpressEnter.
2. PressMenuorEsctoexitthemenus.

Parenttopic:ProjectorLampMaintenance

ReplacingtheRemoteControlBatteries

TheremotecontrolusestwoAAmanganeseoralkalinebatteries. Replacethebatteriesassoonasthey runout.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, ormixnewandoldbatteries.

1. Openthebatterycoverasshown.

Illustration of a blue handheld device with a circular button and red rotation arrow (no text or symbols)

1. Removetheoldbatteries.

Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on yourhands. Ifitgetsonyourhands, wash them immediately to avoid injury.

1. Insert the batteries with the + and - ends facing as shown.

Diagram of a handheld device with blue internal components and a red arrow indicating direction (no text or symbols)

1. Closethebatterycoverandpressitdownuntilclicksintoplace.

Illustration of a blue handheld device being inserted into a battery pack, with red arrows indicating the process (no text or symbols present)

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of thereachofchildren; they are choking hazards and are every dangerous if swallowed.

Parenttopic: Projector Maintenance

Relatedreferences

RemoteControlSpecifications

TransportingtheProjector

The projector contains precision parts, some of which are glass. Follow these guidelines to transport, ship, or store the projectors safely:

- Attachthelenscaptoprotectthelens.

- Removeanyequipmentconnectedtotheprojector.

- Centerthelenspositionusingtheverticalandhorizontallensshiftdials.

- Attachtheprotective lenspad that was included with the projector.

- When transporting the projector along distance or as checked luggage, packitinafirmbox with cushioning around and mark the box "Fragile."

- Whenshippingtheprojectorforrepairs,placeitinitsoriginalpackingmaterials,ifpossible,oruse equivalentmaterialswithcushioningaroundtheprojector.Markthebox"Fragile."

Note: Epson shall not believe for any damages incurred during transportation.

Parenttopic: Maintaining and Transporting the Projector

SolvingProblems

Checkthesolutionsinthesesectionsifyouhaveanyproblemsusingtheprojector.

ProjectionProblemTips

ProjectorLightStatus

SolvingImageorSoundProblems

SolvingProjectororRemoteControlOperationProblems

WheretoGetHelp

ProjectionProblemTips

If the projector is not working properly, try turning it off and unplugging it. Then plug it back in and turn it on.

If this does not solve the problem, check the following:

• Thelightsontheprojectormayindicatewhattheproblemis.

- Thesolutionsinthismanualcanhelpyousolvemanyproblems.

If noneofthesesolutionshelp, you can contact Epsonfortechnical support.

Parenttopic: Solving Problems

Relatedreferences

WheretoGetHelp

ProjectorLightStatus

ProjectorLightStatus

Thelightsontheprojectorindicate the projector status and let you know when a problem occurs. Check the status and color of the lights and look for a solution in the table here.

1Powerlight
2Statuslight
3Lamplight
4Temp(temperature)light

PowerlightStatus	slightLamplight	TemplightStatus	andsolution
BlueBlueOffOffNormaloperation
BlueFlashingblue	OffOffWarmingup	;waitforanim	ageto	appear
				Shuttingdown;whentheStatuslight stopsflashing,youcanunplugthe projector
OffOffOffOffStandbyorsleepmode
FlashingblueVaries	OffFlashingProjector	istoristoohot	orange	•Makesurethattheventsandair filterarenotcloggedwithdustor obstructedbynearbyobjects•Cleanorreplacetheairfilter•Makesuretheenvironmental temperatureisnottoohot
OffFlashingblue	OffOrangeProjector	hasoverheated	andturned	off;leaveitturnedofftocooldownfor aboutfiveminutes,thendothe following:•Makesurethattheventsandair filterarenotcloggedwithdustor obstructedbynearbyobjects•Cleanorreplacetheairfilter•Ifoperatingtheprojectorathigh altitude,turnonHighAltitude Mode•Iftheproblempersists,unplugthe projectorandcontactEpsonfor help
OffFlashingblue	OrangeOffLamphas	saproblem		•Checktoseeifthelampisburned out,broken,orinstalledincorrectly; reseatorreplacethelampas necessary•Cleanorreplacetheairfilter•Ifoperatingtheprojectorathigh altitude,turnonHighAltitude Mode•Iftheproblempersists,unplugthe projectorandcontactEpsonfor help
FlashingblueVaries	FlashingOffRe	placethelamp	oontoavoid	usingthe projector
		orangedamage	;donotcontinue
OffFlashingblue	OffFlashingAfanors	sensorhasap	problem;turnorangetheprojectoroff,unplugit,andcontactEpsonforhelp
OffFlashingblue	FlashingFlashingA	utolriserror;turantheprojectoroff,orangeorang	eunplugit,andcontactEpsonforhelp
OffFlashingblue	OrangeOrange	Powererror;turntheprojectoroff,unplugit,andcontactEpsonforhelp
OffFlashingblue	FlashingOffInternal	projectorerrorc;turntheorangeprojectoroff,unplugit,andcontactEpsonforhelp

Note: If the lights display a pattern not listed in the table above, turn the projector off, unplug it, and contactEpsonforhelp.

Parenttopic: Solving Problems

Relatedreferences

WheretoGetHelp

Relatedtasks

CleaningtheAirFilter

ReplacingtheAirFilter

ReplacingtheLamp

Solving Image or Sound Problems

Checkthesolutionsinthesesectionsifyouhaveanyproblemswithprojectedimagesorsound.

SolutionsWhenNoImageAppears

SolutionsWhen"NoSignal"MessageAppears

SolutionsWhen"NotSupported"MessageAppears

SolutionsWhenOnlyaPartialImageAppears

SolutionsWhentheImageisNotRectangular

SolutionsWhentheImageContainsNoiseorStatic

SolutionsWhentheImageisFuzzyorBlurry

SolutionsWhentheImageBrightnessorColorsareIncorrect

SolutionsWhena3DImageDoesNotDisplayCorrectly

SolutionsWhenaWirelessHDSourceDoesNotDisplayCorrectly

SolutionstoSoundProblems

Parenttopic: Solving Problems

SolutionsWhenNoImageAppears

Ifnoimageappears, try the following solutions:

•Makesurethelenscapisoff.
- Press the A/V Mute button on the remote control to see if the image was temporarily turned off.
- Makesureallnecessarycablesaresecurelyconnectedandthepowerisonfortheprojectorand connectedvideosources.
- Presstheprojector'spowerbuttontowakeitfromstandbyorsleepmode. Alsoseeifyourconnected computerisinsleepmodeordisplayingablankscreensaver.
- CheckthesettingsontheSignalmenutomakesuretheyarecorrectforthecurrentvideosource.
- Adjust the Brightness setting or select the High Power Consumption setting.
- Check the Display setting to make sure Messages is set to On.
- If the projectordoesnotrespondwhenyoupressthecontrolpanelbuttons, the buttonsmaybe locked. Unlockthebuttons.
- ForimagesprojectedwithWindowsMediaCenter,reducethescreensizefromfullscreenmode.
- ForimagesprojectedfromapplicationsusingWindowsDirectX,turnoffDirectXfunctions.

Parenttopic: Solving Imageor Sound Problems

Relatedreferences

InputSignalSettings-SignalMenu

ImageQualitySettings-ImageMenu

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

UnlockingtheProjector'sButtons

SolutionsWhen"NoSignal"MessageAppears

If the "NoSignal" message appears, try the following solutions:

• Press the Source button on the projector repeatedly to cycle through the available sources. Wait a fewsecondsforanimagetoappear.
• Turnontheconnectedcomputerorvideosource,andpressitsplaybuttontobeginyourpresentation, ifnecessary.
• Checktheconnectionfromtheprojectortoyourvideosources.
• If you are projecting from alaptop computer, makes sure it is setup to display on an external monitor.
• If necessary, turn the projector and the connected computer or video source off and then on again.
• If the other solutions do not solve the problem, reset all of the settings using the Reset menu.

DisplayingFromaPCLaptop

DisplayingFromaMacLaptop

Parenttopic: Solving Imageor Sound Problems

Relatedconcepts

ProjectorConnections

DisplayingFromaPCLaptop

If you se the "No Signal" message when you display from a PC laptop, you need to setup the laptop to display on an external monitor.

1. Hold down the laptop's Fn key and press the key labelled with a monitor icon or CRT/LCD. (See yourlaptopmanualfordetails.) Waitafewsecondsforanimagetoappear.
2. Todisplayonboththelaptop'smonitorandtheprojector, trypressingthesamekeysagain.
3. If the same image is not displayed by the laptop and projector, check the Windows Display utility to make sure the external monitor portisenabled and extended desktop mode is disabled. (Seeyour computer or Windows manual for instructions.)
4. If necessary, check your video card settings and set the multiple display option to Mirror or Duplicate.

Parenttopic: SolutionsWhen"NoSignal"MessageAppears

DisplayingFromaMacLaptop

Ifyouseethe"NoSignal"messagewhenyoudisplayfromaMaclaptop,youneedtosetupthelaptop formirroreddisplay.(Seeyourlaptopmanualfordetails.)

1. OpentheSystemPreferencesutilityandselectDisplays.

2. ClicktheArrangementtab.

3. Select the Mirror Displays checkbox.

Parenttopic: SolutionsWhen"NoSignal"MessageAppears

SolutionsWhen"NotSupported"MessageAppears

If the "Not Supported" message appears, try the following solutions:

- Makesurethecomputer'sdisplayresolutiondoesnotexceedtheprojector'sresolutionandfrequency limit. If necessary, selectadifferentdisplayresolutionforyourcomputer.(Seeyourcomputermanual fordetails.)

Parenttopic: Solving Imageor Sound Problems

Relatedreferences

SupportedVideoDisplayFormats

SolutionsWhenOnlyaPartialImageAppears

Ifonlyapartialcomputerimageappears,trythefollowingsolutions:

• TryadjustingtheimagepositionusingthePositionmenusetting.
• PresstheAspectbuttonontheremotecontroltoselectadifferentimageaspectratio.
• Checkyourcomputerdisplaysettingstodisabledualdisplayandsettheresolutionwithinthe projector'slimits.(Seeyourcomputermanualfordetails.)
• Checktheresolutionassignedtoyourpresentationfilestoreeiftheyarecreatedforadifferentresolutionthanyouareprojectingin.(Seeyoursoftwarehelpfordetails.)

Parenttopic: SolvingImageorSoundProblems

Relatedreferences

InputSignalSettings-SignalMenu

SupportedVideoDisplayFormats

SolutionsWhenthelmageisNotRectangular

If the projected image is not evenly rectangular, try the following solutions:

- Placetheprojectordirectlyinfrontofthecenterofthescreen, facingitsquarely, if possible.

- Beforeusingtheprojector'skeystonecorrectionfeature,makesuretheprojectorlensisinthecenter-toppositionusingthelensshiftdials.

Parenttopic: SolvingImageorSoundProblems

Relatedconcepts

ImageShape

Relatedtasks

AdjustingtheImagePositionUsingLensShift

SolutionsWhentheImageContainsNoiseorStatic

If the projected images seem to contain electronic interference (noise) or static, try the following solutions:

- Checkthecablesconnectingyourcomputerorvideosourcetotheprojector. Theyshouldbe:

• Separated from the power cord to prevent interference

•Securelyconnectedatbothends

• Notconnectedtoanextensioncable

•Nolongerthan10feet(3m)forVGA/computercablesor24feet(7.3m)forHDMlcables

- Checkthesettingsontheprojector'sSignalmenutomakesuretheymatchthevideosource.If available for your video source, adjust the Deinterlacing and Noise Reduction settings.

- Selectacomputervideoresolutionandrefreshratethatarecompatiblewiththeprojector.

- If you adjusted the image shape using the projector controls, try decreasing the Sharpness setting to improve image equality.

- If you connected an extension powerable, try projecting without it to see if it caused interference in the signal.

- Tryadifferentcable.

Parenttopic: Solving Imageor Sound Problems

Relatedreferences

ImageQualitySettings-ImageMenu

InputSignalSettings-SignalMenu

SupportedVideoDisplayFormats

SolutionsWhenthelmageisFuzzyorBlurry

If the projected image is fuzzy or blurry, try the following solutions:

- Adjusttheimagefocus.

- Cleantheprojectorlens.

Note: To avoid condensation on the lens after bringing the projector in from a cold environment, let the projectorwarmuptoroomtemperaturebeforeusingit.

• Positiontheprojectorcloseenoughtothescreen.
• AdjusttheSharpnesssettingtoimproveimagequality.
• Ifanybandsoroverallblurrinessremain,displayauniformlypatternedimageonthescreenand manuallyadjusttheTrackingandSyncsettings.
• If you are projecting from a computer, use a lower resolution or try to match the projector's native resolution.

Parenttopic: Solving Imageor Sound Problems

Relatedreferences

ProjectionDistance

ImageQualitySettings-ImageMenu

InputSignalSettings-SignalMenu

Relatedtasks

FocusingtheImageUsingtheFocusRing

CleaningtheLens

SolutionsWhenthelmageBrightnessorColorsareIncorrect

If the projected image is stood dark or light, orthecolors are incorrect, try the following solutions:

• Press the Color Mode button on the remote control to try different color modes for the image and environment.
• Checkyourvideosourcesettings.
• Adjust the available settings on the Image menu for the current input source, such as Brightness, Contrast, Tint, Advanced, and Color Saturation.
• Makesureallthecablesaresecurelyconnectedtotheprojectorandyourvideodevice.Ifyou connectedlongcables,tryconnectingshortercables.
• If you are using the ECO Power Consumption setting, try selecting High in the projector's menus.
• Position the projector closeenoughtothescreen.
• If the image has been progressively darkening, you may need to replace the projector lamp soon.

Parenttopic: SolvingImageorSoundProblems

Relatedconcepts

ProjectorLampMaintenance

Relatedreferences

AvailableColorModes

ImageQualitySettings-ImageMenu

ProjectionDistance

SolutionsWhena3DImageDoesNotDisplayCorrectly

Ifa3Dimagedoesnotdisplaycorrectly,trythefollowingsolutions:

- Pressthe2D/3Dbuttonontheremotecontroltoswitchto3Dmode,ifnecessary.Youcanalso activate 3D mode by setting the 3D Display setting on the Signal menu to On.

- Makesureyourvideodeviceandmediaareboth3D-compatible.Refertothedocumentationthat camewithyourvideodeviceformoreinformation.

- MakesureyouareusinganHDMIcablethatsupports3Dsignals.

- Make sure you selected the correct 3D Format setting on the Signal menu. Normally this should be set to Auto, but in some cases you may need to select a different setting to match the 3D signal from yourvideodevice.

- MakesureyouareusingRF3Dactiveshutterglasses.YoucanpurchasethemfromEpson.

- Makesureyour3Dglassesareturnedonandfullycharged. If the glasses have entered standby mode, slide the power switch on the glasses to the Off position and then back to the On position.

- Makesureyour3Dglassesarepairedwiththeprojector.

• Makesureyouarewithinthe3Dviewingrange.

- Avoidusingtheprojectornearwirelessnetworks,microwaveovens,2.4GHzcordlessphones,or otherdevicesthatusethe2.4GHzfrequencyband.Thesedevisescaninterferewiththesignal between the projector and the 3D glasses.

- If the other solutions do not solve the problem, change the Inverse 3D Glasses setting on the Signalmenu.Returnthesettingtoitsoriginalvalueifchangingitdoesnotsolvetheproblem.

Parenttopic: Solving Imageor Sound Problems

Relatedreferences

InputSignalSettings-SignalMenu

3DViewingRange

OptionalEquipmentandReplacementParts

Relatedtasks

Pairingthe3DGlasseswiththeProjector

Chargingthe3DGlasses

SolutionsWhenaWirelessHDSourceDoesNotDisplayCorrectly

IfaWirelessHDsourcedoesnotdisplaycorrectly,trythefollowingsolutions:

- MakesureWirelessHDisselectedastheimagesourceontheprojector.

- OpentheWirelessHDreceptionmonitorintheSettingsmenuandcheckthestrengthofthe WirelessHDsignal.Ifthesignalisweak,youmayneedtomovethetransmitterclosertotheprojector orremoveanylargeobjectslocatedbetweenthetransmitterandtheprojector.

- MakesurethatyourprojectorisconnectedtothecorrectWirelessHDdevice.Itcantakeupto30 secondsforasignaltosyncandappearafterconnecting.

- YoumayneedtoresettheWirelessHDconnection.TurnoffboththeWirelessHDtransmitterandthe projector.Startplaybackonyourvideodevice,thenturnontheWirelessHDtransmitterandthe projector.Wait10seconds,thenpresstheSetupbuttononthebottomofthetransmitter.

- MakesuretheWirelessHDtransmitteriswithin32feet(10m)oftheprojector,isn'tobstructedbyany largeobjects,andisnotplacedonametalsurface.

- If the green and orange lights on the transmitter are flashing, the unit may be overheating. Makes sure the event on the back of the transmitter are not blocked and that the room temperature does not exceed 95^ F(35^ C) .

- If you are viewing wireless content, makes sure that the Wi HD light on the transmitter is. If it is off, press the output button on theremote control or transmitter.

Parenttopic: SolvingImageorSoundProblems

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

ViewingWirelessHDContent

SwitchingWirelessHDSources

SolutionstoSoundProblems

If there is nosound when you expect it the volume of a low or high, try the following solutions (PowerLiteHomeCinema3500/3510/3600e):

- Adjust the projector's volumesettings.

• Press the A/V Mute button on the remote control to resume video and audio if they were temporarily stopped.
• Press the Source button on the projector or a source button on the remote control to switch to the correct inputsource, if necessary.
• Checkyourcomputerorvideosourcetomakesurethevolumeisturnedupandtheaudiooutputisset forthecorrectsource.
• Checktheaudiocableconnectionsbetween the projector and your videosource.
• If you dono the earsound from an HDMI source, set the connected device to PCM output.
• Makesureanyconnectedaudiocablesarelabeled"NoResistance".
• If you are using a Mac and you don't have sound from an HDMI source, makes sure your Mac supports audio through the HDMI port. If not, you need to connect a audiocable.
• Make sure the Audio Output Device option is set to the correct audio port for your video device.
• Ifyouturntheprojectoronimmediatelyafterturningitoff,thecoolingfansmayrunathighspeed momentarilyandcauseanunexpectednoise.Thisisnormal.

Parenttopic: SolvingImageorSoundProblems

Relatedtasks

ConnectingtoaVideoSourceforSound

ConnectingtoaComputerforSound

ControllingtheVolumewiththeVolumeButtons

SolvingProjectororRemoteControlOperationProblems

Checkthesolutionsinthesesectionsifyouhaveproblemsoperatingtheprojectororremotecontrol.

SolutionstoProjectorPowerorShut-OffProblems

SolutionstoProblemswiththeRemoteControl

Parenttopic: Solving Problems

SolutionstoProjectorPowerorShut-OffProblems

If the project orders not come on when you press the power button or it should you expectedly, try the followingsolutions:

- Makesurethepowercordissecurelyconnectedtotheprojectorandtoaworkingelectricaloutlet.

- Theprojector'sbuttonsmaybelockedforsecurity.Unlockthebutton sorusetheremote controlto turnontheprojector.

• Thepowercordmaybedefective.DisconnectthecordandcontactEpson.
• If the projector's lampshutsoffun unexpectedly, it may have entered standby mode after a period of inactivity. Press the power button to wake the projector.
  • If the projector's lampshutsoff, the Statuslightis flashingblue, and the Templightis orange, the projector has overheated and shutoff. Check the solutions for this light status.
• If the power button on theremote control does not turn on the projector, checks batteries and make sure the Remote Receiversetting is turned on the projector's menu, if available.

Parenttopic: Solving Projector or Remote Control Operation Problems

Relatedreferences

WheretoGetHelp

ProjectorLightStatus

Relatedtasks

UnlockingtheProjector'sButtons

SolutionstoProblemswiththeRemoteControl

If the projectordoes not respond to remote control commands, try the following solutions:

• Check that theremote control batteries are installed correctly and have power. If necessary, replace the batteries.
  • Makesureyouareoperatingtheremotecontrolwithinthereceptionangleandrangeoftheprojector.
• Makesuretheprojectorisnotwarminguporshuttingdown.
• Checktoseeifabuttonontheremotecontrolisstuckdown,causingittoentersleepmode.Release thebuttontowaketheremotecontrolup.
  • Strongfluorescentlighting, directsunlight, orinfrareddevicesignals maybeinterfering with the projector's remotereceivers. Dimthelightsormovetheprojectorawayfromthesunorinterfering equipment.
  •Ifavailable,turnoffoneoftheremotereceiversintheprojector'smenusystem,orcheckifallthe remotereceiverswereturnedoff.
  • If you assigned an ID number to other remote control to operate multiple projectors, you may need to check or change the ID setting (feature not available with all projectors).
• If you los etheremote control, you can order another one from Epson.

Parenttopic: SolvingProjectorRemoteControlOperationProblems

Relatedreferences

RemoteControlOperation

ProjectorLightStatus

OptionalEquipmentandReplacementParts

WheretoGetHelp

Relatedtasks

ReplacingtheRemoteControlBatteries

WheretoGetHelp

If you need to contact Epson for technical supports, use the following support options.

InternetSupport

Visit Epson's support website at epson.com/support (U.S.) or epson.ca/support (Canada) for solutions to commonproblemswithyourprojector.Youcandownloadutilitiesanddocumentation,getFAQsand troubleshootingadvice,ore-mailEpsonwithyourquestions.

SpeaktoaSupportRepresentative

TousetheEpsonPrivateLineSupportservice, call(800)637-7661. This service is available for the duration of your warranty period. You may also speak with a projectorsupport specialist by dialing(562) 276-4394(U.S.) or [phone](Canada).

Supporthoursare6AMto8PM, PacificTime, MondaythroughFridayand7AMto4PM, PacificTime, Saturday.

Daysandhoursofsupportaresubjecttochangewithoutnotice. Tollerlongdistancechargesmay apply.

Beforeyoucall,havethefollowinginformationready:

•Productname

•Productserialnumber(locatedonthebottomorrearoftheprojector,orinthemenusystem)

•Proofofpurchase(suchasastorereceipt)anddateofpurchase

•Computerorvideoconfiguration

•Descriptionoftheproblem

PurchaseSuppliesandAccessories

Youcanpurchasescreens,otheroptionalaccessories,andreplacementpartsfromanEpsonauthorizedreseller.Tofindthenarestreseller,call800-GO-EPSON(800-463-7766).Oryoucanpurchaseonlineatepsonstore.com(U.S.sales)orepson.ca(Canadiansales).

Topurchaseareplacementremotecontrol, call(562)276-4394(U.S.) or [phone](fordealerreferralinCanada).

Parenttopic: Solving Problems

TechnicalSpecifications

Thesesectionslistthetechnicalspecificationsofyourprojector.

GeneralProjectorSpecifications

ProjectorLampSpecifications

RemoteControlSpecifications

ProjectorDimensionSpecifications

ProjectorElectricalSpecifications

ProjectorEnvironmentalSpecifications

ProjectorSafetyandApprovalsSpecifications

SupportedVideoDisplayFormats

GeneralProjectorSpecifications

TypeofdisplayPoly-siliconTFTactivematrix

Resolution1920×1080pixels(1080p)

LensF=1.51 to 1.99

Focallength:18.2to29.2mm

ColorreproductionFullcolor, upto 1 billioncolors

BrightnessPowerLiteHomeCinema3000:

HighPowerConsumptionmode:

Whitelightoutput2300lumens(ISO21118standard)

Colorlightoutput2300lumens

MediumPowerConsumptionmode:

Whitelightoutput1300lumens(ISO21118standard)

ECOPowerConsumptionmode:

Whitelightoutput1000lumens(ISO21118standard)

PowerLiteHomeCinema3500/3510/3600e:

HighPowerConsumptionmode:

Whitelightoutput2500lumens(ISO21118standard)

Colorlightoutput2500lumens

MediumPowerConsumptionmode:

Whitelightoutput1400lumens(ISO21118standard)

ECOPowerConsumptionmode:

Whitelightoutput1100lumens(ISO21118standard)

Note: Colorbrightness(colorlightoutput) and whitebrightness (whitelightoutput) will vary depending on usage conditions. Color light output measured in accordance with IDMS15.4; whitelight output measured in accordance with ISO21118.

ContrastratioPowerLiteHomeCinema3000:

60000:1withAutolrison,HighPowerConsumptionmode,Dynamic ColorMode,andWideZoom

PowerLiteHomeCinema3500/3510/3600e:

70000:1 with AutoIrison, HighPowerConsumptionmode, Dynamic ColorMode, and WideZoom

Imagesize30inches(0.76m)to300inches(7.6m)

(innativeaspectratio)

Projectiondistance34.3inches(0.87m)to570.9inches(14.5m)

(innativeaspectratio)

ProjectionmethodsFront, rear, ceiling-mounted

Opticalaspectratio16:9

(width-to-height)

FocusadjustmentManual

ZoomadjustmentManual

Zoomratio1to1.6

(Tele-to-Wide)

InternalsoundsystemTwo10Wspeakers

(PowerLiteHomeCinema

3500/3510/3600e)

Noiselevel35dB(HighPowerConsumptionmode)

32dB(MediumPowerConsumptionmode)

24dB(ECOPowerConsumptionmode)

Keystonecorrectionangle±30°verticalandhorizontal

USBTypeAportcompatibilityOneUSB1.1 and 2.0 compliant port for USB device input, wireless

LAN, and firmware updating

Parenttopic: Technical Specifications

ProjectorLampSpecifications

TypeUHE(UltraHighEfficiency)

Powerconsumption250W

LamplifeHighPowerConsumptionmode:

Uptoabout3500hours

MediumPowerConsumptionmode:

Uptoabout4000hours

ECOPowerConsumptionmode:

Uptoabout5000hours

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon modes selected, environmental conditions, and usage. Brightness decreases over time.

Parenttopic: Technical Specifications

RemoteControlSpecifications

Receptionrange32feet(10m)

Batteries TwoalkalineormanganeseAA

Parenttopic: Technical Specifications

ProjectorDimensionSpecifications

Height(excludingfeet)6.2inches(157mm)

Width16.1 inches(410mm)

Depth12.0inches(304mm)

WeightPowerLiteHomeCinema3000:

14.1lb(6.4kg)

PowerLiteHomeCinema3500/3510:

14.8lb(6.7kg)

PowerLiteHomeCinema3600e:

15.0lb(6.8kg)

Parenttopic: Technical Specifications

ProjectorElectricalSpecifications

Ratedfrequency50/60Hz

Powersupply100to240VAC±10%

PowerLiteHomeCinema3000:

3.7to1.7A

PowerLiteHomeCinema3500/3510/3600e:

3.9to1.8A

PowerconsumptionOperating:

(100to120V)PowerLiteHomeCinema3000:

MediumPowerConsumptionmode:361W

ECOPowerConsumptionmode:272W

PowerLiteHomeCinema3500/3510/3600e:

MediumPowerConsumptionmode:385W

ECOPowerConsumptionmode:296W

Standby:

0.29W(CommunicationOff), 1.6W(CommunicationOn)

PowerconsumptionOperating:

(220to240V)PowerLiteHomeCinema3000:

MediumPowerConsumptionmode:344W

ECOPowerConsumptionmode:260W

PowerLiteHomeCinema3500/3510/3600e:

MediumPowerConsumptionmode:366W

ECOPowerConsumptionmode:281W

Standby:

0.43W(CommunicationOff), 1.8W(CommunicationOn)

Parenttopic: Technical Specifications

ProjectorEnvironmentalSpecifications

TemperatureOperating:

Upto7500ft(2286m):41to95°F(5to35°C)

7500ft(2286m)to9843ft(3000m):41to86°F(5to30°C)

Storage:

14to140°F(-10to60°C)

OperatingaltitudeUpto4921feet(1500m)

Upto9843feet(3000m)withHighAltitudeModeenabled

Parenttopic: Technical Specifications

ProjectorSafetyandApprovalsSpecifications

UnitedStatesFCCPart15ClassB

UL60950-12ndedition(cTUVusMark)

CanadaICES-003ClassB

CSAC22.2No.60950-1-07

Parenttopic: Technical Specifications

SupportedVideoDisplayFormats

Forbestresults,yourcomputer'smonitorportorvideocardresolutionsshouldbesettodisplayinthe projector'snativeresolution.However,yourprojectorincludesEpson'sSizeWisechipthatsupportsother computerdisplayresolutions,soyourimagewillberesizedtofitautomatically.

Yourcomputer'smonitorportorvideocardrefreshrate(verticalfrequency)mustbecompatiblewiththe projector.(Seeyourcomputerorvideocardmanualfordetails.)

Thetablehereliststhecompatiblerefreshrateandresolutionforeachcompatiblevideodisplayformat.

DisplayformatRefreshrate(InHz)	Resolution(inpixels)
Computersignals(analogRGB)
VGA60640×480
SVGA60800×600
XGA601024×768
SXGA601280×1024
	601280×960
DisplayformatRefreshrate(inHz)	Resolution(inpixels)
WXGA601280×768
	601366×768
	601280×800
WXGA++601600×900
Compositevideo
TV(NTSC)60720×480
TV(SECAM)50720×576
TV(PAL)50/60720×576
Componentvideo
SDTV(480i)60720×480
SDTV(576i)50720×576
SDTV(480p)60720×480
SDTV(576p)50720×576
HDTV(720p)50/601280×720
HDTV(1080i)50/601920×1080
HDTV(1080p)50/601920×1080
HDMIinputsignals
VGA60640×480
SDTV(480i/480p)	60720×480
SDTV(576i/576p)	50720×576
HDTV(720p)50/601280×720
HDTV(1080i)50/601920×1080
HDTV(1080p)24/30/50/60	1920×1080
MHLinputsignals
VGA60640×480
SDTV(480i/480p)	60720×480
SDTV(576i/576p)50720×576
HDTV(720p)50/601280×720
HDTV(1080i)50/601920×1080
HDTV(1080p)24/301920×1080
WirelessHDInputsignals
VGA60640×480
SDTV(480i/480p)60720×480
SDTV(576i/576p)50720×576
HDTV(720p)*50/601280×720
HDTV(1080i)50/601920×1080
HDTV(1080p)*24/50/601920×1080

*WhenprojectinginWirelessHD,thesesignalsdonotsupportDeepColor:1080p60/50Hzin2D,or 1080p24Hzframepacking,720p50/60Hzframepacking,or1080p60/50Hzsidebysidein3D.

HDMI3DSignals

DisplayformatRefreshrate(inHz)	Resolution(inpixels)	3Dformats
HDTV (720p)	50/60	1280 × 720	Frame PackingSidebySideTopandBottom
HDTV (1080i)	50/60	1920 × 1080	Side by Side
HDTV (1080p)	50/60	1920 × 1080	Side by Side
	24	1920×1080	FramePackingSidebySideTopandBottom

MHL3DSignals(viaWirelessHDTransmitter*)

DisplayformatRefreshrate(inHz)Resolution(inpixels)3Dformats
HDTV50/601280×720SidebySide(720p)TopandBottom
HDTV(1080i)50/601920×1080SidebySide
HDTV(1080p)50/601920×1080—
	241920×1080SidebySide
		TopandBottom

*HDMI5portonly

Parenttopic: Technical Specifications

Notices

Checkthesesectionsforimportantnoticesaboutyourprojector.

Recycling

ImportantSafetyInformation

ImportantSafetyInstructions

FCCComplianceStatement

Trademarks

OpenSourceSoftwareLicense

CopyrightNotice

Recycling

Epson offers a recycling program for end of life products. Please go to this site for information on how to return your products for proper disposal.

Parenttopic:Notices

ImportantSafetyInformation

Caution: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes. Neverletchildrenlookintothelenswhenitison. Neveropenanycoverontheprojector, except thelampandfiltercovers. Dangerousselectricalvoltagesinsidetheprojectorcanseverelyinjureyou. Except as specifically explained in this User's Guide, do not attempt to service this product yourself. Referallservicingtoqualifiedservicepersonnel.

Warning: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small childrento avoid any risk of suffocation.

Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by the oil on your handsmay short enthe lamplife. Use cloth glovet to handle thenew lamp.

Parenttopic:Notices

ImportantSafetyInstructions

Followthesesafetyinstructionswhensettingupandusingtheprojector:

- Donotlookintothelenswhentheprojectorison.Thebrightlightcandamageyoureyes.Avoid standinginfrontoftheprojectorsothebrightlightdoesnotshineintoyoureyes.

- Donotplacetheprojectoronanunstablecart,stand,ortable.

- Donotoperatetheprojectoronitsside,orwhiletiltedtooneside.Donottilttheprojectormorethan 10^ forwardorback.

• If the projector is mounted on aceiling or wall, it should be installed by qualified technicians using mounting hardware designed for use with this projector.

- Wheninstallingoradjustingaceilingorwallmount,donotuseadhesivestopreventthescrewsfrom looseninganddonotuseoilsorlubricants.Thismaycausetheprojectorcasetocrackandthe projectortofallfromitsceilingmount.Thiscouldcauseseriousinjurytoanyoneunderthemountand coulddamagetheprojector.

- Donotusetheprojectornearwater, sourcesofheat, high-voltageelectricalwires, orsourcesof magneticfields.

- Usethetypeofpowersourceindicatedontheprojector. Useofadifferentpowersourcemayresultin fireorelectricshock. If you are not sure of the power available, consult your dealer or power company.

- Placetheprojectornearawalloutletwheretheplugcanbeeasilyunplugged.

•Takethefollowingprecautionswhenhandlingtheplug:Donotholdtheplugwithwethands.Donot inserttheplugintoadustyoutlet.Inserttheplugfirmlyintotheoutlet.Donotpullthepowercordwhen disconnectingtheplug;alwaysbesuretoholdtheplugwhendisconnectingit.Donotoverloadwall outlets,extensioncords,orpowerstrips.Failuretocomplywiththeseprecautionscouldresultinfireor electricshock.

- Donotplacetheprojectorwherethecordcanbewalkedon. This may result in refrayingordamageto the plug.

- Unplugtheprojectorfromthewalloutletbeforecleaning. Useadrycloth(or, forstubborndirtor stains, amoistcloththathasbeenwrungdry) forcleaning. Donotuseliquidoraerosolcleaners, any sprayscontainingflammablegas, orsolventssuchasalcohol, paintthinner, orbenzine.

- Donotblocktheslotsandopeningsintheprojectorcase. Theyprovideventilationandpreventthe projectorfromoverheating. Donotoperatetheprojectoronasofa,rug,orthersoftsurface,orsetit ontopofloosepapers. Donotcovertheprojectorwithabblanket,curtain,ortablecloth.Ifyouare settinguptheprojectornearawall,leaveatleast7.9inches(20cm)ofspacebetweenthewalland theairexhaustvent.

- Donotoperatetheprojectorinaclosed-incabinetunlessproperventilationisprovided.

• Neverallowobjectsofanykindtoenteranyopeningsintheprojector.Donotleaveobjects,especially flammableobjects,neartheprojector.Neverspilliquidofanykindintotheprojector.
• If you are using two or more projector sides-by-side, leave at least 2 feet (60 cm) of space between the projector to allow for proper ventilation.
• Youmayneedtocleantheairfilterandvent.Acloggedairfilterorventcanblockventilationneeded tocooltheprojector.Donotusecannedair,orthegasesmaybeareside.
• Donotstoretheprojectoroutdoorsforanextendedlengthoftime.
• Exceptasspecificallyexplainedinthismanual,donotattempttoservicethisproductyourself.Refer allservicingtoqualifiedpersonnel.Openingorremovingcoversmayexposeyoutodangerous voltagesandotherhazards.
• Neveropenany covers on the projectore except a specifically explained in this manual. Never attempt to disassemble or modify the projector. Refer all repair to qualified service personnel.
• Unplugtheprojectorfromthewalloutletandreferservicingtoqualifiedservicepersonnelunderthe followingconditions:ifitdoesnotoperatenormallywhenyoufollowtheoperatinginstructions,or exhibitsadistinctchangeinperformance;ifsmoke,strangeodors,orstrangenoisescomefromthe projector;ifthepowercordorplugisdamagedorfrayed;ifliquidorforeignobjectsgetinsidethe projector,orifithasbeenexposedtorainorwater;ifithasbeendroppedorthehousinghasbeen damaged.
• Donottouchtheplugduringanelectricalstorm. Otherwise, you may receive an electric shock.
• Unplugtheprojectorwhenitwillnotbeusedforextendedperiods.
• Donotusetheprojectorwhereitmaybeexposedtorain,water,orexcessivehumidity.
• Donotuseorstoretheprojectorwhereitmaybeexposedtosmoke,steam,corrosivegases, excessivedust,vibration,orshock.
• Donotusetheprojectorwhereflammableorexplosivegasesmaybepresent.
• Donotuseorstoretheprojectororremotecontrolinahotlocation,suchasnearaheater,indirect sunlight,orinaclosedvehicle.
• If you use the projector in a country other than where you purchase it, use the correct power cord for that country.
• Donotstandontheprojectorplaceheavyobjectsonit.

• Donotusetheprojectoroutsideoftherequiredtemperaturerangeof41to95°F(5to35°C)atan altitudeof7500feet(2286m)orless,or41to86°F(5to30°C)atahigheralatitude.Doingsomay causeanunstabledisplayandcouldleadtoprojectordamage.Donotuseorstoretheprojectorwhere itmaybeexposedtosuddenchangesintemperature.

• Donotstoretheprojectoroutsideoftherequiredtemperaturerangeof14to140°F(-10to60°C)orindirectsunlightforlongperiodsoftime.Doingsomaycausedamagetothecase.

• Donotplaceanythingthatcanbecomewarpedordamagedbyheatneartheexhaustvents.Donot bringyourhandsorfaceclosetotheventswhileprojectionisinprogress.Donotbringyourfaceclose totheprojectorwhileitisinuse.
  • Before you mov the projector, makes sure its power is turned off, the plug is disconnected from the outlet, and all cables are disconnected.
• Nevertrytoremovethelampimmediatelyafterusebecauseitwillbeextremelyhot.Beforeeremoving thelamp,turnoffthepowerandwaitatleastanhourtoallowthelamptocoolcompletely.
• Donotdisassemblethelamporsubjectittoimpacts.
• Donotplacethesourceofanopenflame, such as alitcandle, on near the projector.
• Donotblockthelensduringprojectionusingabookoranyotherobject. Thiscoulddamagethe projectororcauseafire.
• Donotmodifythepowercord.Donotplaceheavyobjectsontopofthepowercordorbend,twist,or pullitexcessively.Keepthepowercordawayfromhotelectricalappliances.
  • Ifthelampbreaks, ventilatetheroomtopreventgasescontainedinthelampfrombeinginhaledor comingincontactwithyoueyesormouth. If youdoinhalegasesorgasescomeincontactwithyour eyesormouth, seekmedicaladviceimmediately.
  •Iftheprojectorismountedoverheadandthelampbreaks,becarefultopreventpiecesofglassfromfallingintoyoureyesormouthwhenyouopenthelampcover.Ifpiecesofglassdogetintoyoureyesormouth,seekmedicaladviceimmediately.
  •Alwayslowerthevolumebeforeturningofftheprojector.Turningontheprojectorwiththevolumetoo highcandamageyourears(applicablemodelsonly).

Note: Hg The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposalorrecycling.Donotputinthetrash.

WARNING: The cords included with this product contain chemicals, including lead, known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. (This notice is provided in accordance with Proposition 65 in Cal. Health & Safety Code § 25249.5 and following.)

3DSafetyInstructions

RestrictionofUse

Parenttopic:Notices

3DSafetyInstructions

Followthese3Dsafetyinstructionswhensettingupandusingtheprojector:

- If you or any viewer experience the following symptoms or other major discomfort from viewing 3D video images, immediately stop viewing and contact your healthcare provider: convulsions, eye or muscle twitching, loss of awareness, altered vision, involuntary movements, disorientation, eyestrain, nausea/vomiting, dizziness, headaches, fatigue, or blurry/double vision that lasts longer than few seconds. Donot engage in an hypotentially hazardous activity (such as driving vehicle or operating machinery) until your symptom have completely gone away. If the symptoms persist, discontinue use and donot resum stereoscopic 3D viewing without discussing your symptom with a healthcare provider/physician.

- Someviewersmayexperienceaseizureorblackoutwhenexposedtoflashingimagesorlights containedincertain3Dcontent.Anyonewhohasahistoryofseizures,lossofawareness,symptoms linkedtoanepilepticcondition,orhasafamilyhistoryofepilepsy,shouldcontactahealthcare providerbeforeusingthe3Dfunction.Itisrecommendedthatallviewerstakeregularbreakswhile watching3Dvideoimagesorplayingstereoscopic3Dgames. Thesuggestedbreaksare,atleast5to 15minutesafterevery30to60minutesofstereoscopic3Dcontentviewing.*

*Basedontheguidelinesissuedbythe3DConsortiumrevisedDecember10,2008. Thelengthand frequencyofnecessarybreakswillvaryfrompersontoperson. Ifyouexperienceanydiscomfort,you shouldimmediatelystopwatchingthe3Dvideoimagesorplayingstereoscopic3Dgamesuntilthe discomfortends;consultaheathcareprovider/physicianifnecessary.

- Duetothepossibleimpactonvision development, viewers of 3D video imagesshouldbeage 6 or older. Children and teenagers may be resusceptible to health issues associated with viewing in 3D and should be closely supervised to avoid prolonged viewing without rest.

- Maintainadistancefromthescreenofatleastthreetimesthescreenheightwhenviewing3Dimages. Therecommendedviewingdistanceforan80inchescreenisatleast10feet(3m)andatleast12feet (3.6m)fora100inchscreen.Also,werecommendedusingascreensizeslessthan120inches. Viewinganycloserthantherecommendedviewingdistanceoronascreenlargerthanrecommended mayresultineyefatigue.

- Viewing3Dcontentmaycausedizzinessanddisorientationforsomeviewers. Therefore,toavoid injurydonotplaceyourprojectorscreennearopenstairwells,balconies,orwires,anddonotsit nearobjectsthatcouldbebrokenifaccidentallyhit.

•The following peoples should limit 3D content viewing:

•Peoplewithahistoryofphotosensitivity

•Peoplewithheartdisease

•Peopleinpoorhealth

•Peoplewhoaresleepdeprived

•Peoplewhoarephysicallytired

•Peopleundertheinfluenceofdrugsoralcohol

• Anyonewhohaseverexperiencedepilepticseizuresorsensorydisturbancestriggeredbyflashing lighteffects

•SOMELIGHTPATTERNSMAYINDUCESEIZURESINPERSONSWITHNOPRIORHISTORY OFEPILEPSY.

- Donotusethedevicenearanymedicalequipmentorequipmentthatisautomaticallycontrolled,such asautomaticdoorsorfirealarms.Electromagneticinterferencefromthedevicemaycausesuch equipmenttomalfunctionandcauseanaccident.

- Donotdisassembleormodifythe3Dglasses. This could cause a fire to occur the image to appear abnormal when viewing, causing you to feel ill.

- Donotleavethe3Dglassesoranypartssuppliedwiththeglasseswithinreachofchildren. They couldbeaccidentallyswallowed.Ifanythingisaccidentallyswallowed,contactadoctorimmediately.

- Donotplacethe3Dglassesinafireoronaheatsource,orleavethemunattendedinalocation subjecttohightemperatures.Becausethisdevicehasabuilt-inrechargeablelithiumbattery,itcould causeburnsorafireifitignitesorexplodes.

- Whenchargingthe3Dglasses,onlyusethesuppliedchargingcableandconnectthecabletothe USBportdesignatedbyEpson.Donotchargethe3Dglassesusingotherdevicesasitmaycausethe batterytoleak,overheat,ignite,orexplode.

- Donotdropthe3Dglassesorpresstooforcefullyonthem. If the glass sections or other parts are broken, an injury could occur. Store the glasses in the soft cases supplied with them.

- Becarefuloftheedgesoftheframewhenwearingthe3Dglassesanddonotplaceyourfingerinany ofthemovingsectionssuchasthehinges. Otherwiseyoucouldinjureyoureyesorfingers.

- Whendisposingofthe3Dglasses,followanylocalrulesandregulations.

Parenttopic: Important Safety Instructions

RestrictionofUse

Whenthisproductisusedforapplicationsrequiringhighreliability/safetysuchastransportationdevices relatedtoaviation,rail,marine,automotive;disasterpreventiondevices;varioussafetydevices;or functional/precisiondevices,youshouldusethisproductonlyaftergivingconsiderationoincludingfail-safesandredundanciesintoyourdesigntomaintainsafetyandtotalsystemreliability.

Because this product was not intended for use in applications requiring extremely high reliability/safety such as aerospace equipment, main communication equipment, nuclear power control equipment, or

medicalequipmentrelatedtodirectmedicalcare, pleasemakeyourownjudgmentonthisproduct's suitabilityafterafullevaluation.

Parenttopic: Important Safety Instructions

FCCComplianceStatement

ForUnitedStatesUsers

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiater radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference or radiocommunications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause interference or radio and television reception, which can be determined by turning the equipment off and, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna.
- Increase these separation between the equipment and receiver.
- Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
- Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

WARNING

The connection of an on-shielded equipment interface capable to this equipment will invalidate the FCC Certification or Declaration of this device and may cause interference levels which exceed the limits established by the FCC forthisequipment. It is therefore the responsibility of the user to obtain and use a shielded equipment interface capable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

ForCanadianUsers

CANICES-3(B)/NMB-3(B)

Parenttopic:Notices

Trademarks

EPSON ^® , EasyMP ^® , and PowerLite ^® are registered trademarks, and EPSON Exceed Your Vision is a registered logomark of Seiko Epson Corporation.

Accolade ^® and PrivateLine ^® areregistered trademarks; Duet ^TM and SizeWise ^TM are trademarks; and ExtraCare ^SM is as servicemarkofEpsonAmerica, Inc.

MacandOSXaretrademarksofAppleInc., registeredintheU.S.andothercountries.

HDMI and High-Definition Multimedia Interface are the trademark or registered trademark of HDMI

LicensingLLC. HDMI

GeneralNotice: Other product names used herein are for identification purposes only and maybe trademark of their respective owners. Epson disclaims any and all rights in those marks.

EPSON®

EXCEED YOUR VISION

Parenttopic:Notices

OpenSourceSoftwareLicense

GNUGPL

This projector product include the open source software programs which apply the GNU General Public License Version 2 or laterversion ("GPL Programs").

WeprovidethesourcecodeoftheGPLProgramsuntilfive(5)yearsafterthediscontinuationofsame modelofthisprojectorproduct.

If you desire to receive the source code of the GPL Programs, contact Epson as described in the User's Guide.

TheseGPLProgramsareWITHOUTANYWARRANTY;withouteventheimpliedwarrantyof MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE.SeetheGNUGeneralPublic Licenseformoredetails.

ThelistofGPLProgramsisasfollowsandthenamesofauthoraredescribedinthesourcecodeofthe GPLPrograms

ThelistofGPLPrograms

busybox-1.13.4

iptables-1.4.4

libgcc1(gcc-4.3.3)

libstdc++-6.0.10

linux-2.6.27

patches

udhcp0.9.8

uvcrev.219

wireless_tools29

EPSONoriginaldrivers

StonestreetOneDrivers

The GNUGeneralPublicLicenseVersion2isasfollows. YoualsocanseetheGNUGeneralPublicLicenseVersion2athttp://www.gnu.org/licenses/.

GNUGENERALPUBLICLICENSE

Version2, June 1991

Copyright(c)1989,1991FreeSoftwareFoundation,Inc.,51FranklinStreet,FifthFloor,Boston,MA 02110-1301USAEveryoneispermittedtocopyanddistributeverbatimcopiesofthislicensedocument, butchangingitisnotallowed.

Preamble

The licenses form most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software --tomakesure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

Whenwespeakoffreesoftware, wearereferringtofreedom, notprice. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies off frees software (and charge for this service if you wish), that you receive source code or can get itify you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

Toprotectyourrights,weneedtomakerestrictionsthatforbidanyonetodenyyoutheserightsortoask youtsurrendertherights.Theserestrictionstranslatetocertainresponsibilitiesforyouifyoudistribute copiesofthesoftware,orifyoumodifyit.

Forexample, if youdistributecopiesofsuchaprogram, whethergratisorforafee, youmustgivethe recipientsalltherightsthatyouhave. Youmustmakesurethatthey, too, receiveorcangetthesource code. Andyoumustshowthemthesetermssotheyknowtheirrights.

Weprotectyourrightswithtwosteps:(1)copyrightthesoftware,and(2)offeryouthislicensewhich givesyoulegalpermissiontocopy,distributeand/ormodifythesoftware.

Also,foreachauthor'sprotectionandours,wewanttomakecertainthateveryoneunderstandsthat thereisnowarrantyforthisfreesoftware.Ifthesoftwareismodifiedbysomeoneelseandpassedon, wewantitsrecipientstoknowthatwhattheyhaveisnottheoriginal,sothatanyproblemsintroducedby otherswillnotreflectontheoriginalauthors'reputations.

Finally, anyfreeprogramisthreatenedconstantlybysoftwarepatents. Wewishtoavoidthedangerthat redistributorsofafreeprogramwillindividuallyobtainpatentlicenses, ineffectmakingtheprogram proprietary. Topreventthis, wehavemadeitclearthatanypatentmustbelicensedforeveryone'sfree useornotlicensedatall.

Theprecisetermsandconditionsforcopying,distributionandmodificationfollow.

GNUGENERALPUBLICLICENSETERMSANDCONDITIONSFORCOPYING,DISTRIBUTIONAND MODIFICATION

1. This License appliesto any program or other work which contains an notice placed by the copyright holders saying it may be distributed under the term so this General Public License. The "Program", below, refer to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: thatistosay, a work containing the Program or portion of it, either by batimor with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activitiesotherthancopying,distributionandmodificationarenotcoveredbythisLicense;theyare outsideitsscope.TheactofrunningtheProgramisnotrestricted,andtheoutputfromtheProgramis coveredonlyifitscontentsconstituteaworkbasedontheProgram(independentofhavingbeenmade byrunningtheProgram).WhetherthatistruedependsonwhattheProgramdoes.

1. You may copy and distribute overbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish one each copy an appropriate copyright notice and disclaimer of warranty; keep intact all then notice that refer to this License and to the absence of any warranty; and give any other recipients of the Program's copy of this License along with the Program.

Youmaychargeafeeforthephysicalactoftransferringacopy, andyoumayatyouroptionoffer warrantyprotectioninexchangeforafee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distributes such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified file to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or an yapth thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If themodifiedprogramnormallyreadscommandsinteractivelywhenrun,youmustcauseit,when startedrunningforsuchinteractiveuseinthemostordinaryway,toprintordisplayananannouncement includinganappropriatecopyrightnoticeandanoticethatthereisnowarranty(orelse,sayingthatyou provideawarranty)andthatusersmayredistributetheprogramundertheseconditions,andtellingthe userhowtoviewacopyofthisLicense. (Exception:iftheProgramitselfisinteractivebutdoesnot normallyprintsuchananannouncement,yourworkbasedontheProgramisnotrequiredtoprintan announcement.)

Theserequirementsapplytothemodifiedworkasawhole.Ifidentifiablesectionsofthatworkarenot derivedfromtheProgram,andcanbereasonablyconsideredindependentandseparateworksin themselves,thenthisLicense,anditsterms,donotapplytothosesectionswhenyoudistributethemas separateworks.Butwhenyoudistributethesamesectionsaspartofawholewhichisaworkbasedon theProgram,thedistributionofthewholemustbeonthetermsofthisLicense,whosepermissionsfor otherlicenseeeseextendtotheentirewhole,andthustoeachandeverypartregardlessofwhowroteit.

Thus, it is not the intent of this section to claim rights or contest your right to work written entirely by you; rather, the intent to exercise the right to control the distribution of derivative or collectiveworks based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of fast storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompanyitwiththecompletecorrespondingmachine-readablesourcecode, whichmustbe distributedunderthetermsofSections1 and2 aboveonamediumcustomarilyusedforsoftware interchange; or,

b) Accompanyitwithawrittenoffer, validforatleastthreeyears, togiveanythirdparty, forachargeno morethanyourcostofphysicallyperformingsourcedistribution, acompletemachine-readablecopy of thecorrespondingsourcecode, tobedistributedunderthetermsofSections1 and2 aboveona mediumcustomarilyusedforsoftwareinterchange; or,

c) Accompanyitwiththeinformationyoureceivedastotheoffertodistributecorrespondingsource code. (Thisalternativeisallowedonlyfornoncommercialdistributionandonlyifyoureceivedthe programinobjectcodeoreexecutableformwithsuchanoffer,inaccordwithSubsectionabove.)

Thesourcecodeforaworkmeansthepreferredformoftheworkformakingmodificationstoit. Foran executablework, completesourcecodemeansallthesourcecodeforallmodulesitcontains, plusany associatedinterfacedefinitionfiles, plusthescriptsusedtocontrolcompilationandinstallationofthe executable. However, asaspecialexception, thesourcecodedistributedneednotincludeanythingthat isnormallydistributed(ineithersourceorbinaryform)withthemajorcomponents(compiler, kernel, and

soon)oftheoperatingsystemonwhichtheexecutableruns,unlessthatcomponentitselfaccompanies theexecutable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, ordistributethe Program except as expressly provided under this License. Any attempt other wisetocopy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will no have their license terminated so long such parties remain infull compliance.

2. You are not required to accept this License, since you haven't signed. However, nothing else grants your permission to modify the Program or its derivative works. These actions are prohibited by law if you don't accept this License. Therefore, by modifying the distribution the Program (or any work based on the Program), you indicate your acceptance of this License, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

3. Each time you are distributed the Program (or any work based on the Program), there is a automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on their recipients' exercise of their rights granted herein. You are not responsible for enforcing compliance by third parties this License.

4. If, as a consequence of court judgment or allegation of patent infringement for any other reason (not limited to patent issues), conditions are imposed by you (whether by court order, agreement or otherwise) that contradict the condition of this License, they don't excuse you from the condition of this License. If you cannot distribute soastosatisfysimultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty - freer distribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would before refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of these section is intended to apply and these section as a whole is intended to apply in other circumstances.

Itisnotthepurposeofthissectiontoinduceyoutoinfringeanypatentsorotherpropertyrightclaimsortocontestvalidityofanysuchclaims;thissectionhasthesolepurposeofprotectingtheintegrityofthefreesoftwaredistributionsystem,whichisimplementedbypubliclicensepractices.Manypeoplehavemadegenerouscontributionstothewiderangeofsoftwaredistributedthroughthatsysteminrelianceonconsistentapplicationofthatsystem;itisuptotheauthor/donortodecideifheorsheiswillingtodistributesoftwarethroughanyothersystemandalicenseecannotimposethatchoice.

This section is intended to make through clearly what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in our countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new version of the General Public License from timetotime. Such new versions will be similar to spirit to the present version, but may differ in detail to address new problems or concerns.

Eachversionisgivenadistinguishingversionnumber. If the Programs specifies a version number of this License which appliestoit and "anylaterversion", you have the option off following the terms and condition either of that version or any laterversion published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate part of the Program into other free programs, whose distribution conditions are different, writeto the author to ask for permission. For software which is copyrighted by the Free Software Foundation, writeto the Free Software Foundation; wesometimes make exceptions for this. Our decision will be guided by the two goals of preserving the freestatus of all derivatives of four free software and of promoting the sharing and reuse of software generally.

NOWARRANTY

11.BECAUSETHEPROGRAMISLICENSEDFREEOFCHARGE, THEREISNOWARRANTYFOR THEPROGRAM,TOTHEEXTENTPERMITTEDBYAPPLICABLELAW.EXCEPTWHEN OTHERWISESTATEDINWRITINGTHECOPYRIGHTHOLDERSAND/OROTHERPARTIES PROVIDETHEPROGRAM"ASIS"WITHOUTWARRANTYOFANYKIND,EITHEREXPRESSEDOR IMPLIED,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOFMERCHANTABILITY ANDFITNESSFORAPARTICULARPURPOSE.THEENTIRERISKASTOTHEQUALITYAND PERFORMANCE OF THEPROGRAMS WITH YOU SHOULD THE PROGRAM PROVEDEFFECTIVE, YOUASSUMETHECOSTOFALLNECESSARYSERVICING,REPAIRORCORRECTION.

1. INNOEVENTUNLESSREQUIRED BYAPPLICABLELAWORAGREEDTOINWRITINGWILL ANYCOPYRIGHTHOLDER, ORANYOTHERPARTYWHOMAYMODIFYAND/ORREDISTRIBUTE THEPROGRAMASPERMITTEDABOVE, BELIABLETOYOUFORDAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTALORCONSEQUENTIALDAMAGESARISINGOUTOFTHEUSE ORINABILITYTOUSETHEPROGRAM (INCLUDINGBUTNOTLIMITEDTOLOSSOFDATAOR DATABASEINGRENDEREDINACCURATEORLOSSESSUSTAINEDBYYOUORTHIRDPARTIES ORAFAILUREOFTHEPROGRAMTOOPERATEWITHANYOTHERPROGRAMS), EVENIFSUCH HOLDEROROTHERPARTYHASBEENADVISEDOFTHEPOSSIBILITY OFSUCHDAMAGES.

ENDOFTERMSANDCONDITIONS

HowtoApplyTheseTermstoYourNewPrograms

If you develop an new program, and you want to be of the greatest possible us to the public, the best way to achieve this is a make it free software which everyone can redistribute and change under these terms.

Todos, attach the following notice to the program. It is a best to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a point to where the full notice is found.

Copyright(c)

Thisprogramisfreesoftware;youcanredistributeitand/ormodifyitunderthetermsoftheGNU GeneralPublicLicenseaspublishedbytheFreeSoftwareFoundation;eitherversion2oftheLicense,or (atyouroption)anylaterversion.

Thisprogramisdistributedinthehopethatitwillbeuseful,butWITHOUTANYWARRANTY;without eventheimpliedwarrantyofMERCHANTABILITYorFITNESSFORAPARTICULARPURPOSE.See theGNUGeneralPublicLicenseformoredetails.

You should have received a copy of the GNU General Public License along with this program; if not, writeto the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA02110-1301 USA.

Alsoaddinformationonhowtocontactyoubyelectronicandpapermail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovisionversion69, Copyright(c)yearnameofauthorGnomovisioncomeswithABSOLUTELYNO WARRANTY;fordetailstype'showw'.Thisisfreesoftware, and you are welcome to distribute it under certain conditions; type'showc'fordetails.

The hypothetical commands 'showw' and 'showc' should show the appropriate part of the General Public License. Of course, the commands you use may be called something other than 'showw' and 'showc'; they could even be mouse click or menu items -- whatever suits your program.

Youshouldalsogetyouremployer(ifyouworkasaprogrammer)oryourschool,ifany,tosigna "copyrightdisclaimer"fortheprogram,ifnecessary.Hereisasample;alterthenames:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program 'Gnomovision' (which makes passes at compilers) written by James Hacker.

,1 April 1989

TyCoon, PresidentofVice

ThisGeneralPublicLicenseddoesnotpermitincorporatingyourprogramintoproprietaryprograms.If yourprogramisasubroutinelibrary,youmayconsideritmoreusefultopermitlinkingproprietary applicationswiththelibrary.Ifthisiswhatyouwanttodo,usetheGNULesserGeneralPublicLicense insteadofthisLicense.

GNULGPL

This projector product includes the open source software programs which apply the GNU Lesser General Public License Version 2 or later version ("LGPL Programs").

WeprovidethesourcecodeoftheLGPLProgramsuntilfive(5)yearsafterthediscontinuationofsame modelofthisprojectorproduct.

If you desiretoreceivethesourcecodeoftheLGPLPrograms, please seethe "EPSONProjector ContactList" in the User's Guide, and contact the customers support of your region.

TheseLGPLProgramsareWITHOUTANYWARRANTY;withouteventheimpliedwarrantyof MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE.SeetheGNUGeneralPublic Licenseformoredetails.

ThelistofLGPLProgramsisasfollowsandthenamesofauthoraredescribedinthesourcecodeofthe LGPLPrograms.

LGPLPrograms

glibc-2.8

SDL-1.2.13

SDL-Image

The GNU Lesser General Public License Version 2 is as follows. You also can se the GNU Lesser General Public License Version 2 at http://www.gnu.org/licenses/.

GNULESSERGENERALPUBLICLICENSE

Version2.1, February 1999

Copyright©)1991,1999FreeSoftwareFoundation,Inc.51FranklinStreet,FifthFloor,Boston,MA 02110-1301USAEveryoneispermittedtocopyanddistributeverbatimcopiesofthislicensedocument, butchangingitisnotallowed.

[ThisisthefirstreleasedversionoftheLesserGPL.ItalsocountsasthesuccessoroftheGNULibraryPublicLicense,version2,hencetheversionnumber2.1.]

Preamble

The licensesformostsoftwarearedesignedtotakeawayyourfreedomtoshareandchangeit. By contrast, the GNUGeneralPublicLicensesareintendedtoguaranteeyourfreedomtoshareand changefreesoftware--tomakesurethesoftwareisfreeforallitsusers.

Thislicense,theLesserGeneralPublicLicense,appliestosomespeciallydesignatedsoftware packages--typicallylibraries--oftheFreeSoftwareFoundationandotherauthorswhodecidetouseit. Youcanuseittoo,butwesuggestyoufirstthinkcarefullyaboutwhetherthislicenseortheordinary GeneralPublicLicenseisthebetterstrategytouseinanyparticularcase,basedontheexplanations below.

Whenwespeakoffreesoftware, wearereferringtofreedomofuse, notprice. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies offreesoftware (and charge forth this service if you wish); that you receive source code or can get it you want it; that you can chan the software and use pieces of fit in new free programs; and that you are informed that you can do the settings.

Toprotectyourrights,weneedtomakerestrictionsthatforbiddistributorstodenyyoutheserightsorto askyoutsurrendertheserights.Theserestrictionstranslatetocertainresponsibilitiesforyouifyou distributecopiesofthelibraryorifyoumodifyit.

Forexample, if youdistributecopiesofthelibrary, whethergratisorforafee, youmustgivethe recipientsalltherightsthatwegaveyou. Youmustmakesurethatthey, too, receiveorcangetthe sourcecode. If youlinkothercodewiththelibrary, youmustprovidecompleteobjectfilestothe recipients, sothattheycanrelinkthemwiththelibraryaftermakingchangestothelibraryand recompilingit. Andyoumustshowthemthesetermssotheyknowtheirrights.

Weprotectyourrightswithatwo-stepmethod:(1)wecopyrightthelibrary, and(2)weofferyouthis license, whichgivesyoulegalpermissiontocopy,distributeand/ormodifythelibrary.

Toprotecteachdistributor,wewanttomakeitveryclearthatthereisnowarrantyforthefreelibrary. Also,ifthelibraryismodifiedbysomeoneelseandpassedon,therecipientssshouldknowthatwhatthey haveisnottheoriginalversion,sothattheoriginalauthor'sreputationwillnotbeaffectedbyproblems thatmightbeintroducedbyothers.

Finally, software patents pose a constant threat to the existence of any free program. Wewishtomake sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from patent holder. Therefore, we insist that any patent license obtained for aversion of the library must be consistent with the full freedom of us specified in this license.

MostGNUsoftware,includingsomelibraries,iscoveredbytheordinaryGNUGeneralPublicLicense. Thislicense,theGNULesserGeneralPublicLicense,appliestocertaindesignatedlibraries,andisquite differentfromtheordinaryGeneralPublicLicense.Weusethislicenseforcertainlibrariesinorderto permitlinkingthoselibrariesintonon-freeprograms.

Whenaprogramislinkedwithalibrary,whetherstaticallyorusingasharedlibrary,thecombinationof thetwoislegallyspeakingacombinedwork,aderivativeoftheoriginallibrary.TheordinaryGeneral PublicLicensethereforepermitssuchlinkingonlyiftheentirecombinationfitsitscriteriaoffreedom.The LesserGeneralPublicLicensepermitsmorelaxcriteriaforlinkingothercodewiththelibrary.

Wecallthislicensethe"Lesser"GeneralPublicLicensebecauseitdoesLesstoprotecttheuser's freedomthantheordinaryGeneralPublicLicense.ItalsoprovidesotherfreesoftwaredevelopersLess ofanadvantageovercompetingnon-freeprograms.Thesedisadvantagesarethereasonweusethe ordinaryGeneralPublicLicenseformanylibraries.However,theLesserlicenseprovidesadvantagesin certainspecialcircumstances.

Forexample, onrareoccasions, theremaybeaspecialneedtoencouragethewidestpossibleuseofacertainlibrary, sothatitbecomesade-factostandard. Toachievethis, non-freeprogramsmustbe allowedtousethelibrary. Amorefrequentcaseisthatafreelibrarydoesthesamejobaswidelyused non-freelibraries. Inthiscase, thereislittletogainbylimitingthefreelibrarytofreesoftwareonly, sowe usetheLesserGeneralPublicLicense.

Inothercases, permissionouseaparticularlibraryinnen-freeprogramsenablesagreaternumberofpeopletousealargebodyoffreesoftware. Forexample, permissionousetheGNUCLibraryinnen-freeprogramsenablesmanymorepeopletousetthewholeGNUoperatingsystem,aswellasitsvariant,theGNU/Linuxoperatingsystem.

Although the Lesser General Public License is less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the where with altorun that program using a modified version of the Library.

Theprecisetermsandconditionsforcopying,distributionandmodificationfollow.Paycloseattentionto thedifferencebetweena"workbasedonthelibrary"anda"workthatusesthelibrary".Theformer containscodederivedfromthelibrary,whereasthelattermustbecombinedwiththelibraryinorderto run.

GNULESSERGENERALPUBLICLICENSETERMSANDCONDITIONSFORCOPYING, DISTRIBUTIONANDMODIFICATION

1. This License Agreement applies to any software library or other program which contains an notice placed by the copyright holder or other authorized part(saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A"library"meansacollectionofsoftwarefunctionsand/ordatapreparedsoastobeconvenientlylinked withapplicationprograms(whichusesomeofthosefunctionsanddata)toformexecutables.

The "Library", below, refer to any such software library or work which has been distributed under these terms. A "work based on the Library" mean either the Library or any derivative work under copyright law: that is to say, a work containing the Library or portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".)

"Sourcecode"foraworkmeansthepreferredformoftheworkformakingmodificationstoit. Fora library, completesourcecodemeansallthesourcecodeforallmodulesitcontains, plusanyassociated interfacedefinitionfiles, plusthescriptsusedtocontrolcompilationandinstallationofthelibrary.

Activitiesotherthancopying,distributionandmodificationarenotcoveredbythisLicense;theyare outsideitsscope.TheactofrunningaprogramusingtheLibraryisnotrestricted,andoutputfromsucha programiscoveredonlyifitscontentsconstituteaworkbasedontheLibrary(independentoftheuseof theLibraryinatoolforwriting).WhetherthatistruedependsonwhattheLibrarydoesandwhatthe programthatusestheLibrarydoes.

1. You may copy and distribute overbatim copies of the Library's completes source code as you receive it, in an medium, provided that you conspicuously and appropriately publish one each copy an appropriate copyright notice and disclaimer of warranty; keep intact all then notice that referto this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring acopy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of fit, thus forming a work based on the Library, and copy and distributes such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) Themodifiedworkmustitselfbeasoftwarelibrary.

b) Youmustcausethefilesmodifiedtocarryprominentnoticesstatingthatyouchangedthefilesandthe dateofanychange.

c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.

d) If a facility in them modified Library refer to a function or a table of data to be supplied by an application program that uses the facility, other than an argument passed when the facility is invoked, then you must make a good faith to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(Forexample, afunctioninalibrarytocomputesquarerootshasapurposethatisentirelywell-defined independentoftheapplication. Therefore, Subsection2drequiresthatanyapplication-suppliedfunction ortableusedbythisfunctionmustbeoptonal:iftheapplicationdoesnotsupplyit,thesquareroot functionmuststillcomputesquareroots.)

Theserequirementsapplytothemodifiedworkasawhole.Ifidentifiablesectionsofthatworkarenot derivedfromtheLibrary,andcanbereasonablyconsideredindependentandseparateworksin themselves,thenthisLicense,anditsterms,donotapplytothosesectionswhenyoudistributethemas separateworks.Butwhenyoudistributethesamesectionsaspartofawholewhichisaworkbasedon theLibrary,thedistributionofthewholemustbeonthetermsofthisLicense,whosepermissionsfor otherlicenseesextendtotheentirewhole,andthustoeachandeverypartregardlessofwhowroteit.

Thus, it is not the intent of this section to claim rights or contest your right to work written entirely by you; rather, the intent to exercise the right to control the distribution of derivative or collectiveworks based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of fast storage or distribution medium does not bring the other work under the scope of this License.

1. YoumayopttoapplythetermsoftheordinaryGNUGeneralPublicLicenseinsteadofthisLicensetoagivencopyoftheLibrary.Todothis,youmustalterallthenoticesthatrefertothisLicense,sothattheyrefertotheordinaryGNUGeneralPublicLicense,version2,insteadoftthisLicense.(Ifanewerversionthanversion2oftheordinaryGNUGeneralPublicLicensehasappeared,thenyoucanspecifthatversioninsteadifyouwish.)Donotmakeanyotherchangeinthesenotics.

Oncethischangeismadeinagivency,itisirreversibleforthatcopy,sotheordinaryGNUGeneral PublicLicenseappliestoallsubsequentcopiesandderivativeworksmadefromthatcopy.

ThisoptionisusefulwhenyouwishtocopypartofthecodeoftheLibraryintoaprogramthatisnota library.

1. You may copy and distribute the Library (or portion order derivative of fit, under Section 2) in object code to execute a form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distributionofobjectcodeismadebyofferingaccesstocopyfromadesignatedplace,thenofferingequivalentaccesstocopythesourcecodefromthesameplacesatisfiestherequirementtodistributethesourcecode,eventoughthirdpartiesarenotcompelledtocopythesourcealongwiththeobjectcode.

1. A program that contains n oderivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative of the library, and therefore falls outside the scope of this License.

However, linkinga "workthatusestheLibrary" with the Library creates an executable that is a derivative of the Library (because it contains portion of the Library), rather than a "workthatusesthe library". The executable is therefore recovered by this License. Section 6 state terms for distribution of such executables.

Whena"workthatusestheLibrary"usesmaterialfromaheaderfilethatispartoftheLibrary,theobject codefortheworkmaybeaderivativeworkoftheLibraryeventhoughthesourcecodeisnot.Whether thisistrueisespeciallysignificantiftheworkcanbelinkedwithouttheLibrary,oriftheworkisitselfa library.Thethresholdforthistobetrueisnotpreciselydefinedbylaw.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portion of the Library will still fall under Section 6.)

Otherwise, iftheworkisaderivativeoftheLibrary, youmaydistributetheobjectcodefortheworkunder thetermsofSection6.AnyexecutablescontainingthatworkalsofallunderSection6, whetherornot theyarelinkeddirectlywiththeLibraryitself.

1. AsanexceptiontotheSectionsabove, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portion of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

YoumustgiveprominentnoticewitheachcopyoftheworkthattheLibraryisusedinitandthatthe LibraryanditsusearecoveredbythisLicense. YoumustsupplyacopyofthisLicense. Ifthework duringexecutiondisplayscopyrightnotices, youmustincludethecopyrightnoticefortheLibraryamong them, aswellasareferencedirectingtheusertothecopyofthisLicense. Also, youmustdooneof thesethings:

a)Accompanytheworkwiththecompletecorrespondingmachine-readablesourcecodefortheLibrary includingwhateverchangeswereusedinthework(whichmustbedistributedunderSections1 and2 above);and,iftheworkisanexecutablelinkedwiththeLibrary,withthecompletemachine-readable "workthatusestheLibrary",asobjectcodeand/orsourcecode,sothattheusercanmodifytheLibrary and thenrelinktoproduceamodifiedexecutablecontainingthemodifiedLibrary.(Itisunderstood that theuserwhochangesthecontentsofdefinitionsfilesintheLibrarywillnotnecessarilybeableto recompiletheapplicationousethemodifieddefinitions.)
b) UseasuitablesharedlibrarymechanismforlinkingwiththeLibrary.Asuitablemechanismisonethat(1)usesatruntimeacopyofthelibraryalreadypresentontheuser'scomputersystem,ratherthan copyinglibraryfunctionsintotheexecutable,and(2)willoperateproperlywithamodifiedversionofthe library,iftheuserinstallsone,aslongasthemodifiedversionisinterface-compatiblewiththeversion thattheworkwasmadewith.
c) Accompanytheworkwithawrittenoffer, validforatleastthreeyears, togivethesameuserthe materialsspecifiedinSubsection6a, above, forachargenomorethanthecostofperforming this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials that you have already sent this user acopy.

Foranexecutable, therequiredformofthe"workthatusesetheLibrary"mustincludeanydataandutilityprogramsneededforreproducingtheexecutablefromit. However,asaspecialexception,thematerials tobedistributedneednotincludeanythingthatisnormallydistributed(ineithersourceorbinaryform) withthemajorcomponents(compiler, kernel, andsoon)oftheoperatingsystemonwhichthe executableruns,unlessthatcomponentitselfaccompaniestheexecutable.

Itmayhappenthatthisrequirementcontradictsthelicenserestrictionsofotherproprietarylibrariesthat donotnormallyaccompanytheoperatingsystem.Suchacontradictionmeansyoucannotuseboth themandtheLibrarytogetherinanexecutablethatyoudistribute.

1. You may placelibraryfacilitiesthatareaworkbasedontheLibraryside-by-sideinasinglelibrary together with other library facilities not covered by this License, and distributes such a combined library, provided that these separated distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do the set two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with another library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining what to find the accompanying uncombined form of the homework.
8. Youmaynotcopy, modify, sublicense, linkwith, ordistributetheLibraryexceptasexpresslyprovided underthisLicense.Anyattemptotherwisetocopy, modify, sublicense, linkwith, ordistributetheLibrary isvoid, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their license terminated as long as such parties remain infull compliance.
9. You are not required to accept this License, since you haven not signed. However, nothing else grants your permission to modify the library or its derivative works. These actions are prohibited by law if you don't accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.
10. Each time you're distributed the Library (or any work based on the Library), there is a automatically receives a license from the original licensortocopy, distribute, link with or modify the Library subject to the terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of court judgment or allegation of patent infringement for any other reason (not limited to patent issues), conditions are imposed by you (whether by court order, agreement or otherwise) that contradict the condition of this License, they don't excuse you from the condition of this License. If you cannot distribute so astosatisfysimultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty - freer distribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be therefore from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of these section is intended to apply, and these section as a whole is intended to apply in other circumstances.

Itisnotthepurposeofthissectiontoinduceyoutoinfringeanypatentsorotherpropertyrightclaimsortocontestvalidityofanysuchclaims;thissectionhasthesolepurposeofprotectingtheintegrityofthefreesoftwaredistributionsystemwhichimplementedbypubliclicensepractices. Manypeoplehavemadegenerouscontributionstothewelangerangeofsoftwaredistributedthroughthatsysteminrelianceonconsistentapplicationofthatsystem;itisuptotheauthor/donortodecideifheorsheiswillingtodistributesoftwarethroughanyothersystemandalicenseecannotimposethatchoice.

This section is intended to make through a clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in our countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new version so the Lesser General Public License from timetotime. Such new versions will be similar to the present version, but may differ in detail to address new problems or concerns.

Eachversionisgivenadistinguishingversionnumber. If the Library specifies a version number of this License which appliestoit and "anylaterversion", you have the option off following the terms and condition either of that version or of any laterversion published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate part of the Library into other free programs, whose distribution conditions are incompatible with these, writeto the authorto ask for permission. For software which is copyrighted by the Free Software Foundation, writeto the Free Software Foundation; wesometimes make exceptions forth this. Our decision will be guided by the two goals of preserving the freestatus of all derivatives of four free software and of promoting the sharing and reuse of software generally.

NOWARRANTY

15.BECAUSETHELIBRARYISLICENSEDFREEOFCHARGE, THEREISNOWARRANTYFOR THELIBRARY, TOTHEEXTENTPERMITTEDBYAPPLICABLELAW.EXCEPTWHENOTHERWISE STATEDINWRITINGTHECOPYRIGHTHOLDERSAND/OROTHERPARTIESPROVIDETHE LIBRARY"ASIS"WITHOUTWARRANTYOFANYKIND,EITHEREXPRESSEDORIMPLIED, INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOFMERCHANTABILITYAND FITNESSFORAPARTICULARPURPOSE.THEENTIRERISKASTOTHEQUALITYAND PERFORMANCEOFTHELIBRARYISWITHYOU.SHOULDTHELIBRARYPROVEDEFECTIVE, YOUASSUMETHECOSTOFALLNECESSARYSERVICING,REPAIRORCORRECTION.
16. INNOEVENTUNLESSREQUIRED BYAPPLICABLELAWORAGREEDTOINWRITINGWILL ANYCOPYRIGHTHOLDER, ORANYOTHERPARTYWHOMAYMODIFYAND/ORREDISTRIBUTE

THELIBRARYASPERMITTEDABOVE,BELIABLETOYOUFORDAMAGES,INCLUDINGANY GENERAL,SPECIAL,INCIDENTALORCONSEQUENTIALDAMAGESARISINGOUTOFTHEUSE ORINABILITYTOUSETHELIBRARY(INCLUDINGBUTNOTLIMITEDTOLOSSOFDATAORDATA BEINGRENDEREDINACCURATEORLOSSESSUSTAINEDBYYOUORTHIRDPARTIESORA FAILUREOFTHELIBRARYTOOPERATEWITHANYOTHERSOFTWARE),EVENIFSUCH HOLDEROROTHERPARTYHASBEENADVISEDOFTHEPOSSIBILITYOSUCHDAMAGES.

ENDOFTERMSANDCONDITIONS

HowtoApplyTheseTermstoYourNewLibraries

If you develop anewlibrary, and you want it to be of the greatest possible us to the public, we recommend making it free software that everyone can redistribute and change. You can do by permitting redistribution under these terms (or, alternatively, under the term so the ordinary General Public License).

Toapplytheseterms, attachthefollowingnoticestothelibrary. Ittisafesttoattachthemtothestartof eachsourcefiletomosteffectivelyconveytheexclusionofwarranty; andeachfileshouldhaveatleast the "copyright" lineandapointertowherethefullnoticeisfound.

Copyright(c)

Thislibraryisfreesoftware:youcanredistributeitand/ormodifyitunderthetermsoftheGNULesser GeneralPublicLicenseaspublishedbytheFreeSoftwareFoundation;eitherversion2.1oftheLicense, or(atyouroption)anylaterversion.

Thislibraryisdistributedinthehopethatitwillbeuseful,butWITHOUTANYWARRANTY;withouteven theimpliedwarrantyofMERCHANTABILITYorFITNESSFORAPARTICULARPURPOSE.Seethe GNULesserGeneralPublicLicenseformoredetails.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, writ to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA02110-1301 USA

Alsoaddinformationonhowtocontactyoubyelectronicandpapermail.

Youshouldalsogetyouremployer(ifyouworkasaprogrammer)oryourschool,ifany,tosigna "copyrightdisclaimer"forthelibrary,ifnecessary.Hereisasample;alterthenames:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (alibrary fort weakening knobs) written by James Random Hacker.

,1 April 1990

TyCoon, PresidentofVice

This projector product includes the open source software program "University of California, Berkeley License (Berkeley Software Distribution License)" which applies the terms and conditions provided by owner of the copyright to the BSDLicense.

The "BSDLicense" are WITHOUT ANY WARRANTY; without event the implied warranty of MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.

ListofBSDLicenseprograms

busybox-1.13.4

Licensetermsofconditionsofeachprogramwhichareprovidedbyownerofthecopyrighttothe"BSD License"areasfollows.

Copyright(c)TheRegentsoftheUniversityofCalifornia.Allrightsreserved.

ThiscodeisderivedfromsoftwarecontributedtoBerkeleybyKennethAlmquist.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice, thislistofconditionsandthe followingdisclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither then a name of the University nort h names of its contributors maybe used to endorse or promote products derived from this software without specific prior written permission.

THISSOFTWAREISPROVIDEDBYTHEREGENTSANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHEREGENTSORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

libjpeg

This projector product includes the open source software program "libjpeg" which applies the terms and conditions provided by owner of the copyright to the "libjpeg".

The "libjpeg" are WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.

Listoflibjpegprograms

libjpeg-6b

Licensetermsofconditionsofeachprogramwhichareprovidedbyownerofthecopyrighttothe"libjpeg"areasfollows.

Copyright(c)1994-1997, Thomas G. Lane. This file is part of the Independent JPEG Group's software. For condition so distribution and use, seethe accompanying README file.

This distribution contains the sixth public release of the Independent JPEG Group's free JPEG software. You are welcomed to distribute this software and to use it for any purpose, subject to the conditions under LEGALISSUES, below.

LEGALISSUES

InplainEnglish:

1. Wedon'tpromisethatthissoftwareworks.(Bufityoufindanybugs,pleaseletusknow!)

2. Youcanusethissoftwareforwhateveryouwant. Youdon'thavetopayus.

3. You may not pretend that you wrotethissoftware. If you use it in a program, you must acknowledge somewhere in your documentation that you've used the IJGcode.

Inlegalese:

TheauthorsmakeNOWARRANTYorrepresentation, eitherexpressorimplied, withrespecttothis software, itsquality, accuracy, merchantability, orfitness for a particular purpose. This software is provided "ASIS", and you, its user, assumetheentireriskasto its quality and accuracy.

Thissoftwareiscopyright(c)1991-1998, ThomasG.Lane.AllRightsReservedexceptasspecified below.

Permissionisherebygrantedtouse,copy,modify,anddistributethissoftware(orportionsthereof)for anypurpose,withoutfee,subjecttotheseconditions:

(1) If any part of the source code for this software is distributed, then this README file must be included, with this copyright and no-warrant notice unaltered; and any additions, deletions, or changesto the original files must be clearly indicated in accompanying documentation.

(2) If only executable code is distributed, then the accompanying documentation must state that "this software is based in part on the work of the Independent JPEG Group".

(3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable consequences; the authors accept NOLIABILITY for damages of any kind.

TheseconditionsapplytoanysoftwarederivedfromorbasedonthelJGcode,notjusttotheunmodified library.Ifyouuseourwork,yououghttoacknowledgeus.

PermissionisNOTgrantedfortheuseofanyIJGauthor'snameorcompanynameinadvertisingor publicityrelatingtothissoftwareorproductsderivedfromit. Thissoftwaremaybereferredtoonlyas "theIndependentJPEGGroup'ssoftware".

Wespecificallypermitandencouragetheuseofthissoftwareasthebasisofcommercialproducts, providedthatallwarrantyorliabilityclaimsareassumedbytheproductvendor.

ansi2knr.cisincludedinthisdistributionbypermissionofL.PeterDeutsch,soleproprietorofits copyrightholder,AladdinEnterprisesofMenloPark,CA.ansi2knr.cisNOTcoveredbytheabove copyrightandconditions,butinsteadbytheusualdistributiontermsoftheFreeSoftwareFoundation; principally,thatyoumustincludesourcecodeifyouredistributeit.(Seethefileansi2knr.cforfulldetails.) However,sinceansi2knr.cisnotneededaspartofanyprogramgeneratedfromthelJGcode,thisdoes notlimityoumorethantheforegoingparagraphsdo.

TheUnixconfigurationscript"configure"wasproducedwithGNUAutoconf.ItiscopyrightbytheFree SoftwareFoundationbutisfreelydistributable.Thesameholdsforitssupportingscripts(config.guess, config.sub,ltconfig,ltmain.sh).Anthersupportscript,install-sh,iscopyrightbyM.I.T.butisalsofreely distributable.

ItappearsthatthearithmeticcodingoptionoftheJPEGspeciscoveredbypatentsownedbyIBM, AT&T,andMitsubishi.Hencearithmeticodingcannotlegallybeusedwithoutobtainingoneormore licenses. Forthisreason,supportforarithmeticcodinghasbeenremovedfromthefreeJPEGsoftware. (SincearithmeticodingprovidesonlyamarginalgainovertheunpatentedHuffmanmode,itisunlikely thatverymanyimplementationswillsupportit.)Sofarasweareaware,therearenopatentrestrictions ontheremainingcode.

The IJGdistributionformerlyincludedcodetoreadandwriteGIFfiles.ToavoidentanglementwiththeUnisysLZWpatent.GIFreadingsupporthasbeenremovedaltogether,andtheGIFwriterhasbeen simplifiedtoproduce"uncompressedGIFs".ThistechniquedoesnotusetheLZWalgorithm;the resultingGIFfilesarelargerthanusual,butarereadablebyallstandardGIFdecoders.

Wearerequiredtostatethat

"TheGraphicsInterchangeFormat(c)istheCopyrightpropertyofCompuServeIncorporated.GIF(sm)isaServiceMarkpropertyofCompuServeIncorporated."

libpng

This projector product includes the open source software program "libpng" which applies the terms and conditions provided by owner of the copyright to the "libpng".

The "libpng" are WITHOUT ANY WARRANTY; without event the implied warranty of MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.

Listoflibpngprograms

libpng-1.2.49

License terms of conditions of each program which are provided by owner of the copyright to the "libpng" areas follows.

Thiscopyofthelibpngnoticesisprovidedforyourconvenience.Incaseofanydiscrepancybetween thiscopyandthenoticesinthefilepng.hthatisincludedinthelibpngdistribution,thelattershallprevail.

COPYRIGHTNOTICE, DISCLAIMER, and LICENSE:

Ifyoumodifylibpngyoumayinsertadditionalnoticesimmediatelyfollowingthissentence.

Thiscodeisreleasedunderthelibpnglicense.

libpngversion1.2.6, August 15, 2004, through 1.2.49, March 29, 2012, are Copyright (c) 2004, 2006-2009 Glenn Randers-Pehrson, and a redistributed according to the same disclaimer and licensee as libpng-1.2.5 with the following individual added to the list of Contributing Authors

CosminTruta

libpngversions1.0.7,July1,2000,through1.2.5-October3,2002,areCopyright(c)2000-2002Glenn Randers-Pehrson,andaredistributedaccordingtothesamedisclaimerandlicenseaslibpng-1.0.6with thefollowingindividualsaddedtothelistofContributingAuthors

Simon-PierreCadieux

EricS.Raymond

GillesVollant

andwiththefollowingadditionstothedisclaimer:

Thereisnowarrantyagainstinterferencewithyourenjoymentofthelibraryoragainstinfringement. Thereisnowarrantythatoureffortsorthelibrarywillfulfillanyofyourparticularpurposesoneeds. This libraryisprovidedwithallfaults,andtheentireriskofsatisfactoryquality,performance,accuracy,andeffortiswiththeuser.

libpngversions0.97, January 1998, through 1.0.6, March 20, 2000, are Copyright ©) 1998, 1999 Glenn Randers-Pehrson, and a red distributed according to the same disclaimer and license as libpng-0.96, with the following individuals added to the list of Contributing Authors:

TomLane

GlennRanders-Pehrson

WillemvanSchaik

libpngversions0.89,June1996,through0.96,May1997,areCopyright(c)1996,1997AndreasDilger Distributedaccordingtothesamedisclaimerandlicenseaslibpng-0.88,withthefollowingindividuals addedtothelistofContributingAuthors:

JohnBowler

KevinBracey

SamBushell

MagnusHolmgren

GregRoelofs

TomTanner

libpngversions0.5, May 1995, through 0.88, January 1996, are Copyright(c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc.

For the purposes of this copyright and license, "Contributing Authors" is defined as the following set of individuals:

AndreasDilger

DaveMartindale

GuyEricSchalnat

PaulSchmidt

TimWegner

ThePNGReferenceLibraryissupplied"ASIS".TheContributingAuthorsandGroup42,Inc.disclaimall warranties,expressedorimplied,including,withoutlimitation,thewarrantiesofmerchantabilityandof fitnessforanypurpose.TheContributingAuthorsandGroup42,Inc.assumenoliabilityfordirect, indirect,incidental,special,exemplary,orconsequentialdamages,whichmayresultfromtheuseofthe PNGReferenceLibrary,evenifadvisedofthepossibilityofsuchdamage.

Permissionisherebygrantedtouse,copy,modify,anddistributethissourcecode,orportionshereof,for anypurpose,withoutfee,subjecttothefollowingrestrictions:

1. The origin of this source codemust not bemis represented.

2. Altered versions must be plainly marked as such and must not be represented as being the original source.

3. This Copyrightnoticemaynotberemovedoralteredfromanysourceoralteredsourcedistribution.

The Contributing Authors and Group 42, Inc. specifically permit, without fee, and encourage the use of this source code as a component to supporting the PNG file format in commercial products. If you use this source code in a product, acknowledgment is not required but would be appreciated.

A"png_get_copyright"functionisavailable,forconvenientusein"about"boxesandthelike:

printf("%s", png_get_copyright(NULL));

Also, the PNGlogo(inPNGformat, ofcourse) is supplied in the files "pngbar.png" and "pngbar.jpg" (88x31) and "pngnow.png" (98x31).

LibpngisOSICertifiedOpenSourceSoftware.OSICertifiedOpenSourceisacertificationmarkofthe OpenSourceInitiative.

GlennRanders-Pehrson

[e-mail]

March29,2012

zlib

This projector product includes the open source software program "zlib" which applies the terms and conditions provided by owner of the copyright to the "zlib".

The "zlib" are WITHOUT ANY WARRANTY; without event the implied warranty of MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.

Listofzlibprograms

zlib-1.1.4

Licensetermsofconditionsofeachprogramwhichareprovidedbyownerofthecopyrighttothe"zlib" areasfollows.

Copyrightnotice:

(c)1995-1998Jean-IoupGaillyandMarkAdler

Thissoftwareisprovided'as-is',withoutanyexpressorimpliedwarranty.Innoeventwilltheauthorsbe heldliableforanydamagesarisingfromtheuseofthissoftware.

Permissionisgrantedtoanyonetousethissoftwareforanypurpose,includingcommercialapplications, andtoalteritandredistributeitfreely,subjecttothefollowingrestrictions:

1. The origin of this software must not be represented; you must not claim that you would the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

2. Alteredsourceversions must be plainly marked as such, and must not be represented as being the original software.

3. Thisnoticemaynotberemovedoralteredfromanysourcedistribution.

Jean-loupGailly

[e-mail]

[e-mail]

Ifyouusethezlibractoryinaproduct, wewouldappreciate*not*receivinglengthylegaldocumentsto sign. Thesourcesareprovidedforfreebutwithoutwarrantyofanykind. Thelibraryhasbeenentirely writtenbyJean-loupGaillyandMarkAdler; itdoesnotincludethird-partycode.

If you are distributed from modified sources, we would appreciate that you include in the file Change Log history information documenting your changes.

mDNSResponder

This projector product include the open source software program "mDNS Responder" which applies the following license terms "Apache License Version 2.0, January 2004".

Listof"mDNSResponder"

mDNSResponder-107.6(onlymDNSResponderPosixisused)

Licenseterms"ApacheLicenseVersion2.0, January 2004" areasfollows.

ApacheLicense

Version2.0, January 2004

http://www.apache.org/licenses/

TERMSANDCONDITIONSFORUSE, REPRODUCTION, AND DISTRIBUTION

1. Definitions.

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.

"Licensor" shall mean the copyright owner entity authorized by the copyright owner that is granting the License.

"LegalEntity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (I) the power, director indirect, to cause the direction or management of such entity, whether by contractor otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity.

"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License.

"Source"formshallmeanthepreferredformformingmodifications,includingbutnotlimitedto softwaresourcecode,documentationsource,andconfigurationfiles.

"Object"formshallmeananyformresultingfrommechanicaltransformationortranslationofaSource form,includingbutnotlimitedtocompiledobjectcode,generateddocumentation,andconversionsto othermediatypes.

"Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by copyright notice that is included in nor attached to the work (an example is provided in the Appendix below).

"DerivativeWorks" shall mean any work, whether in SourceObject form, that is based on (ordered from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work authorship. For the purposes of this License, Derivative Works shall not include work that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Work thereof.

"Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or addition to that Work or Derivative Work thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual legal entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communications sent to the Licensor or its representatives, including but not limited to communication one electronic mailing lists, source code control systems, and dissuetetracking system that are managed by, or on behalf of the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Nota Contribution."

"Contributor" shall mean Licensor and any individual legal entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.

1. GrantofCopyrightLicense. SubjecttothetermsandconditionsofthisLicense, eachContributor herebygrantstoYouaperpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyrightlicensetoreproduce, prepareDerivativeWorksof, publiclydisplay, publiclyperform, sublicense, anddistributetheWorkandsuchDerivativeWorksinSourceorObjectform.

2. GrantofPatentLicense. SubjecttothetermsandconditionsofthisLicense, eachContributorhereby grantstoYouaperpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable(exceptas statedinthissection)patentlicensetomake, havemade, use, offertosell, sell, import, and otherwise transfertheWork, wheresuchlicenseappliesonlytothosepatentclaimslicensablebysuchContributor thatarenecessarilyinfringedbytheirContribution(s)aloneorbycombinationoftheirContribution(s)with theWorktowhichsuchContribution(s)wassubmitted. If Youinstitutepatentlitigationagainstanyentity (includingacross-claimorcounterclaiminalawsuit)allegingthattheWorkoraContribution incorporatedwithintheWorkconstitutesdirectorcontributorypatentinfringement, thenanypatent licensesgrantedtoYouunderthisLicenseforthatWorkshallterminateasofthedatesuchlitigationis filed.

3. Redistribution. You may reproduce and distribute copies of the Work or Derivative Work thereof in anymedium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:

(a) You must give any other recipients of the Work or Derivative Works as copy of this License; and

(b) You must cause an unmodified file to store a copy of the following: You can change the files and

(c) You must retain, in the Source form of any Derivative Work that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that donot pertainto an yap part of the Derivative Works; and

(d) If the Work includes a NOTICE text file as part of its distribution, then any Derivative Work that You distributemust include are adable copy of the attribution notices contained with in such NOTICE file, excluding those notices that do not pertaint to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and where versus third-part notices normally appear. The content so the NOTICE file are for informational purposes only and donot modify the License. You may add your own attribution notices within Derivative Work that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License.

YoumayaddYourowncopyrightstatementtoYourmodificationsandmayprovideadditionalordifferentlicensetermsandconditionsforuse,reproduction,ordistributionofYourmodifications,orforanysuchDerivativeWorksasawhole,providedYouruse,reproduction,anddistributionoftheWorkotherwisecomplieswiththeconditionsstatedinthisLicense.

1. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by Youtube the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions.

Notwithstandingtheabove,nothinghereinshallsupersedeormodifythetermsofanyseparatelicense agreementyoumayhaveexecutedwithLicensorregardingsuchContributions.

1. Trademarks. This Licensed does not grant permission to set the tradenames, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.

2. DisclaimerofWarranty.Unlessrequiredbyapplicablelaworagreedtoinwriting,Licensorprovides theWork(andeachContributorprovidesitsContributions)onan"ASIS"BASIS,WITHOUT WARRANTIESORCONDITIONSOFANYKIND,eitherexpressorimplied,including,withoutlimitation, anywarrantiesorconditionsofTITLE,NON-INFRINGEMENT,MERCHANTABILITY,orFITNESSFOR APARTICULARPURPOSE.Youaresolelyresponsiblefordeterminingtheappropriatenessofusingor redistributingtheWorkandassumeanyrisksassociatedwithYoureexerciseofpermissionsunderthis License.

3. Limitation of Liability. Innoevent and underno legal theory, whether intort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to set the work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.

4. Accepting Warranty or Additional Liability. Whiler distributing the Work or Derivative Work thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Yours responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

ENDOFTERMSANDCONDITIONS

APPENDIX: How to apply the Apache License to your work.

ToapplytheApacheLicensetoyourwork,attachthefollowingboilerplatenotice,withthefields enclosedbybrackets”["replacedwithyourownidentifyinginformation.(Don'tincludethebrackets!) Thetextshouldbeenclosedintheappropriatecommentsyntaxforthefileformat.Wealsorecommend thatafileorclassnameanddescriptionofpurposebeincludedonthesame"printedpage"asthe copyrightnoticeforeasieridentificationwithinthird-partyarchives.

Copyright[yyyy][nameofcopyrightowner]

LicensedundertheApacheLicense, Version2.0(the"License");

youmaynotusethisfileexceptincompliancewiththeLicense.

YoumayobtainacopyoftheLicenseat

http://www.apache.org/licenses/LICENSE-2.0

Unlessrequiredbyapplicablelaworagreedtoinwriting,softwaredistributedundertheLicenseis distributedonan"ASIS"BASIS,WITHOUTWARRANTIESORCONDITIONSOFANYKIND,either expressorimplied.

SeetheLicenseforthespecificlanguagegoverningpermissionsandlimitationsundertheLicense.

aes-src-29-04-09

This projector product include the open source software program "aes-src-29-04-09" which applies the terms and conditions provided by owner of the copyright to the "aes-src-29-04-09".

The "aes-src-29-04-09" are WITHOUT ANY WARRANTY; without event the implied warranty of MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.

Listofes-src-29-04-09programs

aes-src-29-04-09

Licensetermsofconditionsofeachprogramwhichareprovidedbyownerofthecopyrighttothe"aes-src-29-04-09"areasfollows.

Copyright(c)1998-2008,BrianGladman,Worcester,UK.Allrightsreserved.

LICENSETERMS

Theredistributionanduseofthissoftware(withorwithoutchanges)isallowedwithoutthepaymentof feesorroyaltiesprovidedthat:

1. sourcecoded distributions include the above copyright notice, this list of conditions and the following disclaimer;
2. binary distributions include the above copyright notice, this list of conditions and the following disclaimer in their documentation
3. thenameofthecopyrightholderisnotusedtoendorseproductsbuiltusingthissoftwarewithoutspecificwritten.

DISCLAIMER

Theredistributionanduseofthissoftware(withorwithoutchanges)isallowedwithoutthepaymentof feesorroyaltiesprovidedthat:

newlib

This projector product includes the open source software program "newlib" which applies the terms and conditions provided by owner of the copyright to the "newlib".

The "newlib" are WITHOUT ANY WARRANTY; without event the implied warranty of MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.

Listofnewlibprograms

newlib1.17.0

Licensetermsofconditionsofeachprogramwhichareprovidedbyownerofthecopyrighttothe"newlib"areasfollows.

Thenewlibsubdirectoryisacollectionofsoftwarefromseveralsources.

Eachfilemayhaveitsowncopyright/licensethatisembeddedinthesourcefile.Unlessotherwisenoted inthebodyofthesourcefile(s),thefollowingcopyrightnoticeswillapplytothecontentsofthenewlib subdirectory:

(1) RedHat Incorporated

Copyright(c)1994-2007RedHat, Inc. Allrightsreserved.

Thiscopyrightedmaterialismadeavailabletoanyonewishingtouse,modify,copy,orredistributeitsubjecttothetermsandconditionsoftheBSDLicense.Thisprogramisdistributedinthehopethatitwillbeuseful,butWITHOUTANYWARRANTYexpressedorimplied,includingtheimpliedwarrantiesofMERCHANTABILITYorFITNESSFORAPARTICULARPURPOSE.Acopyofthislicenseisavailableathttp://www.opensource.org/licenses.AnyRedHattrademarksthatareincorporatedinthesourcecodeordocumentationarenotsubjecttotheBSDLicenseandmayonlybeusedorreplicatedwiththeexpresspermissionofRedHat,Inc.

(2)UniversityofCalifornia,Berkeley

Copyright(c)1981-2000TheRegentsoftheUniversityofCalifornia.

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

*Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.

*Redistributionsinbinaryformmustreproducetheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimerinthedocumentationand/orothermaterialsprovidedwiththedistribution.

*NeitherthenameoftheUniversitynorthenamesofitscontributorsmaybeusedtoendorseor promoteproductsderivedfromthissoftwarewithoutspecificpriorwrittenpermission.

THISSOFTWAREISPROVIDEDBYTHECOPYRIGHTHOLDERSANDCONTRIBUTORS"ASIS" ANDANYEXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHECOPYRIGHTOWNERORCONTRIBUTORSBELIABLE FORANYDIRECT,INDIRECT,INCIDENTAL,SPECIAL(EXEMPLARY,ORCONSEQUENTIAL DAMAGES(INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSOR SERVICES;LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVER CAUSEDANDONANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOF THISSOFTWARE,EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

(3) David M. Gay (AT&T 1991, Lucent 1998)

TheauthorofthissoftwareisDavidM.Gay.

Copyright©)1991byAT&T.

Permissionouse, copy, modify, and distributethissoftware for any purpose without fee is hereby granted, provided that this are notice is included in all copies of any software which is includes a copy or modification of this software and all copies of the supporting documentation for such software.

THISSOFTWAREISBEINGPROVIDED"ASIS", WITHOUTANYEXPRESSORIMPLIED WARRANTY.INPARTICULAR,NEITHERTHEAUTHORNORAT&TMAKESANY REPRESENTATIONORWARRANTYOFANYKINDCONCERNINGTHEMERCHANTABILITY OF THISSOFTWAREORITSFITNESSFORANYPARTICULARPURPOSE.

TheauthorofthissoftwareisDavidM.Gay.

Copyright(c)1998-2001byLucentTechnologies

AllRightsReserved

Permissionouse, copy, modify, and distributethissoftwareanditsdocumentationforanypurpose and withoutfeeisherebygranted, providedthattheabovecopyrightnoticeappearallcopiesandthatboth thatthecopyrightnoticeandthispermissionnoticeandwarrantydisclaimerappearinsupporting documentation, and thatthenameofLucentoranyofitsentitiesnotbeusedinadvertisingorpublicity pertainingtodistributionofthesoftwarewithoutspecific,writtenpriorpermission.

LUCENTDISCLAIMSALLWARRANTIESWITHREGARDTOTHISSOFTWARE,INCLUDINGALL IMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESS.INNOEVENTSHALLLUCENTOR ANYOFITSENTITIESBELIABLEFORANYSPECIAL,INDIRECTORCONSEQUENTIALDAMAGES ORANYDAMAGESWHATSOEVERRESULTINGFROMLOSSOFUSE,DATAORPROFITS, WHETHERINANACTIONOFCONTRACT,NEGLIGENCEOROTHERTORTIOUSACTION, ARISINGOUTOFORINCONNECTIONWITHTHEUSEORPERFORMANCEOFTHISSOFTWARE.

(4)AdvancedMicroDevices

Copyright1989,1990AdvancedMicroDevices,Inc.

ThissoftwareisthepropertyofAdvancedMicroDevices,Inc(AMD)whichspecificallygrantstheusertherighttomodify,useanddistributethissoftwareprovidedthisnoticeisnotremovedoraltered.AllotherrightsarereservedbyAMD.

AMDMAKESNOWARRANTYOFANYKIND, EXPRESSORIMPLIED, WITHREGARDTOTHIS SOFTWARE.INNOEVENTSHALLAMDBELIABLEFORINCIDENTALORCONSEQUENTIAL DAMAGESINCONNECTIONWITHORARISINGFROMTHEFURNISHING, PERFORMANCE, OR USEOFTHISSOFTWARE.

Sothatallmaybenefitfromyoureexperience, pleasereportanyproblemsorsuggestionsaboutthis softwaretothe29KTchnicalSupportCenterat800-29-29-AMD(800-292-9263)intheUSA,or0800-89-1131intheUK,or0031-11-1129inJapan,tollfree. Thedirectdialnumberis512-462-4118.

AdvancedMicroDevices, Inc.

29KSupportProducts

MailStop573

5900E.BenWhiteBlvd.

Austin,TX78741

800-292-9263

(5)C.W.Sandmann

Copyright(C)1993C.W.Sandmann

Thisfilemaybefreelydistributedaslongastheauthor'snameremains.

(6) EricBackus

(C)Copyright1992EricBackus

Thissoftwaremaybeusedfreelysolongasthiscopyrightnoticeisleftintact.Thereisnowarranteeon thissoftware.

(7) Sun Microsystems

Copyright(C)1993bySun Microsystems, Inc. All rights reserved.

DevelopedatSunPro,aSunMicrosystems,Inc.business.Permissionouse,copy,modify,and distributethissoftwareisfreelygranted,providedthatthisnoticeispreserved.

(8)HewlettPackard

(c)Copyright1986HEWLETT-PACKARDCOMPANY

Toanyonewhoacknowledgesthatthisfileisprovided"ASIS"withoutanyexpressorimpliedwarranty: permissiontouse, copy, modify, anddistributethisfileforanypurposeisherebygrantedwithoutfee, providedthattheabovecopyrightnoticeandthisnoticeappearsinallcopies, andthatthenameof Hewlett-PackardCompanynotbeusedinadvertisingorpublicitypertainingtodistributionofthe softwarewithoutspecific,writtenpriorpermission.Hewlett-PackardCompanymakesnorepresentations aboutthesuitabilityofthissoftwareforanypurpose.

(9) Hans-PeterNilsson

Copyright(C)2001 Hans-PeterNilsson

Permissiontouse, copy, modify, and distributethissoftware is freely granted, provided that the above copyright notice, this notice and the following disclaimer are preserved with no changes.

THISSOFTWAREISPROVIDED"ASIS"ANDWITHOUTANYEXPRESSORIMPLIED WARRANTIES,INCLUDING,WITHOUTLIMITATION,THEIMPLIEDWARRANTIESOF MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE.

(11)ChristopherG.Demetriou

Copyright(c)2001ChristopherG.Demetriou

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice, thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and or other materials provided with the distribution.
3. Thenameoftheauthormaynotbeusedtoendorseorpromoteproductsderivedfromthissoftware withoutspecificpriorwrittenpermission.

THISSOFTWAREISPROVIDEDBYTHEAUTHOR"ASIS"ANDANYEXPRESSORIMPLIED WARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEAREDISCLAIMED.INNO EVENTSHALLTHEAUTHORBELIABLEFORANYDIRECT,INDIRECT,INCIDENTAL,SPECIAL, EXEMPLARY,ORCONSEQUENTIALDAMAGES(INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES;LOSSOFUSE,DATA,ORPROFITS; ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDONANYTHEORYOFLIABILITY, WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOR OTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE,EVENIFADVISED OFTHEPOSSIBILITYOFSUCHDAMAGE.

(12)SuperH,Inc.

Copyright2002SuperH, Inc. Allrightsreserved

ThissoftwareisthepropertyofSuperH,Inc(SuperH)whichspecificallygrantstheusertherightto modify,useanddistributethissoftwareprovidedthisnoticeisnotremovedoraltered.Allotherrightsare reservedbySuperH.

SUPERHMAKESNOWARRANTYOFANYKIND, EXPRESSORIMPLIED, WITHREGARDTOTHIS SOFTWARE. INNOEVENTSHALLSUPERHBELIABLEFORINDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGESINCONNECTIONWITHORARISINGFROMTHEFURNISHING, PERFORMANCE, ORUSEOFTHISSOFTWARE.

Sothatallmaybenefitfromyourexperience, pleasereportanyproblemsorsuggestionsaboutthis [e-mail].

SuperH, Inc.

405RiverOaksParkway

SanJose

CA95134

USA

(13)RoyalInstituteofTechnology

Copyright(c)1999KungligaTekniskaHökolan(RoyalInstituteofTechnology, Stockholm, Sweden).

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistribution of source codemust retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither then a name of KTH northenames of its contributors may be used to endorse or promote products derived from this software without specific prion written permission.

THISSOFTWAREISPROVIDEDBYKTHANDITSCONTRIBUTORS"ASIS"ANDANYEXPRESS ORIMPLIEDWARRANTIES.INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEAREDISCLAIMED.INNO EVENTSHALLKTHORITSCONTRIBUTORSBELIABLEFORANYDIRECT,INDIRECT, INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES(INCLUDING,BUTNOT LIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES;LOSSOFUSE,DATA,OR PROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDONANYTHEORYOF LIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOR OTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE,EVENIFADVISED OFTHEPOSSIBILITYOFSUCHDAMAGE.

(14) AlexeyZelkin

Copyright(c)2000,[e-mail]

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistribution of source codemust retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must produce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHORANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHEAUTHORORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

(15)AndreyA.Chernov

Copyright(C)1997byAndreyA.Chernov,Moscow,Russia.

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHOR"ASIS"ANDANYEXPRESSORIMPLIED WARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF MERCHANTABILITYYANDFITNESSFORAPARTICULARPURPOSEAREDISCLAIMED.INNO EVENTSHALLTHEREGENTSORCONTRIBUTORSBELIABLEFORANYDIRECT,INDIRECT, INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES(INCLUDING,BUTNOT LIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES;LOSSOFUSE,DATA,OR PROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDONANYTHEORYOF LIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOR OTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE,EVENIFADVISED OFTHEPOSSIBILITYOFSUCHDAMAGE.

(16)FreeBSD

Copyright(c)1997-2002FreeBSDProject.

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice, thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHORANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHEAUTHORORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

(17)S.L.Moshier

Author:S.L.Moshier.

Copyright(c)1984,2000S.L.Moshier

Permissionouse, copy, modify, and distributethissoftware for any purpose without fee is hereby granted, provided that this notice is included in all copies of any software which is includes a copy or modification of this software and all copies of the supporting documentation for such software.

THISSOFTWAREISBEINGPROVIDED"ASIS", WITHOUTANYEXPRESSORIMPLIED WARRANTY.INPARTICULAR,THEAUTHORMAKESNOREPRESENTATIONORWARRANTYOF ANYKINDCONCERNINGTHEMERCHANTABILITYOFTHISSOFTWAREORITSFITNESSFOR ANYPARTICULARPURPOSE.

(18)CitrusProject

Copyright(c)1999CitrusProject,

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistribution of source codemustretaintheabovecopyrightnotice, thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHORANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHEAUTHORORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL(EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

(19) Todd C. Miller

Copyright(c)[e-mail]

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and or other materials provided with the distribution.
3. Thenameoftheauthormaynotbeusedtoendorseorpromoteproductsderivedfromthissoftware withoutspecificpriorwrittenpermission.

THISSOFTWAREISPROVIDED"ASIS"ANDANYEXPRESSORIMPLIEDWARRANTIES, INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOFMERCHANTABILITYAND FITNESSFORAPARTICULARPURPOSEAREDISCLAIMED.INNOEVENTSHALLTHEAUTHOR BELIABLEFORANYDIRECT,INDIRECT,INCIDENTAL,SPECIAL,EXEMPLARY,OR CONSEQUENTIALDAMAGES(INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOF SUBSTITUTEGOODSORSERVICES;LOSSOFUSE,DATA,ORPROFITS;ORBUSINESS INTERRUPTION)HOWEVERCAUSEDANDONANYTHEORYOFLIABILITY.WHETHERIN CONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOROTHERWISE)ARISING INANYWAYOUTOFTHEUSEOFTHISSOFTWARE,EVENIFADVISEDOFTHEPOSSIBILITYOF SUCHDAMAGE.

(20)DJDelorie(i386)

Copyright(C)1991 DJDelorie

Allrightsreserved.

Redistributionanduseinsourceandbinaryformsispermittedprovidedthattheabovecopyrightnotice andfollowingparagraphareduplicatedinallsuchforms.

ThisfileisdistributedWITHOUTANYWARRANTY;withouteventheimpliedwarrantyof MERCHANTABILITYorFITNESSFORAPARTICULARPURPOSE.

(23)Intel(i960)

Copyright(c)1993IntelCorporation

Intel hereby grants you permission to copy, modify, and distribute this software and its documentation. Intel grant this permission provided that the above copyright notice appears in all copies and that both the copyright notice and this permission notice appears in supporting documentation. In addition, Intel grant this permission provided that you prominently marks "not part of the original" an modifications made this software document, and that the name of Intel Corporation not be used in advertising or publicity pertaining to distribution of the software orthedocumentation without specific, written prior permission.

IntelCorporationprovidesthisASIS, WITHOUTANYWARRANTY, EXPRESSORIMPLIED, INCLUDING, WITHOUTLIMITATION, ANYWARRANTYOFMERCHANTABILITYORFITNESSFORA PARTICULARPURPOSE. Intelmakesnoguaranteeorrepresentationsregardingtheuseof, orthe resultsoftheuseof, thesoftwareanddocumentationintermsofcorrectness, accuracy, reliability, currentness, orotherwise; andyourelyonthesoftware, documentationandresultssolelyatyourown risk.

INNOEVENTSHALLINTELBELIABLEFORANYLOSSOFUSE,LOSSOFBUSINESS,LOSSOF PROFITS,INDIRECT,INCIDENTAL,SPECIALORCONSEQUENTIALDAMAGESOFANYKIND.IN NOEVENTSHALLINTEL'STOTALLIABILITYEXCEEDTHESUMPAIDTOINTELFORTHE PRODUCTLICENSEDHEREUNDER.

(26)MikeBarcroft

Copyright(c)[e-mail]

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice, thislistofconditionsandthe followingdisclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHORANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE

DISCLAIMED.INNOEVENTSHALLTHEAUTHORORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

(27)KonstantinChuguev(--enable-newlib-iconv)

Copyright(c)1999,2000

KonstantinChuguev.Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHORANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHEAUTHORORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL(EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

iconv(CharsetConversionLibrary)v2.0

(28)ArtemBityuckiy(--enable-newlib-iconv)

Copyright(c)2003, ArtemB. Bityuckiy, SoftMineCorporation. RightstransferredtoFranklinElectronic Publishers.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHORANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHEAUTHORORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

(30)-Alex Tatmanjants(targetsusinglibc/posix)

Copyright(c)[e-mail]

atElectronniVistiIA,Kiev,Ukraine.

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and or other materials provided with the distribution.
   THISSOFTWAREISPROVIDEDBYTHEAUTHOR"ASIS"ANDANYEXPRESSORIMPLIED WARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEAREDISCLAIMED.INNO EVENTSHALLTHEAUTHORBELIABLEFORANYDIRECT,INDIRECT,INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES(INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES;LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDONANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOR OTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE,EVENIFADVISED OFTHEPOSSIBILITYOFSUCHDAMAGE.

(31)-M.WarnerLosh(targetsusinglibc/posix)

Copyright(c)1998,[e-mail]

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice, thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHORANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHEAUTHORORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL(EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS:ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

(32)-AndreyA.Chernov(targetsusinglibc/posix)

Copyright(C)1996byAndreyA.Chernov,Moscow,Russia.

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice, thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHOR"ASIS"ANDANYEXPRESSORIMPLIED WARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEAREDISCLAIMED.INNO EVENTSHALLTHEREGENTSORCONTRIBUTORSBELIABLEFORANYDIRECT,INDIRECT, INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES(INCLUDING,BUTNOT LIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES;LOSSOFUSE,DATA,OR PROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDONANYTHEORYOF LIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOR OTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE,EVENIFADVISED OFTHEPOSSIBILITYOFSUCHDAMAGE.

(33)-DanielEischen(targetsusinglibc/posix)

Copyright(c)[e-mail].

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and or other materials provided with the distribution.

THISSOFTWAREISPROVIDEDBYTHEAUTHORANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHEREGENTSORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

(35)-ARMLtd(armandthumbvarianttargetsonly)

Copyright(c)2009ARMLtd

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and or other materials provided with the distribution.
3. Thenameofthecompanymaynotbeusedtoendorseorpromoteproductsderivedfromthissoftware withoutspecificpriorwrittenpermission.

THISSOFTWAREISPROVIDEDBYARMLTD"ASIS"ANDANYEXPRESSORIMPLIED WARRANTIES, INCLUDING, BUTNOTLIMITEDTO, THEIMPLIEDWARRANTIESOF MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEAREDISCLAIMED.INNO EVENTSHALLARMLTDBELIABLEFORANYDIRECT, INDIRECT, INCIDENTAL,SPECIAL, EXEMPLARY, ORCONSEQUENTIALDAMAGES (INCLUDING, BUTNOTLIMITEDTO, PROCUREMENTOFSUBSTITUTEGOODSORSERVICES; LOSSOFUSE, DATA, ORPROFITS;

ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDONANYTHEORYOFLIABILITY, WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOR OTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE,EVENIFADVISED OFTHEPOSSIBILITYOFSUCHDAMAGE.

(36)-CodeSourcery, Inc.

Copyright(c)2009CodeSourcery, Inc.

Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

*Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.

*Redistributionsinbinaryformmustreproducetheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimerinthedocumentationand/orothermaterialsprovidedwiththedistribution.

*NeitherthenameofCodeSourcerynorthenamesofitscontributorsmaybeusedtoendorseor promoteproductsderivedfromthissoftwarewithoutspecificpriorwrittenpermission.

THISSOFTWAREISPROVIDEDBYCODESOURCERY,INC."ASIS"ANDANYEXPRESSOR IMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEAREDISCLAIMED.INNO EVENTSHALLCODESOURCERYBELIABLEFORANYDIRECT,INDIRECT,INCIDENTAL, SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES(INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSORSERVICES;LOSSOFUSE,DATA,ORPROFITS; ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDONANYTHEORYOFLIABILITY, WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOR OTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE,EVENIFADVISED OFTHEPOSSIBILITYOFSUCHDAMAGE.

(37)MIPSTechnologies, Inc

/*

*Copyright(c)2009MIPSTechnologies, Inc.

*

*Allrightsreserved.

*

*Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

*

**Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.

**Redistributionsinbinaryformmustreproducetheabovecopyrightnotice,thislistofconditionsandthefollowingdisclaimerinthedocumentationand/orothermaterialsprovidedwiththedistribution.

**NeitherthenameofMIPSTechnologiesInc.northenamesofitscontributorsmaybeusedto endorseorpromoteproductsderivedfromthissoftwarewithoutspecificpriorwrittenpermission.

*THISSOFTWAREISPROVIDEDBYTHECOPYRIGHTHOLDERSANDCONTRIBUTORS"ASIS" ANDANYEXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHECOPYRIGHTOWNERORCONTRIBUTORSBELIABLE FORANYDIRECT,INDIRECT,INCIDENTAL,SPECIAL(EXEMPLARY,ORCONSEQUENTIAL DAMAGES(INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOFSUBSTITUTEGOODSOR SERVICES;LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVER CAUSEDANDONANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDINGNEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOF THISSOFTWARE,EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

/*

MITLicense

Thisprojectorproductincludestheopensourcesoftwareprogramwhichappliesthetermsand conditionsprovidedbyownerofthecopyrighttothe"MITLicense".

The "MITLicense" are WITHOUT ANY WARRANTY; without event the implied warranty of MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.

ListofMITLicenseprograms

jquery-1.7.2.min.js

jquery-ui-1.8.20.custom.zip

jquery.ui.touch-punch.js

jquery.upload-1.0.2.min.js

Licensetermsofconditionsofeachprogramwhichareprovidedbyownerofthecopyrighttothe"MIT License"areasfollows.

Permissionisherebygranted,freeofcharge,toanypersonobtainingacopyofthissoftwareand associateddocumentationfiles(the"Software"),todealintheSoftwarewithoutrestriction,including withoutlimitationtherightstouse,copy,modify,merge,publish,distribute,sublicense,and/orsellcopies

oftheSoftware, andtopermitpersonstowhomtheSoftwareisfurnishedtodoso, subjecttothe followingconditions:

The abovecopyrightnoticeandthispermissionnoticeshallbeincludedinallcopiesorsubstantial portionsoftheSoftware.

THESOFTWAREISPROVIDED"ASIS", WITHOUTWARRANTYOFANYKIND, EXPRESSOR IMPLIED, INCLUDING BUT NOT LIMITED TOTHEWARRANTIES OF MERCHANTABILITY, FITNESS FOR APARTICULAR PURPOSE AND NONINFRINGEMENT. INNOEVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BELIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORTOR OTHERWISE, ARISING FROM, OUTFORIN CONNECTION WITH THESOFTWARE OR THE USE OR OTHER DEALINGS IN THESOFTWARE.

TOPPERS/JSP

This projector product includes the open source software program "TOPPERS/JSP" which applies the terms and conditions provided by owner of the copyright to the "TOPPERS/JSP". The "TOPPERS/JSP" are WITHOUT ANY WARRANTY; without event the implied warranty of MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.

ListofTOPPERS/JSPprograms

jsp-1.4.3

Licensetermsofconditionsofeachprogramwhichareprovidedbyownerofthecopyrighttothe "TOPPERS/JSP"areasfollows.

TOPPERS/JSPKernel

ToyohashiOpenPlatformforEmbeddedReal-TimeSystems/

JustStandardProfileKernel

Copyright(C)2000-2003byEmbeddedandReal-TimeSystemsLaboratoryToyohashiUniv.of Technology,JAPAN

Copyright(C)2004byEmbeddedandReal-TimeSystemsLaboratory

GraduateSchoolofInformationScience, Nagoya Univ., JAPAN.

Theabovecopyrightholder,limitedtocasesinwhichonesatisfiesconditions(1)\~(4)below,orthe conditionsdescribedinVersion2oftheGNUPublicLicenseofficiallyannouncedbytheFreeSoftware Foundation,consentstotheuse,reproduction,alteration,andredistribution(hereaftercalledutilization) ofthissoftware(thissoftwareincludesalterations,likewisebelow)withoutcompensation.

(1) Whenthissoftwareisutilizedintheformofsourcecode, theabovecopyrightdeclaration, these conditionsofutilization, and the following stipulation of noguaranteeshallbeincludedinunchanged forminsidethesourcecode.

(2) Whenthissoftwareisredistributedinaforminwhichitcanbeusedinthedevelopmentofother software,libraryform,etc.,theabovecopyrightdisplay,thesetermsofutilization,andthefollowing stipulationofnoguaranteeshallbeinsertedindocumentationaccompanyingredistribution(user's manual,etc.).
(3) Whenthissoftwareisredistributedinaforminwhichitcannotbeusedinthedevelopmentofother software,embeddedindevices,etc.,oneofthefollowingconditionsshallbesatisfied.
(a) The above copyright display, these terms of utilization, and the following stipulation of no guarantee shall be inserted in documentation accompanying redistribution (user's manual, etc.).
(b) The TOPPERS Project shall be notified to using to a method in which the form of distribution is decided otherwise.
(4) The above copyright holder and the TOPPERS Project shall be exempt from responsibility for whatever damages occur either directly or indirectly through the utilization of this software.

Thissoftwareissomethingthatisprovidedwithnoguarantee.TheabovecopyrightholderandtheTOPPERSProjectmakenoguaranteewhatsoeverinregardtothissoftware,includingthepossibilityofitsapplication.Inaddition,theabovecopyrightholderandtheTOPPERSProjectshallalsonotbearresponsibilityforwhateverdamagesoccureitherdirectlyorindirectlythroughtheutilizationofthissoftware.

Note: The TOPPERSLicense has been revised several times; what is shown above the latest version that is to be applied to software made up public hereafter.

TINET

This projector product includes the open source software program "TINET" which applies the terms and conditions provided by owner of the copyright to the "TINET". The "TINET" are WITHOUT ANY WARRANTY; without the implied warranty of MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

ListofTINETprograms

tinet-1.4.4

Licensetermsofconditionsofeachprogramwhichareprovidedbyownerofthecopyrighttothe "TINET"areasfollows.

(1)FreeBSD

Copyright(c)1980,1986,1993

TheRegentsoftheUniversityofCalifornia.Allrightsreserved.

Redistributionanduseinsourceandbinaryforms,withorwithoutmodification,arepermittedprovided thatthefollowingconditionsaremet:

1. Redistributionsofsourcecodemustretaintheabovecopyrightnotice,thislistofconditionsandthe followingdisclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

ThisproductincludessoftwaredevelopedbytheUniversityofCalifornia,Berkeleyanditscontributors.

1. Neither the name of the University nor then names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THISSOFTWAREISPROVIDEDBYTHEREGENTSANDCONTRIBUTORS"ASIS"ANDANY EXPRESSORIMPLIEDWARRANTIES,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSEARE DISCLAIMED.INNOEVENTSHALLTHEREGENTSORCONTRIBUTORSBELIABLEFORANY DIRECT,INDIRECT,INCIDENTAL,SPECIAL,EXEMPLARY,ORCONSEQUENTIALDAMAGES (INCLUDING,BUTNOTLIMITEDTO,PROCUREMENTOSUBSTITUTEGOODSORSERVICES; LOSSOFUSE,DATA,ORPROFITS;ORBUSINESSINTERRUPTION)HOWEVERCAUSEDANDON ANYTHEORYOFLIABILITY,WHETHERINCONTRACT,STRICTLIABILITY,ORTORT(INCLUDING NEGLIGENCEOROTHERWISE)ARISINGINANYWAYOUTOFTHEUSEOFTHISSOFTWARE, EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.

(6)TINETandTOPPERS

TINET(TCP/IPProtocolStack)

Copyright(C)2001-2006byDep.ofComputerScienceandEngineeringTomakomaiNationalCollegeof Technology,JAPAN

TINET(TCP/IPProtocolStack)

Copyright(C)2001-2006byDep.ofComputerScienceandEngineeringTomakomaiNationalCollegeof Technology,JAPAN

Theabovecopyrightholder,limitedtocasesinwhichonesatisfiesconditions(1)\~(4)below,orthe conditionsdescribedinVersion2oftheGNUPublicLicenseofficiallyannouncedbytheFreeSoftware Foundation,consentstotheuse,reproduction,alteration,andredistribution(hereaftercalledutilization) ofthissoftware(thissoftwareincludesalterations,likewisebelow)withoutcompensation.

(1) Whenthissoftwareisutilizedintheformofsourcecode, theabovecopyrightdeclaration, these conditionsofutilization, andthefollowingstipulationofnoguaranteeshallbeincludedinunchanged forminsidethesourcecode.
(2) Whenthissoftwareisredistributedinaforminwhichitcanbeusedinthedevelopmentofother software,libraryform,etc.,theabovecopyrightdisplay,thesetermsofutilization,andthefollowing

stipulationofnoguaranteeshallbeinsertedindocumentationaccompanyingredistribution(user's manual,etc.).

(3) Whenthissoftwareisredistributedinaforminwhichitcannotbeusedinthedevelopmentofother software,embeddedindevices,etc.,followingconditionsshallbesatisfied.
(a) The abovecopyright display, these terms of utilization, and the following stipulation of no guarantee shall be inserted in documentation accompanying redistribution (user's manual, etc.).
(4) The above copyright holder and the TOPPERS Project shall be exempt from responsibility for whatever damages occur either directly or indirectly through the utilization of this software.

Thissoftwareissomethingthatisprovidedwithnoguarantee. TheabovecopyrightholderandtheTOPPERSProjectmakenoguaranteewhatsoeverinregardtothissoftware,includingthepossibilityofitsapplication.Inaddition,theabovecopyrightholderandtheTOPPERSProjectshallalsonotbearresponsibilityforwhateverdamagesoccureitherdirectlyorindirectlythroughtheutilizationofthissoftware.

Bluetopia® isprovidedforyourusebyStonestreetOne,LLC® underasoftwarelicenseagreement. StonestreetOne,LLC® isandshallremainthesoleownerofallright,titleandinterestwhatsoeverinand toBluetopia® andyouruseissubjecttosuchownershipandtothelicenseagreement.StonestreetOne, LLC® reservesallrightsrelatedtoBluetopia® notexpresslygrantedunderthelicenseagreementandno otherrightsorlicensesaregrantedeitherdirectlyorbyimplication,estoppelorotherwise,orunderany patents,copyrights,maskworks,tradesecretsorotherintellectualpropertyrightsofStonestreetOne, LLC®.

©2000-2012StonestreetOne,LLC ^® AllRightsReserved.

Parenttopic:Notices

CopyrightNotice

Allrightsreserved.Nopartofthispublicationmaybereproduced,storedinaretrievalsystem,or transmittedinanyformorbyanymeans,electronic,mechanical,photocopying,recording,orotherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alteration to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.

SeikoEpsonCorporationshallnotbeliableforanydamagesorproblemsarisingfromtheuseofany optionsoranyconsumableproductsotherthanthosedesignatedasOriginalEpsonProductsorEpson ApprovedProductsbySeikoEpsonCorporation.

Thisinformationissubjecttochangewithoutnotice.

ANoteConcerningResponsibleUseofCopyrightedMaterials

CopyrightAttribution

Parenttopic:Notices

ANoteConcerningResponsibleUseofCopyrightedMaterials

Epsonencourageseachusertoberesponsibleandrespectfulofthecopyrightlawswhenusingany Epsonproduct.Whilesomecountries'lawspermitlimitedcopyingorreuseofcopyrightedmaterialin certaincircumstances,thosecircumstancesmaynotbeasbroadassomepeopleassume.Contactyour legaladvisorforanyquestionsregardingcopyrightlaw.

Parenttopic: CopyrightNotice

CopyrightAttribution

©2014EpsonAmerica,Inc.

8/14

CPD-41452

Parenttopic: CopyrightNotice
