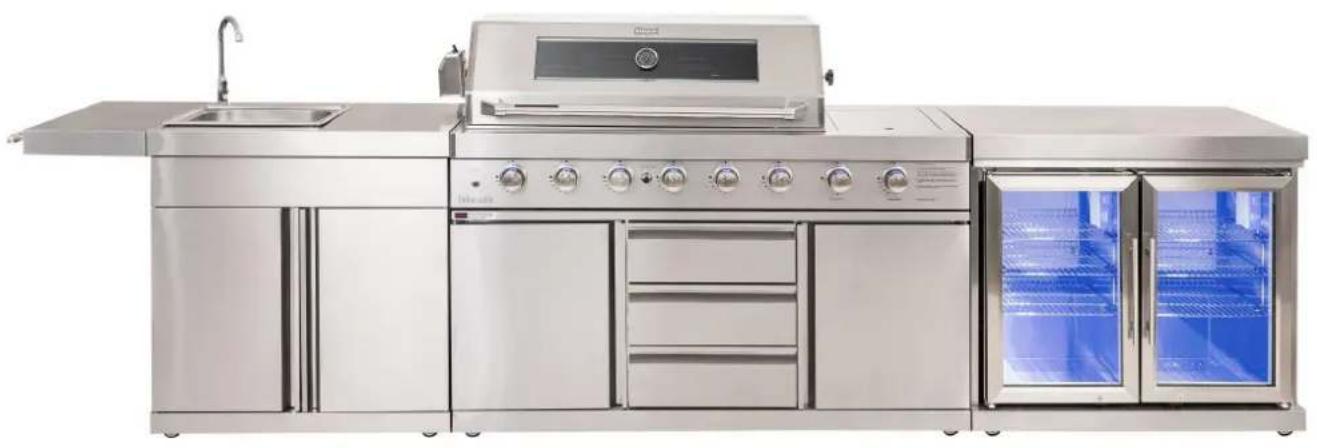

USER MANUAL Ambassador Kitchen MASPORT
Comprises of: Ambassador Grill 553101
Cooler Module (Twin) 552868
Sink Module 552752
Market Introduced: October 2019
OUTDOOR BBQ

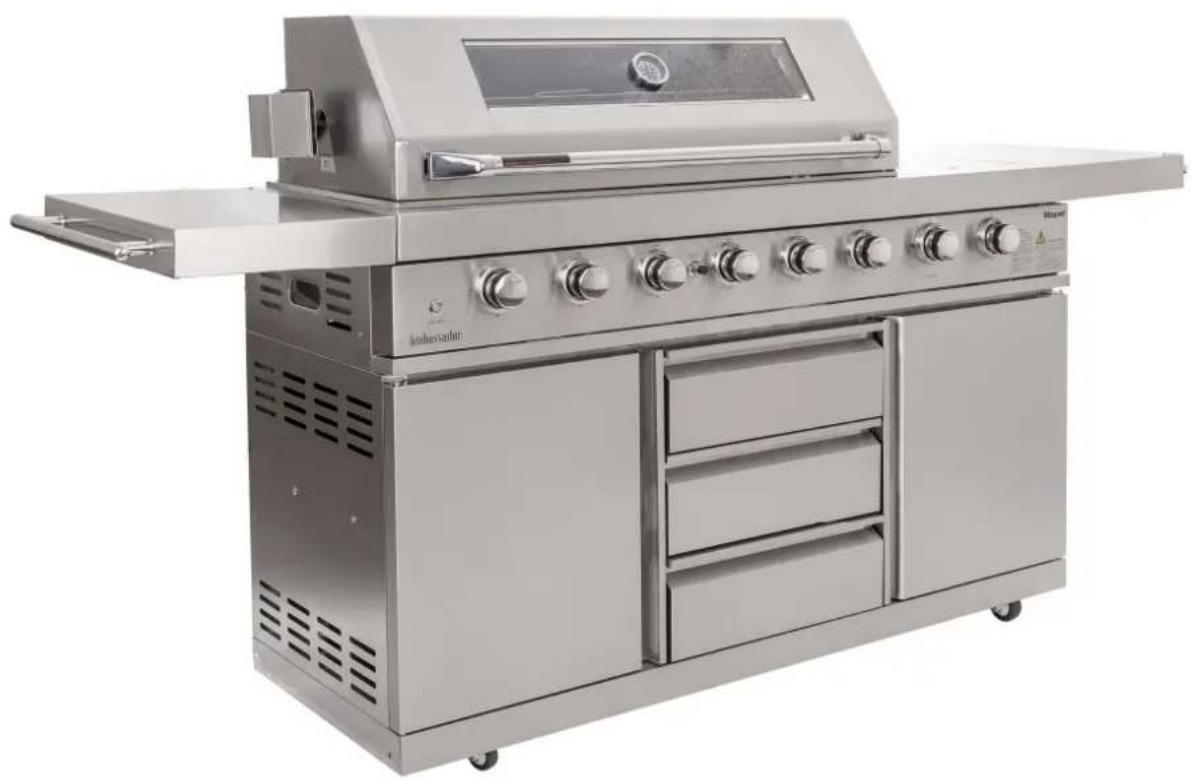

AMBASSADOR GRILL
Part Number 553101
BBQ Dimensions: Width 2148mm
Depth 600 mm
Height 1240mm
Month and Year of Manufacture: September 2019
ECN 12756
Aug 2020 PB
REF # 753101
| Item Part # Description Qty | Not Illustrated |

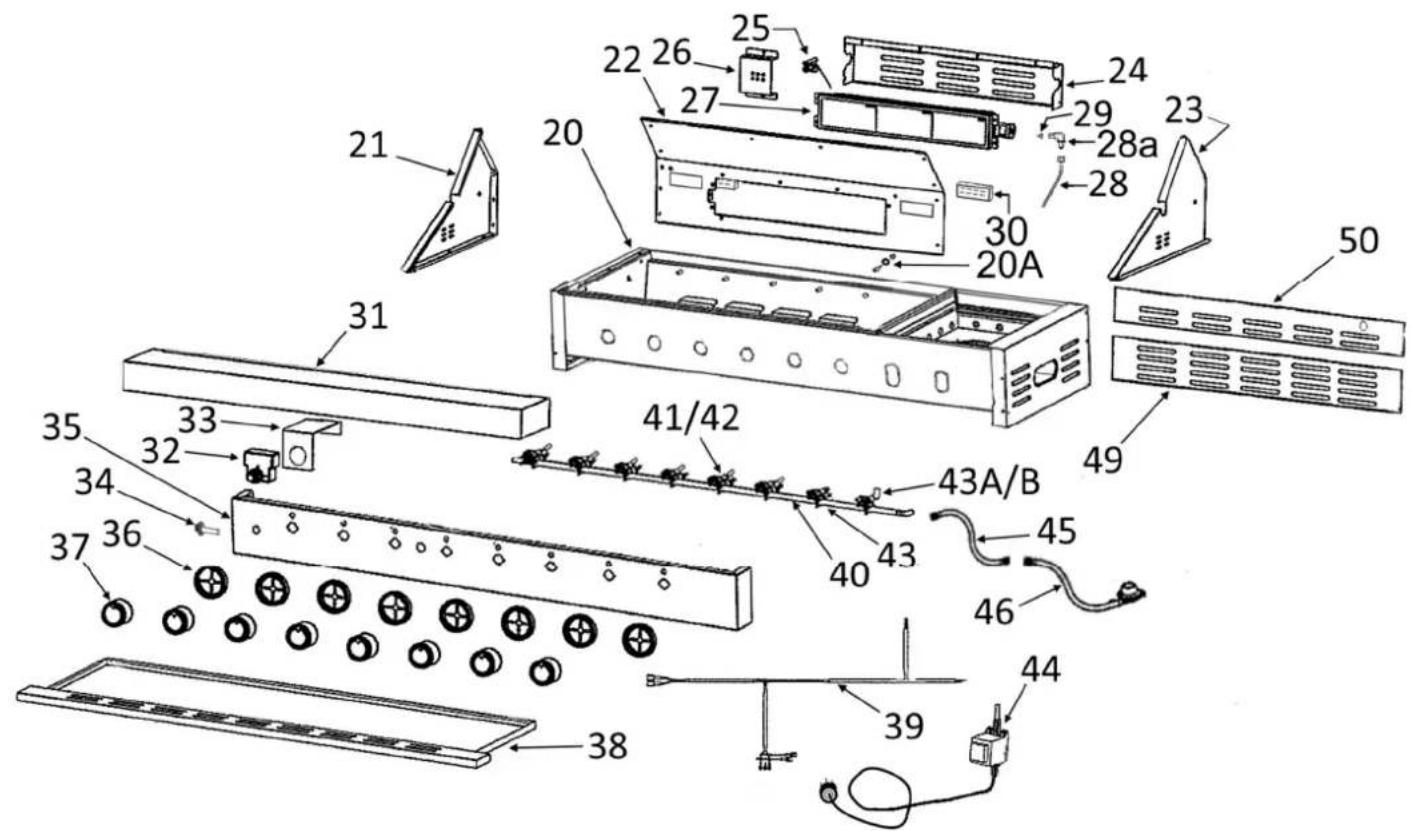

| 1 548295 Hood Assembly, Window S/S 1 2 548294 *Glass- Window, Hood 1 2a 549773 *Bracket- Window, Hood 2 2b 547644 *Gauge- Temp, Dia 68mm Red/Blk 1 3 546900 *End- Handle 2 4 548221 Hood- Bolt & Nut 2 5 548293 Warming Rack, 985mm x 160mm 1 6 548219 Grill- 300 x 455 S/S 2 7 548218 Plate- P/E 350 x 455 Matt 1 8 548192 Flame- Tamer, 110 x 415 Slot S/S 6 9 548213 Cross- Light S/S 5 10 548208 Burner- Tube, 435mm x 1.0mm 304SS 6 11 548228 Electrode, Ignition M/B Inbuilt 6 15 548297 Lid- S/Burner S/S 1 16 548298 Trivet- Side Burner 1 17 548301 Burner- Side 1 18 548224 Electrode- Side Burner 1 19 548299 Wire- Ignition, Side Burner 985mm 1 | 549588 Cover- BBQ, Kitchen BBQ 1 548966 Owner Manual 1 548201 Rubber Stopper 2 548767 Table- Side, RH/LH Folding 2 548886 *Handle- Table, Side Folding 1 548312 Rotisserie Set, 6B 1105mm 1(Refer to page 5) |
| Item Part # Description Qty | Item Part # Description Qty |
| 20 548296 Grill- Body, RB+6B SS INB 120A 546387 Pin, Nut & Washer- Flame Tamer 621 548209 Panel- Side, LH S/S Hood-G/Body 122 548230 Panel- Rear, R/Burner S/S G/Body 123 548210 Panel- Side, RH S/S Hood-G/Body 124 548212 Panel- Rear Cover, R/B S/S 125 548234 Ignitor- Rear Burner with wire 126 548233 Panel- Ignitor Cover R/Burner S/S 127 548197 Burner- Rear 128 548198 Pipe- Flexible, Rear Burner 128a 546453 Elbow 90deg Ambassador 129 548194 Jet, Rear 0.98mm dia LPG 130 549589 Light- Hood, Halogen 2549828 *Bulb- Hood, Halogen 131 548226 Panel- Front, Grill 132 548302 Module- Ignition, 8 Pin 133 548338 Heatshield- Module 134 548339 Switch- LED, Knobs 135 548964 Dashboard- BBQ 552750 136 548191 Bezel/LED Control Knobs 837 548190 Knob- BBQ 8.1dia S/Grip Chrome 838 548307 Tray- Drip, 146x345 S/S Inbuilt 1 | 39 548341 Harness- LED Lights, Knobs 8B 140 548300 Manifold Assy (ELE R/B) 6+RB 141 548196 *Valve- Main, LPG 0.98mm ELE IGN 642 548225 *Jet, Main 0.98mm dia LPG 643 548202 *Valve- Rear, LPG 0.98mm ELE IGN 143A 548337 *Valve- Side, LPG 0.98 ELE IGN 143B 548310 *Jet, Side 1.5mm dia LPG 644 549593 Transformer AC, LED Lights 145 548195 Pipe- Flexible, Manifold 146 559968 Hose & Reg, POL (Aus) 1Note, BBQ was supplied with the above Hose & Regulator In N-Z use a 546605 for a replacement Hose & Regulator46 546605 Hose & Reg, QCC (N-Z) 149 548231 Panel- Rear, Vented Lower S/S 150 548236 Panel- Rear, Vented Top S/S 1 |
| Not Illustrated | |
| 548199 Wire- Ignition, RB 1800mm 1548308 Wire- Ignition, MB (Set of 6 wires) 1 |
| Item Part # Description Qty Item Part # Description Qty | |

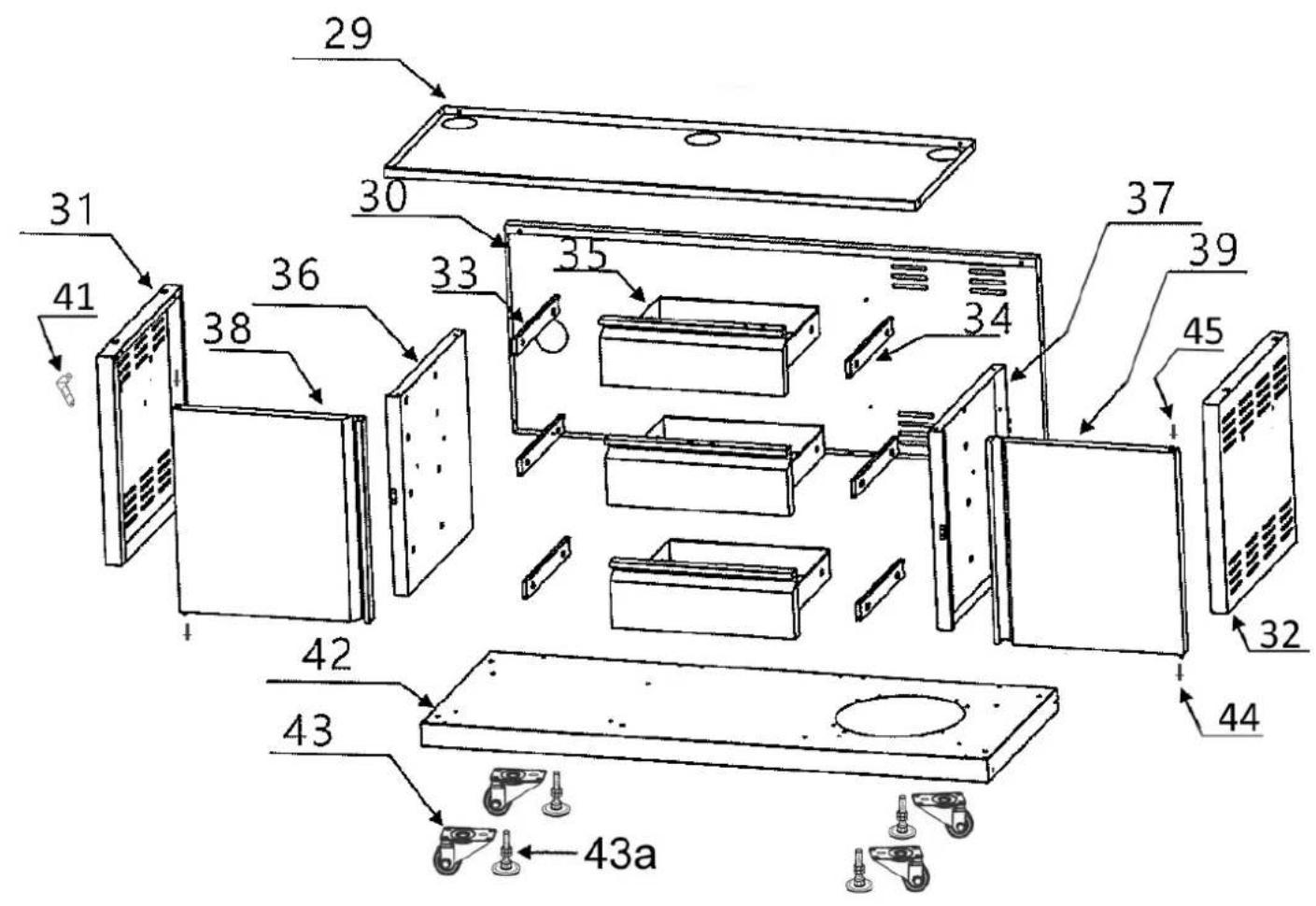

| 29 548737 Shelf- Cabinet SS Kitchen 130 548735 Panel- Rear, Trolley SS Kitchen 131 548732 Panel- Side, LH Trolley SS Kitchen 132 548733 Panel- Side, RH Trolley SS Kitchen 133 549591 Slider- Drawer, LH SS Kitchen 334 549592 Slider- Drawer, RH SS Kitchen 335 548736 Drawer- Cabinet SS Kitchen 336 548739 Panel- Side, LH Drawer SS Kitchen 137 548740 Panel- Side, RH Drawer SS Kitchen 138 548731 Door Assy, LH ZP/SS 139 548730 Door Assy, RH ZP/SS 141 548768 Bottle Opener 142 548734 Panel- Bottom, Trolley SS Kitchen 1 | 43 548741 Castor- Locking, Height Adj 443a 546307 Foot- Adjustable 444 548766 Hinge- Door, Bottom 245 548765 Hinge- Door, Top 2 |

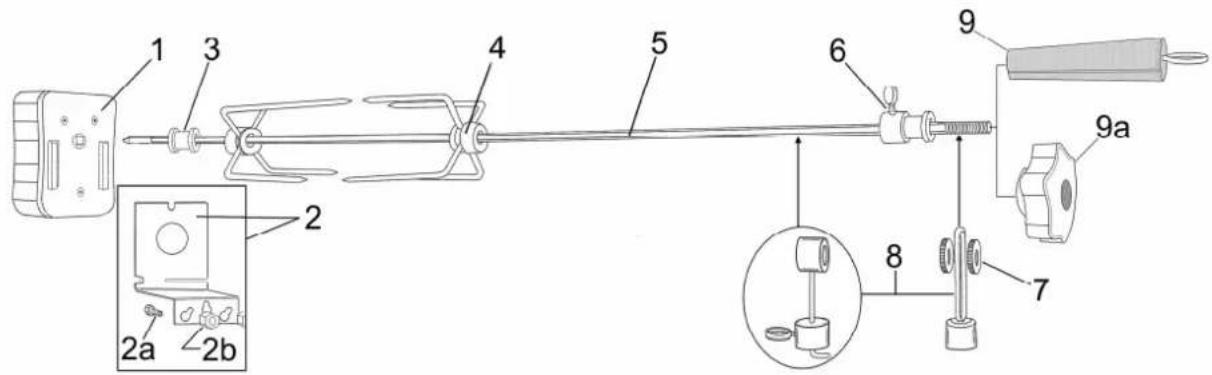

548312 Rotisserie Set - 6B 1105mm (Showing the different combination of parts)
| Item Part # Description Qty | Item Part # Description Qty |
| 1 559239 Motor-Rotisserie, Black DC 1(1 559978 Motor-Rotisserie, Black DC H/Shield 1)(1 559977 Motor-Rotisserie, SS AC 1)2 548238 Bracket-Rotisserie 12a 559730 *Screw, Pan M6 x 12 Poz 22b 503613 *Nut, M6 Hex Stainless 23 547002 Collar- Alignment 1 | 4 547003 Prong, (each) 25 548442 Rod- Only, Rotisserie 1105mm 16 547005 Collar- Alignment + Screw 17 547007 Washer, Weight 28 547006 Weight- Balance 19 547008 Handle- Rotisserie Rod 19a 546603 Handle- Rotisserie Knob 1 |
DATA PLATE
548965.C.1
| Name | Model | AGA Approval | Injector (mm) | Pressure (kPa) | Inp/Burn (Mj/h) | Total (Mj/h) | ||
| AMBASSADOR | 611U | AGA 8138 G | ULPG: | DDQ S/B R/B | 0.90 0.98 0.98 | 2.75 | G x 13.00 1 x 12.00 1 x 12.50 | 102.50 |
| NG: | BBQ S/B R/B | 1.50 1.65 1.65 | 1.00 | 6 x 11.00 1 x 12.00 1 x 13.00 | 91.00 | |||
| Gas Supply Pressure, ULPG Gas Supply Pressure, NG: 1.13KPaMin: 2.70kPa; Max: 3.45kPA Complies to: Gas Type: NZ: Universal LPG or NG AS/NZS 5263.1.7-2016 | MANUFACTURED BY: GUANGDONG SUNCOOK | |||||||
| Minimum Clearance : From Top of BBQ: 1500mm, From Sides: 1000mm, From Rear : 1000mm | ||||||||
| Distributed by MASPORT LIMITED |  Read the instructions before using the appliance USE OUTDOOR ONLY WARNING: Parts of this appliance may be very hot, keep young children away 548965.C.1 | |||||||
| MASPORT LIMITED320 Ti Rakau Drive, East Tamaki, Auckland 2013, New ZealandPO Box 14349, Panmure Auckland 1471, New Zealand | ||||||||
| MASPORT AUSTRALIA PTY LIMITED27 Commercial Drive, Dandenong South Melbourne, Victoria 3175, AustraliaPO Box 533, Braeside, Victoria 3195, Australia | ||||||||
| For storage and cylinder exchange, disconnect hose at the cylinder only, do not disconnect hose from the appliance. | ||||||||
Natural Gas option - not included with this BBQ, order part number:
547548
KIT- NG, AMB ELE/IGN
1
Masport®
AMBASSADOR OUTDOOR BBQ MODULES

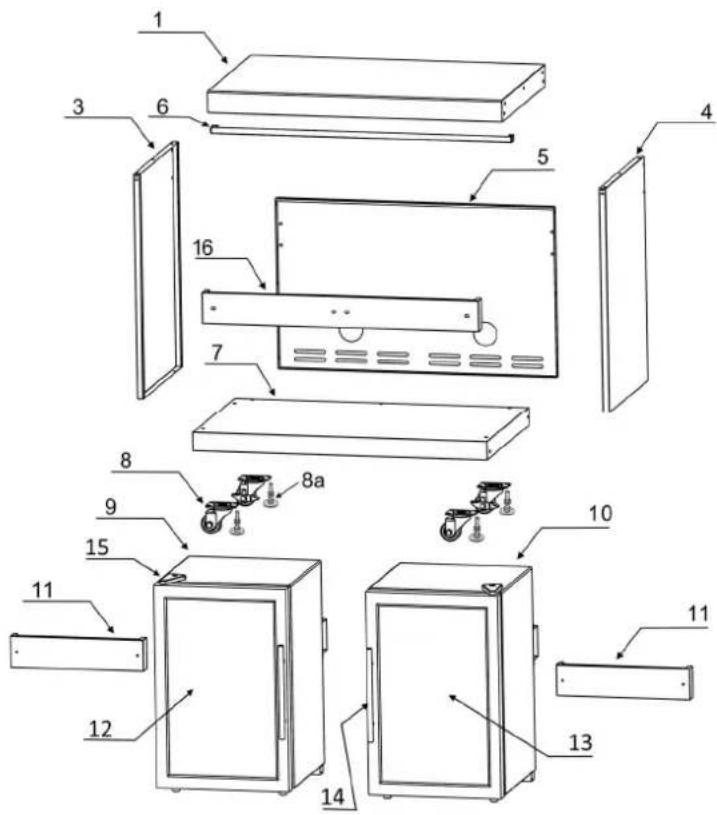

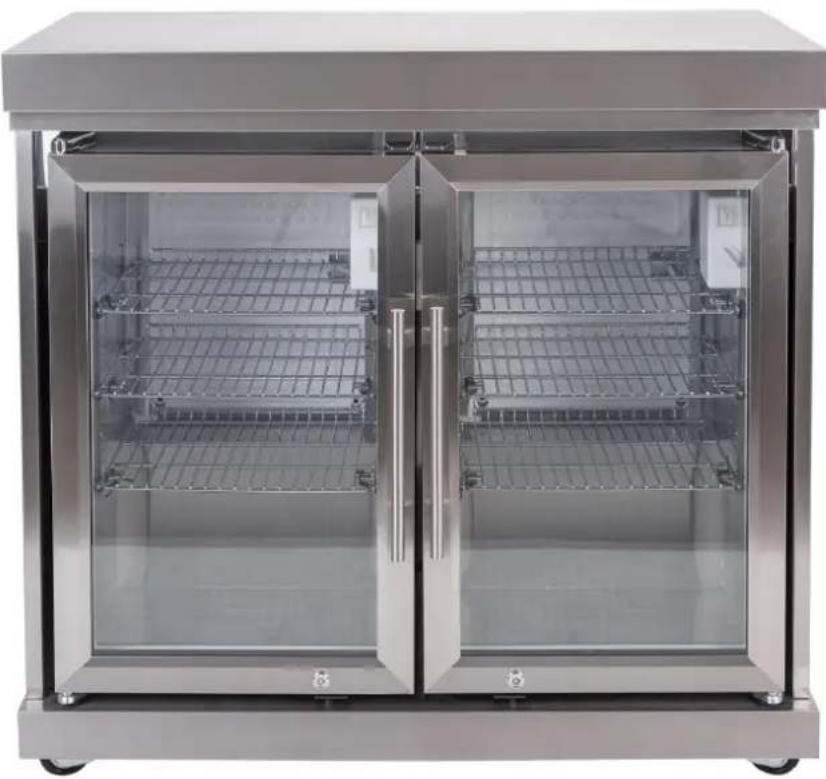

COOLER - S/STEEL
Part Number 552868
Dimensions Width 960 mm
Depth 580 mm
Height 900 mm
Month and Year of Manufacture: August 2017
ECN 127=6
Aug 2020 PB
REF # 7=2868
| Item Part # | Description | Qty | Not Illustrated |
| 1 | 548753 Panel- Top | 1 | D.63.271 Switch- Fridge 1 |
| 3 | 546833 Panel- Side, LH | S/S 1 | S.63.5601 Knob- Fridge 1 |
| 4 | 546834 Panel- Side, RH | S/S 1 | 546346 Light- LED 2 |
| 5 | 548758 Panel- Rear | S/S 1 | 548742 Cooler- Electric 240v LH 1 |
| 6 | 549581 Panel- Top Small Fascia | 1 | 548752 Cooler- Electric 240v RH 1 |
| 7 | 549587 Panel- Base, | S/S 1 | 549159 Seal- Door 2 |
| 8 | 548741 Castors- Locking, Height Adj | 4 | 549160 Rack- Wire 6 |
| 8a | 546307 *Foot- Adjustable 1 | 549164 Bracket- Rack 12 | |
| 9 | 548742 Fridge- Electric, 240V LH | 1 | 549161 Hinge- Lower 2 |
| 10 | 548752 Fridge- Electric, 240V RH | 1 | 549162 Hinge- Upper, LH 1 |
| 11 | 549582 Panel- Rear Holder | 2 | 549167 Hinge- Upper, RH 1 |
| 12 | 549156 Door- Assy, Glass LH | 1 | 549833 Frame- Base 1 |
| 13 | 549157 Door- Assy, Glass RH | 1 | 546402 Key 1 |
| 14 | 549158 Handle-Door | 2 | |
| 15 | 549163 Cover- Hinge | 2 | |
| 16 | ---- Panel- Rear, Inside Mount | 1 | |
| ACCESSORY OPTION | 549166 Bracket- Connecting, Upper 1 | ||
 | |||
| 548767 Table- Side, LH or RH S/S Folding 1 | 546536 Bracket- Connecting, Lower 1 | ||
Masport®
AMBASSADOR OUTDOOR BBQ MODULES

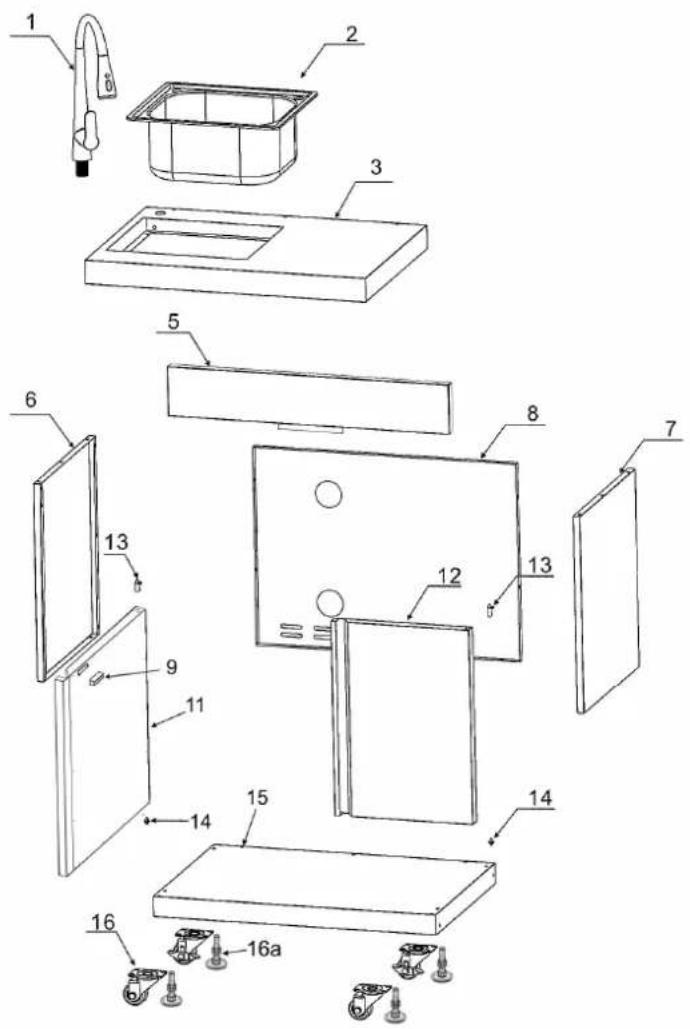

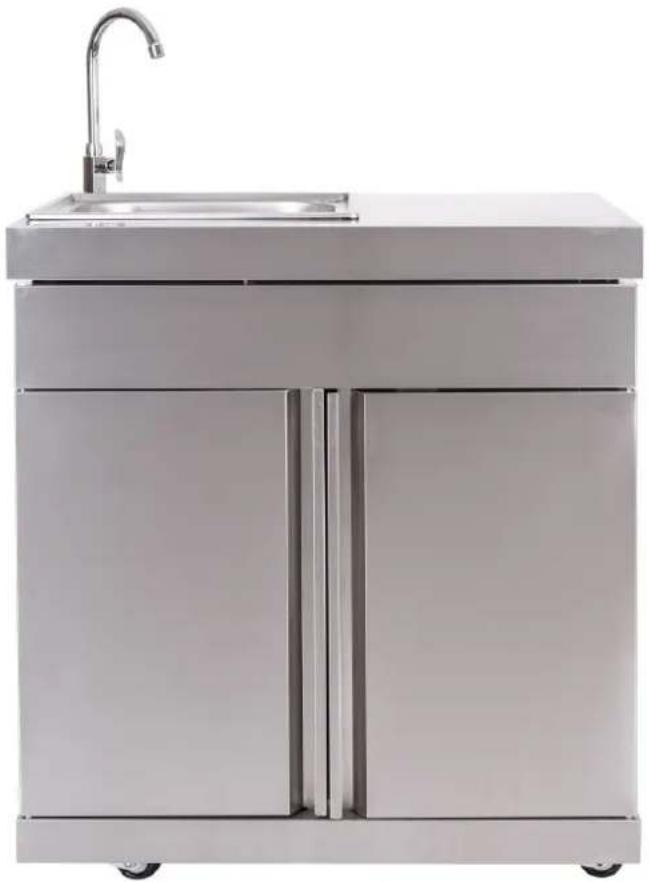

SINK - S/S
Part Number 552752
Dimensions Width =30 mm
Depth 5=0 mm
Height 900 mm
Month and Year of Manufacture: August 2017
ECN 12756
Aug 2020 PB
REF # 752752
| Item Part # Description Qty | Not Illustrated | |
| 1 546672 Faucet- Wells 1 | 548744 Plug- Sink | 1 |
| 2 548743 Sink- Assembly 1 | 548745 Filter- Drain | 1 |
| 3 548746 Panel- Top 1 | 549166 Bracket- Connecting, Upper | 1 |
| 5 548749 Panel- Facia 1 | ||
| 6 548755 Panel- Side, LH 304SS 1 |  | |
| 7 548756 Panel- Side, RH 304SS 1 | ||
| 8 548750 Panel- Rear 1 | 546536 Bracket- Connecting, Lower | 1 |
| 9 549584 Magnet- Door 2 |  | |
| 11 548748 Door Assy, LH ZP/SS 1 | ||
| 12 548747 Door Assy, RH ZP/SS 1 | 549834 Frame - Base | 1 |
| 13 548765 Hinge- Door, Top 1 | ||
| 14 548766 Hinge- Door, Bottom 1 | ||
| 15 548757 Panel- Base, Storage/Sink 1 | ||
| 16 548741 Castor- Locking, Height Adj 4 | ||
| 16a 546307 *Foot- Adjustable 1 | ACCESSORY OPTION | |
| 548767 Table- Side, LH or RH S/S Folding | 1 | |
