Brand	Thule
Model	821 Low Rider
Product Type	Roof-mounted bike rack
Mounting Type	Permanent mount on flat surfaces (requires drilling)
Maximum Load Capacity (total)	75 kg (165 lbs)
Recommended Hardware	1/4" or 6mm bolts, fender washers, locking nuts (not included)
Recommended Drill Bit Size	5/16" (8mm)
Drilling Template Size	3 15/16" x 2 1/4" (print at 100% scale)
Fork Mount Type	Skewer with quick-release lever
Warranty	Lifetime limited warranty for original purchaser (US, Canada, Mexico)
Safety Precautions	Check handlebar clearance; test security by tugging forks; inspect hardware regularly
Not Recommended For	Off-road use, trailers, towed vehicles
Locking Feature	Not included (Thule locks may be added separately)
Maintenance	Lubricate locks with graphite; check for wear and corrosion
Care	Remove rack before automatic car washes

Frequently Asked Questions - 821 Low Rider THULE

How do I install the Thule 821 Low Rider on my vehicle?

Use the included drilling template to mark four points on a flat surface. Drill with a 5/16" (8mm) bit. Align the block with holes and tighten hardware securely. Then attach the fork mount as described in the manual.

What is the weight limit for the Thule 821 Low Rider?

The maximum total load (rack plus cargo) is 75 kg (165 lbs). Do not exceed this limit.

Does the 821 Low Rider come with mounting hardware?

No, hardware is not included. You need to provide 1/4" or 6mm bolts, fender washers, and locking nuts.

Can I install this on a trailer or for off-road use?

No, the rack is not for use on trailers or towed vehicles and is not intended for off-road use.

How do I secure the bicycle forks?

Set the forks onto the skewer. With the lever open, tighten the nut until the lever closes with some resistance. Test by tugging the forks to ensure they cannot move out.

What should I do if the bike rack feels loose?

Check all hardware for tightness. For the fork mount, open the lever, tighten the nut slightly, then close the lever. Inspect hardware regularly for wear.

Is the Thule 821 Low Rider lockable?

The rack itself does not include a lock, but Thule offers separate lock cores for added security.

What size drill bit should I use for installation?

Use a 5/16" (8mm) drill bit for the pilot holes.

How do I print the drilling template correctly?

In Acrobat Reader, set Page Scaling to None to ensure the template prints at actual size (3 15/16" x 2 1/4").

What is the warranty on the Thule 821 Low Rider?

Thule offers a lifetime limited warranty to the original purchaser against defects in materials and workmanship. It covers repair or replacement.

USER MANUAL 821 Low Rider THULE

Side profile illustration of a pickup truck with a bicycle on the roof (no text or symbols)

Recommended Mounting Hardware 1/4" or (6mm) bolts or screws, fender washers, and locking nuts.
Low Rider attaches securely to flat surfaces.

Line drawing of a mechanical clamp or vise with a handle and base (no text or symbols)

2

Line drawing of a hand holding a pen and erasing paper with star marks (no text or symbols)

Use the template below to scribe four drilling points.
- 5/16" (8mm) drill bit recommended.
• Always check handlebar clearance before attaching block.

3

Technical line drawing of a mechanical device with four vertical supports and a handle (no text or symbols)

• Align block with drilled holes.
• Tighten hardware securely. Test installation by pulling and shaking block.

4

Technical line drawing of a mechanical clamp or vise with two vertical posts and a base (no text or symbols)

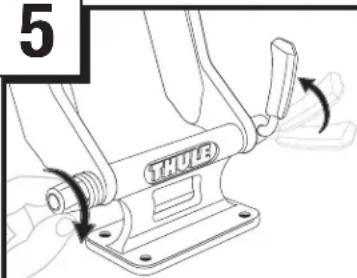

• Set the bicycle forks onto the skewer.

• With lever open, tighten nut until the lever closes with some resistance.
• Loosen or tighten the nut as needed so that lever closes with some resistance.

Test security by tugging at forks. If forks can move out of the skewer, open lever and tighten the nut slightly. Close lever again with firm pressure. Repeat if necessary.

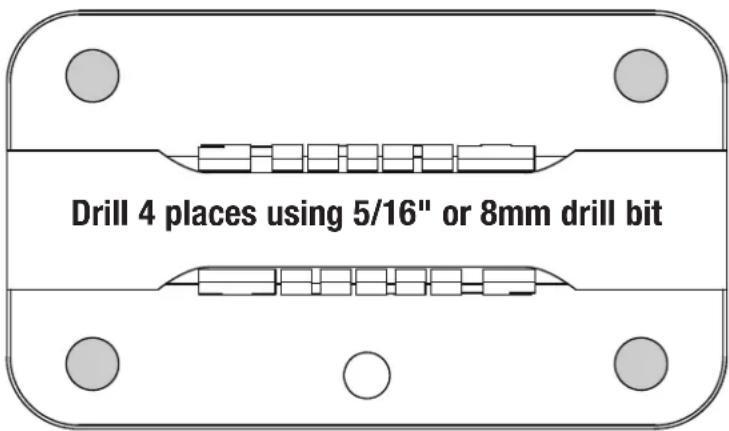

DRILLING TEMPLATE - ACTUAL SIZE OF TEMPLATE SHOULD BE 3 15/16" x 2 1/4"

When printing from Acrobat Reader, please make sure that "Page Scaling" is selected to "None".

NOTE: If you do not select "None" in the "Page Scaling" option, the drilling template will not be to actual size.

When using Thule Load Carries and accessories, the user must understand the precautions. The points listed below will assist you in using the rack system and will encourage safety.

• For quality fits and safety, use only the recommended rack or accessory as stated in Thule's current Fit Guide. Do not assume a rack will fit, always check the current Fit Guide when obtaining a new vehicle.
• Unless stated otherwise in these Instructions, do not carry more than 75 kg (165 lbs.) on Thule Load Carriers. Thule Load Carriers do not Increase gutter or roof strength. Thule can not warranty loads that exceed this limit. Total load = cargo weight plus weight of accessories used to carry cargo.
• Always make sure all doors are open when mounting a roof rack system. Make sure all knobs, bolts, screws, straps, and locks are firmly attached, tightened and locked before every trip. Knobs, bolts, screws straps and locks must be periodically inspected for signs of wear, corrosion, and fatigue. Check your load at stops during the trip to ensure continued fastening security.
• Check local and state laws governing projection of objects beyond the perimeter of a vehicle. Be aware of the width and height of your cargo since low clearance branches, bridges, and parking garages can affect the load. All cargo will affect the vehicle's driving behavior. Never drive with any lock, knob or rack in an open or unlocked position. All long loads such as, but not limited to, sailboards, surfboards, kayaks, canoes, and lumber must be tied down front and rear to the bumpers or tow hooks of the vehicle.
• Remove your Thule rack and accessories when they are not in use and before entering automatic car washes.
• All locks must be turned and moved periodically to ensure smooth operation. Use graphite or dry lubricant to help this. Thule locks are designed to deter vandalism and theft but should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an extended period. Place at least one key in the glove compartment.
• For safety to your vehicle and rack system, obey all posted speed limits and traffic cautions. Adapt your speed to the conditions of the road and the load being carried.
• Do not use Thule load carriers and accessories for purposes other than those for which they were designed. Do not exceed their carrying capacity. Failure to follow these guidelines or the product's instructions will void the warranty.
• Consult with your Thule dealer if you have any questions regarding the operations and limits of Thule products. Review all instructions and warranty information carefully.
• Not for use on trailers or towed vehicles.
• Not for offroad use.
• Keep bicycle tires away from hot exhaust.

THULE will warranty all THULE brand car rack systems and its accessories manufactured by THULE during the time that an original retail purchaser owns the product. This warranty terminates if a purchaser transfers the product to any other person.

Subject to the limitations and exclusions described in this warranty, THULE will remedy defects in materials or workmanship by repairing or replacing, at its option, a defective product without charge for parts or labor. In addition, THULE may elect, at its option, not to repair or replace a defective product but rather issue to a purchaser a refund equal to the purchase price paid for the product or a credit to be used toward the purchase of a new THULE load carrier system.

No warranty is given for defects caused by normal wear and tear, cosmetic rust, scratches, accidents, unlawful vehicle operation, or modification of, or any types of repair of, a load carrier system other than those authorized by THULE.

No warranty is given for defects resulting from conditions beyond THULE's control including, but not limited to, misuse, overloading, or failure to assemble, mount or use the product in accordance with THULE's written instructions or guidelines. Included with the product or made available to the purchaser.

No warranty is given for Thule products purchased outside of the United States, Canada and Mexico.

In the event that a product is defective, the purchaser should contact the THULE dealer from whom it purchased the product or an Authorized Thule Service Center. If the dealer or Authorized Thule Service Center is not able to correct the defect, the purchaser should contact THULE in writing or by phone at:

THULE 42 Silvermine Road Seymour, Connecticut 06483 Attn: Customer Service 203 881-9600

In the event that a product needs to be returned to THULE, a THULE technician at the address or telephone number listed above will provide the purchaser with the appropriate mailing address and any additional instructions. Please note that the purchaser will be responsible for the cost of mailing the product to THULE and that proof of purchase in the form of an original purchase invoice or receipt and a detailed description of the defect must be included in the mailing.

DISCLAIMER OF LIABILITY REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT OR THE ISSUANCE OF A REFUND OR CREDIT (AS DETERMINED BY THULE) IS A PURCHASER'S EXCLUSIVE REMEDY UNDER THIS WARRANTY. DAMAGE TO A PURCHASER'S VEHICLE, CARGO AND/OR TO ANY OTHER PERSON OR PROPERTY IS EXCLUDED.

THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

THULE'S SOLE LIABILITY TO ANY PURCHASER IS LIMITED TO THE REMEDY SET FORTH ABOVE. IN NO EVENT WILL THULE BE LIABLE FOR ANY LOST PROFITS, LOST SALES, OR FOR ANY CONSEQUENTIAL, DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR PUNITIVE DAMAGES OR FOR ANY OTHER DAMAGES OF ANY KIND OR NATURE.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT BE APPLICABLE.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Register online at www.thuleracks.com/register THULE 42 Silvermine Road Seymour, Connecticut 06483 203 881-9600
