| Product Type | Bike rack for caravan A-frame |
| Brand | Thule |
| Model | Caravan Superb SP915 |
| Product Number | 307130 |
| Unit Weight | 9.7 kg |
| Maximum Load Capacity | 60 kg total (max 30 kg per bike) |
| Number of Bikes | 2 (expandable to 3 with optional 3rd Rail Kit 307131) |
| Mounting Location | Caravan A-frame |
| Bike Frame Compatibility | Standard bike frames (not tandem) |

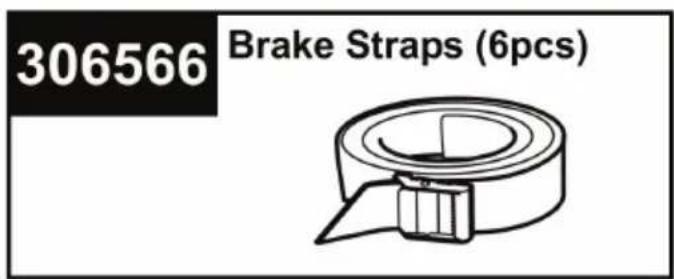

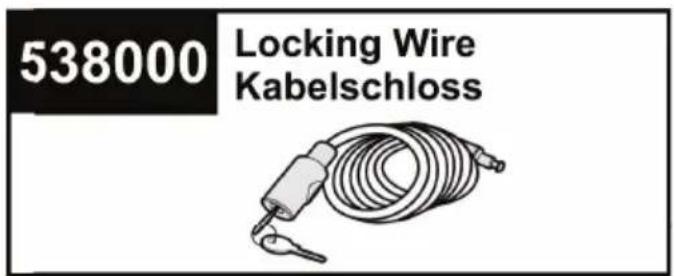

| Included Accessories | Long strap for securing bikes, locking wire (538000), brake straps (6 pcs, 306566) |
| Optional Accessories | 3rd Rail Kit (307131) |
| Safety Note | Do not use bike cover due to wind pressure; always secure bikes and check after first 50 km |
| Maintenance | Clean regularly with warm water or car shampoo, especially after use in coastal or salted road conditions |
| Storage | Keep instructions in vehicle |
| Speed Recommendation | Adjust speed to load and traffic; observe speed limits |
Frequently Asked Questions - Caravan Superb SP915 THULE
How many bikes can the Thule Caravan Superb SP915 carry?
The standard carrier holds up to 2 bikes. With the optional 3rd Rail Kit (product nr. 307131), it can carry 3 bikes.
What is the maximum weight capacity?
The maximum total load is 60 kg, with a per-bike limit of 30 kg.
Is the bike carrier compatible with all caravan A-frames?
Yes, it is designed for standard caravan A-frames. Always follow the installation instructions to ensure a secure fit.
Can I use a bike cover while transporting?
No. Due to high wind pressure when mounted on A-frames, do not use a bike cover. It could cause damage or instability.
What tools are needed for installation?
The manual indicates basic tools (e.g., screwdrivers, Allen keys). Specific tools depend on the caravan model. The included components require assembly with provided hardware.
How should I load the bikes?
Always position the largest/heaviest bike first on the rack, then the smaller/lighter ones. Remove all loose items (child seats, baskets, locks) before transport.
How do I maintain the bike carrier?
Clean regularly with warm water or car shampoo. Pay special attention after use in coastal areas (saltwater) or during winter (road salt). Replace any damaged or worn parts immediately.
Are there any speed restrictions?
Always follow applicable speed limits. Adjust your speed according to road conditions and the load. The vehicle's handling may change, especially when cornering or braking.
Can I carry a tandem bike?
No. The carrier is constructed for standard bike frames only; tandem bikes cannot be carried.
What accessories are available?
Optional accessories include the 3rd Rail Kit (307131) for extra capacity, Locking Wire (538000) for security, and Brake Straps (306566) for additional strapping.
User questions about Caravan Superb SP915 THULE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Bike rack in PDF format for free! Find your manual Caravan Superb SP915 - THULE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Caravan Superb SP915 by THULE.
USER MANUAL Caravan Superb SP915 THULE
Thule Caravan Superb
> Instructions


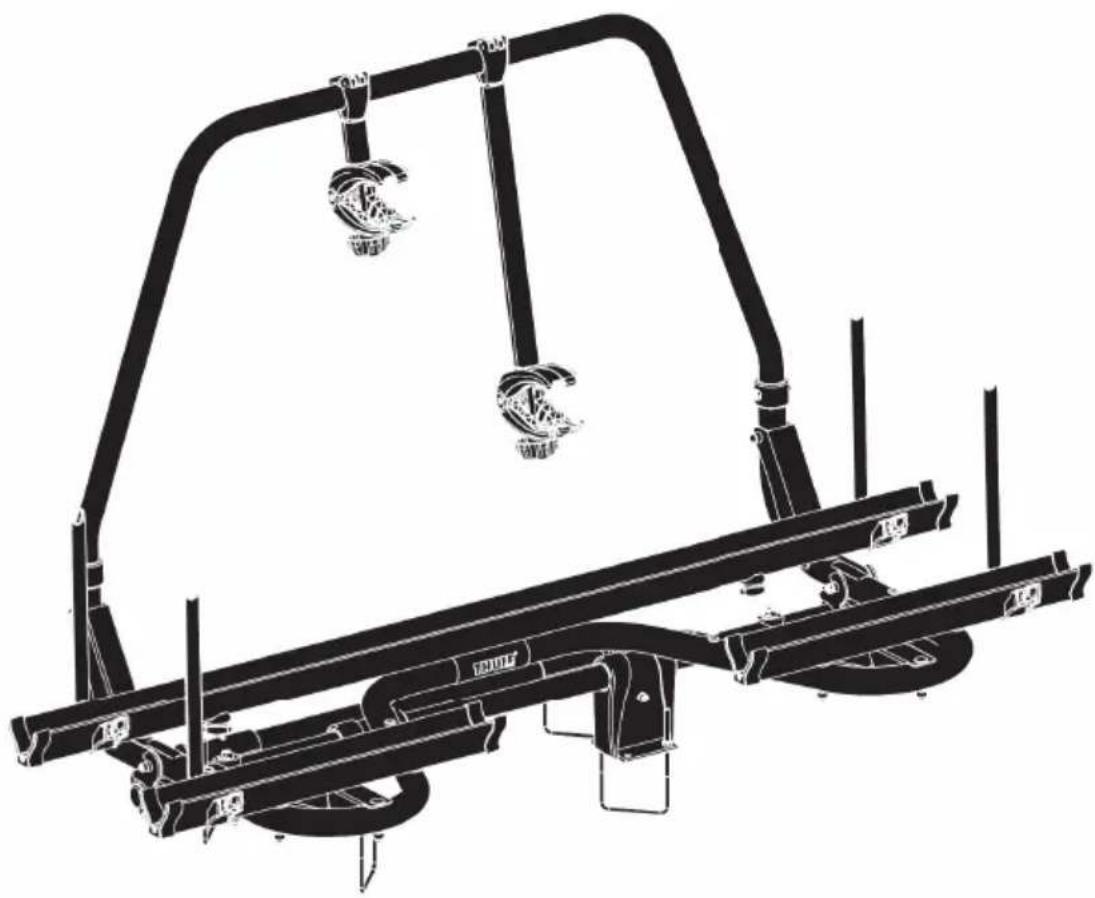

Technical line drawing of a mechanical assembly with pipes and clamps (no text or symbols)Thule Caravan Superb
Product nr. 307130
Thule Caravan Superb
Product nr.
307130
Document nr.
SP915-05
Thule Caravan Superb
Product nr. 307130
Thule Caravan Superb
Product nr.
307130
Document nr.
SP915-05
Thule Caravan Superb
Product nr.
307130
Document nr.
SP915-05
Thule Caravan Superb
Product nr.
307130
Document nr.
SP915-05
THULE® SWEDEN
Thule Caravan Superb
Product nr. 307130
EN Technical specification
Bike-carrier unit weight: 9.7 kg
Permitted load capacity: max 60 kg
Safety instructions
- Thule absolves itself of responsibility for any personal injuries or consequential damage to property or wealth caused by incorrect fitting or use.
- The bike carrier shall be assembled and fitted securely in accordance with the instructions.
- Due to the big wind pressure by installation on A-frames, please do not use a bike cover.
- The vehicle driver is solely responsible for ensuring that the product is in faultless condition and that carrier and load is securely fastened.
- Always position the biggest/heaviest bike first, and then position the smaller/lighter bike.
- Before departure all loose parts should be taken off the bikes, like child seats, baskets, locks and cycle pumps etc. The bikes should contain no loose items during transport and cause danger to others.

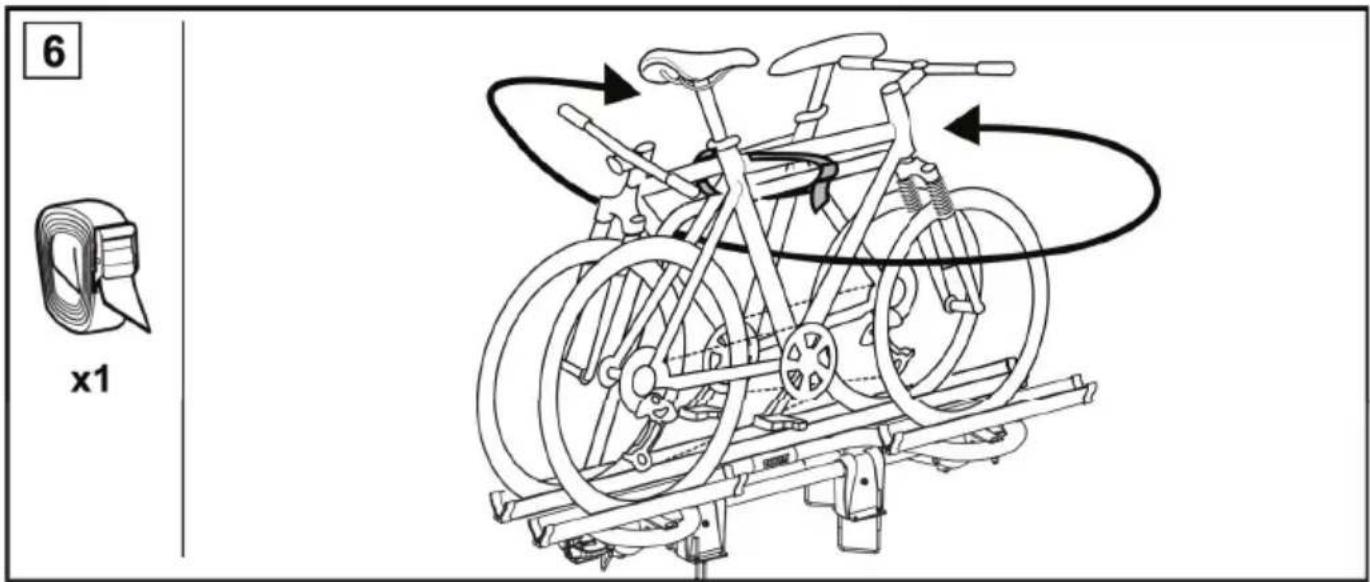

- Always secure all bikes to the bike carrier frame using the included long strap
- Check that belts and other fasteners are secure, retighten if necessary.

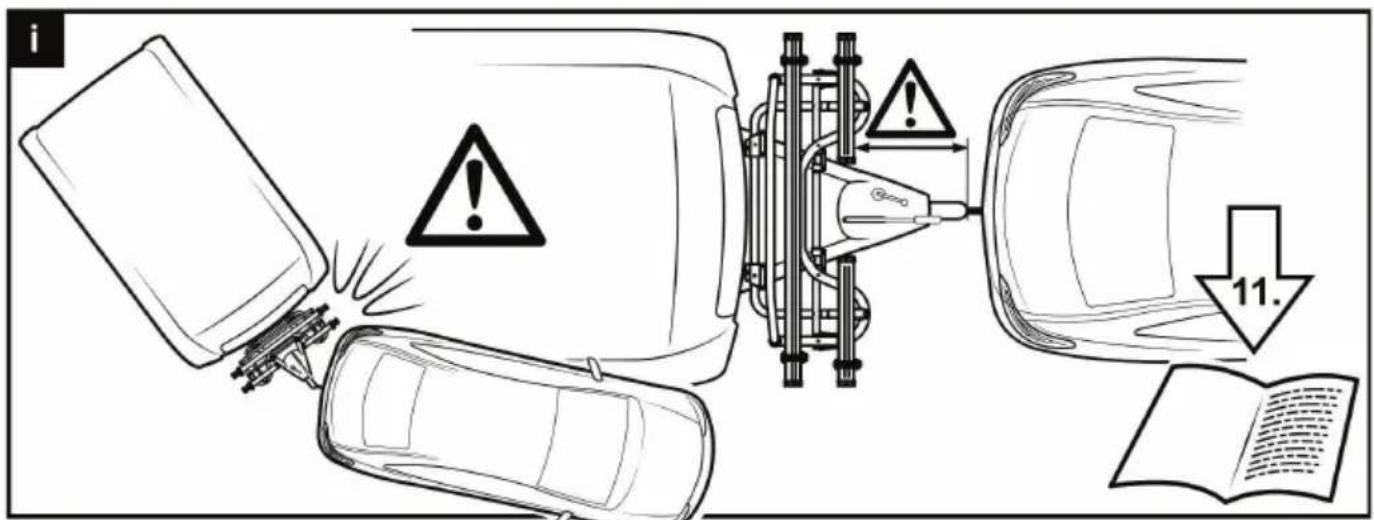

- The vehicle's total length increases when the bike carrier is attached. The bikes themselves may increase the vehicle's total width and height. Take special care when reversing and/or entering garages or ferries etc.
- Replace any damaged or worn parts immediately
- The car's on-road behaviour may change especially when taking curves and during braking when the product is fitted. Its turning circle has increased as well.
- Applicable speed limits and other traffic regulations shall always be followed.
- Speed should always be tailored to suit safety considerations with regard to traffic conditions and the load being carried.
- The carrier is constructed to carry standard-bike-frames. Tandem bikes may not be carried.
- Modifications to this product are not permitted.
- Clean the bike carrier regularly using warm water or car shampoo, especially when using / after using at coasts (salt-water) or during times when salt on roads is being used (winter).
- Check that the bike carrier is securely fitted after driving a short distance (50km) and thereafter at regular intervals.
- Keep the instructions safely in the car.
Thule Caravan Superb
Product nr. 307130
Thule Caravan Superb
Product nr. 307130
Thule Caravan Superb
Product nr. 307130
Thule Caravan Superb
Product nr. 307130
