Installation Instructions

Installansanleitung

Model No. KY-B84BX / KY-B84BG

KY-B64BX / KY-B64BG

English 2-15

Deutsch 16-29

Français 30-43

Nederlands 44-57

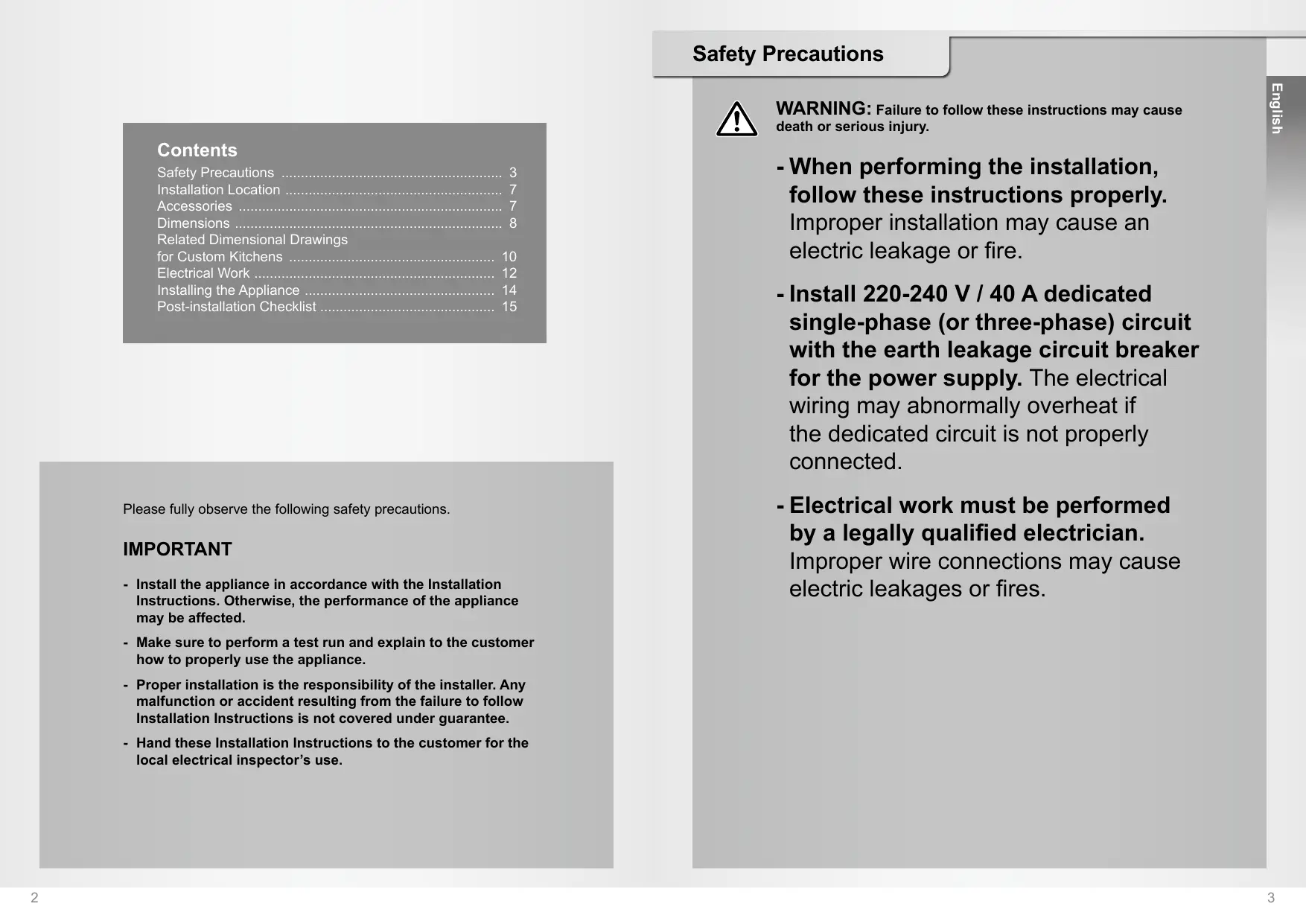

Safety Precautions

Contents

Safety Precautions 3

Installation Location 7

Accessories 7

Dimensions 8

Related Dimensional Drawings

for Custom Kitchens 10

Electrical Work 12

Installing the Appliance 14

Post-installation Checklist 15

Please fully observe the following safety precautions.

IMPORTANT

• Install the appliance in accordance with the Installation Instructions. Otherwise, the performance of the appliance may be affected.
• Make sure to perform a test run and explain to the customer how to properly use the appliance.
• Proper installation is the responsibility of the installer. Any malfunction or accident resulting from the failure to follow Installation Instructions is not covered under guarantee.
• Hand these Installation Instructions to the customer for the local electrical inspector's use.

WARNING: Failure to follow these instructions may cause death or serious injury.

• When performing the installation, follow these instructions properly. Improper installation may cause an electric leakage or fire.
• Install 220-240 V / 40 A dedicated single-phase (or three-phase) circuit with the earth leakage circuit breaker for the power supply. The electrical wiring may abnormally overheat if the dedicated circuit is not properly connected.
• Electrical work must be performed by a legally qualified electrician. Improper wire connections may cause electric leakages or fires.

WARNING: Failure to follow these instructions may cause death or serious injury.

• This appliance must be properly earthed following the electric laws. Earth line must not be connected to gas pipe, water pipe, earth of lightning rod and telephone.

Otherwise, it may cause electric shock in case of appliance breakdown or insulation breakdown.

• Have a qualified electrician earth the appliance. Improper earthing may cause an electric shock.
• Before performing the installation, definitely turn off the circuit breaker. This can prevent electric shock.

• Do not touch high temperature parts, such as the top plate.

• If the power cord is damaged, it must be replaced by the manufacturer or its service centre or a similar qualified person in order to avoid a hazard.

• Do not disassemble, repair or modify the appliance (the top plate, for example). Doing so may cause the appliance to operate abnormally and may result in danger.
• Do not step on the appliance, or drop heavy items on top of it. Cracks in the top plate may cause overheating, malfunctions or electric shocks.
• The power cord must be accurately connected to ensure the integrity of the connection. Improper wire connections may cause electric leakages or fires.

CAUTION: Failure to follow these instructions may cause injury or property damage.

• Use heat resistant materials for the countertop. However, do not use varnished materials as they might get discoloured. The material of the countertop should have heat resistance equal to or exceeding "laminated thermosetting high-pressure decorative sheets". If the materials are not heat resistant, they may get deformed or cause a fire.

Installation Location

Observe the laws concerning the installation of the appliance.

For more details on cutout, see page 11.

Accessories

Clamp

(4 pieces)

KY-B84BX / KY-B84BG

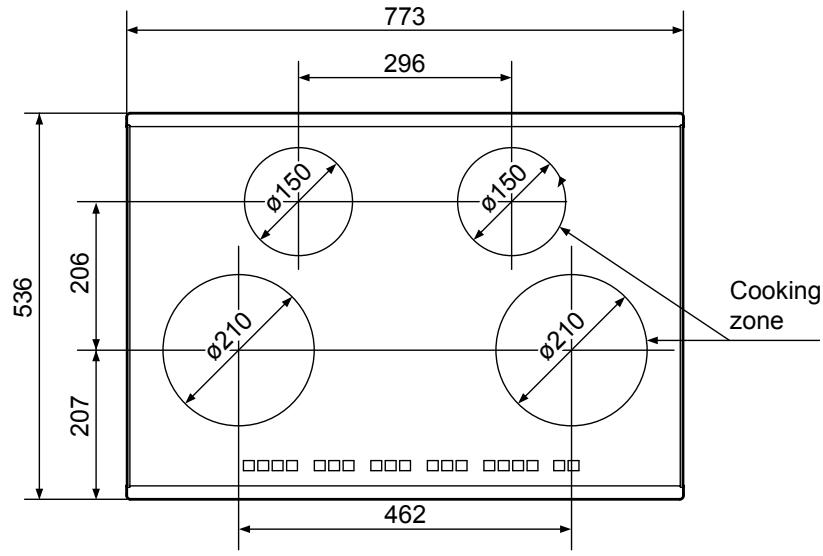

Top view

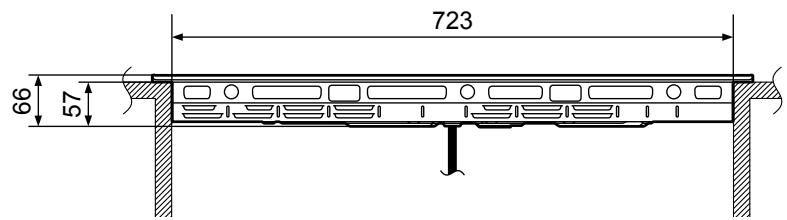

Front view

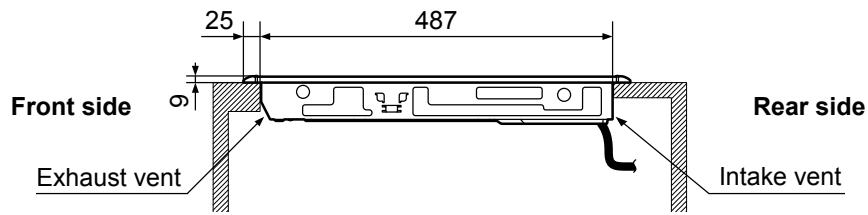

Side view

Power cord length: approx. 1.2 m (Sheath length: approx. 1.1 m)

KY-B64BX / KY-B64BG

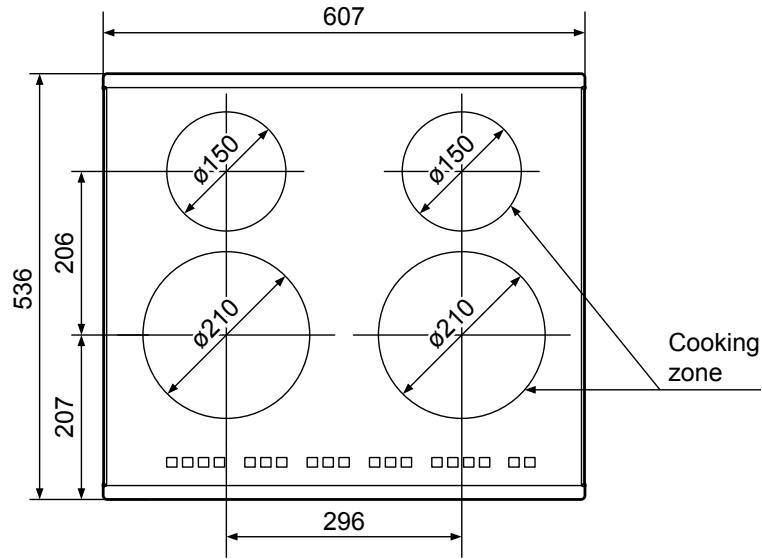

Top view

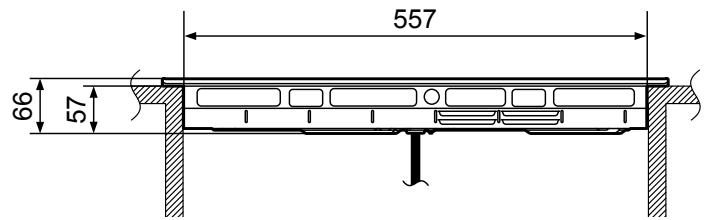

Front view

Side view

Power cord length: approx. 1.2 m (Sheath length: approx. 1.1 m)

Related Dimensional Drawings for Custom Kitchens

(measurement: mm)

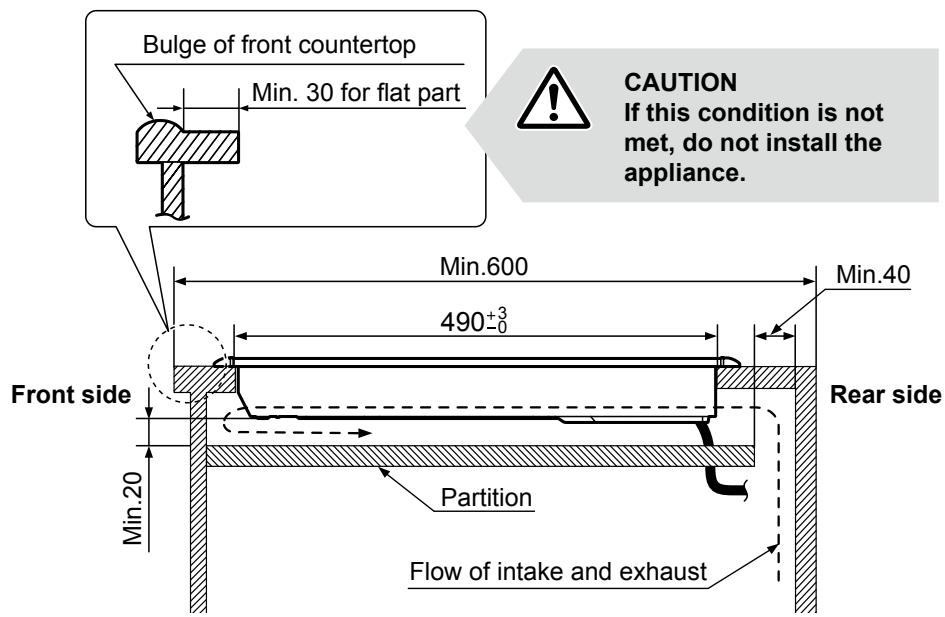

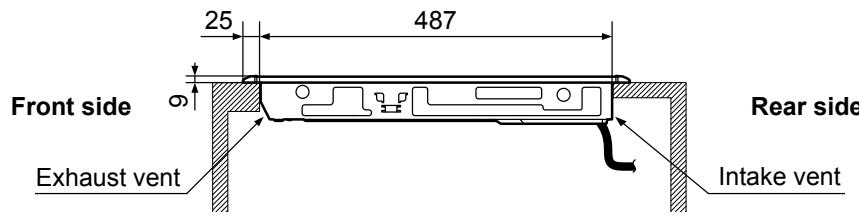

Side view

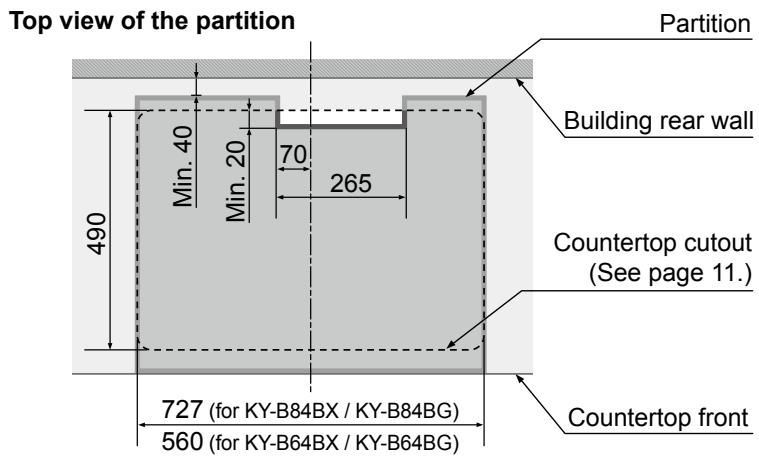

When installing a partition inside the cabinet,

• Allow for a minimum of 20mm extra space underneath the bottom of the appliance for air circulation.
• Allow for a minimum of 40mm extra space in rear of the partition.

(measurement: mm)

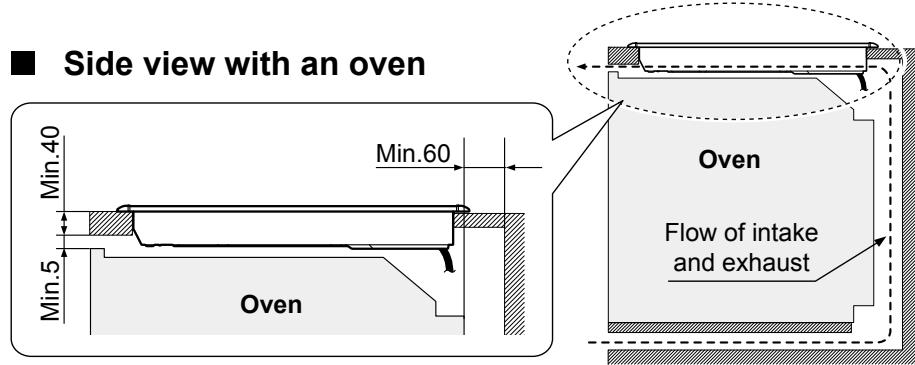

When installing the cooktop above an oven,

• Allow for Panasonic ovens: HL-BT62S / HL-BT62B only. (As of January 2013)
• Allow for extra spaces for air circulation as shown below.

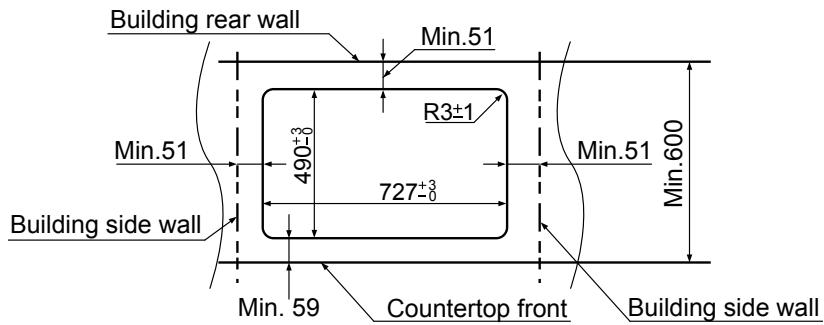

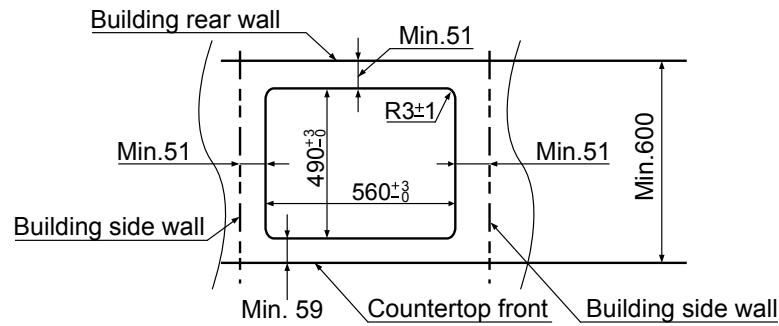

Dimensions of countertop cutout

KY-B84BX / KY-B84BG

KY-B64BX / KY-B64BG

WARNING

Electrical work must be performed by a legally qualified electrician.

Electrical requirements

• This appliance must be supplied with the proper voltage and frequency, and connected to an individual, properly earthed branch circuit, protected by a circuit breaker or fuse. (The rating plate is on the bottom of the appliance.)
• This appliance is not fitted with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• You must use a two-wire, single-phase A.C. 220-240 V, 40 A, 50 Hz electrical system. (It is also possible to use a four-wire, three-phase.) If you connect to aluminum wiring, properly use connectors approved for use with aluminum wiring.
• Check with the local utilities for electrical codes applied in the area. Failure to wire the appliance according to governing codes may result in a hazardous condition.
• After installation, show the customer where the breaker for the appliance is located.

Installation of the earth leakage circuit breaker

• In accordance with the electrical wiring rules, incorporate the earth leakage circuit breaker in the home electrical wire.
• Follow the specification of the earth leakage circuit breaker as follows. Rated current: 40 ~A , rated sensitivity current: 30 ~mA

Electrical connections

1. Turn off power.

Turn off power at the circuit breaker or remove fuses to the appliance branch circuit.

2. Connect the power cord.

Connect the power cord in accordance with all governing codes and ordinances.

- Single-phase connection (220-240 V ~ 50 Hz)

Connect the wires in accordance with the instructions given in the following table and diagram:

Electrical cable	Wire connection
E N L	E: Yellow / Green (Connect to the earth terminal)
	N: Grey and Blue together
	L: Black and Brown together
	(Connect to the live terminal)

- Three-phase connection (380-415 V 2N~ 50 Hz)

Separate the L wires and connect them in accordance with the instructions given in the following table and diagram:

Electrical cable	Wire connection
E N L1 L2	E: Yellow / Green (Connect to the earth terminal)
	N: Grey and Blue together
	L1: Black
	L2: Brown
	Connect to the live terminal)

WARNING

Do not disassemble the top plate. Connected wire may become loose and cause a malfunction.

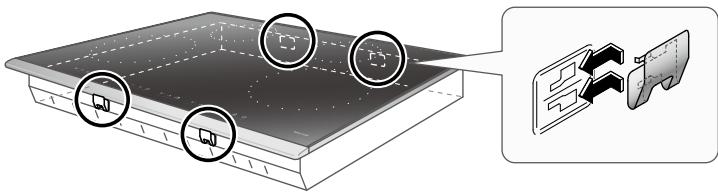

1. Fasten the clamps to the main unit (4 places on the front and rear).

2. Put the Cushion UP underneath the main unit to act as a buffer in order to prevent the countertop from getting damaged.

3. Match the clamp grips with the holes on the sides of the main unit, then slide the clamp from the right to the left to fasten them to the main unit.

Cushion UP

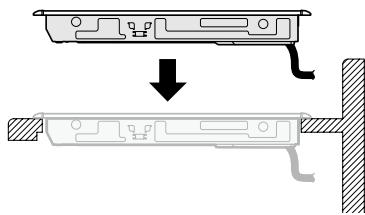

1. Embed the main unit in the countertop cutout while keeping it is as level as possible.

2. Do not drop the unit on the countertop.

3. Press down on top of the main unit to make sure that the frame solidly rests on the countertop.
4. Make sure that the spaces between the countertop and the under surface of the top frame are even in the front, rear, left and right.

1. Connect the power cord See page 13.

CAUTION If the cabinet does not have an opening in the front, the wiring needs to be connected before the main unit is embedded into the countertop.

Post-installation Checklist

Upon completing installation, check and mark off the following items.

	Checklist	Checked
Appearance	- Does the appliance not look like it is tilted to the front, rear, left or right?- Is the frame not lifted up?- Is the top plate clean?
Electrical work	- Is the power supply a single-phase (220-240 V ~), or a three-phase (380-415 V 2N~)?
	- Has the earth been installed?- Has the earth leakage circuit breaker been installed?
Electrical testing	1. Touch ☐ to turn on the main power.- Does the main power light light up?
	2. Touch the following keys to check function of each IH heater:- Left front heater ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☌ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☽ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☻ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☓ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☕ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☔ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☑ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☘ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☦ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☊ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☿ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☮ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☗ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☎ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☫ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☐ ☼

• Make sure to turn off each IH heater and the main power switch after performing electrical testing.
• Hand the Operating Instructions, Installation Instructions, and Guarantee Certificate to the customer.

I hereby certify that installation has been completed.

Signature of installer
