EB-L1490U - Video projector EPSON - Free user manual and instructions

Product Type	Video Projector
Brand	Epson
Model	EB-L1490U
Display Technology	3LCD
Resolution	WUXGA (1920 x 1200)
Brightness	12,000 lumens
Contrast Ratio	2,500,000:1
Light Source	Laser
Light Source Life	Up to 20,000 hours
Projection Ratio	1.44 - 2.33:1
Image Size	50 - 300 inches
Keystone Correction	Vertical and horizontal
Weight	Approx. 22.5 kg
Dimensions (W x D x H)	586 x 492 x 185 mm
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	648 W (typical)
Noise Level	35 dB (normal mode)
Inputs	HDMI, DVI-D, HDBaseT, VGA, Composite, S-Video
Outputs	Audio, Monitor Out
Special Functions	Edge blending, Multi-projection, Warping, 360-degree installation
Maintenance	Filter cleaning every 10,000 hours; laser module replacement when needed
Security	Kensington lock, password protection

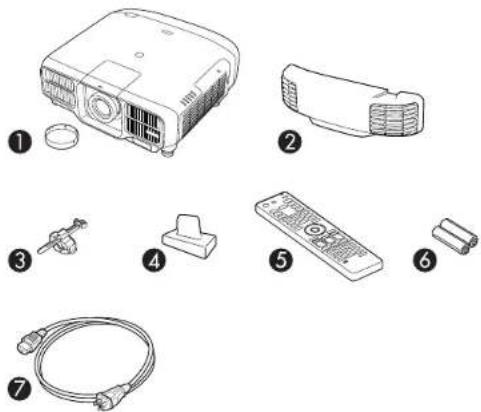

Included Accessories	Remote control, power cable, quick start guide

Frequently Asked Questions - EB-L1490U EPSON

How do I connect my laptop to the EB-L1490U projector?

Use an HDMI cable to connect your laptop to the projector's HDMI port. Alternatively, you can use HDBaseT for long-distance transmission or DVI-D for digital video.

What is the recommended screen size for this projector?

The projector supports image sizes from 50 to 300 inches. For optimal brightness, a screen size between 100 and 200 inches is recommended.

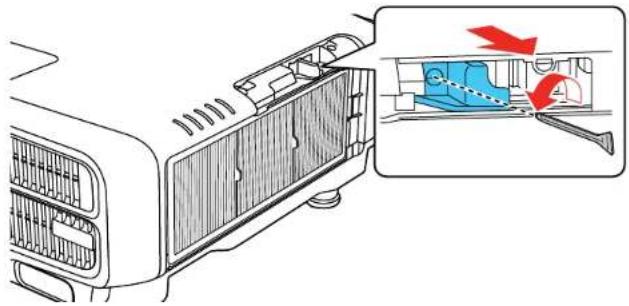

How do I clean the air filter?

Turn off the projector and unplug it. Open the filter cover, remove the filter, and gently vacuum or rinse it with water. Allow it to dry completely before reinstalling. Clean the filter every 10,000 hours.

Can I replace the laser light source myself?

The laser module is not user-replaceable. Contact Epson service for replacement when the light source reaches the end of its life (approx. 20,000 hours).

Why is the projected image blurry?

First, adjust the focus ring on the lens. If still blurry, check the keystone correction settings and ensure the projector is perpendicular to the screen. Also, verify the input resolution matches the native resolution (WUXGA 1920x1200).

How do I perform edge blending for multi-projection?

Access the Installation menu and enable Edge Blending. Set the overlap area and adjust the brightness curve for each projector. Use a camera or alignment grid for precise calibration.

What is the maximum projection distance for a 200-inch screen?

With the standard lens, a 200-inch screen requires a distance between 5.8 and 9.5 meters (depending on zoom). Check the projection ratio (1.44-2.33:1) and use the formula: distance = screen width × ratio.

Does the projector support 3D content?

No, the EB-L1490U does not support 3D. It is designed for 2D presentations and video playback.

How do I reset the lamp hours counter after maintenance?

Go to Menu > Info > Lamp Hours and select Reset. Confirm the reset only after replacing the laser module or cleaning the filter.

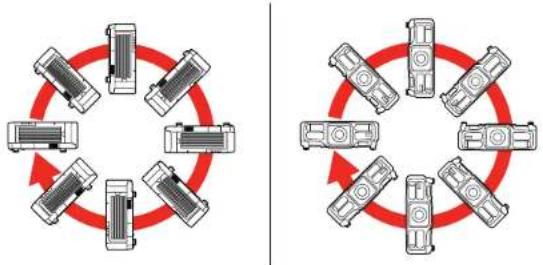

Can I mount the projector upside down?

Yes, the projector supports 360-degree installation. In the menu, set Projection to Ceiling Mount or Upside Down to correct the orientation.

USER MANUAL EB-L1490U EPSON

Additional Components 14

Additional Projector Software and Manuals 16

Optional Equipment and Replacement Parts.... 17

Warranty and Registration Information 19

Notations Used in the Documentation 19

Where to Go for Additional Information 19

Projector Part Locations 20

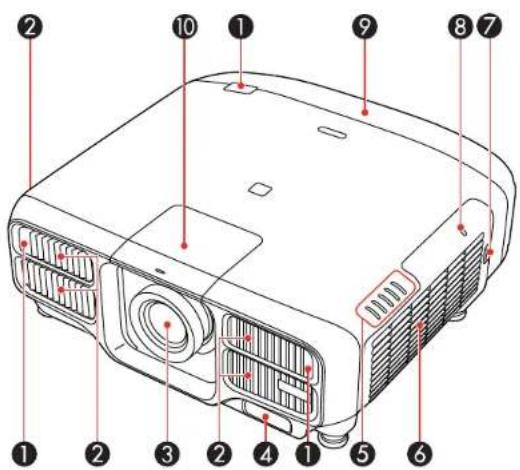

Projector Parts - Front/Top 20

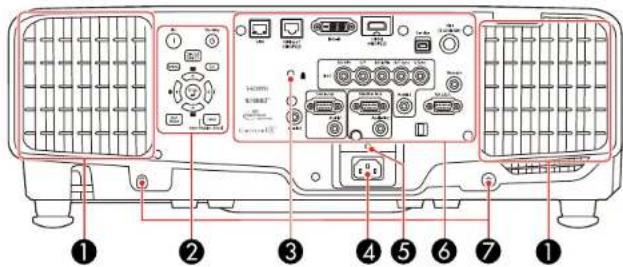

Projector Parts - Rear 21

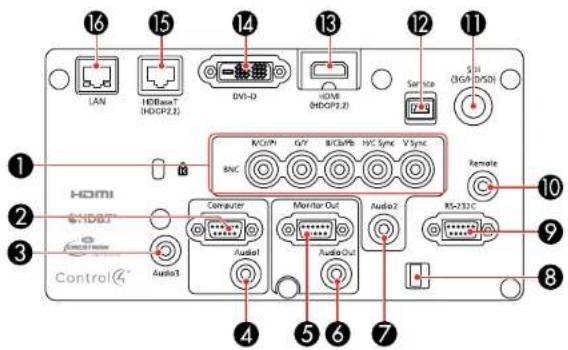

Projector Parts - Interface Ports 22

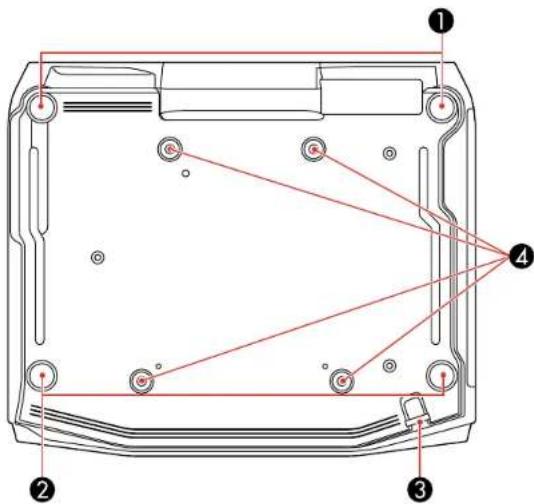

Projector Parts - Base 23

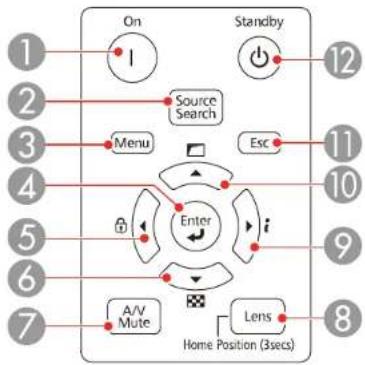

Projector Parts - Control Panel 24

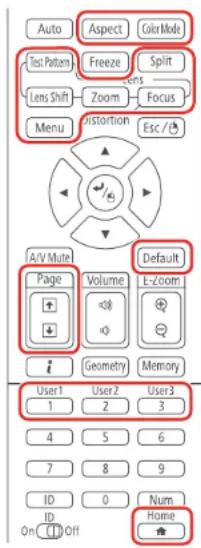

Projector Parts - Remote Control 25

Setting Up the Projector 28

Projector Placement 28

Projector Setup and Installation Options 28

Projection Distance.... 31

Projector Connections 35

Connecting to Video Sources 35

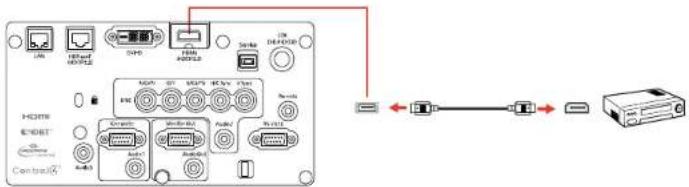

Connecting to an HDMI Video Source 35

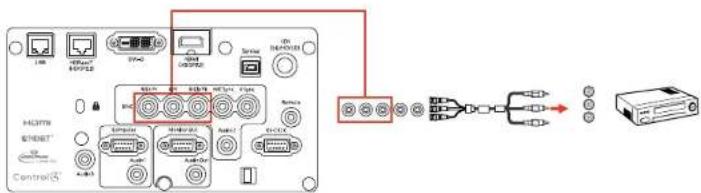

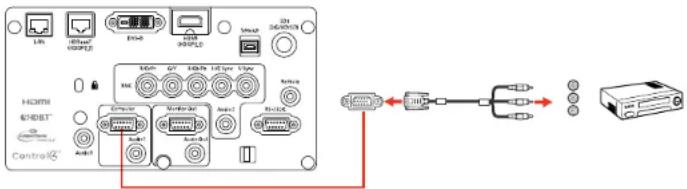

ConnectingtoaComponent-to-BNCVideoSource....36

Connecting to a Component Video Source 37

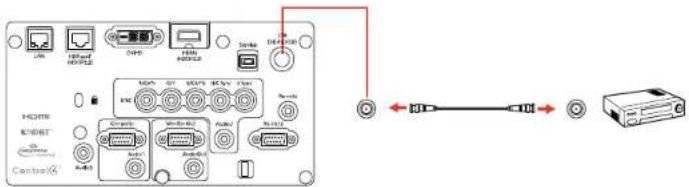

Connecting to an SDI Video Source 37

Connecting to a Video Source for Sound 38

Connecting to Computer Sources.... 39

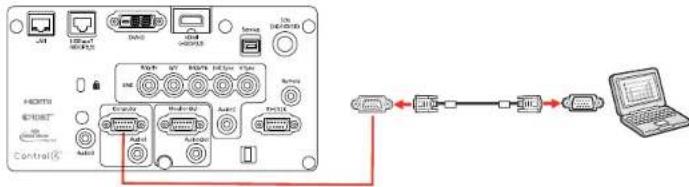

Connecting to a Computer for VGA Video.... 39

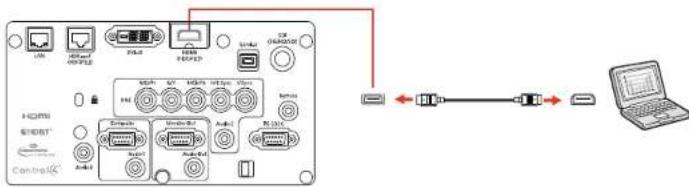

ConnectingtoaComputerforHDMIVideoandAudio....40

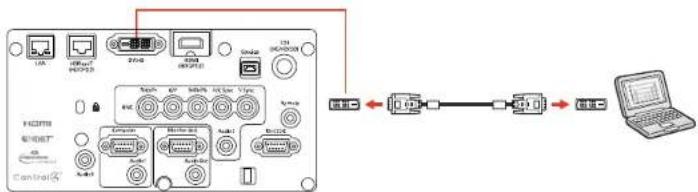

Connecting to a Computer for DVI-D Video 41

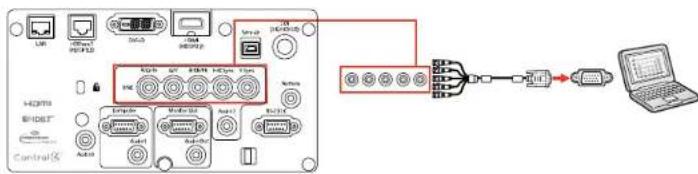

Connecting to a Computer for 5 BNC Video.... 41

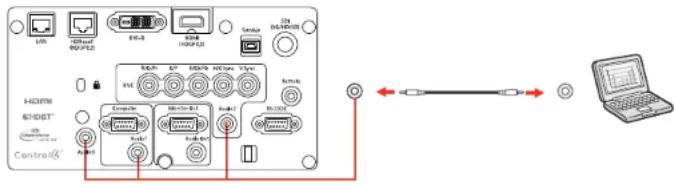

Connecting to a Computer for Sound.... 42

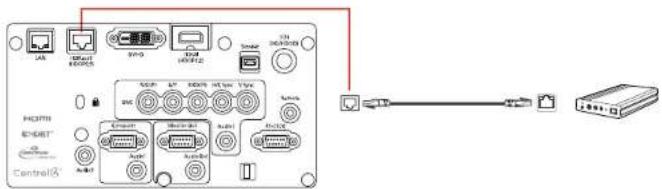

Connecting to an HDBaseT Transmitter 42

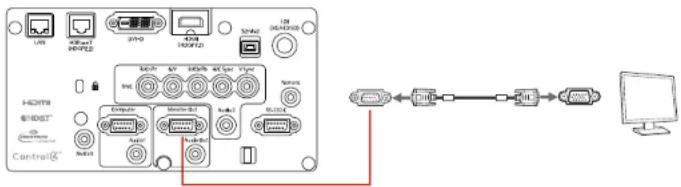

Connecting to an External Computer Monitor 43

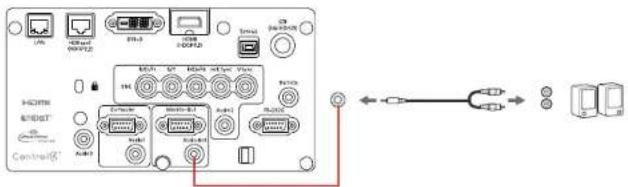

Connecting to External Speakers 44

Attaching and Removing a Lens.... 45

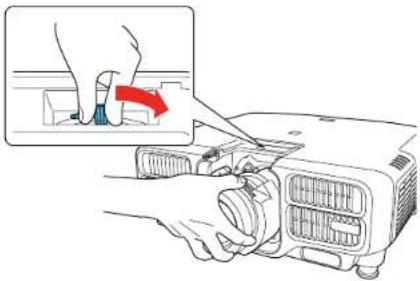

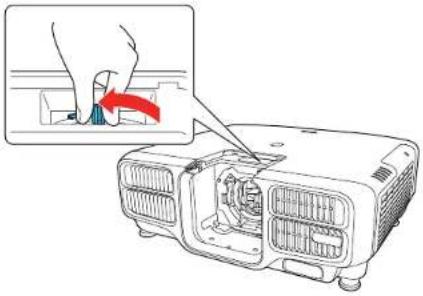

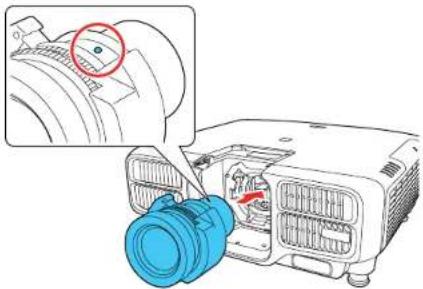

Attaching a Lens 45

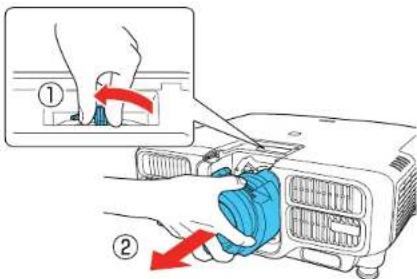

Removing a Lens 48

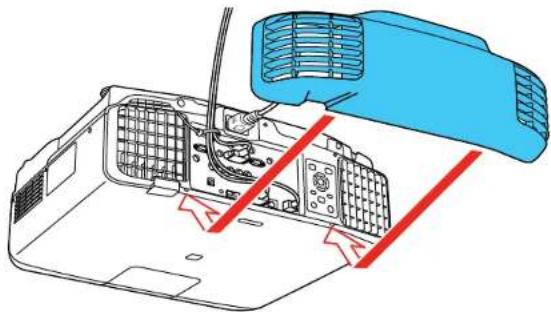

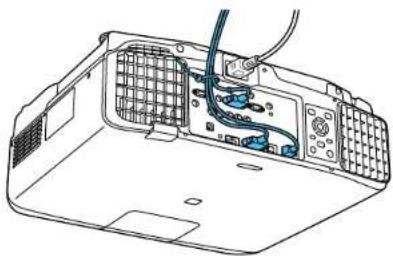

Attaching and Removing the Cable Cover 49

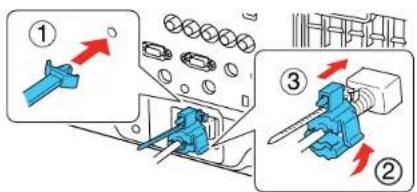

Attaching and Removing the Cable Clip 51

Installing Batteries in the Remote Control 52

Using the Projector on a Network 54

Wired Network Projection.... 54

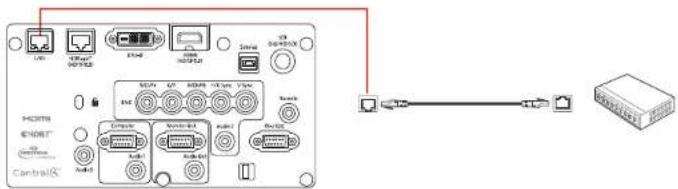

Connecting to a Wired Network 54

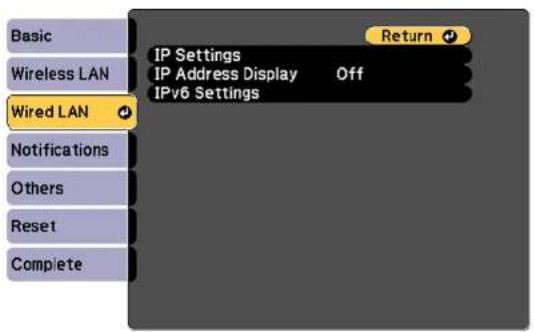

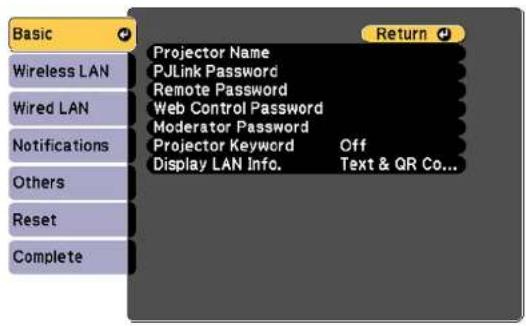

Selecting Wired Network Settings 55

Wireless Network Projection 58

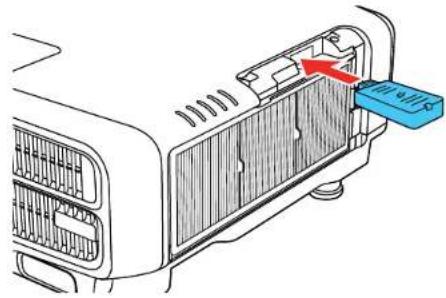

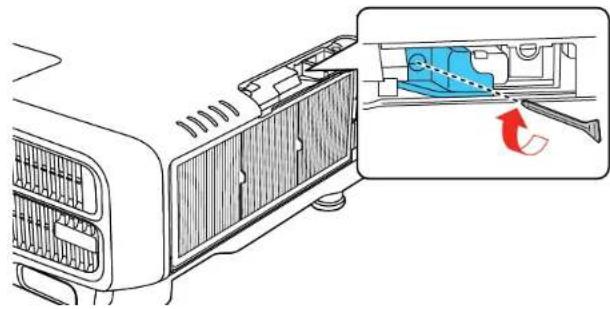

Installing the Wireless LAN Module 58

Using a QR Code to Connect a Mobile Device 61

Using Quick Wireless Connection (Windows).... 63

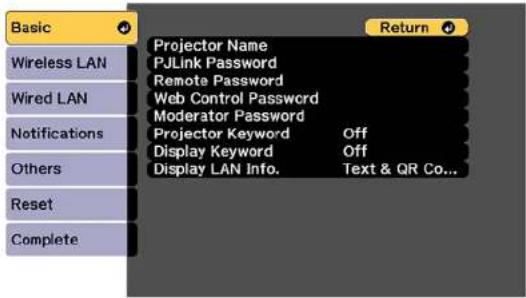

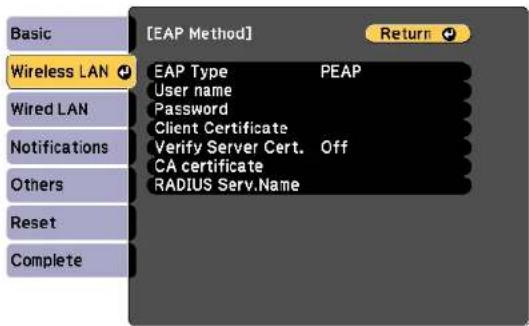

Selecting Wireless Network Settings Manually.... 64

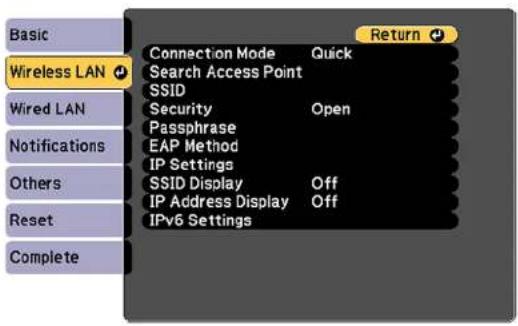

Wireless LAN Menu Settings 67

Selecting Wireless Network Settings in Windows.... 68

Selecting Wireless Network Settings on Mac 69

Setting Up Wireless Network Security 69

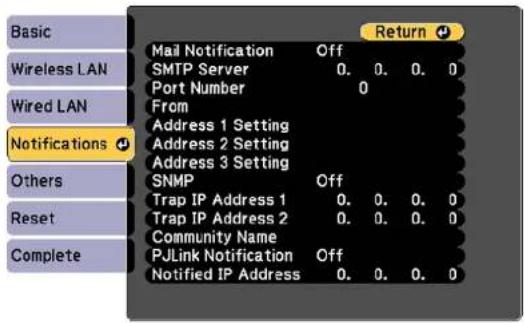

Setting Up Projector Network E-Mail Alerts 71

Network Projector E-mail Alert Messages 73

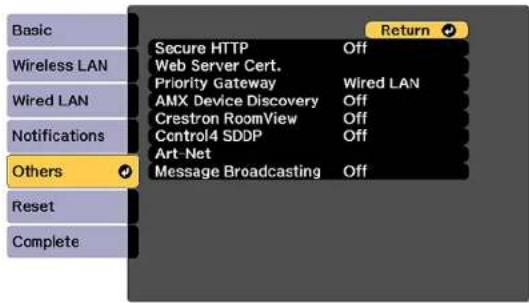

Selecting Other Network Settings.... 73

Controlling a Networked Projector Using a Web Browser 74

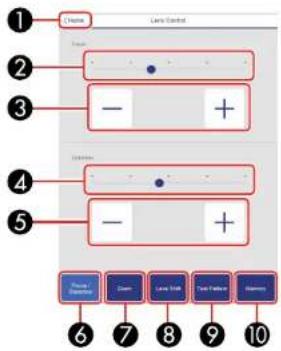

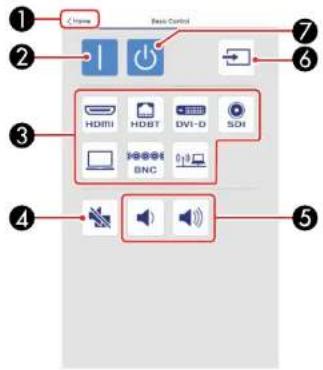

Web Control Options 76

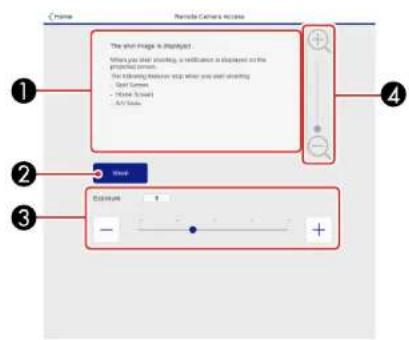

ViewinganImageCaptureoftheDisplayedImagefromaRemoteLocation....82

Crestron RoomView Support 86

Setting Up Crestron RoomView Support 87

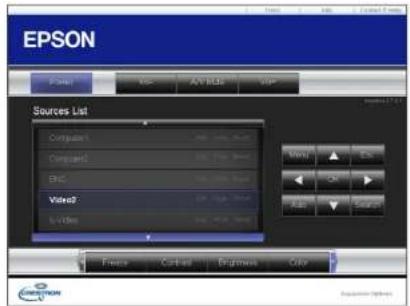

ControllingaNetworkedProjectorUsingCrestronRoomView....88

Using Basic Projector Features 90

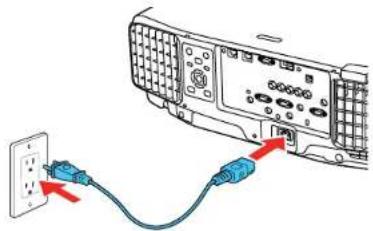

Turning On the Projector 90

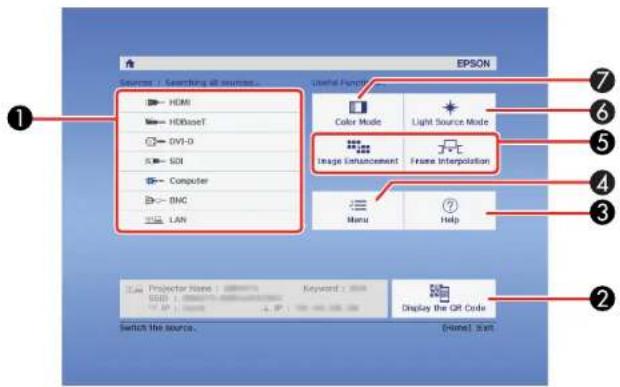

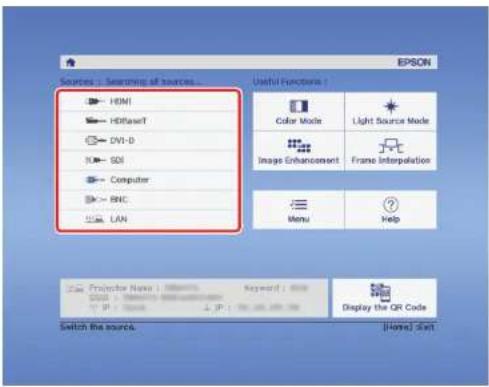

Using the Home Screen....92

Turning Off the Projector 94

Selecting the Language for the Projector Menus.... 94

Resizing the Image with the Zoom Button 95

Focusing the Image Using the Focus Buttons 96

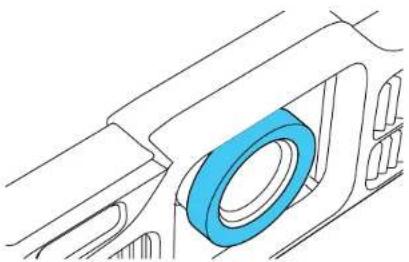

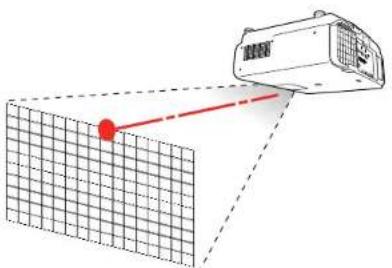

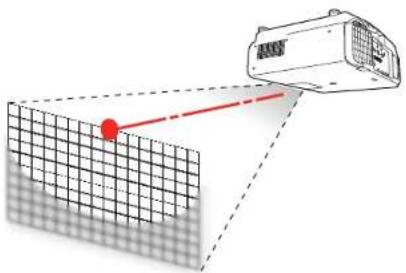

FocusingtheImageWhenUsinganOptionalShortThrowLens....97

Setting the Lens Type 99

Setting the Screen Type 99

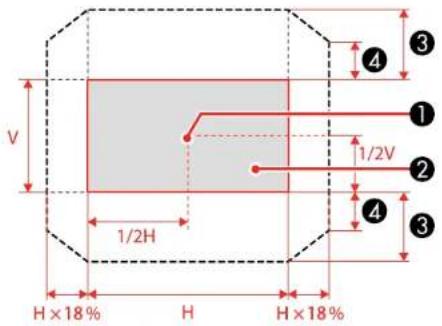

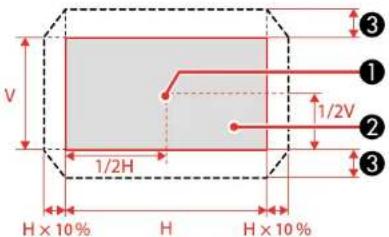

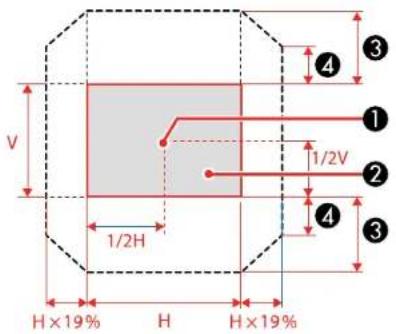

Adjusting the Image Position Using Lens Shift 100

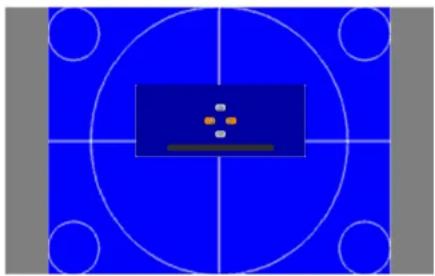

Adjusting the Image Position Using Screen Position 105

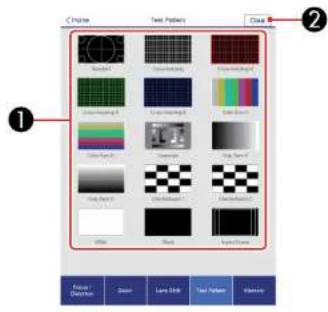

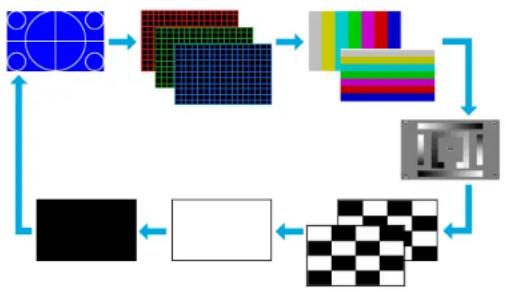

Displaying a Test Pattern 106

Available Test Pattern Image Adjustments 107

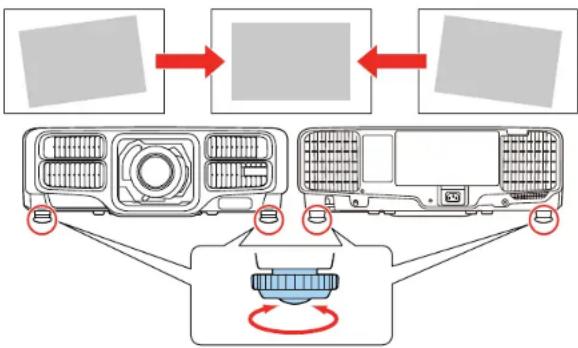

Adjusting the Image Height 108

Image Shape 109

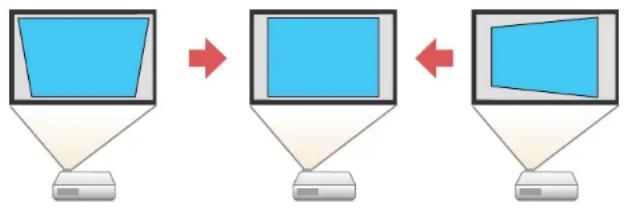

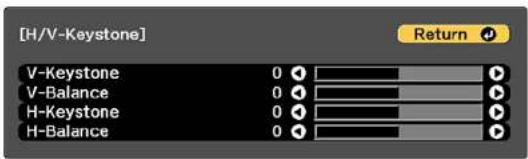

Correcting Image Shape with H/V Keystone.... 110

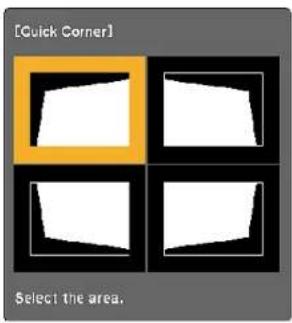

Correcting Image Shape with Quick Corner 113

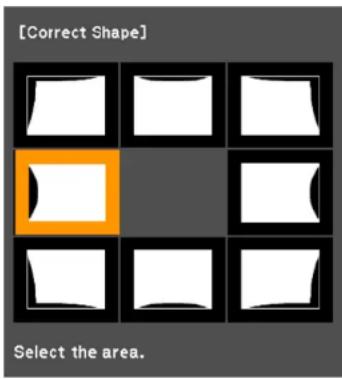

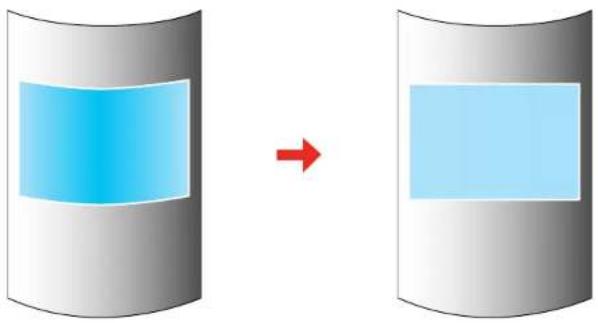

Correcting Image Shape with Curved Surface 115

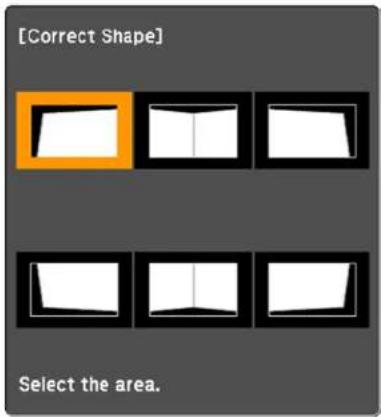

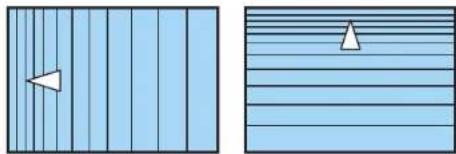

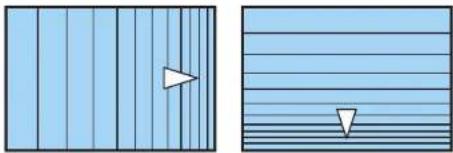

Correcting Image Shape with Corner Wall.... 119

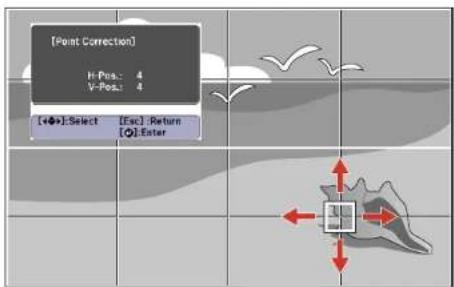

Correcting Image Shape with Point Correction 124

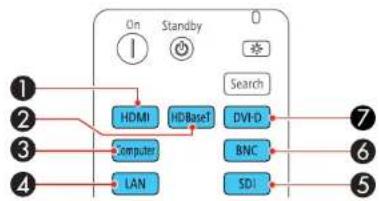

Selecting an Image Source 126

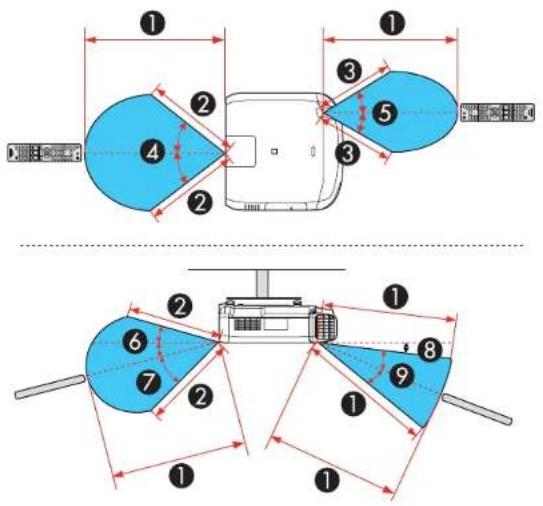

Remote Control Operation 128

Projection Modes 130

ChangingtheProjectionModeUsingtheRemoteControl....130

Changing the Projection Mode Using the Menus.... 131

Image Aspect Ratio 132

Changing the Image Aspect Ratio 132

Available Image Aspect Ratios 133

Color Mode....134

Changing the Color Mode.... 134

Available Color Modes.... 135

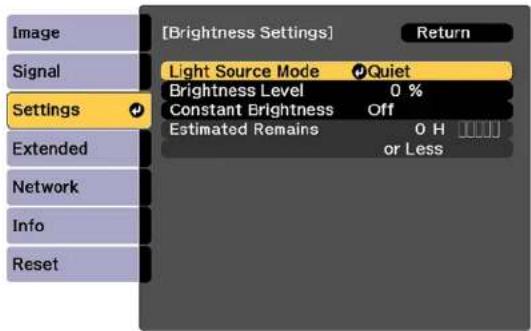

Adjusting the Brightness.... 136

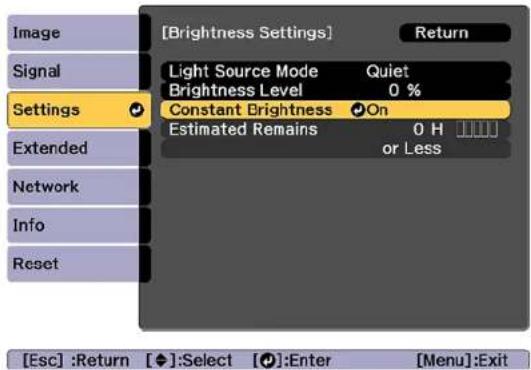

Constant Brightness Usage Hours 139

Turning On Automatic Luminance Adjustment.... 141

Controlling the Volume with the Volume Buttons.... 142

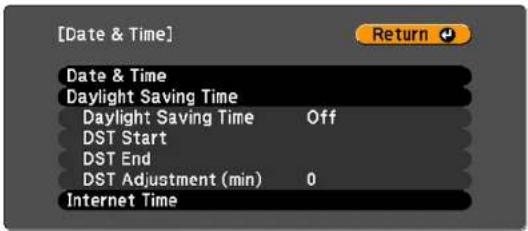

Setting the Date and Time.... 143

Date and Time Settings 144

Adjusting Projector Features 146

Shutting Off the Picture and Sound Temporarily 146

Stopping Video Action Temporarily 147

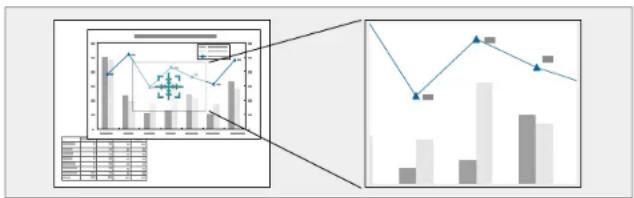

Zooming Into and Out of Images 148

Projector Security Features.... 149

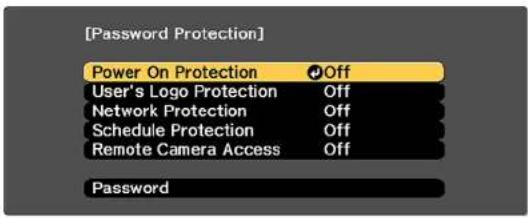

Password Security Types 149

Setting a Password 150

Selecting Password Security Types.... 151

Entering a Password to Use the Projector.... 152

Saving a User's Logo Image to Display.... 153

Locking the Projector's Buttons 155

Unlocking the Projector's Buttons 157

Locking the Remote Control Buttons 157

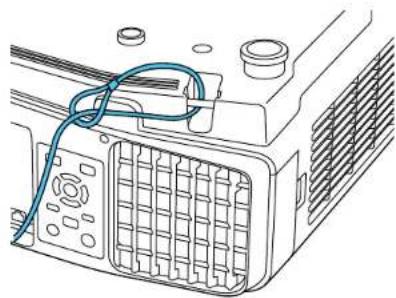

Installing a Security Cable 158

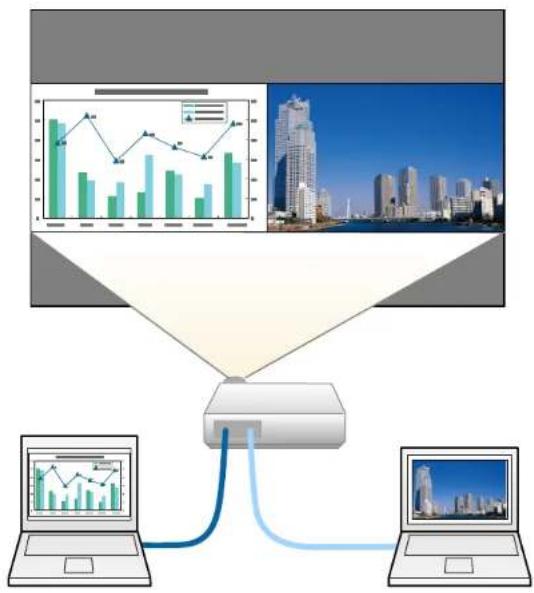

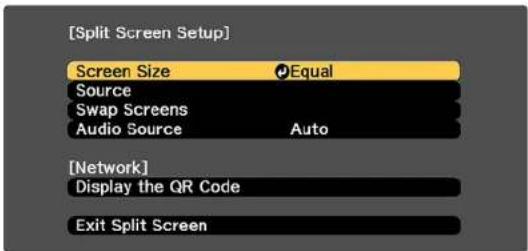

Projecting Two Images Simultaneously.... 159

Input Sources for Split Screen Projection 161

Using Advanced Image Adjustment Features 161

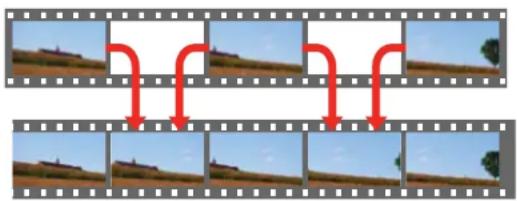

Using Frame Interpolation 162

Using 4K Enhancement.... 163

Creating Image Presets.... 165

Using MPEG Noise Reduction.... 166

AdjustingScaledResolutionImages(Super-resolution)....168

Adjusting Detail Enhancement 169

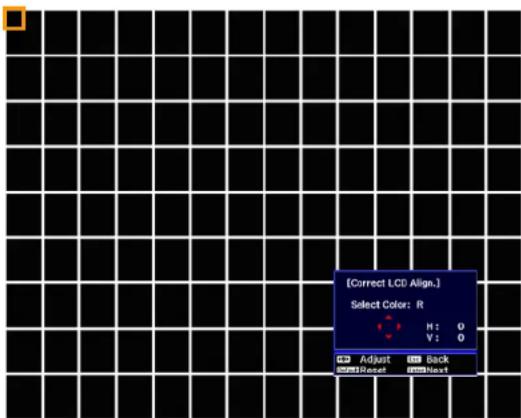

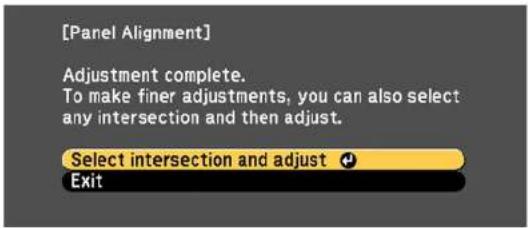

AdjustingtheColorConvergence(PanelAlignment)....170

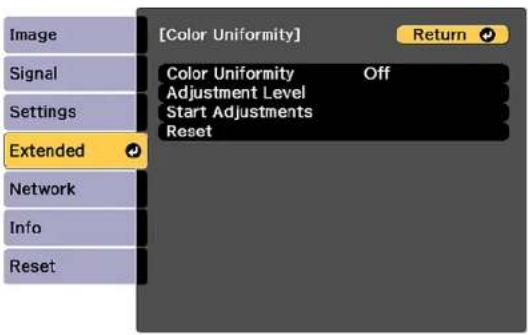

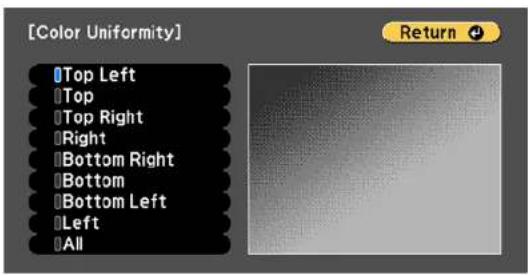

Adjusting the Color Tone (Color Uniformity) 172

Running Light Source Calibration 174

Using Multiple Projectors 175

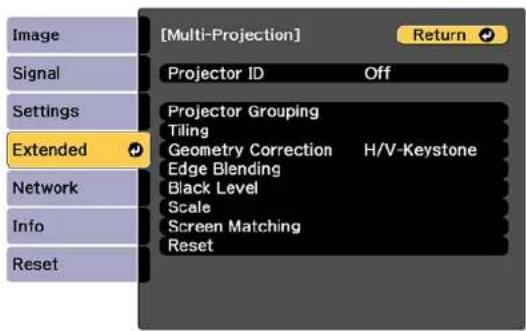

Multiple Projector Adjustment Overview 176

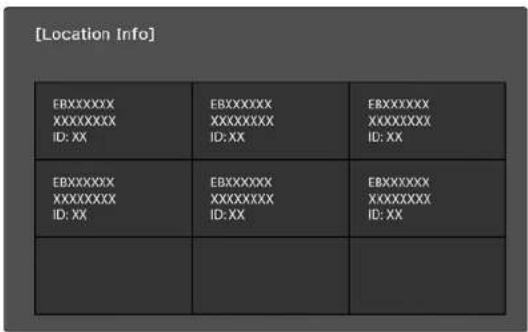

Projector Identification System for Multiple Projector Control 177

Setting the Projector ID 178

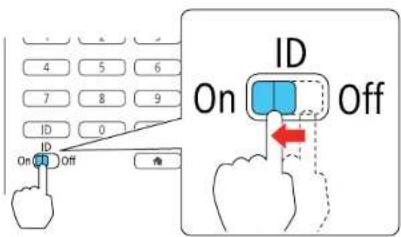

Setting the Remote Control ID 178

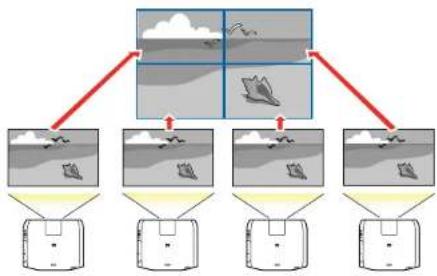

Tiling Images into One Image 180

Configuring Tiling Automatically.... 180

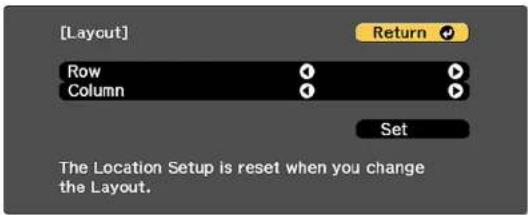

Configuring Tiling Manually.... 183

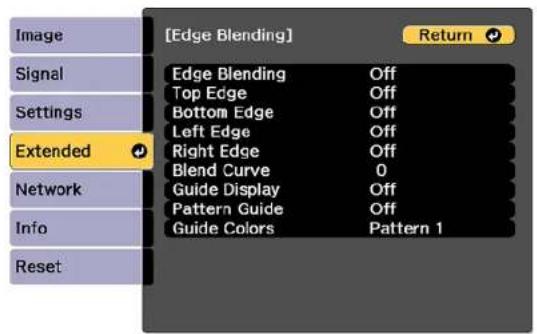

Blending the Image Edges 185

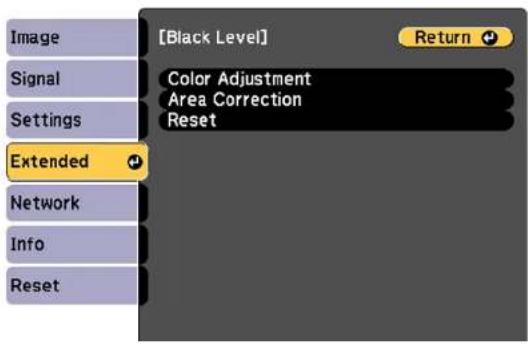

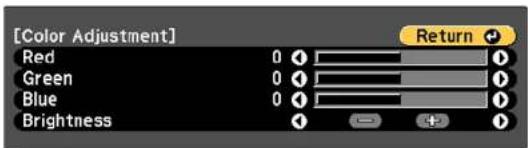

Adjusting the Black Level 187

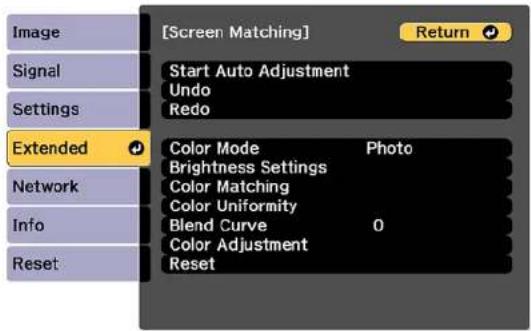

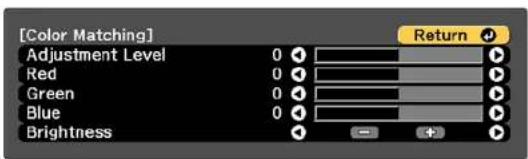

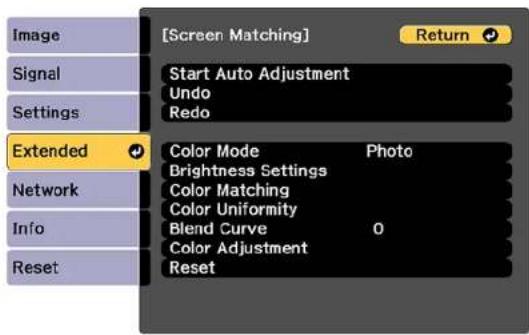

Matching Tint and Brightness (Screen Matching) 191

Matching the Screens Automatically.... 192

Matching the Screens Manually 193

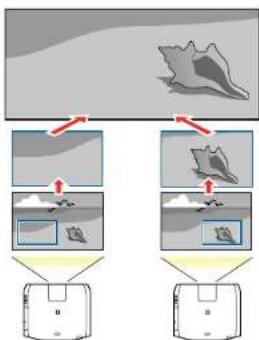

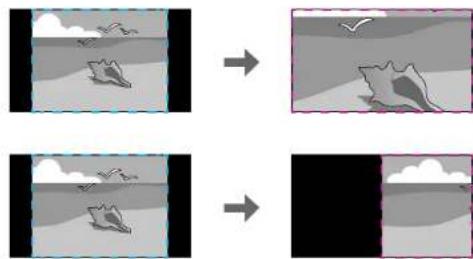

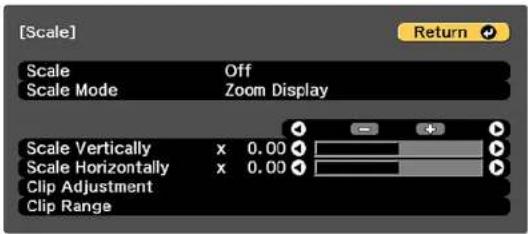

Scaling an Image 195

Enabling Protocol Emulation 197

Viewing 3D Images 198

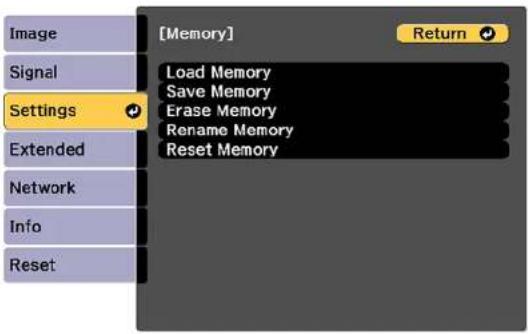

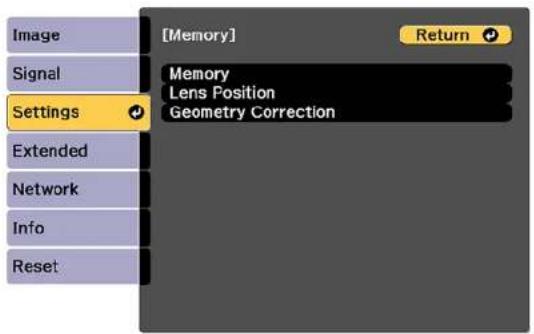

Saving Settings to Memory and Using Saved Settings 198

Saving a Scheduled Event 201

Viewing Scheduled Events 201

Editing a Scheduled Event.... 202

Copying Menu Settings Between Projectors 203

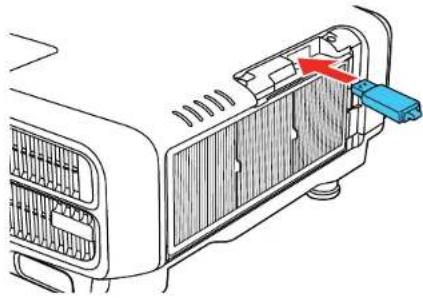

Saving Settings to a USB Flash Drive.... 204

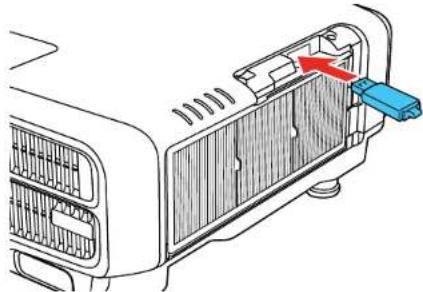

Transferring Settings from a USB Flash Drive 206

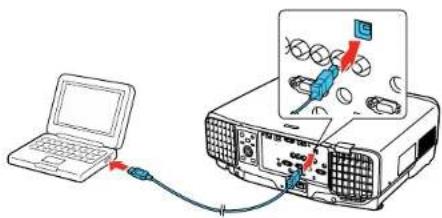

Saving Settings to a Computer 207

Transferring Settings from a Computer 209

Adjusting the Menu Settings 212

Using the Projector's Menus.... 212

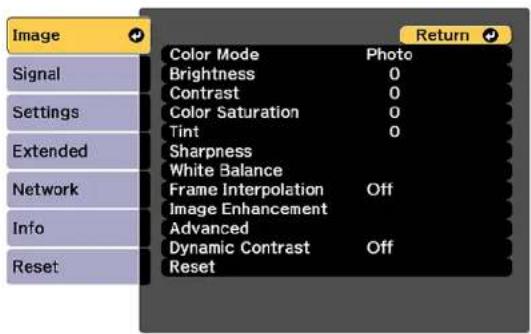

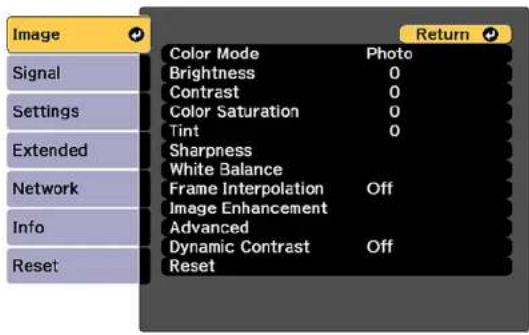

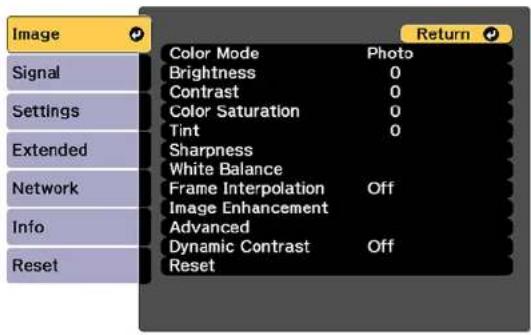

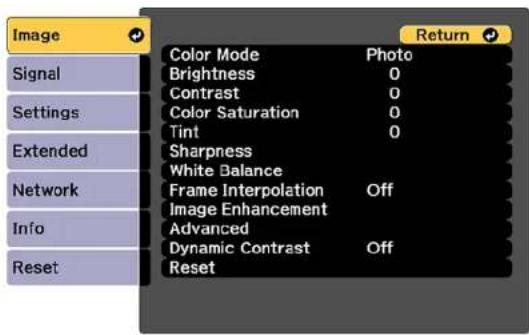

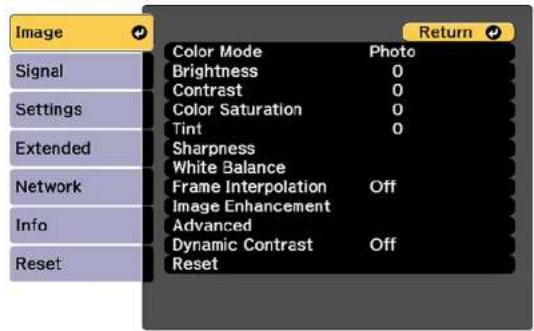

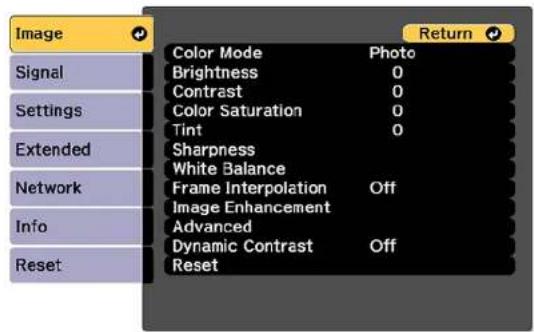

Image Quality Settings - Image Menu 214

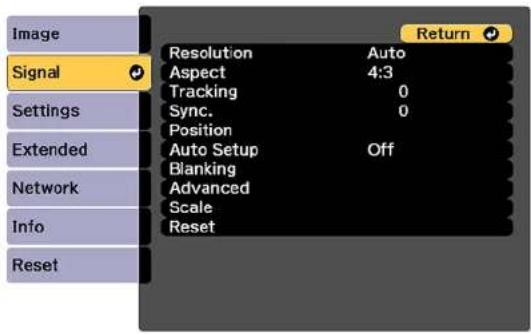

Input Signal Settings - Signal Menu.... 217

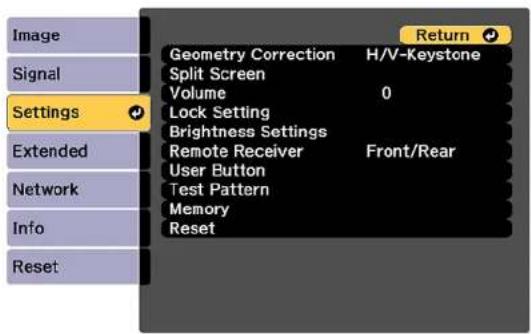

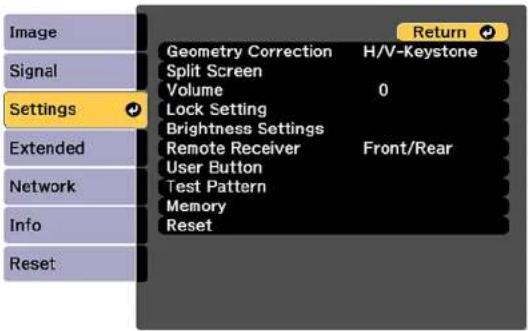

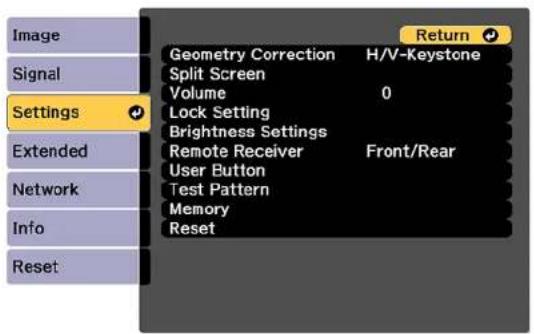

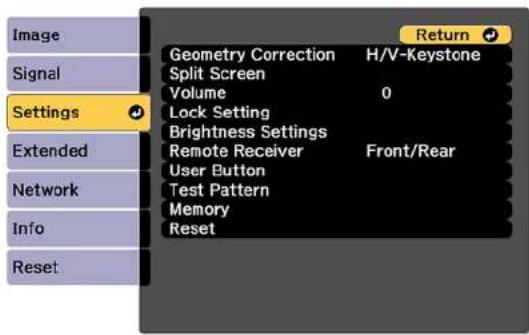

Projector Feature Settings - Settings Menu 220

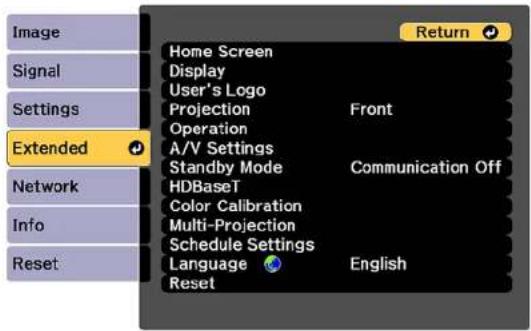

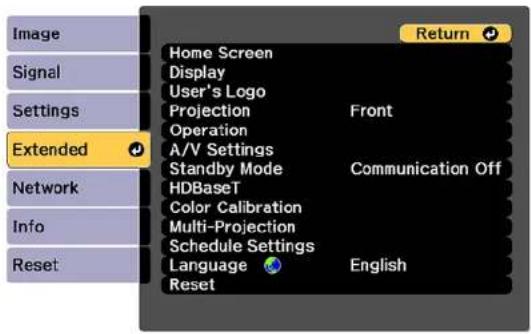

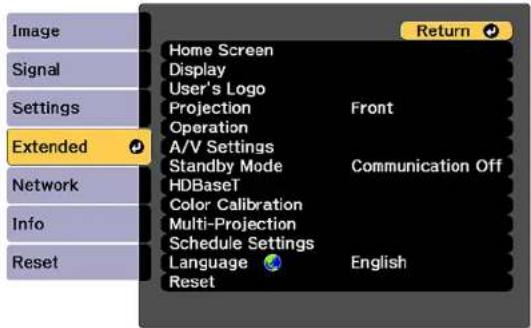

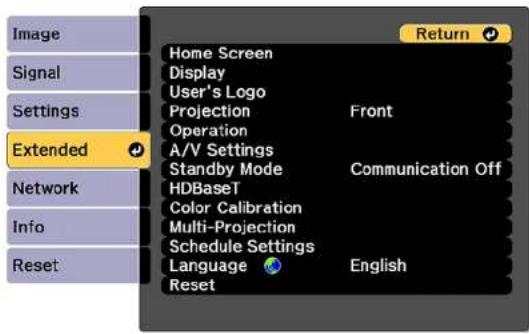

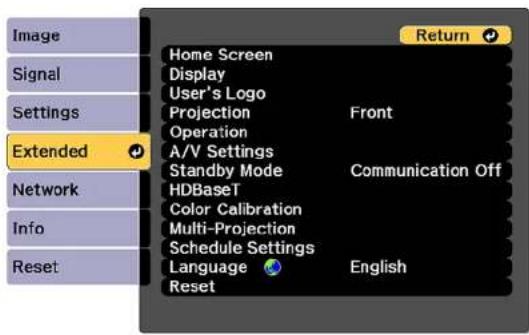

Projector Setup Settings - Extended Menu.... 224

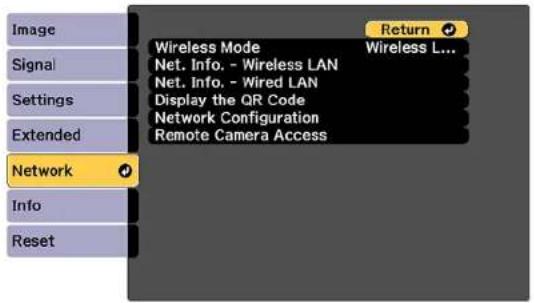

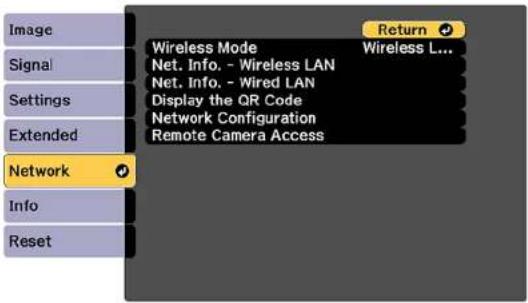

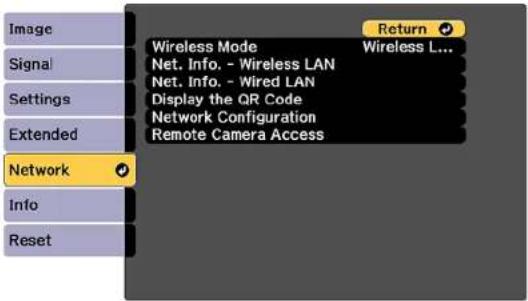

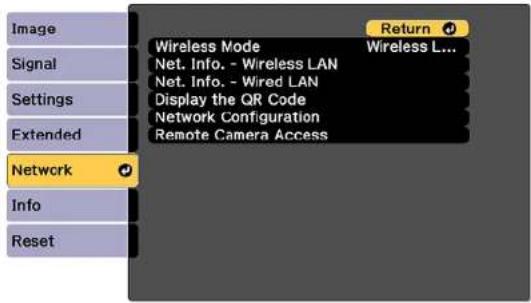

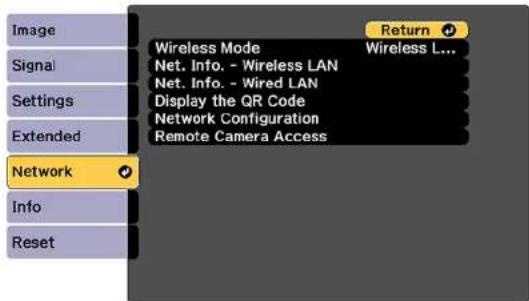

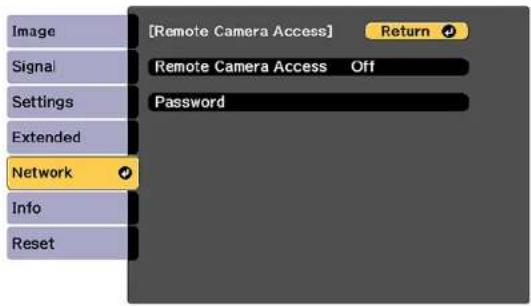

Projector Network Settings - Network Menu.... 231

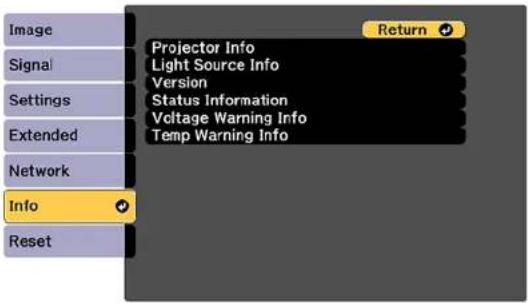

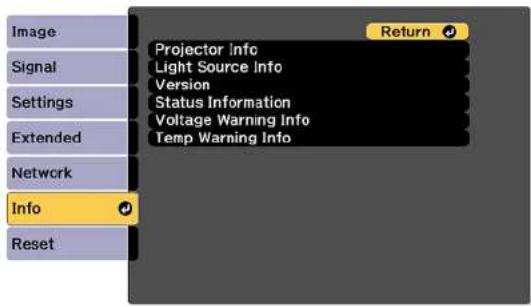

Projector Information Display - Info Menu 233

Event ID Code List 235

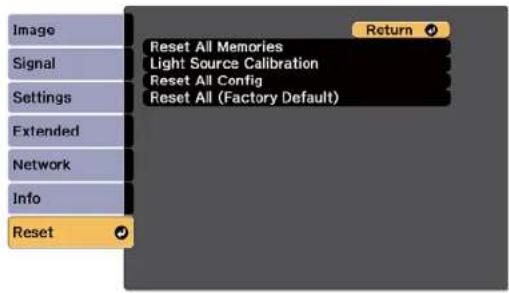

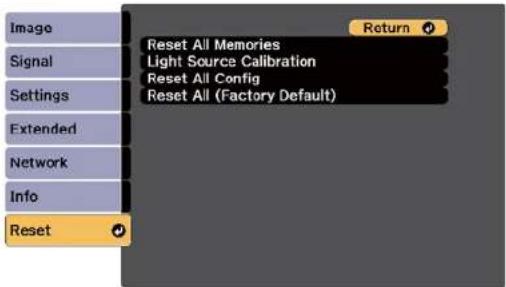

Projector Reset Options - Reset Menu 237

Maintaining and Transporting the Projector 239

Projector Maintenance 239

Cleaning the Lens.... 239

Cleaning the Projector Case 240

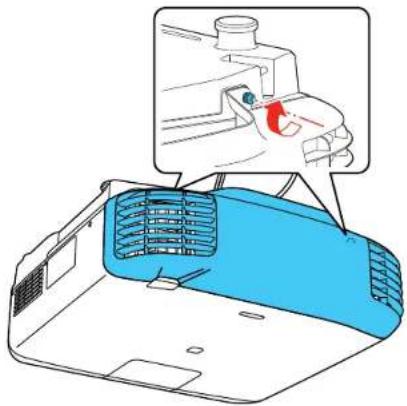

Air Filter and Vent Maintenance 240

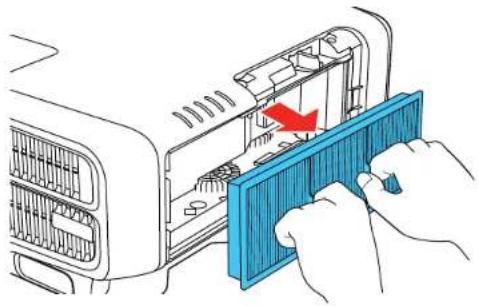

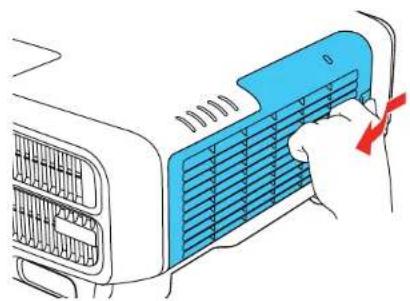

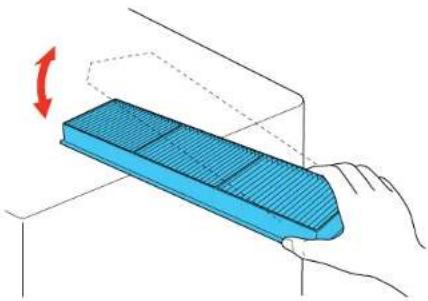

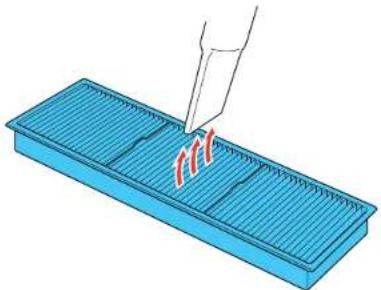

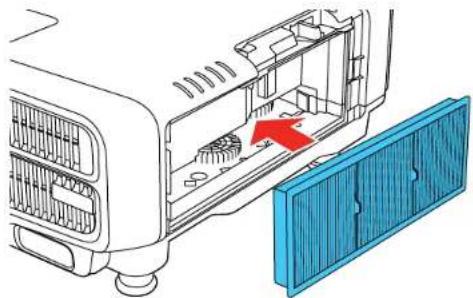

Cleaning the Air Filter.... 241

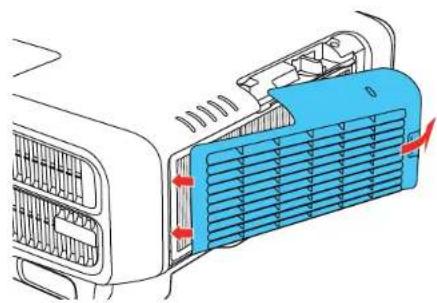

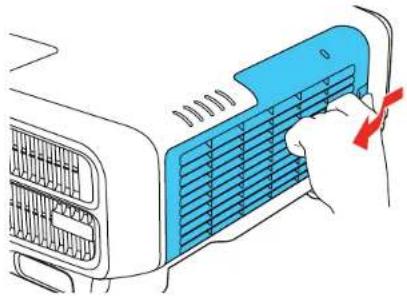

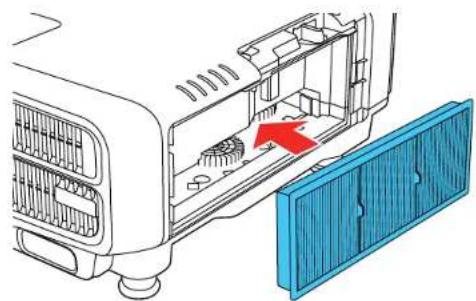

Replacing the Air Filter 244

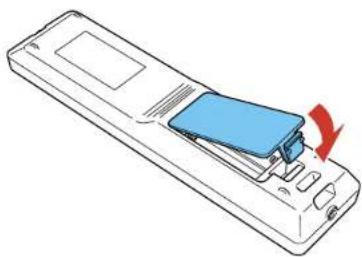

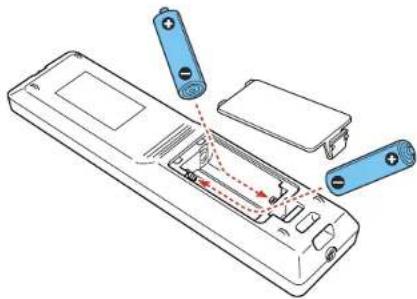

Replacing the Remote Control Batteries 247

Transporting the Projector 249

Solving Problems 250

Projection Problem Tips 250

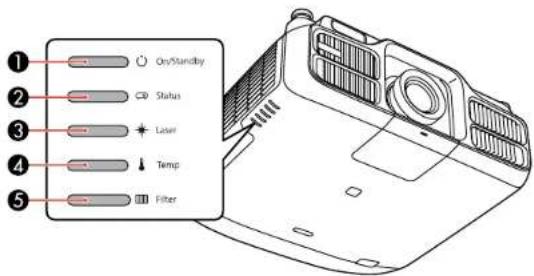

Projector Light Status 251

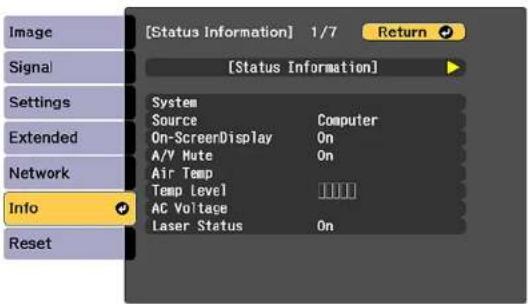

Viewing the Status Display 254

Projector Status Display Messages 256

Using the Projector Help Displays 260

Solving Image or Sound Problems.... 260

Solutions When No Image Appears 261

Solutions When "No Signal" Message Appears 262

Displaying From a PC Laptop 262

Displaying From a Mac Laptop 263

Solutions When "Not Supported" Message Appears 263

Solutions When Only a Partial Image Appears 264

Solutions When the Image is Not Rectangular 264

Solutions When the Image Contains Noise or Static 265

Solutions When the Image is Fuzzy or Blurry 265

SolutionsWhentheImageBrightnessorColorsareIncorrect....266

Solutions to Sound Problems 267

Solving Projector or Remote Control Operation Problems 268

Solutions to Projector Power or Shut-Off Problems 268

Solutions to Problems with the Remote Control.... 269

Solutions to Password Problems 270

Solving Network Problems 270

Solutions When Wireless Authentication Fails 271

SolutionsWhenYouCannotAccesstheProjectorThroughtheWeb....271

SolutionsWhentheImageContainsStaticDuringNetworkProjection....272

SolutionsWhenNetworkAlertE-MailsareNotReceived....272

Where to Get Help.... 272

Technical Specifications 274

General Projector Specifications 274

Projector Light Source Specifications.... 277

Remote Control Specifications 277

Projector Dimension Specifications 278

Projector Electrical Specifications 278

Projector Environmental Specifications 280

Projector Safety and Approvals Specifications.... 280

Supported Video Display Formats 281

Notices 284

Recycling.... 284

Important Safety Information 284

Important Safety Instructions.... 284

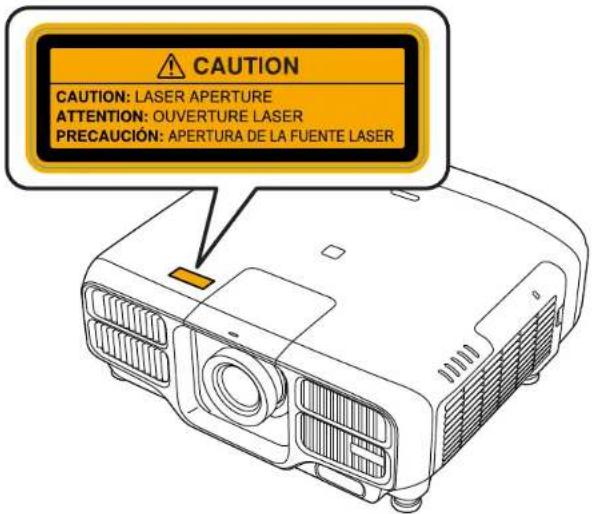

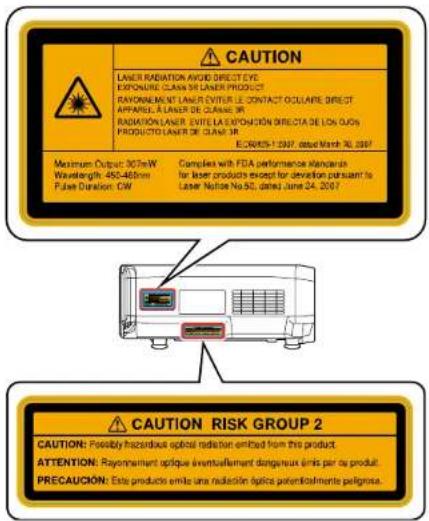

Laser Safety Information 287

Laser Light Source Warning 290

Restriction of Use 291

List of Safety Symbols (corresponding to IEC60950-1 A2).... 292

FCC Compliance Statement.... 295

Binding Arbitration and Class Waiver 296

Trademarks 299

Copyright Notice.... 300

ANoteConcerningResponsibleUseofCopyrightedMaterials....300

Copyright Attribution 301

ProL1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1715SNL/L1750UNL/L1755UNLUser'sGuide

Welcome to the Pro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1715SNL/L175

0UNL/L1755UNL User's Guide.

For a printable PDF copy of this guide, click here.

IntroductiontoYourProjector

Refertothesesectionstolearnmoreaboutyourprojectorandthismanual.

ProjectorFeatures

NotationsUsedintheDocumentation

Where to Gofor Additional Information

ProjectorPartLocations

ProjectorFeatures

Yourprojectorincludesthesespecialfeatures:

Bright, high-resolution projection system

•ProL1490U/L1490UNL/L1495U/L1495UNL:Upto9000lumensofbrightness(whitelightoutput and colorlightoutput)

ProL1500UH/L1500UHNL/L1505UH/L1505UHNL: Upto12000lumensofbrightness(whitelight outputandcolorlightoutput)

ProL1715SNL/L1750UNL/L1755UNL:Upto15000lumensofbrightness(whitelightoutputandcolor lightoutput)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. ColorlightoutputmeasuredinaccordancewithIDMS15.4;whitelightoutput measuredinaccordancewithISO21118.

Note: SomelenseswillnotsupportthemaximumbrightnesslevelofthePro L1715SNL/L1750UNL/L1755UNL. Visit epson.com/lenssupport (U.S.) or epson.com/soutienobjectifs (Canada)fordetails.

•Pro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL:Nativeresolutionof1920×1200pixels(WUXGA)

ProL1715SNL:Nativeresolutionof1400×1050pixels(SXGA+)

Flexibleconnectivity

- Wiredandwireless(optional)networksupportforprojection,monitoring,andcontrolviaremote networkcomputer

• VarietyofconnectionmethodsforacomputerorvideovideincludingHDMI,BNC,DVI-D,SDI(not availableforProL1715SNL),andHDBaseT
• Portsforconnectinganexternalmonitorandexternalspeakers

Easy-to-usesetupandoperationfeatures

• Interchangeable bayonetlensoptions available
- Projectimagessidebysidefromtwoseparateinputsources
- CreateonelargeseamlessdisplaywhenprojectingfrommultipleprojectorsusingEdgeBlending
- Epson'sInstantOffandDirectPowerOnfeaturesforquicksetupandshutdown
•SupportforCrestronRoomViewnetworkmonitoringsystems
- Networkmessagebroadcastsystemtoprojecttimelymessagestoallnetworkedprojectors(Windows only)

ProductBoxContents

AdditionalComponents

AdditionalProjectorSoftwareandManuals

OptionalEquipmentandReplacementParts

Warranty and Registration Information

Parenttopic: Introduction to Your Projector

ProductBoxContents

Saveallthepackagingincaseyouneedtoshiptheprojector.Alwaysusetheoriginalpackaging(or equivalent)whenshipping.

Makesureyourprojectorboxincludedalloftheseparts:

1Projectorwithstandardzoomlensandlenscap

2Cablecover

3Cableclip

4Lensconnectorcap

5Remotecontrol

6Remotecontrolbatteries(twoAAalkaline)

7Powercord

Parenttopic:ProjectorFeatures

AdditionalComponents

Dependingonhowyouplantousetheprojector,youmayneedtoobtainadditionalcomponents.

Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector. Contact Apple for compatible

adapteroptions. Toconnectasmartphoneortablet, youmayneedtoobtainanadapterthatallowsyou toconnecttotheprojector. Thisallowsyoutomirroryoursmartphoneortabletscreens, watchmovies, andmore. Contactyourdevicemanufacturerforcompatibleadapteroptions.

Unless listed as available from Epsonin thistable, see your local computerorelectronics dealer for purchase information.

Signalorconnection type	Additionalcomponentnecessary
ComponentvideoComponent	nt-to-BNCorD-sub,15-pin,component-to-VGAvideocableor adapterAvailableforpurchasefromEpsonoranauthorizedEpsonreseller.
HDMICompatibleHDMlcable	AvailableforpurchasefromEpsonoranauthorizedEpsonreseller.Note:OlderMaccomputers(2009andearlier)maynotsupportHDMI audio.
3DThreecompatibleHDMlcables	asplitterthatsupports3Dsignals,anda silverscreen(recommendedgain:2.3to2.7)YoucanpurchaseHDMlcablesfromEpsonoranauthorizedEpson reseller.Note:Ifyourvideosourceisa3DBlu-raydisc,youalsoneedaBlu-ray playerthatsupports3Dplayback.Seeyourlocalcomputerorelectronics dealerforpurchaseinformation.
AudiofromcertainportsCommerciallyavailableaudiocablecompatiblewithyourdevice
VGAToconnectacomputerthroughitsVGAporttotheprojector'sVGAvideo port,youneedaVGAcomputercable.
BNCVGA-to-5-BNCcableoradapter	AvailableforpurchasefromEpsonoranauthorizedEpsonreseller.
DVI-DCompatibleDVI-Dcable
HDBaseTCompatible100Base-TXLANcable
SDI (notavailableforPro L1715SNL)	CompatibleBNCvideocable

Parenttopic:ProjectorFeatures

Relatedconcepts

ProjectorConnections

AdditionalProjectorSoftwareandManuals

Afterconnectingandsettinguptheprojector, installtheprojectorsoftware.Youmayneedtoinstallit fromasoftwareCD,ifincluded,ordownloadthesoftwareandmanualsasnecessary.

Youcaninstalltheprojectorsoftwareprogramslistedhereandviewtheirmanualsforinstructionson usingthem.

Note: If you still need help after checking this manual and the sources listed here, you can use the EpsonPrivateLineSupportservicetogethelpfast.Fordetails,see"WhereToGetHelp."

ProjectorsoftwareManual	Description
EpsonProjector Management(Windows only)	EpsonProjector ManagementOperation Guide	Letsyoumonitorandcontrolyourprojector throughthenetwork.Youcandownloadthelatestsoftwareand documentationfromtheEpsonwebsite.Gotoepson.com/support(U.S.)orepson.ca/support(Canada)andselectyourprojector.
EpsoniProjection (Windows/Mac)	EpsoniProjection OperationGuide (Windows/Mac)	Letsyouprojectthecomputerscreensof usersoveranetwork.Youcandownloadthelatestsoftwareand documentationfromtheEpsonwebsite.Gotoepson.com/support(U.S.)orepson.ca/support(Canada)andselectyourprojector.
EasyMPNetworkUpdater (Windowsonly)	EasyMPNetworkUpdater OperationGuide	Letsyouupdatefirmwareforaprojectorovera wiredLAN.Youucandownloadthelatestsoftwareand documentationfromtheEpsonwebsite.Gotoepson.com/support(U.S.)orepson.ca/support(Canada)andselectyourprojector.
EpsoniProjectionappInstructionsareincluded withtheapp		LetsyouprojectfromaniOSdevice,Android device,orChromebookifyourprojectoris connectedtoanetworkthatincludesa wirelessaccesspoint.Visitepson.com/iprojection(U.S.)orepson.ca/iprojection(Canada)formore information.
EpsonProjector ProfessionalTool	EpsonProjector ProfessionalTool OperationGuide	LetsyoumanagemultipleEpsonprojectors simultaneouslyYoucandownloadthelatestsoftwareand documentationfromtheEpsonwebsite.Gotoepson.com/support(U.S.)orepson.ca/support(Canada)andselectyourprojector.
—OpenSourceSoftware	License	Youcandownloadthisdocumentfromthe Epsonwebsite.Gotoepson.com/support(U.S.)orepson.ca/support(Canada)and selectyourprojector.

Parenttopic:ProjectorFeatures

OptionalEquipmentandReplacementParts

Youcanpurchasescreens,otheroptionalaccessories,andreplacementpartsfromanEpsonauthorizedreseller.Tofindthenarestreseller,call800-GO-EPSON(800-463-7766)intheU.S.or800-807-7766inCanada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Epsonoffersthefollowingoptionalaccessoriesandreplacementpartsforyourprojector:

OptionorpartPartnumber
Airfilter(ELPAF51)V13H134A51
WirelessLANmodule(ELPAP10)V12H731P02
HDBaseTTransmitter(ELPHD01)V12H547020
Replacementremotecontrol158279900
Remotecontrolcableset(ELPKC28)V12H005C28
Passive3Dglassesforadults(ELPGS02A;Pro L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L150 5UH/L1505UHNLonly)	V12H541A20
Passive3Dglassesforchildren(ELPGS02B;Pro L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L150 5UH/L1505UHNLonly)	V12H541B20
Passive3DPolarizer(ELPPL01;Pro L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L150 5UH/L1505UHNLonly)	V12H618A01
Lowceilingmount(ELPMB47)V12H802010
Highceilingmount(ELPMB48)V12H803010
Ultrashortthrowzoomlens(ELPLX02)V12H004X02
Short-throw#1zoomlens(ELPLU03)V12H004U03
Short-throw#2zoomlens(ELPLU04)V12H004U04
Wide-throw#1zoomlens(ELPLW05)V12H004W05
Wide-throw#2zoomlens(ELPLW06)V12H004W06
Middle-throw#2zoomlens(ELPLM15;standardzoomlens)V12H004M0F
Middle-throw#3zoomlens(ELPLM10)V12H004M0A
Middle-throw#4zoomlens(ELPLM11)V12H004M0B
Long-throwzoomlens(ELPLL08)V12H004L08

Note: The followingolderlenses are also supported: ELPLU02, ELPLR04, ELPLW04, ELPLS04, ELPLM06, ELPLM07, ELPLL07.

Parenttopic:ProjectorFeatures

Warranty and Registration Information

Yourprojectorcomeswithabasicwarrantythatletsyouprojectwithconfidence.Fordetails,seethe warrantythatcamewithyourprojector.

Inaddition, EpsonoffersfreeExtraCareRoadService. Intheunlikelyeventofanequipmentfailure, you won't havetowaitforyourunittoberepaired. Instead, Epsonwillshipyouareplacementunitanywhere intheUnitedStates, Canada, orPuertoRico. SeetheExtraCareRoadServicebrochurefordetails.

Note: Availabilityvariesbyregion.

Registryourproductonlineatthissite:epson.com/webreg.

Registeringalsoletsyoureceivespecialupdatesonnewaccessories,products,andservices.

Parenttopic:ProjectorFeatures

NotationsUsedintheDocumentation

Followtheguidelinesinthesenotationsasyoureadyourdocumentation:

- Warningsmustbefollowedcarefullytoavoidbodilyinjury .

- Cautionsmustbeobservedtoavoiddamagetoyourequirement.

- Notes contain important information about your projector.

- Tipscontainadditionalprojectioninformation.

Parenttopic: Introduction to Your Projector

WheretoGoforAdditionallInformation

Needquickhelponusingyourprojector?Here'swheretolookforhelp:

•Built-inhelpsystem

Press the Home button on the remote control or projector, select Help, and press Enter to get quick solutionstocommonproblems.

• epson.com/support (U.S.), epson.ca/support (Canada), or epson.com.jm/support (Caribbean)
  ViewFAQs(frequentlyaskedquestions)ande-mailyourquestionstoEpsontechnicalsupport24 hoursaday.

• If you still need help after checking this manual and any others sources listed here, you can use the Epson Private Line Support service to get help fast. Ford details, see "Where to Get Help."

Parenttopic: Introduction to Your Projector

Relatedreferences

WheretoGetHelp

Relatedtasks

UsingtheProjectorHelpDisplays

ProjectorPartLocations

Check the projector part illustration to learn about the part's your projector.

ProjectorParts-Front/Top

ProjectorParts-Rear

ProjectorParts-InterfacePorts

ProjectorParts-Base

ProjectorParts-ControlPanel

ProjectorParts-RemoteControl

Parenttopic: Introduction to Your Projector

ProjectorParts-Front/Top

1Remotereceiver

2Airintakevents

3Projectionlens

4Built-incamera

5Projectorstatuslights

6Airfiltercover/intakevent

7Airfiltercoverlatch

8WirelessLANmoduleindicatorlight

9Cablecover

10Lensreplacementcover

Parenttopic:ProjectorPartLocations

ProjectorParts-Rear

1Airexhaustvents

2Controlpanel

3Kensingtonsecurityslot

4ACinput

5Cableclipslot

6Interfaceports

7Cablecoverscrewholes

Parenttopic:ProjectorPartLocations

ProjectorParts-InterfacePorts

1BNCports

2Computerport

3Audio3port

4Audio1port

5MonitorOutport

6AudioOutport

7Audio2port

8Cableclipslot

9RS-232Cport

10Remoteport

11SDIport(notavailableforProL1715SNL)

12Serviceport

13HDMIport

14DVI-Dport

15HDBaseTport

16NetworkLANport

Parenttopic:ProjectorPartLocations

ProjectorParts-Base

1Frontadjustablefeet

2Rearfeet

3Securitycableattachmentpoint

4Mountingbracketholes

Parenttopic:ProjectorPartLocations

ProjectorParts-ControlPanel

1Onbutton(turnsontheprojector)

2SourceSearchbutton(searchesforconnectedsources)

3Menubutton(accessesprojectormenusystem)

4Enterbutton(selectsoptions)

5LeftarowbuttonanddisplaytheControlPanelLockscreen

6Downarrowbuttonanddisplaysatestpattern

7A/VMutebutton(turnsthevideoandaudioonoroff)

8 Lens button (displays the lens shift, zoom, focus, and distortion adjustment screens; hold for 3 secondstoreturnthelenstothehomeposition)

9Rightarowbuttonanddisplaysthelnfomenu

10Uparrowbuttonanddisplaysscreenadjustmentoptions

11Escbutton(cancels/exitsfunctions)

12Standbybutton(turnsofftheprojector)

Parenttopic:ProjectorPartLocations

ProjectorParts-RemoteControl

1Onbutton(turnsontheprojector)

2Standbybutton(turnsofftheprojector)

3Sourcebuttons(selectanimagesource)

4Aspectbutton(selectstheimageaspectratio)

5 Autobutton(automaticallyadjustscomputerimages)

6Freezebutton(stopsvideoaction)

7TestPatternbutton(displaysatestpattern)

8LensShiftbutton(adjuststheimageposition)

9Zoombutton(changestheimagesize)

10Menubutton(accessesprojectormenusystem)

11Arrowbuttons(movethroughon-screenoptionsandmovepointer)

12Enterbutton(selectsoptionsandleftmousebutton)

13A/VMutebutton(turnsthevideoandaudioonoroff)

14Pageupanddownbuttons(scrollthroughimagefileswhenprojectingfromacomputeroveranetworkconnection)

15Volumeupanddownbuttons(adjustvolume)

16ibutton(displaysthelnfomenu)

17 User1, User2, and User3 buttons (open menu assigned by user)

18Numericbuttons(enternumbers)

19IDbutton(holddownandusenumerickeystoselectprojectortocontrol)

20IDswitch(controlsoneorallprojectors)

21 Remoteport(connectstoaremotecontrolcable)

22Homebutton(displaystheHomescreen)

23Numbutton(holddownandusenumerickeystoenternumbers)

24Geometrybutton(correctsimagedistortion)

25Memorybutton(savesandappliespresets)

26E-Zoom+/-buttons(zoomintoandoutoftheimage)

27Defaultbutton(resetssettingstotheirdefaultvaluesintheprojectormenusystem)

28Escbutton(cancels/exitsfunctionsandrightmousebutton)

29Focusbutton(adjuststheimagefocus)

30Splitbutton(splitsthescreenbetweentwoinputs)

31ColorModebutton(selectsdisplaymodes)

32Searchbutton(searchesforconnectedsources)

33Lightbutton(lightsuptheremotecontrolbuttonstemporarily)

34Indicatorlight(lightsupwhentheremotecontrolisinuse)

35Remotecontrolsignalemitter(emitsremotecontrolsignals)

Parenttopic:ProjectorPartLocations

SettingUptheProjector

Followtheinstructionsinthesesectionstosetupyourprojectorforuse.

ProjectorPlacement

ProjectorConnections

AttachingandRemovingaLens

AttachingandRemovingtheCableCover

AttachingandRemovingtheCableClip

Installing Batteries in the Remote Control

ProjectorPlacement

Youcanplacetheprojectoronalmostanyflatsurfacetoprojectanimation.

Youcanalsoinstalltheprojectorinaceilingmountifyouwanttouseitinafixedlocation.

Keeptheseconsiderationsinmindasyouselectaprojectorlocation:

- Placetheprojectoronasturdy, levelsurfaceorinstallitusingacompatiblemount.

- Leaveplentyofspacearoundandundertheprojectorforventilation, anddonotplaceitontopofor nexttoanythingthatcouldblockthevents.

- Position the projector within reach of foreground electrical outlet to extension cord.

ProjectorSetupandInstallationOptions

ProjectionDistance

Parenttopic:SettingUptheProjector

ProjectorSetupandInstallationOptions

Youcansetuporinstallyourprojectorinthefollowingways:

Front

Rear

Illustration of a projector projecting onto a screen to three people (no text or symbols present)

Frontceiling

Rearceiling

Caution: Be sure to leave the following amount of space around the projector to avoid blocking the air exhaustandintakevents.

119.7inches(50cm)
231.5inches(80cm)
315.7inches(40cm)

Youcanmounttheprojectortothecilingatanyhorizontalorverticalangle.

If you are installing multiple projectors next to each other, besure to leave at least 20 inches (50 cm) of space between the projectors. Also, makes sure heated air from an exhaust vent does not go into the air intake vent of another projector.

If you project from the ceiling or from the rear, select the correct Projection setting and, if necessary, turn on the Inv Direction Button setting and adjust the OSD Rotation setting.

Parenttopic:ProjectorPlacement

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

ProjectionDistance

The distance at which you place the projector from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Note: Imagesizesover500"mayresultinalossofimagedetail.

Usethetablesheretodetermineapproximatelyhowfartoplacetheprojectorfromthescreenbasedon thesizeoftheprojectedimage.(Conversionfiguresmayhavebeenroundedupordown.)Youcanalso use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).

1Projectiondistance

2Distancefromthecenterofthelenstothebaseoftheimage(variesdependingonverticallens shift)

3Centeroflens

Pro
L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL(StandardZoomLens)

16:10AspectRatioImageorScreen
ScreenorImagesizeProjection	distance(1) WidetoTele(Minimumto Maximum)	Verticalensshift(2) Toptobottom
60inches78to128inches	(199to326cm)	-35to3.2inches (-89to8cm)
80inches105to172inches	(268to438cm)	-46.7to4.3inches (-119to11cm)
100inches133to216inches	(337to549cm)	-58.3to5.3inches (-148to14cm)
120inches160to260inches	(406to661cm)	-70to6.4inches (-178to16cm)
150inches201to326inches	(509to828cm)	-87.5to8inches (-222to20cm)
200inches269to436inches	(682to1106cm)	-116.7to10.7inches (-296to27cm)
300inches404to655inches	(1027to1663cm)	-175to16inches (-444to41cm)
500inches676to1093inches	(1717to2777cm)	-291.7to26.7inches (-741to68cm)
800inches1084to1752inches	(2753to4449cm)	-466.5to42.5inches (-1185to108cm)
1000inches1356to2190inches	(3443to5563cm)	-583.4to53.1inches (-1482to135cm)

ProL1715SNL(StandardZoomLens)

4:3AspectRatioImageorScreen
ScreenorimagesizeProjection	distance(1) WidetoTele(Minimumto Maximum)	Verticalensshift(2) Toptobottom
60inches76to125inches	(193to318cm)	-37.8to1.8inches (-96to5cm)
80inches103to168inches	(260to427cm)	-50.4to2.4inches (-128to6cm)
100inches129to211inches	(328to536cm)	-63.0to3inches (-160to8cm)
120inches155to254inches	(395to644cm)	-75.6to3.6inches (-192to9cm)
150inches195to318inches	(496to808cm)	-94.5to4.5inches (-240to11cm)
200inches261to425inches	(663to1079cm)	-126to6inches (-320to15cm)
300inches393to639inches	(999to1623cm)	-189to9inches (-480to23cm)
500inches658to1067inches	(1671to2710cm)	-315to15inches (-800to38cm)
800inches1090to1709inches	(2678to4342cm)	503.9to24inches (-1280to61cm)
1000inches1319to2137inches	(3350to5429cm)	629.9to29.9inches (-1600to76cm)

Parenttopic:ProjectorPlacement

ProjectorConnections

Seethesectionstoconnecttheprojectortoavarietyofprojectionsources.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

ConnectingtoVideoSources

ConnectingtoComputerSources

ConnectingtoanHDBaseTTransmitter

ConnectingtoanExternalComputerMonitor

ConnectingtoExternalSpeakers

Parenttopic:SettingUptheProjector

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

ConnectingtoVideoSources

Followtheinstructionsinthesesectionstoconnectvideodevicestotheprojector.

ConnectingtoanHDMIVideoSource

ConnectingtoaComponent-to-BNCVideoSource

ConnectingtoaComponentVideoSource

ConnectingtoanSDIVideoSource

ConnectingtoaVideoSourceforSound

Parenttopic:ProjectorConnections

ConnectingtoanHDMIVideoSource

If your videosourcehasan HDMI port, you can connect it to the projector using an optional HDMI cable.

TheHDMIconnectionprovidesthebestimagequality.

1. ConnecttheHDMIcabletoyourvideosource'sHDMIoutputport.

2. Connecttheotherendtotheprojector'sHDMIport.

Parenttopic: ConnectingtoVideoSources

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

ConnectingtoaComponent-to-BNCVideoSource

If your videosourcehas component videoports, you can connect it to the projector using an optional component-to-BNC videocable. Depending on your component ports, you may need to use an adapter cable along with a component videocable.

1. Connect the component connector to your video source's color-coded component video output ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component videocable.

2. Connect the BNC connectors to the projector's R/Cr/Pr, G/Y, B/Cb/Pb ports.

Parenttopic: ConnectingtoVideoSources

ConnectingtoaComponentVideoSource

If your videosourcehas component videoports, you can connect it to the projector using an optional component-to-VGA videocable. Depending on your component ports, you may need to use an adapter cable along with a component videocable.

1. Connect the component connector to your video source's color-coded component video output ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component videocable.
2. ConnecttheVGAconnectortoaComputerportontheprojector.

1. TightenthescrewsontheVGAconnector.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signalmenu.

Parenttopic: ConnectingtoVideoSources

Relatedreferences

InputSignalSettings-SignalMenu

ConnectingtoanSDIVideoSource

If your videosourcehasanSDIport, you can connect it to the projector using an optional BNC video

cable

(Pro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL).

1. ConnecttheBNCvideocabletoyourvideosource'sSDloutputport.

2. Connecttheotherendtotheprojector's SDIport.

Parenttopic: ConnectingtoVideoSources

ConnectingtoaVideoSourceforSound

If you connected externals speaker to the projector, you can connect your videos or to the projector with a audicable to plays sound.

Note: If you connected your video source to the projector's SDI port

(Pro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL),audiooutputisnotsupported.

Note: If you connected your video source to the projector using an HDMI cable, the audio signal is transferred with the videosignal; you donotneed an additional cable for sound. If you have problems hearing audio through the HDMI connection, you can play sound through a audiotable instead by following the steps described here.

1. Connectoneendofa3.5mmstereomini-jackaudiocabletoyourvideosource'saudio-outport.

2. Connect the other end of the cable to the projector's Audio port that corresponds to the Computer or BNC port you are using for video. If you are projecting video through the projector's HDMI port, connecttheendofyouraudiocabletotheAudio3port.

Note: If you connected to the Audio3 port, select Audio3 for the HDMI Audio Output setting in the Extendedmenu.

Parenttopic: ConnectingtoVideoSources

Relatedtasks

ConnectingtoExternalSpeakers

ConnectingtoComputerSources

Followtheinstructionsinthesesectionstoconnectacomputertotheprojector.

ConnectingtoaComputerforVGAVideo

ConnectingtoaComputerforHDMIVideoandAudio

ConnectingtoaComputerforDVI-DVideo

ConnectingtoaComputerfor5BNCVideo

ConnectingtoaComputerforSound

Parenttopic:ProjectorConnections

ConnectingtoaComputerforVGAVideo

YoucanconnecttheprojectortoyourcomputerusingaVGAcomputercable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for videooutput,youneedtoobtainanadapterthatallowsyoutoconnecttotheprojector'sVGAvideoport. ContactAppleforcompatibleadapteroptions.

1. If necessary, disconnect your computer's monitorable.
2. ConnecttheVGAc computercabletoyourcomputer'smonitorport.
3. ConnecttheotherendtoaComputerportontheprojector.

1. TightenthescrewsontheVGAconnector.

Parenttopic: ConnectingtoComputerSources

Relatedtasks

ConnectingtoaComputerforSound

ConnectingtoaComputerforHDMIVideoandAudio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. ContactAppleforcompatibleadapteroptions.OlderMaccomputers(2009andearlier)maynotsupport audiothroughtheHDMIport.

1. ConnecttheHDMIcabletoyourcomputer'sHDMIoutputport.
2. Connecttheotherendtotheprojector'sHDMIport.

Parenttopic: ConnectingtoComputerSources

ConnectingtoaComputerforDVI-DVideo

If your computer has a DVI-D connector, you can connect it to the projector using an optional DVI-D cable.

1. ConnecttheDVI-Dcabletoyourcomputer'sDVI-Dconnector.
2. Connecttheotherendtotheprojector'sDVI-Dconnector.

Parenttopic: ConnectingtoComputerSources

Relatedtasks

ConnectingtoaComputerforSound

ConnectingtoaComputerfor5BNCVideo

YoucanconnecttheprojectortoyourcomputerusinganoptionalVGA-to-5-BNCcable.

1. ConnecttheVGAconnectortoyourcomputer'smonitorport.
2. Connectthe5BNCconnectorstotheprojector'sBNCports.

Parenttopic: ConnectingtoComputerSources

Relatedtasks

ConnectingtoaComputerforSound

ConnectingtoaComputerforSound

If you connected externals speaker to the projector, you can connect your computer to the projector with an audiotable to plays sound.

1. Connectoneendofa3.5mmstereomini-jackaudiotoyourlaptop'sheadphoneoraudio-outjack, or yourdesktop'sspeakeroraudio-outport.

2. Connect the other end to the Audio port that corresponds to the Computer or BNC port you are using. If you are projecting video through the projector's DVI-D port, connect the end of your audio cabletotheAudio3port.

Parenttopic: ConnectingtoComputerSources

Relatedtasks

ConnectingtoExternalSpeakers

ConnectingtoanHDBaseTTransmitter

TosendanHDMlorRS-232Csignaloveralongdistance,youcanconnecttheprojectortoanoptional HDBaseTransmitterusinga100Base-TXnetworkcable. Thisisusefulwhenyouwanttosendasignal toorcontroltheprojectorfromaremotelocation,suchasinahalloreventsite,sinceyoucanusea networkcableupto328feet(100m)inlength.Toensureproperdatatransmission,useaCategory5e STPcableorbetter.

1. Turnoff the projector and HDBase T transmitter.

Note: Makesure the projector and HDBase T transmitter are turned off when connecting or disconnecting an network cable between the two devices.

1. ConnectoneendofthenetworkcabletotheHDBaseTportonthetransmitter.

2. Connecttheotherendtotheprojector'sHDBaseTport.

Note: See the documentation that came with the HDBaseT transmitter for instructions on connecting ittoyourvideodeviceorcomputer.

1. Turnon the projector and HDBase Ttransmitter.

Note: To enable communication from the Ethernet and serial ports on the transmitter, select On as the Control Communications setting in the projector's Extended menu. Turning on this setting disables the projector's LAN, RS-232C, and Remote ports. If you connected an Extron XTP transmitter or switcher to the projector's HDBaseT port, select On as the Extron XTP setting in the projector's Extended menu.

Parenttopic:ProjectorConnections

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

ConnectingtoanExternalComputerMonitor

If you connected a computer to the projector's Computer port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output image to an external monitor when the projector is turned off, you need to select Communication On as the Standby Mode setting and Always On as the A/V Output setting in the projector's Extended menu.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.

1. Make sure your computer is connected to the projector's Computer or BNC port.

2. Connecttheexternalmonitor'scabletoyourprojector'sMonitorOutport.

Note: If you do not see an image on the external monitor, you may need to change the Monitor Out settingintheExtendedmenu.

Parenttopic:ProjectorConnections

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

ConnectingtoExternalSpeakers

Toenhancethesoundfromyourpresentation,youcanconnecttheprojectortoexternalself-powered speakers.Youcancontrolthevolumeusingtheprojector'sremotecontrol.

Youcanalsoconnecttheprojectortoanamplifierwithspeakers.

If you want to output audio from the externals speakers when the projector is turned off, you need to select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's Extended menu.

1. Makesureyourcomputerorvideosourceisconnectedtotheprojectorwithbothaudioandvideo cablesasnecessary.

2. Locatetheappropriate cabletoconnectyoureternalspeakers, suchasastereomini-jack-to-pin-jackcable, oranothertypeofcableoradapter.

3. Connectoneendofthecabletoyoureternalspeakersasnecessary.

4. Connectthestereomini-jackendofthecabletoyourprojector'sAudioOutport.

Parenttopic:ProjectorConnections

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

AttachingandRemovingaLens

Followtheinstructionsinthesesectionstoattachorremoveacompatiblelens.

AttachingaLens

RemovingaLens

Parenttopic: SettingUptheProjector

AttachingaLens

Youcanattachacompatiblelenstotheprojector.

Caution: Unplug the power cord from the projector before attaching the lens. Avoid touching the lens with your bare hand stop prevent fingerprintsonordamagetothelens surface.

1. Pullthelenscoveroffoftheprojector.

Diagram of a projector with a blue cover and red arrow indicating action (no text or symbols)

1. When using one of the following lenses, attach the lens connector cap: ELPLS04, ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, or ELPLL07.

Diagram of a car interior showing airflow direction and component placement (no text or symbols)

3.SlidethelocklevertotheReleaseposition(asshown)untilyouhearitclick.

1. Insertthelensstraightintotheprojector'slenssocketwiththewhitedotfacingup.

Technical illustration of a projector with a blue lens and inset showing internal components (no text or symbols)

1. Hold the lens firmly and slide the lock lever to the Lock position (as shown) until it locks.

Illustration of a hand using a computer to adjust or install a component, with a magnified inset showing a hand holding a tool (no text or symbols visible)

1. Replacethelenscover.

Illustration of a projector with a blue cover and red arrow indicating compression (no text or symbols)

1. If prompted, select Yestocalibratethelens.

Note: Lens calibration helps the projector to correctly acquire the lens position and adjustment range, and cantakeupto 100 secondstocomplete. When calibration is finished, the lens return to the same position it was in before calibration. (ELPX02 return to the standard position.)

1. When using one of the following lenses, select the lenstype in the Extended menu: ELPLS04, ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, or ELPLL07.

Parenttopic: Attaching and RemovingaLens

Relatedtasks

SettingtheLensType

RemovingaLens

Youcanremovealenstoreplaceitwithadifferentlens.

Caution: Remove the lens only when necessary and make sure the front of the projector is not facing up when you removethelens. This prevents dirtordust from entering the projector and lowering the projection quality. Avoid touching the lens with your bare hand stop prevent fingerprint on or damage to the lens surface.

1. Center the lens using the Lens Shift (remote control) or Lens (control panel) button.

2. Turnoff the projector and unplug the power cord.

3. Pullthelenscoveroffoftheprojector.

Illustration of a projector with a blue cover and red arrow indicating motion (no text or symbols)

1. Hold the lens firmly as you slide the lock lever to the Release position (as shown) until you hear it click.

1. Gentlypullthelensstraightoutoftheprojector.

Parenttopic: Attaching and RemovingaLens

AttachingandRemovingtheCableCover

Youcanattachthecablecoverthatcamewithyourprojectortohidetheattachedcablesfromview.

1. Bundle the cable stogether using ab and other fastener (not provided).

Technical line drawing of an electronic device interior showing ventilation grilles and wiring (no text or symbols)

Caution: Donotbundle the power cord to the other cables. Otherwise, afire may occur.

1. Placethecablecoverontheprojectorasshown, guiding the cablesthrough then notch on the base of the cablecover.

1. Tightenbothcablecoverscrews.

Toremovethecover, loosenbothscrewsandpullthecoveroffoftheprojector.

Parenttopic:SettingUptheProjector

AttachingandRemovingtheCableClip

Youcaninstallthecableclipthatcamewithyourprojectortoprovideadditionalsupporttothepower cable.

1. Connect the power cable to the projector.

2. Insert the end of the cable clip anchor into the cable clip slot near the power inlet.

1. Placetheopencablecliparoundthepowercable, but don'tlockitintoplace.
   4.Slidethecableclipontotheanchorandlocktheclipontothepowerconnectorasshown.

Toremovethecableclip,opentheclipanddisconnectthepowercable. Thenpinchthesidesofthe cableclipanchorandcarefullyremoveitfromthecableclipslot.

Parenttopic: SettingUptheProjector

InstallingBatteriesintheRemoteControl

TheremotecontrolusesthetwoAAbatteriesthatcamewiththeprojector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, ormixnewandoldbatteries.

1. Removethebatterycover.

Illustration of a remote control device with a blue screen and red arrow indicating rotation (no text or symbols)

1. Insert the batteries with the + and - ends facing as shown.

Line drawing of a remote control panel with battery terminals and internal components (no text or symbols)

1. Replace the battery cover and press it down until it clicks into place.

Line drawing of a remote control device with a blue internal component and a red arrow indicating rotation (no text or symbols)

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of thereachofchildren; they are choking hazards and are every dangerous if swallowed.

Parenttopic: SettingUptheProjector

UsingtheProjectoronaNetwork

Followtheinstructionsinthesesectionstosetupyourprojectorforuseonanetwork.

WiredNetworkProjection

WirelessNetworkProjection

SettingUpProjectorNetworkE-MailAlerts

SelectingOtherNetworkSettings

ControllingaNetworkedProjectorUsingaWebBrowser

CrestronRoomViewSupport

WiredNetworkProjection

Youcanprojectthroughawirednetwork.Todothis,youconnecttheprojectortoyournetworkwithan Ethernetcable,andthensetupyourprojectorandcomputerfornetworkprojection.

Afterconnectingandsettinguptheprojector,installtheprojectorsoftware.Youmayneedtoinstallit fromasoftwareCD,ifincluded,ordownloadthesoftwareandmanualsasnecessary.

Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless accesspoint, you can connect to the projector wirelessly through the accesspoint using the Epson network software.

ConnectingtoaWiredNetwork

SelectingWiredNetworkSettings

Parenttopic: UsingtheProjectoronaNetwork

Relatedreferences

AdditionalProjectorSoftwareandManuals

ConnectingtoaWiredNetwork

Toconnecttheprojectortoawiredlocalareanetwork(LAN),usea100Base-TXor10Base-Tnetwork cable.Toensureproperdatatransmission,useaCategory5shieldedcableorbetter.

1. Connectoneendofthenetworkcabletoyournetworkhub, switch, orrouter.

2. Connecttheotherendofthecabletotheprojector'sLANport.

Parenttopic: WiredNetworkProjection

SelectingWiredNetworkSettings

Before you can project from computers, tablets, or smart phones to every our network, you must select the network settings for the projector using its menusystem.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turnon the projector.
   2.PresstheMenubutton.
2. SelecttheNetworkmenuandpressEnter.

1. SelectNetworkConfigurationandpressEnter.
2. SelecttheBasicmenuandpressEnter.

1. Select the following basic options as necessary:

-ProjectorNameletsyouenteranameupto16alphanumericcharacterslongtoidentifytheprojectoroverthenetwork.
- PJLinkPasswordletyouenterapasswordupto32alphanumericcharacterslongforusingthe PJLinkprotocolforprojectorcontrol.
- RemotePasswordletsouenterapasswordupto8alphanumericcharacterslongforaccessing theRemotescreeninEpsonWebControl.(DefaultusernameisEPSONREMOTE;default passworddisguest.)
- WebControlPasswordletsouenterapasswordupto8alphanumericcharacterslongfor accessing Epson Web Control. (Default user name is EPSONWEB; default password is admin.)
- ModeratorPasswordletyouenterapasswordupto4numberslongforaccessingtheprojector asamoderatorwiththeEpsoniProjection(Windows/Mac)softwareortheEpsoniProjectionapp.
-ProjectorKeywordletysyouturnonasecuritypasswordtopreventaccesstotheprojectorbyanyonenotintheroomwithit. TheprojectordisplaysarandomkeywordthatyoumustenterfromacomputerusingtheEpsoniProjection(Windows/Mac)softwareoraniOSorAndroiddeviceusingtheEpsoniProjectionapp.
- DisplayKeywordletsyoudisplayakewordontheprojectedimagewhenaccessingthe projectorfromacomputerusingtheEpsoniProjection(Windows/Mac)softwareoraniOSor AndroiddeviceusingtheEpsoniProjectionapp.

- Display LAN Info lets you select how the projector displays network information. You can select anoptiontodisplayaQRcodethatletssyouquicklyconnectyouriOSorAndroiddevicesusingtheEpsoniProjectionapp.

Note: Usethedisplayedkeyboardtoenterthename, passwords, and keyword. Pressthearrow buttonsontheremotecontroltohighlightcharactersandpressEntertoselectthem.

7. SelecttheWiredLANmenuandpressEnter.

8. Select your IP Settings as necessary:

- If your network assigns addresses automatically, turn on the DHCP setting.

- If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet Mask, and GatewayAddress as needed.

Note: To highlight thenumbers you want from the displayed keyboard, press the arrow button on theremote control. Toselect a highlighted number, press Enter.

9. TopreventdisplayoftheIPaddressonthestandbyscreen,turnoffIPAddressDisplay.

1. To connect the projector to the network using IPv6, select On as the IPv6 Settings option. Then select the Auto Configuration and Use Temporary Address settings as necessary.

2. When you finish selecting settings, select Complete and follow the on-screen instructions to save yoursettingsandexithemenus.

Parenttopic: WiredNetworkProjection

WirelessNetworkProjection

Youcanprojectoverawirelessnetwork.Todothis,youmustsetupyourprojectorandcomputerfor wirelessprojection.

Note: The Epson 802.11b/g/n wireless LAN module is not included with your projector and is optional.

Afterconnectingandsettinguptheprojector,installtheprojectorsoftware.Youmayneedtoinstallit fromasoftwareCD,ifincluded,ordownloadthesoftwareandmanualsasnecessary.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epsonnetworksoftware.

InstallingtheWirelessLANModule

UsingaQRCodetoConnectaMobileDevice

UsingQuickWirelessConnection(Windows)

SelectingWirelessNetworkSettingsManually

SelectingWirelessNetworkSettingsinWindows

SelectingWirelessNetworkSettingsMac

SettingUpWirelessNetworkSecurity

Parenttopic: UsingtheProjectoronaNetwork

Relatedreferences

AdditionalProjectorSoftwareandManuals

OptionalEquipmentandReplacementParts

InstallingtheWirelessLANModule

Tousetheprojectoroverawirelessnetwork, installtheoptionalEpson802.11b/g/nwirelessLAN module.DonotinstallanyothertypeofwirelessLANmodule.

Caution: Never remove the module while its indicator light is on or flashing, or while you are projecting wirelessly. You may damage them module or los data.

1. Turnoff the projector and unplug the power cord.

2.Slidetheairfiltercoverlatchandopentheairfiltercover.

Illustration of a hand inserting a blue air conditioner into a car air vent (no text or symbols)

1. RemovethescrewsecuringthewirelessLANmodulestopper, thenremovethestopper.

1. Insert the wireless LAN module into the port.

Diagram of a car interior showing a grating or vent with a blue component inserted, no text or symbols present.

1. Replacethewireless LAN module stopper and secure it using the screw you removed.

Diagram of a car air vent with a blue component inside and a tool interacting with it, showing airflow direction (no text or symbols)

6.Closetheairfiltercover.
7. Pluginandturnontheprojector.

Parenttopic: Wireless Network Projection

Relatedreferences

OptionalEquipmentandReplacementParts

UsingaQRCodetoConnectaMobileDevice

Afteryouselectthewirelessnetworksettingsforyourprojector,youcandisplayaQRcodeonthe screenanduseittoconnectamobiledeviceusingtheEpsoniProjectionapp.

Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information.

1.PresstheMenubutton.
2. SelecttheNetworkmenuandpressEnter.

1. SelectNetworkConfigurationandpressEnter.

2. SelecttheBasicmenuandpressEnter.

5.SettheDisplayLANInfosettingtoText&QRCode.
6. Select Complete and follow the on-screen instructions to save your settings and exit the menus.
7.Dooneofthefollowing:

• PresstheLANbuttonontheremotecontrol.
• SelectDisplaytheQRCodeintheprojector'sNetworkmenu.
• Press the Home button on the remote control and select Display the QR Code on the Home screen.

YourprojectordisplaystheQRcodeontheprojectionsurface.

Note: If you do not see the QR code after pressing the LAN button, press Enter to display it.

8.StartEpsoniProjectiononyourmobiledevice.
9. Use the QR codereader feature to read the QR code and connect your device to the projector. Visit epsilon.com/iprojection (U.S.) or epsilon.ca/iprojection (Canada) for instructions.

Parenttopic: Wireless Network Projection

UsingQuickWirelessConnection(Windows)

YoucancreateaQuickWirelessConnectionUSBKeytoquicklyconnecttheprojectortoaWindows computerwirelessly. Thenyoucanprojectyourpresentationandremovethekeywhenyouaredone.

Note:AUSBflashdriveisnotincludedwithyourprojector.

1. CreateaQuickWirelessConnectionUSBKeywithaUSBflashdriveandtheEpsoniProjection (Windows/Mac)software.

Note: See the Epson iProjection Operation Guide (Windows/Mac) for instructions.

1. Turnon the projector.

2. PresstheLANbuttonontheremotecontrol.

YouseetheLANstandbyscreen.

1. Verify that an SSID and IP address are displayed.

2. Removethewireless LAN module from the projector.

3. Insert the USB key into the same port used for the wireless LAN module.

Youseeaprojectedmessagethatthenetworkinformationupdateiscomplete.

1. RemovetheUSBkey.

2. Reinsertthewireless LAN module into the projector.

3. Insert the USB key into a USB port on your computer.

Note: In Windows Vista, if you see the AutoPlay window, select Run MPPLaunch.exe, then select Allowonthenextscreen.

1. Followtheon-screen instruction to install the Epsoni Projection (Windows/Mac) software.

Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need administratorauthoritytoinstallthesoftware.Ifitisnotinstalledautomatically,double-click MPPLaunch.exeintheUSBkey.

Afterafewminutes, your computer image is displayed by the projector. If it does not appear, press the LAN or Source Search button on your remote control or restart your computer.

1. Run your presentation as necessary.

2. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You can share the USB key with other computers without disconnecting your computer. You may need to start your computer to activate your wireless LAN connection.

Parenttopic: Wireless Network Projection

SelectingWirelessNetworkSettingsManually

Before you can project from your wireless network, you must select then network settings for the projector using its menusystem.

1. Turnontheprojector.
   2.PresstheMenubutton.
2. SelecttheNetworkmenuandpressEnter.

1. SelectNetworkConfigurationandpressEnter.

5. SelecttheBasicmenuandpressEnter.

6. Select the following basic options as necessary:

-ProjectorNameletsyouenteranameupto16alphanumericcharacterslongtoidentifytheprojectoroverthenetwork.
- PJLinkPasswordletsyouenterapasswordupto32alphanumericcharacterslongforusingthe PJLinkprotocolforprojectorcontrol.
- RemotePasswordletsyouenterapasswordupto8alphanumericcharacterslongforaccessing theRemoteorBasicControlscreenonasmartphoneortablet.
- WebControlPasswordletyouenterapasswordupto8alphanumericcharacterslongfor accessingtheprojectorovertheweb.(DefaultusernameisEPSONWEB;defaultpasswordis admin.)
• ModeratorPasswordletyouenterapasswordupto4numberslongforaccessingtheprojector asamoderatorwiththeEpsoniProjection(Windows/Mac)softwareortheEpsoniProjectionapp.
-ProjectorKeywordletsyouturnonasecuritypasswordtopreventaccesstotheprojectorbyanyonenotintheroomwithit.TheprojectordisplaysarandomkeywordthatyoumustenterfromacomputerusingtheEpsoniProjection(Windows/Mac)softwareoraniOSorAndroiddeviceusingtheEpsoniProjectionapp.
- DisplayKeywordletsyoudisplayakewordontheprojectedimagewhenaccessingthe projectorfromacomputerusingtheEpsoniProjection(Windows/Mac)softwareoraniOSorAndroiddeviceusingtheEpsoniProjectionapp.

- Display LAN Info lets you select how the projector displays network information. You can select anoptiontodisplayaQRcodethatletssyouquicklyconnectyouriOSorAndroiddeviceswiththeEpsoniProjectionapp.

Note: Usethedisplayedkeyboardtoenterthename, passwordsandkeyword.Pressthearrow buttonsontheremotecontroltohighlightcharactersandpressEntertoselectthem.

7. SelecttheWirelessLANmenuandpressEnter.

1. Select these settings on the Wireless LAN menu as necessary for your network.
2. When you finish selecting settings, select Complete and follow the on-screen instructions to save yoursettingsandexithemenus.

Afteryoucompletethewirelesssettingsforyourprojector,youneedtoselectthewirelessnetworkon yourcomputer,oriOSorAndroiddevice.

WirelessLANMenuSettings

Parenttopic: WirelessNetworkProjection

WirelessLANMenuSettings

SettingOptionsDescription
ConnectionModeQuick	Advanced	Selectsthetypeofwireless connection:Quick:letsyouconnectto multiplesmartphones,tablets,or computersdirectlyAdvanced:letsyouconnectto multiplesmartphones,tablets,or computersviaawirelessnetwork accesspoint
SearchAccessPointToSearchView	Searchforavailablewireless	networkaccesspointsin Advancedconnectionmode
SSIDUp32alphanumericcharacters	SetstheSSID(networkname)of	thewirelessLANsystemthe projectorisconnectingto
SecurityOpen	WPA2-PSKWPA/WPA2-PSKWPA2-EAPWPA/WPA2-EAP	Selectsthetypeofwireless securityusedinthewireless network(someoptionsareonly availablewhentheConnection Modesettingissetto Advanced)
PassphraseBetween8to63alphanu	meric characters	Enteraparaphraseforthe wirelessnetwork
EAPMethodEAPType	UsernamePasswordClientCertificateVerifyServerCert.CAcertificateRADIUSServ.Name	SetstheEAPsettingsforWPA2-EAPandWPA/WPA2-EAP security
Channel1ch	6ch11ch	InQuickconnectionmode,selectsthefrequencyband(channel)usedbythewirelessLAN
IPSettingsDHCP	IPAddressSubnetMaskGatewayAddress	TurnsonDHCPifyournetworkassignsaddressesautomatically;settoOfftomanuallyenterthenetwork'sIPAddress,SubnetMask,andGatewayAddress(someoptionsareonlyavailablewhentheConnectionModesettingissettoAdvanced)
SSIDDisplayOn	Off	SelectswhethertodisplaytheSSIDonthenetworkstandbyscreen
IPAddressDisplayOn	Off	SelectswhethertodisplaytheIPaddressonthenetworkstandbyscreen
IPv6SettingsIPv6	AutoConfigurationUseTemporaryAddress	SelectsthelPv6settingswhenyouconnecttheprojectortothenetworkusing|Pv6

Parenttopic: SelectingWirelessNetworkSettingsManually

SelectingWirelessNetworkSettingsinWindows

Beforeconnectingtotheprojector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click then network icon on the Window stask bar.
   2.Dooneofthefollowing:

2. If your projector is set upon an existing network (Advanced mode), select thenetworkname (SSID).

3. If your projector is configured for Quickmode, select the projector's SSID.

3.ClickConnect.

Parenttopic: Wireless Network Projection

SelectingWirelessNetworkSettingsMac

Beforeconnectingtotheprojector,selectthecorrectwirelessnetworkonyourMac.

1. ClicktheAirPorticononthemenubaratthetopofthescreen.
2. MakesureAirPortisturnedon, thendooneofthefollowing:

- If your projector is set upon an existing network (Advanced mode), select thenetworkname (SSID).

- If your projector is configured for Quickmode, select the projector's SSID.

Parenttopic: Wireless Network Projection

SettingUpWirelessNetworkSecurity

Youcansetupsecurityforyourprojectortouseonawirelessnetwork.Setuponeofthefollowing securityoptionstomatchthesettingsusedonyournetwork:

•WPA2-PSK(Advancedconnectionmode)
•WPA2-EAP(AdvancedandQuickconnectionmode)
•WPA/WPA2-PSK(Advancedconnectionmode)
•WPA/WPA2-EAP(Advancedconnectionmode)

Note: Contact your network administrator forguidance on entering the correct information.

1. If you want to setup WPA2-EAP or WAP/WAP2-EAP security, makes sure your digital certificate file is compatible with projector registration and placed directly on the USB storage device.
   2.PresstheMenubutton.

2. SelecttheNetworkmenuandpressEnter.

1. SelectNetworkConfigurationandpressEnter.
2. SelecttheWirelessLANmenuandpressEnter.
3. SettheSecuritysettingtomatchyournetworksettings.

4. Dooneofthefollowingdependingonthenetworksecuritysettingyouselected:

5. WPA2-PSK or WPA/WPA2-PSK: Select Complete and follow the on-screen instructions to save yoursettingsandexithemenus.Skiptheremainingsteps.

6. WPA2-EAP or WPA/WPA2-EAP: Select EAP Method and press Enter.

1. Select your authentication protocol last the EAPTypesetting.

2. To import your certification, select the certificate type (either Client Certificate or CA certificate) and press Enter.

Note: You can also register a digital certificate from your web browser. Make sure to register just onceorthecertificatemaynotinstallcorrectly.

1. SelectRegisterandpressEnter.

2. Followtheon-screen instruction to connect a USB storage device to the projector's USB port.

3. PressEntertodisplaythecertificatelist.

4. Selectthecertificatetoimportfromthedisplayedlist.

Youseeamessagetoenterthecertificatepassword.

14.EnterapasswordandpressEnter.

Youseeacompletionmessageafterthecertificateisimported.

1. SetthefollowingEAPsettingsasnecessary:

- User name lets you enter a user name up to 64 alphanumeric characters long. To enter more than 32 characters, use your web browser.

- Passwordletsyouenterapasswordupto64alphanumericcharacterslongwhenusingthe PEAP,EAP-FAST,orLEAPprotocols.Toentermorethan32characters,useyourwebbrowser.

- VerifyServerCert. let you select whether or not to verify the server certificate when a CA certificate has been set.

•RADIUSServ.Nameletsoyouentertheservernametobeverified.

1. When you finish selecting settings, select Complete and follow the on-screen instructions to save yoursettingsandexithemenus.

Parenttopic: Wireless Network Projection

SettingUpProjectorNetworkE-MailAlerts

Youcansetuptheprojectortosendyouane-mailalertoverthenetworkifthereisaproblemwiththe projector.

1. PresstheMenubutton.

2. SelecttheNetworkmenuandpressEnter.

3. SelectNetworkConfigurationandpressEnter.

4. SelecttheNotificationsmenuandpressEnter.

1. TurnonMailNotification.
   6.EnterthelPaddressfortheSMTPServersetting.

Note: Donotusetheseaddresses: 127.x.x.xor224.0.0.0 through 255.255.255.255 (wherexisa number from 0 to 255).

1. SelectanumberfortheSMTPserverPortNumbersetting, from 1 to 65535 (defaultis25).
   8.Enterthesender'semailaddressastheFromsetting.
2. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeatforuptothreeaddresses. Youre-mailaddresscanbeupto32alphanumericcharacters long.
3. If you are using the PJLink protocol for projector control, turn on the PJLink Notification setting and entertheIPaddresswhereyouwanttoreceivePJLinknotificationsastheNotifiedIPAddress setting.
4. When you finish selecting settings, select Complete and follow the on-screen instructions to save yoursettingsandexithemenus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

NetworkProjectorE-mailAlertMessages

Parenttopic: UsingtheProjectoronaNetwork

NetworkProjectorE-mailAlertMessages

Whenaproblemoccurswithanetworkedprojector, andyouselectedtoreceivee-mailalerts, you receiveane-mailcontainingthefollowinginformation:

•TheemailaddressenteredastheFromsetting
•EpsonProjectoronthesubjectline
- Thenameoftheprojectorexperiencingaproblem
•TheIPaddressoftheaffectedprojector
•Detailedinformationabouttheproblem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Parenttopic: SettingUpProjectorNetworkE-MailAlerts

SelectingOtherNetworkSettings

YoucanselectoptionalnetworksettingsontheOthersmenu.

1.PresstheMenubutton.
2. SelecttheNetworkmenuandpressEnter.
3. SelectNetworkConfigurationandpressEnter.
4. SelecttheOthersmenuandpressEnter.

1. If you want to set the Secure HTTP protocol to encrypt communication when using Web Control, turn on the Secure HTTP setting and import the web server certificate using the Web Server Cert. setting.

2. If available, select the Priority Gateway setting for your network.

3. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projectortobedetected.

4. If your network environment uses a Crestron RoomView controller, turn on the Crestron RoomView setting to allow the project to be detected.

Note: Enabling Crestron Room View disable the Epson Message Broadcast feature in the Easy MP Monitor software.

1. If your network environment uses a Control4 or Control4 SDDP controller, turn on the Control4 SDDP setting to allow the project to be detected.

2. If you want to control the projector using Art-Net (an Ethernet communication protocol based on TCP/IP), turn on the Art-Net setting.

3. If you want this projector to receive broadcasted messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over thenetwork using the Epson ProjectorManagement software (Windowsonly).

4. When you finish selecting settings, select Complete and follow the on-screen instructions to save yoursettingsandexithemenus.

Parenttopic: UsingtheProjectoronaNetwork

ControllingaNetworkedProjectorUsingaWebBrowser

Once you have connected your project to your own network, you can select projector settings and control projection using incompatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 9.0 or later, and Safari on networksthatdonotuseaproxyserverforconnection.Youcannotselectalloftheprojectormenu settingsorcontrolallprojectorfunctionsusingawebbrowser.

Note: If you set Standby Mode to Communication On, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Makesuretheprojectoristurnedon.

2.Startyourwebbrowseronacomputerordeviceconnectedtothenetwork.

1. Type the projector's IP address into the browser's address box and press the computer's Enter key. YouseetheEpsonWebControlscreen.

1SelectBasicControltocontroltheprojectorremotely.

2SelectOSDControlPadtochangetheprojector'smenusettings.

3SelectTestPatterntodisplayatestpattern

4SelectRemoteCameraAccesstotakeanimagecaptureofthedisplayedimagefroma remotelocation

5SelectAdvancedtoopentheadadvancedmenuscreen.

6SelectStatusInformationtoviewtheprojector'sstatus.

7SelectLensControltoadjustthelens(focus, zoom, and lensshift).

1. Select the option corresponding to the projector function you want to control.

WebControlOptions

ViewinganImageCaptureoftheDisplayedImagefromaRemoteLocation

Parenttopic: UsingtheProjectoronaNetwork

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

WebControlOptions

BasicControl

Note: If the Remote Password is set to On, you need to enter your user name and password. (The defaultusernameisEPSONREMOTEandthedefaultpasswordisguest).

1ReturnstotheHomescreen

2Turnsontheprojector

3Inputsourceselectioncontrols

4A/VMutebuttoncontrol

5Volumebuttoncontrols

6Searchesforsources

7Turnsofftheprojector

OSDControlPad

1ReturnstotheHomescreen

2Displaystheprojector'ssettingmenus

3Useyourfingerormousetonavigatethemenus

4Returnssettingstotheirdefaultvalues

5Returnstothepreviousmenu

6Displayshelptopics

Note: You cannot changesomesettings using EpsonWebControl.

LensControl

Focus/Distortionscreen

1ReturnstotheHomescreen

2Focusadjustmentslider

3Focusadjustmentbuttons

4Distortionadjustmentslider(notavailableforELPLU02)

5Distortionadjustmentbuttons(notavailableforELPLU02)

6DisplaytheFocus/Distortionscreen

7DisplaystheZoomscreen

8DisplaystheLensShiftscreen

9DisplaytheTestPatternscreen

10DisplaystheMemoryscreen

Zoomscreen

Note: ZoomisnotavailablefortheELPLX02andELPLR04lenses.

1Zoomadjustmentslider
2Zoomadjustmentbuttons

LensShiftscreen

1 Thebluesquaredisplaysthecurrentimagepositionandtheredsquaredisplaysthenewimage position

2Displaystheverticalimageposition;selecttochangethevalue

3Movestheimagepositionup,down,left,orright

4Movesthelenstothehomeposition

5Displaysthehorizontalimageposition;selecttochangethevalue

TestPatternscreen

1Displaysavailabletestpatterns;selecttoprojectatestpattern

2Turnsofftestpatternndisplay

Memoryscreen

1 Overwrites your current settings with saved settings
2Savesyourcurrentsettingstomemory
3Displaysalistofsavedmemories
4Erasesasavedmemory
5Renamesasavedmemory

StatusInformationscreen

1ReturnstotheHomescreen
2Displaysalistofmonitoredsettings
3Displaysthesettingstatus
4Selecttoviewdifferentstatusinformation

RemoteCameraAccessscreen

1DisplaystheimageyoucapturedusingtheShootbutton
2Takesapictureoftheprojectedimageusingthecameraonthefrontoftheprojector
3Adjuststheimageexposure
4Zoomsinoroutontheimageyoucaptured

Parenttopic: ControllingaNetworkedProjectorUsingaWebBrowser

ViewinganImageCaptureoftheDisplayedImagefromaRemoteLocation

Youcantakeanimagecaptureoftheprojectedimageandviewitfromaremotelocationusingtheprojector'sbuilt-incamera.

Notethefollowingwhenusingthisfeature:

- ThisfeatureisnotsupportedwiththeELPLX02lens.

• Thisfeatureisnotsupportedwhenperformingthefollowingfunctions:Tiling,ScreenMatching,Color Calibration,LensCalibration,MessageBroadcastingintheEpsonProjectorManagementsoftware.

• Using this feature will cancel the following functions: SplitScreen, A/VMute, display of the Home screen, On-Screen Display.

• Hold down the Freeze button on the remote control for about five seconds or until you see this menu.

1. Make sure the Remote Camera Access setting is set to Off, then exit the menu.
   3.PresstheMenubutton.
2. SelecttheNetworkmenuandpressEnter.

1. Make sure the Secure HTTP setting is enabled by selecting Network Configuration > Others > SecureHTTP>On, then return to the Network menu.

2. SelectRemoteCameraAccessontheNetworkmenuandpressEnter.

Youseeascreenlikethis:

1. SelectOnastheRemoteCameraAccesssetting.
2. SelectthePasswordsettingandenterapasswordupto32alphanumericcharacterslong.
3. Openawebbrowseronacomputerormobiledeviceconnectedtotheprojectoroveranetwork connection.
   10.Entertheprojector'sIPaddressinyourbrowser'saddressboxtoconnecttoEpsonWebControl.

Youseeascreenlikethis:

Note: You can view the projector's IP address by selecting Net. Info. - Wireless LAN or Net. Info. - WiredLANontheNetworkmenu.

11.SelectRemoteCameraAccess.

Note: YoumayneedtologintoaccesssomeoftheoptionsontheEpsonWebControlscreen.If youseealoginwindow,enteryourusernameandpassword.(Thedefaultusernameis EPSONWEBandthedefaultpassworddisadmin.)

12.ClickShoottotakeacaptureoftheprojectedimage.

Note: If you see a password screen, enter the password you selected in step 8. You cannot capture warningorcautionmessages.

Theprojectordisplaysamessageontheprojectionscreenforseveralsecndswhileittakesan image capture. When finished, the captured image is displayed in the area above the Shoot button.

Parenttopic: ControllingaNetworkedProjectorUsingaWebBrowser

CrestronRoomViewSupport

If you are using the CrestronRoom Viewnetwork monitoring and control system, you can setup your projector for use on the system. CrestronRoom Viewlets you control and monitor your projector using a web browser.

Note: You cannot us the Epson Web Control feature or the Message Broadcasting tool for Epson Projector Management when you use Crestron Room View.

ForadditionalinformationonCrestronRoomView,contactCrestron.

SettingUpCrestronRoomViewSupport

ControllingaNetworkedProjectorUsingCrestronRoomView

Parenttopic: UsingtheProjectoronaNetwork

SettingUpCrestronRoomViewSupport

TosetupyourprojectorformonitoringandcontrolusingaCrestronRoomViewsystem,makesureyour computerandprojectorareconnectedtothenetwork.

Note: If you want to use the Crestron RoomView system when the projector is turned off, you need to adjusttheStandbyModesettingsintheExtendedmenu.

1. PresstheMenubutton.
2. SelecttheNetworkmenuandpressEnter.
3. SelectNetworkConfigurationandpressEnter.
4. SelecttheOthersmenuandpressEnter.

1. Set the Crestron RoomView setting to On to allow the projector to be detected.
   Note: Enabling Crestron Room View disable the Epson Message Broadcasting feature in the Epson Projector Management software.
2. When you finish selecting settings, select Complete and follow the on-screen instructions to save yoursettingsandexithemenus.
3. Turnoff the projector, thenturnitonagain to enable these setting.

Parenttopic: CrestronRoomViewSupport

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

ControllingaNetworkedProjectorUsingCrestronRoomView

OnceyouhavesetupyourprojectortouseCrestronRoomView,youcancontrolandmonitorprojection usingacompatiblewebbrowser.

1.Startyourwebbrowseronacomputerconnectedtothenetwork.

1. Type the projector's IP address into the browser's address box and press the computer's Enter key. Youseethisscreen:

1. Select the input source that you want to control the Sources List box. You can scroll through available sources using the up and down arrows in the box.

2. To control projection remotely, click the on-screen button that corresponds to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

- OKactsastheEnterbutton

• Menudisplaystheprojector'smenu

1. Toviewinformationabouttheprojector, clicktheInfotab.

2. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayedscreen, and click Send.

3. When you finish selecting settings, click Exit to exit the program.

Parenttopic: CrestronRoomViewSupport

UsingBasicProjectorFeatures

Followtheinstructionsinthesesectionstouseyourprojector'sbasicfeatures.

TurningOntheProjector

TurningOfftheProjector

SelectingtheLanguagefortheProjectorMenus

ResizingthelmagewiththeZoomButton

FocusingtheImageUsingtheFocusButtons

SettingtheLensType

SettingtheScreenType

AdjustingtheImagePositionUsingLensShift

AdjustingtheImagePositionUsingScreenPosition

DisplayingaTestPattern

AdjustingtheImageHeight

ImageShape

SelectinganImageSource

RemoteControlOperation

ProjectionModes

ImageAspectRatio

ColorMode

AdjustingtheBrightness

TurningOnAutomaticLuminanceAdjustment

ControllingtheVolumewiththeVolumeButtons

SettingtheDateandTime

TurningOntheProjector

Turnonthecomputerorvideoequipmentyouwanttousebeforeyouturnontheprojectorsoitcan displaytheimagesource.

1. Connect the power cord to the projector's power inlet.

Diagram showing connection between a computer monitor and two blue USB connectors (no text or symbols present)

2.Plugthepowercordintoanelectricaloutlet.

Theprojector'sOn/Standbylightturnsblue. This indicates that the projector is receiving power.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

3.PresstheOnbuttonontheprojectororremotecontroltoturnontheprojector.

TheprojectorbeepsandtheStatuslightflashesblueastheprojectorwarmsup.Afterabout30 seconds,theStatuslightstopsflashingandturnsblue.

Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is especially dangerous for children and pets.

Caution: Make sure no objects are blocking the light from the projector lens. Objects blocking the lensforanextendedtimecanmeltandlighthatisreflectedbackintothelenscancausethe projectortomalfunction.

If you donot see a projected imagerightaway, try the following:

•Makesurethelenscapisoff.

•Turnontheconnectedcomputerorvideodevice.

- InsertaDVDorothervideomediaandpresstheplaybutton,ifnecessary.

- Press the Source Search button on the projector or the Search button on the remote control to detect the videosource.

Note: If the Auto Source Search setting in the Extended menu is enabled, the projector automatically detects the inputs signal when you turn it on.

• Changethescreenoutputfromthecomputerwhenusingalaptop.
• Pressthebuttonforthevideosourceontheremotecontrol.
• IftheHomescreenisdisplayed,selectthesourceyouwanttoproject.

UsingtheHomeScreen

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

Relatedtasks

TurningOfftheProjector

UsingtheHomeScreen

You can select inputs sources and other frequently used options from the Homescreen.

1. TodisplaytheHomescreen,dooneofthefollowing:

2. PresstheHomebuttonontheremotecontrol.

3. TurnontheprojectorwiththeHomeScreenAutoDispsettingenabled.

4. Turnontheprojectorwhennosignalisreceivedfromtheselectedinputsource.

5. Pressthearrowbuttonsontheremotecontrolorcontrolpaneltonavigatethescreen, and press Entertoselectanoption.

1Selectthevideosourceyouwanttoproject

2DisplaytheQRcode

3DisplaytheHelpscreen

4Displaytheprojector'smenus

5Selectcustomizablemenuoptions

6SelecttochangetheLightSourceMode

7SelecttochangetheColorMode

Note: You can select the customizable menu options using the Custom Function 1 and Custom Function2settingsintheExtendedmenu.

1. PresstheHomebuttontohidetheHomescreen.

Parenttopic: TurningOntheProjector

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

TurningOfftheProjector

Before turning off the projector, shutdown any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary depending upon modes selected, environmental conditions, and usage. Brightness decreases over time.

1. PresstheStandbybuttonontheprojectororremotecontrol.

Theprojectordisplaysashutdownconfirmationscreen.

1. Press the Standby button on the projector or remote control again. (To leave it on, press any other button.)

Theprojectorbeepstwice, the laserturnsoff, and the Statuslightturnsoff.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

1. Totransportorstoretheprojector, makesuretheStatuslightisoff, thenunplugthepowercord.

Parenttopic: UsingBasicProjectorFeatures

Relatedtasks

TurningOntheProjector

SelectingtheLanguagefortheProjectorMenus

If you want to view the projector's menus and messages in another language, you can change the Languagesetting.

1. Turnon the projector.

2.PresstheMenubutton.
3. SelecttheExtendedmenuandpressEnter.

1. SelecttheLanguagesettingandpressEnter.
2. SelectthelanguageyouwanttouseandpressEnter.
3. PressMenuorEsctoexitthemenus.

Parenttopic: UsingBasicProjectorFeatures

ResizingthelmagewiththeZoomButton

You can adjust the size of the image using the zoom buttons. Zoom is not available for the ELPLX02 and ELPLR04 lenses.

Note: Wait 20 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy.

1. Turnon the projector and display an image.

2. Press the Lens button on the control panel repeatedly until the zoom adjustment screen appears, or presstheZoombuttonontheremotecontrol.

1. Pressandholdthearrowbuttonsontheprojector'scontrolpanelorremotecontroltoresizethe image.
2. PresstheEscbuttonwhenfinished.

Parenttopic: UsingBasicProjectorFeatures

FocusingthelmageUsingtheFocusButtons

You can adjust the sharpness of the projected image using the focus buttons.

Note: Wait 20 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy. If you installed any of the following lenses, seethelink below on focusing with a shortthrow lens instead: ELPLX02, ELPLU03, ELPLU04, ELPLW05, or ELPLU02.

1. Turnon the projector and display an image.

2. Press the Lens button on the control panel repeatedly until the focus adjustment screen appears, or presstheFocusbuttonontheremotecontrol.

1. Pressandholdthearrowbuttonsontheprojector'scontrolpanelorremotecontroltoadjustthe focus.
2. PresstheEscbuttonwhenfinished.

FocusingtheImageWhenUsinganOptionalShortThrowLens

Parenttopic: UsingBasicProjectorFeatures

Relatedtasks

FocusingtheImageWhenUsinganOptionalShortThrowLens

FocusingtheImageWhenUsinganOptionalShortThrowLens

If you installed an optional short throw lens (ELPLX02, ELPLU03, ELPLU04, ELPLW05, or ELPLU02), you may need to first focus on the center of your screen and then correct any distortion in the surrounding area.

1. Turnon the projector and display an image.
2. Press the Focus button on the remote control or press the Lens button on the control panel repeatedly until the focus adjustments screen appears.

3.Presstheleftorrightarrowbuttonsuntilthecenteroftheimageisfocused.

Diagram showing a red dot projecting onto a grid surface with dashed lines indicating projection or alignment (no text or symbols)

1. Press the Focus button on the remote control or press the Lens button on the control panel repeatedly until the distortion adjustment screen appears.

5.Presstheleftorrightarrowbuttonsuntiltheedgesoftheimagearealsofocused.

Diagram showing a red laser beam interacting with a grid-patterned surface, no text or symbols present

Note: If you installed the optional ELPLU02 short throw lens and you see a message prompting you to manually adjust the imaged distortion, manually rotatethedistortion ring counterclockwise. Adjust the focus and then rotatethedistortion ring again to correct imaged distortion.

Technical line drawing of a mechanical component with a blue ring (no text or symbols)

Parenttopic: Focusing theImageUsingtheFocusButtons

SettingtheLensType

If you installed one of the following lenses, you need to select them a number for the lens: ELPLS04, ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, or ELPLL07.

1. Turnon the projector and display an image.
   2.PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.
3. Select Operation > Advanced > Lens Type.
4. Select your lens model number and press Enter.
   6.PresstheMenubuttontoexit.
   Parenttopic: UsingBasicProjectorFeatures

SettingtheScreenType

YoucanusetheScreenTypesettingtomatchtheaspectratioofthedisplayedimagetothescreenyou areusing.

1. Turnon the projector and display an image.
   2.PresstheMenubutton.

2. SelecttheExtendedmenuandpressEnter.

3. Select Display > Screen > Screen Type.

Youseethisscreen:

1. Select your screen's aspect ratio and press Enter.
   6.PresstheMenubuttontoexit.
2. Adjust the aspect ratio for the projected image, if necessary.

Parenttopic: UsingBasicProjectorFeatures

Relatedconcepts

ImageAspectRatio

AdjustingtheImagePositionUsingLensShift

If you cannot install the projectordirectly in front of the screen, you can adjust the position of the projected image using the lens shift feature.

Note: Wait 20 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy. Lensshift is not supported for the ELPLR04 lens.

1. Turnon the projector and display an image.

2.Pressthearbuttonstoadjustthepositionoftheprojectedimageasnecessary.

Pro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL-ELPLU03orELPLW05lens

1Centeroflens

2Projectedimagewhenlensshiftissettothehomeposition

3Maximumrange:V×24%

Note: You cannot move the image upward when the lens is shifted horizontally all the way.

Pro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL-ELPLU04,ELPLW06,ELPLM10,ELPLM11,ELPLM15,orELPLL08lens

1Centeroflens

2Projectedimagewhenlensshiftissettothehomeposition

3Maximumrange:V×60%

4Maximumrangewhenthelensisshiftedhorizontallyalltheway:V×31%

Pro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL-ELPLX02lens

1Centeroflens

2Projectedimagewhenlensshiftissettothehomeposition

3Maximumrange:V×20%(top);V×5%(bottom)

Note: You cannot move the image upward when the lens is shifted horizontally all the way.

ProL1715SNL-ELPLU03orELPLW05lens

1Centeroflens

2Projectedimagewhenlensshiftissettothehomeposition

3Maximumrange:V×16%

Note: You cannot move the image upward when the lens is shifted horizontally all the way.

ProL1715SNL-ELPLU04,ELPLW06,ELPLM10,ELPLM11,ELPLM15,orELPLL08lens

1 Centeroflens

2Projectedimagewhenlensshiftissettothehomeposition

3Maximumrange:V×55%;maximumrangewhenperformingscreenmatchingorcolor calibration:V×45%(ELPLU04)

Maximumrangewhenthelensisshiftedhorizontallyalltheway:V×32%

ProL1715SNL-ELPLX02lens

1 Centeroflens

2Projectedimagewhenlensshiftissettothehomeposition

3Maximumrange:V×5%

Note: You cannot move the image upward when the lens is shifted horizontally all the way.

1. When you are finished, press the Escbutton on the control panel or remote control.

Note: When adjusting the image height, position the image lower than where you want it to be and then moveitup. This will help prevent the image from moving down after adjustment. The image is clearest when the lens is at the home position. To move the lens to the home position, press and hold the Lens Shift button on the remote control or the Lens button on the control panel for at least three seconds.

Parenttopic: UsingBasicProjectorFeatures

AdjustingtheImagePositionUsingScreenPosition

You can adjust the image position if there are margins between the edge of the image and the projected screenframe.

Note: You cannot adjust the screen position if the Screen Type setting is set to 16:10 for a WUXGA projectormodelor4:3foraSGA+projectormodel.

1. Turnon the projector and display an image.
   2.PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.

3. Select Display > Screen > Screen Position.

4. Usethearbuttonsontheremotecontrolorprojectortoadjustthepositionoftheimage.

Blue basketball court with a central circular target and four corner circles (no text or symbols)

1. When you are finished, press the Menubutton.

Parenttopic: UsingBasicProjectorFeatures

Relatedtasks

SettingtheScreenType

DisplayingaTestPattern

Youcandisplayatestpatterntoadjusttheprojectedimagewithoutconnectingacomputerorvideo device.

Note: The test pattern's shape is determined by the Screen Type setting. Be sure to set the correct screentypebeforeadjustingwiththetestpattern.

1. Turnon the projector.

2. Press the Test Pattern button on the remote control or the down arrow button on the control panel.

3. Press the left or right arrow button on the remote control or press Enter on the control panel to cycle throughtheavailabletestpatterns.

1. Adjust the image as necessary.

2. PresstheEsctoclearthetestpattern.

AvailableTestPatternImageAdjustments

Parenttopic: UsingBasicProjectorFeatures

Relatedtasks

SettingtheScreenType

AvailableTestPatternImageAdjustments

You can adjust the following settings while the test pattern is displayed.

MenuSettings
ImageColorMode
	WhiteBalance
	Advanced•Gamma1•RGBCMY
SettingsGeometryCorrection
	BrightnessSettings
ExtendedDisplay	^2
	ColorCalibration
	Multi-Projection ^3

^1 ExceptforcustomGammasettings
^2 Except for the Screen, Panel Alignment, and Color Uniformity settings
^3 Except for the Black Level, Scale, Color Uniformity, and Color Adjustment settings

Parenttopic: DisplayingaTestPattern

AdjustingthelmageHeight

If you are projecting from a table or other flats surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Turnon the projector and display an image.
2. To adjust the image height, rotate the front foot to extend or retract it.

1. If the image is tilted, rotate there near feet to adjust their height.

If the projected image is unevenly rectangular, you need to adjust the imageshape.

Parenttopic: UsingBasicProjectorFeatures

Relatedconcepts

ImageShape

ImageShape

Youcanprojectanevenlyrectangularimagebyplacingtheprojectordirectlyinfrontofthecenterofthe screenandkeepingitlevel. Ifyouplacetheprojectoratanangletothescreen,ortiltedupordown,oroff totheside,youmayneedtocorrecttheimageshapeforthebestdisplayquality.

CorrectingImageShapewithH/VKeystone

CorrectingImageShapewithQuickCorner

CorrectingImageShapewithCurvedSurface

CorrectingImageShapewithCornerWall

CorrectingImageShapewithPointCorrection

Parenttopic: UsingBasicProjectorFeatures

CorrectingImageShapewithH/VKeystone

You can use the projector's H/V Keystone setting to correct the shape of an image that is unevenly rectangularonthesides.

Note: You cannot combine H/V Keystone correction with other imageshapecorrection methods.

1. Turnon the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern buttonontheremotecontrol.

2.PresstheMenubutton.

3. SelecttheSettingsmenuandpressEnter.

4. Select the Geometry Correction setting and press Enter.

Note: You can also access the geometric adjustment screen by pressing the Geometry button on theremotecontrolortheuparrowbuttononthecontrolpanel.

5. Select the H/V-Keystone setting and press Enter. Then press Enter again.

YouseetheH/V-Keystoneadjustmentscreen:

1. Usethearrowbuttonsontheprojectorotheremotecontroltoselectbetweenverticaland horizontalkeystoneorbalancecorrectionandtoadjusttheimageshapeasnecessary.

V-Keystone

V-Balance

H-Keystone

H-Balance

1. When you are finished, press Esc.

Aftercorrection, your image is slightly smaller.

Parenttopic:ImageShape

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

DisplayingaTestPattern

CorrectingImageShapewithQuickCorner

Youcanusetheprojector'sQuickCornersettingtocorrecttheshapeandsizeofanimagethatis unevenlyrectangularonallsides.

1. Turnon the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display the pattern by pressing the Test Pattern button on the remote control.

2.PresstheMenubutton.

3. SelecttheSettingsmenuandpressEnter.

4. Select the Geometry Correction setting and press Enter.

5. Select the Quick Corner setting and press Enter. Then press Enter again.

YouseetheQuickCorneradjustmentscreen:

Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a resetscreen. ThenselectYes.

1. Usethearowbuttonsontheprojectororremotecontrolltoselectthecorneroftheimageyouwant toadjust.ThenpressEnter.

2. Pressthearrowbuttonstoadjusttheimageshapeasnecessary.

3. When you are finished, press Esc.

Parenttopic:ImageShape

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

DisplayingaTestPattern

CorrectingImageShapewithCurvedSurface

Youcanusetheprojector'sCurvedSurfacesettingtoadjusttheshapeofanimageprojectedona curvesurface.

Diagram showing a blue rectangular block on the left of a gray cylinder and a light blue rectangle on the right, with a red arrow indicating transformation (no text or symbols)

Note: For the best results, project from the front of the screen onto a surface with a uniform arc radius and with the lens in the home position. The image may not be evenly focused throughout even after performing the step here. If you see a 4K Enhancement message, select Yes disable the 4K Enhancement feature.

1. Turnon the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern buttonontheremotecontrol.

2.PresstheMenubutton.
3. SelecttheSettingsmenuandpressEnter.

1. Select the Geometry Correction setting and press Enter.
2. SelecttheCurvedSurfacesettingandpressEnter.

Note: If you see a confirmation message, press Enter.

Youseethisscreen:

1. SelecttheCorrectShapesettingandpressEnter.

2. Use the arrow button on the projector or theremote control to select the area you want to adjust. Then press Enter.

Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a resetscreen. ThenselectYes.

1. Usethearrowbuttonsontheprojectortoadjusttheimageshape.

Simple diagram showing a dashed arc with an arrow pointing to a square containing an orange diamond shape (no text or symbols)

Note: If the adjustment triangle turns gray, you cannot adjust the shape any further in that direction.

9.PresstheEscbuttontoreturntotheCurvedSurfacemenuscreen.
10.Repeatthepreviousthreestepsasnecessarytoadjustotherimageareas.

If the image expands or contracts, continue with then next step to adjust the linearity.

1. SelectoneofthefollowingfromtheCurvedSurfacemenuscreen:

•HorizontalLinearity:Adjustshorizontalexpansionorcontraction.
•VerticalLinearity:Adjustsverticalexpansionorcontraction.

1. SelectadisplayedlinetouseasabaselineandpressEnter.

Theselectedbaselineflashesredandwhite.

1. Adjustthelinearity by doing one of the following:

- Presstheleftarrowbuttontocontractthedistancebetweenthelinesclosesttothebaseline.

- Presstherightarrowbuttontoexpandthedistancebetweenthelinesclosesttothebaseline.

1. When you are finished, press the Menubutton.

Note: If necessary, you can adjust the image tilt using the Quick Corner setting, then fine-tune your adjustmentsusingthePointCorrectionsetting.

Parenttopic:ImageShape

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

DisplayingaTestPattern

CorrectingImageShapewithQuickCorner

CorrectingImageShapewithPointCorrection

CorrectingImageShapewithCornerWall

Youcanusetheprojector'sCornerWallsettingtoadjusttheshapeofanimageprojectedonasurface withrightangles,suchasarectangularpillarothecornerofaroom.

Two blue geometric shapes with dashed red lines, one rotated right (no text or symbols)

Note: For the best results, project from the front of the screen onto a right-angled surface and with the lensinthehomeposition. Theimagemaynotbeevenlyfocusedthroughoutevenafterperformingthe steps here. If you see a 4K Enhancement message, select Yes to disable the 4K Enhancement feature. CornerWallisnotsupportedfortheELPLX02lens.

1. Turnon the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern buttonontheremotecontrol.

2.PresstheMenubutton.

1. SelecttheSettingsmenuandpressEnter.

1. Select the Geometry Correction setting and press Enter.
2. SelecttheCornerWallsettingandpressEnter.

Note: If you see a confirmation message, press Enter.

Youseethisscreen:

1. SelecttheCornerTypesettingandpressEnter.

2. Selectoneofthefollowing:

•HorizontalCornerwhenthesurfaceslineuphorizontally

Abstract geometric shape with a vertical dashed line and two light blue rectangles on a gray background (no text or symbols)

•VerticalCornerwhenthesurfaceslineupvertically

Simple geometric shape with a blue hexagon and a red dotted line (no text or symbols)

1. PresstheEscbuttontoreturntotheCornerWallmenuscreen.

2. SelecttheCorrectShapesettingandpressEnter.

3. Adjust the projector's position and use lens shift to center the image over the point where two surfaces meet. (Therest of these steps show Horizontal Corner as these selected Corner Type but the steps are these same for Vertical Corner.)

Two 3D geometric shapes with dashed vertical lines, one solid blue and one dashed purple, both without any text or symbols.

Note: You can press Enter to show or hide the image and grid to check the results.

11.Pressthearrowbuttonsontheprojectortheremotecontrolltoselecttheareayouwanttoadjust. ThenpressEnter.

- For horizontal corners, adjust the top area using the lowest point (indicated by the blue arrow) as your reference. Adjust the lower area using the highest point (indicated by the pink arrow) as your reference.

Pure geometric diagram showing a 3D prism with dashed centerline and arrows indicating perspective (no text or symbols)

- For vertical corners, adjust the left and right areas using the points nearest the center of the image as your reference points.

Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a resetscreen. ThenselectYes.

1. Pressandholdthearrowbuttonsontheprojectororremotecontroltoadjusttheimageshape.

13.Repeattheprevioustwostepsasnecessarytoadjustotherimageareas.

If the image expands or contracts, continue with then next step to adjust the linearity.

14.PresstheEscbuttontoreturntotheCornerWallscreen.

1. SelecttheLinearitysettingandpressEnter.

2. Adjustthelinearity by doing the following as necessary:

- Pressandholdtheleftarrowbuttontocontractthedistancebetweenthelinesclosesttotheletortopoftheimage.

Two abstract geometric diagrams with horizontal lines and triangular shapes, no text or symbols present.

- Pressandholdtherightarrowbuttontocontractthedistancebetweenthelinesclosesttotherightorbottomoftheimage.

Two abstract diagrams showing vertical striped patterns and a triangular arrow, no text or symbols present.

1. When you are finished, press the Menubutton.

Note: If necessary, you can adjust the image tilt using the Quick Corner setting, then fine-tune your adjustmentsusingthePointCorrectionsetting.

Parenttopic:ImageShape

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

DisplayingaTestPattern

CorrectingImageShapewithQuickCorner

CorrectingImageShapewithPointCorrection

CorrectingImageShapewithPointCorrection

Youcanusetheprojector'sPointCorrectionfeaturetofine-tunetheimageshapeusingpointsonagrid. Thisisusefulforadjustingoverlappingareasinmultipleprojectedimagesthatdonotlineupcorrectly.

Two-panel illustration showing a grid-based transformation: one with cloud shapes and red arrows, the other with birds and clouds (no text or symbols)

Note: You can move the points on the grid between 0.5 to 32 pixels for WUXGA models or 0.5 to 27 pixels for SXGA+ models in any direction. If you see a 4K Enhancement message, select Yes to disable the4KEnhancementfeature.

1. Turnon the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern buttonontheremotecontrol.

2.PresstheMenubutton.
3. SelecttheSettingsmenuandpressEnter.
4. Select the Geometry Correction setting and press Enter.

1. SelectthePointCorrectionsettingandpressEnter.

Note: If you see a confirmation message, press Enter.

Youseethisscreen:

1. SelectthePointCorrectionsettingandpressEnter.
2. SelectthenumberofgridlinestodisplayandpressEnter.

Note: If you need to change the color of the grid lines, select the Pattern Color setting and select a suitable color.

8.Pressthearrowbuttonontheprojectororremotecontrolltomovetothepointonthegridthatyou wanttoadjust.ThenpressEnter.

Theboxchangesfromasinglinetoadouble-linedsquare.

9.Pressthearrowbuttonstocorrecttheimageshapeinallnecessarydirections.

Diagram showing a mechanical or structural change before and after, with no visible text or symbols.

Note: You can press Enter to show or hide the image and grid to check the results.

1. Press Esc to return to the previous screen and select another point to correct, if necessary.
2. When you are finished, press the Menubutton.

Note: If necessary, you can fine-tune your image adjustments using the Corner Wall setting.

Parenttopic:ImageShape

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

DisplayingaTestPattern

SelectinganImageSource

If you connected multiple images our cestotheprojector, such as a computer and DVD player, you may want to switch from one images our ceto the other.

Note: If you turned on the Auto Source Search setting in the Extended menu, the projector automatically switch the another detected imagesource if the signal to the current imagesource is lost.

1. Makesuretheconnectedimagesourceyouwanttouseisturnedon.
2. For video images sources, insert a DVD or other video media and press its play button, if necessary.

3.Dooneofthefollowing:

- Press the Source Search button on the projector or the Search button on the remote control until youseetheimagefromthesourceyouwant.

- Pressthebuttonforthesourceyouwantontheremotecontrol.

1HDMIportsource

2HDBaseTportsource

3Computerportsource

4Networkportsource

5SDIportsource(notsupportedforProL1715SNL)

6BNCportsource

7DVI-Dportsource

- PresstheHomebuttonontheremotecontrolandselectyourimagesource.

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

RemoteControlOperation

Theremotecontrolletsyoucontroltheprojectorfromalmostanywhereintheroom,upto98.4feet (30m)away.Youcanpointitatthefrontorrearoftheprojector.

Makesurethatyouaimtheremotecontrolattheprojector'sreceiverswithintheangleslistedhere.

198.4 feet(30m)

282.0 feet(25m)

365.6 feet(20m)

4±60°

5 ± 30^

6 ± 15^

730°

810°

9 ± 20^

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or theprojectormaynotrespondtocommands. If you will not use theremote control for alongtime, removethebatteries.

Parenttopic: UsingBasicProjectorFeatures

Relatedtasks

ReplacingtheRemoteControlBatteries

ProjectionModes

Dependingonhowyoupositionedtheprojector,youmayneedtochangetheprojectionmodesoyourimagesprojectcorrectly.

- Front(defaultsetting)letsyouprojectfromatableinfrontofthescreen.

- Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.

- Rearflipstheimagehorizontallytoprojectfrombehindattransluentscreen.

- Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind atranslucentscreen.

Note: To view 3D images, you must project onto the front of a silver screen designed for passive 3D images(ProL1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL).

ChangingtheProjectionModeUsingtheRemoteControl ChangingtheProjectionModeUsingtheMenus

Parenttopic: UsingBasicProjectorFeatures

ChangingtheProjectionModeUsingtheRemoteControl

Youcanchangetheprojectionmodetofliptheimageovertop-to-bottom.

1. Turnon the projector and display an image.

2.HolddowntheA/VMutebuttonontheremotecontrolfor5to10seconds.

Theimagedisappearsbrieflyandreappearsflippedtop-to-bottom.

1. To change projection back to the original mode, hold down the A/V Mute button for 5 to 10 seconds again.

Parenttopic:ProjectionModes

ChangingtheProjectionModeUsingtheMenus

Youcanchangetheprojectionmodetofliptheimageovertop-to-bottomand/orleft-to-rightusingtheprojectormenus.

1. Turnon the projector and display an image.
   2.PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.

1. SelecttheProjectionsettingandpressEnter.
2. SelectaprojectionmodeandpressEnter.
3. PressMenuorEsctoexitthemenus.
   Parenttopic:ProjectionModes

ImageAspectRatio

Theprojectorcandisplayimagesindifferentwidth-to-heighttratioscalledaspectratios. Normally the inputsignalfromyourvideosourcedeterminestheimage'saspectratio. However, for certain images you can change the aspect ratio of your screen by pressing a button on theremote control.

If you always want to use a particular aspect ratio for certain video inputs, you can select using the projector's menus.

ChangingtheImageAspectRatio

AvailableImageAspectRatio

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

ImageQualitySettings-ImageMenu

ChangingthelmageAspectRatio

Youcanchangetheaspectratioofthedisplayedimagetoresizeit.

Note: Set the Screen Type setting in the projector's Extended menu before changing the aspect ratio.

1. Turnon the projector and switch to the images source you want to use.
2. PresstheAspectbuttonontheremotecontrol.

Theshapeandsizeofthedisplayedimagechanges,andthenameoftheaspectratioappears brieflyonthescreen.

1. Tocyclethroughtheavailableaspectratiosforyourinputsignal, press the Aspectbutton repeatedly.

Note: If you are projecting from a computer and parts of the image are cut off, set the Resolution settingtoWideorNormalintheSignalmenu.

Parenttopic:ImageAspectRatio

Relatedreferences

InputSignalSettings-SignalMenu

Relatedtasks

SettingtheScreenType

AvailableImageAspectRatio

You can select the following image as spectratios, depending on these selected Screen Types setting and the inputs signal from your images source.

Note: Black bands and cropped or stretched images may project in certain aspect ratios, depending on theaspectratioandresolutionofyourinputsignal.

ScreenTypesettingAvailableaspectratios

4:3Auto,Normal,4:3,16:9,H-Zoom,V-Zoom,Native*

16:9Auto,Normal,Full,H-Zoom,V-Zoom,Native

16:10Auto,Normal,16:9,Full,H-Zoom,V-Zoom,Native

*AvailableonlywhenprojectingcomputerimagesorfromsourcesconnectedtotheHDMIport

AspectratiosettingDescription
AutoAutomaticallysetstheaspectratio	accordingtotheinputsignal.
NormalDisplaysimagesinthesame	aspectratiooftheinputsignal.
4:3Displaysimagesata4:3aspectratio.
16:9Displaysimagesata16:9aspectratio.
FullDisplaysimagesusingthefullsize	oftheprojectionarea,butdoes notmaintaintheaspectratio.
H-ZoomV-Zoom	Displaysimagesusingthefullwidth(H-Zoom)orfullheight(V-Zoom)oftheprojectionareaandmaintainstheaspectratioofthe image.Areasthatexceedtheedgesoftheprojectedscreenarenot projected.
NativeDisplaysimagesasis(aspectratioandresolutionaremaintained).Areasthatexceedtheedgesoftheprojectedscreenarenotprojected.

Parenttopic:ImageAspectRatio

Relatedtasks

SettingtheScreenType

ColorMode

TheprojectoroffersdifferentColorModestoprovideoptimumbrightness,contrast,andcolorfora varietyofviewingenvironmentsandimagetypes.Youcanselectamodedesignedtomatchyourimage andenvironment,orexperimentwiththeavailablemodes.

If you always want to use a particular color mode for certain video inputs, you can select it using the projectormenus.

ChangingtheColorMode

AvailableColorModes

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

ImageQualitySettings-ImageMenu

ChangingtheColorMode

Youcanchangetheprojector'sColorModeusingtheremotecontroltooptimizetheimageforyourviewingenvironment.

1. Turnon the projector and switch to the images source you want to use.

2. If you are projecting from a DVD player or other videos source, insert ad disc or other videomedia and press the play button, if necessary.

3.PresstheColorModebuttonontheremotecontroltochangetheColorMode.

The image appearance changes and then a name of the Color Mode appears briefly on the screen.

1. To cycle through all the available Color Modes for your input signal, press the Color Mode button repeatedly.

Parenttopic:ColorMode

AvailableColorModes

YoucansettheprojectortousetheseColorModes,dependingontheinputsourceyouareusing:

ColorModeDescription
DynamicBestforprojectinginabrightroom
PresentationBestforcolorpresentationsinabrightroom
NaturalBestforprojectingstillpictures suchasphotos
CinemaBestformoviesprojectedinadarkroom
BT.709BestforwatchingdigitalTVorB	lu-raydiscs;producesimagesthatconformtothelTU-RBT.709standard
DICOMSIM*BestforprojectingX-rayphotographsandothermedicalimages
Multi-ProjectionBestforprojectingfrommultipleprojectors(reducesthecolortonedifferencebetweenimages)

*AvailableonlywheninputtingRGBsignals

Note: The DICOM SIM Color Mode is for reference purposes only and should not be used to make medical diagnoses.

Parenttopic:ColorMode

AdjustingtheBrightness

Youcanadjustthebrightnessofyourprojector'slightsource.

1. Turnon the projector and switch to the images source you want to use.
   2.PresstheMenubutton.
2. SelecttheSettingsmenuandpressEnter.

4. SelecttheBrightnessSettingssettingandpressEnter.

5. Select the Light Source Modesetting and press Enter.

6. Selectoneofthefollowingoptions:

•Normal: Setsbrightnesstothemaximumlevel(idealforconferencerooms, auditoriums, and lecturehalls)
- Quiet: Sets brightness to 70% and reduces fan noise (ideal for libraries, theaters, museums, and artgalleries)
- Extended: Sets brightness to 70% and extends the life expectancy of the light source (ideal for darkerenvironmentswithambientlight,suchasmuseumsandartgalleries,whereareduced maintenancecycleisdesired)
- Custom: Allowsyoutoselectacustombrightnesslevelbetween30to100%

Note: SomelenseswillnotsupportthemaximumbrightnesslevelofthePro L1715SNL/L1750UNL/L1755UNLandyoumaynotbeabletoselectoradjustsomeoftheoptions on this screen. Visit epson.com/lenssupport (U.S.) or epson.ca/soutienobjectifs (Canada) for details.

1. If you selected Custom, select Brightness Level from the Brightness Settings screen and use the leftandrightarrowbuttonstoselectthebrightness.

2. If you selected Custom and want to maintain consistent brightness, turn on the Constant Brightness setting.

Note: If you turn on Constant Brightness, you cannot change the Light Source Mode and Brightness Level settings. If you turn off Constant Brightness, the Brightness Level setting changes according to the status of the light source.

1. PressMenuorEsctoexitthemenus.

Note: If you use the projector continuously for more than 24 hours, or regularly turn it off by shutting off the power outlet, schedule periodic Light Source Calibration events from the Extended menu. Otherwise, the Constant Brightness setting may not work properly.

ConstantBrightnessUsageHours

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

Relatedtasks

SavingaScheduledEvent

ConstantBrightnessUsageHours

If you turn on the Constant Brightness setting, the number of hours the projector can maintain constant brightnessisdisplayedastheEstimatedRemainssetting.

DisplaylevelEstimatedremaining	hours
	10000ormorehours
	8000to9999hours
	6000to7999hours
	4000to5999hours
	2000to3999hours
	0to1999hours

Lightsourcelifespan

The estimated life span of the light source varies depending on the Brightness Level setting and whether the ConstantBrightnesssettingisonoroff.

ConstantBrightnessoff

1Brightnesslevel
2Timebeforethebrightnessofthelightsourceisreducedbyhalf(approximate)

BrightnessLevelsettingHours
100%20000hours
90%21000hours
80%24000hours
70%30000hours
60%37000hours
50%47000hours
40%61000hours
30%71000hours

ConstantBrightnesson

1Brightnesslevel

2Timetheprojectorcanmaintainconstantbrightness(approximate)

BrightnessLevelsettingHours
90%6000hours
80%10000hours
70%19000hours
60%29000hours
50%41000hours
40%56000hours
30%78000hours

Note: The lightsourceusage hours vary depending upon environmental conditions and usage. The hours listed here are an approximate and are not guaranteed. After 2000 hours of use, you may need to replace parts in the projector. If Constant Brightness is turned on, and you have exceeded the usage hours listed here, you may not be able to select a high brightness level setting.

Parenttopic:AdjustingtheBrightness

TurningOnAutomaticLuminanceAdjustment

In the Dynamic and Cinema color modes, you can turn on the Dynamic Contrast setting to automatically optimizetheimageluminance. This improves the image contrast based on the brightness of the content you project.

1. Turnon the projector and switch to the images source you want to use.
   2.PresstheMenubutton.

2. Select theImagemenuandpressEnter.

1. Select the Dynamic Contrast setting, choose one of the following options, and press Enter:

•Normaltoadjustbrightnessattheststandardspeed.
•HighSpeedtoadjustbrightnessassoonasthescenechanges.

1. PressMenuorEsctoexitthemenus.

Parenttopic: UsingBasicProjectorFeatures

ControllingtheVolumewiththeVolumeButtons

YoucanusetheVolumebuttonsontheremotecontroltoadjustthevolumeeasyouprojecta presentationwithaudio. Thevolumebuttonscontrolanyexternalspeakersyouconnectedtothe projector.

Youmustadjustthevolumeseparatelyforeachconnectedinputsource.

1. Turnontheprojectorandstartapresentationthatincludesaudio.

2. Tolowerorraisethevolume, presstheVolumebuttonsontheremotecontrol.

Avolumegaugeappearsonthescreen.

1. Tosetthevolumetoaspecificlevelforaninputsource, usetheprojectormenus.

Parenttopic: UsingBasicProjectorFeatures

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

ConnectingtoExternalSpeakers

SettingtheDateandTime

Youcansetthedateandtimefortheprojector.

Note: If the Schedule Protection setting in the Password Protection screen is enabled, you cannot changethedral and timesettings.

1. PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.
3. SelecttheOperationsettingandpressEnter.
4. SelecttheDate&TimesettingandpressEnter.

Youseeascreenlikethis:

1. Select your date and time settings. Then select Set and press Enter to confirm your changes.

2. When you are finished, press the Menubuttonto exit.

DateandTimeSettings

Parenttopic: UsingBasicProjectorFeatures

Relatedconcepts

PasswordSecurityTypes

DateandTimeSettings

SettingsOptionsDescription
Date&TimeDate	TimeTimeDifference(UTC)	Adjuststheprojector'sdateandtime settingsDateandTime:setsthedateandtimeTimeDifference(UTC):setsthetime differencefromCoordinatedUniversal Time
SettingsOptionsDescription
DaylightSavingTimeDaylight	DSTStart	Adjuststhedaylightsavingtime settings
	DSTEnd	DaylightSavingTime:enablesor disablesdaylightsavingtime
	DSTAdjustment(min)	DSTStartandDSTEnd:setsthedate andtimetostartorenddaylightsaving time
		DSTAdjustment(min):setsthedifferencebetweenstandardand daylightsavingtime
InternetTimeInternetTime	InternetTimeServer	Automaticallyadjuststhetimethrough anInternetconnection
		InternetTime:turnonthissettingto updatethedateandtimeautomatically throughanInternettimeserver
		InternetTimeServer:setsthelP addressforthelInternettimeserver

Parenttopic: SettingtheDateandTime

AdjustingProjectorFeatures

Followtheinstructionsinthesesectionstouseyourprojector'sfeatureadjustments.

ShuttingOffthePictureandSoundTemporarily

StoppingVideoActionTemporarily

ZoomingIntoandOutofImages

ProjectorSecurityFeatures

ProjectingTwoImagesSimultaneously

UsingAdvancedImageAdjustmentFeatures

UsingMultipleProjectors

EnablingProtocolEmulation

Viewing3DImages

SavingSettingstoMemoryandUsingSavedSettings

SavingaScheduledEvent

CopyingMenuSettingsBetweenProjectors

ShuttingOffthePictureandSoundTemporarily

Youcantemporarilyturnofftheprojectedpictureandsoundifyouwanttoredirectyouraudience's attentionduringapresentation.Anysoundorvideoactioncontinuestorun,however,soyoucannot resumeprojectionatthepointthatyoustoppedit.

If you want to display an images such as a company logo or picture when the presentation is stopped, you can setup this feature using the projector's menus.

Note: If the picture and sound are off for more than 2 hours, the power automatically turns off. You can disabletheA/VMuteTimersettingintheExtendedMenutoturnoffthisfeature.

1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.

1. Toturnthepictureandsoundbackon, presstheA/VMutebuttonagain.

Note: To fade the image in and out when you use A/V Mute, turn on the Fade-out and/or Fade-in settingsintheExtendedmenu.

Note: If you selected A/V Mute as the A/V Mute Release setting in the Extended menu, you can still control the projector while A/V Mute is enabled.

Parenttopic: AdjustingProjectorFeatures

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

StoppingVideoActionTemporarily

Youcantemporarilystoptheactioninavideoorcomputerpresentationandkeepthecurrentimageon thescreen.Anysoundorvideoactioncontinuestorun,however,soyoucannotresumeprojectionatthe pointthatyoustoppedit.

1. PresstheFreezebuttonontheremotecontroltostopthevideoaction.

1. Torestartthevideoactioninprogress, pressFreezeagain.

Parenttopic: AdjustingProjectorFeatures

ZoomingIntoandOutofImages

Youcandrawattentiontopartsofapresentationbyzoomingintoaportionoftheimageandenlargingit onthescreen.

Note: This feature is unavailable if the Scale setting in the Signal menu is enabled. If you see a 4K Enhancementmessage, select Yestodisablethe4KEnhancementfeature.

1. PresstheE-Zoom+buttonontheremotecontrol.

Youseeacrosshaironthescreenindicatingthecenterofthezoomarea.

1. Usethefollowingbuttonsontheremotecontroltoadjustthezoomedimage:

2. Usethearrowbuttonstopositionthecrosshairintheimageareayouwanttozoominto.

3. PresstheE-Zoom+buttonrepeatedlytozoomintotheimagearea,enlargingitasnecessary.
4. Toparoundthezoomedimagearea, usethearrowbuttons.
5. Tozoomoutoftheimage, press the E-Zoom-button as necessary.
   • Toreturntotheoriginalimagesize, pressEsc.

Parenttopic: AdjustingProjectorFeatures

Relatedreferences

InputSignalSettings-SignalMenu

ProjectorSecurityFeatures

You can secure your project to do better theft or prevent unintended use by setting up the following security features:

• Passwordsecuritytopreventtheprojectorfrombeingturnedon,andpreventchangestothestartup screenandothersettings.
• Buttonlocksecuritytoblockoperationoftheprojectorusingthebuttonsonthecontrolpanelorremote control.
  • Securitycablingtophysicallycabletheprojectorinplace.

PasswordSecurityTypes

LockingtheProjector'sButtons

LockingtheRemoteControlButtons

InstallingaSecurityCable

Parenttopic: AdjustingProjectorFeatures

PasswordSecurityTypes

Youcansetupthesetypesofpasswordsecurityusingonesharedpassword:

• Power On Protection password prevents anyone from using the projector without first entering a password.
• User's Logo Protection password prevents anyone from changing the custom screen the projector candisplaywhenitturnson. The presenceofthecustomscreendiscouragestheftbyidentifyingthe projector'sowner.
• Network Protection password prevents anyone from changing the network settings in the projector menus.
• Schedule Protection password prevents anyone from changing the projector's time or schedule settings.
• Remote Camera Access password prevents anyone from changing the projector's Remote Camera AccesssettingintheNetworkmenu.

Note: Additional security measures are available for the Remote Camera Access feature. Contact Epsonford details.

SettingaPassword

SelectingPasswordSecurityTypes

EnteringaPasswordtoUsetheProjector

SavingaUser'sLogolmagetoDisplay

Parenttopic:ProjectorSecurityFeatures

SettingaPassword

Tousepasswordsecurity,youmustsetapassword.

Note: The default passwordissetto0000.

1. Hold down the Freeze button on the remote control for about five seconds or until you see this menu.

2.PressthedownarrowtoselectPasswordandpressEnter.

Youseetheprompt"Changethepassword?".

1. SelectYesandpressEnter.

2. Press and hold down the Num button on the remote control and use the numeric buttons to set a four-digit password.

Thepassworddisplaysas****asyouenterit. Thenyouseetheconfirmationprompt.

5.Enterthepasswordagain.

Youseethemessage"Passwordaccepted."

1. PressEsctoreturntothemenu.

2. Make anote of the password and keep it in as a safe place in case you forget it.

Parenttopic:PasswordSecurityTypes

SelectingPasswordSecurityTypes

Aftersettingapassword,youseethismenu,allowingyoutoselectthepasswordsecuritytypesyouwanttouse.

If you do not see this menu, hold down the Freeze button on the remote control for about five seconds or untilthemenuappears.

• To prevent unauthorized use of the projector, select Power On Protection, press Enter, select On, pressEnteragain,andpressEsc.
• To prevent changes to the User's Logo screen or related display settings, select User's Logo Protection, press Enter, select On, press Enter again, and press Esc.
• To prevent changes to network settings, select Network Protection, press Enter, select On, press Enteragain,andpressEsc.
• To prevent changes to the projector's time or schedule settings, select Schedule Protection, press Enter, select On, press Enter again, and press Esc.
• To prevent changes to the projector's Remote Camera Access settings in the Network menu, select Remote Camera Access, press Enter, select On, press Enter again, and press Esc.

Note: Be sure to keep the remote control in a safe place; if you lose it, you will not be able to enter the passwordrequiredtousetheprojector.

Parenttopic:PasswordSecurityTypes

EnteringaPasswordtoUsetheProjector

If a password is set up and a Power On Protection password is enabled, you see a prompt to enter a passwordwheneveryouturnontheprojector.

Youmustenterthecorrectpasswordtousetheprojector.

1. Press and hold down the Num button on the remote control while you enter the password using the numericbuttons.

Note: The default password is 0000.

Thepasswordscreencloses.

1. If the password is incorrect, the following may happen:

2. Youseea"wrongpassword"messageandaprompttotryagain.Enterthecorrectpasswordto proceed.

3. If you enter an incorrect password several times in succession, the projector displays are request code and messages to contact Epson Support. Donot attempt to enter the password again. When you contact Epson Support, provided displayed request code and proof of ownership for assistance in unlocking the projector.

Parenttopic:PasswordSecurityTypes

SavingaUser'sLogolmagetoDisplay

Youcantransferanimagetotheprojectorandthendisplayitwhenevertheprojectorturnson. Youcan alsodisplaytheimagewhentheprojectorisnotreceivinganinputsignalorwhenyoutemporarilystop projection(usingtheA/VMutefeature). ThistransferredimageiscalledtheUser'sLogoscreen.

The imageyouselectastheUser'sLogocanbeaphoto,graphic,orcompanylogo,whichisusefulin identifyingtheprojector'sownertohelpdetertheft.YoucanpreventchangestotheUser'sLogoby settinguppasswordprotectionforit.

1. DisplaytheimageyouwanttoprojectastheUser'sLogo.

2. Press the Menu button, select the Extended menu, and press Enter.

1. SelecttheUser'sLogosettingandpressEnter.

Youseeapromptaskingifyouwanttousethedisplayedimageasauser'slogo.

1. SelectYesandpressEnter.

Youseeaselectionboxoverlayingyourimage.

1. Use the arrow button son theremote control to surround the image area you want to use the User's Logo and press Enter.

Youseeapromptaskingifyouwanttoselectthisimagearea.

1. Select Yes and press Enter. (If you want to change the selected area, select No, press Enter, and repeatthelaststep.)

YouseetheUser'sLogozoomfactormenu.

1. SelectazoompercentageandpressEnter.
   YouseeapromptaskingifyouwanttosavetheimageastheUser'sLogo.
2. SelectYesandpressEnter.
   Youseeacompletionmessage.
3. PressEsctoexitthemessagescreen.
4. SelecttheExtendedmenuandpressEnter.
5. SelectDisplayandpressEnter.

6. SelectwhenyouwanttodisplaytheUser'sLogoscreen:

7. To display it whenever there is no input signal, select Display Background and set it to Logo.
   • To display it whenever you turn the projector on, select Startup Screen and set it to On.

8. To display it whenever you press the A/V Mute button, select A/V Mute and set it to Logo.

TopreventanyonefromchangingtheUser'sLogosettingswithoutfirstenteringapassword,seta passwordandenableUser'sLogosecurity.

Parenttopic: PasswordSecurityTypes

LockingtheProjector'sButtons

Youcanlockthebuttonsontheprojector'scontrolpaneltopreventanyonefromusingtheprojector.You canlockallthebuttonsonallthebuttonsexceptthepowerbutton.

1. PresstheMenubutton.

2. SelecttheSettingsmenuandpressEnter.

1. SelectLockSettingandpressEnter.

2. SelecttheControlPanelLocksettingandpressEnter.

Note: You can also press the left arrow button on the control panel to display the Control Panel Lock screen.

1. SelectoneoftheselocktypesandpressEnter:

- Tolockalloftheprojector'sbuttons,selectFullLock.

- Tolockallbuttonsexceptthepowerbutton,selectPartialLock.

Youseeaconfirmationprompt.

1. SelectYesandpressEnter.

UnlockingtheProjector'sButtons

Parenttopic: ProjectorSecurityFeatures

Relatedtasks

UnlockingtheProjector'sButtons

UnlockingtheProjector'sButtons

If the projector's buttons have been locked, hold the Enter button on the projector's control panel for seven seconds to unlock them. You can also set the Control Panel Lock setting to Off in the Settings menu.

Parenttopic:LockingtheProjector'sButtons

LockingtheRemoteControlButtons

Youcanlocksomeofthebuttonsontheremotecontrol.

To lock the remote control buttons related to lens operation, turn on the Lens Lock setting in the Settingsmenu.

To lock the remote control buttons shown here, press and hold the Home button on the remote control for approximately5seconds.(Tounlockthebuttons,pressandholdtheHomebuttonagainfor approximately5seconds.)

Note: If you lock the remote control buttons, you can still reset the Remote Receiver setting in the Settingsmenutothedefaultsettings.

Parenttopic: ProjectorSecurityFeatures

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

InstallingaSecurityCable

Youcaninstalltwotypesofsecuritycablesontheprojectortodetertheft.

• Use the security slot on the project to attack a Kensington lock. See your local computer or electronics dealer for purchase information.
• Use the security cable attachment point on the project to attach a wire cable and secure it to a room fixture or heavy furniture.

Line drawing of a car front panel with a blue cable and ventilation grilles (no text or symbols)

Note: Do not pass drop-prevention cables through the security cable attachment point when mounting the projectoronawallorceiling.

Parenttopic: ProjectorSecurityFeatures

ProjectingTwolmagesSimultaneously

Youcanusethesplitscreenfeaturetosimultaneouslyprojecttwoimagesfromdifferentimagesourcesnexttoeachother.Youcancontrolthesplitscreenfeatureusingtheremotecontrolortheprojectormenus.

Note: While you use the split screen feature, other projector features may not be available and some settingsmaybeautomaticallyappliedtobothimages.

1. PresstheSplitbuttonontheremotecontrol.

The currently selected inputs our current movest the left side of the screen.

2.PresstheMenubutton.

Youseethisscreen:

1. To select an input source for the other image, select the Source setting, press Enter, select the input source, select Execute, and press Enter. (You can also change image sources, if necessary.)
2. To switch the images, select the Swap Screens setting and press Enter.
3. To change the image sizes, select the Screen Size setting, press Enter, select a sizing option, pressEnter,andpressMenutoexit.

Note: Depending on the video input signals, the images may not appear at the same size even if you choose the Equal setting.

1. To choose the audio you want to hear, select the Audio Source setting, press Enter, select an audiooption, press Enter, and press Menutoexit.
2. Toexitthesplitscreenfeature, presstheSplitorEscbutton.

InputSourcesforSplitScreenProjection

Parenttopic: AdjustingProjectorFeatures

InputSourcesforSplitScreenProjection

You can choose from the input source combinations listed here for splitscreen projection.

Note: InputsignalsexceedingWUXGAarenotsupported.Ifyouseea4KEnhancementmessage, selectYestodisablethe4KEnhancementfeature.

LeftScreenRightScreen
	HDMIHDBaseTDVI-D		SDI*ComputerBNCLAN
HDMI—		√	√	√	√	√	√
HDBaseT—	√		√	√	√	√	√
DVI-D—	√	√		√	√	√	√
SDI*———	√	√	√
Computer	√	√	√	——	—
BNC	√	√	√	——	—
LAN———	√	√	√

*Pro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNLonly

Parenttopic: Projecting TwoImages Simultaneously

Using Advanced Image Adjustment Features

Followtheinstructionsinthesesectionstouseyourprojector'sadvancedimageadjustments.

UsingFrameInterpolation

Using4KEnhancement

CreatingImagePresets

UsingMPEGNoiseReduction

AdjustingScaledResolutionImages(Super-resolution)

AdjustingDetailEnhancement

AdjustingtheColorConvergence(PanelAlignment)

AdjustingtheColorTone(ColorUniformity)

RunningLightSourceCalibration

Parenttopic: AdjustingProjectorFeatures

UsingFrameInterpolation

Youcanusetheprojector'sFrameInterpolationfeatureosmoothfast-movingvideobycomparing consecutiveimageframesandinsertinganintermediateimageframebetweenthem.

You cannot us this feature in any of the following conditions:

- You are using the E-Zoom feature

•TheimagesignalexceedsWUXGA

- You turned on the 4K Enhancement, Edge Blending, or Scale settings

- You selected Fast 1 or Fast 2 as the Image Processing setting

- YouselectedV-ZoomastheAspectsetting

1. PresstheMenubutton.

2. SelecttheFrameInterpolationsettingandpressEnter.

Youseeascreenlikethis:

1. SelectthelevelofinterpolationandpressEnter.
2. When you are finished, press the Menubutton.

Note: If your resulting images contain noise, turn off the Frame Interpolation setting.

Parenttopic: Using Advanced Image Adjustment Features

Relatedreferences

ImageQualitySettings-ImageMenu

ProjectorFeatureSettings-SettingsMenu

ProjectorSetupSettings-ExtendedMenu

Using4KEnhancement

Using the projector's 4K Enhancement Technology, you can receive 4K (3840×2160 pixel) signals and project ultrahigh-definition images. This technology shift each pixel diagonally by 0.5 pixel to double the imager resolution.

1. PresstheMenubutton.

Youseeascreenlikethis:

1. Select the Image Enhancement setting and press Enter.
2. Selectthe4KEnhancementsettingandpressEnter.

1. SelectoneofthefollowingoptionsandpressEnter:

2. Offtodisable4Kenhancementwhenprojectingfromcomputersormultipleprojectors
   •FullHDtoenhanceasignalwitharesolutionof1080i/1080p/WUXGAorhigher
   •WUXGA+toenhanceasignalwitharesolutionexceedingWUXGA;whenprojectingahigh-resolution movie, select WUXGA+ along with an appropriate Image Preset Mode setting

Note: If you select Full HD or WUXGA+, the following adjustment settings are canceled: Edge Blending, Scale, Curved Surface, Point Correction, and Corner Wall.

1. PressMenuorEsctoexitthemenus.

Parenttopic: Using Advanced Image Adjustment Features

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

ProjectorSetupSettings-ExtendedMenu

CreatingImagePresets

Youcanquicklyoptimizeyourprojectedimagebyselectingimageadjustmentsettingsandsavingthem asapresetyoucanreuselater.

Youcansavethefollowingsettingsinapreset:

• NoiseReduction
  •MPEGNoiseReduction
  •Super-resolution
  •DetailEnhancement

1.PresstheMenubutton.

Youseeascreenlikethis:

1. Select the Image Enhancement setting and press Enter.

2. Select theImagePresetModesettingandpressEnter.

1. SelectoneofthepresetsandpressEnter.

Note: If you select a previously used preset, your new adjustment so over writ the old ones.

1. PressEsctoreturntothelmageEnhancementmenu.

6.Fine-tunethefollowingsettings:

• NoiseReduction
  •MPEGNoiseReduction
  •Super-resolution
  •DetailEnhancement

• PressMenuorEsctoexitthemenus.

ThecurrentlyselectedImagePresetModewillbeupdatedwiththecurrentsettings.

Parenttopic: Using Advanced Image Adjustment Features

Relatedreferences

ImageQualitySettings-ImageMenu

UsingMPEGNoiseReduction

If you are projecting MPEG movies, you can reduce dots and block noise by adjusting the MPEG Noise Reductionsetting.

You cannot us this feature in any of the following conditions:

•TheimagesignalexceedsWUXGA
•Youturnedonthe4KEnhancementsetting

•YouturnedofftheImagePresetModesetting

1.PresstheMenubutton.

Youseeascreenlikethis:

1. Select the Image Enhancement setting and press Enter.
2. Select the MPEG Noise Reduction setting and press Enter.

1. SelectthelevelofnoisereductionandpressEnter.
2. PressMenuorEsctoexitthemenus.

Parenttopic: Using Advanced Image Adjustment Features

Relatedtasks

Using4KEnhancement

AdjustingScaledResolutionImages(Super-resolution)

Youcansharpenblurry, low-resolutionimagesthathadtheirresolutionscaledupforprojectionusingthe Super-resolutionsetting.

1. Turnon the projector and switch to the images source you want to use.

2.PresstheMenubutton.

Youseeascreenlikethis:

1. Select the Image Enhancement setting and press Enter.

2. SelecttheSuper-resolutionsettingandpressEnter.

1. Adjusteachofthefollowingoptionsasnecessary:

•FineLineAdjusttoenhancefinedetailssuchashairandfabricpatterns

- SoftFocusDetailtoenhancetheoutline,background,andmainpartsofanimation

Note: Highervalues increase the intensity of the effect.

1. PressMenuorEsctoexitthemenus.

Parenttopic: Using Advanced Image Adjustment Features

AdjustingDetailEnhancement

Youcanenhancethecontrastindetailedareasofanimagetocreateamoretexturedlook.

1. Turnon the projector and switch to the imagesource you want to use.
   2.PresstheMenubutton.

Youseeascreenlikethis:

1. Select the Image Enhancement setting and press Enter.
2. SelecttheDetailEnhancementsettingandpressEnter.

1. Adjusteachofthefollowingoptionsasnecessary:

•Strengthtoadjusttheimagecontrast

• Rangetoadjusttheenhancedareaoftheimage

Note: Highervalues increase the intensity of the effect.

1. PressMenuorEsctoexitthemenus.

Parenttopic: Using Advanced Image Adjustment Features

AdjustingtheColorConvergence(PanelAlignment)

YoucanusethePanelAlignmentfeaturetomanuallyadjustthecolorconvergence(thealignmentofthe red,greenandbluecolors)intheprojectedimage.

Note: Allow your projector to warm up for at least 10 to 15 minutes and make sure the image is in focus before you set the Panel Alignment feature. The projected images should be least 60 inches (152cm) diagonally and the projections surfaces should not be colored or textured; otherwise the adjustment grids are difficult to align.

1.PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.

1. SelecttheDisplaysettingandpressEnter.
2. SelectthePanelAlignmentsettingandpressEnter.

3. PressEnterandselectOn.

4. PressEsc.

5. SelecttheSelectColorsettingandchooseoneofthefollowing:

•Rtoadjusttheredcolorconvergence
•Btoadjustthebluecolorconvergence

Note: You can adjust only the red or blue color convergence; you cannot adjust the standard green colorpanel.

1. SelectthePatternColorsettingandpressEnter.
2. Select the pattern you want to use and press Esc.
3. SelectStartAdjustmentsandpressEntertwice.

Youseethisscreen:

1. Use the arrow button on theremote control to adjust the color alignment in the corner of the screen highlighted by the orange box.
   12.PresstheEnterbuttontomovetothenextcornerofthescreen.
2. When you are finished adjusting each corner of the screen, press Enter.

Youseethisscreen:

14.Dooneofthefollowing:

• If your projector's panel alignment is now correct, select Exit and press Enter to return to the PanelAlignmentmenu.
• If your projector needs additional panel alignment, select Select Intersection and adjust and press Enter. Use the arrow key son theremote control to highlight the corner of any box on the screen that is misaligned and press Entertoadjust the color convergence. Repeat this step as necessary.

Parenttopic: Using Advanced Image Adjustment Features

AdjustingtheColorTone(ColorUniformity)

YoucanusetheColorUniformityfeaturetomanuallyadjustthecolortonebalanceintheprojected image.

1.PresstheMenubutton.

1. SelecttheExtendedmenuandpressEnter.

1. SelecttheDisplaysettingandpressEnter.
2. SelecttheColorUniformitysettingandpressEnter.

Youseethisscreen:

1. PressEnterandselectOn.

2. PressEsc.

3. SelecttheAdjustmentLevelsettingandpressEnter.
   8.Presstherightandlextarrowbuttonstoadjustthelevel,thenpressEsc.

4. SelecttheStartAdjustmentssettingandpressEnter.

1. Select the area of the screen that you want to adjust and press Enter.
2. Select the color (Red, Green, or Blue) you want to adjust, and use the left arrow button to weaken the colortone and therightarrowbuttontostrengthenthecolortone.
3. PressEsc.
   13.Repeatsteps10and11foreachareayouwanttoadjust.
4. When you are finished, press the Menubutton.

Parenttopic: Using Advanced Image Adjustment Features

RunningLightSourceCalibration

Lightsourcecalibrationautomaticallyadjustsanydifferencebetweenthewhitebalanceandthe brightnesslevelofthelightsource.Youshouldperformlightsourcecalibrationevery100hoursof projectorusage.Youcanalsoscheduleautomaticcalibrationorrunthelightsourcecalibrationmanually usingthemenus.

Note: To perform a light source calibration, the projector must have been on for at least 20 minutes and the projector brightness must not be automatically dimmed duetohight temperatures.

1.PresstheMenubutton.

1. SelecttheResetmenuandpressEnter.

Youseeascreenlikethis:

1. SelectLightSourceCalibrationandpressEnter.
2. Selectanyofthefollowing:

- Torunthelightsourcecalibrationnow,selectRunNow.

• To automatically run the light source calibration every 100 hours of projector usage, select Run Periodically.
• Toscheduleautomaticcalibration, selectScheduleSettings.

• Toseethelasttimetheprojectorperformedacalibration,selectLastRun.

• When you are finished, select Return and press the Enter button to return to the Reset menu.

Parenttopic: Using Advanced Image Adjustment Features

Relatedtasks

SavingaScheduledEvent

UsingMultipleProjectors

Youcan combinetheprojected images from two or more projector to create one large image. Follow the instructions in these section to setup and project from multiple projectors.

MultipleProjectorAdjustmentOverview

ProjectorIdentificationSystemforMultipleProjectorControl

TilingImagesintoOneImage

BlendingthelmageEdges

AdjustingtheBlackLevel

MatchingTintandBrightness(ScreenMatching)

ScalinganImage

Parenttopic: AdjustingProjectorFeatures

MultipleProjectorAdjustmentOverview

If you are combining images from multiple projector sonanetwork, you can assign none projector as the "master" and automatically adjust all the images to match the "master" image. If the projectors are not connected to an network, you can match each projector's images manually.

Note: Make sure all networked projectors are connected using LAN cables and have been assigned an IP address. Also disable the 4K Enhancement and Sleep Mode settings on each projector so they do not turnoff during adjustment.

1. Turnonalltheprojectors.

2. To select a master projector for automatic adjustment, select Custom for the Light Source Mode setting and set the Brightness Level setting to the maximum value for all projectors. The projector withthedarkestprojectedimageisthemasterprojector.
   3.Dooneofthefollowing:

3. Forautomaticadjustment, setanIDforthemasterprojectorandtheremotecontrol.
   -Formanualadjustment,setanIDforeachprojectorandtheremotecontrol.

4. Adjust each projector's physical position and angle to the screen.
   5.Dooneofthefollowing:

5. For automatic adjustment, configuretiling automatically.
   -Formanualadjustment,configuretilingmanually.

6. Adjust the image aspect ratio of foreach projector.

7. Adjust the position of the image for each projector using lens shift.

8. Adjust the zoom and focus for each projector.
9. Adjust small differences in the images using the Point Correction setting.

10. Adjust the edges of the images using the Edge Blending and Black Level settings.

11. Adjust the brightness and tint of the images using the Screen Matching setting.

12. SelectsectionsoftheimagesusingtheScalesetting.

Parenttopic: Using Multiple Projectors

Relatedconcepts

WiredNetworkProjection

ProjectorIdentificationSystemforMultipleProjectorControl

ProjectorPlacement

ImageAspectRatio

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

Relatedtasks

TurningOntheProjector

AdjustingtheImagePositionUsingLensShift

AdjustingtheImagePositionUsingScreenPosition

ResizingthelmagewiththeZoomButton

FocusingtheImageUsingtheFocusButtons

CorrectingImageShapewithPointCorrection

BlendingthelmageEdges

AdjustingtheBlackLevel

ScalinganImage

Relatedtopics

TilingImagesintoOneImage

MatchingTintandBrightness(ScreenMatching)

ProjectorIdentificationSystemforMultipleProjectorControl

Youcanoperatemultipleprojectorsusingoneremotecontrolformoreelaboratepresentations. Todo this, youassignanidentificationnumbertoeachprojectorandtotheremotecontrol. Thenyoucan operatealltheprojectorsatonceorindividually.

SettingtheProjectorID

SettingtheRemoteControlID

Parenttopic: UsingMultipleProjectors

SettingtheProjectorID

If you want to control multiple projectors from a remote control, give each projector a unique ID.

1. PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.

3. SelecttheMulti-ProjectionsettingandpressEnter.

4. SelectProjectorIDandpressEnter.

5.Presstheleftorightarrowbuttonsontheremotecontroltoselecttheidentificationnumberyou wanttousefortheprojector.ThenselectSetandpressEnter.

Repeat the seven steps for all the other projectors you want to operate from one remote control.

Note: If you don't know the projector's ID, hold down the ID button and press the Home button to temporarily display the projector's ID on the screen.

Parenttopic: ProjectorIdentificationSystemforMultipleProjectorControl

SettingtheRemoteControlID

The remote control's ID is set to 0 by default so it can operate any compatible projector. If you want to set theremotecontroltooperateonlyaparticularprojector,youneedtosettheremotecontrol'sIDtomatch theprojector'sID.

1. Turnontheprojectoryouwanttheremotecontroltooperatewithexclusively.

2. SettheremotecontrolIDswitchtoOn.

1. Hold down the ID button on the remote control while you press the numeric button that matches the projector'sID.Thenreleasethebuttons.

Note: If you don't know the projector's ID, hold down the ID button and press the Home button to temporarily display the projector's ID on the screen. If the batteries are left out of the remote control for an extended period, theremote control is return to its default setting.

Parenttopic:ProjectorIdentificationSystemforMultipleProjectorControl

TilingImagesintoOnelmage

YoucanprojectthesameimagefromuptonineprojectorstoreateonelargeimageusingtheTiling feature.

Note: Before tiling, make sure the displayed images from your projectors are rectangular, correctly sized, and focused.

ConfiguringTilingAutomatically

ConfiguringTilingManually

Parenttopic: Using Multiple Projectors

ConfiguringTilingAutomatically

If your projectors are on an network and you have identified a master projector, you can configure tiling automatically.

1. Turnon the projector.

Note: Makesurenothingisblockingthebuilt-incameraonthefrontoftheprojector.

2.PresstheMenubutton.
3. SelecttheExtendedmenuandpressEnter.
4. SelectMulti-ProjectionandpressEnter.

Youseethisscreen:

5. SelectProjectorGroupingandpressEnter.

Youseeascreenlikethis:

1. Press the up or down arrow buttons to highlight a projector and press Enter to place a checkmark next to each projector you want to use for tiling. Then select Set and press Enter.

2. SelectTilingandpressEnter.

3. SelectTilingagainandpressEnter.

1. SelectAutoandpressEsc.

2. SelectLocationSetupandpressEnter.

Theprojectedimagesarepositionedautomatically.

1. When you seethem messageto assign projector IDs, select Yes.

Whensetupiscomplete,youseeascreenlikethis:

Note: If any of the images are not positioned correctly, select Manual in step 9 to locate the image manually.

1. Select the input signal to display an image.

Afterperformingthestepshere,adjusttheimagesforanygapsanddifferencesincolor.

Note: Do not change any of the projector names or IP addresses, or the images will not be adjusted automatically.

Parenttopic: TilingImagesintoOneImage

Relatedreferences

ProjectorParts-Front/Top

Relatedtasks

ConfiguringTilingManually

ConfiguringTilingManually

If your projectors are not on an network you were unsuccessful the images automatically, you can configure tiling manually.

1. Turnontheprojector.

2.PresstheMenubutton.

1. SelecttheExtendedmenuandpressEnter.

2. Select Multi-Projection > Tiling > Layout.

1. Select the number of rows and columns you are setting up as the Row and Column settings. Then selectSetandpressEnter.

2. Repeat the previous step with each project you are setting up before continuing with then next step.

7. SelectLocationSetupandpressEnter.

8. Select the position of each projected image as follows:

• Row Order to layout the screens from top to bottom in sequential order, starting with 1 at the top
• Column Order to layout the screens from left to right, starting with A on the left

9.Repeatthepreviousstepwitheachprojectoryouaresettingupbeforecontinuingwiththenextstep.

1. Select the input signal to display an image.

Afterperformingthestepshere,adjusttheimagesforanygapsaddifferencesincolor.

Parenttopic: TilingImagesintoOneImage

BlendingtheImageEdges

Youcanusetheprojector'sEdgeBlendingfeaturetocreateaseamlessimagefrommultipleprojectors.

Two gray rectangular blocks with a red arrow pointing to a dashed rectangle, no text or symbols present.

1.PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.
3. SelecttheMulti-ProjectionsettingandpressEnter.
4. SelecttheEdgeBlendingsettingandpressEnter.

Youseethisscreen:

1. Turn on the Edge Blending, Guide Display, and Pattern Guide settings.

Note: If the projected guide is unclear, try changing the Guide Colors setting.

1. SelecttheedgeyouwanttoblendoneachprojectorandpressEnter.

Youseeascreenlikethis:

1. SelecttheBlendingsettingandselectOn.
2. SelecttheBlendStartPositionsettingandadjustthepointwhereedgeblendingbegins.
3. Select the Blend Range setting and use the arrow buttons to select the width of the blended area so that the displayed guides are at the edges of the overlapping area between the two images.

Two overlapping rectangular shapes with a vertical gradient line between them (no text or symbols)

1. Press Esctogobacktothepreviousscreen.
2. SelecttheBlendCurvesettingandselectagradientfortheshadedareaontheprojectors.
3. When the edges are blended, turn off the Guide Display and Pattern Guide settings to check the finalsettings.
4. When you are finished, press the Menubutton.

Parenttopic: Using Multiple Projectors

AdjustingtheBlackLevel

Whentwoimagesoverlap, the overlapping area can appear differently from the area that donot overlap. You can use the projector's Black Level setting to make the difference less noticeable.

Diagram showing a red arrow pointing to a vertical line between two black rectangular regions, with no text or symbols present.

Note: You may not be able to adjust the black levels correctly if the Geometry Correction settings are settohigh. The brightness and tone of the overlapping areas may differ from therestof the image even after adjusting the black level.

1.PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.
3. SelecttheMulti-ProjectionsettingandpressEnter.
4. SelecttheBlackLevelsettingandpressEnter.

Youseethisscreen:

1. Select the Color Adjustment setting and press Enter.

You see a screen based on the Top Edge, Bottom Edge, Right Edge, and Left Edge settings you selected for the Edge Blending setting.

Note: The Color Adjustment setting is automatically adjusted when selecting Start Auto Adjustment in the Screen Matchingscreen.

1. Select the area you want to adjust and press Enter.

Note: The areayou selected disdisplayed in orange. Adjustoverlapping areas starting with the brightest areas first. Forexample, adjust area 2tomatch area 1, then adjust area 3tomatch area 2.

1. Adjust the brightness and tone of the area that don to overlaptomatch the area that overlap using the displayed adjustments sliders.

8.Repeattheprevioustwostepsasneededuntilallareasmatch.
9. If the tone of some areas do not match, you can adjust them using the Area Correction setting. Continue with then next step. Otherwise, press the Menubutton to exit.
10.PresstheEscbuttontoreturntotheBlackLevelscreen.
11. SelecttheAreaCorrectionsettingandpressEnter.
12. SelecttheStartAdjustmentssettingandpressEnter

Youseeascreenwithboundarylinesindicatingareasthatareoverlapping.Theboundarylinesare based on the Top Edge, Bottom Edge, Right Edge, and Left Edge settings you selected for the EdgeBlendingsetting.

1. UsethearowbuttonstoselectaboundarylineandpressEnter.

Youseeascreenlikethisdisplayingthepointsyoucanusetosettheadjustmentrange:

Diagram showing light rays converging through a lens system to form a rectangular object (no text or symbols)

1. UsethearowbuttonstoadjusttheboundarylinepositionandpresstheEnterbutton.

2. UsethearbuttonstoselectanadjustmentpointandpresstheEnterbutton.

Theselectedpointturnsorange.

1. Usethearowbuttonstomovethepoint.

1. Tomoveanotherpoint, presstheEscbuttonandrepeattheprevioustwosteps.
2. To move another boundary line, press the Esc button repeatedly until you can select a boundary line.
3. When you are finished, press the Menubutton.

Note: Changing the Top Edge, Bottom Edge, Right Edge, or Left Edge settings resets the Black Levelsettingtoitsdefaultvalue.

Parenttopic: UsingMultipleProjectors

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

MatchingTintandBrightness(ScreenMatching)

Youcanadjustthetintandbrightnessofmultipleprojectorssotheymatchbetter.Youcanalsoschedule automaticadjustmentstothetintandbrightness.

Note: Wait 20 minutes after turning on the projector before using the Screen Matching feature and darkentheroomformaximumaccuracy.Brightnessdecreasesovertime,soyoumayneedtoperform ScreenMatchingagaintocorrectlargedifferencesinbrightness.

MatchingtheScreensAutomatically

MatchingtheScreensManually

Parenttopic: Using Multiple Projectors

Relatedtasks

SavingaScheduledEvent

MatchingtheScreensAutomatically

Youcanautomaticallycorrectthebrightnessandtintformultipleprojectorsbasedonthebrightnessand tintsettingsyouselectedforthemasterprojector.

Beforeyoustart, makesureofthefollowing:

• Select Multi-Projection for the Color Mode setting and adjust the Brightness, Contrast, Color Saturation, Tint, White Balance, and Advanced settings in the Image menu, as necessary, on the masterprojector.
• Youareprojectingonamattewhitediffusionscreenthatisflatandeven.
  • The projected image is between 80 to 200 inches (203 to 508 cm) and is rectangular after tiling.
• All the projectors are connected to a network and the Location Setup setting has been configured.
• Nothingisblockingthebuilt-incameraonthefrontofeachprojector.

Note: Autoadjustment is not available for the following lenses: ELPLX02, ELPLR04, ELPLL08, or ELPLL07. After autoadjustment, themovement range for lens shift is reduced.

1. PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.
3. SelecttheMulti-ProjectionsettingandpressEnter.
4. SelecttheScreenMatchingsettingandpressEnter.

5. SelectStartAutoAdjustmentpressEnter.

Whenadjustmentstarts,youseeanadjustmentpattern.Adjustmentiscompletewhenyouseea displayedimage.

After automatic adjustment, the Color Uniformity and Color Matching settings are returned to their defaultvalues.

Parenttopic: MatchingTintandBrightness(ScreenMatching)

Relatedconcepts

ColorMode

Relatedreferences

ImageQualitySettings-ImageMenu

ProjectorParts-Front/Top

Relatedtasks

ConfiguringTilingAutomatically

MultipleProjectorAdjustmentOverview

MatchingtheScreensManually

Youcanmanuallycorrectthebrightnessandtintformultipleprojectors.

1.PresstheMenubutton.

1. SelecttheExtendedmenuandpressEnter.

2. SelecttheMulti-ProjectionsettingandpressEnter.

3. SelecttheScreenMatchingsettingandpressEnter.

Youseethisscreen:

1. Select the Color Matching setting and press Enter.

Youseethisscreen:

6.PresstheleftorrightarrowbuttonstoselectavaluefortheAdjustmentLevelsetting.

Note: There are eight adjustment levels ranging from white to black and you can adjust each level individually.

1. Press the left or right arrow buttons to adjust the color tone for the Red, Green, and Blue settings.
   8.PresstheleftorrightarrowbuttonstoadjusttheBrightnesssetting.

2. Repeat the previous three steps as necessary to adjust each adjustment level.

Parenttopic: MatchingTintandBrightness(ScreenMatching)

ScalinganImage

YoucanprojectthesameimagefrommultipleprojectorsandusetheScalefeaturetocropandcombine themintoonelargeimage.

1.PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.
3. Select the Multi-Projection setting and press Enter.
4. SelecttheScalesettingandpressEnter.

Youseethisscreen:

1. SelectoneofthefollowingastheScalesetting:

2. Auto to automatically adjust the clipped areas according to the Edge Blending and Tiling settingsyouselected
   •Manualtoadjusttheclippedareasmanually

3. Select the Scale Modesetting and select one of these options:

- ZoomDisplaytomaintaintheimageaspectratioasyouscaletheimage

•FullDisplaytoadjusttheimagetotheprojector'sscreensizeasyouscaletheimage

Four-panel diagram showing a bird flying over water and a rock formation, with no text or symbols present.

1. If you selected Auto as the Scale setting, you can skip the remaining steps. If you selected Manual, adjust each of the following options as necessary:

2. or + to scale the image horizontally and vertically at the same time
   •ScaleVerticallytoscaletheimageverticallyonly
   •ScaleHorizontallytoscaletheimagehorizontallyonly

3. Select the Clip Adjustment setting and use the arrow buttons to adjust the coordinates and size of eachimageasyouviewthescreen.

Parenttopic: UsingMultipleProjectors

EnablingProtocolEmulation

YoucanuseprotocolemulationtocontrolyourprojectorwiththesameRS-232controlcodesasthose usedbythemanufacturersofotherprojectors.Thisletssyoucontrolagroupofprojectorsfromacommon controller.

1. Makesuretheprojectoristurnedon.
2. ConnectacontrollertotheRS-232Cportontheprojector.
   3.Dooneofthefollowing:

- PressandholdtheTestPatternbuttonontheremotecontrolforatleastfiveseconds.

- Select the Extended menu, highlight the Standby Mode setting, and hold down the right arrow buttonontheremotecontrolorprojectorcontrolpanelforatleastfiveseconds.

YouseetheProtocolEmulationscreen.

1. SelectoneofthefollowingandpressEnter:

•TypePforPanasonicprojectors
•TypeMforMitsubishiprojectors
•TypeNforNECprojectors
•TypeSforSonyprojectors

1. Turntheprojectoroffandonagaintoenabletheprotocolemulationyouselected.

Parenttopic: AdjustingProjectorFeatures

Viewing3DImages

Youcanusetwoprojectorstoprojectandviewpassive3Dimages(Pro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL).

The following optional items are required:

•Polarizer

•Passive3Dglasses

• Amounttostacktheprojectors

Seetheinstructionssuppliedwiththeoptionalequipmentforsetupanduse.

Parenttopic: AdjustingProjectorFeatures

SavingSettingstoMemoryandUsingSavedSettings

Youcansavecustomizedsettingsandthenselectthesavedsettingswheneveryouwanttousethem.

1. Turnon the projector and display an image.
   2.PresstheMenubutton.

3. SelecttheSettingsmenuandpressEnter.

4. Select the Memory setting and press Enter.

Note: You can also access this screen by pressing the Memory button on the remote control.

5. Selectoneofthefollowingoptions:

- Memory: Savesorloadsvarioussettings; you cansaveupto10differentmemories

Note: The following settings are saved: all settings from the Image menu, the Scale setting from the Signal menu, and the Edge Blending, Black Level, and Color Matching settings from the Extendedmenu.

• Lens Position: Saves or loads settings related to the lens such as the lens shift, focus, zoom, and distortionadjustmentsettings;youcansaveupto10differentmemories
• Geometry Correction: Saves or loads any adjustments made in the Geometry Correction settingintheSettingsmenu;youcansaveupto3differentmemories

Youseethisscreen:

1. Selectoneofthefollowingoptions:

2. LoadMemory: Overwritesyourcurrentsettingswithsavedsettings

3. SaveMemory: Savesyourcurrentsettingstomemory

Note: Amemorynamethathasalreadybeenusedisindicatedbyamark. Savingovera previously saved memory over writes the settings with your current settings.

• EraseMemory: Erasestheselectedmemorysettings
  •RenameMemory: Renamesasavedmemory
• ResetMemory: Resetsthenameandsettingsofasavedmemory

Note: To reset all saved memories of all types, select Reset All Memories in the Reset menu.

1. PressMenuorEsctoexit.

Parenttopic: AdjustingProjectorFeatures

SavingaScheduledEvent

Youcanselectprojectorcommandsyouwanttoperformandschedulethemasanevent.

Youcannotscheduleaneventtooccuratthefollowingtimes:

- FifeminutesbeforeorafteraColorCalibrationevent

•Fiveminutesbeforeor30minutesafteraScreenMatchingevent

Note: Light Source Calibration events do not start if the projector is used continuously for more than 24 hours, or regularly turned off by shutting off the power outlet. Set Light Source Calibration events to occur only after 100 hours of projector usage.

1. PresstheMenubutton.

2. SelecttheExtendedmenuandpressEnter.

3. SelecttheScheduleSettingssettingandpressEnter.

4. SelecttheSchedulemenuandpressEnter.

5. SelectAddNewandpressEnter.

6. In the Event Settings section, select the events you want to have occur. (Select No Change for eventsthatyoudonotwanttooccur.)

7. In the Date/Time Settings section, set the date and time for the scheduled event to occur.

8. When you are finished, select Save and press Enter.

9. Toschedulemoreevents, repeat the previous steps as necessary.

10. SelectSetupcompleteandselectYestosaveyourchanges.

ViewingScheduledEvents

EditingaScheduledEvent

Parenttopic: AdjustingProjectorFeatures

ViewingScheduledEvents

Youcanviewanycurrentlyscheduledevents.

1.PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.
3. SelecttheScheduleSettingssettingandpressEnter.

Youseeascreenlikethis:

The colored boxes in the calendar indicate the following about the scheduled events:

One-timeevent
Recurringevent
Communicationison/off
Eventisinvalid

Parenttopic: SavingaScheduledEvent

EditingaScheduledEvent

Youcaneditanycurrentlyscheduledevent.

1.PresstheMenubutton.
2. SelecttheExtendedmenuandpressEnter.
3. SelecttheScheduleSettingssettingandpressEnter.

Youseeascreenlikethis:

4.Presstheleftorightarrowbuttonstohighlightthedateonthecalendarcontainingthescheduled eventyouwanttoedit.
5.Presstheupordownarrowbuttonstohighlighttheeventyouwanttoedit,andpressEsc.
6. Selectoneofthefollowing:

•On/Disabledtoenableordisabletheselectedevent.
- Edittoeditthesettingsfortheselectedevent.
- Cleartodeletetheselectedevent.
- AddNewtoaddanewscheduledevent.

1. When you are finished, select Return and press Enter.

2. SelectSetupcompleteandselectYestosaveyourchanges.

Note: To delete all scheduled events, select Schedule Reset and select Yes.

Parenttopic: SavingaScheduledEvent

CopyingMenuSettingsBetweenProjectors

Afteryouselectmenusettingsforyourprojector,youcantransferthemtoanotherprojectorofthesame model.

Note: Copy the projector's settings before you adjust the projected image using the projector's Geometry Correctionsettings.AnysavedUser'sLogosettingontheprojectorwilltransfertotheotherprojector.

Caution: If the copy process fails due to a power failure, communication error, or for any other reason, Epsonwillnotberesponsibleforanyrepaircostsincurred.

The following settings will not transfer between projectors:

• Infomenuitems

•NetworkmenusettingsotherthanthoseintheNotificationsandOthersmenus

Note: In addition to the methods covered in this section, you can also copy and transfer settings to multiple projectors over a network using the EasyMP Network Updater software. See the online EasyMP NetworkUpdaterOperationGuideforinstructions.Youcandownloadthelatestsoftwareand documentationfromtheEpsonwebsite.

SavingSettingstoaUSBFlashDrive

TransferringSettingsfromaUSBFlashDrive

SavingSettingstoaComputer

TransferringSettingsfromaComputer

Parenttopic: AdjustingProjectorFeatures

Relatedreferences

ProjectorInformationDisplay-InfoMenu

ProjectorNetworkSettings-NetworkMenu

AdditionalProjectorSoftwareandManuals

SavingSettingstoaUSBFlashDrive

YoucansavetheprojectorsettingsyouwanttotransfertoaUSBflashdrive.

Note: Use an empty flash drive. If the drive contains other files, the transfer may not complete correctly. TheflashdrivemustusetheFATformatandcannothaveanysecurityfeatures.

1. Turnoff the projector and unplug the power cord from the projector's power inlet.

2. Insert the flash drive into the wireless LAN module port.

Diagram of a car air vent with a blue plastic clip inserted, showing internal airflow and ventilation (no text or symbols)

Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be saved correctly.

1. Press and hold the Esc button on the control panel or remote control as you connect the power cord to the projector's power inlet.

1. When the On/Standby and Status lights are blue, and the Laser and Templights are orange, release the Esc button.

Thelightsflashtoindicate that settings are transferring to the flash drive. Whenthelightsstop flashing, the On/Standby light turns blue and the projectorentersstandbymode.

Caution: Do not unplug the power cord or remove the flash drive while the lights are flashing. This could damage the projector.

1. Oncetheprojectorentersstandbymode, removetheflashdrive.

Parenttopic: CopyingMenuSettingsBetweenProjectors

TransferringSettingsfromaUSBFlashDrive

AftersavingprojectorsettingstoaUSBflashdrive,youcantransferthemtoanotherprojectorofthe samemodel.

Note: Make sure the USB flash drive contains only a single settings transfer from another projector of the same model. The settings are contained in a file called pjconfdata.bin. If the drive contains other files, the transfer may not complete correctly.

Donotadjustimagesettingsonaprojectoruntilafteryoutransfersettingstoit. Otherwise, you may have to repeate your adjustments.

1. Turnoff the projector and unplug the power cord from the projector's power inlet.
2. Insert the flash drive into the wireless LAN module port.

Diagram of a car interior showing a gridded air vent with a blue plastic clip inserted, no text or symbols present.

Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be saved correctly.

1. Press and hold the Menu button on the control panel or remote control as you connect the power cordtotheprojector'spowerinlet.

1. When the On/Standby and Status lights are blue, and the Laser and Templights are orange, release the Menubutton.

Thelightsflashtoindicatethatsettingsaretransferringtotheprojector.Whenthelightsstop flashing,theOn/Standbylightturnsblueandtheprojectorentersstandbymode.

Caution: Do not unplug the power cord or remove the flash drive while the lights are flashing. This could damage the projector.

1. Oncetheprojectorentersstandbymode, removetheflashdrive.

Parenttopic: CopyingMenuSettingsBetweenProjectors

SavingSettingstoaComputer

Youcansavetheprojectorsettingsyouwanttotransfertoacomputer.

Yourcomputermustberunningoneofthefollowingoperatingsystems:

- WindowsVista

- Windows7

- Windows8.x

- Windows10

-OSX10.7.x

-OSX10.8.x

-OSX10.9.x

-OSX10.10.x

-OSX10.11.x

•macOS10.12.x

•macOS10.13.x

•macOS10.14.x

1. Turnoff the projector and unplug the power cord from the projector's power inlet.

2. ConnectaUSBcabletoyourprojector'sServiceport.

Illustration of a laptop connected to an oscilloscope with a blue LED and red cable, showing internal components (no text or symbols)

1. Connect the other end to any available USB port on your computer.

2. Press and hold the Esc button on the control panel or remote control as you connect the power cord totheprojector'spowerinlet.

1. When the On/Stand by and Status lights are blue, and the Laser and Templights are orange, release the Esc button.

Theprojectorshowsupasaremovablediskonyourcomputer.

1. Opentheremovablediskandcopythepjconfdata.binfiletoyourcomputer.

2. Oncethefilehascopied, dooneofthefollowing:

3. Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility. Right-clickthenameofyourprojector(listedasaremovabledisk)andselectEject.
   •Mac:Dragtheremovablediskiconforyourprojectorfromthedesktopintothetrash.

Theprojectorentersstandbymode.

Parenttopic: CopyingMenuSettingsBetweenProjectors

TransferringSettingsfromaComputer

Aftersavingprojectorsettingstoacomputer,youcantransferthemtoanotherprojectorofthesame model.

Yourcomputermustberunningoneofthefollowingoperatingsystems:

- WindowsVista

- Windows7

- Windows8.x

•Windows10

-OSX10.7.x

-OSX10.8.x

-OSX10.9.x

- OSX10.10.x

-OSX10.11.x

•macOS10.12.x

•macOS10.13.x

•macOS10.14.x

Donotadjustimagesettingsonaprojectoruntilafteryoutransfersettingstoit. Otherwise, you may have to repeate your adjustments.

1. Turnoff the projector and unplug the power cord from the projector's power inlet.

2. ConnectaUSBcabletoyourproject'sServiceport.

Diagram showing a laptop connected to an electronic device with a monitor displaying a blue icon and a red lightning bolt, no text or symbols present.

1. ConnecttheotherendtoanyavailableUSBportonyourcomputer.

2. Press and hold the Menu button on the control panel or remote control as you connect the power cordtotheprojector'spowerinlet.

1. When the On/Stand by and Status lights are blue, and the Laser and Templights are orange, release the Menubutton.

Theprojectorshowsupasaremovablediskonyourcomputer.

1. Copythepjconfdata.binfilefromyourcomputertotheremovabledisk.

Note: Donotcopyanyotherfilestotheremovabledisk.

1. Oncethefilehascopied,dooneofthefollowing:

- Windows: Open the My Computer, Computer, Windows Explorer, or File Explorer utility. Right-clickthenameofyourprojector(listedasaremovabledisk)andselectEject.

•Mac:Dragtheremovablediskiconforyourprojectorfromthedesktopintothetrash.

Allthelightsstartflashingtoindicatethattheprojector'ssettingsarebeingupdated.Whenthelights stopflashing,theOn/Standbylightturnsblueandtheprojectorentersstandbymode.

Caution: Donotunplugthepowercordwhilethelightsareflashing. This could damage the projector.

Parenttopic: CopyingMenuSettingsBetweenProjectors

AdjustingtheMenuSettings

Followtheinstructionsinthesesectionstoaccesstheprojectormenusystemandchangeprojector settings.

UsingtheProjector'sMenus

ImageQualitySettings-ImageMenu

InputSignalSettings-SignalMenu

ProjectorFeatureSettings-SettingsMenu

ProjectorSetupSettings-ExtendedMenu

ProjectorNetworkSettings-NetworkMenu

ProjectorInformationDisplay-InfoMenu

ProjectorResetOptions-ResetMenu

UsingtheProjector'sMenus

Youcanusetheprojector'smenustoadjustthesettingsthatcontrolhowyourprojectorworks. The projectordisplaysthemenusonthescreen.

1. Pressthe Menubutton on the control panel or remote control.

Youseethemenuscreendisplayingthelmagemenusettings.

1. Presstheupordownarrowbuttontomovethroughthemenuslistedontheleft. Thesettingsfor eachmenuaredisplayedontheright.

Note: The available settings depend on the current input source, resolution, or other menu settings.

1. Tochangesettingsinthedisplayedmenu, pressEnter.
   4.Presstheupordownarrowbuttontomovethroughthesettings.
2. Changethesettingsusingthebuttonslistedonthebottomofthemenuscreens.
3. Toreturnallthemenusettingstotheirdefaultvalues, selectReset.
4. When you finish changing settings on an amino acid, press Esc.
5. PressMenuorEsctoexitthemenus.

Parenttopic:AdjustingtheMenuSettings

ImageQualitySettings-ImageMenu

SettingsonthImagemenuletyouadjustthequalityofyourimagefortheinputsourceyouarecurrently using. Theavailablesettingsdependonthecurrentlyselectedinputsource.

Tochangesettingsforaninputsource,makesurethesourceisconnectedandselectthatsource.

SettingOptionsDescription
ColorModeSeethelistofavailableColorModes		Adjuststhevividnessofimage colorsforvariousimagetypes andenvironments
BrightnessVaryinglevelsavailableLightensordarkenstheoverall		image
ContrastVaryinglevelsavailableAdjuststhedifferencebetween		lightanddarkareasoftheimage
ColorSaturationVaryinglevelsavailableAdjuststhebalanceofgreento		colors
TintVaryinglevelsavailableAdjuststhebalanceofgreento		magentatonesintheimage
SharpnessStandard	ThinLineEnhancementThickLineEnhancement	Adjuststhesharpnessofimage detailsStandard:adjuststheoverall imagesharpnessThinLineEnhancement:enhancesfinedetailssuchas hairandfabricpatternsThickLineEnhancement:enhancestheoutline, background,andmainpartsofan imagetomakethemmoreclear
WhiteBalanceColorTemp.	G-MCorrectionOffsetR/G/BGainR/G/B	Adjuststheoveralltintofthe imageColorTemp::setsthecolortone basedoncolortemperatureG-MCorrection:highervalues tinttheimageblueandlower valuestinttheimageredOffsetR/G/BandGainR/G/B: letsyouadjusttheoffsetandgain ofeachcolorR(red),G(green), andB(blue)individually
FrameInterpolationOff	LowNormalHigh	Smoothsfastmovingvideoby comparingconsecutiveframes andinsertinganintermediate framebetweenthem
ImageEnhancement4KEnhancement	Accepts4Ksignalsand	enhancestheoutputof1080p signals
	ImagePresetModeSelectstheimag	geenhancement settingssavedinadvance
	NoiseReductionReducesflickering	ginanalog images
	MPEGNoiseReductionReducesth	thenoiseorartifacts seeninMPEGvideo
	SuperresolutionSharpensblurred	images resultingfromincreasing resolution
	DetailenhancementEnhancesdet	ailstocreateclear outlinesRange:highersettingsincrease theaffectedareaaroundthe outlineStrength:highersettingscreate astrongereffect
AdvancedGammaAdjuststhegam	malevelsofthe	image.SelectCustomizedto adjustthegammawhileviewing theimageoragraph.
	RGBCMYAdjuststhehue,saturation	,and brightnessforeachcolor
	DeinterlacingSetswhethertoconvert	vert interlaced-to-progressivesignals forcertainvideoimagetypesOff:forfast-movingvideoimagesVideo:formostvideoimagesFilm/Auto:formovies,computer graphics,andanimation
DynamicContrastOff	NormalHighSpeed	Adjuststheluminanceofthe imagetoimprovecontrastby trackingchangesinimage brightnessNormal:forstandardbrightness adjustmentHighSpeed:toadjustbrightness assoonasthescenechanges

Note: The Brightness setting does not affect laser brightness. To change the laser brightness, use the BrightnessSettingsintheSettingsmenu.

Parenttopic:AdjustingtheMenuSettings

InputSignalSettings-SignalMenu

Normally the project detects and optimizes the input signal settings automatically. If you need to customize these settings, you can use the Signal menu. The available settings depend on the currently selected inputs source.

Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Autobuttonontheremotecontrol.

Tochangesettingsforaninputsource,makesurethesourceisconnectedandselectthatsource.

SettingOptionsDescription
ResolutionAuto	NormalWideManual	SetstheinputsignalresolutionfromananalogRGBcomputerconnectionAuto:detectstheresolutionautomaticallyNormal:for4:3or5:4screensWide:forwidescreenManual:allowsyoutospecifyaresolution
AspectSeethelistofavailableaspect	ratios	Setstheaspectratio(width-to-heightratio)fortheselectedinputsource
TrackingVaryinglevelsavailableAdjust	stssignaltoeliminate	verticalstripesinimagesfromananalogRGBcomputerconnection
Sync.VaryinglevelsavailableAdjust	signaltoeliminate	fuzzinessorflickeringinimagesfromananalogRGBcomputerconnection
PositionUp,down,left,rightAdjuststhe	imagelocationonthe	screen
AutoSetupOn	Off	AutomaticallyoptimizesimagequalityfromananalogRGBcomputerconnection(whenOn)
BlankingUp,down,left,rightHidesana	reaoftheprojected	imagethatyouselectusingthearrowbuttons
AdvancedVideoRangeSetsthevide	orangetomatch	thesettingofthedevice connectedtotheHDMI,DVI-D, HDBaseT,orSDI(notavailable forProL1715SNL)inputports
	InputSignalSpecifiesthesignalty	pefrom inputsourcesconnectedto computerportsAuto:detectssignals automaticallyRGB:correctscolorfor computer/RGBvideoinputsComponent:correctscolorfor componentvideoinputs
	ImageProcessingAdjustshowing	imagesare processedFast:todisplayimagesquickerFine:todisplayimagesinhigher quality
	EDIDDescribestheprojector'sdis	play capabilitiestodevicesconnected totheHDMI,HDBaseT,DVI-D inputports
	DDCBufferIfyouareprojectingusing	ingan HDMIorDVIextensioncableand theimageisnotdisplayed correctly,enablingthissetting mayimproveimagequality
ScaleVariousscaleoptionsWhenusing	gmultipleprojectorsto	projectoneimage,adjuststhe scaleoftheimagedisplayedby eachprojector

Parenttopic: Adjusting theMenu Settings

Relatedreferences

AvailableImageAspectRatio

ProjectorFeatureSettings-SettingsMenu

Options on the Settings menu let you customize various projector features.

SettingOptionsDescription
GeometryCorrectionH/V-Keystone	QuickCornerCurvedSurfaceCornerWallPointCorrectionMemory	Adjuststheprojectedimage shapeH/VKeystone:letsyoumanually correcttheanglesofthe horizontalandverticalsidesQuickCorner:selecttoadjust thepositionofthefourcornersCurvedSurface:selecttoadjust theimagewhenprojectingona curvesurfaceCornerWall:selecttoadjustthe imagewhenprojectingona surfacewitharightanglePointCorrection:selectto displayagridandfinelyadjust theimagepositionMemory:selecttosave adjustmentvalueofthe geometriccorrectionandloadit whenneeded
SplitScreen—Dividestheviewingarea		horizontallyanddisplaytwo imagesside-by-side;whilein SplitScreenmode,pressMenu todisplaytheSplitScreen optionsorEsctocancelsplit screendisplay
VolumeVaryinglevelsavailableAdjuststhevolumeofexternal		speakersconnectedtothe projector
LockSettingControlPanelLock	LensLock	Controlsprojectorbuttonlocking tosecuretheprojectorControlPanelLock:FullLock:locksallbuttonsPartialLock:locksallbuttons exceptthepowerbuttonOff:nobuttonslockedLensLock:locksthefocus, zoom,andlensshiftsettings
BrightnessSettingsLightSource	ModeBrightnessLevelConstantBrightnessEstimatedRemains	Selectsthebrightnessmodeof theprojectorLightSourceMode:setsthe brightnessforthelightsourceNormal:maximumbrightnessQuiet:70%brightnesswith reducedfannoiseExtended:70%brightness andextendsthelife expectancyofthelightsourceCustom:selectacustom brightnesslevelandenable useofnextthreesettingsBrightnessLevel:selectthe Custombrightnesslevelyou wantConstantBrightness:maintains aconstantbrightness(ifthis settingisenabled,youcannot changetheLightSourceMode andBrightnessLevelsettings)EstimatedRemains:displays howlongtheprojectorcan maintaininconstantbrightness(if thatsettingisselected)
RemoteReceiverFront/Rear	FrontRearOff	Limitsreceptionofremotecontrol signalsbytheselectedreceiver; Offturnsoffallreceivers
UserButtonUser1	User2User3	Assignsamenuoptiontothe User1,User2,andUser3 buttonsontheremotecontrolfor one-touchaccess
TestPattern—Displaysatestpatterntoassistin		adjustingtheimage;pressthe leftorrightarrowbuttonsontheremotecontrolorEnteronthe controlpaneltocyclethroughthe availabletestpatterns,orEsctocancelpatterndisplay
MemoryLoadMemory	SaveMemoryEraseMemoryRenameMemory	Savecustomizedsetsofsettings tomemory

Parenttopic:AdjustingtheMenuSettings

ProjectorSetupSettings-ExtendedMenu

SettingsontheExtendedmenuletyoucustomizevariousprojectorsetupfeaturesthatcontrolits operation.

SettingOptionsDescription
HomeScreen—AdjustsettingstheHome		Screen
Display—SeetheDisplaysettingstablein		thistopic
User'sLogo—Createsacreenthatthe		projectordisplaystoidentifyitself andenhancesecurity
ProjectionFront	Front/CeilingRearRearCeiling	Selectsthewaytheprojector facesthescreensotheimageis orientedcorrectly
Operation—SeetheOperationsettingstable		inthistopic
A/VSettingsA/VOutput	MonitorOutAudioSettings	Selectsvariousaudioandvideo outputsettingsAVOutput:selecttooutput audioandvideotoanexternal devicewhentheprojectorisin standbymode(StandbyMode mustbeturnedontousethis setting)MonitorOut:selecttheimage sourcetooutputtoanexternal devicewhentheprojectorisin standbymode;whensettoAuto, selectsoutputfromtheComputerorBNCport dependingonwhichwasused whentheprojectorwentinto standbymodeAudioSettings:selectsaudio sourcetooutput
StandbyModeCommunicationOn	CommunicationOff	Enablethissettingtoallowthe followingoperationstooccur whentheprojectorisinstandby mode:Monitorandcontrolthe projectoroveranetworkOutputaudioandvideotoan externaldevice(A/VOutput mustbesettoAlwaysOn)Communicationfromthe HDBaseTport(Control Communicationsmustbeset toOn)
HDBaseTControlCommunications	ExtronXTP	Selectsthecommunication settingsforconnectionstoan HDBaseTtransmitterorswitcherControlCommunications: enablesordisables communicationfromtheEthernet andserialportsonthe transmitter;turningonthissetting disablestheprojector'sLAN,RS-232C,andRemoteports(Extron XTPmustbeturnedofftouse thissetting)ExtronXTP:settoOnwhenyou connectanExtronXTP transmitterorswitchertothe HDBaseTports
ColorCalibrationStartAutoAdjustmentUndoRedoColorUniformity	Automaticallydetectscolor deteriorationandadjuststhe colortoneStartAutoAdjustment: automaticallyadjuststhecolortoneforthewholeimageUndoandRedo:undoesor redoestheautoadjustmentColorUniformity:adjuststhe colortonebalanceforthewhole image
Multi-ProjectionProjectorID	ProjectorGroupingTilingGeometryCorrectionEdgeBlendingBlackLevelScaleScreenMatching	Selectvariousoptionswhen projectingfrommultiple projectorsProjectorID:setstheprojector toaparticularIDnumberwhich allowsyoutousearemote controltoindividuallycontrol projectorsProjectorGrouping:letsyou selecttheprojectorsbeingused toprojectoneimageTiling:setsthenumberofsplit screensandthepositionofeach imageGeometryCorrection:corrects imagedistortionEdgeBlending:blendsthe borderbetweenmultipleimages tocreateaseamlessscreenBlackLevel:adjuststhe brightnessandtonedifferences inoverlappingimagesScale:adjuststhescaleofthe imagesScreenMatching:adjuststhe tintandbrightnessoftheimages
ScheduleSettingsVariousschedulingoptionsLetsyouschedulevarious		projectortasks
LanguageVariouslanguagesavailable	Selectsthelanguagefor	projectormenuandmessage displays(notchangedbyReset option)

Displaysettings

SettingDescription
MenuPositionSelectsthepositionofthe	projectormenudisplayedonthescreen
MessagePositionSelectsthepositionof	messagesdisplayedonthescreen
MessagesControlswhethermessagesa	redisplayedonthescreen
DisplayBackgroundSelectsthescreen	colororlogotodisplaywhennosignalisreceived
StartupScreenControlswhetheraspecial	alscreenappearswhentheprojectorstartsup
StandbyConfirmationDisplaysaconfirmationmessageafterpressingtheStandbybuttonontheremotecontrol
AirFilterNoticeDisplaysamessagewhen	naclogintheairfilterisdetected
ScreenSetstheaspectratioandpositionof	theprojectedimageaccordingtothetypeofscreenbeingused
PanelAlignmentCorrectscolormisalign	mentintheprojectedimage
ColorUniformityAdjuststhecolortonebalance
OSDRotationRotatesthemenudisplay90°

Operationsettings

SettingDescription
DirectPowerOnTurnsontheprojectorwhenyouplugitin
SleepModeAutomaticallyplacestheprojectorinstandbymodeafteranintervalofinactivity
SleepModeTimerSetsthetimebeforetheprojectorautomaticallyturnsoff(SleepModemustbeturnedon)
High Altitude Mode	Regulates the projector's operating temperature at altitudes above4921feet(1500m)
AutoSourceSearch	Automaticallyselectaninputsource
Auto Power On	If Computer or BNC is selected, the projector turns on when an inputsignalisdetectedfromthoseports
A/VMuteSettingsAdjuststheA/VMutesettings	Fade-in:setsthenumberofsecondsforafade-intransitioneffectwhendisplayinganimationFade-out:setsthenumberofsecondsforafade-outtransitioneffectwhenhidinganimationA/VMuteTimer:turnsofftheprojectorautomaticallyifA/VMuteisenabledand2hoursofinactivityhaspassedA/VMuteRelease:selectA/VMuteifyouwanttouseonlytheA/VMutebuttontoturnoffA/Vmute,orselectAnyButtontouseanybuttontoturnitoff
AdvancedSeethenexttableinhistopic
Date&TimeAdjuststheprojector'stimeanddatesettings
LensCallbrationDisplaysinformationaboutthelenscurrentlyinuse

Advancedsettings

SettingDescription
BNCSyncTerminationSetstheterminationforthesignalfromtheBNCport(settooff unlessyouneedanalogtermination,suchasforswitchers)
Remote Control Type	Select Normal to use the remote control that came with the projector,orSimpletouseadifferentEpsonprojectorremote controlanddisabletheremotecontrolthatcamewiththe projector
BeepControlsthebeepthatsoundswhen	youturntheprojectoron oroff
Indicators	Select Off to turn off projector lights, except warning lights
Instant Off	Select Enabled to place the projector in standby mode after turningitoff,orDisabledtoplacetheprojectorinstandby modeapproximately75secondsafterturningitoff
InvDirectionButtonEnablethissetting	youinstalledtheprojectoronaceilingand wanttoinvertthedirectionofthearrowbuttonsonthecontrol panel
ACVoltageMonitoringIfyouselectOnfor	thissettingandtheprojectoristurnedoffbyanymethodotherthanpressingthepowerbutton,apowersupplyvoltagewarningmessageisdisplayedthenexttimetheprojectoristurnedon
LensTypeSelectthemodelnumberforthe	attachedlenswhenusingthefollowinglenses:ELPLS04,ELPLU02,ELPLR04,ELPLW04,ELPLM06,ELPLM07,ELPLL07

Parenttopic:AdjustingtheMenuSettings

ProjectorNetworkSettings-NetworkMenu

SettingstheNetworkmenuletyouviewnetworkinformationandsetuptheprojectorformonitoring andcontroloveranetwork.

SettingOptionsDescription
WirelessModeWirelessLANOn	Off	Enableordisablewireless communication
Net.Info-WirelessLANConnection	modeWirelessLANSys.AntennalevelProjectorNameSSIDDHCPIPAddressSubnetMaskGatewayAddressMACAddressRegionCodeIPv6Address(Manual)IPv6Address(Auto)	Displayswirelessnetworkstatus anddetails
Net.Info-WiredLANProjectorName	DHCPIPAddressSubnetMaskGatewayAddressMACAddressIPv6Address(Manual)IPv6Address(Auto)	Displayswirednetworkstatus anddetails
DisplaytheQRCode—DisplaystheQRCode
NetworkConfigurationAccessesadditionalnetwork menus		Configuresyournetworksettings
RemoteCameraAccess—Configuresremotecamera		accesssettings

Parenttopic:AdjustingtheMenuSettings

ProjectorInformationDisplay-InfoMenu

YoucandisplayinformationabouttheprojectorandinputsourcesbyviewingtheInfomenu.However, youcannotchangeanysettingsinthemenu.

Note: The total operating timer does not register any hours until you have used the projector for at least 10 hours. Available settings depend on the current input source.

SettingOptionsDescription
ProjectorInfoTotalOp.TimeDisplay	laysthenumberofhoursthe	projectorhasbeenusedinitsoperatinglife
	OperationHoursDisplaysthen	numberofhourstheprojectorhasbeenusedsinceitwasturnedon
	SourceDisplaysthenameofthe	eporttowhichthecurrentinputsourceisconnected
	InputSignalDisplaystheinputs	signalsettingofthecurrentinputsource
	ResolutionDisplaystheresolution	tionofthecurrentinputsource
	RefreshRateDisplaystherefresh	shrateofthecurrentinputsource
	SyncInfoDisplaysinformation	thatmaybeneededbyaservicetechnician
	StatusDisplaysinformationabout	projectorproblemsthatmaybeneededbyaservicetechnician
	SerialNumberDisplaystheprojector'sserialnumber
	LensTypeDisplaysthemodelInumberoftheinstalledlens
	EventIDDisplaystheEventIDnumbercorrespondingtoaspecificprojectorproblem;seethelistofEventIDcodes
	HDBaseTSignalLevelDisplaystheimagesignalinformationfromtheHDBasetport
LightSourceInfoLightSourceHours	Displaysthenumberofoperatinghoursforeachoftheprojector'sLight SourceModesettings
	EstimatedRemainsIftheConstantBrightnesssettingis enabled,displaytheremaining numberofhourstheprojectorcan maintainconstantbrightness
VersionMain	Video2	Displaystheprojector'sfirmware information
StatusInformation—Displaysbasicstatusinformation
VoltageWarningInfo—Displaysapowervoltagewarning
TempWarningInfo—Displaysvarioushighttemperature		warnings

EventIDCodeList

Parenttopic:AdjustingtheMenuSettings

EventIDCodeList

If the Event ID option on the Info menu displays a code number, check this list of Event ID codes for the solution to the projector problem associated with the code.

EventIDcodeCause	seandsolution
0432Turntheprojectoroffandthenonagain.
0435
0434Unstablenetworkcommunication.Checkthenetworkcommunicationstatus,waita fewmoments,andtryconnectingtothenetworkagain.
0481
0482
0485
0433Cannotdisplayythetransferredimages.Restartthenetworksoftware.
0484Communicationwithcomputerwasdisconnected.Restartthenetworksoftware.
0483Thenetworks	softwarequitunexpectedly.Checkthenetworkcommunicationstatus, thenturntheprojectoroffandthenonagain.
04FE
0479Aprojectorsy	stemerrorhasoccurred.Turntheprojectoroffandthenonagain.
04FF
0891Cannotfindan	accesspointwiththesameSSID.Setyourcomputer,accesspoint, andprojectortothesameSSID.
0892TheWPA/WP	A2authenticationtypedoesnotmatch.Makesurethewireless networksecuritysettingsarecorrect.
0893TheTKIP/AE	Sencryptiontypedoesnotmatch.Makesurethewirelessnetwork securitysettingsarecorrect.
0894Communicat	onwithunauthorizedaccesspointwasdisconnected.Contactyour networkadministrator.
0898Failedtoacqu	ireDHCP.MakesuretheDHCPserverisoperatingcorrectly.Ifyou arenotusingDHCP,turnofftheDHCPsettingintheNetworkmenus.
0899Communicat	onerror.Turntheprojectoroffandthenonagain.
089ATheprojector	'sEAPauthenticationtypedoesnotmatchthenetwork.Checkthe wirelessLANsecuritysettingsandmakesurethatthesecuritycertificateisinstalled correctly.
089BEAPserverau	authenticationfailed.CheckthewirelessLANsecuritysettingsand makesurethatthesecuritycertificateisinstalledcorrectly.
089CEAPclientau	authenticationfailed.CheckthewirelessLANsecuritysettingsandmake surethatthesecuritycertificateisinstalledcorrectly.
089DKeyexchange	failed.CheckthewirelessLANsecuritysettingsandmakesurethat thesecuritycertificateisinstalledcorrectly.
0920Theinternalp	powersupplythatsavesyourclocksettingsisrunninglow.Contact Epsonforhelp.

Parenttopic:ProjectorInformationDisplay-InfoMenu

ProjectorResetOptions-ResetMenu

You can reset most of the projector settings to their default values using the Reset All Config option on theResetmenu.

You can also reset the saved names and settings in the Save Memory list using the Reset All Memories option.

To reset all settings to the factory default (except for Password Protection), select the Reset All (Factory Default) option. You will need to enter a password to reset the projector. The default password is0000, which you should change your own password.

You cannot reset the following settings using the ResetAllConfiguration:

- InputSignal

-User'sLogo

•Language

•Networkmenuitems

- Date&Time

-PanelAlignment

•ColorUniformity

•Memory

•ColorMatching

• LensCalibration

•ColorCalibration

-ProjectorGrouping

•ScreenMatching

•EDID

•LightSourceInfo

•OperationHours

Parenttopic:AdjustingtheMenuSettings

Relatedtasks

RunningLightSourceCalibration

MaintainingandTransportingtheProjector

Followtheinstructionsinthesesectionstomaintainyourprojectorandtransportitfromplacetoplace.

ProjectorMaintenance

TransportingtheProjector

ProjectorMaintenance

Yourprojectorneedslittlemaintenancetokeepworkingatitsbest.

Youmayneedtocleanthelensperiodically, andcleantheairfilterandairventstoppreventtheprojector fromoverheatingduetoblockedventilation.

Theonlypartsyoushouldreplacearetheairfilterandremotecontrolbatteries.Ifanyotherpartneeds replacing,contactEpsonoranauthorizedEpsonservicer.

Thisprojectorusesasealedlaserlightsourcewhichdoesnotneedservicingandcannotbereplaced.

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except a specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Warning: Do not try to service this product yourself, except as specifically explained in this manual. Referallotherservicingtoqualifiedservicers.

CleaningtheLens

CleaningtheProjectorCase

AirFilterandVentMaintenance

ReplacingtheRemoteControlBatteries

Parenttopic: Maintaining and Transporting the Projector

CleaningtheLens

Cleantheprojector'slensperiodically,orwheneverounoticedustorsmudgesonthesurface.

- Toremovedustorsmudges, gentlywipethelenswithlens-cleaningpaper.

- Toremovestubbornsmudges, moistenasoft, lint-freeclothwithlenscleanerandgentlywipethelens. Donotsprayanyliquiddirectlyonthelens.

Warning: Donotusealenscleanerthatcontainsflammablegas. Thehighheatgeneratedbythe projectormaycauseafire.

Caution: Do not use glass cleaner or any harsh materials to clean the lens and do not subject the lens toanyimpacts; you may damage it. Donot use canned air, orthegases may leave a residue. Avoid touching the lens with your bare hand stop prevent fingerprint onordamage to the lens surface.

Parenttopic: Projector Maintenance

CleaningtheProjectorCase

Beforecleaningtheprojectorcase,turnofftheprojectorandunplugthepowercord.

• Toremovedustordirt, useasoft, dry, lint-freecloth.

- Toremovestubborndirt, useasoftclothmoistenedwithwaterandmildsoap. Donotsprayliquid directlyontheprojector.

Caution: Do not use wax, alcohol, benzine, paint thinner, or other chemicals to clean the projector case. Thesecandamagethecase.Donotusecannedair,orthegasesmayleaveaflammable residue.

Parenttopic: Projector Maintenance

AirFilterandVentMaintenance

Regularfiltermaintenanceisimportantmaintainingyourprojector.YourEpsonprojectorisdesigned withaneasilyaccessible,user-replaceablefiltertoprotectyourprojectorandmakeregularmaintenance simple.Filtermaintenanceintervalswilldependontheenvironment.

Ifregularmaintenanceisnotperformed,yourEpsonprojectorwillnotifyyouwhenthetemperature insidetheprojectorhasreachedahighlevel.Donotwaituntilthiswarningappearstomaintainyour projectorfilterasprolongedexposuretohightemperaturesmayreducethelifeofyourprojectororlaser.

Damageduetothefailuretoproperlymaintaintheprojectororitsfiltermaynotbecoveredbytheprojector'sLimitedWarranty.

CleaningtheAirFilter

ReplacingtheAirFilter

Parenttopic: Projector Maintenance

Relatedreferences

ProjectorLightStatus

CleaningtheAirFilter

Youneedtocleantheprojector'sairfilterinthefollowingsituations:

• Thefilterorventsgetdusty.

• Youseeamessagetellingyoutocleanit.

• The projector's Filterlight is orange or flashes orange.

1. Turnoff the projector, wait for the project to beep, and unplug the power cord.
   2.Slidetheairfiltercoverlatchandopentheairfiltercover.

Illustration of a hand inserting a blue air conditioner into a car air vent (no text or symbols)

1. Pulltheairfilteroutoftheprojector.

Illustration of hands installing a blue panel into a car air vent (no text or symbols)

1. Tapeachsideoftheairfilter4to5timestoshakeoffanyexcessdust.

Illustration of a hand holding a blue rectangular object with a red rotation arrow indicating clockwise motion (no text or symbols)

Caution: Donotuse excessive force when tapping the air filter, or it may crack and become unusable. Donotrin the air filter in water, or use any detergent solvent to clean it. Donotuse canned air; the gases may leave a residue, or push dust and debris into the projector's optics or others sensitive areas.

1. Vacuum the front of the air filter (thesidewith the abs) to remove any remaining dust.

Illustration of a pipette dispensing red liquid onto a blue perforated surface (no text or symbols)

Note: If dust is difficult to remove the air filter is damaged, replace the air filter.

1. Placetheairfilterbackintheprojectorasshownandpushgentlyuntilitclicksintoplace.

Diagram of a car air conditioner unit with internal components and a blue cabinet, showing no text or symbols.

1. Attach the air filter cover as shown, and press it gently until it clicks into place.

Diagram of a car air conditioner unit with blue airflow direction arrows (no text or symbols)

Parenttopic: AirFilterandVentMaintenance

Relatedreferences

ProjectorLightStatus

ReplacingtheAirFilter

Youneedtoreplacetheairfilterinthefollowingsituations:

•Aftercleaningtheairfilter,youseeamessagetellingyoutocleanorreplaceit

•Theairfilteristornordamaged

Youcanreplaceairfilterwhiletheprojectorismountedtotheceilingorplacedonatable.

1. Turnoff the projector, wait for the project to beep, and unplug the power cord.

2.Slidetheairfiltercoverlatchandopentheairfiltercover.

Illustration of a hand inserting a blue air conditioner into a car air vent (no text or symbols)

1. Pulltheairfilteroutoftheprojector.

Illustration of hands installing a blue panel into a car air vent (no text or symbols)

Note: Air filters contain polypropylene. Dispose of used air filters according to local regulations.

1. Placethenewairfilterintheprojectorasshown.

Diagram of a car air conditioner unit with a blue door panel and red arrow indicating airflow direction (no text or symbols)

1. Attach the air filter cover as shown, and press it gently until it clicks in to place.

Diagram of a car air conditioner unit showing airflow direction (no text or symbols)

Parenttopic: AirFilterandVentMaintenance

Relatedreferences

ProjectorLightStatus

ReplacingtheRemoteControlBatteries

TheremotecontrolusestwoAAmanganeseoralkalinebatteries. Replacethebatteriesassoonasthey runout.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, ormixnewandoldbatteries.

1. Removethebatterycoverasshown.

Line drawing of a remote control device with a blue screen and red arrow indicating rotation (no text or symbols)

1. Removetheoldbatteries.

Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on yourhands. If it gets on your hands, wash them immediately to avoid injury.

1. Insert the batteries with the + and - ends facing as shown.

Line drawing of a remote control panel with battery components and internal wiring (no text or symbols)

1. Replace the battery cover and press it down until it clicks into place.

Line drawing of a remote control device with a blue internal component and a red arrow indicating rotation (no text or symbols)

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of thereachofchildren, they are choking hazards and are every dangerous if swallowed.

Parenttopic: ProjectorMaintenance

TransportingtheProjector

The projector contains precision parts, some of which are glass. Follow the guidelines heretotransport, ship, or store the projectors safely.

Caution: Usetwoormorepeopletounpackorlifttheprojector.

1. Remove any equipment connected to the projector.
   2.Dooneofthefollowing:

2. If you are using the standard zoom lens, keep it installed on the projector. Movethelen to the home position and attach the protective lens pad that was included with the projector.

3. If you are using an option allens, remove it from the projector.
4. If the projectordidnotcomewithalens, attach the cover that was included with the projectorto the lensmount.

3.Dooneofthefollowing:

• Whentransportingtheprojectoralongdistanceorascheckedluggage,packitinafirmboxwith cushioningarounditandmarkthebox"Fragile."
• Whenshippingtheprojectorforrepairs, placeitinitsoriginalpackingmaterials, if possible, or use equivalent materials with cushioning around the projector. Markthebox "Fragile."

Note: Epson shall not believe for any damages incurred during transportation.

Parenttopic: Maintaining and Transporting the Projector

Relatedtasks

AdjustingtheImagePositionUsingLensShift

Relatedtopics

AttachingandRemovingaLens

SolvingProblems

Checkthesolutionsinthesesectionsifyouhaveanyproblemsusingtheprojector.

ProjectionProblemTips

ProjectorLightStatus

ViewingtheStatusDisplay

UsingtheProjectorHelpDisplays

SolvingImageorSoundProblems

SolvingProjectororRemoteControlOperationProblems

SolvingNetworkProblems

WheretoGetHelp

ProjectionProblemTips

If the projector is not working properly, try turning it off and unplugging it. Then plug it back in and turn it on.

If this does not solve the problem, check the following:

• Thelightsontheprojectormayindicatewhattheproblemis.

•The Help option on the Homescreen and display information about common problems, if the projector is operating.

- Thesolutionsinthismanualcanhelpyousolvemanyproblems.

If noneofthesesolutionshelp, you can contact Epsonfortechnical support.

Parenttopic: Solving Problems

ProjectorLightStatus

Thelightsontheprojectorindicatetheprojectorstatusandletyouknowwhenaproblemoccurs.Check thestatusandcolorofthelightsandlookforasolutioninthetablehere.

1On/Standby(power)light

2Statuslight

3Laserlight

4Temp(temperature)light

5Filterlight

On/Standby(power)light	Status light	Laser light	TemplightFilter light	Statusandsolution
BlueBlueVaries	OffOffNormaloperation
BlueBlueFlashing	ng	blue	OffOffA/VMuteison
BlueFlashing	blue	VariesOffOffWarmingup;waitforanimageto appear
BlueOffOffOff	OffStandbyor	networkmonitoringand		control(whenStandbyModeisset toCommunicationOn)
FlashingblueOff	OffOffOffP	repairingfornetworkmonitoring

On/Standby(power)light	Status light	Laser light	TemplightFilter	light	Statusandsolution
BlueFlashing	blue	OffOffOff	Coolingdown;allb	buttonsare	disabled
FlashingblueVaries	VariesVaries	Flashing	orange	VariesHigh	temperaturewarning;if the temperaturegetstoohigh,projection willautomaticallystop•Makesurethattheventsandair filterarenotcloggedwithdustor obstructedbynearbyobjects•Cleanorreplacetheairfilter
OffFlashing	blue	Orange	OrangeOffLensSh	ferror;turnoff	the projector,unplugitfromtheelectrical outlet,andcontactEpsonforhelp
OffFlashing	blue	Flashing orange	OffOffInternaler	error;turnoff	he projector,unplugitfromtheelectricaloutlet,andcontactEpsonforhelp
OffFlashing	blue	OffOrange	OffProjectoristo	phot(overheating)and projectionstops;leaveitforabout fiveminutestocooldown•Makesurethattheventsandair filterarenotcloggedwithdustor obstructedbynearbyobjects•Cleanorreplacetheairfilter•Makesuretheenvironmental temperatureisnottoohot•Ifoperatingtheprojectorathigh altitude,turnonHighAltitude Mode•Iftheproblempersists,unplugthe projectorandcontactEpsonfor help
OffFlashing	blue	OrangeOff	OffLaserhasaproblem;turnofftheprojector,unplugitfromtheelectrical outlet,andcontactEpsonforhelp
VariesVariesVariesVaries	variesFlashing	Flashing		orange	Itistimetocleantheairfilter
OffFlashing	blue	OffOffOrange	Lowairflowthroughtheprojector•Makesurethattheventsandair filterarenotcloggedwithdustor obstructedbynearbyobjects•Cleanorreplacetheairfilter•Iftheproblempersists,unplugthe projectorandcontactEpsonfor help
FlashingblueVaries	VariesVariesVaries	VariesOrange	Lowairflowthroughtheairfilter•Makesurethattheventsandair filterarenotcloggedwithdustor obstructedbynearbyobjects•Cleanorreplacetheairfilter•Iftheproblempersists,unplugthe projectorandcontactEpsonfor help
OffFlashing	blue	OffFlashing	orange	OffAfanorsensorhasaproblem;turn theprojectoroff,unplugit,and contactEpsonforhelp
FlashingblueVaries	Flashingvaries	Orange	VariesVariesLaserhasaproblem;turnthe projectoroff,unplugit,andcontact Epsonforhelp
FlashingblueVaries	Flashingflashing	Orange	VariesVariesAnunsupportedlensisattached;makesureyourlensissupported

On/Standby(power)light	Status light	Laser light	TemplightFilter light	Statusandsolution
VariesVariesVariesVaries	Flashing		orange	Amessagetocleanorreplacetheairfilterisdisplayed;turntheprojectoroff,unplugit,andcleanorreplacetheairfilterasnecessary
VariesVariesFlashing	orange	VariesVariesTheprojector	sunabletomaintainconstantbrightnessandtheConstantBrightnesssettingintheSettingsmenuisdisabled

Note: If the lights display a pattern not listed in the table above, turn the projector off, unplug it, and contactEpsonforhelp.

Parenttopic: Solving Problems

Relatedconcepts

AirFilterandVentMaintenance

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

OptionalEquipmentandReplacementParts

Relatedtasks

StoppingVideoActionTemporarily

ViewingtheStatusDisplay

Youcanmonitortheprojector'sstatusandviewerrorinformationfromthestatusdisplay.

1. Turnon the projector.

2. Presstheibuttonontheremotecontrolortherightarrowbuttononthecontrolpanel.

3. SelectStatusInformationandpressEnter.

4. Presstheleftorrightarrowbuttonstoviewdifferentcategoriesofinformation.

-StatusInformation:Theprojector'soperatingstatus
•Source:Inputsignalinformation
•SignalInformation: Inputdigitalsignalinformation
•NetworkWired:WiredLANsettings
•NetworkWireless:WirelessLANsettings

- Maintenance: Operating time for the projector and light source

ProjectorStatusDisplayMessages

Parenttopic: Solving Problems

ProjectorStatusDisplayMessages

Categoriesonthestatusdisplayscreensletyouviewinformationabouttheprojectoranditsoperation.

StatusInformationcategory

InformationDescription
SystemSeetheSystemstatusinformationtableattheendofthistopic
SourceDisplaysthesourcecurrentlybeingused
On-ScreenDisplayDisplaysthesettingsforon-screen	displays.Whenturnedoff,menusormessagesarenotdisplayedontheprojectedimages
A/VMuteDisplaystheA/VMutestatus
AirTempDisplaystheenvironmentaltemperature
TempLevel
ACVoltageDisplayswarningsanderrorsthathaveoccurredwhentheACVoltageMonitoringsettingisturned on
LaserStatusDisplaystheoperatingstatusofthelightsource

Sourcecategory

InformationDescription
SourceDisplaysthesourcecurrentlybeingused
ResolutionDisplaystheresolutionofthecurrentinputsignal
VideoSignalDisplaysthecurrentinputvideosignal
ColorSpaceDisplaysthecolorspaceofthecurrentinputsignal
H-FrequencyDisplaysthehorizontalfrequencyofthecurrentinputsignal
V-FrequencyDisplaystheverticalfrequencyofthecurrentinput signal
SyncPolarityDisplaysthesyncpolarity
SyncModeDisplaysthesynctype
DetectedModeDisplaysthedetectedmodeofthecurrentinput signal
VideoLevelDisplaysthevideoleveloftheprojector

SignallInformationcategory

InformationDescription
5VDetectDisplaythedetectionresultsof5Vsignals
TMDSClockDisplaystheTMDSfrequencyofthecurrent	ntinput signal
TMDSH-FrequencyDisplaysthehorizontalfrequency	ofthecurrent inputsignal
TMDSV-FrequencyDisplaystheverticalfrequencyof	thecurrentinput signal
DetChg5CFHMP123Displaysthefactorsofsignalchanges
StableTimeDisplaystheamountofoperatingtimesincethe	the inputsourcewasdetermined
HDCPStatusDisplaystheHDCPstatus
HDCPVerDisplaystheHDCPversion
AVIInfoVICDisplaystheVICinformation(AVI)ofthecurrent	rent inputsignal
AVIInfoChecksum	DisplaysthechecksumresultforAVI
SignalMode	Displaysthesignalmode
PixelEncoding	Displaysthecolorspaceinformation(AVI)ofthe currentinputsignal
HDBaseTLevelDisplaystheimagesignalinformation	fromtheHDBaseTport

NetworkWiredcategory

InformationDescription
ProjectorNameDisplaysthenameusedtoidentifythe	projectorwhenconnectedtoanetwork
ConnectionModeDisplaystheconnectionpathforthe	LAN
DHCPDisplaystheDHCPdisplaysettings
IPDisplayDisplaystheIPaddressdisplaysettings
IPAddressDisplaystheIPaddress
MACAddressDisplaystheMACaddress

NetworkWirelesscategory

InformationDescription
ProjectorNameDisplaysthenameusedtoidentifythe	projectorwhenconnectedtoanetwork
ConnectionModeDisplaystheconnectionmodetouse	whenconnectingtheprojectorandacomputeroverawirelessLAN
SSIDDisplayDisplaystheSSIDdisplaysettings
IPDisplayDisplaystheIPaddressdisplaysettings
SSIDDisplaystheSSID
IPAddressDisplaystheIPaddress
DHCPDisplaystheDHCPsettings
MACAddressDisplaystheMACaddress
SecurityDisplaysthesecuritysettings
AntennaLevelDisplaysthereceptionstatusforWi-Fi

Maintenancecategory

InformationDescription
OperationTimeDisplaystheprojector'stotaloperationtime
LaserOp.TimeDisplaysthelaseroperatingtimeforeachLightSourceModesetting

Versioncategory

InformationDescription
SerialNo.Displaystheprojector'sserialnumber
MainDisplaytheprojector'sfirmwareversion	information
Video2
Sub
Sub2
HDBaseT

Systemstatusinformation

StatusDescription
OKTheprojectorisinnormaloperatingmode
Warm-upTheprojectoriswarmingup
StandbyTheprojectorisinstandbymode
CoolDownTheprojectoriscoolingdown
TempErrorAhightemperatureerroroccurred
FanErrorAfanerroroccurred
SensorErrorAsensorerroroccurred
PowerErrorApowererroroccurred
InternalErrorAninternalerroroccurred
AirflowErrorAfilterairflowererroroccurred
TempWarningAhightemperaturewarningoccurred
InternalWarningAwarningregardingtheinternalsystemoccurred
AirflowDeclineAlowairflowererroroccurred
PowerWarningApowerwarningoccurred
CleanFilterAnairfilternoticeoccurred;cleantheairfilter
LensErrorAlenserrorhasoccurred
LaserErrorAlasererrorhasoccurred
LaserWarningAlaserwarninghasoccurred

Parenttopic: ViewingtheStatusDisplay

UsingtheProjectorHelpDisplays

Youcandisplayinformationtohelpyousolvecommonproblemsusingtheprojector'sHelpsystem.

1. Turnontheprojector.
2. PresstheHomebuttonontheremotecontrol.
   3.PressthearowbuttonstoselectHelp.
3. PressEnter.

YouseetheHelpmenu.

5.Presstheupanddownarrowbuttonstohighlighttheproblemyouwanttosolve.
6. PressEntertoviewthesolutions.
7. When you are finished, do one of the following:

•Toselectanotherproblemtosolve,pressEsc.

• Toexitthehelpsystem, pressHome.

Parenttopic: Solving Problems

SolvingImageorSoundProblems

Checkthesolutionsinthesesectionsifyouhaveanyproblemswithprojectedimagesorsound.

SolutionsWhenNoImageAppears

SolutionsWhen"NoSignal"MessageAppears

SolutionsWhen"NotSupported"MessageAppears

SolutionsWhenOnlyaPartialImageAppears

SolutionsWhentheImageisNotRectangular

SolutionsWhentheImageContainsNoiseorStatic

SolutionsWhentheImageisFuzzyorBlurry

SolutionsWhentheImageBrightnessorColorsareIncorrect

SolutionstoSoundProblems

Parenttopic: SolvingProblems

SolutionsWhenNoImageAppears

Ifnoimageappears, try the following solutions:

•Makesurethelenscapisoff.

- Press the A/V Mute button on the remote control to see if the image was temporarily turned off.

- Makesureallnecessarycablesaresecurelyconnectedandthepowerisonfortheprojectorand connectedvideosources.

- Presstheprojector'spowerbuttontowakeitfromstandbyorsleepmode. Alsoseeifyourconnected computerisinsleepmodeordisplayingablankscreensaver.

- Press the Menu button. If the projector menu displays, there may be a problem with the connected videosource,cableconnection,orport.

- CheckthesettingsontheSignalmenutomakesuretheyarecorrectforthecurrentvideosource.

- AdjusttheBrightnessSettings.

- Check the Display setting to make sure Messages is set to On.

- If the projectordoesnotrespond when you press the control panel buttons, the buttons may be locked. Unlock the buttons. Press and hold the Enter button for 5 to 10 seconds or use the remote control.

- ForimagesprojectedwithWindowsMediaCenter,reducethescreensizefromfullscreenmode.

- ForimagesprojectedfromapplicationsusingWindowsDirectX,turnoffDirectXfunctions.

- If the others solutions donotsolvethe problem, reset all of the projector settings using the options on the Reset menu.

Parenttopic: SolvingImageorSoundProblems

Relatedconcepts

ProjectorConnections

Relatedreferences

InputSignalSettings-SignalMenu

ProjectorSetupSettings-ExtendedMenu

Relatedtasks

AdjustingtheBrightness

UnlockingtheProjector'sButtons

SolutionsWhen"NoSignal"MessageAppears

If the "NoSignal" message appears, try the following solutions:

• Press the Source Search or Search button and wait a few seconds for an image to appear.
• Turnontheclockedcomputerorvideosource,andpressitsplaybuttontobeginyourpresentation,ifnecessary.
• Checktheconnectionfromtheprojectortoyourvideosources.
• If you are projecting from alaptop computer, makes sure it is setup to display on an external monitor.
• If necessary, turn the projector and the connected computer or video source off and then on again.
  • Tryadifferentvideocable.
• If the othersolutions donotsolvethe problem, reset all of the projector settings using the options on the Reset menu.

DisplayingFromaPCLaptop

DisplayingFromaMacLaptop

Parenttopic: SolvingImageorSoundProblems

Relatedconcepts

ProjectorConnections

DisplayingFromaPCLaptop

If you see the "No Signal" message when you display from a PC laptop, you need to setup the laptop to display on an external monitor.

1. Hold down the laptop's Fn key and press the key labeled with a monitor icon or CRT/LCD. (See your laptopmanualfordetails.) Waitafewsecondsforanimagetoappear. Todisplayonboththe laptop'smonitorandtheprojector, trypressingthesamekeysagain.
   Note: On Windows 7 or later, hold down the Windows key and press P at the same time, then click Duplicate.
2. If the same image is not displayed by the laptop and projector, check the Windows Display utility to make sure the external monitor portisenabled and extended desktop mode is disabled. (Seeyour computer or Windows manual for instructions.)
3. If necessary, check your video card settings and set the multiple display option to Clone, Mirror, or Duplicate.

Parenttopic: SolutionsWhen"NoSignal"MessageAppears

DisplayingFromaMacLaptop

Ifyouseethe"NoSignal"messagewhenyoudisplayfromaMaclaptop,youneedtosetupthelaptop formirroreddisplay.(Seeyourlaptopmanualfordetails.)

1. Open the System Preferences utility and select Displays, Display, or Color LCD.
2. ClicktheArrangeorArrangementtab.
3. Select the Mirror Displays checkbox.

Parenttopic: SolutionsWhen"NoSignal"MessageAppears

SolutionsWhen"NotSupported"MessageAppears

If the "Not Supported" message appears, try the following solutions:

• MakesurethecorrectinputsignalisselectedontheSignalmenu.
• Makesurethecomputer'sdisplayresolutiondoesnotexceedtheprojector'sresolutionandfrequency limit.Ifnecessary,selectdifferentdisplayresolutionforyourcomputer.(Seeyourcomputermanual fordetails.)
• Asatest, try setting the computer's display resolution to the lowest possible setting, and then gradually increase its necessary.

Parenttopic: SolvingImageorSoundProblems

Relatedreferences

InputSignalSettings-SignalMenu

SupportedVideoDisplayFormats

SolutionsWhenOnlyaPartialImageAppears

Ifonlyapartialcomputerimageappears, trythefollowingsolutions:

• MakesureyouselectedthecorrectScreenTypesettingforthescreenyouareusing.
• MakesuretheScalesettingintheExtendedmenuisturnedoff.
• TryadjustingtheimagepositionusingthePositionmenusetting.
• TryadjustingtheimagepositionusingtheScreenPositionmenusetting.
• PresstheAspectbuttonontheremotecontroltoselectadifferentimageaspectratio.
• If you zoomed into or out of the image using the E-Zoom buttons, press the Esc button until the projectorreturnstoafulldisplay.
• Checkthecablesconnectingthecomputerorvideosourcetotheprojector.Tryconnectingdifferent cables.
• Checkyourcomputerdisplaysettingstodisabledualdisplayandsettheresolutionwithinthe projector'slimits.(Seeyourcomputermanualfordetails.)
• Check the resolution assigned to your presentation file to see if they are created for a different resolution than you are projecting in. (Seeyour software help for details.)

Parenttopic: SolvingImageorSoundProblems

Relatedconcepts

ProjectorConnections

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

InputSignalSettings-SignalMenu

SupportedVideoDisplayFormats

Relatedtasks

SettingtheScreenType

AdjustingtheImagePositionUsingScreenPosition

SolutionsWhenthelmageisNotRectangular

If the projected image is not evenly rectangular, try the following solutions:

- Placetheprojectordirectlyinfrontofthecenterofthescreen, facingitsquarely, if possible.

- AdjusttheimageshapeusingtheGeometryCorrectionmenusettings.

Parenttopic: SolvingImageorSoundProblems

Relatedreferences

ProjectorFeatureSettings-SettingsMenu

SolutionsWhentheImageContainsNoiseorStatic

If the projected images seem to contain electronic interference (noise) or static, try the following solutions:

- Checkthecablesconnectingyourcomputerorvideosourcetotheprojector. Theyshouldbe:

• Separated from the powercord to prevent interference
•Securelyconnectedatbothends
• Notconnectedtoanextensioncable
•Nolongerthan9.8feet(3m)forVGA/computercablesor24feet(7.3m)forHDMlcables

- Checkthesettingsontheprojector'sSignalmenutomakesuretheymatchthevideosource.If available for your video source, adjust the Deinterlacing and Noise Reduction settings.

- Selectacomputervideoresolutionandrefreshratethatarecompatiblewiththeprojector.

• If you are projecting from a computer, press the Auto button on the remote control to automatically adjust the tracking and sync. If the problem remains, display a uniformly patterned image on the screen and manually adjust the Tracking and Sync settings.
• If you adjusted the image shape using the projector controls, try decreasing the Sharpness setting to improve image equality.
  • If you connected an extension powerable, try projecting without it to see if it caused interference in the signal.
• Tryadifferentcable.
• Try turning off Frame Interpolation or turning on Image Enhancement in the Image menu.

Parenttopic: SolvingImageorSoundProblems

Relatedreferences

ImageQualitySettings-ImageMenu

InputSignalSettings-SignalMenu

SupportedVideoDisplayFormats

SolutionsWhenthelmageisFuzzyorBlurry

If the projected image is fuzzy or blurry, try the following solutions:

- Adjusttheimagefocus.

•Cleantheprojectorlens.

Note: To avoid condensation on the lens after bringing the projector in from a cold environment, let the projectorwarmuptoroomtemperaturebeforeusingit.

- Tryconnectingtheprojectortothehighestqualityconnectionavailableonyourinputsource. For example, connecttoanHMDIportorcomponentvideoportsforabetterqualityinputsignal.

- Position the projector close enough to the screen.

- Position the projector so the keystone adjustment angle is not sowidethat it distortsthe image.

- AdjusttheSharpnesssettingtoimproveimagequality.

- If you are projecting from a computer, press the Auto button on the remote control to automatically adjust the tracking and sync. If any bands or overall blurriness remain, display a uniformly patterned image on the screen and manually adjust the Tracking and Sync settings.

- If you are projecting from a computer, try using a lower resolution or try to match the projector's native resolution.

Parenttopic: SolvingImageorSoundProblems

Relatedconcepts

ProjectorConnections

Relatedreferences

ProjectorSetupandInstallationOptions

ImageQualitySettings-ImageMenu

GeneralProjectorSpecifications

SupportedVideoDisplayFormats

Relatedtasks

FocusingtheImageUsingtheFocusButtons

CleaningtheLens

SolutionsWhenthelmageBrightnessorColorsareIncorrect

If the projected image is stood dark or light, or the colors are incorrect, try the following solutions:

- Press the Color Mode button on the remote control to try different color modes for the image and environment.

- Checkyourvideosourcesettings.

• Adjust the available settings on the Image menu for the current input source, such as Brightness, Contrast, Tint, Advanced, and Color Saturation.
• Make sure you selected the correct Input Signal or Video Signal setting on the Signal menu, if available for your images source.
• Makesureallthecablesaresecurelyconnectedtotheprojectorandyourvideodevice.Ifyou connectedlongcables,tryconnectingshortercables.

- MakesuretheBrightnessSettingsoptionsintheSettingsmenuaresetcorrectly.

- Position the projector closeenoughtothescreen.

Parenttopic: SolvingImageorSoundProblems

Relatedreferences

ImageQualitySettings-ImageMenu

InputSignalSettings-SignalMenu

ProjectorFeatureSettings-SettingsMenu

ProjectionDistance

SolutionstoSoundProblems

If there is nosound when you expect it the volume is too low or high, try the following solutions:

- Adjust the projector's volumesettings.

- Press the A/V Mute button on the remote control to resume video and audio if they were temporarily stopped.

- Press the Source Search or Search button to switch to the correct input source, if necessary.

- Checkyourcomputerorvideosourcetomakesurethevolumeisturnedupandtheaudiooutputisset forthecorrectsource.

- Trydisconnectingandreconnectingtheaudiocable.

- Checktheaudiocableconnectionsbetween the projector and your videosource

- If you dono the earsound from an HDMI source, set the connected device to PCM output.

- Makesureanyconnectedaudiocablesarelabeled"NoResistance".

- If you are using a Mac and you don't have sound from an HDMI source, makes sure your Mac supports audio through the HDMI port. If not, you need to connect an audioable.

- If you want to use a connected audio source when the projector is off, set the Standby Mode option to Communication On and make sure the A/V Settings options are set correctly.

• MakesuretheAudioSettingsoptionissettothecorrectaudioportforyourvideodevice.
• If you turn the projector immediately after turning it off, the cooling fans may run at high speed momentarily and cause an unexpected noise. This is normal.

Parenttopic: SolvingImageorSoundProblems

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

Relatedtasks

ControllingtheVolumewiththeVolumeButtons

ConnectingtoaVideoSourceforSound

ConnectingtoaComputerforSound

ConnectingtoExternalSpeakers

SolvingProjectororRemoteControlOperationProblems

Checkthesolutionsinthesesectionsifyouhaveproblemsoperatingtheprojectororremotecontrol.

SolutionstoProjectorPowerorShut-OffProblems

SolutionstoProblemswiththeRemoteControl

SolutionstoPasswordProblems

Parenttopic: Solving Problems

SolutionstoProjectorPowerorShut-OffProblems

If the project orders not come on when you press the power button or it should you expectedly, try the followingsolutions:

• Makesurethepowercordissecurelyconnectedtotheprojectorandtoaworkingelectricaloutlet.
• Theprojector'sbuttonsmaybelockedforsecurity.Unlockthebuttonssorusetheremotecontrolto turnontheprojector.
• If the projector's lasers shut so off unexpectedly, it may have entered standby mode after a period of inactivity. Press the power button to wake the projector and adjust the Sleep Mode Timer setting to changethesleep interval.
• If the power button on theremote control does not turn on the projector, checks batteries and make sure the Remote Receiversetting is turned on the projector's menu, if available.
• Thepowercordmaybedefective. Tryanotherpowercord. If that doesn't work, disconnect the cord and contact Epson.

Parenttopic: SolvingProjector or RemoteControlOperationProblems

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

ProjectorFeatureSettings-SettingsMenu

ProjectorLightStatus

Relatedtasks

UnlockingtheProjector'sButtons

SolutionstoProblemswiththeRemoteControl

If the projectordoes not respond to remote control commands, try the following solutions:

- Check that theremote control batteries are installed correctly and have power. If necessary, replace the batteries.

- Makesureyouareoperatingtheremotecontrolwithinthereceptionangleandrangeoftheprojector.

- Makesuretheprojectorisnotwarminguporshuttingdown.

- Checktoseeifabuttonontheremotecontrolisstuckdown, causingittoentersleepmode. Release thebuttontowaketheremotecontrolup.

- Strongfluorescentlighting, directsunlight, orinfrareddevicesignals maybeinterfering with the projector'sremotereceivers. Dimthelightsormovetheprojectorawayfromthesunorinterfering equipment.

- Make sure the optional remote control cable set is not attached to the projector's Remote port. If you leavethecableconnectedtotheport,theremotecontrolcannotcontroltheprojector.

•Ifavailable,turnononeoftheremotereceiversintheprojectorsmenusystem,orcheckifallthe remotereceiverswereturnedoff.

• If you assigned an ID number to other remote control to operate multiple projectors, you may need to check or change the ID setting (feature not available with all projectors).

- Make sure the Remote Control Type setting in the Extended menu is set to Normal if you are using theremotecontrolthatcamewiththeprojector.

- Make sure the Control Communications or Extron XTP setting in the Extended menu is set to Off if you are using the optional remote control cable set.

- If you lose theremote control, you can purchase another from an authorized Epsonreseller.

Parenttopic: SolvingProjectorRemoteControlOperationProblems

Relatedconcepts

ProjectorIdentificationSystemforMultipleProjectorControl

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

ProjectorFeatureSettings-SettingsMenu

RemoteControlOperation

Relatedtasks

ReplacingtheRemoteControlBatteries

SolutionstoPasswordProblems

If you cannot enter or remember a password, try the following solutions:

- You may have turned on password protection without first setting a password. Try entering 0000 using theremotecontrol.

• If you have entered an incorrect password to many times and see a message displayed are request code, writed down the code and contact Epson. Donot attempt to enter the password again. Provide therequest code and proof of ownership for assistance in unlocking the projector.

- IfyousetaEpsonWebControlpasswordandforgottheuserIDorpassword,tryenteringthe following:

- UserID:EPSONWEB

- Defaultpassword:admin

- IfyousetaRemotepassword(inEpsonWebControl)andforgottheuserIDorpassword,tryentering thefollowing:

- UserID:EPSONREMOTE

- Defaultpassword:guest

- If you los etheremote control, you cannot enter a password. Order anewone from Epson.

Parenttopic: SolvingProjectororRemoteControlOperationProblems

Relatedconcepts

PasswordSecurityTypes

SolvingNetworkProblems

Checkthesolutionsinthesesectionsifyouhaveproblemsusingtheprojectoronanetwork.

SolutionsWhenWirelessAuthenticationFails

SolutionsWhenYouCannotAccesstheProjectorThroughtheWeb

SolutionsWhentheImageContainsStaticDuringNetworkProjection

SolutionsWhenNetworkAlertE-MailsareNotReceived

Parenttopic: Solving Problems

SolutionsWhenWirelessAuthenticationFails

If you cannot authenticate a wireless connection, try the following solutions:

- If the wireless settings are correct, but authentication fails, you may need to update the Date & Time settings in the Extended menu, if available.

- MakesuretheWirelessModesettingissettoWirelessLanOn.

- ChecktheSecuritysettingsandpassphraseintheNetworkConfigurationmenu.

- ChecktheEventIDnumberdisplayedintheInfomenuandcheckthelinkbelowtoidentifythe problem.

Parenttopic: SolvingNetworkProblems

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

EventIDCodeList

Relatedtasks

SettingUpWirelessNetworkSecurity

SolutionsWhenYouCannotAccesstheProjectorThroughtheWeb

If you are unable to access the project through a web browser, makes sure you are using the correct ID and password, which are cases sensitive.

- FortheuserID, enterEPSONWEB.(YoucannotchangetheuserID.)

- Forthepassword, enter the password set in the projector's Network menu. The default password is admin.

- Makesureyouhaveaccesstothenetworktheprojectorison.

Note: TheuserIDandpasswordarecasesensitive.

Parenttopic: SolvingNetworkProblems

Relatedconcepts

PasswordSecurityTypes

Relatedtasks

ControllingaNetworkedProjectorUsingaWebBrowser

SolutionsWhentheImageContainsStaticDuringNetworkProjection

If the projected image contains static during network projection, try the following solutions:

- Checkforanyobstaclesbetweentheaccesspoint, thecomputer, themobiledevice, and theprojector. If necessary, changetheirpositionstoimprovecommunication. Alsomakesurethattheyarenotto farapart; movethemclosertogetherandtrytoconnectagain.

- If the wireless connection is slow your projected image contains noise, check for interference from other equipment, such as Bluetooth device or microwave. Movethe interfering device farther away or expand your wireless bandwidth.

- If the connections speed declines, reduce the number of connected devices.

Parenttopic: Solving Network Problems

SolutionsWhenNetworkAlertE-MailsareNotReceived

If you donot receive an e-mail alerting y out o problems with a projector over then network, try the followingsolutions:

- Makesuretheprojectoristurnedonandconnectedtothenetworkcorrectly.(Ifanerrorshutdownthe projector, itcannotsendane-mail.)

- Makesureyousetuptheprojectore-mailalertsettingscorrectlyontheprojector'snetwork Notificationsmenuorinthenetworksoftware.

- Set the Standby Mode setting to Communication On so the network software can monitor the projectorinstandbymode.

Parenttopic: Solving Network Problems

Relatedreferences

ProjectorSetupSettings-ExtendedMenu

ProjectorNetworkSettings-NetworkMenu

WheretoGetHelp

If you need to contact Epson for technical supports, use the following support options.

InternetSupport

Visit Epson's support website at epson.com/support (U.S.), epson.ca/support (Canada), or epson.com.jm/support (Caribbean) and select your product for solutions to common problems with your projector. Youcandownloadutilitiesanddocumentation,getFAQsandtroubleshootingadvice,ore-mail Epsonwithyourquestions.

SpeaktoaSupportRepresentative

TousetheEpsonPrivateLineSupportservice, call(800)637-7661. This service is available for the duration of your warranty period. You may also speak with a projectorsupport specialist by dialing(562) 276-4394(U.S.) or [phone](Canada).

Supporthoursare6AMto8PM, PacificTime, MondaythroughFridayand7AMto4PM, PacificTime, Saturday.

Daysandhoursofsupportaresubjecttochangewithoutnotice. Tollerlongdistancechargesmay apply.

Beforeyoucall,havethefollowinginformationready:

•Productname

- Productserialnumber(locatedonthebottomorrearoftheprojector,orinthemenusystem)

•Proofofpurchase(suchasastorereceipt)anddateofpurchase

•Computerorvideoconfiguration

•Descriptionoftheproblem

PurchaseSuppliesandAccessories

Youcanpurchasescreens,otheroptionalaccessories,andreplacementpartsfromanEpsonauthorizedreseller.Tofindthenarestreseller,call800-GO-EPSON(800-463-7766)intheU.S.or800-807-7766inCanada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Topurchaseareplacementremotecontrol, call(562)276-4394(U.S.) or [phone](fordealerreferralinCanada).

Parenttopic: Solving Problems

TechnicalSpecifications

Thesesectionslistthetechnicalspecificationsofyourprojector.

GeneralProjectorSpecifications

ProjectorLightSourceSpecifications

RemoteControlSpecifications

ProjectorDimensionSpecifications

ProjectorElectricalSpecifications

ProjectorEnvironmentalSpecifications

ProjectorSafetyandApprovalsSpecifications

SupportedVideoDisplayFormats

GeneralProjectorSpecifications

Note: Specifications are based on having the standard zoom lens (ELPLM15) installed.

TypeofdisplayPoly-siliconTFTactivematrix

ResolutionPro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL:

1920×1200pixels(WUXGA)

ProL1715SNL:

1400×1050pixels(SXGA+)

LensF=1.8to2.3

Focallength:36to57.35mm

ColorreproductionFullcolor, upto1billioncolors

BrightnessProL1490U/L1490UNL/L1495U/L1495UNL:

NormalLightSourceMode:

Whitelightoutput9000lumens(ISO21118standard)

Colorlightoutput9000lumens

QuietorExtendedLightSourceMode:

Whitelightoutput6300lumens(ISO21118standard)

ProL1500UH/L1500UHNL/L1505UH/L1505UHNL:

NormalLightSourceMode:

Whitelightoutput12000lumens(ISO21118standard)

Colorlightoutput12000lumens

QuietorExtendedLightSourceMode:

Whitelightoutput8400lumens(ISO21118standard)

ProL1715SNL/L1750UNL/L1755UN:

NormalLightSourceMode:

Whitelightoutput15000lumens(ISO21118standard)

Colorlightoutput15000lumens

QuietorExtendedLightSourceMode:

Whitelightoutput10500lumens(ISO21118standard)

Note: Colorbrightness(colorlightoutput)andwhitebrightness (whitelightoutput)will vary depending on usage conditions.Color light output measured in accordance with IDMS15.4;whitelight output measured in accordance with ISO21118.

ContrastratioOver2,500,000:1withDynamicColorMode,NormalLightSource

Mode, WideZoom, LensShiftcentered, and LightOptimizer

Imagesize

60inches(1.52m)to500inches(12.7m)

(innativeaspectratio)

Projectiondistance(innativeaspect ratio)

ProL1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL:78.3inches(1.99m)to1093.3inches(27.77m)ProL1715SNL:76inches(1.93m)to1066.9inches(27.10m)

ProjectionmethodsFront, rear, ceiling-mounted

Opticalaspectratio(width-to-height)

ProL1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL:16:10ProL1715SNL:4:3

FocusadjustmentPowered

ZoomadjustmentPowered

Zoomratio	1to1.61
(Tele-to-Wide)

NoiselevelPro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL:

37dB(NormalLightSourceMode)

30dB(QuietLightSourceMode)

ProL1715SNL/L1750UNL/L1755UNL:

40dB(NormalLightSourceMode)

30dB(QuietLightSourceMode)

Keystonecorrectionangle±45°vertical(TeleZoom)

±30°horizontal(TeleZoom)

USBTypeBportcompatibilityUSB2.0compliantforfirmwareupdateorcopyingmenusettings

USBTypeAportcompatibilityUSB2.0compliantportforwirelessLAN,firmwareupdate,or copyingmenusettings

Parenttopic: Technical Specifications

ProjectorLightSourceSpecifications

Note: Specifications are based on having the standard zoom lens (ELPLM15) installed.

TypeLaserDiode

LightsourceoutputpowerPro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL:

252W

ProL1715SNL/L1750UNL/L1755UNL:

288W

Wavelength450to460nm

LightsourcelifeNormalorQuietLightSourceMode:

Uptoabout20000hours

ExtendedLightSourceMode:

Uptoabout30000hours

Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary depending upon modeselected, environmental conditions, and usage. Brightness decreases over time.

Parenttopic: Technical Specifications

RemoteControlSpecifications

Receptionrange98.4feet(30m)

Batteries TwoalkalineormanganeseAA

Parenttopic: Technical Specifications

ProjectorDimensionSpecifications

Height(excludingfeet)7.3inches(185mm)

Width23.1inches(586mm)

Depth 19.4 inches (492mm)

WeightPro

L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL

48.4lb(21.9kg)

ProL1715SNL

49.0lb(22.2kg)

ProL1750UNL/L1755UN

49.2lb(22.3kg)

Parenttopic: Technical Specifications

ProjectorElectricalSpecifications

Note: Specifications are based on having the standard zoom lens (ELPLM15) installed.

Ratedfrequency50/60Hz

Powersupply100to240VAC±10%

ProL1490U/L1490UNL/L1495U/L1495UNL:

6.5to2.9A

ProL1500UH/L1500UHNL/L1505UH/L1505UHNL:

9.6to4.2A

ProL1715SNL/L1750UNL/L1755UNL:

11.0to4.7A

Powerconsumption(100to120V)

ProL1490U/L1490UNL/L1495U/L1495UNL:NormalLightSourceMode:645WExtendedLightSourceMode:524WStandby:0.3W(CommunicationOff),2.0W(CommunicationOn)ProL1500UH/L1500UHNL/L1505UH/L1505UHNL:NormalLightSourceMode:955WExtendedLightSourceMode:597WStandby:0.3W(CommunicationOff),2.0W(CommunicationOn)ProL1715SNL/L1750UNL/L1755UNL:NormalLightSourceMode:1082WExtendedLightSourceMode:668WStandby:0.3W(CommunicationOff),2.0W(CommunicationOn)

Powerconsumption(220to240V)

ProL1490U/L1490UNL/L1495U/L1495UNL:NormalLightSourceMode:626WExtendedLightSourceMode:512WStandby:0.3W(CommunicationOff),2.0W(CommunicationOn)ProL1500UH/L1500UHNL/L1505UH/L1505UHNL:NormalLightSourceMode:908WExtendedLightSourceMode:597WStandby:0.3W(CommunicationOff),2.0W(CommunicationOn)ProL1715SNL/L1750UNL/L1755UNL:NormalLightSourceMode:1024WExtendedLightSourceMode:647WStandby:0.3W(CommunicationOff),2.0W(CommunicationOn)

Parenttopic: Technical Specifications

ProjectorEnvironmentalSpecifications

Note: Specifications are based on having the standard zoom lens (ELPLM15) installed.

TemperatureOperating:

Upto4921feet(1500m):32to122°F(0to50°C)

4921 feet (1500m) to 10000 feet (3048m) with High Altitude Mode

enabled:32to113°F(0to45°C)

Brightnessautomaticallydimsatthesealtitudes/operating

temperatures:

Upto4921feet(1500m):104°F(40°C)

4921 feet (1500m) to 10000 feet (3048m): 95°F (35°C)

Storage:

14to140°F(-10to60°C)

Humidity(relative,non-

Operating:20to80%

condensing)

Storage:10to90%

OperatingaltitudeUpto4921feet(1500m)

Upto10000feet(3048m)withHighAltitudeModeenabled

Parenttopic: Technical Specifications

ProjectorSafetyandApprovalsSpecifications

UnitedStatesFCCPart15ClassB

UL60950-12ndedition(cTUVusMark)

CanadalCES-003ClassB

CSAC22.2No.60950-1-07(cTUVusMark)

Parenttopic: Technical Specifications

SupportedVideoDisplayFormats

Forbestresults, your computer's monitor port or video card resolutions should be set to display in the projector's nativer resolution. However, your projector includes Epson's Size Wise chip that supports other computer display resolutions, so your image will be resized to automatically.

Yourcomputer'smonitorportorvideocardrefreshrate(verticalfrequency)mustbecompatiblewiththe projector.(Seeyourcomputerorvideocardmanualfordetails.)

Thetablehereliststhecompatiblerefreshrateandresolutionforeachcompatiblevideodisplayformat.

DisplayformatRefreshrate(inHz)	Resolution(inpixels)
Computersignals(analogRGB)
VGA60/72/75/85640×480
SVGA60/72/75/85800×600
XGA60/70/75/851024×768
WXGA601280×768
	60/75/851280×800
	601366×768
WXGA+60/75/851440×900
WXGA++601600×900
SXGA70/75/851152×864
	60/75/851280×960
	60/75/851280×1024
SXGA+60/751400×1050
WSXGA+ ^1	601680×1050
UXGA601600×1200
1920×108050/601920×1080
WUXGA ^2,3	601920×1200
Componentvideo
SDTV(480i)	60720×480
SDTV(576i)	50720×576
SDTV(480p)60720×480
SDTV(576p)50720×576
HDTV(720p)50/601280×720
HDTV(1080i)50/601920×1080
HDMI,DVI-D,andHDBaseTinputsignals
VGA60640×480
SVGA60800×600
XGA601024×768
WXGA601280×800
	601366×768
WXGA+601440×900
WXGA++601600×900
SXGA601280×960
	601280×1024
SXGA+601400×1050
WSXGA+601680×1050
UXGA601600×1200
1920×1080	50/601920×1080
WUXGA ^2	601920×1200
QXGA ^3,4	602048×1536
WQHD ^3,4	602560×1440
WQXGA ^2,3,4	602560×1600
SDTV(480i/480p)	60720×480
SDTV(576i/576p)	50720×576
HDTV(720p)50/601280×720
HDTV(1080i)50/601920×1080
HDTV(1080p)24/30/50/601920×1080
4K × 2K^3,4	24/25/30/50/603840×2160
4K × 2K(SMPTE)^3,4	24/50/604096×2160
SDinputsignals(ProL1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNLonly)
SDTV(480i)59.94(SD-SDImode)7	20×480
SDTV(576i)50(SD-SDImode)720×	576
HDTV(720p)50/59.94/60(HD-SDImode)1280×720
HDTV(1080i)50/59.94/60(HD-SDImode)1920×1080
HDTV(1080p)23.98/24/25/29.97/3	0(HD-SDImode)	1920×1080
	50.59.94/60(3G-SDImode;LevelA)	1920×1080

Parenttopic: Technical Specifications

^1 OnlycompatiblewhenWideisselectedastheResolutionsetting

^2 CompatibleonlywithVESACVT-RB(ReducedBlanking)inputsignal

^3 NotsupportedforProL1715SNL

^4 HDMIandHDBaseTinputonly

Notices

Checkthesesectionsforimportantnoticesaboutyourprojector.

Recycling

ImportantSafetyInformation

ImportantSafetyInstructions

ListofSafetySymbols(correspondingtoIEC60950-1A2)

FCCComplianceStatement

BindingArbitrationandClassWaiver

Trademarks

CopyrightNotice

Recycling

Epson offers a recycling program for end of life products. Please go to this site for information on how to return your products for proper disposal.

Parenttopic:Notices

ImportantSafetyInformation

Caution: Never look into the projector lens when the laser is turned on; the bright light can damage your eyes. Neverletchildrenlookintothelenswhenitison. Neveropenanycoverontheprojector, except thefiltercovers. Dangerousselectricalvoltagesinsidetheprojectorcanseverelyinjureyou. Exceptas specifically explained in this User's Guide, do not attempt to service this product yourself. Refer all servicingtoqualifiedservicepersonnel.

Warning: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small childrento avoid any risk of suffocation.

Parenttopic:Notices

ImportantSafetyInstructions

Followthesesafetyinstructionswhensettingupandusingtheprojector:

- Donotlookintothelenswhentheprojectorison.Thebrightlightcandamageyoureyes.Avoid standinginfrontoftheprojectorsothebrightlightdoesnotshineintoyoureyes.

• Donotplaceyourhandoranyobjectneartheprojectionwindow. The hightemperatureofthisarea could cause burns, fire, or other damage.
• Donotplacetheprojectoronanunstablecart,stand,ortable.
• If the projector is mounted on aceiling or wall, it should be installed by qualified technicians using mounting hardware designed for use with this projector.
• Wheninstallingoradjustingaceilingorwallmount,donotuseadhesivestopreventthescrewsfrom looseninganddonotuseoilsorlubricants.Thismaycausetheprojectorcasetocrackandthe projectortofallfromitsceilingmount.Thiscouldcauseseriousinjurytoanyoneunderthemountand coulddamagetheprojector.
• Donotusetheprojectornearwater, sourcesofheat, high-voltageelectricalwires, or sourcesof magneticfields.
• Use the type of powersource indicated on the projector. Use of different powers our current fire electric shock. If you are not sure of the power available, consult your dealer or power company.
• Placetheprojectornearawalloutletwheretheplugcanbeeasilyunplugged.
  •Takethefollowingprecautionswhenhandlingtheplug:Donotholdtheplugwithwethands.Donot inserttheplugintoadustyoutlet.Inserttheplugfirmlyintotheoutlet.Donotpullthepowercordwhen disconnectingtheplug;alwaysbesuretoholdtheplugwhendisconnectingit.Donotoverloadwall outlets,extensioncords,orpowerstrips.Failuretocomplywiththeseprecautionscouldresultinfireor electricshock.
• Donotplacetheprojectorwherethecordcanbewalkedon. This may result in infrayingordamageto the plug.
• Unplugtheprojectorfromthewalloutletandallowtocoolbeforecleaning. Useadrycloth(or, for stubborndirtorstains, amoistcloththathasbeenwrungdry)forcleaning. Donotuseliquidoraerosol cleaners, anysprayscontainingflammablegas, orsolventssuchasalcohol, paintthinner, orbenzine.
• Donotblocktheslotsandopeningsintheprojectorcase. Theyprovideventilationandpreventthe projectorfromoverheating.Donotoperatetheprojectoronasofa,rug,orthersoftsurface,orsetit ontopofloosepapers.Donotcovertheprojectorwithabblanket,curtain,ortablecloth.Ifyouare settinguptheprojectornearawall,leaveatleast7.9inches(20cm)ofspacebetweenthewalland theprojector.
• Donotoperatetheprojectorinaclosed-incabinetunlessproperventilationisprovided.
• Neverallowobjectsofanykindtoenteranyopeningsintheprojector.Donotleaveobjects,especially flammableobjects,neartheprojector.Neverspillliquidofanykindintotheprojector.

• If you are using two more projector side-by-side, leave at least 20 inches (50cm) of space between the projector to allow for proper ventilation.

• Youmayneedtocleantheairfilterandvent.Acloggedairfilterorventcanblockventilationneeded tocooltheprojector.Donotusecannedair,orthegasesmaybearesidue.

• Donotstoretheprojectoroutdoorsforanextendedlengthoftime.
• Exceptasspecificallyexplainedinthismanual,donotattempttoservicethisproductyourself.Refer allservicingtoqualifiedpersonnel.Openingorremovingcoversmayexposeyoutodangerous voltagesandotherhazards.
• Neveropenany covers the projectore except a specifically explained this manual. Never attempt to disassemble or modify the projector. Refer all repair to qualified service personnel.
• Unplugtheprojectorfromthewalloutletandreferservicingtoqualifiedservicepersonnelunderthe followingconditions:ifitdoesnotoperatenormallywhenyoufollowtheoperatinginstructions,or exhibitsadistinctchangeinperformance;ifsmoke,strangeodors,orstrangenoisescomefromthe projector;ifthepowercordorplugisdamagedorfrayed;ifliquidorforeignobjectsgetinsidethe projector,orifithasbeenexposedtorainorwater;ifithasbeendroppedorthehousinghasbeen damaged.
• Donottouchtheplugduringanelectricalstorm. Otherwise, you may receive an electric shock.
• Unplugtheprojectorwhenitwillnotbeusedforextendedperiods.
• Donotusetheprojectorwhereitmaybeexposedtorain,water,orexcessivehumidity.
• Donotuseorstoretheprojectorwhereitmaybeexposedtosmoke,steam,corrosivegases, excessivedust,vibration,orshock.
• Donotusetheprojectorwhereflammableorexplosivegasesmaybepresent.
• Donotuseorstoretheprojectororremotecontrolinahotlocation,suchasnearaheater,indirect sunlight,orinaclosedvehicle.
• If you use the projector in a country other than where you purchase it, use the correct power cord for that country.
• Donotstandontheprojectorplaceheavyobjectsonit.
• Donotusetheprojectoroutsideoftherequiredtemperaturerangebelow:
  32to122°F(0to50°C)atanaltitudeof4921feet(1500m)orless,and32to113°F(0to45°C)atanaltitudeof4925to10000feet(1501to3048m)
  Doingsomaycauseanunstabledisplayandcouldleadtoprojectordamage.Donotuseorstorethe projectorwhereitmaybeexposedtosuddenchangesintemperature.

• Donotstoretheprojectoroutsideoftherequiredtemperaturerangeof14to140°F(-10to60°C)or indirectsunlightforlongperiodsoftime.Doingsomaycausedamagetothecase.

• Donotplaceanythingthatcanbecomewarpedordamagedbyheatneartheexhaustvents.Donot bringyourhandsorfaceclosetotheventswhileprojectionisinprogress.Donotbringyourfaceclose totheprojectorwhileitisinuse.
  • Before you mov the projector, makes sure its power is turned off, the plug is disconnected from the outlet, and all cables are disconnected.

• Donotplacethesourceofanopenflame, suchasalitcandle, onorneartheprojector.
• Donotblockthelensduringprojectionusingabookoranyotherobject. Thiscoulddamagethe projectororcauseafire.
• Donotmodifythepowercord. Donotplaceheavyobjectsontopofthepowercordorbend, twist, or pullitexcessively. Keepthepowercordawayfromhotelectricalappliances.
  •Alwaysattachthelenscovertothelenswhennotusingtheprojectortopreventthelensfrom becomingdirtyordamaged.

LaserSafetyInformation

LaserLightSourceWarning

RestrictionofUse

Parenttopic:Notices

LaserSafetyInformation

ThisprojectorisaClass3RlaserproductthatcomplieswiththeIEC60825-1internationalstandardforlasers.Followthesesafetyinstructionswhenusingtheprojector.

•Ifanerroroccursintheprojector,turnoffthepowerandunplugtheprojectorimmediately.Continuing tousetheprojectorcouldresultinanelectricshock,fire,orvisualimpairment.ContactEpsonsupport.

- Donotattemptlodisassembleormodifytheprojector. Theprojectorcontainsahigh-powerlaser component. Seriousinjurycouldresult.

- Donotlookintothelensduringprojection. Also, donotlookintothelensusingopticaldevices, such asamagnifyingglassortelescope. This could cause visual impairment.

- Whenturningontheprojectoratadistanceusingtheremotecontrol,makesurenooneislookingintothelens.

- Donotallowsmallchildrentooperatetheprojector.Childrenmustbeaccompaniedbyanadult.

- Donotapplyopticaldevices, such as amagnifying glassor reflector, to the projected image. Using the projectormay result in physical harm, fire, oran accident.

- Beforeusingtheprojector, makesurethereisnothingintheareathatcouldreflecttheprojected image.

- When disposing of the projector, donot disassemble it. Dispose of the projector in accordance with your local or national laws and regulations.

Labels are attached to the project to indicate it is a Class3R product and complies with FDA performance standards for laser product except for deviations pursuant to Laser Notice N.50, dated June 24, 2007:

•Inside

•Top

•Side

Parenttopic: Important Safety Instructions

LaserLightSourceWarning

RefertothetableherefortheExposureHazardValues(EHV)inaccordancewiththeIEC62471-2:2009 standard. TheEHVindicatesthehazardlevelforobjectsinfrontofthelightsourcefor0.25secondsata distanceof7.9inches(20cm).Thehigherthevalue,thegreaterthehazardlevel.

LensExposureHazardValue
	ProL1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL	ProL1715SNL/L1750UNL/L1755UNL
ELPLS040.60.6
ELPLM150.60.7
ELPLX02<0.5<0.5
ELPLU03<0.5<0.5
ELPLU02<0.5<0.5
ELPLU04<0.5<0.5
ELPLW04<0.50.5
ELPLW05<0.5<0.5
ELPLW06<0.50.5
ELPLW08<0.5<0.5
ELPLM060.70.7
ELPLM100.70.8
ELPLM070.70.7
ELPLM110.70.7
ELPLL070.70.7
ELPLL080.70.7

Parenttopic: Important Safety Instructions

RestrictionofUse

Whenthisproductisusedforapplicationsrequiringhighreliability/safetysuchastransportationdevices relatedtoaviation,rail,marine,automotive;disasterpreventiondevices;varioussafetydevices;or functional/precisiondevices,youshouldusethisproductonlyaftergivingconsiderationtoincludingfail-safesandredundanciesintoyourdesigntomaintainsafetyandtotalsystemreliability.

Because this product was not intended for use in applications requiring extremely high reliability/safety such as aerospace equipment, main communication equipment, nuclear power control equipment, or

medicalequipmentrelatedtodirectmedicalcare, pleasemakeyourownjudgmentonthisproduct's suitabilityafterafullevaluation.

Parenttopic: Important Safety Instructions

ListofSafetySymbols(correspondingtoIEC60950-1A2)

The following table lists the meaning of the safety symbols labeled on the equipment.

No.Symbol	ApprovedStandards	Description
1IEC60417	[H38]	No.5007	"ON"(power)Toindicateconnectiontothemains.
2IEC60417		No.5008	"OFF"(power)Toindicatedisconnectionfromthe mains.
3IEC60417		No.5009	Stand-byToidentifytheswitchorswitchposition bymeansofwhichpartoftheequipment isswitchedoninordertobringitintothe stand-bycondition.
4ISO7000		No.0434BIEC3864-B3.1	CautionToidentifygeneralcautionwhenusing theproduct.
5IEC60417		No.5041	Caution,hotsurfaceToindicatethathemarkeditemcanbe hotandshouldnotbetouchedwithout takingcare.
6IEC60417		No.6042ISO3864-B3.6	Caution,riskofelectricshockToidentifyequipmentthathasriskof electricshock.
7IEC60417		No.5957	ForindooruseonlyToidentifyelectricalequipmentdesignedprimarilyforindooruse.
8IEC60417		No.5926	PolarityofDCpowerconnectorToidentifythepositiveandnegativeconnections(thepolarity)onapieceofequipmenttowhichaDCpowersupplymaybeconnected.
9IEC60417		No.5001B	Battery,generalOnbatterypoweredequipment.Toidentifyadeviceforinstanceacoverforthebatterycompartment,ortheconnectorterminals.
10IEC60417		No.5002	PositioningofcellToidentifythebatteryholderitselfandtoidentifythepositioningofthecell(s)insidethebatteryholder.
11IEC60417		No.5019	ProtectiveearthToidentifyanyterminalwhichisintendedforconnectiontoanexternalconductorforprotectionagainstelectricshockincaseofafault,ortheterminalofaprotectiveearthelectrode.
12IEC60417		No.5017	EarthToidentifyanearth(ground)terminalincaseswhereneitherthesymbolNo.13isexplicitlyrequired.

No.	Symbol	ApprovedStandards	Description
13IEC604			No.5032	AlternatingcurrentToindicateontheratingplatethathequipmentissuitableforalternatingcurrently;toidentifyrelevantterminals.
14IEC604			No.5031	DirectcurrentToindicateontheratingplatethathequipmentissuitablefordirectcurrentonly;toidentifyrelevantterminals.
15IEC604			No.5172	ClassIIequipmentToidentifyequipmentmeetingthesafetyrequirementsspecifiedforClassIIequipmentaccordingtoIEC61140.
16ISO3864		Generalprohibition		Toidentifyactionsoroperationsthatareprohibited.
17ISO3864		Contactprohibition		Toindicateinjurythatcouldoccurduetotouchingaspecificpartoftheequipment.
18—Never		lookintotheopticallensw	whilethe	projectorison.
19—Toind		catethathemarkeditem	don't	placeanythingonprojector.
20ISO3864			IEC60825-1	Caution,laserradiationToindicatetheequipmenthasalaserradiationpart.

No.Symbol	ApprovedStandards	Description
21ISO3864	Disassemblyprohibition		Toindicateariskofinjury,suchas electricshock,iftheequipmentis disassembled.
22—Never	lookintothelenswhilethe	LEDfor	lightingison.
23IEC6041	7	No.5266	Standby,partialstandbyToindicatethatpartoftheequipmentis inthereadystatus.
24ISO3864		IEC60417No.5057	Caution,movablepartsToindicatethatyoumustkeepaway frommovablepartsaccordingto protectionstandards.

Parenttopic:Notices

FCCComplianceStatement

ForUnitedStatesUsers

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiater radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference or radiocommunication. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause interference or radio and television reception, which can be determined by turning the equipment off and, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna.
- Increase these separation between the equipment and receiver.
- Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
- Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING

The connection of an on-shielded equipment interface cable to this equipment will invalidate the FCC Certification or Declaration of this device and may cause interference levels which exceed the limits established by the FCC forthisequipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

ForCanadianUsers

CANICES-3(B)/NMB-3(B)

Parenttopic:Notices

BindingArbitrationandClassWaiver

1. DISPUTES, BINDING INDIVIDUAL ARBITRATION, AND WAIVEROF CLASSACTIONS AND CLASSARBITRATIONS

1.1 Disputes. The terms of this Section 1 shall apply to all Disputes between you and Epson. The term "Dispute" is meant to have the broadest meaning permissible underlaw and includes any dispute, claim, controversy or action between you and Epson arising out of for relating to this Agreement, Epson branded products (hardware and including any related software), or other transaction involving you and Epson, whether in contract, warranty, misrepresentation, fraud, tort, intentionaltort, statute, regulation, ordinance, or any other legal or equitable basis. "DISPUTE" DOES NOT INCLUDE IP CLAIMS, or more specifically, a claimor cause of action for (a) trademark infringement or dilution, (b) patent infringement, (c) copyright infringement or misuse, or (d) trades secret misappropriation (an "IP Claim"). You and Epson also agree, notwithstanding Section 1.6, that court, not an arbitrator, may decide if a claimor cause of action is for an IP claim.

1.2 Binding Arbitration. You and Epson agree that all Disputes shall be resolved by binding arbitration according to this Agreement. ARBITRATION MEANSTHAT YOU WAIVE YOUR RIGHT TO AJUDGE OR JURY IN ACOURTPROCEEDING AND YOUR GROUNDS FOR APPEAL ARE LIMITED.

PursuanttothisAgreement, bindingarbitrationshallbeadministered by JAMS, anationally recognized arbitration authority, pursuant to its code of procedure then effective for consumer related disputes, but excluding any rule that permit joinder or class actions in arbitration (formoredetail on procedure, see Section 1.6 below). You and Epson understanding and agree that (a) the Federal Arbitration Act (9U.S.C. §1, et seq.) governsthe interpretation and enforcement of this Section 1, (b) this Agreement

memorializesatransactionininterstatecommerce,and(c)thisSection1 shallsurviveterminationofthis Agreement.

1.3 Pre-Arbitration Steps and Notice. Before submitting a claim for arbitration, you and Epson agree to try, for sixty (60) days, to resolve any Dispute informally. If Epson and you donot reach an agreement to resolv the Disputewithin the sixty (60) days), you or Epson may commence an arbitration. Noticeto Epson must be addressed to: Epson America, Inc., ATTN: Legal Department, 3840 Kilroy Airport Way, Long Beach, CA90806 (the "Epson Address"). The Dispute Noticetoyou will besent to themost recent address Epson has in its records for you. For this reason, it is important to notify usify your address changes by emailing us at [e-mail] or writing us at the Epson Address above. Notice of the Disputeshall includethesender's name, address and contact information, the fact giving riseto the Dispute, and therelief requested (the "Dispute Notice"). Following receipt of the Dispute Notice, Epson and you agree to acting good faith to resolv the Dispute before commencing arbitration.

1.4 Small Claims Court. Notwithstanding the foregoing, you may bring an individual action in the small claimscourtofyourstateormunicipalityiftheactioniswithinthatcourt'sjurisdictionandspendingonlyinthatcourt.

1.5WAIVEROFCLASSACTIONSANDCLASSARBITRATIONS.YOUANDEPSONAGREETHAT EACHPARTYMAYBRINGDISPUTESAGAINSTTHEOTHERPARTYONLYINANINDIVIDUAL CAPACITY,ANDNOTASAPLAINTIFFORCLASSMEMBERINANYCLASSOR REPRESENTATIVEPROCEEDING,INCLUDINGWITHOUTLIMITATIONFEDERALORSTATE CLASSACTIONS,ORCLASSARBITRATIONS.CLASSACTIONLAWSUITS,CLASS-WIDE ARBITRATIONS,PRIVATEATTORNEY-GENERALACTIONS,ANDANYOTHERPROCEEDING WHERESOMEONEACTSINAREPRESENTATIVECAPACITYARENOTALLOWED. ACCORDINGLY,UNDERTHEARBITRATIONPROCEDUREOUTLINEDINTHISSECTION,AN ARBITRATORSHALLNOTCOMBINEORCONSOLIDATEMORETHANONEPARTY'SCLAIMS WITHOUTTHEWRITTENCONSENTOFALLAFFECTEDPARTIESTOANARBITRATION PROCEEDING.

1.6 Arbitration Procedure. If you or Epson commences arbitration, the arbitration shall be governed by therulesofJAMSthatareineffectwhenthearbitrationisfiled,excludinganyrulesthatpermitarbitration on a class or representative basis (the "JAMS Rules"), available at http://www.jamsadr.com or by calling 1-800-352-5267,andundertherulessetforthinthisAgreement.AllDisputesshallberesolvedbya singlneutralarbitrator,andbothpartiesshallhaveareasonableopportunitytoparticipateinthe selectionofthearbitrator.ThearbitratorisboundbythetermsofthisAgreement.Thearbitrator,andnot anyfederal,stateorlocalcourtoragency,shallhaveexclusiveauthoritytoresolvealldisputesarising outoforrelatingtotheinterpretation,applicability,enforceabilityorformationofthisAgreement, includinganyclaimthatalloranypartofthisAgreementisvoidorvoidable.Notwithstandingthisbroad delegationofauthoritytothearbitrator,acourtmaydeterminethelimitedquestionofwhetheraclaimor causeofactionisforan|PClaim,whichisexcludedfromthedefinitionof"Disputes"inSection1.1 above.Thearbitratorshallbeempoweredtograntwhateverreliefwouldbeavailableinacourtunder laworinequity.Thearbitratormayawardyouthesamedamagesasacourtcould,andmayaward

declaratoryorinjunctivereliefonlyinfavoroftheindividualpartyseekingreliefandonlytotheextent necessarytoprovidereliefwarrantedbythatparty'sindividualclaim.Insomeinstances,thecostsof arbitrationcanexceedthecostsoflitigationandtherighttodiscoverymaybemorelimitedinarbitration thanincourt.Thearbitrator'sawardisbindingandmaybeenteredasajudgmentinanycourtof competentjurisdiction.

You may choose to engage in arbitration hearings by telephone. Arbitration hearings not conducted by telephones shall take place in allocation reasonably accessible from your primary residence, or in Orange County, California, at your option.

a) Initiation of Arbitration Proceeding. If either you or Epson decide to arbitrate a Dispute, both parties agree to the following procedure:
(i) WriteaDemandforArbitration. The demand must include a description of the dispute and the amount of damage sought to be recovered. You can find a copy of a Demand for Arbitration at http://www.jamsadr.com ("DemandforArbitration").
(ii) Send three copies of the Demand for Arbitration, plus the appropriate filing fee, to: JAMS, 500 North State College Blvd., Suite 600 Orange, CA92868, U.S.A.
(iii) SendonecopyoftheDemandforArbitrationtotheotherparty(sameaddressastheDispute Notice), orasotherwiseagreedbytheparties.
b) HearingFormat. During the arbitration, the amount of any settlement to offer mades shall not be disclosed to the arbitrator until after the arbitrator determines the amount, if any, to which you or Epson is entitled. The discoveryorexchange of non-privileged information relevant to the Disputem maybe allowed during the arbitration.
c) Arbitration Fees. Epson shall pay, or (if applicable) reimburse you for all JAMS filings and arbitration fees for any arbitration commenced (by you or Epson) pursuant to provision of this Agreement.
d)AwardinYourFavor. For Disputes in which you or Epson seeks \75,000 or less indamages exclusive of attorney's fees and costs, if the arbitrator's decision results in an award to you in an amount greater than Epson's last written offer, if any, to settle the Dispute, Epson will: (i) pay you \1,000 or the amount of the award, whichever is greater; (ii) pay outwic the amount of your reasonable attorney's fees, if any; and (iii) reimburse you for any expenses (including expert witness fees and costs) that your attorney reasonably accrues for investigating, preparing, and pursuing the Dispute in arbitration. Except as agreed upon by you and Epson in writing, the arbitrator shall determin the amount offees, costs, and expensestobepaid by Epson pursuant to this Section 1.6d).
e) Attorney's Fees. Epson will not seek its attorney's fees and expenses for any arbitration commenced involving a Dispute under this Agreement. Your right to attorney's fees and expenses under Section 1.6d) aboved does not limit your right to attorney's fees and expenses under applicable law; notwithstanding the foregoing, the arbitrator may not award duplicative award sof attorney's fees and expenses.

1.7Opt-out.Youmayelecttoopt-out(excludeyourself)fromthefinal,binding,individual arbitrationprocedureandwaiverofclassandrepresentativeproceedingsspecifiedinthis AgreementbysendingawrittenlettertotheEpsonAddresswithinthirty(30)daysofyourassent tothisAgreement(includingwithoutlimitationthepurchase,download,installationofthe SoftwareorotherapplicableuseofEpsonHardware,productsandservices)thatspecifies(i)yourname,(ii)yourmailingaddress,and(iii)yourrequesttobeexcludedfromthefinal,binding individualarbitrationprocedureandwaiverofclassandrepresentativeproceedingsspecifiedin thisSection1.Intheeventthatyouopt-outconsistentwiththeproceduresetforthabove,all othertermsshallcontinuetoapply,includingtherequirementtoprovidenoticepriortolitigation.
1.8 Amendments to Section 1. Notwithstanding any provision in this Agreement to the contrary, you and EpsonagreethatifEpsonmakesanyfutureamendmentstothedisputeresolutionprocedureand classactionwaiverprovisions(otherthanachangetoEpson'saddress)inthisAgreement,Epsonwill obtainyouraffirmativeassenttotheapplicableamendment.Ifyoudonotaffirmativelyassenttothe applicableamendment,youareagreeingthatyouwillarbitrateanyDisputebetweenthepartiesin accordancewiththelanguageofthisSection1(orresolvedisputesasprovidedforinSection1.7,ifyou timelyelectedtoopt-outwhenyoufirstassentedtothisAgreement).
1.9 Severability. If any provision in this Section 1 is found to be unenforceable, that provision shall be severed with the remainder of this Agreement remaining in full force and effect. The foregoing shall not applytothep prohibitionagainstclassorrepresentativeactionsasprovidedinSection1.5.This meansthatifSection1.5isfoundtobeunenforceable,theentireSection1(butonlySection1) shallbenullandvoid.

Parenttopic:Notices

Trademarks

EPSON ^® , EasyMP ^® , InstantOff ^® , and QuickCorner ^® are registered trademarks, EpsoniProjection ^™ is a trademark, and EPSONExceedYourVisionisaregisteredlogomarkofSeikoEpsonCorporation.

PrivateLine ^® isaregisteredtrademark;SizeWise ^TM isatrademark;andExtraCare ^SM isaservicemarkofEpsonAmerica,Inc.

MacandOSXaretrademarksofAppleInc., registeredintheU.S.andothercountries.

Android ^TM andChromebook ^TM aretrademarksofGoogleLLC.

HDMIandHigh-DefinitionMultimediaInterfacearethetrademarksorregisteredtrademarksofHDMI

LicensingLLC. HDMI

HDBaseT™ andtheHDBaseTAlliancelogoaretrademarksoftheHDBaseTAlliance.

GeneralNotice: Other product names used herein are for identification purposes only and maybe trademark of their respective owners. Epson disclaims any and all rights in those marks.

EPSON®

EXCEED YOUR VISION

Parenttopic:Notices

CopyrightNotice

Allrightsreserved. Nopartofthispublicationmaybereproduced, storedinaretrievalsystem, or transmittedinanyformorbyanymeans, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SeikoEpsonCorporation. The information contained herein is designed only for use with this Epsonproduct. Epsonis not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alteration to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.

SeikoEpsonCorporationshallnotbeliableforanydamagesorproblemsarisingfromtheuseofany optionsoranyconsumableproductsotherthanthosedesignatedasOriginalEpsonProductsorEpson ApprovedProductsbySeikoEpsonCorporation.

Thisinformationissubjecttochangewithoutnotice.

ANoteConcerningResponsibleUseofCopyrightedMaterials

CopyrightAttribution

Parenttopic:Notices

ANoteConcerningResponsibleUseofCopyrightedMaterials

Epsonencourageseachusertoberesponsibleandrespectfulofthecopyrightlawswhenusingany Epsonproduct.Whilesomecountries'lawspermitlimitedcopyingorreuseofcopyrightedmaterialin certaincircumstances,thosecircumstancesmaynotbeasbroadassomepeopleassume.Contactyour legaladvisorforanyquestionsregardingcopyrightlaw.

Parenttopic: CopyrightNotice

CopyrightAttribution

©2019EpsonAmerica,Inc.

6/19

CPD-54335R1

Parenttopic: CopyrightNotice
