VMS61 - Action Camera Valore - Free user manual and instructions

Product Type	Action Camera
Brand	Valore
Model	VMS61
Dimensions	60 x 40 x 20 mm
Weight	60 g (without accessories)
Power Supply	Built-in rechargeable Li-ion battery 900 mAh
Battery Life	Up to 90 minutes of recording at 1080p
Waterproof Rating	IPX8 (30m with included waterproof case)
Video Resolution	1080p Full HD (1920x1080) at 30 fps
Photo Resolution	12 MP (4000x3000)
Lens	Wide-angle 170° fish-eye lens
Display	2.0 inch TFT LCD touchscreen
Storage	MicroSD card up to 64 GB (not included)
Connectivity	Micro USB 2.0, Wi-Fi (802.11 b/g/n)
Mounting	Standard tripod socket (1/4 inch), adhesive mounts included
Main Functions	Video recording, photo capture, time-lapse, loop recording, motion detection
Maintenance	Keep lens clean with microfiber cloth; charge regularly to preserve battery
Cleaning	Wipe exterior with dry cloth; do not use solvents
Safety	Do not disassemble; avoid exposure to extreme temperatures; use only included accessories
Spare Parts	Battery, USB cable, waterproof case, mounts available from Valore
Repairability	Limited user repair; contact Valore support for service
General Information	Manufacturer: Valore; Country of origin: China; Warranty: 1 year

Frequently Asked Questions - VMS61 Valore

How do I charge the VMS61 action camera?

Connect the included Micro USB cable to the camera and a USB power source (e.g., computer or 5V adapter). The red LED will turn on during charging and turn off when fully charged.

Is the VMS61 waterproof without a case?

No, the camera itself is only splash-proof. To use it underwater, you must place it in the included waterproof case, which is rated for depths up to 30 meters.

How do I mount the camera on a helmet or bike?

Use the included adhesive mounts or the tripod screw mount. Stick the adhesive mount to a clean, dry surface, then attach the camera via the mounting bracket. Ensure it is securely fastened before use.

What type of memory card does the VMS61 support?

The camera supports MicroSD cards up to 64 GB, class 10 or higher for smooth video recording. Cards with a slower speed may cause recording errors.

How long does the battery last?

The built-in battery lasts approximately 90 minutes of continuous recording at 1080p. Battery life may vary based on settings and temperature. To save power, lower the screen brightness or use loop recording.

How do I reset the camera if it freezes?

Use a paperclip or pin to gently press the reset button located inside the small hole near the side. This will restart the camera without losing your settings.

Can I connect the VMS61 to my smartphone?

Yes, the camera has built-in Wi-Fi. Download the 'Valore Action' app from your app store, connect to the camera's Wi-Fi network, and you can view live footage or control the camera remotely.

Does the camera record while charging?

Yes, the VMS61 supports pass-through charging. You can record videos while connected to a power bank or USB charger, making it suitable for long recording sessions.

What video editing software can I use with the recorded files?

Videos are saved in MP4 format, compatible with most editing software like Adobe Premiere, Final Cut Pro, or free options like DaVinci Resolve and iMovie.

Why won't the camera turn on?

First, ensure the battery is charged. Connect the camera to a charger for 2 hours. If it still doesn't turn on, try pressing the reset button. If the problem persists, contact Valore support.

USER MANUAL VMS61 Valore

Thank you for purchasing Valore Wide-Angle Car DVR (VMS61).

• Records high-quality 1080P video
• HDMI output allows playback on TV
• Supports G-sensor and motion detection

*Built-in battery is for emergency backup only, for normal use, please plug into power source.

Important: Please read the user manual thoroughly before using your car DVR.

Specifications:

• Image sensor: MSC8328 + GC2023
- LCD: 3 inch IPS
- Lens: 170^ ultra wide-angle
• Resolution: 2304 x 1296P @30fps

1920 x 1080P @30fps

1280 x 720P @30fps

• Still image resolution: 2M
• Supports: G-sensor / Motion detection
- Input: 5V/1A
• Frequency: 50Hz/60Hz
- Battery type: Built-in 150mAh lithium battery
• Video format: MOV
- Storage expansion: Min 4GB, Max 32GB Class 10 microSD™ card
- Photo format: JPEG
- Dimension (L x W x H): 87 x 50 x 14mm

• Wide-angle car DVR
• USB cable (800mm)
• Mount
• Car charger

Packag

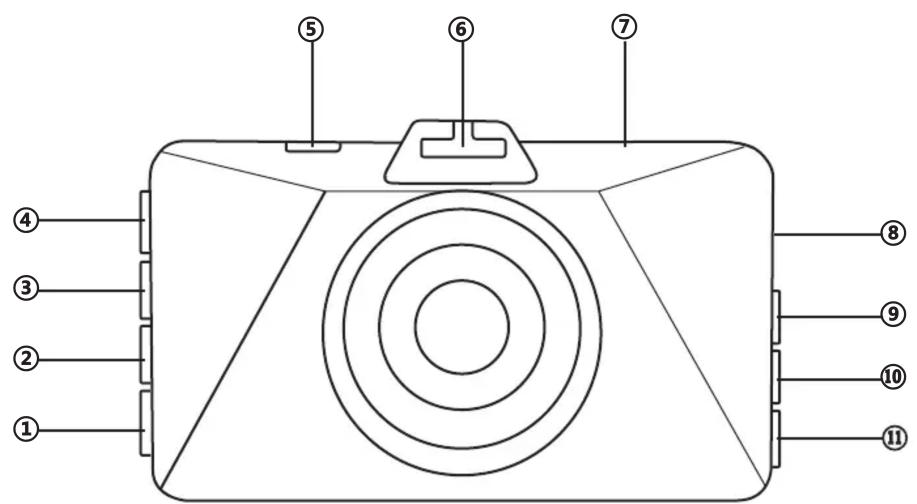

UNDERSTANDING THE PRODUCT

① Power
② SOS
③ Playback/Mode
④ OK
⑤ USB
⑥ Mount bracket
⑦ HDMI
⑧ TF card slot
⑨ UP
⑩ Menu
⑪ Down

START USING THE 1080P CAR DVR

1) Functions of Keys

Power: Short press - Screensaver Long press - Turn On/Off camera

Menu: Enter general settings Up: Selecting function when setting camera

OK: To start or stop video recording In setting mode, to confirm setting

Down: In video mode, short press to take a photo

2) Auto-recording

Switch on car engine, camera will automatically switch on and start recording. When engine is switched off, camera will save video automatically and shut down. When SD card is full, camera will overwrite the earlier files.

3) Manual recording / Taking photo

Short press OK key to start recording. Short press Down key to take a photo.

4) Motion detection

In standby mode, long press Menu key or enter settings to turn on motion detection mode. When an object moves in front of the camera, it will start recording automatically and will stop recording in one minute when nothing is moving. In standby mode, long press Menu key again to exit motion detection mode.

5) G-sensor (Protect level)

If high impact, the camera will lock the file recorded. Locked files are saved to a special file that cannot be overwritten.

Note: G-sensor supports sensitivity adjustment in settings.

6) Date and time setting

In standby mode, short press Menu key to enter settings. Short press Up or Down key to go to Date/Time. Short press OK, Up and Down key to set. Press OK to confirm.

7) File playback

In standby mode, short press Playback key. Press Up or Down ket to choose file. Press OK to play. Short press Playback key to exit.

8) Parking monitoring

If the car has a slight vibration, camera will automatically start recording.

Trouble shooting:

Problem: Cannot take photo or record.

Solution: Check if Micro SD card has enough space or is locked.

Problem: Automatically stop when recording.

Solution: Use a compatible high speed Micro SD card. (Class 10 and above)

Problem: Appear "file error" when replaying video and photo.

Solution: Micro SD card storage error, please format your Micro SD card.

Problem: Unclear video

Solution: Check if there are any dirt or fingerprint and use lens cloth to clear the camera lens.

Problem: Black image when recording sky or water scenes.

Solution: Scenes with high contrast will influence the automatic exposure function of camera, you can adjust 'EV' in setting mode to correct exposure.

Problem: Cross stripe interference in image.

Solution: Reset ‘light frequency’ to 50Hz or 60Hz according to the local power supply frequency.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not store the car DVR in a high temperature environment.
• Do not place the car DVR near a fire or other excessively hot environments.
• Do not expose this car DVR to moisture or submerge it in liquid. Keep car DVR dry at all times.
• Do not attempt to charge the car DVR using any other method or connection other than the car DVR's provided charging cable.
• Do not disassemble this car DVR or attempt to repair or modify it in any manner.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this car DVR. If there is any damage to the car DVR such as dents, punctures, tears, deformities or corrosion, stop using the car DVR and contact us immediately via email at [e-mail], or return this product to the store where you have purchased it from.
• If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [e-mail].

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Challenger Technologies Limited. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes.

The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.
