Product Type	Action Camera
Brand	Valore
Model	VMS54
Dimensions	Approx. 6 x 4 x 2 cm
Weight	Approx. 70 g
Power Source	Built-in lithium-ion rechargeable battery
Battery Capacity	900 mAh
Video Resolution	1080p Full HD
Photo Resolution	12 MP
Connectivity	Wi-Fi, USB
Waterproof	Up to 30 meters with waterproof case
Field of View	170° wide angle
Memory Card Support	MicroSD up to 64 GB
Display	2.0 inch LCD screen
Main Functions	Video recording, photo capture, time-lapse, loop recording, motion detection
Mounting	Compatible with standard action camera mounts
Maintenance & Cleaning	Wipe lens with soft cloth; keep dry; remove battery when storing
Safety Precautions	Do not expose to extreme heat; use only approved charger
Spare Parts & Repairability	Not user-serviceable; contact Valore support for repairs
General Information	Compact, lightweight design for outdoor and action use

Frequently Asked Questions - VMS54 Valore

How do I turn on the Valore VMS54 action camera?

Press and hold the Power Button for about 3 seconds until the screen lights up.

How do I start recording video?

Press the Shutter Button on top of the camera. Press again to stop recording.

How do I take a photo?

In photo mode, press the Shutter Button to capture a still image.

How do I connect to the camera via Wi-Fi?

Enable Wi-Fi in the camera settings, then connect your smartphone to the camera's Wi-Fi network. Use the Valore Action Cam app to control the camera.

Is the Valore VMS54 waterproof without a case?

No, the camera itself is not waterproof. You must use the included waterproof case for underwater use up to 30 meters.

What type of memory card does it support?

It supports MicroSD cards up to 64 GB. For best performance, use a Class 10 or UHS-I card.

How do I charge the battery?

Connect the provided USB cable to the camera and a standard USB charger. The LED indicator turns red during charging and blue when fully charged.

How long does the battery last?

The built-in 900 mAh battery provides approximately 90 minutes of continuous 1080p video recording.

Can I use the camera while charging?

It is not recommended to use the camera while charging as it may overheat and reduce battery life.

How do I reset the camera if it freezes?

Use a paperclip to press the reset button located near the USB port. This will restart the camera without losing data.

USER MANUAL VMS54 Valore

Thank you for purchasing Valore 1080P Full HD Action Camera.

Capture action-packed moments in rich colour details with 1080p full HD image quality and 140° wide angle lens. Plus, a waterproof casing protects your camera up to 30m under water.

Important: Please read the user manual thoroughly before using your 1080p full HD action camera.

Specifications:

• Image sensor: 1.3 Mega pixel
• LCD: 2.0" TFT screen
- Lens: 140^ ultra wide-angle
- Resolution: 1920 x 1080P @30fps / 1280 x 720P @30fps / 640 x 480P @30fps
- Still image resolution: 12M / 10M / 8M / 5M / 3M / 2M / 1M / VGA
- Input : 5V/0.5A
• Water resistance : Up to 30m
- Battery type: 3.7V Lithium battery 900mAh
- Video format: AVI
• Video codec: H.264
- Photo format: JPG
• Storage: Min 8GB, Mac 32GB Class 10 microSD card
• Dimension(L x W x H): 59 x 25 x 41mm
• Weight: 55g (with waterproof case 147g)

Packag

• 1080P Full HD Action Camera
- Waterproof casing
- Bicycle holder
- Bandages x 4
- Switch support
- Adaptor
- Helmet base
- Clip
- Wire rope
- USB cable
- Cable tie x 4
- Lens cloth
- Battery

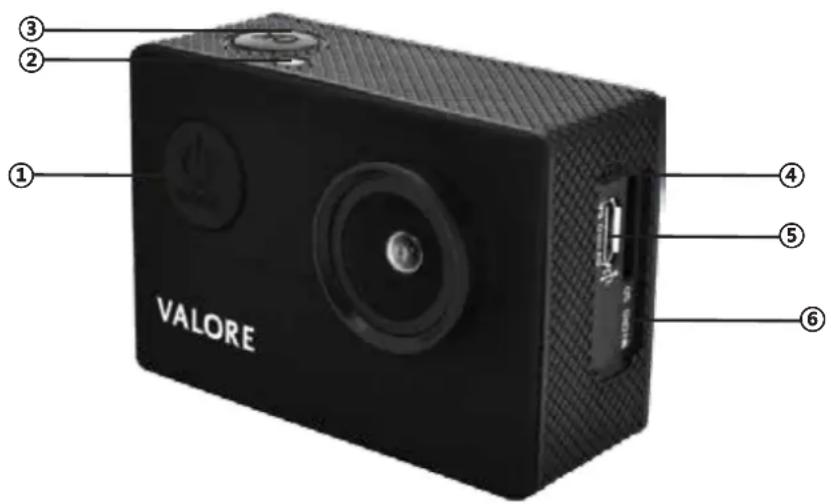

UNDERSTANDING THE PRODUCT

① On/Off switch/Mode
② Indicator
③ OK
④ Mic
⑤ Micro USB port
⑥ Micro SD card slot

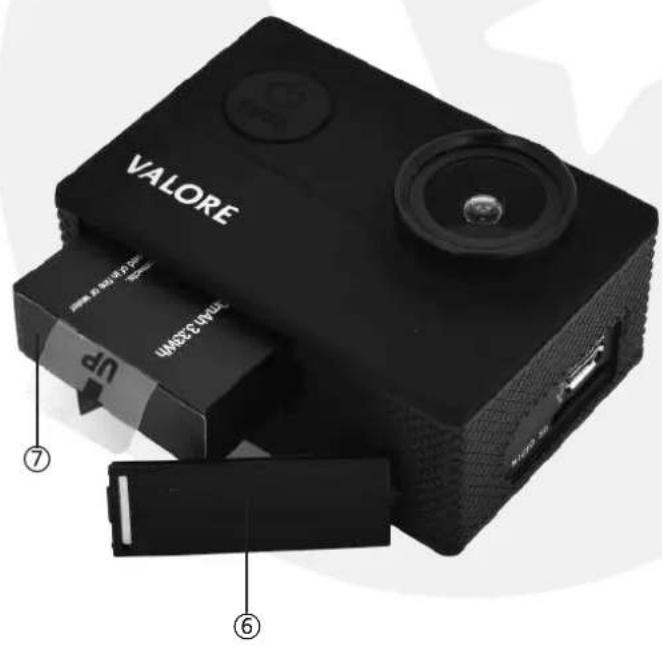

① Charging indicator
② Operation indicator
③ Up
④ Speaker
⑤ Down
⑥ Battery cover
⑦ Battery

Accessories

Product photo of a smart lock switch assembly with USB cable, connector, and clasp (no text or symbols visible)

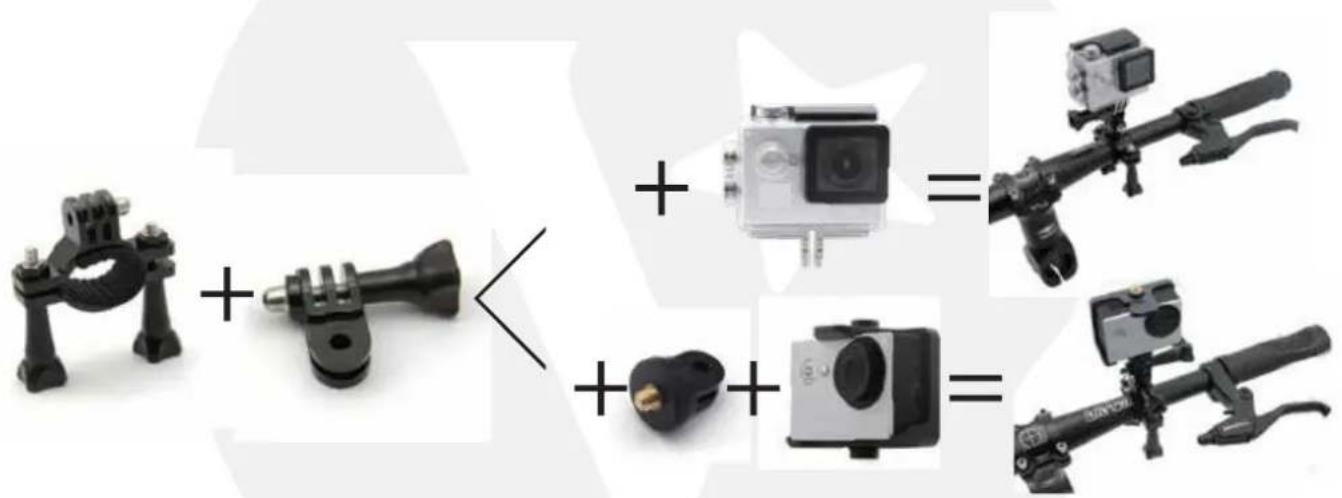

Mounting

Close-up of a white electronic device with a black circular lens and power button (no readable text or symbols beyond the label)

•

Black rectangular device with a transparent top and side connectors (no visible text or symbols)

二

Close-up of a camera module with black and silver casing (no visible text or symbols)

Black rectangular electronic device with a screen and ports (no visible text or symbols)

+

•

Exterior view of a silver camera with a black LCD screen and external connectors (no visible text or symbols)

二

二

Exterior view of a camera mounted on a stand (no visible text or symbols)

Mounting

1) Installing and removing battery

a) Pull back the back cover lock to release the battery cap.
b) Correctly install battery into action camera as indicated by +/- symbols and direction of arrowed marked on battery.

2) Charging

a) While charging, a red indicator will be lit.
b) When the battery is full charged, the red indicator will go off.

3) Switching On/Off

a) Press and hold onto Mode/Power button for 3 - 5 seconds till welcome screen appears.
b) Press and hold onto Mode/Power button for 3 - 5 seconds till goodbye screen appears.

4) Mode switching

a) After the action camera is switched on, short press the Mode/Power button to switch between video recording / photo shooting / playback
b) Symbols of mode will be displayed on the top left of the screen.

5) Video recording & photo shooting

a) Insert micro SD card, when in video recording mode, press OK button to start recording, the recording icon on the top left will start to flash. Press OK button again to stop recording.
b) When in photo shooting mode, press OK button to take photos.

Note: Format your micro SD card before use.

Switch on the action camera, in setup mode, choose format and confirm action.

6) File storage & playing

a) Micro SD card have to be Class 10 or above.
b) Use a USB cable to export the videos into a computer, the action camera will prompt Mass Storage. Click on Mass Storage to play and store image.
c) Use a card reader to access the image data on the micro SD card.

Note: Make sure the action camera is turned off properly before removing the micro SD card.

7) Set up

a) After the action camera is switched on, long press the OK button to enter settings for respective mode.

Video recording mode: Resolution / Loop recording / Exposure / Date stamp

Photo shooting mode : Resolution / Capture Mode / Quality / Exposure / Date stamp

Playback mode : Lock / Delete

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not store the action camera in a high temperature environment.
• Do not place the action camera near a fire or other excessively hot environments.
• Do not expose this action camera to moisture or submerge it in liquid. Keep action camera dry at all times.
• Do not attempt to charge the action camera using any other method or connection other than the action camera's provided charging cable.
• Do not disassemble this action camera or attempt to repair or modify it in any manner.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this action camera. If there is any damage to the action camera such as dents, punctures, tears, deformities or corrosion, stop using the action camera and contact us immediately via email at [e-mail], or return this product to the store where you have purchased it from.
• If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [e-mail].
