Product Type	SFP+ Optical Transceiver Module
Model	FTLF8529P4BCV
Brand	Finisar
Data Rate	10 Gbps
Wavelength	850 nm
Connector Type	Dual LC/UPC
Transmission Distance	Up to 300 m over OM3 MMF
Form Factor	Hot-pluggable SFP+
Operating Temperature Range	0°C to 70°C
Power Consumption	Typ. 0.7 W
Digital Diagnostic Monitoring (DDM)	Supported
Compliance	IEEE 802.3ae, SFF-8431, SFF-8472
Application	10 Gigabit Ethernet, Fibre Channel
Cleaning Maintenance	Clean optical connector with lint-free swab and isopropyl alcohol
Safety Certification	Class 1 Laser Product, CDRH, IEC 60825
Dimensions (Typical)	56.5 x 13.4 x 8.5 mm
Weight	Approx. 25 g
Spare Parts / Repairability	No user-serviceable parts; replace module if faulty

Frequently Asked Questions - FTLF8529P4BCV Finisar

What is the Finisar FTLF8529P4BCV?

The Finisar FTLF8529P4BCV is an SFP+ optical transceiver designed for 10 Gigabit Ethernet and Fibre Channel applications. It operates at 10 Gbps over multimode fiber at 850 nm.

What is the maximum distance supported?

The module supports up to 300 meters over OM3 multimode fiber (2000 MHz·km bandwidth).

Is the FTLF8529P4BCV hot-pluggable?

Yes, it is a hot-pluggable SFP+ module, meaning it can be inserted or removed without powering down the system.

What type of connector does it use?

It uses a dual LC/UPC connector for the optical interface.

Does it support Digital Diagnostic Monitoring (DDM)?

Yes, it supports DDM per SFF-8472, allowing real-time monitoring of temperature, voltage, laser bias, and optical power.

What are the typical power requirements?

Typical power consumption is 0.7W, with a maximum of 1W, operating from a 3.3V supply.

Can I use this module with any switch?

It is compliant with IEEE 802.3ae and MSA standards, so it should work with any switch that supports standard SFP+ 10GBASE-SR optics. However, some vendors require Finisar or branded modules.

How do I clean the optical connector?

Use a lint-free cleaning swab moistened with isopropyl alcohol to gently clean the fiber end face. Avoid touching the ferrule.

What should I do if the module is not detected?

Check that the module is fully inserted and the latch clicks. Verify compatibility with your switch and inspect the optical connector for dirt. Use 'show interface transceiver' commands to check DDM data.

Is the module repairable?

The module is a sealed unit with no user-serviceable parts. If faulty, replace the entire transceiver.

USER MANUAL FTLF8529P4BCV Finisar

Product Specification

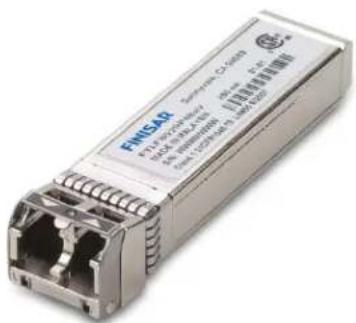

16GFC RoHS Compliant Short Wavelength SFP+ Transceiver

FTLF8529P4BCV

PRODUCT FEATURES

• Up to 14.025 Gb/s bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Built-in digital diagnostic functions
  • 850nm Oxide VCSEL laser transmitter
• Duplex LC connector
• RoHS compliant
  • 35m on 50/125μm MMF
  • 100m over M5E MMF (50/125um OM3)
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Operating temperature range:

0^ C to 70^ C

APPLICATIONS

- Tri-Rate 4.25/8.5/14.025 Gb/s Fibre Channel

Finisar's FTLF8529P4BCV SFP+ transceivers are designed for use in Fibre Channel links up to 14.025 Gb/s data rate over multimode fiber. They are compliant with FC-PI-5 Rev. 6.00^a , SFF-8472 Rev 11.0^c and SFF- 8081^h , and compatible with SFF- 8432^b and applicable portions of SFF-8431 Rev. 4.1^d . The optical transceiver is compliant per the RoHS Directive 2011/65/EU ^e . See Finisar Application Note AN-2038 for more details.

PRODUCT SELECTION

FTLF8529P4BCV

I. Pin Descriptions

Pin	Symbol	Name/Description	Ref.
1	V_EET	Transmitter Ground (Common with Receiver Ground)	1
2	T_FAULT	Transmitter Fault.	2
3	T_DIS	Transmitter Disable. Laser output disabled on high or open.	3
4	SDA	2-wire Serial Interface Data Line (MOD-DEF2)	4
5	SCA	2-wire Serial Interface Clock (MOD-DEF1)	4
6	MOD_ABS	Module Absent, connected to V_EET or V_EER	4
7	RS0	Rx Rate Select:Open or Low = 8.5 or 4.25 Gb/s Fibre Channel (Low Bandwidth)High = 14.025 Gb/s Fibre Channel (High Bandwidth)	5
8	LOS	Loss of Signal indication. Logic 0 indicates normal operation.	6
9	RS1	Tx Rate Select:Open or Low = 8.5 or 4.25 Gb/s Fibre Channel (Low Bandwidth)High = 14.025 Gb/s Fibre Channel (High Bandwidth)	5
10	V_EER	Receiver Ground (Common with Transmitter Ground)	1
11	V_EER	Receiver Ground (Common with Transmitter Ground)	1
12	RD-	Receiver Inverted DATA out. AC Coupled
13	RD+	Receiver Non-inverted DATA out. AC Coupled
14	V_EER	Receiver Ground (Common with Transmitter Ground)	1
15	V_CCR	Receiver Power Supply
16	V_CCT	Transmitter Power Supply
17	V_EET	Transmitter Ground (Common with Receiver Ground)	1
18	TD+	Transmitter Non-Inverted DATA in. AC Coupled.
19	TD-	Transmitter Inverted DATA in. AC Coupled.
20	V_EET	Transmitter Ground (Common with Receiver Ground)	1

Notes:
1. Circuit ground is internally isolated from chassis ground.
2. T FAULT is an open collector/drain output, which should be pulled up with a 4.7k – 10k Ohms resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V. A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation. In the low state, the output is pulled to <0.8V.
3. Laser output disabled on TDIS >2.0V or open, enabled on T_DIS <0.8V .
4. Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.
5. Rate select can also be set through the 2-wire bus in accordance with SFF-8472 v. 12.1 ^c . Rx Rate Select is set at Bit 3, Byte 110, Address A2h. Tx Rate Select is set at Bit 3, Byte 118, Address A2h. Note: writing a “1” selects maximum bandwidth operation. Rate select is the logic OR of the input state of Rate Select Pin and 2-wire bus.
6. LOS is open collector output. Should be pulled up with 4.7k – 10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

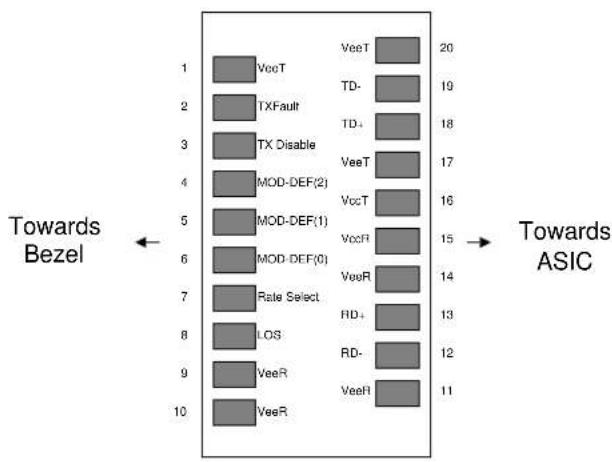

Diagram of Host Board Connector Block Pin Numbers and Names

II. Absolute Maximum Ratings

Parameter	Symbol	Min	Typ	Max	Unit	Ref.
Maximum Supply Voltage	Vcc	-0.5		4.0	V
Storage Temperature	T_S	-40		85	°C
Case Operating Temperature	T_C	0		70	°C
Relative Humidity (Non-condensing)	RH	0		85	%	1

Notes:

1. Non Condensing

III. Electrical Characteristics ( T_A , V_CC = 3.15 to 3.46 Volts)

Parameter	Symbol	Min	Typ	Max	Unit	Ref.
Supply Voltage	Vcc	3.15		3.46	V
Supply Current	Icc			290	mA	1
Transmitter
Input differential impedance	R_in		100		Ω	2
Single-ended data input swing	Vin,pp	90		800	mV
Transmit Disable Voltage	V_D	2		Vcc	V	3
Transmit Enable Voltage	V_EN	Vee		Vee+0.8	V
Receiver
Single ended data output swing	Vout,pp	185		425	mV	4
LOS Fault	V_LOS fault	2		V_CCHOST	V	5
LOS Normal	V_LOS norm	Vee		Vee+0.8	V	5
Power Supply Rejection	PSR	100			mVpp	6
Deterministic Jitter	RX DJ				UI
8.5 Gb/s				0.420
14.025Gb/s				0.220

Notes:

1. With established link. The total power dissipation could exceed 1W when the module is trying to establish link at operating case temperature below 25^ C
2. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
3. Or open circuit.
4. Into 100 ohms differential termination.
5. LOS is an open collector output. Should be pulled up with 4.7k – 10kohms on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5V.
6. Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.

IV. Optical Characteristics ( T_A , V_CC = 3.15 to 3.46 Volts)

Parameter	Symbol	Min	Typ	Max	Unit	Ref.
Transmitter
Avergare Output Output. Power: 50 or 62.5 MMF	P_OUT	-7.8			dBm	1
Optical Wavelength	λ	840		860	nm
Spectral Width (RMS), 28.05Gb/s	σ			0.59	nm
Optical Modulation Amplitude 4.25Gb/s8.5 Gb/s14.025Gb/s	OMA	247 (-6.1)302 (-5.2)331 (-4.8)			μW(dBm)
Optical Rise/Fall Time @ 4.25Gb/s	t_f/t_f			90	ps	2
Transmitter Waveform and Dispersion Penalty, 8.5 Gb/s	TWDP			4.3	dB	3
Vertical Eye Closure Penalty 14.025 Gb/s	CEVPQ			2.56	dB	4
Relative Intensity Noise	RIN			-128	dB/Hz
Receiver
Unstressed Receiver OMA Sensitivity 4.25Gb/s8.5 Gb/s14.025Gb/s	RxSENS			61(-12.1)76(-11.2)89(-10.5)	μW(dBm)	5
Average Receiver Power	Rx_MAX	0			dBm
Optical Center Wavelength	_C	770		860	nm
Optical Return Loss		12			dB
LOS De-Assert	LOS_D			-13	dBm
LOS Assert	LOS_A	-30			dBm
LOS Hysteresis		0.5			dB

Notes:
1. Class 1 Laser Safety limit per FDA/CDRH, and EN (IEC) 60825 laser safety standards.
2. Unfiltered, 20-80%. Complies with FC 1x and 2x eye mask when filtered
3. TWDP is calculated with a 1,0 equalizer and a 9.84 GHz Gaussian filter for the fiber simulation. Jitter values at _T and _R are controlled by TWDP and stress receiver sensitivity.
4. For 16GFC, VECPQ is calculated with a 16.6 GHz Gaussian filter for fiber simulation
5. Unstressed Rx sensitivity

IV. General Specifications

Parameter	Symbol	Min	Typ	Max	Units	Ref.
Data Rate	BR		4.258.514.025		Gb/sec	1
Bit Error Rate	BER			10^12		2
Fiber Length on 50/125μm(OM2/M5) MMF	L			1505035	m	345
Fiber Length on 50/125μm high-bandwidth (OM3/M5E) MMF	L			380150100	m	345

Notes:

1. 8x Fibre Channel compatible, per FC-PI-4 ^1 .
2. PRBS 2 ^7 -1 for 8GFC. PRBS 2 ^31 -1 for 16GFC
3. At 4.25 Gb/s Fibre Channel data rate
4. At 8.5 Gb/s Fibre Channel data rate.
5. At 14.025 Gb/s Fibre Channel data rate.
   6.

VI. Environmental Specifications

Parameter	Symbol	Min	Typ	Max	Units	Ref.
Case Operating Temperature	T_op	0		70	°C
Storage Temperature	T_sto	-40		85	°C

VII. Regulatory Compliance

Finisar transceivers are Class 1 Laser Products and comply with US FDA regulations. These products are certified by TÜV and CSA to meet the Class 1 eye safety requirements of EN (IEC) 60825 and the electrical safety requirements of EN (IEC) 60950. Copies of certificates are available at Finisar Corporation upon request.

VIII. Digital Diagnostic Functions

Finisar FTLF8529P4BCV SFP+ transceivers support the 2-wire serial communication protocol as defined in the SFP MSA ^f . It is very closely related to the E ^2 PROM defined in the GBIC standard, with the same electrical specifications.

The standard SFP serial ID provides access to identification information that describes the transceiver's capabilities, standard interfaces, manufacturer, and other information.

Additionally, Finisar SFP transceivers provide a enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.

The SFP MSA defines a 256-byte memory map in E ^2 PROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged. The interface is identical to, and is thus fully backward compatible with both the GBIC Specification and the SFP Multi Source Agreement. The complete interface is described in Finisar Application Note AN-2030: “Digital Diagnostics Monitoring Interface for SFP Optical Transceivers”.

The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller (DDTC) inside the transceiver, which is accessed through a 2-wire serial interface. When the serial protocol is activated, the serial clock signal (SCL, Mod Def 1) is generated by the host. The positive edge clocks data into the SFP transceiver into those segments of the E ^2 PROM that are not write-protected. The negative edge clocks data from the SFP transceiver. The serial data signal (SDA, Mod Def 2) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the start and end of serial protocol activation. The memories are organized as a series of 8-bit data words that can be addressed individually or sequentially.

For more information, please see the SFP MSA documentation ^c,f and Finisar Application Note AN-2030.

IX. Digital Diagnostic Specifications

FTLF8529P4BCV transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.

Parameter	Symbol	Units	Min	Max	Accuracy	Ref.
Transceiver temperature	D_DDTemp	°C	0	+70	±5°C
Transceiver supply voltage	D_DDVoltage	V	3.14	3.45	±3%
Transmitter bias current	D_DDBias	mA	0	20	±10%	1
Transmitter output power	D_DDTx-Power	dBm	-8	-1	±3dB
Receiver average optical input power	D_DDRx-Power	dBm	-12	0	±3dB

Notes:

1. Accuracy of Measured Tx Bias Current is 10% of the actual Bias Current from the laser driver to the laser.

X. Mechanical Specifications

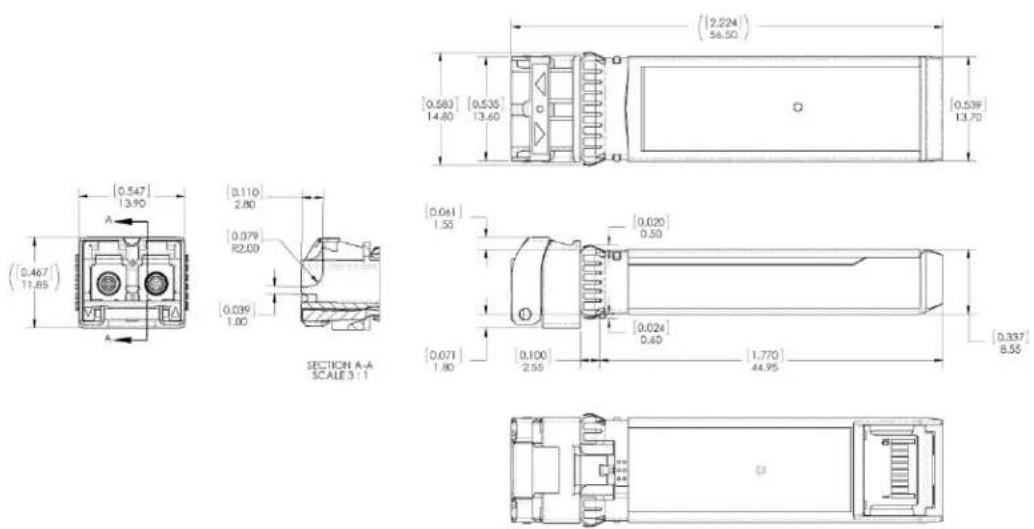

Finisar's FTLF8529P4BCV SFP+ transceivers are compatible with the SFF-8432 ^b specification for improved pluggable form factor.

FTLF8529P4BCV

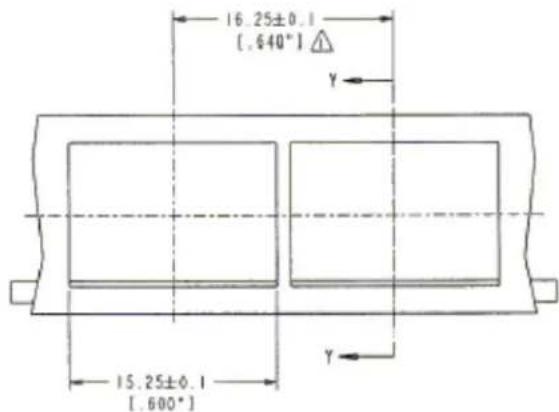

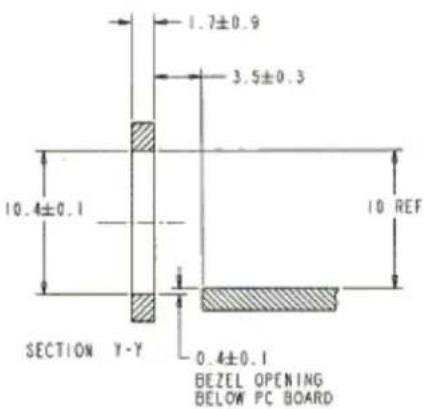

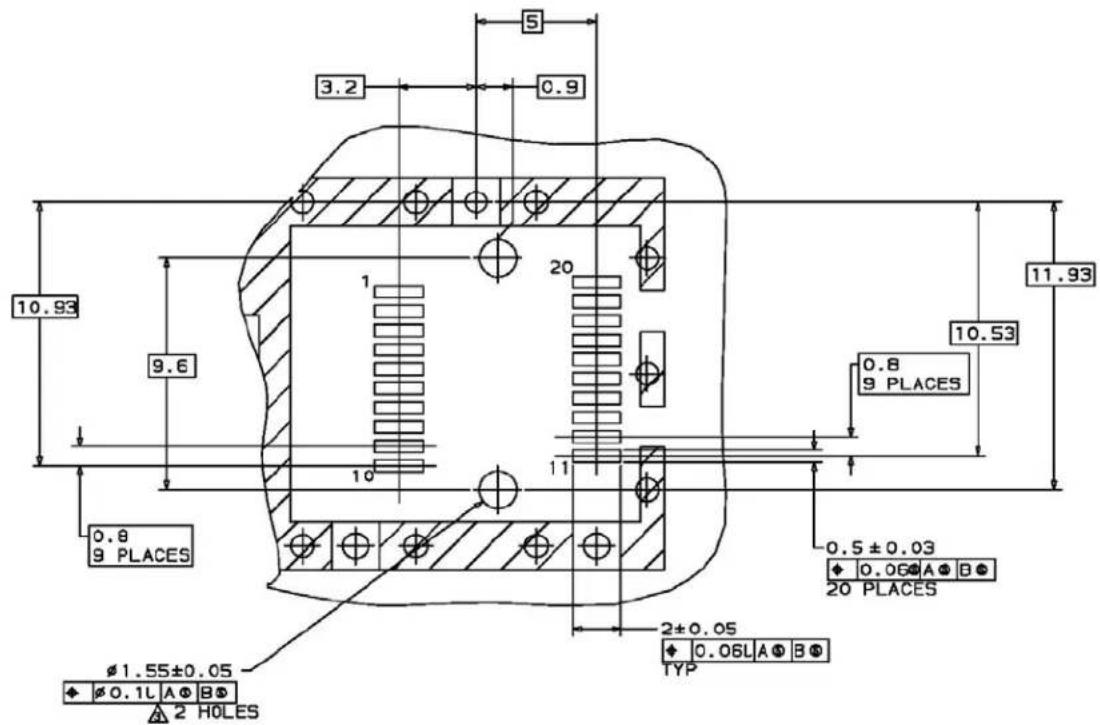

XI. PCB Layout and Bezel Recommendations

3 Through Holes are Unplated 4 Pads and Vias are Chassis Group, 11 Places 5 Datum and Basic Dimension Established by Customer

NOTES:
△ MINIMUM PITCH ILLUSTRATED, ENGLISH DIMENSIONS ARE FOR REFERENCE ONLY
2. NOT RECOMMENDED FOR PCI EXPANSION CARD APPLICATIONS

XII. References

a. “Fibre Channel – Physical Interfaces -5, INCITS 479-2011 (Defines 4GFC, 8GFC and 16GFC)
b. “Improved Pluggable Form Factor”, SFF Document Number SFF-8432, Revision 5.0, July 16, 2007.
c. “Digital Monitoring Interface for Optical Transceivers”, SFF Document Number SFF-8472, Revision 12.1.
d. “Enhanced Small Form Factor Pluggable Module ‘SFP+ ‘”, SFF Document Number SFF-8431, Revision 4.1, July 6, 2009; Addendum Jun 21, 2013.
e. Directive 2011/65/EU of the European Council Parliament and of the Council, “on the restriction of the use of certain hazardous substances in electrical and electronic equipment”. 08-June 2011, which supercedes the previous ROHS Directive 2002/95/EC.
f. Small Form Factor Pluggable (SFP) Transceiver Multi-source Agreement (MSA), September 14, 2000 which is available as SFF Document Number INF-8074, Revision 1.0 May 12, 2001
g. “0.8mm Card Edge Connector for 16Gb/s Applications”, SFF Document Number SFF-8081, Revision 0.2, December 21, 2009.
h. SFF-8402, Revision 0.2

XIII. For More Information
