Atmos - Tent Zempire - Free user manual and instructions

Product Type	Tent
Brand	Zempire
Model	Atmos
Category	Dome Tent
Capacity	2 Person
Packed Weight	3.5 kg (7.7 lb)
Packed Dimensions	60 x 20 x 20 cm (23.6 x 7.9 x 7.9 in)
Interior Dimensions	210 x 120 x 100 cm (82.7 x 47.2 x 39.4 in)
Flysheet Material	Polyester 190T, PU coated
Inner Tent Material	Breathable polyester mesh
Floor Material	Polyethylene, welded seams
Pole Material	Fiberglass, 8.5 mm
Waterproof Rating (Fly)	2000 mm
Waterproof Rating (Floor)	3000 mm
Ventilation	Mesh roof vent with zip closure
Doors	1 D-style door
Vestibule	Small front vestibule for gear storage
Pole Type	2-pole dome structure
Setup Time	Approximately 5 minutes
Included Items	Tent body, flysheet, poles, stakes, guylines, carry bag, repair kit
Care Instructions	Clean with mild soap, air dry, store in dry place
Safety Features	Fire retardant fabric (CPA1-84 compliant)
Repairability	Spare parts available; pole splint and patch kit included
Warranty	1 year limited warranty

Frequently Asked Questions - Atmos Zempire

How do I set up the Zempire Atmos tent?

Lay out the tent body, assemble the two fiberglass poles by connecting the sections, cross them over the tent, clip into the corner grommets, then drape the flysheet over and secure with clips and stakes. Detailed steps are in the manual.

What is the waterproof rating of the Atmos tent?

The flysheet has a 2000 mm waterhead rating and the floor has 3000 mm, suitable for moderate rain. Proper seam sealing is recommended for long-term use.

How many people can sleep in the Atmos tent?

It is designed for 2 people with a small vestibule for gear. Interior dimensions are 210 x 120 cm, fitting two standard sleeping pads side by side.

Does the tent include a rainfly?

Yes, a full-coverage polyester rainfly with PU coating is included. It provides protection from rain and wind.

Can I use the tent in winter conditions?

This is a 3-season tent, not designed for heavy snow loads. For winter use, additional guy lines and a sturdy footprint are advised.

How do I clean and store the tent?

Clean with mild soap and water, avoid machine washing. Dry completely before storing in the provided carry bag to prevent mildew.

Are spare parts available?

Yes, Zempire offers replacement poles, stakes, and a repair kit. Contact customer support or visit their website.

Is the tent fire retardant?

The fabric meets CPAI-84 fire retardant standards. However, keep flames away from the tent.

How long does it take to set up?

With practice, setup takes about 5 minutes. The 2-pole dome design is quick and intuitive.

Does the tent have good ventilation?

Yes, it features a mesh roof vent that can be closed with a zip, reducing condensation while providing airflow.

USER MANUAL Atmos Zempire

PITCHING INSTRUCTIONS - ATMOS

1. Clear your site making sure there are no sharp objects. Try to get a site that is as flat as possible. Stretch out the inner tent.

1. Assemble the two pole sections. Ensure the poles are inserted firmly together. If the ferrules do not connect together correctly they can cause damage when tensioned.

2. Thread the CHARCOAL pole through the front pole sleeve that runs above the door. Tension the pole connecting the ends of the pole into the eyelets located on each side of the tent.

3D wireframe diagram of a geometric structure with curved and straight lines, no text or symbols present

1. Thread the remaining PURPLE pole through the pole sleeve that runs across the rear of the inner tent. Tension by connecting the ends of the pole into the eyelets located on each side of the tent.

Pure geometric diagram of a 3D wireframe structure with no text, numbers, or symbols

1. Peg out the inner tent. Try to tension the floor so that it sits flat.

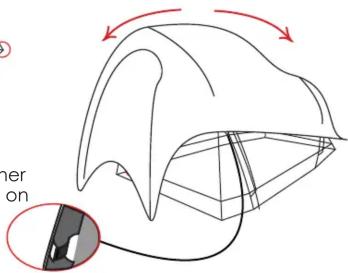

1. Throw the flysheet over the inner and fasten the Velcro ties found on the inside of the fly around the pole lines.

2. Connect the fly to the inner by connecting the Side Release buckles at the end of each pole line.

Diagram of a simple geometric structure with red lines and an inset showing a tool or component (no text or symbols)

1. Peg out all peg points and guys ropes, pegging at a 45^ angle

Freedom zempire

PITCHING INSTRUCTIONS - ATMOS

1. Ensure guy ropes are pegged out at all times during use
2. Never pack your tent away wet. If you must take your tent down when wet, ensure that you dry you tent completely as soon as possible to prevent mildew forming.
3. If mildew does form on your tent wash off pours with warm water and a soft brush to prevent further growth. Do not use detergents.
4. Do not use an open flame inside your tent. The fabric has been treated with a fire retardant but is in no way fire proof.
5. Clean all pegs and poles before storing
6. If a pole does break, use the repair sleeve to cover over the broken section. Once you have returned contact your local retailer for a replacement pole section.

Freedom Zempire is proud to be a 100% New Zealand owned and operated business.

For more information about this and other great products we offer please visit our website.

WWW.FREEDOMCAMPING.COM

ATMOS pitching instructions
