USER MANUAL Hyatt Zempire

1) Open up all windows and close all doors.
2) Remove the RED awning poles
3) Remove the YELLOW Support poles.
4) Remove the BLACK Ridge poles.
5) Remove the BLUE & GREEN Eve poles.
6) Remove all pegs, clean and place in peg bag.
7) Lay tent as flat as possible and fold the awning over main body of the tent.
8) Fold both sides into the centre of the tent

9) Fold in half. Ensure the width is the same as the length of your carry bag. Adjust if necessary.

10) Expel as much air as possible by walking down the tent towards the door
11) Roll the tent from the rear towards the door. Ensure that you wipe off any condensation and dirt as you roll.

Freedom zempire Hyatt polycollarseries

Exterior view of a modern camping tent with visible windows and metal framing (no text or symbols)

Two identical 3D camping tent designs shown from different angles (top and side), no text or symbols visible.

Exterior view of a modular camping tent with open doors and metal frame (no signage or text visible)

Freedom zempire

Freedom Zempire is proud to be a 100% owned and operated business.

For more information about this and other great products we offer please visit our website.

WWW.FREEDOMCAMPING.COM

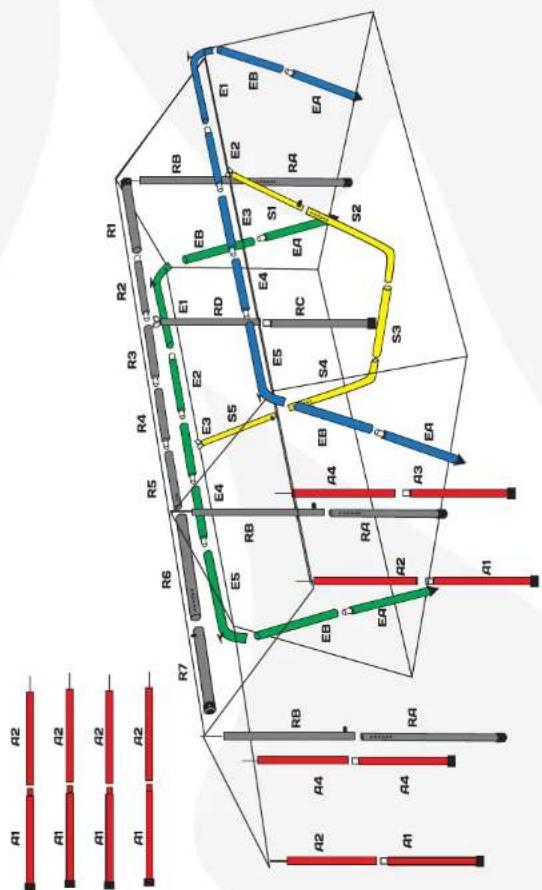

POLE DIAGRAM - HYATT

POLE CHART

Ridge Pole (BLACK)

Line 1 - R1, R2, R3, R4, R5

Line 2 - R6, R7

Line 3 - RA, RB

Line 3 - RA, RB

Line 3 - RA, RB

Line 4 - RC, RD

LH Eve Pole (GREEN)

Line 1 - E1 , E2, E3, E4,

Line 2 - E5

Line 3 - EA, EB

Line 4 - EA, EB

RH Eve Pole (BLUE)

Line 1 - E1, E2, E3, E4.

Line 2 - E5

Line 3 - EA, EB

Line 4 - EA, EB

Support Pole (YELLOW)

Line 1 - S2, S3, S4

Line 2 - S1

Line 3 - \$5

Awning Pole (RED)

Line 1 - A1, A2

Line 2 - A1, A2

Line 3 - A3, A4

Line 4 - A3, A4

Side Awning Poles (RED)

Line 1 - A1, A2

Line 2 - A1, A2

Line 3 - A1, A2

Line 4 - A1, A2

Pegs 46

Spike Washers 7

Pole Feet 3

Guy Rope 4m 2

Guy Rope 3m 6

WEATHERING YOUR TENT

When you first get your new tent you will need to weather it. This is a process of soaking the fabric to ensure that all the thread swells up filling stitch holes and creating a watertight surface.

When you pitch your tent for the first time soak the fabric with a garden hose until the fabric looks visibly damp. Allow to dry and repeat for two or three times.

Your tent will get more watertight the more you use it. Do not be concerned if you have a small amount of water coming through the seams on the first few times you get heavy rain.

NATURAL FIBRE

Freedom Canvas is made of a combination of Natural Cotton for breathability and water fastness and Polyester for strength.

Please note that as Cotton is a natural fibre you will notice variances of both colour and thickness of the thread. This is normal and is a characteristic of a natural and breathable fibre.

FIRE RETARDANT

Freedom Canvas Tents are treated with a fire retardant solution. While this significantly reduces the risk of the fabric catching in fire, it is by no means fireproof. Ensure open flames are kept well away from your tent at all times.

Freedom zempire Hyatt

1) Clear your site making sure there are no sharp objects. Try to choose a site that is flat and clear.
2) Take the poles out of the pole bag and sort into their matching colours. Once sorted connect each colour pole lengths together in order from smallest to largest number (ie BLUE E1 to E7). Some of these sections may need to be broken down in later stages.
3) Unroll your tent and spread out with floor facing down, the front is located with the large awning roof attached.
4) Using the Gold Rock Stakes, peg out the four corners of the tent. Pull the floor as tight as possible. To ensure the floor sits flat it may be easier to peg in the following Sequence.

5) Peg out the remaining peg points ensuring the floor sits as flat and taught.

6) Open all doors and windows. This allows air to enter the tent and makes pitching easier
7) Thread the BLUE poles (E1 to E4) through the pole sleeve that runs along the RHS of the tent. Thread the poles from the rear of the tent inserting the pole through the Black webbing loop before threading through the pole sleeve, and place behind the button pin on the pole.

8) At the front of the tent thread the BLUE ES pole up through the pole sock on the side of the owning from the inside to the outside. Thread through the Black webbing loop before inserting into the pole sleeve and connecting to the E4 plot the webbing over the button pin on the pole.

9) Cover the pole by wrapping the cover over the pole and attaching the veicro.

Abstract diagram with curved and angular shapes, no text or symbols present

10) Repeat with the GREEN pole

11) Insert the remaining BLUE EA and EB poles into the end of each section and raise the pole so that the outside wall sits taught.

12) Repeat with the GREEN EA and EB poles.

13) Thread the BLACK R1 to R5 poles through the hole at the top of the Front wall and then centre wall.

14) Insert the BLACK RB/RA pole into the hole at the end of the R1 pole and then through the eyelet at the rear of the roof and extend until the wall sits tight and close the flip lock. Attach the Velcro strips.

R1 RB RA

Simple line drawing of a mechanical assembly or mounting bracket (no text or symbols)

15) Repeat with the remaining BLACK RA/RB pole at the front of the tent. Thread the RB pole through the outermost of the 3 holes on the BLACK R5 pole. If the roof is too tight move back one hole before threading through the eyelet in the roof, ensure the end of the BLACK R5 pole still pocket in the front wall of the tent.

16) Place white "Witch Hat" washers onto pole spikes to prevent water running down the pole during heavy rain

Simple diagram of a red conical lamp mounted on a white base, with no text or symbols present.

17) Connect the C Clip at the top of the BLACK RC/RD pole to the BLACK ridge pole directly behind the centre dividing wall and extend until the wall is taught. Close the fliplock.

Attach the Velcro strips around the pole.

Freedom zempire Hyatt

18) Place YELLOW pole sections S2 to S4 behind the centre dividing wall and attach the velcro.

19) Insert open end of the YELLOW S1 pole through the pole sock half way along the RH outside wall. Attach the C Clip to the BLUE eve pole and lift the pole sock so it sits under the pole sleeve

Repeat with the YELLOW S5 pole attaching to the GREEN eve pole.

S5 S1

Simple diagram of a mechanical component with green and yellow parts, no text or symbols present

20) Insert the YELLOW S1 pole into the end of the pole. Repeat with S5 into S4. Extend both sides and close the fliplocks.

21) Insert BLACK R6 / R7 pole into the end of the R5 pole that extends through the pole sock at the front of the tent.

22) Insert the BLACK RB/RA pole into the hole at the end of the BLACK R7 pole and then through the eyelet at the awning. Extend and close the Flip Lock.

23) Extend the BLACK R6/R7 pole until the roof sits flat. Close the Flip Lock. You may need to lower the pole by moving the support poles to the side.

24) Insert the RED A1/A2 poles into the eyelets at the front corners of the awning.

3D wireframe diagram of a geometric structure with labeled points A1, A2, and R1, no text or symbols present.

25) Guy out the front awning by making a loop at one end of the guy rope and attaching over the top of the pole spike. Line up the guy rope with the pole and the top ridgepole (indicated by the ____ Line). Ensure the guy rope is at a 45° angle and pegs are also inserted at a 45° angle.

3D wireframe diagram of a geometric structure with vertical supports and a 45-degree angle label (no text or symbols beyond the angle marker)

26) Insert the longer RED A3/A4 pole into centre of the side of the awning. Guy out at a 45° angle.

A4 A3 A3 A4 A3 45°

27) Peg out front valance, the bottom of the valance should sit level with the ground. The outside of the valance should align with the outside of the tent. The inside of the valance should be vertical.

Isometric line drawing of a 3D rectangular structure with support legs and a 90-degree angle label (no text or symbols beyond the angle marker)

28) Place rubber pole feet under support pole (BLACK RA & RC)

Simple diagram of a red object partially submerged in a gray liquid, with no text or symbols present.

CARING FOR YOUR TENT

- Never store your tent wet.

- If you must pack your tent down while still wet, hang to dry as soon as possible to prevent mildew damage.

- Remove dirt, tree sap, and bird droppings with a soft brush and warm water before packing down.

- Do not use detergents to clean your tent. This will damage the waterproofing of the tent fabric.

- When rolling up your tent ensure there is no condensation on the floor.

- When rolling up your tent ensure there is no condensation on the floor.

- It is not advisable to re-coat your canvas as a precautionary measure. This will reduce the breathability and duarbility of your tent. Freedom Canvases are pre coated and will stay waterproof and breathable for many years.

- When Storing your tent over the winter, do not store directly on concrete floors.

Freedom zempre Hyatt
