Brand	Panasonic
Model	EH1771
Product type	Hair curling iron
Power supply voltage	220-240 V, 50-60 Hz
Power	160 W (220 V) / 175 W (230 V) / 190 W (240 V)
Barrel diameter	26 mm
Barrel temperature	Approximately 130 °C
Heat settings	2 positions: 1 (low) for soft curls, 2 (high) for tight curls
Technology	Negative ions to reduce frizz
Heating time	Approximately 1 minute
Included accessories	Protective headband to avoid burns
Safety	Do not use near water; protective headband; do not leave unattended
Maintenance	Clean with a damp cloth; clean the ion nozzles every 6 months with a cotton swab
Repairability	Repair by authorized service center only
Usage	For human hair; do not use on children
Curl duration	Approximately one day (until the next shampoo)
Cord type	Swivel cord
Power indicator	Red indicator light

Frequently Asked Questions - EH1771 PANASONIC

Can I use the hair curling iron in the bathroom?

No, it is strictly forbidden to use the appliance near a bathtub, shower, sink, or other container containing water due to the risk of electric shock. The symbol on the appliance clearly indicates this.

How long does it take for the curling iron to heat up?

The heating time is approximately 1 minute. The power indicator lights up red when the appliance is powered on.

How to clean the negative ion nozzles?

Unplug the appliance and wait for it to cool down. Use a cotton swab (preferably thin) to clean the inside of the ion nozzles at least 5 times in a row. This operation is recommended every 6 months to maintain ion efficiency.

What is the difference between positions 1 and 2?

Position 1 offers a low temperature suitable for soft curls. Position 2 offers a higher temperature for tighter curls. Choose according to the desired effect.

How long do the curls last with this iron?

The curls last approximately one day. They return to normal after a shampoo. To extend the hold, you can use a spray or wax.

The curling iron produces an odor, is this normal?

Yes, a characteristic odor may be released. It is due to the ozone produced by the appliance and is not dangerous to health.

Can I use the curling iron on wet hair?

No, the appliance is not effective on wet hair. It is recommended to lightly dampen the hair with water or a styling product, but not to leave it soaking wet.

How to use the included protective headband?

Place the headband around your shoulders by attaching the velcro strap on the left shoulder. Use hair clips to keep your bangs up, then fasten the headband to cover your neck, ears, and forehead. This prevents burns.

What to do if the power cord is damaged?

Do not use the appliance anymore. The cord must be replaced by an authorized repair center to avoid any risk of accident. Do not attempt to repair it yourself.

Can I use this curling iron on children?

No, the appliance is designed only for adult human hair. Do not use it on children due to the risk of burns.

USER MANUAL EH1771 PANASONIC

Line drawing of a hair curling iron with attached cable, shown against a plain background (no text or symbols)

Panasonic

Operating Instructions

Ion Curling Iron

Model No. EH1771

English 2 Norsk 30 Română 58

Deutsch 6 Svenska 34 Magyar 62

Français 10 Dansk 38 Türkçe 66

Italiano 14 Suomi 42 Русский 70

Before operating this unit, please read these instructions completely and save this manual for future use.

Safety Instructions

Please read the safety instructions before using this curling iron. The safety instructions explained here help you to use this curling iron safely and correctly and also to prevent you from injuring yourself or others.

WARNING: Not following the instructions below may cause fire, burns, explosion, short circuiting or electric shock.

Electrical Conditions

WARNING: This symbol on the curling iron means “Do not use this curling iron near water”. Do not use this curling iron near bathtubs, showers, basins or other vessels containing water.

• Unplug the power cord from the power outlet when not in use.
• Do not cut, damage or modify the power cord. Do not pull, twist or bend the power cord with unnecessary force. Do not place heavy objects on the power cord or allow it to get pinched in between objects.
• Do not use the power cord or plug when it is damaged, hot or not fully inserted into the power outlet.
• Failure to do so may lead to fire and/or an accident.
• Do not block or put foreign objects into the negative ion nozzle.
• Do not use the curling iron near inflammable material such as benzine, paint thinner, sprays etc.
• Keep the curling iron out of the reach of children.
• Do not use or place the curling iron in a bathroom or area with high humidity.
• Do not attempt to repair, disassemble or modify the curling iron by yourself. If the supply cord is damaged, it must be replaced by an authorized service center in order to avoid hazard.
• If the curling iron is not working properly, stop using it immediately and contact an authorized service center.
• Do not use the curling iron while your hands are wet.
• Use the appliance in front of a mirror to ensure that the barrel

2

and the press plate do not touch your skin.

• Always take a strand of hair with the press plate opened to avoid burns.
• Do not leave the curling iron unattended while the power is on.
• Only use the curling iron for curling human hair. Do not use it for children.
• Styling will hold for 1 day only. Hair will return to its normal condition after shampoo.
• Not suitable for those with extremely fizzled or curly hair.
• The effects of ions might not be felt by the following people. People with crimpy hair, strong curly hair, very smooth hair, short hair, or who have had a hair straightening perm in the last three or four months.
• You may notice a characteristic odor when using this curling iron. This is caused by the ozone it generates and is not harmful to the human body.

Parts Identification

①On/off switch

0: off

1: low

2: high

②Grip

③Swivel connector

④Bushing

⑤Power cord

⑥Power indication

⑦Negative ion nozzle

⑧Press plate

⑨Barrel

Accessory:

⑩Hair band to prevent burns

- The shaded areas become hot. Do not touch these parts when the curling iron is turned on.

Heating the curling iron

1. Plug the power cord into the power outlet.
2. Turn the on/off switch to "1" or "2". (The power indication becomes red.)
3. Allow approx. 1 minute for the curling iron to heat.
4. Select "1" for a low temperature to make soft curls. Select "2" for a high temperature to make tight curls.
5. Invisible negative ions are released.

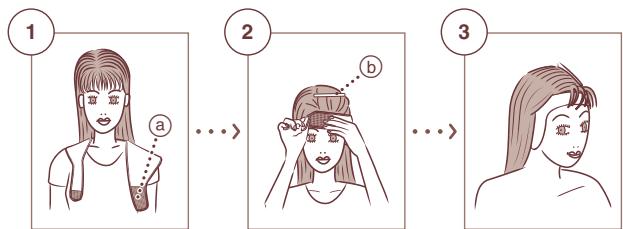

Instructions for use the hair band

The barrel and press plate are extremely hot and will burn you if they touch the skin. Always wear the hair band provided when using the appliance.

1. Place the hair band around your shoulders. (Position so that the large piece of hook-and-loop tape ⓐ can be seen hanging from your left shoulder.)
2. Use hairpins ⓑ to hold your bangs up, and then attach the hook-and-loop tape so that your neck, ears and forehead are covered by the hair band.
3. Remove hairpins.

Curling techniques

Before curling

1. Straighten your hair.
2. Moisten your hair lightly with styling products, water or a steaming towel.
3. When using a styling product, spray it uniformly on your hair from a distance of approximately 10 cm so that the surface and inside of your hair become slightly damp.
4. The curling iron will not work effectively on wet hair.

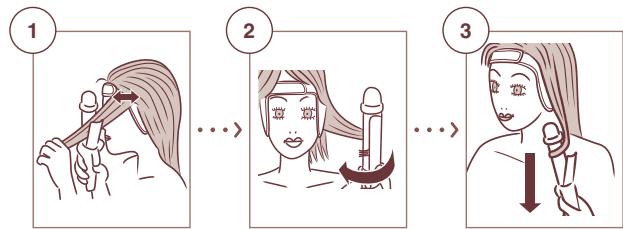

Basic curls (Inside spiral curls)

1. Take about a 5 cm wide strand of hair. Hold the curling iron vertically against the strand of hair with the press plate on the outside and then open the press plate.
2. Take only as much hair as the length of the press plate can hold.
3. Place the strand of hair at the base of the curling iron. Roll the curling iron inwards towards your face and then hold it in place for 10 seconds.
4. Be sure to keep the press plate at least 3 cm away from your skin.
5. Be careful not to split the ends of your hair.
6. Open the press plate and then slide the curling iron downwards to keep the curls in place.

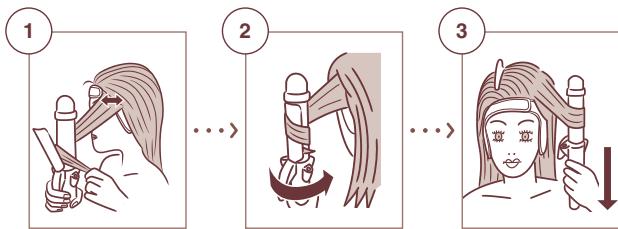

Basic curls (Outside spiral curls)

1. Take about a 5 cm wide strand of hair and pull it forwards. Hold the curling iron vertically against the strand of hair with the press plate on the front side and then open the press plate.
2. Take only as much hair as the length of the press plate can hold.
3. Place the strand of hair at the base of the curling iron. Roll the curling iron outwards towards the back of you head and then hold it in place for 10 seconds.
4. Open the press plate and then slide the curling iron downwards to keep the curls in place.

Tips for achieving tight curls

• Pull the strand of hair as you wrap it around the barrel so it does not become loose.
• If you are having difficulty making curls, spend more time wrapping the strand of hair around the barrel or curl the strand again.
  ● Take a smaller amount of hair for each strand.
• Do not touch the curled strands of hair until they cool.

Bangs (Inside curls)

Illustration of a person with hair being styled, showing front and side views (no text or symbols)

Pull the bangs upwards and wrap them around the barrel. Keep the curling iron away from your forehead.

Inside curls on the sides of your hair

Illustration of a person with hair being styled, showing head and face views (no text or symbols)

Take a strand of hair, hold the curling iron with the press plate on the outside Ⓐ and then wrap the strand of hair inwards around the barrel.

Outside curls on the sides of your hair

Illustration of a person styling hair with a curling iron, showing two views (no text or symbols)

Take a strand of hair, hold the curling iron with the press plate on the inside Ⓑ and then wrap the strand of hair outwards around the barrel.

To make the curls last longer;

Use a hair spray, wax etc. to make the curls last longer.

Cleaning

(After pulling out the plug and waiting for the barrel to become completely cool)

Use a cloth that has been soaked in soap and water and well wrung out. Do not use substances like benzine, thinner or alcohol.

Clean the two negative ion nozzles (left and right side) regularly (about once every 6 months) as described below to ensure that the curling iron does not lose its ability to release negative ions.

Cleaning method

Use a cotton swab Ⓐ to lightly rub about 5 times the center of part ⓑ inside of the negative ion nozzles Ⓐ.

We recommend using thin cotton swabs sold for babies. Regular cotton swabs will work however they may be difficult to insert into the nozzles.

Specifications

Voltage	220 V50–60 Hz	230 V50–60 Hz	240 V50–60 Hz
Output	160 W	175 W	190 W
Barrel diameter	26 mm
Barrel temperature	Approx. 130 °C

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge

basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
