Product Type	Vehicle Mounting Kit
Brand	Havis
Model	PKG-PSM-215
Compatible Devices	Laptops, tablets, or other mobile equipment
Dimensions (approx.)	12 x 8 x 4 inches (30.5 x 20.3 x 10.2 cm)
Weight (approx.)	5 lbs (2.3 kg)
Material	Heavy-duty steel and aluminum construction
Mounting Type	Vehicle seat rail or floor mount
Adjustability	Tilt, swivel, and height adjustable
Power Supply	None (passive mount)
Color	Black powder coat finish
Installation	Hardware included for most vehicles
Warranty	Limited lifetime warranty from Havis
Maintenance	Clean with mild soap and damp cloth; check bolts periodically
Safety	Ensure weight capacity not exceeded; secure all fasteners
Spare Parts Availability	Replacement parts available from Havis or authorized dealers
Country of Origin	USA
Intended Use	Professional and government vehicle installations

Frequently Asked Questions - PKG-PSM-215 Havis

What is the Havis PKG-PSM-215 used for?

The Havis PKG-PSM-215 is a vehicle mounting kit designed to securely hold laptops, tablets, or other equipment in cars, trucks, and SUVs.

How do I install the PKG-PSM-215?

Installation typically involves attaching the mount to the vehicle's seat rail or floor using the included hardware. Refer to the manual for detailed steps and torque specifications.

Is the mount adjustable?

Yes, the PKG-PSM-215 offers tilt, swivel, and height adjustability to provide optimal viewing angles and ergonomic positioning.

What devices are compatible with this mount?

It is compatible with most laptops and tablets when used with the appropriate cradle or adapter. Check Havis website for specific device fitment guides.

What is the weight capacity of the PKG-PSM-215?

The mount can typically support devices up to 10 lbs (4.5 kg). Always verify weight limits for safe operation.

Does the mount require any tools for adjustment?

Some adjustments may require a hex key or screwdriver, which are usually included. Quick-release mechanisms allow for tool-less repositioning.

How do I clean and maintain the mount?

Clean with a damp cloth and mild detergent. Avoid abrasive cleaners. Periodically check all bolts and fasteners for tightness.

Where can I find spare parts or replacements?

Spare parts are available through Havis customer service or authorized dealers. Contact them with your model number for assistance.

Is the PKG-PSM-215 compatible with airbag systems?

The mount is designed not to interfere with airbag deployment when installed according to instructions. Ensure proper placement away from airbag zones.

What warranty does Havis offer?

Havis provides a limited lifetime warranty against defects in materials and workmanship. Proof of purchase is required for claims.

USER MANUAL PKG-PSM-215 Havis

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

Required tools to complete installation.

• Large Metric Socket Set (1/2" drive)
- Small Metric and US Standard Socket Set (1/4" drive)
- 7/8" Wrench
• 1/2" Wrench
- 7/16" Wrench
• US Standard Allen Wrench Set
• Phillips head Screwdriver

Interior view of a vehicle's seat and dashboard assembly (no visible text or symbols)

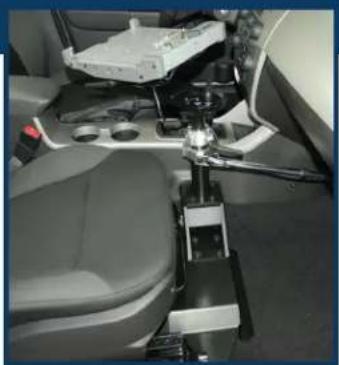

Complete assembly in vehicle (2010 Ford Focus)

Abstract geometric design with two overlapping orange and blue rectangles (no text or symbols)

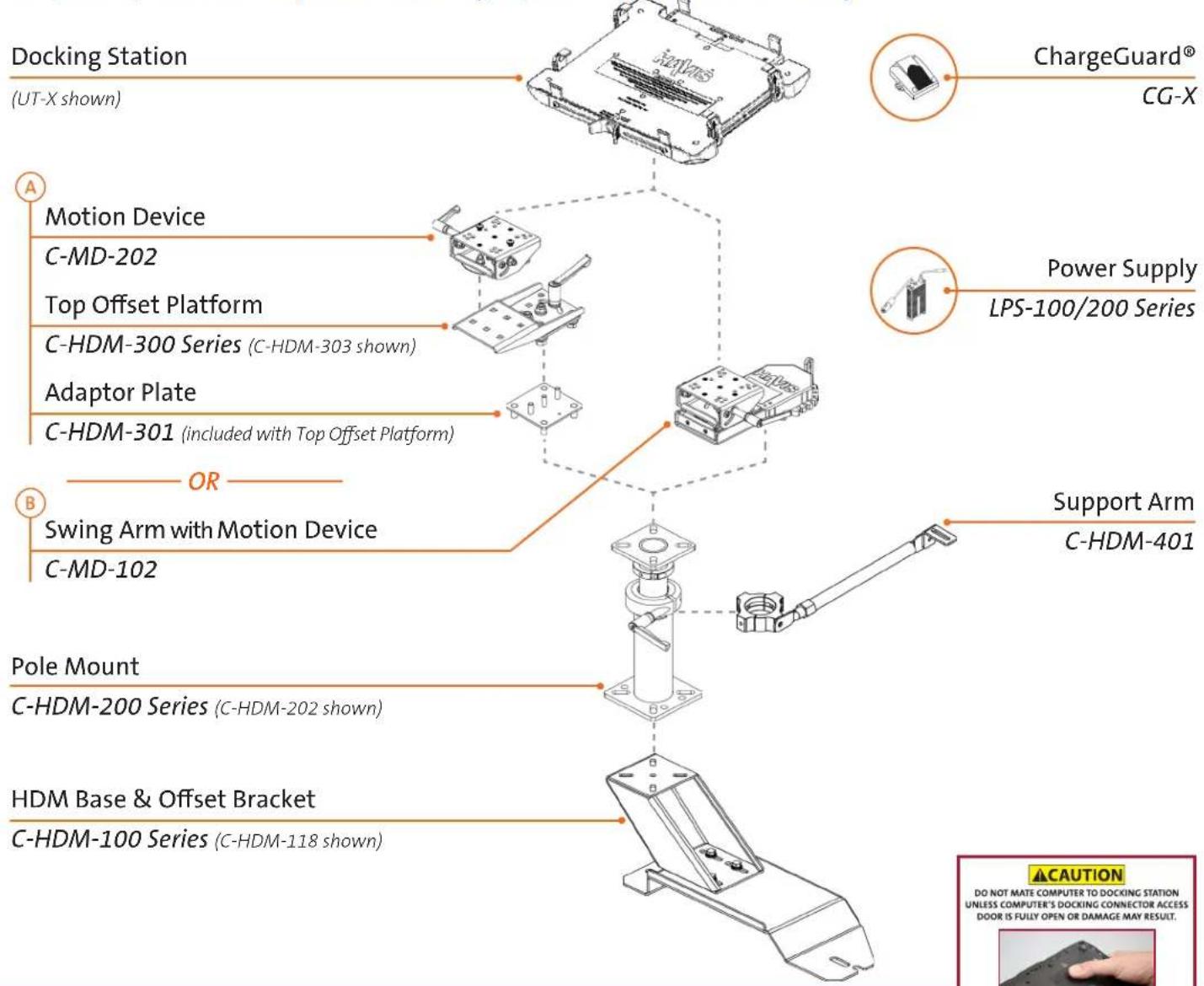

Required parts to complete assembly Optional parts for assembly

For installation of Havis products, ALWAYS...

• Read all instructions before installing any Havis, Inc. Products.
• Check for obstructions (wire, brake lines, fuel tank, etc.)
• Use hardware provided with install kit

Close-up of hands installing a black electronic component with a red arrow indicating the pin (no text or symbols visible)

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

1

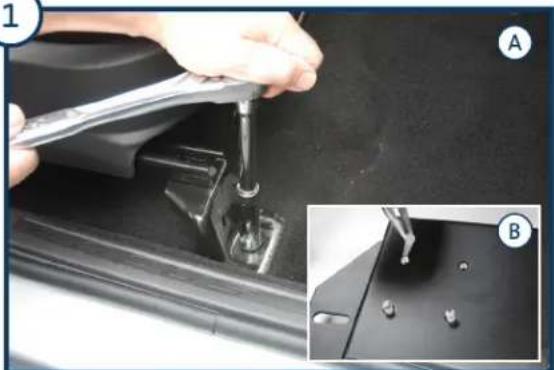

Close-up of a hand using a tool to adjust or install a mechanical component, with inset showing close-up details (no visible text or symbols)

A) Remove the plastic caps that cover the seat bolts. Remove the OEM seat bolts, seat nuts and seat studs, making sure to keep the seat bolts for HDM Base installation (Step 3).
B) Remove all rubber thread protectors from the mounting holes on the HDM Base.

3

Close-up of hands using a wrench to adjust the internal components of a car intake manifold (no visible text or symbols)

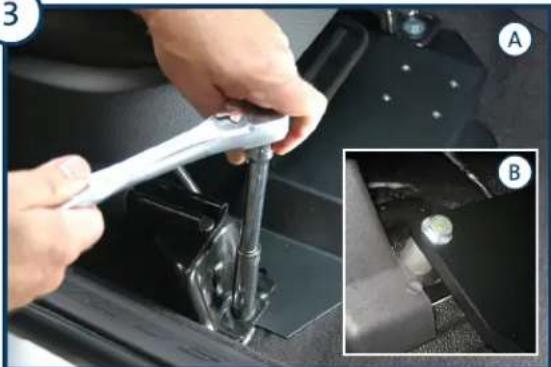

Align the HDM Base mounting holes to seat bolt locations and loosely attach the seat bolts. Use caution to avoid stripping the threads. Fully tighten the bolts once HDM Base is properly in place.

NOTE: Some HDM Bases mount under the vehicle seat bracket and reuse OEM seat bolts (A), while other HDM Bases mount over the top of vehicle seat bracket and use provided spacers and bolts (B).

5

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

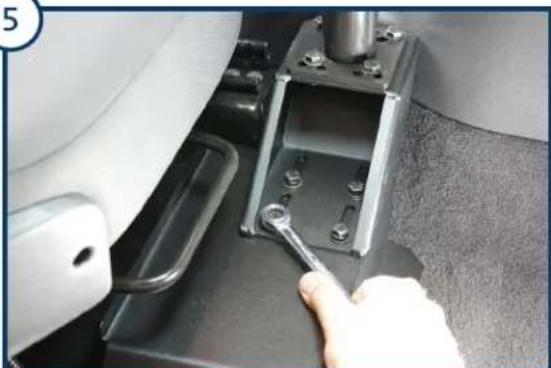

Attach the assembled Offset Bracket and Pole to the HDM Base inside the vehicle, using supplied 5/16" x 3/4" hex bolts, lock washers, and flat washers. Make sure to adjust Offset Bracket to desired position before all hardware is fully tightened.

NOTE: If your application needs to be closer to center of vehicle, see optional C-HMD-409 Offset Plate.

2

Close-up of a car seatbelt with a hand adjusting the compartment (no visible text or symbols)

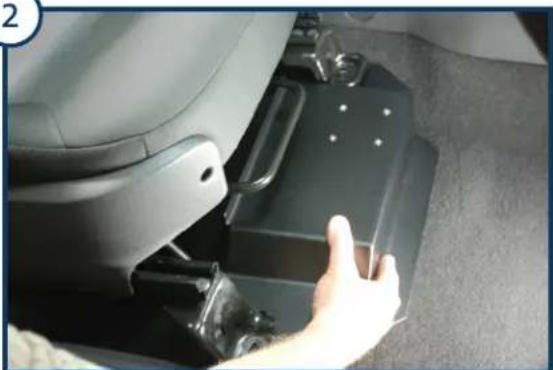

Lift the seat to place the HDM Base between the seat brackets and the floor.

NOTE: Loosening rear seat bolts may be required for ease of installation.

4

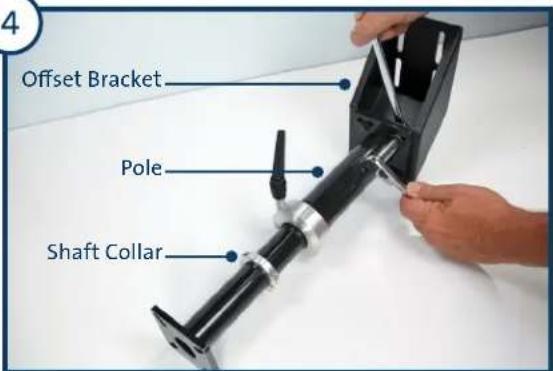

On the workbench, assemble the Offset Bracket and Pole using supplied 5/16" x 1" hex bolts, lock washers, and nuts (x4). Make sure all hardware is fully tightened. Attach the shaft collar anywhere on the inner pole, making sure to leave the shaft collar loose in order to adjust Pole height once installed in vehicle (Step 12).

6

Two-panel image showing a hand holding a tool next to a mechanical device, and a close-up of a mechanical assembly with no visible text or symbols.

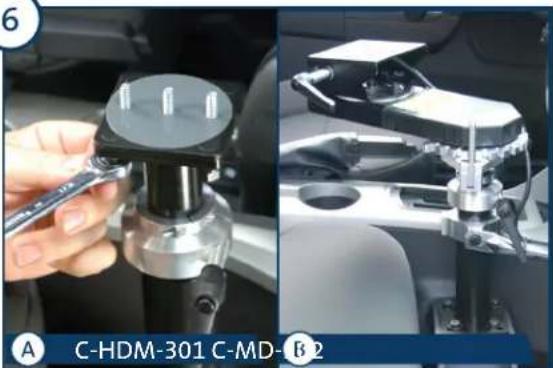

A) Align the Adaptor Plate mounting studs to the top of the inner pole, then attach using the supplied 5/16" lock washers, flat washers, and nuts. Place the large plastic washer on top of Adaptor Plate.

B) Align Swing Arm with Motion Device mounting holes to the top of the inner pole, then attach using 1/4" lock washers, flat washers, and bolts.

NOTE: Make sure all hardware is fully tightened.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

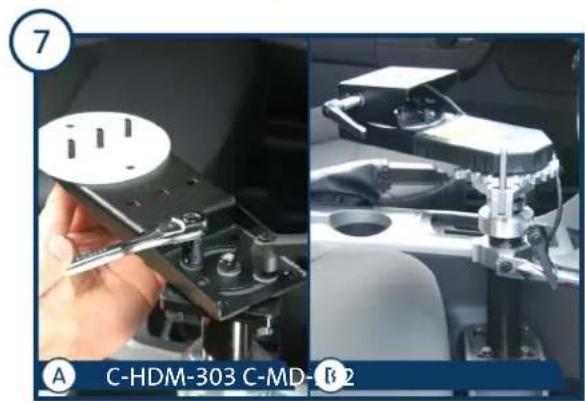

A) Install the Top Offset with the supplied hardware and handle. Tighten the hardware to allow minimal motion. Place the large plastic washer on the Top Offset. B) No adjustment required, please proceed to Step 8.

Two-panel image showing a hand operating a mechanical clamp device, with no visible text or symbols.

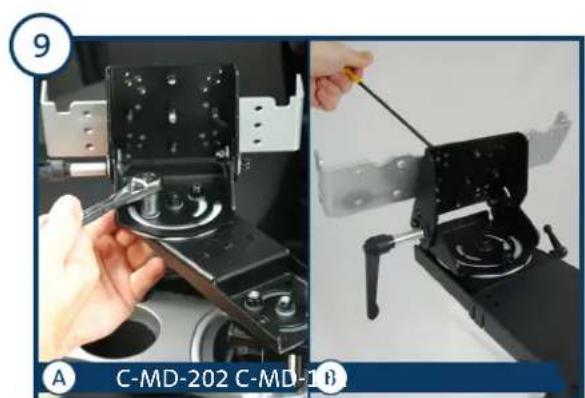

A) Connect the Motion Device assembly to the Top Offset. Tighten the hardware to allow minimal motion. NOTE: Motion Device has two (2) sets of holes. 3-bolt pattern allows for 90 rotation. 2-bolt pattern allows for 180 rotation. B) Motion Device is already connected, please proceed to step 10.

Close-up of a hand using a tool to adjust or install an electronic device component (no visible text or symbols)

Attach the Docking Station to the mounting bracket.

Close-up of a hand using a tool to adjust or install a metal bracket component (no visible text or symbols)

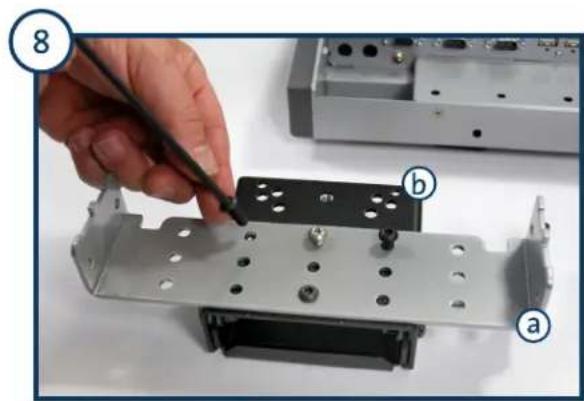

Remove mounting bracket (a) from the bottom of the Docking Station and attach to the Motion Device (b). NOTE: If attaching a Universal Laptop Mount (UT-X Series or C-3090 Series), mount directly to the Motion Device.

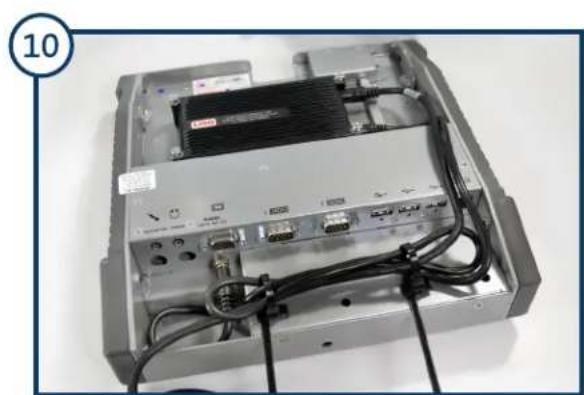

Interior view of an electronic device showing a drive bay with cables and connectors (no visible text or symbols)

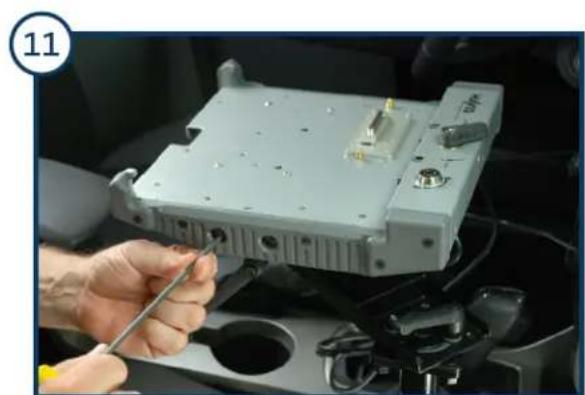

Attach the Power Supply to the designated mounting location on the Docking Station.

Close-up of a hand adjusting a mechanical component inside a car (no visible text or symbols)

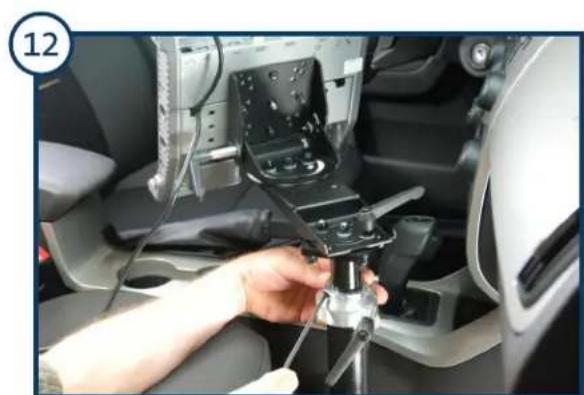

Adjust the shaft collar to desired height and fully tighten.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

Close-up of a mechanical assembly with metallic components and a numbered label (13) in the corner, no readable text or symbols on the main subject.

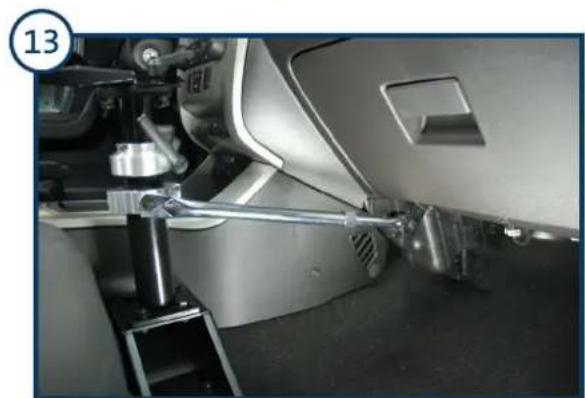

To attach the optional two-piece support collar to the Pole, attach the side support arm to the two-piece support collar. Attach the side support arm to the underside of the dash with the supplied L bracket. Make sure all hardware is fully tightened.

Close-up of a hand pressing a small electronic device on a black remote control panel (no visible text or symbols)

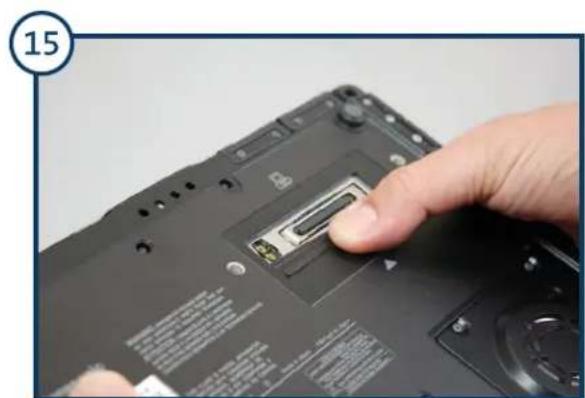

Congratulations, the installation is complete. To properly dock your computer into the Havis Docking Station, you must first open the docking connector door on the bottom of your computer or damages may occur.

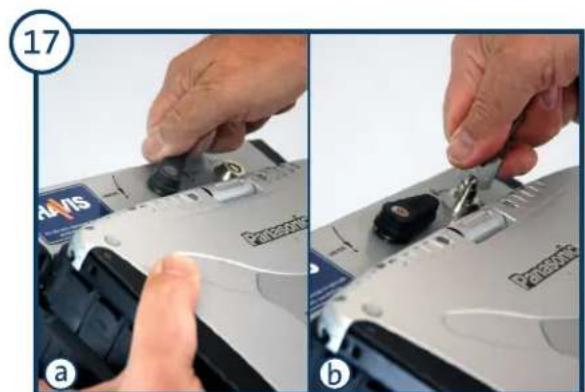

a) With the computer seated, turn the docking latch to the DOCK position. b) Secure by locking the barrel lock with the supplied key.

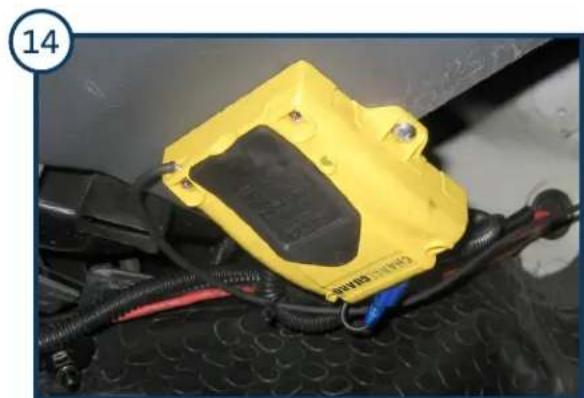

Close-up of a yellow automotive electrical contactor with black wiring and red connectors, mounted on a perforated metal surface (no visible text or symbols)

If you are installing the optional ChargeGuard® Power Management System, run power wires to the ChargeGuard and connect to the fused, 12 volt battery. (Additional instructions inside the ChargeGuard box.)

Two-step photo showing hands installing a device component from a battery pack (a) and a device with a label (b), both without visible text or symbols.

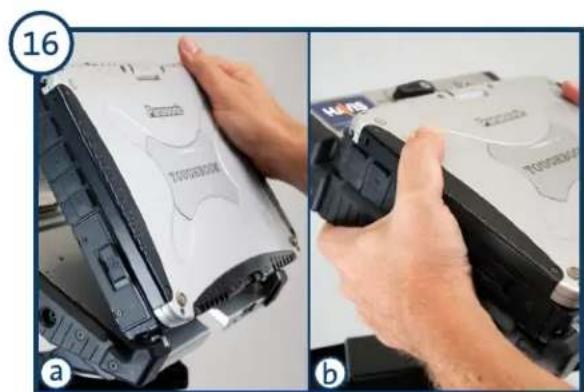

a) Load the front of the computer into the front hooks of the Docking Station. b) Gently lower the back of the laptop down into the docking connector.

Interior view of a car with hands using a laptop on the steering wheel (no visible text or symbols)

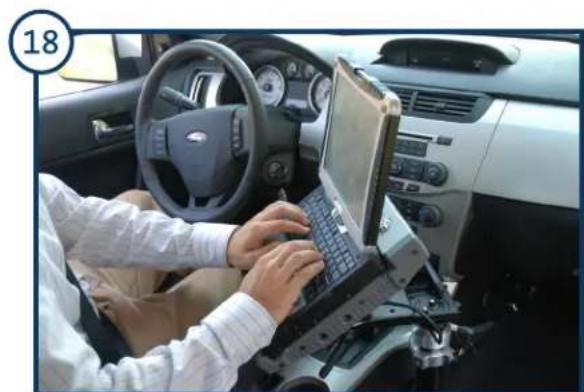

You have successfully and safely docked your computer. Please visit www.Havis.com for more mounting and computing accessories.
