PKG-PSM-239 - Car kit Havis - Free user manual and instructions

Type	Vehicle mounting kit
Brand	Havis
Model	PKG-PSM-239
Compatible Devices	Select laptops, tablets, and keyboards
Mounting Type	Vehicle floor or console mount
Material	Steel with powder coat finish
Dimensions (W x D x H)	Approx. 15 x 12 x 6 inches
Weight	Approx. 5 lbs
Adjustability	Tilt, swivel, and height adjustment
Vibration Dampening	Yes, built-in dampening system
Locking Mechanism	Key lock for device security
Installation	Bolts to vehicle floor using included hardware
Electrical	Not applicable (mechanical mount only)
Warranty	Limited lifetime warranty
Cable Management	Integrated cable routing channels
Certifications	SAE J1455 compliant for vehicle mounting
Package Contents	Mount base, riser, device cradle, hardware, keys
Maintenance	Periodic inspection of bolts and locks; wipe clean with damp cloth
Repair	Contact Havis support for replacement parts

Frequently Asked Questions - PKG-PSM-239 Havis

What devices are compatible with the Havis PKG-PSM-239?

The PKG-PSM-239 is designed to accommodate a range of laptops, tablets, and keyboards with a maximum weight of 10 lbs. Check the device dimensions in the manual.

How do I install the mount in my vehicle?

Installation involves bolting the base plate to the vehicle floor using the provided hardware. Ensure the mounting surface is flat and sturdy. Follow the included instructions for torque specifications.

Can the mount be adjusted for different angles?

Yes, the mount features tilt, swivel, and height adjustment for optimal viewing. Tighten the knobs to lock in position.

Is the mount secured against theft?

The mount includes a key lock that secures the device cradle. Always lock the cradle when the device is unattended.

What is the warranty on this product?

Havis offers a limited lifetime warranty on the mount. Contact Havis support for details or to file a claim.

Does the mount include vibration dampening?

Yes, the mount incorporates a vibration dampening system to protect devices from road shock.

Can I route cables through the mount?

The mount has integrated cable management channels to keep wires organized and out of the way.

What tools are needed for installation?

You will need a socket wrench and drill (if additional holes required). All mounting hardware is included.

How do I clean and maintain the mount?

Wipe the mount with a damp cloth using mild soap. Check bolts and lock periodically for tightness.

Where can I find replacement parts?

Replacement parts such as cradles and locks are available through Havis customer service or authorized dealers.

USER MANUAL PKG-PSM-239 Havis

STEP 1 C-HDM-100's INSTALLATION INSTRUCTIONS VEHICLE PASSENGER SIDE MOUNTING BASE

1. INSPECT PARTS RECEIVED TO MAKE SURE YOU HAVE THE RIGHT BRACKETS FOR THE SPECIFIC VEHICLE.
2. REMOVE ALL PLASTIC END CAPS COVERING THE SEAT BOLTS, IF APPLICABLE
3. REMOVE FRONT SEATBOLTS, IN SOME CASES REMOVING OR LOOSENING REAR SEATBOLTS WILL EASE THE INSTALLATION PROCESS. KEEP THE SEATBOLTS FOR RE-INSTALLATION, ON VAN HDMS THE LEFT SIDE FRONT & REAR BOLTS ON THE PASSENGER SEAT SHOULD BE REMOVED (HDM MOUNT ATTACHES TO THE SIDE SEAT BOLTS).
4. IF OFFSET MOUNT IS SUPPLIED, IT'S RECOMMENDED TO INSTALL THIS AS THE LAST PROCESS. (SEE STEP 2)
5. SEE THE RECOMMENDED INSTALL GUIDELINES LISTED BELOW TO IDENTIFY WHICH IS BEST FOR YOUR INSTALLATION. IF THE HDM BASE IS NOT LISTED IT EITHER HAS ITS OWN SPECIFIC INSTRUCTION OR FOLLOWS THE SAME PROCESS AS FIGURE 1.
6. VISIT US AT www.havis.com TO SEE PICTURES OF INDIVIDUALLY INSTALLED PRODUCTS.

(FIG. 1) C-HDM-101 SHOWN STANDARD NO HOLES DRILLED - VEHICLE MOUNTING WITH OFFSET BRACKET

1. LIFT THE SEAT AND PLACE BASE BETWEEN SEAT BRACKETS AND VEHICLE FLOOR, ALIGN MOUNTING HOLES TO SEATBOLT LOCATIONS, IN SOME VEHICLES, THE SEATBOLTS ARE ORIENTATED AT AN ANGLE, IF THIS IS THE CASE, THE BASE WILL SIT ON TOP OF THE SEAT BRACKET.
2. USING EXISTING SEATBOLTS, LOOSELY ATTACH ALL SEATBOLTS. USE CAUTION WHEN THREADING THE BOLTS TO AVOID STRIPPING THE THREAD.
3. FULLY TIGHTEN SEAT BOLTS.

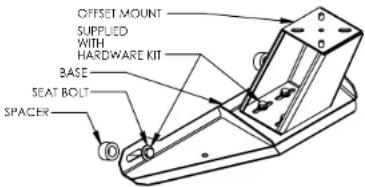

(FIG. 2) C-HDM-104 SHOWN VEHICLE MOUNTING BASE WITH SPACER AND OFFSET BRACKET

1. PLACE THE SPACER AT THE SEATBOLT LOCATIONS TO FILL THE GAP BETWEEN THE SEAT BRACKET AND BASE. (C-HDM-121 ONLY REQUIRES A SPACER ON THE DRIVERS SIDE BOLT).

2. ALIGN BASE MOUNTING HOLES TO SEATBOLT MOUNTING POINTS, USING SUPPLIED SEATBOLTS, INSERT BOLTS PASSING THROUGH THE SPACER AND SEAT BRACKET THEN HAND TIGHTEN TO AVOID STRIPPING THE THREADS.

3. FULLY TIGHTEN SEAT BOLTS.

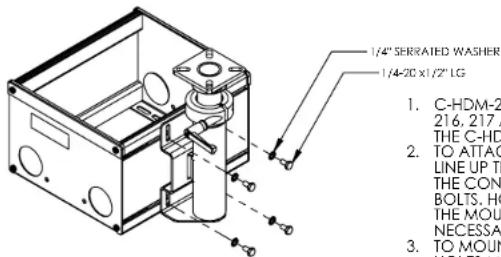

(FIG. 5) C-HDM-204 SHOWN STANDARD NO HOLES DRILLED CONSOLE MOUNTING

1. C-HDM-204, 205, 212, 213, 214, 215, 216, 217 ARE NOT COMPATIBLE WITH THE C-HDM-100 SERIES.
2. TO ATTACH C-HDM-204, 205, 214, 215 LINE UP THE MOUNT WITH THE NUTS IN THE CONSOLE, ATTACH USING 1/4-20 BOLTS. HOLES CAN BE DRILLED AND THE MOUNT THROUGH BOLTED IF NECESSARY.
3. TO MOUNT C-HDM-212, 213, 216, 217, HOLES MUST BE DRILLED AND THE MOUNT THROUGH BOLTED USING THE HARDWARE PROVIDED.
4. SEE NOTES FOR DRILLING

FOR VEHICLE MOUNTING THAT REQUIRES DRILLING

1. INSPECT ALL AREAS BEFORE DOING ANY DRILLING ENSURE NO SERIOUS DAMAGE HAPPENS TO THE VEHICLE.
2. SECURE THE MOUNT WITH SUPPLIED HARDWARE KIT.

(FIG. 3) C-HDM-106 SHOWN VEHICLE MOUNTING BASE (VAN APPLICATION)
(FIG. 4) C-HDM-103 SHOWN VEHICLE MOUNTING BASE WITH FILLERS

1. LIFT THE SEAT AND PLACE BASE BETWEEN SEAT BRACKETS AND VEHICLE FLOOR, ALIGN MOUNTING HOLES TO SEAT BOLT MOUNTING POINTS. SEE NOTE 3 ABOVE.
2. USING EXISTING SEATBOLTS, LOOSELY ATTACH ALL SEATBOLTS. USE CAUTION WHEN THREADING THE BOLTS TO AVOID STRIPPING THE THREADS.
3. ATTACH POLE ASSEMBLY USING SUPPLIED HARDWARE.
4. INSTALL SUPPORT ARM AS SHOWN USING HARDWARE SUPPLIED WITH C-HDM-401 KIT. ENSURE THE C-HDM-401 DOES NOT CLAMP ABOVE THE HORIZONTAL SLOT IN THE POLE.
5. INSTALL STIFFENER BRACKET AS SHOWN, DRILL AND BOLT TO THE SEAT IF DESIRED.

6. FULLY TIGHTEN SEAT BOLTS.

7. REMOVE REAR SEATBOLTS, TILT THE SEAT FORWARD WHILE PULLING THE SEAT TOWARDS THE REAR TO DISENGAGE THE FRONT SEAT HOOKS.

8. ALIGN MOUNTING BASE CUT-OUT TO FRONT SEAT HOOK ENTRY. RETURN THE SEAT TO ITS ORIGINAL LOCATION WHILE HAVING THE BASE SANDWICHED BETWEEN THE SEAT BRACKET AND VEHICLE FLOOR. PUSH IN THE 2 FILLERS ON EACH SIDE TO FILL THE GAP BETWEEN THE SEAT BRACKET AND BASE. SECURE THE FILLER USING SUPPLIED HARDWARE. NOTE ONLY ONE KEY SHAPED FILLER NEEDED ON DRIVERS SIDE IF HUMP BRACKET IS BEING USED.
9. REATTACH REAR SEAT BOLTS AND FULLY TIGHTEN.

C-HDM-103- see FIG. 4
C-HDM-104-see FIG.2
C-HDM-105-see FIG.2
C-HDM-106-see FIG.3
C-HDM-107-see FIG. 3
C-HDM-109-see FIG.2
C-HDM-121-see FIG. 2
C-HDM-124- see IND. INSTALL
C-HDM-131-see IND. INSTALL
C-HDM-133- see IND. INSTALL
C-HDM-134- see IND. INSTALL
C-HDM-135- see IND. INSTALL

HAVIS, INC.		ZE JACKSON-ALF.BD.WARMWISTRE, PA 189741-000-526-9500
TITLE:INSTALLATION INSTRUCTIONS,C-HDM-100's MOUNTING BASE
SIZEA	DWG. NO.C-HDM-100-INST		REV4/6/10

STEP 2 HEAVY DUTY MOUNT POLE PREPARATION INSTRUCTIONS

A-GUIDE RING BUSHING REMOVAL

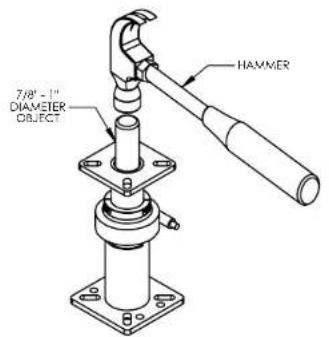

WE STRONGLY RECOMMEND NOT TO REMOVE THE GUIDE RING BUSHING, BUT IF REMOVAL OF INNER POLE IS DESIRED - FOLLOW THIS SIMPLE REMOVAL INSTRUCTION

1. INSERT MAXIMUM 1" DIAMETER OBJECT WITH SUFFICIENT LENGTH AND DROP INSIDE INNER POLE.
2. MAKE SURE NOTHING PREVENTS GUIDE RING BUSHING FROM BEING EJECTED UNDERNEATH. HIT WITH A HAMMER TO FORCE THE GUIDE RING BUSHING OUT.

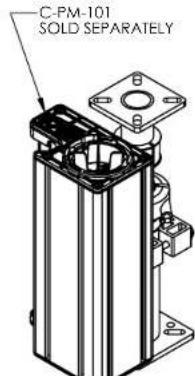

B - INSTALL SPIDER COLLAR (OPTIONAL COMES WITH C-HDM-401 & 403)

1. IF MOUNTING THE SPIDER COLLAR TO THE INNER POLE USE CM003406 REDUCING BUSHING, SPREAD AND SNAP OVER THE INNER POLE.
2. LOOSELY ATTACH SPIDER COLLAR TO THE OUTER POLE OR CM003406. DO NOT MOUNT SPIDER COLLAR ABOVE OUTER POLE HORIZONTAL CUT.

CM003406 REDUCING BUSHING IS NECESSARY IF MOUNTING TO

THE INNER POLE. USE ONLY ON FIXED HEIGHT POLES.

C - INSTALL OPTIONAL C-HDM-416

1. IF MOUNTING C-HDM-416 TO THE INNER POLE USE CM003406, SPREAD THE PIECE AND IT SHOULD SNAP OVER THE INNER POLE.
2. ATTACH C-PM-101 TO CLAMP ASSEMBLY USING LONG CARRIAGE BOLTS INSERTED THROUGH THE PRINTER AND ONE PIECE OF EXTRUSION.
3. ATTACH POLE CLAMP TO THE OUTER POLE OR CM003406. AFFIX SECOND PIECE OF EXTRUSION AROUND POLE AND LOOSELY TIGHTEN THE HARDWARE. DO NOT MOUNT CLAMP ABOVE OUTER POLE HORIZONTAL CUT.

D- INSTALL GAS SHOCK (OPTIONAL)

1. (SKIP IF GAS SHOCK IS NOT IN USE)

2. UNSCREW SMALL PLASTIC DISC FROM SHOCK INSERT GAS SHOCK ASSEMBLY UPWARD FROM THE BOTTOM OF HDM POLE ASSEMBLY WITH GAS SHOCK'S ROD FACING DOWNWARD. GAS SHOCK WILL SANDWICH BETWEEN MOUNTING BASE C-HDM-100 SERIES (NOT SHOWN) AND ACTION ADAPTER C-HDM-300 SERIES (NOT SHOWN).

3. ONCE GAS SHOCK SITS PROUD OF THE INNER POLE REATTACH SMALL PLASTIC DISC.

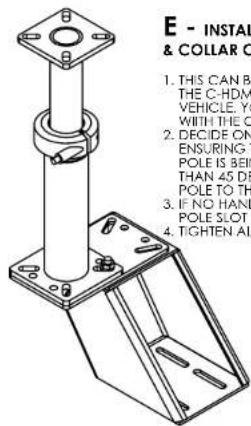

E - INSTALL C-HDM-409 OPTIONAL & COLLAR CLAMP ALIGNMENT

1. THIS CAN BE DONE EITHER AT THIS POINT OR ONCE THE C-HDM-100 SERIES BASE IS ALREADY IN THE VEHICLE. YOU WILL NEED THE OFFSET THAT WAS WITH THE C-HDM-100 BASE IF APPLICABLE.
2. DECIDE ON THE ORIENTATION OF THE C-HDM-409. ENSURING THAT IF THE HANDLE VERSION OF THE POLE IS BEING USED THE TWO SLOTS ARE NO MORE THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE POLE TO THE CORRECT POSITION.
3. IF NO HANDLE IS BEING USED ENSURE THE OUTER POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.
4. TIGHTEN ALL THE HARDWARE.

F - INSTALL C-HDM-410-412 OPTIONAL

1. THIS CAN BE DONE EITHER AT THIS POINT OR ONCE THE C-HDM-100 SERIES BASE IS ALREADY IN THE VEHICLE. YOU WILL NEED THE OFFSET THAT WAS WITH THE C-HDM-100 BASE IF APPLICABLE.
2. DECIDE ON THE ORIENTATION OF THE OFFSET. ENSURING THAT IF THE HANDLE VERSION OF THE POLE IS BEING USED THE TWO SLOTS ARE NO MORE THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE POLE TO THE CORRECT POSITION.

3. IF NO HANDLE IS BEING USED ENSURE THE OUTER POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.

4. TIGHTEN ALL THE HARDWARE.

HAVIS HAVIS, INC.

75 JACKSONVILLERS

VIRAMSTER, PA 12974

TITLE:

ASSEMBLY INSTRUCTIONS, HDM 200 SERIES, POLE ASSEMBLY

SIZE A

DWG. NO. C-HDM-200-INST

REV 4/6/10

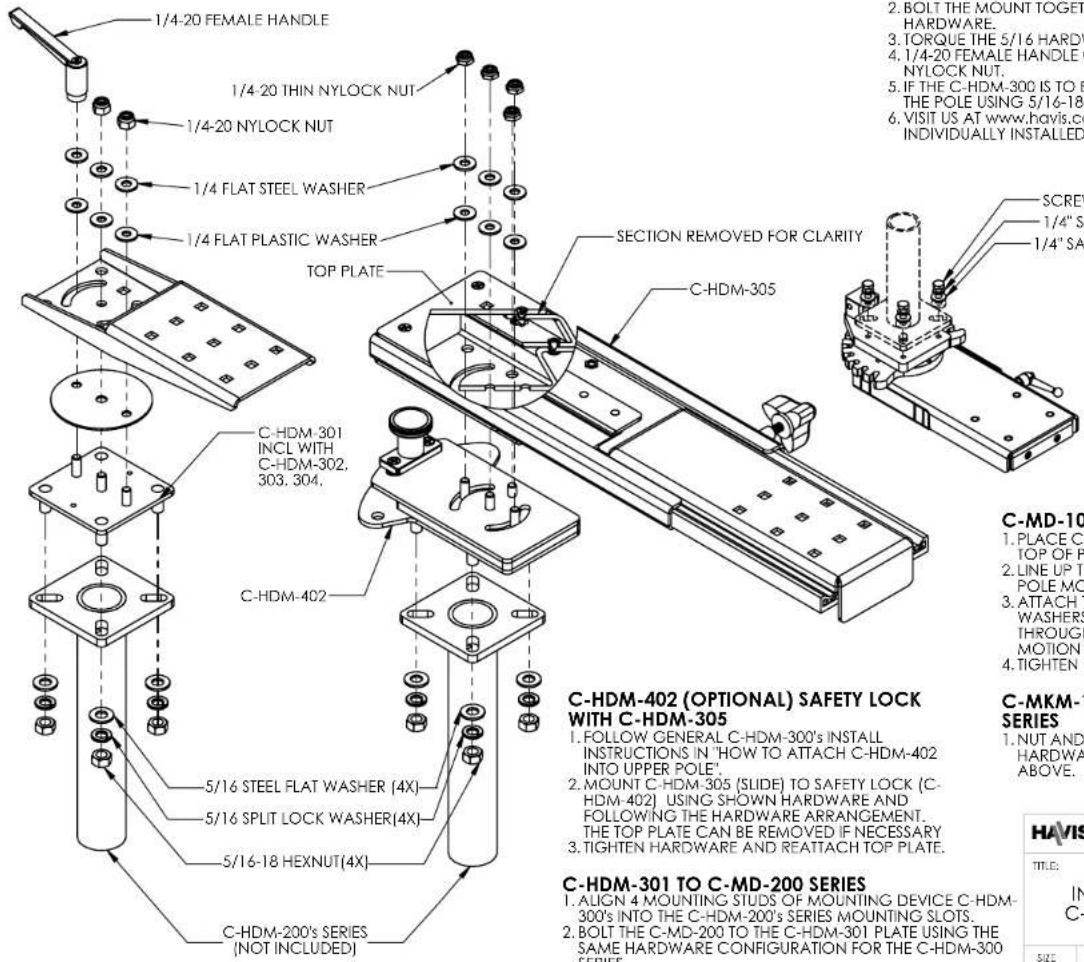

STEP 3 C-HDM-300's SERIES INSTALL INSTRUCTIONS

GENERAL C-HDM-300's INSTALL INSTRUCTIONS

1. ALIGN 4 MOUNTING STUDS OF MOUNTING DEVICE C-HDM-300's INTO THE HDM-200'S SERIES MOUNTING SIOTS.
2. BOLT THE MOUNT TOGETHER USING SPECIFIED AND SUPPLIED HARDWARE.
3. TORQUE THE 5/16 HARDWARE TO INDUSTRY STANDARDS
4. 1/4-20 FEMALE HANDLE CAN BE SUBSTITUTED FOR 1/4-20 NYLOCK NUT.
5. IF THE C-HDM-300 IS TO BE STATIONARY BOLT DIRECTLY TO THE POLE USING 5/16-18 HARDWARE.
6. VISIT US AT www.havis.com TO SEE PICTURES OF INDIVIDUALLY INSTALLED PRODUCTS.

- SCREW- 1/4-20 X 3/4" HEX HEAD BOLT (4X) - 1/4" SPLIT LOCK WASHER. (4X) /4" SAE FLAT WASHER. (4X)

C-MD-100 SERIES

1. PLACE C-MD-100 SERIES MOTION DEVICE ON TOP OF POLE MOUNTING SURFACE.
2. LINE UP THE 4 TAPPED HOLES WITH THE UPPER POLE MOUNTING SLOTS.
3. ATTACH THE FOUR 1/4-20 HEX BOLTS & LOCK WASHERS AND FLAT WASHER AS SHOWN THROUGH THE THREADED HOLES OF THE MOTION DEVICE.
4. TIGHTEN HARDWARE.

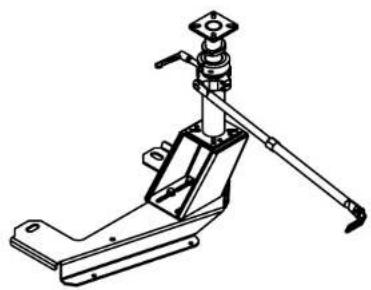

C-MKM-100 SERIES TO C-HDM-200 SERIES

1. NUT AND BOLT TOGETHER USING 5/16-18 HARDWARE CONFIGURATION SHOWN ABOVE.

HAVIS HAVIS, INC.
TITLE:INSTALLATION INSTRUCTION,C-HDM-300's AND HDM-400's
SIZEA	DWG. NO.C-HDM-300-400-INST	REV4/6/10

STEP 4 HDM VEHICLE MOUNTING AND INSTALLATION OF OPTIONAL ACCESSORIES

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Line drawing of a tripod-mounted camera with tripod and tripod base (no text or symbols)

Technical line drawing of a mechanical lever assembly (no text or symbols)

A- C-HDM-403 HORIZONTAL PRINTER MOUNT

1. LOOSELY ATTACH SPIDER (CLAMP) COLLAR TO POLE WITH HARDWARE SUPPLIED (IF NOT ALREADY ATTACHED). POSITION AS DESIRED AND TIGHTEN HARDWARE
2. ATTACH C-HDM-403 PLATE USING HARDWARE PROVIDED. AVOID TIGHTENING SCREWS IF AN OFFSET ARM IS TO BE ADDED.
3. ATTACH DESIRED ITEM TO SHELF BRACKET.
4. THE C-HDM-403 WORKS VERY WELL IF THERE IS NO CENTER CONSOLE. SPACE IS VERY LIMITED AND WILL CAUSE LACK OF LEG ROOM IF THE VEHICLE DOES HAVE A CENTER CONSOLE.

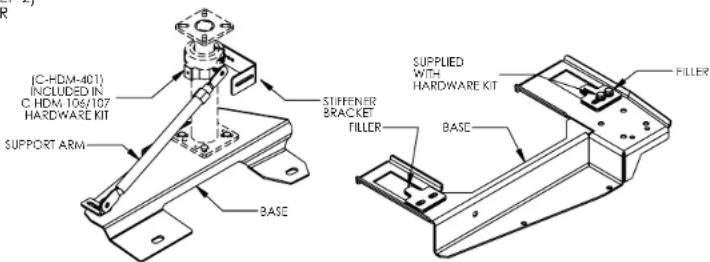

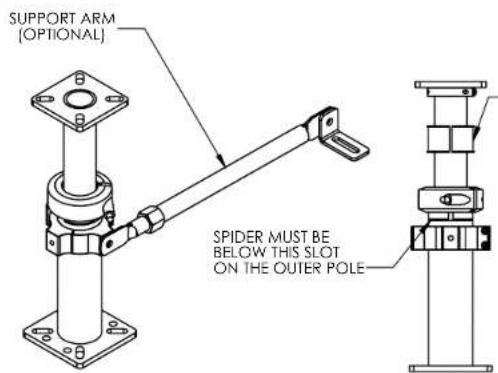

B- C-HDM-401 SUPPORT ARM

1. LOOSELY ATTACH SPIDER (CLAMP) COLLAR TO POLE WITH HARDWARE SUPPLIED (IF NOT ALREADY ATTACHED). POSITION AS DESIRED AND TIGHTEN HARDWARE.
2. LOOSELY ATTACH C-HDM-401 USING HARDWARE PROVIDED.
3. FIND A SUITABLE LOCATION TO ATTACH THE OTHER END OF THE SUPPORT ARM. SOME VEHICLES HAVE HOLES UNDER THE DASH OR OEM HARDWARE THAT CAN BE UTILISED. LOOSELY ATTACH TAB PROVIDED.
4. EXTEND THE ARM ATTACHING THE TAB TO THE SUPPORT ARM WITH THE HARDWARE PROVIDED.
5. TIGHEN ALL HARDWARE.

C-C-HDM-404 SUPPORT ARM

1. THE C-HDM-404 IS PRIMARILY USED FOR UNIVERSAL FLOOR MOUNTS WHEN PREMIUM STRENGTH / 3 POINT MOUNTING IS NECESSARY.
2. COMPLETE SECTION B.
3. LOOSELY ATTACH C-HDM-404 USING HARDWARE PROVIDED.
4. THE MAJORITY OF HAVIS BASES HAVE AN EXTRA PEM IN ORDER TO ATTACH TO THE SUPPORT ARM. IF NOT FIND ANOTHER LOCATION OR DRILL AND THROUGH BOLT THE TAB BRACKET.
5. EXTEND THE SUPPORT ARM AND ATTACH WITH SUPPLIED HARDWARE.
6. TIGHTEN ALL HARDWARE.

D- C-HDM-417 VERTICAL PRINTER MOUNT

I. COMPLETE SECTION B.
2. LOOSELY ATTACH C-HDM-417 BRACKET USING THE HARDWARE PROVIDED.
3. SLIDE TWO CARRIAGE BOLTS IN THE C-PM-101 SLOTS. 4. LOCATE THE TWO HOLES IN THE C-HDM-417 BRACKET PUSH THE CARRIAGE BOLTS THROUGH THE HOLES AND FINGER TIGHTEN THE SERRATED NUTS PROVIDED.
5. SLIDE THE PRINTER TO THE RIGHT POSITION AND TIGHTEN ALL HARDWARE.

D- C-HDM-417 VERTICAL PRINTER MOUNT SHOWN WITH C-PM-101 ATTACHED

Technical line drawing of a mechanical assembly with no visible text or symbols

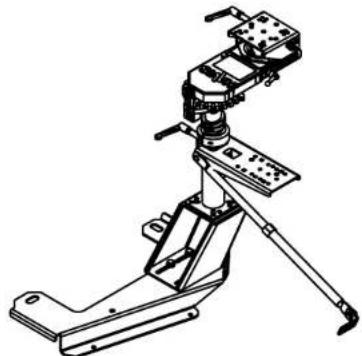

E-ATTACHING THE SHAFT STOP COLLAR THAT COMES WITH TELESCOPING POLE WITH HANDLE

1. SLIDE THE INNER POLE TO THE DESIRED HEIGHT
2. ATTACH THE SHAFT COLLAR USING THE HARDWARE PROVIDED.
3. INNER POLE SHOULD NOW SPIN FREELY WHILE MAINTAINING THE DESIRED HEIGHT.

Technical line drawing of a mechanical device with tripod support and mounting base (no text or symbols)

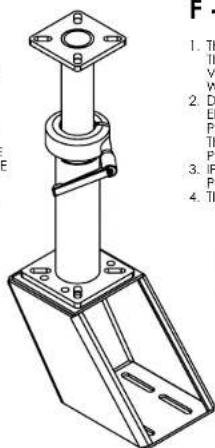

F- EXAMPLE OF A FINISHED ASSEMBLY

1. THE ABOVE ASSEMBLY INCLUDES A C-HDM-102, C-HDM-202, C-MD-102, C-HDM-403, C-HDM-404(2X)

HAVIS HAVIS, INC. 75 JACKSONVILLE RD. WARMENSTER, PA. 18974 1 800 524 9630

TITLE:

C-HDM INSTALLATION INSTRUCTIONS

DO NOT SCALE DRAWING

SIZE	DWG. NO.	REV
A	C-HDM-400-INST	4/6/10
