| Product Type | Stereo Headphones with Microphone |
| Model | AP-525MV |
| Brand | Sven |
| Application | PC, VoIP telephony, video conferencing, multimedia, interactive games, speech recognition, language learning |
| Sensitivity (Headphones) | 106 ± 3 dB |
| Sensitivity (Microphone) | -52 ± 2 dB |
| Frequency Range (Headphones) | 20 – 20,000 Hz |
| Frequency Range (Microphone) | 20 – 16,000 Hz |
| Membrane Diameter | ∅ 40 mm |
| Connector Type | 2 × 3.5 mm (3 pin) stereo mini-jack |
| Cable Length | 2.2 m |
| Weight | 190 g |
| Cable Connection | Unilateral (single-sided) |
| Headband | Adjustable |
| Microphone Arm | Rotary |
| Volume Control | Wheel on cable |
| Safety Precautions | Do not use while driving; avoid high volume for long periods (over 15 min) to prevent hearing damage |
| Cleaning | Not specified; recommend dry cloth |
| Disposal | Not specified; follow local regulations for electronic waste |
| Manufacturer | SVEN PTE. LTD, Singapore; Produced under control of Oy Sven Scandinavia Ltd., Finland; Made in China |
| Warranty | Not specified; contact seller |
Frequently Asked Questions - AP-525MV Sven
User questions about AP-525MV Sven
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Headphones in PDF format for free! Find your manual AP-525MV - Sven and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AP-525MV by Sven.
USER MANUAL AP-525MV Sven
APPLICATION
Sven AP-525MV stereo headphones with a microphone are designed for operation with PC sound cards and other compatible systems. They can be also used in VoIP telephony, video conferencing, multimedia applications, interactive games, for speech recognition and learning foreign languages.
SAFETY PRECAUTIONS
- Don't use the stereo headphones while driving.
- Don’t use the stereo headphones at high volume for a long time (more than 15 minutes), as this may cause hearing impairment.
SPECIAL FEATURES
- 2*3.5 mm (3 pin) connector for PC
- Unilateral connection of the cable
- Adjustable headband
- Rotary microphone arm
• Volume control wheel on cable
- Connect the headphones connector to the audio output jack of your audio source (PC, laptop, MP3 player), as shown in Fig. 1.
- Insert the microphone connector into the microphone input jack of your audio source.
- Adjust the headphones volume level as desired with the volume control wheel on the cable.

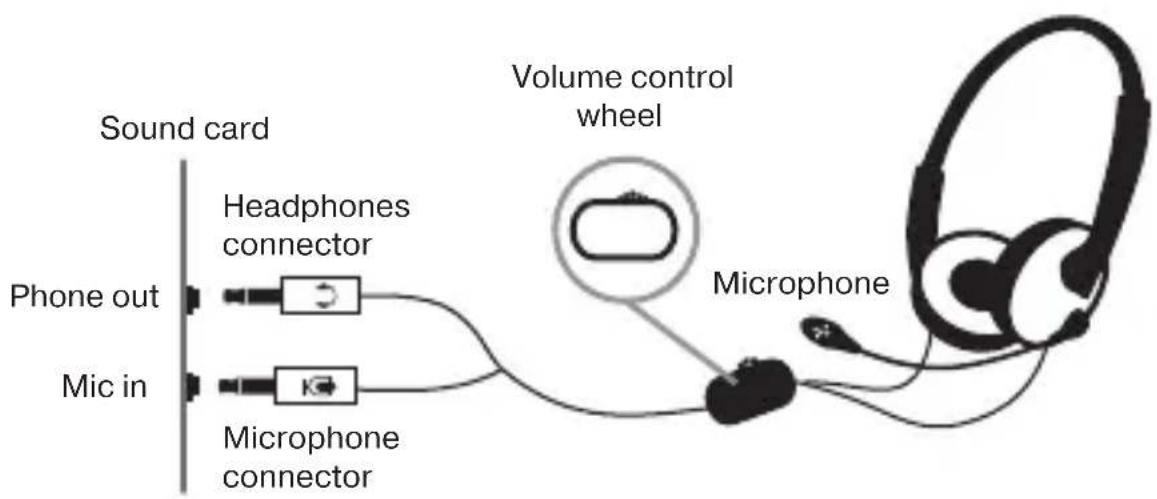

Fig. 1. Connection diagram
TECHNICAL SPECIFICATIONS
| Parameter, measurement unit | Value |
| Sensitivity, dB | headphones: 106 ± 3microphone: -52 ± 2 |
| Frequency range, Hz | headphones: 20 – 20,000microphone: 20 – 16,000 |
| Membrane, mm | ∅ 40 |
| Connector type | 3.5 mm (3 pin) stereo mini-jack |
| Cable length, m | 2.2 |
| Weight, g | 190 |
Notes:
- Technical specifications given in this table are supplemental information and cannot give occasion to claims.
- Technical specifications are subject to change without notice due to the improvement of SVEN production.
Technical support is on www.sven.fi
Stereo Headphones with Microphone
SVEN®
YOU WANT - WE CAN


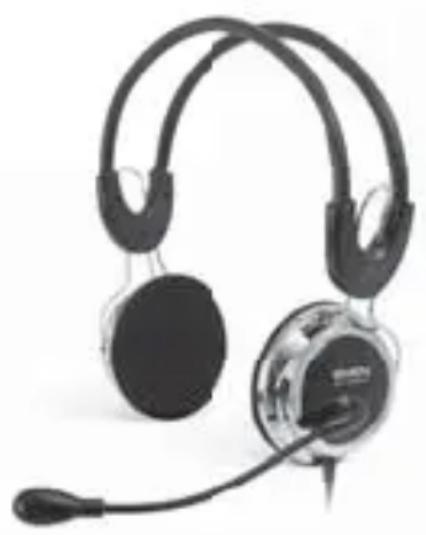

Black and white photo of a multi-band hardcover headset with earplugs and microphone (no visible text or symbols)Модель: AP-525MV
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
AP-525MV
