PERIDUO-613 - Keyboard Perixx - Free user manual and instructions

Product Type	Wireless Keyboard
Model	PERIDUO-613
Brand	Perixx
Connectivity	USB 2.4GHz Wireless
Wireless Range	Up to 10 meters
Layout	QWERTY (US)
Number of Keys	104 keys
Power Source	2 AA batteries
Battery Life	Approximately 12 months
Dimensions (W x D x H)	440 x 140 x 25 mm
Weight	450 g
Compatible Operating Systems	Windows, macOS, Linux
Special Keys	Multimedia keys, Lock keys
Maintenance	Clean with a soft, damp cloth; do not use solvents
Safety Precautions	Keep away from liquids; avoid extreme temperatures
Spare Parts	Batteries, USB receiver (replaceable)

Frequently Asked Questions - PERIDUO-613 Perixx

How do I pair the keyboard with my computer?

Insert the USB receiver into an available USB port. The keyboard should automatically connect. If not, press the 'Connect' button on the bottom of the keyboard.

What is the battery life of the PERIDUO-613?

With typical usage, the battery lasts approximately 12 months using two AA batteries.

How do I clean the keyboard?

Unplug the receiver and remove batteries. Use a soft, slightly damp cloth to wipe the surface. Do not use alcohol or abrasive cleaners.

Is the keyboard compatible with macOS?

Yes, the keyboard is compatible with Windows, macOS, and Linux. No additional drivers required.

What should I do if a key stops working?

Try replacing the batteries first. If the issue persists, check for debris under the key or contact Perixx support.

Can I use rechargeable batteries?

Yes, you can use rechargeable NiMH AA batteries. However, expected battery life may vary.

What is the range of the wireless connection?

The wireless range is approximately 10 meters (30 feet) in open space.

How do I replace the USB receiver if lost?

A replacement receiver can be purchased from Perixx or authorized retailers. The keyboard uses a standard 2.4GHz receiver.

Why is the keyboard not responding?

Ensure the batteries are installed correctly and the USB receiver is firmly plugged into your computer. Try a different USB port.

Does the keyboard have a numeric keypad?

Yes, the PERIDUO-613 includes a full 104-key layout with a numeric keypad.

USER MANUAL PERIDUO-613 Perixx

Wireless 2-in-1 Combo with Compact Keyboard and Mouse

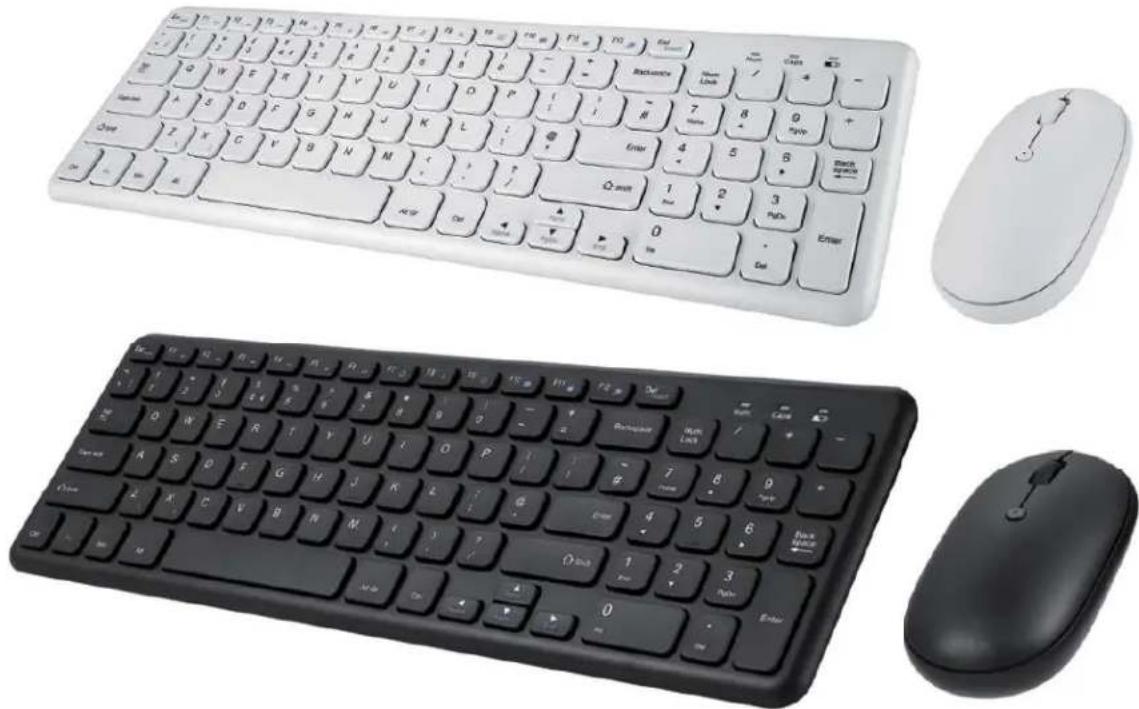

Three electronic devices: a white keyboard, a black computer mouse, and a black keyboard with control buttons (no visible text or labels)

-User Manual -Bedienungsanleitung -Manual de instrucciones -Mode D'Emploi -Manuale Utente -マニュアル -产品说明书 -使用手册

VALUE CREATOR

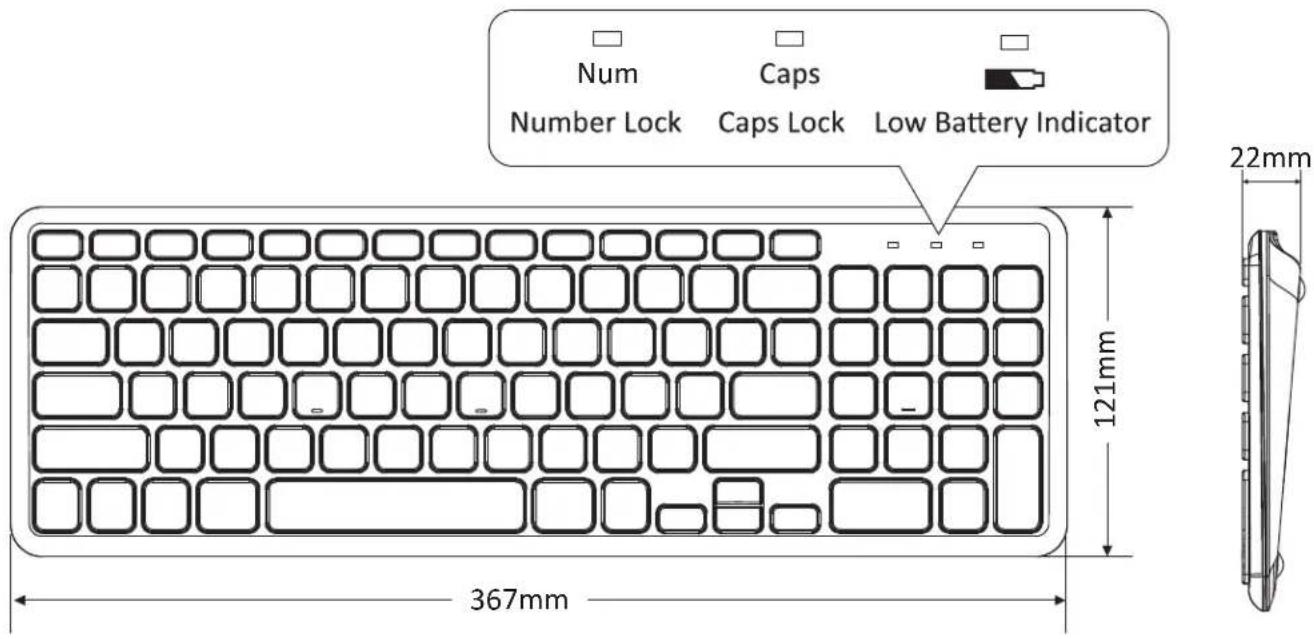

Product Illustration

Keyboard Indicators

Num	Caps
Number Lock on	Caps Lock on	Low Battery Status

Product Illustration

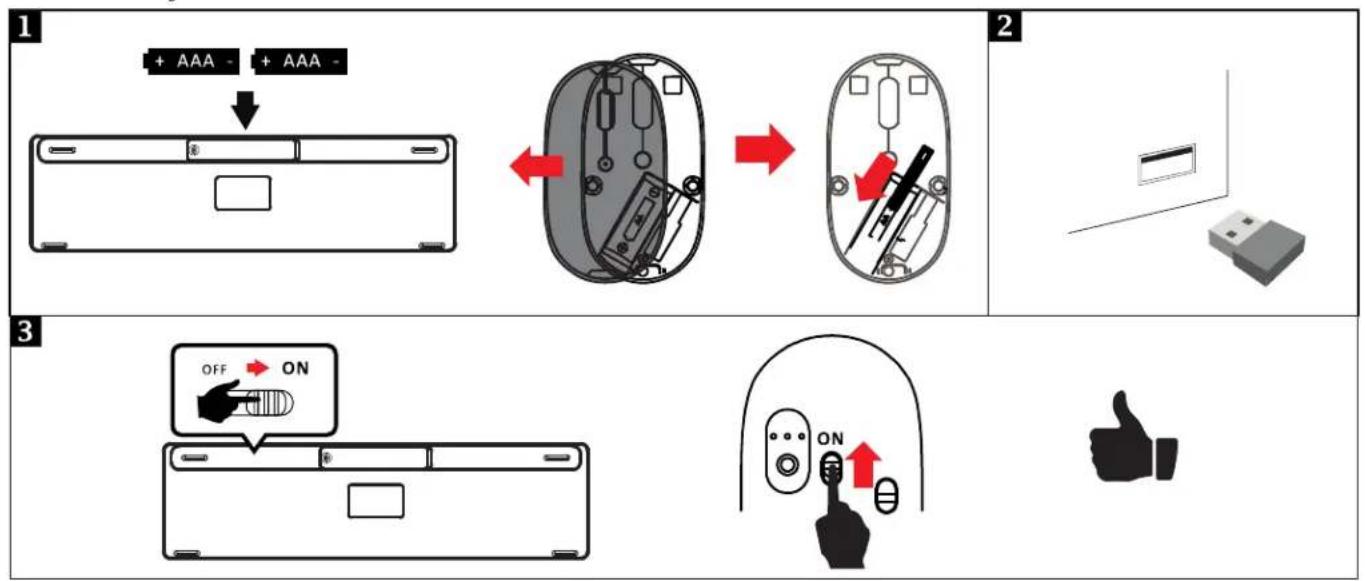

How do you connect PERIDUO-613?

English(US/UK)

FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE 1:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE 2:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

English(US/UK)

Caution

- The manufacturer and re-resellers are not responsible for any technical malfunctions, damage, or personal injury incurred by:

▶ Any attempt to dismantle, change or modify the product in any manner

▶ Malfunction or damage is due to misuse or improper alteration or repair.

- Malfunction or damage caused by external influence such as falling

- Malfunction or damage is caused by fire, salt, gas, earthquake, lightning, wind, water, or other natural calamities, or abnormal voltage.

▶ Malfunction or damage is caused by other devices connected to the products.

- Malfunction or damage is caused by high temperature, humid, greasy, dusty, and hazardous environment t.

- You are cautioned that changes or modifications not expressly approved by Perixx Computer GmbH could provide your authority to the equipment.

- All brand names, trademarks, and logos are the properties of their respective owners.

Please Note: Long-term repetitive use of any keyboard and mouse could cause injury to the user. Perixx recommends users oid cessi e use of this or a y yboa d and mouse.

Important Safety Instructions:

- Avoid dropping.

- Do not disassemble.

• This product is suitable for mode te clim tes only.

- The maximum ambient temperature during use of this product must not exceed 40 degree

- Open flame sources, such as candles, must not be placed on this product.

- Only use a dry cloth or brush to clean this product.

Perixx offers a one-year limited warranty with an optional one-year extension.

English(US/UK)

Specification

Keyboard

Interface	2.4GHz	Number of Keys	95 keys (US layout)
Size	367*121*18mm		96 keys (EU layout)
Weight	335g	Type of Keyboard	Membrane
Input Current	3V/10mA	Actuation Distance	1.8±0.3mm
Battery Required	AAA batteries 2pcs	Total Travel Distance	2.0±0.3mm
Material	ABS	Durability	3 million keypresses
Operating System Requirements	Win 7 or later	Operating Temperature	0°C~40°C
		Storage Temperature	-15°C~60°C

Sleep mode

	Sleep mode	Deep sleep mode
Y/N	Yes, after 1 minute	Yes, after 8 minutes
How to wake up the keyboard	Move or click	Move or click

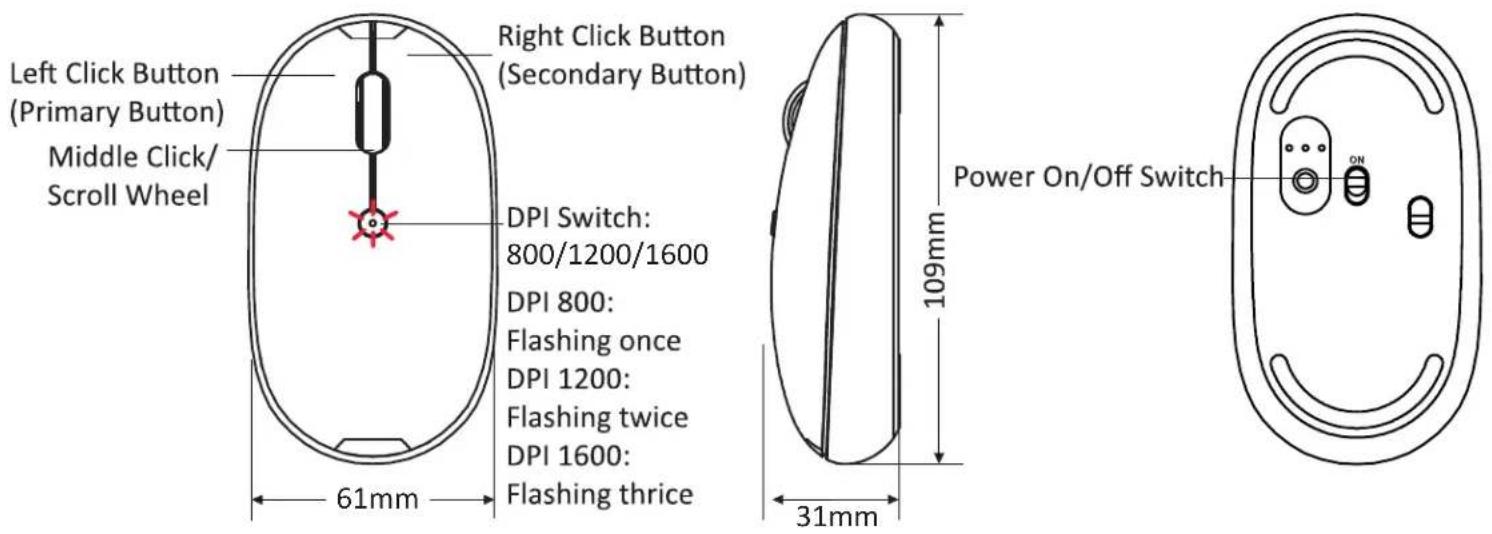

Mouse

Interface	2.4GHz	Number of Buttons	4
Size	109*61*31mm 800/1200/1000
Weight	57g	Acceleration	16G
Input Current	1.5V/20mA	Tracking Speed	30IPS
Battery required	AA battery 1pc	Report Rate	250Hz
Material	ABS	Durability	1 million keypresses
Operating System Requirements	Win 7 or later	Operating Temperature
		Storage Temperature

Sleep mode

	Sleep mode	Deep sleep mode
Y/N	Yes, after 1 minute	Yes, after 8 minutes
How to wake up the mouse	Move or click	Move or click

English(US/UK)

Multimedia keys

	Media player		Home Page
	Play/Pause		Search
	Previous Track		My favorite
	Next Track		E-mail
	Volume up		Keyboard Lock
	Volume down		My computer
Fn + F6 ←S	Mute

Deutsch (DE)

Bitte beachten Sie:

	Sleep mode	Deep sleep mode
Y/N	Yes, after 1 minute	Yes, after 8 minutes
How to wake up the keyboard	Move or click	Move or click

Mouse

	Sleep mode	Deep sleep mode
Y/N	Yes, after 1 minute	Yes, after 8 minutes
How to wake up the mouse	Move or click	Move or click

ITALIANO (IT)

Tasti Multimediali
