USER MANUAL Kinematic Dreadbox
Filter Cuttoff Frequency
-On COMP this acts as a frequency boost -On ENV FILTER it is a Low Pass Filter
Drive amount
The drive is added in the end of the circuit
Set the effect's total Level
This will never be 0 (silence)
ON/OFF footswitch
In some settings a pop may be audible while switching, as a result of the internal envelope
Kinematic is a Greek based word (Kivnμα), which describes motion - of points, bodies or systems of bodies, without the consideration of the forces that cause them to move.
Choose between 2 modes
-COMP COLOUR: The effect acts as a Compressor and Frequency Booster ENV FILTER: the effect is now a 12dB Low Pass Filter with Auto Wah
Set the envelope amount
-On COMP this is the Ratio Factor -On ENV FILTER it is the Auto Wah Amount
SPECIFICATIONS
- Buffered CMOS Bypass
- Mono TS 6,4mm jacks (unbalanced)
- Works with 9VDC center pin negative power supply
- Current draw: 70mA
- Dimensions: 14x10x5 cm
- Weight: 0,525 kg

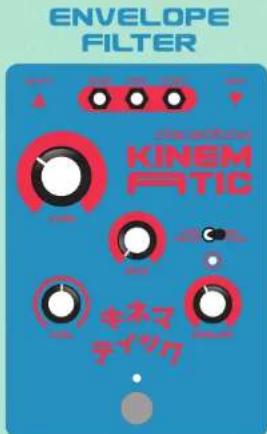

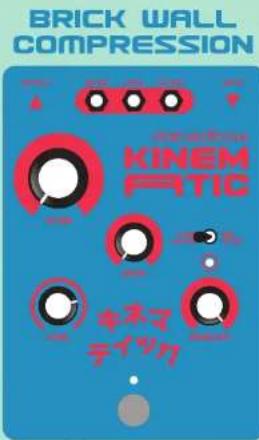

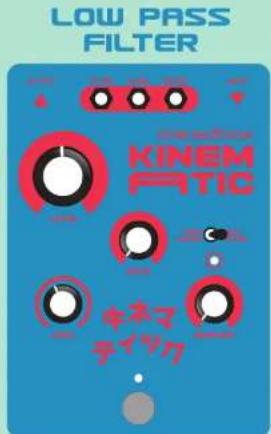

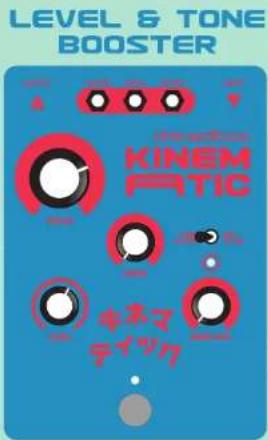

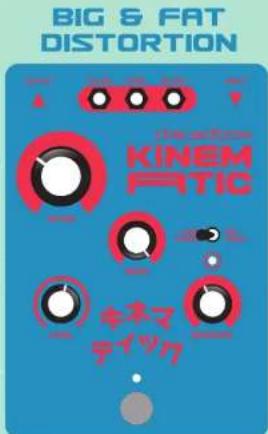

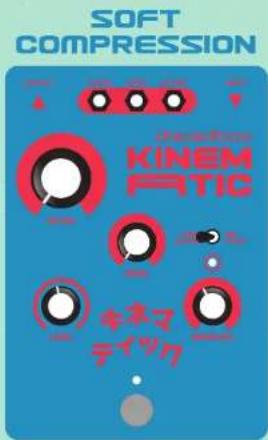

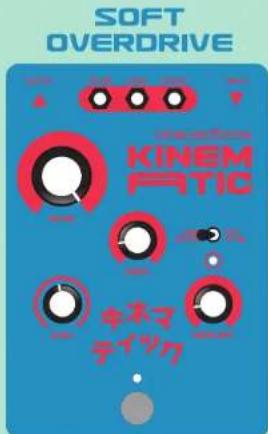

A FEW PRESETS JUST TO START WITH KINEM ATIC
キネマ テイツク
Adjust Level for Unity Gain
Adjust Level for Unity Gain
Adjust Filter and Level as desired
Filter can be used as Tone control
Adjust Filter so as to boost your instrument's Sub Tones
Set Envelope according to your playing dynamics
Simply Adjust Filter
