USER MANUAL Reference 6002SI INFINITY

Infinity®

reference series 4002i, 5002i, 6002i, 6002si, 9602i, 9603i, 3002cf, 6402cf, 6402cfp, 6802cf instructions

IMPORTANT: Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install Reference Series speakers in a general sense, they do not show the exact installation methods for your particular vehicle. If you do not feel you have the experience, do not attempt the installation yourself; instead, ask your authorized Infinity car audio dealer about professional installation options.

WARNING: Playing loud music in an automobile can permanently damage your hearing, as well as hinder your ability to hear traffic. The maximum volume levels achievable with Infinity speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. Infinity accepts no liability for hearing loss, bodily injury, or property damage as a result of use or misuse of this product.

INSTALLATION WARNINGS AND TIPS

• Always wear protective eyewear when using any tools.
- T urn off all audio components and other electrical devices before you start. Disconnect
the (−) negative lead from your vehicle's battery.
- Keep speakers in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.
- Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.
- At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.
CAUTION: In some cars, fuel tanks may be located directly beneath the rear deck. Check for adequate speaker basket clearance before considering this location!
- Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging in a drill bit or saw.
- F or door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power window mechanism.
- If mounting speakers elsewhere, check for clearance around rear deck torsion bars, glove box or other structural elements.
- Do not mount speakers where they will get wet.

INSTALLATION

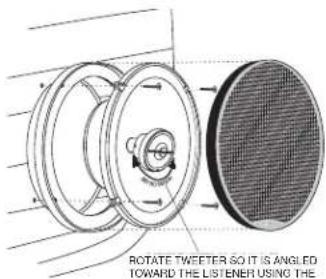

Figure 1. Mounting the 4002i, 5002i, 9602i, 9603i, 3002cf and 6802cf.

NOTE: The 3002cf and 6802cf speakers are designed to be installed under factory grilles. Consequently, no grilles are packaged with these models.

NOTE: If you are mounting the 6802cf in a 6' x 8' location, use the adapter provided.

Technical line drawing of a mechanical assembly with no visible text or symbols

ROTATE TWEETER SO IT IS ANGLED TOWARD THE LISTENER USING THE UNIPIVOT (pat. 6,002,790) FEATURE ON THE 50021, 60021, 95021 AND 6802c1

INSTALLATION

Figure 2. Modifying the 4002i to be installed in locations requiring fewer than 4 mounting "cars".

NOTE: Bend tab back and forth to detach it from the speaker.

Line drawing of a hand holding a speaker with a rotating dial (no text or symbols)

INSTALLATION

Figure 3.

Mounting the 6402cf and 6402cfp.

NOTE: The 6402cf and 6402cfp are designed to be installed under factory grilles. Consequently, no grilles are packaged with these models.

NOTE: If you are replacing a DIN (oval basket) 4" x 6" speaker with a 6402cf, remove the speaker from the mounting bracket as shown in Figure 3.

Technical line drawing of a speaker seat assembly with mounting base (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and central hub (no text or symbols)

INSTALLATION

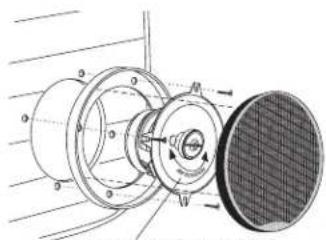

Figure 4.
Mounting the 6002i with the grille.

ROTATE TWEETER SO IT IS ANGLED TOWARD THE LISTENER USING THE "UNIPIVOT" FEATURE ON THE 5002, 6002i, 9602i AND 6802cf

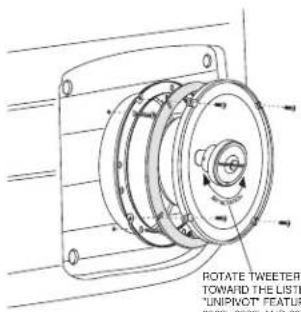

Figure 5.
Mounting the 6002i in standard speaker locations.

INSTALLATION

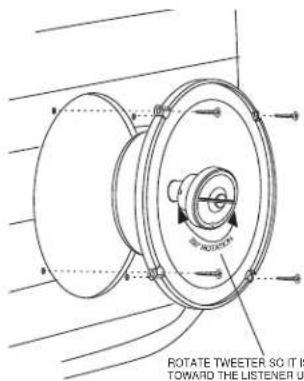

Figure 6.
Mounting the 6002i in 165mm speaker locations.

ROTATE TWEETER SO IT IS ANGLED TOWARD THE LISTENER USING THE "UNIPIVOT" FEATURE ON THE 50021, 60021, 86021 AND 8802cf

CONNECTIONS

Figure 7.
Connect the speakers to the amplifier observing proper polarity.

SPECIFICATIONS

4002i

Type: 4" 2-Way

Speaker Impedance: 4 Ohms

Power Handling: 35W RMS, 105W Peak

Frequency Response: 85Hz - 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 2-1/16" (53mm)

Cut-out Diameter: 3-3/4" (96mm)

5002i

Type: 5-1/4" 2-Way

Speaker Impedance: 4 Ohms

Power Handling: 45W RMS, 135W Peak

Frequency Response: 67Hz - 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 2-7/16" (62mm)

Cut-out Diameter: 4-11/16" (120mm)

6002i

Type: 6-1/2" 2-Way

Speaker Impedance: 4 Ohms

Power Handling: 60W RMS, 180W Peak

Frequency Response: 53Hz - 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 2-1/4" (58mm)

Cut-out Diameter: 5" (127mm)

6002si

Type: 6-1/2" Shallow-mount

2-Way

Speaker Impedance: 4 Ohms

Power Handling: 50W RMS, 150W Peak

Frequency Response: 58Hz – 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 1-7/8" (48mm)

Cut-out Diameter: 5" (127mm)

9602i

Type: 6" x 9" 2-Way

Speaker Impedance: 4 Ohms

Power Handling: 100W RMS, 300W Peak

Frequency Response: 46Hz – 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 3-3/16" (81mm)

Cut-out Diameter: 6-1/16" x 8-7/8"

(154mm x 226mm)

9603i

Type: 6" x 9" 3-Way

Speaker Impedance: 4 Ohms

Power Handling: 100W RMS, 300W Peak

Frequency Response: 46Hz – 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 3-3/16" (81mm)

Cut-out Diameter: 6-1/16" x 8-7/8"

(154mm x 226mm)

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

3002cf

Type: 3-1/2" 2-Way

Speaker Impedance: 4 Ohms

Power Handling: 25W RMS, 75W Peak

Frequency Response: 85Hz – 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 1-5/8" (42mm)

Cut-out Diameter: 3-1/16" (78mm)

6402cf

Type: 4" x 6" 2-Way

Speaker Impedance: 4 Ohms

Power Handling: 40W RMS, 120W Peak

Frequency Response: 72Hz – 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 2-1/16" (53mm)

Cut-out Diameter: 3-5/8" x 5-5/8"

(93mm × 143mm)

6402cfp

Type: 4" x 6" 2-Way Plate

Speaker Impedance: 4 Ohms

Power Handling: 45W RMS, 135W Peak

Frequency Response: 72Hz – 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 1-15/16" (50mm)

Cut-out Diameter: 3-9/16" x 5-11/16"

(91mm x 145mm)

6802cf

Type: 6" x 8"/5" x 7" 2-Way

Speaker Impedance: 4 Ohms

Power Handling: 60W RMS, 180W Peak

Frequency Response: 49Hz – 21kHz

Sensitivity (2.83V, 1m): 92dB

Mounting Depth: 2-9/16" (66mm)

Cut-out Diameter: 5" x 7-3/16"

(127mm x 183mm)

Declaration of Conformity

CE

We, Harman Consumer International

2, route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility, that the products

described in this owner's manual are in compliance with technical standards:

With (Echnical Standards.

EN 50081-1:1992

EN 50082-1:1997

Emmanuel Millot

Harman Consumer International

Chateau-du-Loir, France. 12/02

TECHNOLOGY - PERFORMANCE - DESIGN

Infinity Systems • 250 Crossways Park Drive, Woodbury, NY 11797 USA

800.553.3332 • FAX [phone] • www.infinitysystems.com

© 2002 Harman International Industries, Incorporated • Part No.: REFMEOM • Printed 12/02
