Product Type	Car Speaker
Brand	Infinity
Model	Reference 6432CFP
Speaker Size	6.5 inches (165 mm)
Speaker Type	2-Way Coaxial
Woofer Cone Material	Plus One™ Polypropylene
Tweeter Type	Edge-Driven Silk Dome
RMS Power Handling	60 Watts
Peak Power Handling	240 Watts
Frequency Response	53 Hz - 22 kHz
Sensitivity	92 dB @ 2.83V/1m
Impedance	3 Ohms
Mounting Depth	2.375 inches (60.3 mm)
Mounting Diameter	5.625 inches (142.9 mm)
Grille Included	Yes
Installation Hardware	Included
Weight	3.5 lbs (1.59 kg) per pair
Recommended Amplifier Power	10 - 120 Watts RMS per channel
Warranty	1 Year (varies by region)

Frequently Asked Questions - Reference 6432CFP INFINITY

What size is the Infinity Reference 6432CFP speaker?

It is a 6.5-inch (165 mm) coaxial speaker, designed to fit most standard car speaker locations.

What is the power handling of this speaker?

The speaker handles 60 Watts RMS and 240 Watts peak power. It is recommended to pair with an amplifier providing 10-120 Watts RMS per channel.

What is the impedance of the Reference 6432CFP?

The impedance is 3 Ohms, which allows for higher power output from compatible amplifiers compared to standard 4 Ohm speakers.

Is the tweeter separate or integrated?

The tweeter is integrated into the coaxial design, featuring an edge-driven silk dome for smooth high-frequency response.

What type of cone material is used?

The woofer uses Infinity's exclusive Plus One™ polypropylene cone, which increases cone area for better bass response.

What is the mounting depth required?

The mounting depth is 2.375 inches (60.3 mm), making it suitable for shallow-mount installations in many vehicles.

Does it come with a grille?

Yes, the speaker includes a protective grille to prevent damage.

Can I install these speakers in a boat or marine environment?

These are designed for car use only and are not marine certified. Exposure to moisture may damage them.

What tools are needed for installation?

Basic tools like screwdrivers, wire strippers, and possibly a drill if new mounting holes are needed. Speaker wire and connectors are not included.

How do I clean the speakers?

Use a soft, dry cloth to dust the grille and cone. Avoid liquids or harsh chemicals. Do not touch the cone directly if possible.

USER MANUAL Reference 6432CFP INFINITY

Harman Consumer Group, Inc.

Klaus Leibert

EN 61000-6-1:2001

EN 61000-6-3:2001

manual is in compliance with technical standards:

declare in own responsibility that the product described in this owner's

원어리니

72500 Chilean da Lori

1. route de TOURS

We, Harman Consumer Group, Inc.

3D

Declaration of Contormity

H Harman International

intimty is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries.

© 2009 Harman International Industries, Incorporated, All Rights Reserved. 100 of rights reserved. - Part No. KELB43ZUMI.109

Herman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, NY 11797 USA

Features, specifications and appearance are subject to change without notice.

Designed and engineered in the USA. Convention of design aux E.U.A.

REFERENCE 6428ofp

6432cfp

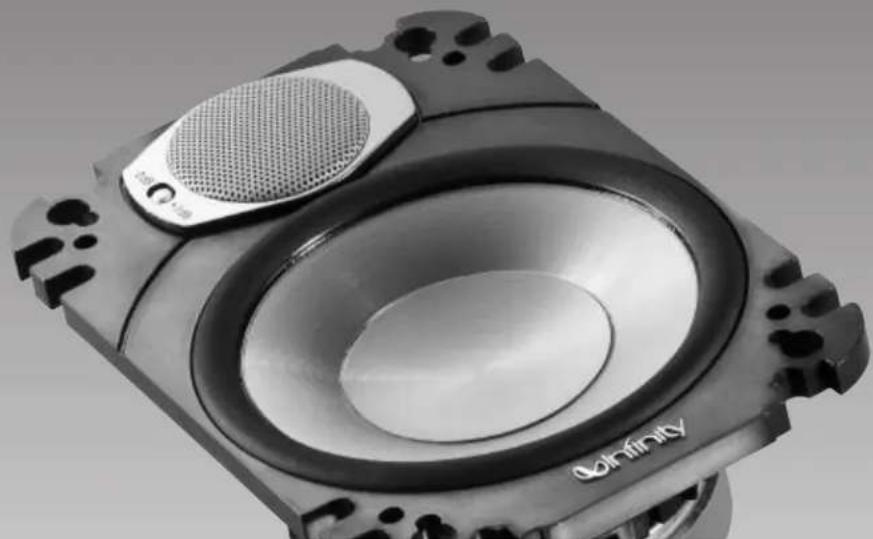

Close-up of a speaker with a microphone and 'Johfinity' branding (no other text or symbols visible)

Infinity®

BL (T-m) 3.82 Vas (I) 2.48

DCR (ohms) 2.30 Fs (Hz) 88.1

Mms (g) 7.46 Qes 0.65

Sd (sq cm) 63.6 Qms 9.61

Cms (μm/N) 437 Qt 0.61

SPECIFICATIONS

Type: 4" x 6" 2-Way Custom-Fit Plate Power Handling, Peak: 135W

Impedance:	2 Ohms	Frequency Response:	72Hz – 21kHz
Power Handling, RMS:	45W	Sensitivity (2,83V, 1m):	91dB

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

Type: 4" x 6" 2-Way Custom-Fit Plate	Power Handling, Peak:	135W
Impedance: 2 Ohms	Frequency Response:	72Hz – 21kHz
Power Handling, RMS: 45W	Sensitivity (2.83V, 1m):	91dB

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

Type: 4" x 6" 2-Way Custom-Fit Plate	Power Handling, Peak:	135W
Impedance: 2 Ohms	Frequency Response:	72Hz – 21kHz
Power Handling, RMS: 45W	Sensitivity (2.83V, 1m):	91dB

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

Technical illustration of a mechanical component with two cross-sectional views labeled 2x and 1x (no text or symbols beyond labels)

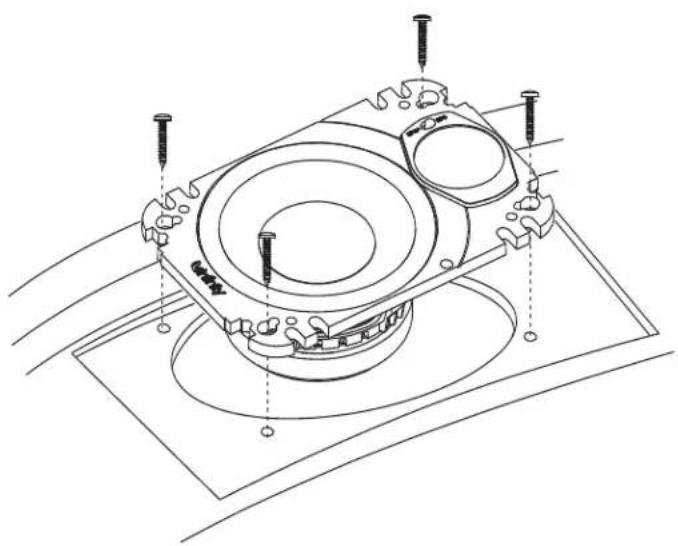

Technical line drawing of a mechanical assembly with screws and a central component (no text or symbols)

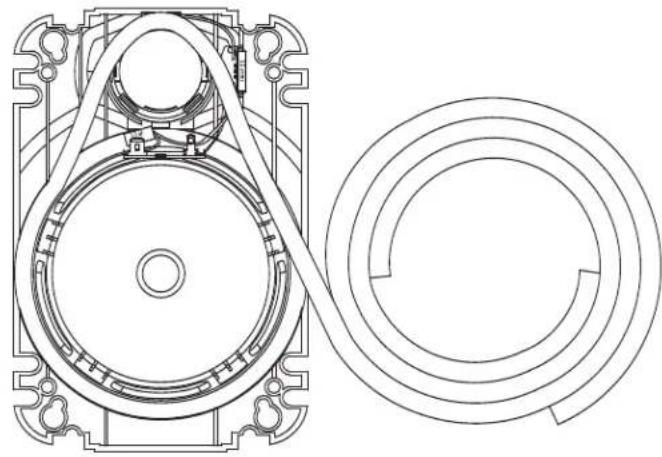

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

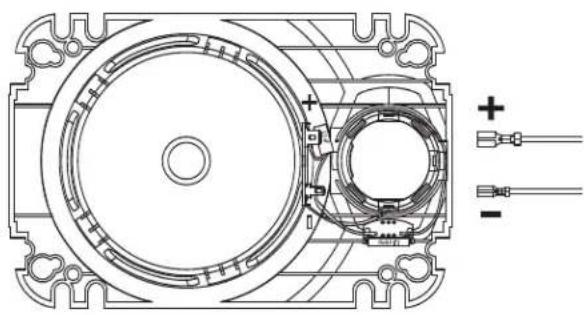

Technical line drawing of a mechanical assembly with circular components and wiring (no text or symbols)

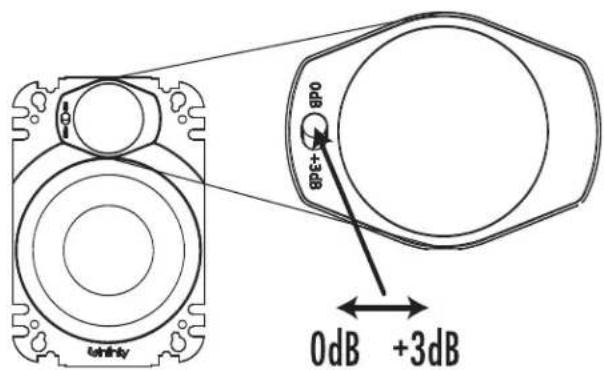

TWEETER-LEVEL CONTROL

This speaker system is equipped with a tweeter-level switch. The normal setting for this switch is the "0dB" position, which provides an apparently "fla1" response. Tweeter output may be increased according to the user's preference, or to compensate for off-axis placement (where the speaker does not directly face the listening position), by setting the switch to the "+3dB" position.

TWEETER-LEVEL CONTROL

This speaker system is equipped with a tweeter-level switch. The normal setting for this switch is the "0dB" position, which provides an apparently "flat" response. Tweeter output may be increased accord-

ing to the user's preference, or to compensate for off-axis placement (where the speaker does not directly face the listening position), by setting the switch to the "+3dB" position.

TWEETER-LEVEL CONTROL

This speaker system is equipped with a tweeter-level switch. The normal setting for this switch is the "0dB" position, which provides an apparently "flat" response. Tweeter output may be increased according to the user's preference, or to compensate for off-axis placement (where the speaker does not directly face the listening position), by setting the switch to the "+3dB" position.
