Product Type	1" (25.4mm) Tweeter
Brand	Infinity
Series	Kappa
Model	10.7T
Impedance	2 Ohms
Power Handling (RMS)	50 Watts
Power Handling (Peak)	150 Watts (with supplied crossover)
Sensitivity	94 dB (2.83V/1m)
Frequency Response	3.5 kHz - 25 kHz
Mounting Depth	3/4" (19 mm)
Cutout Diameter	1-7/8" (48 mm)
Crossover Included	Yes, passive (optimized for this tweeter)
Mounting Options	Surface-mount, flush-mount (I-Mount kit), behind grille (Starfish mount)
Recommended Placement	Kick panel, door, A-pillar
Care Instructions	Clean grilles with damp cloth; no solvents or cleaners
Safety Precautions	Wear protective eyewear; disconnect battery; avoid hearing damage; check clearances
Crossover Specificity	Do not use other crossovers; connect only one tweeter per crossover
Compliance	CE (EN 61000-6-3:2001, EN 61000-6-1:2001)
Manufacturer	Infinity Systems, Harman International Industries, Inc.
Part Number	KAP10.7TOM2/05
Warranty	Valid serial number required; contact dealer for details

Frequently Asked Questions - Kappa 10.7T INFINITY

What is the impedance of the Infinity Kappa 10.7T tweeter?

The impedance is 2 Ohms.

What is the power handling of the Kappa 10.7T?

It handles 50W RMS and 150W peak when used with the supplied crossover.

What is the frequency response of the 10.7T?

The frequency response is 3.5 kHz to 25 kHz.

Can I use a different crossover with this tweeter?

No, do not use any other crossover. The supplied crossover is optimized for this tweeter. Using a different crossover may damage the tweeter.

How do I mount the Kappa 10.7T?

The tweeter can be surface-mounted, flush-mounted using the I-Mount kit, or mounted behind a factory grille using the Starfish mount. See the manual for detailed diagrams.

What is the cutout diameter for flush mounting?

The required cutout diameter is 1-7/8 inches (48 mm).

How should I clean the tweeter grilles?

Clean the grilles with a damp cloth. Do not use any cleaners or solvents.

What safety precautions should I take during installation?

Always wear protective eyewear, disconnect the vehicle's battery, turn off all audio components, and check for clearance behind mounting surfaces to avoid damaging fuel lines, wires, or mechanisms.

Where is the best place to mount the tweeter?

For best staging and imaging, mount the tweeter in the kick panel. Other options include the door or A-pillar, as shown in the manual.

What is the sensitivity of the Kappa 10.7T?

The sensitivity is 94 dB at 2.83V/1m.

USER MANUAL Kappa 10.7T INFINITY

Circular mechanical component with hexagonal lattice pattern (no text or symbols)

Close-up of a mechanical component with threaded ends and a circular base (no visible text or symbols)

Infinity®

instructions

kappa® series

INSTALLATIONWARNINGSANDTIPS

THANK YOU for purchasing Infinity's Kappa 10.7t automotive tweeter. We've organized this manual to make your installation as simple and trouble-free as possible. Please read it thoroughly before proceeding.

Remember to keep your sales receipt with this manual in a safe place so both are available for future reference.

ABOUT THESE INSTRUCTIONS

Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install Kappa 10.7t tweeters in a general sense, they do not show the exact installation methods for your particular vehicle. If you feel you do not have the experience, do not attempt the installation yourself; instead, ask your authorized Infinity car audio dealer about professional installation options.

LOUD MUSIC AND HEARING

Playing loud music in an automobile can permanently damage your hearing, as well as hinder your ability to hear traffic. The maximum volume levels achievable with Infinity speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. Infinity accepts no liability for hearing loss, bodily injury, or property damage as a result of use or misuse of this product.

ABOUT THE CROSSOVER

Passive crossover design involves precise circuit design and component selection. Moreover, a well-designed crossover circuit provides an intended electrical response, when combined with the electrical properties of the speaker, to provide a particular acoustic response. Each enclosed crossover has been optimized to provide a flat response when used with a Kappa 10.7t tweeter.

Do not use another brand or type of passive crossover, or connect more than one tweeter to a crossover. Doing so may damage the tweeter.

INSTALLATION TIPS

• Always wear protective eyewear when using any tools.
- Turn off all audio components and other electrical devices before you start. Disconnect the negative (−) lead from your vehicle's battery.
- Keep speakers in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.
- Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.
- At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.
- Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl to keep material from snagging in a drill bit or saw.
- For door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power-window mechanism.
- If mounting speakers elsewhere, check for clearance around rear-deck torsion bars, glove box or other structural elements.
- Do not mount speakers where they will get wet.

SPEAKERPLACEMENT

ABOUT PLACEMENT

Figures 1 through 3 show possible speaker placements, with Figure 1 being more desirable. We recommend using the kick panel for mounting to obtain the best staging and imaging in most vehicles.

Figure 1. Mounting the woofer and tweeter in the kick panel.

Figure 2. Mounting the woofer in the door and the tweeter in the kick panel.

Figure 3. Mounting the woofer in the door and the tweeter in the A-pillar.

TWEETERINSTALLATION

SURFACE-MOUNT

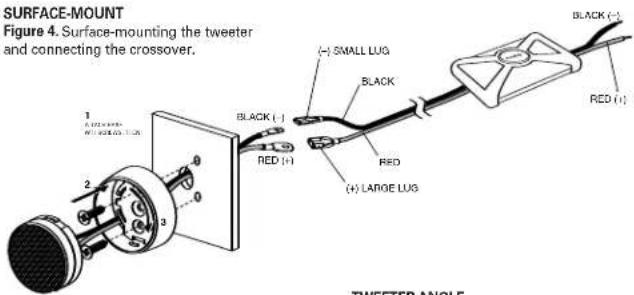

Figure 4. Surface-mounting the tweeter and connecting the crossover.

FLUSH-MOUNT

Figure 5. Mounting the tweeter using the I-Mount™ (patent no. 5,859,917) flush-mounting kit.

TWEETER ANGLE

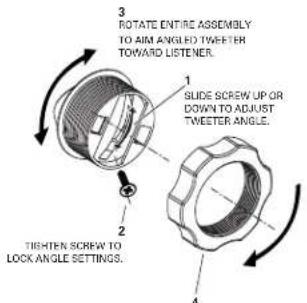

Figure 6. Aim the tweeter at the listening position by sliding the stud in the groove on the back of the tweeter cup and rotating the entire assembly in the mounting surface. Lock the tweeter in place, using the small retaining screw.

SECURELY TIGHTER THE LARGE HAND NUT

Figures 7A through 7D. The Starfish™ tweeter mount is intended to be used when the tweeter will be installed behind a factory grille (e.g., replacing the factory tweeter behind a door panel). The Starfish will allow you to mount the component tweeter directly to the panel itself or to the area behind the panel. The six mounting tabs can be removed easily to create a number of custom configurations.

Note: Check screw clearance before installing. Use glue if clearance is an issue.

Note: Not all possible mounting configurations are shown.

Figure 7A. Behind grille panel.

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Figure 7B. Mounted to surface behind grille panel.

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Figure 7C. Mounted to grille panel.

Diagram of a mechanical device with rotating components and directional arrows, no text or symbols present

Figure 7D. In-dash location (may require gluing).

Technical diagram of a mechanical assembly with a mesh component and rotating components (no text or symbols)

SPECIFICATIONS

10.7t

Type: 1" Tweeter

Speaker Impedance: 2 Ohms

Power Handling: 50W RMS, 150W Peak

(with supplied crossover)

Sensitivity (2.83V, 1m): 94dB

Frequency Response: 3.5kHz - 25kHz

Mounting Depth: 3/4" (19mm)

Cutout Diameter: 1-7/8" (48mm)

GENERAL CARE

The loudspeaker grilles may be cleaned with a

damp cloth. Do not use any cleaners or solvents

on the grilles or the speaker cones.

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA

516.674.4463 • FAX [phone] • www.infinitysystems.com

© 2005 Harman International Industries, Incorporated • Part No. KAP10.7TOM2/05
