USER MANUAL IV-427B Imarflex

natural_image Exterior view of a modern office building (no signage)

IV-427B

SPECIFICATION:

MODEL NO. : IV-427B

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 600 Watts

SUCTION POWER : 100 Watts

MAX. WIND QUANTITY : 21.5L/S

DECIBEL : 81dBA

CAPACITY : 1.2 Liters

BOX DIMENSION : 535*180*155mm

UNIT DIMENSION : 485*115*135mm

When using electrical appliances, basic safety precautions should always be followed, including the following:

  1. Read all instructions carefully.

  2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

  3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest Imarflex authorized service center.

  4. Do not use two-way socket with another appliance.

  5. Do not use the Vacuum Cleaner near gas stove, electric stove or fire place.

  6. Children should be supervised to ensure that they do not play with the appliance.

  7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

  8. Do not use the Vacuum Cleaner other than its intended use.

  9. Avoid sharp objects that can get stuck in and block the hose.

  10. Never pick up inflammable or corrosive liquids such as petrol or other volatile substance.

  11. Never use the unit in sucking Flammable liquids, chemicals, and cigarette butts.

  12. Do not wash the filter as it may affect the performance of the appliance. The HEPA Filter is replaceable and not washable.

  13. Do not use it outdoors

  14. Save this instruction for future reference.

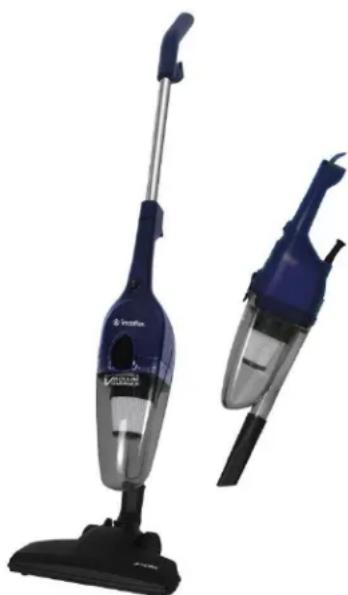

WAYS TO USE:

  1. Handheld Vacuum Cleaner
  2. 90° Vertical Rod Vacuum Cleaner

Imarflex IV-427B - WAYS TO USE: - 1

natural_image Two electric vacuum cleaner units, one blue and one gray, displayed against a white background (no text or symbols visible)

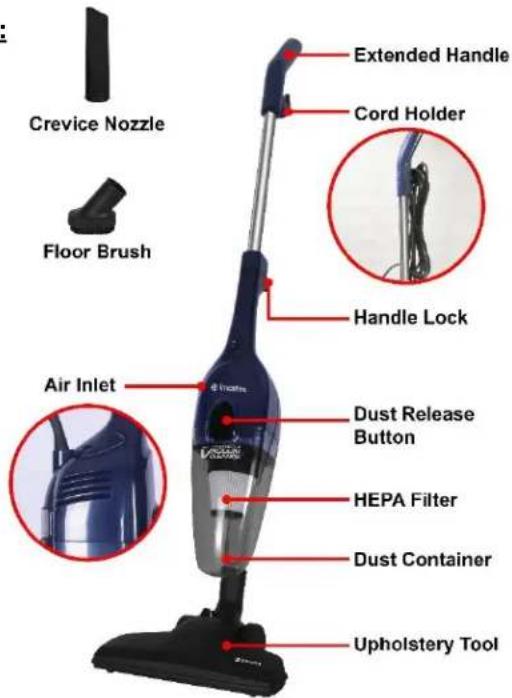

DESCRIPTION OF PARTS:
Imarflex IV-427B - WAYS TO USE: - 2

text_image Crevice Nozzle Floor Brush Air Inlet Extended Handle Cord Holder Handle Lock Dust Release Button HEPA Filter Dust Container Upholstery Tool

HOW TO USE:

  1. Assemble the vacuum cleaner with the desired accessories.
  2. Plug the unit into a convenience outlet.
  3. Press the Switch Button (ON/OFF).
  4. Unplug the unit after every use.

HOW TO ASSEMBLE:

  1. Insert the floor brush into the Dust Container opening. (See photo 1)
  2. Insert the tube into the nozzle opening and push the handle lock. (See photo 2)
  3. Turn ON the power switch. (See photo 3)

Imarflex IV-427B - HOW TO ASSEMBLE: - 1

natural_image Line drawing of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Imarflex IV-427B - HOW TO ASSEMBLE: - 2

text_image Photo 2

Imarflex IV-427B - HOW TO ASSEMBLE: - 3

natural_image Line drawing of a vacuum cleaner with handle and lever (no text or symbols)

ACCESSORIES:

Floor Brush – for cleaning floor, furniture, screen, blinds, small spaces, etc.

Upholstery Tool - For cleaning hard or soft textile surfaces.

Crevice Nozzle – For cleaning radiators, corners, edges, drawers, etc.

Note: This appliance is applicable for DRY surface only. Do not use it on wet surface.

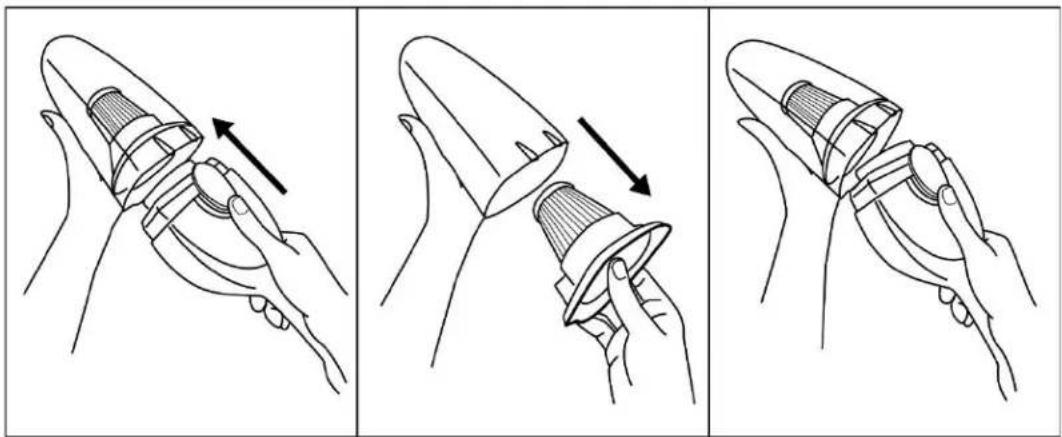

CLEANING AND MAINTENANCE

  1. Unplug the Vacuum Cleaner from the convenience outlet before cleaning.

  2. Wipe the body with dry cloth.

  3. Open the dust cup.

  4. Clean off the dust inside the dust bin.

  5. Remove the HEPA filter.

  6. Wipe the internal of the dust container with a damp cloth.

  7. Clean the HEPA filter with a soft bristled brush. Do not use a hard-bristled brush to clean filters. This may result in damage to the filters.

Note: HEPA Filter is replaceable and not washable.

  1. Dry thoroughly and reattaching the filters before next use.

Imarflex IV-427B - CLEANING AND MAINTENANCE - 1

natural_image Three-step illustration of a hand holding a small object, showing a step with an arrow indicating direction (no text or symbols present)

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address imarflexfb@evergoodinc.com

Distributed by: Xelframe Enterprises Inc.

Unit 711 IPI Buendia Tower Condo., 501 Gil Puyat Ave, Pasay

Made in China
