USER MANUAL PTZ2870 AVMATRIX

natural_image Black AVMATRIX 3.0 camera with visible lens and control base (no text or symbols on device body)

PTZ Camera User Manual V1.0

Electric Safety

Installation and operation must accord with electric safety standard

Caution to transport

Avoid stress, vibration and soakage in transportation, storage and installation.

Polarity of power supply

The power supply of the product is ±12V , the max electrical current is 2A. Polarity of the power supply drawing.

AVMATRIX PTZ2870 - Polarity of power supply - 1

natural_image Technical line drawing of a mechanical connector or connector with no visible text or symbols

Careful of installation

Never move the camera by seizing the camera head. Don't rotate camera head by hand; otherwise, mechanical trouble will occur.

This series item must be put on the smooth desk or platform, and it can not be installed slant ways; If the camera is installed on TV or computer, the base can be fixed by four double-sided adhesive trays. Don't apply in corrosive liquid, as or solid environment to avoid the cover which is made up of organic material.

To make sure no obstacle in rotation range.

Never power on before installation is completed.

Don't disassemble discretionarily.

We are not responsible for any unauthorized modification or dismantling.

Attention

Electromagnetic filed under certain rate may affect camera image!

Content

  1. Fast Installation....1

1.2 Accessory....2

  1. Product Overview....3

2.1 Product Introduction....3

2.1.1 Product Model....3

2.2 Interface Instruction....3

2.2.1 Camera Interface Explanation....3

2.2.2 Bottom Dial Switch....4

2.2.3 RS-232 Interface....5

2.2.4 Dimension....6

2.3 Main Features....6

2.3.1 Camera Performance....6

2.3.2 Network performance....7

  1. Application Instruction....10

3.1 Power on initial configuration.... 10

3.2 Video Output....10

3.2.1 Power-On Initial Configuration....10

3.2.2 Video Output.... 10

3.3 Remote Controller....11

3.3.1 Keys Instruction.... 11

3.3.2 Applications....12

3.4 MENU SETTING....14

3.4.1 Main Menu....14

3.4.2 System Setting....14

3.4.3 Camera Setting....15

3.4.4 P/T/Z....17

3.4.5 Video Format....17

3.4.6 Version....18

3.4.7 Restore Default....18

  1. Network Connection....18

4.1 Connecting Mode....18

4.2 IE Log In....21

4.2.1 Web client....21

4.2.2 Preview.... 21

4.2.3 Playback.... 21

4.2.4 Configuration....22

4.2.5 Video configuration.... 23

4.2.6 Network configuration....26

4.2.7 System configuration....27

4.2.8 Logout....29

4.2.9 Wireless network....29

  1. Serial Communication Control....30

5.1 VISCA protocol list....30

5.1.1 Camera return command....30

5.1.2 Camera control command....31
5.1.3 Inquiry command....37
5.2 Pelco-D protocol command list....40
5.3 Pelco-P protocol command list....41
6. Camera Maintenance and Troubleshooting....42
6.1 Camera Maintenance....42
6.2 Troubleshooting....42

1. Fast Installation

1.1 Bracket mount

Note: Bracket can only be wall mounted or upside down mounted on template and concrete wall, but can not be installed on plasterboard.

1) Wall mount step

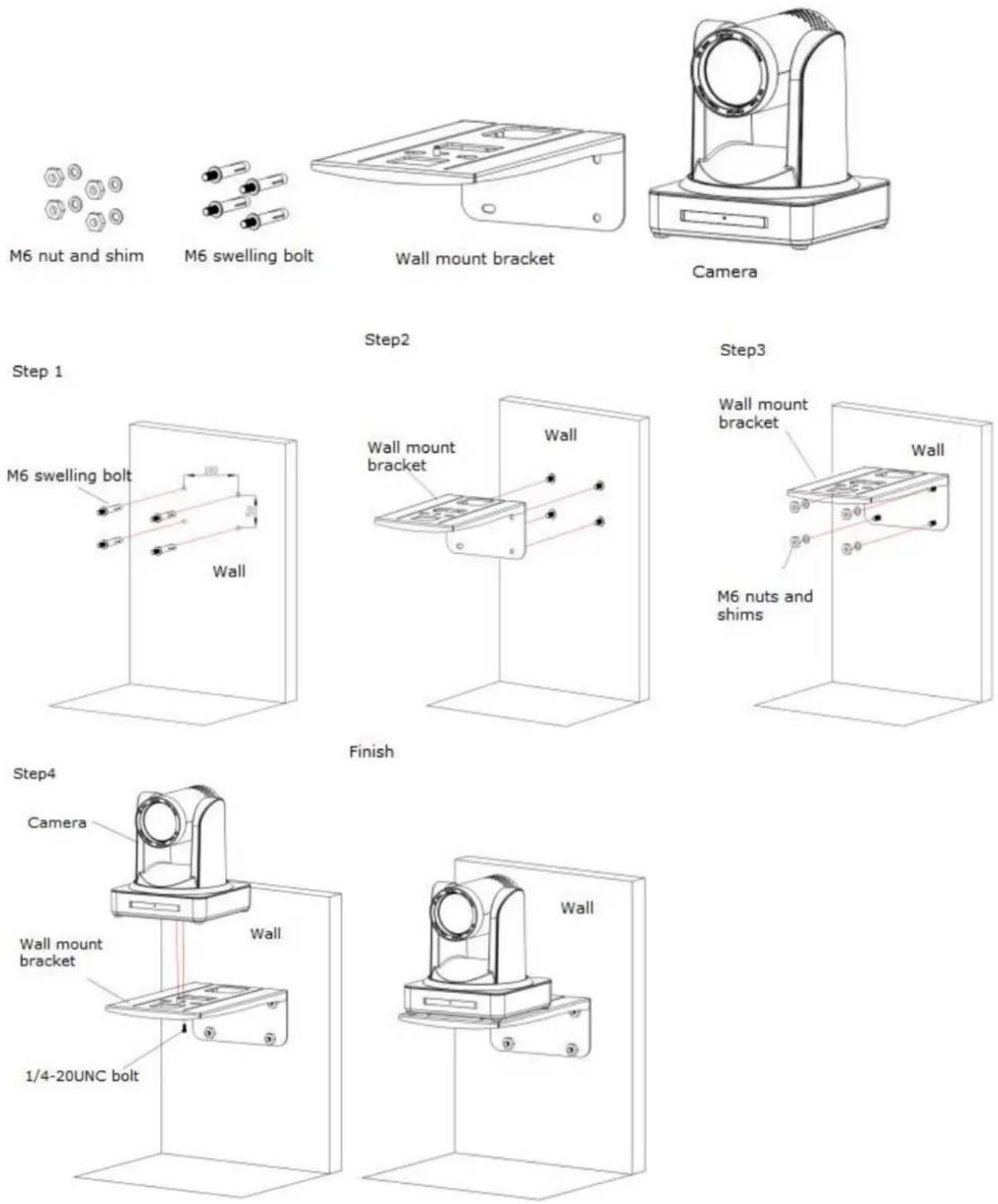

AVMATRIX PTZ2870 - Bracket mount - 1

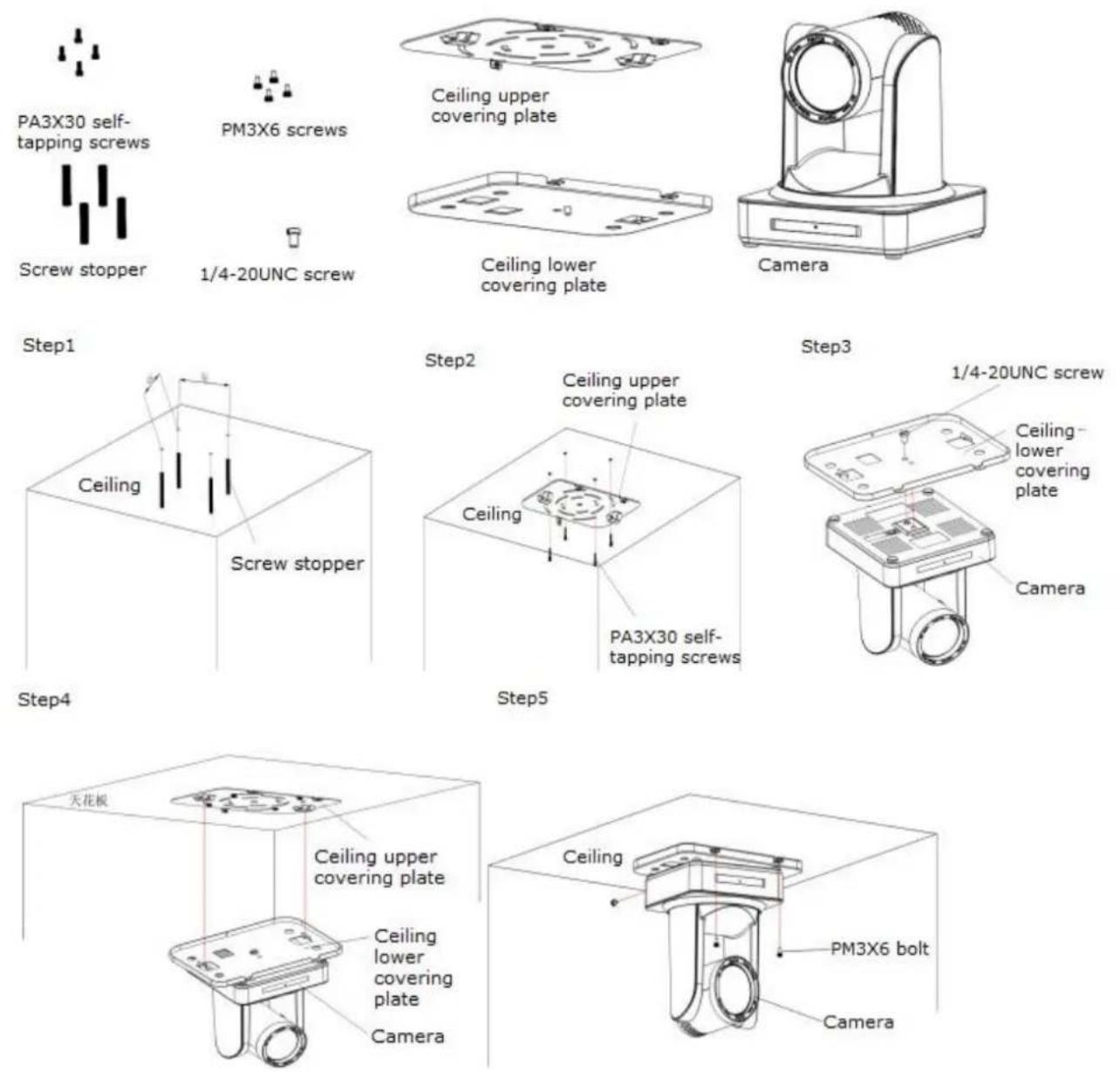

2) Upside down mount step
AVMATRIX PTZ2870 - Bracket mount - 2

1.2 Accessory

When you unpack, check that all the supplied accessories are included:

ConfigurationPTZ1270 SeriesPTZ2870 Series
StandardPower adapter 1 piecePower adapter 1 piece
RS232 cable 1 pieceUSB3.0 and USB2.0 cables
Double-side glue shim 4pcsDouble-side glue shim 4pcs
OptionalIR Remote controller 1 pieceIR Remote controller or wireless controller 1 piece
Wireless controller 1 pieceWireless controller 1 piece
Wall mounting bracketWall mounting bracket(optional)
Upside-down mounting bracket(optional)Upside-down mounting bracket
Cascade cable

2. Product Overview

2.1 Product Introduction

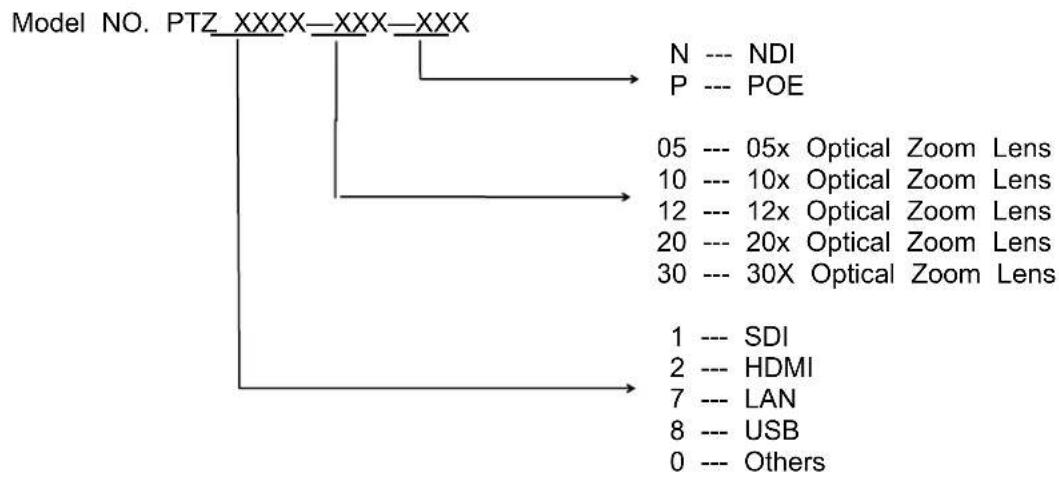

2.1.1 Product Model

There are two main series according to different video formats, lens optical zooms, output interfaces and remote control modes.

AVMATRIX PTZ2870 - Product Model - 1

2.2 Interface Instruction

2.2.1 Camera Interface Explanation

1) Interface of PTZ 1270

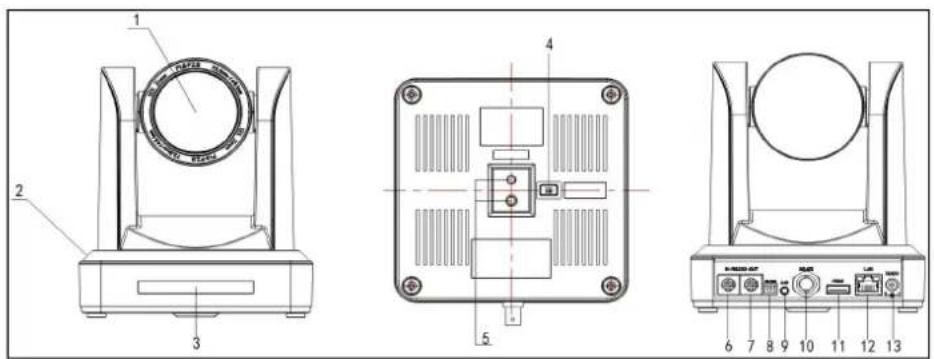

Technical diagram of a three-view device with labeled components and exploded views

Interface of PTZ 1270

  1. Camera Lens
  2. Camera Base
  3. Remote Controller Receiver Light
  4. Bottom Dial Switch
  5. Tripod Screw Hole
  6. RS232 Control Interface (input)
  7. RS232 Control Interface (output)

  8. RS485 Input (left +, right-)

  9. Audio Input Interface
  10. 3G-SDI interface
  11. HDMI Interface
  12. 10/100M Network Interface
  13. DC12V Input Power Supply Socket

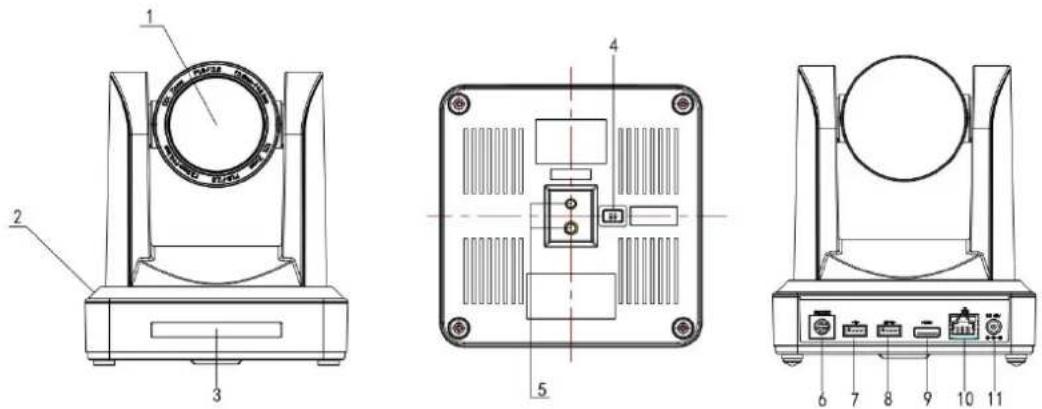

2) Interface of PTZ 2870

AVMATRIX PTZ2870 - 2) Interface of PTZ 2870 - 1
Figure 1.2 Interface of PTZ 2870

1 .Lens
5. Tripod Screw Hole
9. HDMI Output
2. Base
6. RS232 (IN)
10. LAN
3. Remote Controller Receiver Light
7. USB 2.0
11. Power Supply
4. Bottom Dial Switch
8. USB 3.0

2.2.2 Bottom Dial Switch

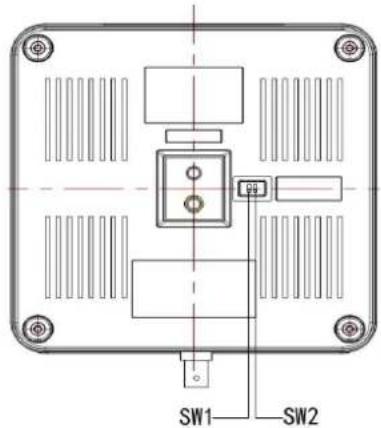

PTZ cameras' Bottom Dial Switch diagram shown in Figure 2.6 and 2.7:

SW1 SW2

SW1 SW2

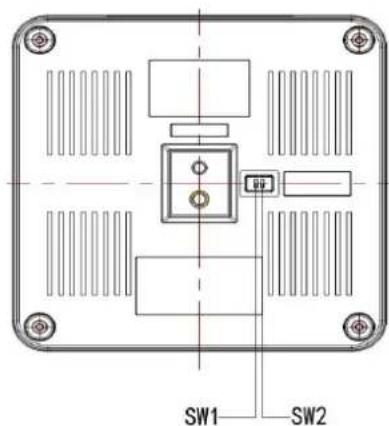

Figure 1.3 Bottom Dial Switch diagram Figure 1.4 Bottom Dial Switch diagram

PTZ1270 model: two DIP switches are set to ON or OFF to select different modes of operation as below:

No.SW1SW2Explanation
1OFFONWorking mode
2ONOFFUpdating mode

PTZ2870 model: two DIP switches are set to ON or OFF to select different modes of operation as below:

No.SW2SW1Explanation
1ONOFFWorking Mode
2ONONUSB3.0 Software Upgrade Mode
3OFFONARM Software Upgrade Mode

Note: Working mode can be applicable for web upgrade.

2.2.3 RS-232 Interface

1) PTZ1270 RS-232C interface specification as shown below

Diagram of a device with labeled ports and two circular connector pins, likely for electrical or mechanical assembly reference.

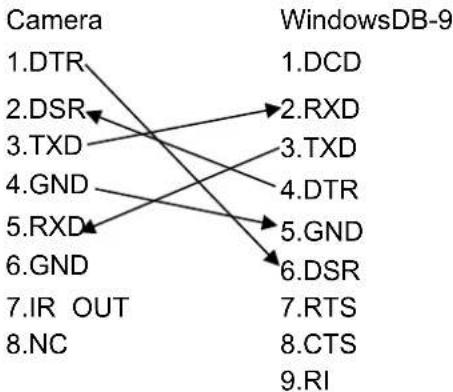

Computer or keyboard and camera connection method

AVMATRIX PTZ2870 - RS-232 Interface - 2


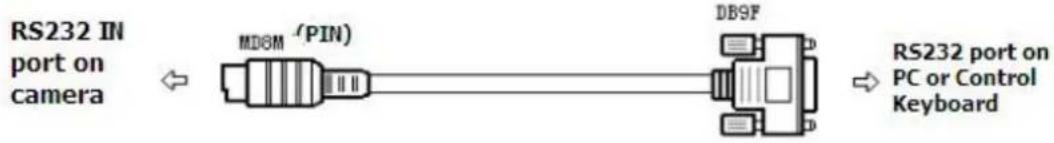

RS232 IN port on camera MD8M 'PIN) DB9F RS232 port on PC or Control Keyboard

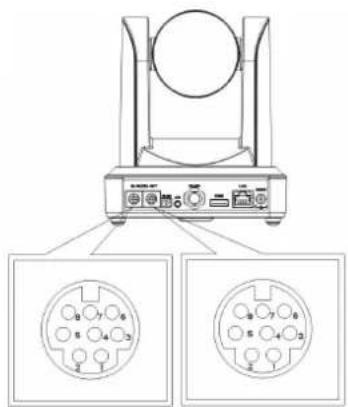

2) RS-232 Mini-DIN 8-pin Port Definition

8 7 6 5 3 4 2 1

NO.PortDefinition
1DTRData Terminal Ready
2DSRData Set Ready
3TXDTransmit Data
4GNDSystem Ground
5RXDReceive Data
6GNDSystem Ground
7IR OUTIR Commander Signal
8NCNo Connection

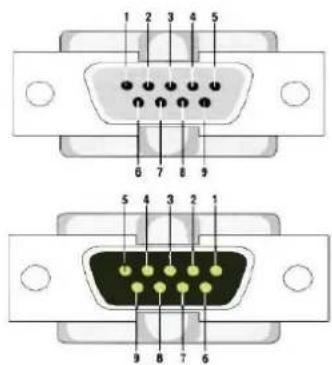

3) RS232 (DB9) Port Definition

1 2 3 4 5 6 7 8 9 5 4 3 2 1 9 8 7 6

NO.PortDefinition
1DCDData Carrier Detect
2RXDReceive Data
3TXDTransmit Data
4DTRData Terminal Ready
5GNDSystem Ground
6DSRData Set Ready
7RTSRequest to Send
8CTSClear to Send
9RIRing Indicator

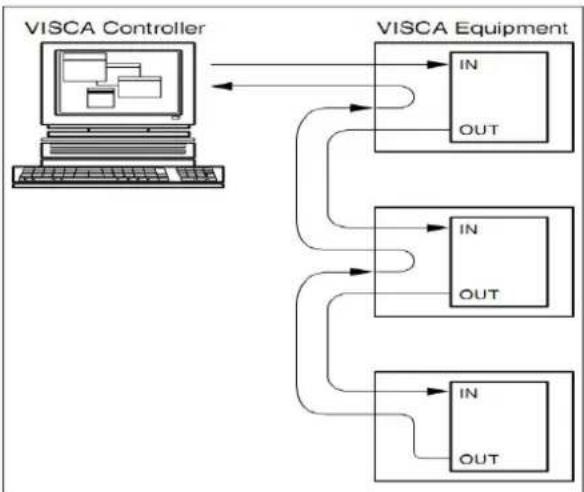

4) VISCA networking as shown below:

AVMATRIX PTZ2870 - 4) VISCA networking as shown below: - 1

AVMATRIX PTZ2870 - 4) VISCA networking as shown below: - 2


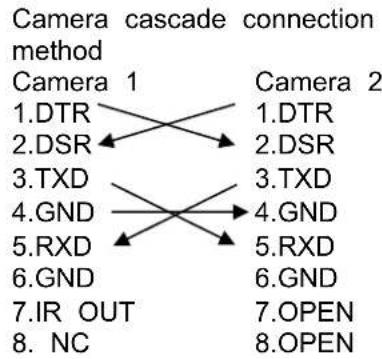

Note: PTZ1270 model has RS232 input and output interface, so you can cascade as the above way; It won't work for PTZ2870 model, since it only has RS232 input interface.

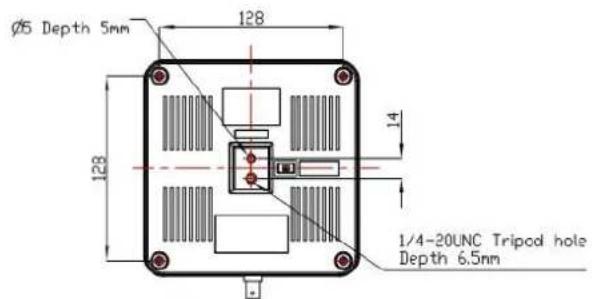

2.2.4 Dimension

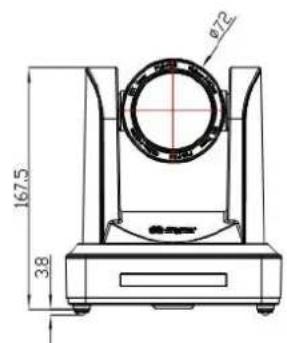

Ø5 Depth 5mm 128 128 14 1/4-20UNC Tripod hole Depth 6.5mm

AVMATRIX PTZ2870 - Dimension - 2

natural_image Line drawing of a laboratory instrument with a circular chamber and control knobs (no text or symbols)

167.5 38 672

124.2

150 150

2.3 Main Features

2.3.1 Camera Performance

This series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.

- Superb High-definition Image: It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60 fps.

  • Various Optical Zoom Lens: It has 5X/10X/12X/20X/30X optical zoom lens for options. The 5X zoom lens is with 80.9^ wide view angle without distortion.
  • Leading Auto Focus Technology: Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
    ● Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video.

Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

  • Quiet PTZ: By adopting high accuracy step driving motor mechanism, it works extremely quiet and moves smoothly and very quickly to designated position.
  • Multi-Format Video Outputs: support HDMI,3G-SDI, USB, LAN interfaces. The 3G-SDI is available for 100m transmission at 1080p60 format.
  • Multiple Remote Controls: There is IR remoter and 2.4G wireless remote for options. The 2.4G wireless remote controller will not be affected by angle, distance or IR interference. Support transparent transmission function.
  • Low-power Sleep Function: Support low-power sleep/wake up, the consumption is lower than 500mW under sleep mode
  • Support Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols which can also be automatically recognized. Support VISCA control protocol through IP port.
  • RS-232 Cascade Function: PTZ1270 series support RS-232 cascade function which is convenient for installing.
    ● 255 Presets Positions: Up to 255 presets (10 presets by remoter).
  • Wide Application: Tele-education, Lecture capture, Webcasting, Video conferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.

2.3.2 Network performance

1) Audio Input Interface: Support 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding.
2) Multiple Audio/Video Compression: Support H.264/H.265 video compression; AAC,MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60 fps and 2 channel 1920x1080p with 30 fps compression.
3) Multiple network protocol: Support ONVIF,RTSP,RTMP protocols and RTMP push mode, easy to link streaming media server (Wowza, FMS)

2.4 Technical Specification

Camera Parameter
Sensor1/2.8 inch high quality HD CMOS sensor
Effective Pixels16: 9 2.07 megapixel
Video FormatHDMI/SDI/ video format1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97USB3.0 interface video format1)USB3.0:1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360 P30;640X480P30;352X288P30;960X540P30;2)USB3.0 compatible with USB2.0: 960X540P30; 640X360P30; 1280X720P10/15 720X576P50; 720X480P60; 640X480P30; 352X288P30.USB2.0 interface video format176x144/320x240/320x180/352x288/640x480/720x576/640x360/800X600/960X54 0/1024X576/1024X768/1600X896/1920X1080/1280X720; P30/25/20/15/10/5
Optical Zoom5XF=3.6~18mm10XF=4.7~47mm12XF=3.9~46.8mm20XF=5.2~98mm30XF=4.3~129mm
View Angle20.0°(tele)83.3°(wide)6.43°(tele)64.2°(wide)6.3°(tele)72.5°(wide)3.3°(tele)54.7°(wide)2.34°(tele)65.1°(wide)
AVF1.8 - F2.8F1.6 - F3.0F1.8 - F2.4F1.6 - F3.5F1.6- F4.7
Digital Zoom10X
Minimum Illumination0.5Lux (F1.8, AGC ON)
DNR2D & 3D DNR
White BalanceAuto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
FocusAuto/Manual
ApertureAuto/Manual
Electronic ShutterAuto/Manual
BLCON/OFF
WDROFF/ Dynamic level adjustment
Video adjustmentBrightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR>55dB
Input/Output Interface
Video InterfacesPTZ1270 series: HDMI, 3G-SDI, LAN, Audio-in, RS232 (In&Out), RS48 PTZ2870 series: USB2.0, USB3.0, HDMI, LAN, RS232 (input)
Image code streamDouble streams outputs simultaneously
Video Compression formatH.264, H.265
Control Signal InterfaceRS-232 Ring through RS232 output, RS-485
Control ProtocolVISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio input InterfaceDouble track 3.5mm linear input;
Audio Compression FormatAAC/MP3/PMC Audio compression
HD IP Interface100M IP port(100BASE-TX); 5G WiFi (optional), support IP Visca contr protocol
Network ProtocolRTSP/RTMP,ONVIF
Power InterfaceHEC3800 outlet (DC12V)
PTZ Parameter
Pan Rotation±170°
Tilt Rotation-30°~+90°
Pan Control Speed0.1 -180°/sec
Tilt Control Speed0.1-80°/sec
Preset SpeedPan: 60°/sec, Tilt: 30°/sec
Preset Number255 presets (10 presets by remote controller)
Supply AdapterAC110V-AC220V to DC12V/2A
General
Supply AdapterAC110V-AC220V to DC12V/2A
Input VoltageDC12V±10%
Input Current1A(Max)
Consumption12W (Max)
Store Temperature-10°C to +60°C
Store Humidity20% - 95%
Working Temperature-10°C to +50°C
Working Humidity20%--80%
Dimension150mmX150mmX167.5mm
Weight1.4KG
Working EnvironmentIndoor
Remote Operation (IP)Remote Upgrade, Reboot and Reset
AccessoryPower Supply; RS232 Control Cable; USB3.0 Cable; Remoter; Manual;
Optional AccessoryBracket

3. Application Instruction

3.1 Power on initial configuration

1) Power on: Connect DC12V power supply adapter with power supply socket.
2) Initial configuration: Power on with power indicator light on and remote control receiver light blinking, camera head moves from bottom left to the bottom, and then goes to the HOME position (intermediate position of both horizontal and vertical), while the camera module stretches. When remote control receiver light stops blinking, the self-checking is finished

Note: If you set preset 0, when Power on self-test is completed, the camera automatically moves to the preset 0 position.

3.2 Video Output

3.2.1 Power-On Initial Configuration

Connecting the power, camera will have initial configuration, R indicator light will be flashing. When the camera return to the HOME position (middle position for P/T), and lens finish zoom in/out, the auto-testing is finished. IR led will also stop flashing. If the preset 0 is set, camera will rotate to the 0 preset position after initial configuration.

3.2.2 Video Output

Connect to the video output cable: the user select the output mode according to the machine model.

Figure 1.4.1 is for your reference (output interface introduction for each product)

1) Network output: connect this product and your computer through network cable, then open the browser, enter the camera IP address (factory default 192.168.5.163) in the address bar, then to the login page and input a user name and password (factory default are "admin"), Finally enter the preview page, and the image comes out.
(Note: If you forget your user name, password, IP address, you can manually restore the default by the remote controller key combination * #)

2) 3G-SDI output or DVI (HDMI) output: Connect the monitor with the corresponding video output interface, then the monitor output image.

3) USB3.0 output: Connect this product with computer USB3.0 interface (blue), open the Device Manager to see whether there is an image device and whether the Universal Serial Bus controllers recognize USB3.0 device. After properly identified, open the software, choose the image device and then it will output image.

4) USB2.0 output: Connect this product with computer USB2.0 interface (black), open the Device Manager to see whether there is an image device and whether the Universal Serial Bus controllers recognize USB2.0 device. After properly identified, open the software, choose the image device and then it will output image.

3.3 Remote Controller

3.3.1 Keys Instruction

1. Standby Key

After 3S long press, the camera will step into standby mode. Long press again, the camera will self-test again and back to HOME position. (Note: power-on mode is turned on and Preset 0 is set, and there is no opera within 12s, it will automatically point to the specified preset position.

2. Camera Address Selection

Select the camera address which wants to be controlled

3. Number Key

Set or run 0-9 presets

4. \*, # Key

Key combination use

5. Focus Control Key

Auto Focus: Enter into auto focus mode.

Manual Focus: The camera focus mode is manual

Switch the camera focus mode to manual focus by pressing [focus +] or -] to adjust.

6. Zoom Control Key

Zoom+: Lens near

Zoom—:Lens far

7. Set or Clear Preset key:

Set Preset: Set preset key + 0-9 number key:

Clear Preset key: Clear preset key + 0-9 number key

8. Pan/Tilt Control Key

Press Key :Up

Press Key :Down

Press Key : Left

Press Key: Right

"HOME" Key: Return to the middle position or enter into the next level r

9. BLC Control Key

Back Light ON / OFF: Turn on or off the back light

10. Menu Setting

Open or close the OSD menu

Enter / exit the OSD menu or return to the previous menu.

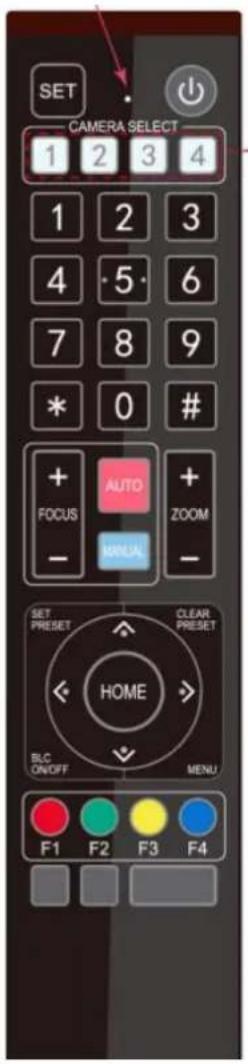

SET CAMERA SELECT 1 2 3 4 1 2 3 4 5 6 7 8 9 * 0 # + AUTO + FOCUS ZOOM - WHOLE - SET PRESET CLEAR PRESET HOME BLC ON/OFF MENU F1 F2 F3 F4

11. Camera IR Remote Control Address Setting

【*】+【#】+【F1】:Camera Address No.1

【*】+【#】+【F2】:Camera Address No. 2

【*】+【#】+【F3】:Camera Address No. 3

Finishing initialization, it can receive and execute the IR commands. Press the remote controller button, the indicator light is flashing; release the button, the indicator light stops flashing. Users can control the pan/tilt/zoom, setting and running preset positions via the IR remote controller.

Key Instruction:

  1. In this instruction, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required.

  2. When a key-combination is required, do it in sequence. For example,“【*】+【#】+【F1】”means press“【*】”first and then press“【#】”and last press“【F1】”.

1) Camera Selection

CAMERA SELECT 1 2 3 4

Select the camera address to control.

2) Pan/Tilt Control

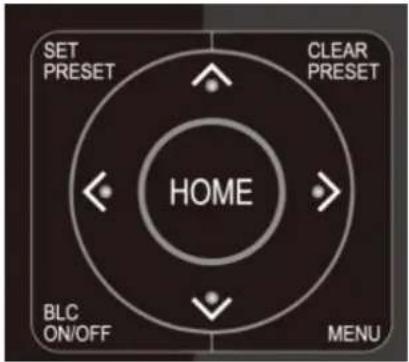

SET PRESET CLEAR PRESET HOME BLC ON/OFF MENU

3) Zoom Control

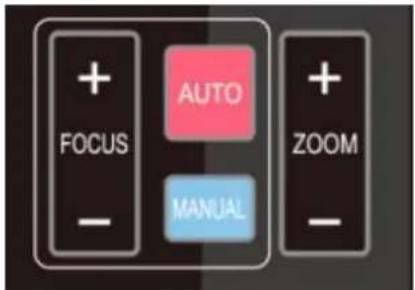

+ FOCUS - AUTO + ZOOM - MANUAL

4) Focus Control

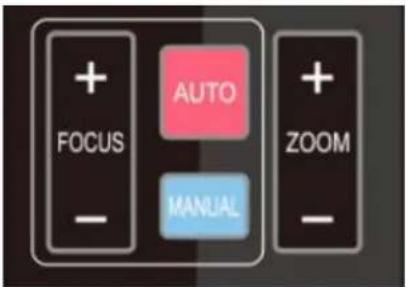

+ FOCUS - AUTO + ZOOM - MANUAL

5) BLC Setting

AVMATRIX PTZ2870 - 5) BLC Setting - 1

6) Presets Setting, Running, Clearing

SET PRESET CLEAR PRESET

Up: press Down: press

Left: press Right: press

Back to middle position: press"【HOME】"

Press and hold the up/down/left/right key, the pan/tilt will keep running, from slow to fast, until runs to the endpoint; the pan/tilt running stops a soon as the key is released.

ZOOM IN: press "ZOOM" key

ZOOM OUT: press "ZOOM▼" key

Press and hold the key, the camera will keep zooming in or zooming out and stops as soon as the key is released.

Focus (near):Press “【focus+】” key (Valid only manual focus mode)

Focus (far): Press “【focus-】”key (Valid only in manual focus mode)

Auto Focus: Support

Manual Focus: Support

Press and hold the key, the action of focus will continue and stops as soon as the key is release

BLC ON / OFF: support

  1. Preset setting: to set a preset position, the users should press the “【SET PRESET】” key first and then press the number key 0-9 to set a relative preset,

Note: 10 preset positions in total are available by remote controller.

2.Preset Running: Press a number key 0-9 directly to run a relative preset.

Note: Action in vain if a relative preset position is not existed.

  1. Preset clearing : to clear a preset position, the user can press the “【CLEAR PRESET】” key first and then press the number key 0-9 to clear the relative preset;

Note: press the“【#】”key three times continually to cancel all the presets.

7) Camera Remote Controller Address Setting

F1 F2 F3 F4

【*】+【#】+【F1】:Camera Address No.1

【*】+【#】+【F2】:Camera Address No. 2

【*】+【#】+【F3】:Camera Address No. 3

In normal working mode, press 【MENU】 key to display the menu, using scroll arrow to point at or highlight the selected items.

MENU

Language English
(Setup)
(Camera)
(P/T/Z)
(Video Format)
(Version)
(Restore Default)
[↑↓]Select [← →]Change Value

LANGUAGE: Language setting, Chinese / English

SETUP: System setting

CAMERA OPTION: Camera setting

PTZ OPTION: Pan tilt setting

VERSON: camera version setting

Restore Default: Reset setting

[↑↓] Select: for selecting menu

[← →] Change Value: for modify parameters

[MENU] Back: Press [MENU] to return

[Home] OK: Press [Home] to confirm

3.4.2 System Setting

Move the pointer to the (Setup) in the Main Menu, click the 【HOME】key and enter into the (System Setting) as shown below:

SETUP

Protocol Auto
Visca Address 1
Visca Address Fix OFF
PELCO-P Address 1
PELCO-D Address 0
Baudrate 9600
[↑↓]Select [← →]Change Value

PROTOCOL: VISCA/Pelco-P/Pelco-D/Auto

Visca ADDR: VISCA=1\~7 Pelco-P=1\~255

Pelco-D = 1\~255

Baud rate: 2400/4800/9600/115200

Visca Address Fix: On/Off

3.4.3 Camera Setting

Move the pointer to the (CAMERA) in the Main Menu, click the 【HOME】 key and enter the (CAMERA) as follow:

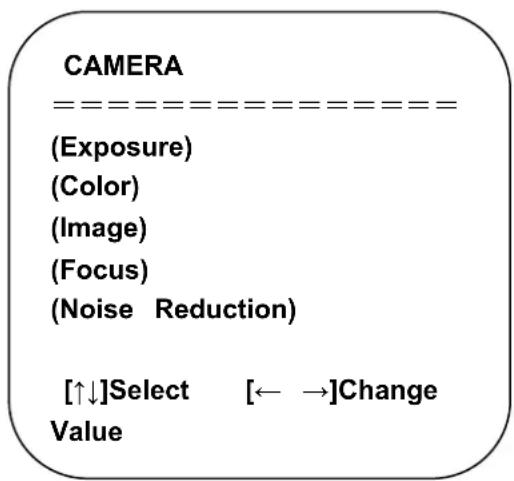

CAMERA (Exposure) (Color) (Image) (Focus) (Noise Reduction) [↑↓]Select [← →]Change Value

EXPOSURE: Enter into Exposure setting

COLOR: Enter into color setting

Image: Enter into image setting

Focus: Enter into focus setting

Noise Reduction: Enter into noise reduction

1) EXPOSURE SETTING

Move the pointer to the (EXPOSURE) in the Main Menu, click the 【HOME】 and enter the (EXPOSURE SET) as follow:

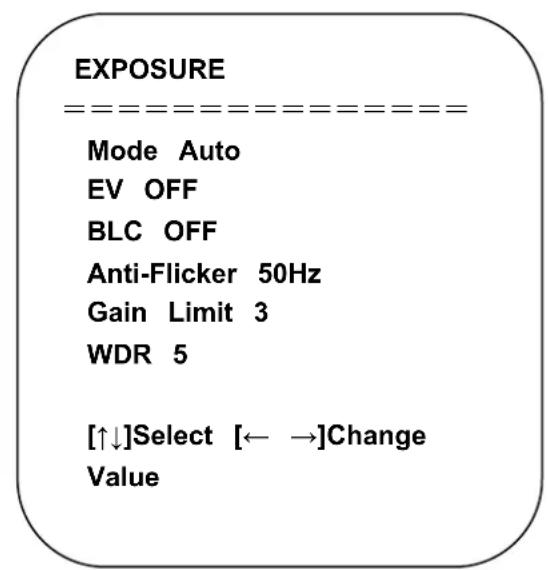

EXPOSURE Mode Auto EV OFF BLC OFF Anti-Flicker 50Hz Gain Limit 3 WDR 5 [↑↓]Select [← →]Change Value

Mode : Auto, Manual, Shutter priority, Iris priority; Brightness priority.

EV : On/Off (only available in auto mode)

Compensation Level: -7\~7 (only available in auto mode when EV is ON)

BLC: ON/OFF for options (only available in auto mode)

Anti-Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes)

Gain Limit: 0\~15(only available in Auto/ Iris priority /Brightness priority mode)

WDR: Off,1\~8

Shutter Priority:

1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/1000, 1/2000, 1/3000, 1/4000, 1/6000, 1/1000 (only available in Manual and Shutter priority mode)

IRIS Priority: OFF,F11.0,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2.8,F2.4,F2.0,F1.8(only available in Manual and Iris priority mode)

Brightness: 0\~23 (only available in Brightness priority mode)

2) COLOR SETTING

Move the pointer to the (COLOR) in the Main Menu, click the 【HOME】 and enter the (COLOR SET) as follow:

COLOR

WB Mode Auto

Saturation 80%

Hue 7

AWB Sensitivity

High

Color style Default

Color temp Low

[↑↓]Select [← →]Change

Value

[Menu]Back

WB Mode: Auto, 3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6000K, 6500K, 7000K, Manual, One Push

Red Gain: 0\~255(only available in Manual mod

Blue Gain: 0\~255(only available in Manual mod

Saturation:

60%,70%,80%,90%,100%,110%,120%,130%

Hue: 0\~14

AWB Sensitivity: high/middle/low

Color Style: Default, style1\~4.

Color Temp: high/middle/low

3) IMAGE

Move the pointer to the (IMAGE) in the Menu, click the 【HOME】 and enter the (IMAGE) as follow:


Brightness 6

Contrast 8

Sharpness 7

Flip-H OFF

Flip-V OFF

B&W-Mode Color

Gamma Default

DZoom OFF

DCI Close

[↑↓]Select [← →]Change

Value

Brightness: 0\~14

Contrast: 0\~14

Sharpness: 0\~15

Flip-H: On/Off

Flip-V: On/Off

B&W Mode: color, black/white

Gamma: default, 0.47, 0.50, 0.52, 0.55

DZoom: digital zoom options: On/Off

DCI: Dynamic Contrast: Off,1\~8

4) FOCUS

Move the pointer to the (FOCUS) in the Menu, click the 【HOME】 and enter the (FOCUS) as follow:

FOCUS

Focus Mode

Auto

AF-Zone Center

AF-Sensitivity Low

[↑↓]Select [← →]Change

Value

Focus Mode: Auto, manual

AF-Zone: Up, middle, down

AF-Sensitivity: High, middle, low

5) NOISE REDUCTION

Move the pointer to the (NOISE REDUCTION) in the Menu, click the 【HOME】 and enter the (NOISE REDUCTION) as follow:

NOISE REDUCTION

NR-2D Auto

NR-3D 3

Dynamic Hot Pixel OFF

[↑↓]Select [← →]Change /value

2D Noise Reduction: Auto, close, 1\~7

3D Noise Reduction: Close, 1\~8

Dynamic Hot Pixel: Close, 1\~5

3.4.4 P/T/Z

Move the pointer to the (P/T/Z) in the Main Menu, click the 【HOME】 and enter the (P/T/Z) as follow:

P/T/Z

Depth of field

ON

Zoom speed 8

Image Freezing OFF

Acc Curve Slow

[↑↓]Select [← →]Change

Value

Depth of Field: Only effective for remote controller, On/ Off;

When zoom in, the PT control speed by remoter will become slow),

Zoom Speed: Set the zoom speed for remote controller,1\~8

Image Freezing: On/Off

Accelerating Curve: Fast/slow

3.4.5 Video Format

Move the pointer to the (Video Format) in the Menu, click the 【HOME】 and enter the (Video Format) as follow. Exit menu after modifying parameter to save it after powered off

VIDEO FORMAT

1080P60 1080P50

1080I60 1080I50

1080P30 1080P25

720P60 720P50

720P30 720P25

1080P59.94 1080I59.94

1080P29.97 720P59.94

720P29.97

[↑↓]Select

[Menu]Back

[Home]OK

3.4.6 Version

Move the pointer to the (VERSION) in the Main Menu, click the 【HOME】 and enter the (VERSION) as follow:

VERSION

MCU Version 2.0.0.15 2015-12-18

Camera Version 2.0.0.13 2015-12-18

AF Version 2.0.0.6 2015-12-11

Lens 12X(20X)

[Menu]Back

MCU Version: Display MCU version information

Camera Version: Display camera version information

AF Version: Display the focus version information

Lens: Display the lens zoom

3.4.7 Restore Default

Move the pointer to the (RESTORE DEFAULT) in the Main Menu, click the 【HOME】 and enter the (RESTORE DEFAULT) as follow:

RESTORE DEFAULT

Restore Default?

NO

[↑↓]Select

[← →]Change Value

[Menu]Back

[Home]OK

Restore default: options: yes/no; after restoring default, the video format won't be restored.

Note: If the address of former remoter is not 1 but another one from 2,3,4, the corresponding camera address will restore to 1 when all parameters or system parameters are restored. User should change the remoter address to be 1 (press No.1 according to the camera so to get normal operation)

4. Network Connection

4.1 Connecting Mode

Direct connection: Connect the camera and computer by network connecting cable.

Internet connection mode: Connect the camera to Internet by Router or Switch and user can log in the device by browser.

Note: Please do not put the power and network cable in places where can be easily touched prevent video quality lowered by unstable signal transmission due to poor contact of cables.

The computer must have the network segment where the camera IP address belongs to. The device will not be accessible if without the segment. I.E. The camera default IP address is 192.168.5.163, then segment 5 must be added in the computer. Specific steps are as below:

Firstly open the window of Local Area Connection Properties on computer, select the "Internet protocol version 4(TCP/IPv4)" as shown by picture on the left. Double click or click the property "Internet" protocol version 4 (TCP/IPv4) to enter into the Internet Protocol Version 4(TCP/IPv4) Properties window, select "Advanced" to enter into the Advanced TCP/IP Setting and add IP and subnet mask in the IP browser as picture shown below. Click the "Confirm" to finish the adding of IP segment. User can add the corresponding network segment according to the revised IP address of the camera.

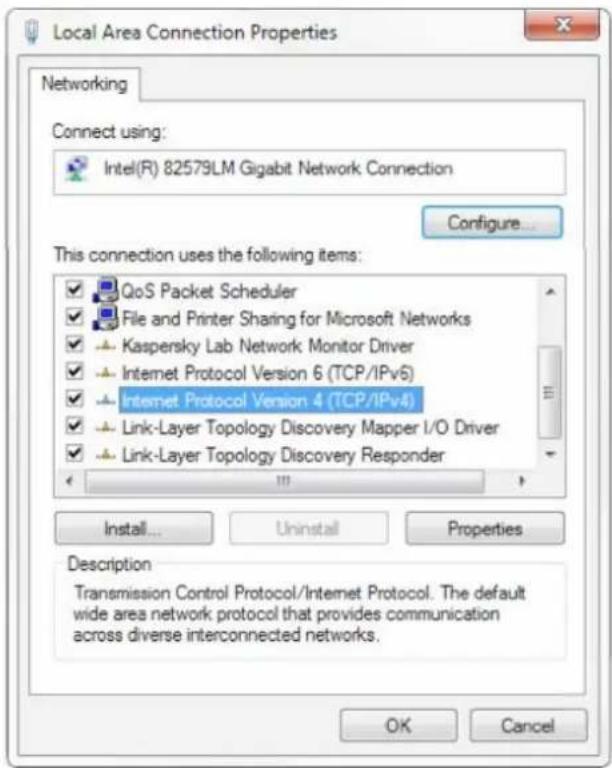

Local Area Connection Properties Networking Connect using: Intel(R) 82579LM Gigabit Network Connection Configure... This connection uses the following items: ✓ QoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Kaspersky Lab Network Monitor Driver ✓ Internet Protocol Version 6 (TCP/IPv6) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

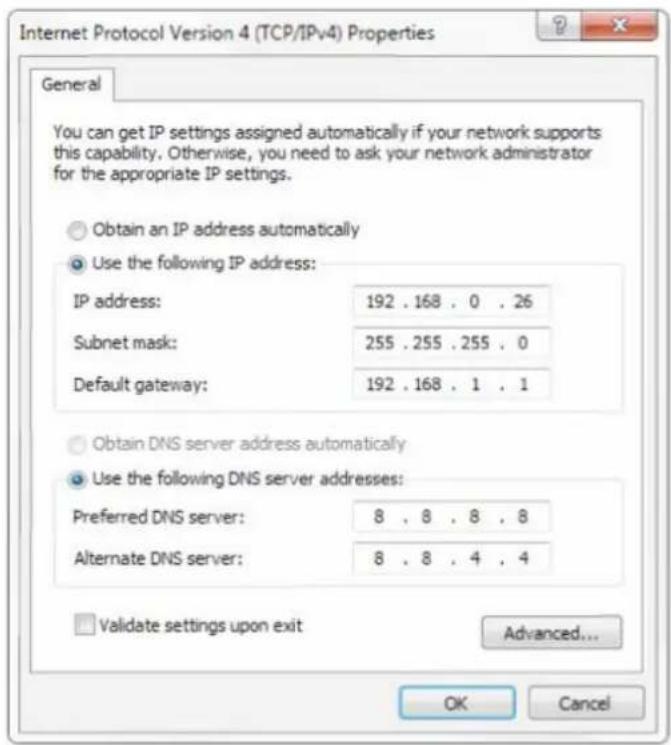

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 0 . 26 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 192 . 168 . 1 . 1 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: 8 . 8 . 8 . 8 Alternate DNS server: 8 . 8 . 4 . 4 Validate settings upon exit Advanced... OK Cancel

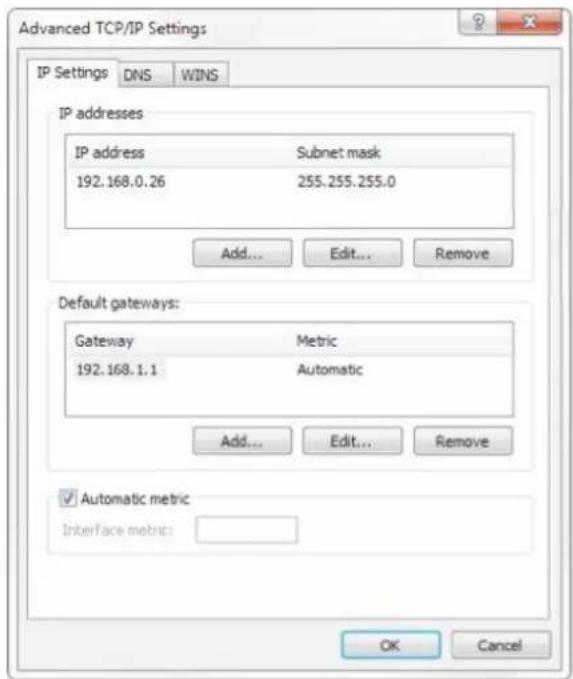

Advanced TCP/IP Settings IP Settings DNS WINS IP addresses IP address Subnet mask 192.168.0.26 255.255.255.0 Add... Edit... Remove Default gateways: Gateway Metric 192.168.1.1 Automatic Add... Edit... Remove ✓ Automatic metric Interface metric: OK Cancel

Note: The IP address to be added cannot be same with that of other computers or devices. The existence of this IP address needs to be verified before adding.

Click the "Start" and select "Operation" to input cmd as picture below to verify if the network segment has been successfully added.

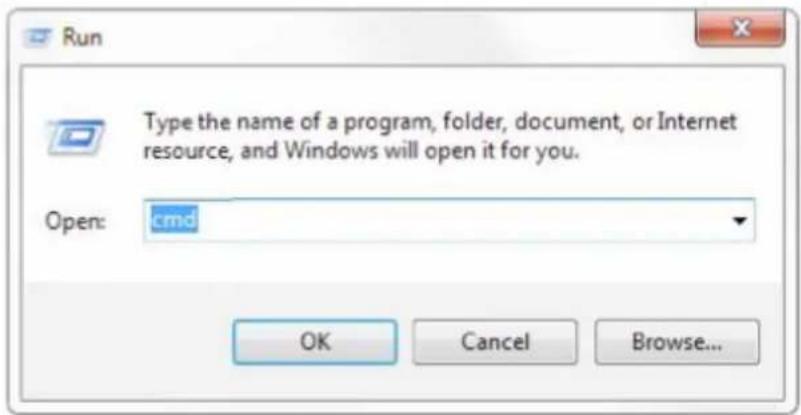

Run Type the name of a program, folder, document, or Internet resource, and Windows will open it for you. Open: cmd OK Cancel Browse...

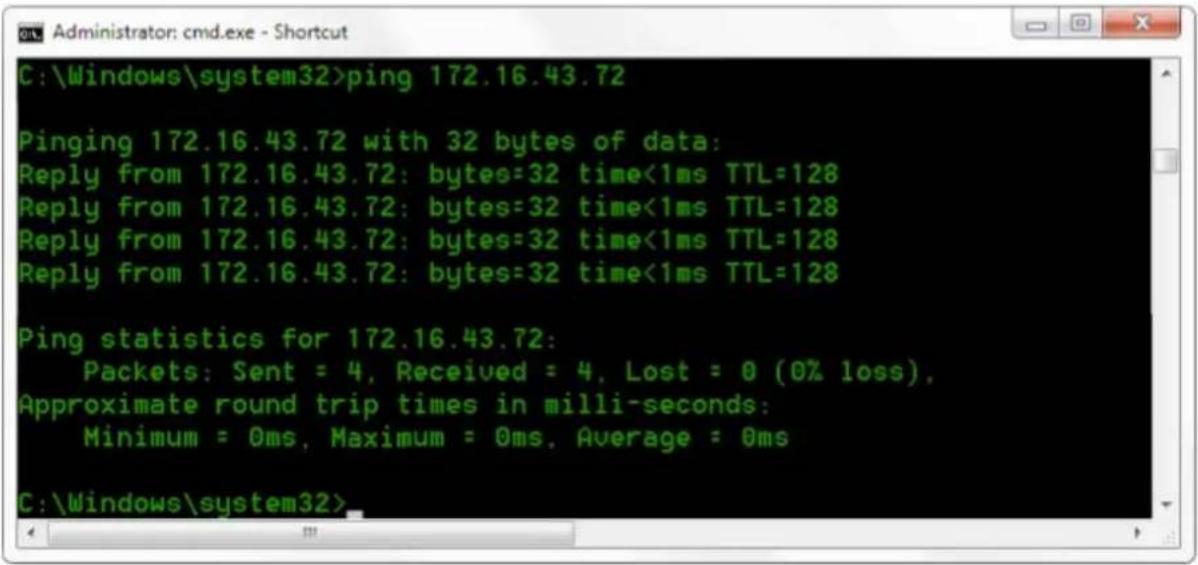

Click "OK" and open the DOS command window, input ping 192.168.5.26 and press Enter key, it will show message as below: which means network segment adding is succeed.

C:\Windows\system32>ping 172.16.43.72 Pinging 172.16.43.72 with 32 bytes of data: Reply from 172.16.43.72: bytes=32 time<1ms TTL=128 Reply from 172.16.43.72: bytes=32 time<1ms TTL=128 Reply from 172.16.43.72: bytes=32 time<1ms TTL=128 Reply from 172.16.43.72: bytes=32 time<1ms TTL=128 Ping statistics for 172.16.43.72: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 0ms, Maximum = 0ms, Average = 0ms C:\Windows\system32>

User can also to verify network connection as steps above mentioned after the finish of camera self-check. If IP is default, open DOS command window and input 192.168.5.163, then press Enter key. It will show message as below: which means network connection is normal.

AVMATRIX PTZ2870 - Connecting Mode - 6

1) Web client Log In

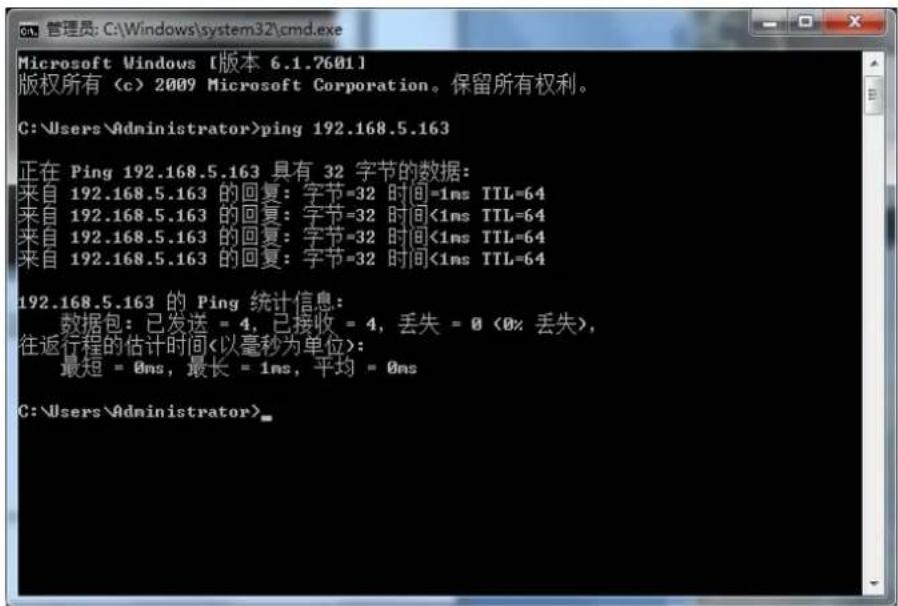

Input the IP address 192.168.5.163 of the device in the address filed of browser and click Enter button to enter into Web Client login page as below picture. User can login as administrator and normal user. If login as administrator (Default User name/Password: admin), users can preview, playback, configuration and cancel in the Web Client; If login in as normal user(Default User name/Password:user1 or user2), users can only preview, playback and cancel, no option for configuration.

Note: Web access supported browsers: IE,360 browser and other conventional browser.

7) Download/Install Plug in

When first using IE browser to access the web conferencing camera, the login page will appear "Playback plug-in is not installed, please download and install!". Click on this message, download and install MRWebXinstall.exe, according to information prompts.

After installing the plug, enter user name and password, click and Sign (initial default user name and password: "admin", users can change the user name and password on their own after entering) into the Web client management interface.

4.2.2 Preview

After successful login into the management interface, it enters the video preview interface. In the preview screen, users can control PTZ, zoom, focus, video capture, sound, focus, full screen and set the preset position, run, delete and other operations.

You can record the video and save it on SD Card when SD Card built in. Video can be saved on the Computer at Local.

1) Login as administrator

User name, password, the default admin

PTZ control can be carried out, zoom, focus, video capture, sound, zoom, full screen and set the preset position, run, and delete; you can preview, playback, configuration, log off.

2) Login as normal user

Default User name/password: user1 or user2

PTZ control can be carried out, zoom, focus, video capture, sound, zoom, full screen and set the preset position, un,and delete; you can preview, playback and log off.

NOTE: There is no configuration right for normal user login.

4.2.3 Playback

1) Playback video files

First, please record, snapshot and save the file when previewing. Click "Playback" to enter recording file and picture files playback page, and then select the file "Video File" and click Search, and search out the video file, click Play to play the video file.

2) Playback picture files

First, please record, snapshot and save the file when previewing. Click "Playback" to enter recording file and picture files playback page, and then select the file "Image File" and click Search, and search out the video file, click Play to play the image file.

4.2.4 Configuration

Click Configuration to enter into the device parameters setting page

There are the following options: Local configuration, audio configuration, video configuration, network configuration, PTZ configuration, internet access configuration, system configuration, detailed description see the following table.

MenuExplanation
Local configureIncluding video preview mode,record video packing time,record video stora route settings etc.
Audio configureIncluding audio compressing format,sampling frequency,sampling precision,compressing code rate settings etc.
Video configureIncluding video encoding,video parameters,character-overlapping,character size,video output setting etc.
Network configureIncluding basic parameters,Ethernet,DNS,wireless network setting, GB28181 etc.
System configureIncluding equipment property,system time,user management,version update,Reset,Reboot device settings etc.

1) Local configuration

Video Preview Mode: user can choose real-time priority or fluency priority: The delay will be small when under real time priority mode and fluency will be good when under fluency priority mode. Setting based on the user need (Default value: real time normal (2), real time best (1), fluency normal (3), fluency good (4) and fluency best (5))

Recording packing time(minute): Set recording video packing time (default is 10, range from 1\~120 minutes)

Recording/Snapshot file storage route: Set local recording video/snapshot file storage route.(Default D:\MyIPCam)

Click the Save button to make settings effective.

2) Audio Configuration

Switch: Choose to enable the audio or not.

Compressing format: Set audio compressing format and the device will reboot automatically after change (default MP3, PCM, AAC optional)

Sampling frequency:Set sampling frequency and the device will reboot automatically after change (default 44100,16000,32000 and 48000 optional)

Sampling precision: Set sampling precision (default 16bits)

Compressing code rate: Set audio compressing code rate (default 64bits,32,48,96,128bits optional)

Note Click "SAVE", it will remind "Enable has changed. Restart the device to take effect after the success of the save.", then please reboot the camera to make new setting effect.

4.2.5 Video configuration

(1) Video encoding

Code stream:Stream: Different video output mode setting, use different streams. (Main stream, secondary stream)

Compression Format: Set the video compression format, save and reboot to take it effect (primary / secondary stream default: H.264, H.265 optional)

Profile: Profile Mode Setting (Default HP, BP, MP Optional)

Video Size: Set video image resolution, save and reboot to take it effect (main stream default 1920 * 1080 or 1280 * 720 optional; default secondary stream 640 * 320,320 * 180,1280 * 720,1920 * 1080 optional)

Stream Rate control: Set rate control mode, save and reboot to take it effect (Primary / secondary stream default variable bit rate, fixed rate is for option).

Image Quality: Set the image quality, image quality can be changed only when rate control is variable bit rate, (main stream defaulted is better, secondary stream default is not good, there are best, better, good, bad, worse, worst for options).

Rate (Kb / s): Set the video bit rate (main stream default 4096Kb / s,64-12288Kb / s optional; secondary stream default 1024Kb / s,64-10240Kb / s optional).

Frame rate (F / S): Set the video frame rate (primary / secondary stream default 25F / S, primary stream 5-60F/S optional, secondary stream 5-30F / S optional).

Key frame interval: Set the key frame interval (primary / secondary stream default 75F, primary / stream 1-300F optional. secondary stream 1-150F optional).

Stream Name: When streaming via rtsp or rtmp, user can modify stream name. Main Stream(live/av0), sub stream(live/av1)

Click the "Save" button to display the "saved successfully" message, then settings take effect.

(2) Stream Release

Switch: To turn on/off the main / secondary stream.

Protocol: primary / secondary stream applies RTMP protocol.

Host Port: server port number (default 1935,0-65535 optional)

Host Address: server IP addresses (default 192.168.5.11)

Stream Name: choose a different stream name (live / av0, live / av1 optional).

User: Set the user name.

Password: Set the password.

Click on the "Save" button to display the "Save successful" message, then settings take effect.

Method of obtaining RTSP: rtsp: // device IP address: 554 / live / av0 (av0 main stream; av1 secondary stream)

(3) RTP Broadcasting

Main/Sub Stream: On/off;

Protocol: RTP or TS

Addres: Default 224.1.2.3. It can be edited.

Port: Main Stream Default Port: 4000, Sub Stream Default Port: 4002)

Visit: Address comes up after setting. Eg; rtp://224.1.2.3:4000; udp://@224.1.2.3:4000;

(4) Video Parameters

(a) Focus: Focus mode, focus range, focus sensitivity can be set.

Focus Mode: set the focus mode (the default auto, manual optional)

Focus range: set the focus range (the default middle, the upper and lower optional)

Focus Sensitivity: Set the focus sensitivity (default is low, high, medium optional)

(b) Exposure: E-exposure mode, exposure compensation, back light compensation, anti-flicker, gain limit, wide dynamic, shutter speed, aperture value and brightness can be set.

Exposure Mode: Set the exposure mode (the default automatic, manual, shutter priority, aperture priority, Brightness priority optional

Exposure compensation: Exposure compensation setting is active when it is auto status (default is off).

Exposure compensation value: Set the exposure compensation value, valid when it is set for auto(default 0,-7 to 7 optional).

BLC: Set back light compensation, valid when it is auto status (default is off).

Anti-flicker: Set up anti-flicker mode, valid when status of automatic, aperture or brightness priority (default 50Hz, closed, 60Hz optional).

Gain limit: set the gain limits, auto, active when it is status of aperture or brightness priority (default 3, 0-15 optional).

Dynamic range: set the dynamic range (default 5,0-8 optional).

Shutter speed: active when it is status of manual or shutter-priority (default 1/100, 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/1000, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 optional).

Aperture value: Set the aperture value, active when it is status of manual or aperture-priority(default F1.8, closed, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2 .8, F2.4, F2.0, F1.8 optional).

Brightness: Set the brightness value, active when it is a state of brightness priority (default 7,0-23 optional).

(c) Color: White balance, saturation, color, white balance, sensitivity, color temperature, gain red and blue gain can be set.

White balance modes: Set the white balance mode (the default

automatic,3000K,4000K,5000K,6500K,manual,One-push optional).Note: Click the "Correction" button when selected the One-push white balance mode.

Saturation: Set the saturation (default 80%,60%,70%,80%,90%,100%,110%,120%,130%,optional).

Auto white balance Sensitivity: Sensitivity Auto white balance settings (default is low, high, medium optional).

Chroma: Set the chrome (default 7,0-14 optional).

Color Temperature:set color temperature(Default setting:High,with low,middle for options)

Red Gain: Set the red gain, effective when it is manual (default 255,0-255 optional).

Blue Gain: Sets the Blue gain, effective when it is manual (default 199,0-255 optional).

(d) Image:Brightness,contrast,sharpness,black and white mode,the gamma curve,Horizontal Flip and Vertical Flip can be set.

Brightness: Set the brightness (default 6,0-14 optional).

Contrast: set the contrast (default 8,0-14 optional).

Sharpness: Set the sharpness value (default 7, 0-15 optional).

Black and white mode: Set black and white mode (default color, black/white optional).

Gamma: Gamma value setting (default, 0.45, 0.50, 0.52, 0.55 optional).

Flip Horizontal: Set Flip Horizontal (default Off, On optional).

Flip Vertical: Set vertical flip (default Off, On optional).

(e) Noise Reduction: 2D noise reduction, 3D noise reduction and dynamic dead pixel correction available.

2D Noise Reduction: Set 2D noise reduction level (default Auto,1-7 and Off optional).

3D Noise Reduction: Set 3D noise reduction level (default 5,1-8 and Off optional).

Dynamic dead pixel correction: Set Dynamic dead pixel correction (default Off, 1-8 optional).

Note: Click “Refresh” to make revision of any video parameters of a,b,c,d,e effective.

3) Character-Overlapping

Display date and time: Set whether to display the time and date (default display).

Display Title: Set whether to display the title (default display).

Font Color of Time: Set font color of time and date (default white, black, yellow, red, blue optional).

Font Color of Title: Set font color of title (default white, black, yellow, red, blue optional).

Moving characters: Set the display position of moving date, time and title, click on the "up, down, left, right" buttons to move the corresponding character position.

Title Content: Set title content (default CAMERA1).

Time Content: Set time content (default 1970/01/10 05:36:00)

Click on the "Save" button and display the "Save successful" message, then valid

4) Character Size

Main stream character size: Set the character size of the display, the device will restart

automatically after changed and saved (default 24,24,16 optional)

Secondary stream character size: Set the character size of the display, the device will restart automatically after changed and saved(default 16,24,16 optional)

Click on the "Save" button to display "Parameter saved successfully" message, set to take effect

5) Video output

Output Format: Set the video output format (default

1080P60,1080P50,1080P30,1080P25,1080I60,1080I50,720P60,720P50,720P30,720P25,1080P59.94,1

080I59.94,1080P29.97,720P59.94,720P29.97 optional). Note: only PTZ1270 models have this item.

Click on the "Save" button, it will be valid when display "Save successful".

7) USB subtitle

Display subtitles: Check the box (after checking, USB video output is displayed on the screen caption content)

Font color: Default white, black. Yellow.red. blue optional

Subtitle: Users can fill in their own

Ticker: according to the user demand, down, left and right to move the display position of subtitles

Note: only PTZ2870 models have this item, PTZ1270 do not have.

4.2.6 Network configuration

1) Network port

Data port: set the data port, the device will restart automatically after changed (default 3000, 0-65535 optional).

Web Port: Set Web port, the device will restart automatically after changed (default is 80,0-65535 is optional).

Onvif Port: Set Onvif port, the device will restart automatically after changed(default 2000, 0-65535 optional).

Soap Port: Set Soap port (default 1936,0-65535 optional).

RTMP Port: Set RTMP port (default 1935,0-65535 optional).

RTSP Port: Set RTSP port, the device will restart automatically after changed (default 554,0-65535 optional).

Visca Port: Set Visca port, the device will restart automatically after changed (default 3001, 0-65535 optional).

Click on the "Save" button, it will be valid when display "Save successful".

RTMP access: RTMP: // equipment IP address: 1935 / live/av0 (av0 main stream; av1 second stream)

RTMP Access: rtmp://equipment IP address: 1935 / live/av0 (av0 main stream; av1 second stream)

2) Ethernet parameters

DHCP: Enable or disable obtain IP automatically can be set. Save changes and reboot the device to takes effect (Default:OFF)

IP Address: Set the IP address, save changes and reboot the device to takes effect (default 192.168.5.163). Note: This IP address is the same with the one used to login Web page.

Subnet Mask: Set the subnet mask (default 255.255.255.0).

Default Gateway: Set the default gateway (default 0.0.0.0).

Physical Address: Set the physical address (the parameter is read-only but can not be modified).

Click on the "Save" button, it will be valid when display "Save successful". (Note: To prevent IP conflicts When modify).

3) DNS parameters

Preferred DNS server: set the preferred DNS server. (Default 0.0.0.0).

Alternate DNS server: Alternate DNS server settings. (Default 0.0.0.0).

Click on the "Save" button, it will be valid when display "Save successful".

4) GB28181

Switch: set whether open GB28181, can check

Time Synchronization: whether synchronization time is set, you can check

Stream Type: stream type setting (the default main stream, secondary stream optional)

Sign effective time (in seconds): 3600 Range 5-65535

Heartbeat time (seconds): 60 Range 1-65535

Register ID: 34020000001320000001

Register User name: IPC

Register Password: 12345678

Equipment ownership: Users can add their own

Administrative regions: Users can add their own

Alarm Zone: Users can add their own

Equipment installation address: Users can add their own

Local SIP Port: 5060 Range 0-65535

GB28181 Server Address: IP address of the computer

Server SIP Port: 5060 Range 0-65535

Server ID: 34020000002000000001

Click on the "Save" button, it will be valid when display "Save successful".

4.2.7 System configuration

1) Device Properties

Device Name: Set the device name (the default Camera1, user can add their own).

Device ID: Set the device ID (default 1, Read-Only).

System Language: Set the system language (default Simplified Chinese, English optional). Need to

re-login after modify and save the setting.

Click on the "Save" button, it will be valid when display "Save successful".

2) System Time

Date Format: Set the date format (YYYY-MM-DD default That year - month - day,MM-DD-YYYY namely Month - Day - Year,DD-MM-YYYY date - month - year Optional).

Date separator: set the date separator (default '/', '.', '-' Optional).

Time Zone: Set the time zone (default East eight districts, other time zones optional).

Time Type: Set the time types (default 24 hours, optional 12 hours).

Time setting: Set time mode (to choose the computer time synchronization, NTP server time synchronization, or set manually).

Computer Time: Set the computer synchronization valid.

Update interval: Set the NTP server automatic updated time interval. Valid after setting NTP server synchronization (default one day, 2-10 days Optional).

NTP server address or domain name: Set NTP server address or domain name (default time.nits.gov). Valid after setting NTP server synchronization.

NTP Server Port: Sets the NTP server port (default 123). Valid after setting NTP server synchronization.

Set the time manually, Effective when set manually.

Click on the "Save" button, it will be valid when display "Save successful".

3) User Management

Select users: Set the user type (the default administrator, Common User 1, Common User 2 optional)

User name: set the user name (Select User Administrator default admin; select a common user1 default user1; to select a common user 2 default user2; user can modify their own)

Password: Set a password(Select User Administrator default admin; select a common user1 default user1; to select a common user 2 default user2; user can modify their own).

Password confirmation: Confirm the input passwords are the same or not.

Click on the "Save" button to display the "Save successfully" message, then the set is to take effect.

Note: Please note the case-sensitivity of the user name and password.

If login page by a common user's name and password, one does not have configuration privileges but can only operate to preview, playback, logoff.

4) Version upgrade

MCU version V2.0.0.16 2015-12-18

Camera version V2.0.0.16 2015-12-18

Focus version V2.0.0.6 2015-12-11

Users only read the version information above which is consistent with the menu version but can not modify. Different types of the machine has different information.

Update file:

Click "Browse ..." installation, to select the upgrade file in the pop-up window.

Click on the "Upgrade" button, the upgrade dialog will appear. the device will reboot automatically after update successfully. (Note: make sure the power and network is keeping connected during the process or the upgrade will fail)

Note: After the version upgrade is complete, you need to restore factory defaults; a, through web to restore the factory default configuration; b, through the recovery menu; c, remote control shortcut * # 6;

Choose one of the above three ways. If chose a, the IP accounts, passwords also need to be restored to the default.

5) Restore factory setting

Click on pop-up "Restore Factory Defaults" button and choose "yes" or "no", then the device will restart automatically and restore factory setting.

6) Reboot

Click on the pop-up "Reboot" button and choose "yes" or "no", then the device will restart automatically

4.2.8 Logout

Point "Logout" pop-up "Confirmation" dialog; select "Yes" or "No", choose "Yes" to exit the current page and return to the user login interface again.

4.2.9 Wireless network

If the user's equipment has a wireless network module, Web page "Network Configuration" has "Wireless Network" configuration page, the specific configuration is as follows:

1) Network settings

Wireless network configuration:

Network interface enable: can check, to set the following items after checked.

DHCP: can check, if check, it can obtain IP automatically.

IP address:set wireless WIFI IP(default 192.168.1.250, if checked DHCP, IP could assigned automatically)

Note: wireless IP address can not be in the same segment with wired IP address.

Subnet Mask: Set the wireless IP subnet mask (default255.255.255.0)

Default Gateway: Set the wireless IP default gateway (default 192.168.1.1)

SSID: The user can modify their own (the default test)

Encryption: can check, the password can be set after checked.

Password: can set password, password can be changed if only checked encryption.

Click on the "Save" button to display "Parameter saved successfully" message, set to take effect

Note: SSID and password should be filled in correctly, otherwise, if restarted after the powered off, the wireless WiFi connection is not successful.

Click on the "search" button to search the WIFI hotspot.

Double-click the dialog box after searched user WIFI hotspot, and then input password to connect WIFI. It connected successfully after shown “successful connect” window.

3) Wireless WiFi login page

If you do not check the above configuration DHCP (automatically obtain IP), then open the browser, enter the wireless network IP address in the address bar (default 192.168.1.250), press Enter to log construction; If you checked DHCP, then you obtain IP automatically, just login specific router or switch user interface settings to view the allocation of IP address.

5. Serial Communication Control

Under common working condition, the camera could be controlled through RS232/RS485 interface(VISCA), RS232C serial parameter are as follows:

Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None.

After power on, the camera first go left, then back to the middle position. Self-test is finished after the zoom moved to the farthest and then back to the nearest position. If the camera saved 0 preset before, it will be back to that position after initialization. At this point, the user can control the camera by the serial commands.

5.1 VISCA protocol list

5.1.1 Camera return command

Ack/Completion Message
Command packetNote
ACKz0 41 FFReturned when the command is accepted.
Completionz0 51 FFReturned when the command has been executed.

z = camera address + 8

Error Messages
Command packetNote
Syntax Errorz0 60 02 FFReturned when the command format is different or when a command with illegal command parameters accepted
Command Not Executablez0 61 41 FFReturned when a command cannot be executed due current conditions. For example,when commands controlling the focus manually are received during a focus.

5.1.2 Camera control command

CommandFunctionCommand packetNote
AddressSetBroadcast88 30 0p FFp: Address setting
IF_ClearBroadcast88 01 00 01 FFI/F Clear
CommandCancel8x 21 FF
CAM_PowerOn8x 01 04 00 02 FFPower ON/OFF
Off8x 01 04 00 03 FF
CAM_ZoomStop8x 01 04 07 00 FF
Tele(Standard)8x 01 04 07 02 FF
Wide(Standard)8x 01 04 07 03 FF
Tele(Variable)8x 01 04 07 2p FFp = 0(low) - F(high)
Wide(Variable)8x 01 04 07 3p FF
Direct8x 01 04 47 0p 0q 0r 0spqrs: Zoom Position
CAM_FocusStop8x 01 04 08 00 FF
Far(Standard)8x 01 04 08 02 FF
Near(Standard)8x 01 04 08 03 FF
Far(Variable)8x 01 04 08 2p FFp = 0(low) - F(high)
Near(Variable)8x 01 04 08 3p FF
Direct8x 01 04 48 0p 0q 0r 0spqrs: Focus Position
Auto Focus8x 01 04 38 02 FF
One Push Mode8x 01 04 38 04 FF
Manual Focus8x 01 04 38 03 FF
CAM _Zoom FocusDirect8x 01 04 47 0p 0q 0r 0s0t 0u 0v 0w FFpqrs: Zoom Positiontuvw: Focus Position
CAM_WBAuto8x 01 04 35 00 FF
3000K8x 01 04 35 01 FF
4000k8x 01 04 35 02 FF
One Push mode8x 01 04 35 03 FF
5000k8x 01 04 35 04 FF
Manual8x 01 04 35 05 FF
6500k8x 01 04 35 06 FF
3500K8x 01 04 35 07 FF
4500K8x 01 04 35 08 FF
5500K8x 01 04 35 09 FF
6000K8x 01 04 35 0A FF
7000K8x 01 04 35 0B FF
CAM _RGainReset8x 01 04 03 00 FFManual Control of R Gain
Up8x 01 04 03 02 FF
Down8x 01 04 03 03 FF
Direct8x 01 04 43 00 00 0p 0qpq: R Gain
CAM_BgainReset8x 01 04 04 00 FFManual Control of B Gain
Up8x 01 04 04 02 FF
Down8x 01 04 04 03 FF
Direct8x 01 04 44 00 00 0p 0qpq: B Gain
CAM_AEFull Auto8x 01 04 39 00 FFAutomatic Exposure mode
Manual8x 01 04 39 03 FFManual Control mode
Shutter priority8x 01 04 39 0A FFShutter Priority Automatic Exposure mode
Iris priority8x 01 04 39 0B FFIris Priority Automatic Exposure mode
Bright8x 01 04 39 0D FFBright mode
CAM_ShutterReset8x 01 04 0A 00 FFShutter Setting
Up8x 01 04 0A 02 FF
Down8x 01 04 0A 03 FF
Direct8x 01 04 4A 00 00 0p 0qpq: Shutter Position
CAM_IrisReset8x 01 04 0B 00 FFIris Setting
Up8x 01 04 0B 02 FF
Down8x 01 04 0B 03 FF
Direct8x 01 04 4B 00 00 0p 0qpq: Iris Position
CAM_Gain LimitGain Limit8x 01 04 2C 0p FFp: Gain Positon
CAM_BrightReset8x 01 04 0D 00 FFBright Setting
Up8x 01 04 0D 02 FF
Down8x 01 04 0D 03 FF
Direct8x 01 04 4D 00 00 0p 0qpq: Bright Positon
CAM_ExpCompOn8x 01 04 3E 02 FFExposure Compensation ON/OFF
Off8x 01 04 3E 03 FF
Reset8x 01 04 0E 00 FFExposure Compensation Amount Setting
Up8x 01 04 0E 02 FF
Down8x 01 04 0E 03 FF
Direct8x 01 04 4E 00 00 0p 0qpq: ExpComp Position
CAM_Back LightOn8x 01 04 33 02 FFBack Light Compensation
Off8x 01 04 33 03 FF
CAM_WDRStrengthReset8x 01 04 21 00 FFWDR Level Setting
Up8x 01 04 21 02 FF
Down8x 01 04 21 03 FF
Direct8x 01 04 51 00 00 00 0pp: WDR Level Positon
CAM_NR (2D)8x 01 04 53 0p FFP=0-7 0:OFF
CAM_NR (3D)8x 01 04 54 0p FFP=0-8 0:OFF
CAM_Gamma8x 01 04 5B 0p FFp = 0 - 4 0: Default 1: 0.472: 0.50 3: 0.52 4: 0.55
CAM_FlickerOFF8x 01 04 23 00 FFOFF
50HZ8x 01 04 23 01 FF50HZ
60HZ8x 01 04 23 02 FF60HZ
CAM_ApertureReset8x 01 04 02 00 FFAperture Control
Up8x 01 04 02 02 FF
Down8x 01 04 02 03 FF
Direct8x 01 04 42 00 00 0p 0qpq: Aperture Gain
CAM_MemoryReset8x 01 04 3F 00 pq FFpq: Memory Number(=0 to 254)Corresponds to 0 to 9 on the Rem Commander
Set8x 01 04 3F 01 pq FF
Recall8x 01 04 3F 02 pq FF
CAM_LR_ReverseOn8x 01 04 61 02 FFImage Flip Horizontal ON/OFF
Off8x 01 04 61 03 FF
CAM_PictureFlipOn8x 01 04 66 02 FFImage Flip Vertical ON/OFF
Off8x 01 04 66 03 FF
CAM_ColorSaturati onDirect8x 01 04 49 00 00 00 0pP=0-70:60% 1:70% 2:80% 3:90%4:100%5:110% 6:120% 7:130%
CAM_IDWrite8x 01 04 22 0p 0q 0r 0spqrs: Camera ID (=0000 to FFFF)
SYS_MenuON8x 01 04 06 06 02 FFTurn on the menu screen
OFF8x 01 04 06 06 03 FFTurn off the menu screen
IR_ReceiveON8x 01 06 08 02 FFIR(remote commander)receiveOn/Off
OFF8x 01 06 08 03 FF
IR_ReceiveReturnOn8x 01 7D 01 03 00 00 FFIR(remote commander)receivemessage via the VISCAcommunication ON/OFF
Off8x 01 7D 01 13 00 00 FF
CAM_SettingResetReset8x 01 04 A0 10 FFReset Factory Setting
CAM_BrightnessDirect8x 01 04 A1 00 00 0p 0qpq: Brightness Position
CAM_ContrastDirect8x 01 04 A2 00 00 0p 0qpq: Contrast Position
CAM_FlipOFF8x 01 04 A4 00 FFSingle Command For Video Flip
Flip-H8x 01 04 A4 01 FF
Flip-V8x 01 04 A4 02 FF
Flip-HV8x 01 04 A4 03 FF
CAM_VideoSystemSetcameravideosystem8x 01 06 35 00 0p FFP: 0~E Video format0:1080P608:720P301:1080P509:720P252:1080i60 A:1080P59.943:1080i50 B:1080i59.944:720P60 C:720P59.945:720P50 D:1080P29.976:1080P30 E:720P29.977:1080P25
Pan_tiltDriveUp8x 01 06 01 VV WW 03 OFFVV: Pan speed 0x01 (low speed) to0x18 (high speed)WW: Tilt speed 0x01 (low speed) t0x14 (high speed)YYYY: Pan PositionZZZZ: Tilt Position
Down8x 01 06 01 VV WW 03 0FF
Left8x 01 06 01 VV WW 01 0FF
Right8x 01 06 01 VV WW 02 0FF
Upleft8x 01 06 01 VV WW 01 0FF
Upright8x 01 06 01 VV WW 02 0FF
DownLeft8x 01 06 01 VV WW 01 0FF
DownRight8x 01 06 01 VV WW 02 0FF
Stop8x 01 06 01 VV WW 03 0FF
AbsolutePosition8x 01 06 02 VV WW0Y 0Y 0Y 0Y 0Z 0Z 0Z 0. FF
RelativePosition8x 01 06 03 VV WW0Y 0Y 0Y 0Y 0Z 0Z 0Z 0. FF
Home8x 01 06 04 FF
Reset8x 01 06 05 FF
Pan-tiltLimitSetSet8x 01 06 07 00 0W0Y 0Y 0Y 0Y 0Z 0Z 0Z 0. FFW:1 UpRight 0:DownLeftYYYY: Pan Limit Position(TBD)ZZZZ: Tilt Limit Position(TBD)
Clear8x 01 06 07 01 0W07 0F 0F 0F 07 0F 0F 0F

5.1.3 Inquiry command

CommandFunctionCommand packetNote
CAM_PowerInq8x 09 04 00 FFy0 50 02 FFOn
y0 50 03 FFOff(Standby)
CAM_ZoomPosInq8x 09 04 47 FFy0 50 0p 0q 0r 0s FIpqrs: Zoom Position
CAM_FocusAFModelInq8x 09 04 38 FFy0 50 02 FFAuto Focus
y0 50 03 FFManual Focus
y0 50 04 FFOne Push mode
CAM_FocusPosInq8x 09 04 48 FFy0 50 0p 0q 0r 0s FIpqrs: Focus Position
CAM_WBModelInq8x 09 04 35 FFy0 50 00 FFAuto
y0 50 01 FF3000K
y0 50 02 FF4000K
y0 50 03 FFOne Push Mode
y0 50 04 FF5000K
y0 50 05 FFManual
y0 50 00 FF6500K
y0 50 06 FF6500K
y0 50 07 FF3500K
y0 50 08 FF4500K
y0 50 09 FF5500K
y0 50 0A FF6000K
y0 50 0B FF7000K
CAM_RGainInq8x 09 04 43 FFy0 50 00 00 0p 0q Fpq: R Gain
CAM_BGainInq8x 09 04 44 FFy0 50 00 00 0p 0q Fpq: B Gain
CAM_AEModelInq8x 09 04 39 FFy0 50 00 FFFull Auto
y0 50 03 FFManual
y0 50 0A FFShutter priority
y0 50 0B FFIris priority
y0 50 0D FFBright
CAM_ShutterPosInq8x 09 04 4A FFy0 50 00 00 0p 0q Fpq: Shutter Position
CAM_IrisPosInq8x 09 04 4B FFy0 50 00 00 0p 0q Fpq: Iris Position
CAM_Gain LimitInq8x 09 04 2C FFy0 50 0p FFp: Gain Positon
CAM_BrightPosInq8x 09 04 4D FFy0 50 00 00 0p 0q Fpq: Bright Position
CAM_ExpCompModelInq8x 09 04 3E FFy0 50 02 FFOn
y0 50 03 FFOff
CAM_ExpCompPosInq8x 09 04 4E FFy0 50 00 00 0p 0q Fpq: ExpComp Position
CAM_BacklightModelInq8x 09 04 33 FFy0 50 02 FFOn
y0 50 03 FFOff
CAM_WDRStrengthInq8x 09 04 51 FFy0 50 00 00 00 0p Fp: WDR Strength
CAM_NRLevel(2D) Inq8x 09 04 53 FFy0 50 0p FFP: 2DNRLevel
CAM_NRLevel(3D) Inq8x 09 04 54 FFy0 50 0p FFP:3D NRLevel
CAM_FlickerModelInq8x 09 04 55 FFy0 50 0p FFp: Flicker Settings(0: OFF,1:50Hz,2:60Hz)
CAM_ApertureInq8x 09 04 42 FFy0 50 00 00 0p 0q Fpq: Aperture Gain
CAM_PictureEffectModelnq8x 09 04 63 FFy0 50 00 FFOff
y0 50 04 FFB&W
CAM_MemoryInq8x 09 04 3F FFy0 50 0p FFp: Memory number last operated.
SYS_MenuModelInq8x 09 06 06 FFy0 50 02 FFOn
y0 50 03 FFOff
CAM_LR_Reverselnq8x 09 04 61 FFy0 50 02 FFOn
y0 50 03 FFOff
CAM_PictureFlipInq8x 09 04 66 FFy0 50 02 FFOn
y0 50 03 FFOff
CAM_ColorSaturationInq8x 09 04 49 FFy0 50 00 00 00 0p Fp: Color Gain setting 0h(60%) to Eh (130%)
CAM_IDInq8x 09 04 22 FFy0 50 0p FFp: Gamma ID
IR_ReceiveInq8x 09 06 08 FFy0 50 02 FFOn
y0 50 03 FFOff
IR_ReceiveReturny0 07 7D 01 04 00 FPower ON/OFF
y0 07 7D 01 04 07 FZoom tele/wide
y0 07 7D 01 04 38 FAF ON/OFF
y0 07 7D 01 04 33 FCamera _Backlight
y0 07 7D 01 04 3F FCamera _Memory
y0 07 7D 01 06 01 FPan_titleDriver
CAM_BrightnessInq8x 09 04 A1 FFy0 50 00 00 0p 0q Fpq: Brightness Position
CAM_ContrastInq8x 09 04 A2 FFy0 50 00 00 0p 0q Fpq: Contrast Position
CAM_FlipInq8x 09 04 A4 FFy0 50 00 FFOff
y0 50 01 FFFlip-H
y0 50 02 FFFlip-V
y0 50 03 FFFlip-HV
CAM_GammaInq8x 09 04 5B FFy0 50 0p FFp: Gamma setting
CAM_VersionInq8x 09 00 02 FFy0 50 ab cdmn pq rs tu vw FFab cd : vender ID ( 0220 )mn pq : model ID ST (095U3(3950)rs tu: ARM Versionvw: reserve
VideoSystemInq8x 09 06 23 FFy0 50 0p FFP: 0~E Video format0:1080P608:720P301:1080P509:720P252:1080i60A:1080P59.943:1080i50B:1080i59.944:720P60C: 720P59.945:720P50D:1080P29.976:1080P30E: 720P29.977:1080P25
Pan-tiltMaxSpeedInq8x 09 06 11 FFy0 50 ww zz FFww: Pan Max Speed zz:Tilt Max Speed
Pan-tiltPosInq8x 09 06 12 FFy0 50 0w 0w 0w 0w0z 0z 0z 0z FFwww: Pan Positionzzzz: Tilt Position

Note:[X] in the above table indicates the camera address to be operated, [y] = [x + 8] .

5.2 Pelco-D protocol command list

FunctionByte1Byte2Byte3Byte4Byte5Byte6Byte7
Up0xFFAddress0x000x08Pan SpeedTilt SpeedSUM
Down0xFFAddress0x000x10Pan SpeedTilt SpeedSUM
Left0xFFAddress0x000x04Pan SpeedTilt SpeedSUM
Right0xFFAddress0x000x02Pan SpeedTilt SpeedSUM
Upleft0xFFAd0dress0x000x0CPan SpeedTilt SpeedSUM
Upright0xFFAddress0x000x0APan SpeedTilt SpeedSUM
DownLeft0xFFAddress0x000x14Pan SpeedTilt SpeedSUM
DownRight0xFFAddress0x000x12Pan SpeedTilt SpeedSUM
Zoom In0xFFAddress0x000x200x000x00SUM
Zoom Out0xFFAddress0x000x400x000x00SUM
Focus Far0xFFAddress0x000x800x000x00SUM
Focus Near0xFFAddress0x010x000x000x00SUM
Set Preset0xFFAddress0x000x030x00Preset IDSUM
Clear Preset0xFFAddress0x000x050x00Preset IDSUM
Call Preset0xFFAddress0x000x070x00Preset IDSUM
Query Pan Position0xFFAddress0x000x510x000x00SUM
Query Pan Position Response0xFFAddress0x000x59Value High ByteValue Low ByteSUM
Query Tilt Position0xFFAddress0x000x530x000x00SUM
Query Tilt Position Response0xFFAddress0x000x5BValue High ByteValue Low ByteSUM
Query Zoom Position0xFFAddress0x000x550x000x00SUM
Query Zoom Position Response0xFFAddress0x000x5DValue High ByteValue Low ByteSUM

5.3 Pelco-P protocol command list

FunctionByte1Byte2Byte3Byte4Byte5Byte6Byte7Byte8
Up0xA0Address0x000x08Pan SpeedTilt Speed0xAFXOR
Down0xA0Address0x000x10Pan SpeedTilt Speed0xAFXOR
Left0xA0Address0x000x04Pan SpeedTilt Speed0xAFXOR
Right0xA0Address0x000x02Pan SpeedTilt Speed0xAFXOR
Upleft0xA0Address0x000x0CPan SpeedTilt Speed0xAFXOR
Upright0xA0Address0x000x0APan SpeedTilt Speed0xAFXOR
DownLeft0xA0Address0x000x14Pan SpeedTilt Speed0xAFXOR
DownRight0xA0Address0x000x12Pan SpeedTilt Speed0xAFXOR
Zoom In0xA0Address0x000x200x000x000xAFXOR
Zoom Out0xA0Address0x000x400x000x000xAFXOR
Focus Far0xA0Address0x010x000x000x000xAFXOR
Focus Near0xA0Address0x020x000x000x000xAFXOR
Set Preset0xA0Address0x000x030x00Preset ID0xAFXOR
Clear Preset0xA0Address0x000x050x00Preset ID0xAFXOR
Call Preset0xA0Address0x000x070x00Preset ID0xAFXOR
Query Pan Position0xA0Address0x000x510x000x000xAFXOR
Query Pan Position Response0xA0Address0x000x59Value High ByteValue Low Byte0xAFXOR
Query Tilt Position0xA0Address0x000x530x000x000xAFXOR
Query Tilt Position Response0xA0Address0x000x5BValue High ByteValue Low Byte0xAFXOR
Query Zoom Position0xA0Address0x000x550x000x000xAFXOR
Query Zoom Position Response0xA0Address0x000x5DValue High ByteValue Low Byte0xAFXOR

6. Camera Maintenance and Troubleshooting

6.1 Camera Maintenance

1) If camera is not used for long time, please turn off power adapter switch and AC plug.
2) Use soft cloth or tissue to clean the camera cover.
3) Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or corrosive cleanser or corrosive cleanser avoiding scuffing.

6.2 Troubleshooting

1) No video output

A) Check whether the camera power supply is connected, the voltage is normal, the power indicator is lit.
B) Whether the machine could do self-inspection after restarted.
C) Check whether the bottom of the DIP switch is the normal operating mode (see Table 2.2 and Table 2.3)
D) Check whether the video output cable or video display is normal

2) No image sometimes

Check whether the video output cable or video display is normal

3) Image dithering when zoom-in or zoom-out

(A) Check whether the camera installation position is solid
(B) Whether there is shaking machine or objects around the camera

4) Remote controller can not work

(A) Remote control address is set to 1 (if the machine is set back to the factory defaults, remote control

addresses need to be back to 1 too)

(B) Check whether the battery is installed on the remote controller or low.

(C) Check the camera working mode is the normal operating mode (see Table 2.2 and Table 2.3)

(D) Check the menu whether is closed, camera control through remote controller is only available after exiting the menu. If video output from LAN, menu will not be displayed, menu will automatically exists 30s later, then it can be controlled by remote controller.

5) Serial port can not work

(A) Check whether the camera serial device protocol.baud rate.address is consistent

(B) Check whether the control cable is connected properly

(C) Check whether the camera working mode is the normal operating mode (see Table 2.2 and Table 2.3)

6) Web pages can not log in

(A) Check whether the camera is showing normally.
(B) Check whether the network cable is connected properly(Ethernet port yellow light flashes to indicate normal network cable connection)
(C) Check whether your computer is added the segment and the segment is consistent with the IP address of the camera.

AVMATRIX PTZ2870 - 6) Web pages can not log in - 1

(D) Click "Start" and select "Run" and then type "cmd" in the computer; Click "OK" then turn on a DOS command window to enter ping 192.168.5.163. Press the Enter key to appear message as follows: Description network connection is normal

All the contents of this manual and the copyright ownership belong to the company. Without the approval of the Company, no one can imitate, copy, reproduce or translate arbitrarily. This manual does not have any form of warranty, express or other imply. Specifications and information of this manual mentioned is just for informational purposes, and the content will be updated at any time without notice.

Copyright can not be reproduced.

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : AVMATRIX

Model : PTZ2870

Category : Security Camera
