Product Type	12G-SDI Receiver with HDMI Output
Model	SD11-12G
Brand	AVMATRIX
Video Input	1x 12G-SDI (BNC)
Video Output	1x HDMI 2.0, 1x 12G-SDI Loop Out
Supported Resolutions	Up to 4K60 (4:4:4) via HDMI, 4K60 (4:2:2) via SDI
Audio Support	Embedded SDI/HDMI audio, up to 8 channels
Power Supply	DC 5V/2A via barrel connector
Power Consumption	5W (typical)
Dimensions (W x D x H)	102 x 65 x 24 mm
Weight	150 g (approx)
Housing Material	Aluminum alloy
Operating Temperature	0°C to 40°C
Key Function	Convert 12G-SDI to HDMI, support down-conversion
EDID Management	Built-in EDID emulation for HDMI sink
Firmware Update	Via USB-C port (dedicated tool)
Cleaning Instructions	Wipe with dry soft cloth; do not use liquids
Safety Precautions	Use only included power adapter; avoid moisture
Spare Parts & Repairability	Contact AVMATRIX support; no user-serviceable parts

Frequently Asked Questions - SD11-12G AVMATRIX

What is the maximum video resolution supported by the SD11-12G?

The SD11-12G supports up to 4K60 (3840x2160 @ 60fps) with 4:4:4 chroma subsampling via HDMI, and 4K60 with 4:2:2 via the SDI loop output.

How do I connect the SD11-12G to my monitor?

Connect a 12G-SDI source to the SDI IN port. Use an HDMI cable from the HDMI OUT port to your monitor. For cascading, connect additional SDI devices to the SDI LOOP OUT.

Does the device require external power?

Yes, it requires a DC 5V/2A power adapter (included). The barrel connector is center-positive. Do not use other adapters to avoid damage.

Can I use an HDMI to DVI adapter?

Yes, you can use a passive HDMI-to-DVI adapter for video-only connections. Note that audio will not be transmitted via DVI.

How do I update the firmware?

Download the firmware file from the AVMATRIX support page. Connect the device via USB-C to your computer while holding the update button (if present). Use the provided flashing tool.

What should I do if there is no video output?

Check all cable connections. Ensure the source is outputting a compatible resolution. If using a monitor with EDID, try power cycling the device. If still no signal, reset the device by unplugging power for 10 seconds.

Does the SD11-12G support audio embedding?

Yes, it passes through embedded SDI audio to the HDMI output. It supports up to 8 channels of LPCM or compressed audio formats.

Is the device compatible with 3D video?

The SD11-12G only handles 2D video signals. It does not support 3D frame-packing or side-by-side formats.

What is the operating temperature range?

The device is designed to operate between 0°C and 40°C. Avoid exposing it to direct sunlight or extreme heat to prevent overheating.

How do I clean the device?

Use a soft dry cloth to gently wipe the exterior. Do not use any liquids, sprays, or abrasive cleaners. Ensure the device is unplugged before cleaning.

USER MANUAL SD11-12G AVMATRIX

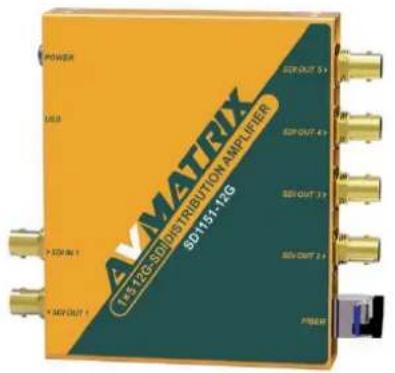

The SD1151-12G is a miniature 1x5 12G-SDI re-clocking distribution amplifier. The SD/HD/3G/6G/12G-SDI input signal is automatically detected. It features cable equalization and re-clocking techniques that enable the SDI cable distance up to SD: 400m, HD: 200m, 3G: 120m, 12G: 60m. It is also an ASI distributor amplifier that all input and outputs are compatible with ASI signal.

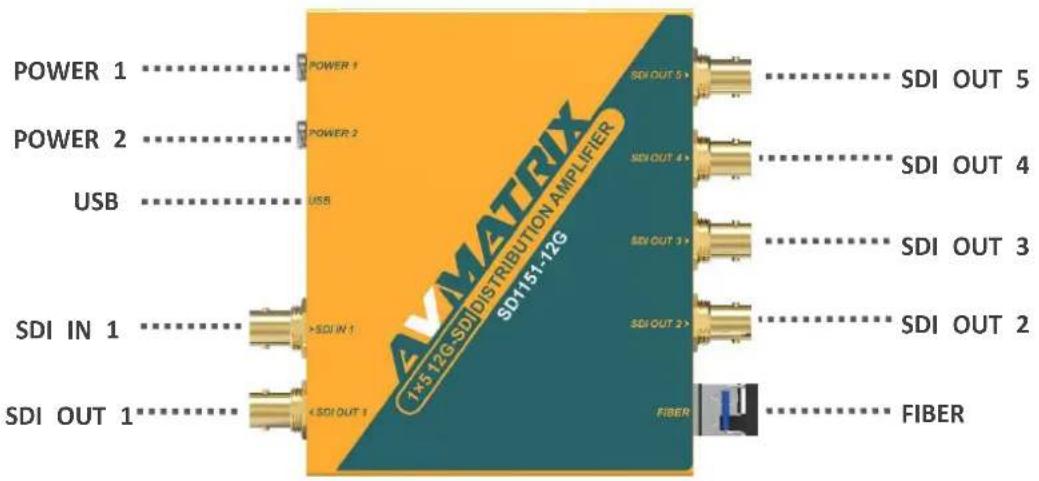

Connections

SDI Video Input

1×SD/HD/3G/6G/12G-SDI (75Ω BNC)

Power Input

Dual DC Power, USB Power

SDI Video Output

5×SD/HD/3G/6G/12G-SDI/ASI (75Ω BNC)

Updates

USB

FIBER Output

SFP Module for option, single mode, 1310nm, LC Connector

Standards

SDI Format Support

(SD) 625i 50/525i 59.94

(HD) 1280×720p 60/59.94/50 /30/29.97/25/24/23.98

(HD) 1920×1080p 30/29.97/25/24/23.98

(HD) 1920×1080PsF 30/29.97/25/24/23.98

(HD) 1920×1080i 60/59.94/50

(2K) 2048×1080p 30/29.97/25/24/23.98

(2K) 2048×1080PsF 30/29.97/25/24/23.98

(2K) 2048×1080 i 60/59.94/50

(3G) 1920×1080p 60/59.94/50

(6G) 1920×1080p/2048×1080p 47.95/48/50/59.94/60

(6G) 3840x2160p/4096x2160p 23.98/24/25/29.97/30

(12G) 3840x2160p/4096x2160p 23.98/24/25/29.97/30/47.95/48/50/59.94/60

SDI Compliance

Optical Fiber Compliance

SMPTE 297M 2006

SDI Color Space and Precision

RGB 4:4:4 10bit/12bit

YUV 4:2:2 10bit/12bit

YUV 4:4:4 10bit/12bit

XYZ 4:4:4 12bit

Power

Power Supply

Threaded locking DC connector

Micro USB

Voltage Range

DC 6-23V

USB 5-5.5V

Power Consumption

3W (Max)

Physical Specifications

Dimension

125.5×104×24.5mm

Gross Weight

1300g

Net Weight

600g

Environmental Specifications

Operating Temperature

-20^ 60^

Storage Temperature

-30°C\~70°C

Relative Humidity

0%\~90% non-condensing

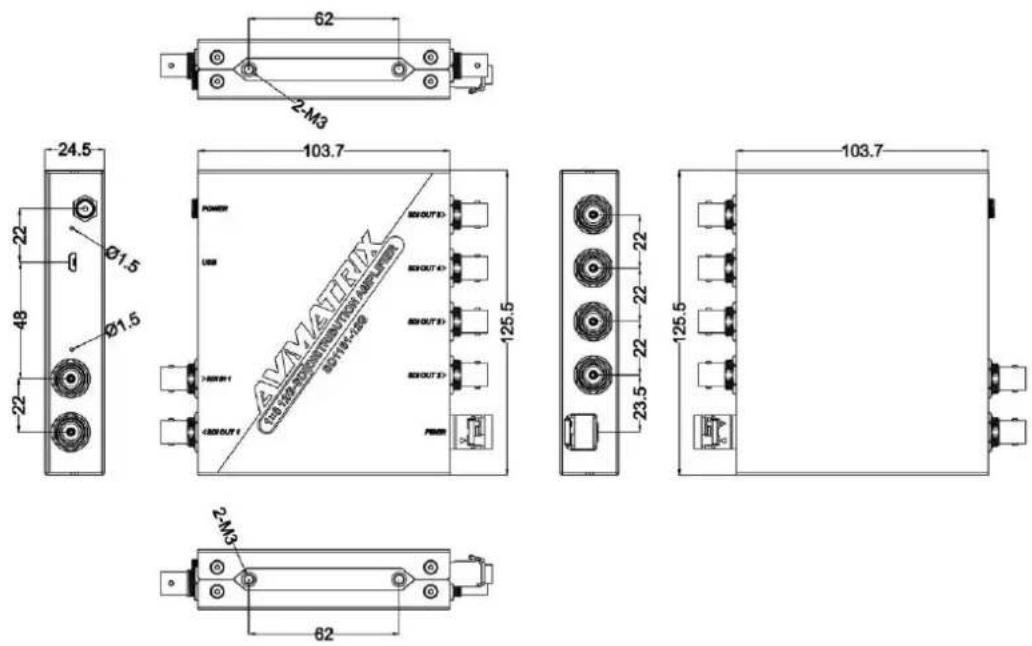

What's Included Mounting Diagram

SD1151 (1×5 12G-SDI Reclocking Distribution Amplifier)

DC 12V Universal Power Supply with International Socket Adapters

Mounting Brackets ×2

Technical line drawing of an electronic device with ports and connectors (no text or symbols)

Warranty

3 Year Limited Manufacturer's Warranty.

Note: due to constant effort to improve products and product features, specifications may change without notice.
