NC-GK1 - Food processor PANASONIC - Free user manual and instructions

Product Type	Food Processor
Brand	Panasonic
Model	NC-GK1
Dimensions (H x W x D)	250 x 200 x 200 mm
Weight	1.5 kg
Rated Voltage	220-240 V
Power Consumption	400 W
Bowl Capacity	1.0 L
Material	Plastic body, stainless steel blades
Functions	Chopping, slicing, shredding, blending
Speed Settings	Variable with pulse function
Safety Features	Safety lock, non-slip feet
Dishwasher Safe Parts	Bowl, lid, removable blades
Cord Length	1.0 m
Color	White/Black
Accessories Included	Chopping blade, slicing disc, shredding disc
Warranty	2 years
Cleaning	Removable parts, easy to clean
Noise Level	Approximately 80 dB
Package Contents	Main unit, bowl, lid, blade set, instruction manual

Frequently Asked Questions - NC-GK1 PANASONIC

What is the maximum capacity of the Panasonic NC-GK1 food processor?

The Panasonic NC-GK1 has a bowl capacity of 1.0 liter, suitable for processing moderate quantities of ingredients.

Can I wash the parts of the NC-GK1 in the dishwasher?

Yes, the bowl, lid, and removable blades are dishwasher safe. However, check the manual for specific recommendations.

What safety features does the NC-GK1 have?

It includes a safety lock that prevents operation if the lid is not properly secured, and non-slip feet for stability.

Can the NC-GK1 handle dough mixing?

The NC-GK1 is primarily designed for chopping, slicing, and shredding. For heavy dough mixing, a dedicated mixer is recommended.

What accessories come with the NC-GK1?

It includes a chopping blade, slicing disc, and shredding disc. Additional accessories may be available separately.

Is the NC-GK1 suitable for blending smoothies?

While it can blend soft ingredients, it is not a high-speed blender. For smoothies, a blender is more effective.

How do I clean the NC-GK1 food processor?

Disassemble all removable parts and wash them with warm soapy water or place them in the dishwasher. Wipe the motor base with a damp cloth. Do not immerse the base.

What is the power consumption of the NC-GK1?

It has a rated power of 400 watts, sufficient for everyday food preparation tasks.

Does the NC-GK1 have a pulse function?

Yes, it includes a pulse function for short bursts of power, allowing precise control over chopping consistency.

Where can I find replacement parts for the NC-GK1?

Replacement parts can be ordered through Panasonic authorized service centers or the official website. Use the model number NC-GK1 for accurate parts.

USER MANUAL NC-GK1 PANASONIC

Operating Instructions

使用說明書

Arahan Pengendalian

คู่มือการใช้งาน

Kettle (Household Use)

電熱水壺（家庭用）

Cerek (Kegunaan rumah tangga)

Line drawing of a Panasonic water heater with no visible text or symbols on the body

Contents Page

Safety Precautions 4

Important Information 16

Parts Names and Handling Instructions 17

How to Use 18

How to Clean 20

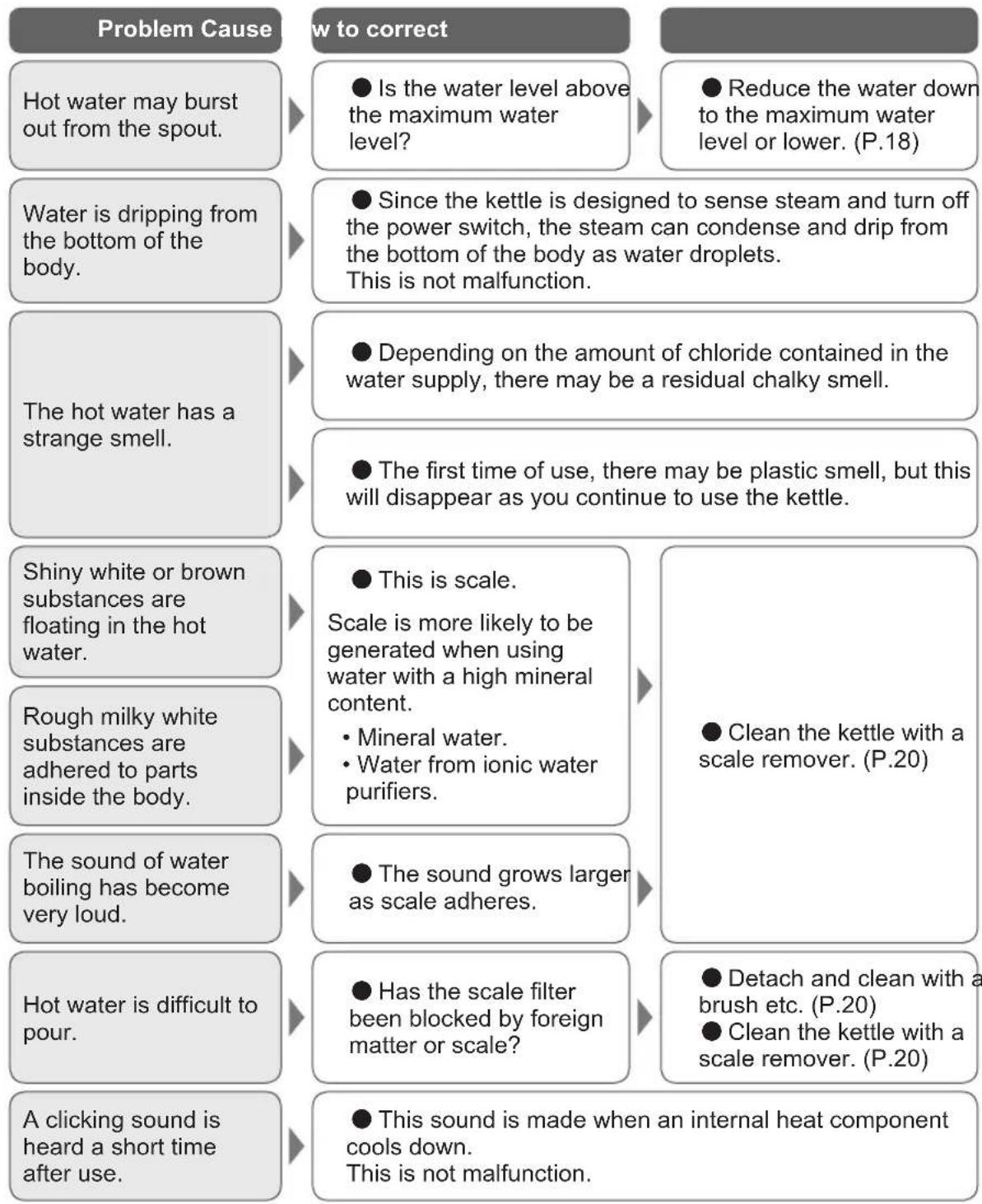

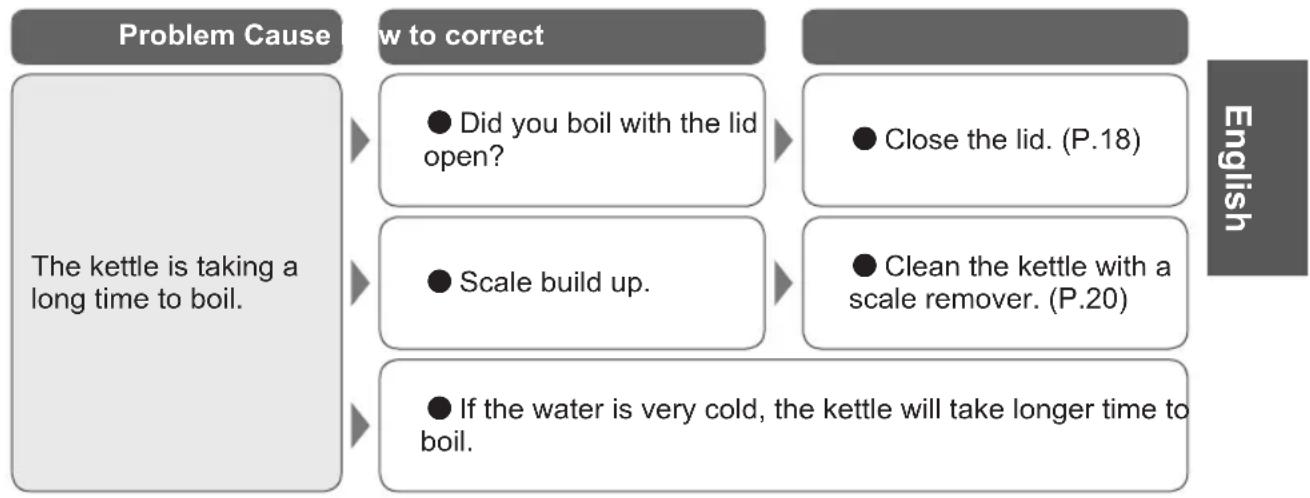

Troubleshooting 21

Specifications 23

Thank you for purchasing the Panasonic product.

• This product is intended for household use only.
- Please read these instructions carefully to use the product correctly and safely.
- Before using this product please give your special attention to “Safety Precautions” (Page 4–15).
- Please keep this Operating Instructions for future use.

目錄 頁次

安全注意事項 24

重要資訊 36

零件名稱與操作說明 37

使用方法 38

清潔方法 40

疑難排解 41

規格 43

感謝您購買 Panasonic 產品。

本產品僅供家庭使用。

Please make sure to follow these instructions.

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

■ The following charts indicate the degree of damage caused by wrong operation.

WARNING: Indicates serious injury or death.

CAUTION: Indicates risk of injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

Do not damage the power cord or power plug.

Following actions are strictly prohibited.

Modifying, touching on or

placing near heating elements,

bending, twisting, pulling, pulled over

sharp edges, putting heavy objects on top,

bundling the power cord and carrying the

appliance by the power cord.

( It may cause electric shock, or fire due to short circuit.

WARNING

- Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the outlet.

( It may cause electric shock, or fire due to short circuit.

→ If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

- Do not plug or unplug the power plug with wet hands.

(It may cause electric shock.)

• Always ensure that hands are dry before handling the power plug or switching on the appliance.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply.

(It may cause electric shock or fire.)

- Also avoid plugging other devices into the same outlet to prevent electric over heating. However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the outlet.

Safety Precautions

Please make sure to follow these instructions.

WARNING

Insert the power plug firmly.

Otherwise it may cause electric shock and fire due to heat that may be generated around the power plug.

● Clean the power plug regularly.

(Dust and moisture build-up on the power plug may cause insufficient insulation, which may cause a fire.

→ Unplug the power plug, and wipe with a dry cloth.

- Keep the power cord out of reach of children. Do not let the power cord hang over the edge of the table or worktop.

(It may cause burns, injury or electric shock.)

Do not immerse the appliance (include the power base) in water or splash it with water.

( It may cause electric shock, or fire due to short circuit.

- Do not allow the bottom of the kettle to get wet when filling directly from the tap or placing it in the sink.

WARNING

- Do not disassemble, repair or modify this appliance.

(It may cause fire, electric shock or injury.)

→ Please contact the service centre for the repair.

- Do not touch or put your face close to the spout during or after use.

(It may cause burns.)

- Especially keep the appliance out of reach of infants and children.

● Do not block the spout with a cloth etc.

( Hot water may spill out, which may cause burns. )

● Do not close the lid vigorously.

( Hot water may splash out, which may cause burns. )

- Do not fill with any substance other than water. This appliance is for boiling water only.

If you boil the appliance with tea bags, tea leaves, milk, alcohol, boil-in-the-bag products etc., bubbles may form, causing a discharge of liquid which may cause burns.

Safety Precautions

Please make sure to follow these instructions.

WARNING

● Do not shake or tip over the body.

( Hot water may pour out, it may cause burns. )

● Do not lick the power base connector.

(It may cause electric shock or injury.)

- Pay attention when infants and children are near the appliance.

- Do not allow foreign material (especially metal components such as pins and wires or dust) to adhere to the body connector or power base connector.

( It may cause electric shock, or fire due to short circuit.

● Do not use the body as a cooler.

(Do not put ice inside.)

( This generates condensation, which may cause electric shock. )

- Do not put the body on any heat source or in a microwave.

(It may cause fire.)

WARNING

● Do not open the lid while the water is boiling.

( Hot water may splash out, which may cause burns. )

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

(It may cause burns, injury or electric shock.)

●Always keep the children away from the appliance.

(It may cause burns or injury.)

• Children do not realise dangers that are likely to occur because of improper use of appliances.

Safety Precautions

Please make sure to follow these instructions.

WARNING

● If the kettle is overfilled, boiling water may be ejected.

( Hot water may boil over, which may cause burns. )

- Fill the kettle up to the maximum water level, and at least minimum position that can be seen through from the water level window.

● Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

( It may cause smoking, fire, electric shock or burns. )

e.g. for abnormal or breaking down

- The power plug and the power cord become abnormally hot.

- The power cord is damaged or the appliance power fails.

- The main body is deformed, has visible damage or is abnormally hot.

• Water leaks from the body.

• The steam continues more than 3 minutes.

- There is another abnormality or failure.

→ Please unplug the appliance immediately and contact the service centre for the check or the repair.

WARNING

- Do not allow infants and children to play with packaging material. (It may cause suffocation.)

● Make sure the lid is fully closed before turning on the appliance.

( If the appliance tips over, hot water may spill out, it may cause burns. )

- Otherwise the appliance will keep boiling until it gets empty.

●The appliance gets hot during use. When moving the body, turn off the power switch and pick up by the handle.

( Hot water may spill out from the spout, which may cause burns. • Do not tilt except when pouring.

Safety Precautions

Please make sure to follow these instructions.

CAUTION

- Do not use the appliance for any purpose other than those described in these instructions.

(It may cause burns or injury.)

- Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

- Do not touch the hot parts (Spout etc.) during or after use.

(It may cause burns.)

- Do not pour hot water or move the appliance while the water is boiling.

( Hot water may splash out, which may cause burns. )

CAUTION

● Do not use the appliance on following places.

• On uneven surfaces, on carpet or table cloths etc.
  (It may cause fire or injury.)
• Place where it may be splashed with water or near a heat source.
  ( It may cause electric shock or electrical leakage. )
• Near any open water such as bathtubs, sinks, or other containers.
  ( It may cause electric shock or electrical leakage. )
  • Near a wall or furniture.
  (It may cause discolouration or deformation.)
• Place that could be damaged even by moderate heat.
  (It may cause discolouration or deformation.)

● Make sure to hold the power plug when unplugging the power plug.

Never pull on the power cord.

( Otherwise it may cause electric shock, or) fire due to short circuit.

Safety Precautions

Please make sure to follow these instructions.

CAUTION

● Always ensure the appliance is switched off and unplug the power plug when it is not in use, before moving and before cleaning.

( Otherwise it may cause electric shock, or fire due to electrical leakage. )

● Place the appliance on a firm, dry, clean flat heatproof worktop.

(Otherwise it may cause burns or injury.)

●Beware not to be tripped over or get caught in the power cord while in use.

(Otherwise it may cause burns or injury.)

- When opening the lid, beware of steam and water drips.

(It may cause burns.)

● The temperature of accessible surfaces may be high when the appliance is operating.

(The surfaces get hot during use which may cause burns.

CAUTION

● Pour out any remaining hot water from the spout.

(Pouring out from another location may result in water splashing, it may cause malfunction or burns.

● The kettle is only to be used with the stand provided.

Do not use power source other than the dedicated power base, or use the power base with any other equipment.

(It may cause burns, malfunction or fire.)

● Unplug and allow the appliance to cool down fully before cleaning and storing away.

(It may cause burns.)

●Pay attention to the appliance when it is in use.

(It may cause fire.)

- When leaving it, turn the power switch off.

●Beware when pouring hot water. Pour slowly, and do not over-tilt the appliance.

(It may cause burns.)

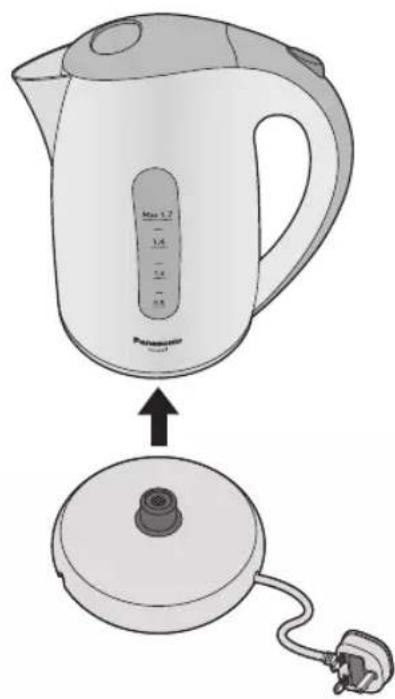

- Remove the appliance from its stand before filling or pouring.

(It may cause burns.)

Important Information

• Do not subject the body or power base to strong impacts by dropping, hitting etc.
  (It may cause malfunction or damage.)
• Do not move the body or power base by dragging. (It may scratch the table or work surface.)
• Do not turn the power switch on without water. (It may cause malfunction.)
• Do not use the appliance outdoors.
• Do not put anything on the appliance. (The power switch may be turned on.)
• Make sure the kettle is properly located on the stand and scale filter is set before switching on.
• Make sure to clean the appliance after every use.

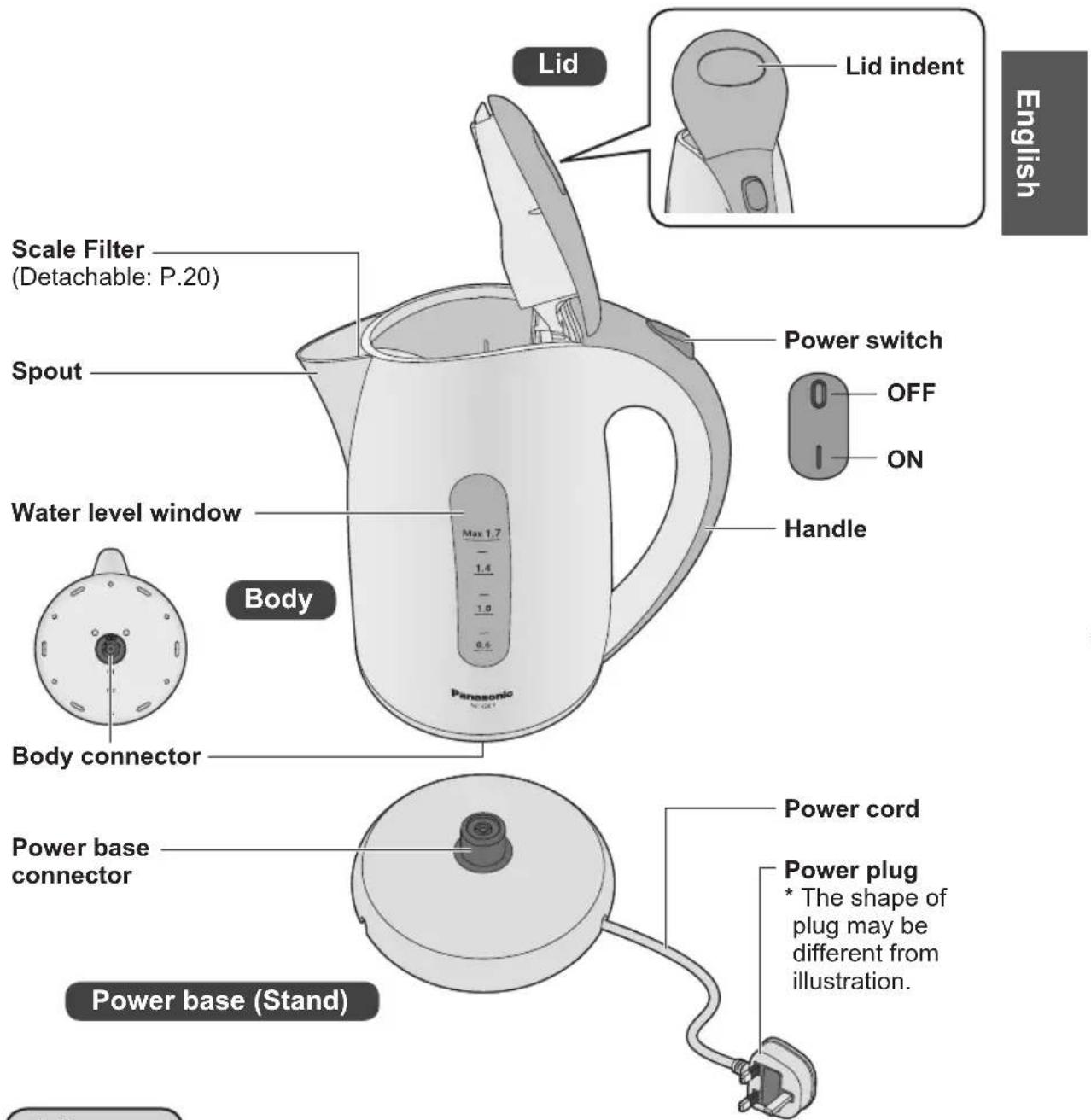

Parts Names and Handling Instructions

Before use

- Clean the appliance by following the steps below for the first time or when you have not used it for a while.

① Fill water up to the maximum water level and boil. (P.18)
② Pour the water out from the spout. (P.19 After use, pour out any remaining water.)
- Do not use a socket or extension cord.

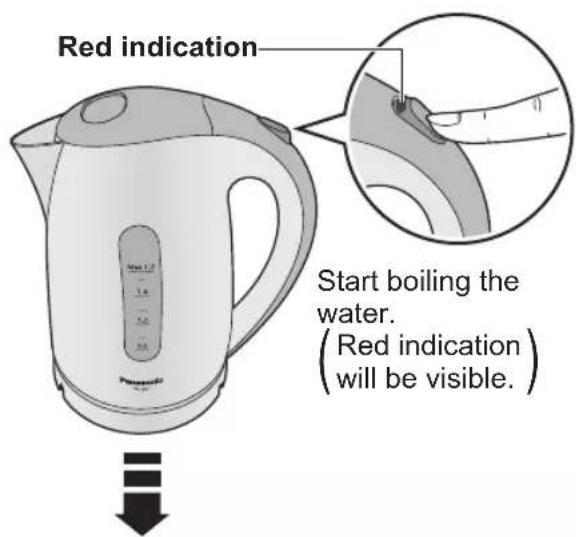

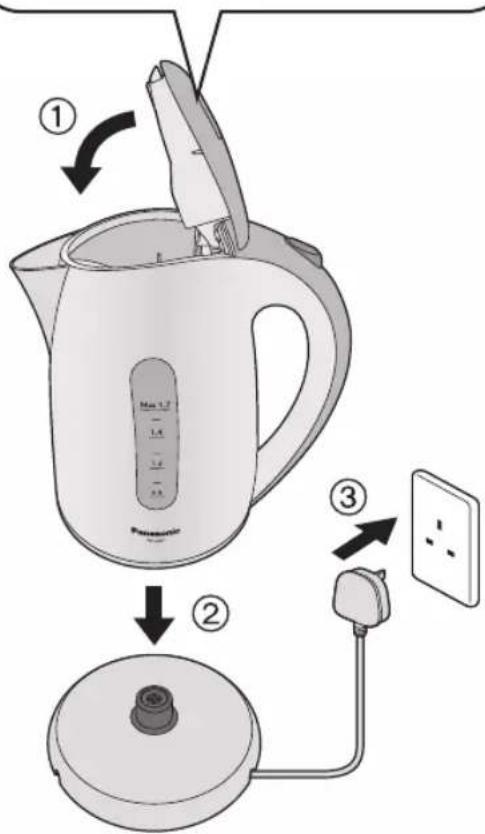

How to Use

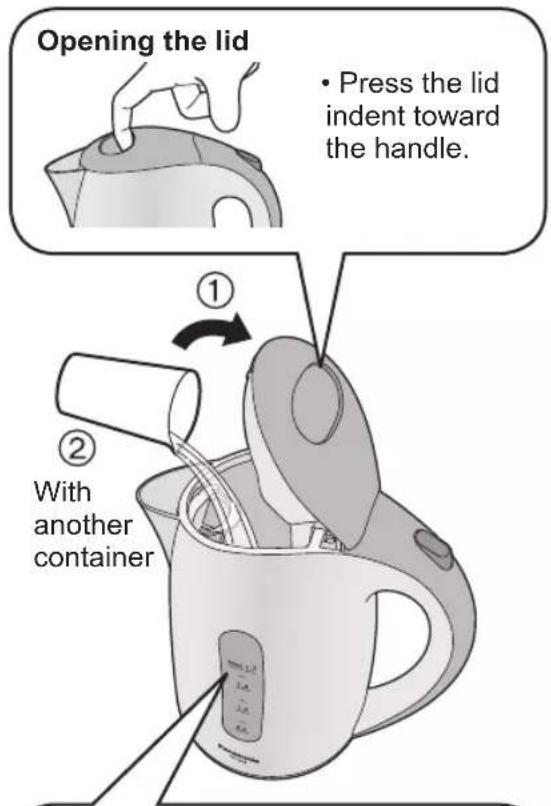

1 Open the lid and fill with water.

- Make sure the scale filter is set.

Max 1.7

Maximum water level

- Minimum water level is the position that can be seen through from the water level window.

• The kettle can also be filled with water from the spout.

(Be careful not to pour water on the body.)

2 Close the lid, put the kettle on the power base and insert the power plug.

Closing the lid

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

- Close the lid firmly as illustrated until you hear a click.

Adjusting the length of the power cord

Simple line drawing of a circular component with a connecting rod and base, no text or symbols present.

* Wind the power cord on the bottom of the power base to adjust the length.

Two identical illustrations of a lid with a handle, one open and one closed, both containing symbols: a circle and an 'X' (no text or labels present)

* Pass the power cord out through the cut out section. (Do not put the power base on the) power cord.

3 Turn on the power switch. (Press "I")

When the water has boiled, the power switch turns off automatically.

The kettle takes around 6 minutes to boil. Water temperature 23^ , room temperature 23^ , water to max level, 230V .

• To stop boiling before the water has boiled, turn off the power switch.

Note

- Immediately after the water has boiled, do not force the kettle to continue heating the water by keep pressing the power switch. (It may cause malfunction.)

4 Remove from the power base and pour.

Illustration of a Panasonic water heater with a lid and plug, showing its internal structure (no text or symbols)

■ After use, pour out any remaining water.

Line drawing of a hand holding a portable air purifier device (no text or symbols)

* Keep the lid closed when pouring away the water.

Empty-use prevention function

When the power switch is on without water, an empty-use prevention function works to automatically turn off the power in order to prevent accidents and malfunction due to overheating.

① Allow the body to cool sufficiently.
② Remove the body from the power base and fill the water.
③ Place it on the power base and turn on the power switch again.
* If you boil the kettle without water, it may smell strange.

How to Clean

■ Clean the appliance after every use.
■ Before cleaning, unplug the power plug, pour away the hot water, and cool the body.

• Do not use dish soap. (This may cause a residual odour.)
• Do not use benzine, thinner, alcohol, bleach, polishing powder, metal brush or nylon brush, otherwise the surface will be damaged.
• Do not wash in a dishwasher.

Scale Filter

Wash carefully using a brush etc.

• If the spout is blocked by scale, hot water will pour less easily.
  • After cleaning, always attach it to the body.

How to detach

- Pull the scale filter from the body.

How to attach

- Place the lower notch of the scale filter inside of the spout, and push in top part of the filter until they clicked in. (Both side)

Lower notch

Lid

Wipe with a well-wrung cloth.

Line drawing of a Panasonic water heater with lid and control panel (no text or symbols)

Body connector

Body

(Outside)

Wipe with a well-wrung cloth.

(Inside)

Rub with a soft sponge and rinse.

Scale build-up

Minerals such as calcium carbonate contained in the water build up in the kettle.

→ Please remove the scale.

① Remove it regularly using:

• scale remover Follow the instructions supplied with the scale remover.
- citric acid

Fill the kettle with water half way up and boiled it. After switch is off, put approx. 80 g of citric acid and stir it well. Let it still for approx. 30 min.

- vinegar

Fill the kettle with water up to Max level and boiled it. After switch is off, put approx. 100 mL of vinegar and stir it well. Let it still for approx. 2 hours.

② After removal, repeat the following steps a few times: fill with water, boil, pour away.

Power base

Wipe with a well-wrung cloth.

Power base connector

To store

• Dry thoroughly.
• Seal in a plastic bag to prevent insects etc. from entering.

Troubleshooting

Check the following before contacting the shop or asking for a repair.

Problem Cause

Power switch does not turn on.

w to correct

● Is the power plug plugged in?

● Insert the power plug into the outlet. (P.18)

● Is the body set correctly on the power base?

● Ensure the body is set correctly.

● Is there a piece of metal or foreign material adhered to the power base connector or body connector?

- Remove the piece of metal or foreign material. (P.20–21)

● Once the kettle has boiled, the power switch is automatically turned off and cannot be turned on for approximately 3 minutes.

Water does not boil.

● Did you try to turn on the power switch without water in the kettle?

The Empty-use prevention function will work to turn off the power switch.

● Fill with water and turn on the power switch. (P.18)

● Is the power switch turned off?

- Press “”, and turn on the power switch. (P.19)

Troubleshooting

Specifications

		NC-GK1
Power supply		220 - 240 V ~ 50 - 60 Hz
Power consumption 1850 - 2200 W
Dimensions (W × D × H) (approx.)	Body	23.3 cm × 15.8 cm × 23.6 cm
	Body + Power base	23.3 cm × 16.2 cm × 25.5 cm
Mass (approx.)	Body 0.8 kg
	Body + Power base	1.0 kg
Rated capacity 1.7 L
Length of the power cord (approx.)		0.75 m

• In certain regions (high altitude, very cold locations), it may not be possible to obtain the predetermined performance.

安全注意事項

請務必遵守這些指示。

Simple line drawing of a circular mechanical component with a connecting rod (no text or symbols)

Two identical illustrations of a device with a circular opening and a cross symbol, no text or labels present.

Illustration of a Panasonic water heater with an open lid and plug, showing its internal structure (no text or symbols)

■ 使用後，請倒出任何剩餘的開水。

Line drawing of a hand holding a portable air purifier device (no text or symbols)

* 倒水時請保持蓋子關閉。

防止空燒功能

Cross-sectional diagram of a mechanical component with no visible text or symbols

底部凹口

蓋子

以擰乾的布擦拭。

Line drawing of a Panasonic water heater with lid and control panel (no text or symbols)

壺身接頭

壶身

(外部)

以擰乾的布擦拭。

(內部)

用柔軟海綿擦洗，然後沖淨。

沉積水垢

Technical line drawing of a circular mechanical component with a central hub and attached lever (no text or symbols)

Two identical diagrams showing a circular object with a cross mark and a plus sign, no text or symbols present.

Illustration of a Panasonic water heater with a lid and plug, showing its internal structure (no text or symbols)

Line drawing of a hand holding a portable electric fan device (no text or symbols)

Line drawing of a Panasonic water heater with lid and control panel (no text or symbols)

Penyambung badan

Badan

(Di luar)

Simple line drawing of a circular mechanical component with a central cylindrical feature and two protruding points (no text or symbols)

Simple line drawing of a circular mechanical component with a connecting rod (no text or symbols)

Two identical diagrams showing a circular object with a cross mark and a plus sign, no text or symbols present.

Illustration of a power cooker with a lid and plug, showing its internal structure (no text or symbols)

Line drawing of a hand holding a portable air purifier device (no text or symbols)

Line drawing of a Panasonic water heater with lid and control panel (no text or symbols)

ขั้วต่อของตัวกา

ตัวกา

(ด้านนอก)

ใช้ผ้านุ่มๆ เซ็ด

(ด้านใน)

Line drawing of a Panasonic water heater with a digital display (no text or symbols on the device itself)

↑

Simple line drawing of a circular device with a central hub and connected plug (no text or symbols)

Line drawing of a hand holding a portable air purifier device (no text or symbols visible)

Line drawing of a Panasonic water heater with no text or symbols on the body

Close-up of a hand pressing down on a curved mechanical component (no text or symbols visible)

جوشاندن آب را شروع

کنید.

۱۶۰۲۹۴ قر مز رنگ

Two identical diagrams showing a circular object with a central hole and a cross symbol, no text or labels present.

Simple line drawing of a circular mechanical component with a connecting rod (no text or symbols)

نحوه تميزکردن

Cross-sectional diagram of a mechanical component with no visible text or symbols

شکاف پایین

نحوه وصل کردن

Line drawing of a Panasonic water heater with lid and control panel (no text or symbols)

رابط بدنه

بدنه

(داخل)

    subgraph_A["العربية diplomatic meeting"]
        E["العربية diplomatic meeting"]
        F["العربية diplomatic meeting"]
        G["العربية diplomatic meeting"]
        H["العربية diplomatic meeting"]
        I["العربية diplomatic meeting"]
        J["العربية diplomatic meeting"]

    end

    subgraph_B["العربية diplomatic meeting"]
        K["العربية diplomatic meeting"]
        L["العربية diplomatic meeting"]
        M["العربية diplomatic meeting"]
        N["العربية diplomatic meeting"]

        O["العربية diplomatic meeting"]

    end

    subgraph_C["العربية diplomatic meeting"]
        P["العربية diplomatic meeting"]
        Q["العربية diplomatic meeting"]
        R["العربية diplomatic meeting"]

        S["العربية diplomatic meeting"]

        T["العربية diplomatic meeting"]

        U["العربية diplomatic meeting"]

        V["العربية diplomatic meeting"]

        W["العربية diplomatic meeting"]

        X["العربية diplomatic meeting"]

        Y["العربية diplomatic meeting"]

        Z["العربية diplomatic meeting"]

        AA["العربية diplomatic meeting"]

        AB["العربية diplomatic meeting"]

        AC["العربية diplomatic meeting"]

        AD["العربية diplomatic meeting"]

        AE["العربية diplomatic meeting"]

        AF["العربية diplomatic meeting"]

        AG["العربية diplomatic meeting"]

        AH["العربية diplomatic meeting"]

        AI["العربية diplomatic meeting"]

        AJ["العربية diplomatic meeting"]

        AK["العربية diplomatic meeting"]

        AL["العربية diplomatic meeting"]

        AM["العربية diplomatic meeting"]

        AN["العربية diplomatic meeting"]

        AO["العربية diplomatic meeting"]

        AP["العربية diplomatic meeting"]

        AQ["العربية diplomatic meeting"]

        AR["العربية diplomatic meeting"]

        AS["العربية diplomatic meeting"]

        AT["العربية diplomatic meeting"]

        AU["العربية diplomatic meeting"]

        AV["العربية diplomatic meeting"]

        AW["العربية diplomatic meeting"]

        AX["العربية diplomatic meeting"]

        AY["العربية diplomatic meeting"]

        AZ["العربية diplomatic meeting"]

        BA["العربية diplomatic meeting"]

        BB["العربية diplomatic meeting"]

        BC["العربية diplomatic meeting"]

        BD["العربية diplomatic meeting"]

        BE["العربية diplomatic meeting"]

        BF["العربية diplomatic meeting"]

        BG["العربية diplomatic meeting"]

        BH["العربية diplomatic meeting"]

        BI["العربية diplomatic meeting"]

        BJ["العربية diplomatic meeting"]

        BK["العربية diplomatic meeting"]

        BL["العربية diplomatic meeting"]

        BM["العربية diplomatic meeting"]

        BN["العربية diplomatic meeting"]

        BO["العربية diplomatic meeting"]

        BP["العربية diplomatic meeting"]

        BQ["العربية diplomatic meeting"]

        BR["العربية diplomatic meeting"]

        BS["العربية diplomatic meeting"]

        BT["العربية diplomatic meeting"]

        BU["العربية diplomatic meeting"]

        BV["العربية diplomatic meeting"]

        BW["العربية diplomatic meeting"]

        BX["العربية diplomatic meeting"]

        BY["العربية diplomatic meeting"]

        BZ["العربية diplomatic meeting"]

        CA["العربية diplomatic meeting"]

        CB["العربية diplomatic meeting"]

        CC["العربية diplomatic meeting"]

        CD["العربية diplomatic meeting"]

        CE["العربية diplomatic meeting"]

        CF["العربية diplomatic meeting"]

        GD["العربية diplomatic meeting"]

        DH["العربية diplomatic meeting"]

        DI["العربية diplomatic meeting"]

        DJ["العربية diplomatic meeting"]

        DK["العربية diplomatic meeting"]

        DL["العربية diplomatic meeting"]

        DN["العربية diplomatic meeting"]

        DOA["العربية diplomatic meeting"]

        DQ["الغ riverside military department"]
    end

    subgraph B
    E
    F
    G
    H
    I
    J
    K
    L
    M
    N
    O
    P
    Q
    R
    S
    T
    U
    V
    W
    X
    Y
    Z
    AA
    AB
    AC
    AD
    AE
    AF
    BQ
    CQ
    DQ
    EQ
    FQ
    GQ
    HQ
    IQ
    JQ
    KQ
    LQ
    MQ
    NQ
    OQ
    PQ
    Q
    RQ
    SQ
    TQ
    UQ
    VQ
    WQ
    XQ
    YQ
    ZQ
    AA
    AB
    AC
    AD
    AE
    AF
    BQ
    CQ
    DQ
    EQ
    FQ
    GQ
    HQ
    IQ
    JQ
    KQ
    LQ
    MQ
    NQ
    OQ
    PQ
    Q
    RQ
    SQ
    TQ
    UQ
    ZQ
    AA
    AB
    AC
    AD
    AE
    FQ
    GQ
    HQ
    IQ
    JQ
    KQ
    LQ
    MQ
    NQ
    OQ
    PQ
    Q
    RQ
    SQ
    TQ
    UQ
    ZQ
    AA
    AB
    AC
   AD
    AE
    AF
    BQ
    CQ
   DQ

Line drawing of a white kettle with a power cord and attached plug (no text or symbols)

سلك التيار الرئيسي

القياس الرئيسي

Illustration of a Panasonic water heater with its lid and plug, showing internal components (no text or symbols)

Illustration of a hand holding a portable air purifier device (no text or symbols visible)

Two identical diagrams showing a lid with a circular opening and a cross symbol, no text or labels present.

* قم ب tmر ير س ل ك ال ت ي ا ر ا ل ر ن ي س ي ع ب ر ا ل ج ز ء ا ل م ش ق و ق. (لا ت ض ع ق ا ع د ة ا ل ط ا ق ة ع ل ى س ل ك ال ت ي ا ر ا ل ر ن ي س ي.

Simple line drawing of a circular component with a connecting rod and base, no text or symbols present.

طريقة التنظيف

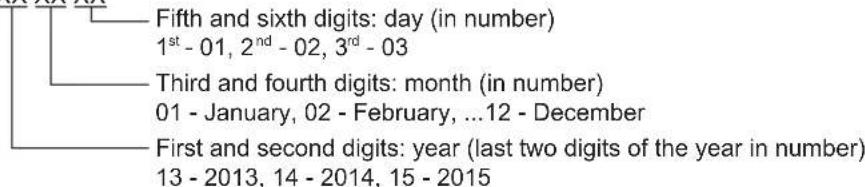

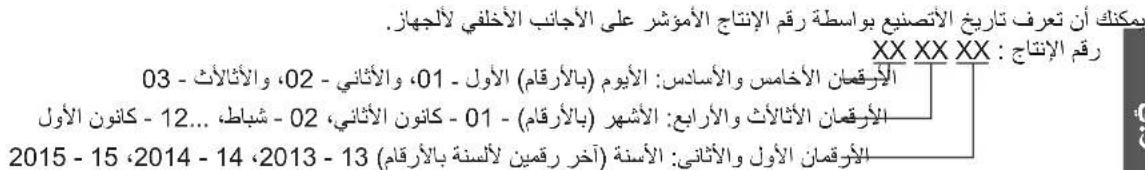

You can identify the date of manufacturing by production number which is marked on back side of the unit. Production number: XX XX XX

In case of failure or damage

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
