Product Type	Food Processor with Juicer Attachment (MK-5086M only)
Model Number	MK-5086M / MK-5076M
Power Supply	220-240 V, 50/60 Hz
Power Consumption	210-230 W
Motor Speed	2,200 r.p.m.
Operating Time	Continuous (2 min ON / 4 min OFF)
Switch Controls	OFF (RESET) / ON / PULSE
Bowl Capacity	400 g (solid) / 800 ml (liquid)
Dimensions (H x W x D)	Approx. 340 x 203 x 324 mm
Weight	Approx. 3.4 kg
Included Blades	Knife blade, Slicing blade, Shredding blade, French fry blade, Whipping blade
Juicer Attachment	Included with MK-5086M only
Safety Features	Micro switch protection, Circuit breaker protection, Automatic shut-off if overloaded
Cleaning Instructions	Bowl and cover washable; knife blade wash in running water; motor housing wipe with damp cloth. Do not immerse motor housing.
Recommended Use	Household use only. Do not process hot ingredients (above 60°C) or hard/sticky foods.

Frequently Asked Questions - MK-5086 PANASONIC

What is the maximum operating time for the food processor?

The unit is designed for continuous use with a cycle of 2 minutes ON followed by at least 4 minutes OFF to prevent overheating. Do not exceed this duty cycle.

Can I use the food processor to crush ice?

No, do not operate the unit after placing ice cubes in the bowl. The blades are not designed for ice crushing and may damage the motor or blades.

How do I attach the juicer attachment (MK-5086M)?

Match the ▼ mark on the strainer with the ▲ mark on the handle, then turn the cover counterclockwise until a click is heard. Fit the cone onto the drive shaft. Cut fruit in half before juicing.

What should I do if the circuit breaker trips?

Switch off the unit and unplug it. Reduce the ingredients to less than half the bowl capacity. Plug in and resume operation. If it trips again, repeat the steps or check for jams.

Can I process hot ingredients?

No, do not process ingredients above 60°C (hot foods) as they may damage the bowl and motor. Allow foods to cool before processing.

How do I clean the knife blade safely?

Hold the knife blade by its knob (the plastic part) to avoid cuts. Wash it under running water using a brush. Do not use a nylon brush or abrasive powder. Handle carefully.

What accessories are included with the MK-5086M?

The MK-5086M includes a knife blade, slicing blade, shredding blade, French fry blade, whipping blade, and a juicer attachment (cone and strainer). The MK-5076M excludes the juicer attachment.

Why doesn't the unit turn on?

The unit has a micro switch safety feature. Ensure the cover or strainer is properly closed and turned counterclockwise until a click is heard. If it still doesn't work, check the power cord and reset the circuit breaker if needed.

Can I use the shredding blade for cheese?

Yes, for cheese cut into 1-inch cubes, use the shredding blade with the PULSE switch. Maximum cheese quantity is 200 g and processing time is 5-10 seconds. Do not overprocess.

How do I disassemble the unit for cleaning?

Turn the cover clockwise to remove it. Lift the knife blade carefully by its knob. Turn the bowl clockwise and lift it off the motor housing. Wash all removable parts except the motor housing. Wipe the motor housing with a damp cloth.

USER MANUAL MK-5086 PANASONIC

Operating Instructions

使用說明書

Food Processor

食物攪拌機

أداة معاجلة الأطعمة

دفرچه راهنما

MK-5086M/MK-5076M

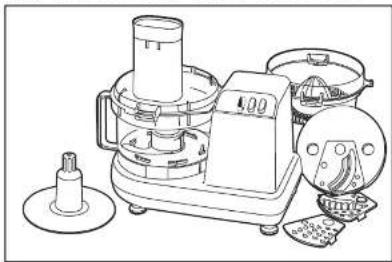

Line drawing of a kitchen appliance with a side panel and accessories (no text or symbols)

Thank you for purchasing the Food Processor, MK-5086M/5076M. Please read these instructions carefully before using this product and keep this manual for future reference. This product is intended for household use only.

Safety Precautions	2

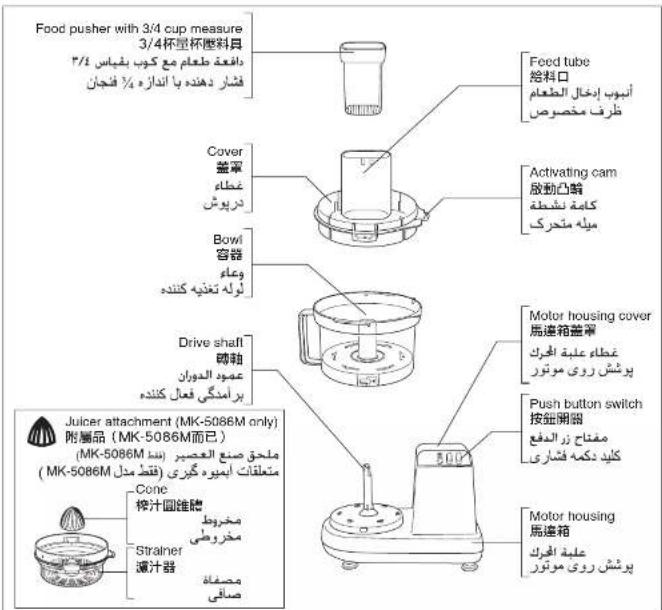

Parts Identification	6
Preparations for Ingredients	7-9
How to Use	10 - 15
How to Disassemble	16
How to Clean	17
Micro Switch Protection	18
Circuit Breaker Protection	18
Specifications	19

Illustration of a hand pouring liquid into a blender with a digital kitchen scale (no text or symbols)

1

Mount the bowl, install the whipping blade.

将容器安置就位後，装入攪拌刀片

Line drawing of a hand pouring liquid into a mixing bowl using a kitchen stand mixer (no text or symbols)

2

Put the egg white or cream into the bowl. See "Preparation for Ingredients" on P.9.

Line drawing of a hand holding a camera lens over a container filled with food items (no text or symbols)

3

Plug-in, close the cover and switch on.

Whip the ingredients to required texture.

Illustration of a hand pressing down on a kitchen appliance with a digital scale (no text or symbols)

4

When processing is completed, switch off and unplug.

Remove the cover and take out the whipping blade.

Using the Juicer attachment (MK-5086M only)

如何使用附层品（MK-5086M而已）

1

Match the ▼ mark on the strainer with the ▲ mark on the handle. Turn the cover counterclockwise completely (until 'click' sound is heard).

Fit the cone onto the drive shaft. Cut fruit into two halves.

套榨汁圓錐體於軸軸之上，切水果為兩半。

2

Illustration of a hand using a steaming machine to press or heat over a dish (no text or symbols visible)

3

Plug-in and switch on. Place the fruit with the cup side on top of the cone and press down firmly for juicing action.

- Do not touch the rotating cone directly with your hand.

·切勿用手直接触碰高速旋转的圆锥体

When squeezing is completed, switch off and unplug. Take off strainer with cone together.

How to Disassemble How to Clean

كيفية التفكيك

نحوه پاز کردن

Line drawing of hands using a portable device to press or install a machine (no text or symbols visible)

1

Turn the cover clockwise to remove it. 順時針旋轉蓋罩，取去之。

Line drawing of a hand using a tool to press or install a small object on a 800-unit machine (no text or symbols present)

2

Lift the knife blade to remove it. 向上提起刀片，取去之。

Line drawing of a hand using a portable saucer with an upward arrow indicating motion (no text or symbols)

3

Turn the bowl clockwise and lift. 顺時針旋轉容器，上提取去之。

Make sure that the cover or strainer is closed properly (refer to the figure on the left bottom) and completely (until 'click' sound is heard).

Wash the bowl and the cover, wipe and dry them. 清洗容器及其盖罩，然後用軟布拭乾之。

- Do not use nylon brush or polishing powder,

·切勿用尼龍剛或研磨粉。

Wash the knife blade in running water, and clean carefully with a brush. 刀片用自來水沖洗，並用刷子將其刷洗乾淨。

• The knife blade should be handled carefully.

- Do not hit the knife blade against hard objects.

·须格外加以小心握著刀片

·切勿將刀片磅球堅硬之物

Wipe the motor housing off with a damp cloth. 用潮濕軟布擦將馬達箱擦拭乾淨。

- Do not wash the motor housing in water.

- Do not use thinner, benzene, metallic brush or polishing powder

·清洗時，切勿將馬達箱浸入水中

Micro Switch Protection Specifications

مفتاح صغير للHMAYA

This unit is equipped with mirco switch protection.

This unit will not function if the cover or strainer is not completely closed.

Please make sure that the cover or strainer is completely closed before operating the unit.

此型足置有微開關保護器。

This unit is equipped with circuit breaker protection.

此型是管有電路自動斷路器。

When circuit breaker automatically stops the motor due to overloading, switch off to reset.

Reduce the ingredients to less than half.

將容器中的材料量減半以下。

Resume operation. If circuit breaker still activates, repeat step 1 \~ 3.

Power supply	220 - 240 V 50Hz / 60Hz
Power consumption	210 - 230W
Operating time	Continuous (Repetition of 2 minutes ON and 4 minutes OFF)
Motor speed	2,200 r.p.m.
Switch	OFF (RESET) / ON / PULSE
Capacity	400g (solid) 800mv (liquid)
Dimensions (H X W X D)	Approx. 340mm X 203mm X 324mm
Weight	Approx. 3.4kg
Accessories	Silcing blade / Shredding blade / French fry blade /Knife blade / Whipping blade / Juicer attachment (MK-5086M only)

Preparations for Ingredients Preparations for Ingredients

材料準備 材料準備

請ضير المكونات

The knife blade is used for chopping, mixing and blending. Always put the knife blade in place in the bowl before adding any ingredients.

Cut into 1 inch cubes.

加工前先切其為1吋大小方塊。

Remove skin and bones, cut into 1 inch cubes.

Slice of Bread 300 g (Max.) 30 sec.

面包片 300 克（最大容量） 30秒

Slice soft bread into 6 to 8 pcs.

加工前先切软面包片為1吋大小方塊。

Onion 400 g (Max.) Use "PULSE" switch several times.

Cut into 1 inch cubes.

加工前先切其為1吋大小方塊。

7 minutes. Remove shell.

7分 加工前先去花生外殼及薄皮。

V دقانق أزل القشر.

يوست آنرا جدا كنید.

Process just until dough ball forms.

按下開關，直至容器內生麵圈形成禁止。

Fruit, Boiled vegetable 800mV (Max.)

Cheese 200 g (Max.) 5 - 10 sec.

Cut into 1 inch cubes. Tum the switch on before putting the ingredients in the bowl. Then put the ingredients one by one through the feed tube, holding the cover with your hand during operation.

Do not operate after putting ice cubes in the bowl. Turn the switch on

before putting the ingredients in the bowl. Then put the ingredients one by

one through the feed tube, holding the cover with your hand during operation. 切勿在放入冰桶後吹動加工器。材料放入容器之前请先吹動圈圈。

The whipping blade is used for whipping cream, egg white or icing sugar. Process just until smooth. Stop and watch the situation while processing. Do not over process. Use a fresh cream of a high milk fat content (40-50%) after cooling it down below 5°C. It will not froth well if the milk fat content is lower.

Egg white 6pcs (Max.) 2pcs. (Min.) 25 - 60 sec.

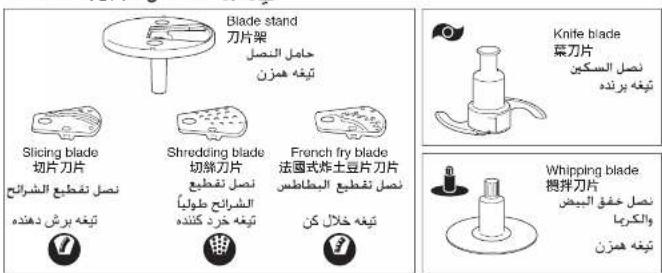

Using the Slicing, Shredding, French fry blade

Illustration of hands assembling a mechanical component with a magnified inset showing internal detail (no text or symbols)

1

Fit the projected detent of the blade onto the blade stand and fit it properly.

將刀片鎖銷對準刀片架鎖銷位置。

ضعي المساكه البارزة لل Puzzle في حامل النصل وشنبها يشكال صحيم. گیره تيغ را بر روی پایه تيغه قرار داء و آنرا بطور مناسب ثابت نمایید.

2

Press down the side of the blade marked "PUSH". When removing the blade from the blade stand, reverse these instructions. 按刀片上示有 "PUSH"（按摩）的一面，座入刀片於刀片架，從刀片架取出刀片時，按其相反步驟進行。

Fit the blade stand (with the blade) onto the drive shaft. 将刀片架（与刀片）插入椭轴。

4

Match the ▼ mark on the cover with the ▲ mark on the handle, and turn the cover counterclockwise properly (not slanting or tilting) and completely (until 'click' sound is heard). 把在盖罩上的▼模志封准于在把柄上的▲模志，然后把盖罩完全地逆时塞地勒（不倾斜或不振動，直到“略曝”聲）。

Line drawing of a hand using a blender to press or adjust a mixture (no text or symbols)

5

Plug-in and put the ingredients into the feed tube. See "Preparations for Ingredients" on P.7.

插入電源插頭，然後加材料於給料口。

請參閱“材料準備”第7頁。

Line drawing of a hand pressing a button on a kitchen appliance (no text or symbols)

6

Switch on by pushing "PULSE" switch.

Press down with the food pusher at the same time. 按下PULSE（惠沖）按钮，與此同時，適量壓下壓料具。

Illustration of a hand using a digital kitchen tool to press food into a digital kitchen machine (no text or symbols visible)

7

When processing is completed, switch off and unplug. Take off the cover and then remove the blade stand with the blade.

- When the ingredients are thin, put them into the right side of the feed tube.

- When shredding, insert 2½-inch (7cm) pieces food horizontally into the feed tube.

Match the ▼ mark on the bowl with projected detent on the motor housing, and turn the bowl counterclockwise. 將容器上▼標記與馬達箱罩上的鎖銷對音，沿轉軸套入容器。沿逆時針旋緊之。

Line drawing of a kitchen appliance with food being processed (no text or symbols)

2

Fit the knife blade, then put the ingredients into the bowl. See "Preparations for Ingredients" on P.8 - P.9. 裝好菜刀片後，將材料放入容器。參閱“材料準備”第8-9頁）加料。

3

Match the ▼ mark on the cover with the ▲ mark on the handle. Turn the cover counterclockwise completely (until 'click' sound is heard).

Line drawing of a hand inserting food into a jar with a pen (no text or symbols)

4

Plug in and switch on.

插入電源抽頭，按下ON按钮。

Line drawing of a hand inserting a pencil into a container with food inside (no text or symbols)

5

When processing is completed, switch off and unplug.

Take off the cover and remove the knife blade.

Remove the bowl and take out the ingredients.

提出容器，取出加工好的食物

- Do not put hot ingredients (ove

- If the cover is not closed completely (until 'click so

• Before removing the cover, make sure the knife blades have completely stopped

- If the knife blade becomes clogged with ingredients, switch off the unit, and unplug the power cord. Then

remove the ingredients. Clear the clogged ingredients and resume cutting.

• The motor housing may sometimes vibrate. Hold the motor housing with hand during operation.

· 葬刀片用於攪切食品材料為碎粒加工。

- 切勿用其攪切温度超過60℃的材料。

Always follow these precautions.

安全注意事項（請務必遵守！）

1

2

3

4

9

10 1211

Dried food and hard meat or meat with bones 乾肉塊和硬肉塊或帶着骨頭的肉塊

1. Always make sure the switch is off before plugging in. (May cause injury.)

2. Never do anything that may cause damage to the plug or power cord.

(May cause electric shock, short circuit, or fire.)

1. Never remove or install the plug with wet hand. Always insert the plug properly into the socket.

(May cause electric shock.)

1. Always unplug the unit when it is not in use. When unplugging the plug, switch off and always hold the plug.

not the power cord. (May cause electric shock, injury or fire from the deterioration of insulation.)

1. Periodically clean the plug. (May cause a fire from the improper insulation.)

2. The knife blade has a sharp edge. Hold its knob when handling it. Keep the unit out of reach of children

(May cut finger or cause other injury.)

(Will cut finger or cause other injury.)

1. Do not operate the unit with excessive load. See "Preparations for Ingredients" on P.7 - P.9.

(May cause damage to the unit.)

1. Do not operate the unit for an extended period of time.

Recommended to rest the unit for at least 4 minutes after 2 minutes processing. (May cause damage to the unit.)

1. Do not immerse the unit in water or splash water over it. (May cause electric shock.)

2. Do not expose the unit to excessive moisture, temperature, or direct sunlight.

3. Do not expose the unit to excessive moisture, temperature, or direct sunlight. (Any group damage to the unit from the deforestation of fungus.)

(May cause damage to the unit from the deformation of fungus.)

1. Do not process hard foods or sticky foods. (May cause damage to the unit.)

2. Never open the cover or remove the juicer attachment when the motor is operating. (May cause injury.)

13 Do not place anything (such as fingers, spoons, forks, etc.) into the bowl

1. Do not place anything (such as fingers, may cause injury and damage in the unit)

(May cause injury and damage to the unit.)

1. Do not operate the unit near bath tubes, water sources, flammable or burning item.

(May cause fire or explosion.)

1. Do not install the cover or strainer in slanting or tilting condition. Always close it completely (turn until

'click' sound is heard). If the cover is not closed completely, the switch will not work.

1. Before using this appliance, make sure the voltage and frequency indicated on the name-plate are the same as

your local supply

1. Do not replace any parts of the unit with the spare parts other than Panasonic genuine parts.

2. Never attempt to disassemble, repair or remodel the unit by yourself. Please contact an authorized dealer or

3. Never attempt to disassemble, repair or remcise the drill by yourself. Please contact an authorized dealer of specialist

specialist.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified

person in order to avoid a hazard

1. This appliance is not intended for use by person (including children) with reduced physical, sensory or mental

opphibilitis or lack of experience and knowledge unless they have been given supervision or instruction.

capabilities of lack of experience and knowledge unless they have been given supervision of instruction

concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

1. Switch off the appliance and disconnect from the power supply source before changing or approaching parts that

move in use.

1. Care shall be taken when handling the sharp cutting blade, emptying the bowl and during cleaning.

5

6

7

8

13

14 15

The image contains a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. Therefore, the corrected OCR text is:

[Empty String]

Parts Identification

零件名稱

العريف بالأجزا.

معرفي قستها

Blades / 刀片 / النصل

Preparations for Ingredients

材料準備

تحضير المكونات

Slicing and shredding blades are used for slicing and shredding vegetables, fruits and other foods. Use "PULSE" button. Turn the switch on. At the same time press down the food with moderate force. Put in foods horizontally when using the shredding blade. French try blade cuts potatoes into small long squares for french fries. Always use with the blade stand.
