Product Type	Switched Socket Outlet (13 A)
Brand	Hager
Model	WGCXS113SNB
Series Compatibility	Hager Muse, Hager Inspire
Standards	BS 1363-2, SS 145
Rated Voltage	250 V~ 50/60 Hz
Rated Current	13 A
Conductor Cross-section (Screw Terminals)	1 x 1.5 mm² to 2 x 4 mm²
Fixing Hole Distance (Single Socket)	60.3 mm
Recommended Wall Box Depth	≥ 35 mm
Installation Type	Flush-mounted
Indoor Use Only	Yes (no drip or spray water)
Switch	Yes (switched socket)
Connection Type	Screw terminals
Strip Length	10–12 mm
Safety	Electric shock hazard; disconnect power before installation
Professional Installation Required	Yes, by a qualified electrician
Cleaning	Use a dry cloth

Frequently Asked Questions - WGCXS113SNB HAGER

How do I install the Hager WGCXS113SNB socket?

Installation must be carried out by a qualified electrician. First, disconnect the power. Strip the cables 10–12 mm, connect to screw terminals according to the diagram (2A or 2B), fix the socket into a wall box (depth ≥ 35 mm), attach the frame and cover plate, and remove the dust protection sticker.

What is the maximum current rating?

The socket is rated for 13 A at 250 V~.

Can I use this socket outdoors?

No, it is only suitable for indoor areas with no drip or spray water.

How do I remove the frame for installation?

For Hager Muse, carefully loosen the frame at the notches using a flat-blade screwdriver and lift it off. For Hager Inspire, also remove the cover plate with the screwdriver.

What cable cross-sections can be used?

The screw terminals accept a minimum of 1 x 1.5 mm² and a maximum of 2 x 4 mm².

Is the socket compatible with BS 1363-1 plugs?

Yes, the socket is designed for BS 1363-1 plugs.

What is the difference between Hager Muse and Hager Inspire series?

The main difference is the cover design. Muse uses a snap-on frame, while Inspire has a separate cover plate secured by the frame. Installation steps differ slightly.

How should I clean the socket?

Clean with a dry cloth. Do not use water or cleaning agents to avoid damage.

Can I install the socket without a wall box?

No, the socket is designed for flush-mounted installation into a commercial wall box with a recommended depth of at least 35 mm.

What safety precautions should I take?

Always disconnect the power before working. Installation must be performed by a qualified electrician according to local regulations to prevent electric shock or fire.

USER MANUAL WGCXS113SNB HAGER

13A switched sockets Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

BS switched sockets for electrical installations in buildings. The socket outlets are compatible with BS 1363-1 plugs.

Correct use

• For the flush-mounted installation in commercial wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Rated current: 13 A

Conductor cross-section of screw terminals: min. 1 x 1.5 mm ² ... max. 2 x 4 mm ²

Distance of fixing holes (single socket): 60.3 mm

Distance of fixing holes (twin socket): 120.6 mm

Socket compliance: BS 1363-2 and SS 145

Information for electricians

Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

The device is delivered with a transparent dust protection sticker. This sticker must remain on the device during the time of installation.

1A
Hager Muse

Hager Muse: Carefully loosen the frame on the notches with a flat-blade screw-driver. Lift up and remove the frame (1A).

Hager Inspire: Carefully loosen the frame on the notches with a flat-blade screw-driver. Lift up and remove the frame (1B).
■ Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).

Connecting the device

• Strip connection cables approx. 10 ... 12 mm.

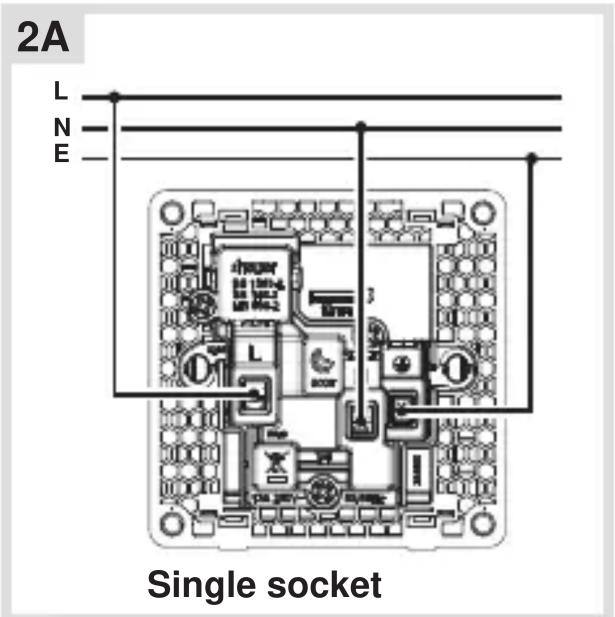

  ■ Wire the device according to the appropriate connection diagram (2A or 2B).

Installing the device into the wall box

■ After wiring, fix the device with the two screws attached into the wall box (3A or 3B).

Assembling the covers

(for example "13A single switched socket")

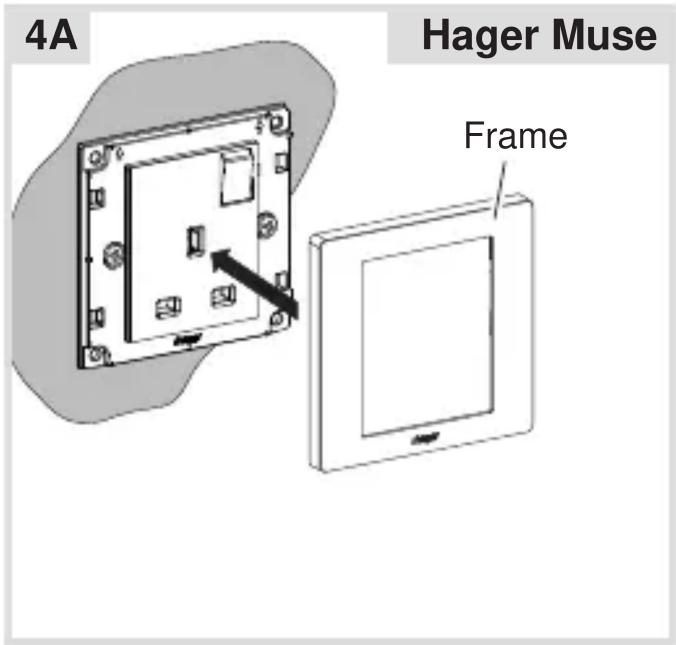

■ Hager Muse: Snap the frame onto the device (4A).
Hager Inspire: Place the cover plate in the correct position and fix with frame (4B).
■ Remove the dust protection sticker.
