Product Type	Mist Fan with Remote Control
Brand	DCG
Model	VE1455TT
Power Supply	220-240V~ 50Hz
Power Consumption	100W
Blade Diameter	400 mm
Water Tank Capacity	4000 ml
Maximum Mist Output	200 ml/hr
Fan Speeds	3 (Low, Medium, High)
Wind Modes	Normal, Natural Breeze, Sleep
Oscillation	Yes (Swing Function)
Timer	Up to 15 hours
Ionizer	Yes
Remote Control	Included
Wheels	4 castors for easy mobility
Assembly Required	Yes (instructions provided)
Use Location	Indoor household only
Water Tank Cleaning Frequency	Every 2-3 weeks
Flume Cleaning Frequency	Every week
Repair Service	Contact original store for qualified service

Frequently Asked Questions - VE1455TT DCG

How do I assemble the fan?

Follow the assembly steps in the manual: attach the wheels to the base, install the fan body on the base, fasten the motor set, attach the rear grill, blade, front grill, and connect the mist tube. Ensure all parts are securely fixed.

How do I use the mist function?

Press the MIST button on the control panel to turn on the ultrasonic humidifier. Ensure the water tank is filled with water and properly installed. Press again to turn off.

How do I set the timer?

Press the TIMER button repeatedly to set the desired time in 1-hour increments up to 15 hours. The LED display will show the timer setting. After 5 seconds, the timer starts. The fan will turn off automatically when the timer expires.

How often should I clean the water tank?

Clean the water tank every two to three weeks. Also clean the flume (sink) every week to prevent mineral buildup and ensure proper mist function. Use a dry cloth or mild detergent if needed.

What does the ionizer do?

The ionizer helps purify the air by releasing negative ions. Press the ION button to turn it on or off. The fan must be operating for the ionizer to work.

What are the different wind modes?

The fan has three modes: Normal (constant speed), Natural Breeze (speed varies automatically to simulate a breeze), and Sleep (speed varies for quiet operation). Press the WIND button to cycle through modes.

Can I use this fan outdoors?

No, this fan is intended for indoor household use only. Do not use it outdoors, near water, or in damp environments to avoid electric shock or damage.

How do I change the fan speed?

Press the ON/SPEED button to start the fan at speed 1. Press again to cycle through speeds 2 and 3. The fan must be on to change speed. Use the WIND button to switch modes if desired.

What should I do if the fan does not start?

First, ensure the fan is plugged in and the outlet is working. Check that the unit is switched on by pressing the power button. If it still does not work, inspect the power cord and plug for damage. Do not attempt to repair yourself; contact a qualified electrician or the store for service.

How should I store the fan when not in use?

Turn off and unplug the fan. Clean the water tank and let it dry. Store the fan in a cool, dry place. Remove the water tank and mist tube if possible to prevent mold or damage.

USER MANUAL VE1455TT DCG

White outdoor water heater with a fan and coiled tube, displayed against a rural landscape background (no text or symbols visible)

VE1455TT VENTILATORE CON NEBULIZZATORE E TELECOMANDO MIST FAN WITH REMOTE CONTROL

CLIMA dcg16.it

CARATTERISTICHE TECNICHE: 220-240V\~ 50Hz 100W

PRIMA DI USARE L'APPARECCHIO, LEGGERE QUESTE ISTRUZIONI PER LA SICUREZZA. CONSERVARLE PER CONSULTAZIONI FUTURE.

ISTRUZIONI IMPORTANTI PER LA SICUREZZA

Montaggio:

Simple line drawing of a mechanical device with wheels and a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with wheels and an upward arrow indicator (no text or symbols)

Simple line drawing of a cylindrical container with an arrow indicating direction (no text or symbols)

Simple line drawing of a bottle with an arrow pointing upward, no text or symbols present

Simple line drawing of a mechanical component with a downward arrow and a numbered circle (6) in the corner, no text or symbols present.

FUNZIONAMENTO

Simple line drawing of a cylindrical object with a labeled dimension '4' (no text or symbols beyond the label)

MANUTENZIONE

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS APPLIANCE

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

Use this fan only as described in this manual. Other use not recommended may cause fire, electric shock or injury to persons.

This product is intended for household use ONLY and not for commercial, industrial or outdoor use.

To protect against electric shock: do not place fan on windowsills, immerse unit, plug or cord in water or spray with liquids.

To reduce the risk of shock, this plug is intended to fit the outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Turn the fan OFF and unplug the fan from the outlet when not in use, when moving the fan from one location to another and before cleaning. To disconnect the fan, first turn the unit OFF, grip the plug and pull it from the wall outlet. Never pull the plug by the cord. Do not operate the fan in the presence of explosive and/or flammable fumes.

Do not place the fan or any parts near an open flame, cooking or other heating appliance.

Do not operate fan with a damaged cord or plug, or if the product malfunctions, or dropped and damaged in any manner.

Avoid contact with moving fan parts.

The use of attachments not recommended by the manufacturer may be hazardous.

Place the fan on a dry level surface.

Do not hang or mount fan on a wall or ceiling.

Do not operate if the fan housing is damaged.

A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

Only use on a power supply that matches that shown on the unit's rating label.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

MAIN TECHNICAL DATA

TECHNICAL CHARACTERISTICS

Model No.: VE1455TT

Rated Voltage: 220V - 240V\~

Rated Frequency: 50Hz

Power Input: 100 W

Max Mist Capacity: 200 ml / hr

Blade Size: 400 mm

Water Tank Capacity: 4000 ml

PARTS IDENTIFICATION / ASSEMBLY

1) Parts Identification

INDEX PART NAME INDEX PART NAME

[1]: Grill ring [7]: Fixation screw
[2]: Fan grill [8]: Fan body
[3]: Motor housing [9]: Water tank cover
[4]: Mist outlet dish [10]: Transparent window
[5]: Mist tube [11]: Base
[6]: Display panel [12]: Wheel(s)

2) Fan assembly

INDEX PART NAME INDEX PART NAME

[1]: Mist outlet dish [8]: Fixation screw
[2]: Front fan grill [9]: Fan body
[3]: Blade cap [10]: Base
[4]: Fan blade [11]: Wheel(s)
[5]: Grill mounting nut [12]: Base nut
[6]: Rear fan grill [13]: Mist tube
[7]: Motor set [15]:

How To Assemble:

1) Fix the four wheels [11] in the base [10].
2) Install fan body [9] on the base [10], and fasten the base nut [12].
3) Fasten the motor set [7] with the fixation screw [8]
4) Put the rear fan grill [6] on motor set [7], and fasten grill mounting nut [5].
4) Install the blade [4] on motor shaft, then counterclockwisely fasten blade cap [3].
5) Make the front fan grill [2] face to face rear fan grill [6], and clip it properly.
7) Connect the mist tube [13] with mist outlet dish [1] and the fan body [9].

3) Tank assembly

1. Open the water tank cover
2. Lift the water tank evenly.
3. Take out the water tank evenly.

1. Allow the tank to stand in the correct position.

2. Open the tank cover and input water.

3. Install the water tank cover tightly and re-install it to the fan and close the panel.

OPERATION

• Please ensure the unit is in the (OFF) position before plugging into the power socket.
• Place the unit on a firm level surface.
• Avoid overloading the circuit by not plugging other high wattage products into the same power socket.

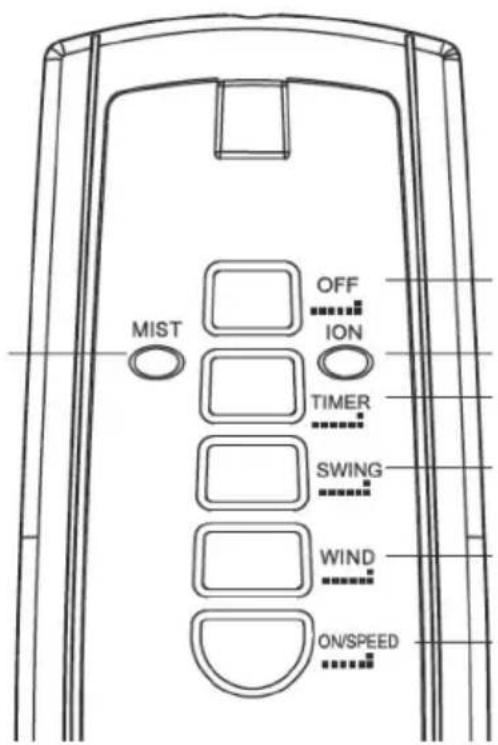

Display screen & Control panel

OFF: Press this button to turn off the fan

TIMER: When the unit is in use, you can set the Timer to turn off the fan after the specified time. Press this button repeatedly to increase the Timer setting in 1 hour increments (up to a maximum of 15 hours) as indicated on the LED Display. After 5 seconds, the Timer starts. Once the Timer has run out, the unit will turn off.

ION: Press this button to turn the lonizer feature on/off (the fan must be operating for lonizing to work).

When the ionizer is turned on, it will assist in the purification of the room air.

MIST: Press this button to turn on/off the ultrasonic humidifier.

SWING: Press to start/stop Fan Oscillation.

WIND: Press to select Normal Mode, Natural Breeze Mode or Sleep Mode (as indicated on the LED Display).

NORMAL Mode: Fan operates at the speed selected with "ON/SPEED/OFF" button.

NATURAL BREEZE Mode: Fan speed varies automatically to simulate a breeze*.

SLEEP Mode: Fan speed varies automatically for use during sleep*.

ON/SPEED: Press this button to start the fan at 1 Speed, in Normal

Mode. Press again to switch the fan speed from 1-2-3.

CLEANING AND STORAGE

Before cleaning, turn the unit off, unplug from the power supply and wait for the unit to cool down.

To clean the unit use a soft cloth to wipe off any dust.

Please clean the water tank every two or three weeks, and clean the flume every week.

Please take out water tank when cleaning it, and pull the plastic tube out of the mist properly. Then slowly remove the mist machine and water tank..

Use dry cloth to clean the mist machine or use mild detergent to clean the mist machine if it has mineral water residue.

Keep the unit in a cool and dry place when not to be used for a long time.

INDEX PART NAME INDEX PART NAME

[1]: Plastic tube [4]: Water tank

[2]: Sink [5]: Atomizing cup

[3]: Overflow gap

MAINTAINENCE

Have your product repaired by a qualified person

This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

Please contact the store which you bought the product for after sale services if any.
